Office - 2026

Why Chameleon?

Chameleon available in pCon

Chameleon ProTips

Why Chameleon?

You don’t choose a Chameleon product just for its high-quality design and proven reliability. You also choose a partner who thinks along with you, responds quickly, and works together to build sustainable solutions. What makes Chameleon unique?

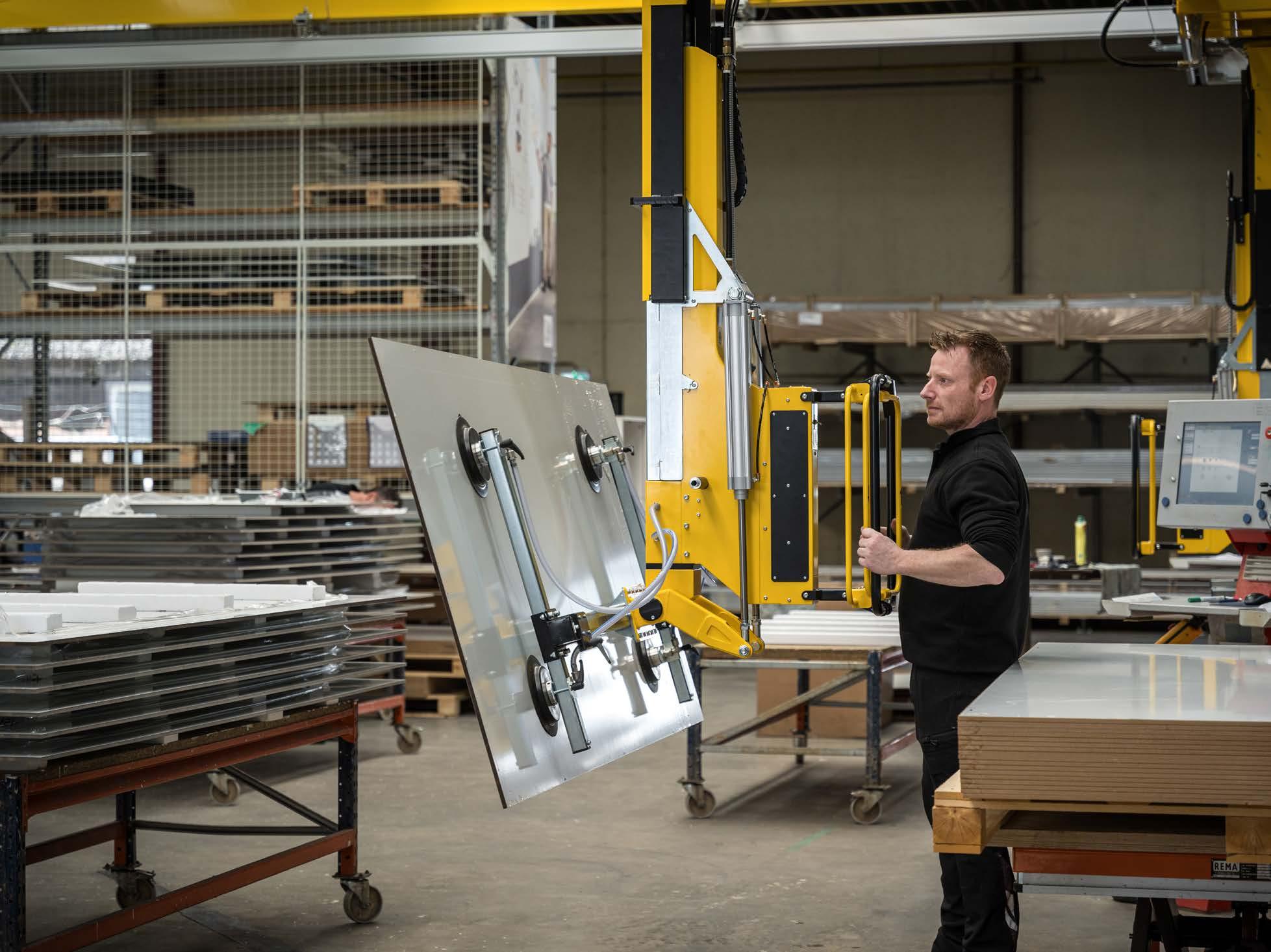

Local production, visible craftmanship

All Chameleon products are manufactured in-house, in our modern production facilities in Geldrop, near Eindhoven. Here, we combine craftsmanship with technology, with care for people and the environment. We warmly invite customers and partners to see firsthand how we ensure quality, sustainability, and transparency.

Flexibility is in our DNA

Whether it concerns customisation, a quick adjustment in scheduling, or specific project requirements, we respond swiftly. Our family business is set up to be customer-focused and agile, without compromising on quality or service.

Sustainability

As a brand of Smit Visual, we take our responsibility for people and the planet seriously. We continuously work on making our processes, materials, and products more sustainable. For example, we use FSC-certified wood and hold ISO 14001 and Ecovadis Gold certifications. Sustainability is not a project, but an attitude embedded in our daily work.

Built for the future

Our products are made to last. That’s why we offer a lifetime warranty on the ceramic steel writing surface. A long lifespan means less waste, fewer replacements, and therefore a smaller ecological footprint.

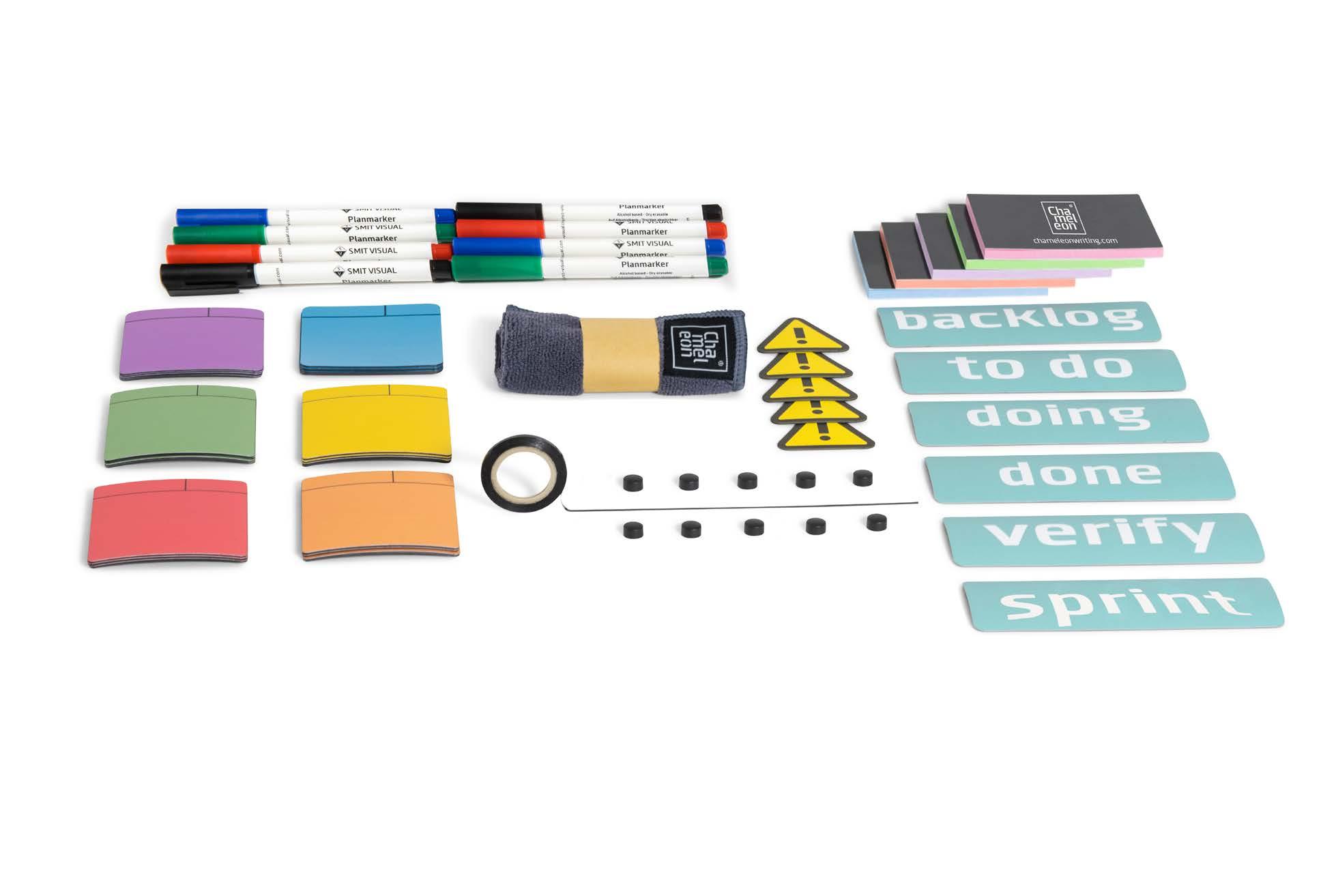

1. Writing

Chameleon whiteboards are delivered with the TÜV certified Chameleon magnetic mounting system. Magnetic mounting is very easy, and we supply a specified assembly drawing with each custom Chameleon whiteboard wall we sell.

Whiteboard Chameleon quality

Chameleon whiteboard surfaces Elements

Glassboard

Elements

Chameleon glassboard oppervlakken

1.10 Sharp Glassboard

Walls 1.11 Sharp Glass Wall

Chameleon quality

The core of the Chameleon range is formed by the whiteboard. A Chameleon whiteboard can be recognized for its quality, which is visible in four ways:

1. Sturdiness:

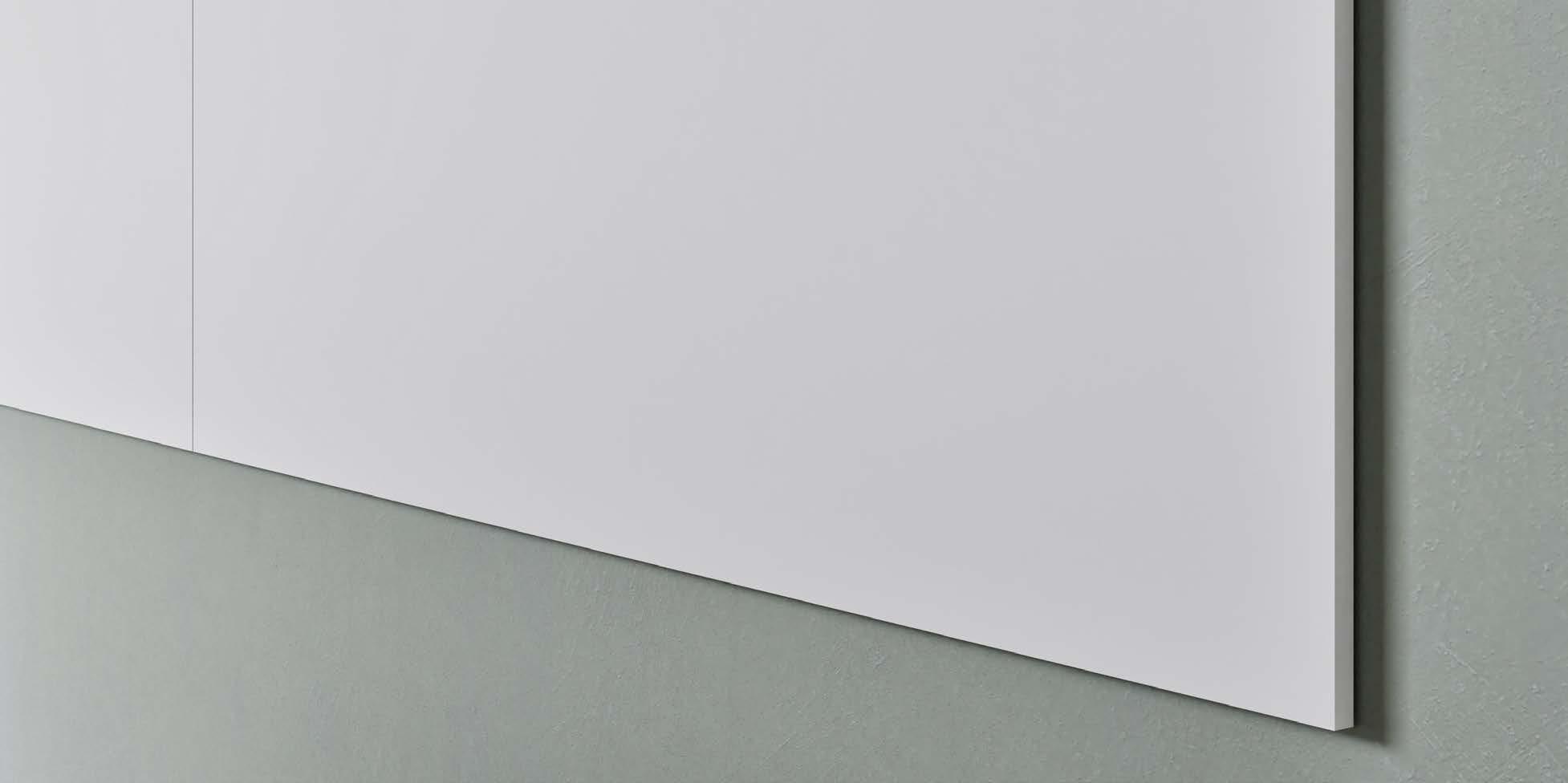

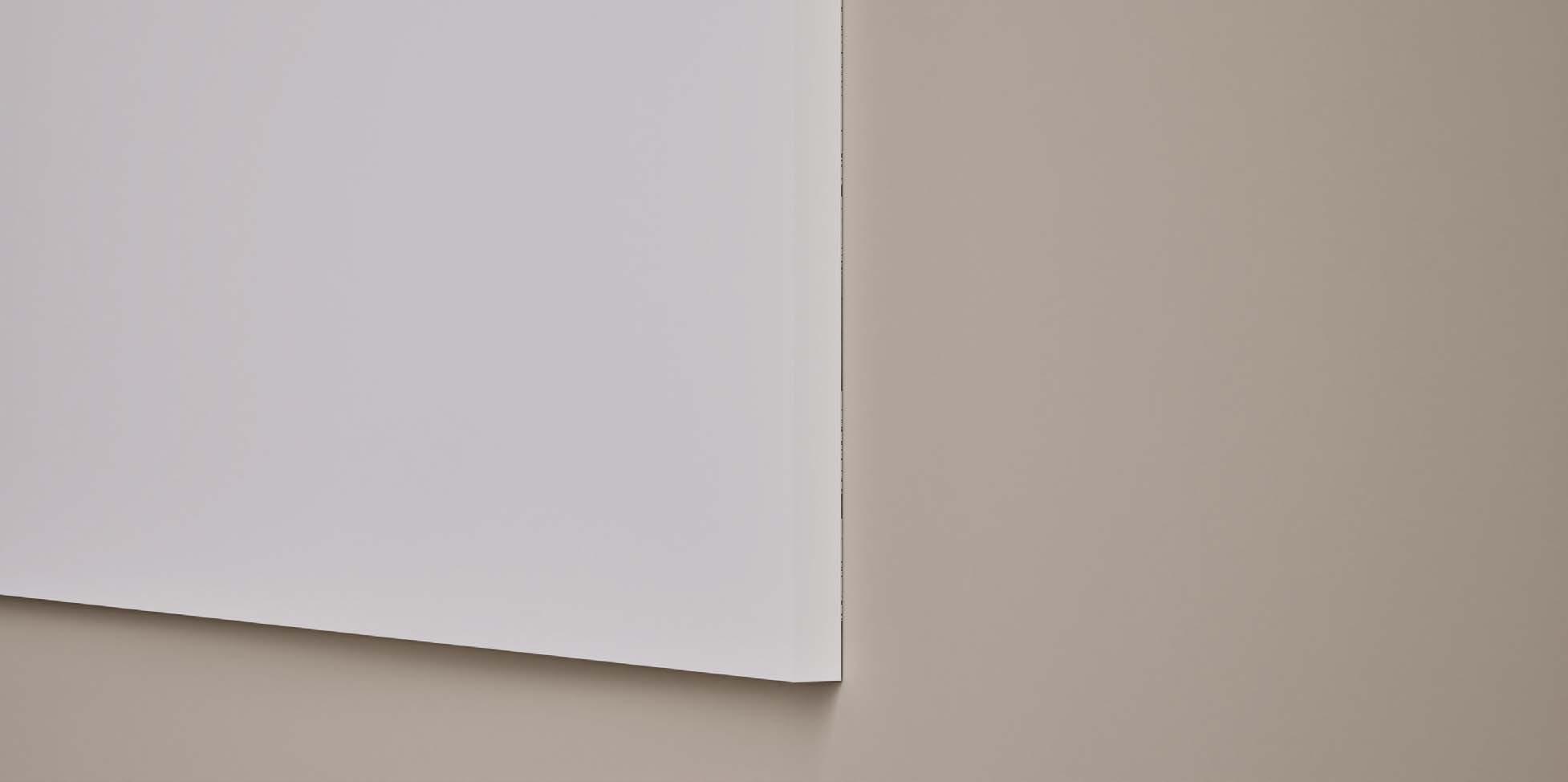

Chameleon whiteboards are 10 mm thick with a robust, water-repellent MDF core (FSC-certified, see sustainability).

2. Surface:

Chameleon whiteboards feature high-quality magnetic ceramic steel, recognizable by a smooth surface without imperfections. We offer a lifetime warranty on writing and erasing on all ceramic steel surfaces. Below is an overview of our ceramic steel surface options.

3. Finishing:

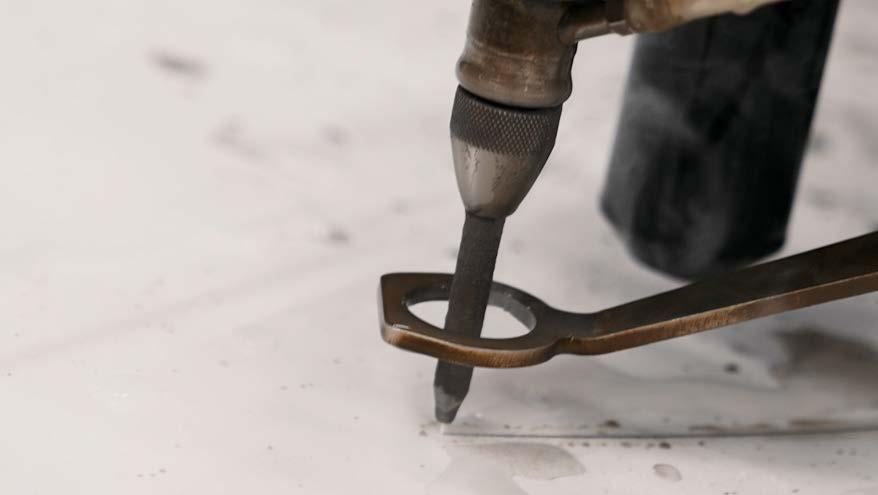

Chameleon whiteboards are machine-cut and then hand-finished. We pay great attention to the finishing process.

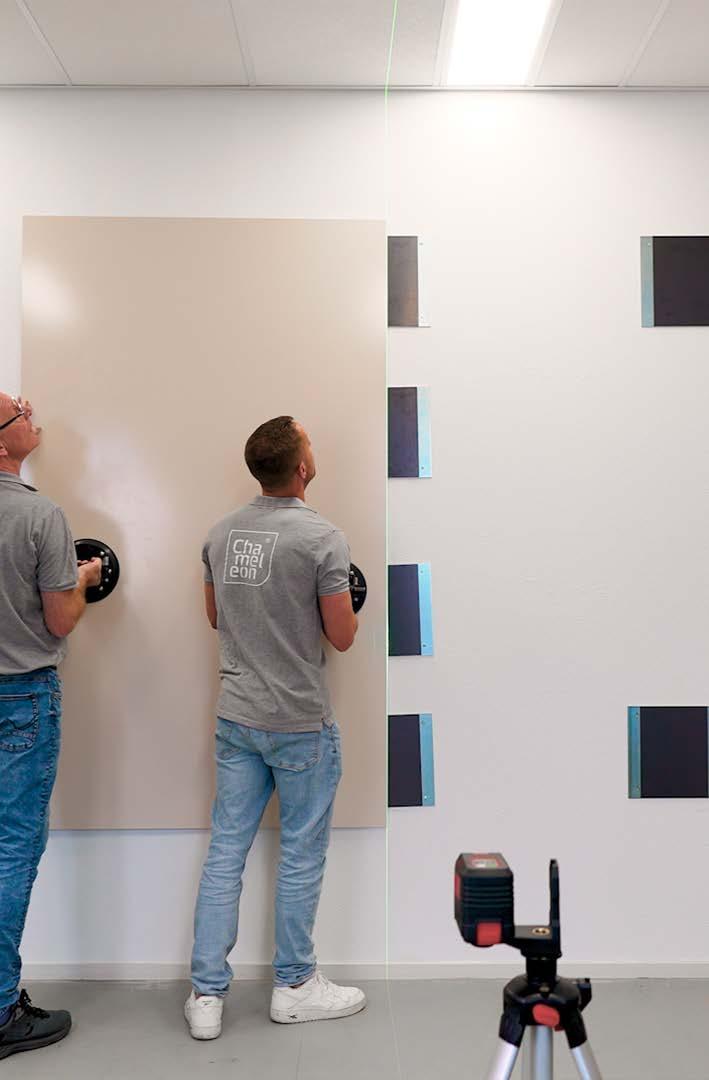

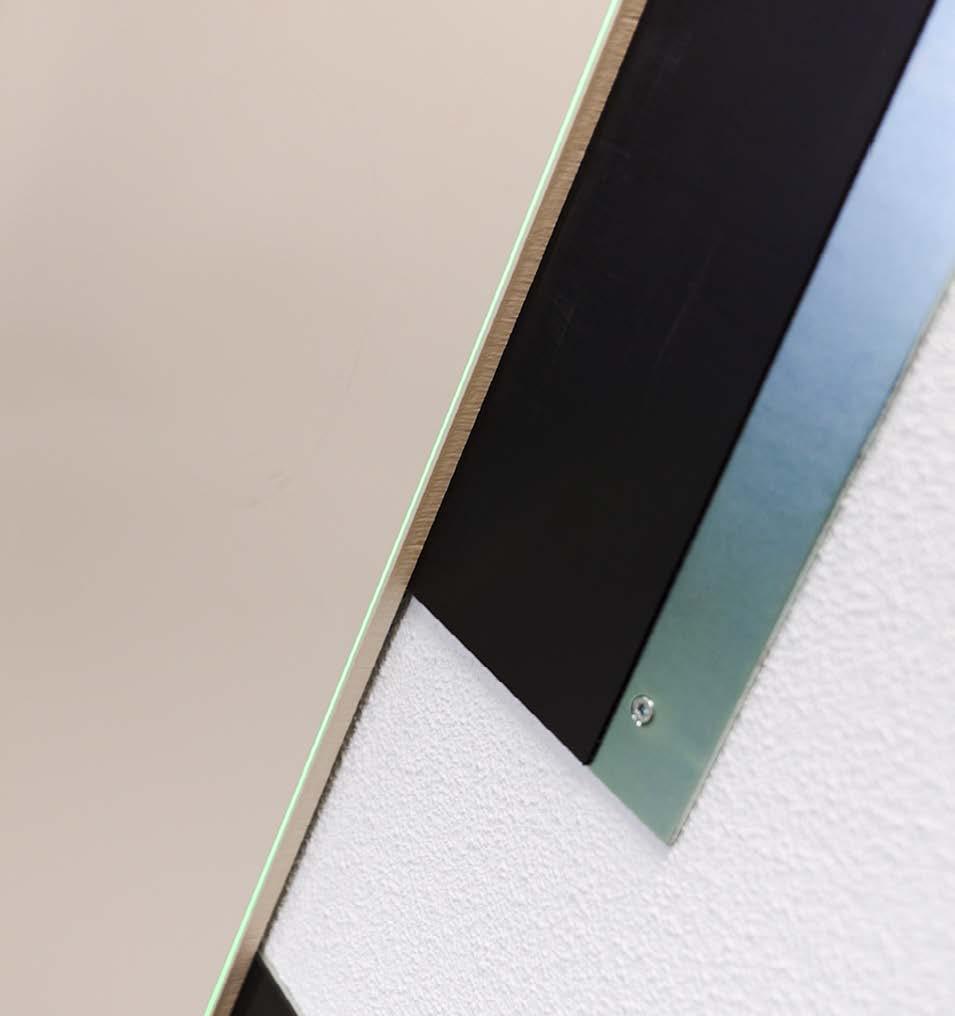

4. Mounting:

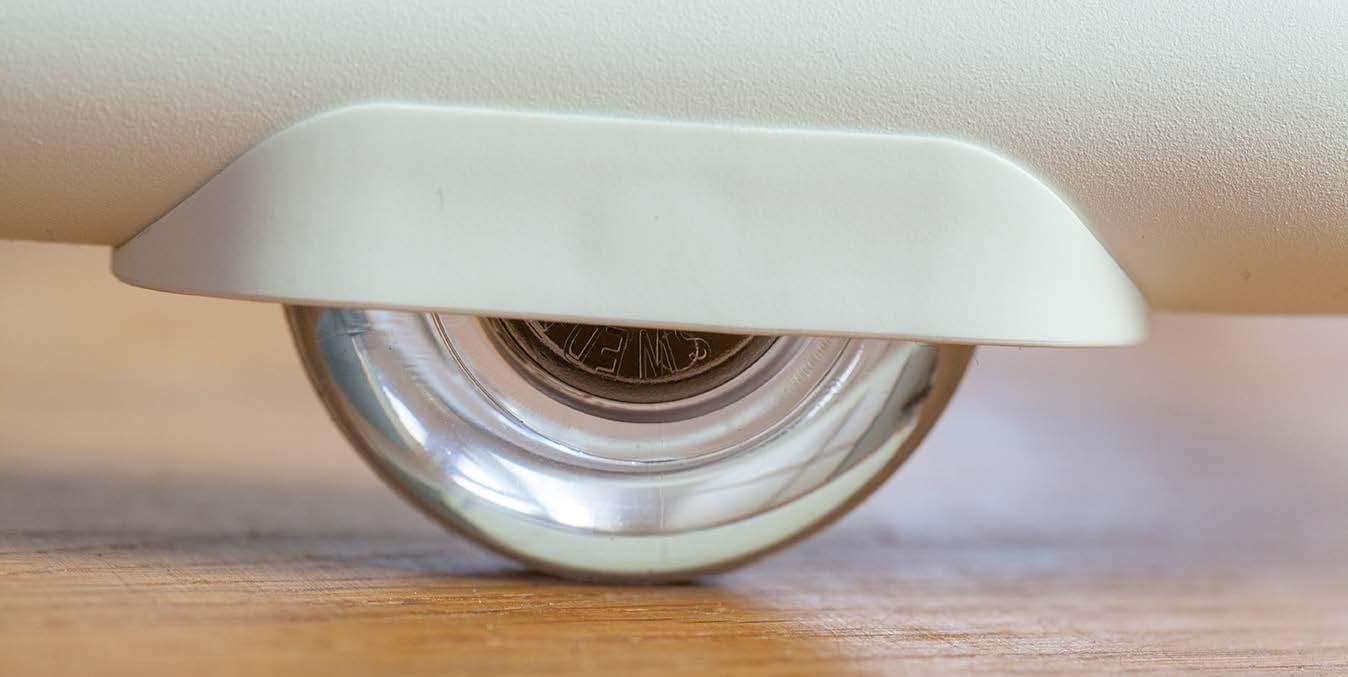

Chameleon uses a unique TÜV-certified mounting system that works with magnetic plates.

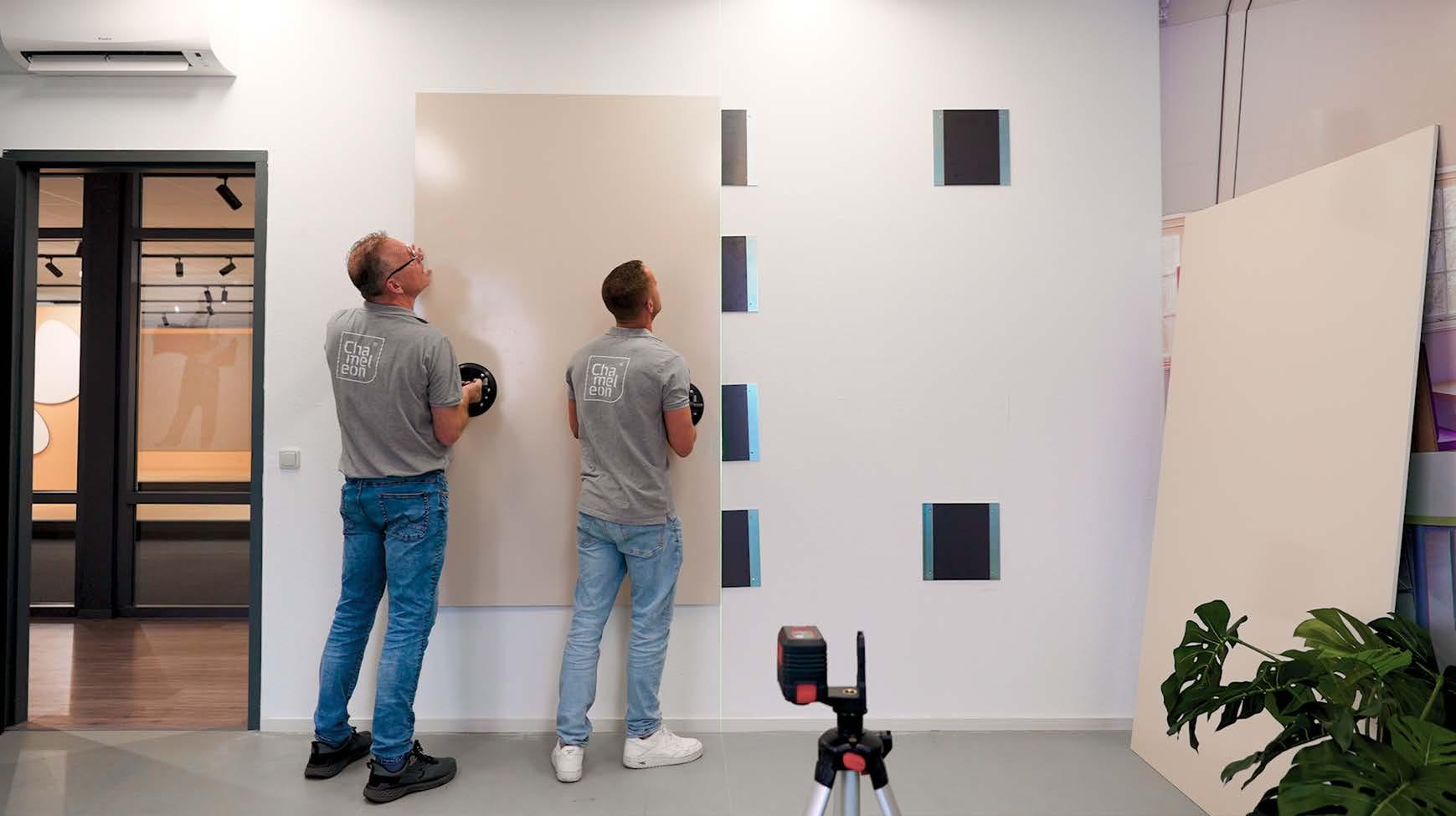

Mounting video

Montage: magnetique | High Gloss - HG100

Chameleon whiteboard oppervlakken

What is Ceramic steel?

All Chameleon surfaces on this page feature a ceramic steel top layer, which is Cradle to Cradle Bronze certified. This enamel coating is comparable to glass in terms of hardness and smoothness, just as scratch-resistant and with the same long lifespan. Chameleon offers the following ceramic steel surfaces:

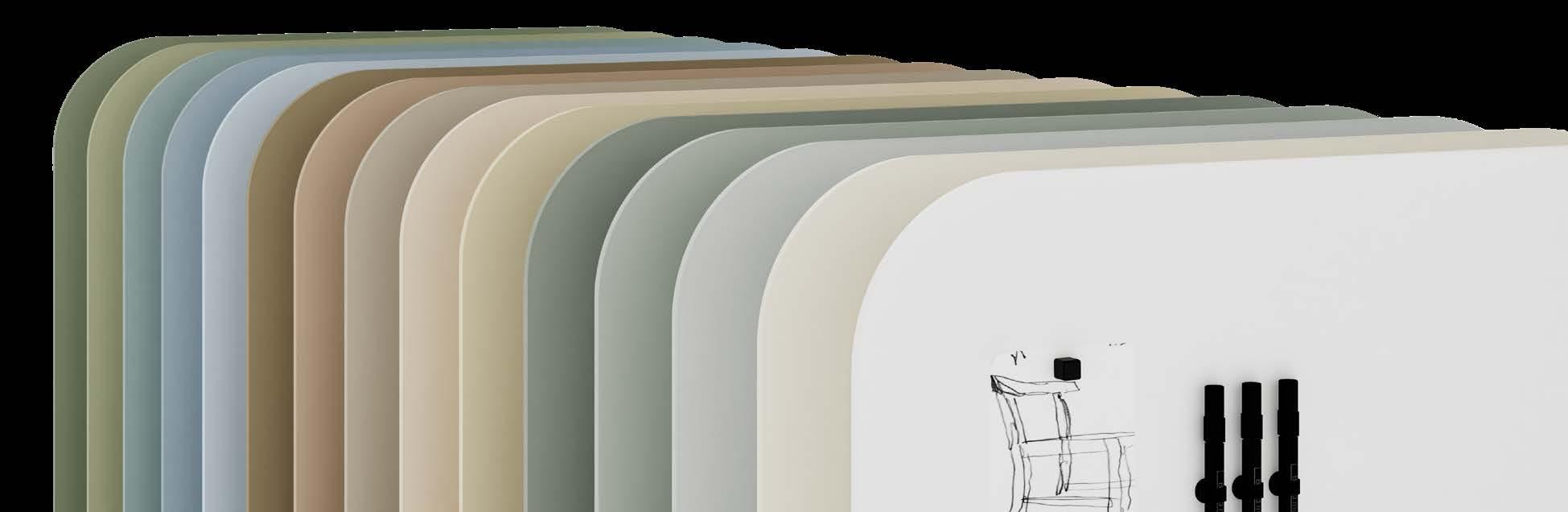

SatinTones

SatinTones is a ceramic steel surface with a matte finish. The surface has a calming appearance and is perfectly readable from every viewing angle. In addition, this surface is available in 6 subtle colour tones. SatinTones is a great alternative to glass whiteboards.

 Application: Whiteboard with a low-gloss surface. S200 (Low Gloss) is also suitable for projection

 Writing / erasing: Whiteboard markers / dry erase

 Panel edge colour: Same colour as the surface

 Maximum panel size: 1180×2980 mm / 1480x2980 mm (only S200)

S200 Satin Snow

S204 Satin Almond

S201 Satin Stone

S205 Satin Blossom

S202 Satin Aqua

S206 Satin Ivory

S203 Satin Leaf

S207 Satin Meadow

S208 Satin Heron

S212 Satin Sky

S209 Satin Sandstone

S213 Satin Lagoon

S210 Satin Dune

S214 Satin Sage

S211 Satin Caramel

High Gloss

This surface has a high gloss level, though not as high as glass whiteboards. The advantage of the glossy finish is that markings are perfectly visible on it. This makes it ideal for presentations and situations where the content needs to be read from a distance, such as in schools.

 Application: Whiteboard surface with a high gloss level

 Writing / erasing: Whiteboard markers / dry erase

 Panel edge colour: White (black on Curve, Round, Pebbles and Curve Wall)

 Maximum panel size: 1180×2980 mm / 1480×2980 mm

Projection

This ultra-matte surface shows no reflections at all. As a result, projection on this board delivers the best possible image quality from projectors. The board is writable, but less easy to erase than other surfaces. When using whiteboard spray during erasing, the board can be cleaned properly.

 Application: Extremely matte surface, highly suitable for projection

 Writing / erasing: Whiteboard markers / wet erase

 Panel edge colour: White

 Maximum panel size: 1180×2980 mm / 1480×2980 mm

Chalk

Choosing a chalkboard comes with specific reasons. The most important is that chalk allows you to add nuances by pressing harder or softer. The Chameleon chalkboard surface is made, just like the whiteboard surfaces, from ceramic steel. As a result, Chameleon chalkboards are perfectly erasable for life. The matte surfaces are available in green and grey.

 Application: Colourfast, wear-resistant, and soft, even colour distribution

 Writing / erasing: Chalk / dry erasing

 Panel edge colour: Black

 Maximum panel size: 1180 × 2980 mm / 1480 × 2980 mm (C301 only)

C301 Chalk Canopy

C300

Chalk Graphite

1.1 Sharp

Writing / Whiteboards / Elements / Sharp

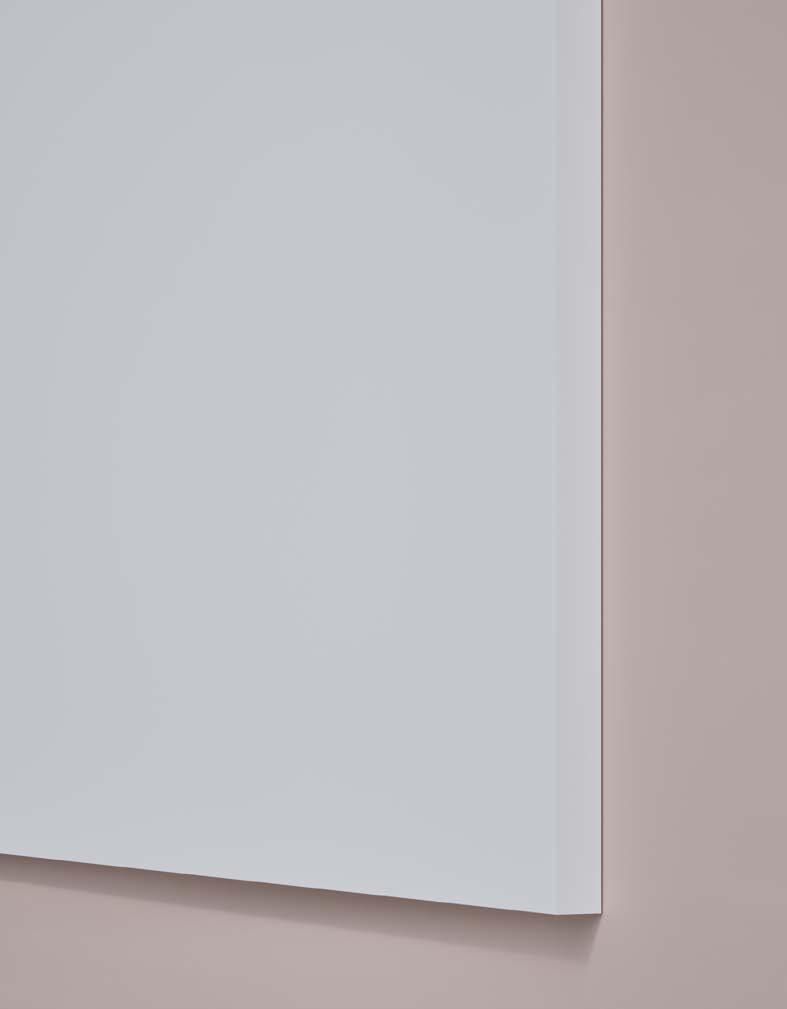

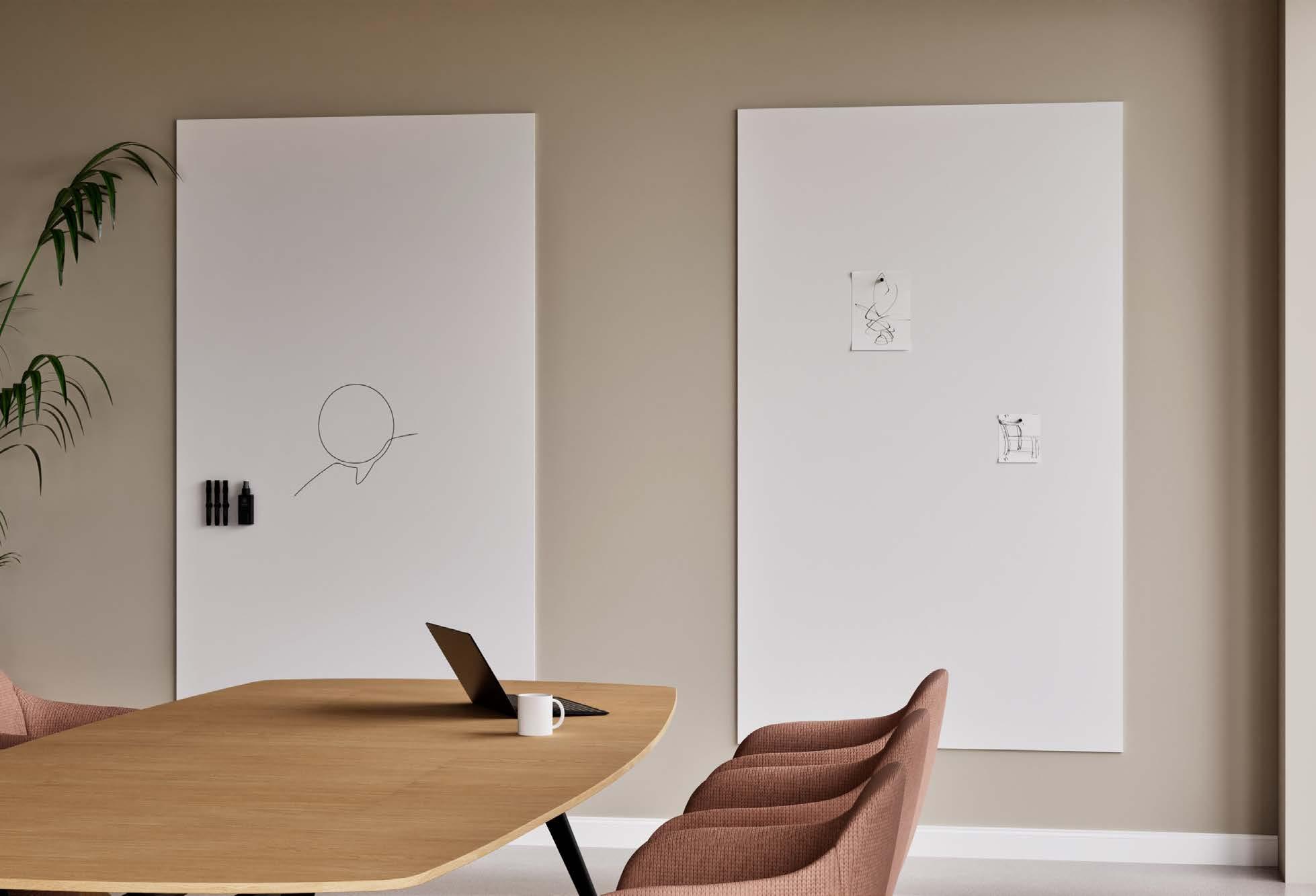

Simple and minimalist, that’s the power of Sharp. This whiteboard comes in its most basic form: straightforward, without a frame, and white on all visible sides. The rectangular whiteboard is available in 11 different sizes and can be hung both horizontally and vertically.

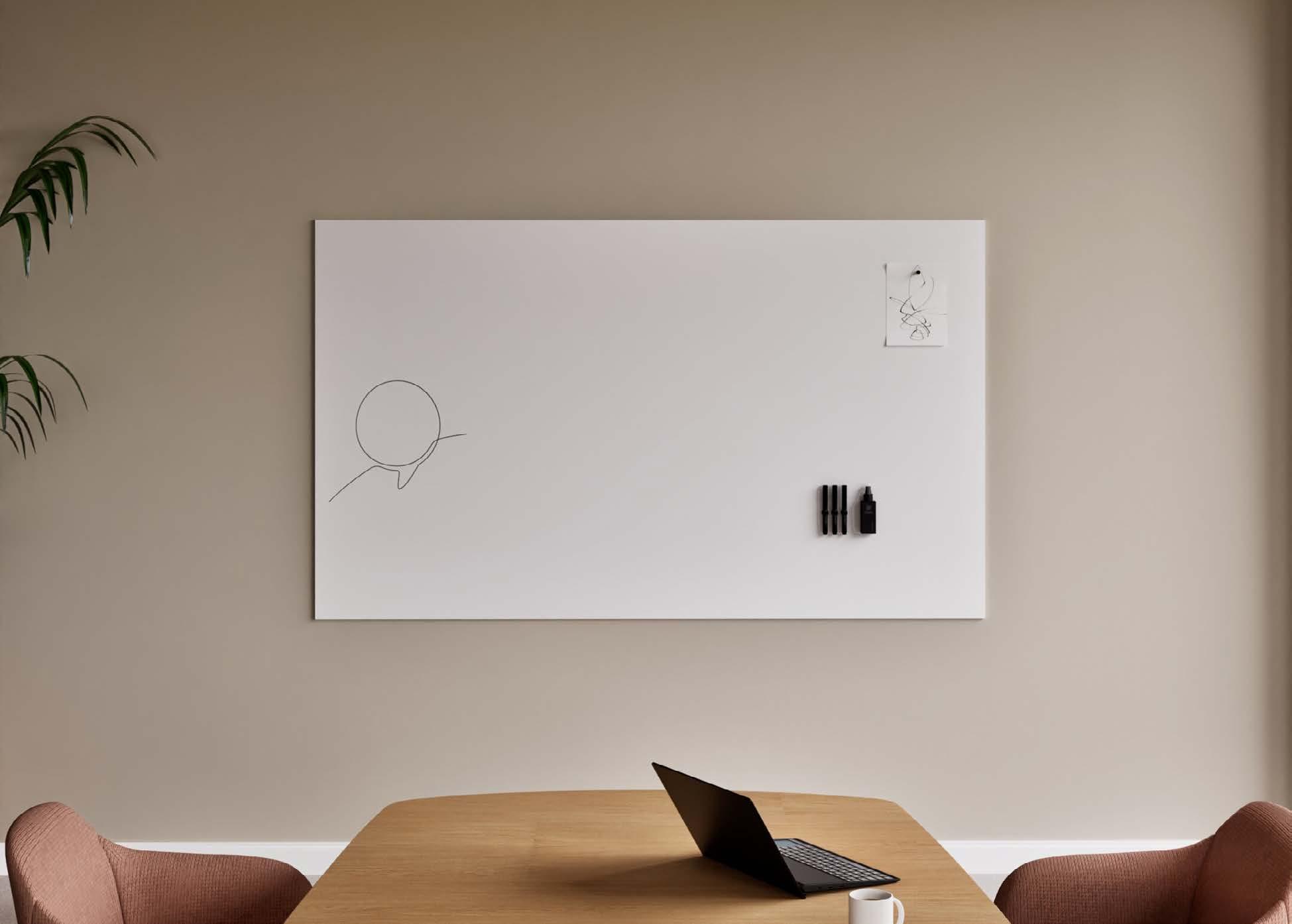

Mounting: magentic | Satin Snow - S200

Surfaces

* Oversized goods; for conditions, see additional delivery and sales conditions.

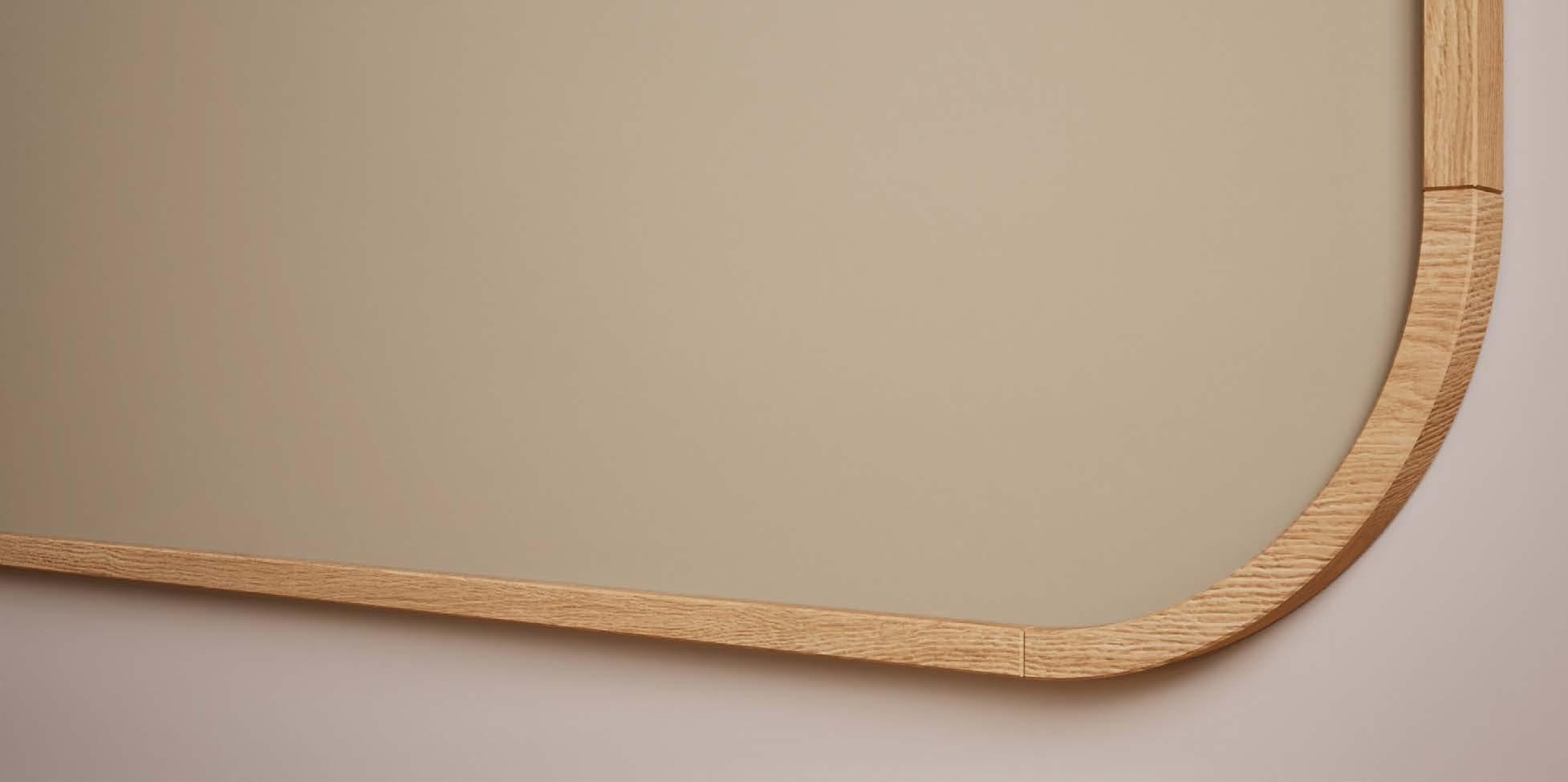

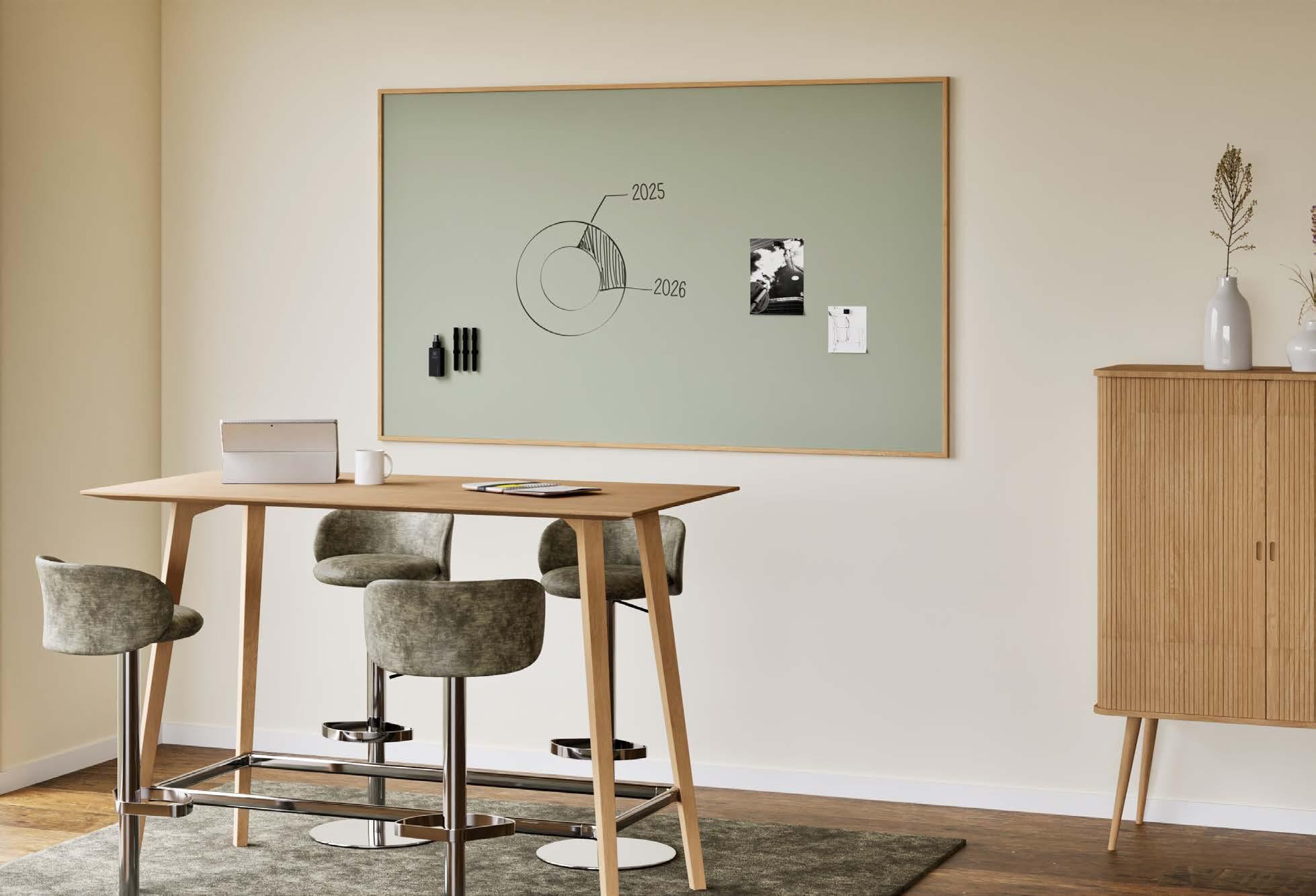

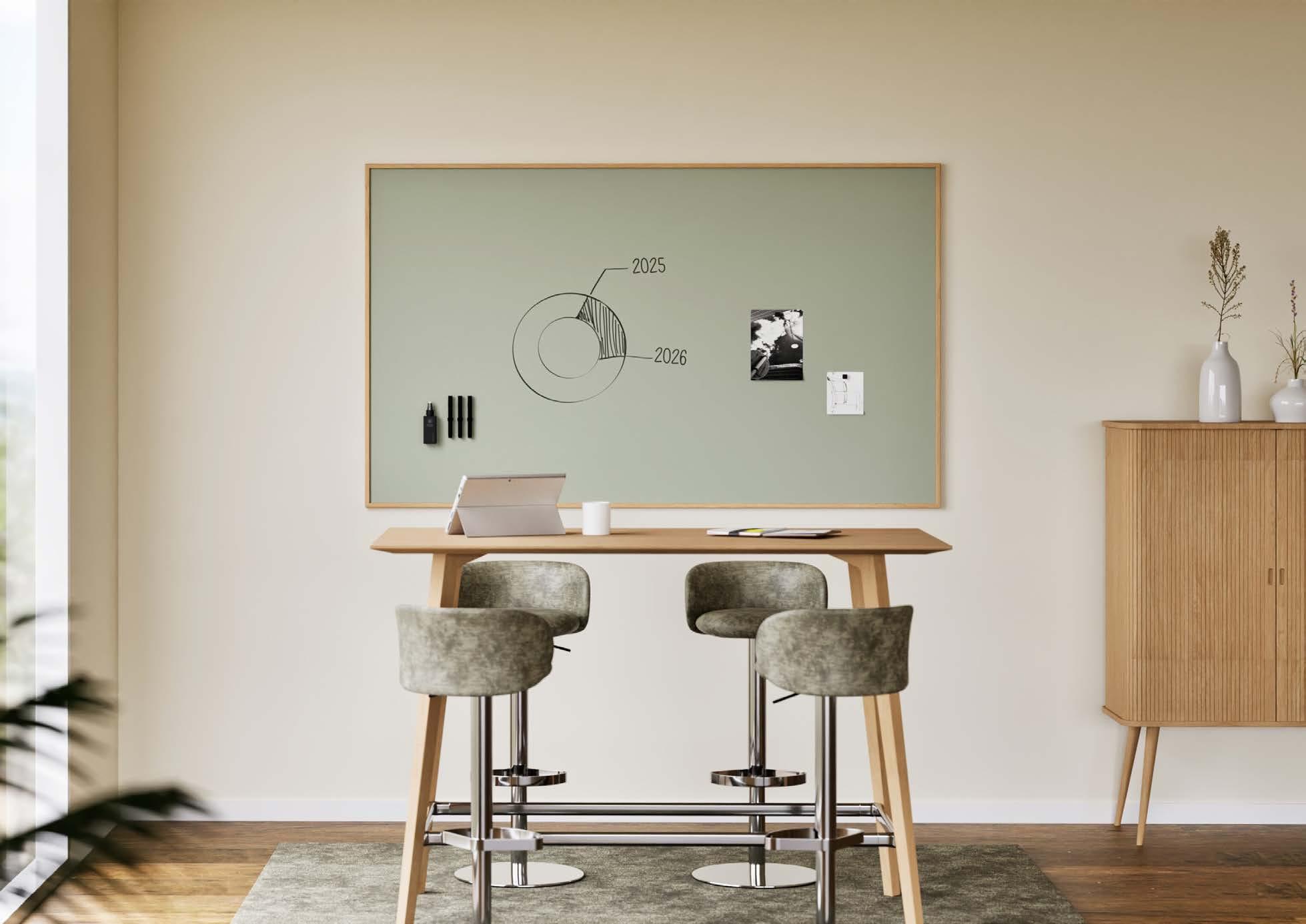

1.2 Sharp Oak

Writing / Whiteboards / Elements / Sharp Oak

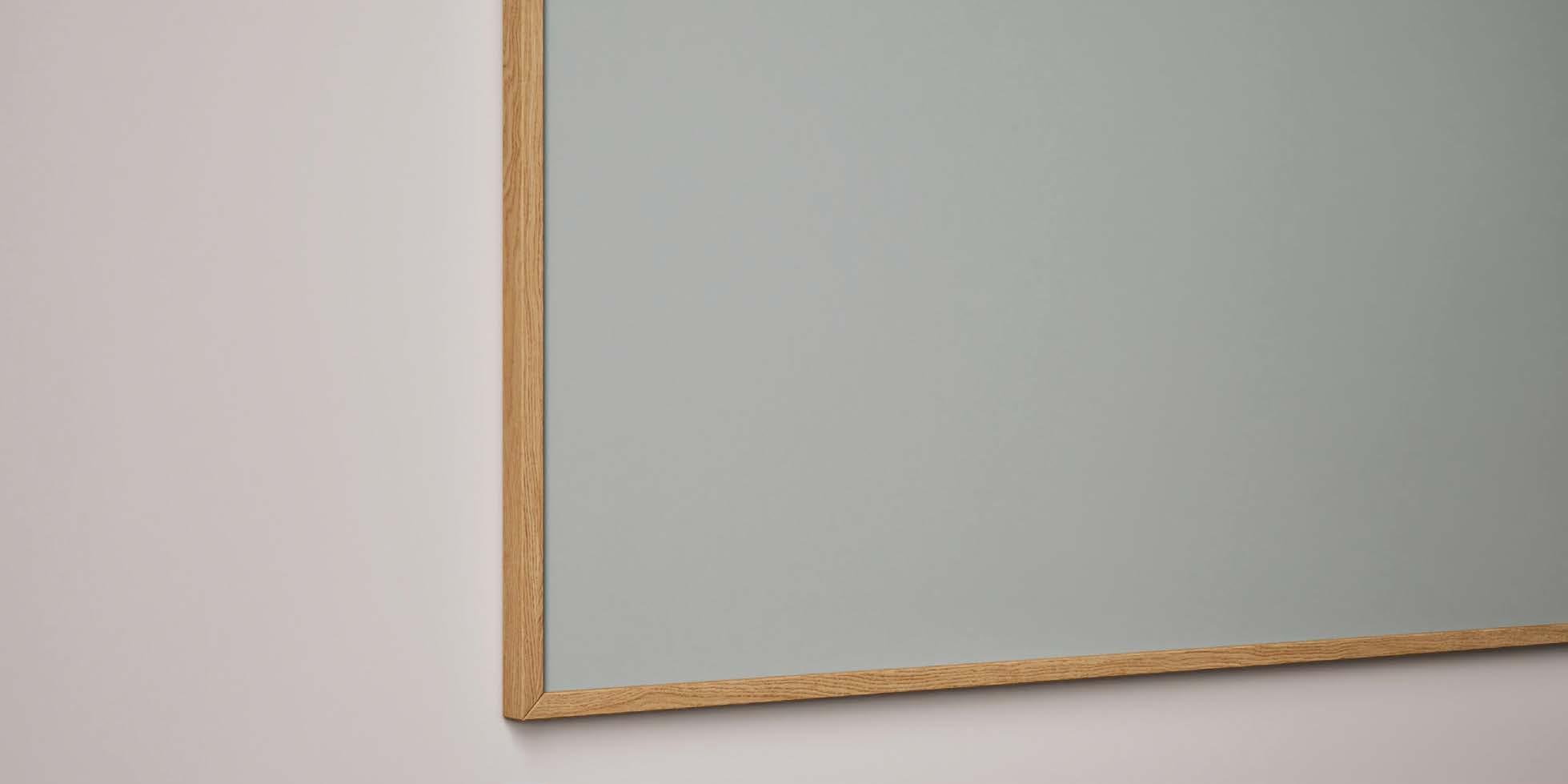

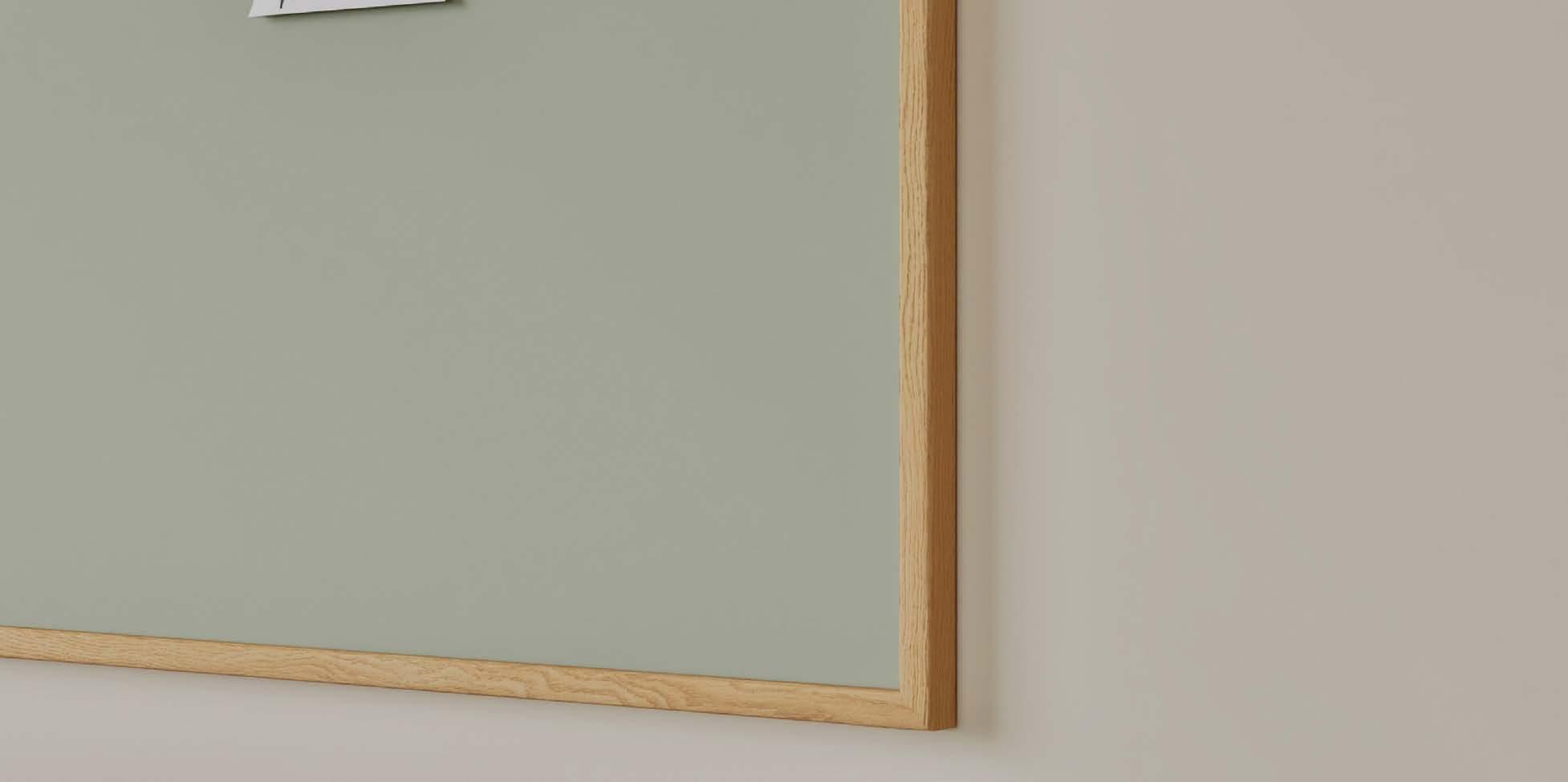

The Chameleon Sharp Oak is a whiteboard with a sleek silhouette and a natural look. The lacquered solid oak frame accentuates the graphic lines of the design and creates a stylish contrast with the ceramic steel writing surface.

Mounting: magnetic | Satin Sage - S214

Surfaces

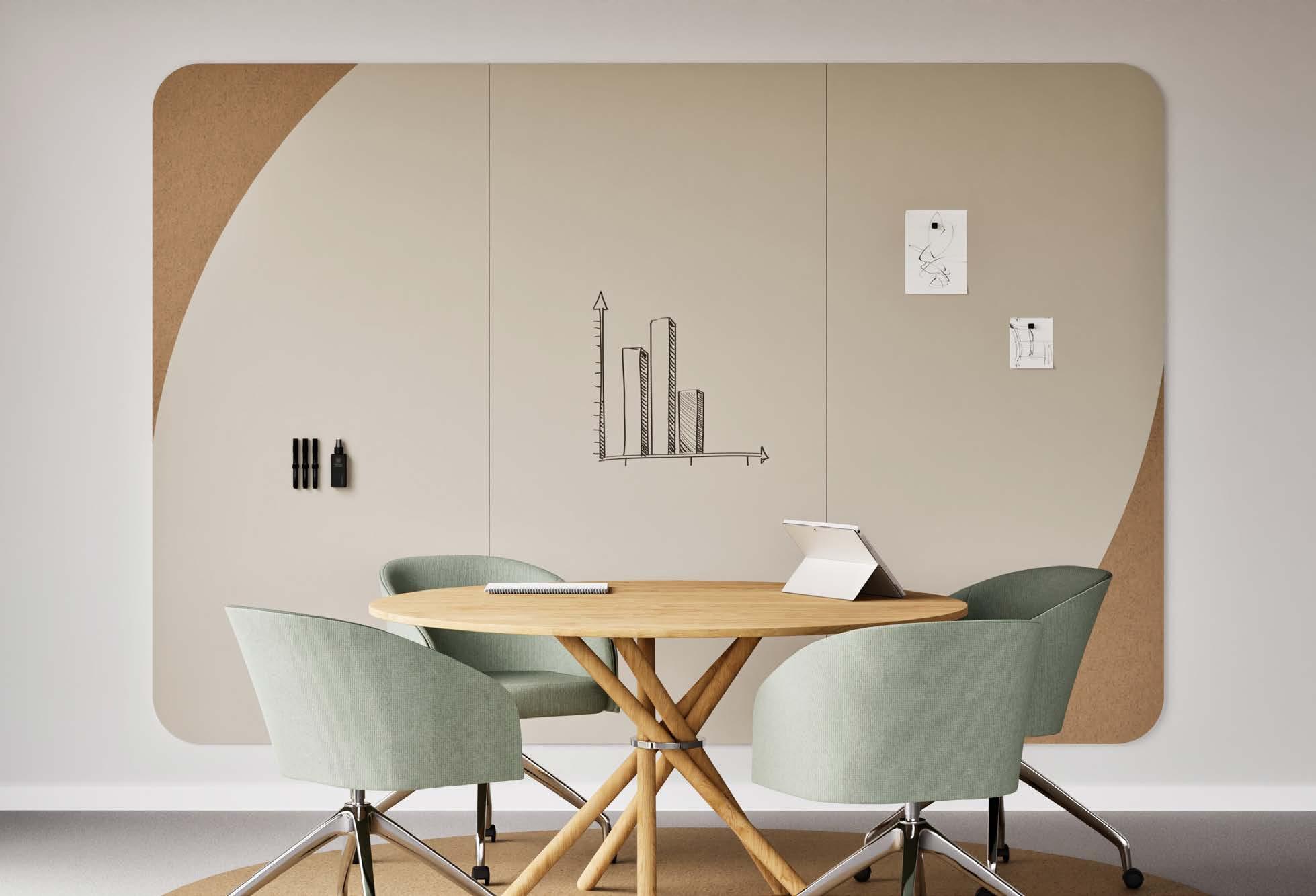

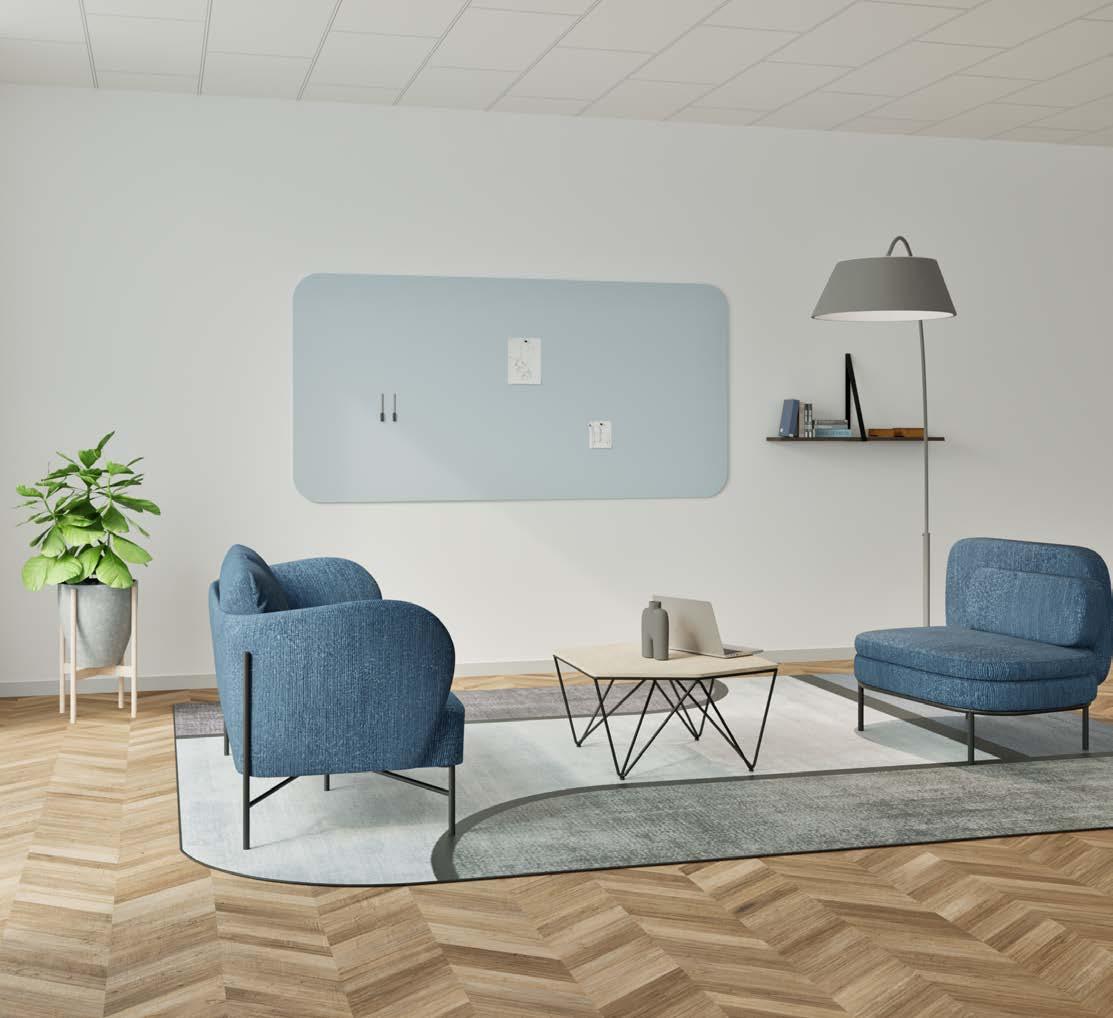

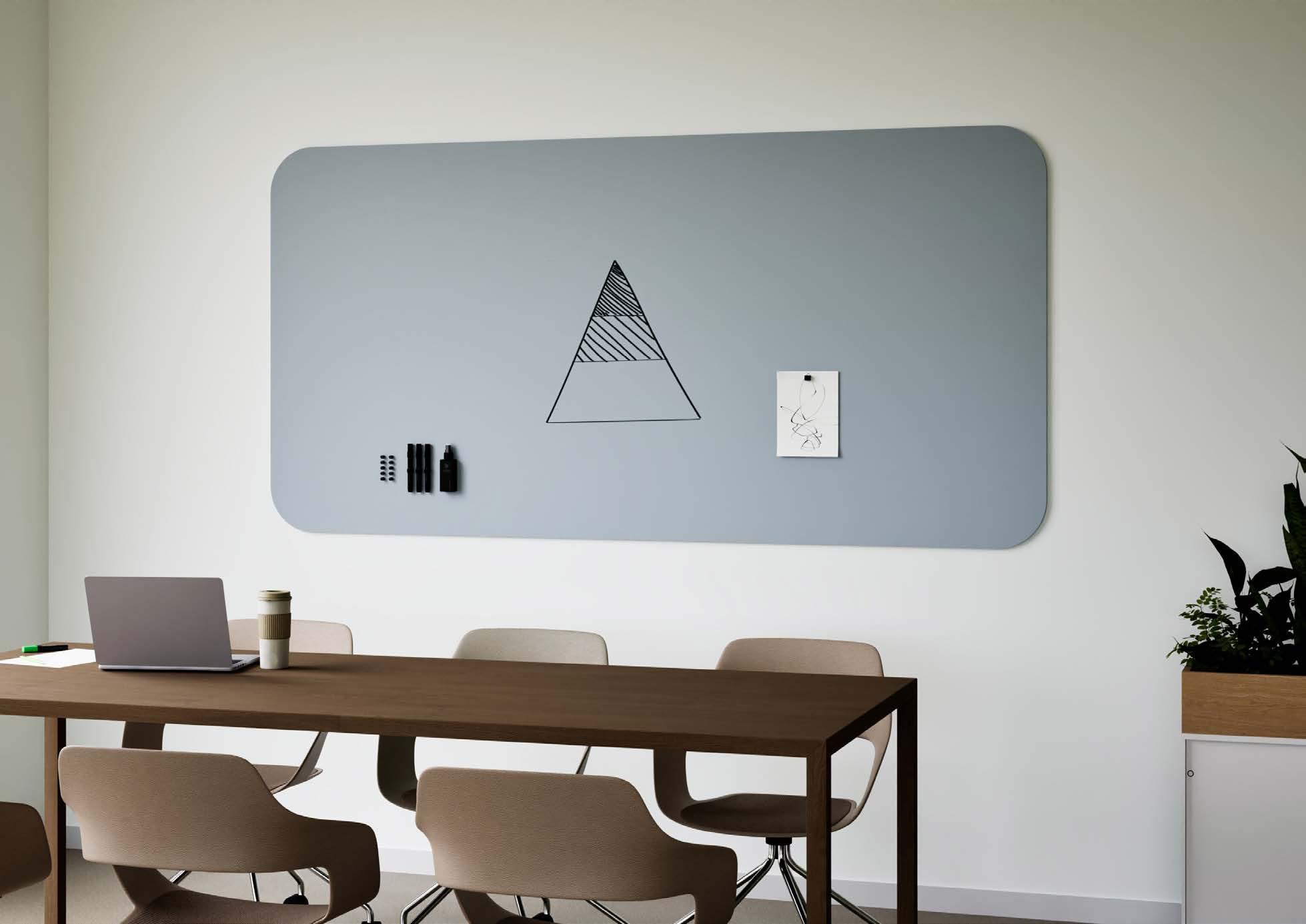

1.3 Curve

Writing / Whiteboards / Elements / Curve

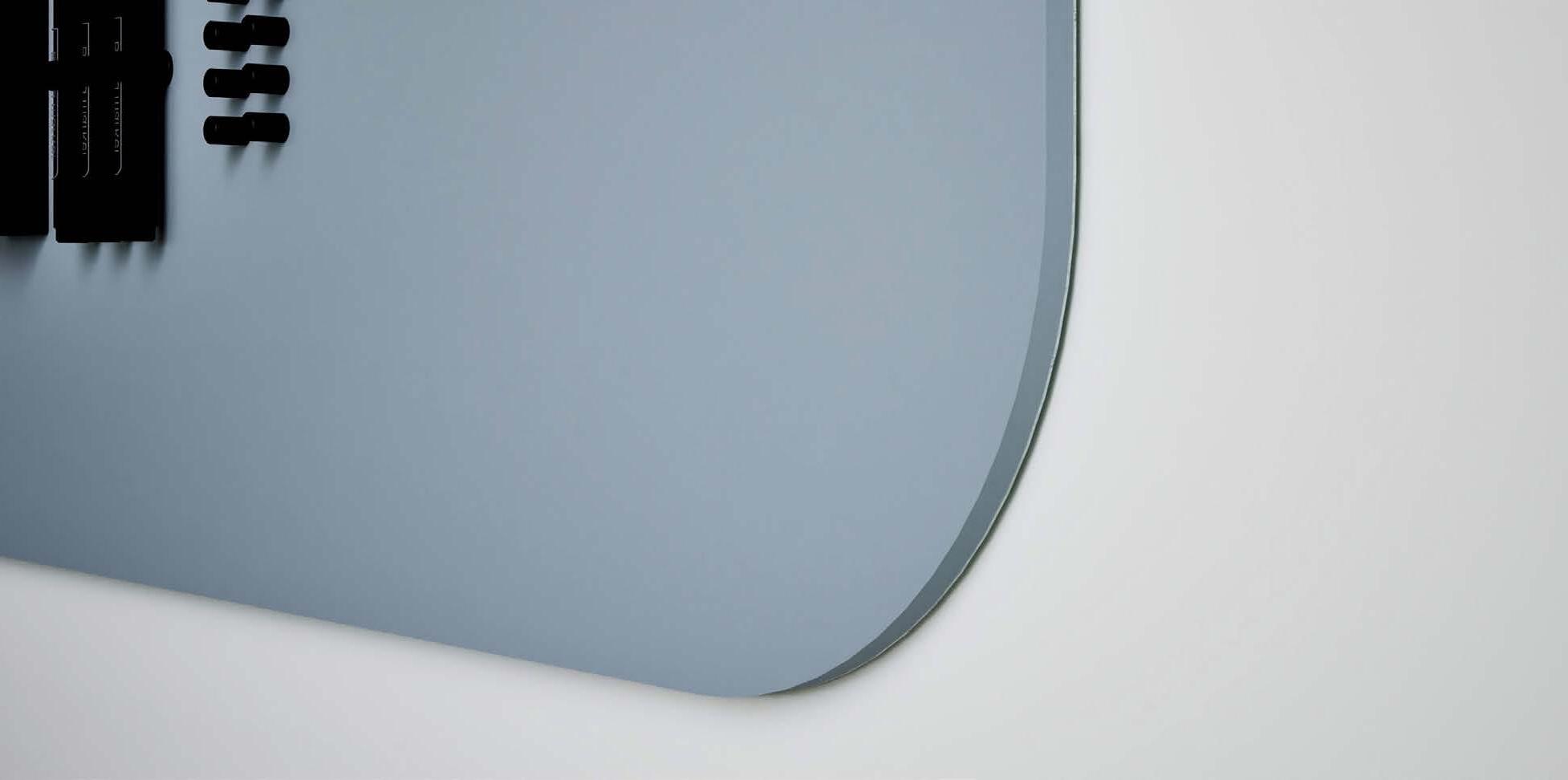

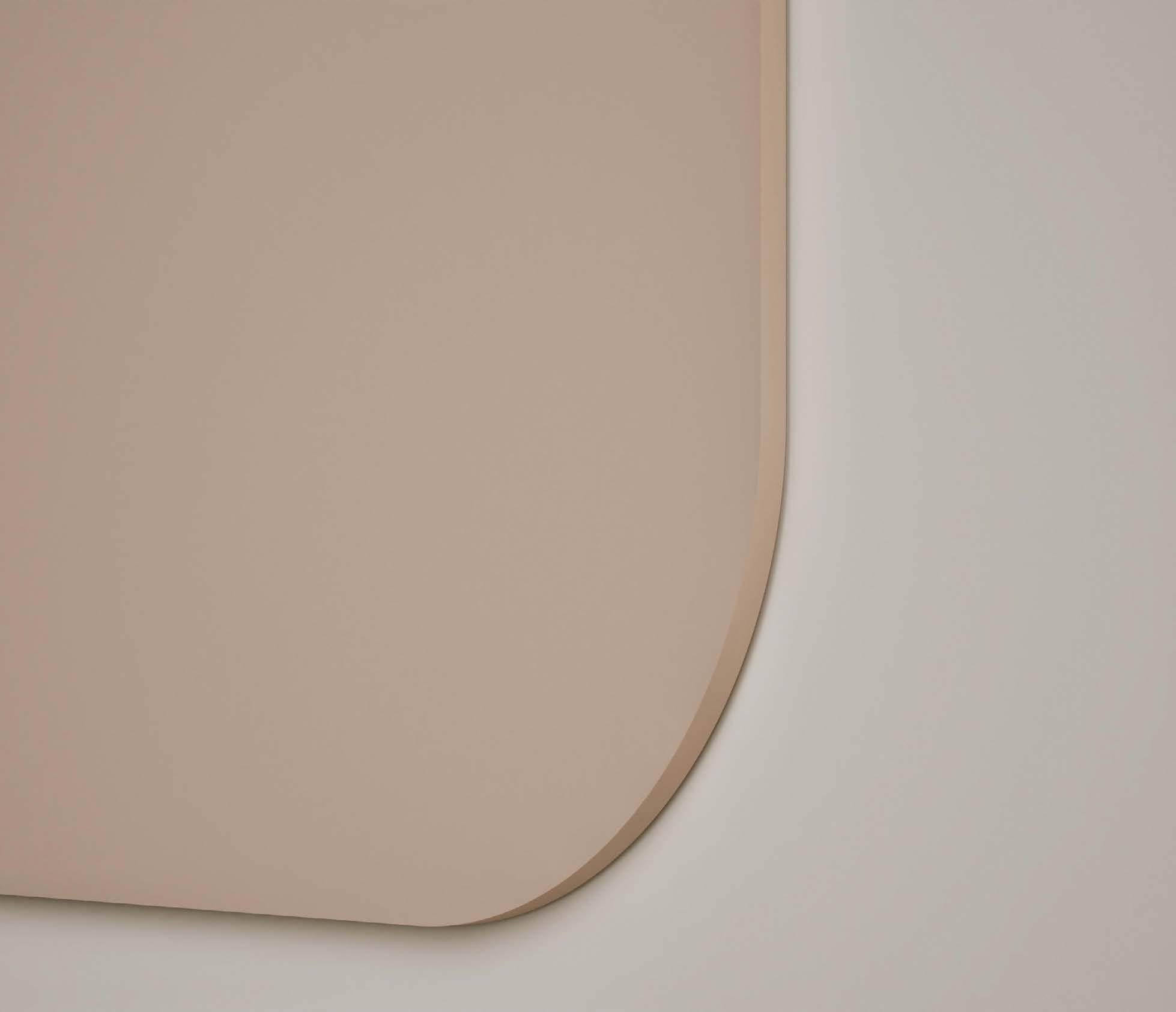

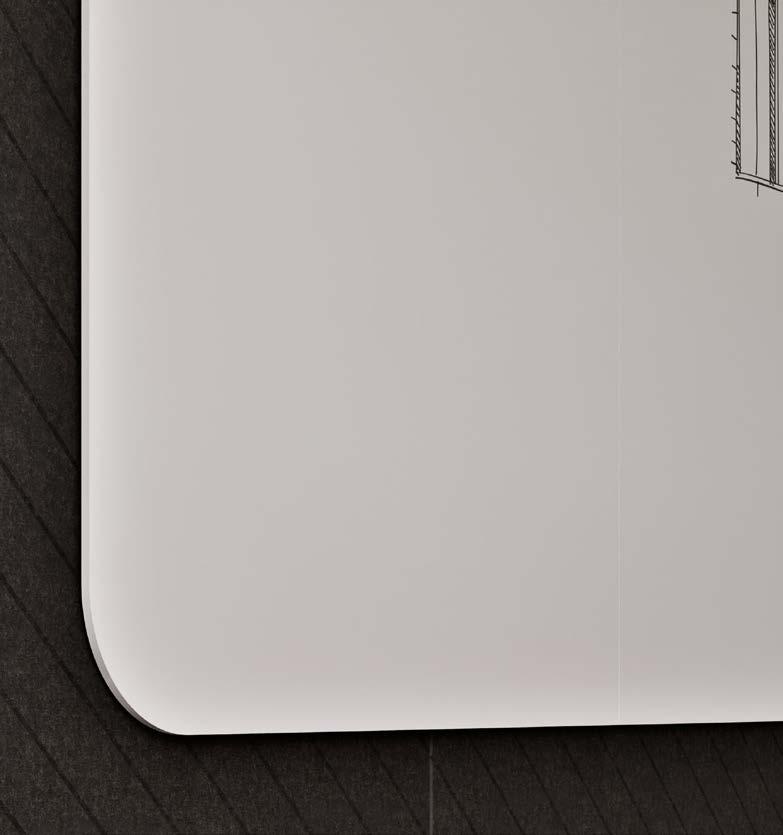

Chameleon Curve is a frameless whiteboard with rounded corners. Chameleon Curve panels can be easily mounted using the magnetic mounting system that is included.

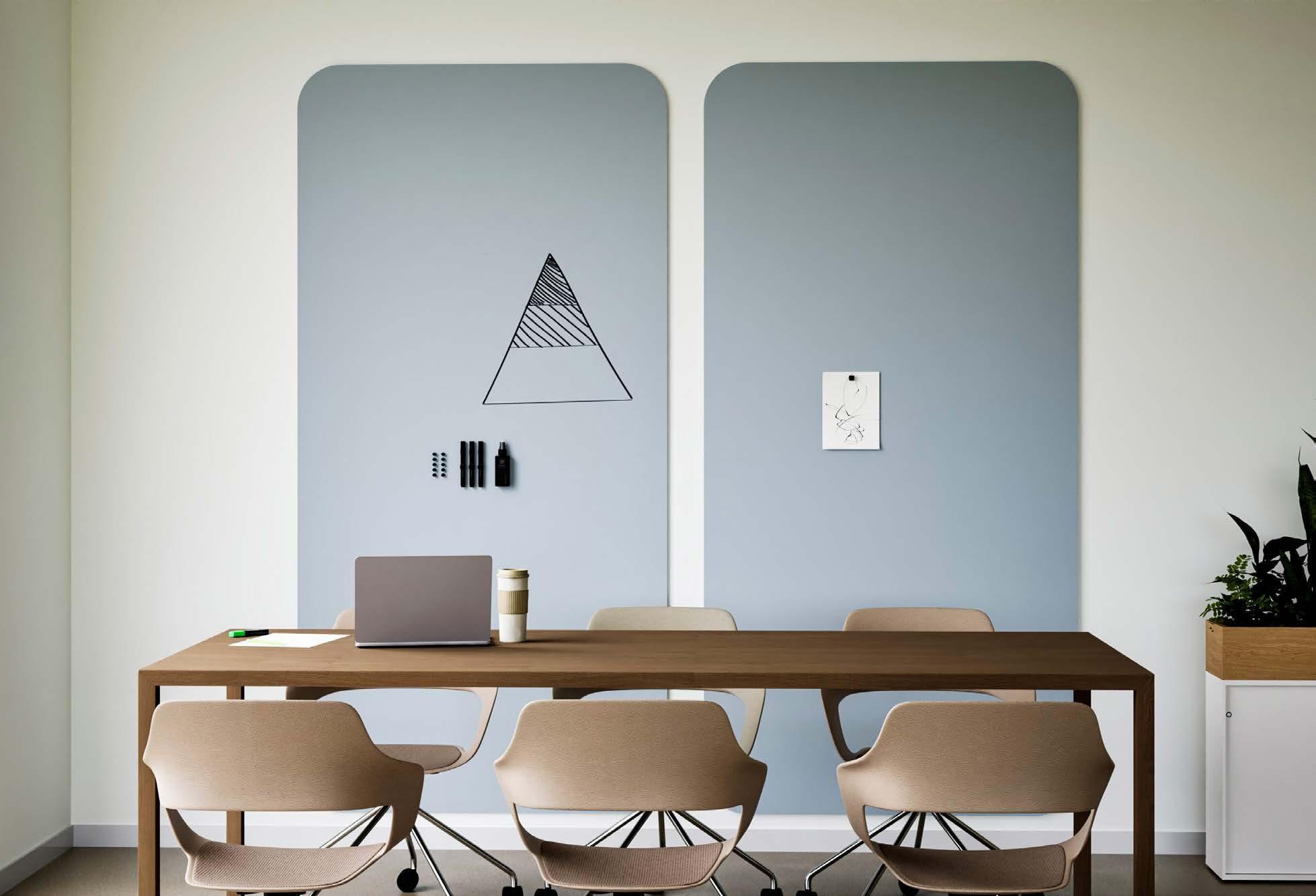

Mounting: magnetic | Satin Sky - S212

Surfaces

* Oversized goods; for conditions, see additional delivery and sales conditions.

S207

C300

C301

1.4 Curve Oak

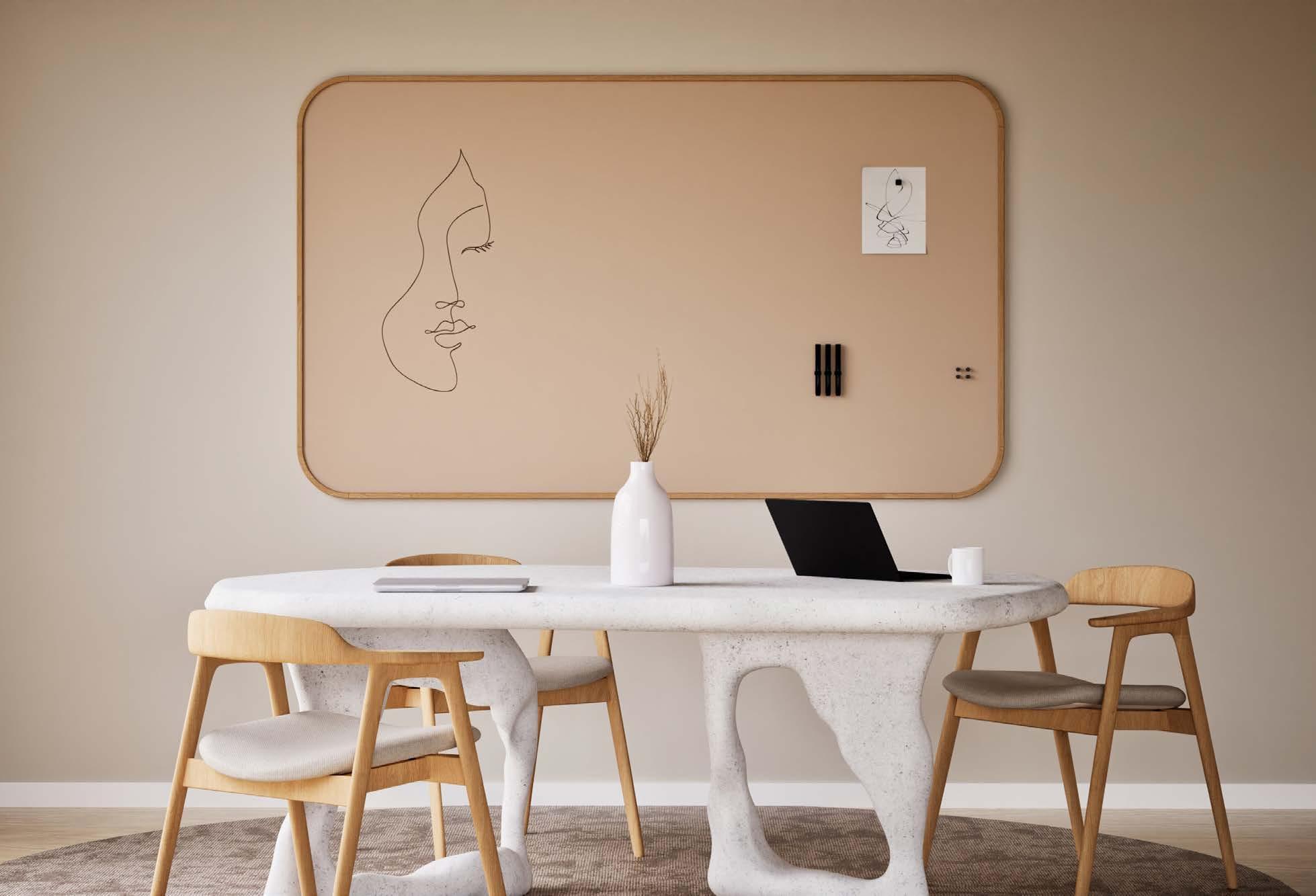

Writing / Whiteboards / Elements / Curve Oak

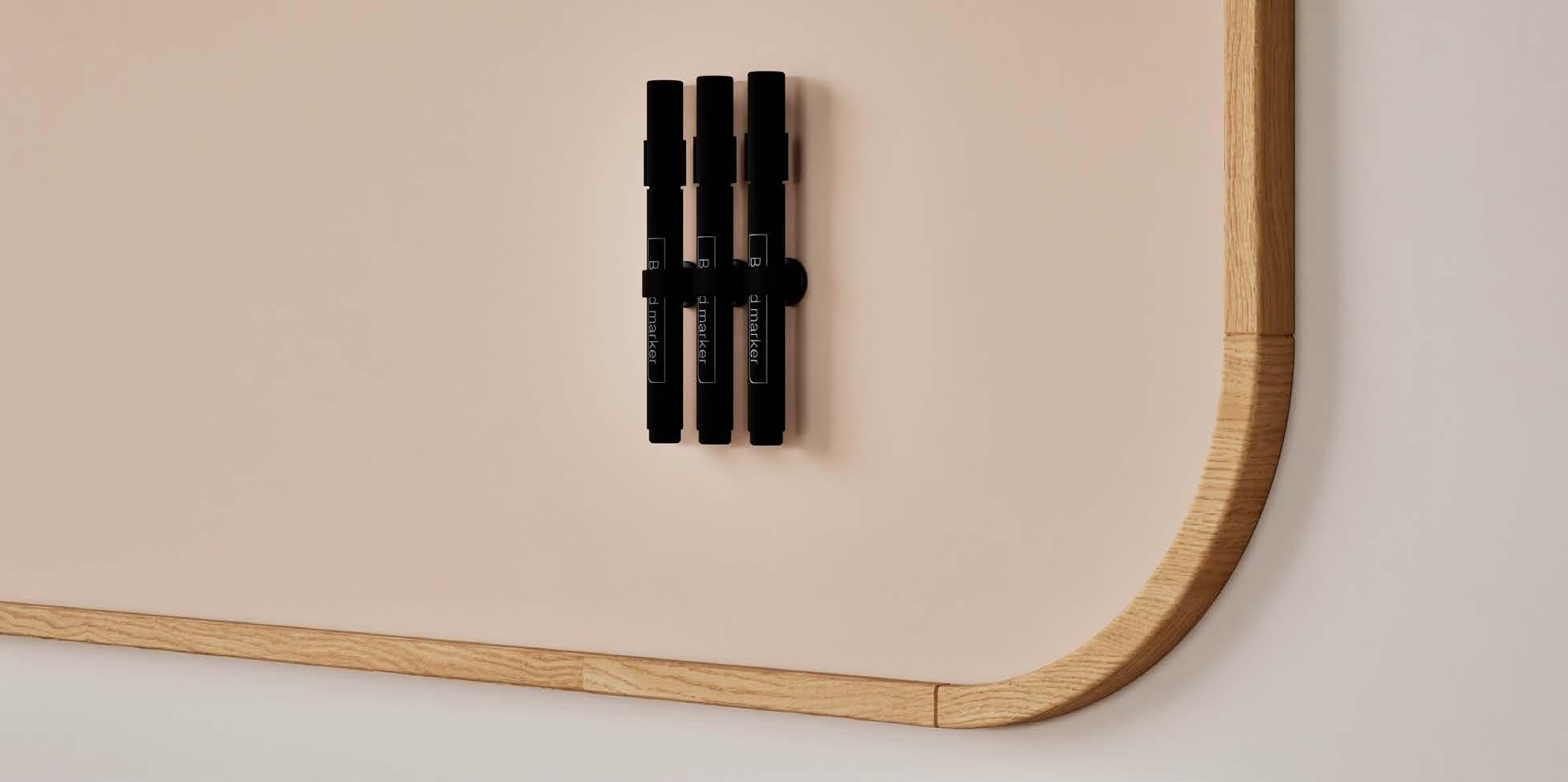

The Chameleon Curve Oak is a whiteboard with a refined design. Its rounded outer corners and solid oak frame create a soft, warm appearance that complements high-end interior concepts.

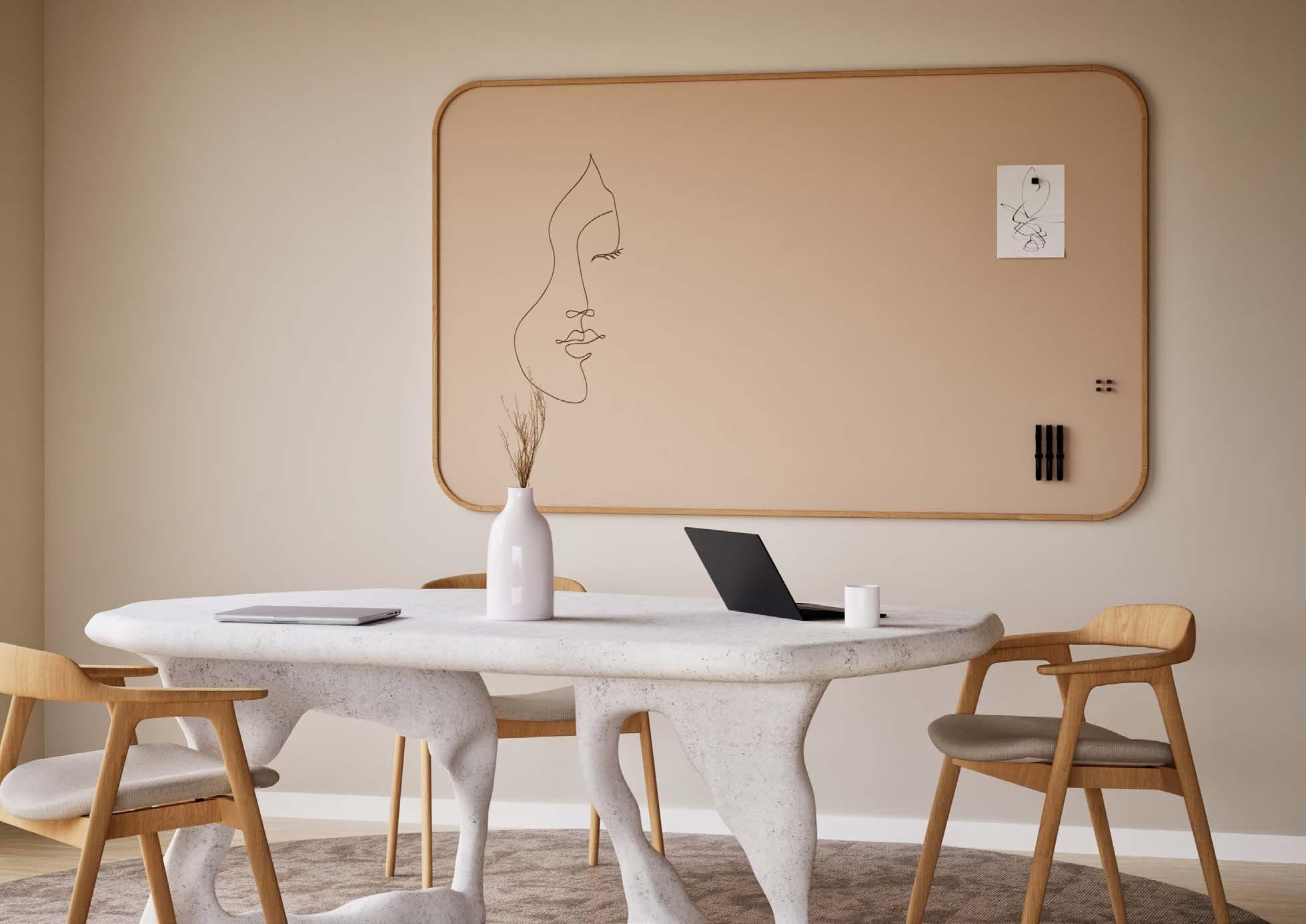

Mounting: magnetic | Satin Dune - S210

Surfaces

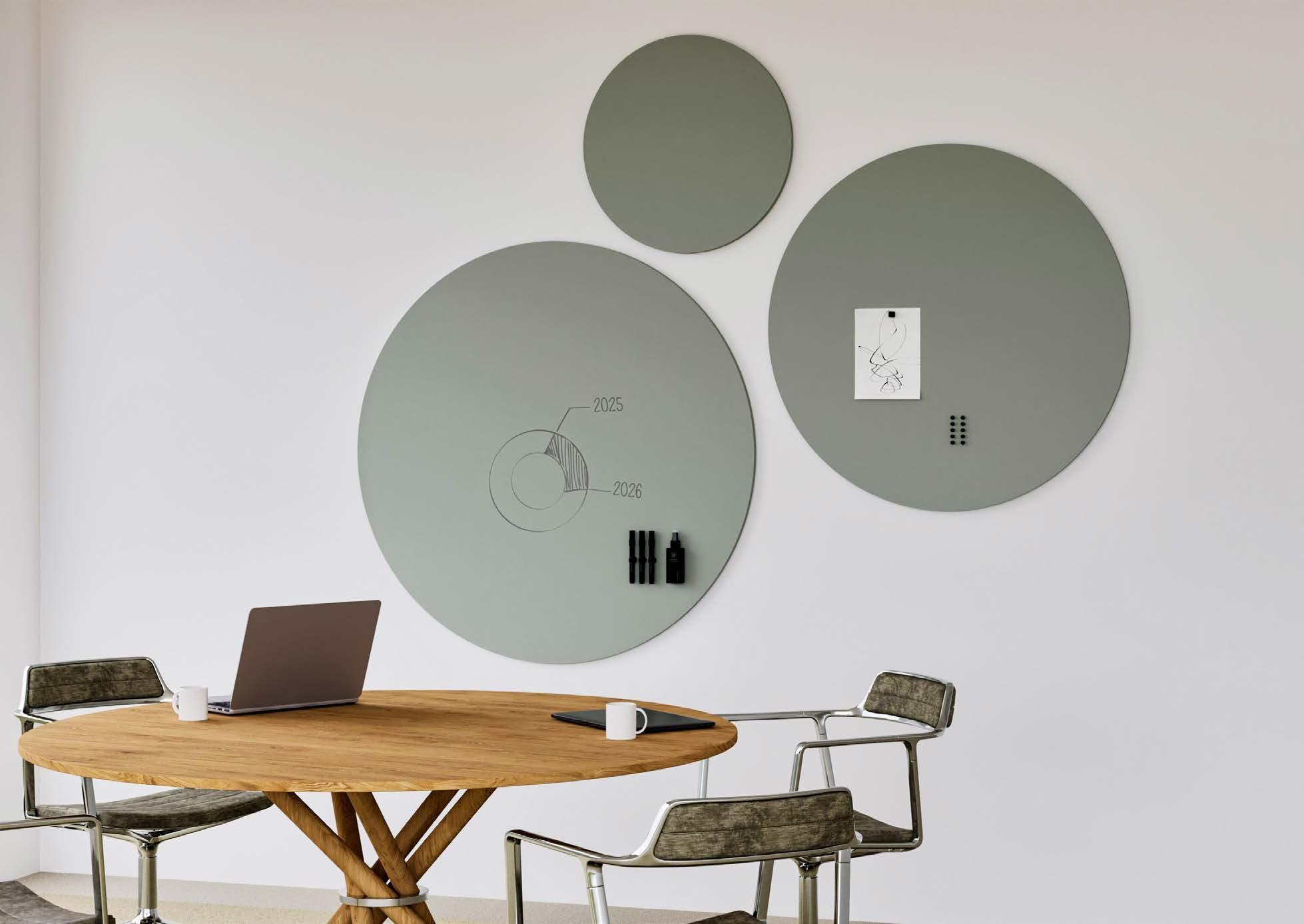

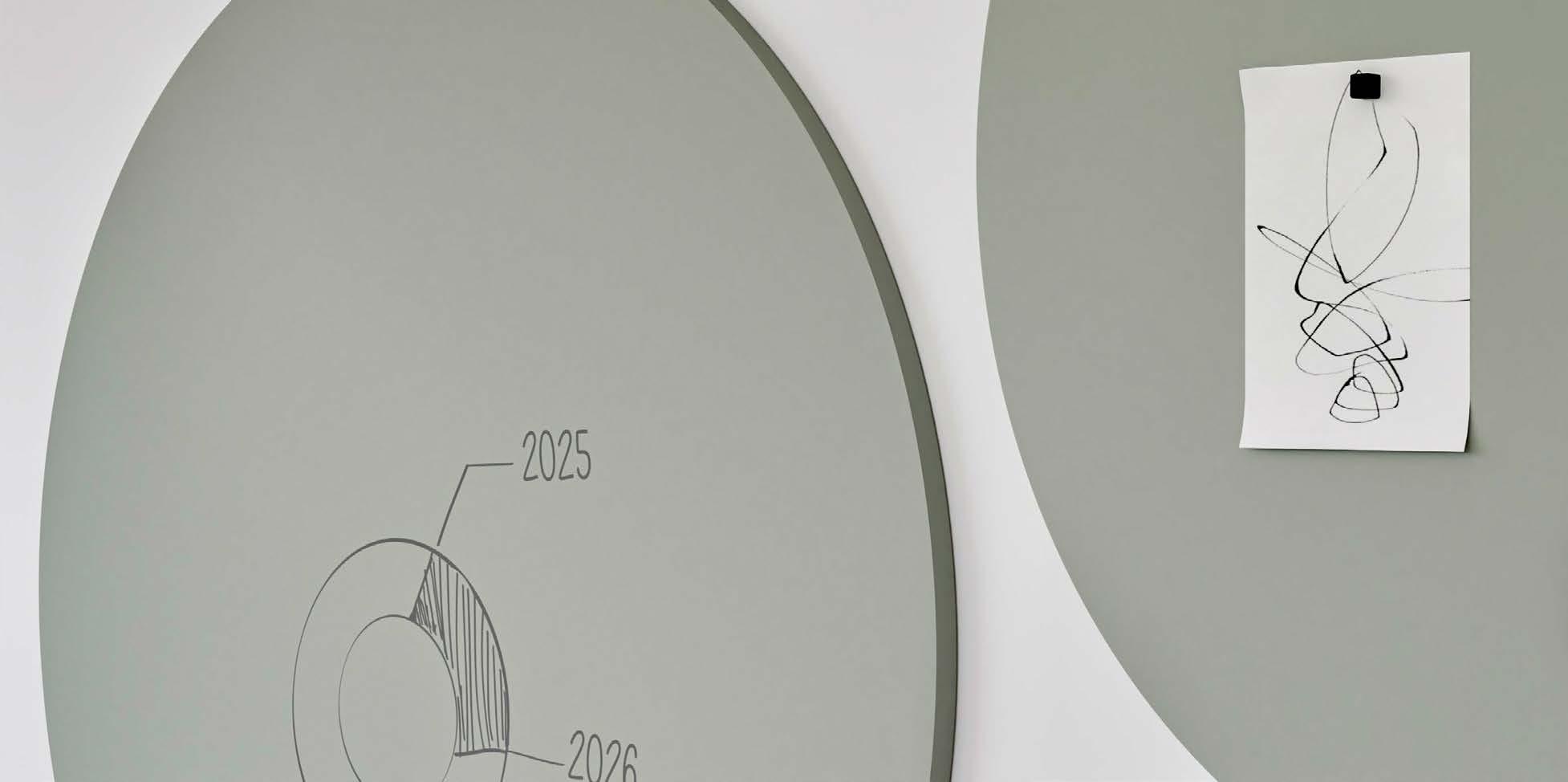

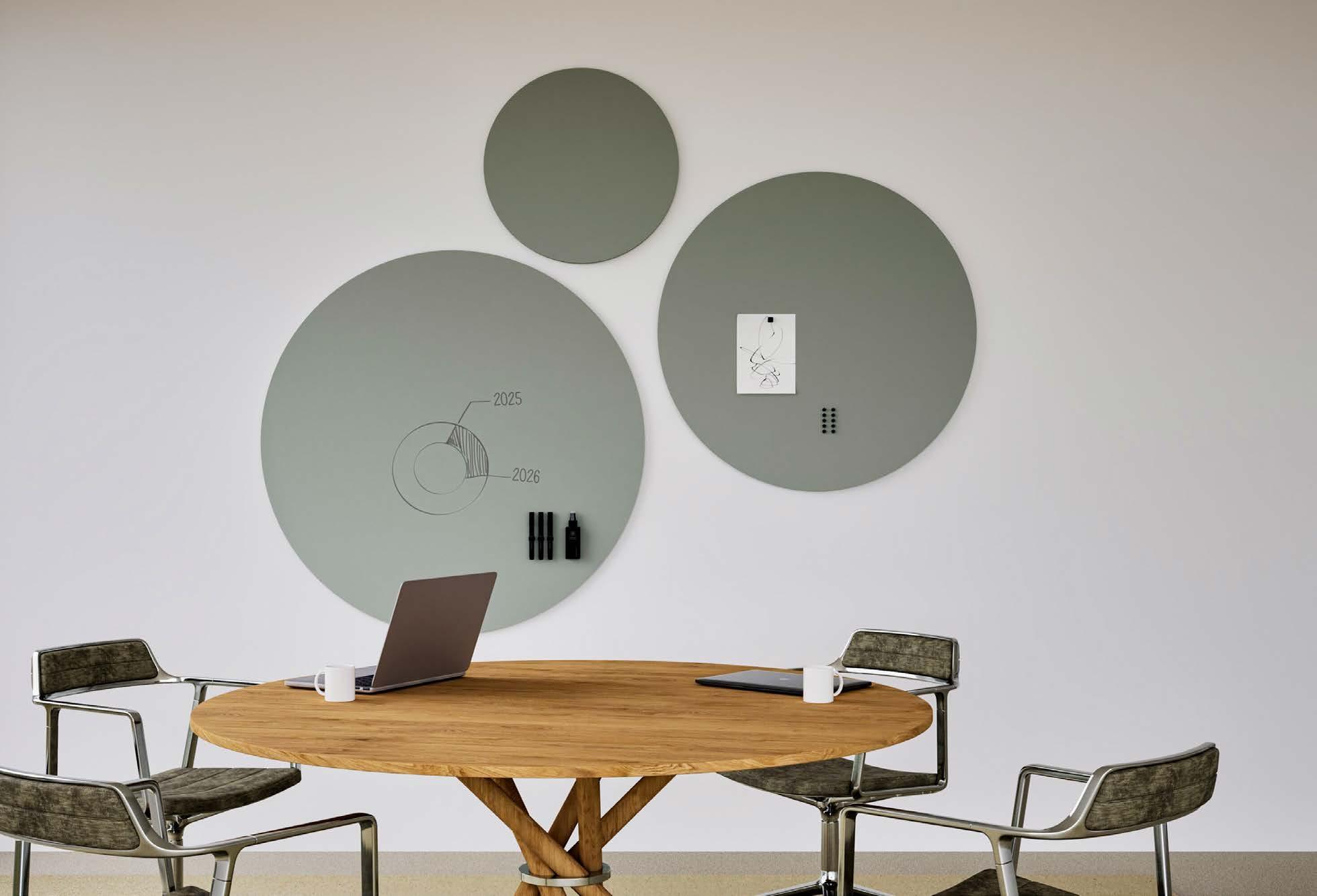

1.5 Round

Writing / Whiteboards / Elements / Round

Round shapes are a timeless aspect of design. They remain relevant in ever-changing design landscapes. Alongside clean lines and sharp angles, round shapes bring a sense of softness and harmony to a space. That’s exactly what Chameleon Round does as a whiteboard.

Mounting: magnetic | Satin Heron - S208

Surfaces

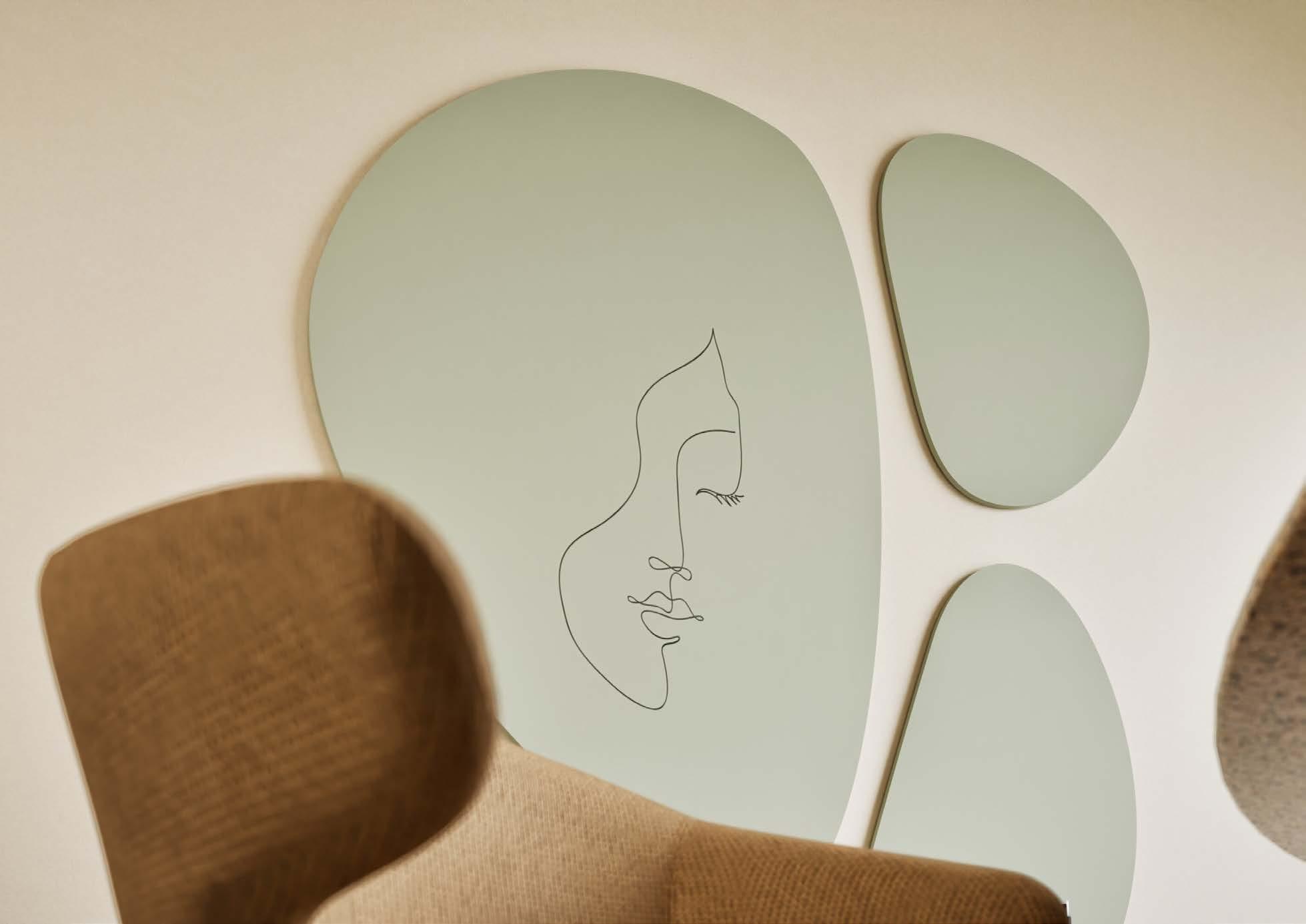

1.6 Pebbles

Writing / Whiteboards / Elements / Pebbles

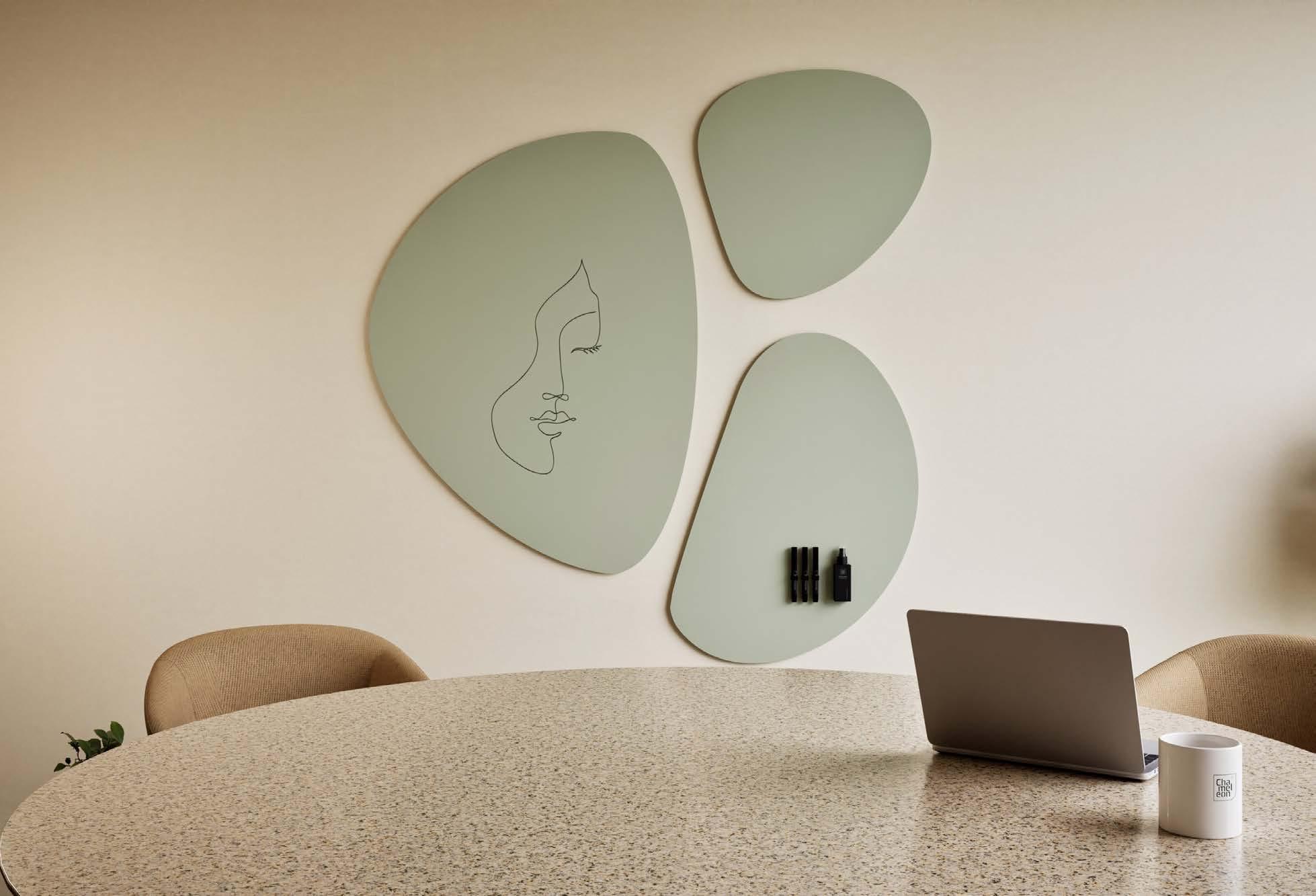

Pebble shapes are an intriguing addition to interior design. The organic lines bring a natural tranquility to the space. There are 3 different Chameleon Pebbles, each with its own shape and size. The Pebbles are available individually as well as in a set.

Mounting: magnetic | Satin Almond - S204

Surfaces S207

Set Pebbles

16003.070

1.7 Sharp Wall

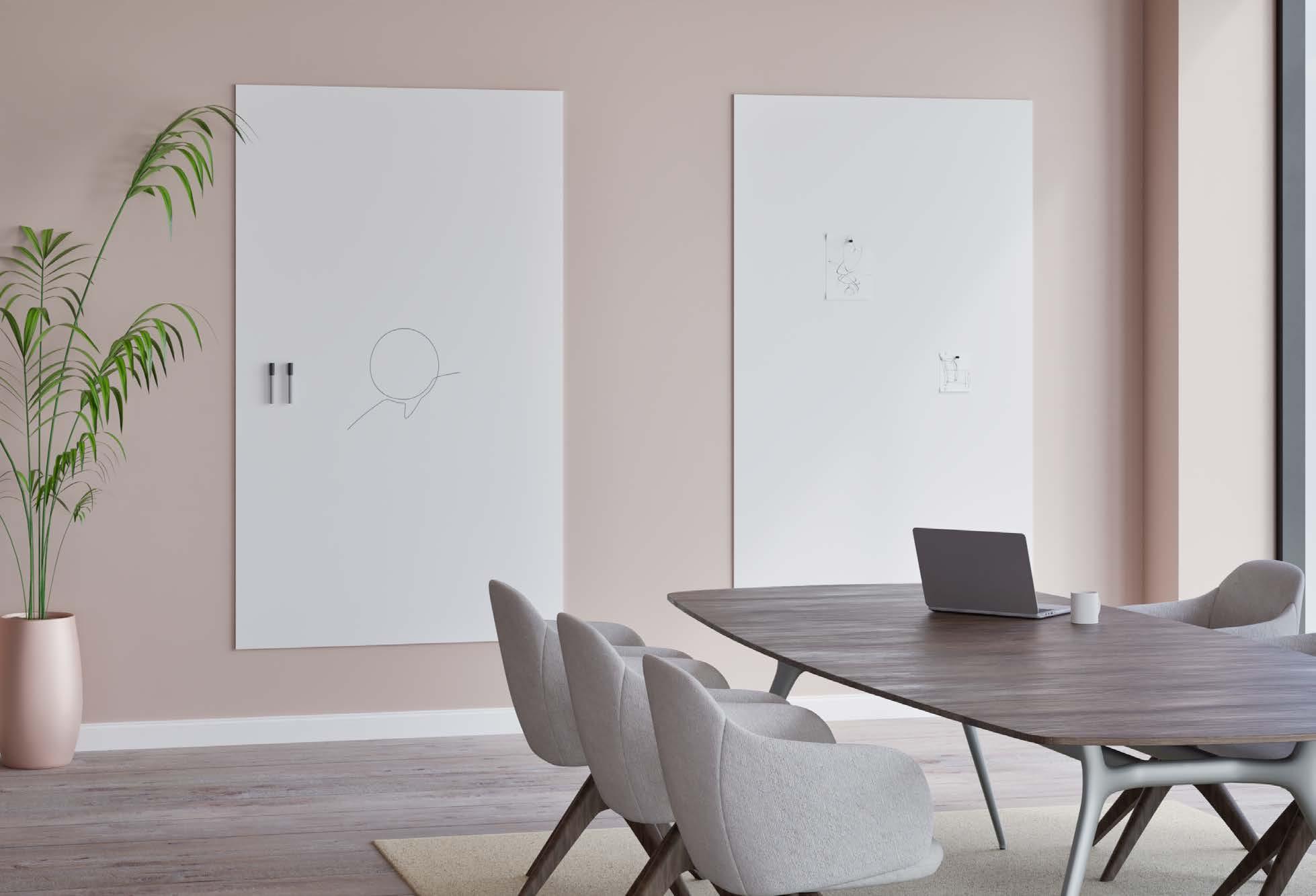

Writing / Whiteboards / Walls / Sharp Wall

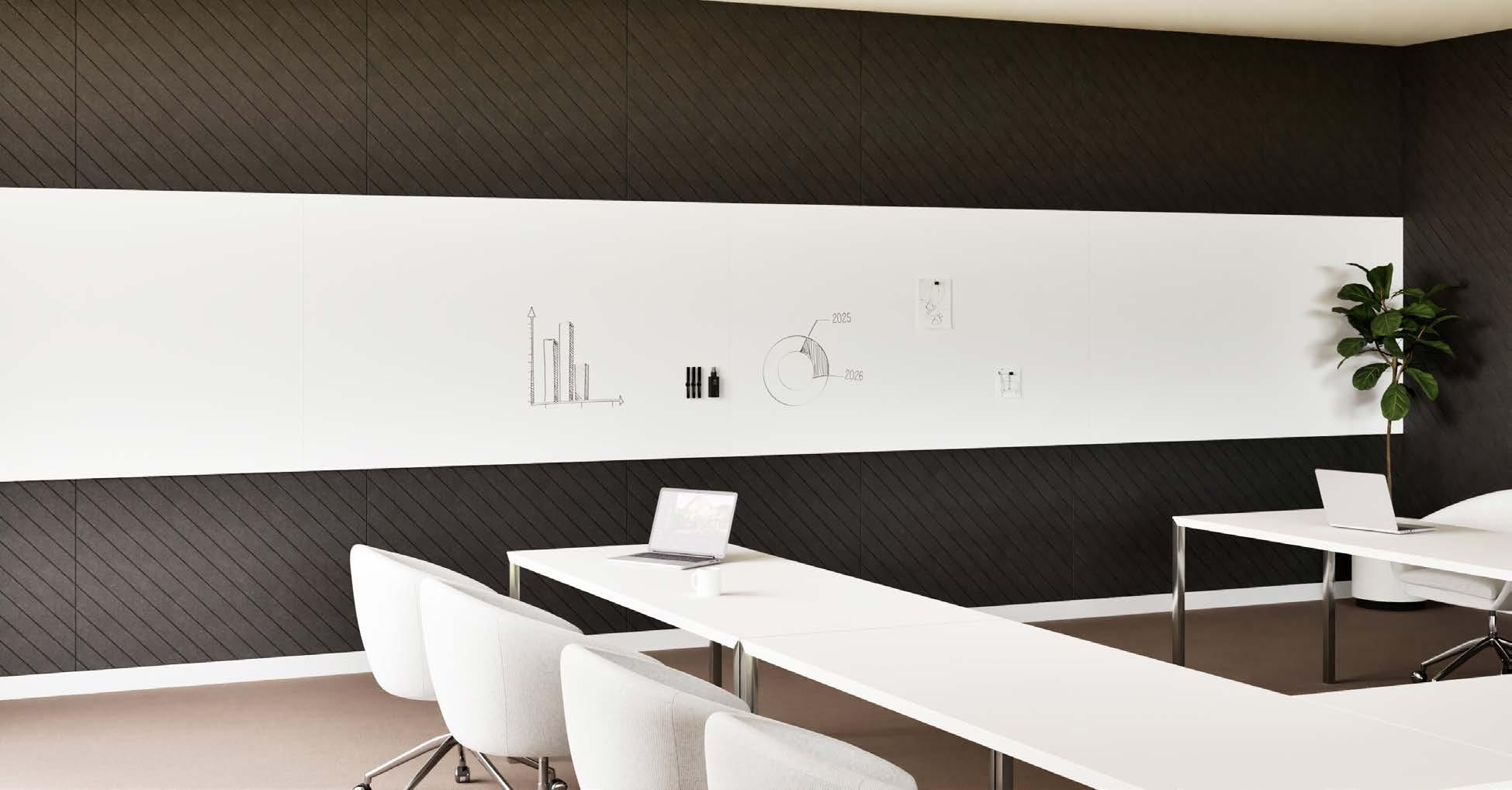

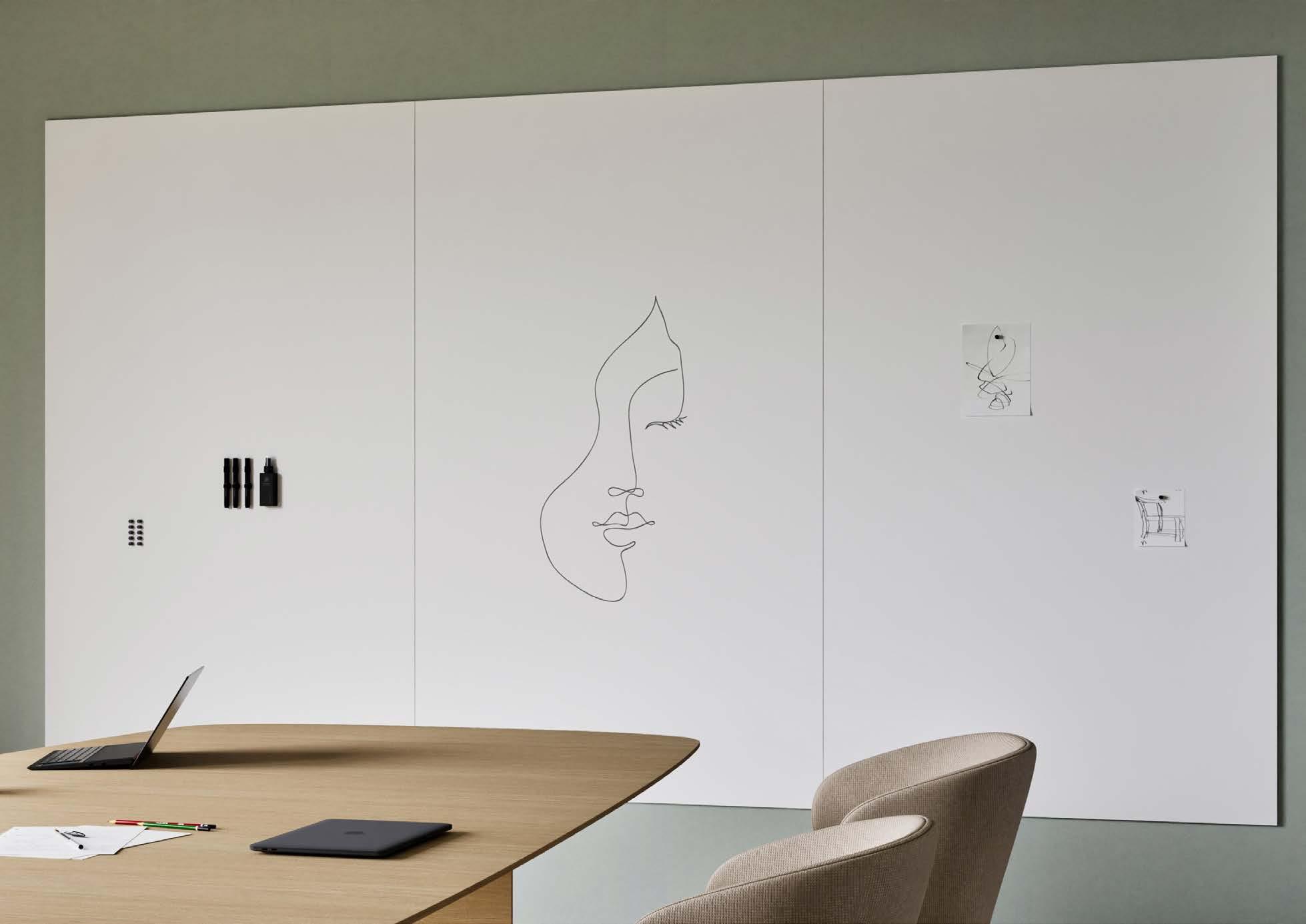

Large writing wall in its most basic form, with straight corners and no frame, either vertical or horizontal. Thanks to the razor-sharp edge finish, the panels fit together precisely with a minimal seam. Can also be combined with Sharp Acoustics, see pages 46 - 47

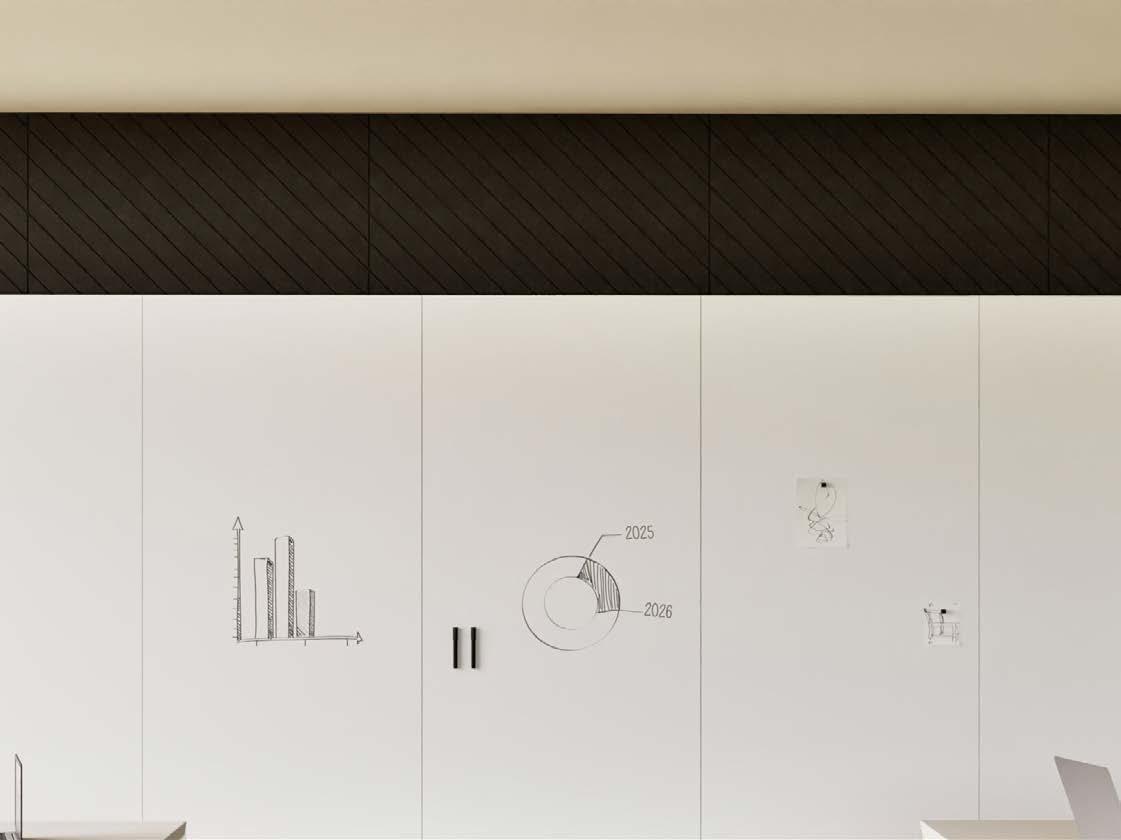

Mounting: magnetic | Satin Snow - S200

Surfaces

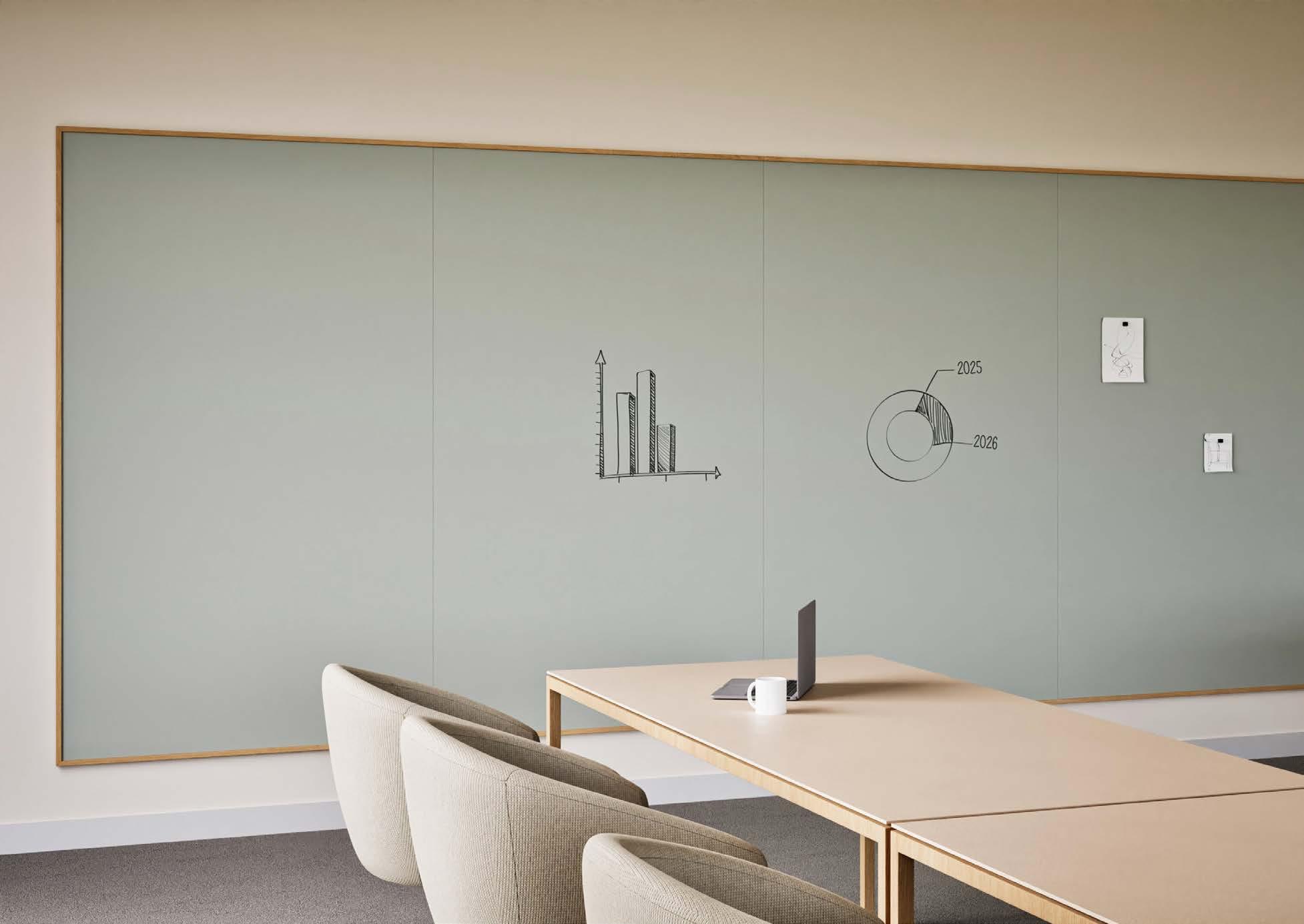

1.8 Sharp Wall Oak

Writing / Whiteboards / Walls / Sharp Wall Oak

The Chameleon Sharp Wall Oak is a modular writing wall with a natural silhouette and a clean, refined appearance. The razor-sharp panels align seamlessly, while the solid oak frame provides a warm, graphic accent and a cohesive, stylish finish.

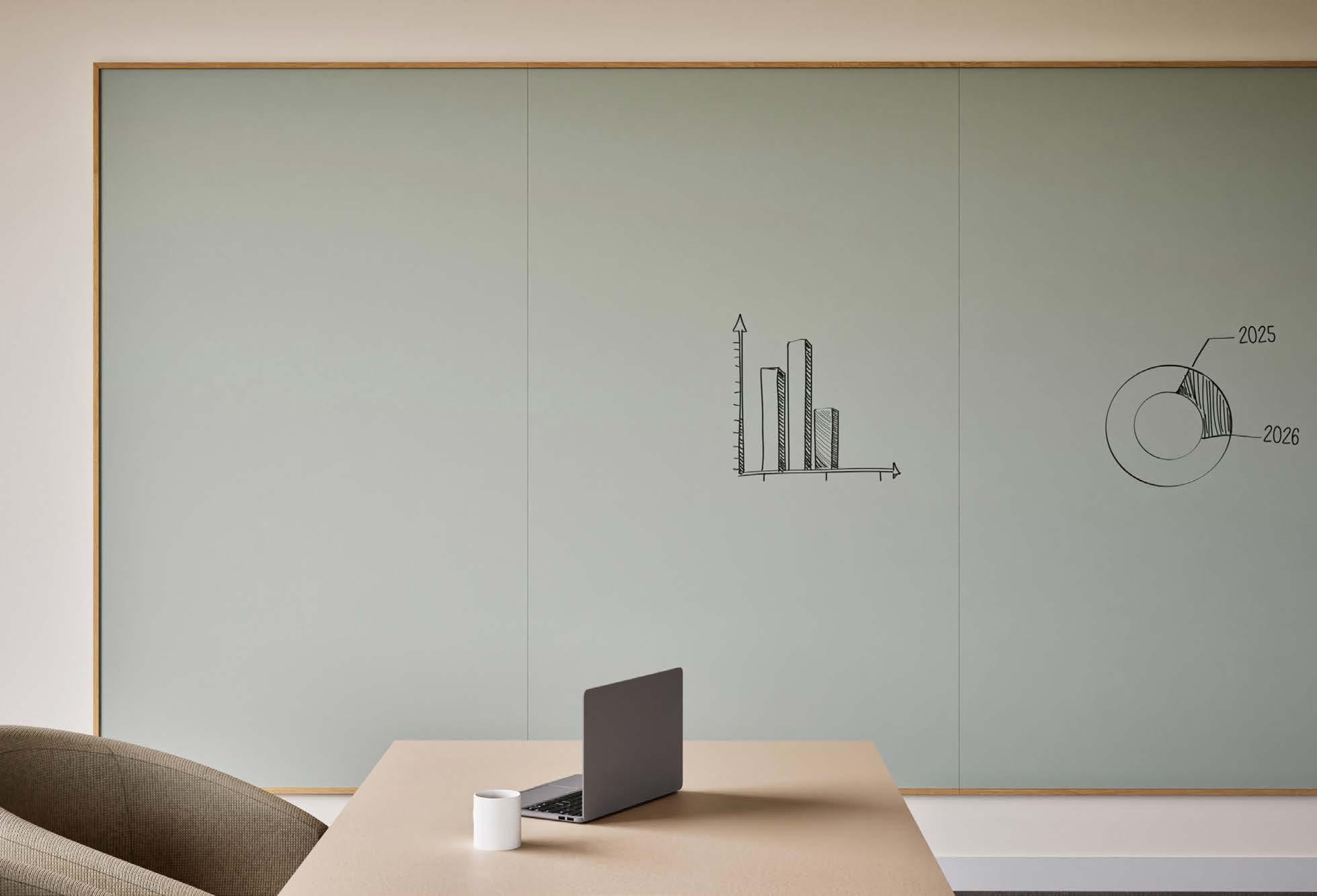

Mounting: magnetic | Satin Heron - S208

Surfaces

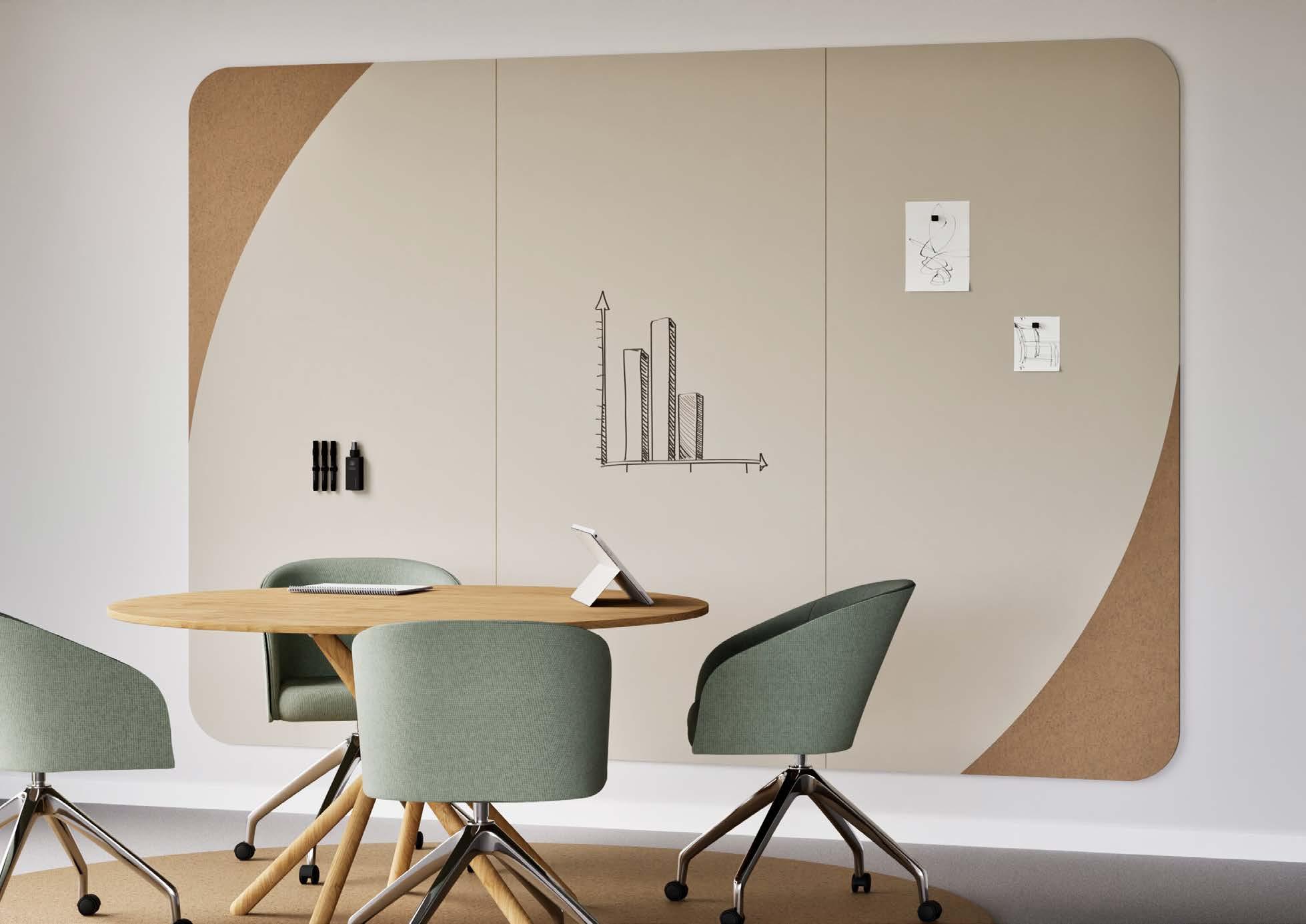

1.9 Curve Wall

Writing / Whiteboards / Walls / Sharp Wall

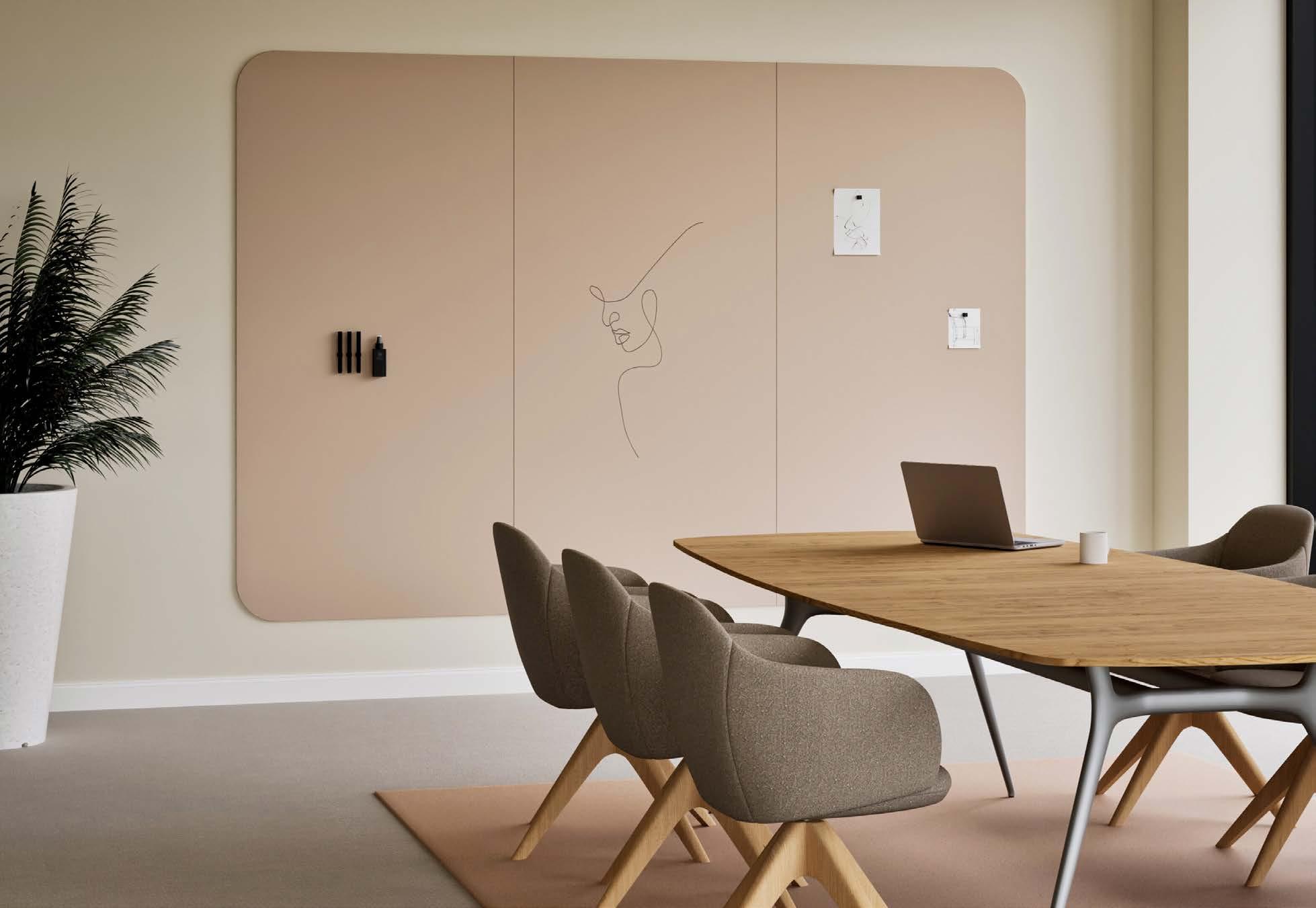

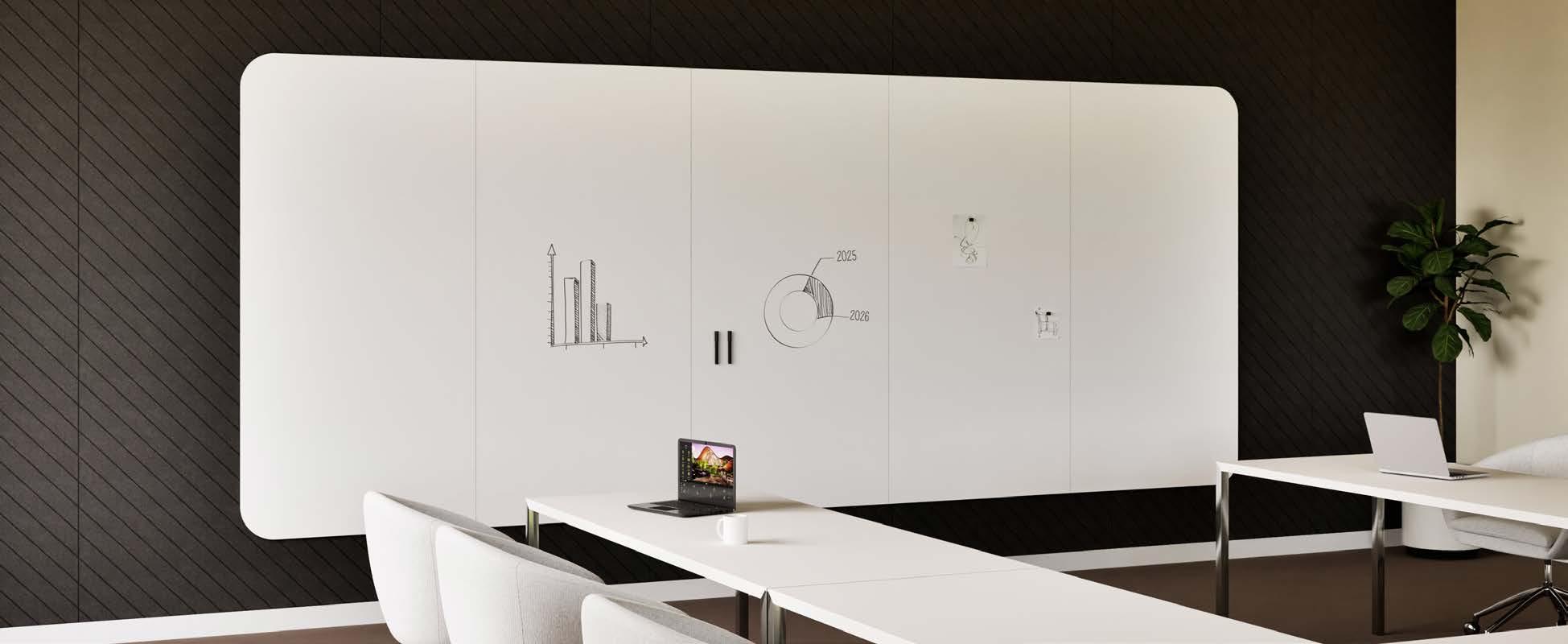

The soft curves make this whiteboard wall a striking appearance. The Chameleon Curve Wall is a complete whiteboard wall that is 2 meters tall and between 2 and 6 metres wide, consisting of multiple panels.

Mounting: magnetic | Satin Dune - S210

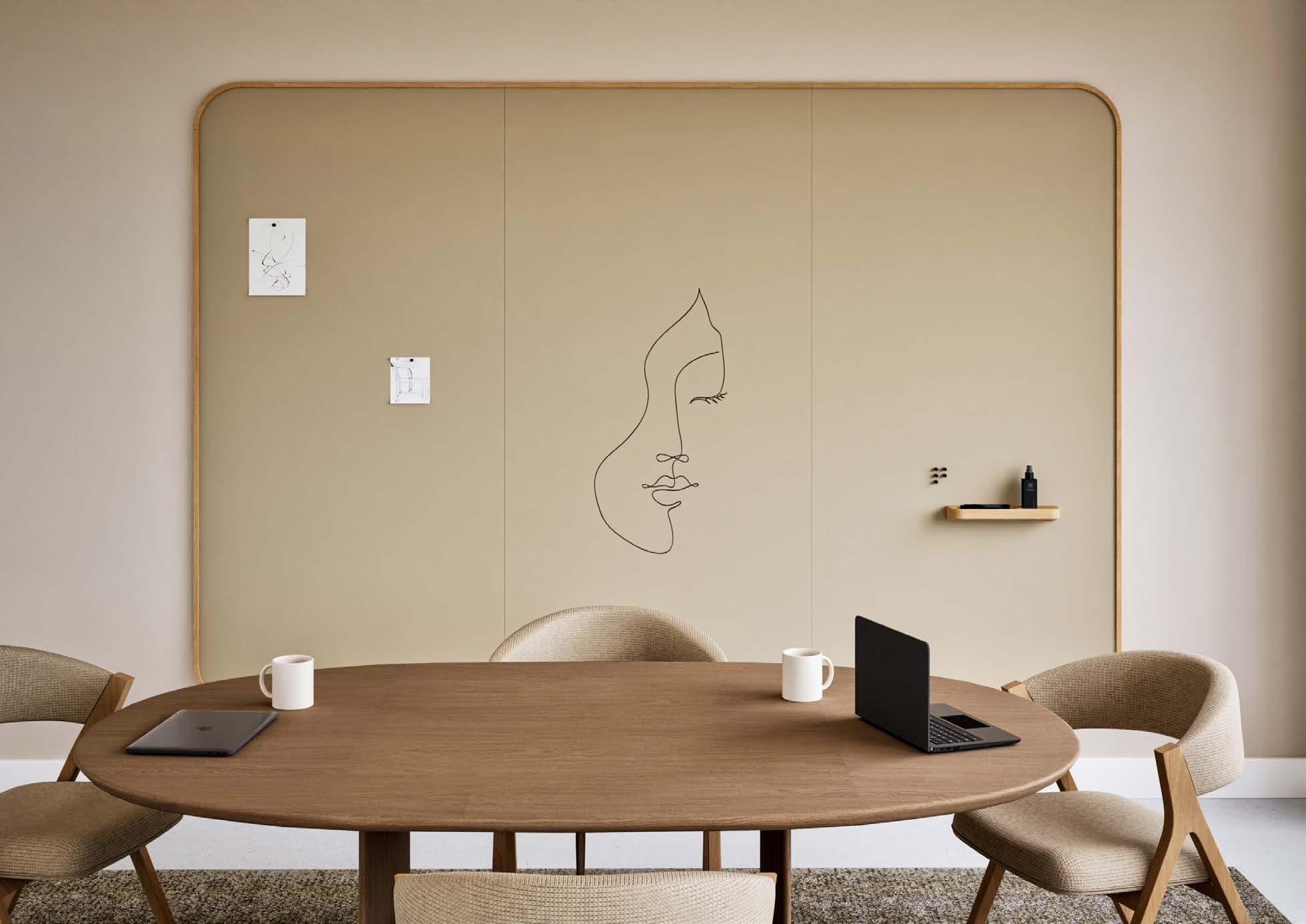

1.10 Curve Wall Oak

Writing / Whiteboards / Walls / Curve Wall Oak

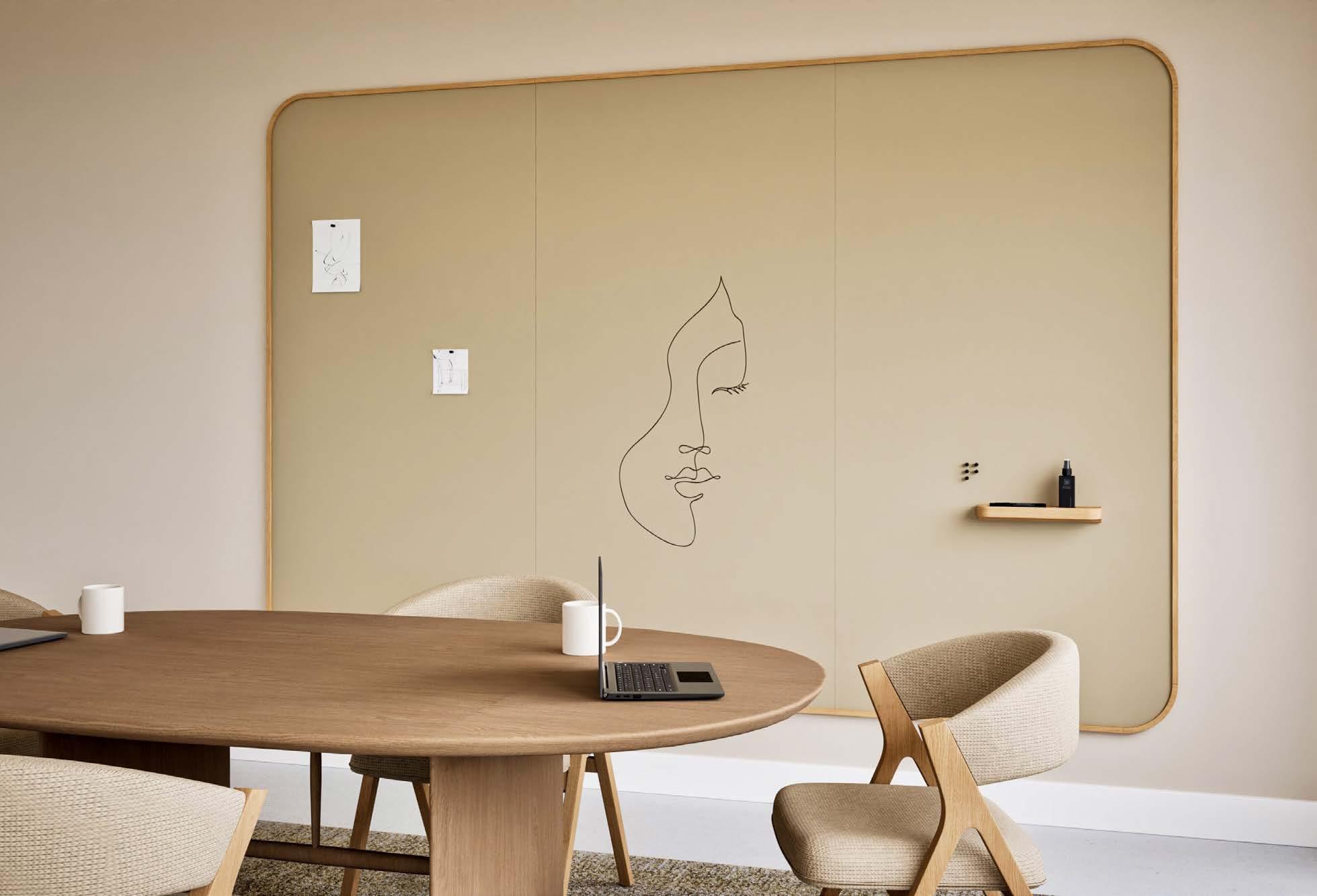

The Chameleon Curve Wall Oak combines soft curves with a solid oak finish. This whiteboard wall, measuring 2 metres in height and 2 to 5 metres in width, consists of multiple panels and creates a warm, stylish focal point within high-end interior concepts.

Mounting: magnetic | Satin Caramel - S211

Surfaces

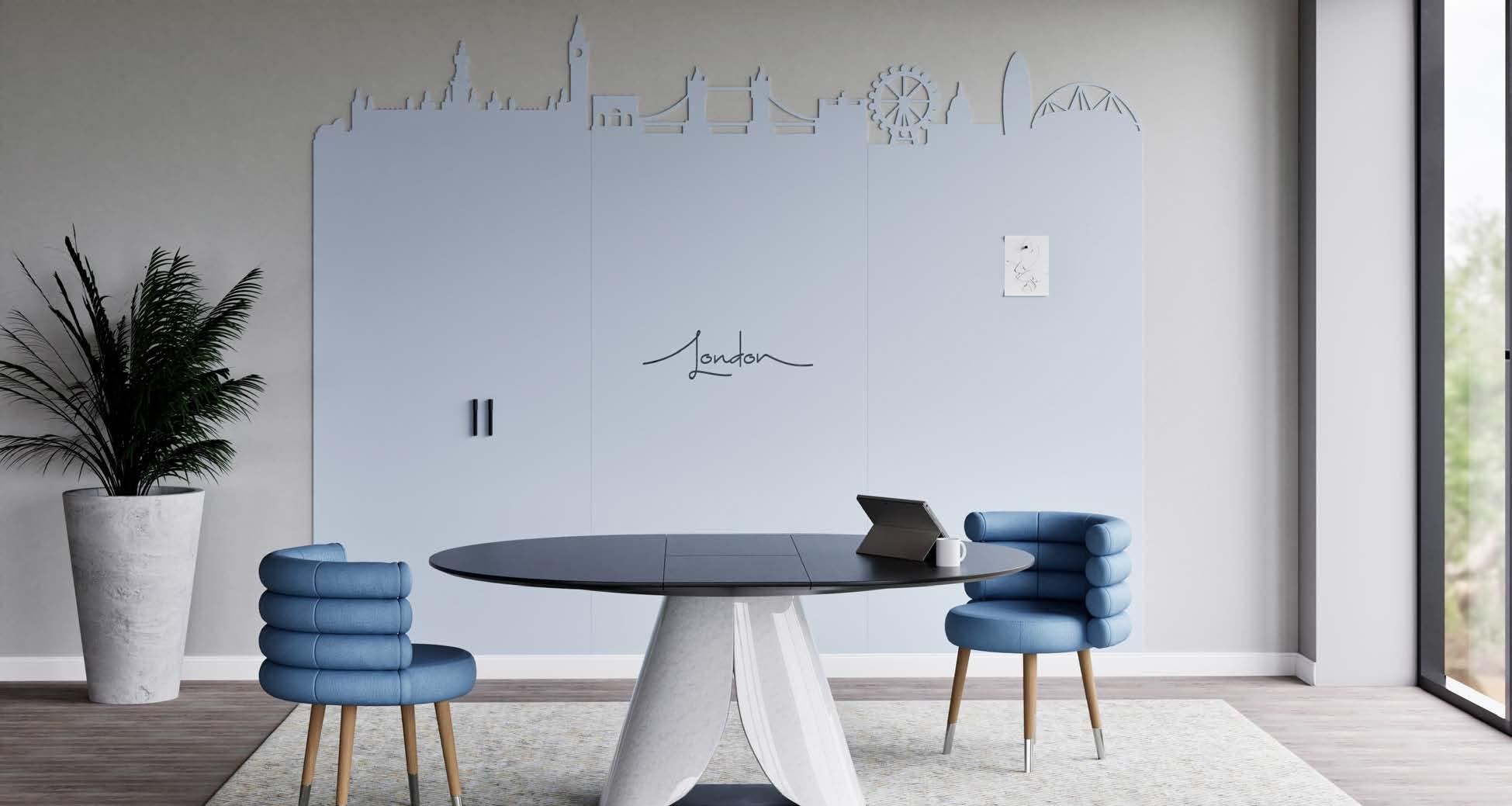

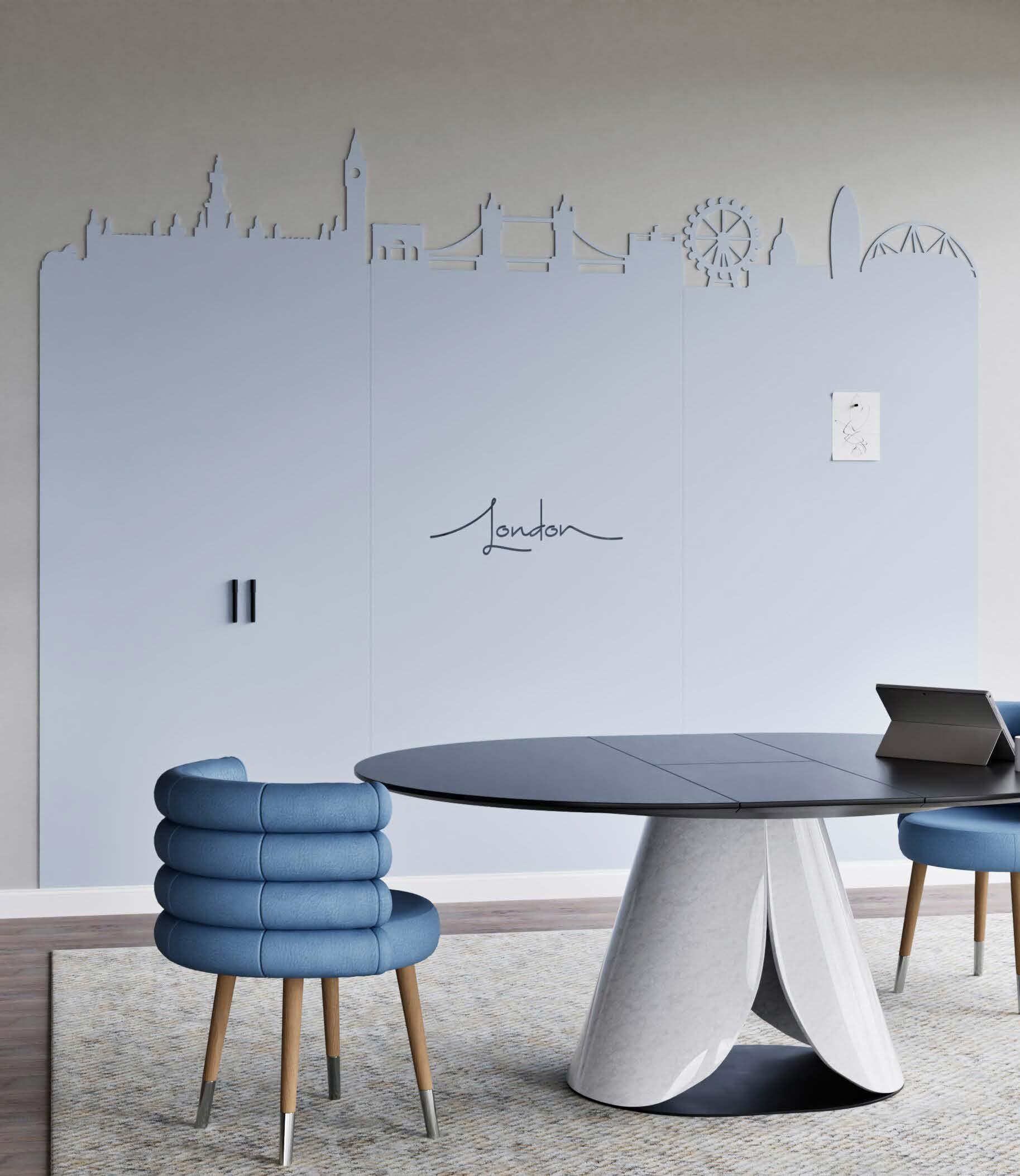

1.11 Custom whiteboard wall

Writing / Whiteboards / Coverings / Custom whiteboard wall

Every organization is unique. With a Chameleon custom whiteboard wall, this uniqueness can be accentuated. Create a magnetic writing surface with complete freedom in shape and size. It allows you to think big and unleash your creativity.

• Make it wall-filling (precisely in millimeters, keeping in mind to allow for some flexibility due to uneven walls).

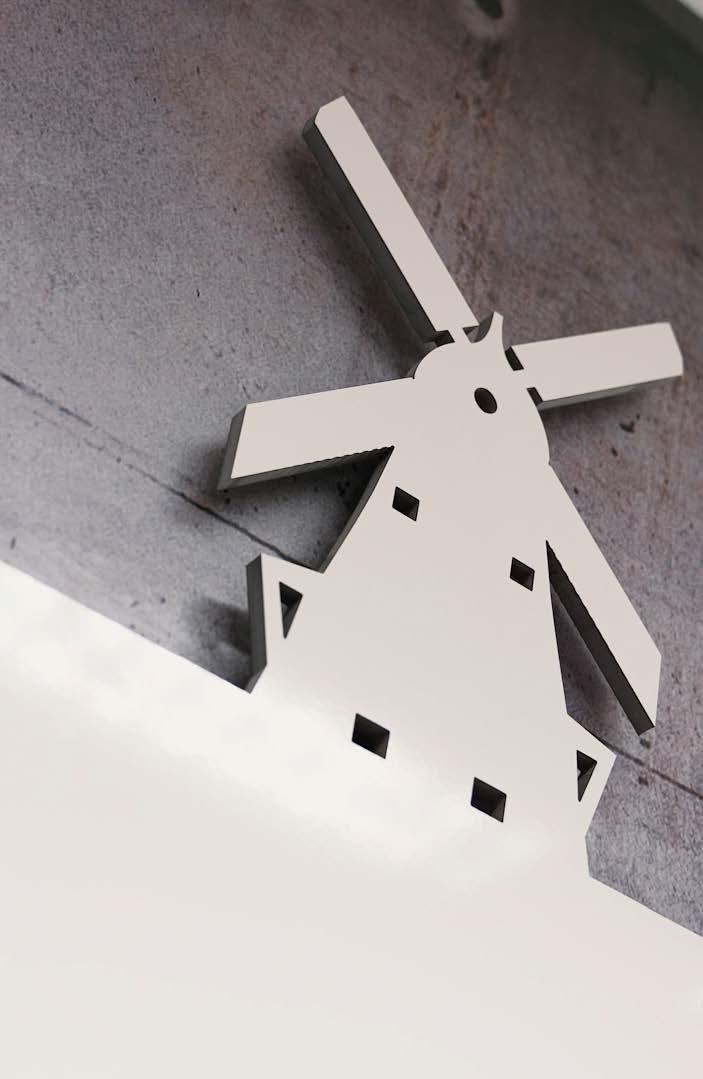

• Add creative shapes, such as a skyline at the top.

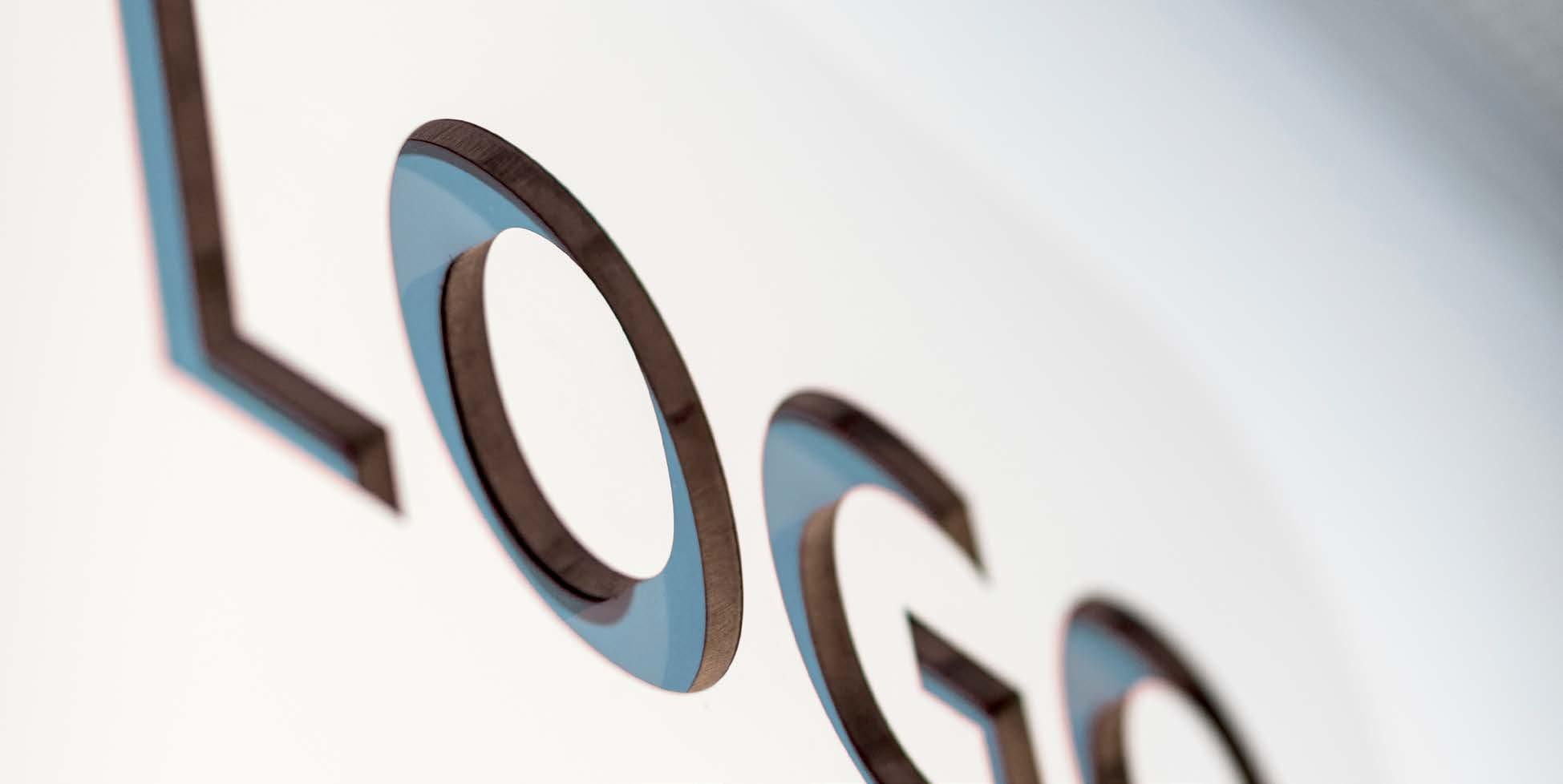

• Include your logo as a cutout with a full-colour print behind it.

• Have a cutout made for a TV screen on or within the whiteboard.

A quotation is provided for this product.

Mounting: magnetic | Satin Aqua - S202

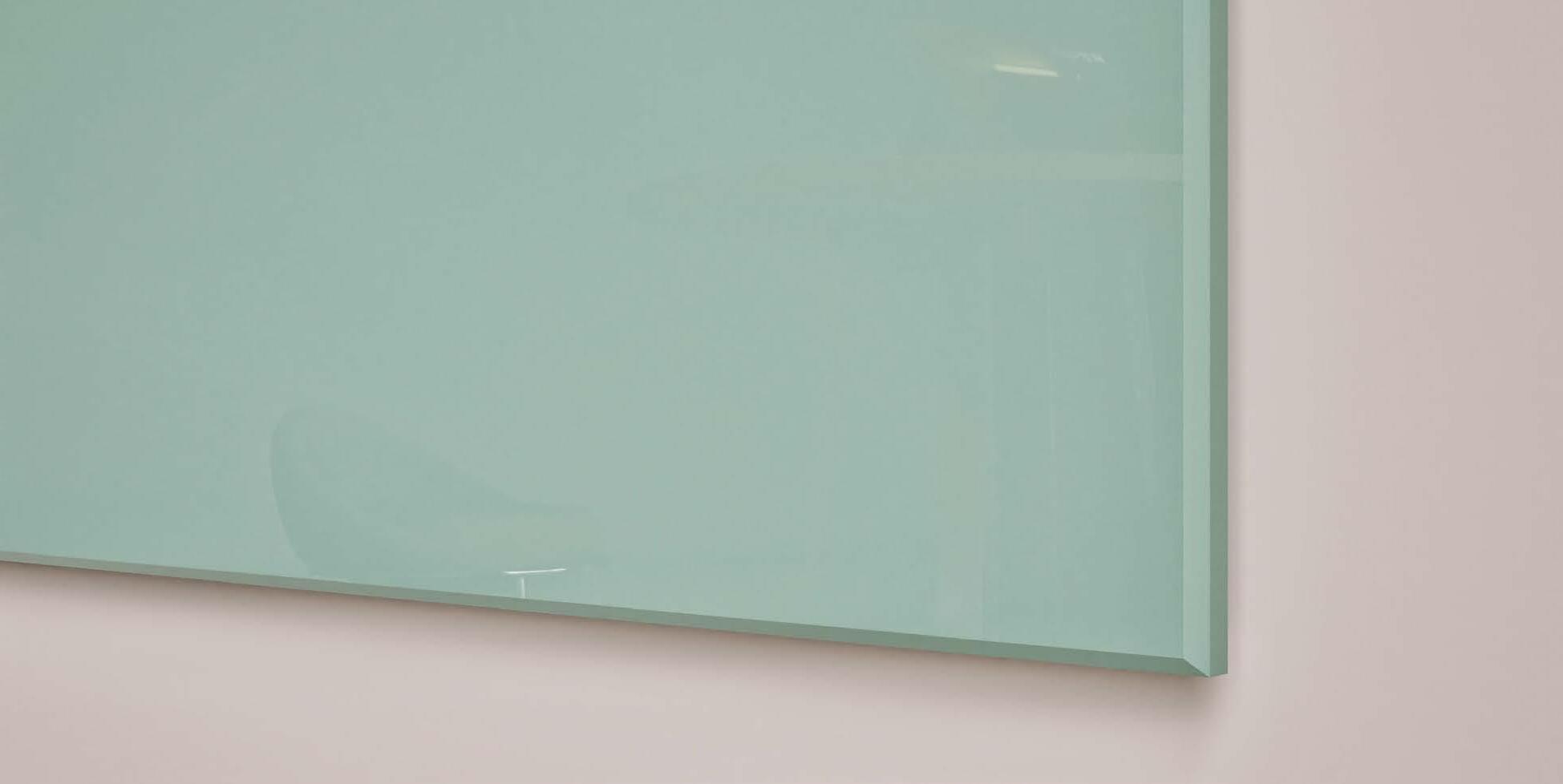

Chameleon glassboard surfaces

Glassboard

Chameleon Glassboards and Glass Walls feature extra-clear, low-iron glass. Unlike standard glass, there is no visible green tint, ensuring that all 18 glassboard colours appear pure and vibrant.

 Material: Tempered safety glass, extra-clear.

 Thickness: 4 mm glass with a 0.4 mm galvanised backing sheet.

 Depth from wall: 5 mm.

 Usage: Panels are dry-erase and magnetic, compatible with glassboard magnets.

 Finish: Edges are ground all around with a matte finish.

 Installation: Panels are mounted to the wall using our certified magnetic mounting system, making it quick and easy to hang straight and join multiple panels.

 Colours: Chameleon Glassboards and Glass Walls are available in 18 colours. The colours are enamelled on the back of the glass (baked-in), preventing any discolouration.

Frost

Steel

G106 Thyme

G110 Chocolate milk G107 Gum tree

G111 Tuscany

G108 Jade light

G109 Wolf

G112 Ochre

G116 Blush

G113 Buttery

G117 Hint of pink

G114 Vanilla ice

G115 Raspberry

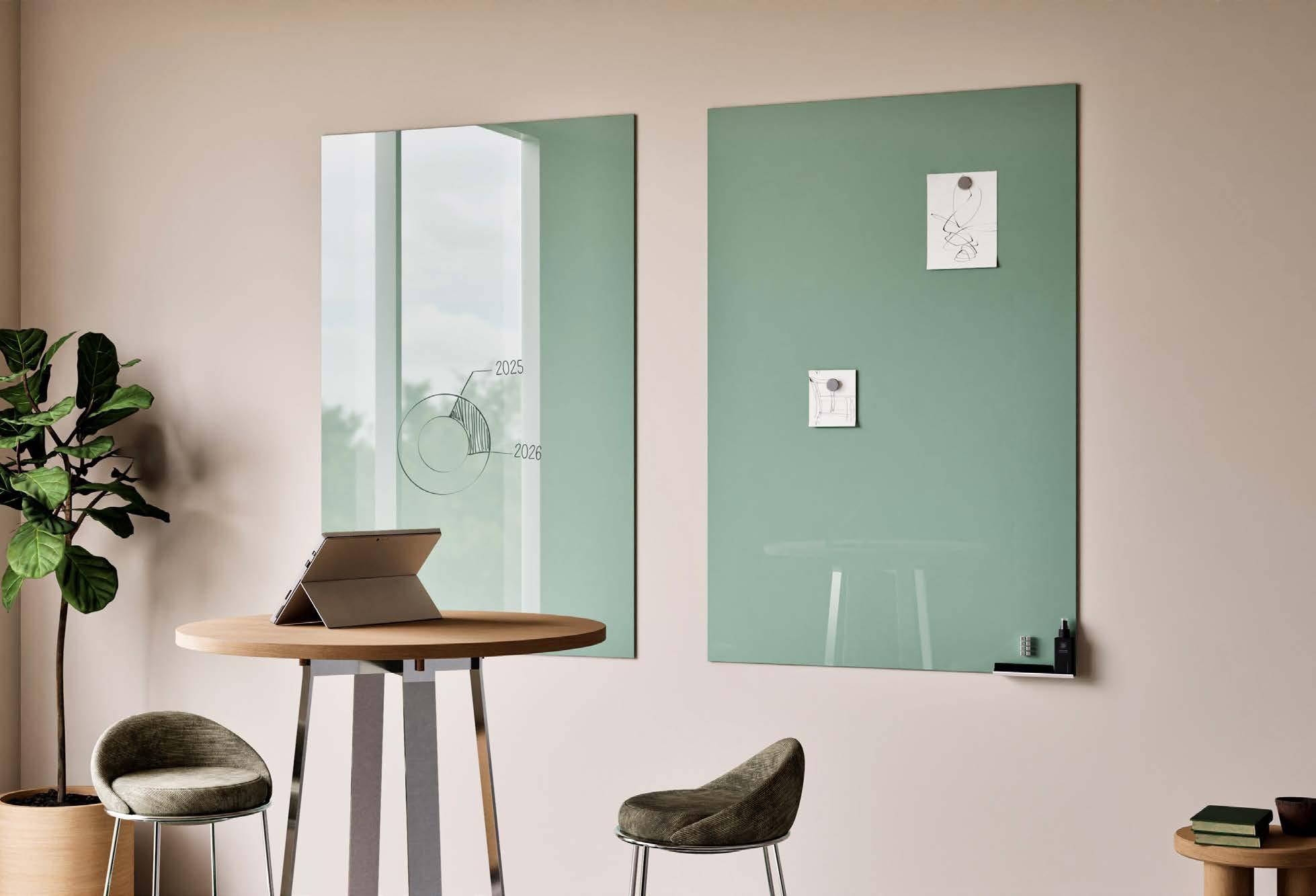

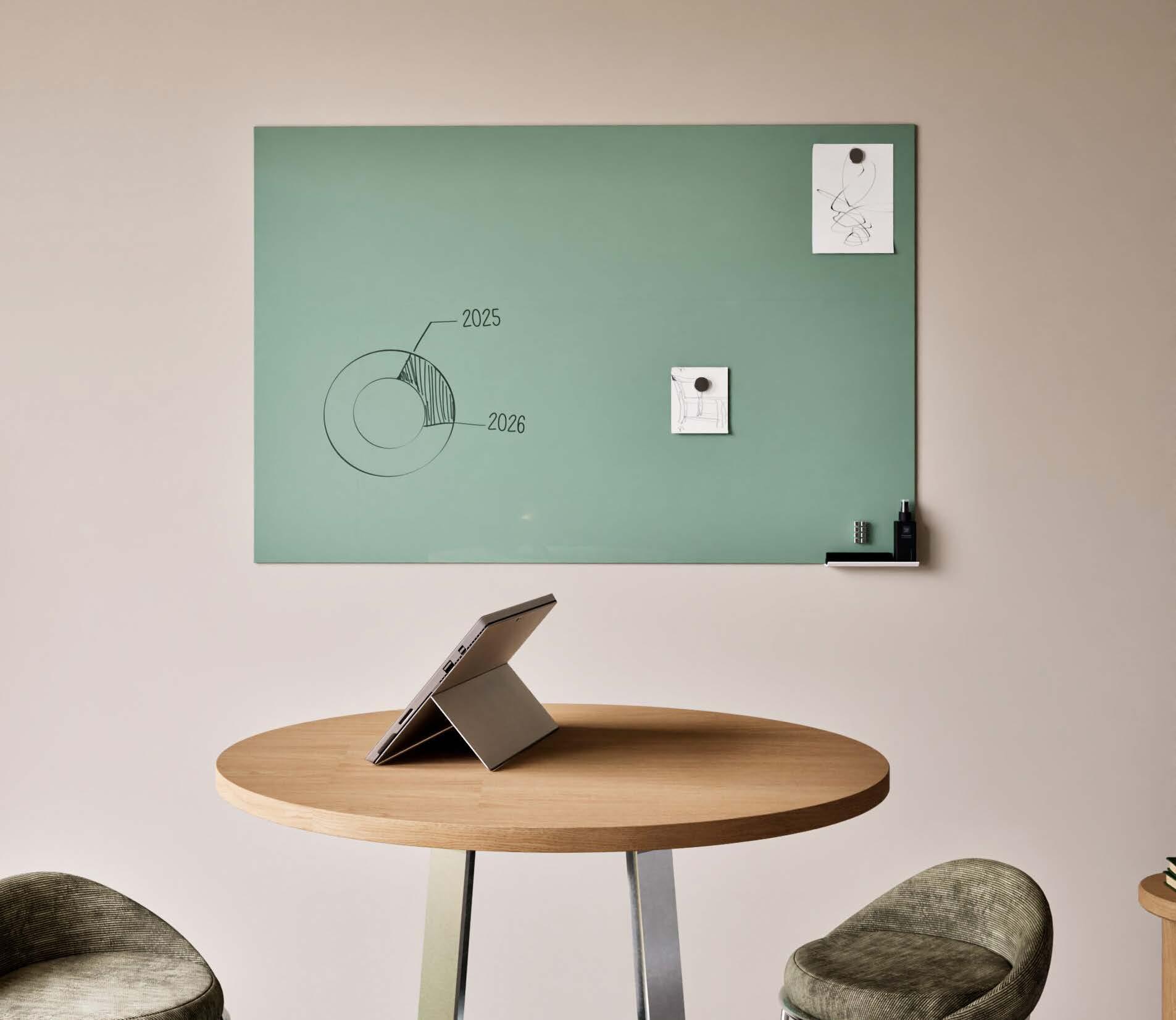

1.12 Sharp Glassboard

Writing / Glassboards / Elements / Sharp Glassboard

Chameleon Sharp Glassboard is a magnetic glass writing board made of extra-clear safety glass. The 18 soft colours (p. 34) complement modern interiors and can be combined with Sharp Acoustics (p. 46 - 47). Black whiteboard markers are clearly visible on all colours.

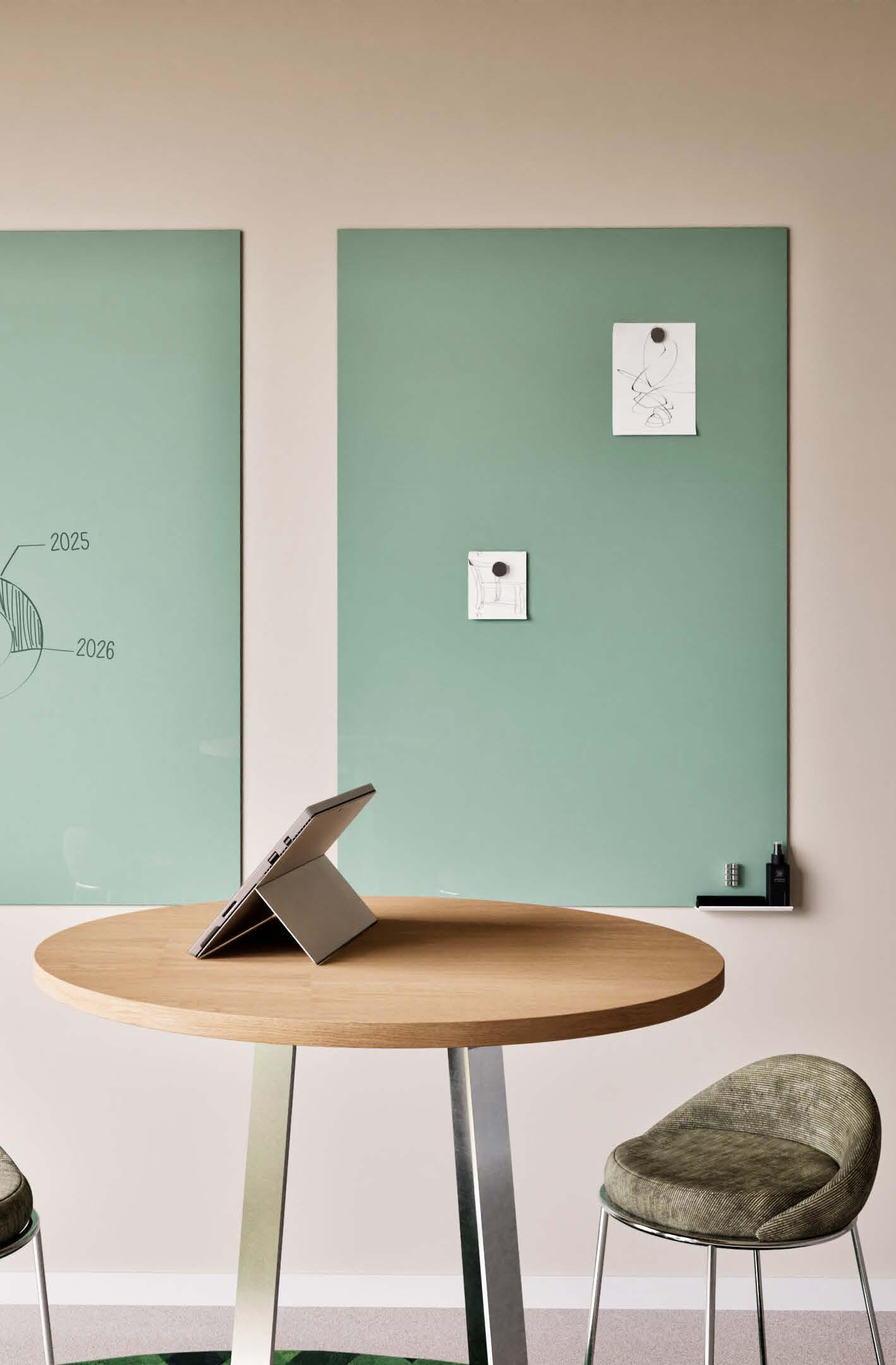

Mounting: magnetic | Thyme - G106

Size (cm)

Art. no. Just - G105

Art. no. overige kleuren

98 x 98

14800.300W

14800.300 [colour code]

98 x 148 14800.301W

14800.301 [colour code]

98 x 198 14800.302W 14800.302 [colour code]

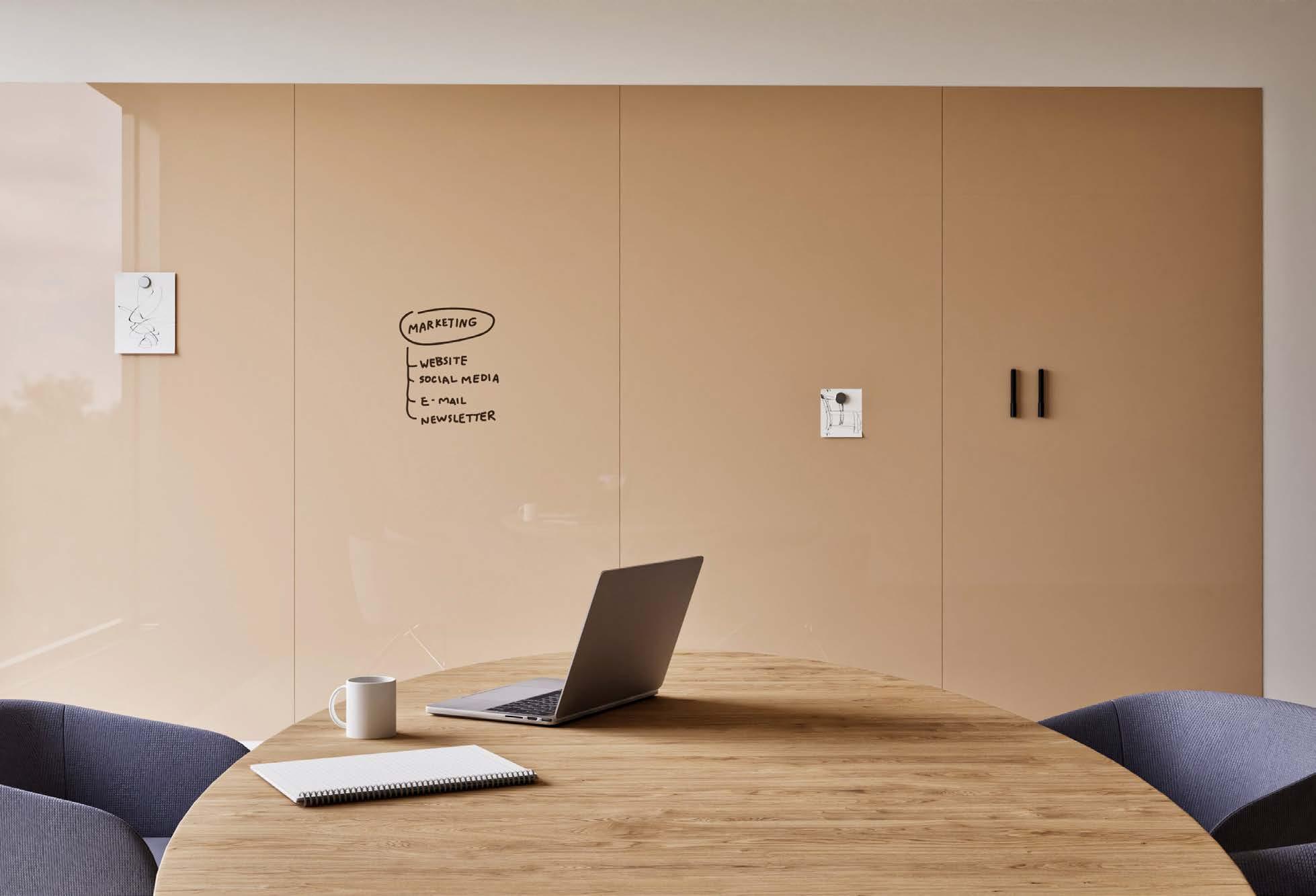

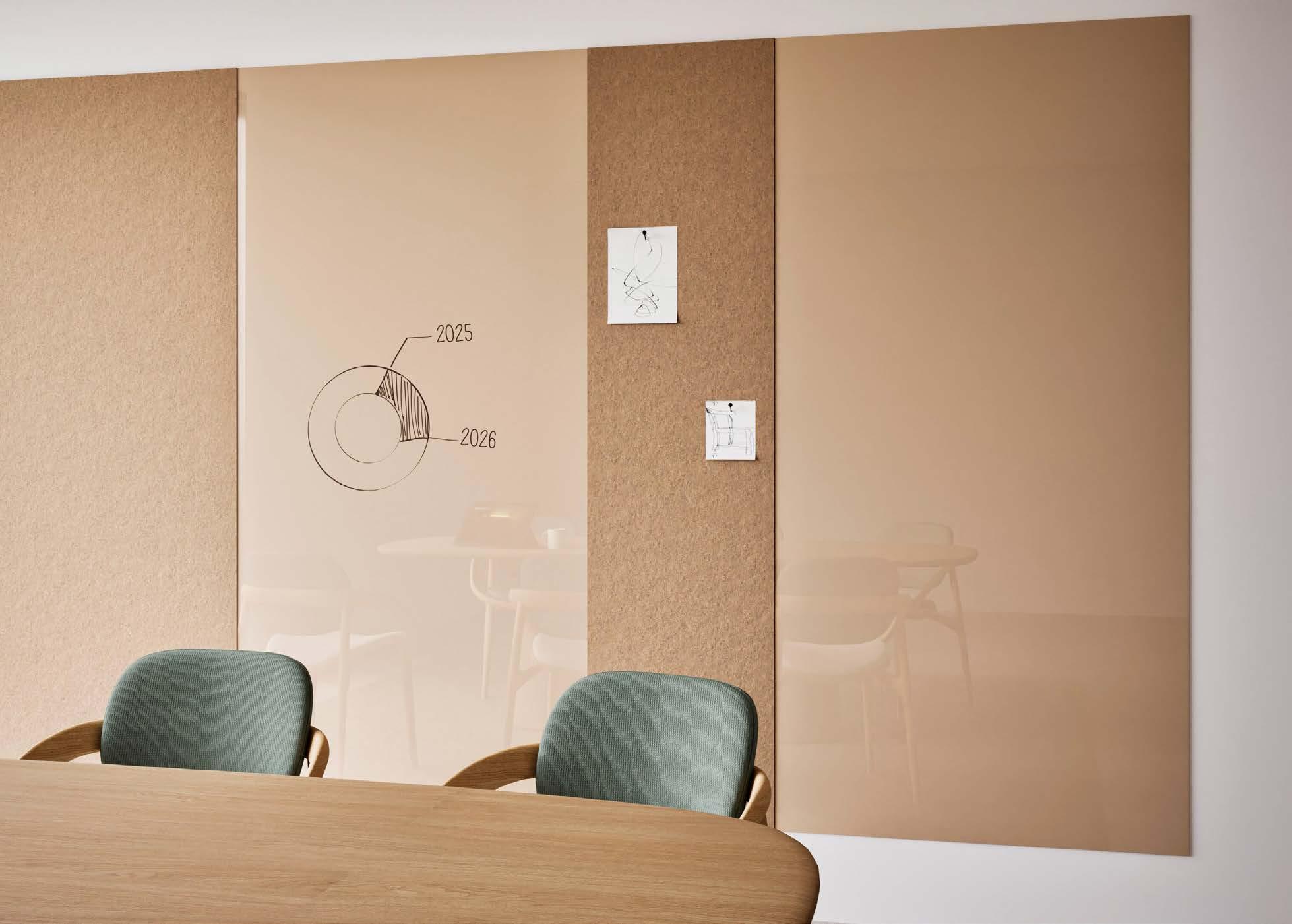

1.13 Sharp Wall

Writing / Glassboards / Walls / Sharp Glass Wall

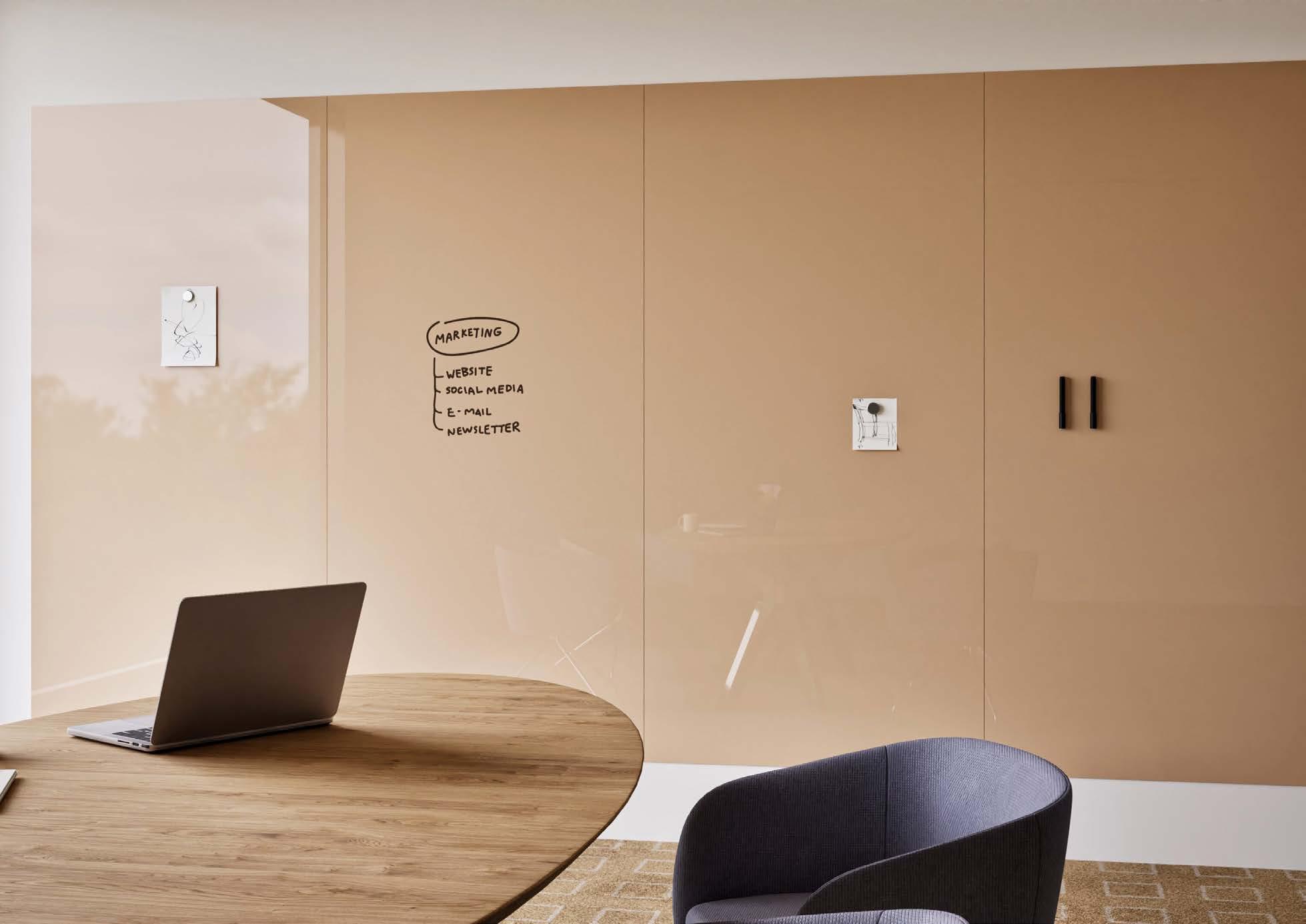

Chameleon Sharp Glass Wall is a magnetic writing wall made of extra-clear safety glass, available in 8 sizes and multiple panels. The 18 soft pastel shades (p. 34) complement a variety of interiors, and black whiteboard markers are clearly visible on all colours. The wall also pairs excellently with Sharp Acoustics (p. 46 - 47).

Mounting: magnetic | Chocolate milk - G110

2. Acoustics

Chameleon Acoustics

9 en 18 mm PET felt

Chameleon PET felt colours

Elements

2.1 Sharp Acoustics

2.2 Curve Acoustics

2.3 Round Acoustics

2.4 Pebbles Acoustics

Walls

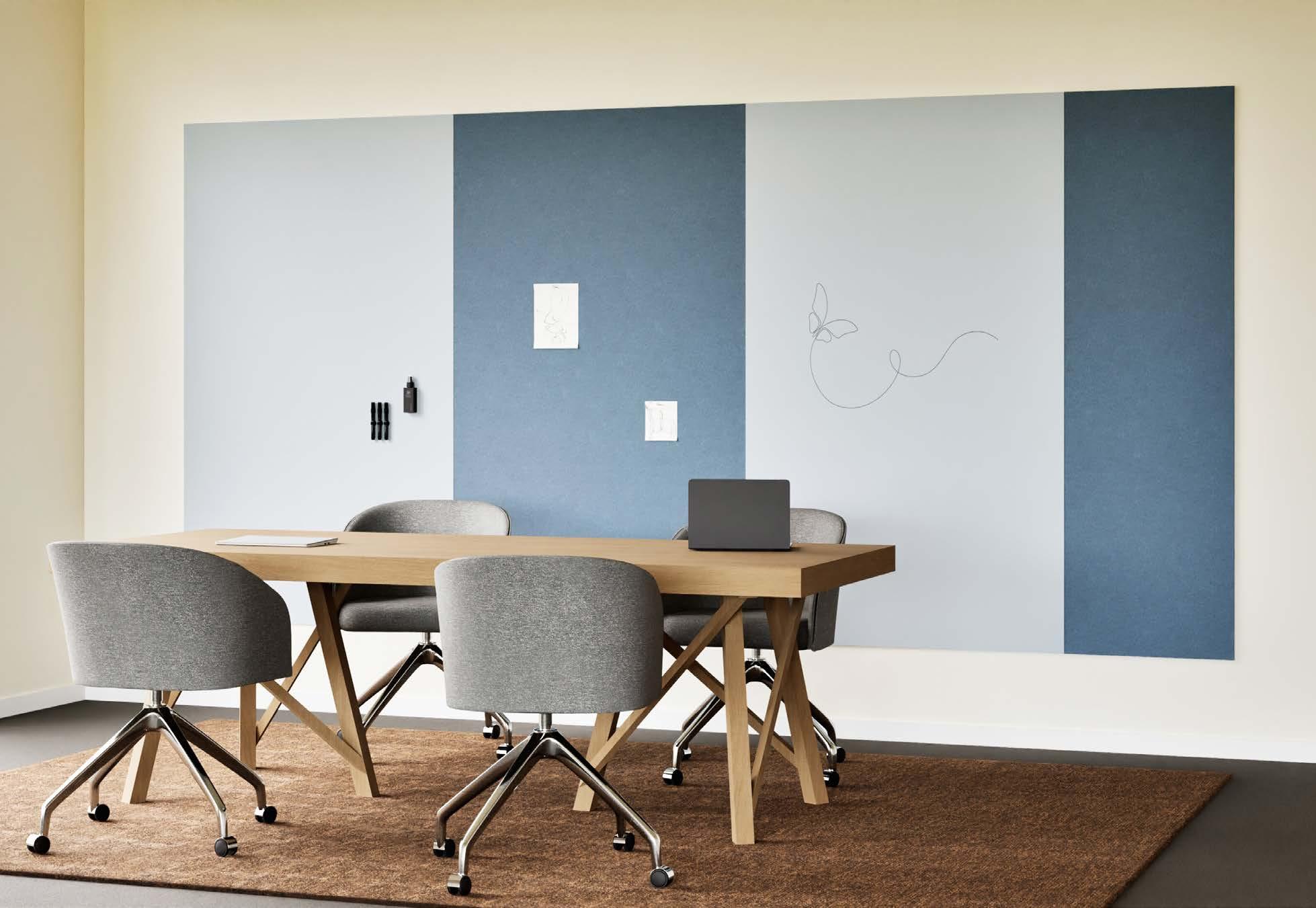

2.5 Sharp Wall Acoustics

2.6 Curve Wall Acoustics

2.7 Creatives

Coverings

2.8 9 mm Single Layer

2.9 Creative V-Layer Panels

2.10 Creative Layer Panels

Dividers

2.11 Creative Divider Panels

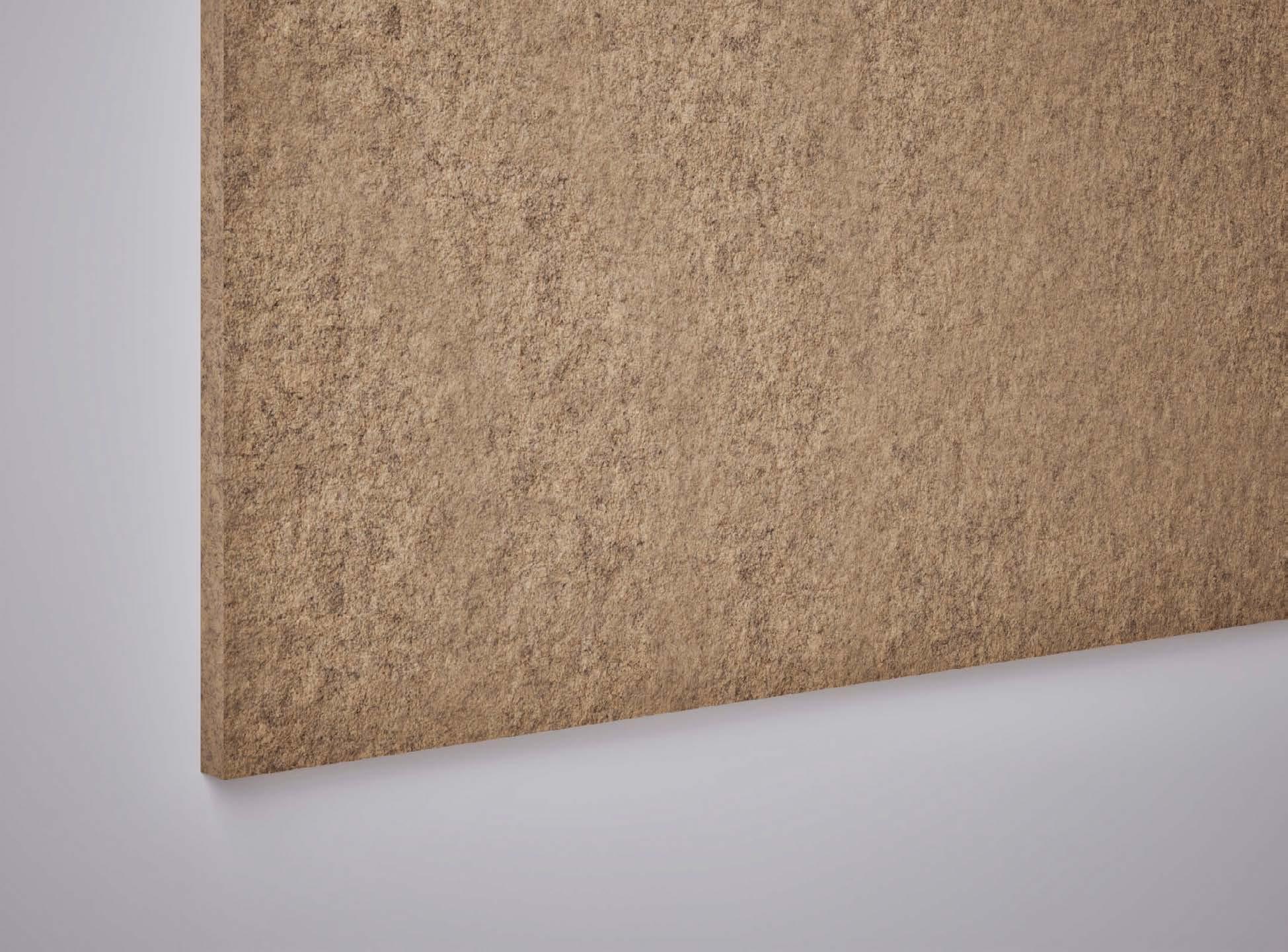

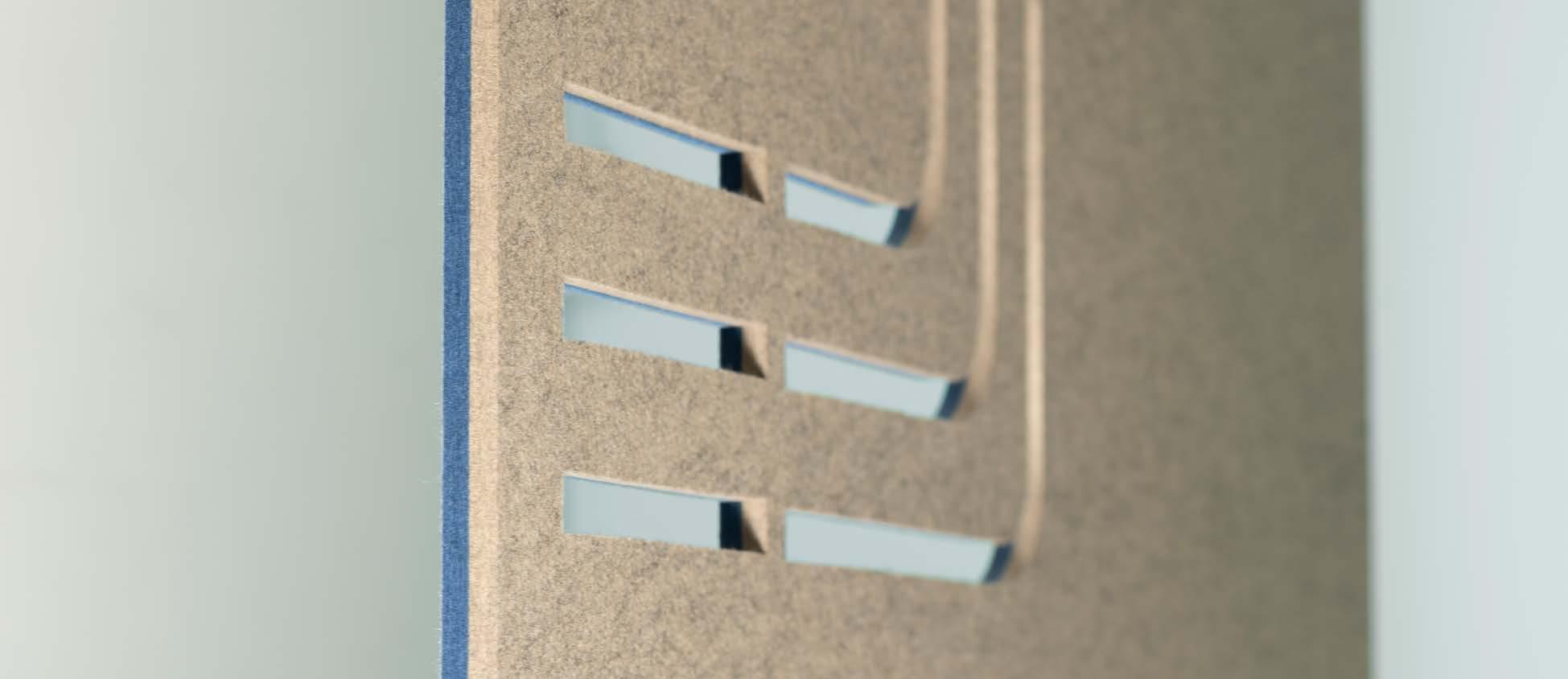

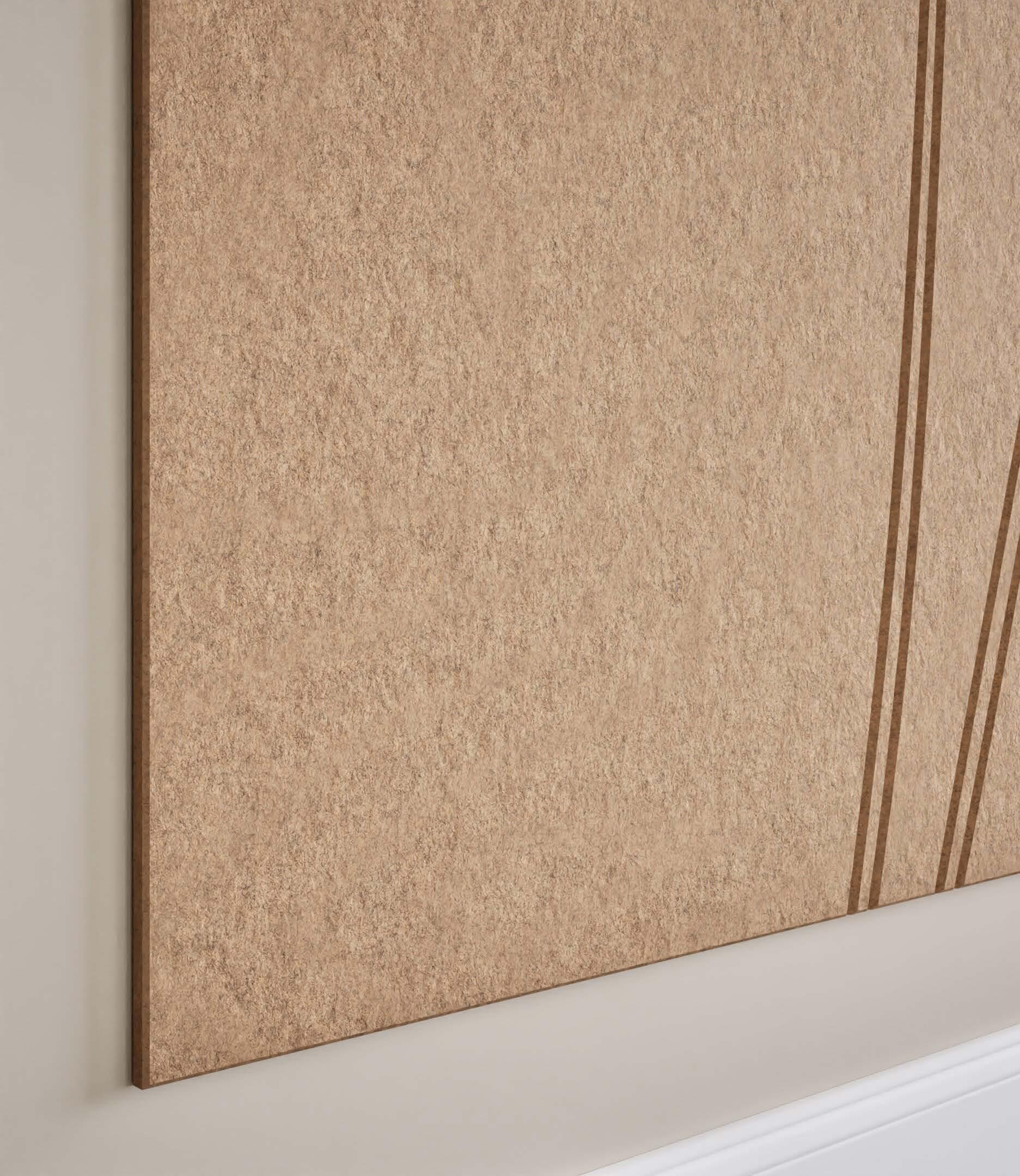

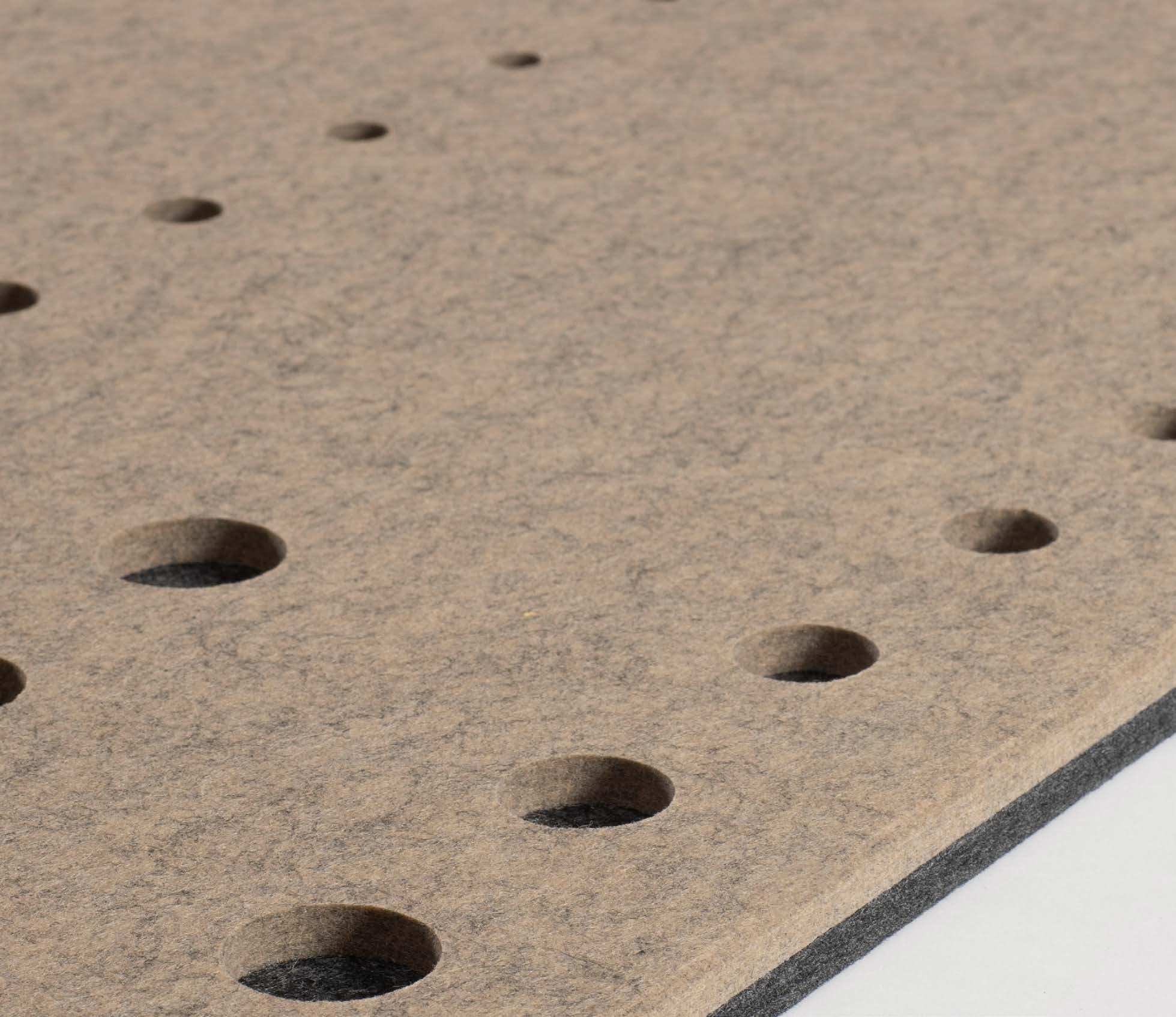

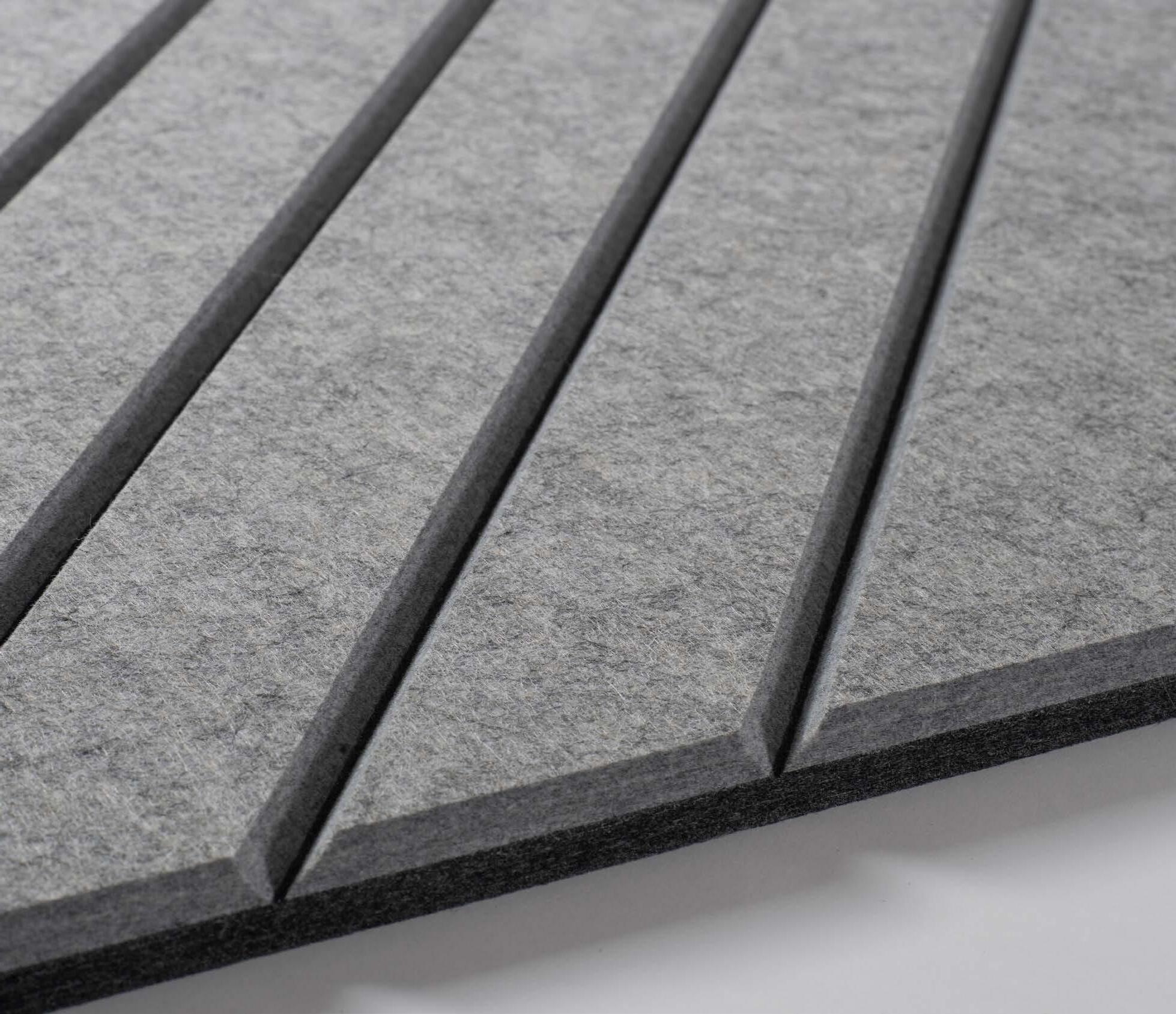

9 and 18 mm PET felt

Transform any space into a haven of calm and clarity with acoustic PET felt wall panels. By absorbing echoes and unwanted reflections, they make conversations sound natural and help boost focus and concentration.

1. Application:

The 9 mm PET felt is used for the Sharp, Curve and Creatives Walls, as well as the 9 mm Single Layer Covering. The 18 mm PET felt (2 layers of 9 mm) is used for the Elements and Creative Panels.

2. Material:

Chameleon Acoustics is made from 100% recyclable polyethylene terephthalate (PET), of which more than 50% comes from recycled PET bottles. These materials are processed into a soundabsorbing felt with a soft texture.

3. Thickness and dimensions:

The thickness of the PET felt panels is 9 or 18 mm. The maximum panel size is 120 x 240 cm.

4. Fire resistance:

Tested according to EN13501.

9 mm: B-s1, d0

18 mm: B-s2, d0

5. Mounting:

Chameleon Acoustics products can be mounted on the wall in three different ways:

• Magnetic: quick, easy, and removable. The panels (Elements) are simple to install and align with each other.

• With adhesive (not included): preferred for full wall coverage (Walls and Coverings). The initial tack is flexible enough to allow slight adjustment during final panel positioning.

• Velcro: ideal for the smaller Creative Panels; fast and easy.

9 mm

9 mm - without cavity

αw 0,25 / SAA 0,30

9 mm - 50 mm cavity

αw 0,55 / SAA 0,70

9 mm - 100 mm cavity

αw 0,75 / SAA 0,76 3

18 mm

18 mm - without cavity

18 mm - 50 mm cavity αw 0,75

18 mm - 100 mm cavity αw 0,80 / SAA 0,74

9 and 18 mm PET felt

Colours

The 9 mm and 18 mm PET felt from Chameleon Acoustics is coloured all the way through. In creative patterns, the colour is also visible in the cut-outs. We have selected 23 colours, with a strong presence in grey, green, and brown shades.

White P005 Rough grey

Dusty white

P006 Black lava

White marble P004 Calm grey

P007 Flat white

P011 Rust

P008 Hare

P012 Tree bark

P009 Canyon

P010 Turmeric

P013 Magma

P014 Polar ice

P018 Garnet

P015 Light blue quartz

P017 Pink rose

P016 Dusk

P019 Iguana

P020 Ocean green

P021 Anthracite

P022 Urban green

P023 Shadow green

2.1 Sharp Acoustics

Acoustics / Elements / Sharp Acoustics

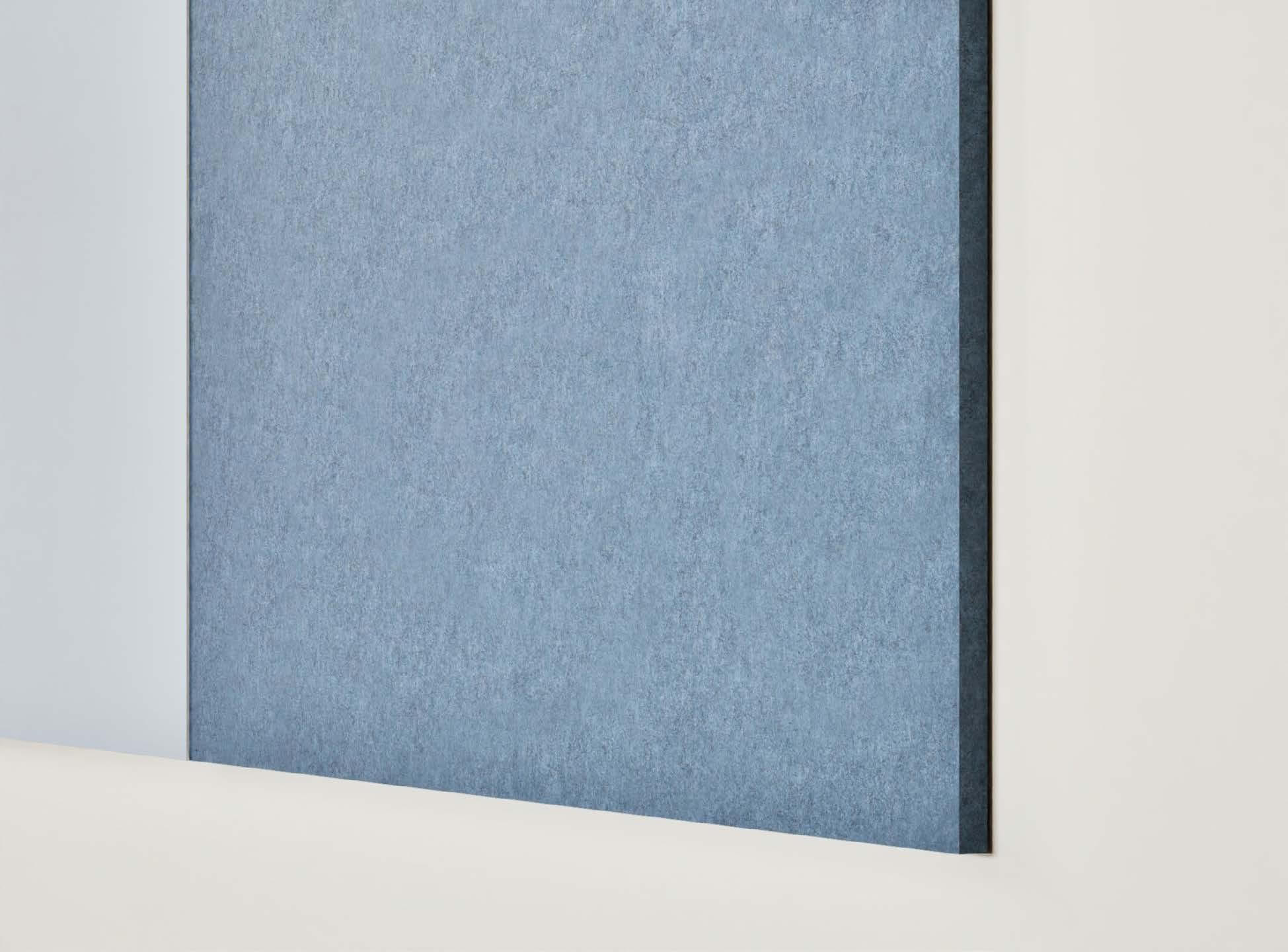

Add colour and sound-dampening to your whiteboard. These 9 mm thick PET felt panels are available in 23 colours (p. 44). The different panel sizes are compatible with Chameleon Sharp Wall (p. 24–25) and/or Chameleon Sharp Glassboard and Sharp Glass Wall (p. 36 - 39).

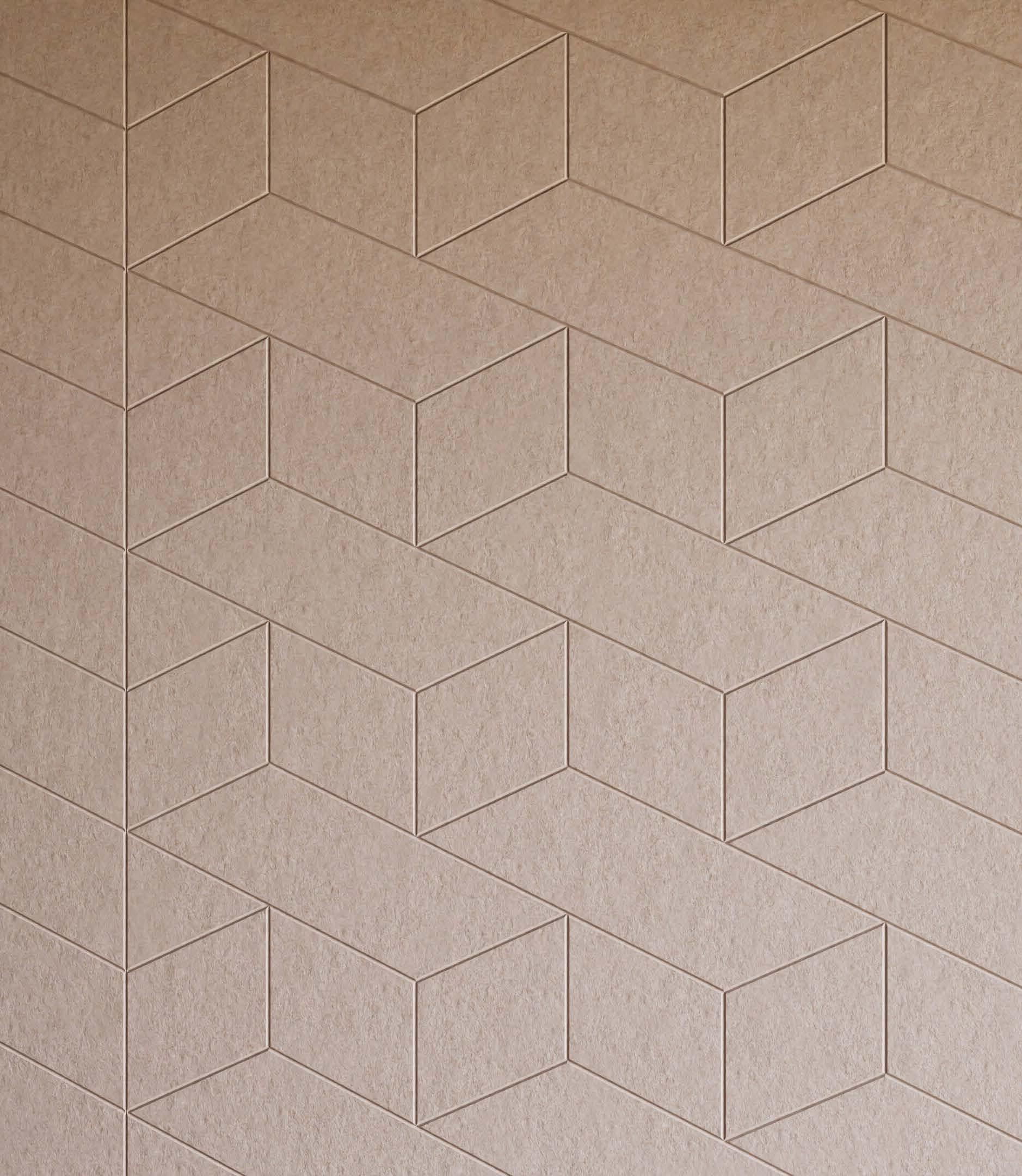

Patterns

The drawings below provide an example of the patterns. Visit our website for an overview of the patterns available on all sizes of Sharp Acoustics panels.

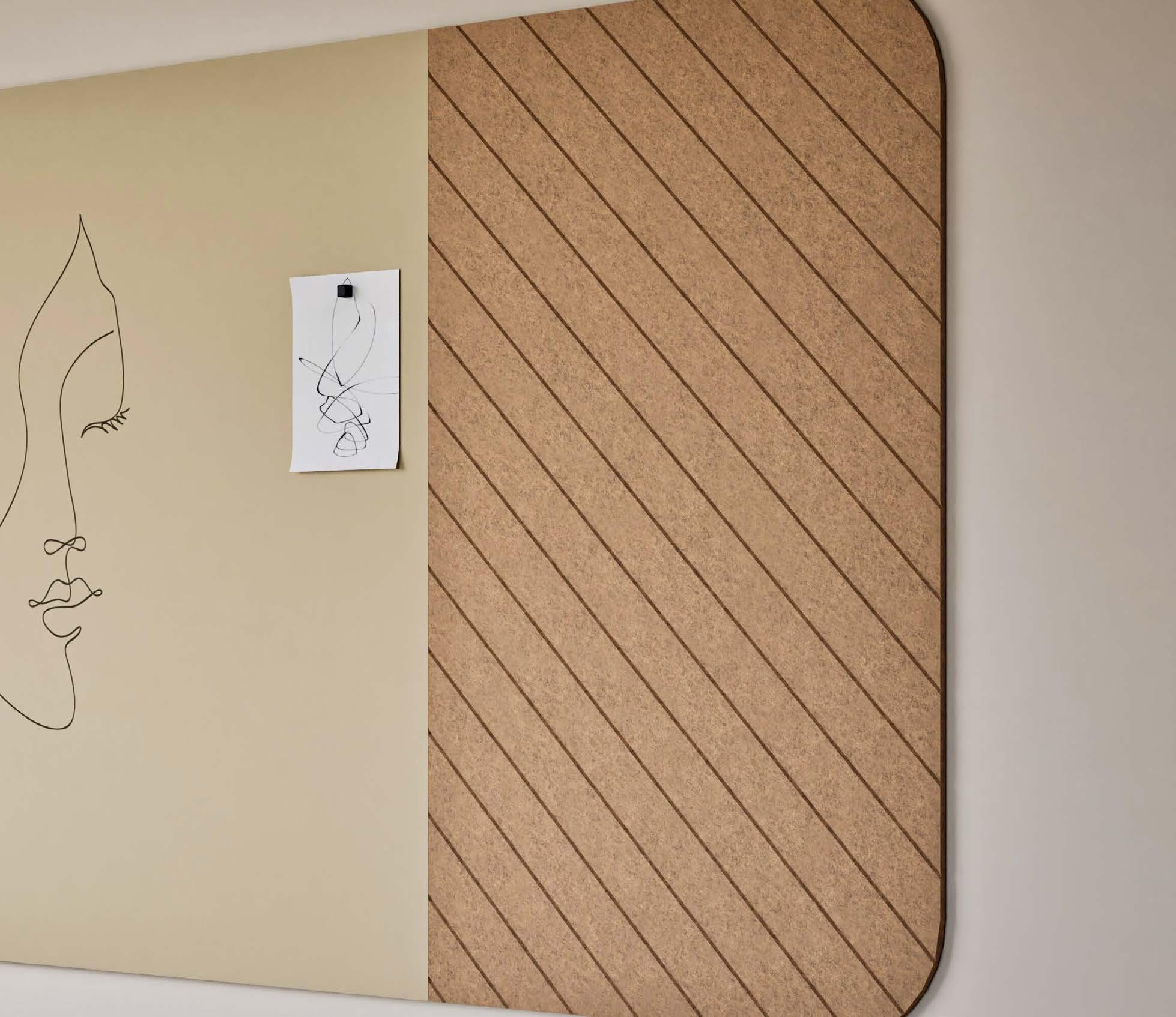

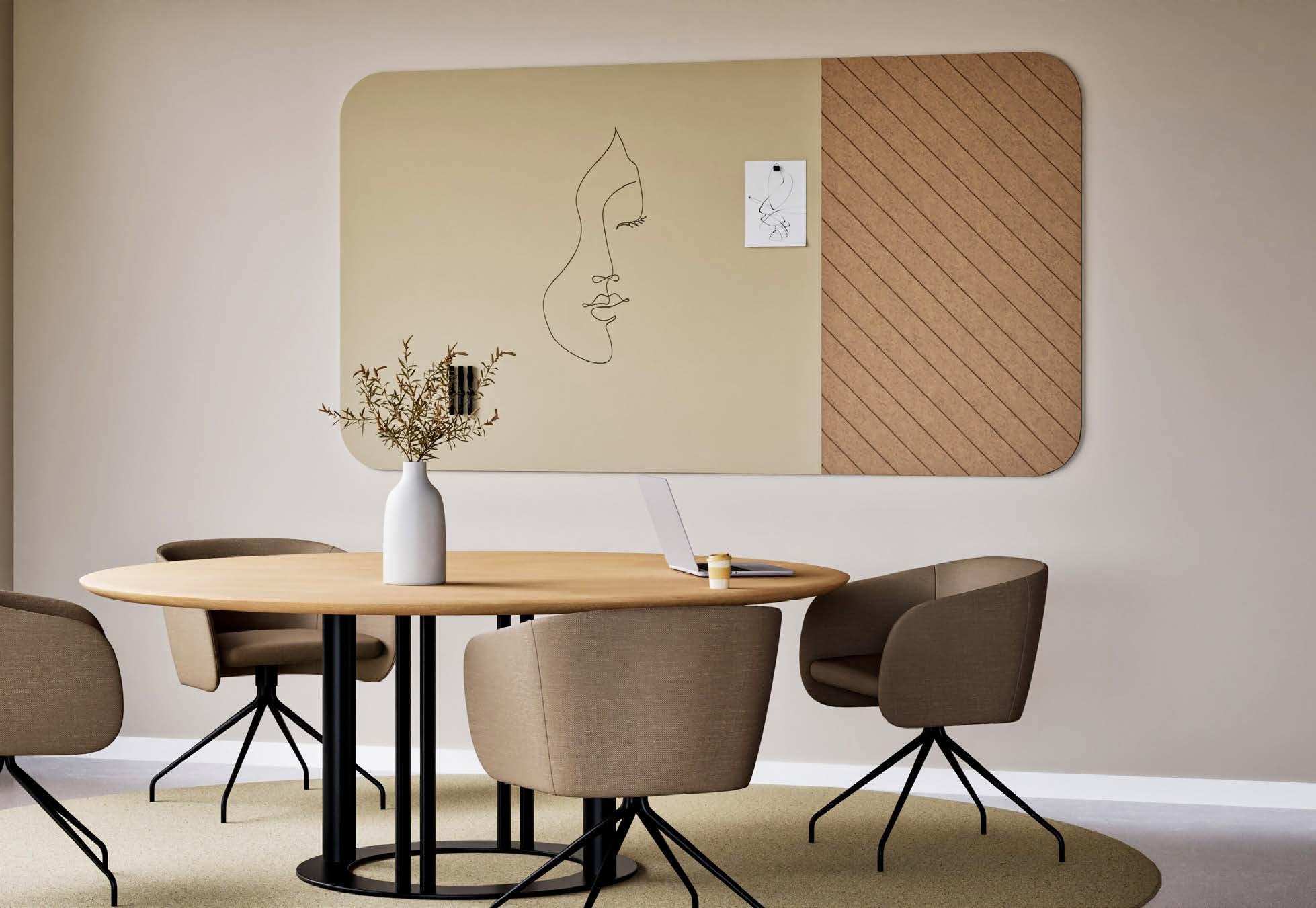

Mounting: magnetic | PET felt colour: Hare - P008, Glassboard colour: Tuscany - G111

Size (cm) Art. no.

198 x 59

198 x 118

198 x 98

198 x 48

148 x 98

148 x 48

98 x 98

98 x 48

88 x 118

88 x 59

Other sizes

11208.001 *

11208.002 *

11208.003 *

11208.004 *

11208.005 *

11208.006 *

11208.007 *

11208.008 *

11208.009 *

11208.010 *

11210.981 *

* When requesting a quote or placing an order, please include the colour code of the PET felt (p. 44) with the article number first, optionally followed by the code for the pattern: [article number + colour code + pattern code (optional)].

View it in pCon View this product on our website

2.2 Curve Acoustics

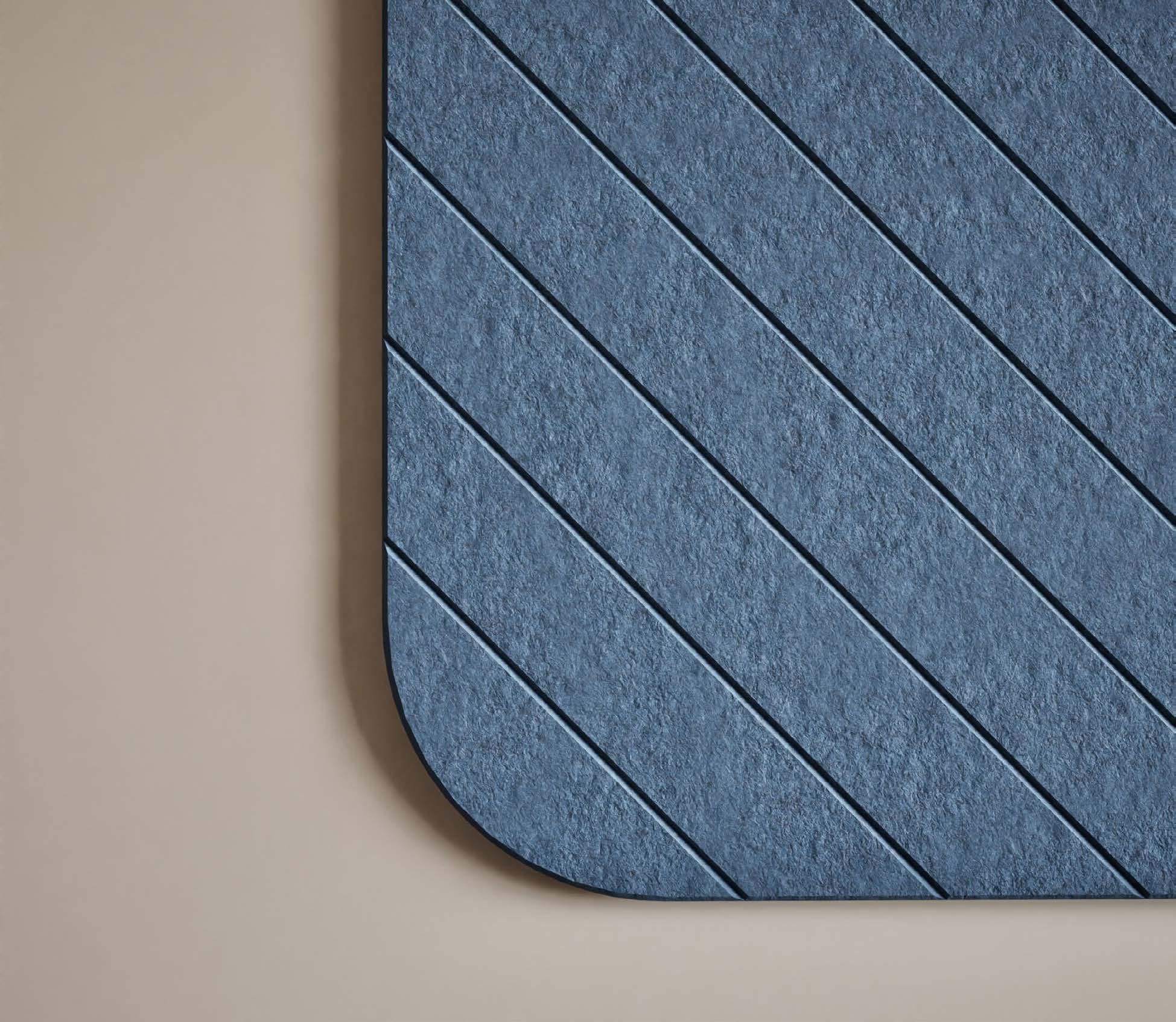

Acoustics / Elements / Curve Acoustics

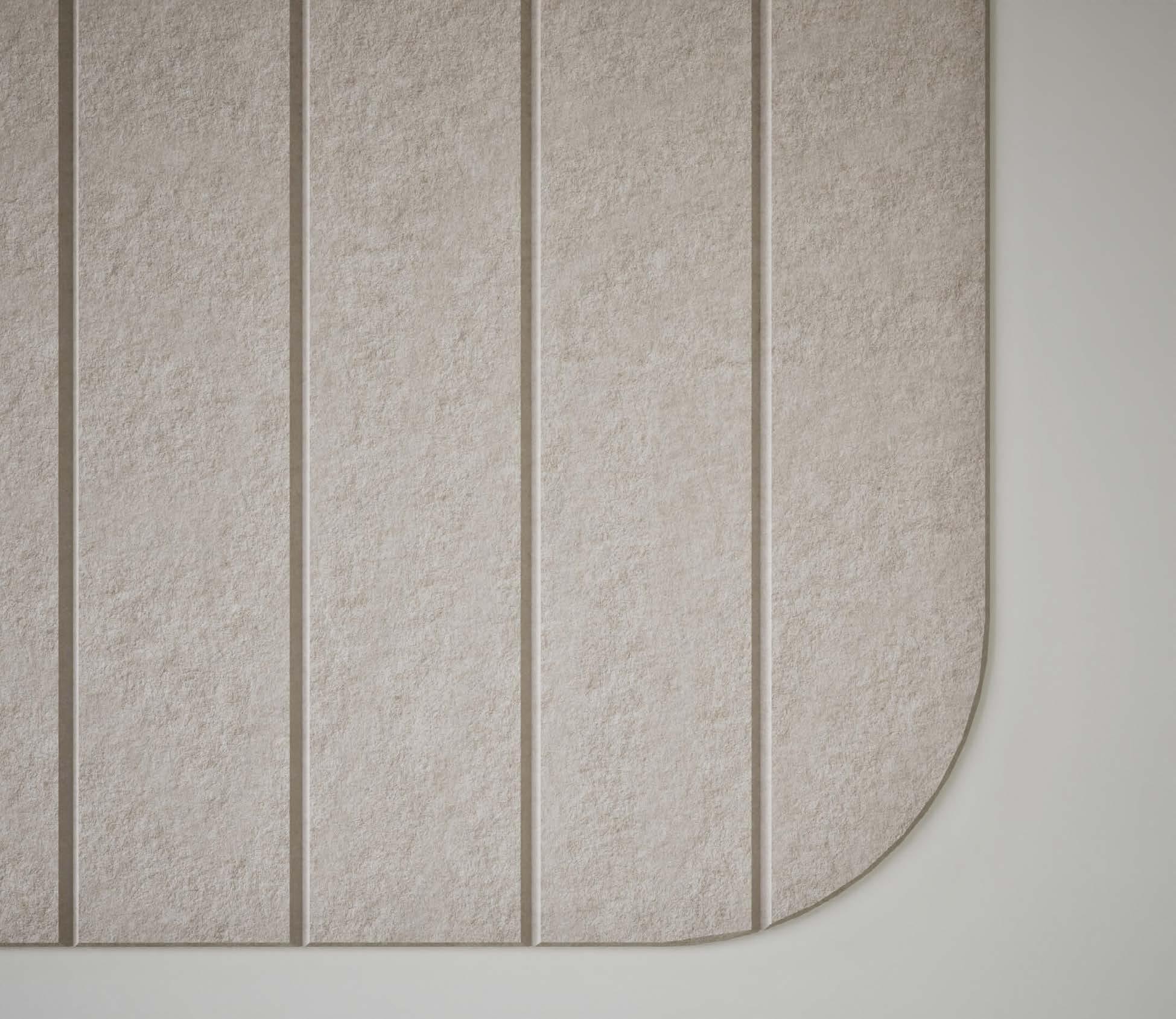

Reduce disruptive echo in your space with this acoustic wall panel. The acoustic panel features rounded corners and a choice of several surface cut patterns. Curve Acoustics is available in 23 modern, soft colours (p. 44) and can be combined with the Curve whiteboards (p. 16–17).

Patterns

The drawings below provide an example of the patterns. Visit our website for an overview of the patterns available on all sizes of Curve Acoustics panels.

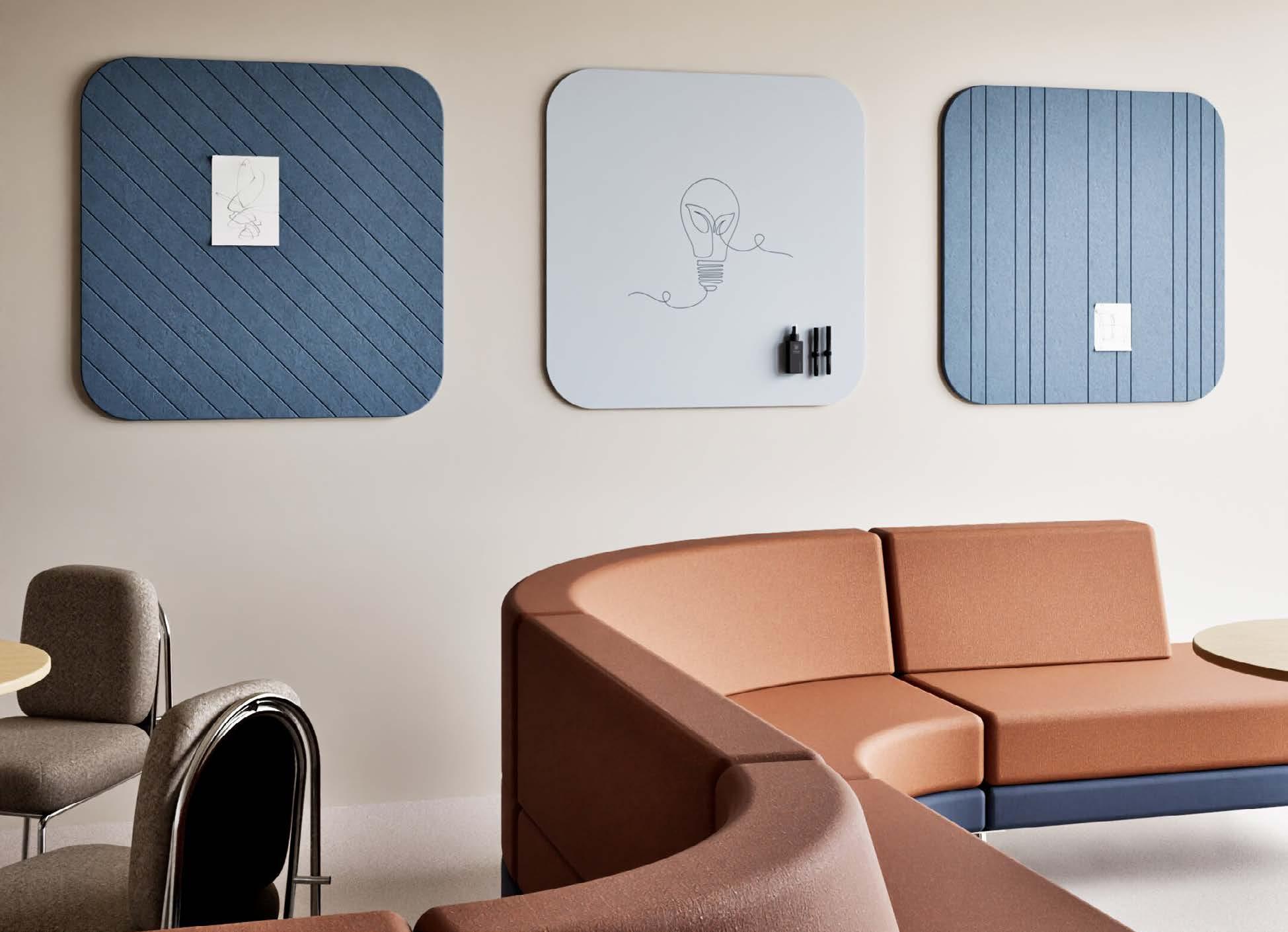

Mounting: magnetic | PET felt colour and patterns: Dusk - P016, A05 (left), A13 (right)

11210.981 *

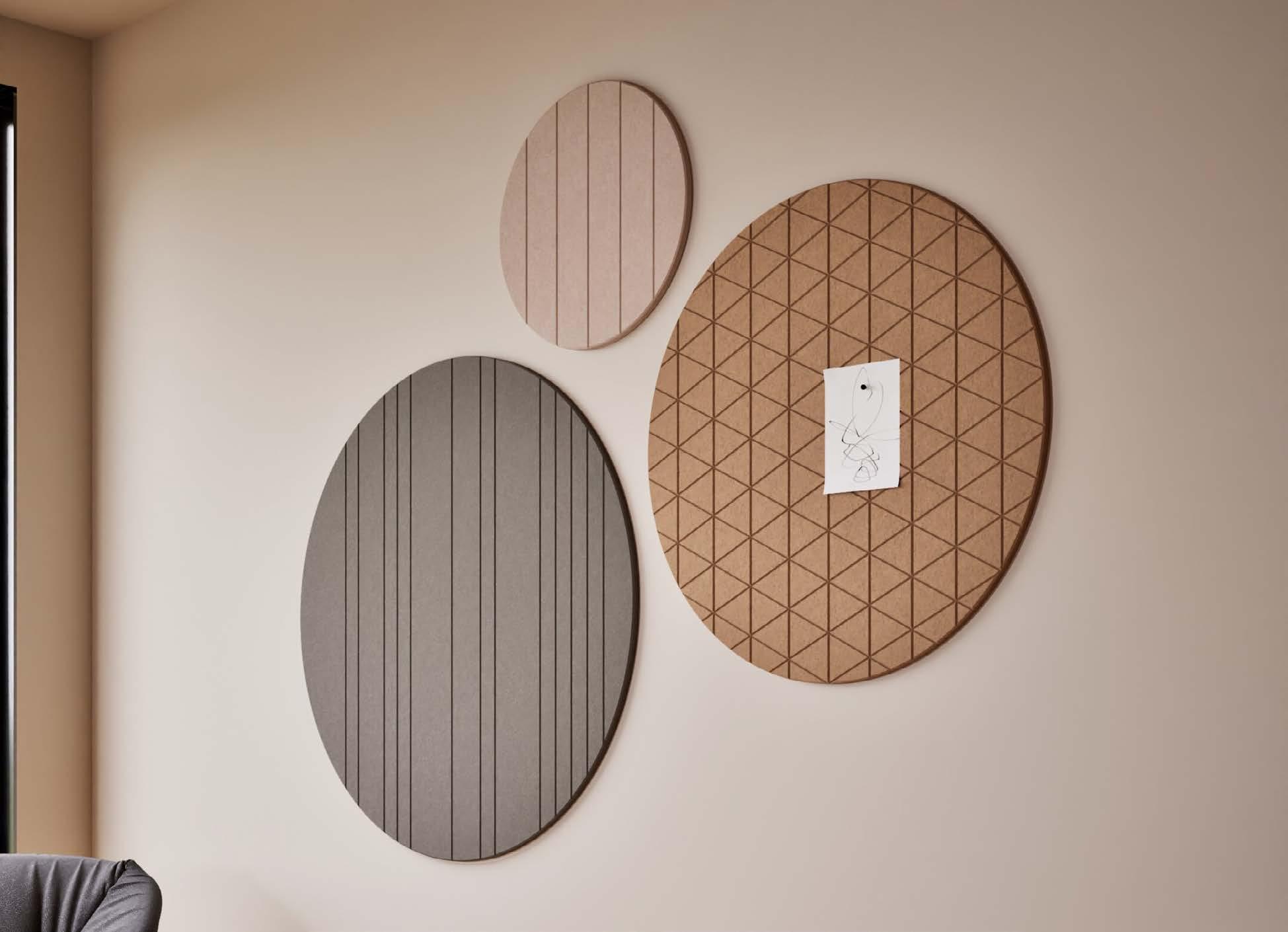

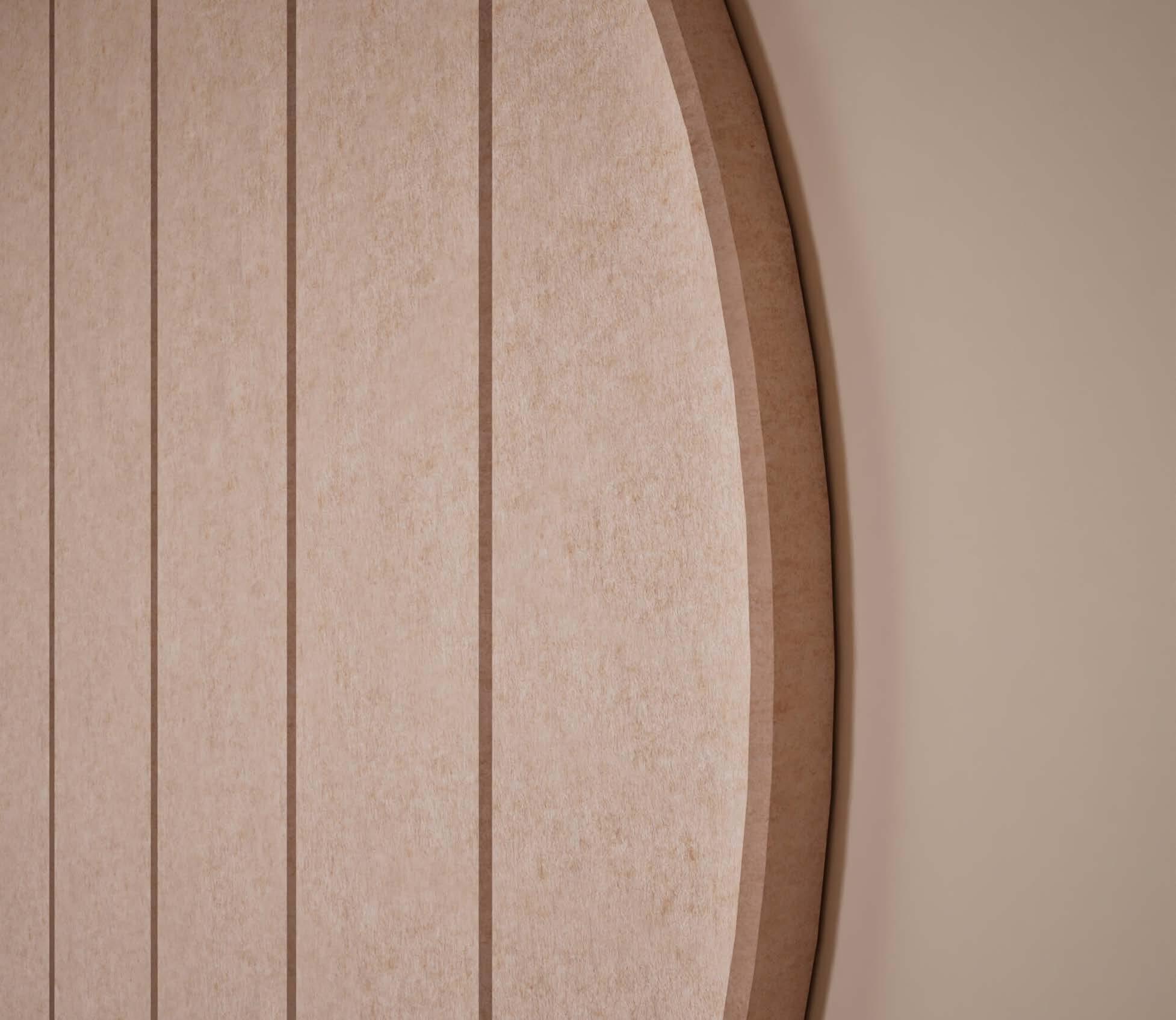

2.3 Round Acoustics

Acoustics / Elements / Round Acoustics

Do you want to reduce echo and give the room a welcoming, stylish feel at the same time? This round acoustic panel is the perfect solution. The durable PET material is made from over 50% recycled fibres. Round Acoustics is available in three sizes and 23 colours (p. 44) and can be combined with Round whiteboards (p. 20–21).

Patterns

The drawings below provide an example of the patterns. Visit our website for an overview of the patterns available on all sizes of Round Acoustics panels.

A04

A05

A10

A13

Mounting: magnetic | Anthracite - P021, A13 (bottom left), Hare - P008, A04 (top right) and P007 - Flat white, A10 (top)

Size (cm)

2.4 Pebbles Acoustics

Acoustics / Elements / Pebbles Acoustics

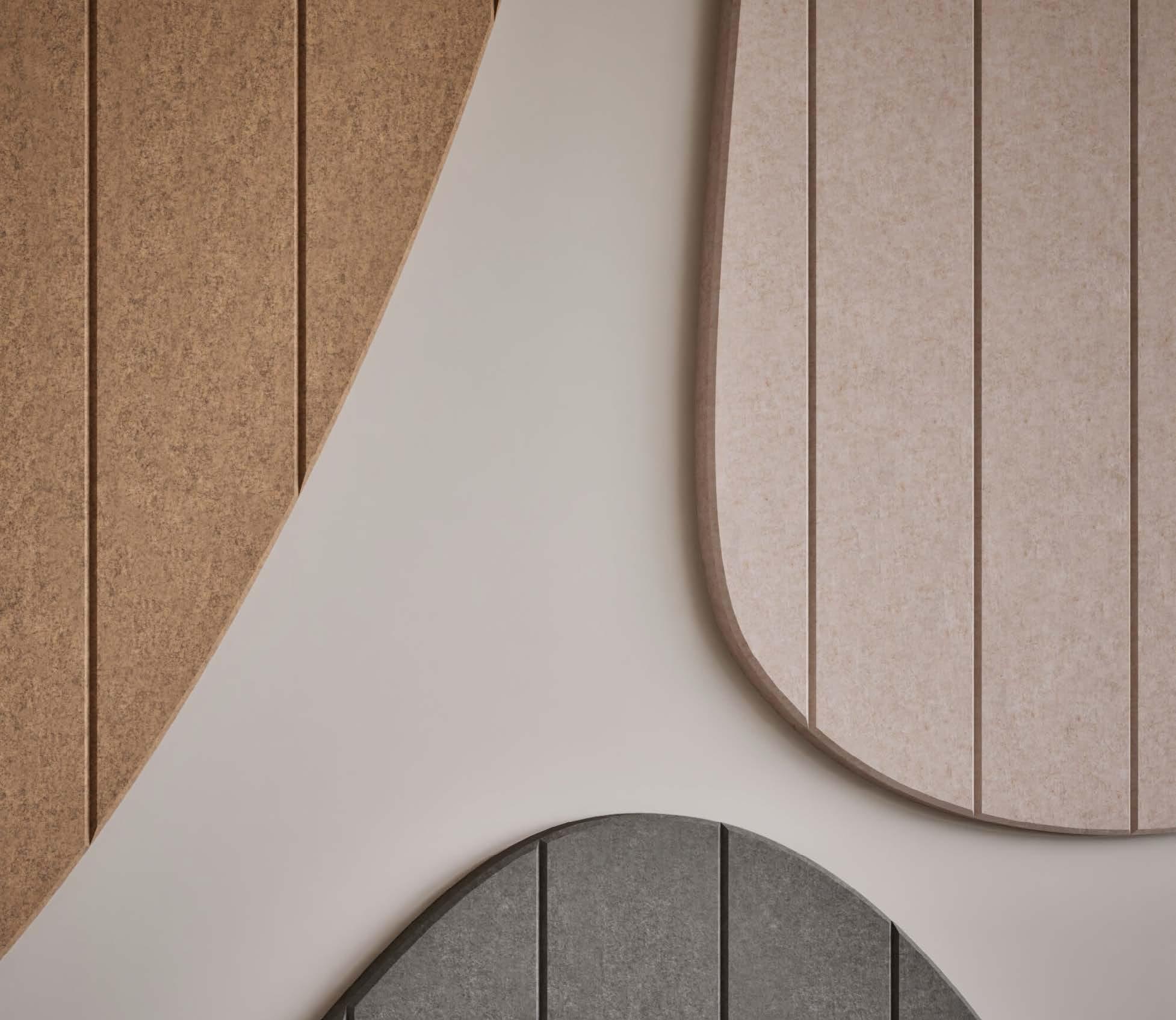

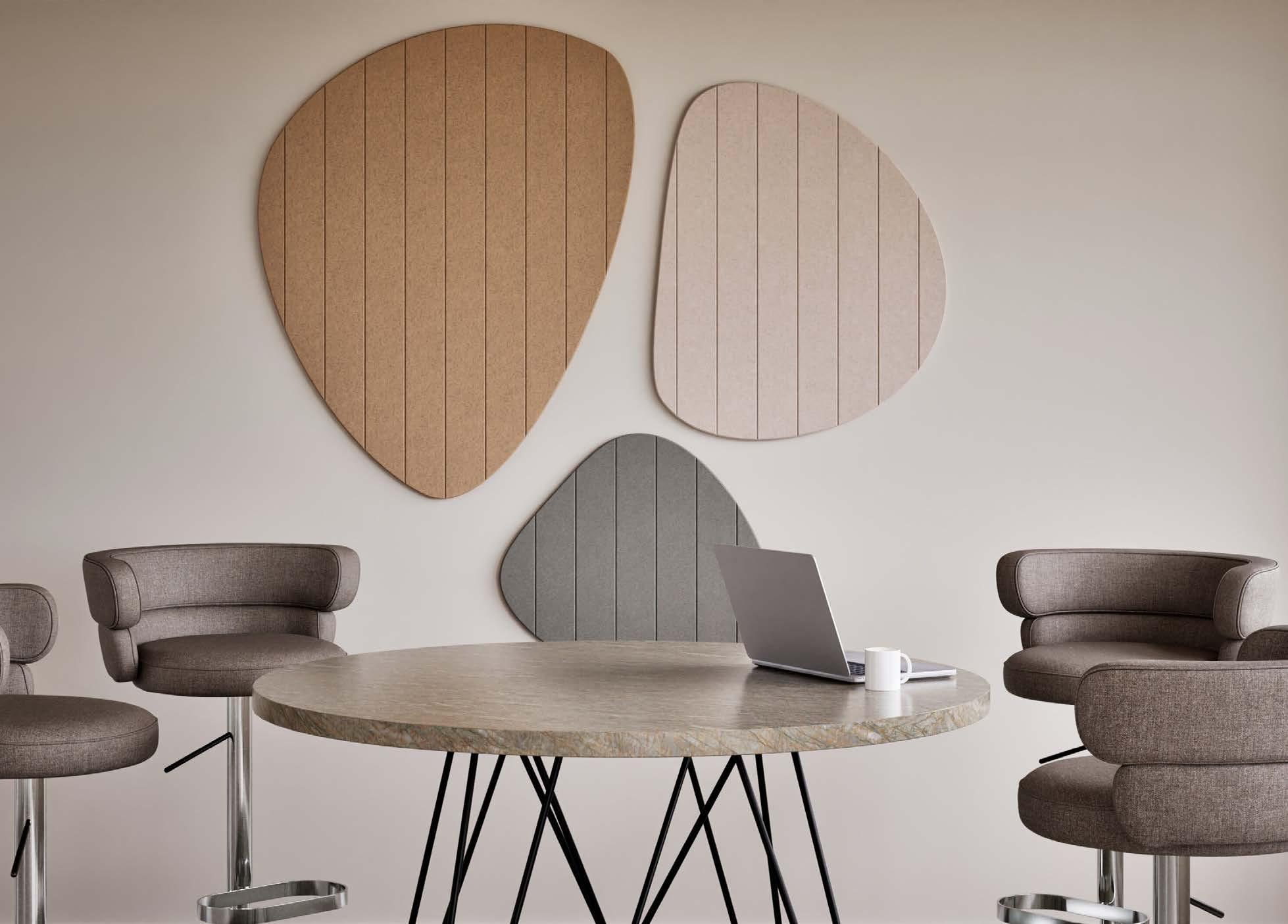

Playful, organic shapes are the office interior trend right now. This pebble-shaped acoustic panel fits perfectly in that style. Pebbles Acoustics comes in 23 colours (p. 44) and is made from PET fibres, over 50% recycled. Pair with Pebbles whiteboards (p. 22–23).

Patterns

The drawings below provide an example of the patterns. Visit our website for an overview of the patterns available on all sizes of Pebbles Acoustics panels.

A04

A05

A10

A13

Mounting: magnetic | Hare - P008 (top left), Flat white - P007 (top right) and Antharcite - P021 (bottom) | Pattern: A10

11210.981 *

View it in pCon View this product on our website

Pebbles

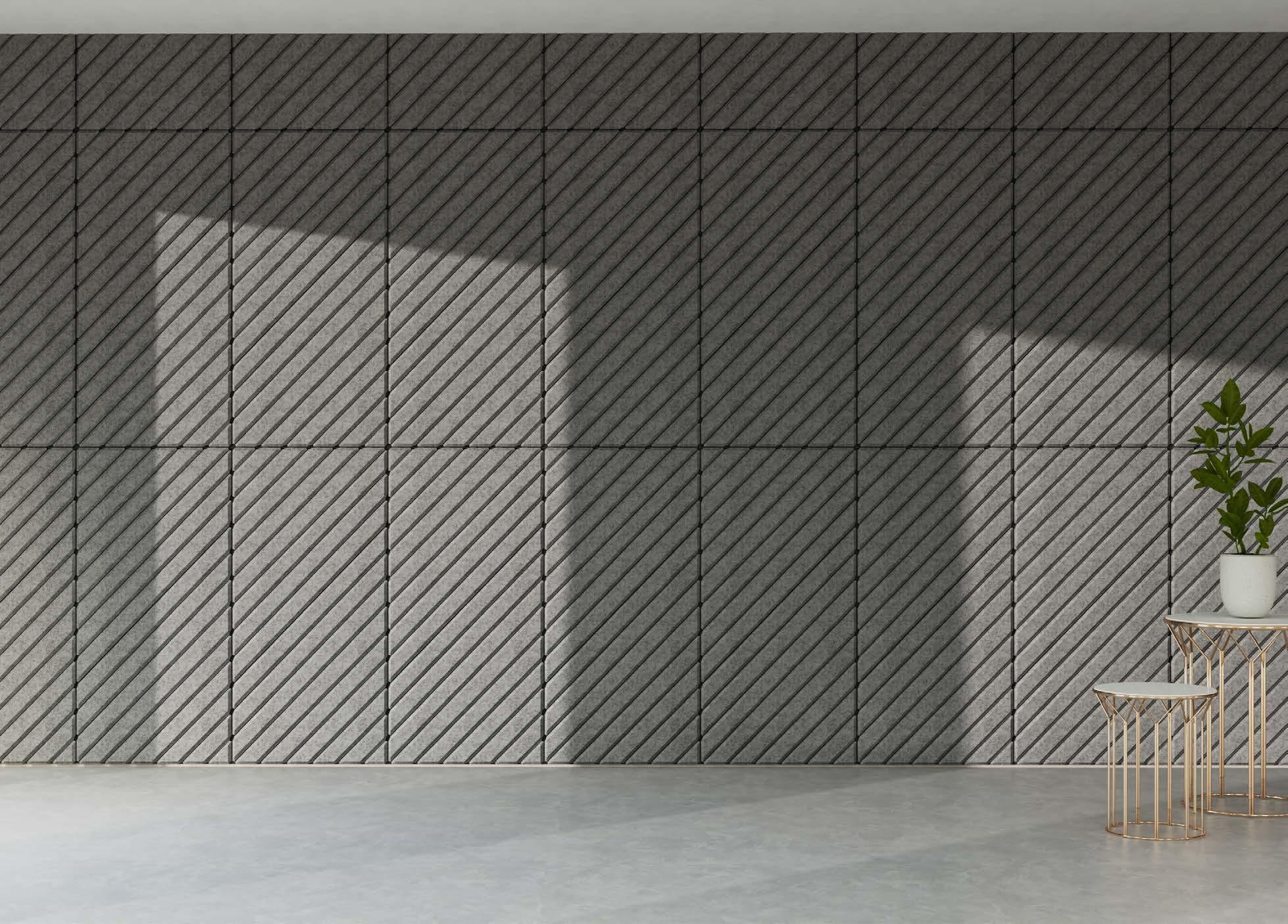

2.5 Sharp Wall Acoustics

Acoustics / Walls / Sharp Wall Acoustics

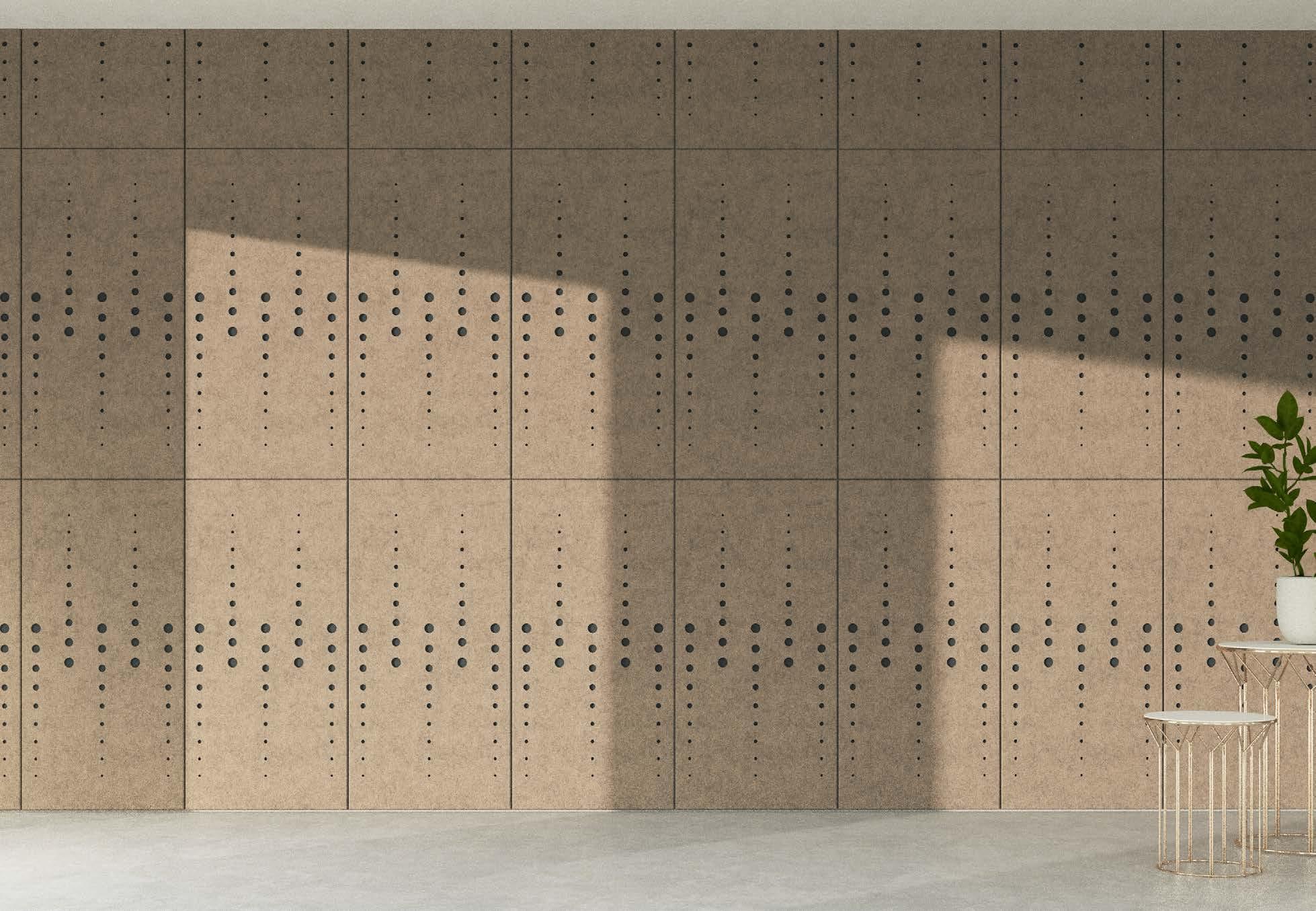

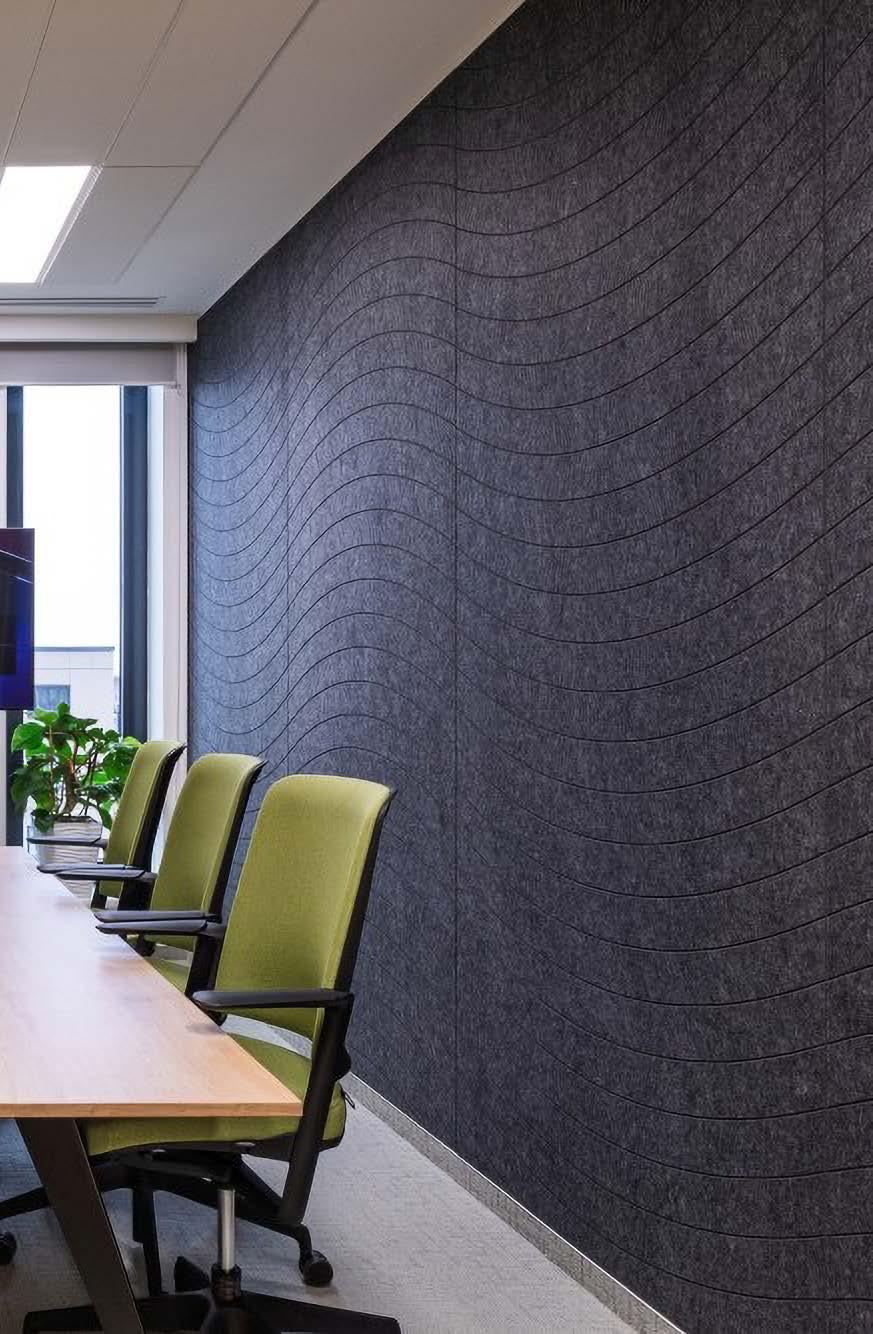

Do you want to noticeably improve the acoustics in your office or school? Sharp Wall Acoustics offers a large acoustic surface in various widths. The right-angled edges give this PET felt wall a sleek, modern appearance. The 9 mm thick PET felt is made from over 50% recycled fibres. Available in 23 different colours (p. 44).

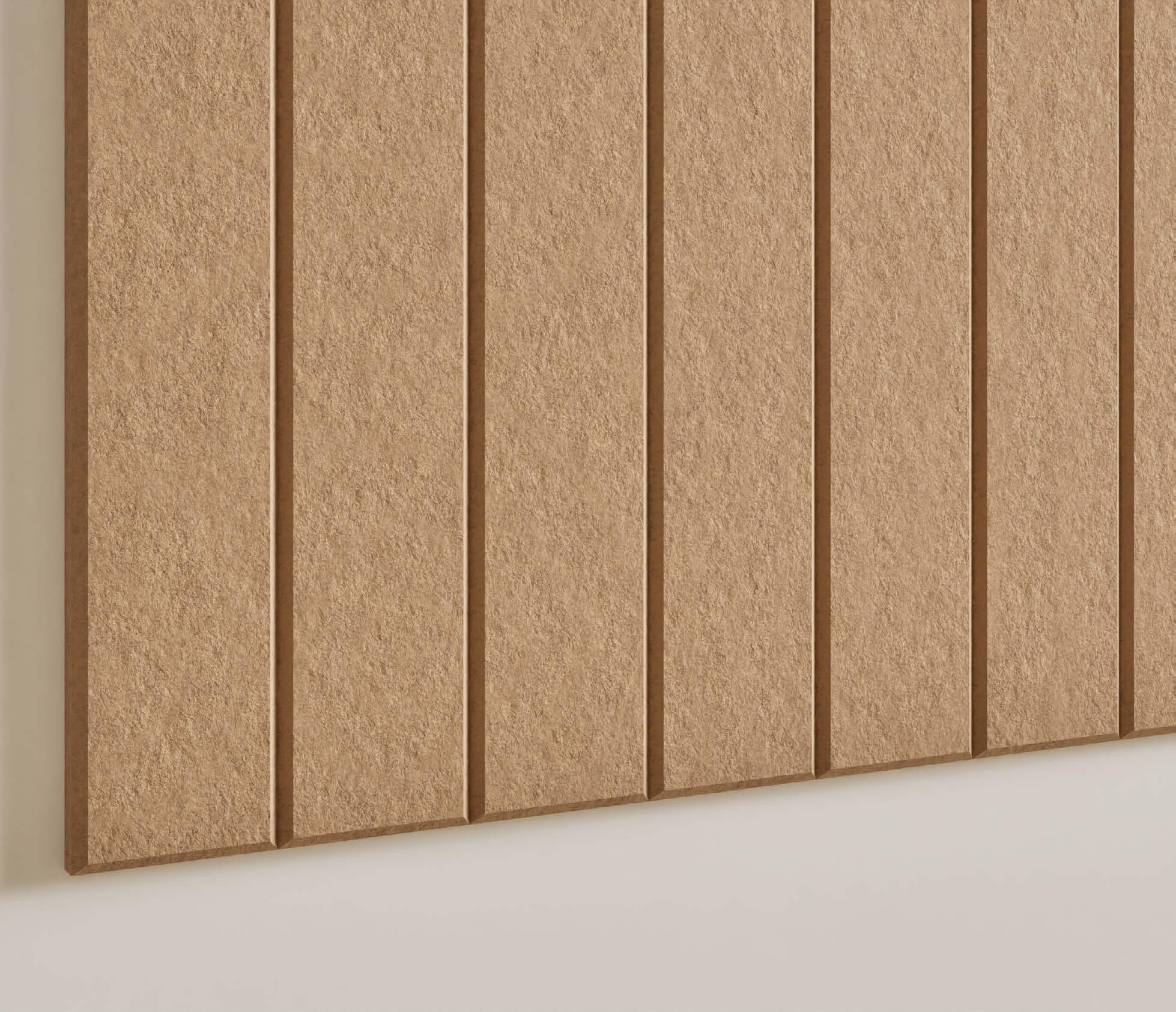

Mounting: adhesive | Hare - P008 | Pattern: A10

View this product on our website

View it in pCon

2.6 Curve Wall Acoustics

Acoustics / Walls / Curve Wall Acoustics

Would you like to make a significant improvement to the acoustics in an office or school? Curve Wall Acoustics is a large acoustic surface available in various widths, characterised by its rounded corners. The 9 mm thick PET felt consists of more than 50% recycled fibres. Available in 23 different colours (p. 44).

A11

Mounting: adhesive | Flat white - P007 | Pattern: A10. Whiteboard not included.

View it in pCon View this product on our website

2.7 Creatives

Acoustics / Walls / Creatives

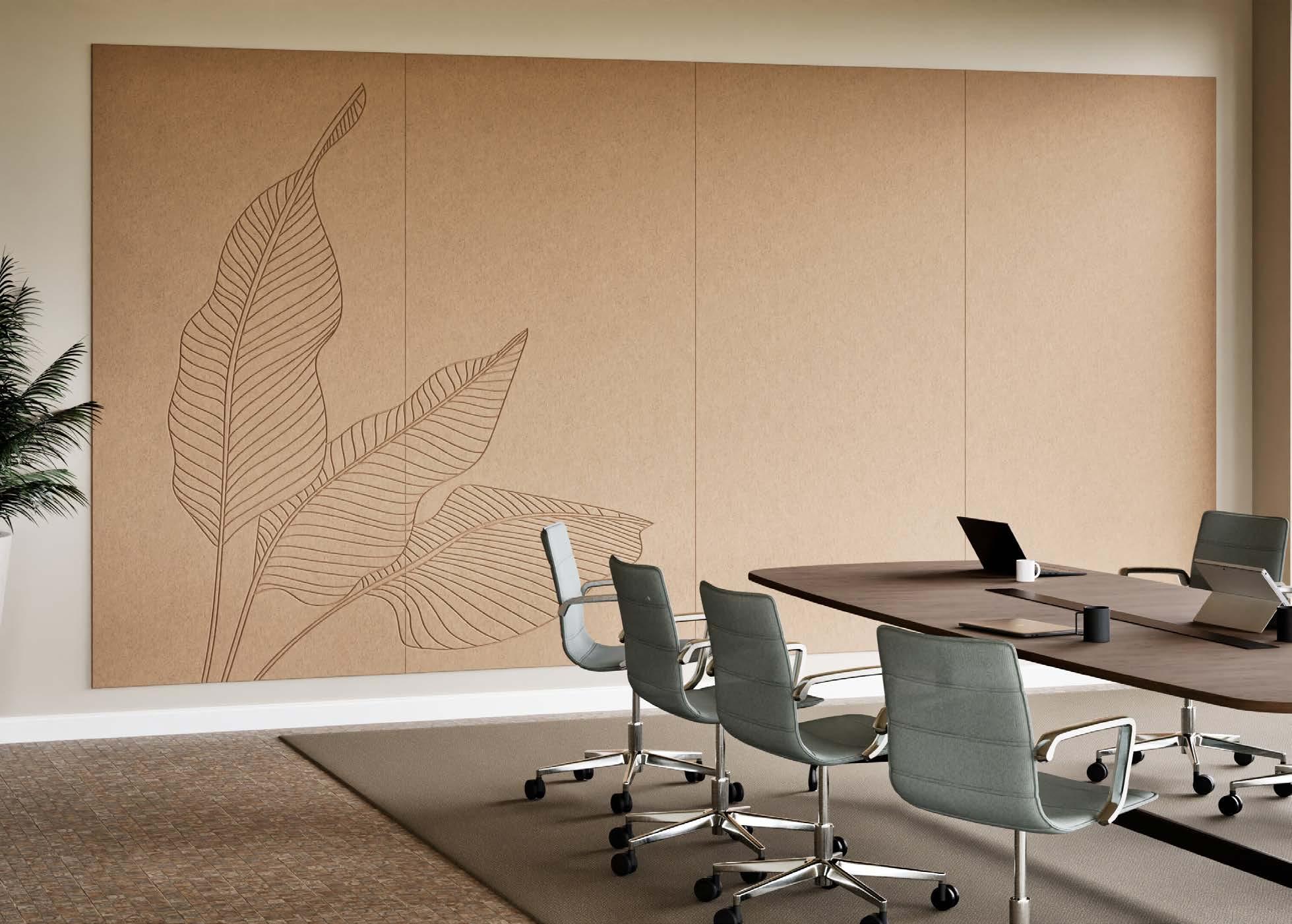

This set of four acoustic panels hangs on the wall as a single artistic piece. The product is characterised by a play of lines formed by a V-groove pattern that continues seamlessly across all panels. The acoustic panels also provide a noticeable improvement in the room’s acoustics. Available in 23 different colours (p. 44).

CPT101

CPT103

CPT102

CPT104

CPT108

Mounting: adhesive | Hare - P008 | Pattern: CPT103

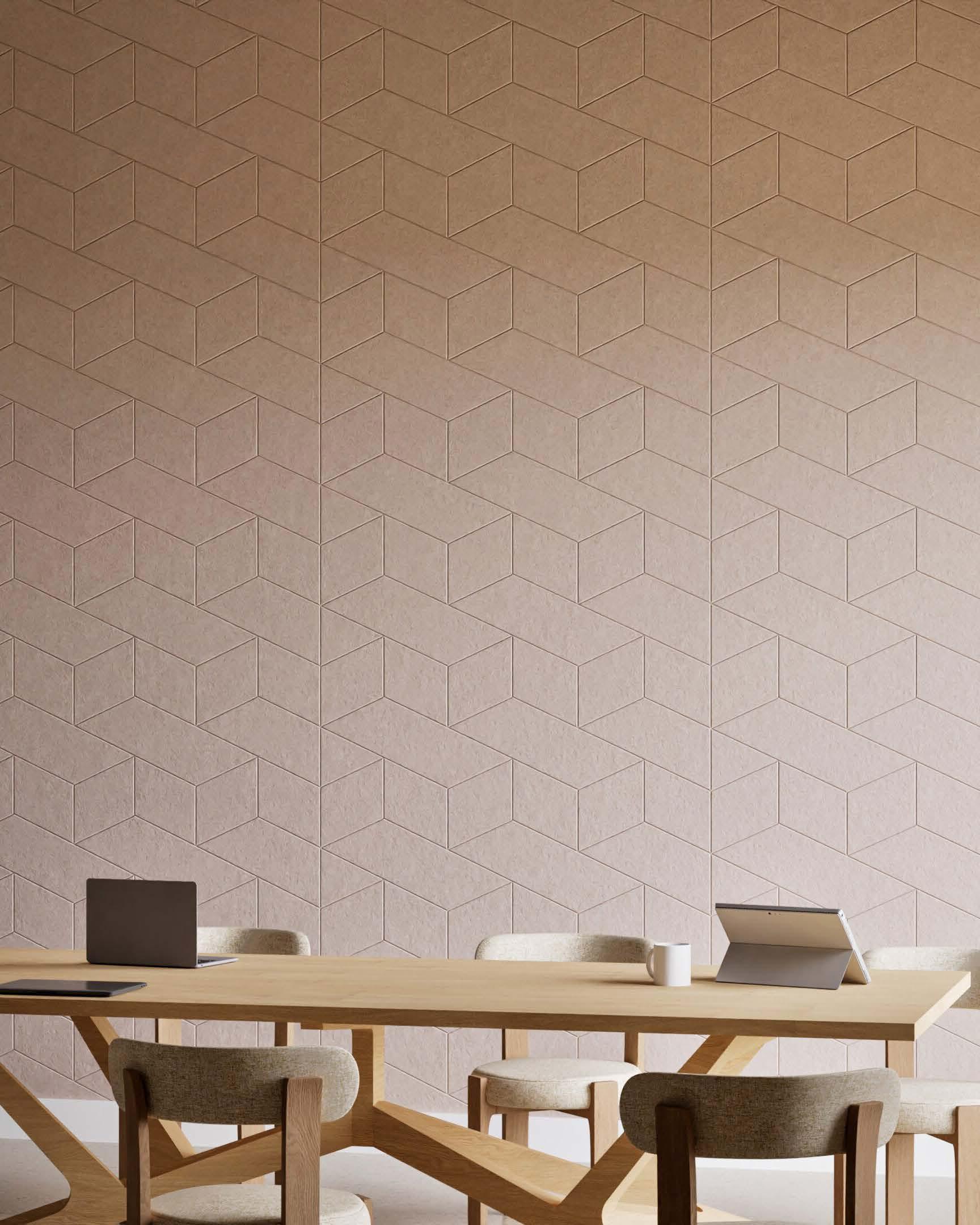

2.8 9 mm Single Layer

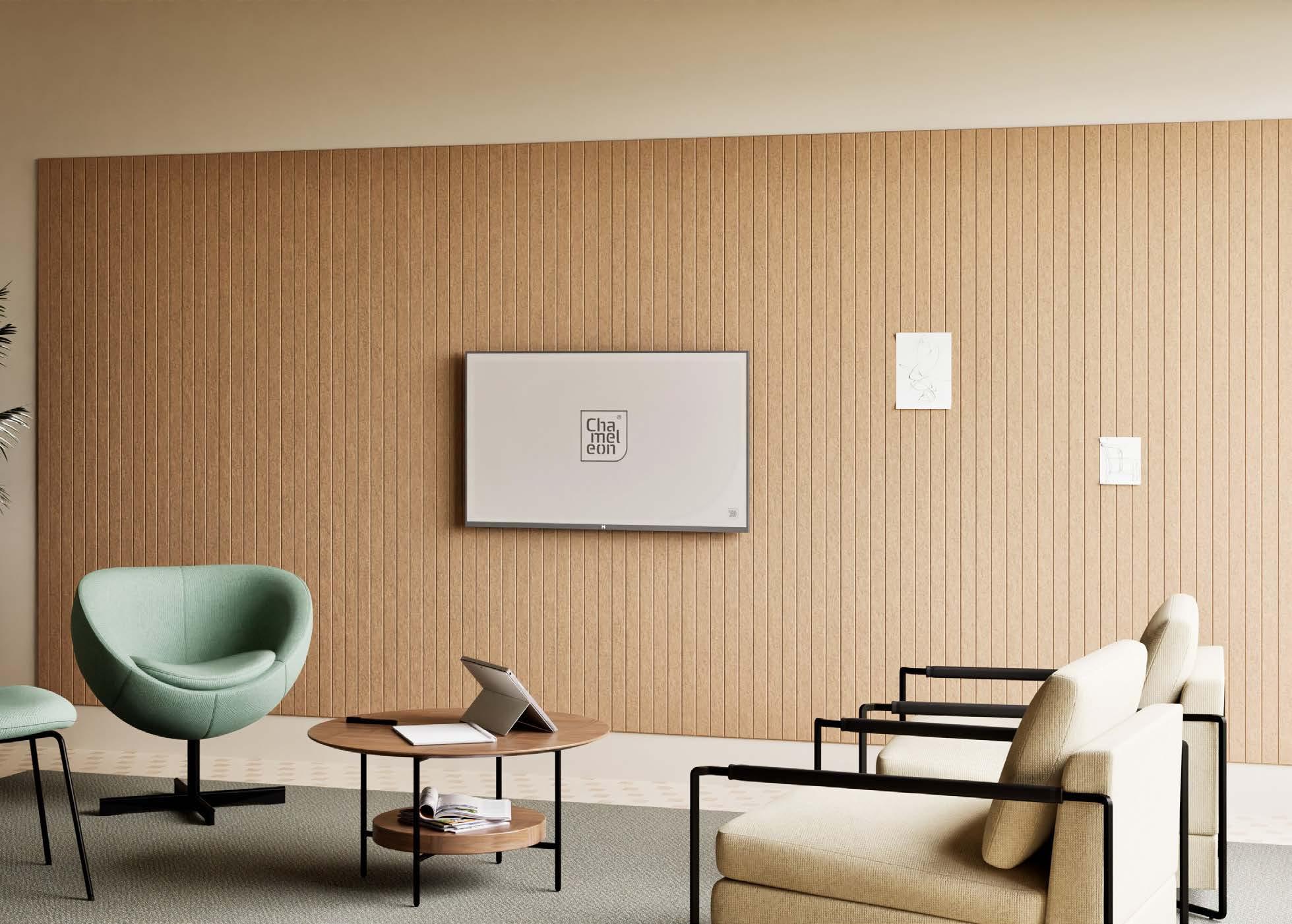

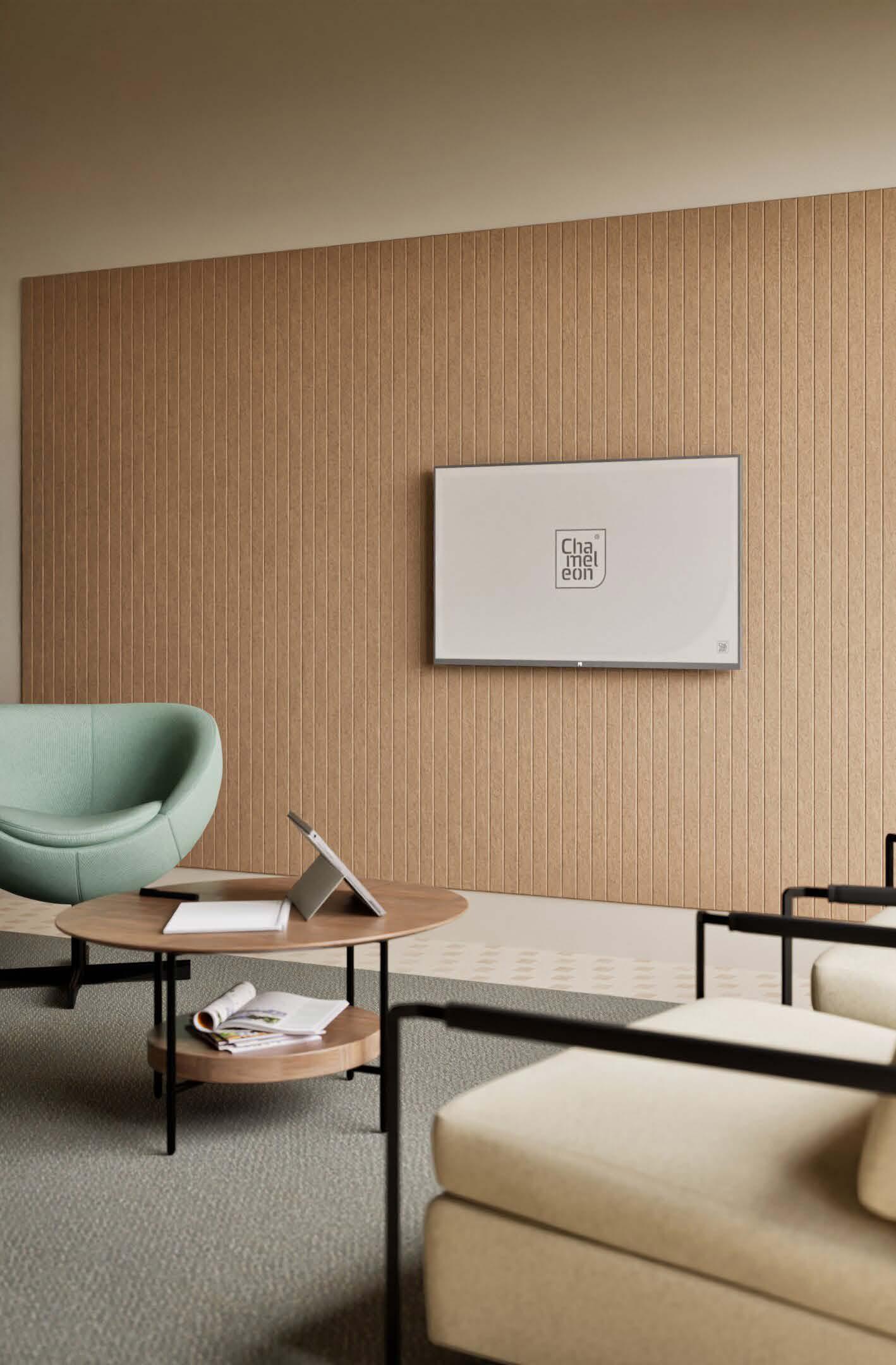

Acoustics / Coverings / 9 mm Single Layer

Achieve excellent acoustic performance in office and school buildings. Chameleon 9 mm Single Layer is a wall-filling PET felt surface available in a range of attractive patterns (p. 62) and 23 colours (p. 44). The 9 mm panels are cut in such a way that the seam from one panel to the next blends seamlessly into the pattern.

Chameleon

Mounting: adhesive | Flat white - P007 | Pattern: A07

* When requesting a quote or placing an order, please include the colour code of the PET felt (p. 44) with the article number first, followed by the code for the pattern (p. 62): [article number + colour code + pattern code].

View available patterns

View it in pCon View this product on our website

Size (cm)

T.b.d.

9 mm Single Layer patterns

Choice of 18 different patterns. The panels are cut so that the seam transition from one panel to the next aligns perfectly with the pattern.

Patterns Product page

SL05

2.9 Creative V-Layer Panels

Acoustics / Coverings / Creative V-Layer Panels

Set of four acoustic panels in a fixed size for quickly cladding large walls. The 18 mm V-Layer Panels consist of two layers of 9 mm PET felt, with different colours for the front and back layers. The 12 mm deep V-groove reveals both layers, and the edges are finished with a bevel cut. Filler pieces can be easily cut to size on site. Colours: p. 44.

VL01

VL04 VL02

VL03

VL05

VL06

VL09

VL07

VL08

VL10

Mounting: Velcro | Colour front: Rough grey - P005, back: Anthracite P021 | Pattern: VL02

118 x 58 (2,74)

* 4

V-Layer Panels - VL01

V-Layer Panels - VL02

V-Layer Panels - VL03

V-Layer Panels - VL04

V-Layer Panels - VL05 118 x 58 (2,74)

118 x 58 (2,74)

* 4

V-Layer Panels - VL06

V-Layer Panels - VL07

V-Layer Panels - VL08

V-Layer Panels - VL09

V-Layer Panels - VL10

* When requesting a quote or placing an order, please provide the colour code (p. 44) of the front layer first after the article number, followed by the colour code of the back layer: [article number + colour front + colour back].

2.10 Creative Layer Panels

Acoustics / Coverings / Creative Layer Panels

Set of 4 acoustic panels in a fixed size for quick cladding of large walls. The 18 mm Layer Panels consist of two 9 mm PET-felt layers, with the cut-out pattern of the front layer revealing the back layer for an attractive two-tone or 3D-effect combination. The edges are finished with a bevel cut, and infill pieces can be easily cut to size on site. Colours: p. 44.

Mounting: Velcro | Colour front: Hare - P008, back: Anthracite P021 | Pattern: LP09

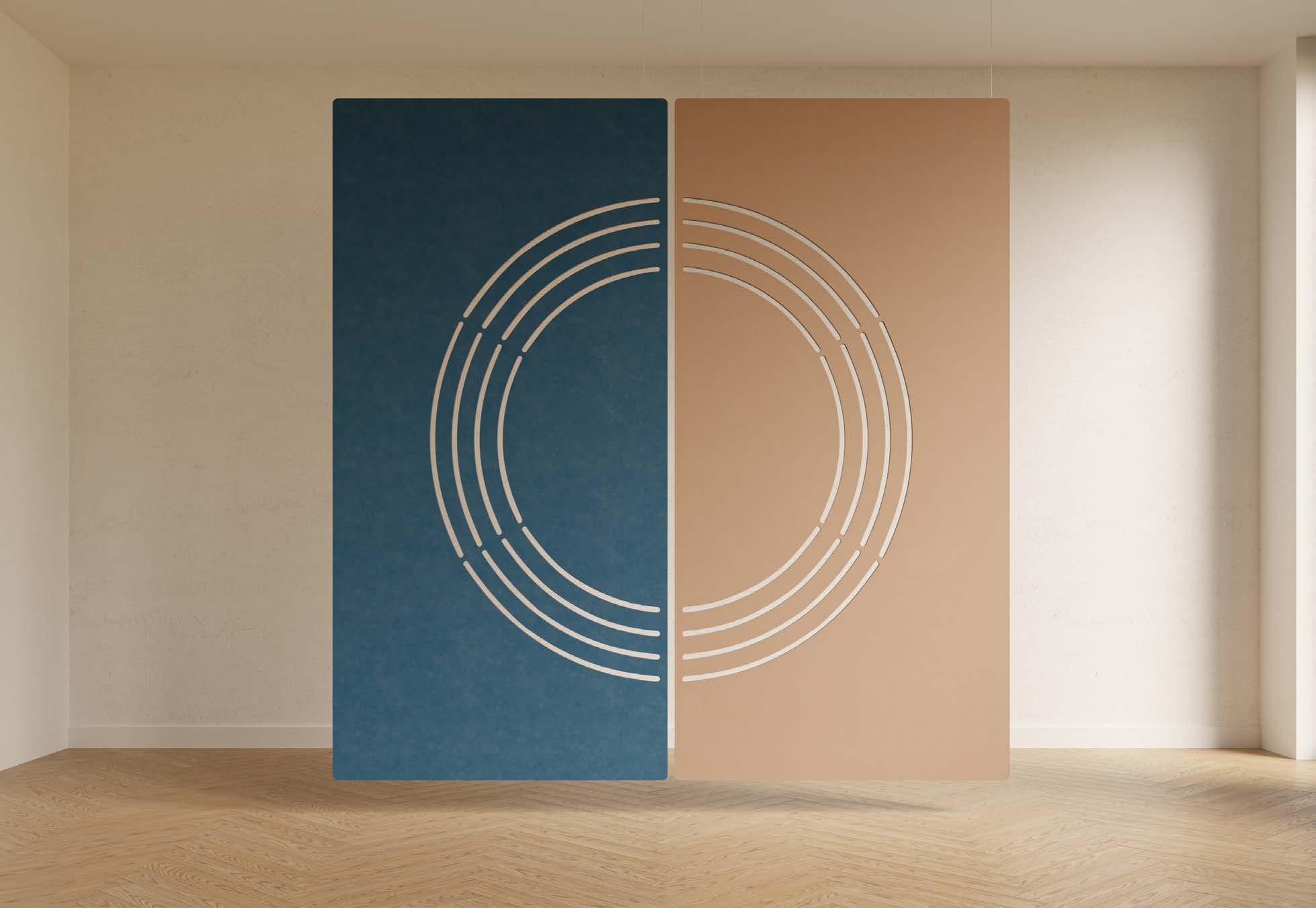

2.11 Creative Divider Panels

Acoustics / Dividers / Creative Divider Panels

The Divider Panels are made of 18 mm double-layer PET felt (2 × 9 mm) with different colours for the front and back layers. The cut-out pattern runs through both layers, creating a see-through effect for suspended panels. They are supplied with steel cables for hanging from fixed or suspended ceilings and can be positioned up to 2 metres below the ceiling. Colours: p. 44.

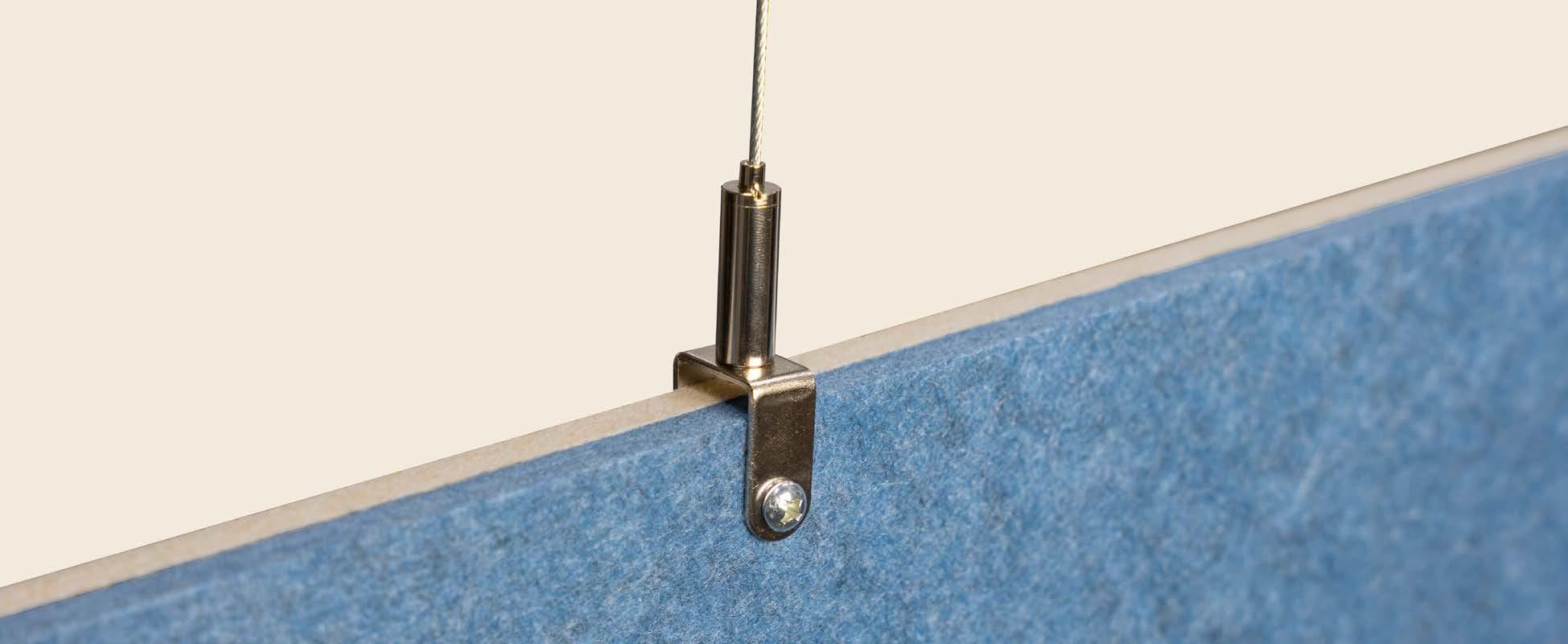

Mounting: steel cable | Colour left: Dusk P016, right: Hare - P008 | Pattern: DP08

220 x 108

Divider Panel - DP01

Divider Panel - DP02

Divider Panel - DP03

Divider Panel - DP09

220 x 108

Divider Panel - DP10 * When requesting a quote or placing an order, please provide the colour code (p.

3. Combi

Elements

3.1 Curve Combi Walls

3.2 Sharp Wall Combi

3.3 Curve Wall Combi

Coverings

3.4 Wall Coverings Combi

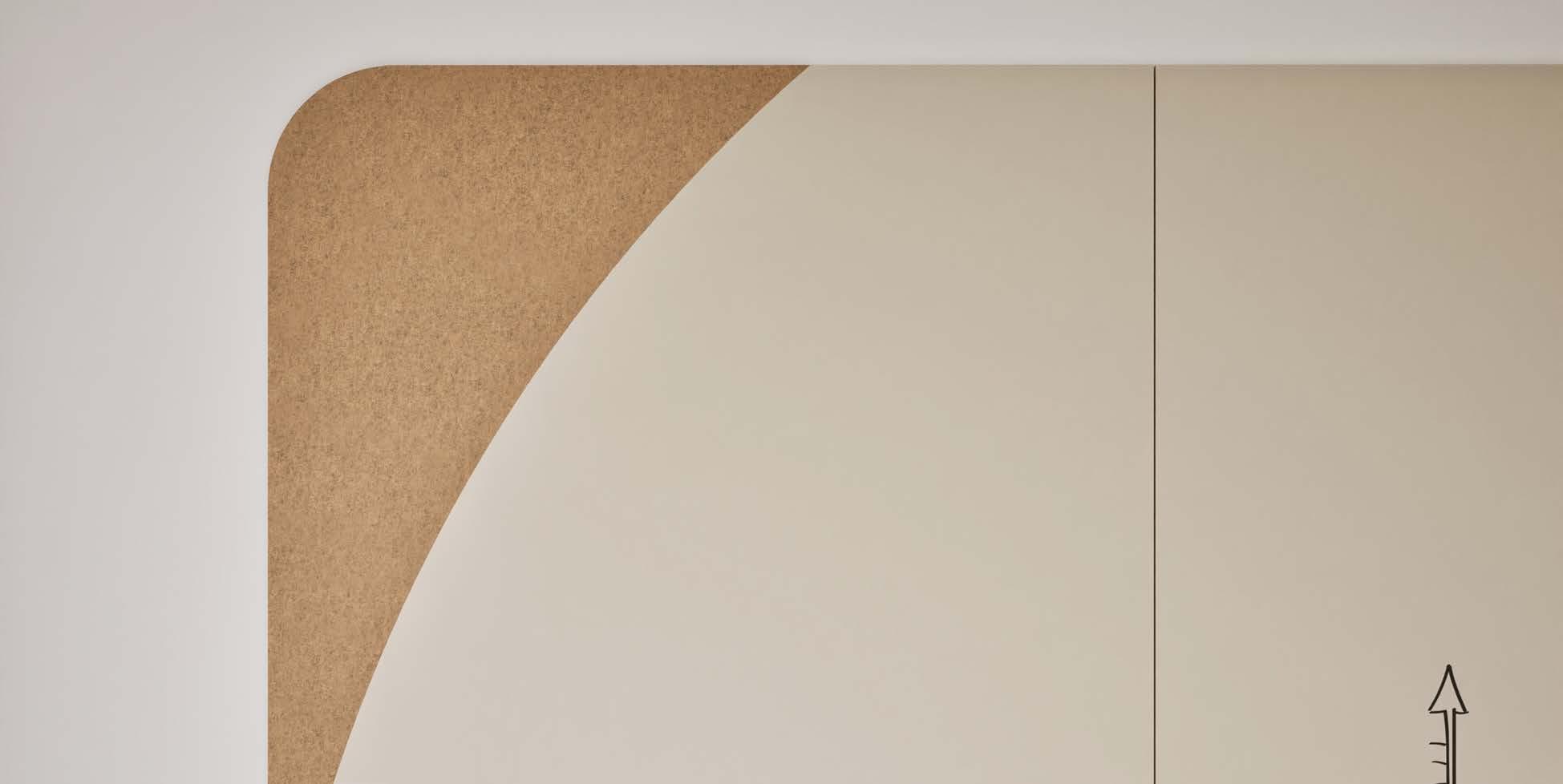

3.1 Curve Combi

Combi / Elements / Curve Combi

The Chameleon Curve Combi is a whiteboard combination with a distinctive design. The rounded outer corners create a seamless visual integration of functions: writing, pinning, and enhancing acoustics. PET felt colours: page 44.

Patterns

The drawings below provide an example of the patterns. Visit our website for an overview of the patterns available on all sizes of Curve Combi panels.

Mounting: magnetic | Ceramic steel colour: Satin Caramel - S211, PET felt colour: Hare - P008 | Pattern: A05

* When requesting a quotation or placing an order, please provide, with the article number, first the colour code of the whiteboard, then the PET felt colour code (page 44), optionally followed by the pattern code: [article number + whiteboard colour code + PET felt colour code + pattern code].

View it in pCon View this product on our website

Ceramic steel surfaces

S207

C300

C301

3.2 Sharp Wall Combi

Combi / Walls / Sharp Wall Combi

One wall that can be written on, improves the room’s acoustics, and can also be used as a pinboard. Chameleon Sharp Wall Combi is a multifunctional whiteboard wall, ideal for collaborative work in the space. PET felt colours: p. 44.

Patterns

The drawings below provide an example of the patterns. Visit our website for an overview of the patterns available on all sizes of Sharp Wall Combi panels.

Mounting: magnetic | Ceramic steel colour: Satin Sky - S212, PET felt colour: Dusk - P016

Ceramic steel surfaces

S207

C300

3.3 Curve Wall Combi

Combi / Walls / Curve Wall Combi

The Chameleon Curve Wall Combi adds a dynamic element to the interior with an exciting interplay of lines. The Curve Wall Combi is a complete whiteboard wall, 2 metres high and 2, 3, 4, or 5 metres wide, consisting of multiple panels. PET felt colours: p. 44.

Mounting: magnetc | Ceramic steel colour: Satin Sandstone - S209, PET felt colour: Hare - P008

* Please include the colour code of the ceramic steel and PET felt (page 44) with the article number in your quotation or order request: [article number + ceramic steel colour code + PET felt colour code].

Ceramic steel surfaces S207

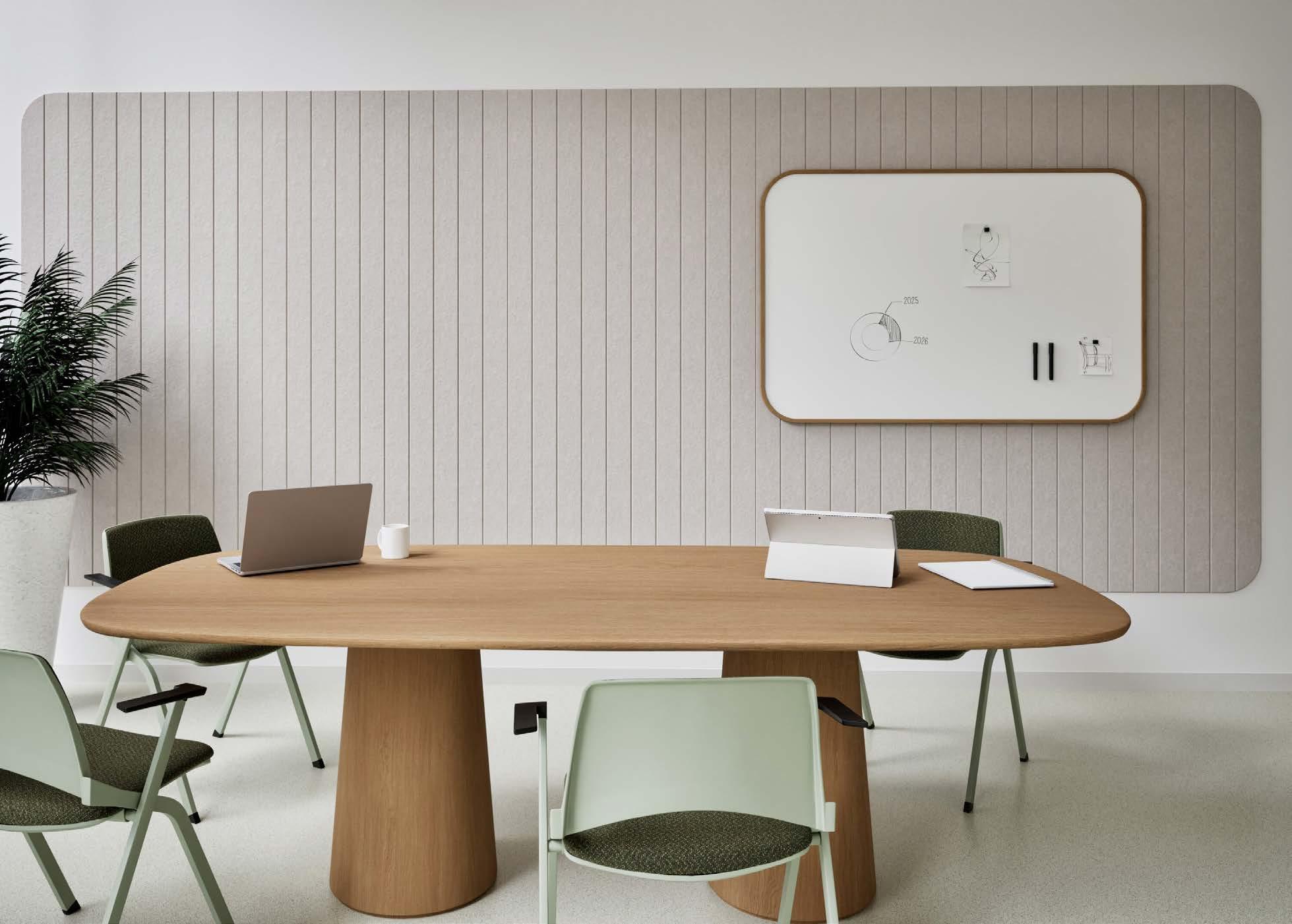

3.4 Wall Coverings Combi

Combi / Coverings / Wall Coverings Combi

Achieve excellent acoustics in office and school buildings with a single pre-configured installation. Chameleon Wall Coverings Combi is a wall-covering PET felt surface that dampens sound while providing space to share ideas. Available in 4 whiteboard configurations, various sizes, patterns (p. 62) and colours (p. 44).

Sharp Wall - Portrait - 198 cm

Sharp Wall - Landscape - 118 cm

Curve Wall

Sharp Wall - Landscape - 98 cm

Ceramic steel colour: Satin Snow - S200, PET felt colour: Black lava - P006

When requesting a quote or placing an order, please provide the PET felt colour code (page

Ceramic

4. Mobile and portable

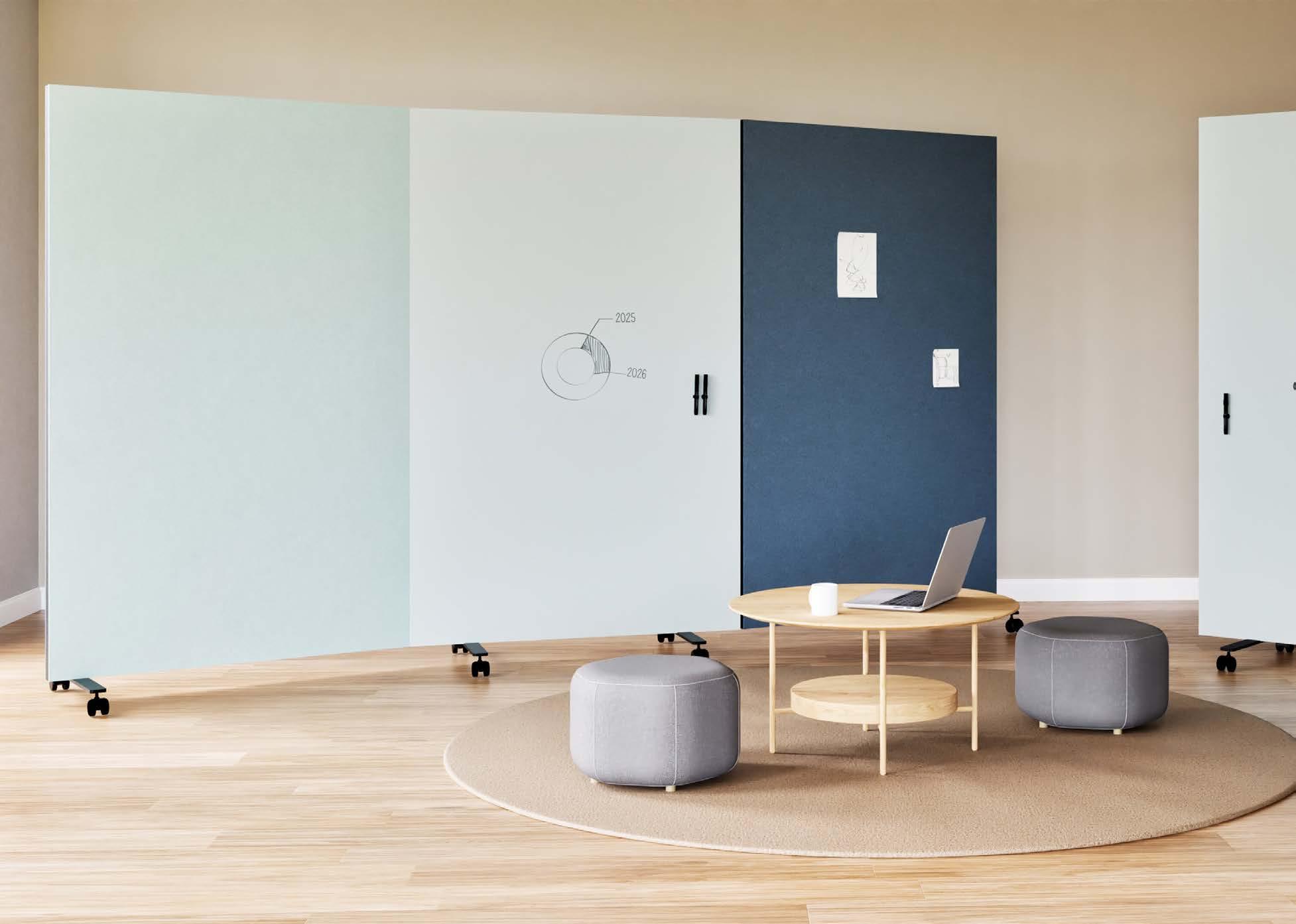

4.1 Harmonica Workwall

Portable and mobile / Harmonica Workwall

Think big because you can! The 1-, 2- or 3-part version of this mobile folding wall offers a maximum writing surface of no less than 3.5 metres wide. Each section can hold 2 panels (front and back) with the following options:

• Ceramic steel writing surface. Standard finish in High Gloss (HG100); for a different surface, select the corresponding article number and surface code.

• A PET felt acoustic panel available in 23 colours (see p. 44), with optional printing (only on White – P001) or the V-cut pattern DP01.

6 panels

4 panels

2 panels

Ceramic steel colour: Satin Sky - S212, PET colour: Dusk - P016

Frame - Excluding panels

196,5 x 118 14013.307* Frame Harmonica Workwall, 1-part (excl. panels: 2 pieces required, see below)

x 236 14013.308* Frame Harmonica Workwall, 2-part (excl. panels: 4 pieces required, see below)

196,5 x 354 14013.310*

Panelen - 2 pieces per frame part required 185 x 118

Frame Harmonica Workwall, 3-part (excl. panels: 6 pieces required, see below)

x 118 11208.197

panel (White - P001), incl. print * Frame excluding panels. The panels (2 per frame section) must be ordered separately.

Ceramic steel surfaces

S207

C300

Ceramic steel colour: Satin Sky - S212, PET felt colour: Polar ice - P014 (left) Dusk - P016 (right)

196,5

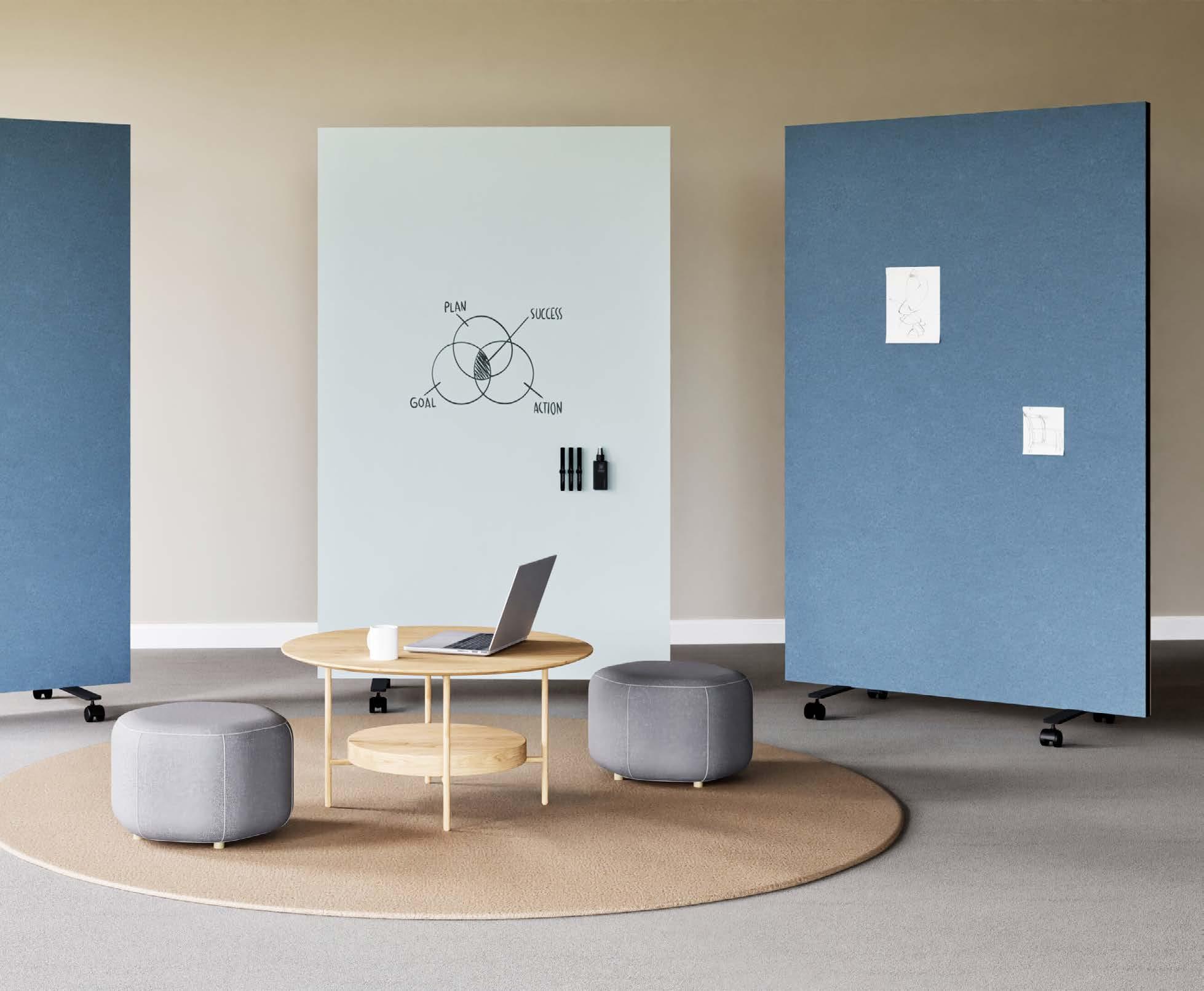

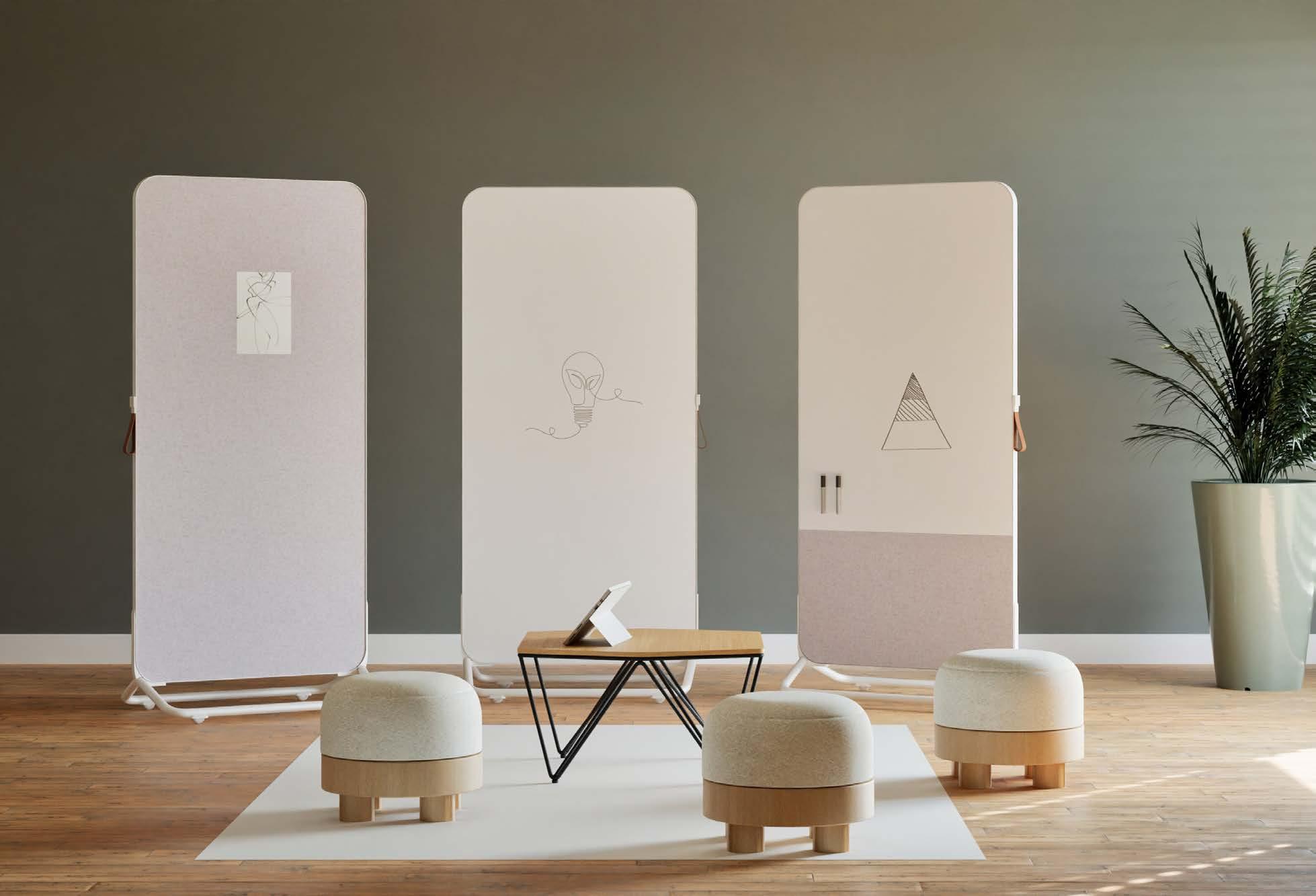

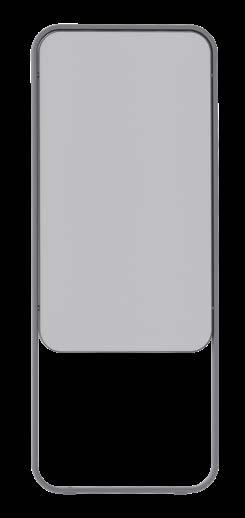

4.2 Mobile

Portable and mobile / Mobile

Mobile whiteboards encourage collaboration and a dynamic working environment. Chameleon Mobile is designed with minimalism in mind, featuring elegant caster wheels recessed into the frame that allow movement in a single direction while keeping the board stable during writing.

High Gloss - HG100 | White marble - P003

192,4 x

192,4

192,4 x 88,7

4.3 Momentum

Portable and mobile / Momentum

The beauty of spontaneity. The Chameleon Momentum is a portable, double-sided whiteboard weighing only 10.9 kg. Its lightweight design makes it excellent for impromptu meetings. Additionally, the 25 mm thick frame takes up very little storage space.

190,5 x 75,7

Blue

190,5 x 75,7

White

190,5 x 75,7

Grey

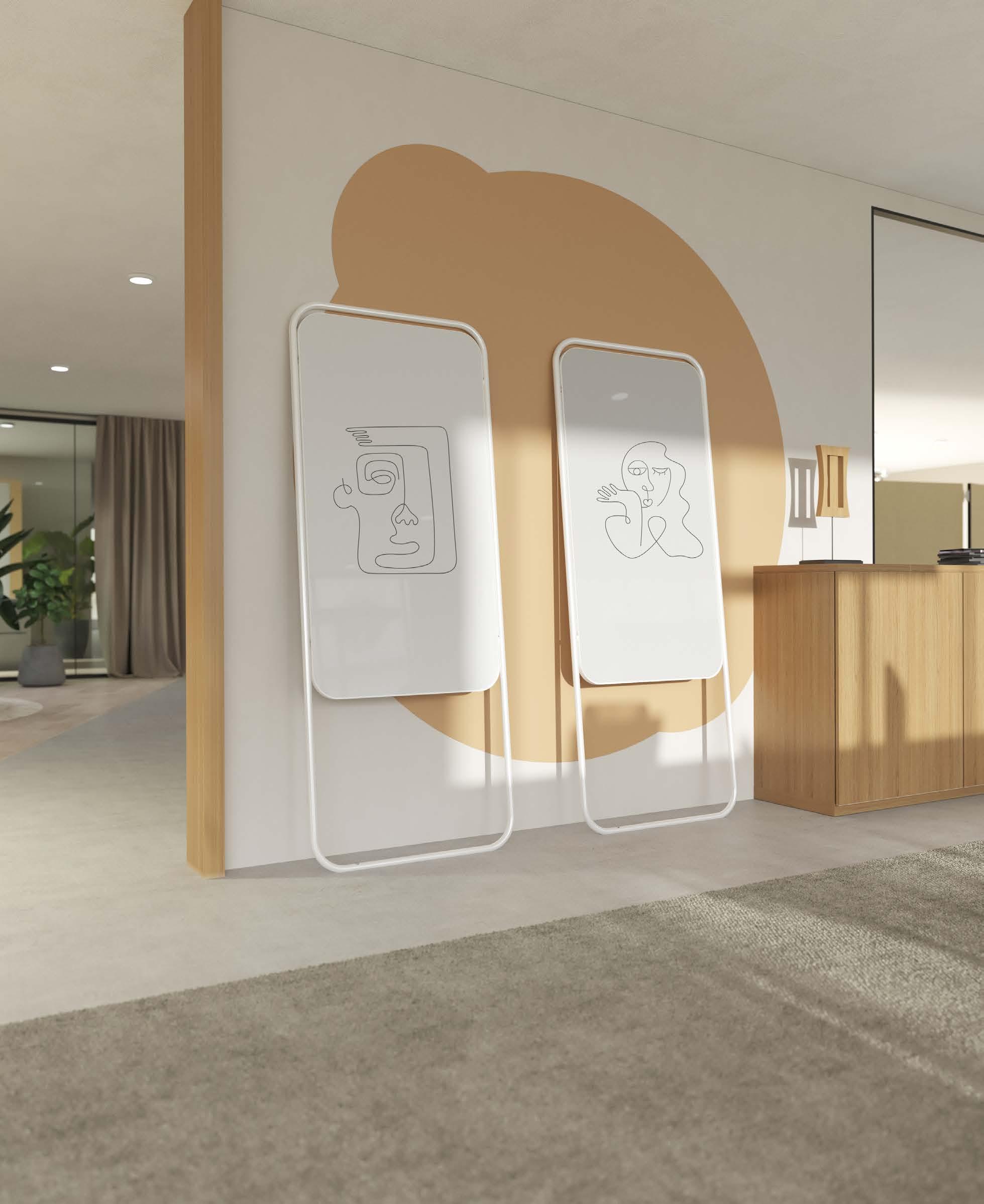

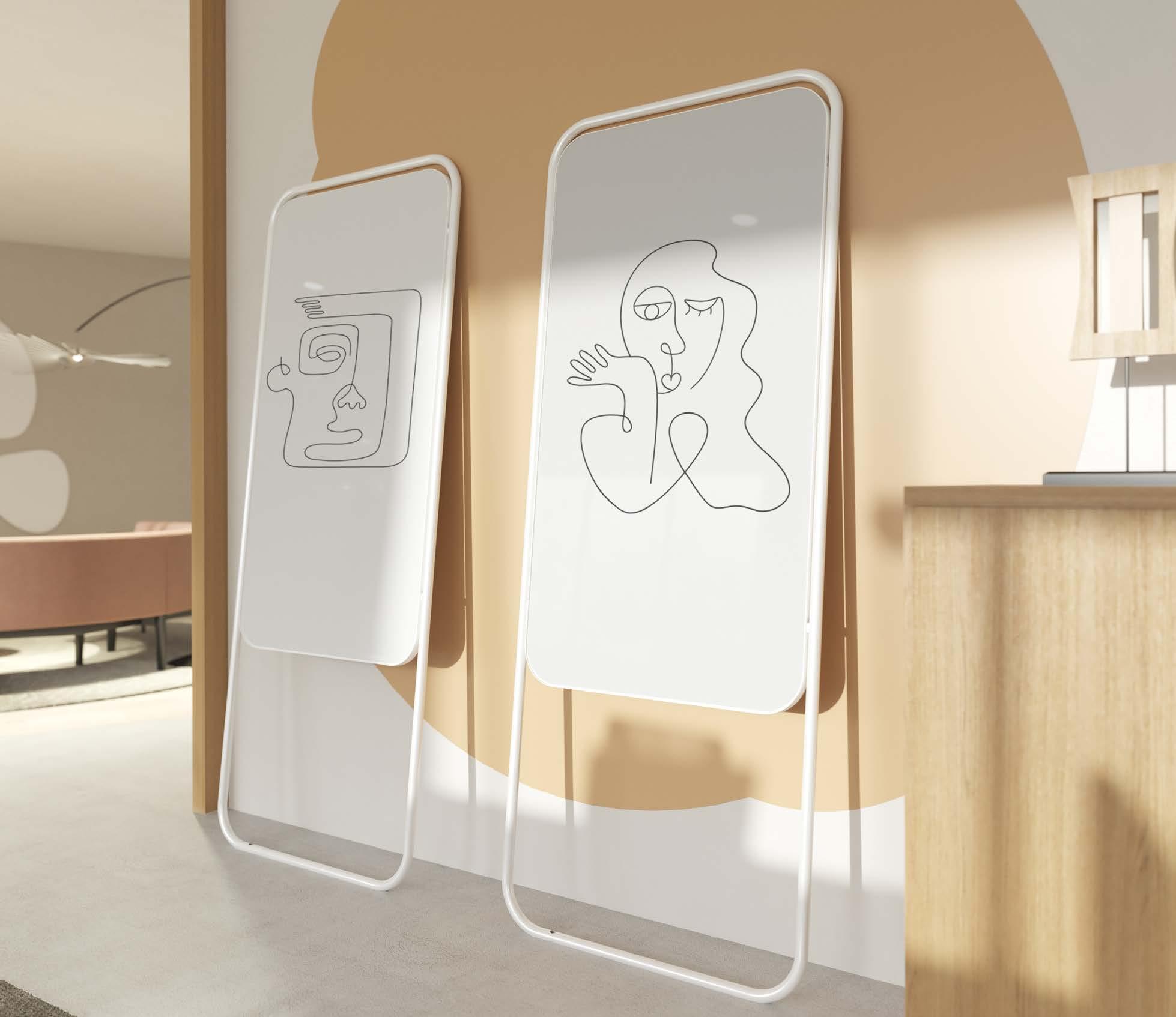

4.4 Lean Wall

Mobile and portable / Lean Wall

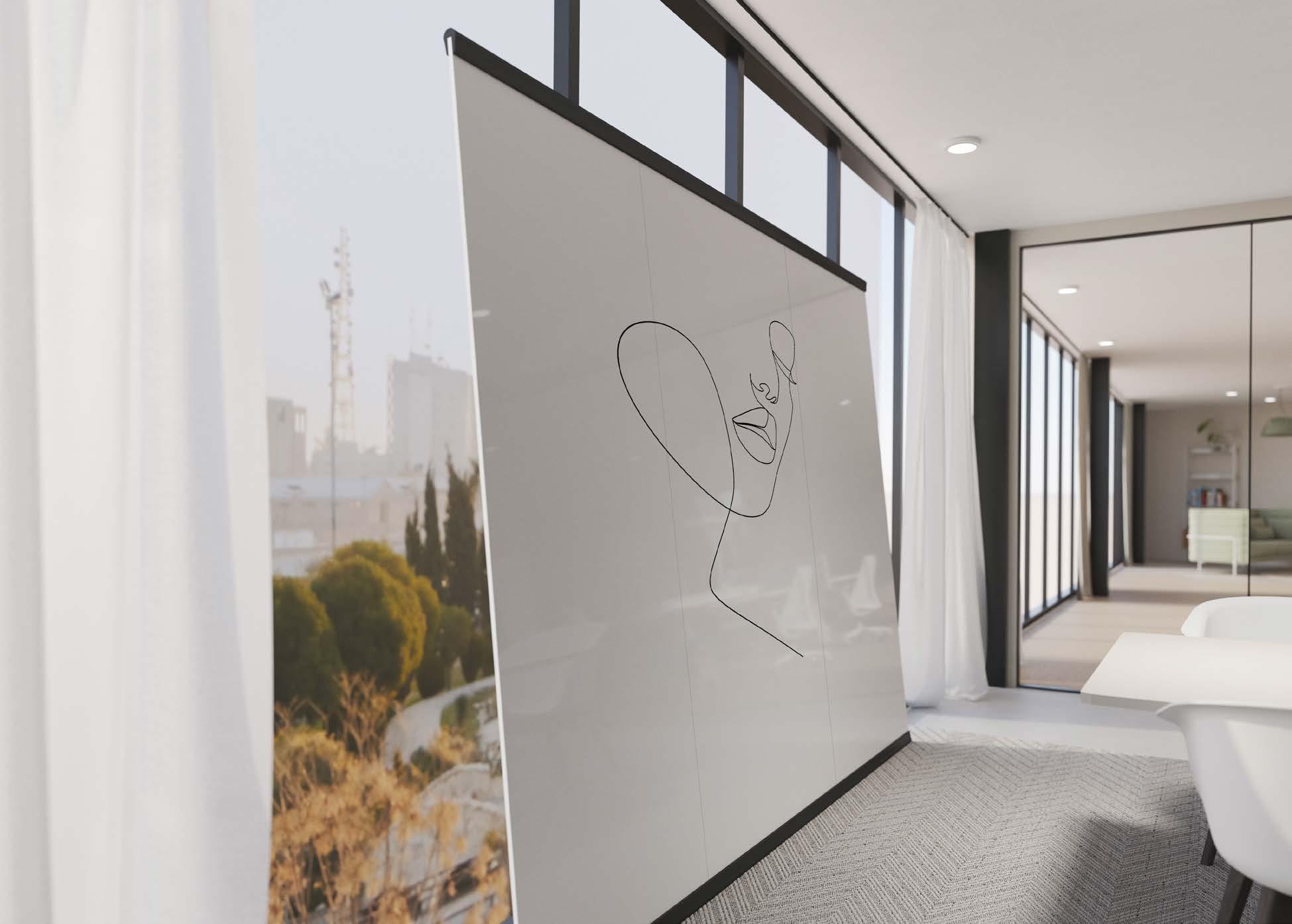

Writing without screws! Chameleon Lean Wall keeps walls intact. This whiteboard wall is composed of one or more panels equipped with a sturdy rubber edge at the top and bottom. This ensures excellent protection for both the wall and the floor while keeping the panels securely in place.

Mounting: magnetic | High Gloss - HG100

Surfaces

View it in pCon View this product on our website

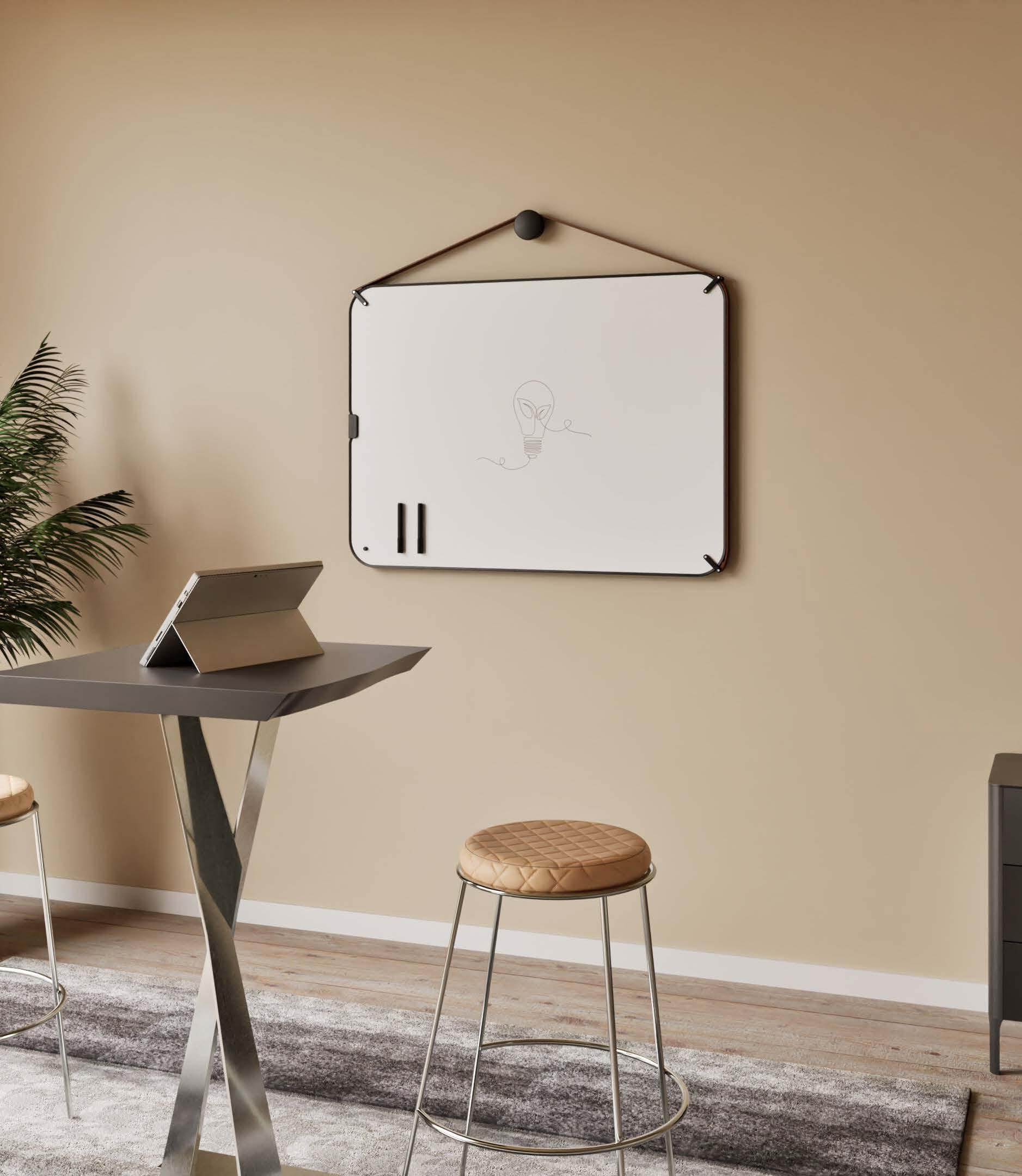

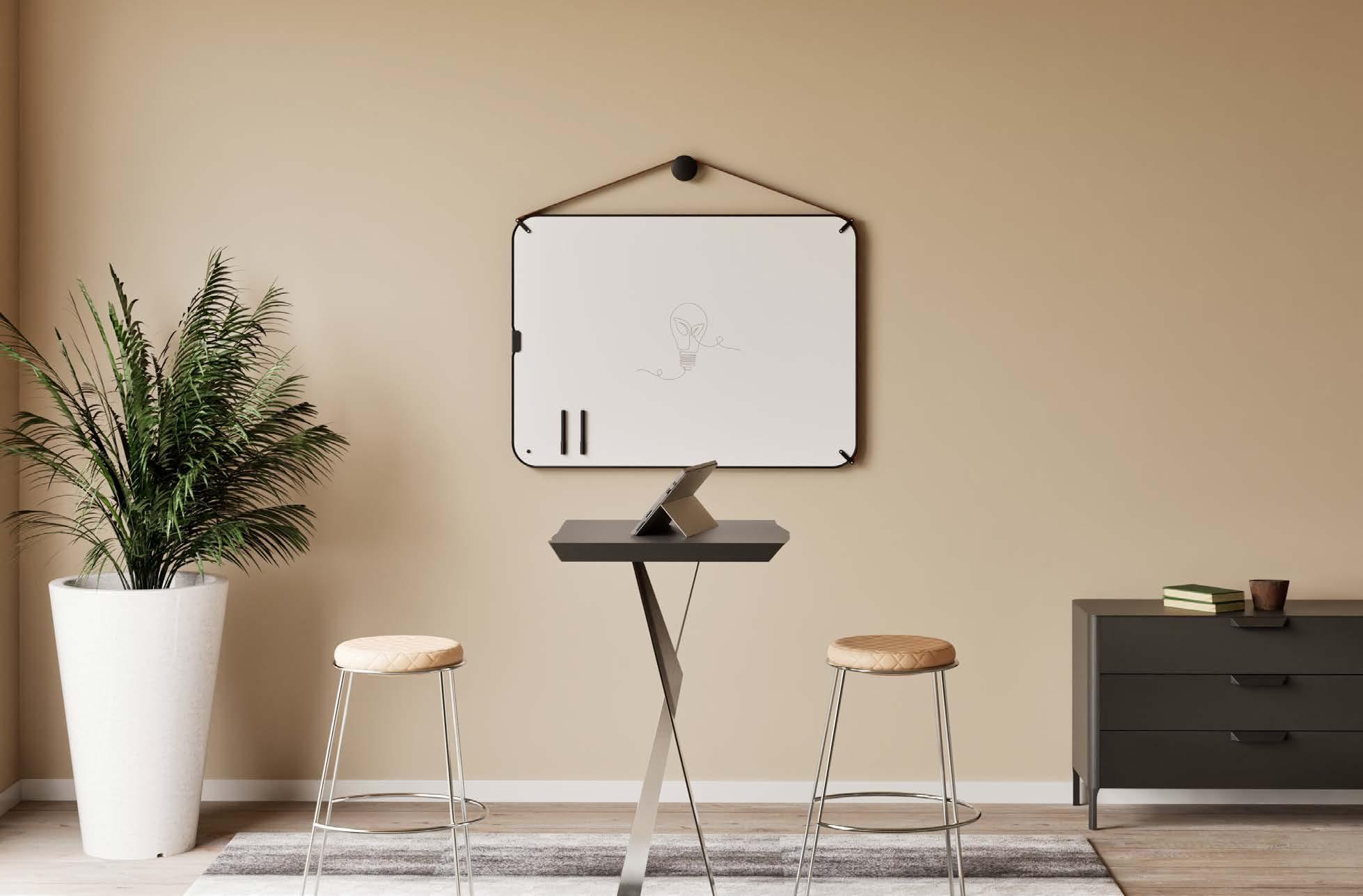

4.5 Portable

Portable and mobile / Portable

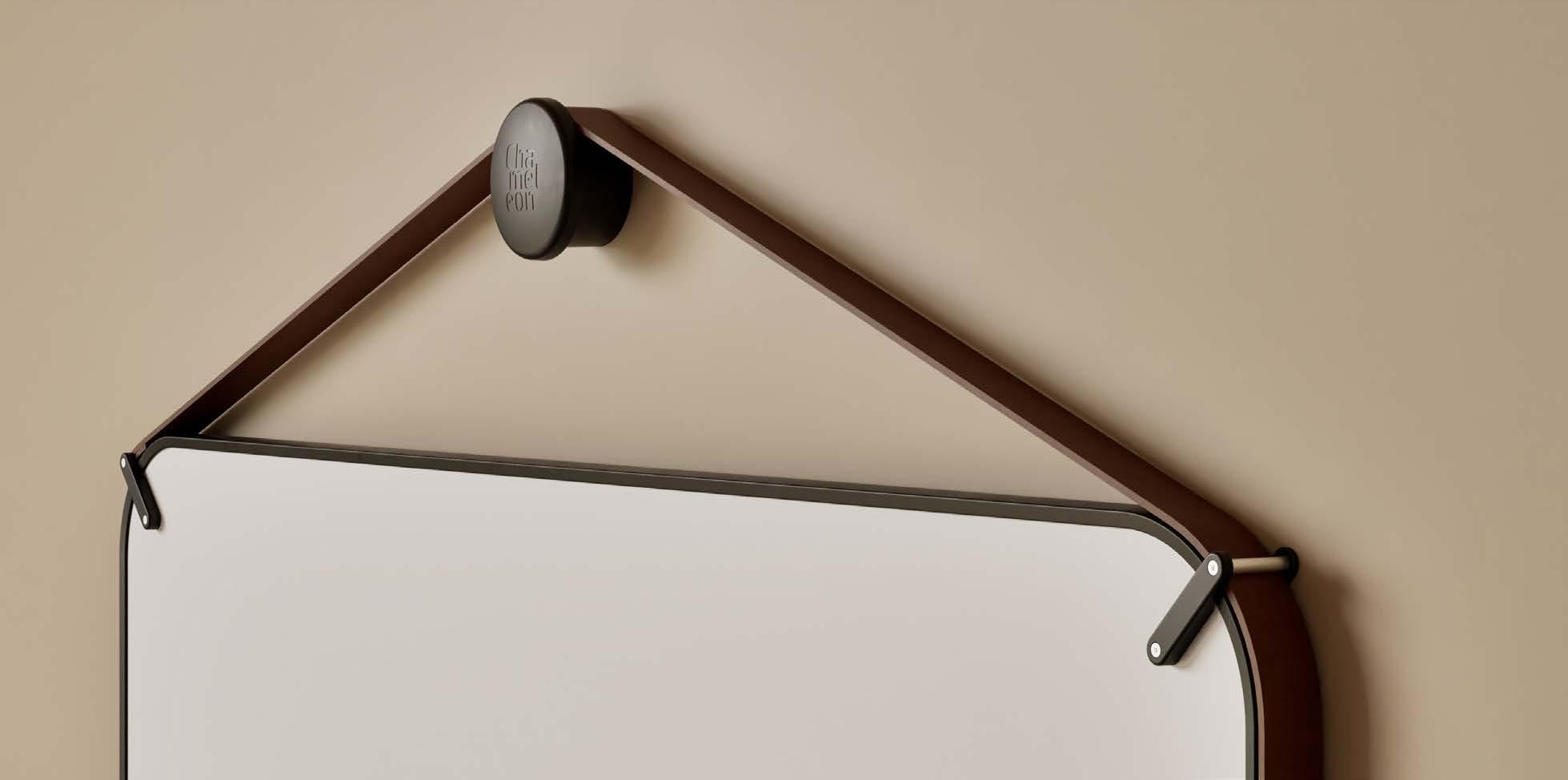

The aesthetic value of this whiteboard is defined by the details. A genuine buffalo leather carrying strap, a rubber edge finish; Chameleon Portable deserves to be seen. In fact, in multiple places, because this portable whiteboard allows you to take information with you.

Hight Gloss - HG100

Surfaces

View it in pCon View this product on our website

5. Accessories

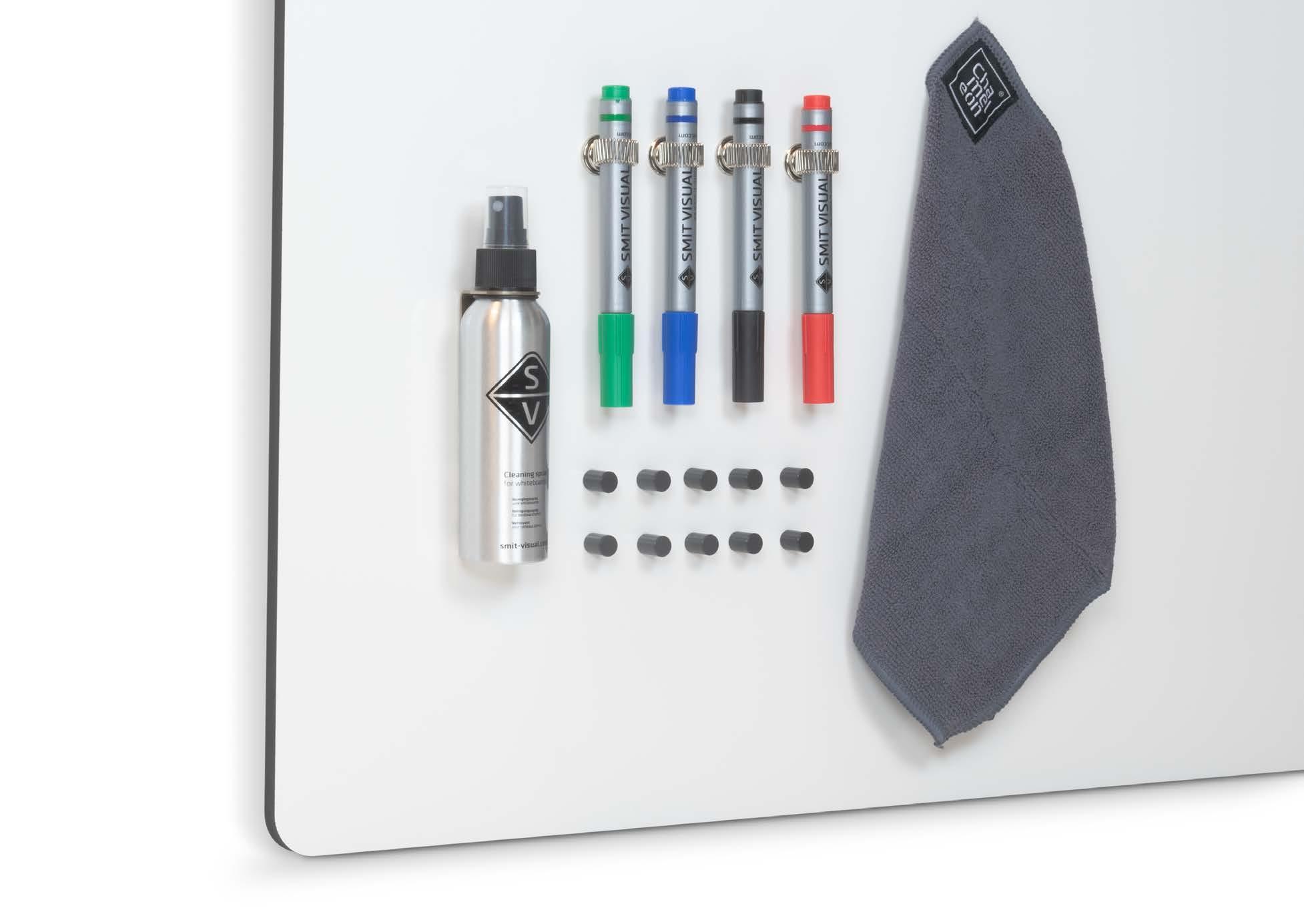

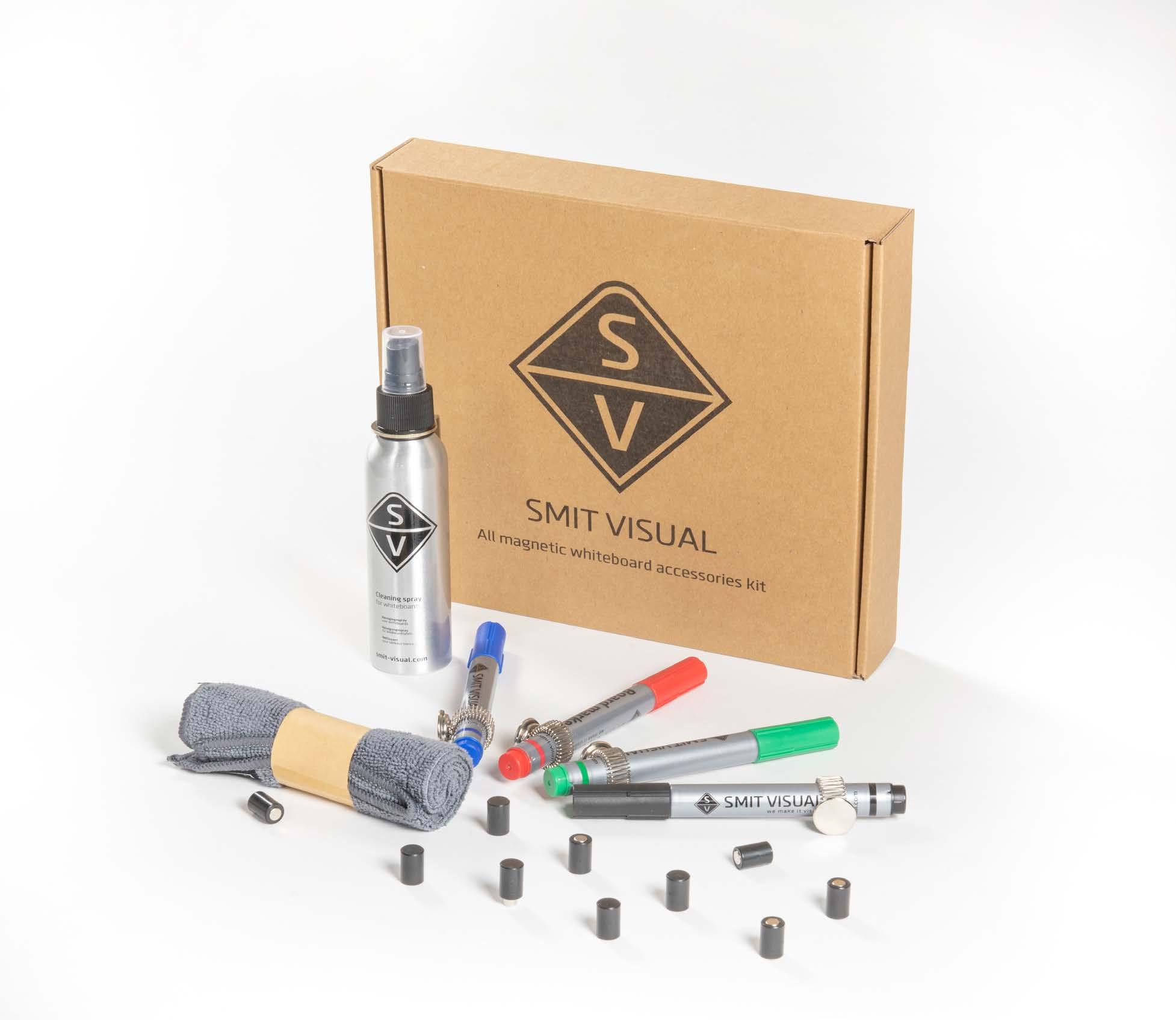

5.1 Starterkit Deluxe + accessories

Accessories / Startekit Deluxe + accessoires

Every component of the Starterkit Deluxe is magnetic. Markers, eraser sprays, and microfiber cloths can be hung anywhere on the whiteboard. For frameless whiteboards (Sharp, Curve), Chameleon offers a transparent design holder for markers as an alternative. This holder can be attached to the bottom of the board using an adhesive strip (this product is not magnetic).

* For glass boards, we offer a separate starter kit, see page 96.

14016.230

14031.110

14031.120

5.2 Starterkit Glassboard

Accessories / Startekit Glassboard

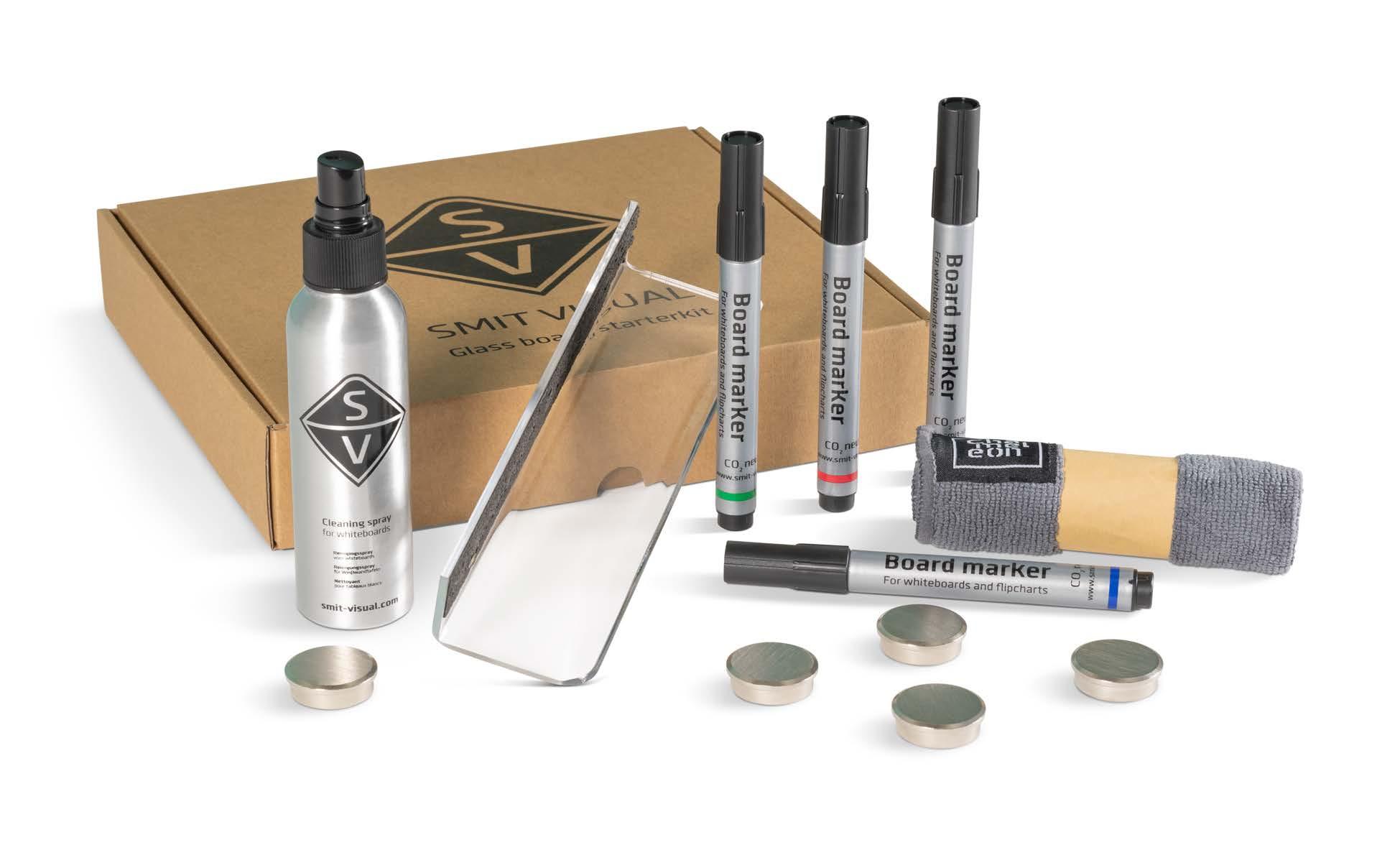

This starter kit includes board magnets that are suitable for glass boards. The magnetic eraser cloth also has a sewn-in glass board magnet. The markers and eraser spray are not magnetic. For these items, a transparent tray is included in the starter kit.

5.3 Scrumkit

Accessories / Scrumkit

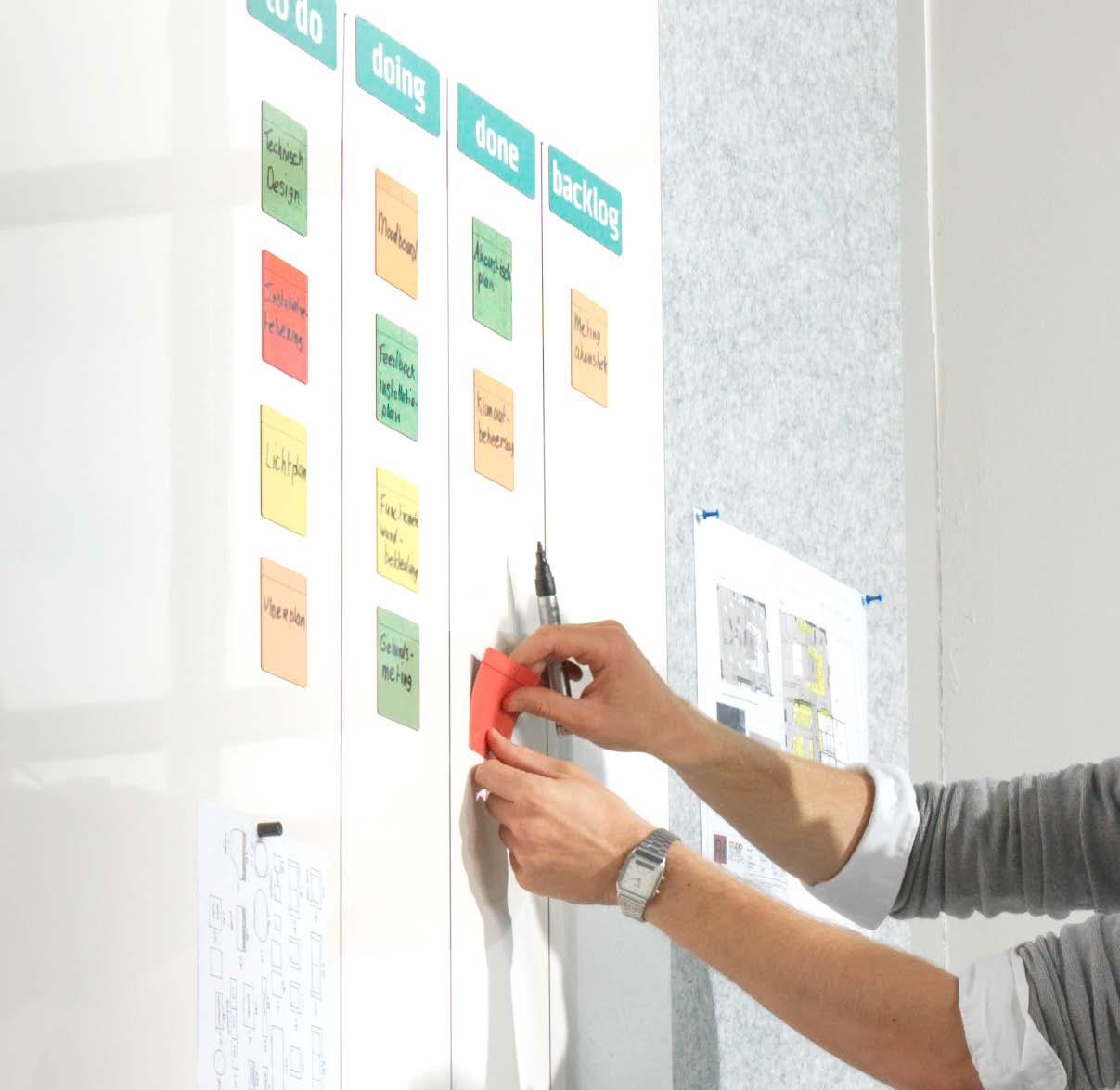

Toolbox with all the essential parts so that you can start scrumming at once. Designed in partnership with Agile specialists. This Scrum kit is not suitable for glass boards.

Inhoud

• 6 magnetic column cards, 150x50 mm

• 30 magnetic task cards in 6 colours, 75x75 mm

• 5 magnetic attention cards

• 5 static brainstorming note blocks, 5 colours, 100x70 mm, 100 sheets

• 1 roll matrix tape, black, 10 metres

• 10 memo magnets, black, ø10 mm

• 1 magnetic microfibre cleaning cloth

• 8 dry erasable plan markers, assorted, fine point

These products can also be ordered separately.

Art.

Bekijk het in

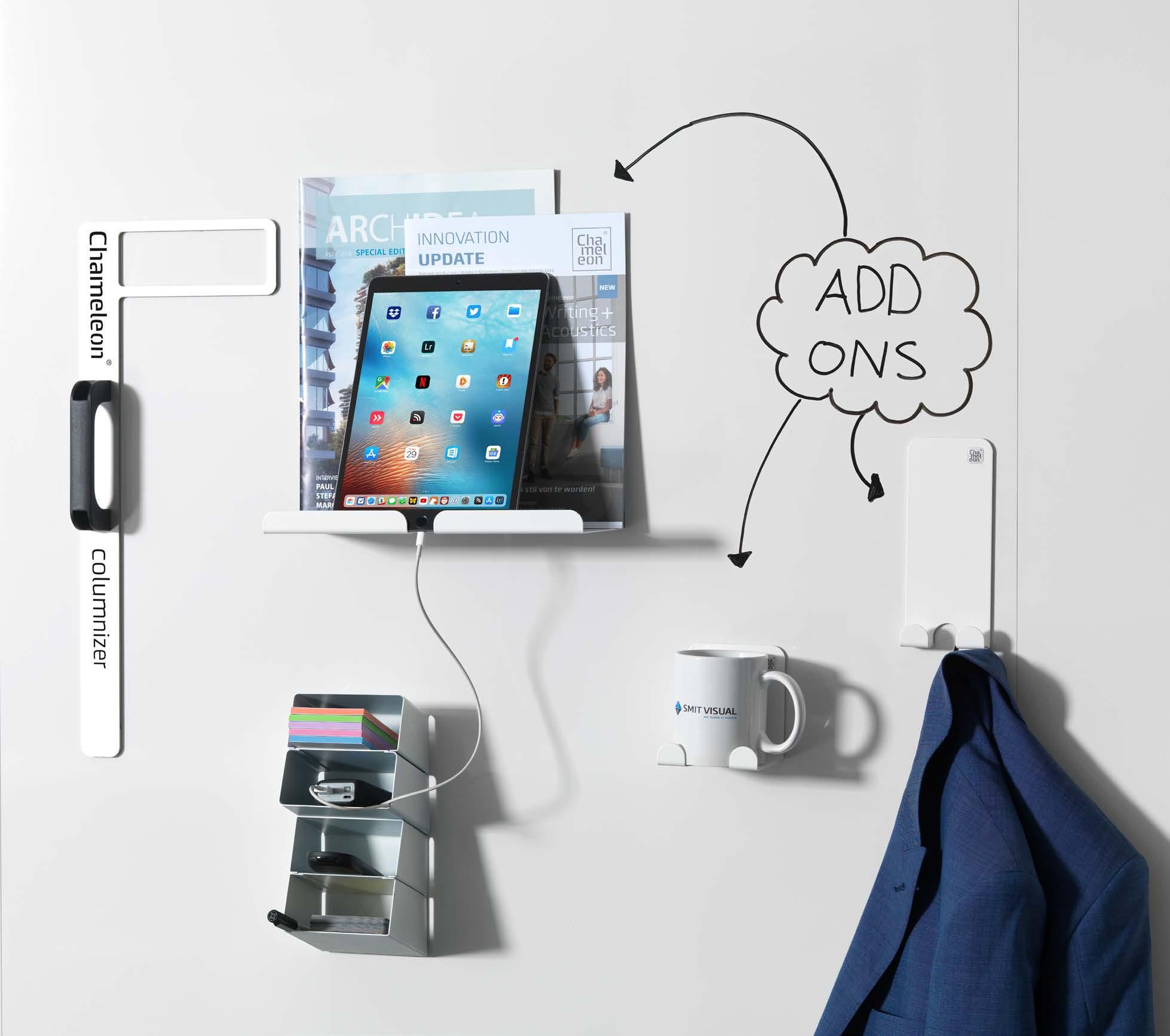

5.4 Add-Ons

Accessories / Add-Ons

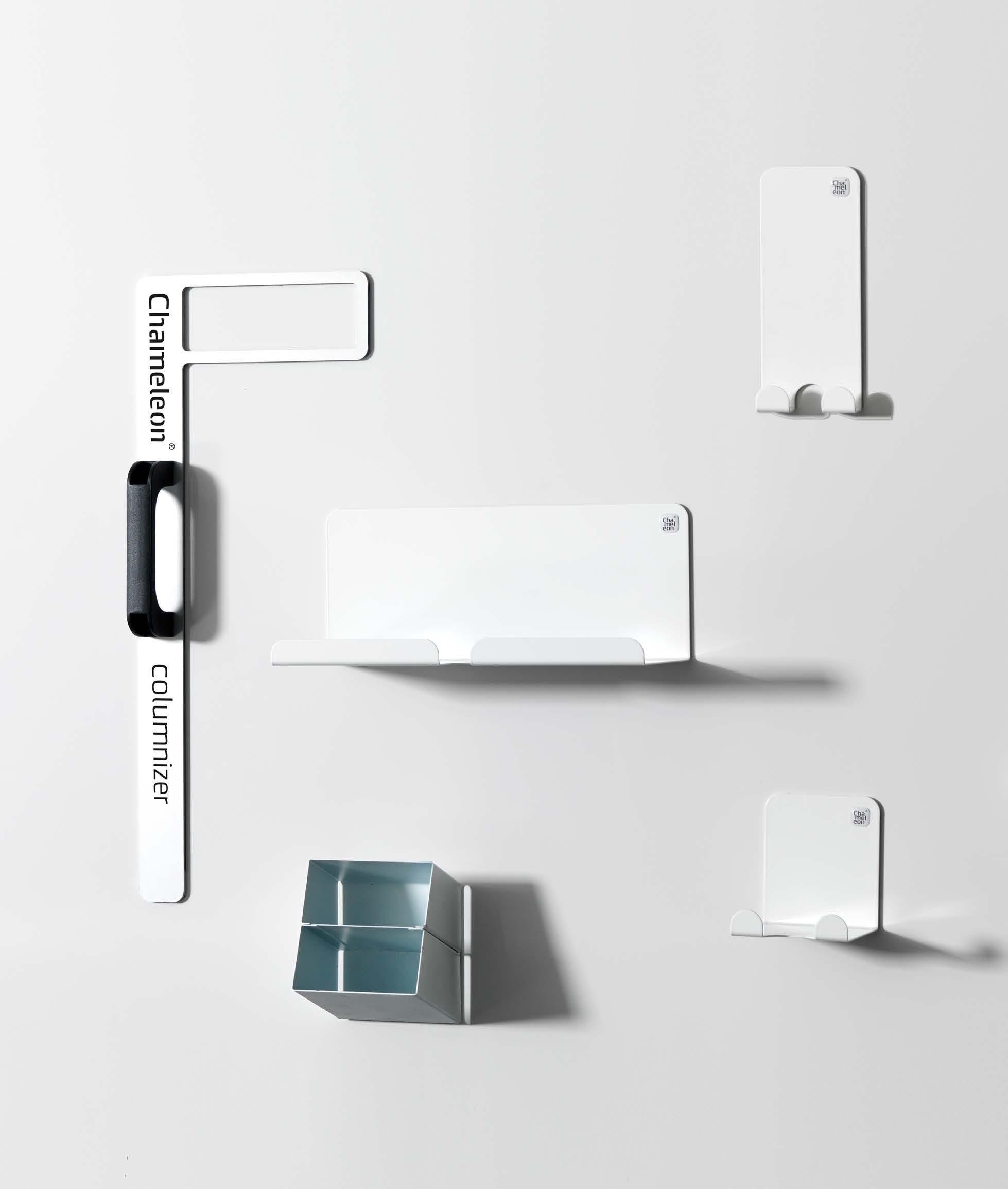

These magnetic whiteboard accessories add both style and functionality to a whiteboard (wall). They keep all your essentials within easy reach, such as your sticky notes, tablet, phone, and even your coffee mug. You can also display an inspiring magazine or a stylish plant. Chameleon Add-ons always come in handy!

The Chameleon Columniser is a practical magnetic tool for drawing clean marker lines, for example when creating a table or a scrum setup. The column cards from the Chameleon Scrum Kit fit perfectly into it.

Columniser - 14021.201

Magazine / Pad Stand - 14021.203

Stack Box - 14021.202

Coat hanger - 14021.205

Cup Holder - 14021.204

14021.201

Chameleon Columniser 14021.202

Chameleon Stack Box

14021.203

Chameleon Magazine / Pad Stand

14021.204

Chameleon Cup Holder

14021.205

Coat

Chameleon available in pCon

The Chameleon product portfolio is an addition to any interior project where collaboration and creativity for end users are key objectives. The whiteboards and acoustic wall panels are available in pCon.planner, pCon.box, pCon Catalog, and pCon.facts.

Already using pCon? Then request our data directly via pCon.login

Chameleon data request

I’m not using pCon yet

The globally renowned pCon platform is a 3D interior design software used by countless interior professionals. pCon offers various apps you can use. The main tool you need to create 3D visualisations is pCon.planner for laptop/desktop. This software is free to use and can be downloaded here. Don’t forget to request the Chameleon data at the top of this page afterwards.

Additional pCon tools

Chameleon assortment items are freely accessible and can be downloaded as 3D files in pCon.catalog.

Configure Chameleon products and place them directly in a space using augmented reality. You can also upload 2D floor plans for precise placement.

Always have access to product information, 3D models, and images of Chameleon products. Ideal for presentations.

The ultimate quotation tool with the CPQ (Configure, Price, Quote) application. Configure products and determine prices.

Chameleon ProTips

Practical knowledge for installation, use, and maintenance

The Chameleon ProTips knowledge base offers practical instructions and useful tips for working with our whiteboards and acoustic solutions on a daily basis. From accurately measuring a wall to maintaining the surface, everything is focused on achieving optimal and long-lasting use of your Chameleon product.

Installation & use in practice

The ProTips offer practical guidelines for properly setting up a whiteboard and using it in everyday situations. This includes the initial treatment of the surface after installation, the use of suitable markers and accessories, measuring Chameleon walls, and their installation.

Always up to date

The knowledge base is continuously expanded with new insights and applications, so you can keep learning how to get the most out of your Chameleon product.

Maintenance & longlasting quality

Proper maintenance ensures that a Chameleon product continues to perform optimally over time. The knowledge base includes clear instructions for cleaning, removing ink residue, and preventing wear and tear. This keeps the surface clean, fresh, easy to write on, and ensures it lasts a lifetime, even with intensive use.

ProTips

1.1 Sharp

Writing / Whiteboards / Sharp

Simple et minimaliste. Ce tableau blanc se présente dans sa forme la plus élémentaire : rectangulaire, sans profil et entièrement blanc de tous les côtés. C’est la simplicité de Sharp. Ce tableau blanc rectangulaire est disponible en 11 tailles différentes et peut être suspendu aussi bien horizontalement que verticalement.

Experience Chameleon in your project

Curious to see how Chameleon fits into your interior design? We’re happy to support you, from samples to custom solutions, from pCon files to showroom visits.

What you can do:

Request a colour or material sample

Download pCon-data project visualisation

Schedule a consultation with a product specialist

Visit our showroom by appointment

Disclaimer: This document was compiled with the utmost care. No part of this publication may be copied or reproduced without the express written consent of Smit Visual B.V. Smit Visual B.V. accepts no liability for errors or for any damages and/or losses incurred due to the use or abuse of information in this document.

Smit Visual B.V.

Spaarpot 120-122

5667 KZ Geldrop

Netherlands

+31(0)40 - 280 85 00

info@smit-visual.nl chameleonwriting.com

Montage: magnetique | High Gloss - HG100
