Straight Line delivers highly engineered turn key industrial solutions to a wide range of processing industries such as: Midstream & Downstream sector, Energy, chemical & refining processing, renewables, fabrication shops, plastics recycling, tank terminals, fire protection, data centers (DC), food and beverage and power generation infrastructure, among others.
We focus on providing reliable, efficient, and technically advanced systems that support long term operational performance for our customers. Our team is committed to delivering solutions that not only meet project requirements but also enhance safety, productivity, and overall system integrity.
At Straight Line Industrial Services, Inc., safety is our foremost core value, with employee safety as our highest priority.
• The health and well-being of our employees, both on and off the job, is essential.
• A company cannot endure the economic loss following accidents and injuries.
Our unwavering dedication to achieving excellence in safety and accident prevention is exemplary. Commitment and accountability for these principles are not only the responsibility of employees but also of employers and management.
As of 2026 we’ve had over of 1,300,000 safe man hours. Our safety program includes:
• Pre-Employment and Random Drug Testing
• Employee Orientations
• Job Safety Analysis (JSA’s)
• Right to Know Hazard Communication
• SDS Manuals
• LOTO Training
• Sexual Harassment Policy
• Scaffolding and Incident Reporting
• Hearing Conservation
Straight Line Industrial Services, Inc. provides the following on all proposals:
Commercial General Liability 2,000,000 General Aggregate
Automobile Liability 1,000,000 Combined Single Limit
Umbrella Liability 10,000,000 Aggregate
Workers Compensation 1,000,000 Each Accident
Pollution Liability 1,000,000 Each loss Aggregate
Maritime & USL & H included 1,000,000 Each Accident
PROUD MEMBERS OF

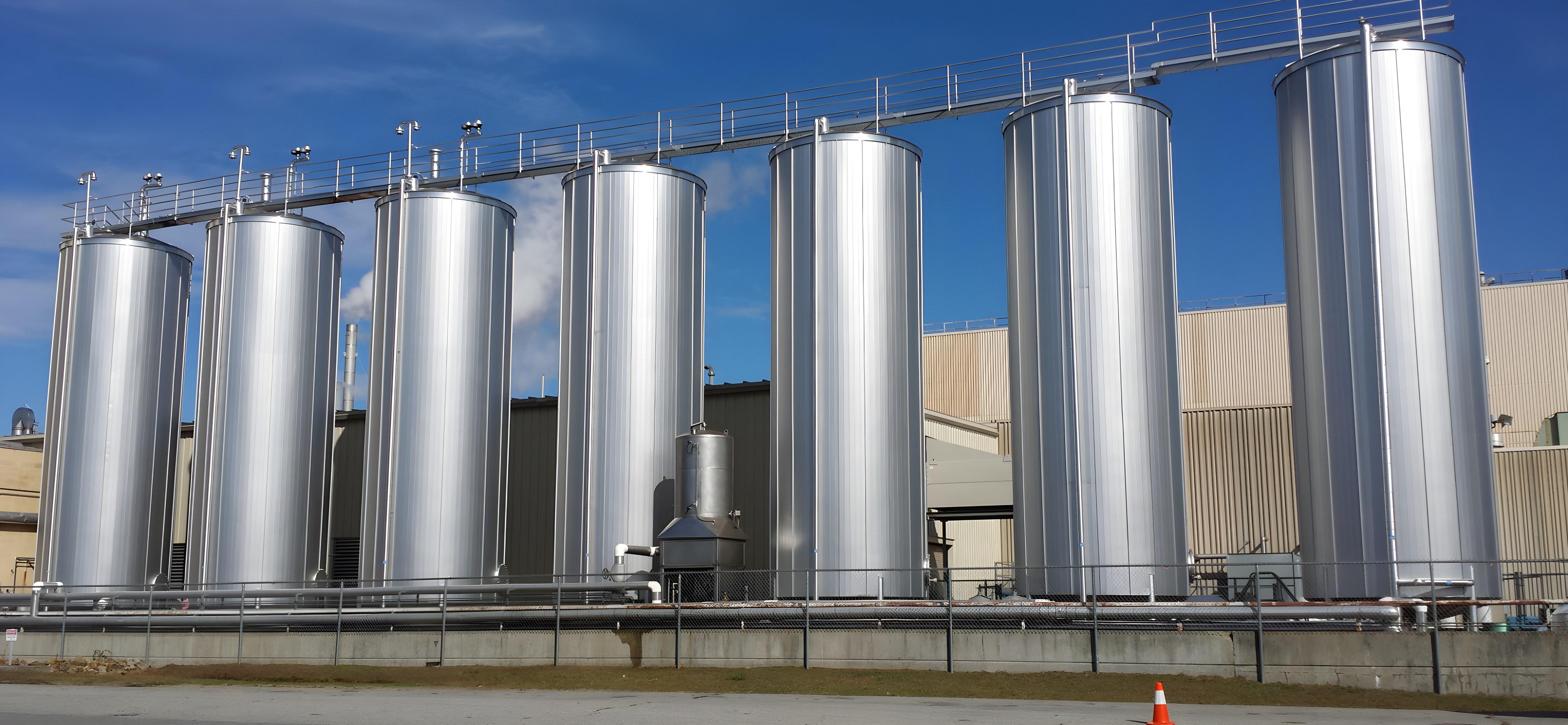

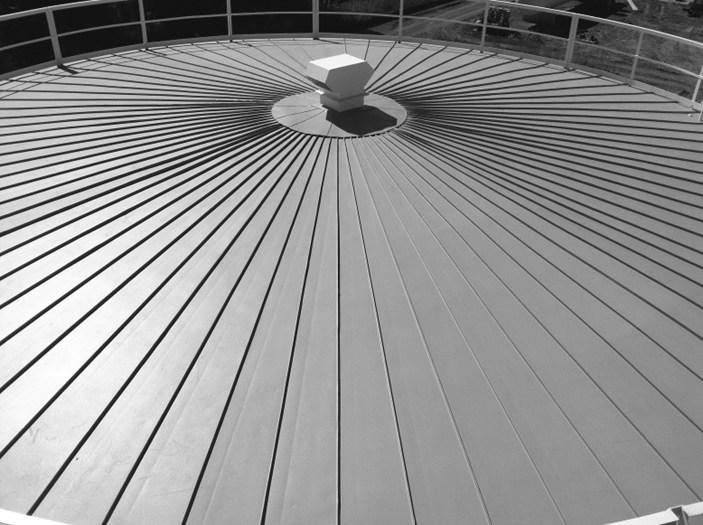

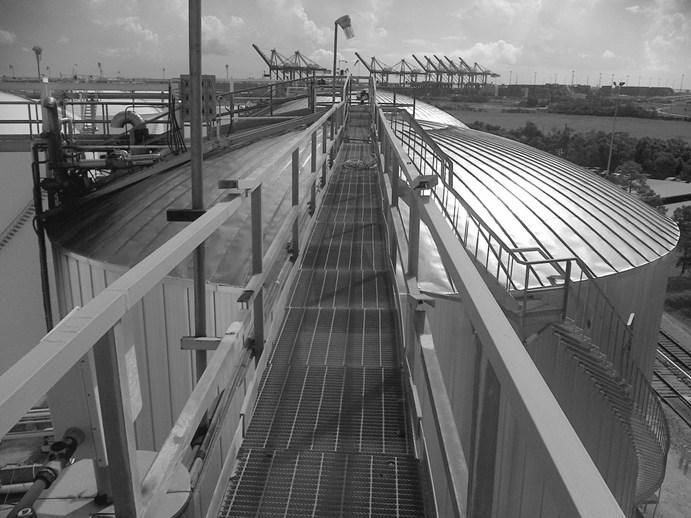

The Strong Seam® paneling insulation system reduces maintenance and installation costs, thanks to its durable design and high-quality materials. It is engineered for long-term performance with minimal upkeep, providing cost savings across the lifespan of the tank. Straight Line’s expertise ensures an efficient and reliable solution, offering seamless installation that doesn’t require scaffolding or hot work permits. This results in improved safetyandreduceddowntime.

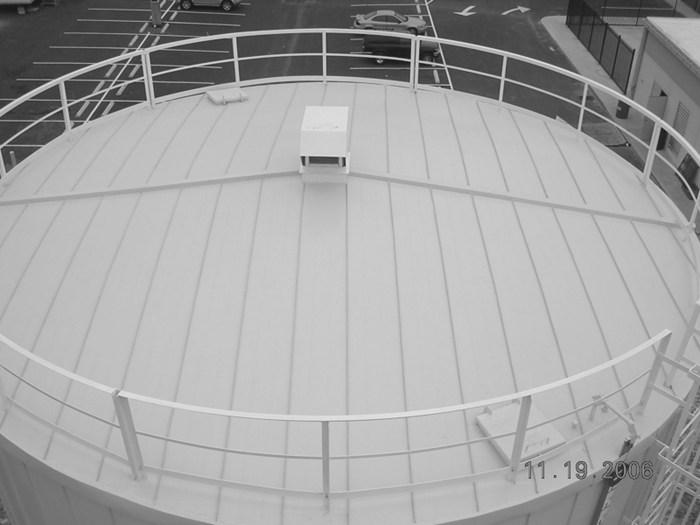

MACHINE FORMED STANDING SEAM CONTOUR

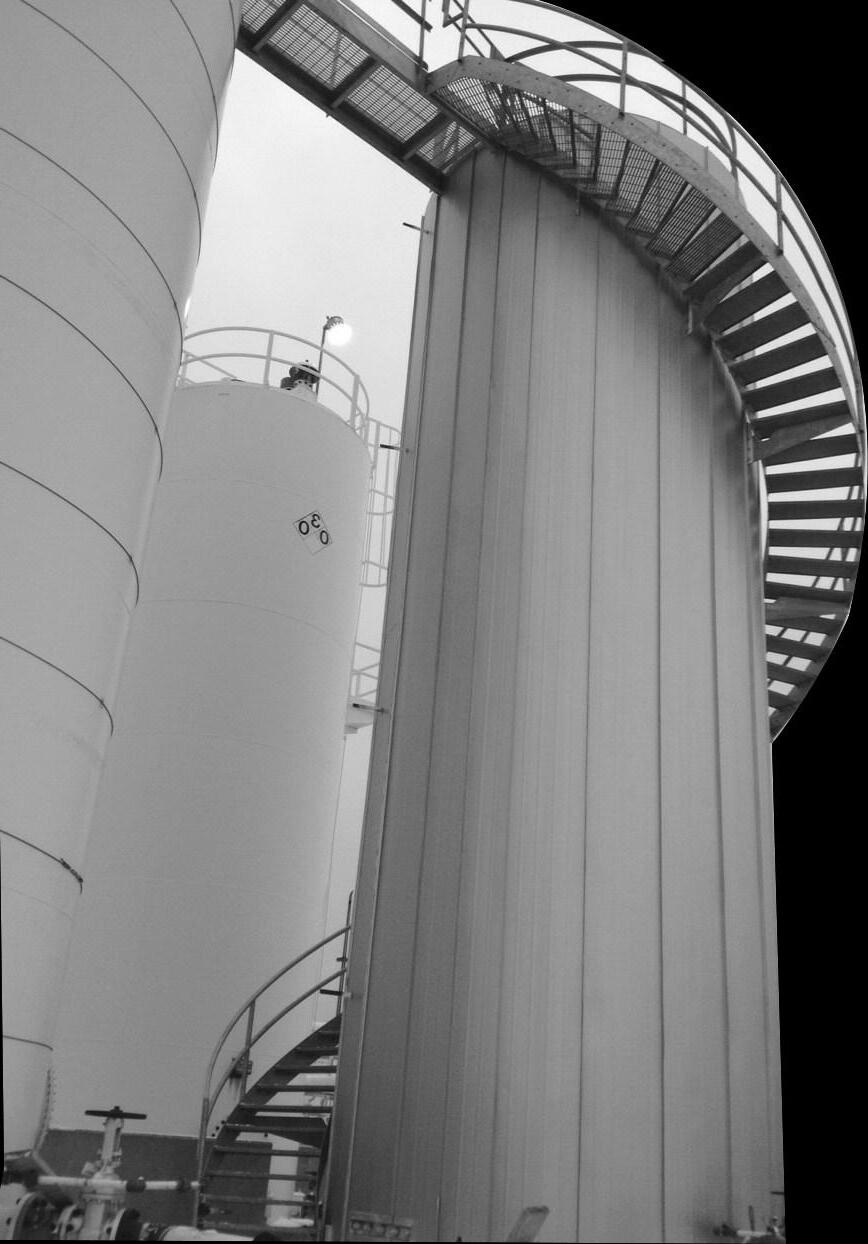

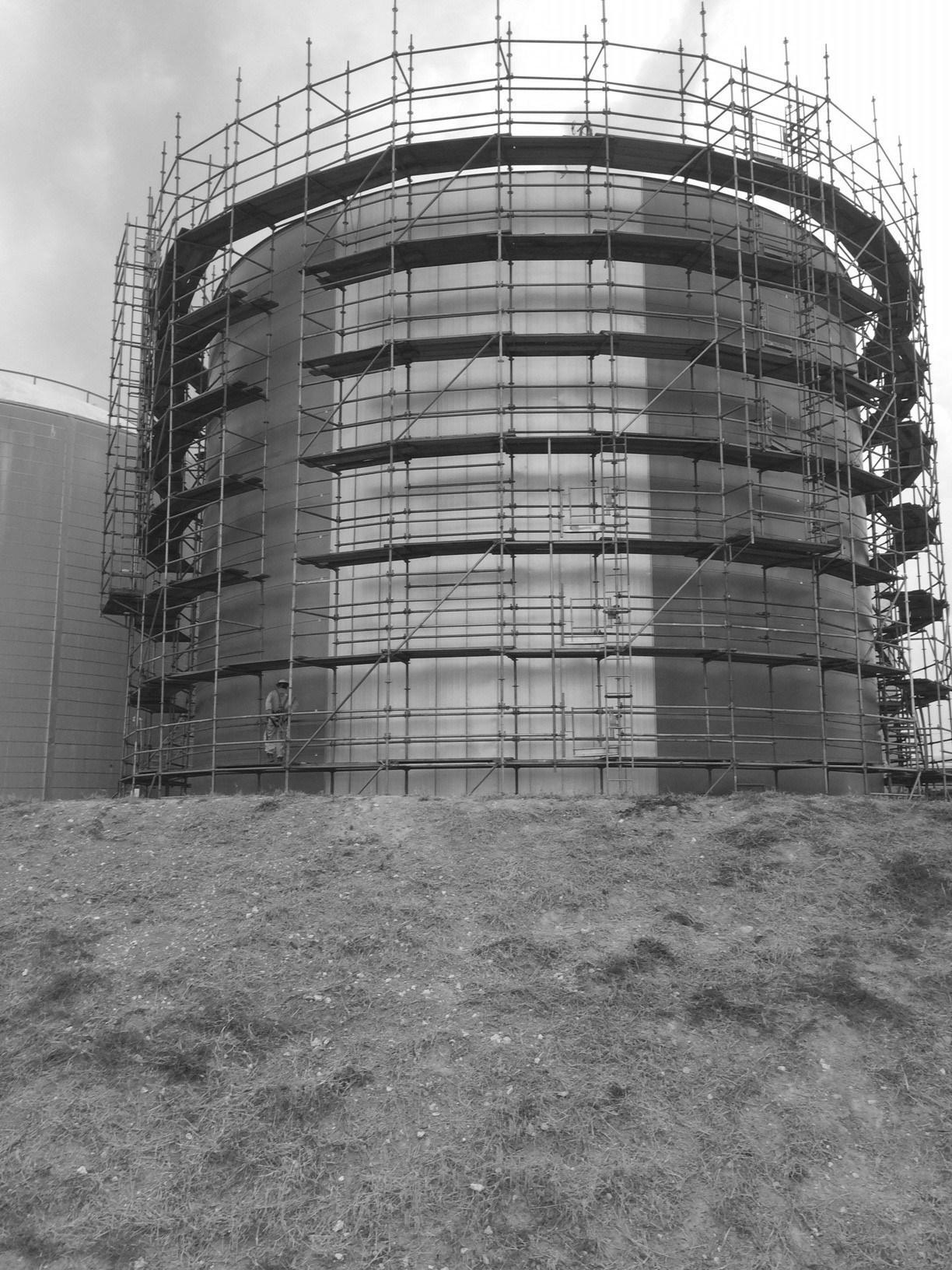

The Strong Seam® system features a robust, machine-formed standing seam that joins adjacent panels, extending the full height of the tank. This secure seam incorporates retention clips that fasten the panels to steel cables, which are tightly wrapped around the tank’s perimeter. The double-locking seam ensures longterm stability and ease of installation, creating a durable and effective insulation solution for the tank.

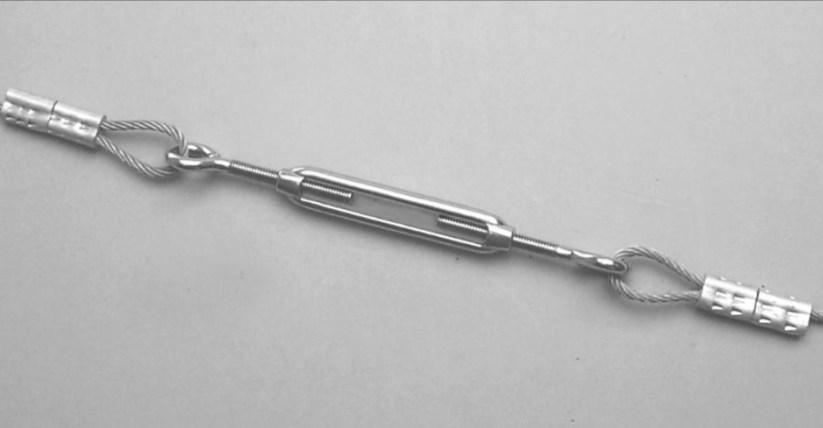

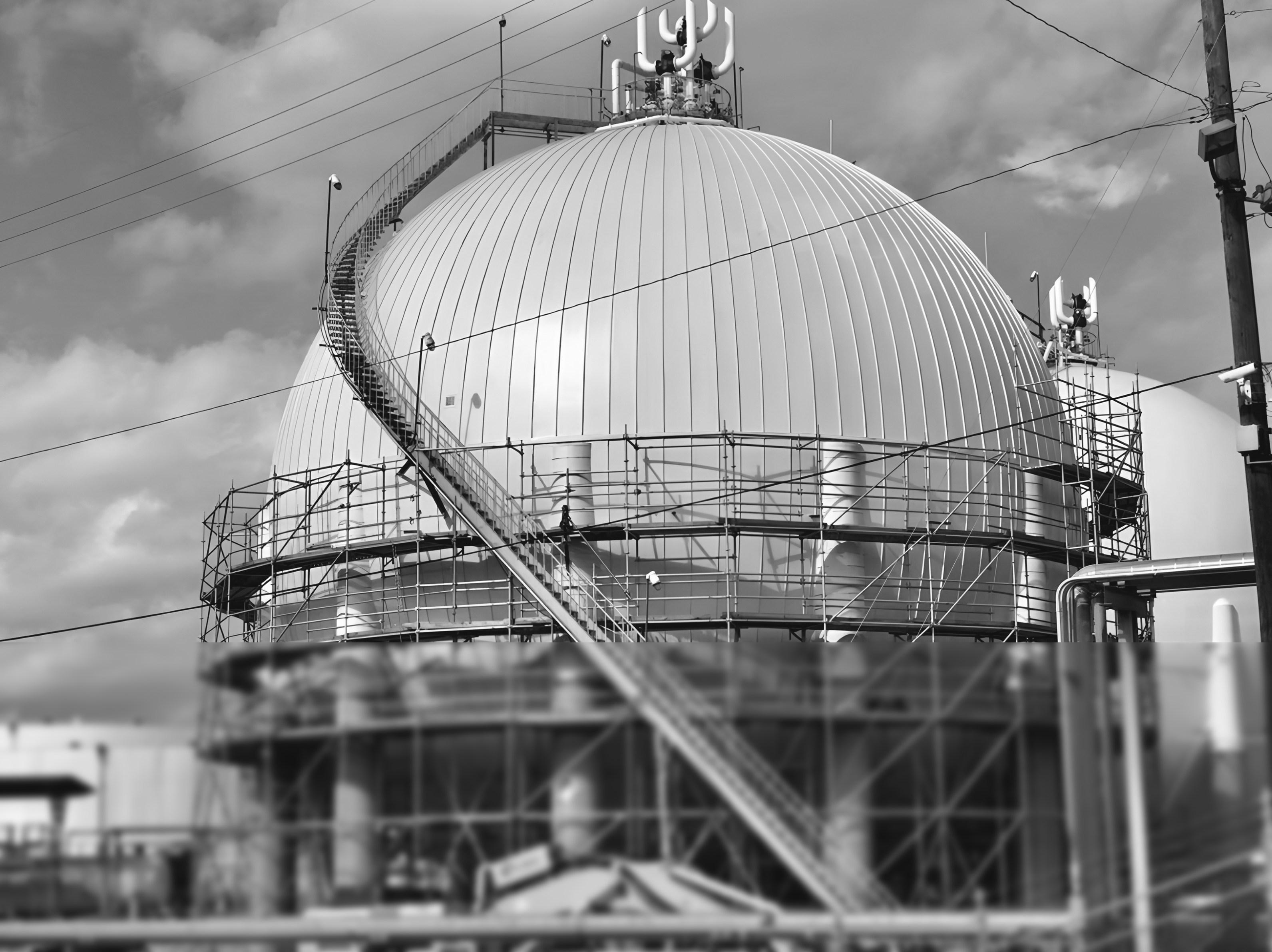

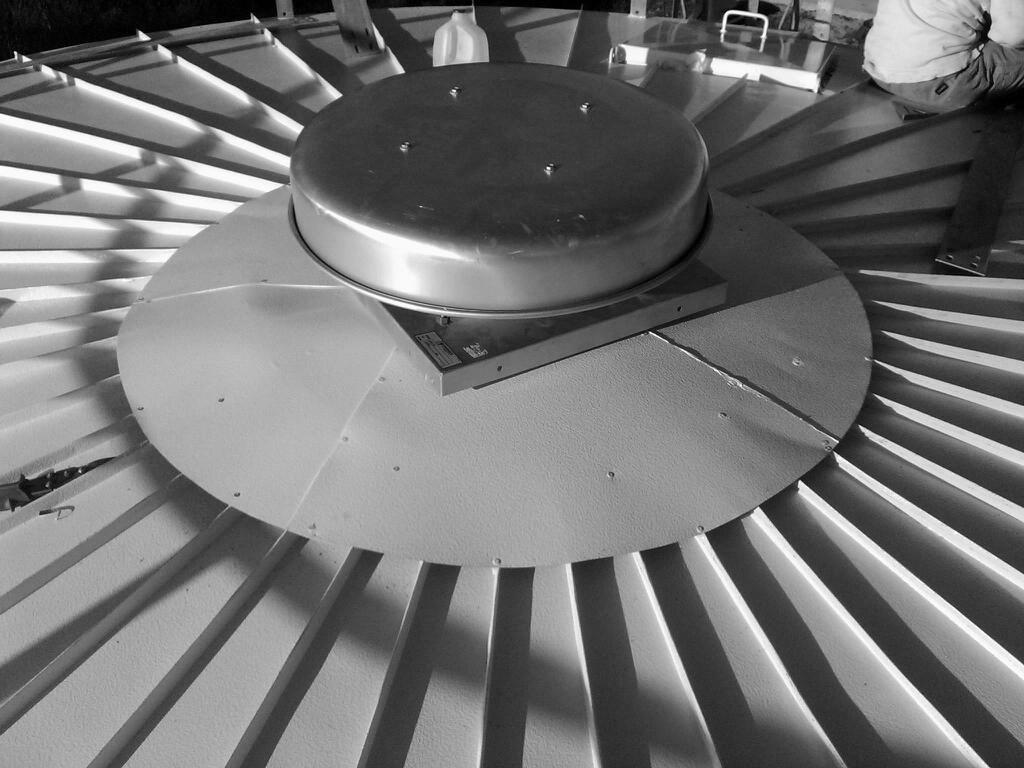

Our tank design features the Strong Seam® insulation system, which comprises vertical panels secured by cables around the tank wall. The Strong Seam® panels are attached to anchor cables with “T” clip fasteners. These “T” Clips extend outward at the seams, which are machine rolled with the “T” Clips to lock the panels together and secure them to the anchor cables, eliminating external banding.
SULPHUR, HOT OIL OR ASPHALT TANKS
When the tank operating temperature exceeds 275˚F, the tank will expand or retract during the course of the tank start up or shut down, causing the insulation system to crack which will require a replacement at your own expense. In cases like this, we highly recommend an expansion joint for the roof to help deal with this issue. An expansion joint of the tank insulation serves a purpose to absorb the lineal motion caused by the heat expansion. We recommend a two layer application for side-walls and roofs.
ENGINEERED STEAM TRACING SOLUTIONS
Heat tracing is the practice of heating piping to maintain a constant material temperature and compensate for heat loss. For steam tracing, the heat is generated using excess steam from other processes.
TYPES OF STEAM APPLICATIONS
•Conventional Tracing
•Single & Double Insulated Tube
•Bare Tube with HTC
•Snap Trace
•Contro Trace
•Hot Oil

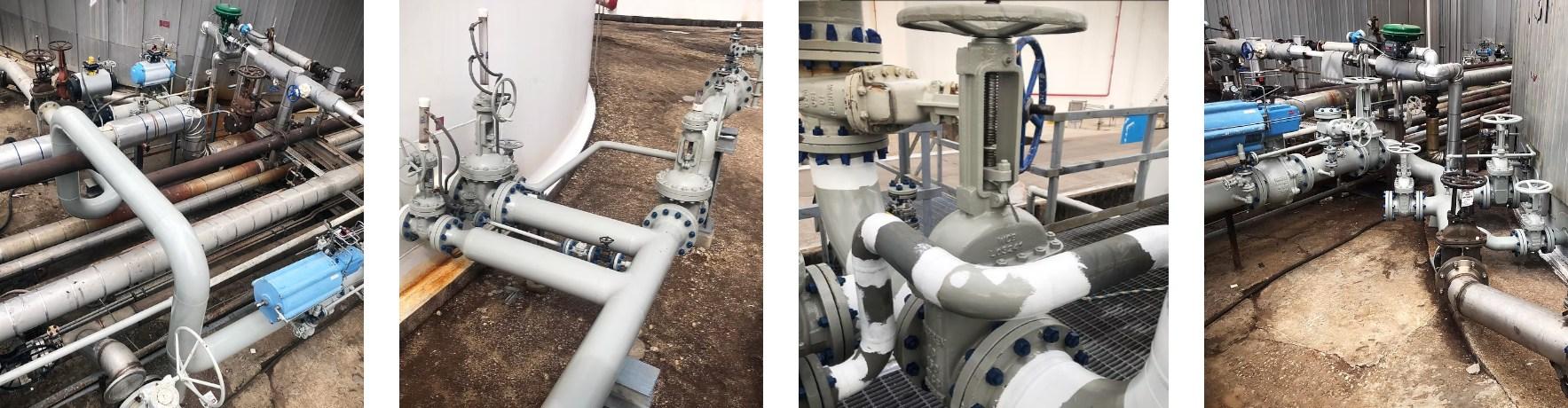

STEAM TRACING

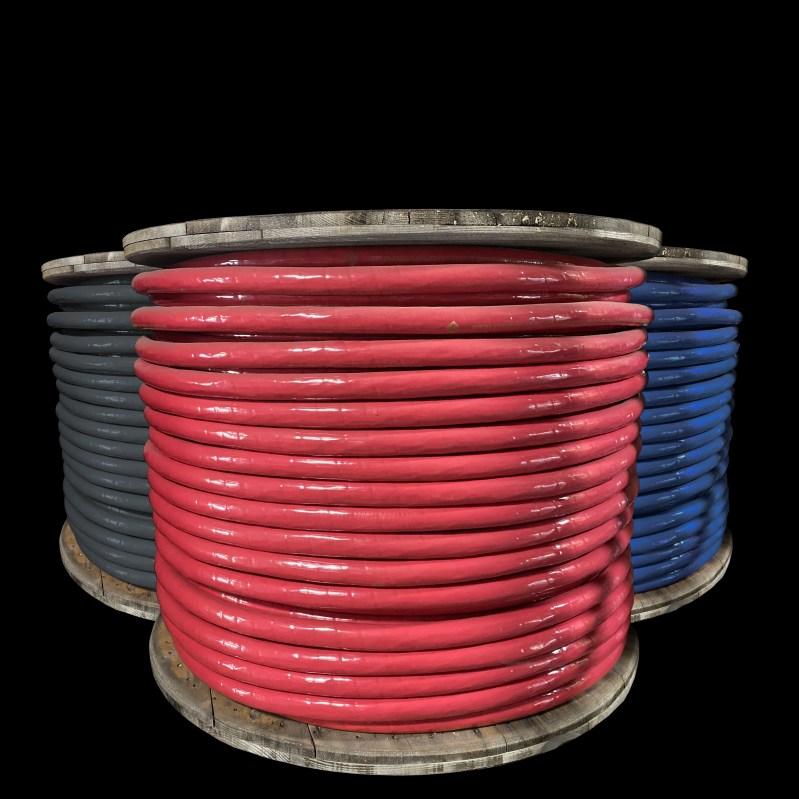

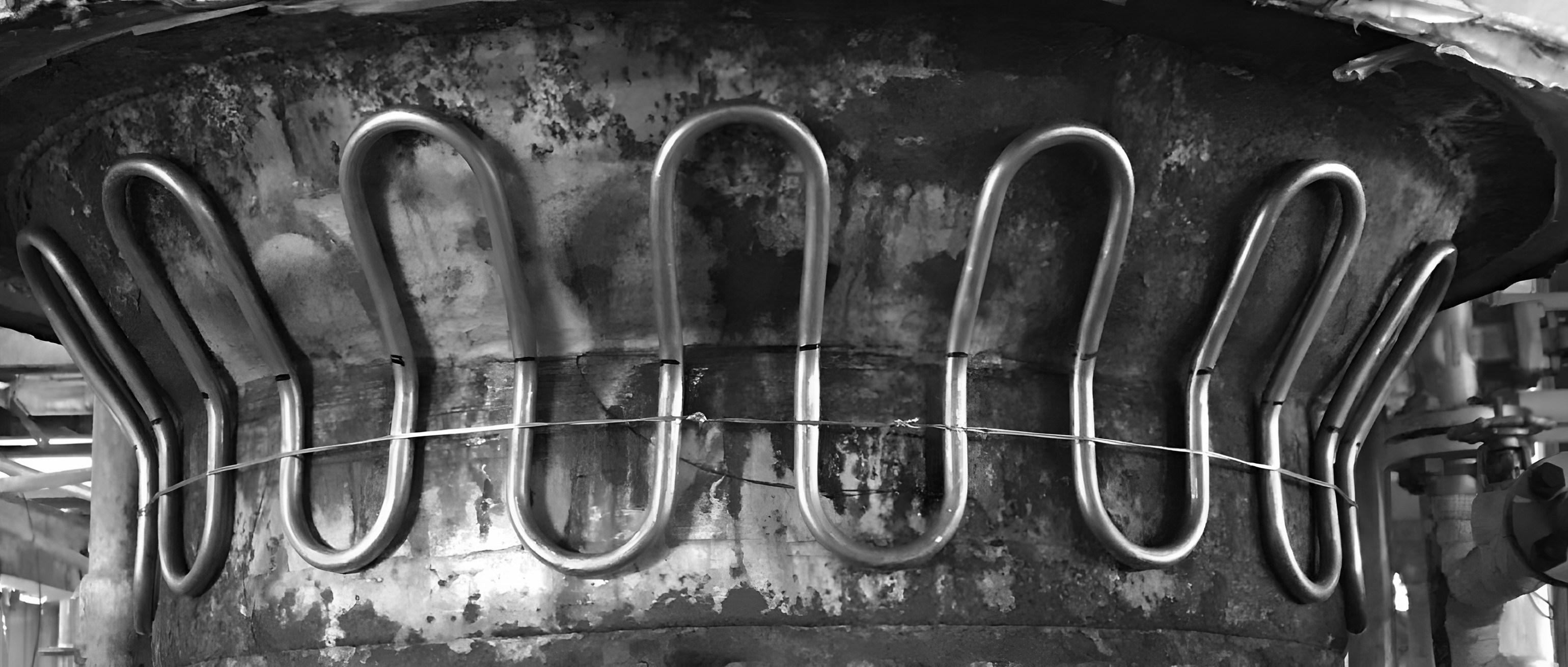

Steam Tracing is described as the attachment of a tube (Copper or Stainless) containing saturated steam, also known as the “tracer”, parallel to the process fluid pipe. The two pipes are then insulated together with the appropriate insulation and jacketing. Although Steam Tracing is more intensive compared to electrical heat tracing, there are fewer risks associated with it. The temperature of the tracer cannot surpass the maximum saturation temperature of the steam, as it operates at specific steam pressures.

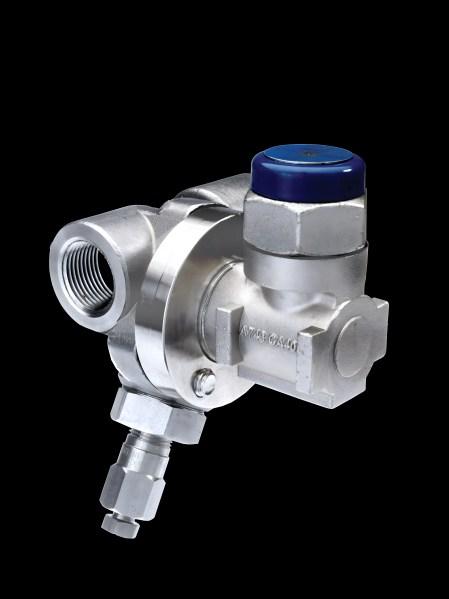

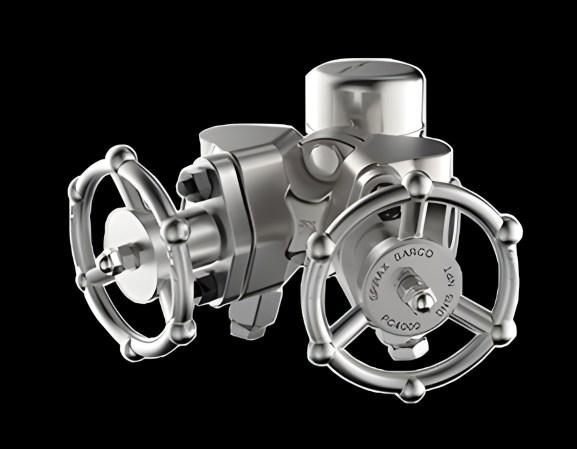

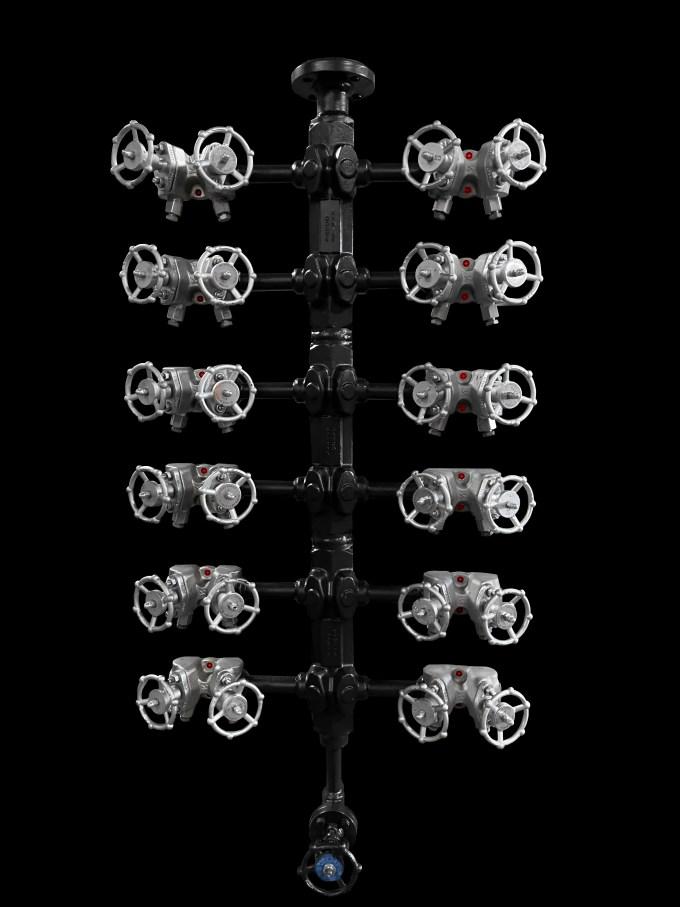

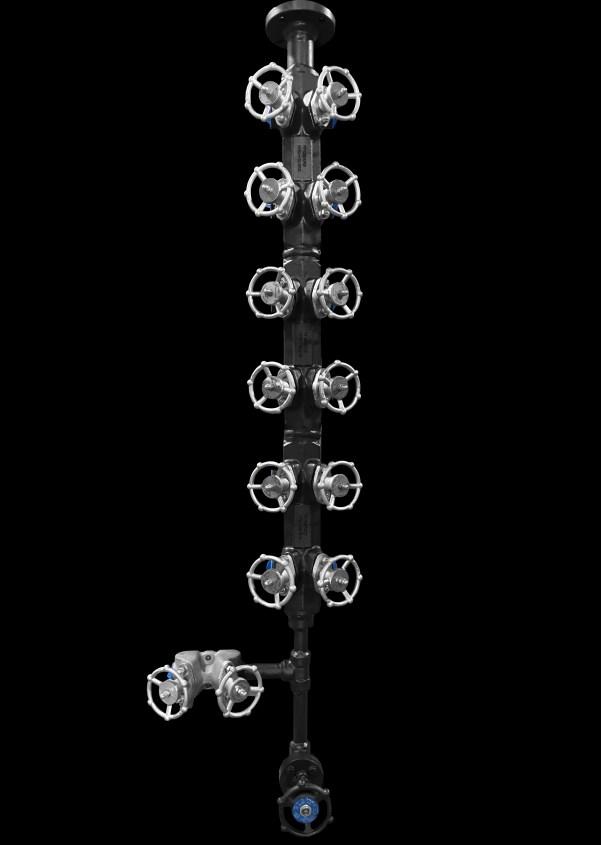

Straight Line offers manifold installations and designs, including full packages of steel Forge Manifolds. The MSC forged steel manifolds centralize steam distribution and condensate collection for up to 16 sources. These manifolds feature various connections, making them ideal for tracing applications. Their compact design allows easy access for trap maintenance and monitoring, while the mounting arrangement ensures quick installation. The condensate collection manifold includes an internal siphon pipe to promote even temperature distribution and ensure single-phase discharge of condensate. Straight Line's quality systems provide a reliable and easy-tooperate solution that is plant-friendly and meets everyday process demands.
At SLIS we know that at the heart of every trace heating system is thermal insulation and our experience gives us the advantage. Our specialists have been installing and maintaining heat tracing systems for over 17 years. We offer turn-key solutions, with control & monitoring systems. We manufacture Forged Steam and Condensate Manifolds along with install to ensure quality. We are a Certified Contractor for all ControTrace Systems, design and installation. So, whether you need Electrical Heat Trace, Steam Trace or ControTrace for your next project or need confidence in your plant’s ability to operate efficiently through the winter, contact: SLIS Proving Experience in the ART OF RELIABLE HEAT TRACING.

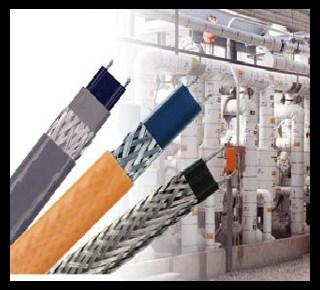

HEATING CABLES
POWER BOXES

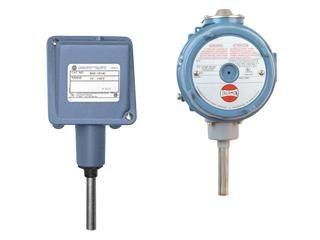

AMBIENT SENSOR
The demands placed on heat tracing systems vary based on the design parameters specific to each application. To meet these needs, Straight Line Industrial Services, Inc. uses Thermon® manufacturing as its supplier who has the widest variety of electric heating cables and control systems in the world.

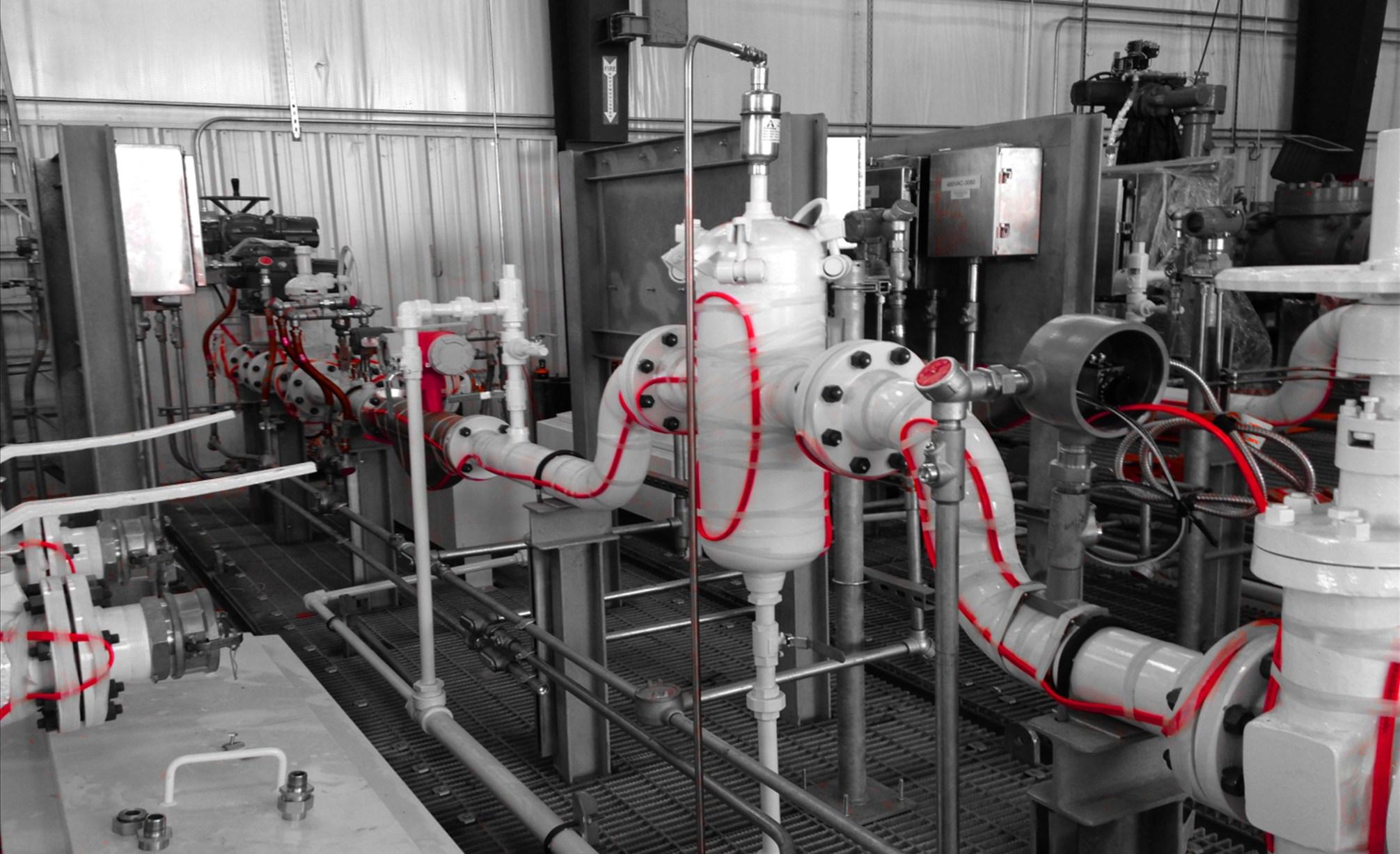

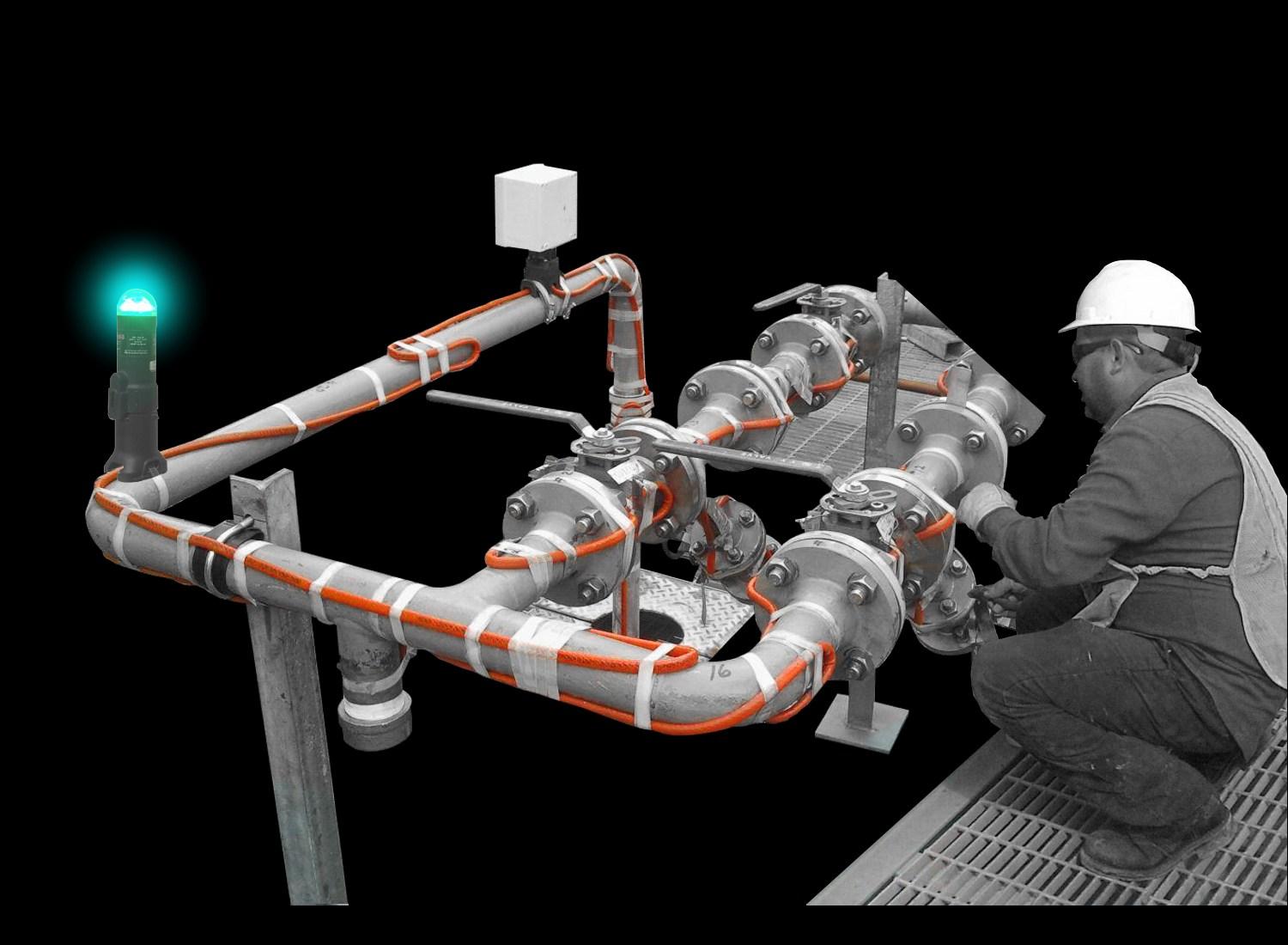

ELECTRICAL HEAT TRACING
Electrical heat tracing uses specialized heating cables attached directly to process pipes to maintain or raise their temperature. Unlike steam tracing, these cables deliver controlled, consistent heat and are managed by a microprocessor‑based control unit that monitors system performance, temperature levels, and overall operation. Once installed, the cable and pipe are insulated together to ensure efficient heat retention. This approach offers a cleaner, more efficient, and lower‑maintenance alternative to traditional steam tracing, making it ideal for modern industrial applications.
Electrical heat tracing is widely used in industry to prevent pipes, tanks, and equipment from freezing or losing critical process temperature. It keeps fluids at the right viscosity, protects instrumentation, and ensures reliable operation in harsh or cold environments. Across sectors like oil and gas, chemical processing, and power generation, it’s essential for safety, uptime, and process stability.

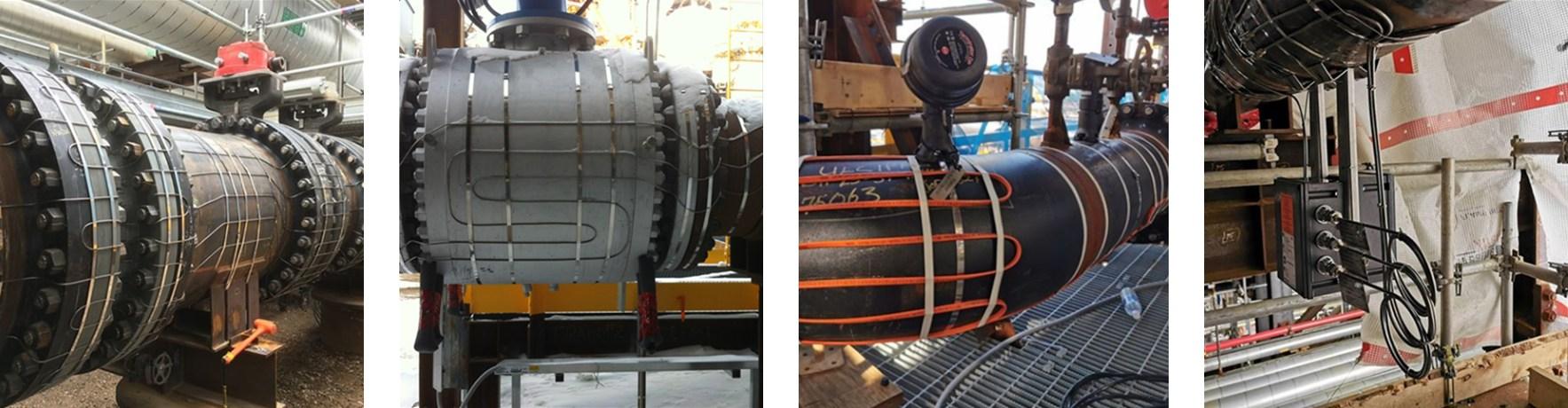

EQUIPMENT HEATING
EHT ensures critical components such as pumps, valves, filters, and transfer systems are at the proper operating temperatures needed for safe and efficient performance. By applying controlled heat directly to the equipment, electrical heat tracing prevents cold‑related issues like thickened fluids, blockages, or mechanical strain.
FREEZE PROTECTION
Electrical heat tracing plays a key role by preventing freeze‑ups, maintaining fluid flow, and protecting critical instruments from low temperatures. When combined with proper insulation and weatherproofing, winterization ensures that industrial operations stay safe, efficient, and uninterrupted throughout the winter season.

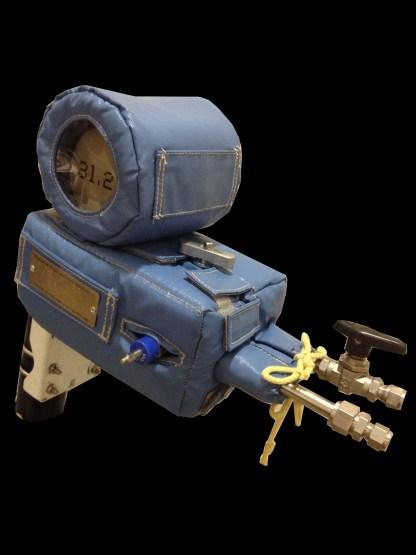

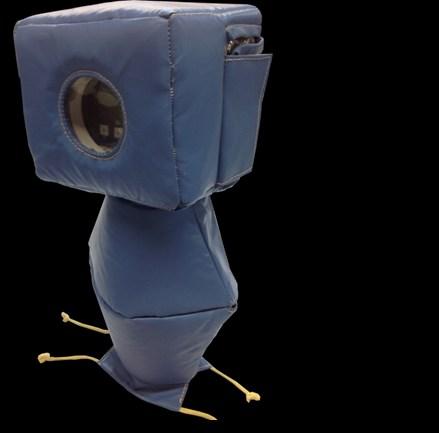

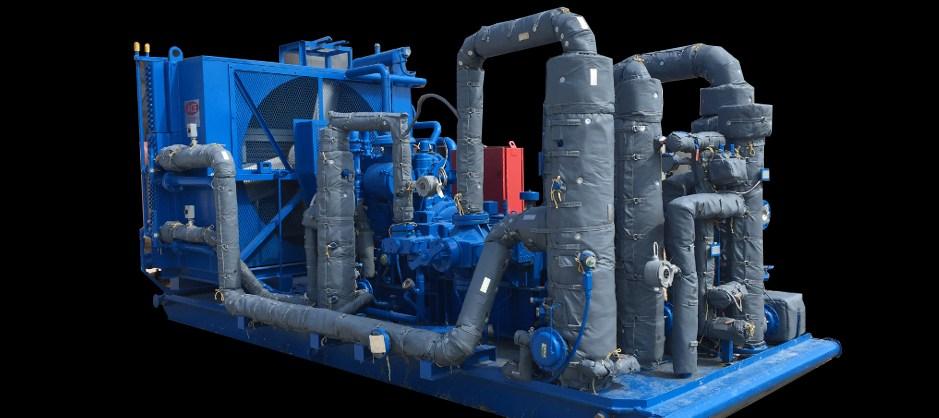

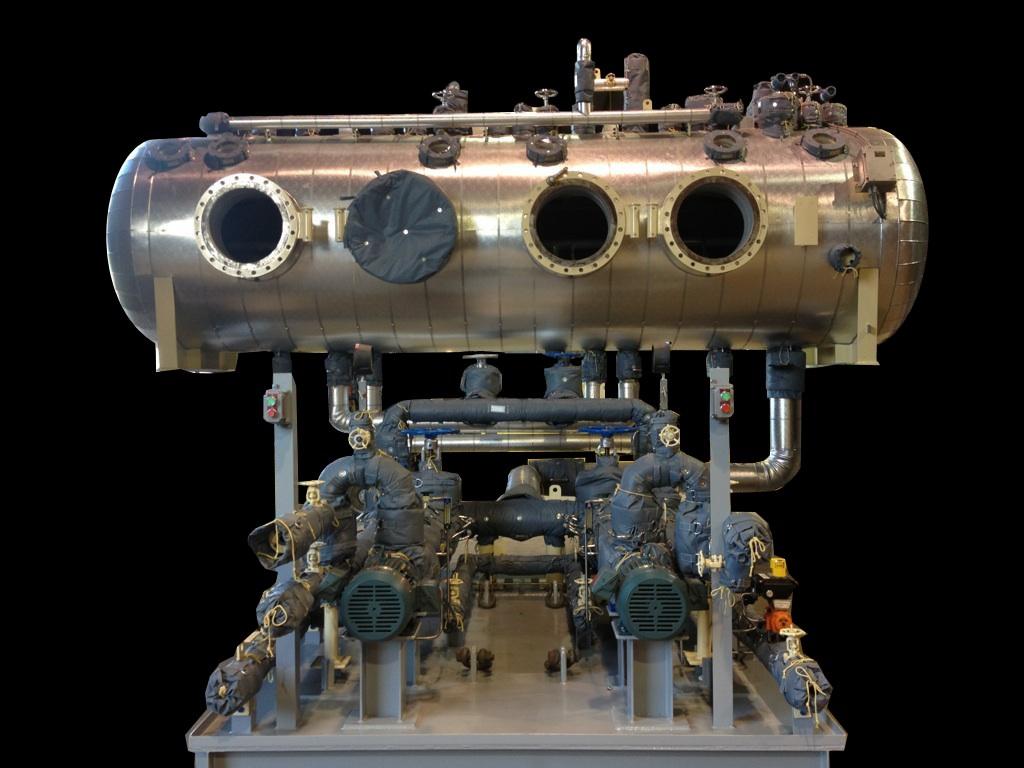

Our removable insulation blankets are custom-built and manufactured for each individual item that is needed. A close contour fit is indispensable for a precise appearance and proper thermal performance. Blanket covers are frequently designed in segments to fit most applications.
PIPING
Spool pieces
45° and 90° Ell's – Bend
180°
Tees
Reducing Outlet Tees
Concentric Reducers
Eccentric Reducers
INSTRUMENTATION
D.P. Cells
Level Gauges
Level Controllers
Manifolds
Flow Transmitters
VALVES
Gate Valves
Check Valves
Globe Valves
Control Valves
Angle Valves
Ball Valves
Relief Valves
Butterfly Valves
EQUIPMENT
Pumps
Turbines
Vessels & Tanks
Exchangers
Column Heads
Manways
EASY TO REMOVE
Expansion Joints
Exhaust Systems

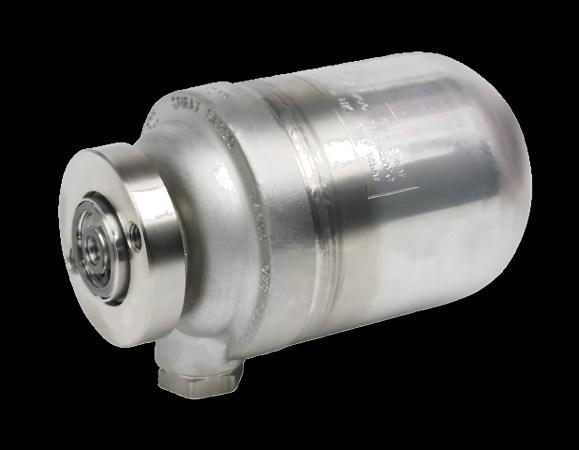

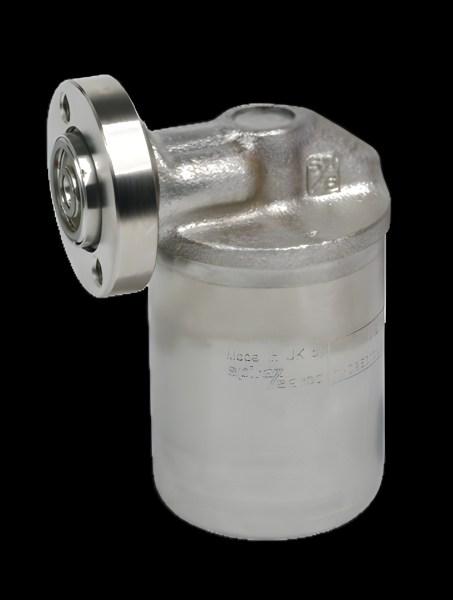

Steam Traps
FLANGES
Pipe Fittings
Orifice Flanges
Blind Flanges
Exchanger Flanges
FIREPROOFING
Motor Operated Valves
Emergency Isolation Valves
Conduit Cable Trays
PERSONAL PROTECTION
Insulated blankets and/or pads can easily be removed for periodic inspections or regular maintenance, and replaced as required.
Straight Line Industrial Services, Inc. can also build blankets with acoustical barriers to support & assist with noise control.
Pads are malleable, pulse resistant, and can be used with any equipment, whether it is vertically or horizontally mounted. Piping and equipment at any high temperature ought to be insulated in order to reduce heat loss and enhance safety, any surface that reaches temperatures greater than 100°F should be insulated to protect personnel.

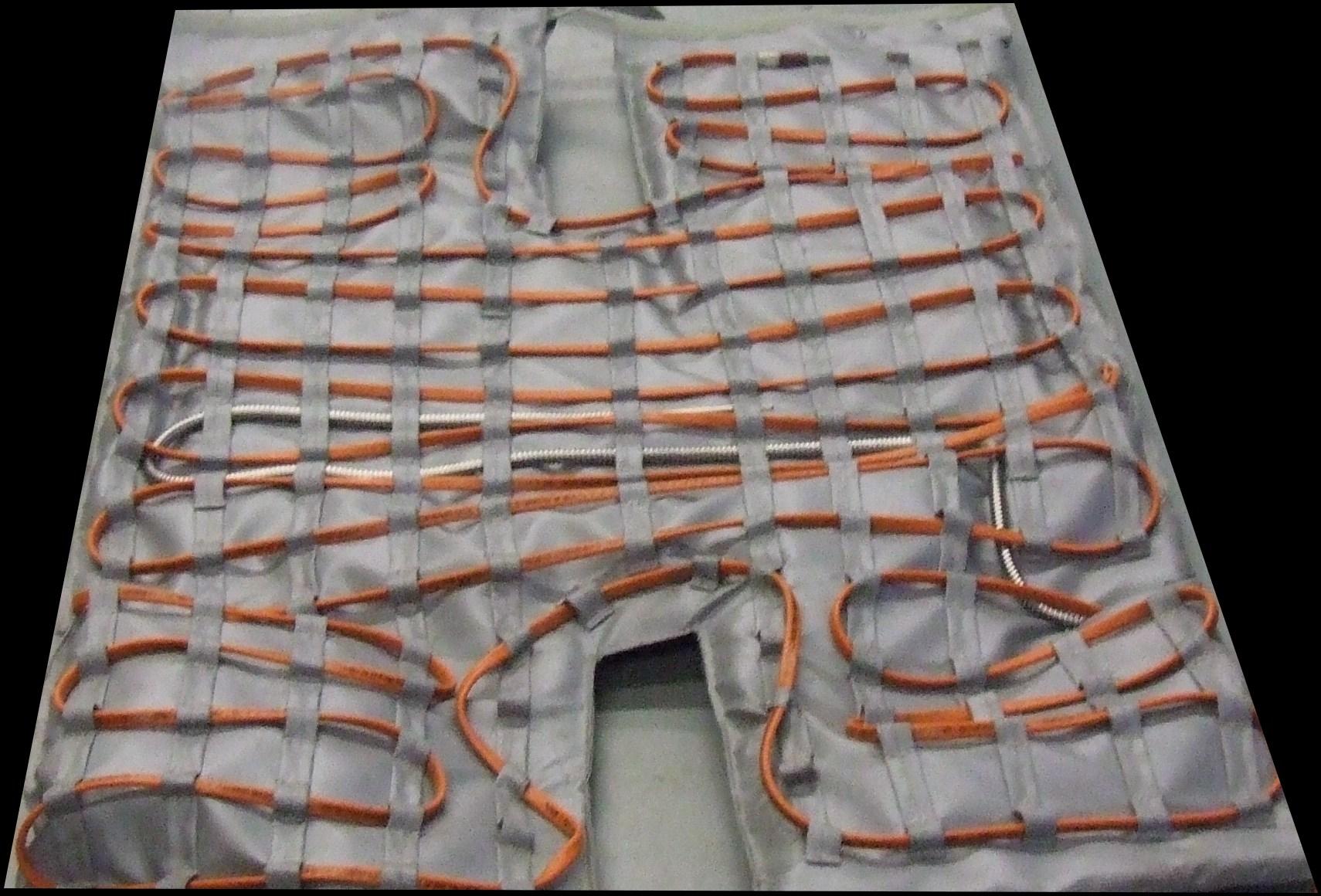

Most of the Straight-WRAP heated covers contain a Self Regulating Heat Trace cables they are placed in a strategically pattern to avoid cold spots over the body that will be covered.
SELF-REGULATING CABLES
• HTSX - for freeze protection or temperature maintenance to 121°C (250°F)
• BSX - for freeze protection or temperature maintenance to 65°C (150°F)
• RSX - for freeze protection or temperature maintenance to 65°C (150°F)
• VSX - for freeze protection or temperature maintenance to 149°C (300°F)
CABLE HI-TEMP BLANKETS
For HI-Temp applications, we offer mineral insulated cable heat blankets. These blankets use mineral insulate cable or “MIQ Cable” as for the heating element. This is very high temperature cable that can maintain up to 932 F. Note that these blankets are more ridged and are limited in flexibility.

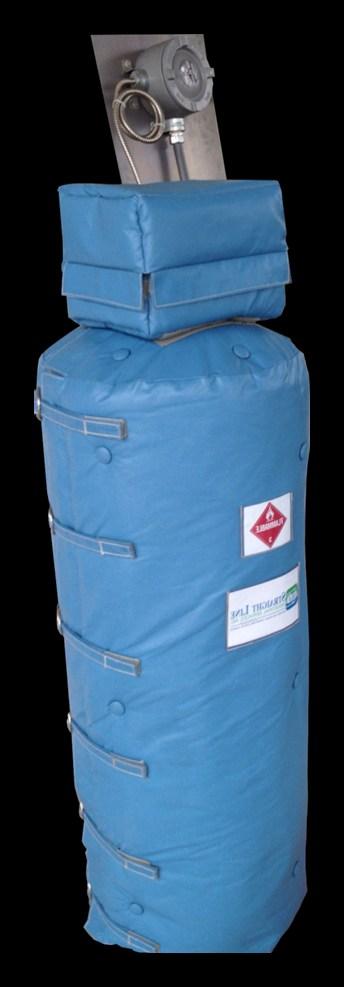

HEATED BLANKETS
Straight-WRAP EHT blankets are designed to the specific need of each customer. Heat Covers can be fabricated to fit any equipment for maintain temperature and freeze protection. Factors such as ambient conditions are taken into consideration in the design process.
Mechanical services cover the installation, modification, and testing of piping systems and mechanical equipment that keep industrial processes running safely and efficiently. This includes fabrication, tie‑ins, equipment setting, and system verification to ensure everything operates as designed.
Mechanical services play a hands‑on role in keeping refineries and chemical plants running smoothly. They come into play during turnarounds, equipment swaps, process improvements, and new construction anytime a facility needs to adapt or upgrade.
MECHANICAL
• PIPE INSTALLATION, MODIFICATION, AND REROUTING
• SHOP AND FIELD PIPE FABRICATION
• PRESSURE AND INTEGRITY TESTING
• EQUIPMENT INSTALLATION AND ALIGNMENT
• FIRE WATER SYSTEM INSTALLATION AND TESTING
• STORM DRAIN INSTALLATION AND UPGRADES
• HEAVY LIFTING AND RIGGING OPERATIONS
Structural services focus on designing, fabricating, and installing the steel frameworks that support critical refinery and chemical‑plant operations. This includes everything from pipe racks and platforms to equipment structures and custom‑engineered supports. The goal is to ensure long‑term stability, safety, and compliance across all facility structures.
Plants depend on these services when they’re expanding units, upgrading older structures, installing new machinery, or making sure existing assets meet today’s safety and engineering requirements. It’s the backbone that allows everything else in the facility to operate reliably.
CIVIL
• Foundations and footings
• Structural and retaining walls
• Site preparation, grading, and compaction
• Structural concrete placement
• Concrete and asphalt paving
• Containment systems
• Controlled demolition
CIVIL
Civil work lays the groundwork for everything that happens inside a refinery or chemical plant. It comes into play when building new units, setting heavy equipment, expanding infrastructure, or improving drainage and containment around the site.

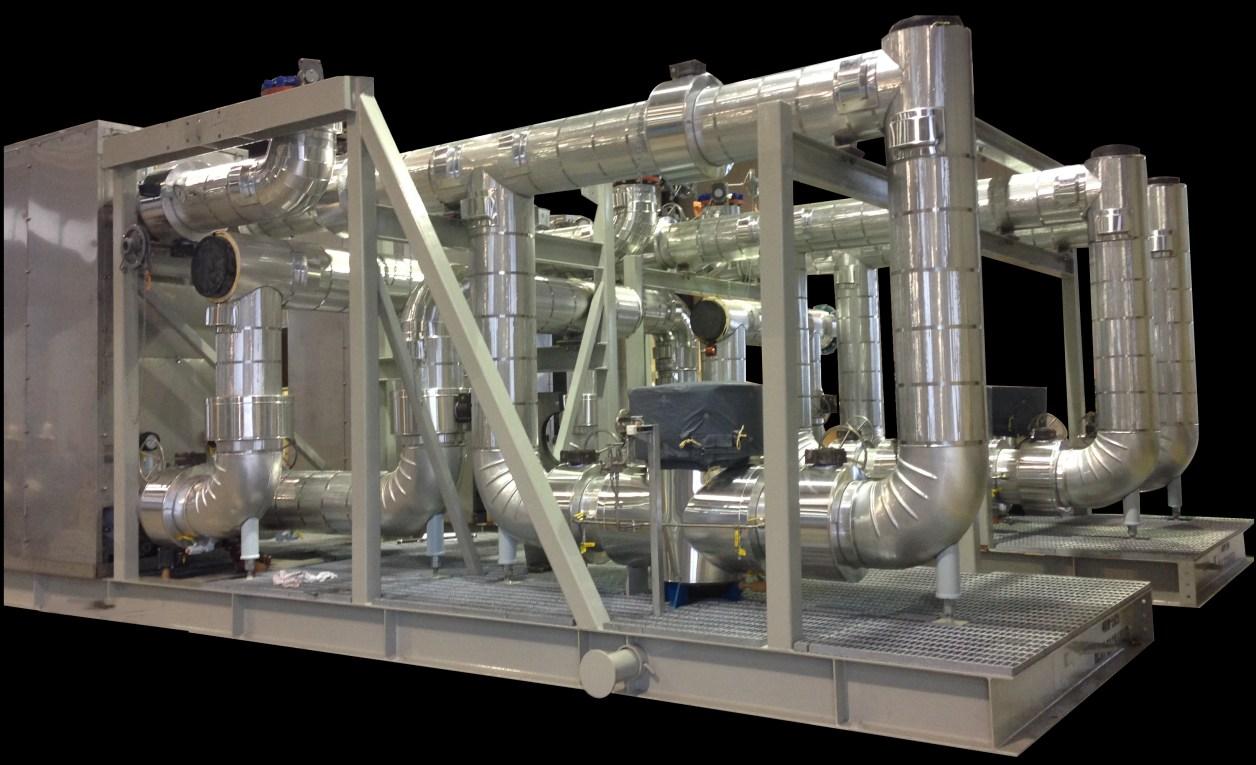

A key attribute of thermal insulation material is its ability to minimize heat transfer between surfaces in thermal contact. The insulating efficiency of a material is quantified by its thermal conductivity; lower thermal conductivity indicates higher insulating capacity under specific conditions.
CONVENTIONAL INSULATION
• Conserve energy by reducing heat loss or gain.
• Control surface temperatures for personnel protection and comfort.
• Facilitates temperature control of a process.
• Prevent vapor flow and water condensation on cold surfaces.
• Increase operating efficiency of heating, ventilating, cooling, plumbing, steam process and power systems found in commercial and industrial installations.
• Prevent or reduce damage to equipment caused by exposure to fire or corrosive atmospheres.
• Assist mechanical systems in meeting USDA (FDA) criteria in food and cosmetic plants.
FULL SERVICE
Straight Line Industrial Services, Inc. is a comprehensive Thermal Insulation Company specializing in commercial heating, ventilation, cooling, processing fluids, and plumbing systems.
The Layher team describes their system best: "The result of superior design” up to 8 connections Round® connector on one level and at various angles. The sysexplanatory. The 4 narrow punched-out holes automatically center the ledgers in the the 4 wide holes permit alignment of ledgers and diagonal braces at
