poetic passionate fluid ethical lively memorable powerful leading unique visionary reliable handmade

PROJECTS limitless

The semantics of lighting culture can be distilled into one essential concept: the curation of tactile aesthetics opens a portal to the unique, intangible dialogue held by illumination and spatial identity. Luminous choices are a calling card, the gateway to an inimitable feeling that lingers long after we’ve literally stepped away from a place. Piquing the physical senses is simply the beginning of a more internal impact that lighting design holds for an individual, shaping their immediate perception and defining an overall experience that reaches beyond brick and mortar, leaving behind the simplicity of four walls. Slamp has been at it for years, scribbling, illustrating far outside typical design frontiers in order to step over established boundaries that classify light as a peripheral element, an afterthought to other objects. Objects are palpable and

specifically defined only thanks to the true architect of visual and emotional consciousness: illumination. Whether steeped in opulent abundance, an excess of minimalism, linear innovation, or wafting, limitless poetic verse, the following pages trace how Slamp’s endless luminous possibilities stand as the genesis of one’s surroundings, the precise foundation for what will be conceived, and what is perceived. The company’s take on avant-garde, versatile modular options and standalone pieces to be combined at will moves from shapeshifting expansive elements that beg for bespoke installations to stark architectural sculptures that make up the lustrous bones of a place, when singular or elegantly combined. This book is an invitation, a peek into the potential, the aesthetically unbound, the never-imagined power of light.

SAR TO RIAL HANDCRAFTING

2

SINCE 1994

handmade in Italy

Slamp has been at the forefront of creating innovative, original, eclectic, and contemporary lamps since 1994, taking inspiration from the natural world, architectural and sartorial genius, and artistic trends. Slamp creates suggestive, luminous, and versatile objects using the latest generation of materials, manually molded into elements that combined together, make up a luxurious landscape.

The use of exclusive, lightweight and resistant technopolymers gives a unique and recognizable touch to every lamp, allowing for three dimensional forms, decorations, and effects that would be impossible using any other material. Much like any maison dedicated to haute couture, Slamp lamps undergo a precise ritual that transforms a sheet of technopolymer material into an exceptionally decorative, three dimensional shape through cold cutting and handcrafting

3
PLAY VIDEO

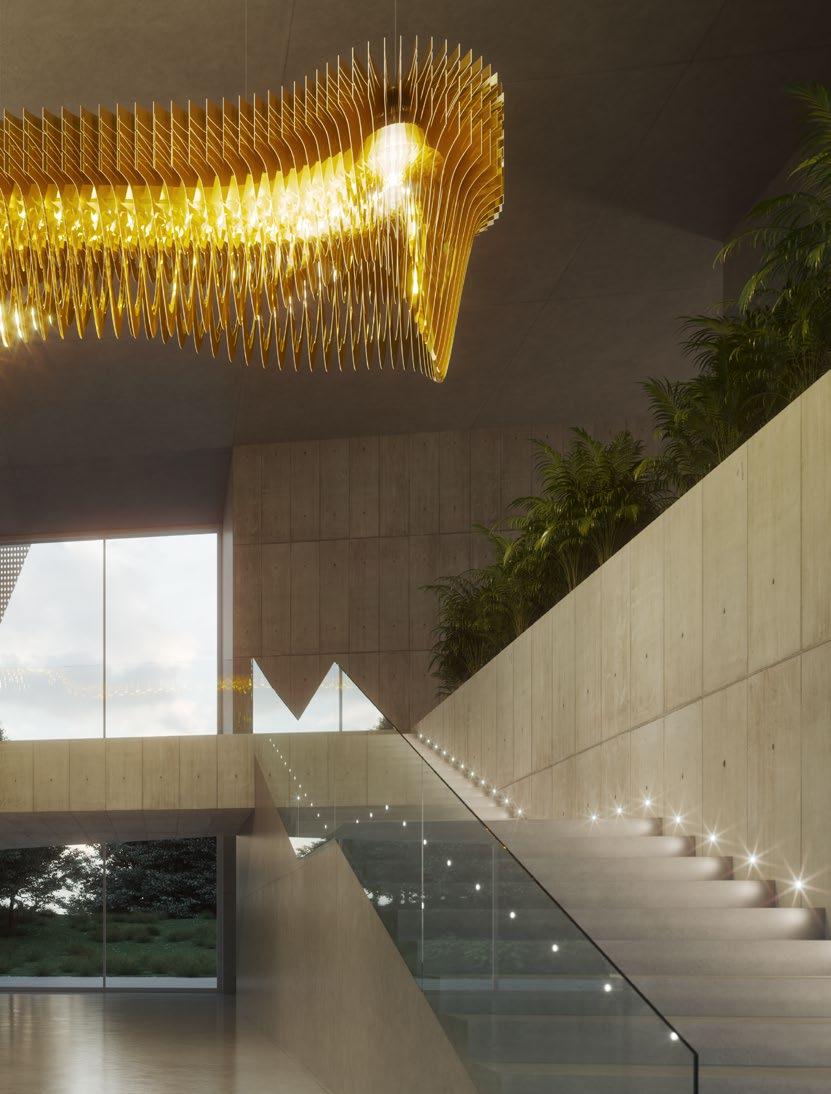

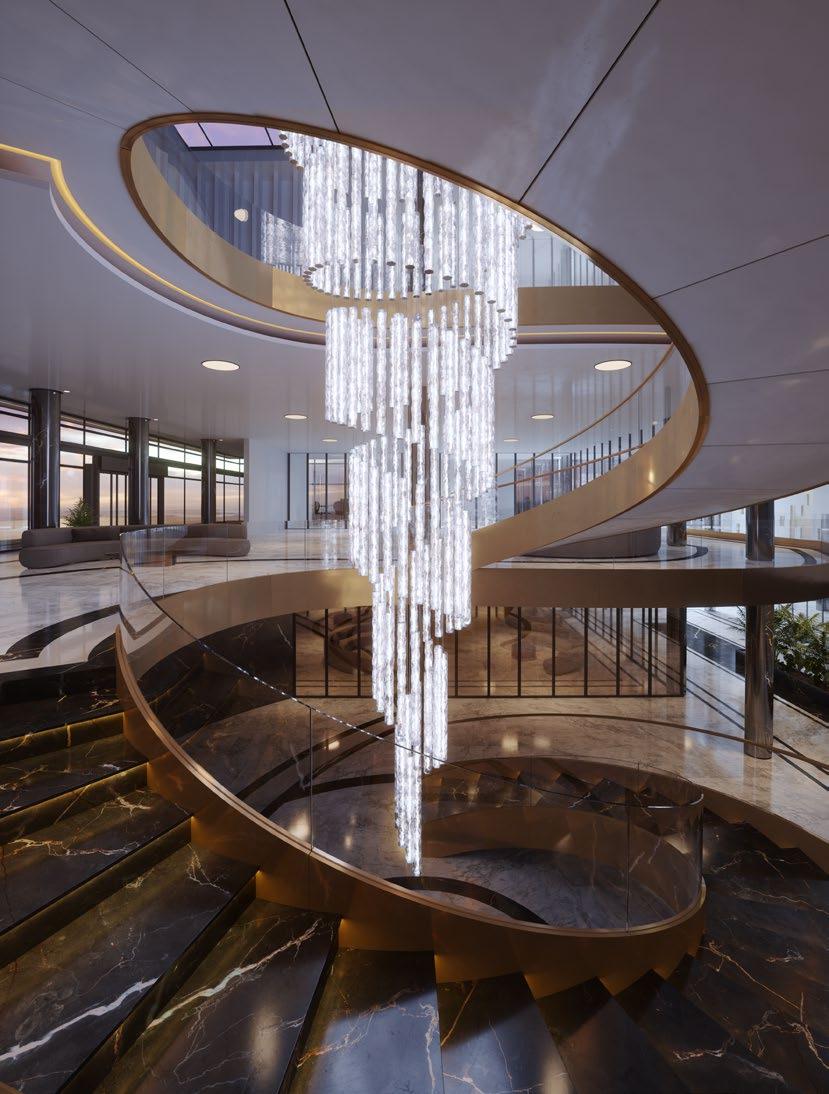

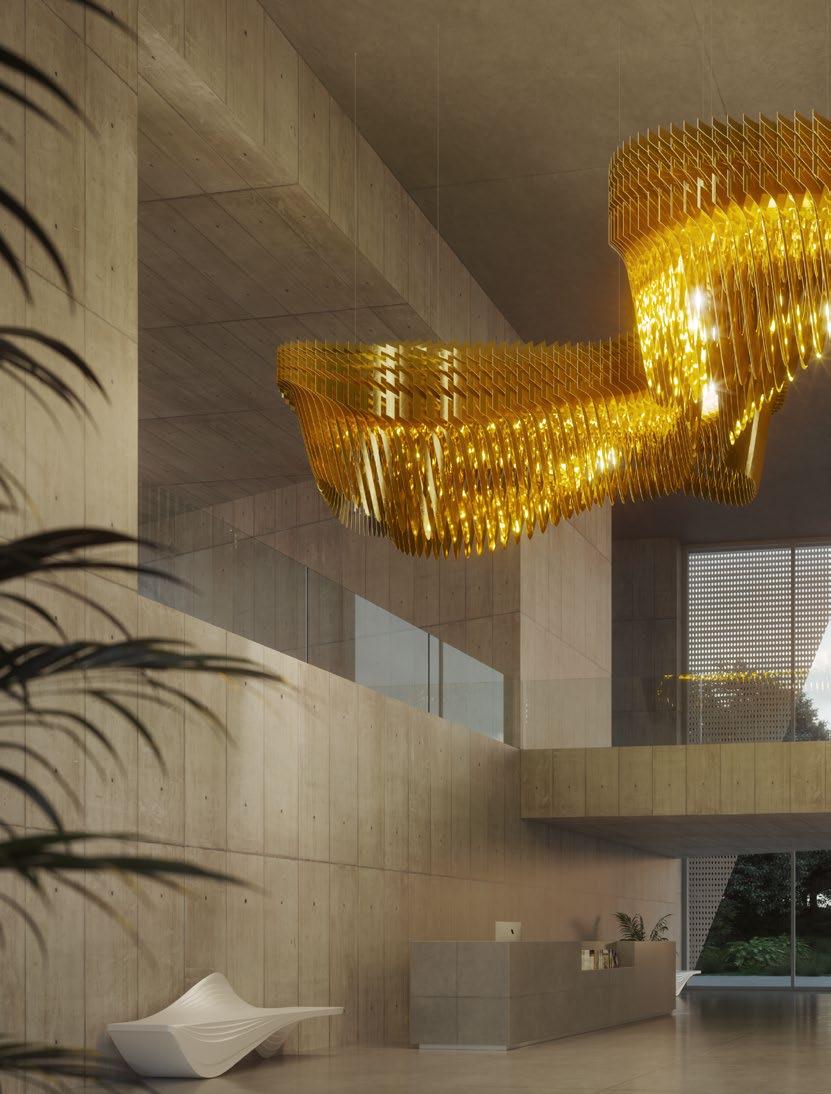

ARIA

INFINITA

10TH ANNIVERSARY

To celebrate the 10 year anniversary of Slamp’s collaboration with Hadid Design Studio, Zaha’s iconic 2013 Aria takes on new form in a modular version.

5
6

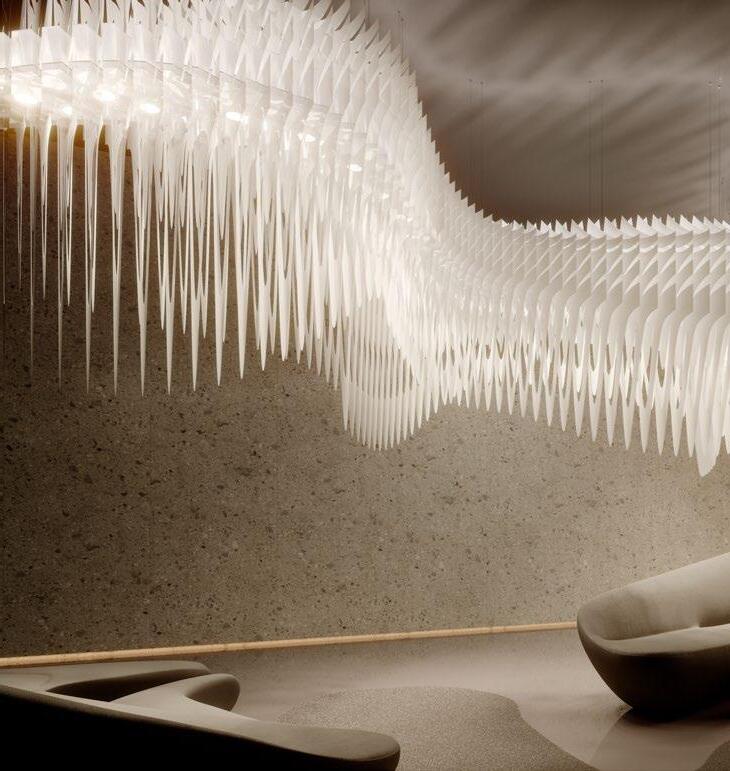

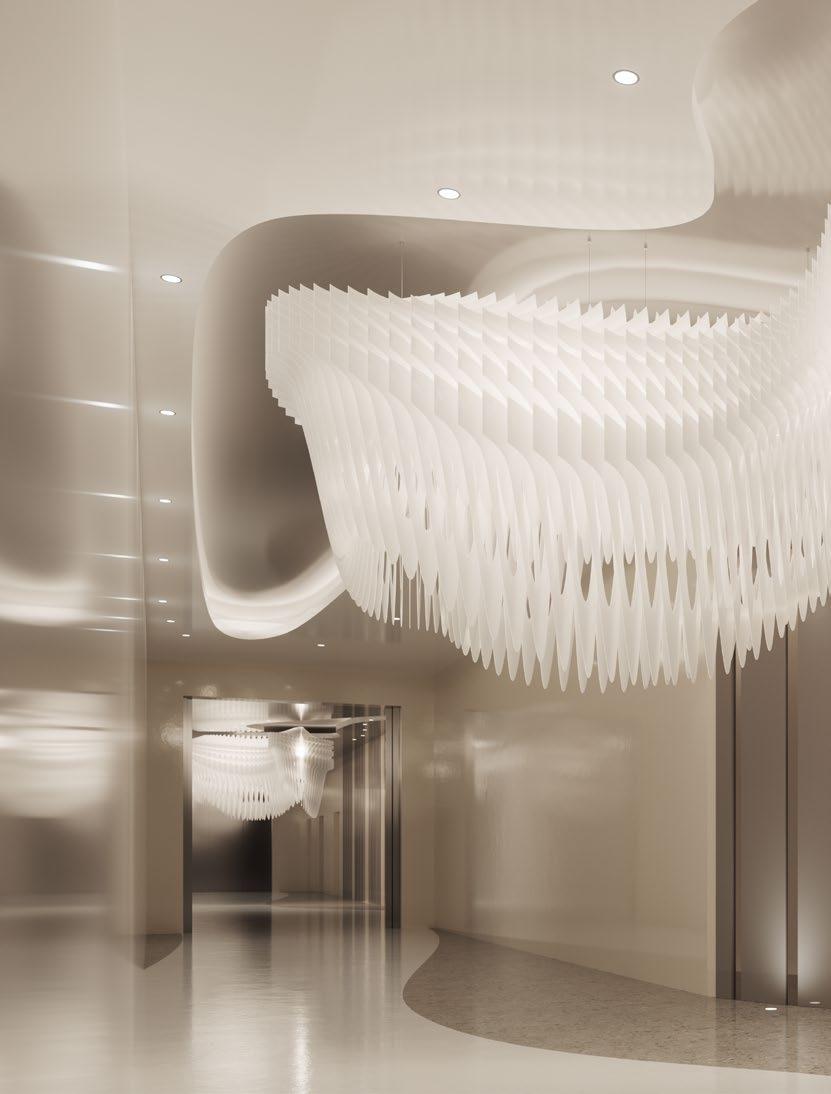

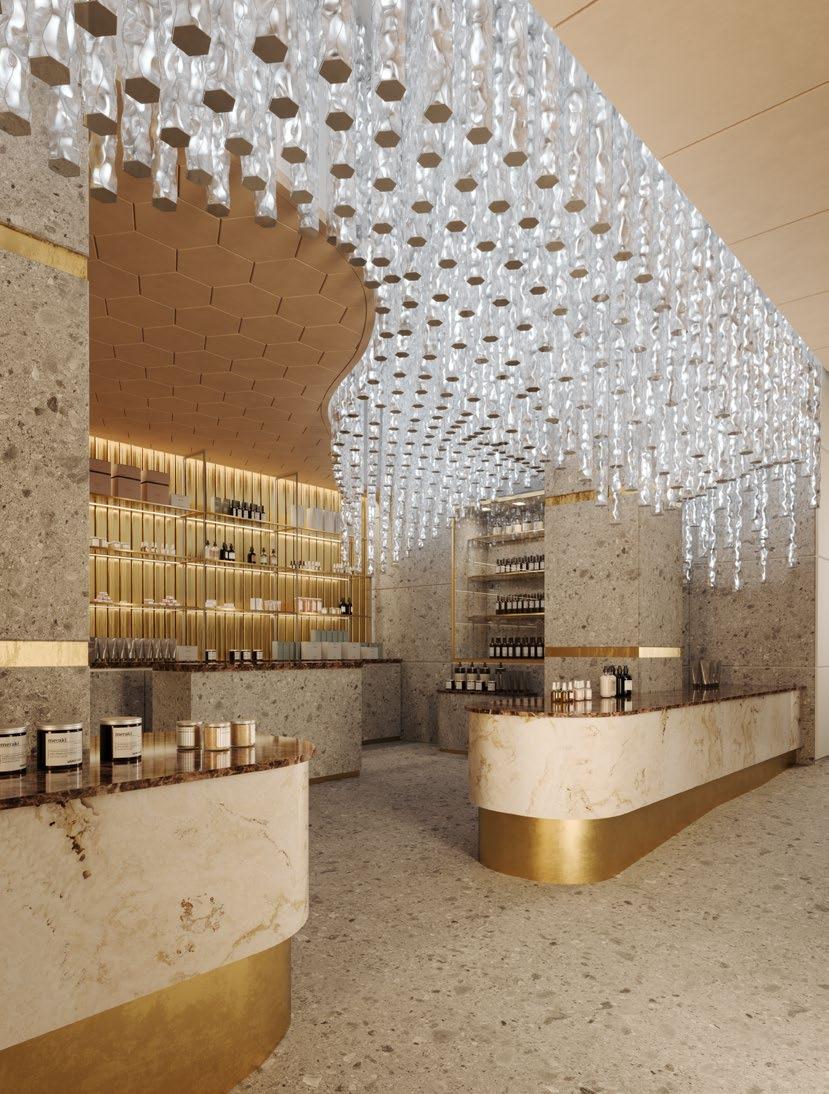

The illuminated modular system sinuously undulates throughout a space with diverse polycarbonate layers that in the lamp’s highest points, reach 2 meters of visionary fluidity.

7
8

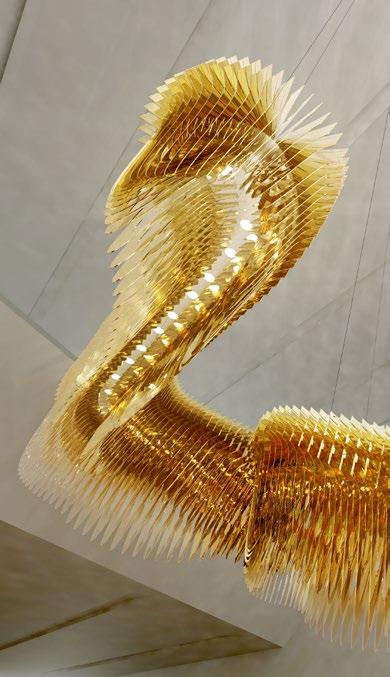

Available in both total white or gold finishes: the elements are metallized through a process where an aluminum bar is vaporized in a hyperbaric chamber.
9

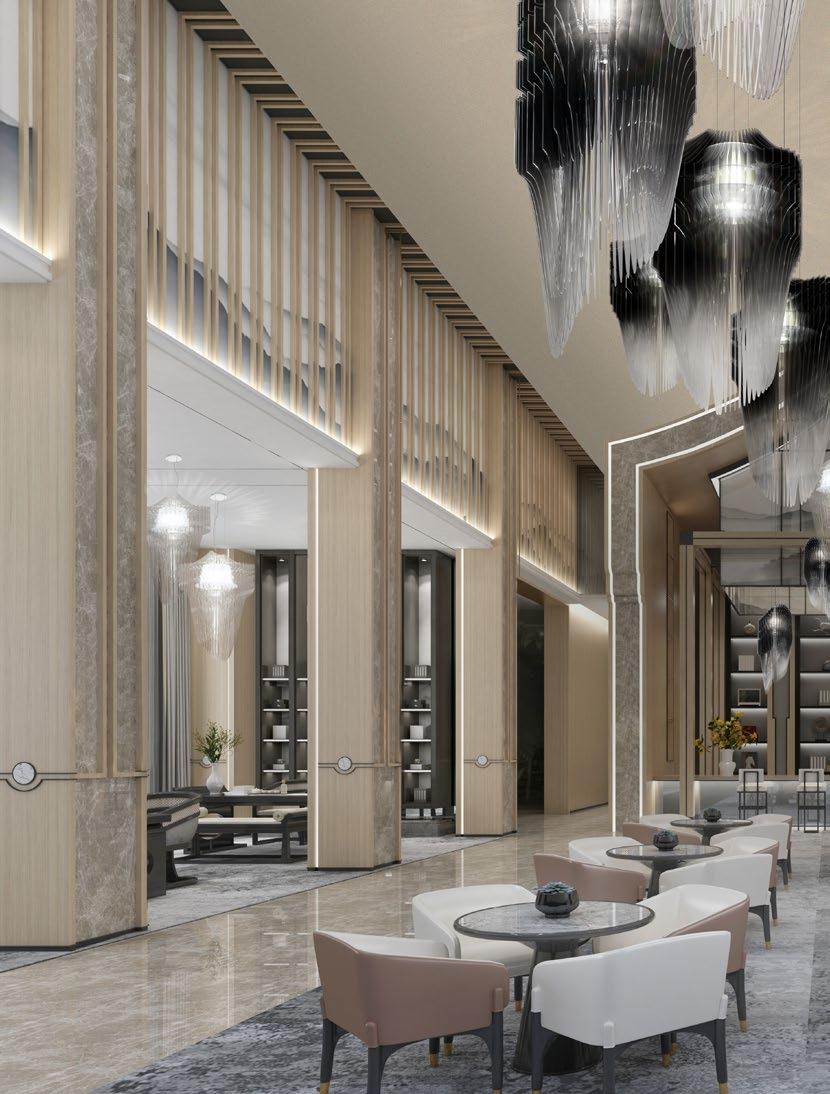

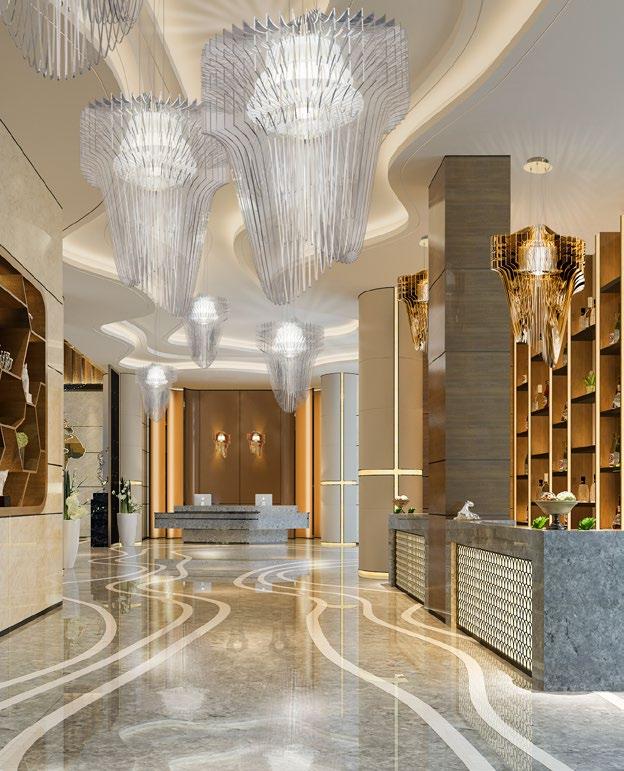

ARIA and AVIA

DESIGN BY ZAHA HADID

Zaha Hadid and Slamp have collaborated since 2013 to create visionary, fluid and dynamic glowing architecture that brings the architect’s revolutionary and iconic semantics to hospitality interiors. Pictured: Avia Suspension (white and black fade) and Aria Gold Applique.

11
12

ARIA: Available in 4 sizes, ranging from Small Ø50 cm x h. 75 cm - Ø19-3/4” x h. 29-1/2” to XL Ø90 cm x h. 130 cm - Ø 35-1/2” x h 51-1/4”.

AVIA: Available in 4 sizes, ranging from Small Ø45 x h. 85 cm - Ø17-3/4” x h. 33-1/2” to XL Ø75 x h. 140 cm - Ø32-1/2 x h. 55”.

13
14

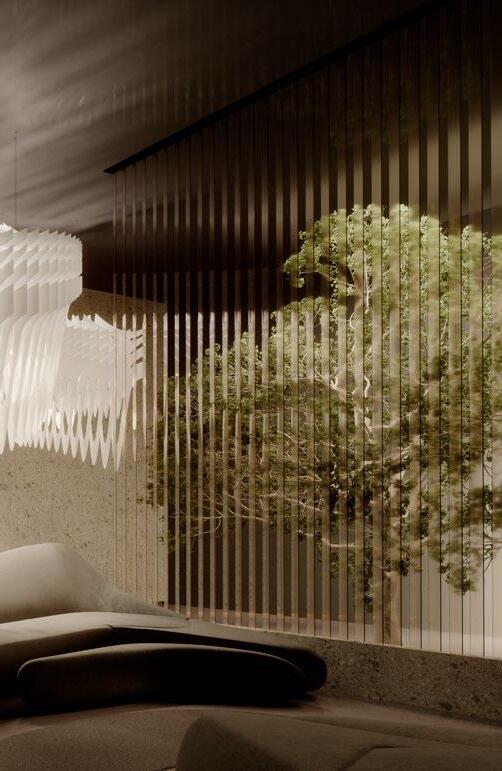

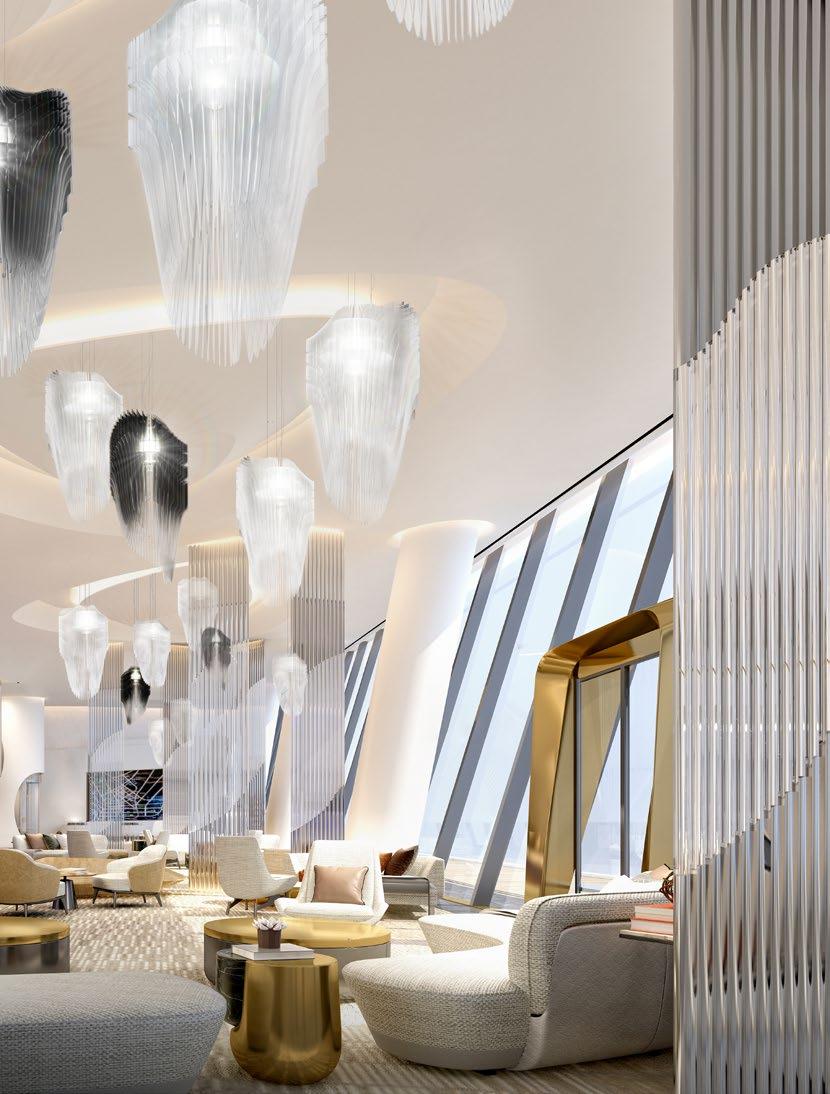

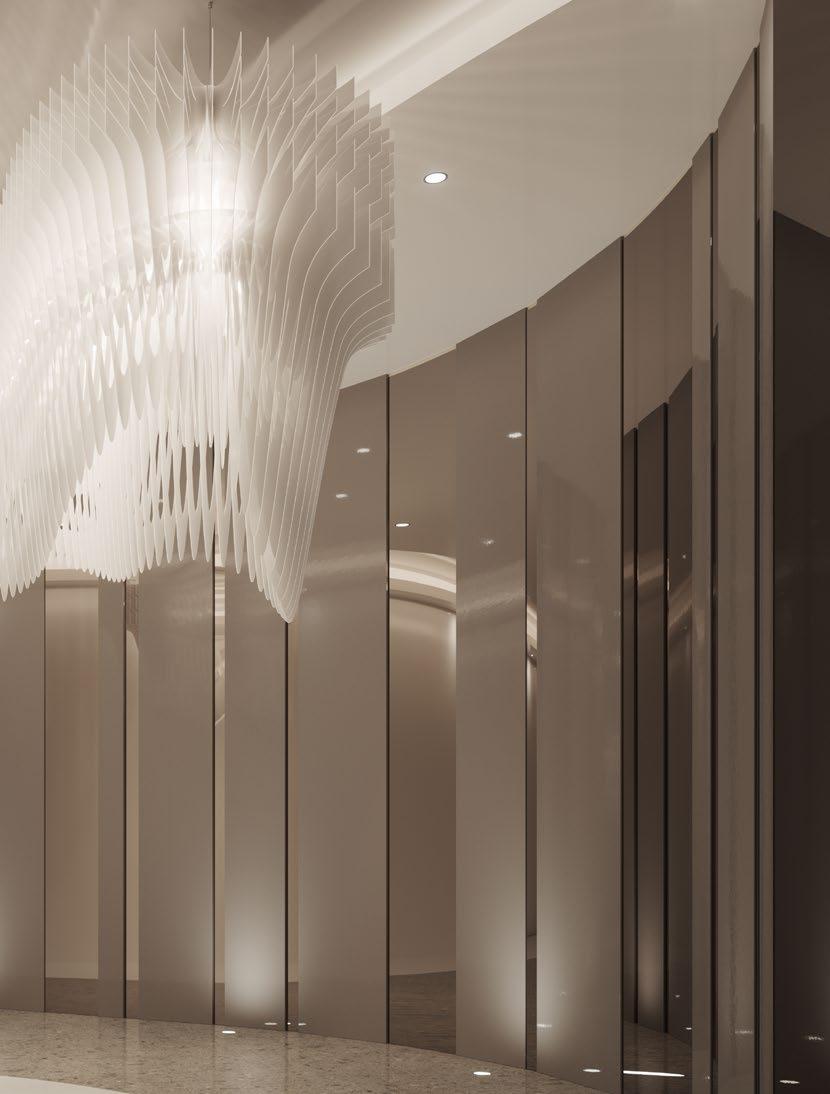

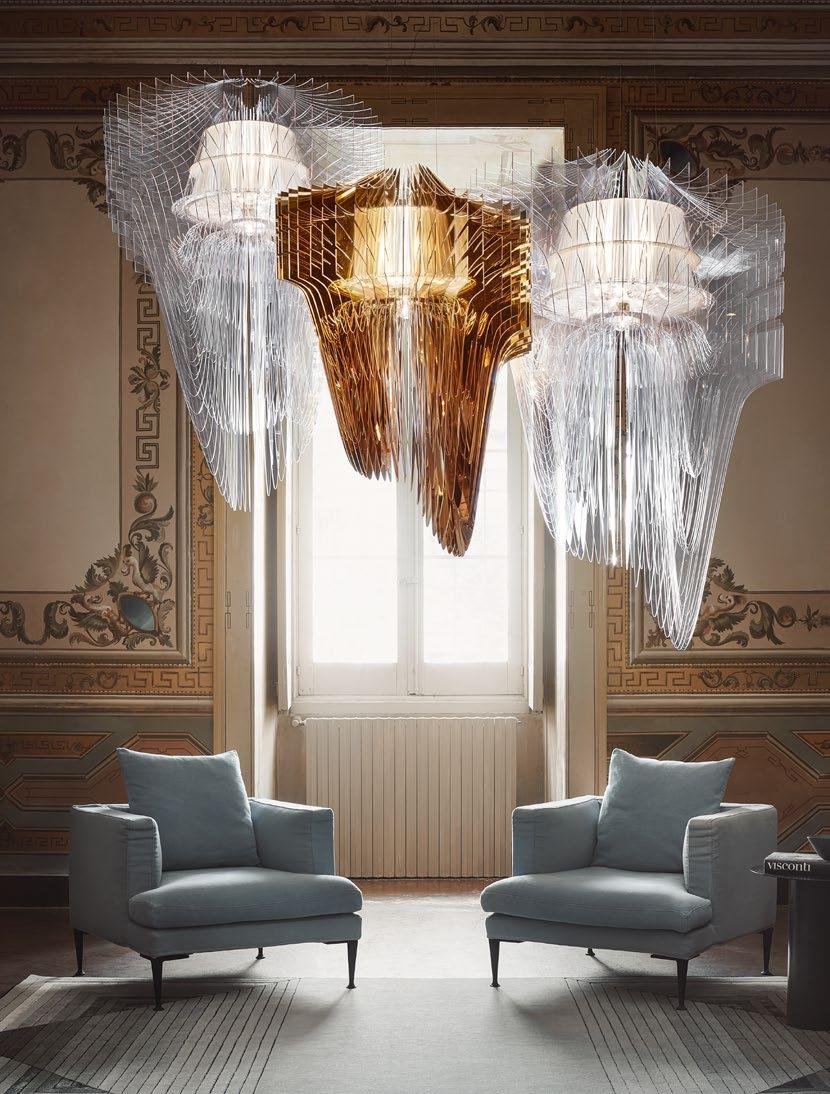

Avia and Aria’s sculptural, almost skeletal elements blend with a sense of ethereal weight and structure, transmitting the same natural, inviting rigidity encompassed in Hadid’s exemplary work

15

ARIA INFINITA

TECHNICAL DETAILS

The Slamp Team can customize solutions to any space, working alongside designers.

3 ARRANGEMENTS SHOW SLAMP & ZAHA HADID STUDIO PRODUCT’S DECOR POSSIBILITIES

ARIA INFINITA ARRANGEMENT 1

30 X 12W LED Filament Bulbs + 8 x 12W Spot LED Par 38

ARIA INFINITA ARRANGEMENT 2

54 X 12W LED Filament Bulbs + 14 x 12W Spot LED Par 38

ARIA INFINITA ARRANGEMENT 3

78 X 12W LED Filament Bulbs + 22 x 12W Spot LED Par 38

16 198 cm (77-1/4” ) 198 cm (77-1/4” ) 270 cm ( 105-1/4” ) 497 cm (194” ) A D A B B D 144 cm ( 56-1/4” ) 270 cm ( 105-1/4” ) 317 cm ( 123-3/4” ) A D D A
198 cm (77-1/4” ) 677 cm (264” ) A A C1 C2 C1 B C2 B D D 144 cm ( 56-1/4” ) 144 cm ( 56-1/4” ) 439 cm ( 171-1/4” )

ARIA AND AVIA

TECHNICAL DETAILS

ARIA XL

6 X 12W LED Filament Bulbs E27/E26

+ 1 X 11W Spot LED Par 30 E27/E26

Dimmable with dimmable bulbs

Made of: Cristalflex® and Lentiflex®

ARIA LARGE

4 X 12W LED Filament Bulbs E27/E26 + 1 X 11W Spot LED Par 30 E27/E26

Dimmable with dimmable bulbs

Made of: Cristalflex® and Lentiflex®

ARIA MEDIUM

3 X 12W LED Filament Bulbs E27/E26

+ 1 X 7W Spot LED Par 20 E27/E26

Dimmable with dimmable bulbs

Made of: Cristalflex® and Lentiflex®

ARIA SMALL

2 X 12W LED Filament Bulbs E27/E26

+ 1 X 7W Spot LED Par 20 E27/E26

Dimmable with dimmable bulbs

Made of: Cristalflex® and Lentiflex®

AVIA XL

6 X 12W LED Filament Bulbs E27/E26 + 1 X 11W Spot LED Par 30 E27/E26

Dimmable with dimmable bulbs

Made of: Cristalflex® and Lentiflex®

AVIA LARGE

4 X 12W LED Filament Bulbs E27/E26

+ 1 X 11W Spot LED Par 30 E27/E26

Dimmable with dimmable bulbs

Made of: Cristalflex® and Lentiflex®

AVIA MEDIUM

3 X 12W LED Filament Bulbs E27/E26

+ 1 X 7W Spot LED Par 20 E27/E26

Dimmable with dimmable bulbs

Made of: Cristalflex® and Lentiflex®

AVIA EDITION MEDIUM

A Limited series of 99 pieces per colour (Torquoise and Blue). The autenticity of each piece is guarenteed numerically, stated on the lamp and ID card.

AVIA SMALL

2 X 12W LED Filament Bulbs E27/E26

+ 1 X 7W Spot LED Par 20 E27/E26

Dimmable with dimmable bulbs

Made of: Cristalflex® and Lentiflex®

17
75 cm ( 29-1/2” ) 50 cm ( 19-3/4” ) 20-140cm 8”-55” 115 cm ( 45” ) 70 cm ( 27-1/2” ) 20-140cm 8”-55”
100 cm ( 39-1/4” ) 52 cm ( 20-1/2” ) 20-140cm 8”-55” 140 cm ( 55” ) 75 cm ( 32-1/2” ) 20-140cm 8”-55” 120 cm ( 47-1/4” ) 60 cm ( 23-3/4” ) 20-140cm 8”-55” 85 cm ( 33-1/2” ) 45 cm ( 17-3/4” ) 20-140cm 8”-55”
130 cm ( 51-1/4” ) 90 cm ( 35-1/2” ) 20-140cm 8”-55” 90 cm ( 35-1/2” ) 60 cm ( 23-3/4” ) 20-140cm 8”-55”
100 cm ( 39-1/4” ) 52 cm ( 20-1/2” ) 20-140cm 8”-55”

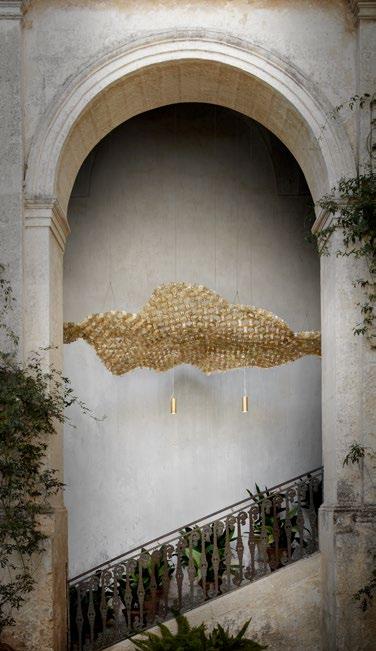

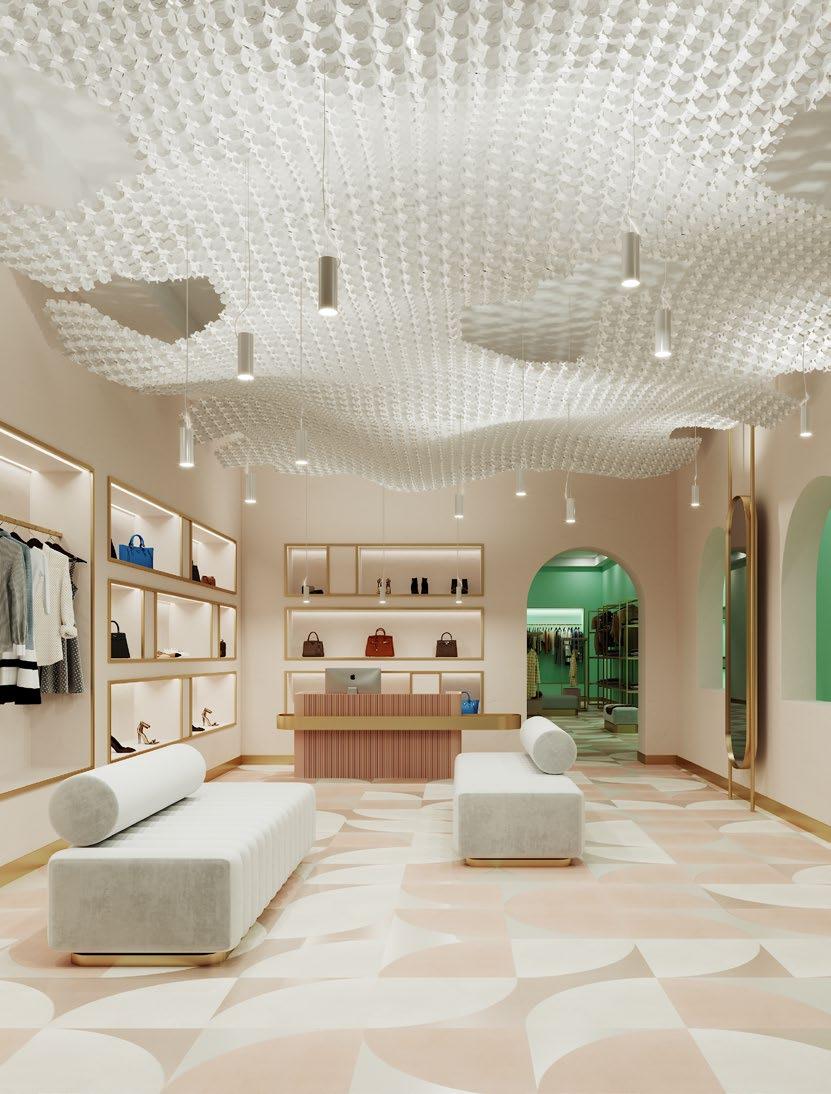

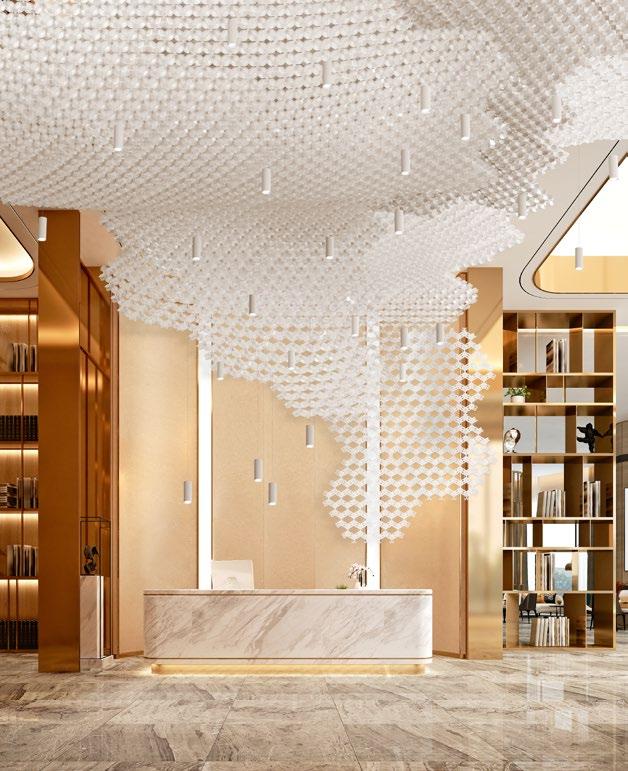

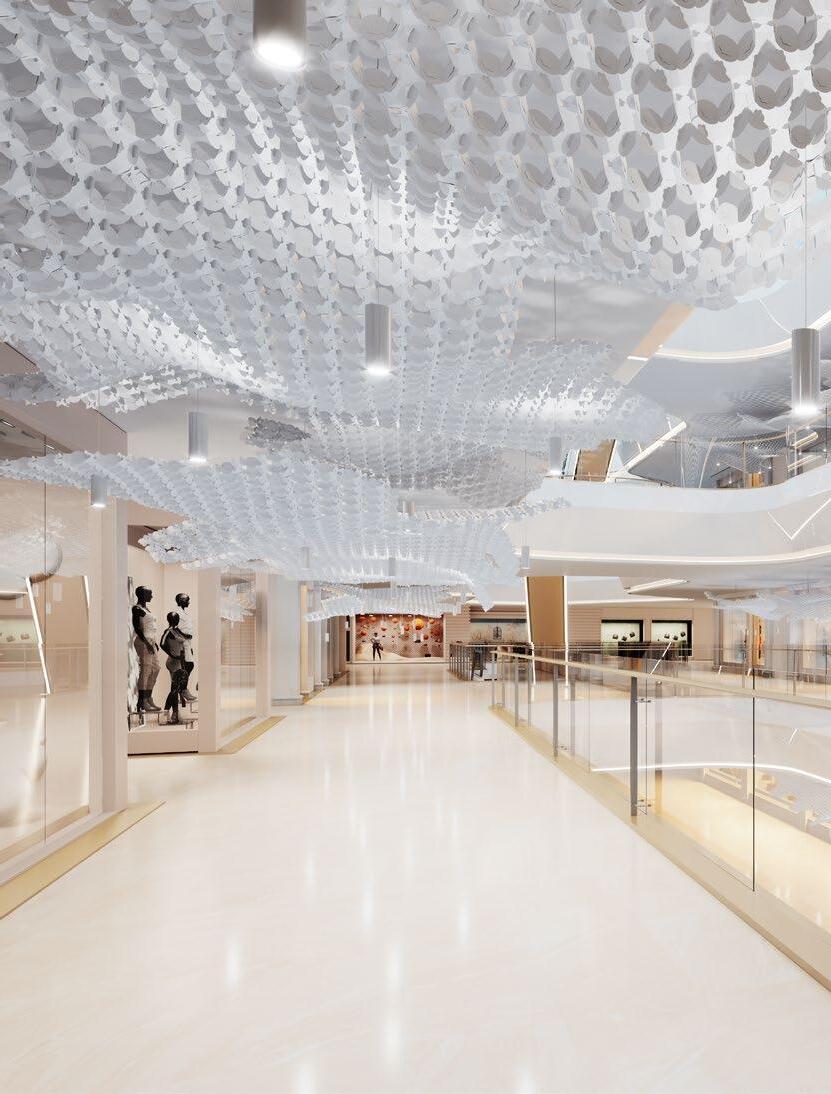

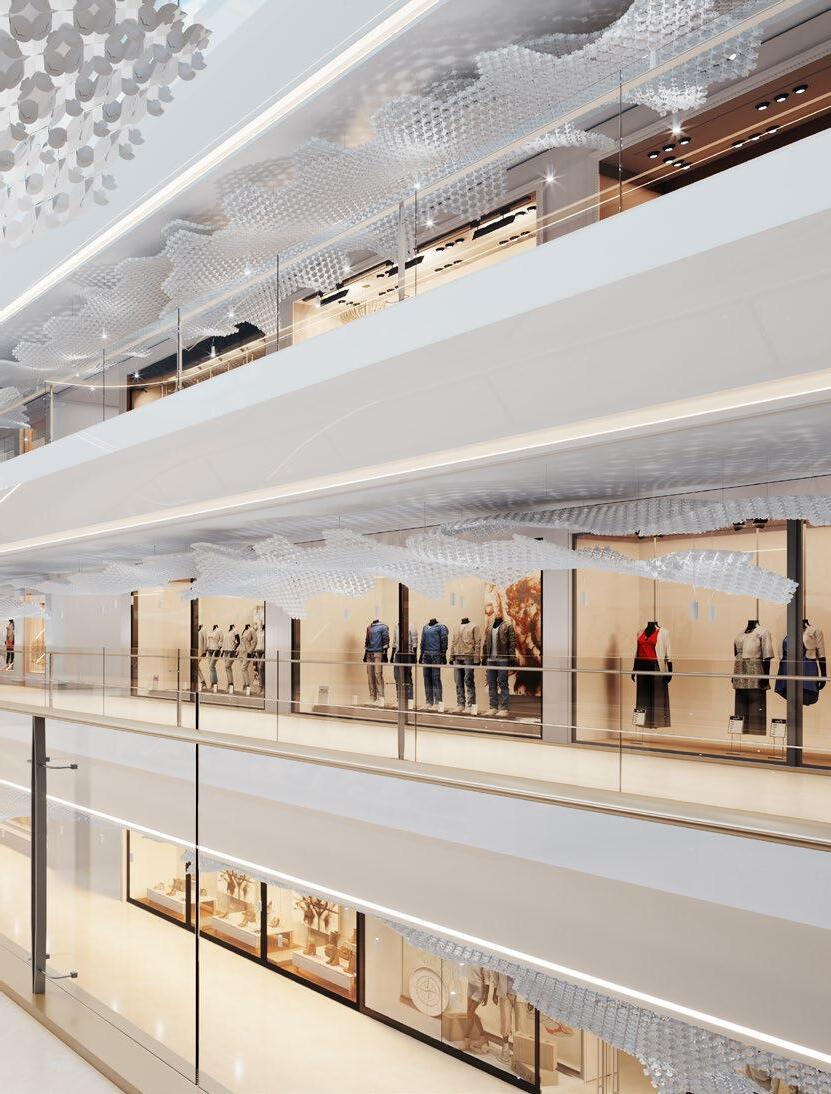

NUVEM

19
Pictured: 616 modules with 122 bidirectional spotlights.
21
Previous page: 70 Velvet modules define spaces within a lobby; silky, printed Lentiflex® throws iridescent refractions thanks to the glow of bidirectional spotlights. This page: Velvet finish details
22

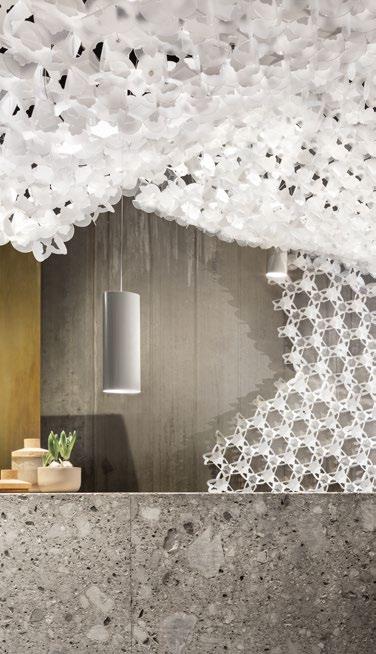

Nuvem features one sqm. modules that can be infinitely combined; each includes a bidirectional spotlight. This page: 3 overlapping bands of Nuvem create a composition of 115 modules. Additional spotlights can be purchased to amplify illumination. Previous page: 84 modules with 16 bidirectional spotlights.

23
24

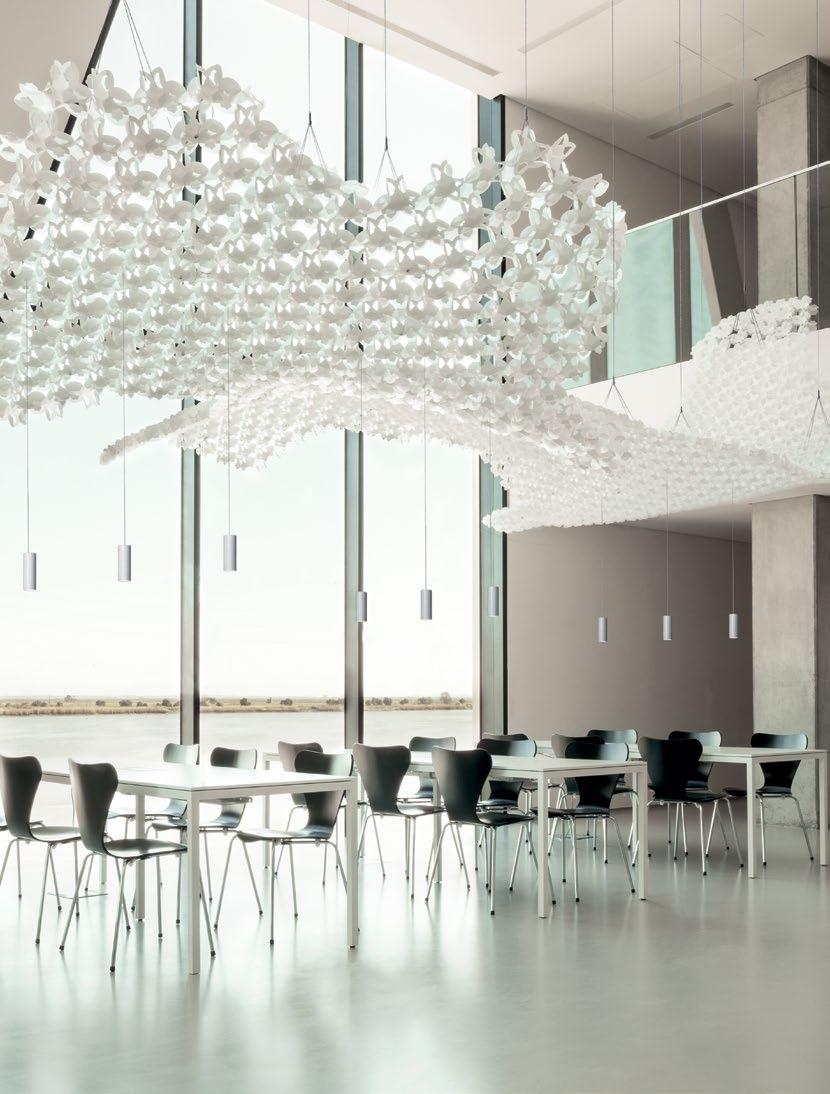

Vila Franca de Xira Municipal Library, Portugal.
25
Nuvem White detail.

NUVEM MODULAR SYSTEM

TECHNICAL DETAILS

SINGLE MODULE

2 X 8W LED GU10

bidirectional spotlight

Dimmable with: dimmable bulbs

MADE OF: Opalflex® / Lentiflex®

>> Modules of 1 sq. meter can be joined in infinite combinations;

>> Moduli da 1 mq componibili all’infinito.

>> Available additional modules without spotlight

>> Disponibili moduli aggiuntivi senza spotlight

ADDITIONAL SUSPENSION SPOTLIGHT

2 X 8W LED GU10 - bidirectional spotlight

MADE OF: Steel - white RAL 9016 (white version)

Steel - Brushed Brass finish (velvet version)

WHIT: 6 m electric wires

6 m steel cable

>> GU10 bulbs on request

ADDITIONAL CEILING/WALL SPOTLIGHT

LED 10W - 220~240Vac/ 24Vdc

3000 Kelvin- 1550 Lumen - Dimmable

MADE OF: Steel - matte white RAL 9016

CANOPY

Canopy max 6 electric wires

Coppetta con alloggio di max 6 cavi

Made of: Steel - white RAL 9016

The canopy fits from 1 to 6 modules

26
102 cm ( 39-3/4”) 94 cm ( 36-1/2”) WIRE CEILING ANCHOR INCLUDED 6 ( 2-1/4”) 17 cm ( 6-1/2”)
3 ( 1”) 18 cm ( 7”) 12 cm ( 4 - 3/4”) 20600 cm (8”234”) 1,5 0,6” 1,8 cm 0,7” 7,6 ( 3”) 10 ( 4”) 6 ( 2-1/4”) 17 cm ( 6-1/2”) 6 ( 2-1/4”) 150 cm ( 58-1/2”) 600 cm ( 234”) min 20max 750 cm (min 8”-max 293”)

ADJUSTABLE HEIGHT

Nuvem’s height can be adjusted using the 6 meter cable (234”), and once suspended, the design can be “moulded” using the push and pull system located directly beneath each module. The lamp collapses or tenses when the wires are pushed (released) or pulled, giving the ceiling a fluctuating feeling.

PERSONALIZED SPOTLIGHTS

Nuvem’s lighting system is a series of bidirectional spotlights (one per square meter) that can be positioned above or below (threaded through the modules’ openings). Additional spotlights can be purchased separately for compositions that require amplified illumination.

INFINITE EXTENSIONS

The meter-long hexagonal elements are easily connected by hand using a series of interlocking tabs that allow for limitless omnidirectional installation. The modules facilitate the adaptable and mutable personalization of private and contract spaces, adding a strong artistic note to each.

VERTICAL DECORATION

Weightless and free…just like a cloud. Nuvem goes beyond traditional illumination, with agile anatomy that allows it to transform the architectural elements of a space, running across the ceiling and moving down the walls, creating an infinite sky.

SHIFT AND CHANGE POSITIONS THANKS TO THE APP

Nuvem’s steel wires located within each module can shift and change position thanks to motors enclosed within the ceiling, synchronizing to create fluid movement. A Bluetooth remote controls the movement through an app available for Android smartphones. This feature is available for compositions starting at 10 modules, and a lowered ceiling must be present or created to contain all necessary components.

27

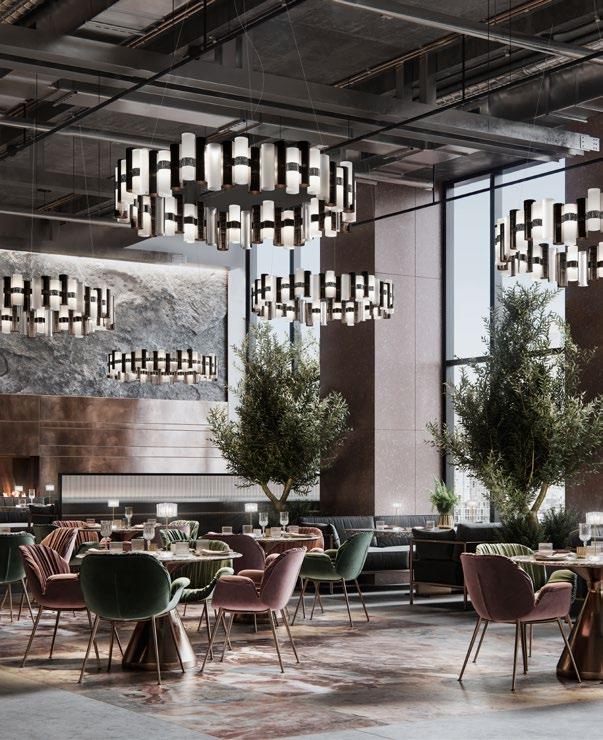

LA LOLLO

29

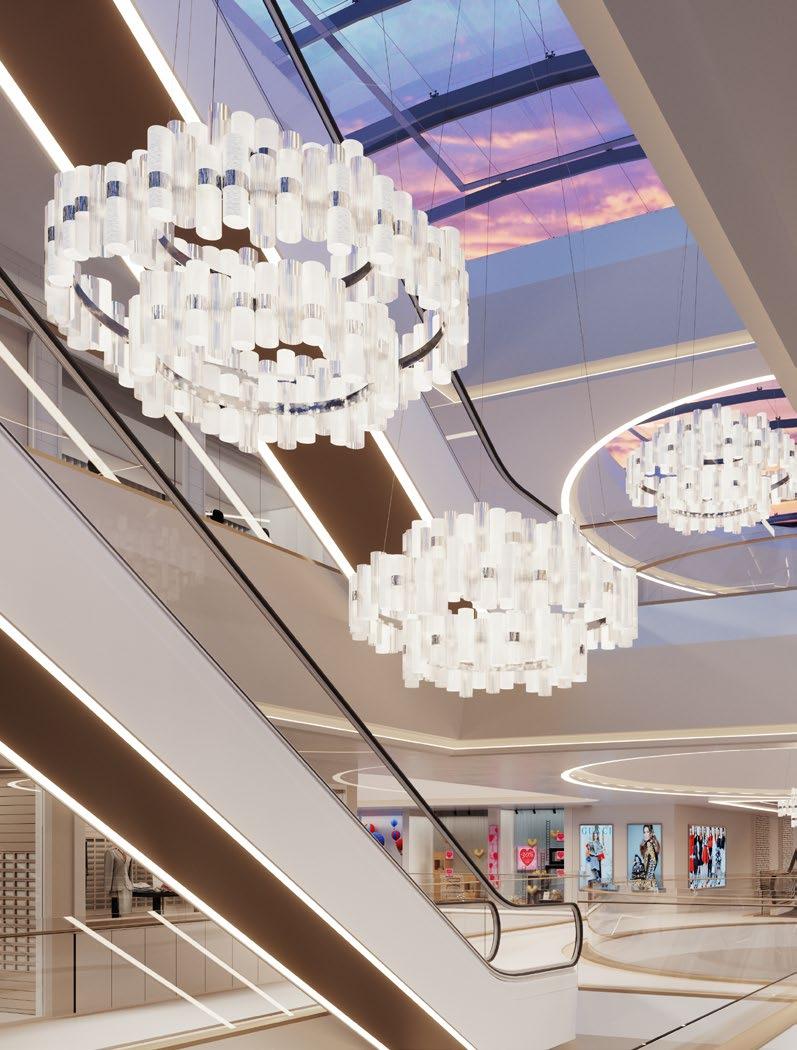

Pictured: a custom version of Ø100 cm x h.170 cm. 372 W 100~240 Vac / 24Vdc- Lumen 43.140 - 2700 Kelvin - CRI > 90.
30
31
The suspension’s colors and size can be customized upon request, fitting for large scale installations. Previous page: a custom version of 3 different rings in the white finish. Ø156 cm x h. 85 cm. This page: a custom version of La Lollo gradient of Ø160 cm x h. 35 cm.
32

Extraordinary view, easy to install. All there is left to do is to connect and hang it, basking in its glow.

33

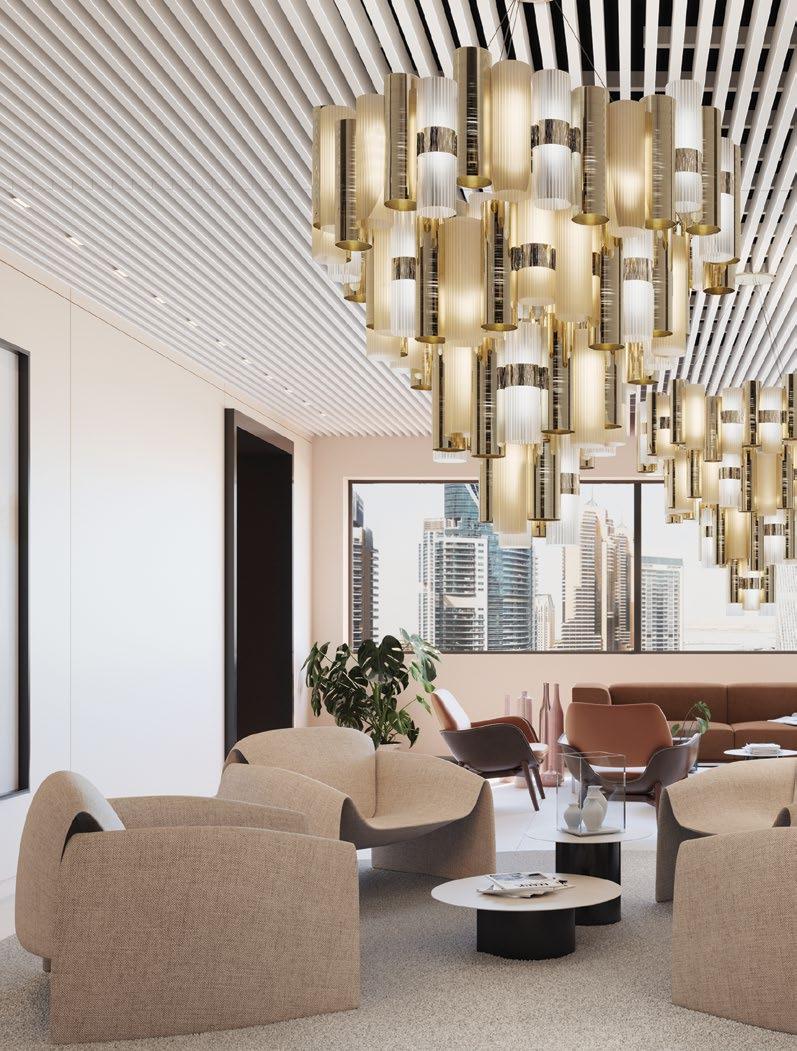

Pictured: La Lollona 4 (Ø100 x h 96 cm) and La Lollo Linear 140 (142 x 28 x h.28 cm).

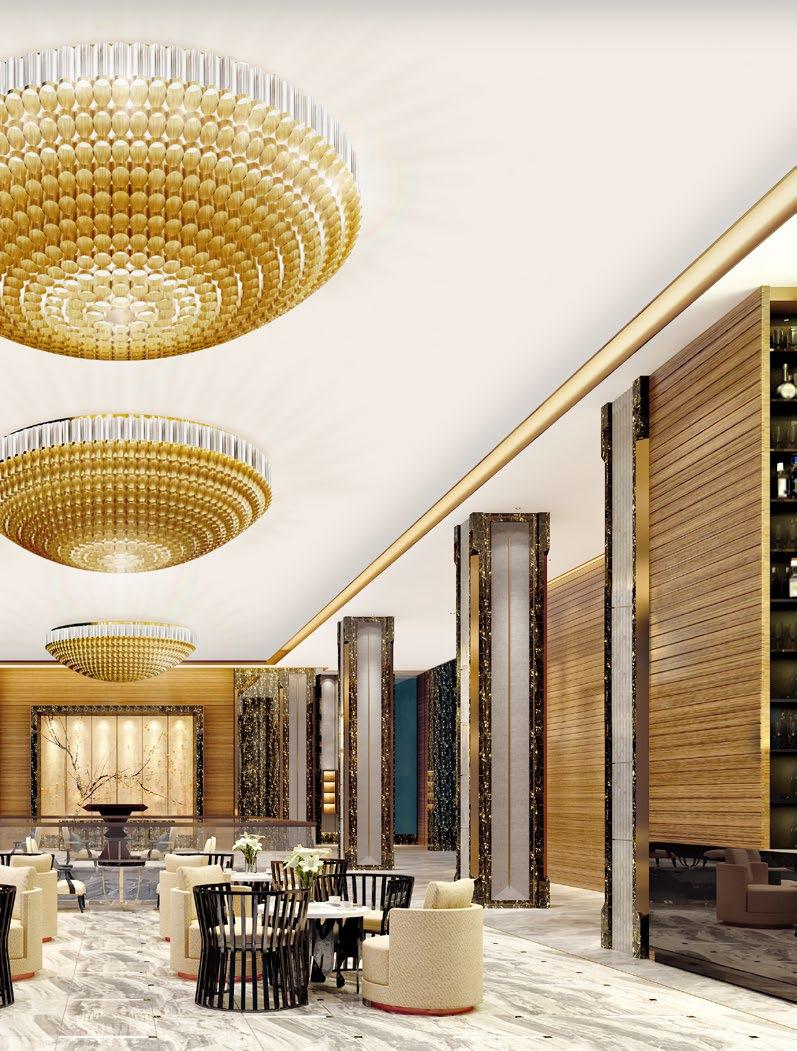

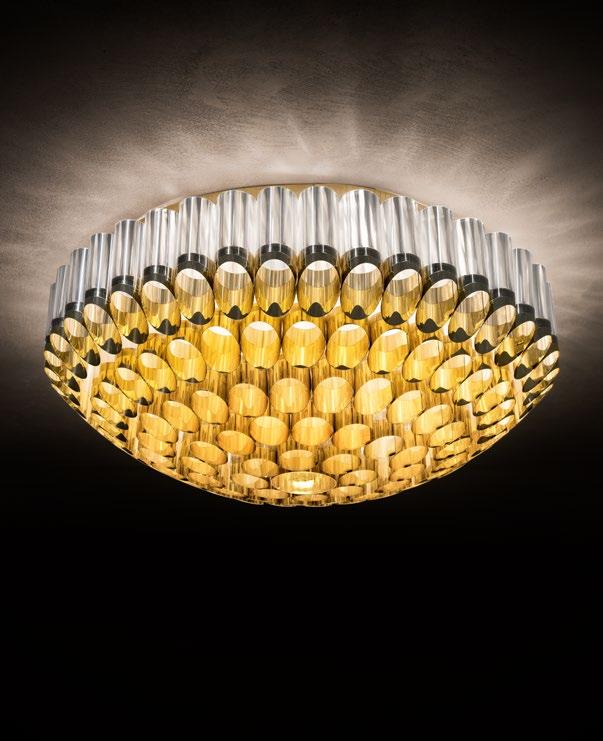

ODEON

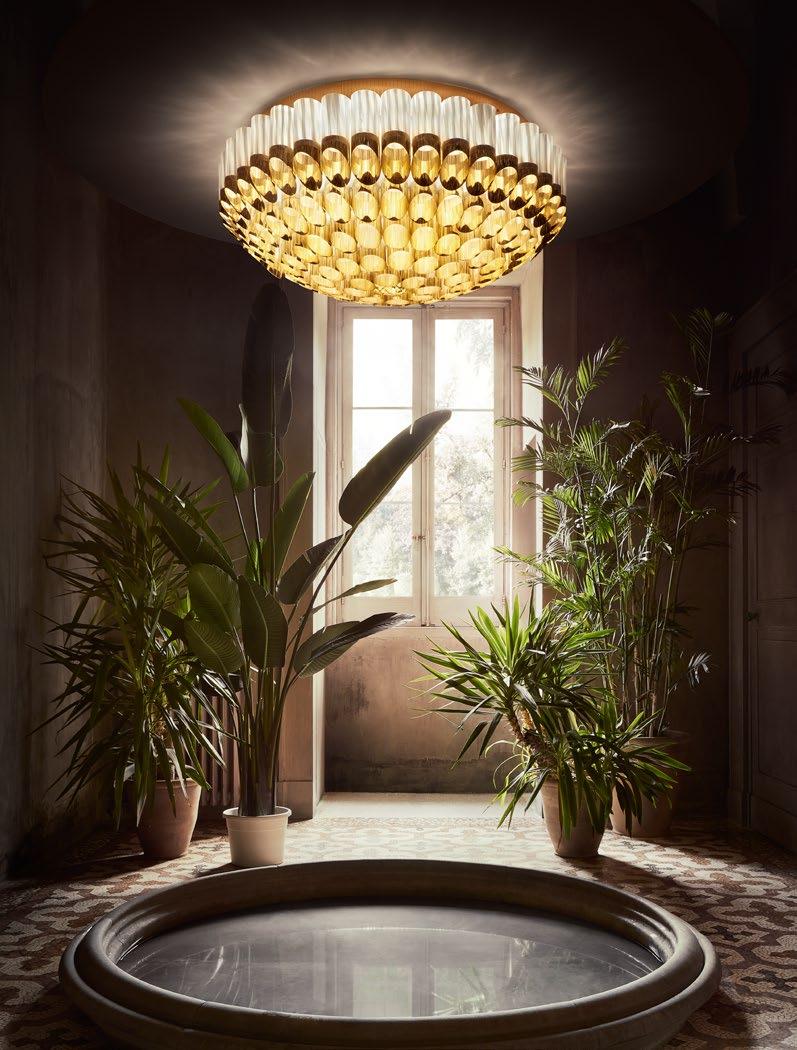

Odeon can be customized for any project with a diameter reaching up to 210 cm. and adaptable technical aspects to meet specific requirements.

35
36 Odeon 100: 12 x12W E27/E26 LED Filament bulbs + 1 x 6,5W E27/E26 Spot LED, PAR 38 (Ø12,2 cm x h.13 cm) Odeon 65: 6 x12W E27/E26 LED Filament bulbs + 1 x 6,5W E27/E26 Spot LED, PAR 38 (Ø12,2 cm x h.13 cm) Odeon Custom solution: adaptable lighting settings for specific installations. CUSTO MIZABLE DIAMETER
37

LA LOLLO AND ODEON

TECHNICAL DETAILS

CUSTOM LA LOLLONA 6

LED: 630 W - 100~240Vac/ 24Vdc

65.250 Lumen - 2700 Kelvin

Dimmable with PWM / 0-10 or Potentiometer (110V-220V)

Additional dimming system Dali, Casambi upon request

Made of: Lentiflex® / Opalflex®

Lentiflex® with cold foil

LA LOLLONA 5

LED: 390 W - 100~240Vac/ 24Vdc

44.555 Lumen - 2700 Kelvin - CRI >90

Dimmable with PWM / 0-10 or Potentiometer (110V-220V)

Additional dimming system Dali, Casambi upon request

Made of: Lentiflex® / Opalflex®

Lentiflex® with cold foil

LA LOLLONA 4

LED: 242 W - 100~240Vac/ 24Vdc

28.140 Lumen - 2700 Kelvin - CRI >90

Dimmable with PWM / 0-10 or Potentiometer (110V-220V)

Additional dimming system Dali, Casambi upon request

Made of: Lentiflex® / Opalflex®

® with cold foil

LA LOLLO XL

LED: 130W - 110~240Vac/ 24Vdc

15.000 Lumen - 2700 Kelvin - CRI >90

220V version dimmable with: PWM / 0-10 or Potentiometer

110V version dimmable with: Triac

Additional dimming system Dali, Bluetooth, Casambi, Triac upon request

Made of: Lentiflex® / Opalflex®

Lentiflex® with cold foil

LA LOLLO L

LED: 80W - 110~240Vac/ 24Vdc

9.000 Lumen - 2700 Kelvin - CRI >90

220V version dimmable with: PWM / 0-10 or Potentiometer

110V version dimmable with: Triac

Additional dimming system Dali, Bluetooth, Casambi, Triac upon request

Made of: Lentiflex® / Opalflex®

Lentiflex® with cold foil

LA LOLLO M

LED: 40W - 110~240Vac/ 24Vdc

4.600 Lumen - 2700 Kelvin - CRI >90

220V version dimmable with: PWM / 0-10 or Potentiometer

110V version dimmable with: Triac

Additional dimming system Dali, Bluetooth, Casambi, Triac upon request

Made of: Lentiflex® / Opalflex®

Lentiflex® with cold foil

38
130 cm ( 50-3/4” ) 114 cm ( 44-1/2” )
100 cm ( 39” ) 96 cm ( 37-1/2” ) 600 cm 140” 600 cm 140” 30140 cm ( 12”-55” ) 80 cm ( 31-1/2” ) 83 cm ( 32-1/2” )
Lentiflex
35 cm ( 13-3/4”) 80 cm ( 31-1/2” )
35 cm ( 13-3/4”) 48 cm ( 19” ) 30140 cm ( 12”-55” ) 20140 cm ( 8”-55” )
130 cm ( 50-3/4” ) 50600 20”-234” 160 cm ( 62-1/2” )

CUSTOM LA LOLLO

LED: 180 W - 100~240Vac/ 24Vdc

20.636 Lumen - 2700 Kelvin - CRI >90

Dimmable with PWM / 0-10 or Potentiometer (110V-220V)

Additional dimming system Dali, Casambi upon request

Made

LA LOLLO LINEAR 140

LED: 110W - 110 240Vac /24Vdc

12.420 Lumen - 2700 Kelvin - CRI > 90

Dimmable with: PWM, 0-10 or Potentiometer

110V version dimmable with: Triac

Additional dimming system Dali, Casambi upon request

Made of: Lentiflex® / Opalflex® Lentiflex® with cold foil

LA LOLLO LINEAR 100

LED: 70W - 110 240Vac /24Vdc

7.820 Lumen - 2700 Kelvin - CRI > 90

Dimmable with: Triac Trailing Edge

Additional dimming system Dali, Casambi upon request

Made of: Lentiflex® / Opalflex®

CUSTOM ODEON

Product’s diameter can be customized for the project, reaching up to 210 cm max (82”)

Technical lighting details will be adapted to the specific project.

ODEON 100

12 X 12W LED Filament Bulbs

E27/E26

+ 1 X 6,5W Spot LED E27/E26 PAR 38

(Ø12,2 cm x h.13 cm)

Dimmable with dimmable bulbs

Made of: Lentiflex® with cold foil

ODEON 65

6 X 12W LED Filament Bulbs E27/E26

+ 1 X 6,5W Spot LED E27/E26 PAR 38

(Ø12,2 cm x h.13 cm)

Dimmable with dimmable bulbs

Made of: Lentiflex® with cold foil

LA LOLLO AND ODEON’S DIAMETER AND NUMBER OF RINGS CAN BE PERSONALIZED. TECHNICAL LIGHTING DETAILS WILL BE ADAPTED TO THE SPECIFIC PROJECT.

Lentiflex
with
142 cm 28 cm ( 11” ) 30140 ( 12”-55” ) 93 cm ( 36-1/4” ) 28 cm ( 11” ) 30140 ( 12”-55” ) 28 cm ( 11” ) 28 cm ( 11” )
®
cold foil
of: Lentiflex
® Lentiflex® with
160 cm ( 62-1/2” ) 35 cm ( 13-3/4” ) 50600 20”-234” 210 cm (82-3/4”) 68 cm ( 26-3/4”) 42 cm ( 16-1/2”) 102 cm ( 39-3/4”) 65 cm ( 25-1/4”) 33 cm ( 13-3/4”)
® / Opalflex
cold foil
( 55-1/4” )
39

QUANTICA

41 Quantica 120

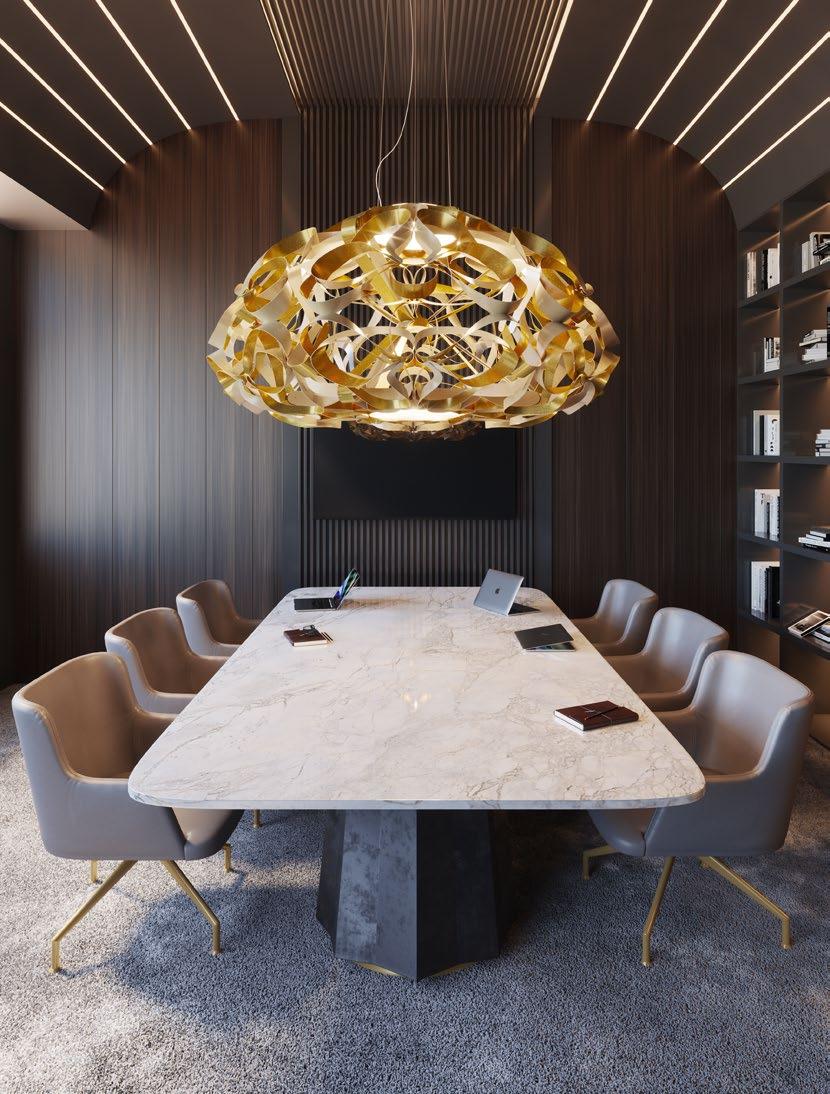

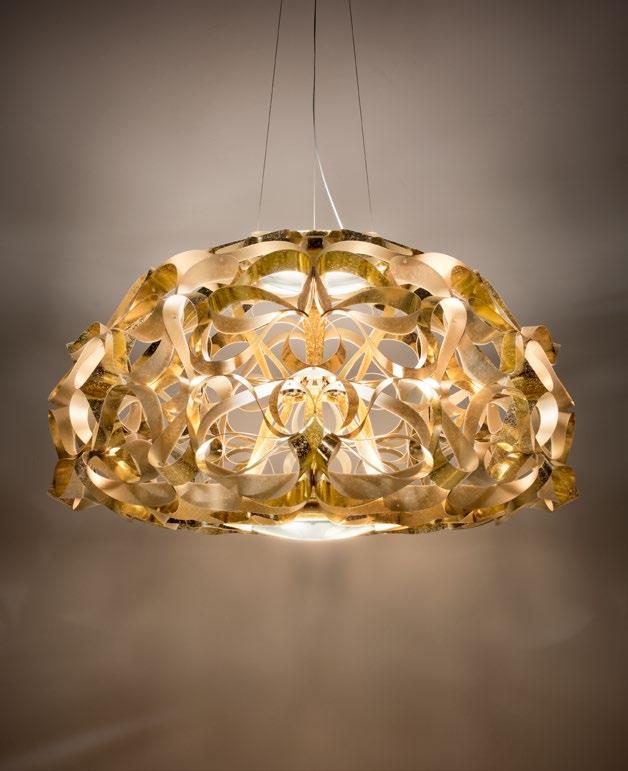

Quantica was inspired by the intangible, delicate energy that connects all things through never-ending ties that follow precise geometric parameters.

42

QUANTICA

TECHNICAL DETAILS

QUANTICA 120

8 X 12W LED Filament Bulb E26/E27

Made of: Opalflex® with cold-coating gold foil

QUANTICA 75

4 X 12W LED Filament Bulb E26/E27

Made of: Opalflex® with cold-coating gold foil

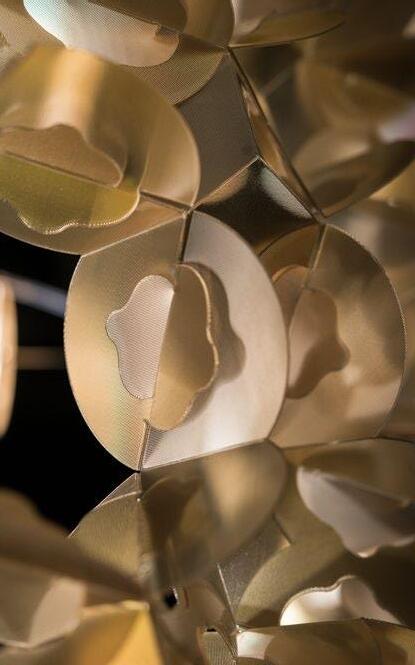

A cold application of gold foil creates a unique texture that printing or paints cannot replicate.

68 cm (26-1/2”) 20-140cm 8”-55” 122 cm (48”) 43 cm (16-3/4”) 20-140cm 8”-55” 74 cm (29”)
43

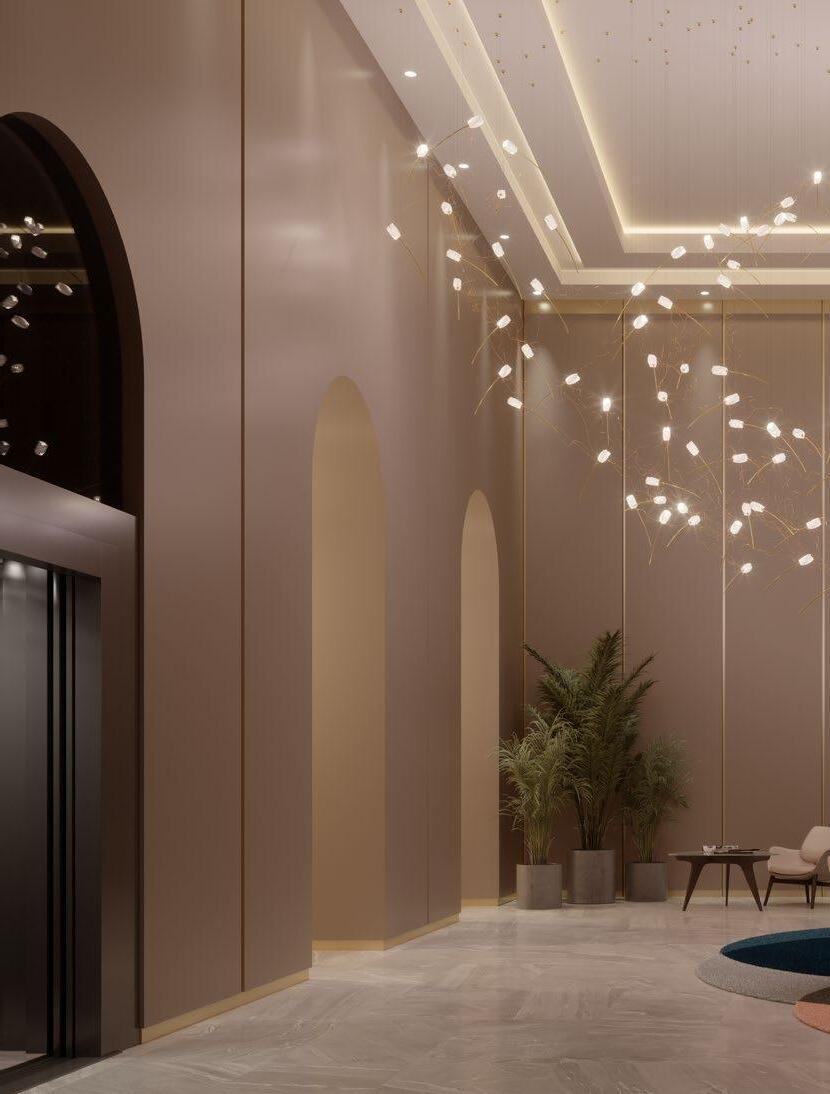

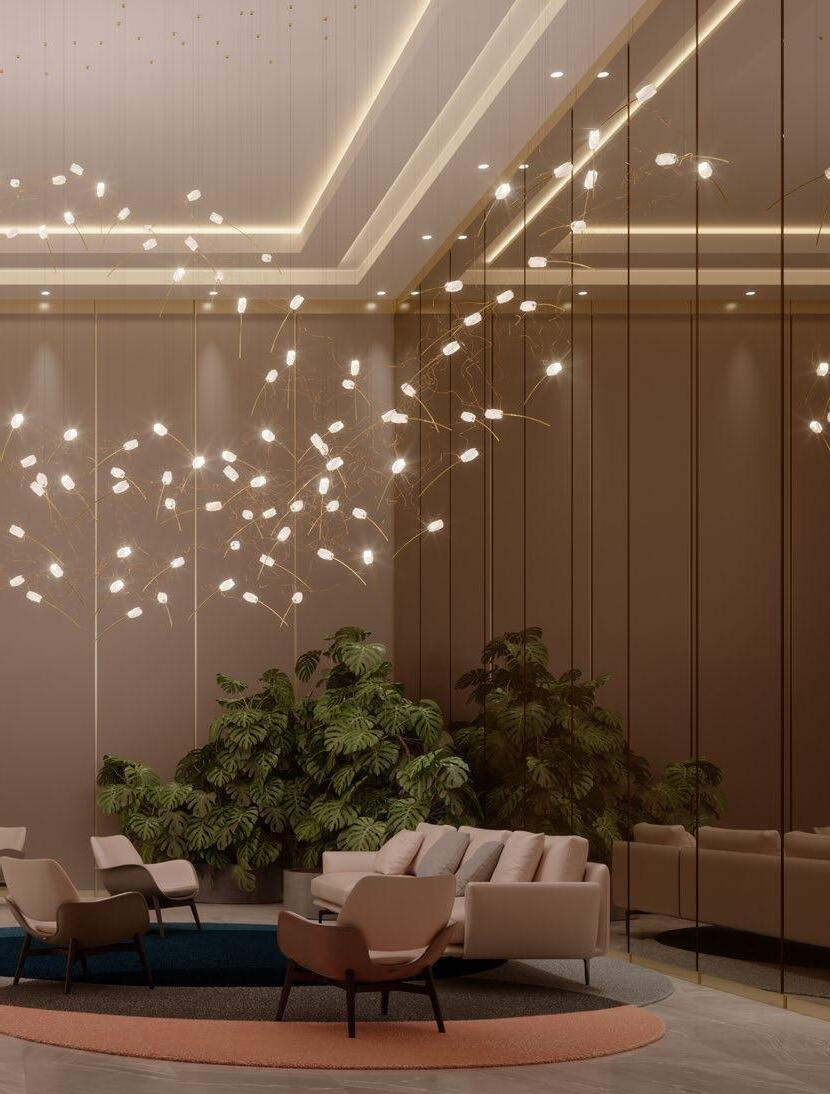

Pinpoints of copper stems and flurries of delicate wisps cast minute reflections, buoyant yet defining the surrounding spaces without dominating them.

TULIP

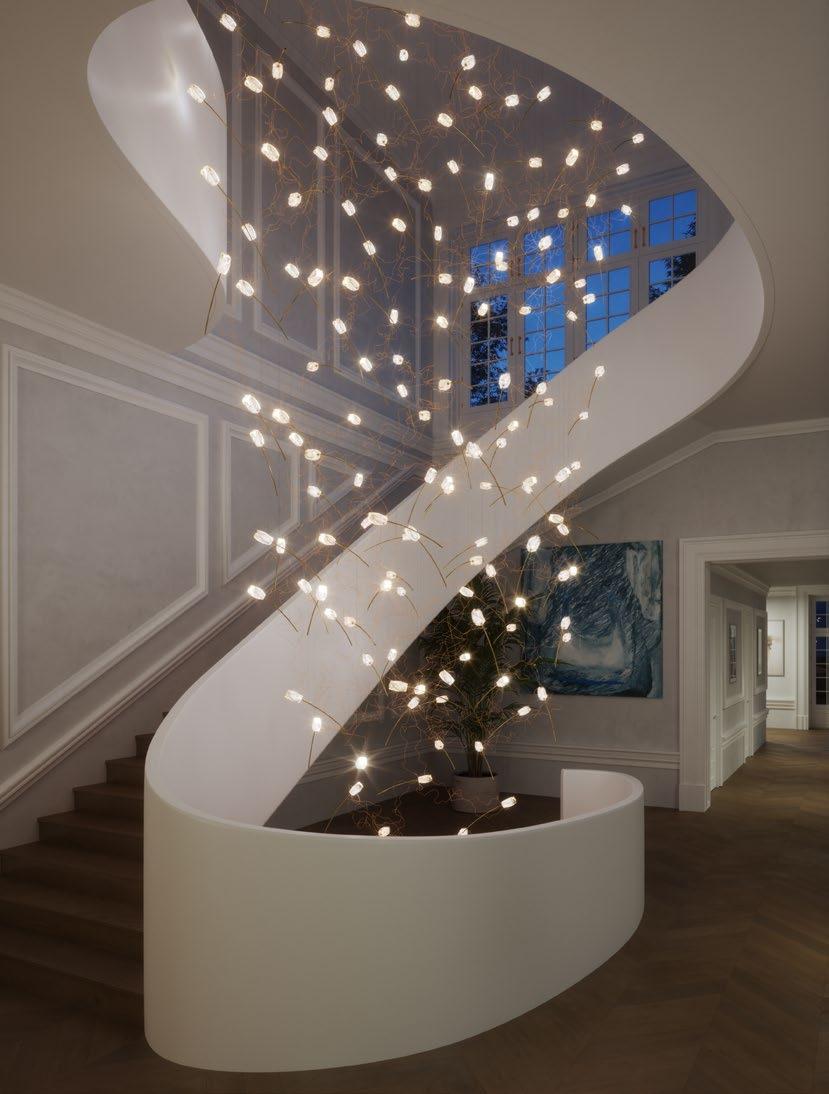

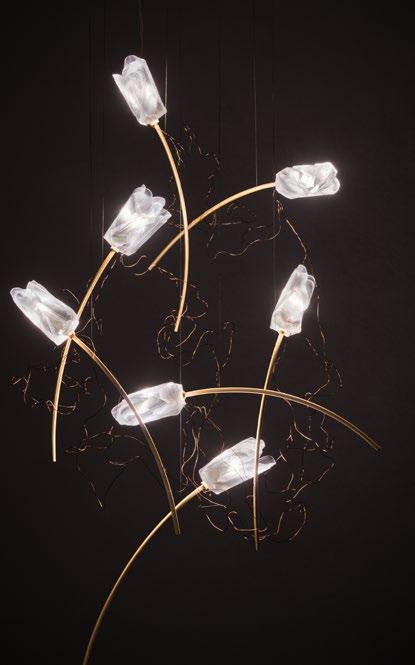

Pictured: a free-standing cascade of 147 blooms. DESIGN BY MARC SADLER
45
46

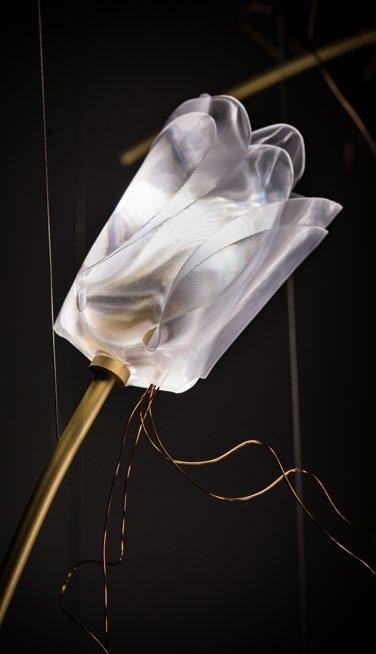

Slamp’s exclusive, unbreakable Lentiflex® technopolymer is manually sculpted at a controlled temperature to create an illuminated bloom.

Previous page: a free-standing cascade of 147 blooms.

47
48
49

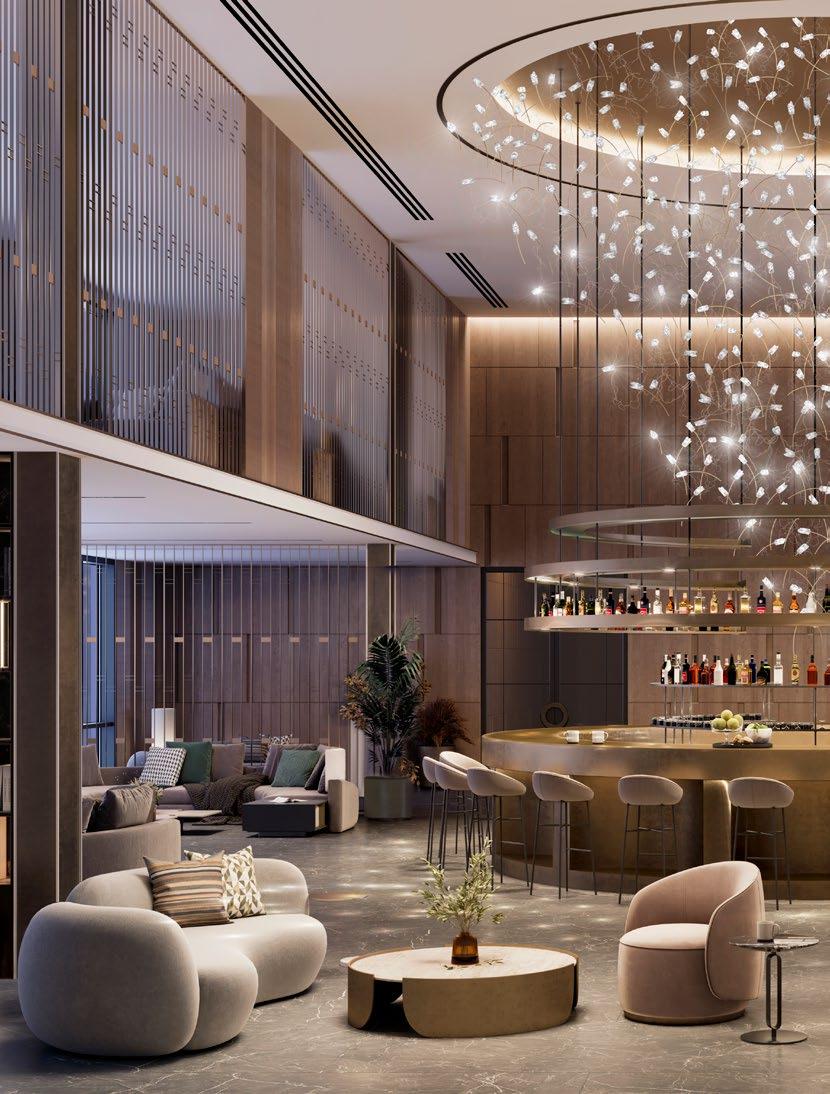

A free-standing cascade of 441 blooms

TULIP SUSPENSION

TECHNICAL DETAILS

TULIP 14 FREE-STANDING

14 x 3.2W LED - 6300 Lumen

2700 Kelvin - 110 ~220Vac / 24Vdc

Dimmable with: PWM / 0-10

Additional dimming sistem Dali, Bluetooth, Casambi upon request

Made of: Lentiflex® / Matte Brushed Brass

With:Matte Brushed Brass finish canopy and copper electric wire

Main Copper Electric wire: max 300 cm (117”)

Maximum distance from one tulip to another (electric copper cable) of 80 cm / 31”

Adjustable steel cable: 20-300 cm ( 7-3/4” - 117”)

TULIP 14 LINEAR

14 x 3.2W LED -6300 Lumen – 2700 Kelvin

Power Supply: 110 ~220Vac / 24Vdc

TULIP 7 LINEAR

7 x 3.2W LED - 3150 Lumen – 2700 Kelvin

Power Supply: 110 ~220Vac / 24Vdc

Additional dimming sistem Dali, Bluetooth, Casambi upon request

Made of: Lentiflex® / Matte Brushed Brass

With:Matte Brushed Brass finish canopy and copper electric wire

Main Copper Electric wire: max 300 cm (117”)

Maximum distance from one tulip to another (electric copper cable) of 80 cm / 31”

Adjustable steel cable: 20-300 cm ( 7-3/4” - 117”)

50
40 cm 15-1/2” 5 cm 2” 9 cm 3-1/2” Ø30 x h.4,5 cm (Ø11,7” x 1,75”) CANOPY
70 cm ( 27-1/4”) 25 cm ( 9-3/4”) 110 cm ( 43”)

TULIP 14 ROUND

14 x 3.2W LED -6300 Lumen – 2700 Kelvin

Power Supply: 110 ~220Vac / 24Vdc

TULIP 7 ROUND 50 cm ( 19-1/2”)

7 x 3.2W LED - 3150 Lumen – 2700 Kelvin

Power Supply: 110 ~220Vac / 24Vdc

Additional dimming sistem Dali, Bluetooth, Casambi upon request

Made of: Lentiflex® / Matte Brushed Brass

With:Matte Brushed Brass finish canopy and copper electric wire

Main Copper Electric wire: max 300 cm (117”)

Maximum distance from one tulip to another (electric copper cable) of 80 cm / 31”

Adjustable steel cable: 20-300 cm ( 7-3/4” - 117”)

50 cm ( 19-1/2”)

EASILY ADJUSTED HEIGHT

The height of Tulip’s blooms can be adjusted using the push and pull system, even after installation. Release the clamp to loosen steel cables, thread them upwards gently until they reach the desired height, and then tighten the clamp.

about/ circa 100 cm (39”)

51
about/ circa 100 cm (39”) PUSH PULL

LE GRAND

CEREMONY

53

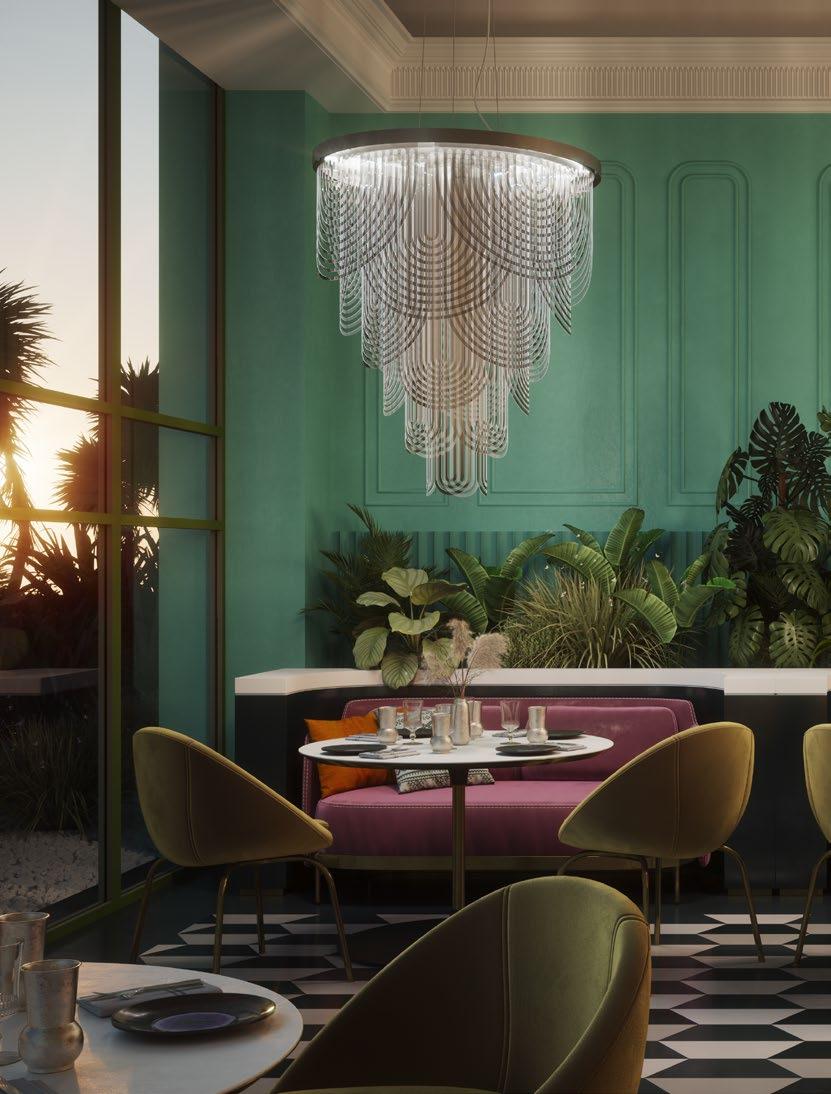

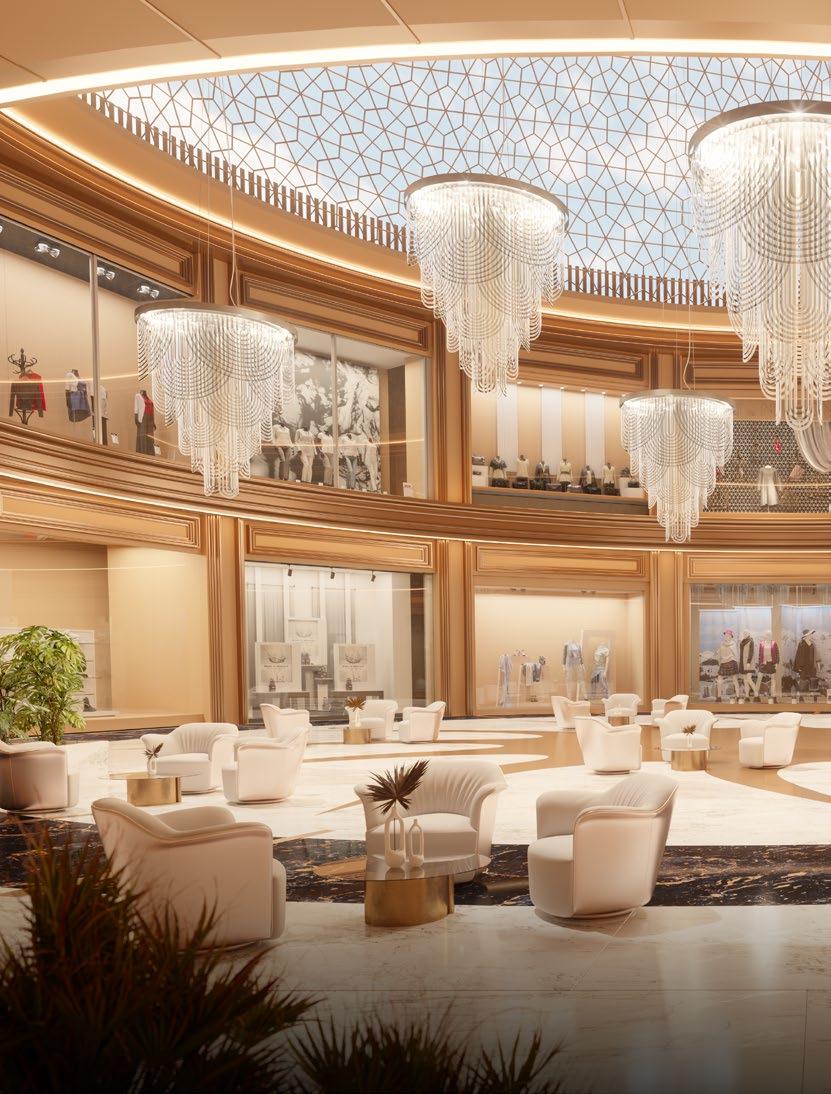

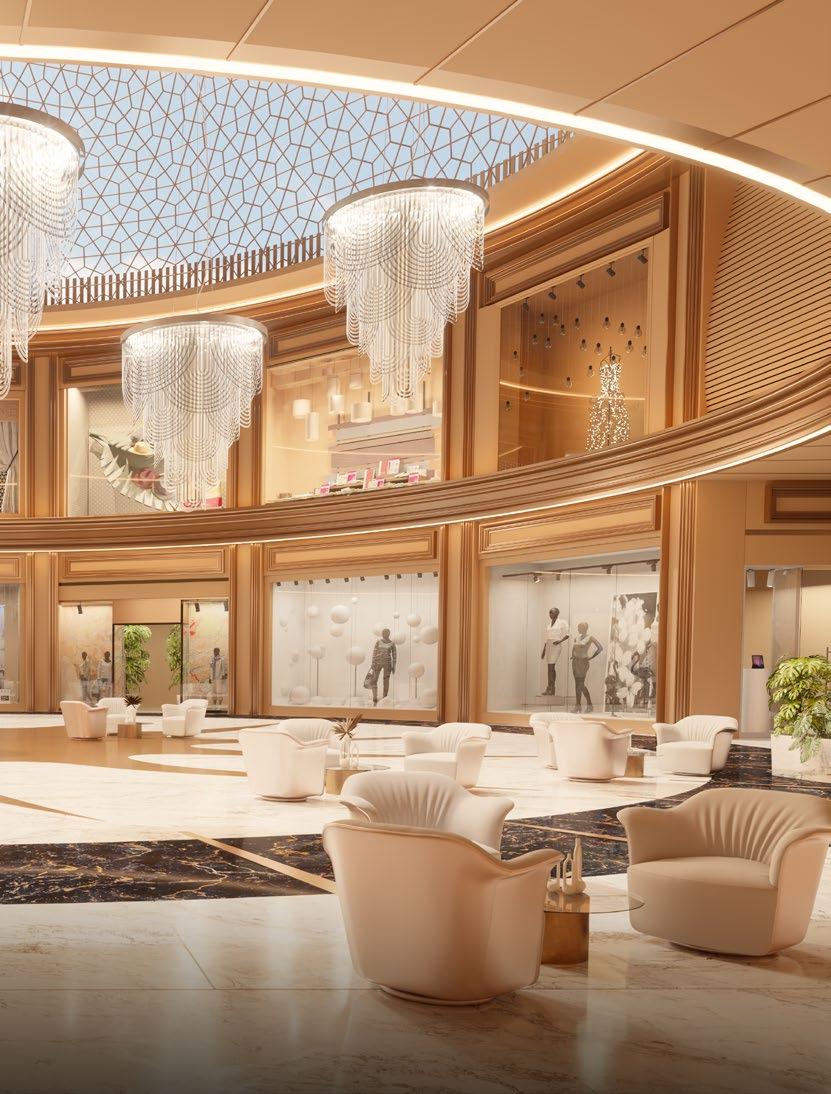

Le Grand Ceremony’s diameter and lighting specifics can be customized to fit any project. Pictured: 6 custom lamps. Ø220 cm.
54

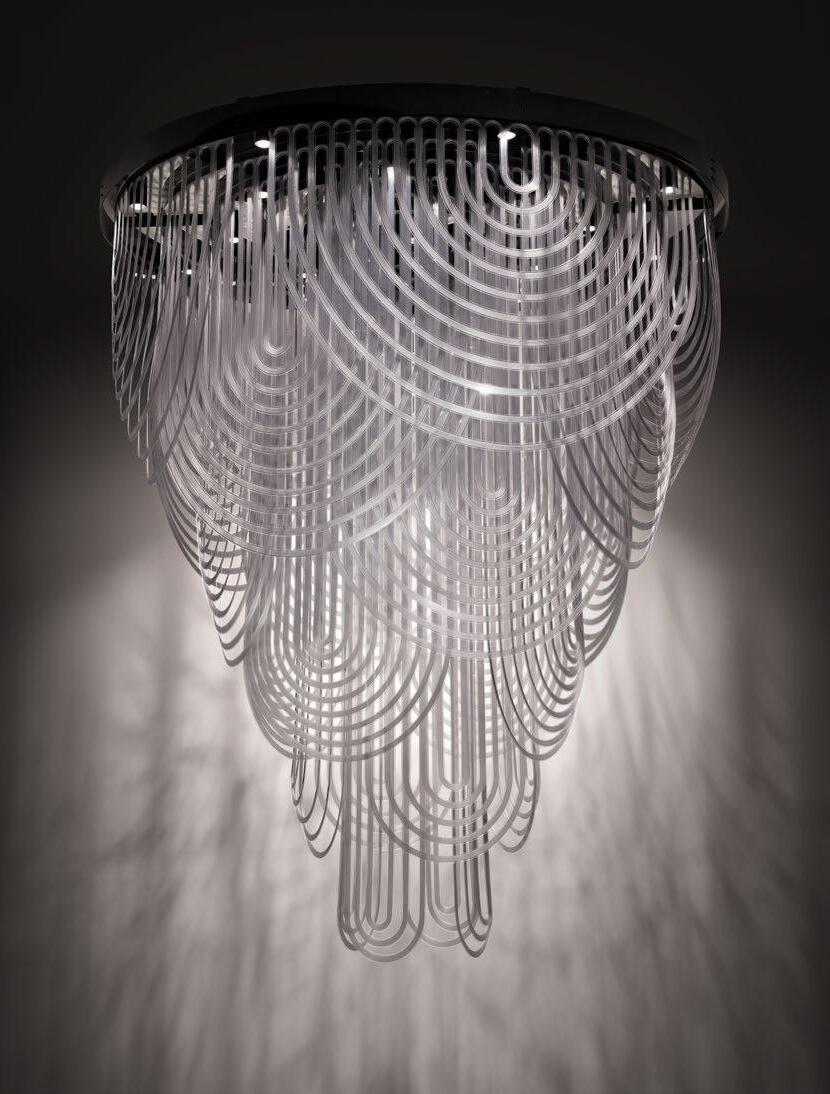

An opulent lamp, an ode to femininity that conjures up the image of the brush of a skirt, a pearl choker, drapery on decoltè. Pictured a custom version of Ø120 cm. Technical lighting details will be adapted to the specific project
55
56

LE GRAND CEREMONY

TECHNICAL DETAILS

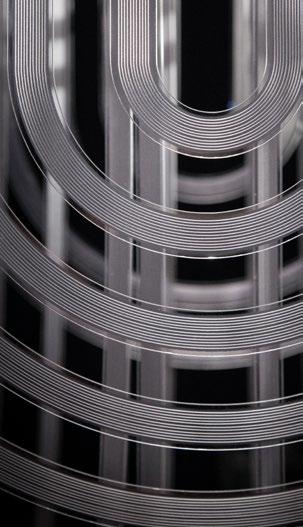

A close-up of printed and richly engraved Cristalflex® decorative elements.

A lowered or false ceiling is necessary to connect the spotlight’s electrical elements.

spotlights

structure

decorative elements

21 spotlights encircle a customizable iron ring (finishing to be determined per project), inserted in the lowered or false ceiling, illuminating the opulent Cristalflex® layers draped below.

Size: Ø213 x h. 250 cm (Ø83" x h. 97-1/2")

Lighting: 20 x 8 W - GU10 LED spots suggested dim. max Ø5 x h 5 cm (1,96” x h. 1,96”)

+ 1 x 15 W - E26/E27 LED spot suggested dimension max Ø 6,5 x h 9 cm (2,55” x h. 3,54”)

Dimmable with dimmable bulbs

Colours: Cristalflex® with digital printing (fumè) and white.

Structure finishing upon request

57
213 cm ( 83”) 250 cm ( 97-1/2”)

HUGO

DESIGN BY SLAMP CREATIVE TEAM

The Hugo collection enhances the qualities of traditional technical lighting, and is compliant with the main office requirements UNI EN 12464-1:2011.

59
60
61

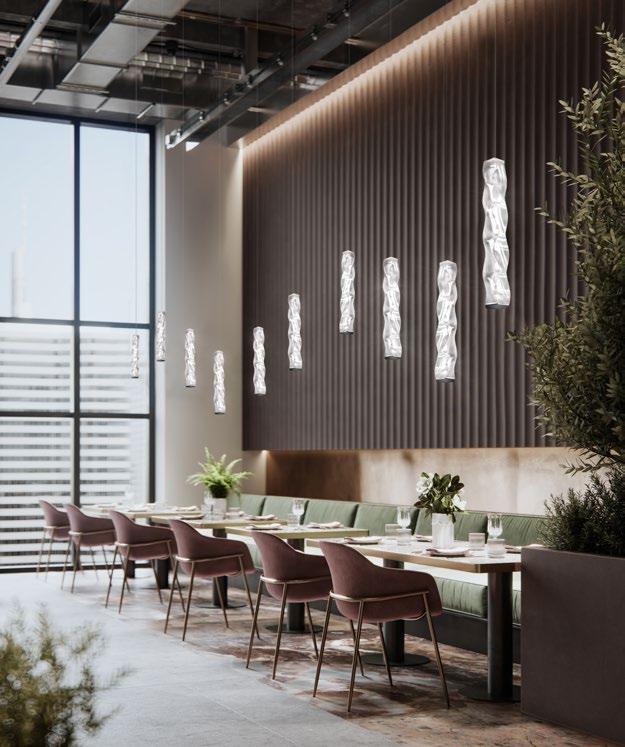

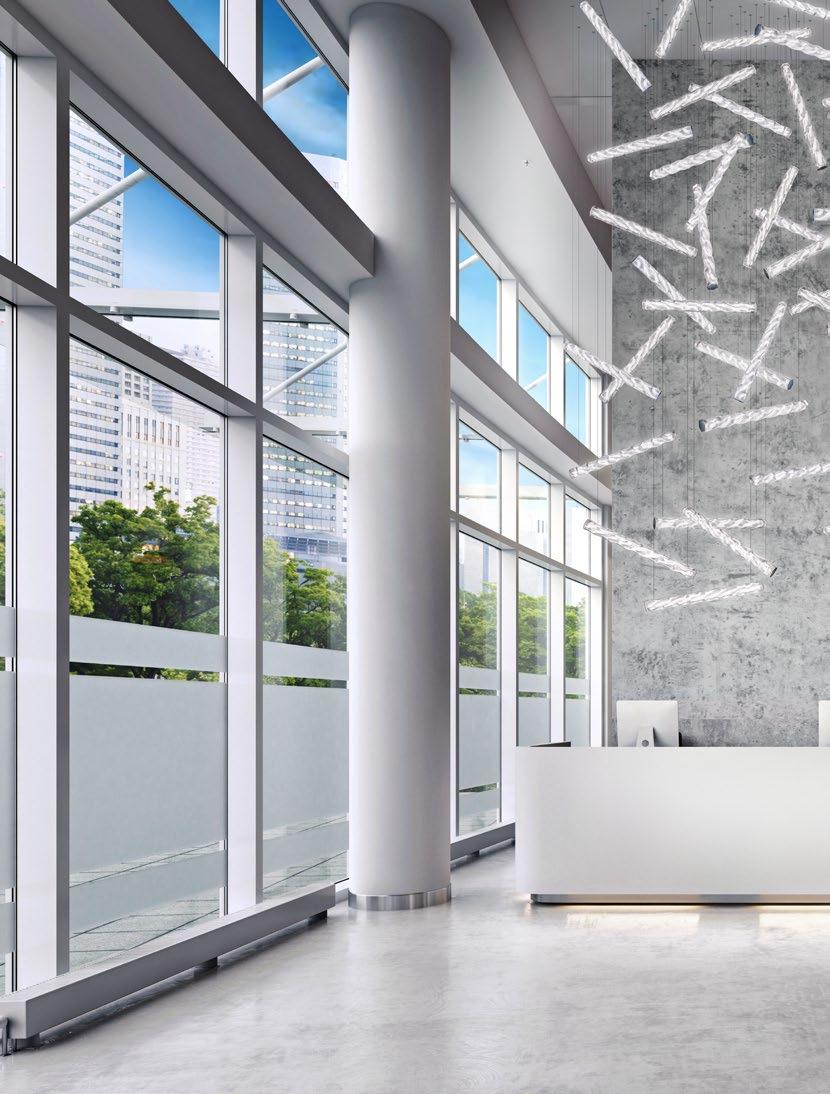

This page: a customized version of Hugo Vertical 50 cm above table surfaces. Previous page: 377 vertical modules.
62

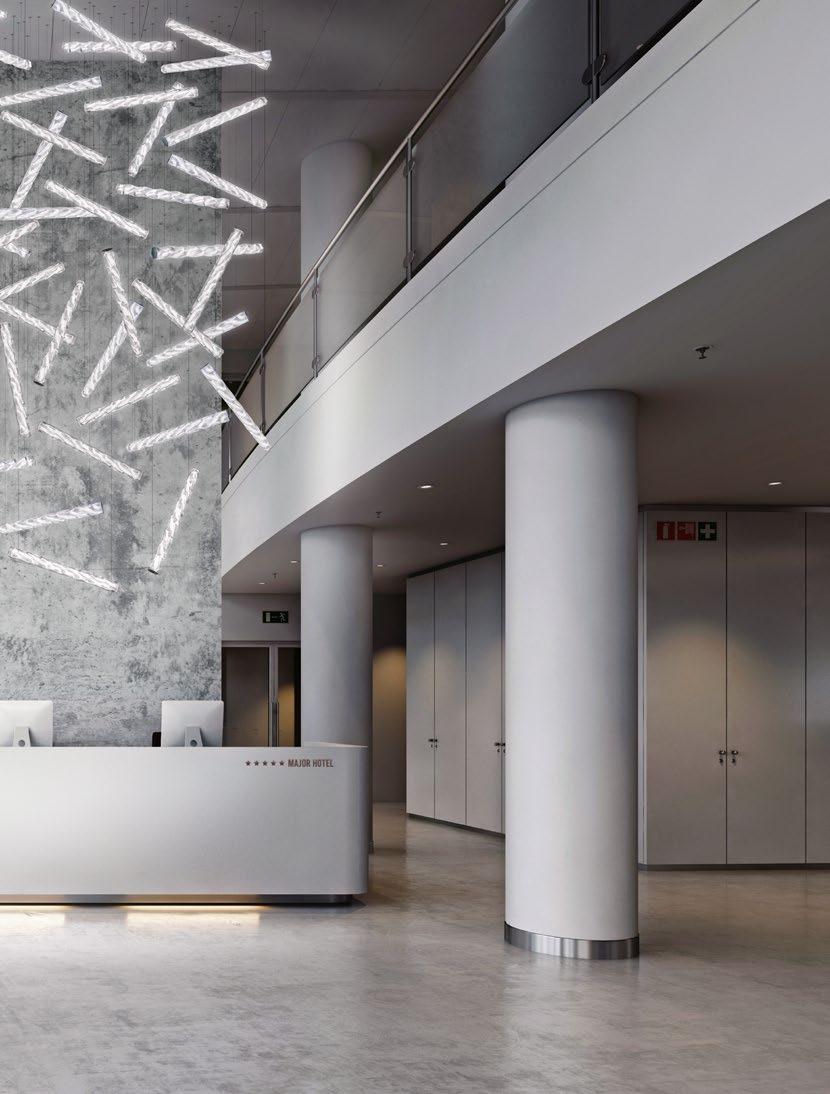

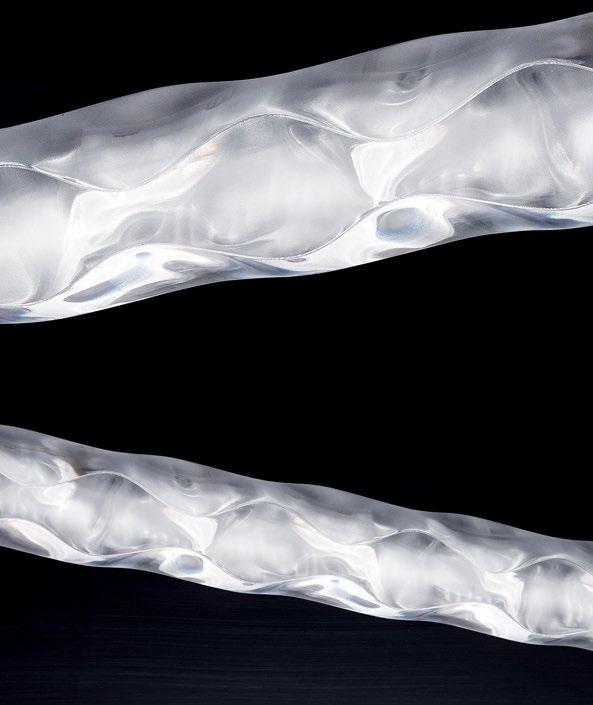

The integrated LED is softened and liquified by Slamp’s unique prismatic Lentiflex® Next page: a composition of 300 Vertical modules.

COMPLIANT WITH THE UNI EN 12464-1:2011 STANDARD

Hugo offers the same qualities of traditional technical lighting without losing Slamp’s iconic aesthetic value. The main office requirements established in the UNI EN 12464-1:2011 require an average illumination of 500 lx on work surfaces, a uniformity coefficient U0 greater than 0.6, and a glare value (UGR) of less than 19. Both the Prisma and White versions conform to these requirements, including a CRI (colour rendering index) greater than 90.

65

HUGO

TECHNICAL DETAILS

ARCHITECTURAL SYSTEM

2

40W-100~240V/24Vdc - 7000 Lumen

3000 Kelvin (4000 upon request)

Dimmable with: PWM, 0-10 (110V-220V)

Additional dimming system Dali, Bluetooth, Casambi, Triac upon request

ARCHITECTURAL SYSTEM

100W-100~240V/24Vdc-17.500 Lumen

3000 Kelvin (4000 upon request)

Dimmable with: PWM, 0-10 or Potentiometer (110V-220V)

Additional dimming system Dali, Bluetooth, Casambi, Triac upon request

ARCHITECTURAL SYSTEM

60W-100~240V / 24Vdc - 10.500 Lumen

3000 Kelvin (4000 upon request)

Dimmable with: PWM, 0-10 or Potentiometer (110V-220V)

Additional dimming system Dali, Bluetooth, Casambi, Triac upon request

ARCHITECTURAL SYSTEM

3000 Kelvin (4000 upon request)

Dimmable with: PWM, 1-10 or Potentiometer (110V-220V)

3

120W-100~240V/24Vdc - 21.000 Lumen

ARCHITECTURAL SYSTEM

4

80W-100~240V/24Vdc-14.000 Lumen

3000 Kelvin (4000 upon request)

Dimmable with: PWM, 0-10 or Potentiometer (110V-220V)

Additional dimming system Dali, Bluetooth, Casambi, Triac upon request

6

ARCHITECTURAL SYSTEM

7

140W-100~240V/24Vdc-24.500 Lumen

3000 Kelvin (4000 upon request)

Dimmable with: PWM, 1-10 or Potentiometer (110V-220V)

Additional dimming system Dali, Bluetooth, Casambi, Triac upon request

ADJUSTABLE ANGLE AND HEIGHT 14,5

cm (5-3/4”) 9 3-1/2”

66
1 X HUGO MAIN electrified module HUGO SIDE variable number from 1 to 6
100 cm ( 39-1/2” ) 100
( 39-1/2”
1 X CEILING ROSE with power supply
CONNECTION
CABLES variable number from 1 to 6
cm
)
5
Additional dimming system Dali, Bluetooth, Casambi, Triac upon request max. cable length 28 cm / 11” Adjustable height Top View: Adjustable angle ALIGNMENT ROD
Transparent magnetic alignment rod to perfectly align modules are available upon request

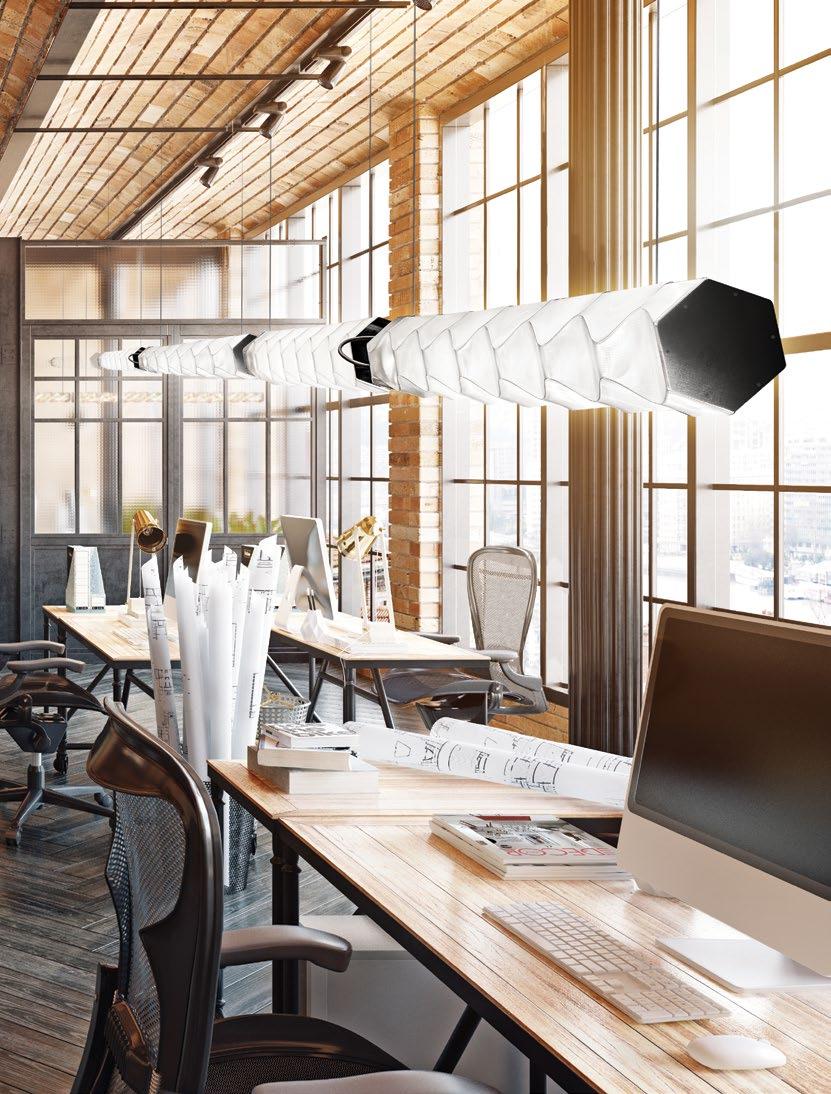

VERTICAL AND HORIZONTAL MODULES

The Hugo collection includes both vertical and horizontal single modules, allowing for unique, original, and easily installed solutions that can go beyond any limit. Every vertical module has a co-axis cable that creates clean lines and easy installation.

COMPLIANT WITH THE UNI EN 12464-1:2011 STANDARD

Hugo offers the same qualities of traditional technical lighting without losing Slamp’s iconic aesthetic value. The main office requirements established in the UNI EN 12464-1:2011 require an average illumination of 500 lx on work surfaces, a uniformity coefficient U0 greater than 0.6, and a glare value (UGR) of less than 19. Both the Prisma and White versions conform to these requirements, including a CRI (colour rendering index) greater than 90.

67
100 cm ( 39-1/2” ) 9 3-1/2” 20-150 cm ( 8”59 ) 9 3-1/2” 100 cm ( 39-1/2” ) 20150 cm ( 8”59” )
PHOTOMETRIC DIAGRAM, HUGO.

CLIZIA

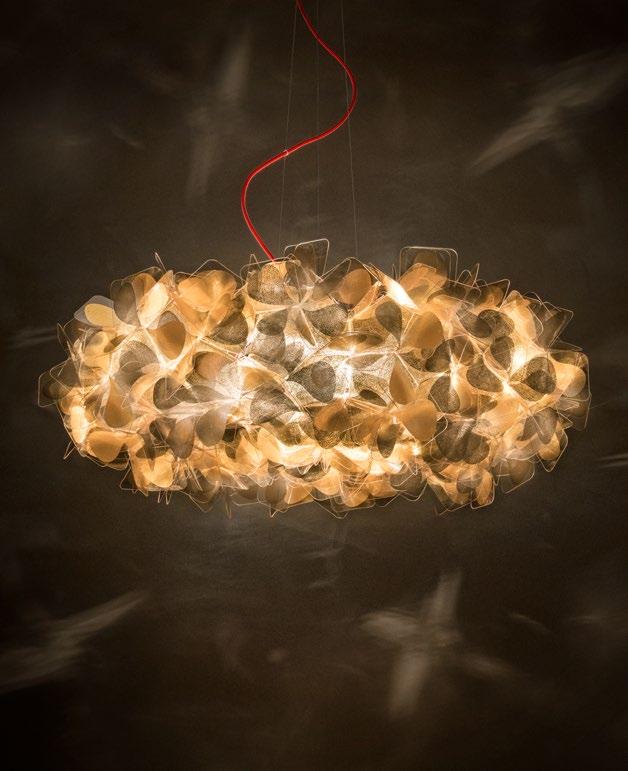

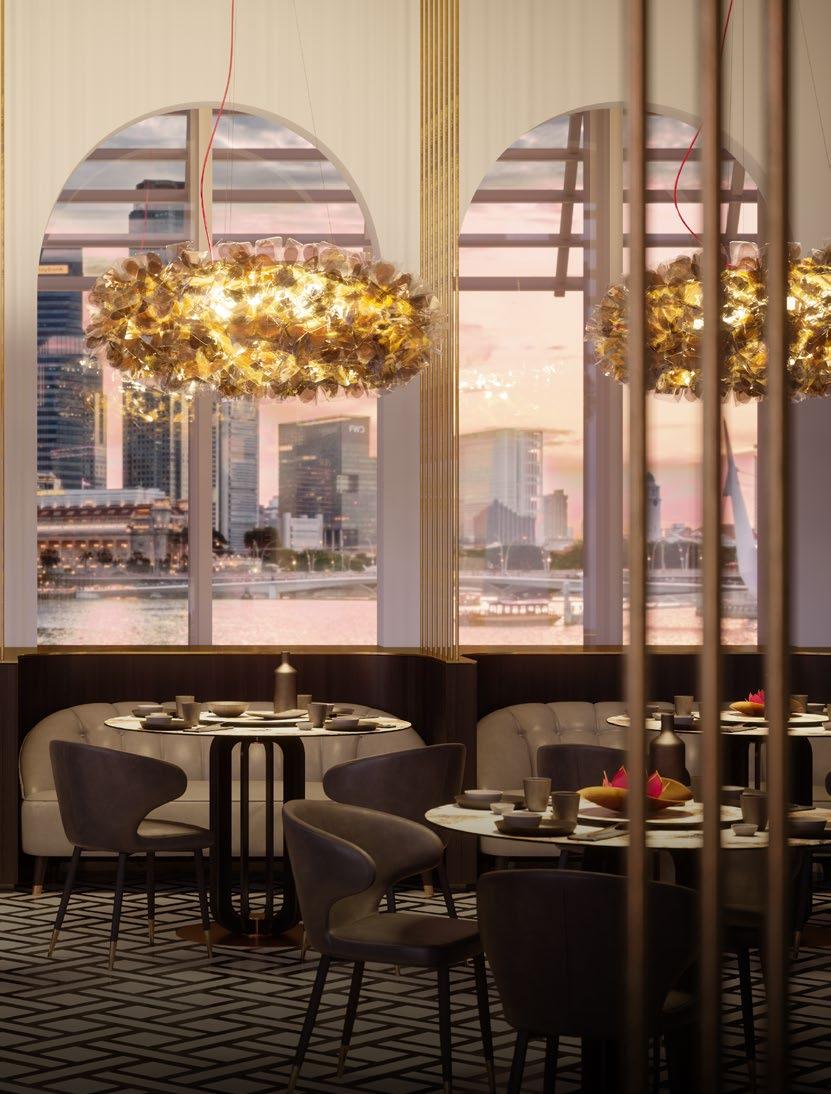

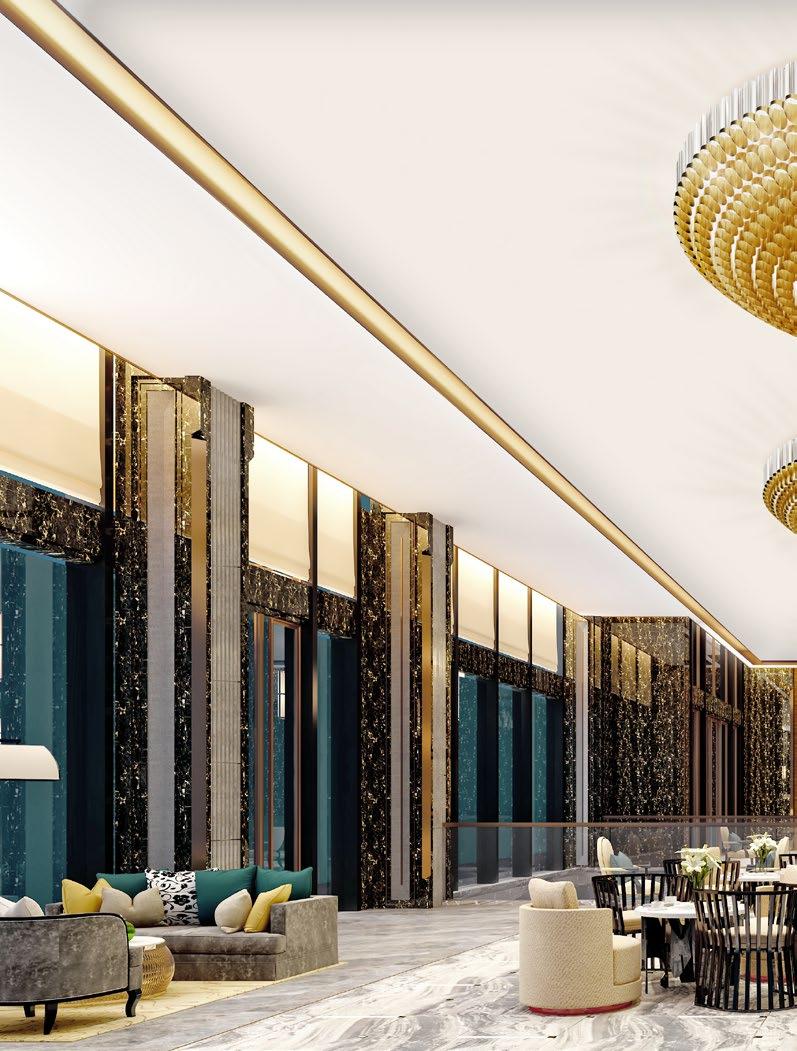

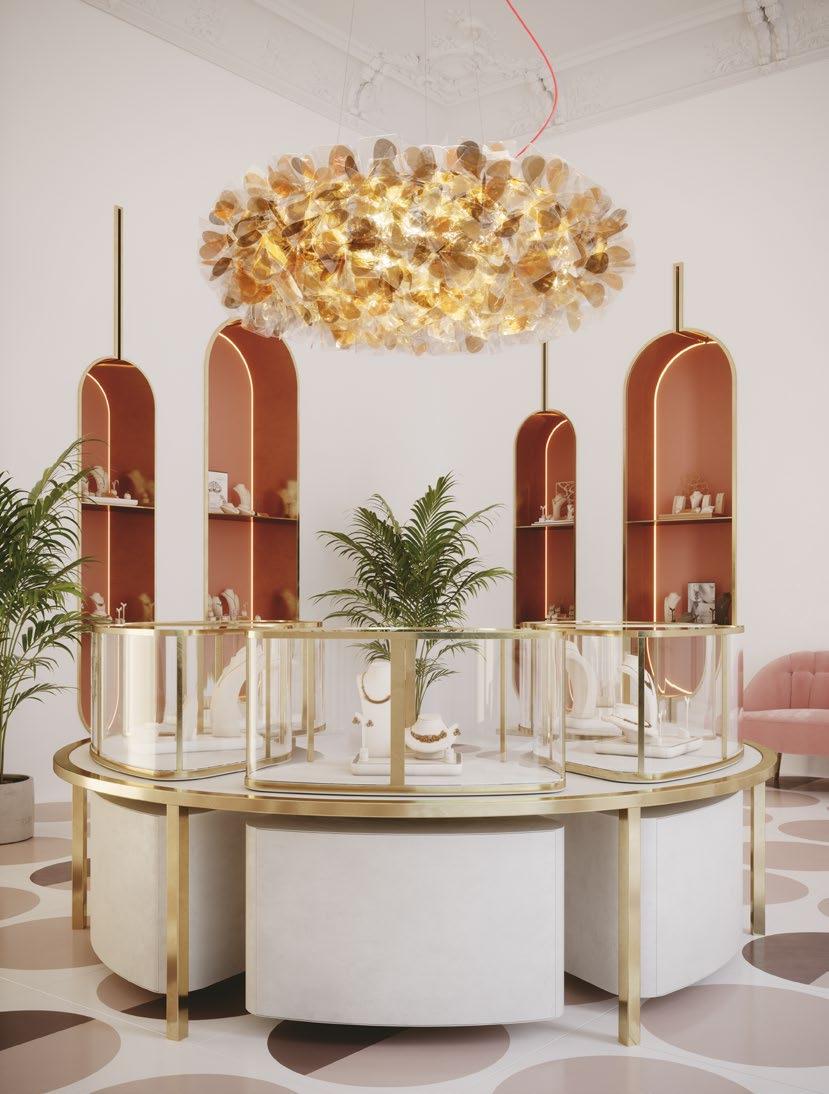

Clizia Ø130 cm touches on the “more is more” approach to installations without compromising the palpable weightlessness that defines Slamp’s creations.

69
70
Cristalflex® petals are covered in gold foil using a cold-coating process, and the crackled texture lets light shine through, an effect that other types of paint or printing cannot replicate. Lighting: Ø130: 15 x 12W E27/E26 - Large: 4 x 12W E27/E26 - Medium: 2 x 12W E27/E26 LED Filament Bulbs Ø130 cm
Ø130 cm 71

MAGNETIC HANGING SYSTEM

The magnetic hanging system allows the decorative shade to be removed and replaced with a simple click, facilitating installation and maintenance. Ø78 cm
72
Ø53 cm

High-quality, non-toxic ink is used for screen printing that creates contemporary colors and textures.

73

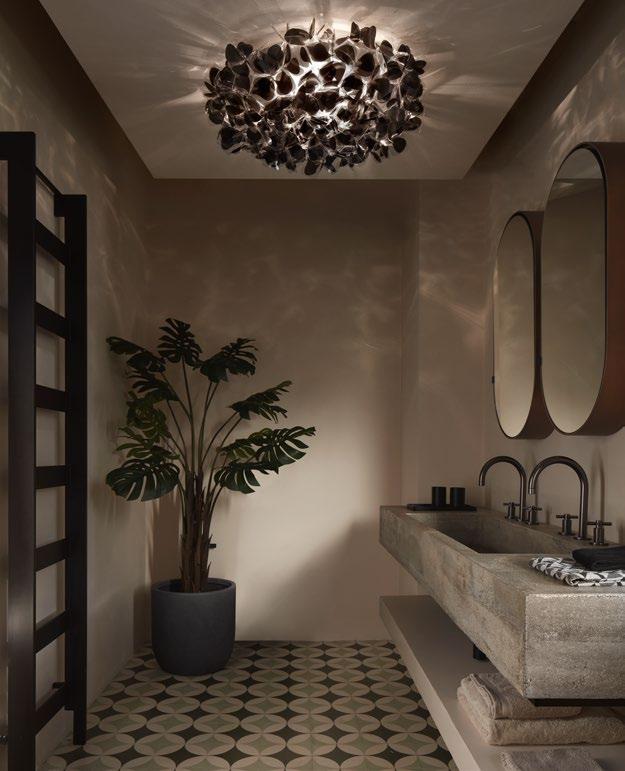

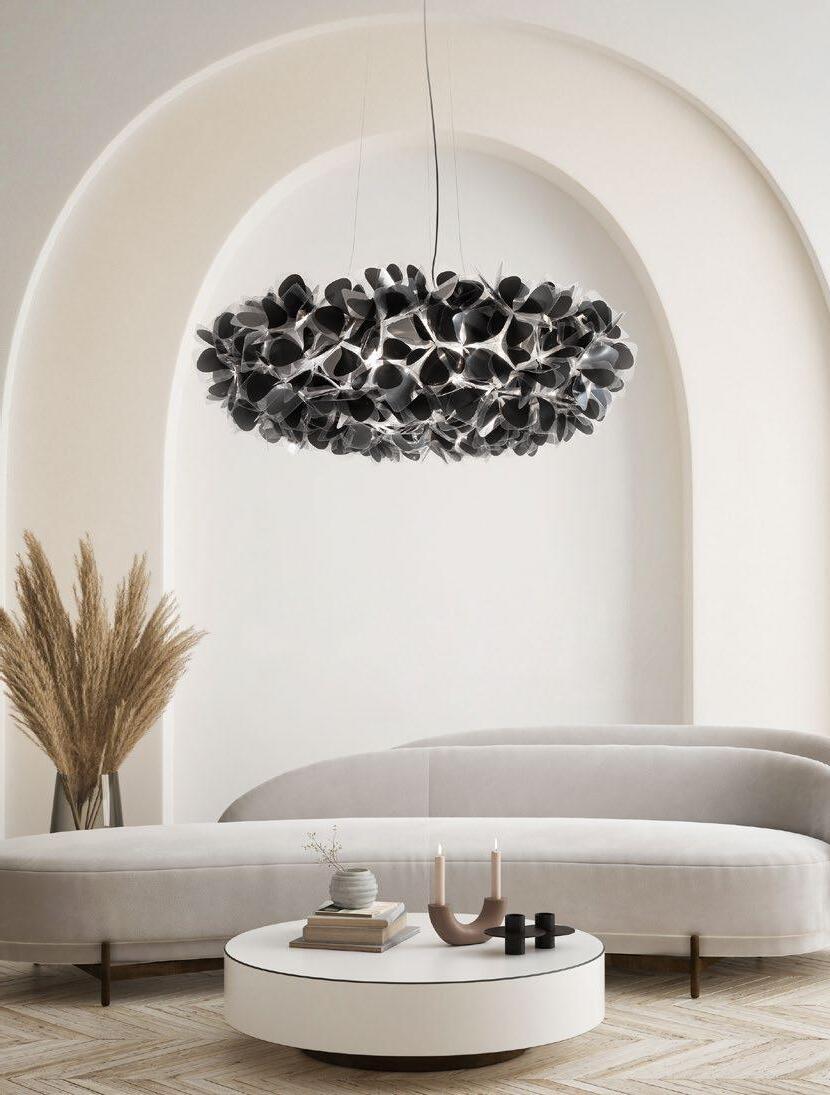

Pictured: the ceiling/wall large version of Clizia Mama non Mama black.
74 Ø130 cm

CLIZIA SUSPENSION

TECHNICAL DETAILS

CLIZIA Ø130

15 X 12W LED Filament Bulb E26/E27

Dimmable with dimmable bulbs

Made of: Polycarbonate

CLIZIA LARGE - Ø78

4 X 12W LED Filament Bulb E26/E27

Dimmable with dimmable bulbs Made of: Cristalflex®

CLIZIA MEDIUM - Ø53

4 X 12W LED Filament Bulb E26/E27

Dimmable with dimmable bulbs

Made of: Cristalflex®

Available in 3 ceiling/wall versions:

L: Ø78 x h.25 cm Ø30-3/4”x h.9-3/4”

M: Ø53 x h.20 cm Ø20-3/4”x h.8”

Mini: Ø32 x h.15 cm Ø12-1/2”x h.5-3/4”

45 cm (17 -1/2” ) 130 cm ( 50-3/4” ) min 20 cm max 140 cm min 8” max 55” 28 cm ( 11” ) min 20 cm max 140 cm min 8” max 55” 78 cm ( 30-3/4” )
25 cm ( 9-3/4” ) min 20 cm max 140 cm min 8” max 55” 53 cm ( 20-3/4” ) 75

CHANTAL

Lighting / Illuminazione: M: 7 x 12W E27/E26 LED Filament Bulbs S: 4 x 12W E27/E26 LED Filament Bulbs
78

CHANTAL

TECHNICAL DETAILS

CHANTAL MEDIUM

7 X 12W LED Filament Bulbs E27/E26

Dimmable with dimmable bulbs

Made of: Cristalflex® / Lentiflex®

6m kit cable must be ordered with lamp purchase

CHANTAL SMALL

4 X 12W LED Filament Bulbs E27/E26

Dimmable with dimmable bulbs

Made of: Cristalflex® / Lentiflex®

With: Magnetic System® for easy mantainance

6m kit cable must be ordered with lamp purchase

Its concentric, hexagonal shapes allow for unending views. Cristalflex® orange printed detail.

79
85 cm (33-1/2” ) 50 cm ( 19-3/4” ) min 20 cm max 140 cm min 8” max 55” 60 cm (24” ) 36 cm ( 14-1/4” ) min 20 cm max 140 cm min 8” max 55”

GENERAL ENQUIRES HEADQUARTERS

+39 06 9162391

info@slamp.com

+39 347 044 3443

Via Vaccareccia 12/14 - 00071 Pomezia, Roma (IT) - www.slamp.com

HANDMADE IN ITALY

FLAGSHIP STORE MILANO DUOMO

+39 02 8493 0003 milano@slamp.it

+39 349 154 1275

Via Larga, 2 20122 Milano (IT)

FLAGSHIP STORE

LONDON KNIGHTSBRIDGE

+44 0203 4905 472

london@slamp.it

+44 077 427 42444

9A Thurloe Place SW7 2RZ London (UK)

ALL SLAMP PRODUCTS ARE PRODUCED AND ASSEMBLED IN ITALY

Tutte le lampade Slamp sono conformi alla Normativa RAEE All Slamp lamps are RAEE Standards compliant

Products are patented throughout the world and conform to the leading electrical safety standards. For any further info please ask your Slamp representative.

ALL RIGHTS RESERVED © SLAMP S.p.A. 2023-2024

EDITOR

Roberto Ziliani

CREATIVE DIRECTION

Luca Mazza

MARKETING & COMMUNICATION

Erika Martino

VISUAL & GRAPHIC DESIGN

Noemi Patriarca

PHOTOS

Thomas Pagani, Ezio Gosti, Pedro Sadio

RENDERING

Chromatika Multimedia

80
c.n. 4010196 Cert. to CSA Std. C22.2 No. 250.0-08 A B
CB REPORTS AVAILABLE

poetic passionate fluid ethical lively memorable powerful leading unique visionary reliable handmade

Issuu converts static files into: digital portfolios, online yearbooks, online catalogs, digital photo albums and more. Sign up and create your flipbook.
