Gasmate Nova MK2 Range Brochure

NOVA MK2 MODUL AR OUTDOOR K I TCHEN

NOVA MK2 MODU L A R OU TD O O R K I TC HEN

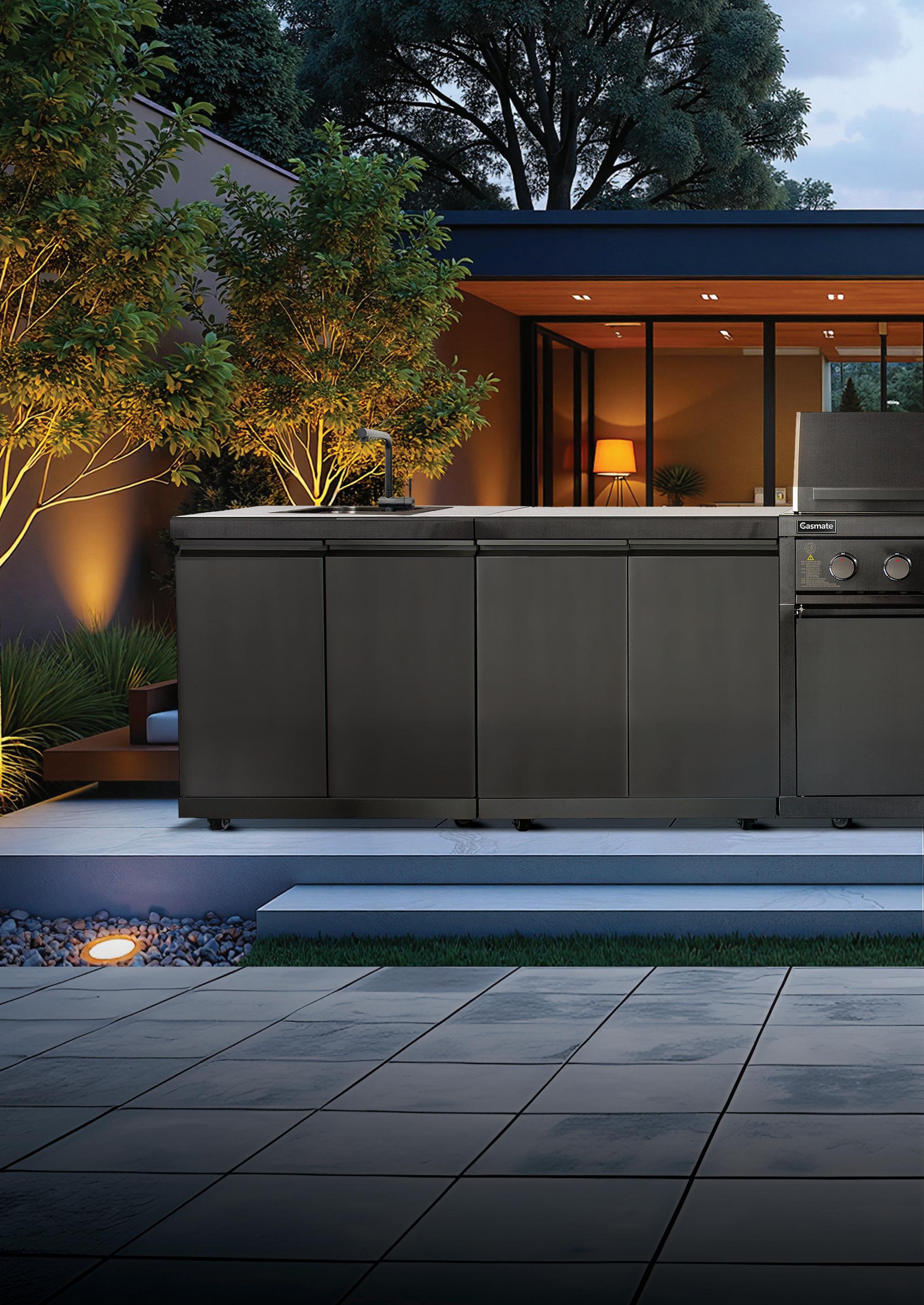

Design your ultimate outdoor cooking & entertaining space with the refreshed Gasmate NOVA MK2 range.

New!

NOVA MK2

MODUL A R OUTDO O R K I TCHEN

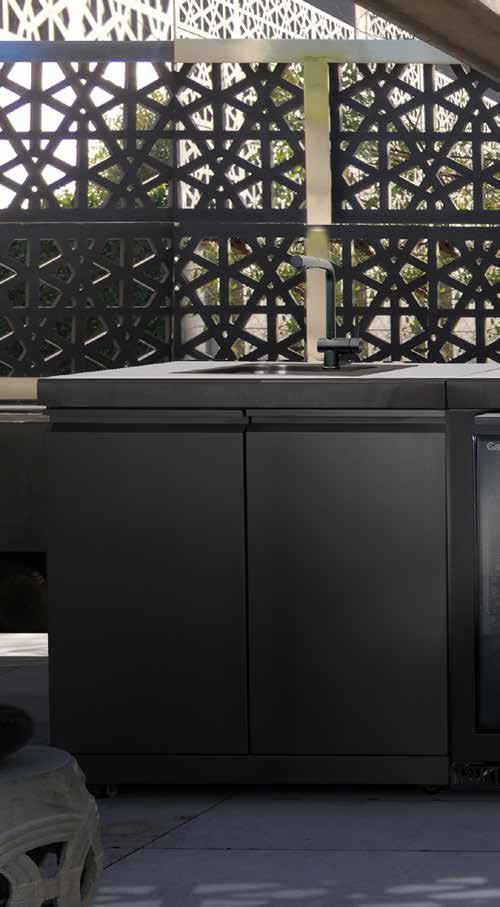

Features black sink with removable wooden chopping board and integrated WELS rated hot and cold water tap.

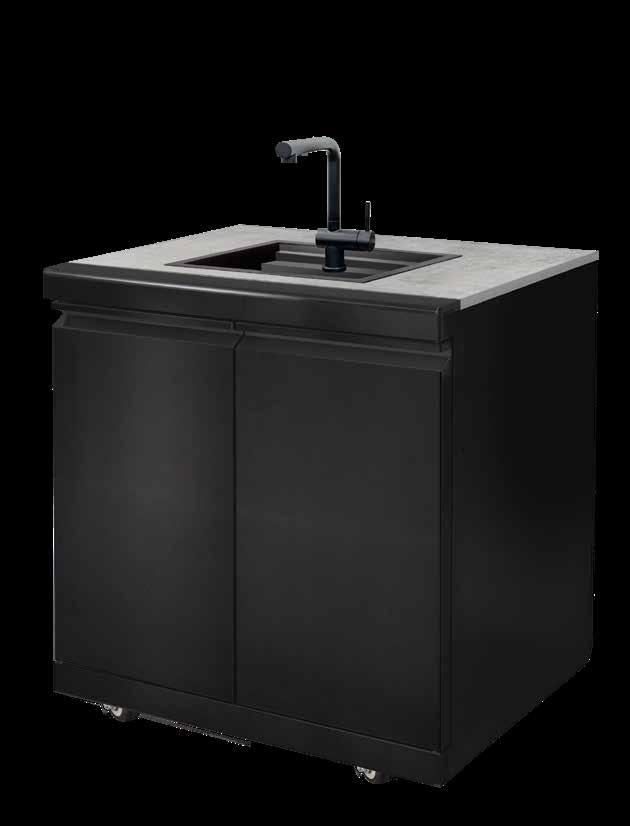

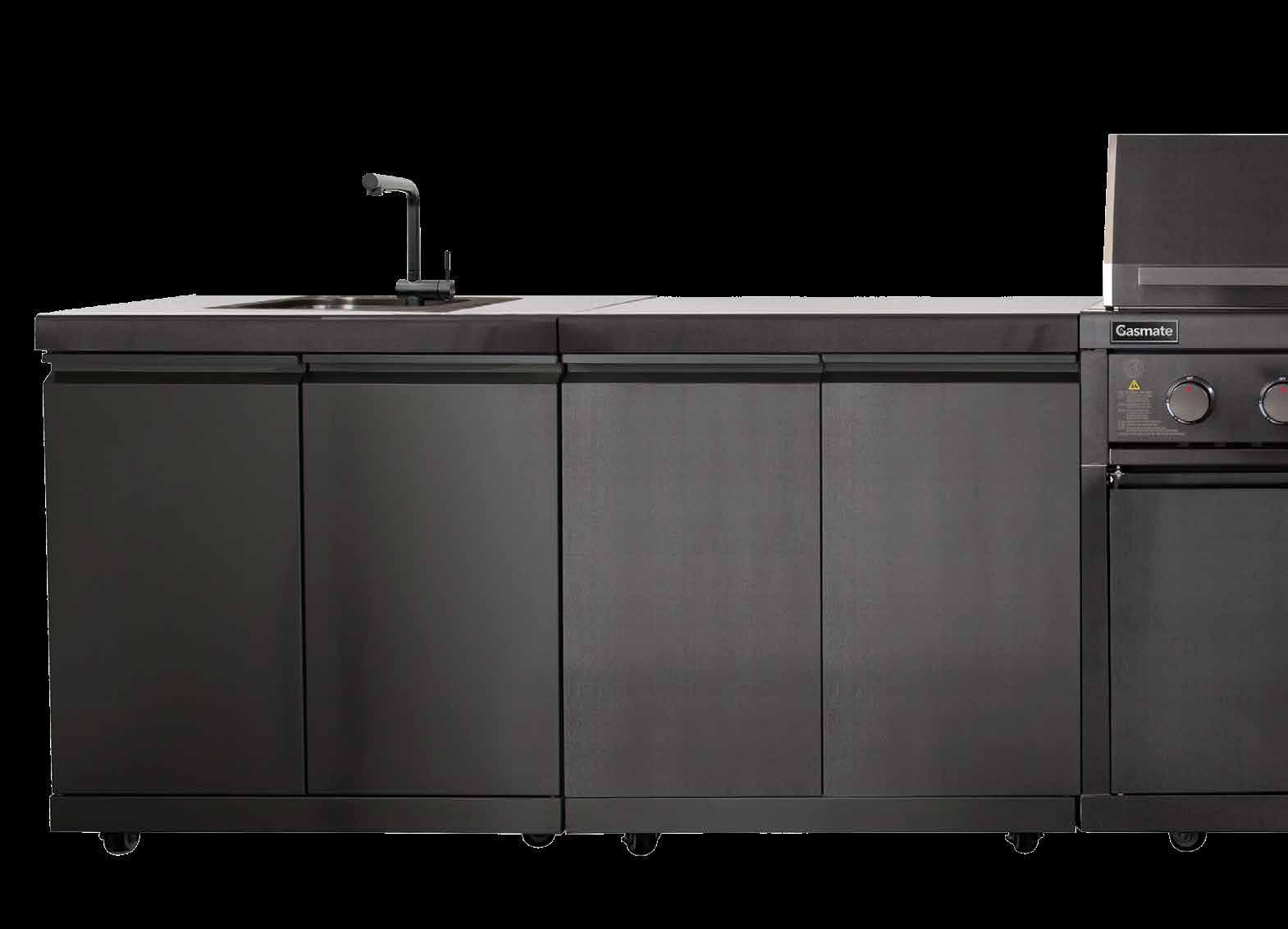

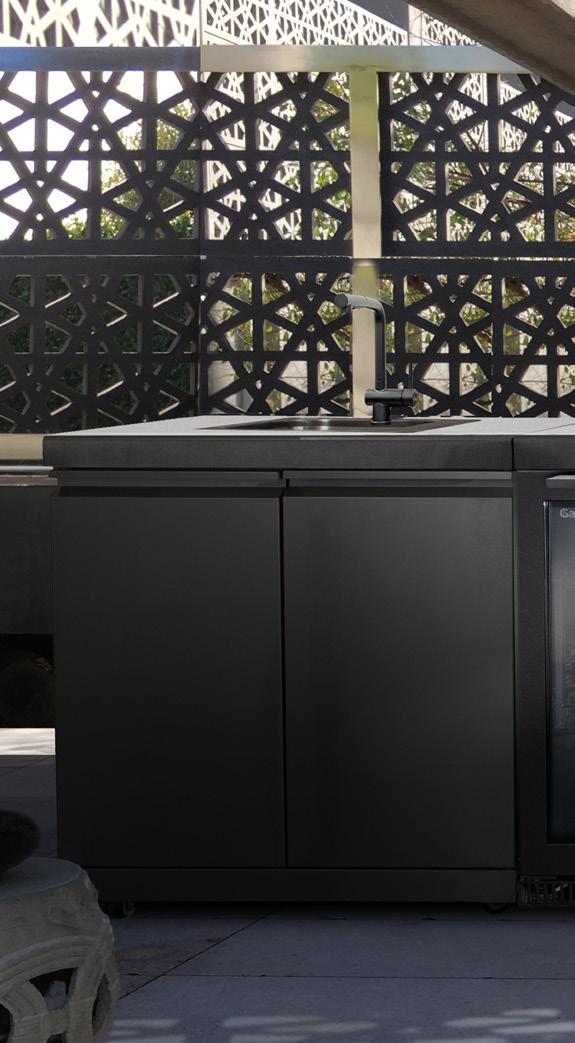

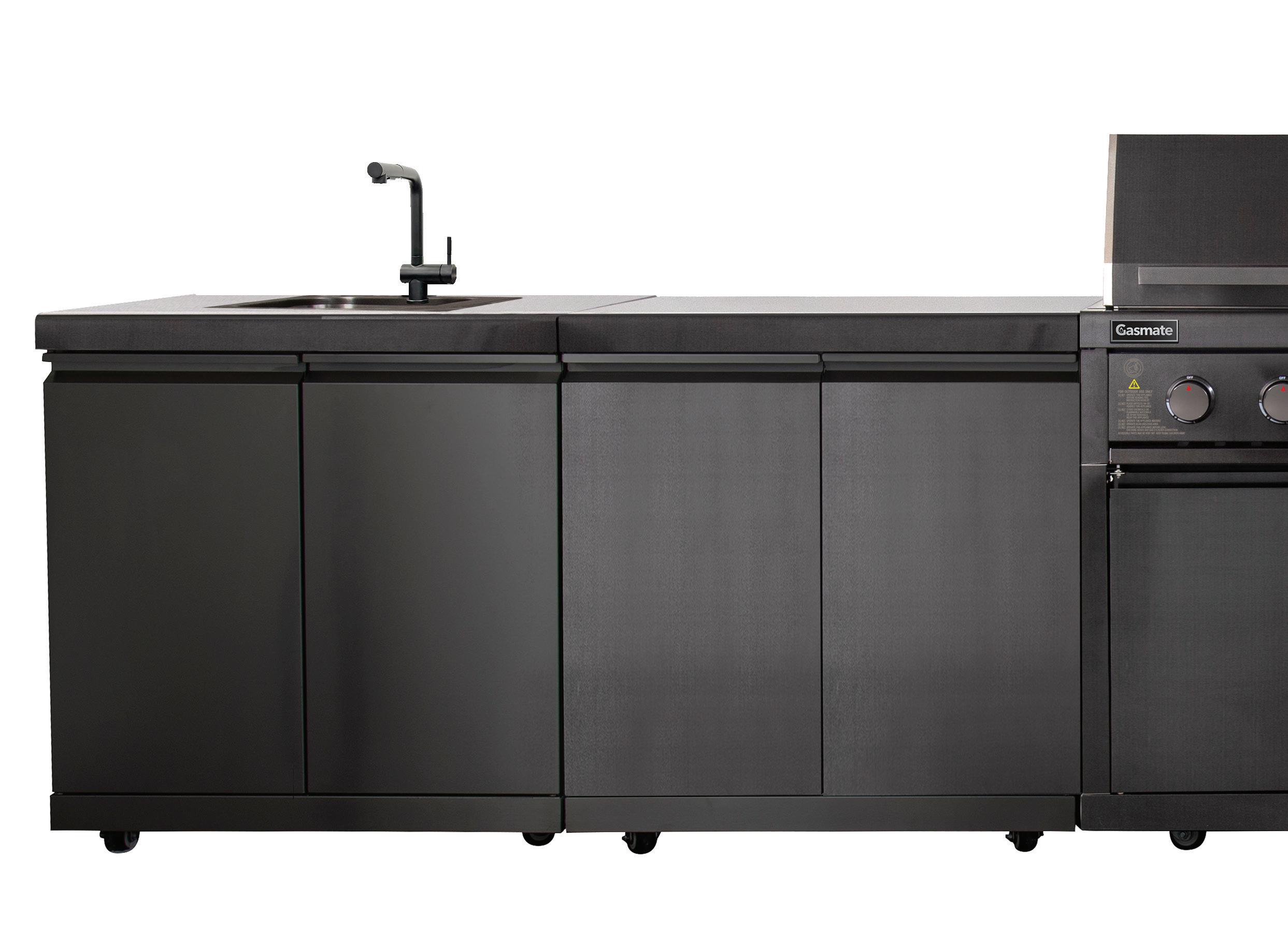

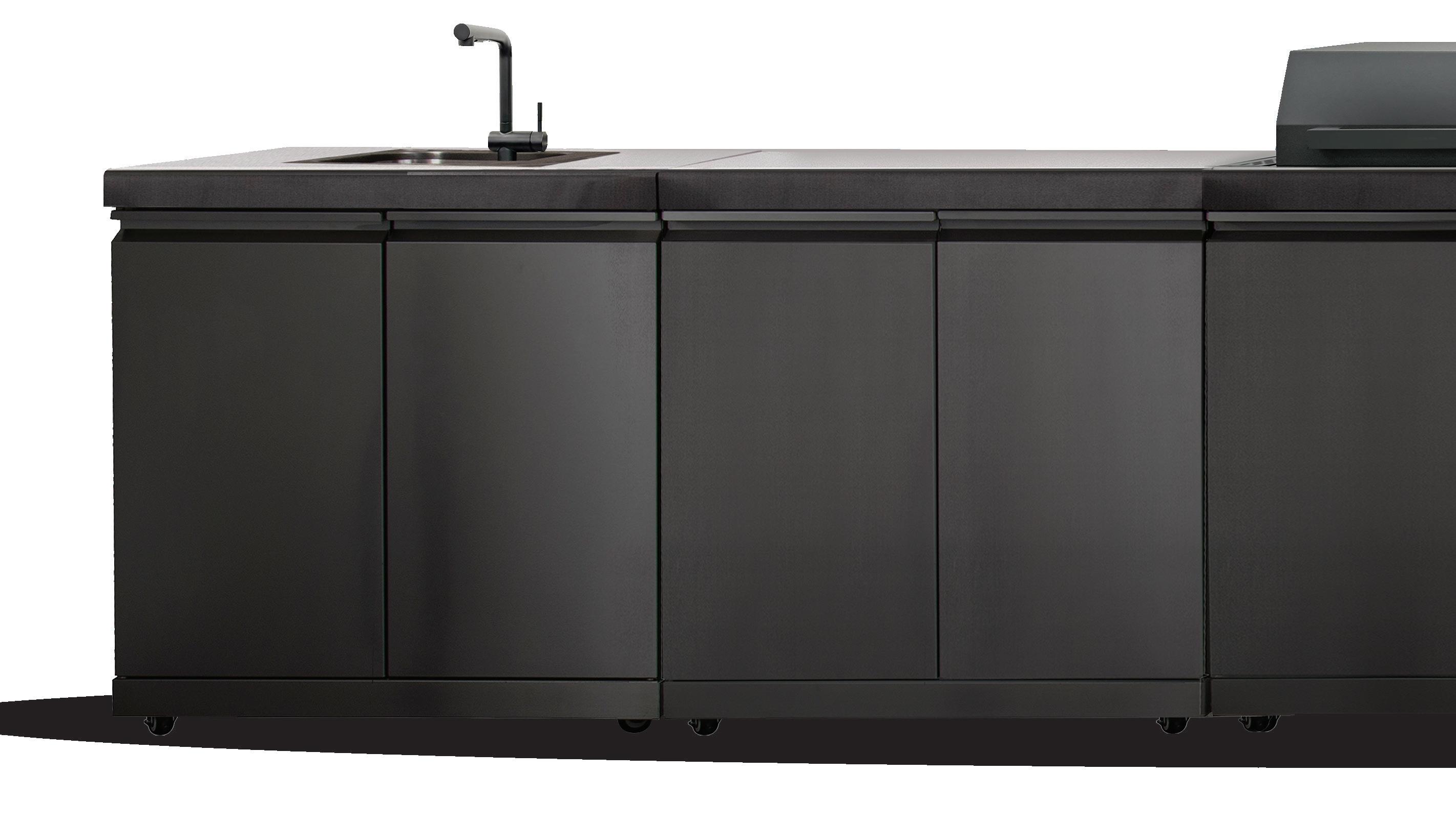

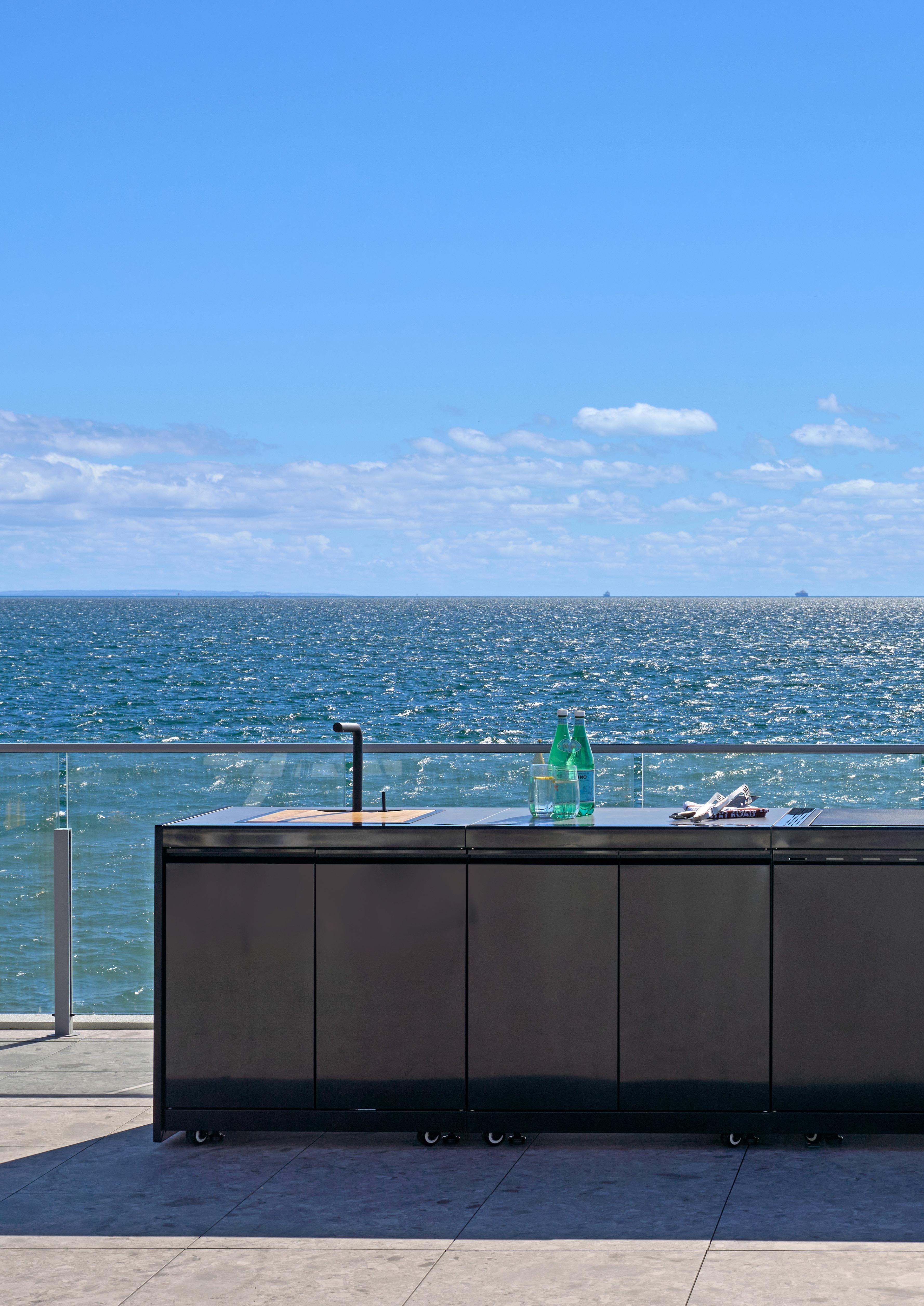

Gasmate NOVA MK2 Sink, Bin & Storage Module.

4 | Gasmate Nova MK2

Each module in the NOVA MK2 range comes fully assembled and features locking castors.

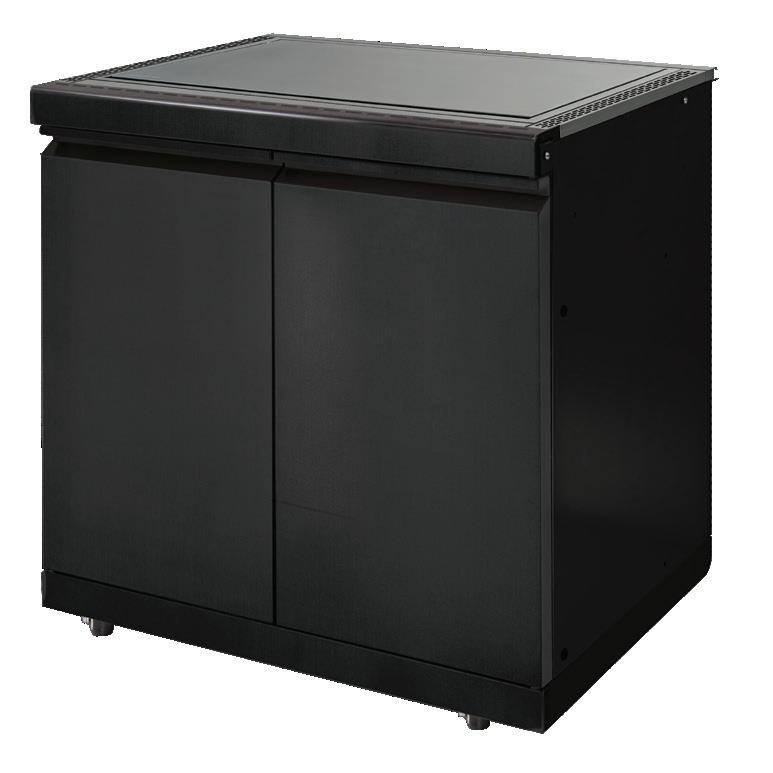

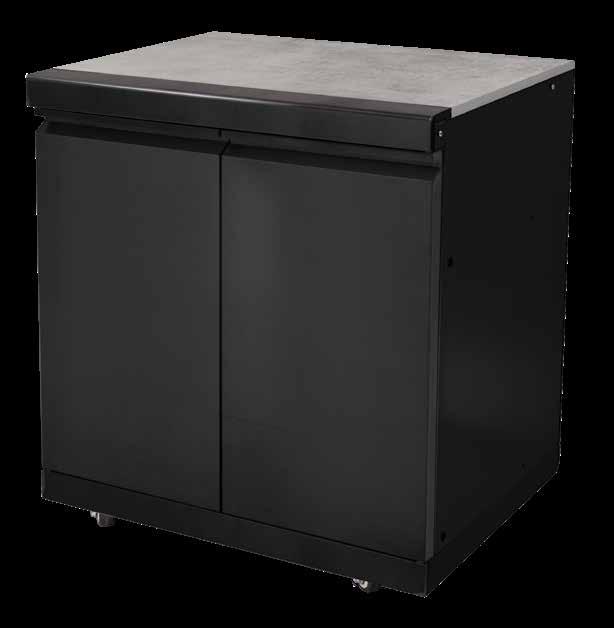

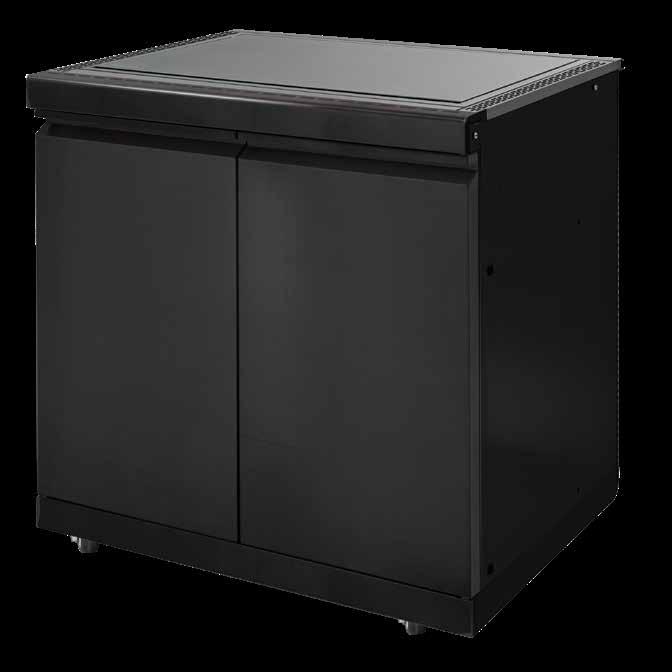

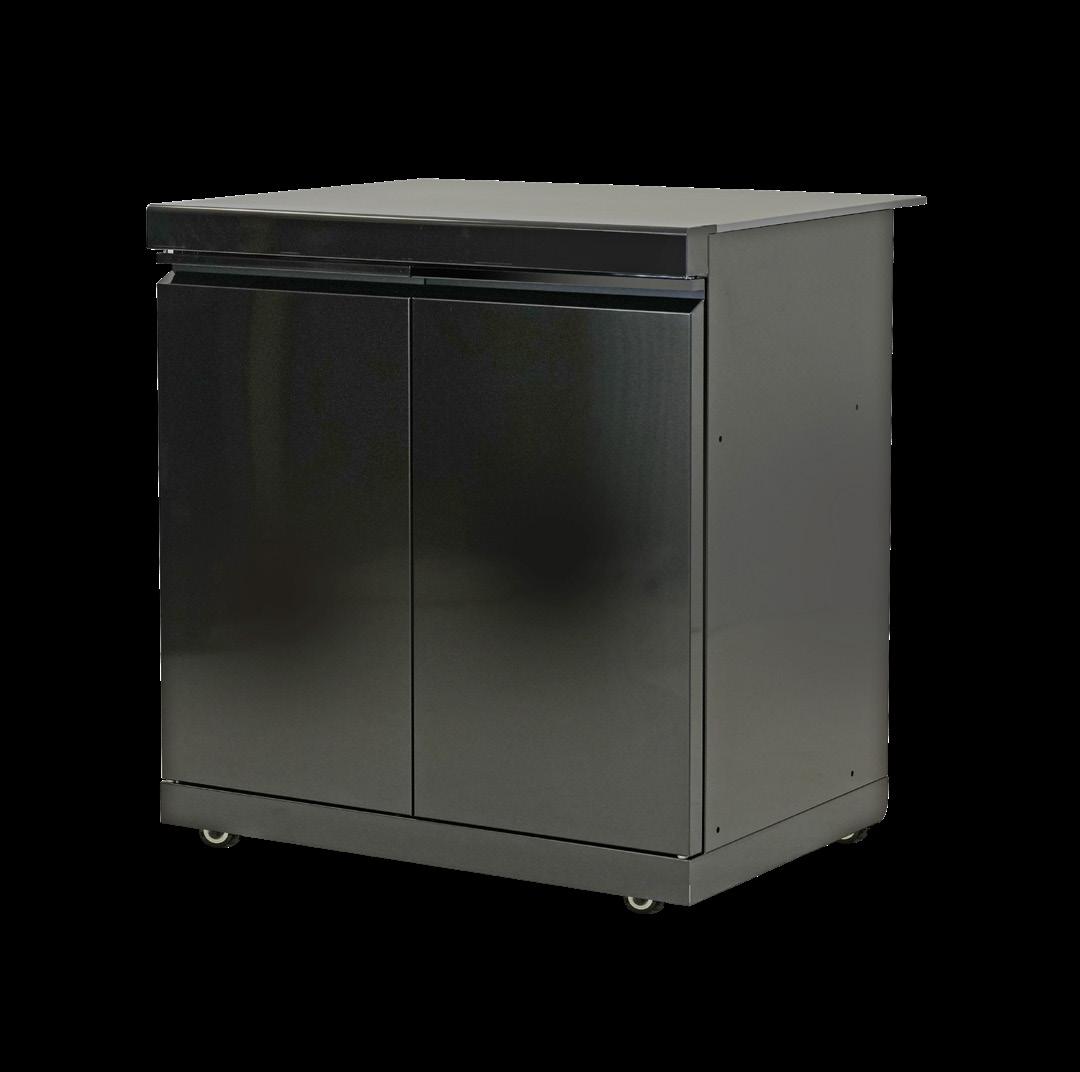

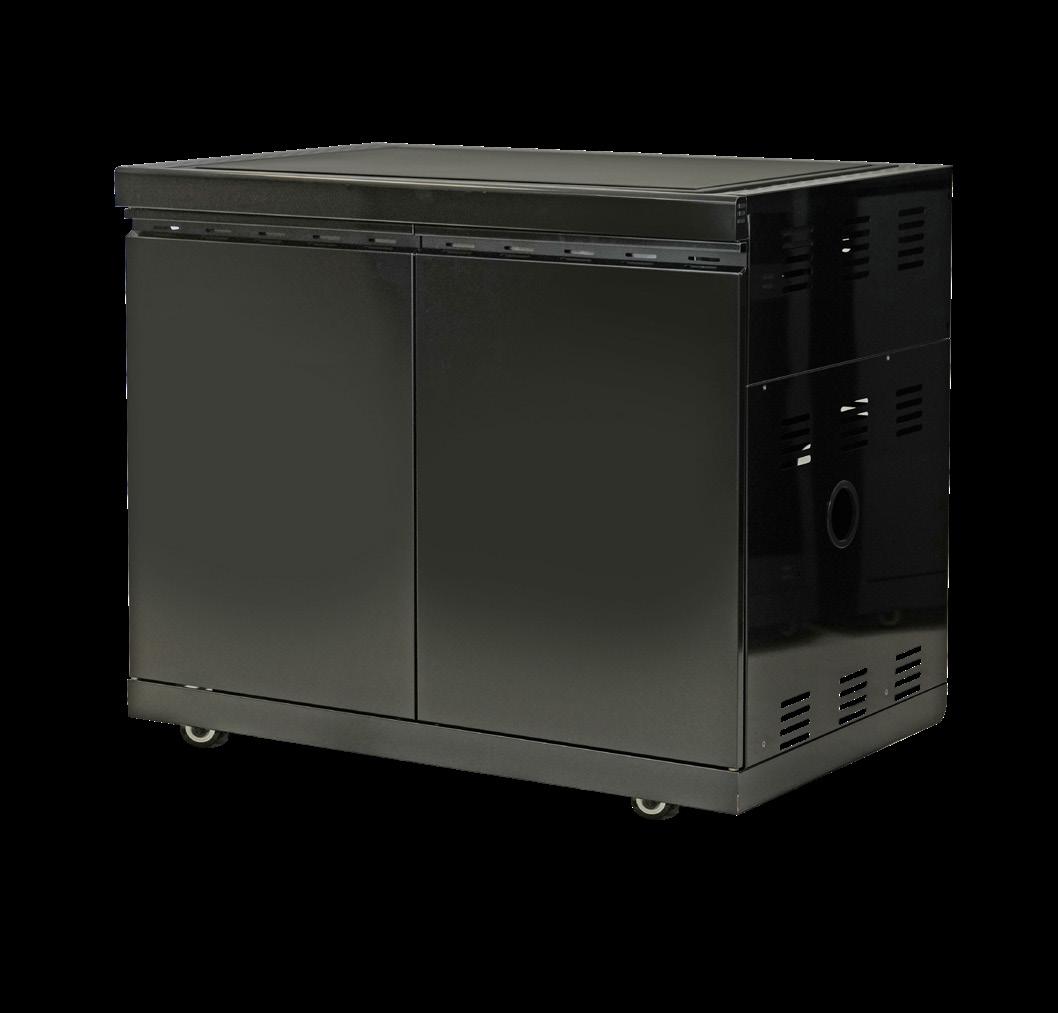

Gasmate NOVA MK2 Storage Module.

Introducing the updated Gasmate Nova MK2. We’ve continued the sophisticated Graphite stainless steel design, and added flame failure safety throughout the lineup. Explore all the new features of the Gasmate NOVA MK2 Modular Outdoor Kitchen.

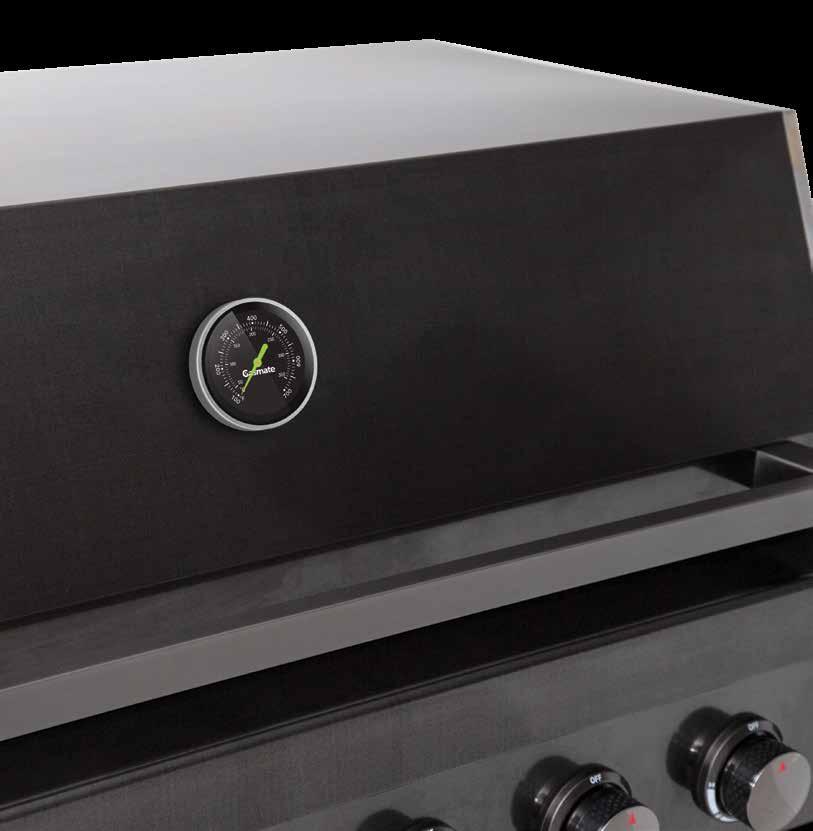

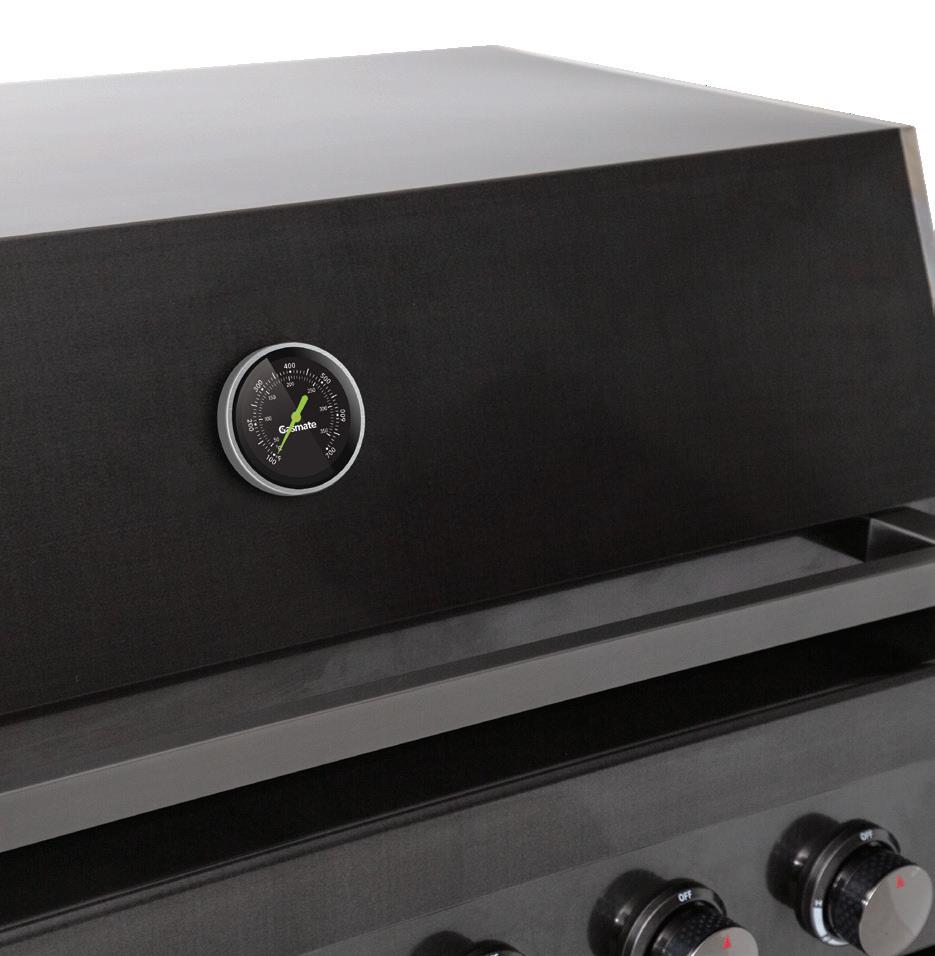

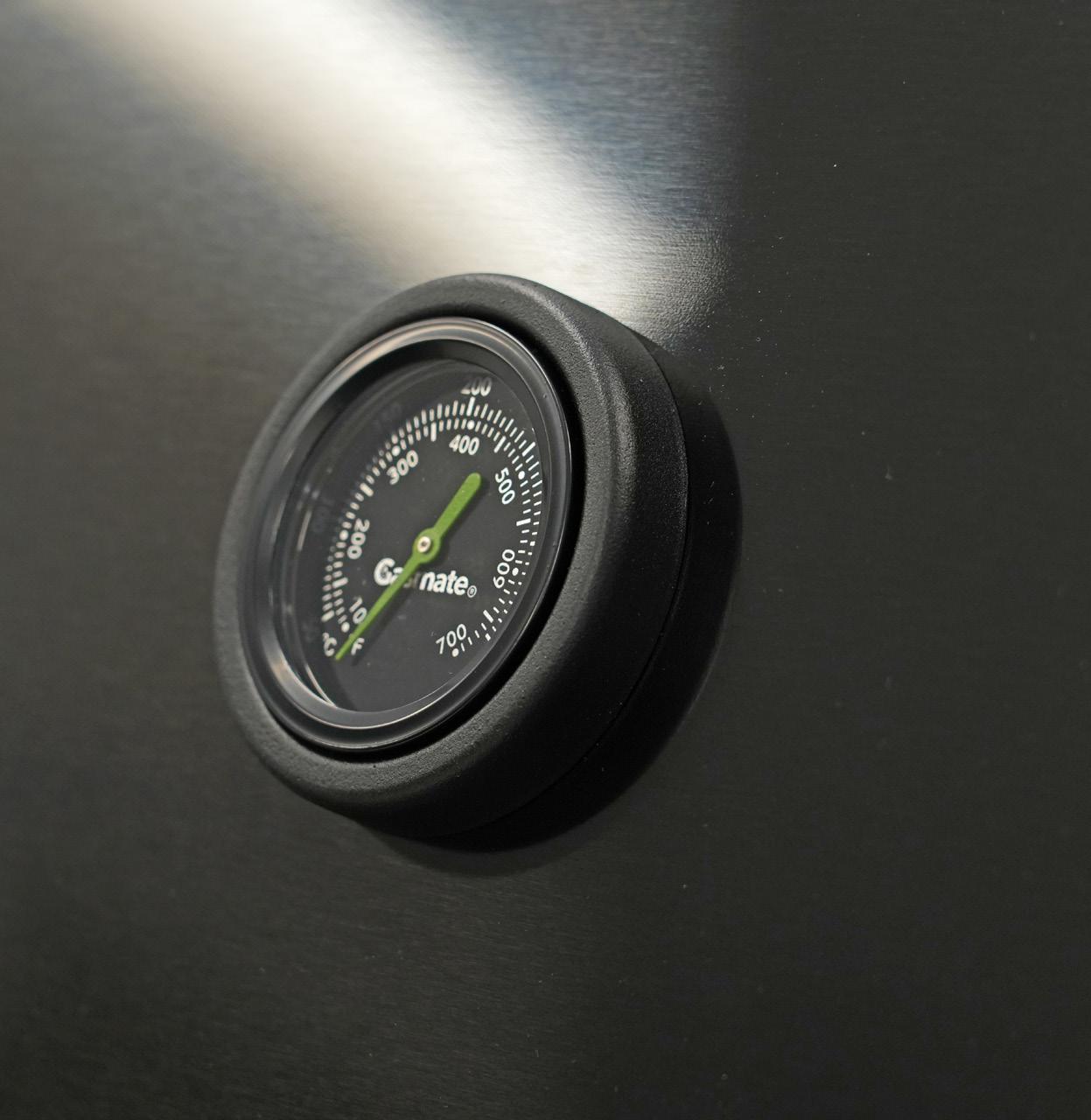

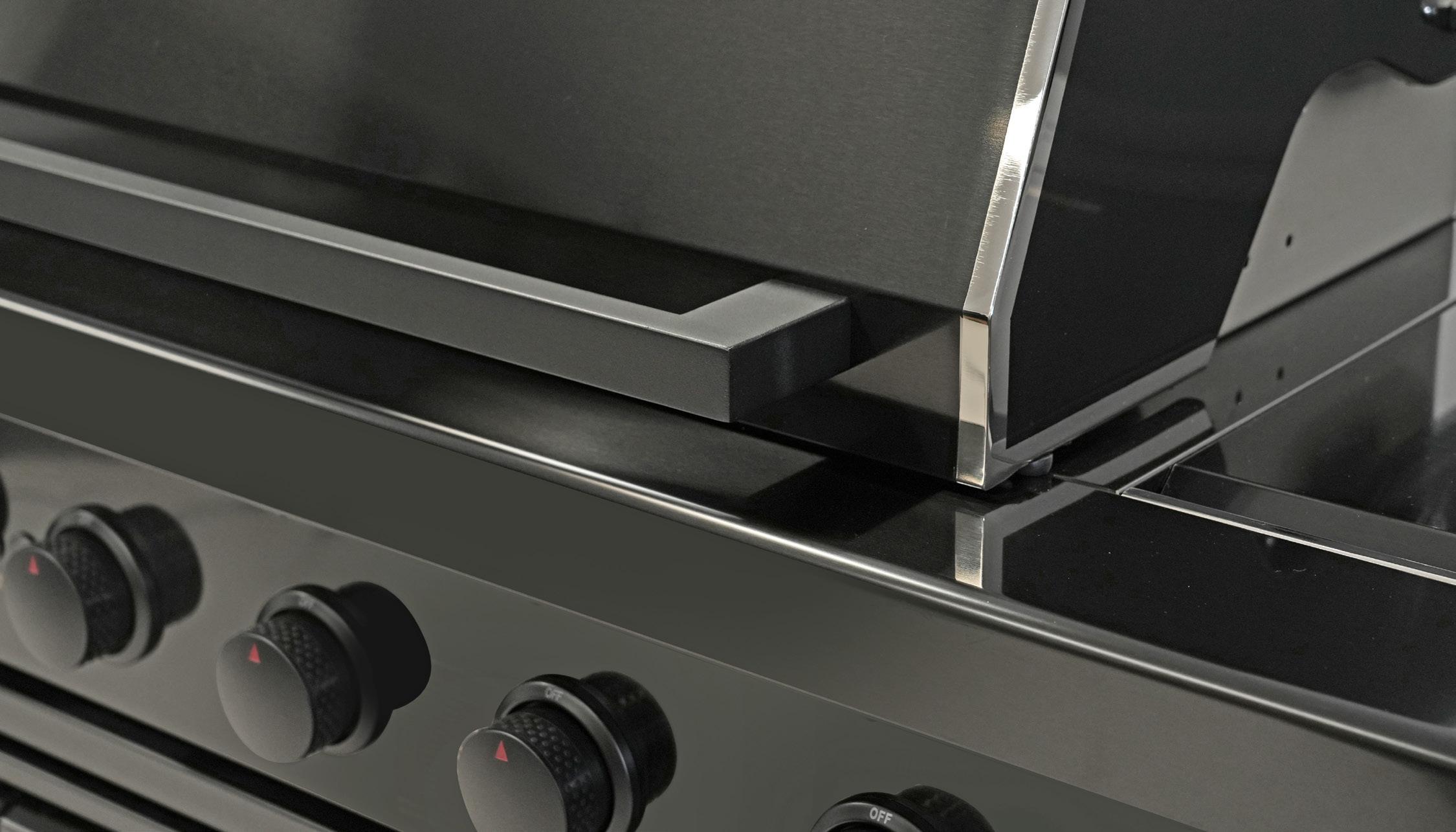

Refreshed temperature gauge with darker accent details

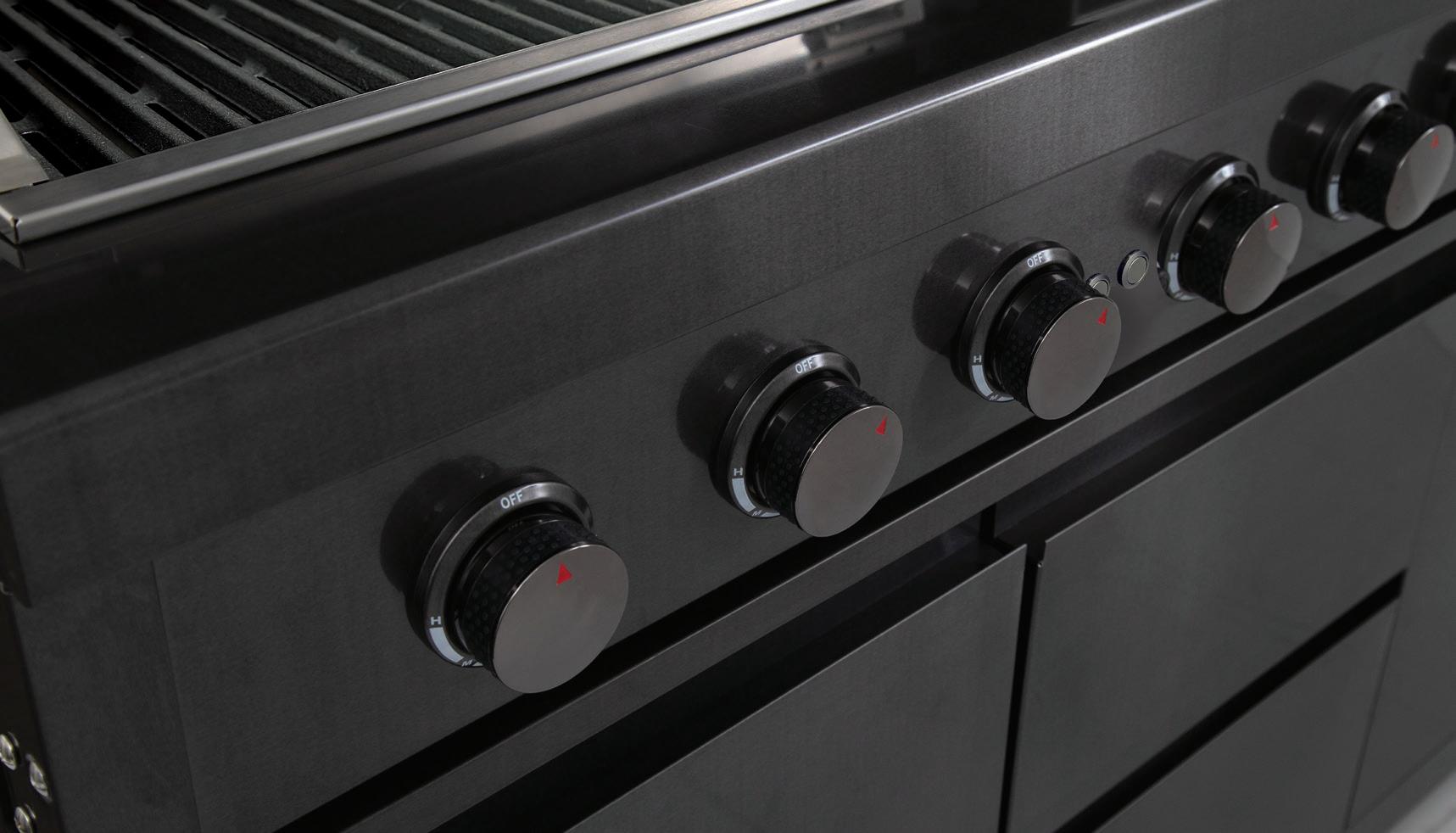

New ignition and lighting switch design

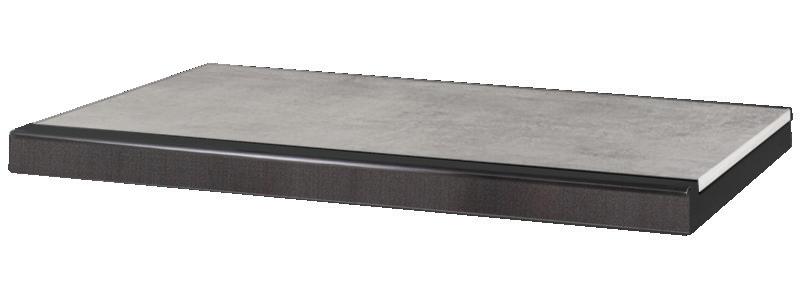

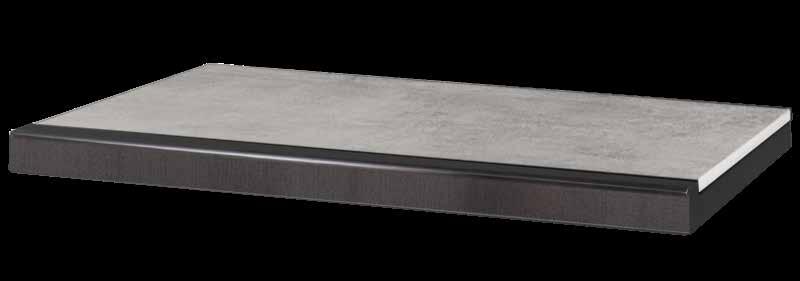

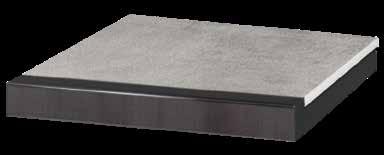

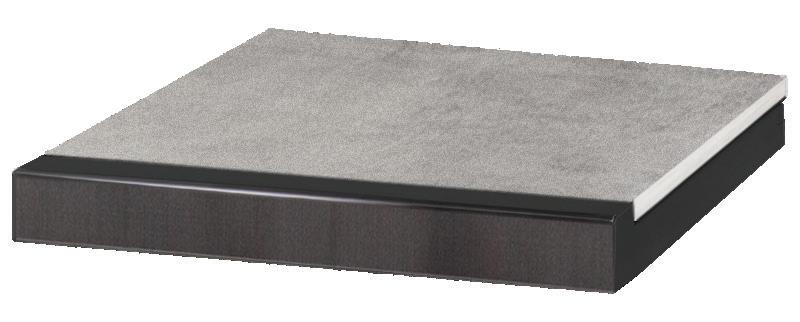

Modules feature new upgraded sintered stone benchtops which are incredibly durable, 100% UV stable and resistant to scratching and high temperatures. These benchtops are also designed and built to withstand the variable Aussie climate, from heavy rain to hot sunny days.

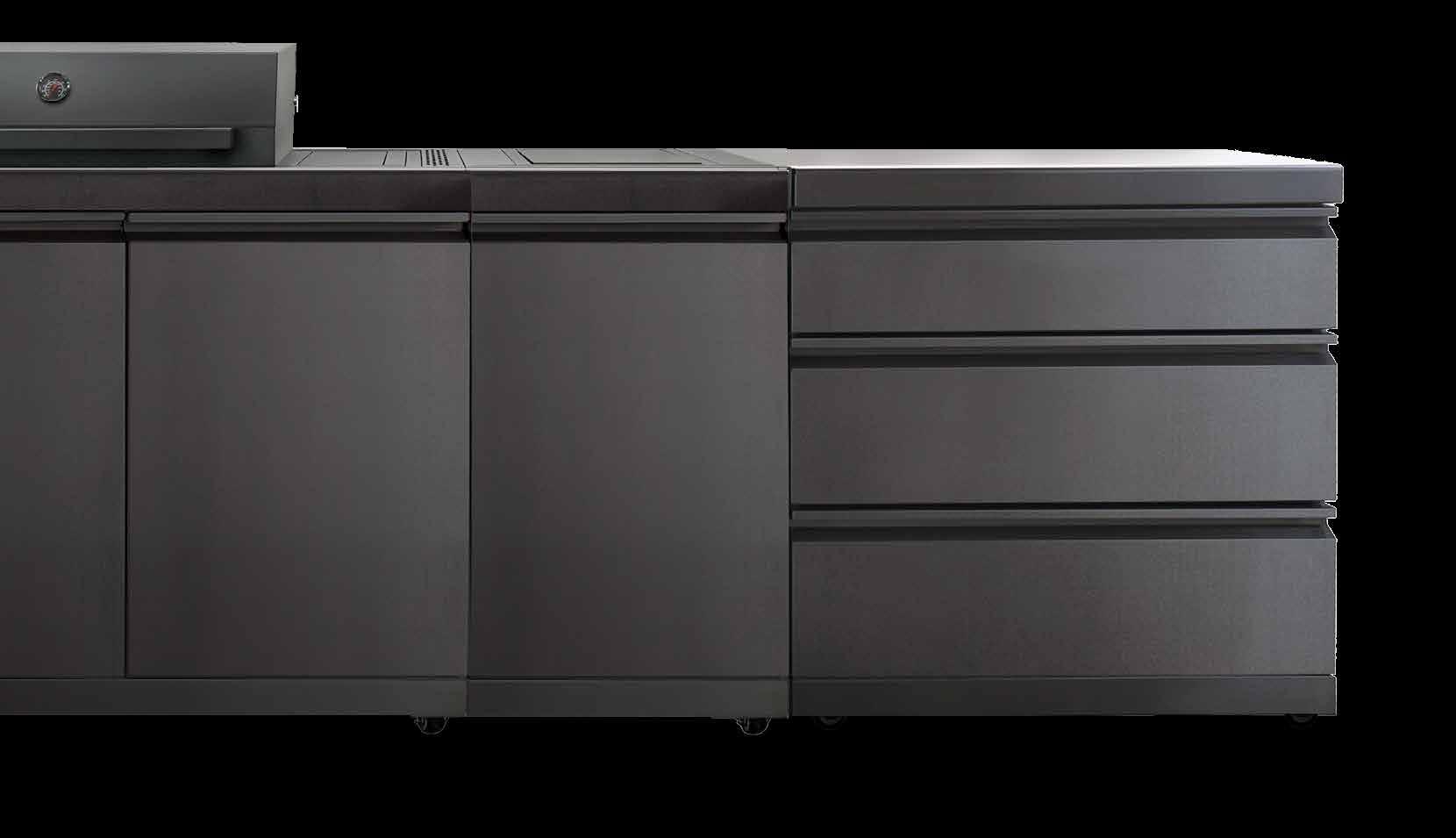

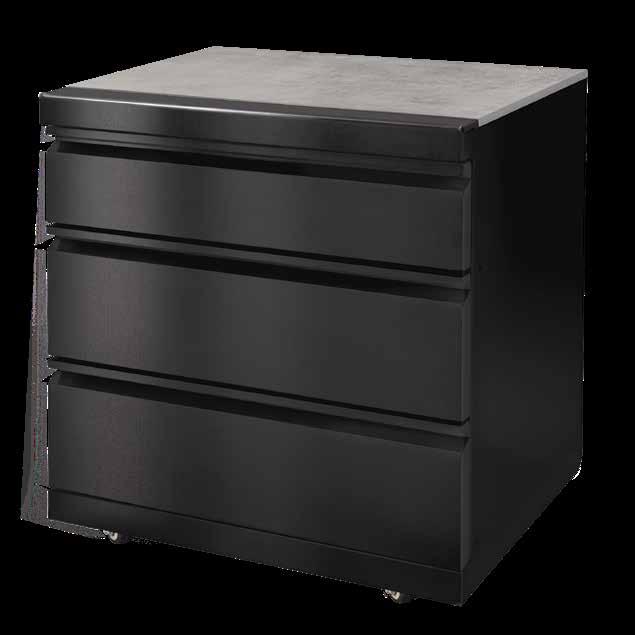

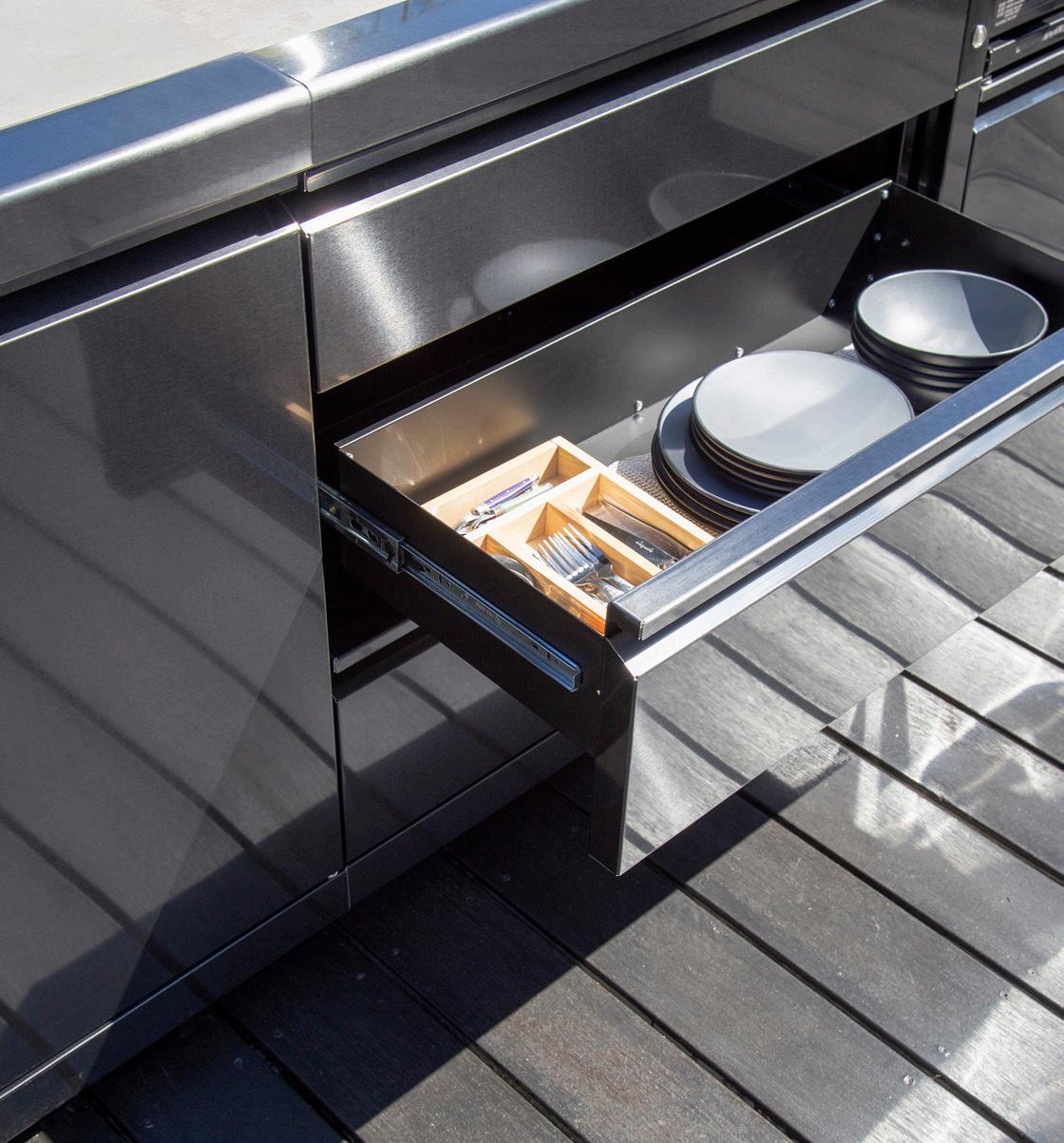

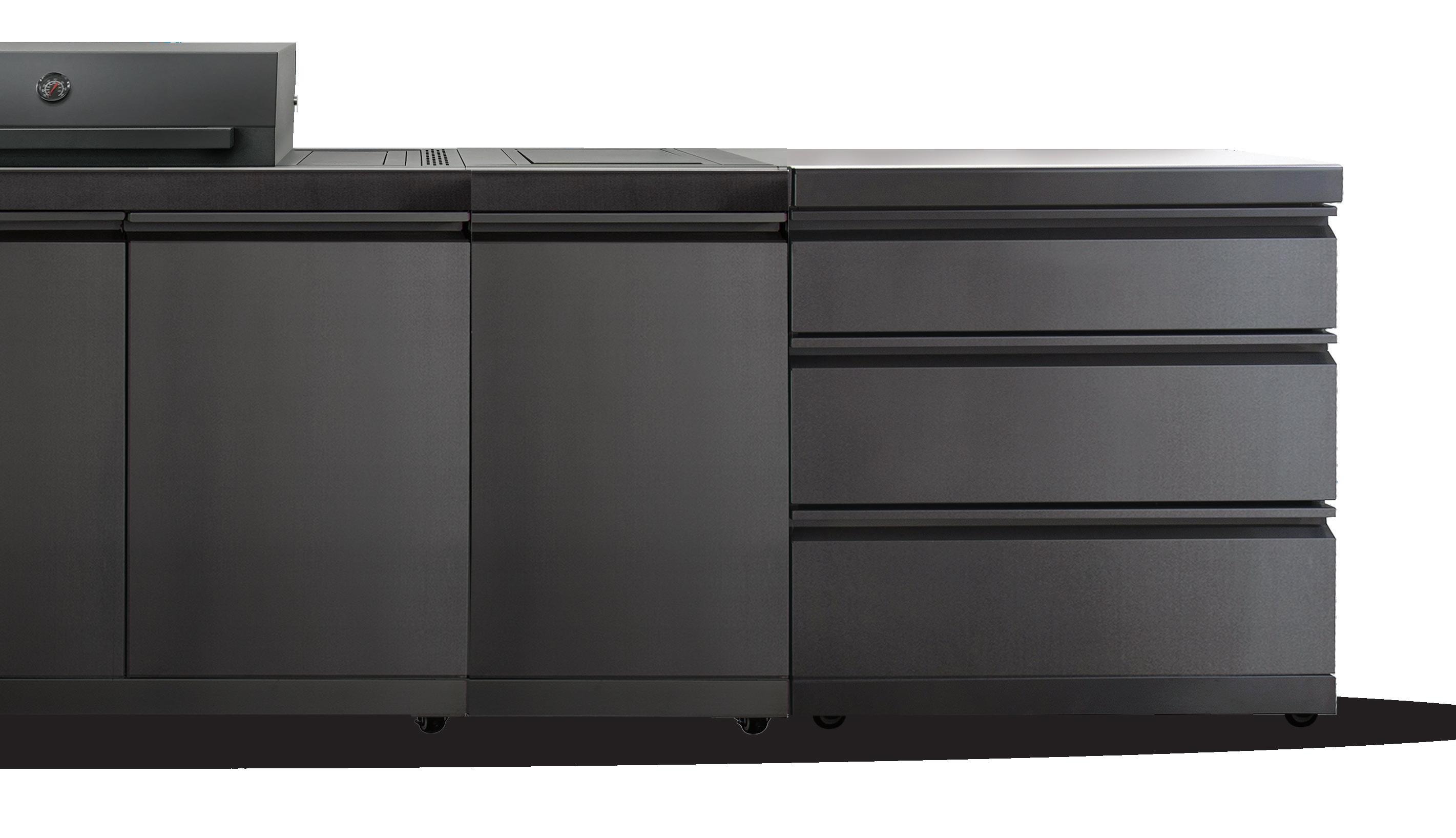

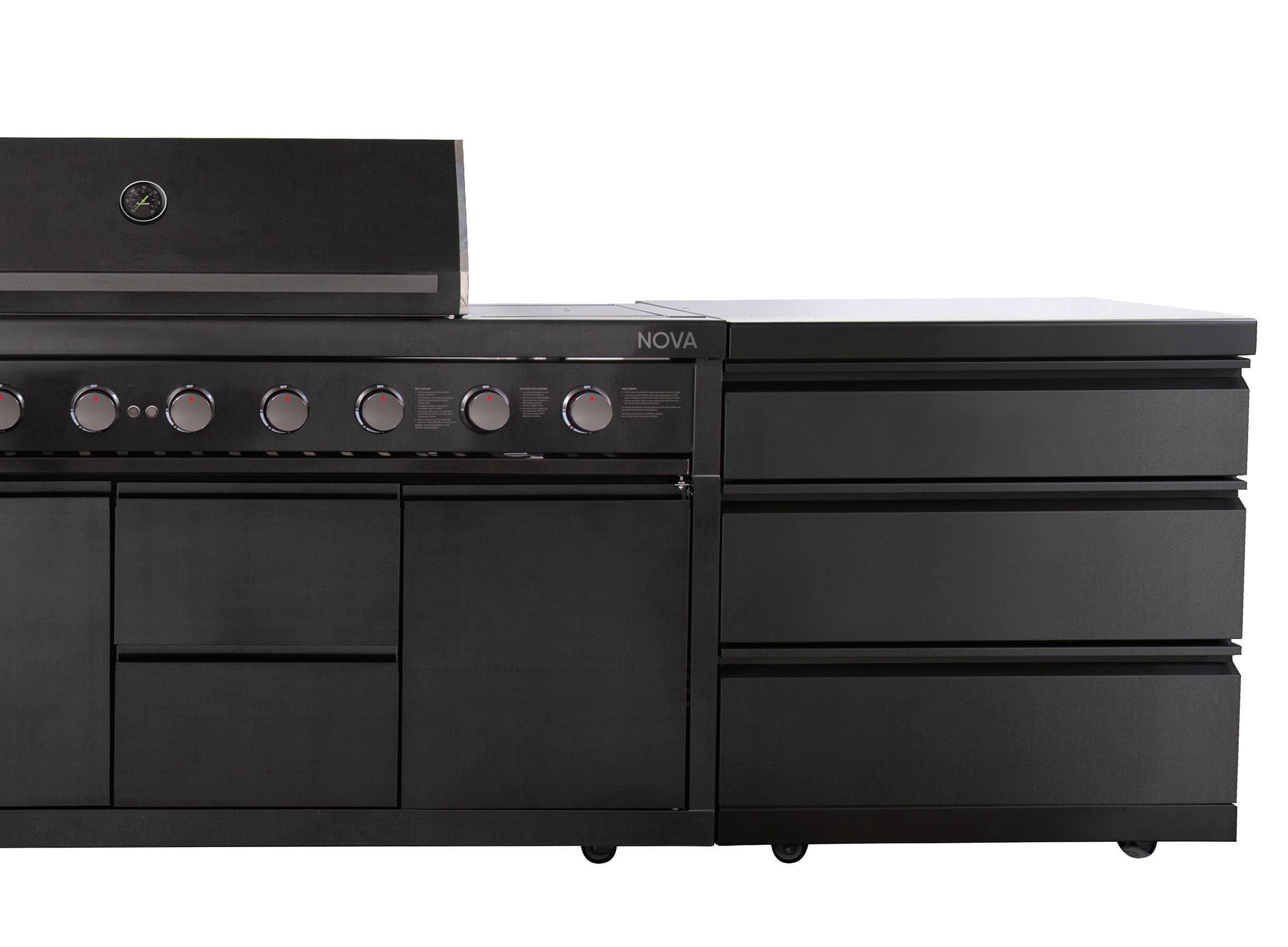

Gasmate NOVA MK2 Drawer Module.

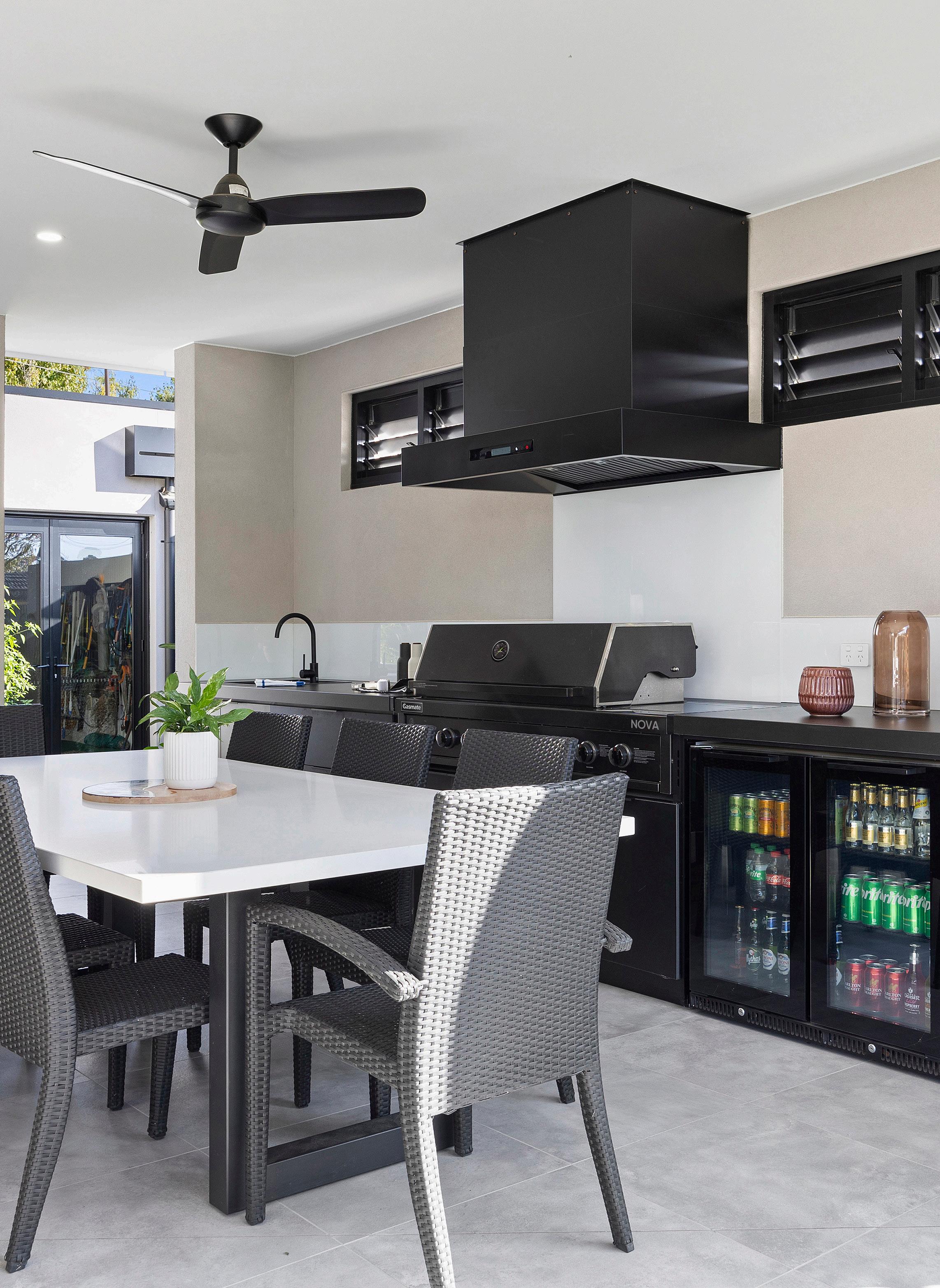

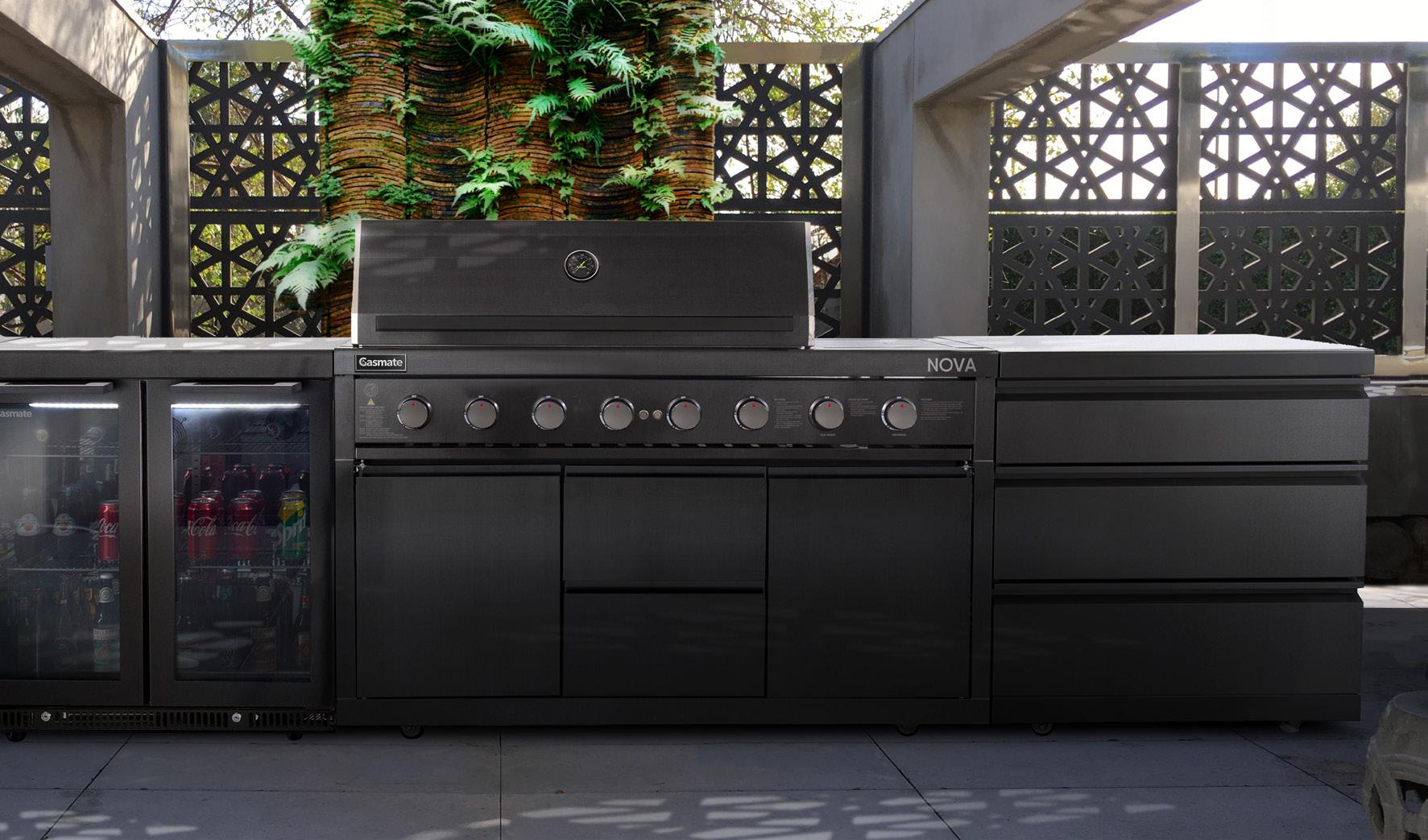

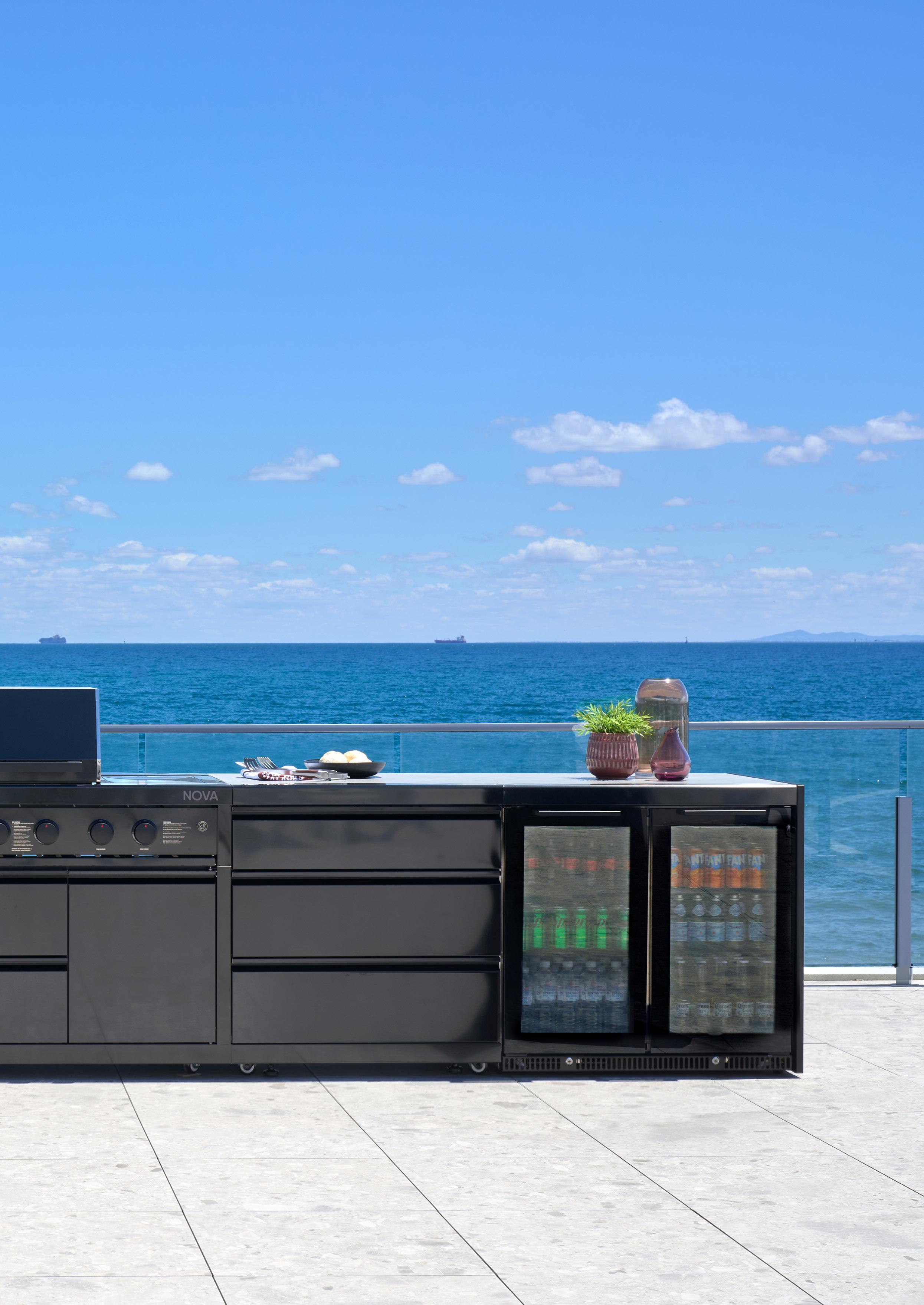

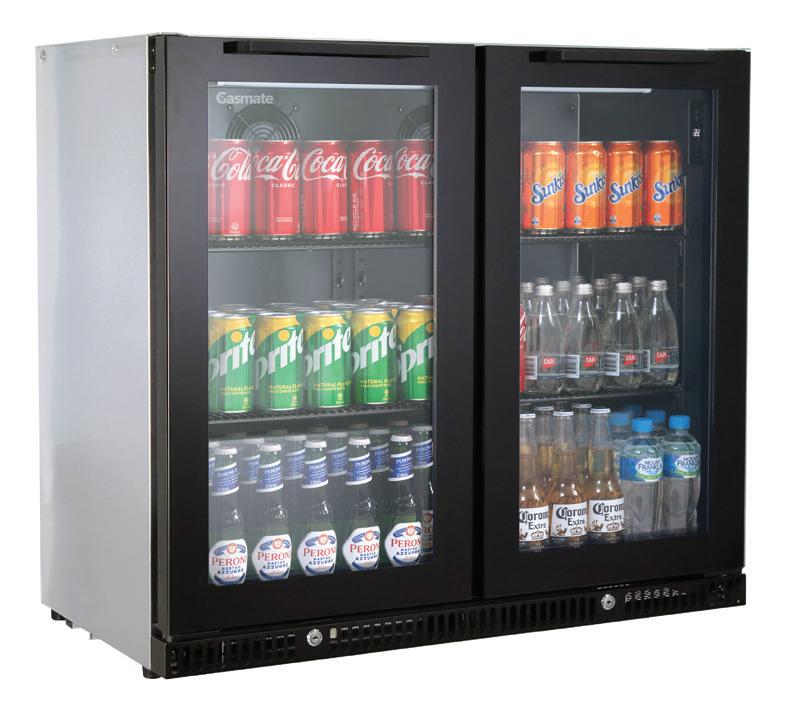

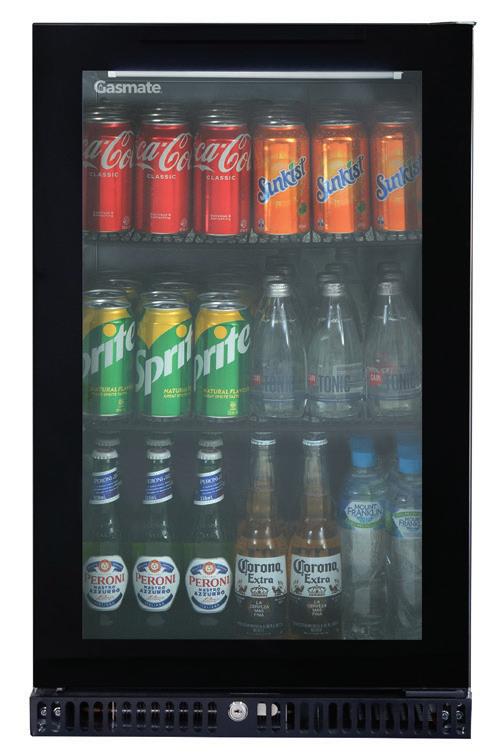

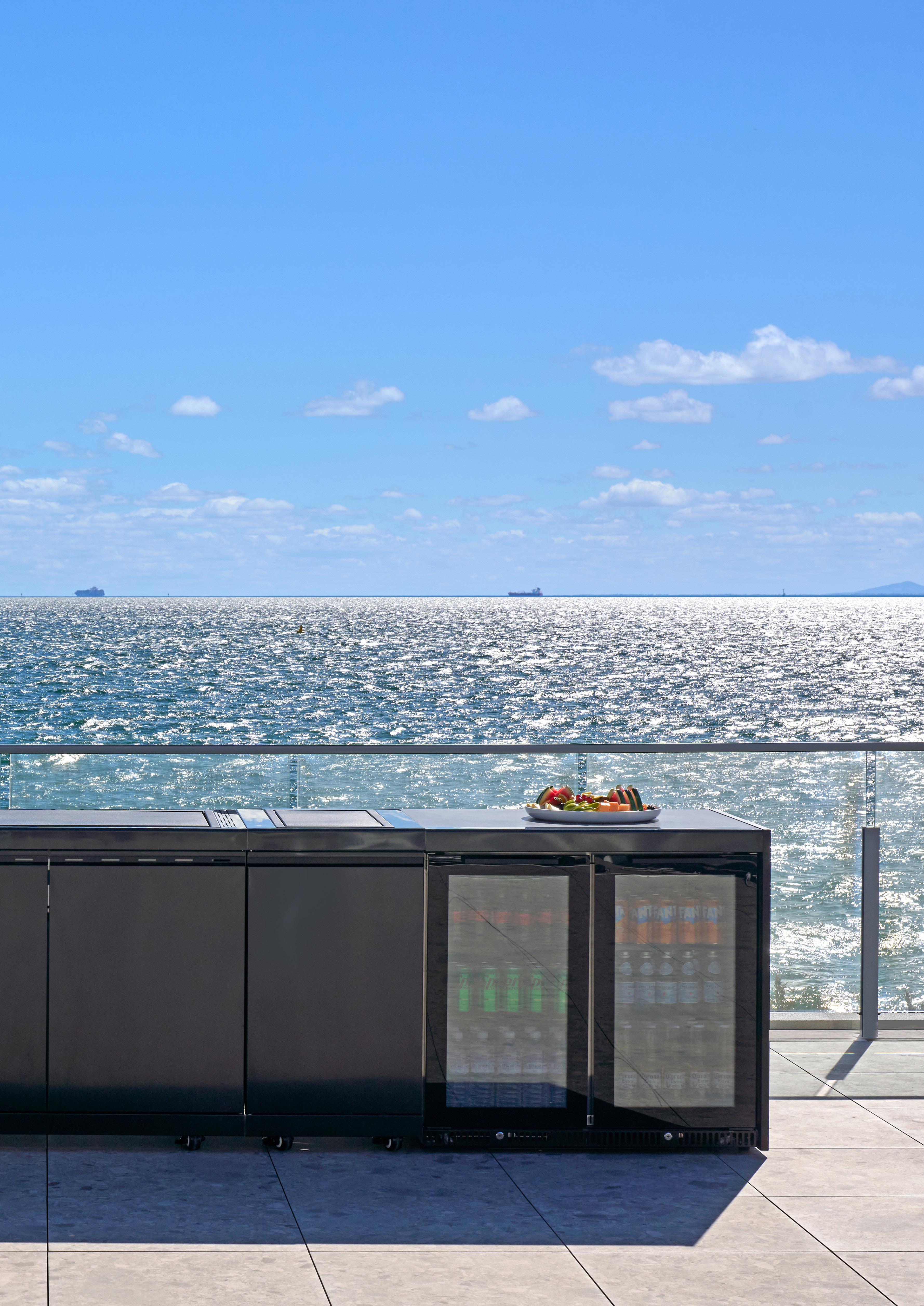

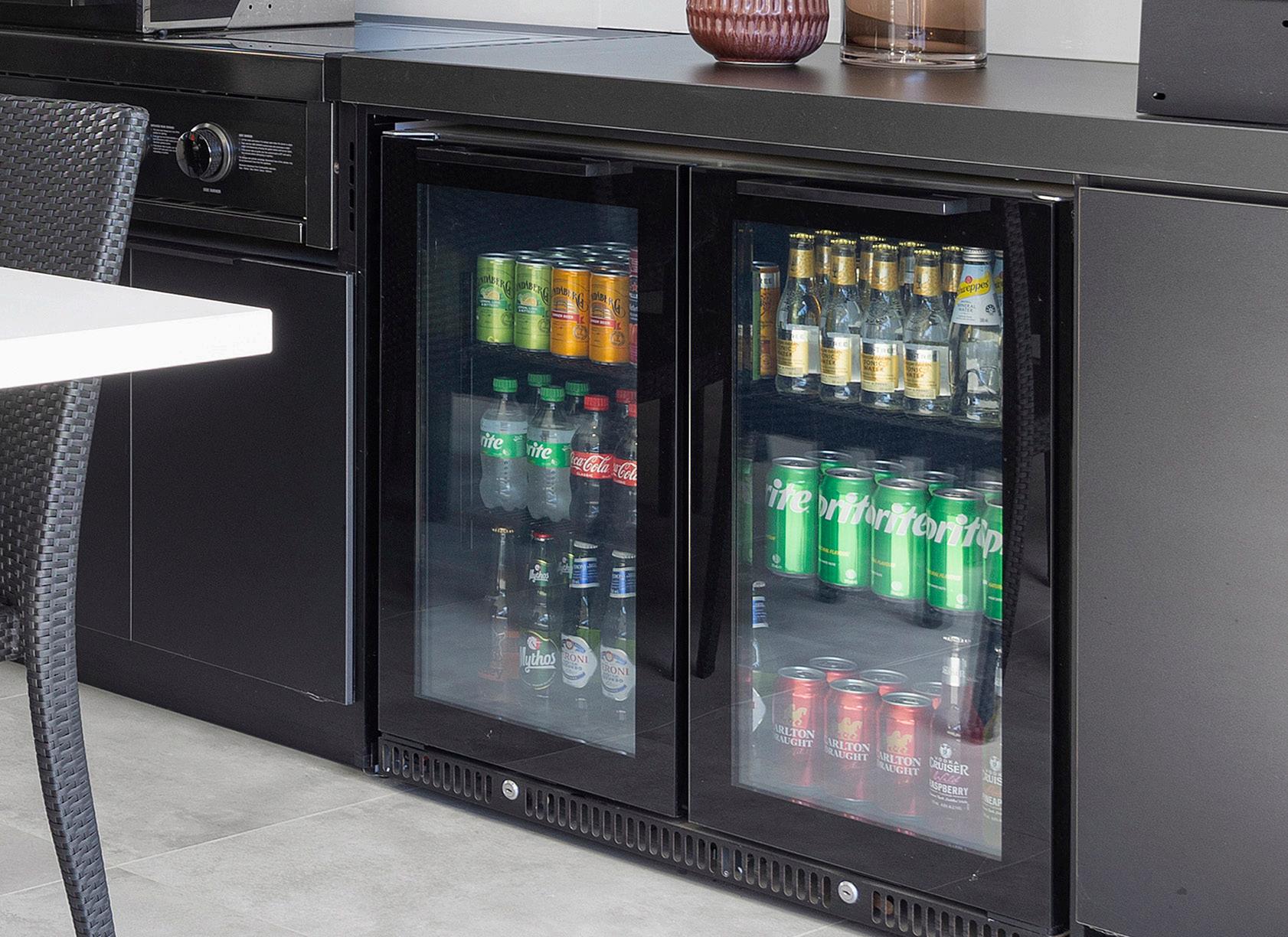

Gasmate Double Door Fridge, model BFR2088 with Gasmate Nova premium bar fridge top.

gasmate.com.au | 5

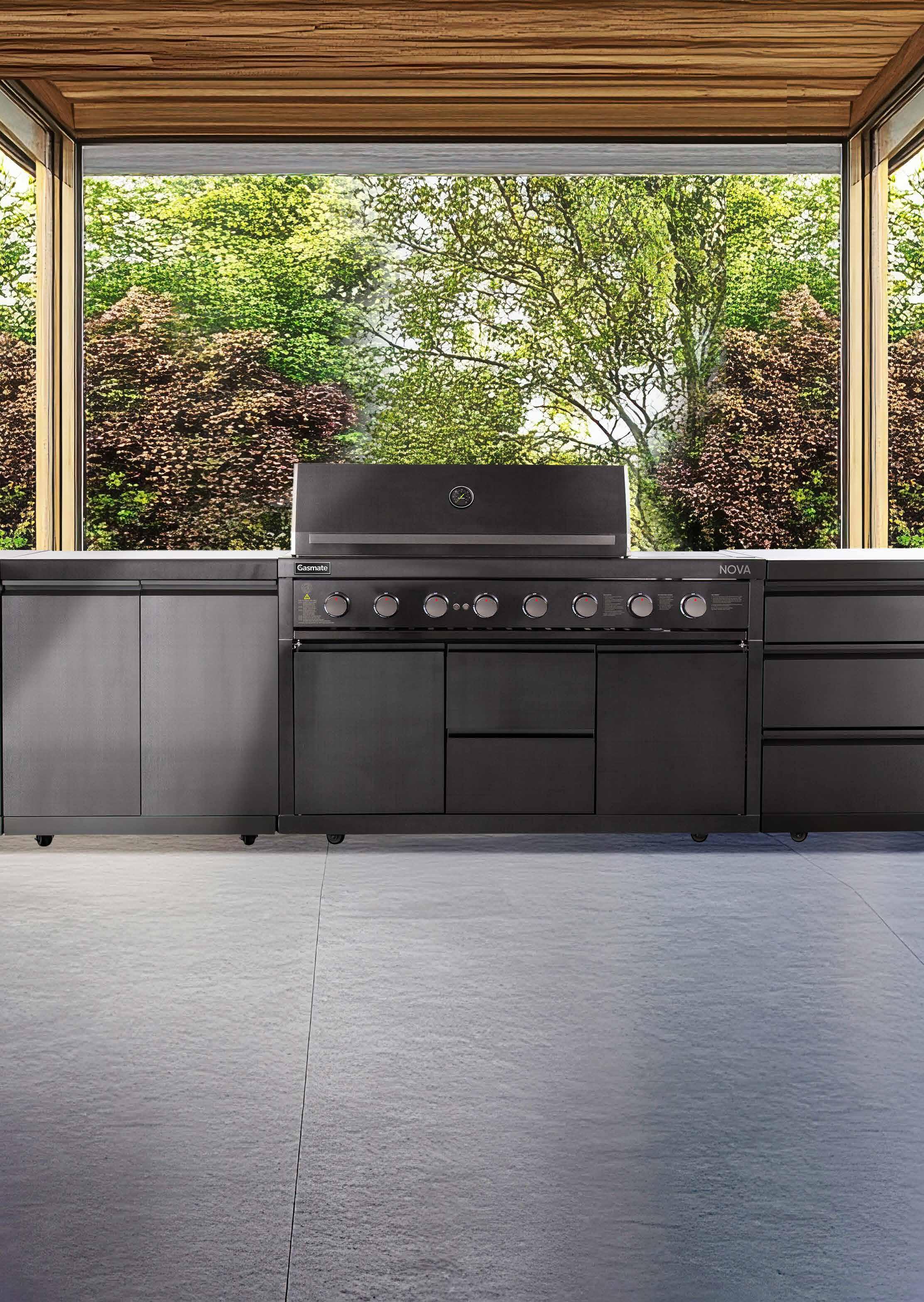

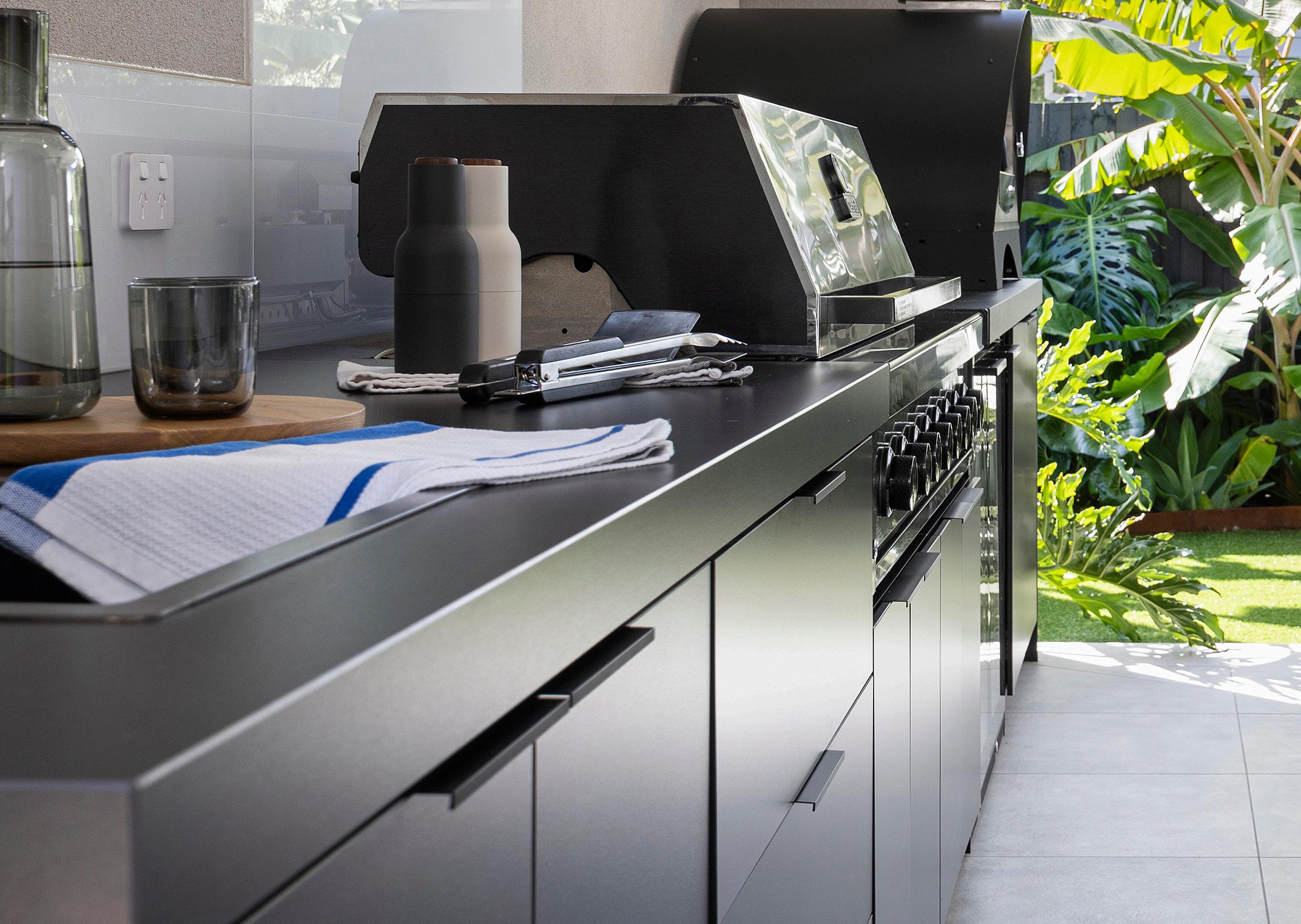

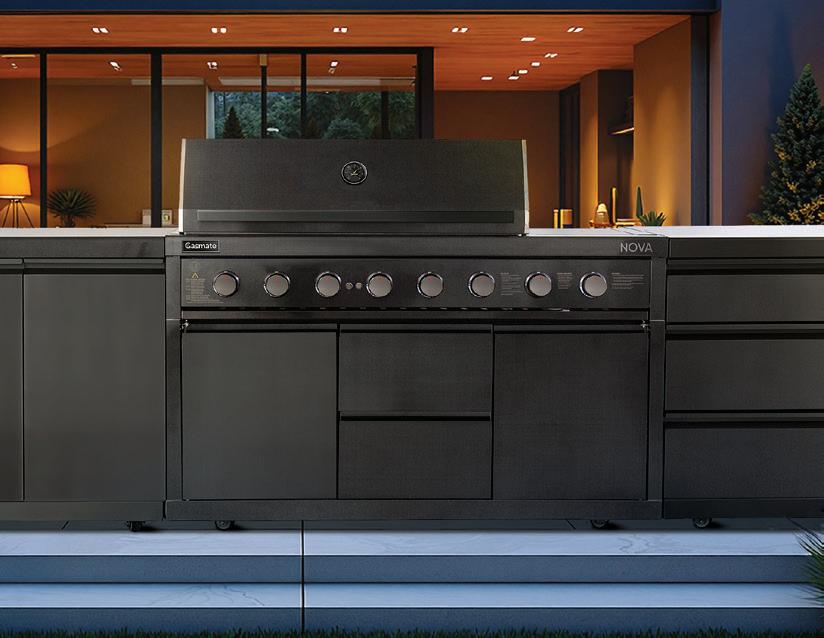

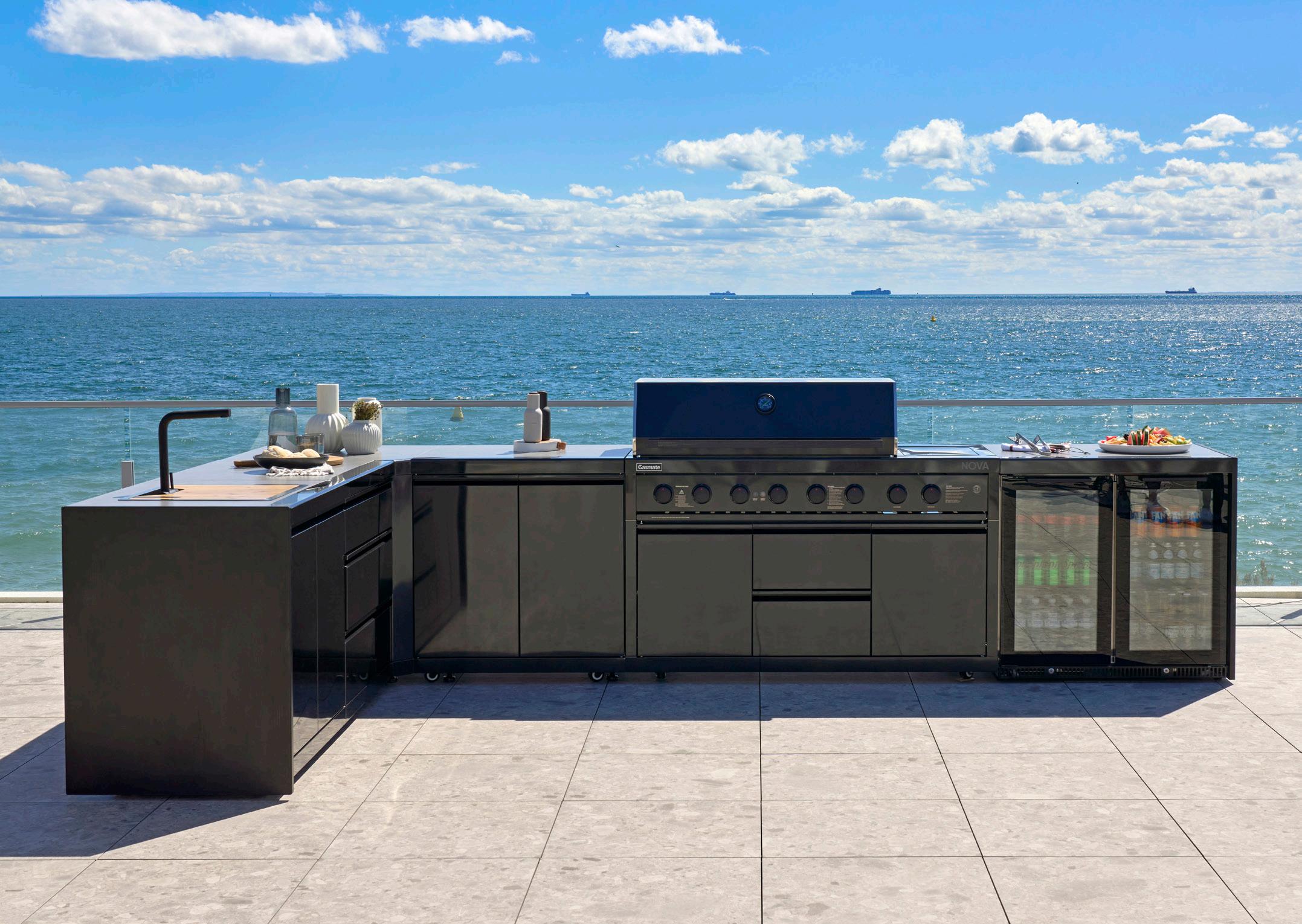

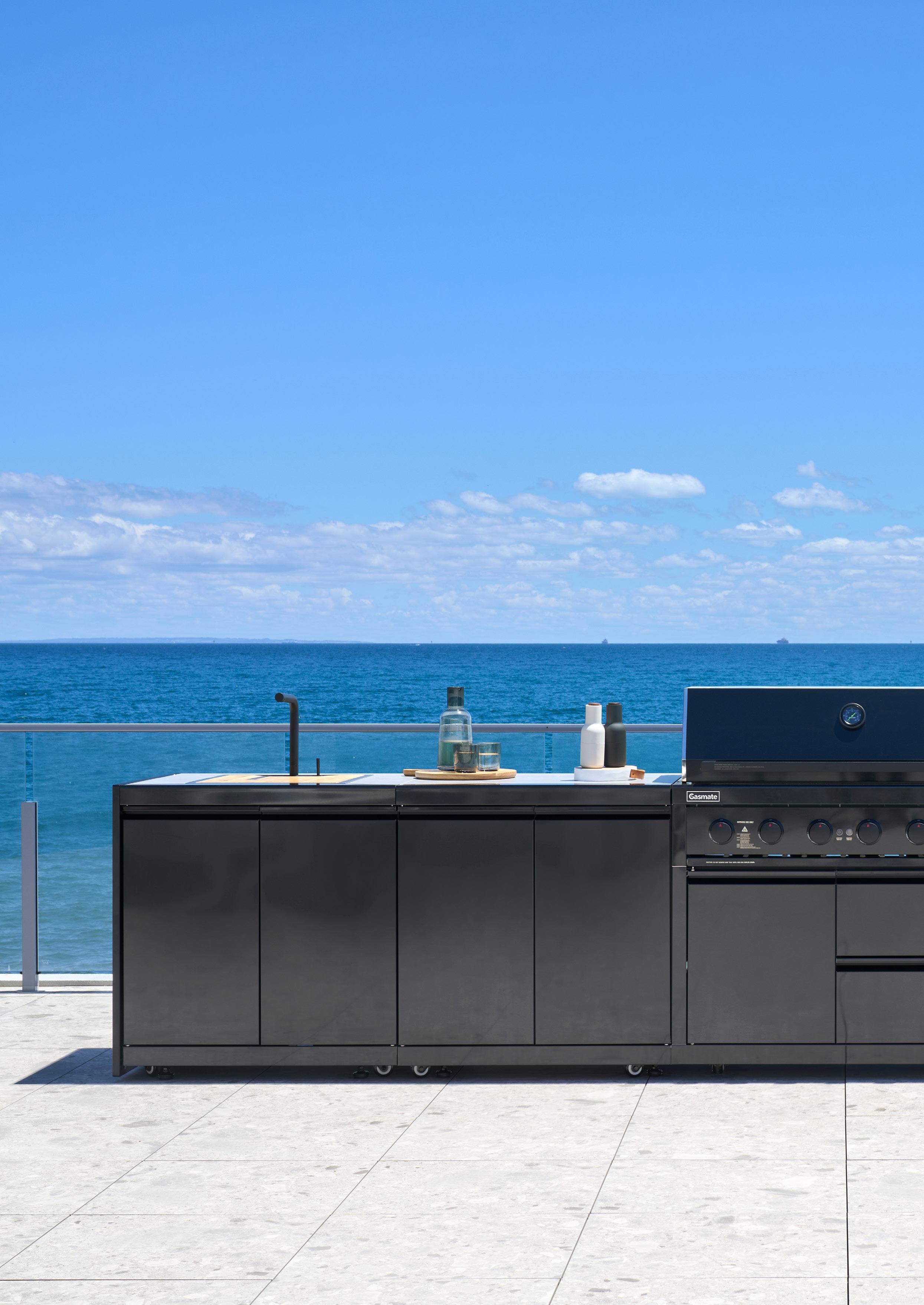

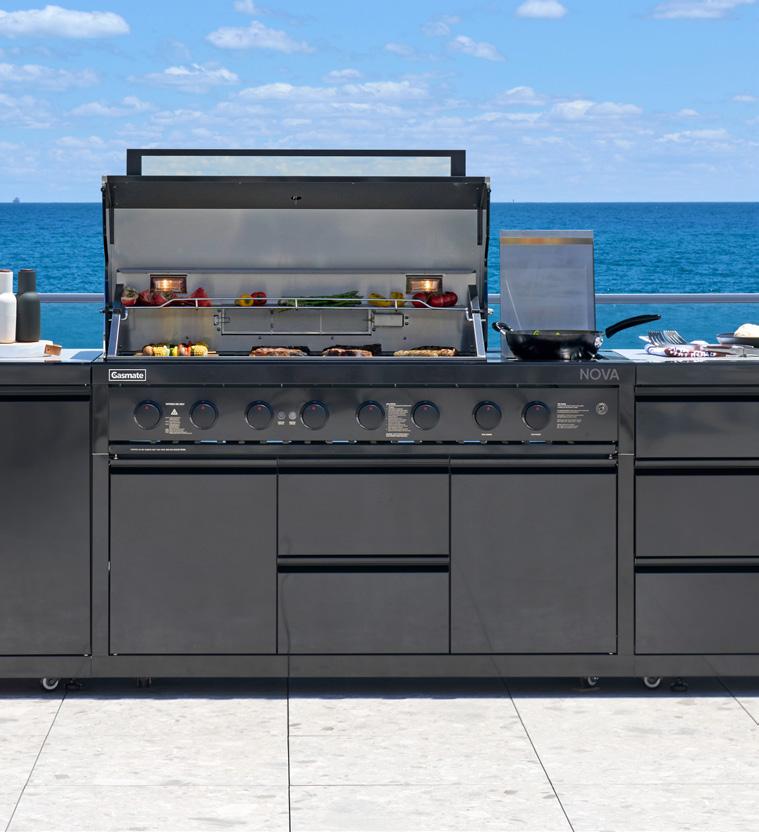

The Gasmate NOVA MK2 Outdoor Kitchen brings a new level of style, versatility, and performance to your alfresco area. With a modern matte Graphite stainless steel finish, it blends effortlessly into contemporary outdoor spaces - pairing beautifully with timber decking or lighter tones for striking contrast.

The new NOVA MK2 BBQ now features flame failure safety technology, which automatically cuts off the gas if the flame goes out, offering added peace of mind. Plus, the internal module dimensions have also been reworked to make rear service connections simpler and more efficient.

The upgraded sintered stone benchtops are incredibly durable and built to withstand outdoor conditions, while adding a sleek, premium feel.

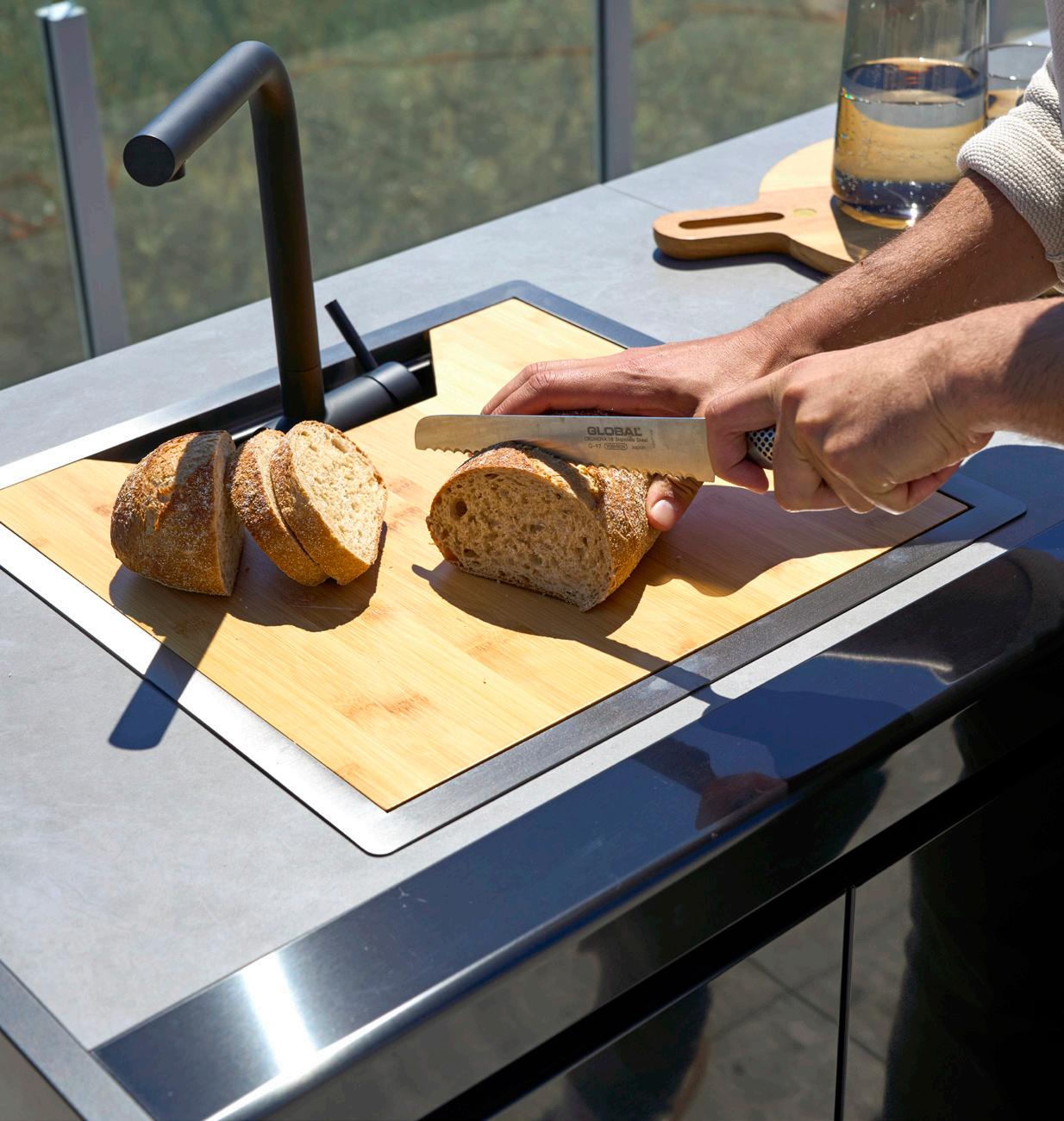

The sink now includes an over-the-sink chopping board - perfect for prepping veggies or meat without losing valuable bench space.

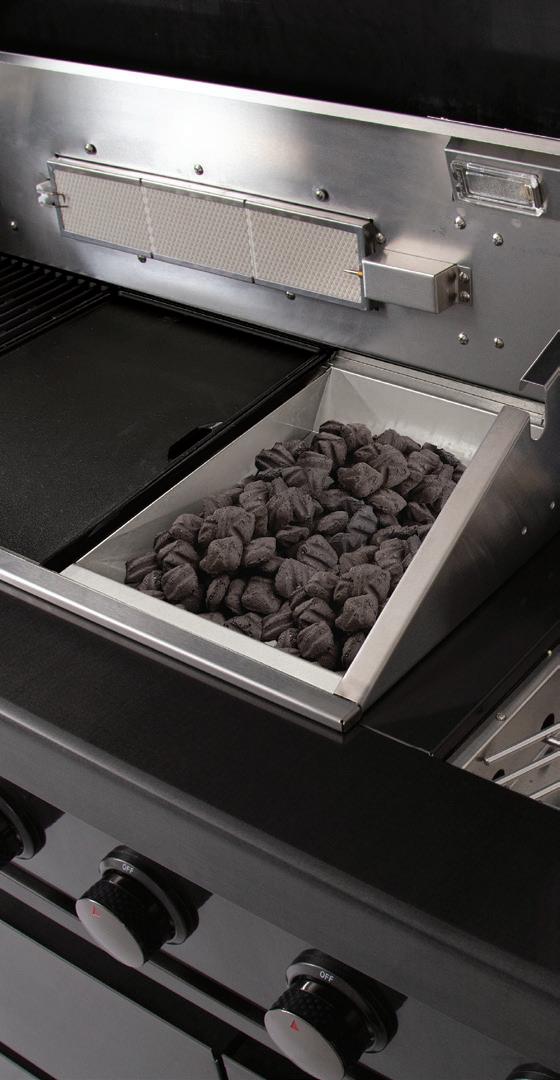

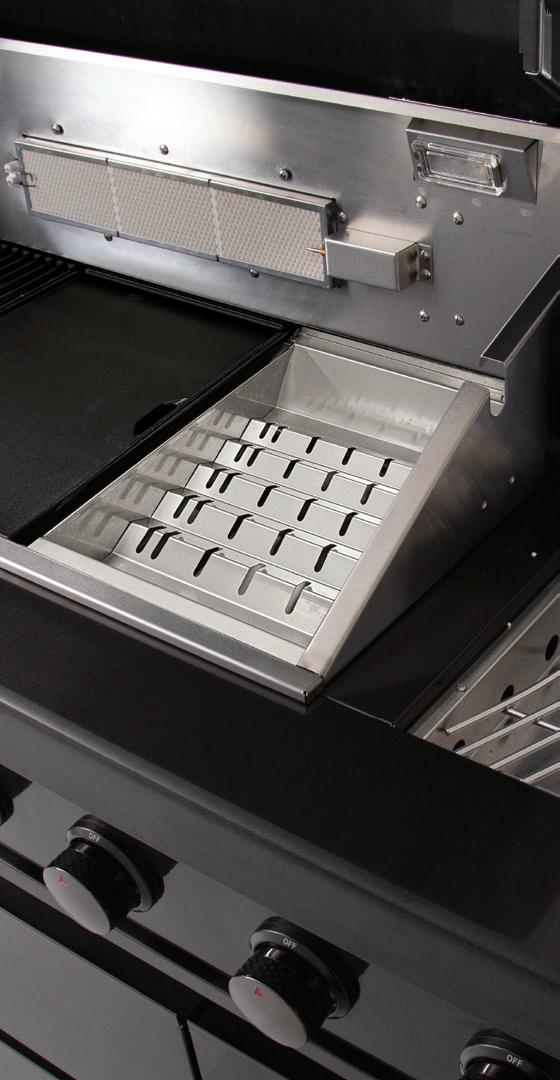

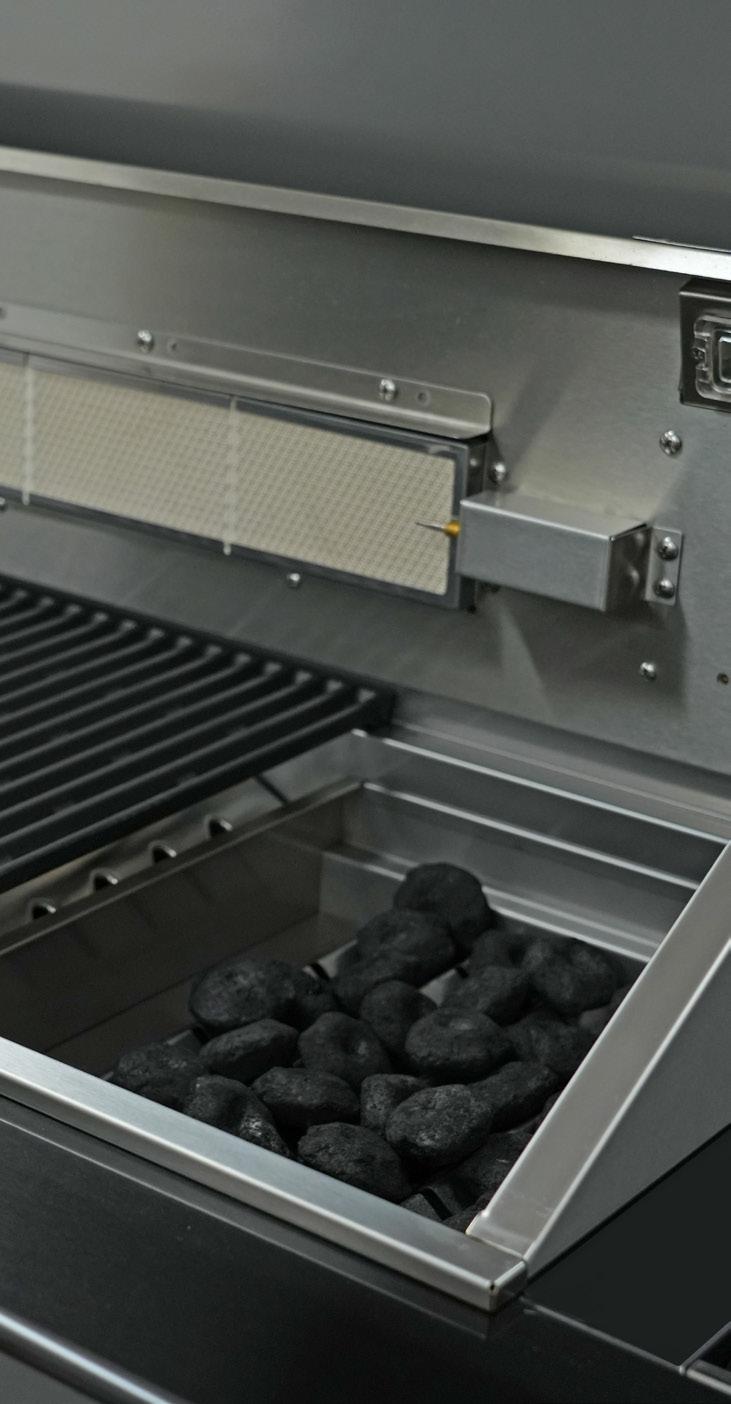

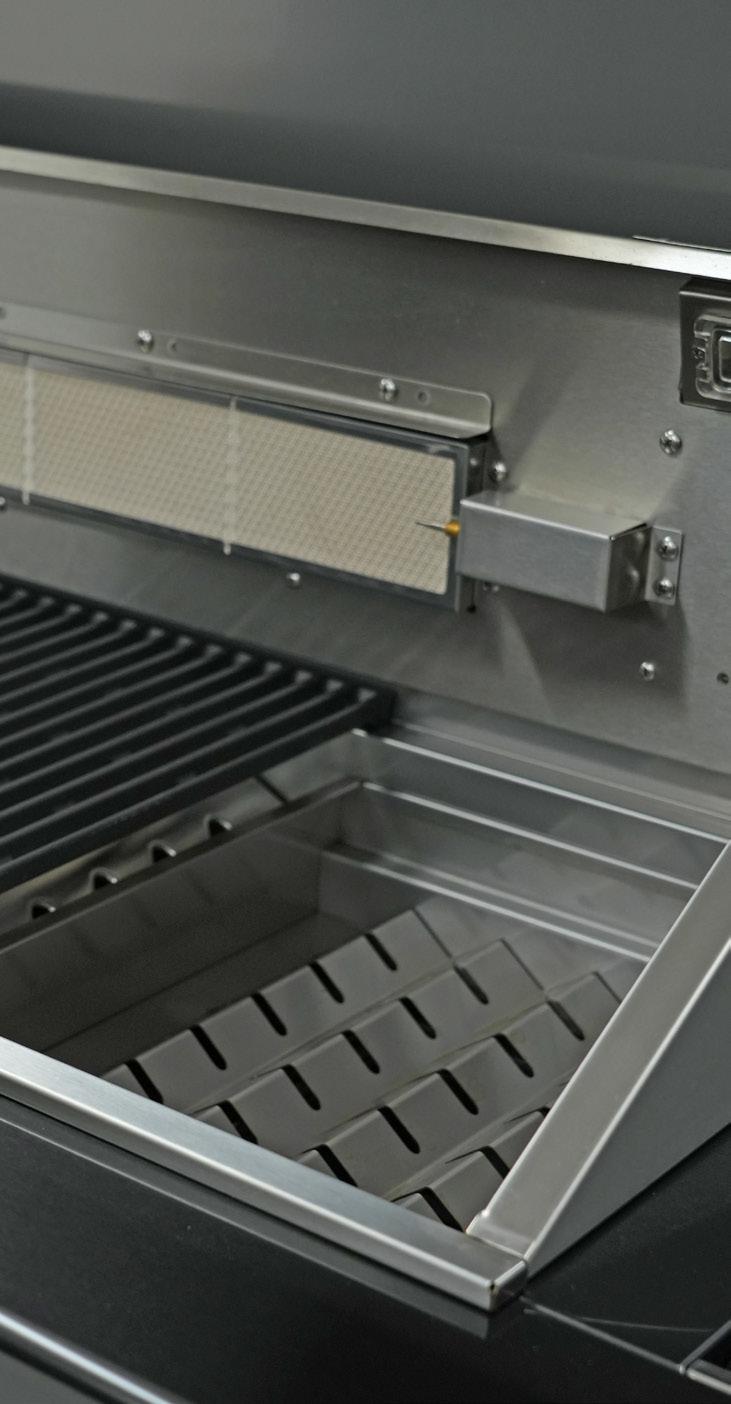

Expand your cooking options with a rotisserie kit and charcoal tray now included with BBQ modules .

With its modern design and cleverly refined features, the NOVA MK2 Modular Outdoor Kitchen delivers everything you need to cook, entertain, and enjoy your outdoor space in style.

6 | Gasmate Nova MK2

gasmate.com.au | 7

New!

NOVA MK2 BBQs

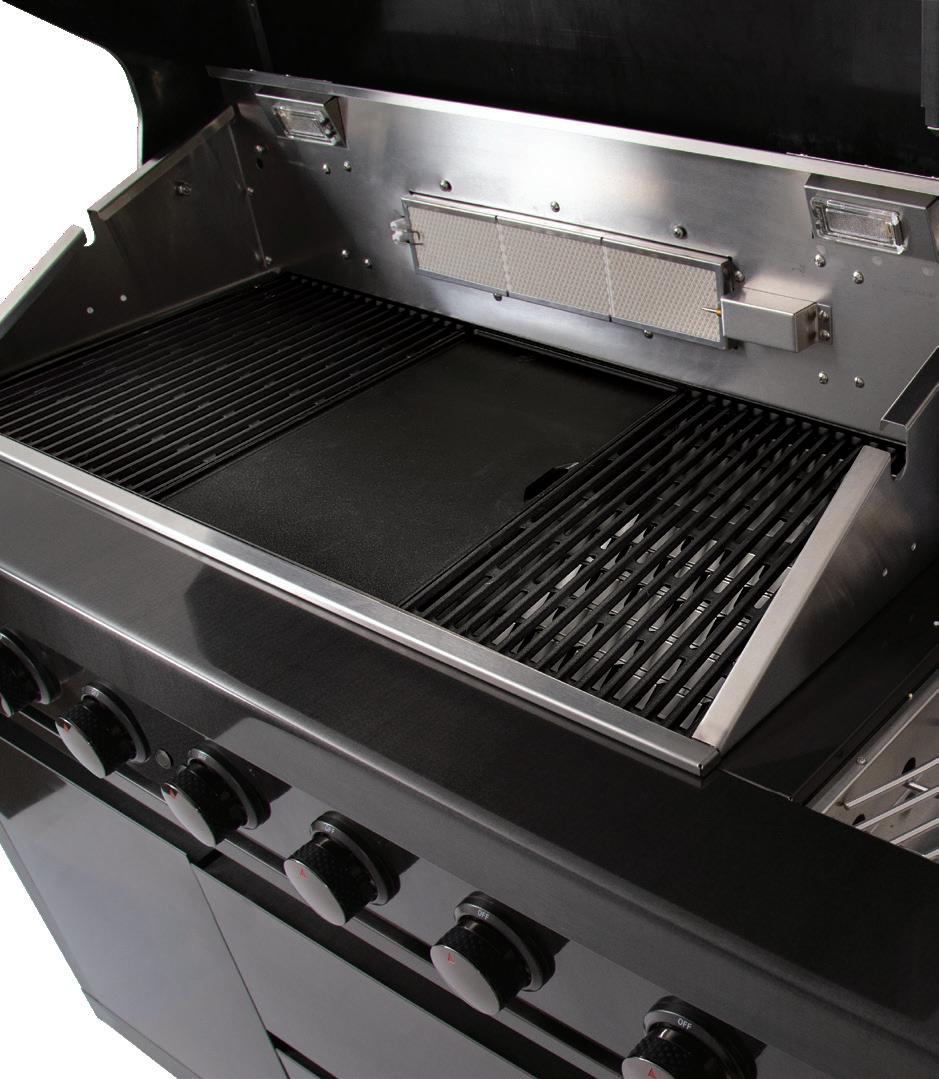

• Now featuring flame failure safety technology, which automatically cuts off the gas if the flame goes out, offering added peace of mind.

• Provides up to an impressive 114MJ/h high heat output, with a total of six burners, a side burner, and a rear rotisserie burner • High grade Graphite #304 stainless steel hood, doors and drawer fronts with powder coated internal cabinets • Double skin hood for solid structure and better heat insulation, features temperature gauge and stylish slim cool touch handle • Easy to clean, heavy duty enamel coated cast iron plate and grill • Stainless steel flame tamers for controlled heat distribution and to minimise cooking fats flaring up • Stainless steel burners with individual controls give a consistent flame from front to back, providing even and efficient heat distribution • Electronic ignition for effortless lighting • Supplied with charcoal tray for duel fuel cooking options & rotisserie kit • Convenient internal lights and LEDs above control knobs • Elevated high grade #304 stainless steel cooking and warming rack • Cabinet features ample storage with convenient slide-out cylinder storage and locking castors • Supplied with LCC27 Safe Lok® regulator and hose (LPG model only) • AGA Certified to Australian standards

FULLY ASSEMBLED

GRAPHITE STAINLESS STEEL FINISH

6 STAINLESS STEEL BURNERS

#304 STAINLESS STEEL HOOD

HIGH HEAT RATING

HEAVY DUTY ENAMEL COATED CAST IRON PLATE

STAINLESS STEEL FLAME TAMERS

ELECTRONIC IGNITION

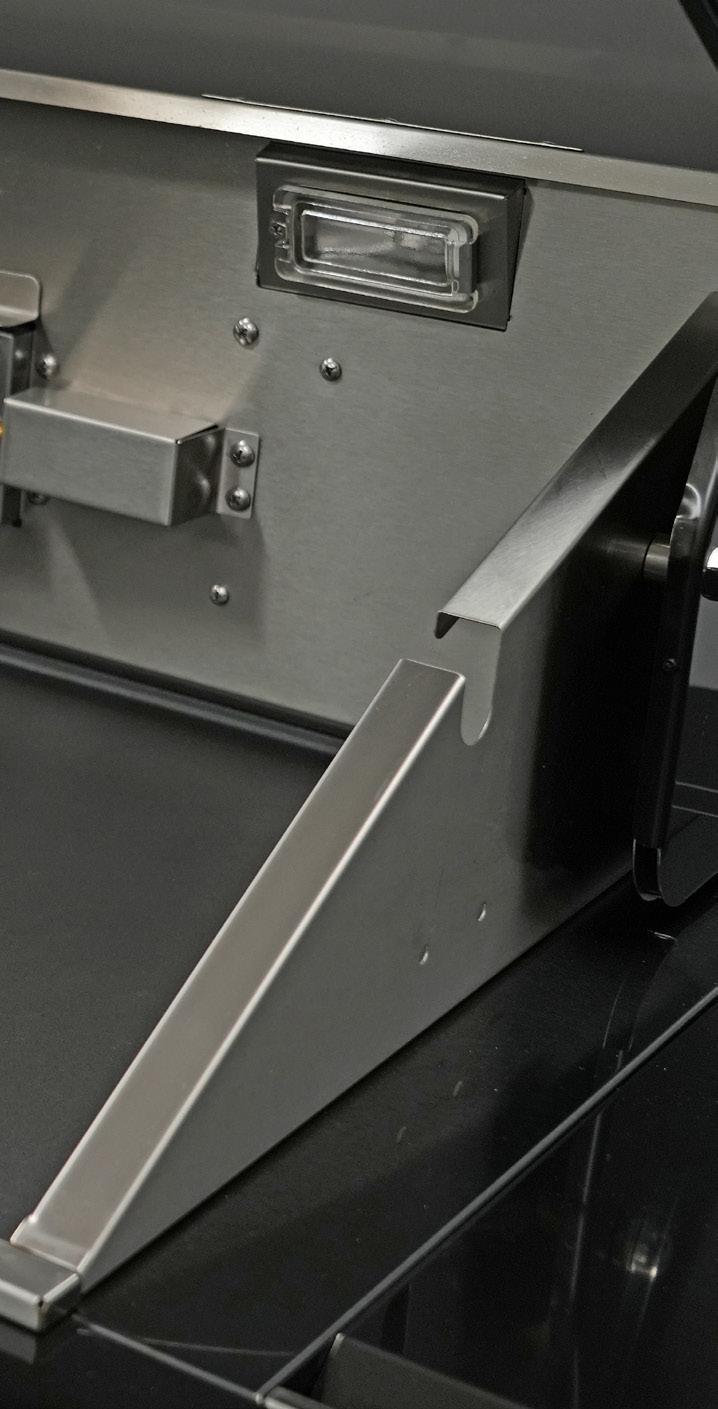

INTERNAL LIGHTS

STAINLESS STEEL COOKING & WARMING RACK

GAS CERTIFIED TO AUSTRALIAN STANDARDS

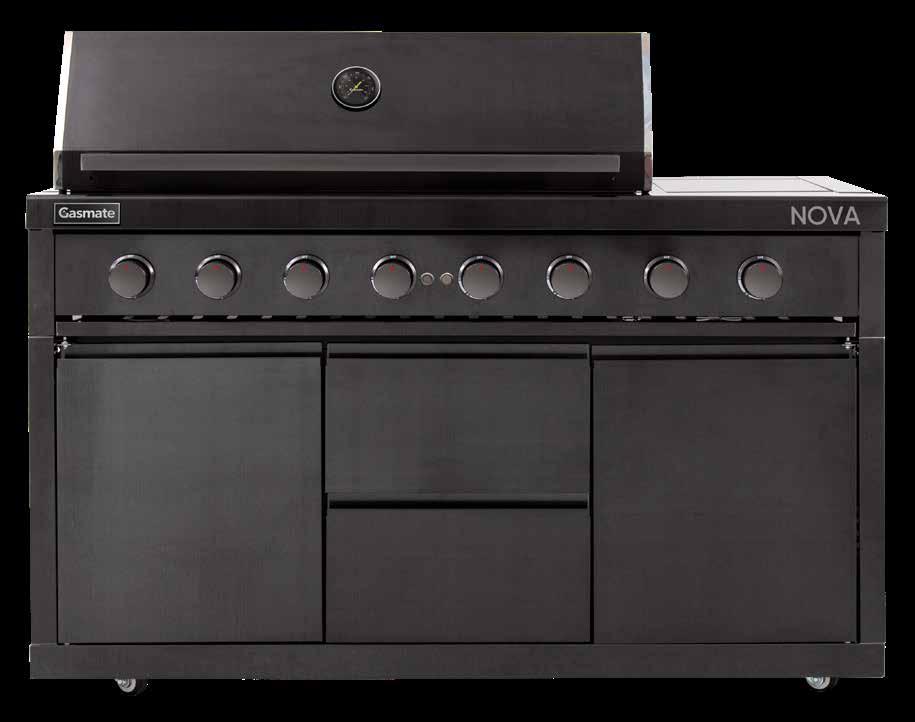

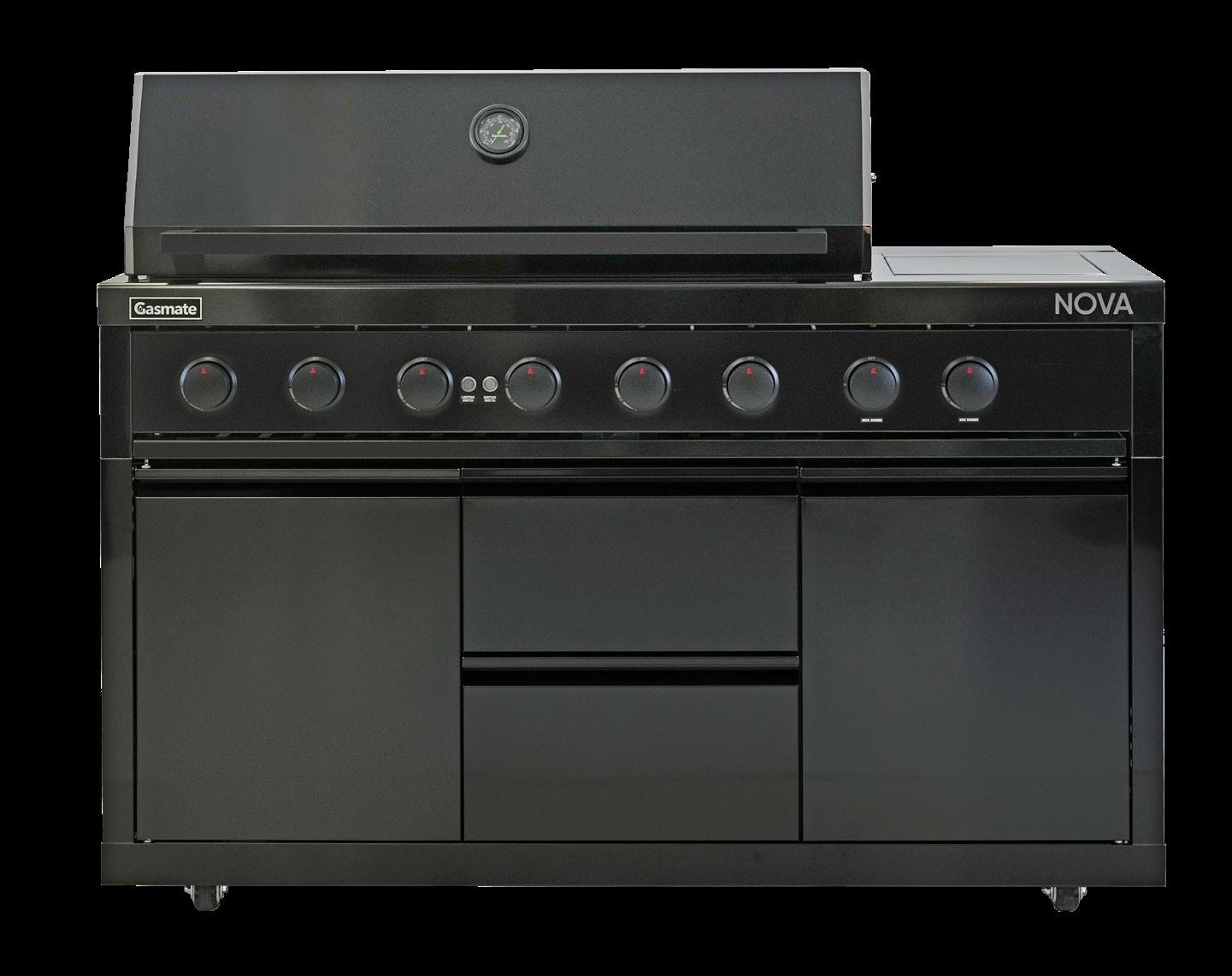

NOVA MK2 6 BURNER BBQ Model Number:

BQ29F (Propane)

BQ29NGF (Natural Gas)

Main burner output:

6 x 14MJ/h

6 x 13.7MJ/h

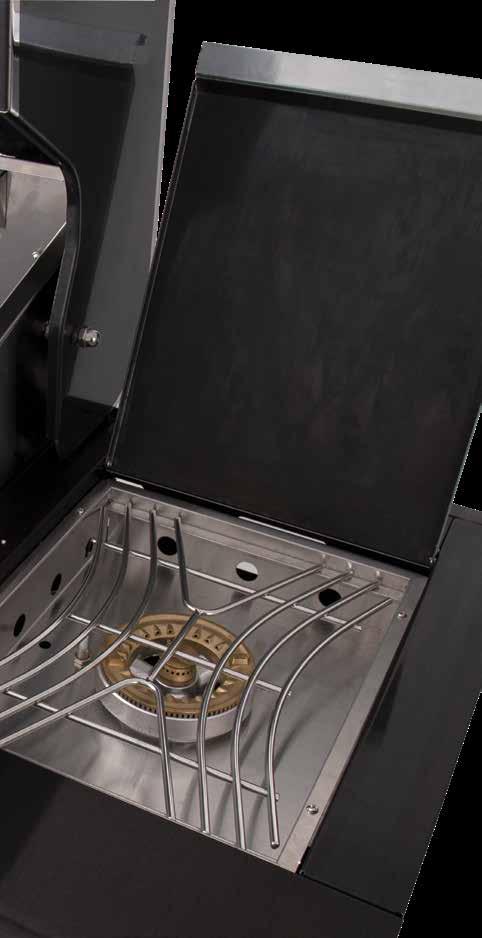

Side burner output:

17MJ/h

14MJ/h

Rear burner output:

1 x 13MJ/h

1 x 14MJ/h

Combined output:

114MJ/h

110.2MJ/h

Cooking surface finish:

Enamel coated cast iron

Hotplate & Grill (mm):

Plate - 315 W x 415 D Grill - 318 W x 415 D x 2

Total cooking area (mm): Dimensions (mm):

8 | Gasmate Nova MK2

965 W x 415 D 1470 W x 685 D x 1200 H

NOVA MK2 6 BURNER BBQ BQ29F / BQ29NGF

415mm

965mm

318mm Grill

318mm Grill

315mm Hotplate

gasmate.com.au | 9

New!

NOVA MK2 MODULES Design a space that reflects your style NOVA MK2’s modular system makes it easy.

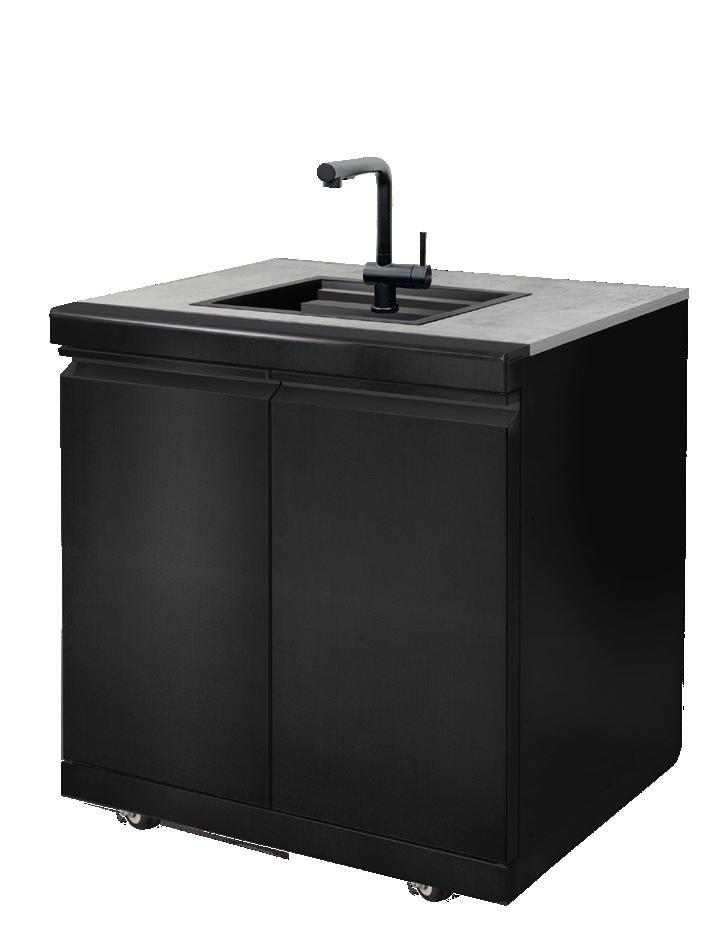

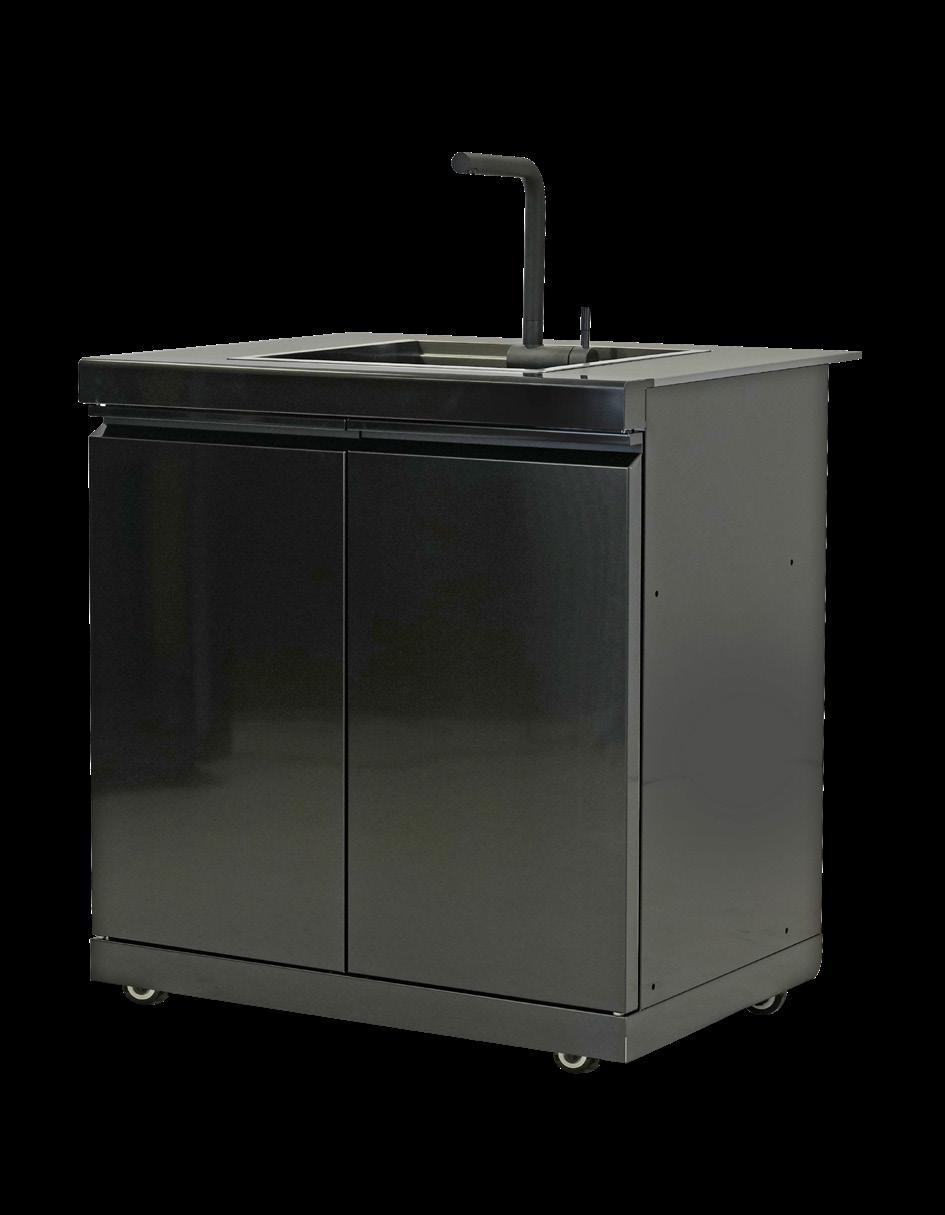

NOVA MK2 SINK, BIN AND STORAGE MODULE

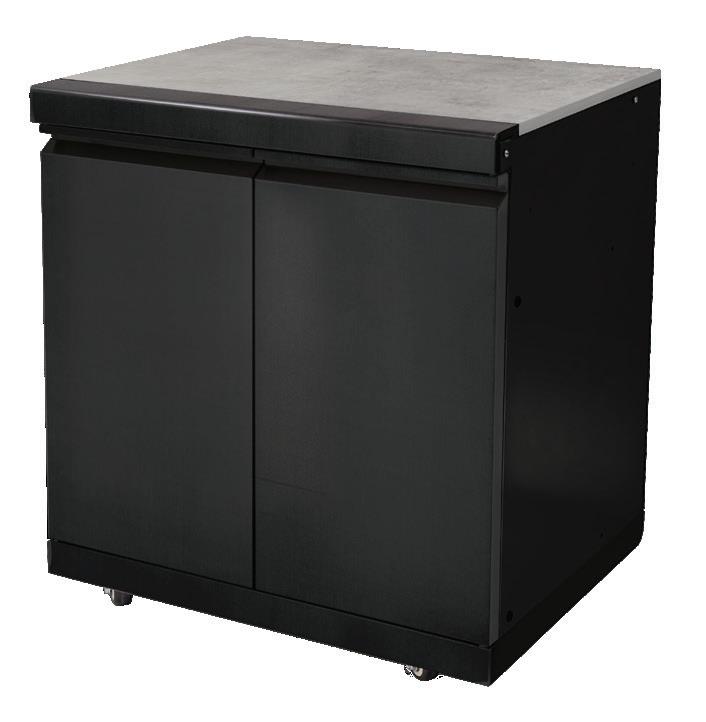

NOVA MK2 STORAGE MODULE

BQ4191

BQ4192

FULLY ASSEMBLED

GRAPHITE STAINLESS STEEL FINISH

New sintered stone benchtops across the MK2 range. They’re incredibly durable and built to withstand outdoor conditions.

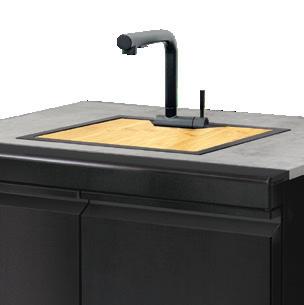

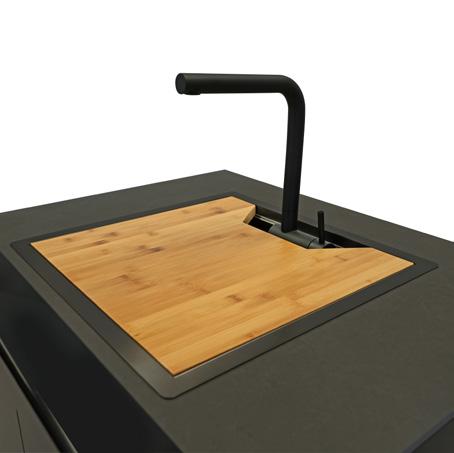

Over sink chopping board

•T he new NOVA MK2 Sink, Bin & Storage Module features #304 Graphite stainless steel fascia, doors, and kick plate, a sintered stone top, and black powder-coated internal cabinet - now with an over-sink chopping board to save bench space while prepping.

• NOVA MK2 Storage Module features #304 grade Graphite stainless steel fascia, doors & kick plate with new sintered stone top and black powder coated internal cabinet.

• Reworked internal dimensions to make rear service connections simpler and more efficient.

• 3 convenient shelves

• Durable stylish black sink with WELS approved hot and cold tap

• Locking castors

• Reworked internal dimensions to make rear service connections simpler and more efficient.

• Stylish integrated handles

• Stylish integrated handles • Locking castors

NOVA MK2 SINK, BIN AND STORAGE MODULE

NOVA MK2 STORAGE MODULE

Model Number:

BQ4191

Model Number:

BQ4192

Sink:

Nano black stainless steel WELS approved hot & cold black tap

Doors:

2

Tap: Bin:

Included under sink

Shelves:

3 Convenient shelves

Dimensions (mm):

830 W x 685 D x 905 H

Dimensions (mm):

830 W x 685 D x 905 H

Refer to page 54 for installation and dimensions.

10 | Gasmate Nova MK2

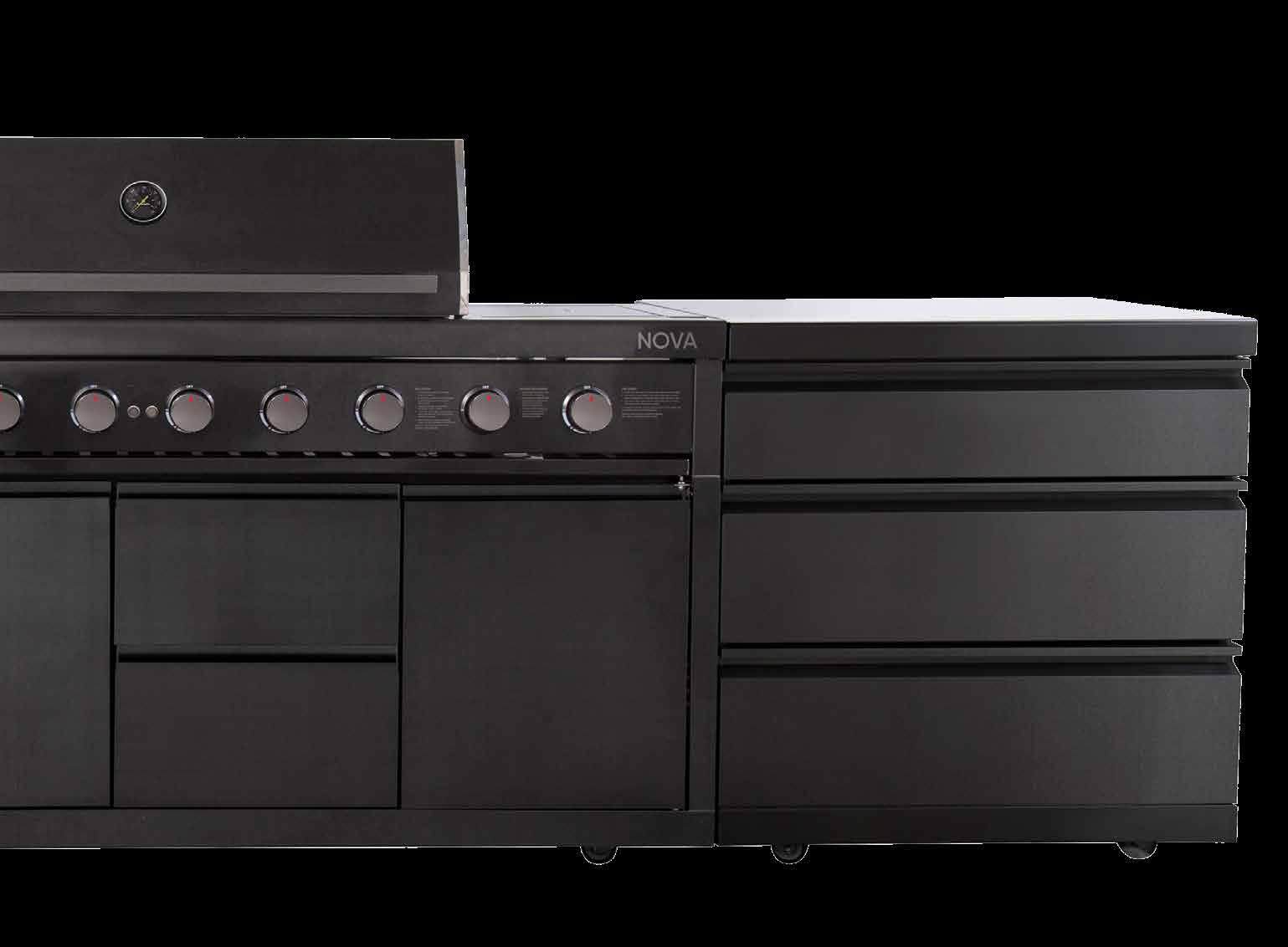

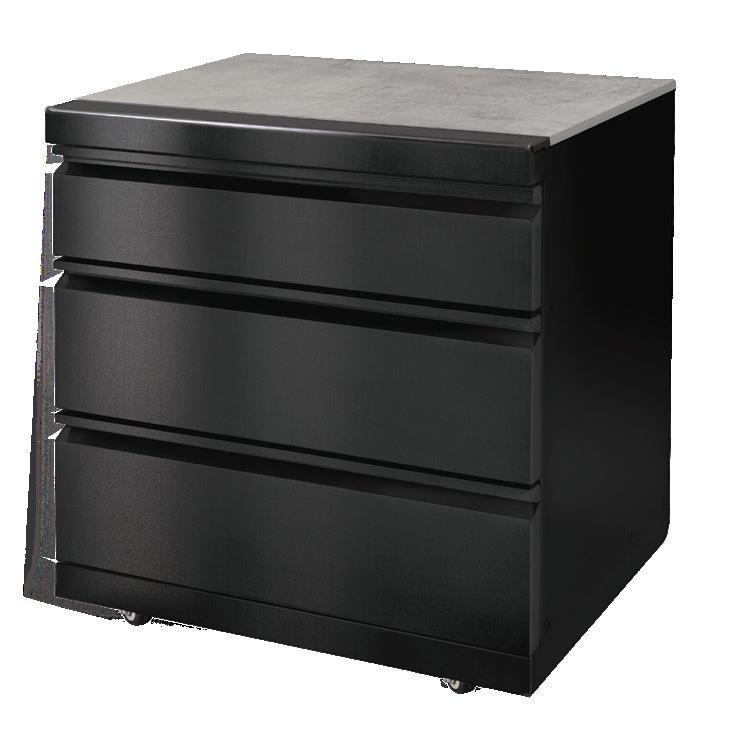

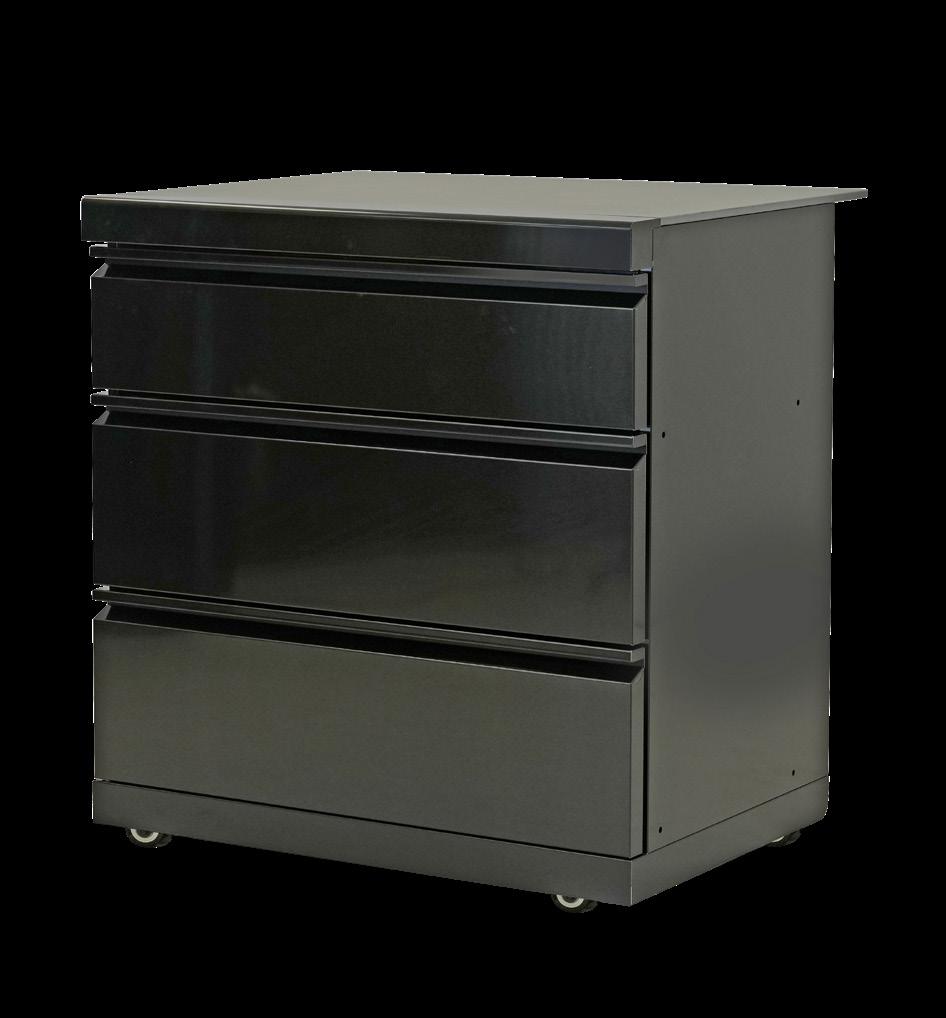

NOVA MK2 3 DRAWER MODULE

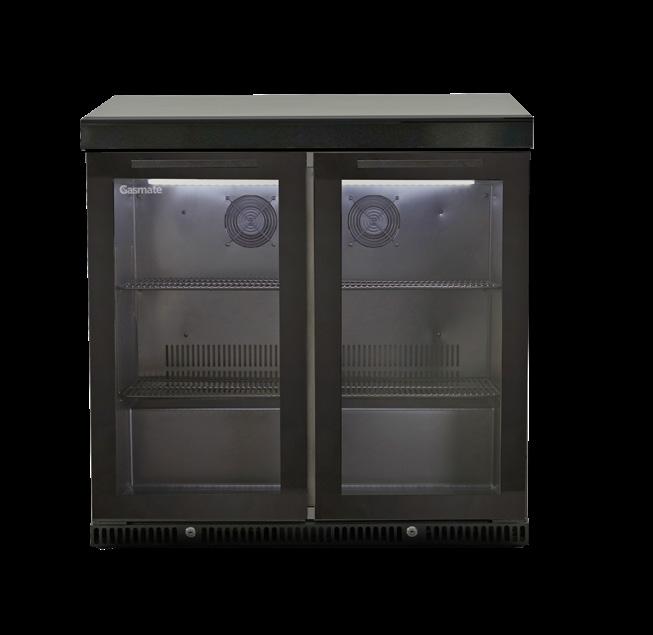

NOVA MK2 PREMIUM BAR FRIDGE TOPS

BQ4193

1 Door: BQ4197 2 Door: BQ4198

• NOVA MK2 3 Drawer Module features #304 grade Graphite stainless steel fascia, drawers & kick plate with new sintered stone and black powder coated internal cabinet.

• If you want to add a Gasmate Premium bar fridge to your NOVA MK2 Outdoor Kitchen, it’s super easy, you just use the fridge top to integrate it perfectly

• Reworked internal dimensions to make rear service connections simpler and more efficient.

• 3 large capacity drawers

• Graphite stainless steel fascia with new sintered stone top to match the NOVA MK2 modules • Supplied fully assembled • Available to suit the Gasmate 1 Door Premium Fridge or 2 Door Premium Fridge as featured on page 48

• Stylish integrated handles • Locking castors

NOVA MK2 DRAWER MODULE Model Number:

BQ4193

Drawers:

3 Large capacity

Dimensions (mm):

830 W x 685 D x 905 H

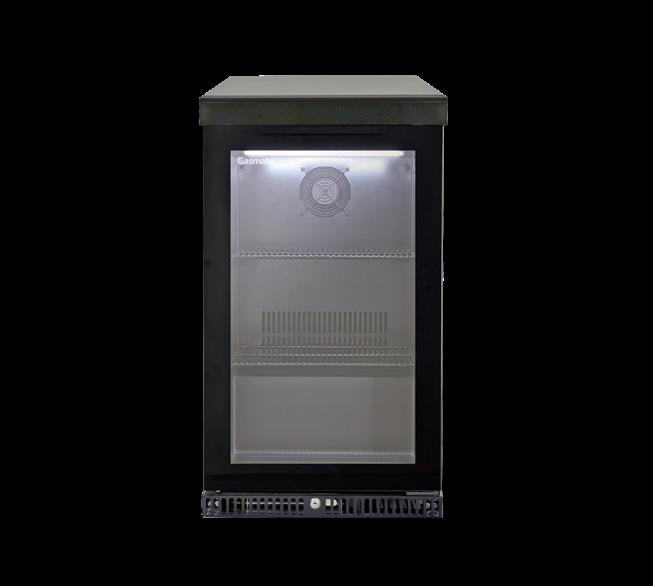

NOVA MK2 PREMIUM 1 DOOR BAR FRIDGE TOP Model Number:

BQ4197

NOVA MK2 PREMIUM 2 DOOR BAR FRIDGE TOP Model Number:

BQ4198

gasmate.com.au | 11

New!

NOVA MK2 MODULES Customise your new NOVA MK2 with the all new corner module and finish off the ends with our compact laminate end panels.

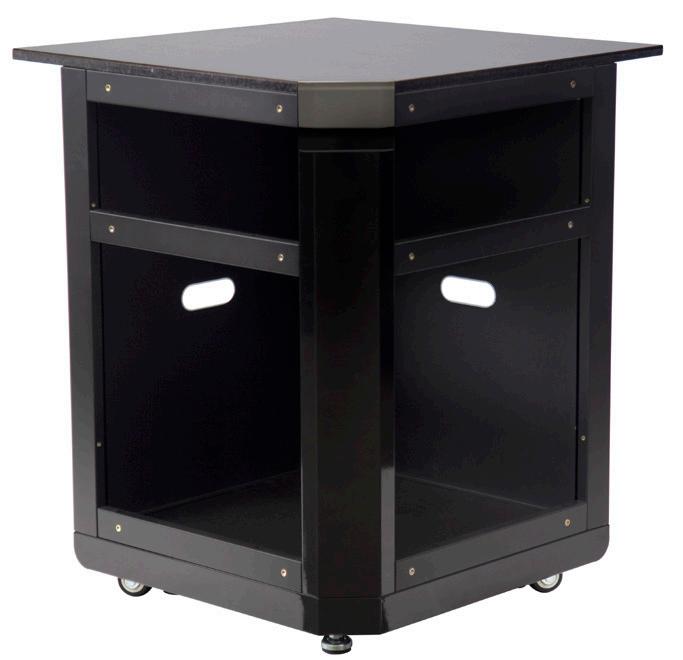

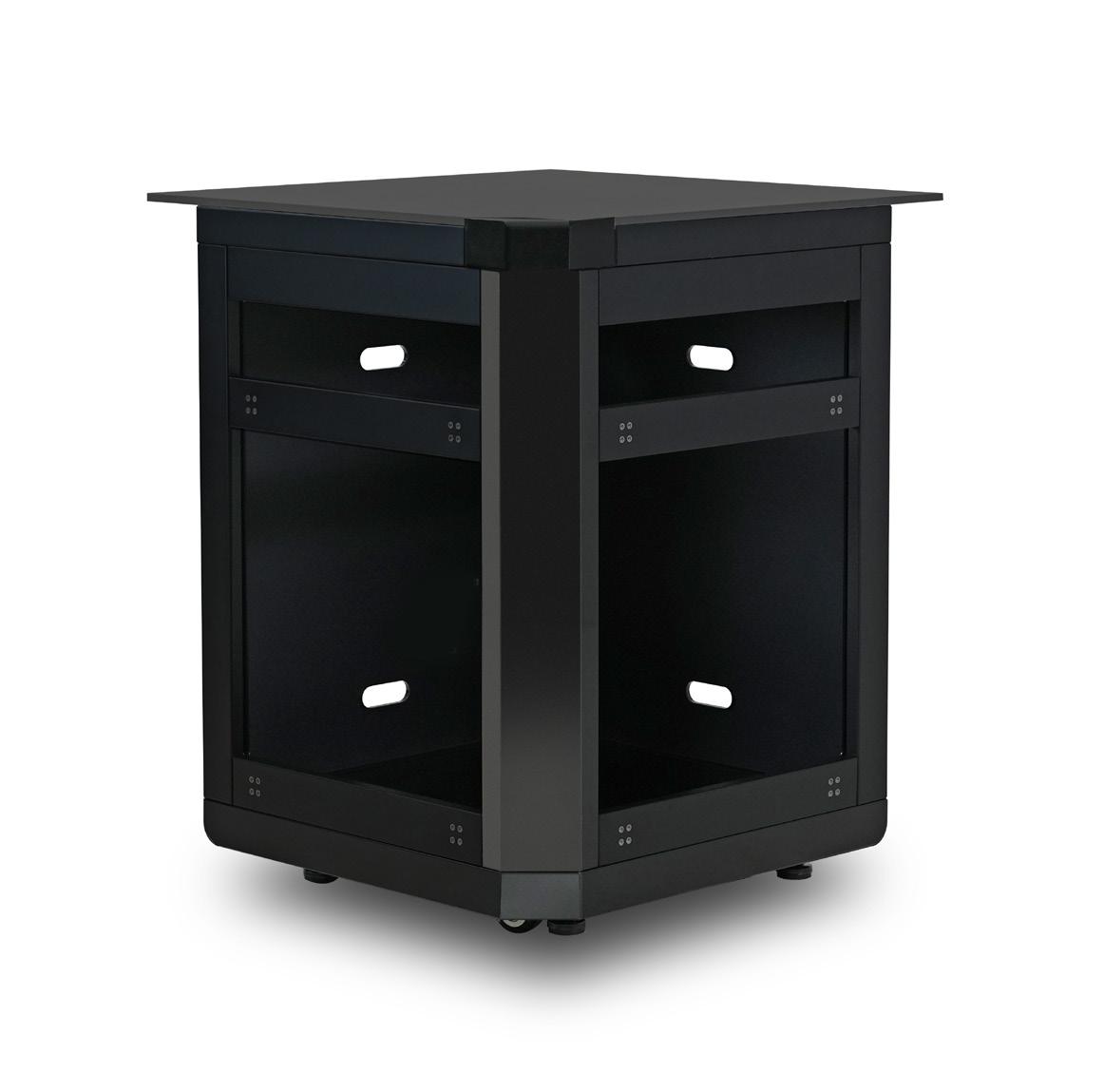

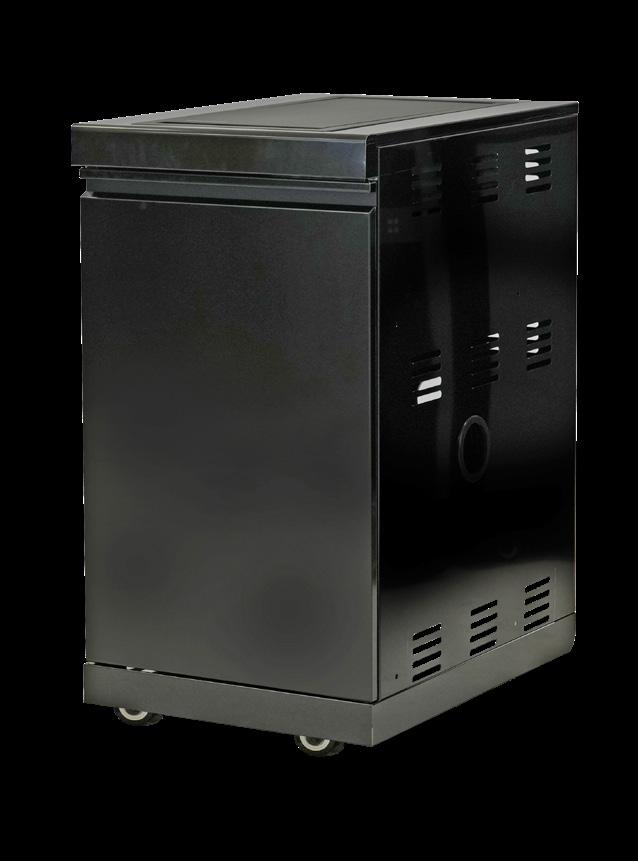

NOVA MK2 CORNER MODULE

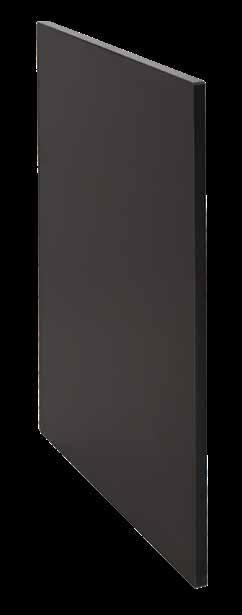

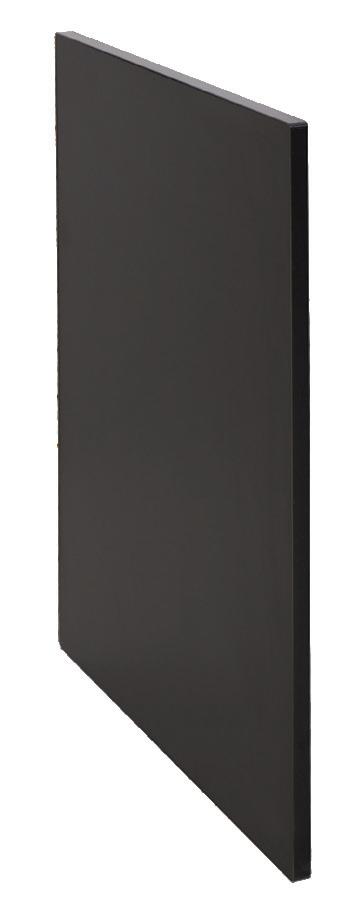

NOVA MK2 COMPACT LAMINATE END PANELS - Set of 2

BQ3053

BA3514

Refer to page 36 for installation and dimensions

12 | Gasmate Nova MK2

gasmate.com.au | 13

New!

FULLY ASSEMBLED

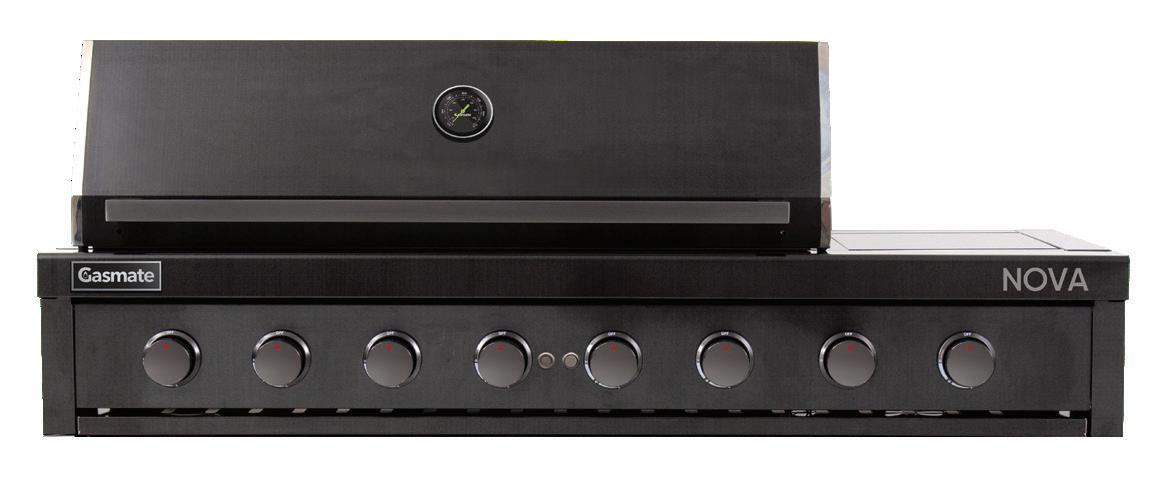

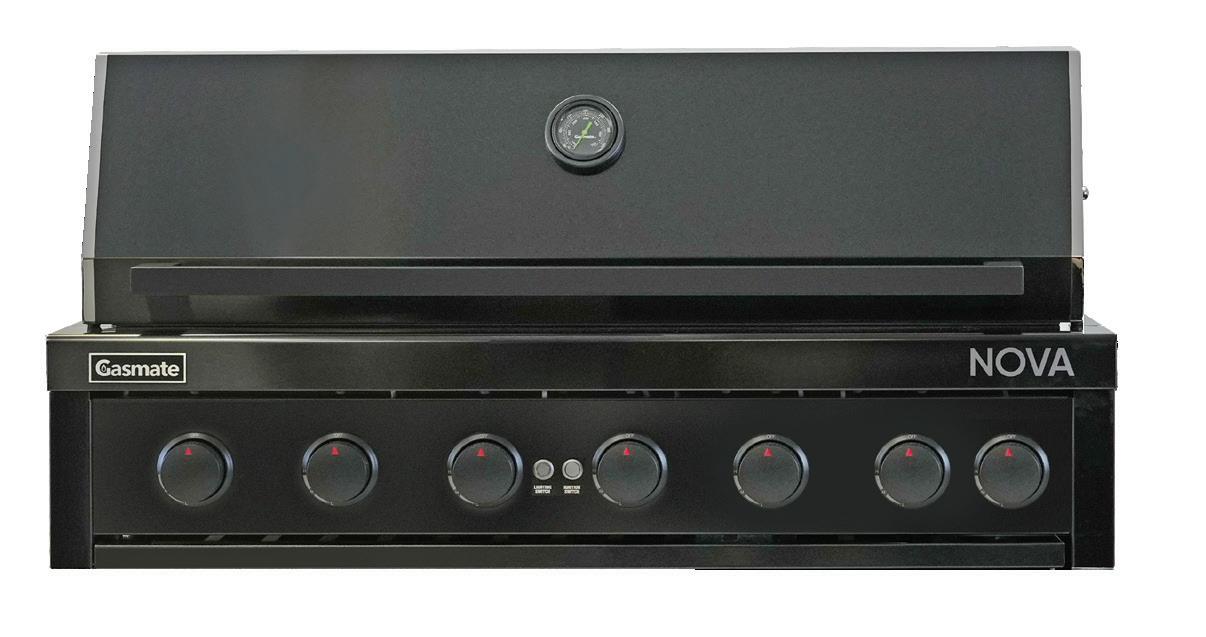

NOVA MK2 BUILT-IN BBQs

GRAPHITE STAINLESS STEEL FINISH

6 STAINLESS STEEL BURNERS

#304 STAINLESS STEEL HOOD

HIGH HEAT RATING

HEAVY DUTY ENAMEL COATED CAST IRON PLATE

STAINLESS STEEL FLAME TAMERS

ELECTRONIC IGNITION

INTERNAL LIGHTS

STAINLESS STEEL COOKING & WARMING RACK

GAS CERTIFIED TO AUSTRALIAN STANDARDS

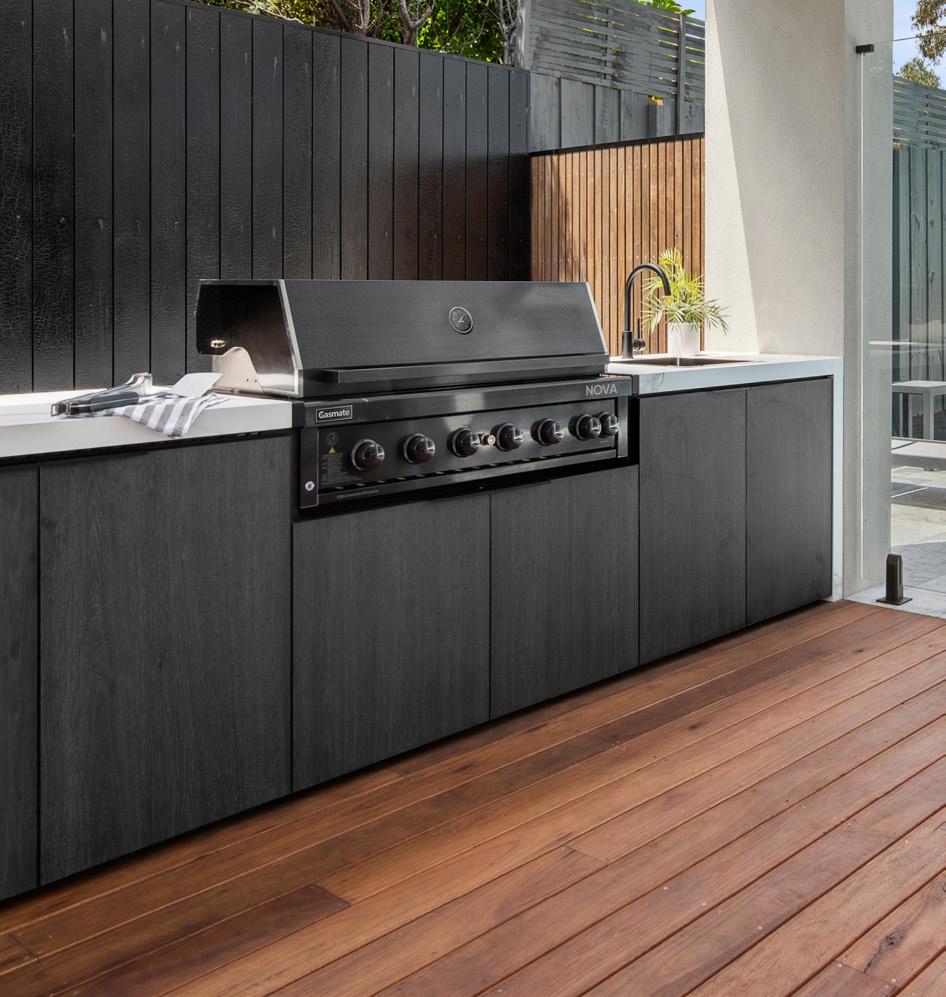

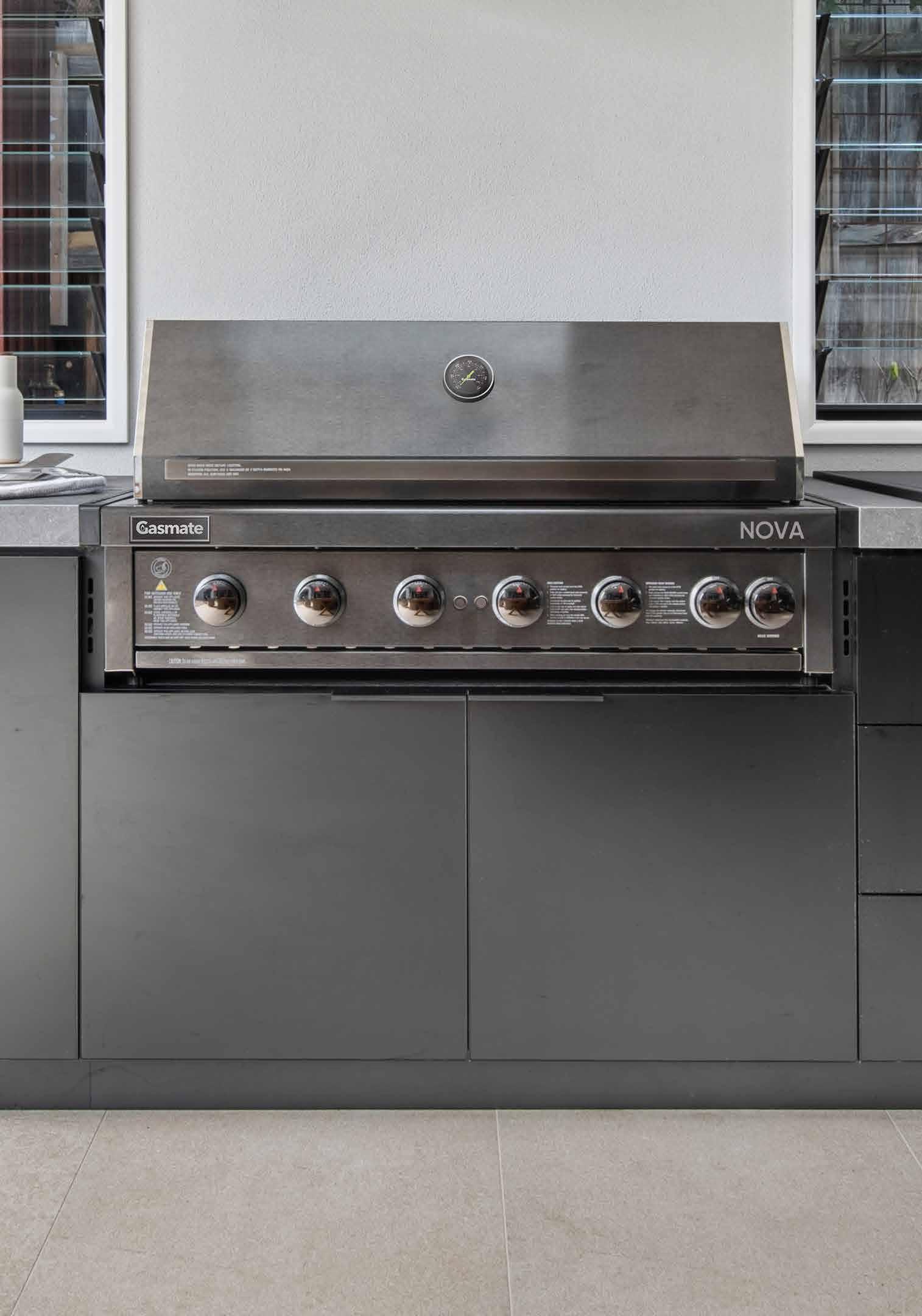

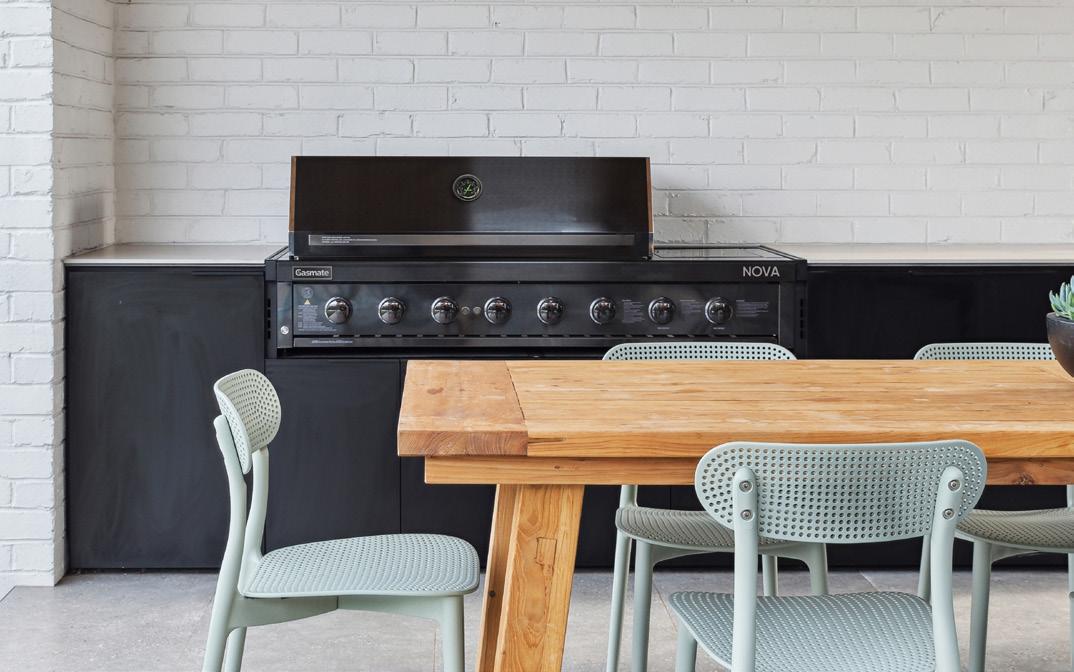

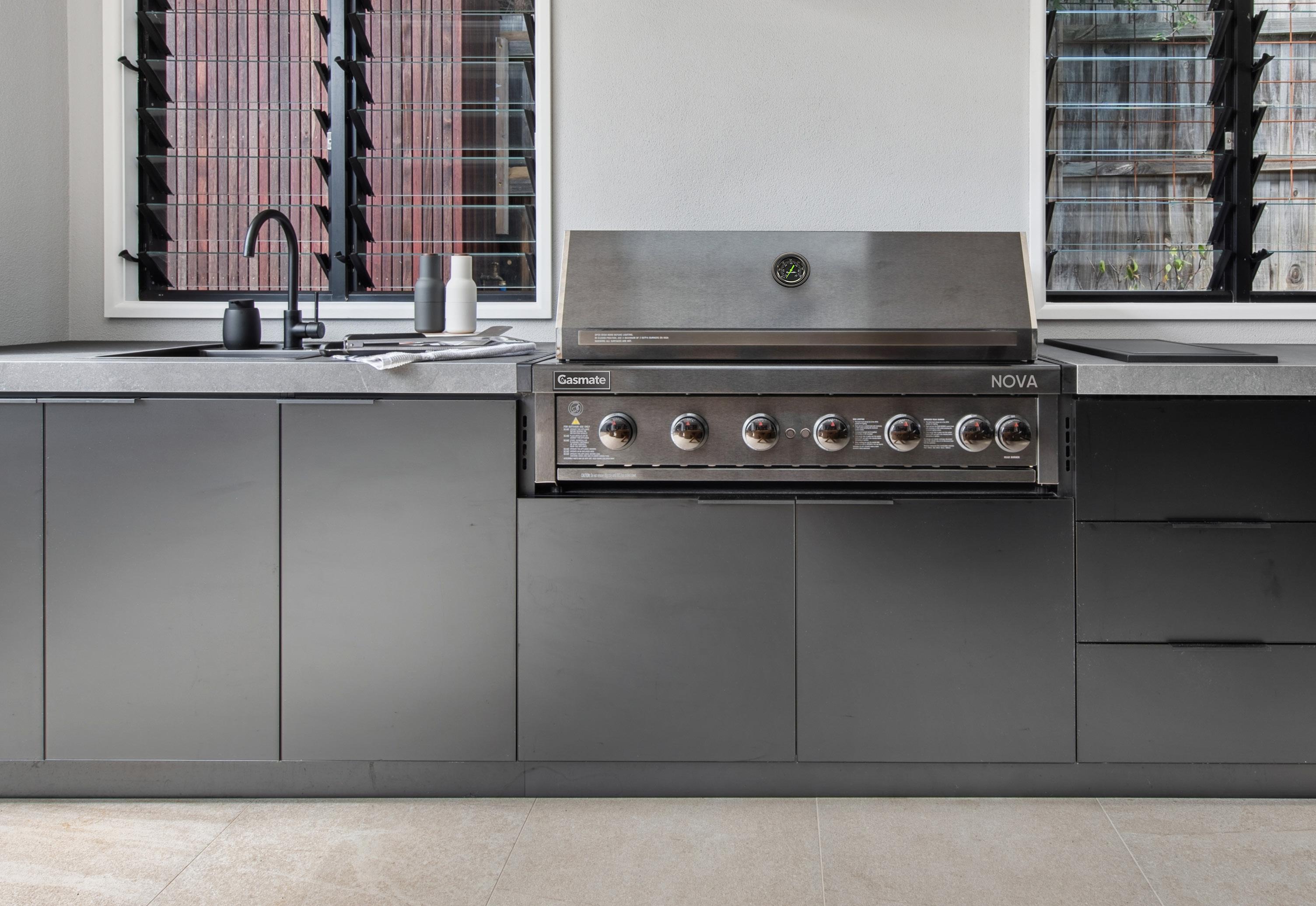

For those that are wanting to build their own custom outdoor kitchen, with custom made cabinets, then the Gasmate NOVA MK2 Built-In BBQs are for you.

To take your outdoor kitchen design to the next level, featuring the NOVA Graphite stainless steel finish, the NOVA MK2 Built-In BBQs will help you create the ultimate, stylish and modern outdoor kitchen of your dreams.

Refer to page 20 for installation and dimensions

14 | Gasmate Nova MK2

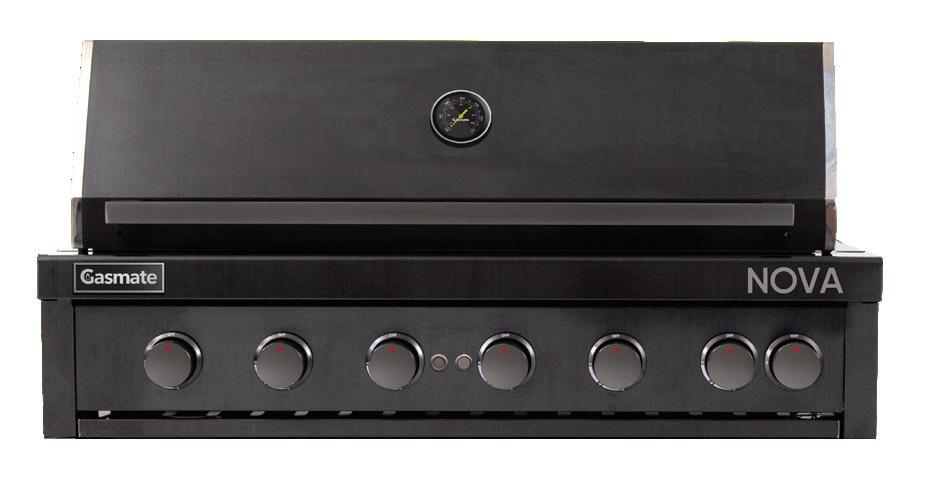

NOVA MK2 6 BURNER BUILT-IN BBQ BQ29BF / BQ29BNGF

415mm

965mm

318mm Grill

318mm Grill

315mm Hotplate

NOVA MK2 6 BURNER CLASSIC BUILT-IN BBQ BQ293BF / BQ293BNGF

415mm

965mm

318mm Grill

NOVA MK2 6 BURNER BUILT-IN BBQ

318mm Grill

315mm Hotplate

NOVA MK2 6 BURNER CLASSIC BUILT-IN BBQ

BQ29BF

BQ29BNGF

(Propane)

(Natural Gas)

Main burner output:

6 x 14MJ/h

6 x 13.7MJ/h

Main burner output:

Side burner output:

17MJ/h

14MJ/h

Side burner output:

Rear burner output:

1 x 13MJ/h

1 x 14MJ/h

Rear burner output:

1 x 13MJ/h

1 x 14MJ/h

Combined output:

114MJ/h

110.2MJ/h

Combined output:

97MJ/h

96.2MJ/h

Model Number:

Model Number:

BQ293BF

BQ293BNGF

(Propane)

(Natural Gas)

6 x 14MJ/h

6 x 13.7MJ/h N/A

Cooking surface finish:

Enamel coated cast iron

Cooking surface finish:

Enamel coated cast iron

Hotplate & Grill (mm):

Plate - 315 W x 415 D Grill - 318 W x 415 D x 2

Hotplate & Grill (mm):

Plate - 315 W x 415 D Grill - 318 W x 415 D x 2

Total cooking area (mm): Dimensions (mm):

965 W x 415 D 1470 W x 685 D x 545 H

Total cooking area (mm): Dimensions (mm):

965 W x 415 D 1105 W x 685 D x 545 H

gasmate.com.au | 15

New!

PHOENIX BBQ & SIDE BURNER MODULES

DESIGNED FOR NOVA MK2 RANGE

Unlock premium performance and modular freedom. With specially designed Nova MK2 modules for the Phoenix BBQ and Side Burner, you can now build a fully integrated outdoor kitchen - with matching finishes and flexible layout options.

• Dual Functionality: Use the BBQ and Side Burner as standalone units or pair them seamlessly with NOVA MK2 modules and premium fridges.

• Limitless Customisation: Create your ideal outdoor kitchen setup by combining different modules to suit your needs.

Phoenix BBQ Module Model no. BQ3058NV Dimensions (mm): 1,074 W x 685 D x 905 H

Please note, the Phoenix BBQ and side burner appliances are not included with the modules.

For more technical information on the Phoenix BBQ and side burner appliances, please see pages 18 and 19.

Gasmate NOVA MK2 Sink, Bin & Storage Module 16 | Gasmate Nova MK2

Gasmate NOVA MK2 Storage Module

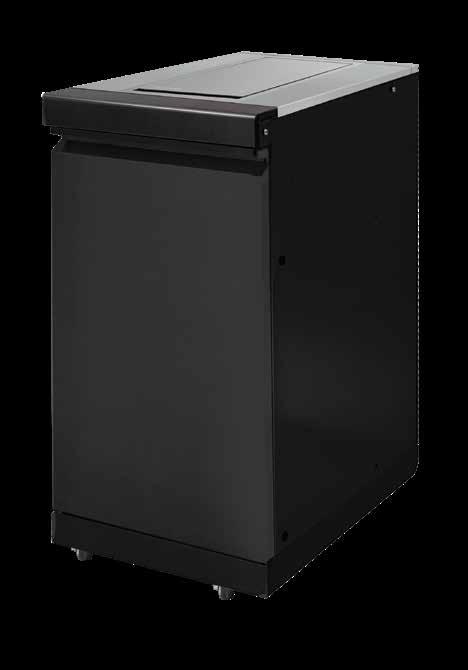

Phoenix Side Burner Module Model no. BQ3059NV Dimensions (mm) 480 W x 685 D x 905 H

Phoenix 4 Burner BBQ module

Phoenix Side Burner module

Gasmate Double Door Fridge, model BFR2088 with Gasmate Nova premium bar fridge top. gasmate.com.au | 17

PHOENIX BLACK

4 BURNER BBQ RANGE Elevate your outdoor cooking game with the Gasmate Phoenix Black 4 Burner BBQ and Phoneix Black Side Burner.

It features black stainless steel for a sleek and contemporary slimline design that is sure to turn heads and impress your guests. The black lid and surround add a touch of sophistication to the overall look, making it the perfect addition to any modern outdoor area. But it’s not just about the aesthetics - the Phoenix Black BBQ features flame failure safety - stops the gas flow if flame fails. And with its easy-to-install drop-in design, the Gasmate Phoenix Black 4 Burner BBQ is the ultimate blend of style and functionality.

427mm

634mm

• Available with flat lid or buy the hood kit separately • Drop-in side burner is also available to complete your outdoor kitchen Phoenix Black 4 Burner BBQ features:

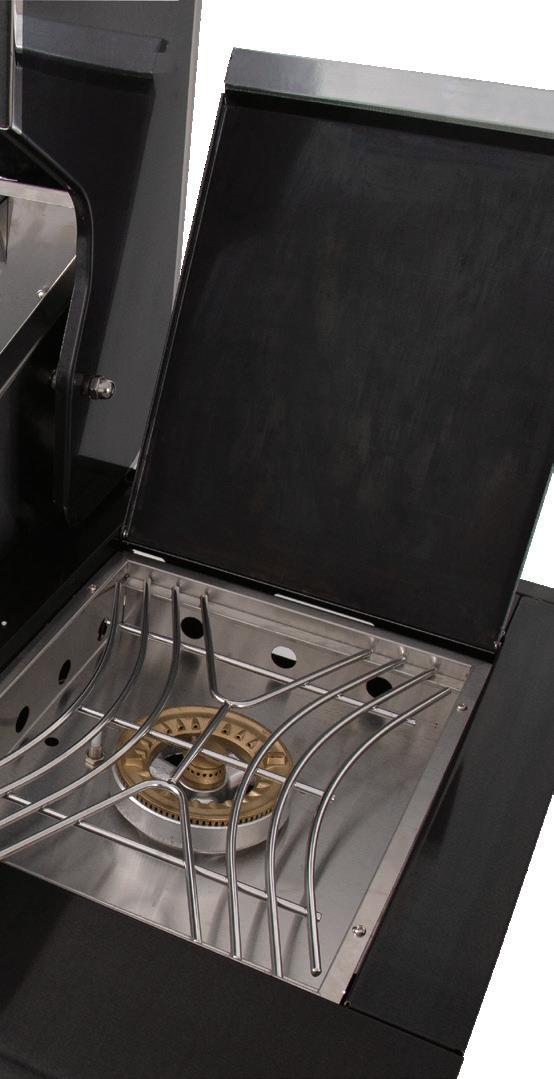

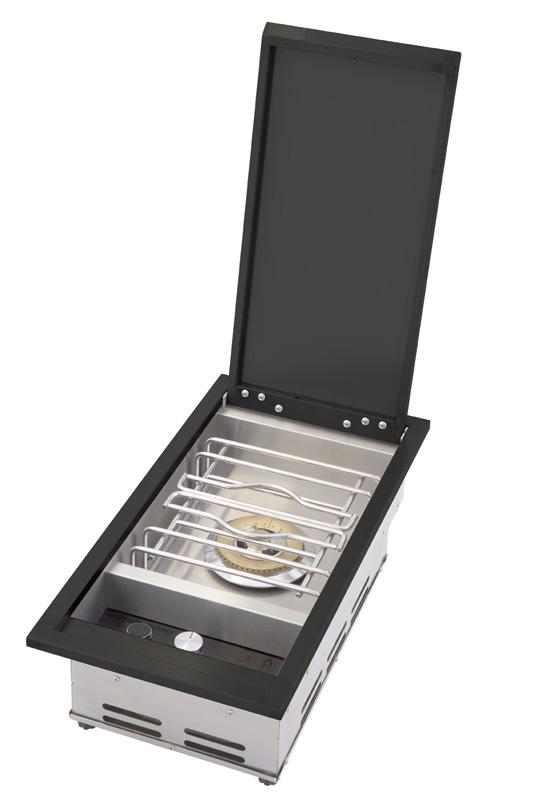

Phoenix Black Side Burner features:

• 4 x Stainless Steel burners (13.5MJ/h)

• 23MJ/h burner with Flame Failure Device stops the gas flow when flame fails

• 4 Burner BBQ with Flame Failure Device stops the gas flow when flame fails

• Slimline design - Flush mounting with benchtop

• Slimline design - Flush mounting with benchtop • #304 Premium grade black powder coated stainless steel lid & surround

• #304 Premium grade black powder coated stainless steel lid & surround • Stainless steel (#304) firebox

• Stainless steel (#304) firebox

• Concealed gas control knobs

• Electronic ignition

• Electronic ignition

• Satin enamel coated cast iron grill & hotplate

• Available in Propane & Natural Gas models

• Concealed gas control knobs • Easy access slide out drip tray • Cooking area (mm): 634 x 427 • Available in Propane & Natural Gas models

54

MJ/h

#304 PREMIUM GRADE BLACK STAINLESS STEEL

FLAME FAILURE SAFETY - STOPS THE GAS FLOW WHEN FLAME FAILS

COMBINED OUTPUT OF 54 MJ/H ACROSS 4 BURNERS

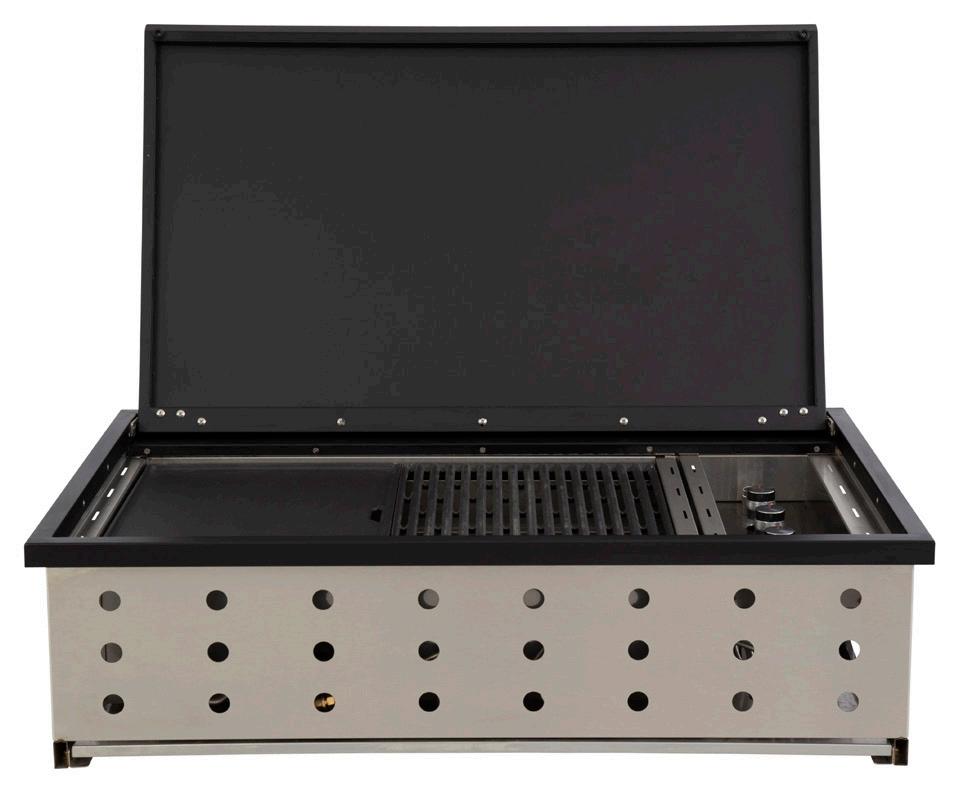

PHOENIX BLACK 4 BURNER BUILT IN BBQ BQ2047BL

BQ2047BLNG

(Propane)

(Natural Gas)

Main Burner Output

4 x 13.5MJ/h

4 x 13.5MJ/h

Combined output:

54MJ/h

54MJ/h

Model number:

Hotplate & Grill (mm):

Plate - 317 W x 427 D Grill - 317 W x 427 D

Dimensions (mm):

933 W x 609 D x 265 H

18 | Gasmate Nova MK2

ENAMEL CAST IRON HOTPLATE, WITH STAINLESS STEEL BURNERS

ELECTRONIC IGNITION FOR EASY LIGHTING EVERY TIME

CONCEALED GAS CONTROL KNOBS FOR SLEEK LOOK

SUPPLIED WITH LCC27 SAFE LOK® REGULATOR AND HOSE (LPG MODEL ONLY)

PHOENIX BLACK SIDE BURNER Model number: Output: Dimensions (mm):

BQ2027BL

BQ2027BLNG

(Propane)

(Natural Gas)

23J/h

21MJ/h

933 W x 609 D x 265 H

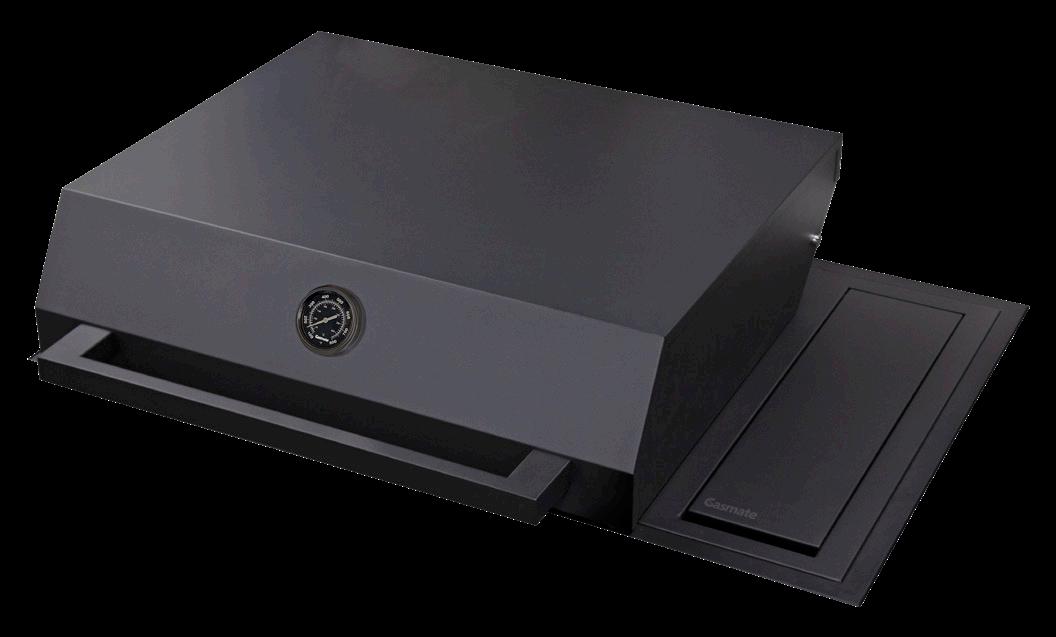

BBQ Phoenix Black Hood Kit Model no: BQ2047BLHD Made from high-quality 304 grade stainless steel, the Phoenix double skinned hood kit has been engineered for easy fixing to your Phoenix Black 4 Burner BBQ.

gasmate.com.au | 19

GASMATE NOVA MK2

INSTALLATION & DIMENSIONS NOVA MK2 6 BURNER BUILT-IN BBQ MODEL NO: BQ29BF

75mm

NOVA MK2 6 BURNER TWIN HOOD BUILT-IN BBQ

100mm

1000mm

100mm Ø hole for hose & wiring access 150mm

MODEL NO: BQ292BF

585mm

NOVA MK2 6 BURNER CLASSIC BUILT-IN BBQ

270mm

MODEL NO: BQ293BF

BQ2090B: 1475mm BQ2092B: 1375mm BQ2093B: 1105mm BQ29BF / BQ29NGBF: 1475mm BQ292BF / BQ292NGBF: 1375mm BQ293BF / BQ293NGBF: 1105mm

190

118.6

335

830

904.3

577

334

2-

415

Ø8

208.7

5

NOVA GRAPHITE SINK, BIN AND STORAGE MODULE PLUMBING DIMENSIONS MODEL NO: BQ2191 20 | Gasmate Nova MK2

gasmate.com.au | 21
