The outdoors made easy with Gasmate’s premium range of alfresco BBQ’s and modular kitchens.
Gasmate: Built for the Aussie Outdoors
For over 40 years, Gasmate has helped Australians fire up the BBQ, gather friends, and enjoy the best of outdoor living. From stylish BBQs and outdoor kitchens to heaters and camping essentials, Gasmate products are designed to make your time outside even better. We’re proud to be part of Aussie backyards, patios, and campsites—constantly creating new ways for you to cook, entertain, and relax outdoors.
Products Accessories
This brochure showcases our Outdoor Living range, and we’re pleased to present a collection designed to help you create the ultimate alfresco space at home.
Products Pages 04 - 85 Pages 86 - 89
Design your ultimate outdoor cooking & entertaining space with the refreshed Gasmate NOVA MK2 range.

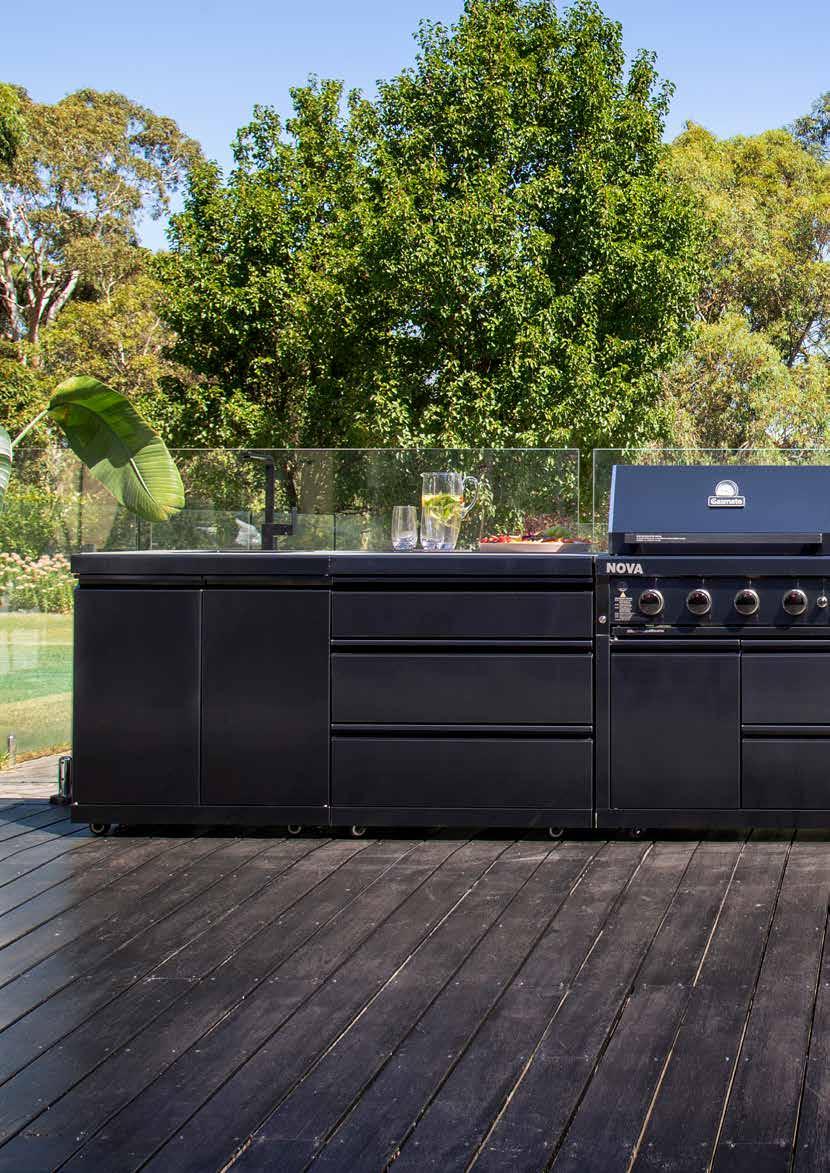

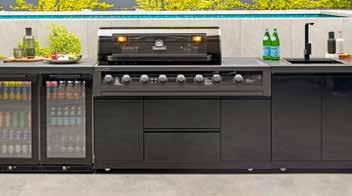

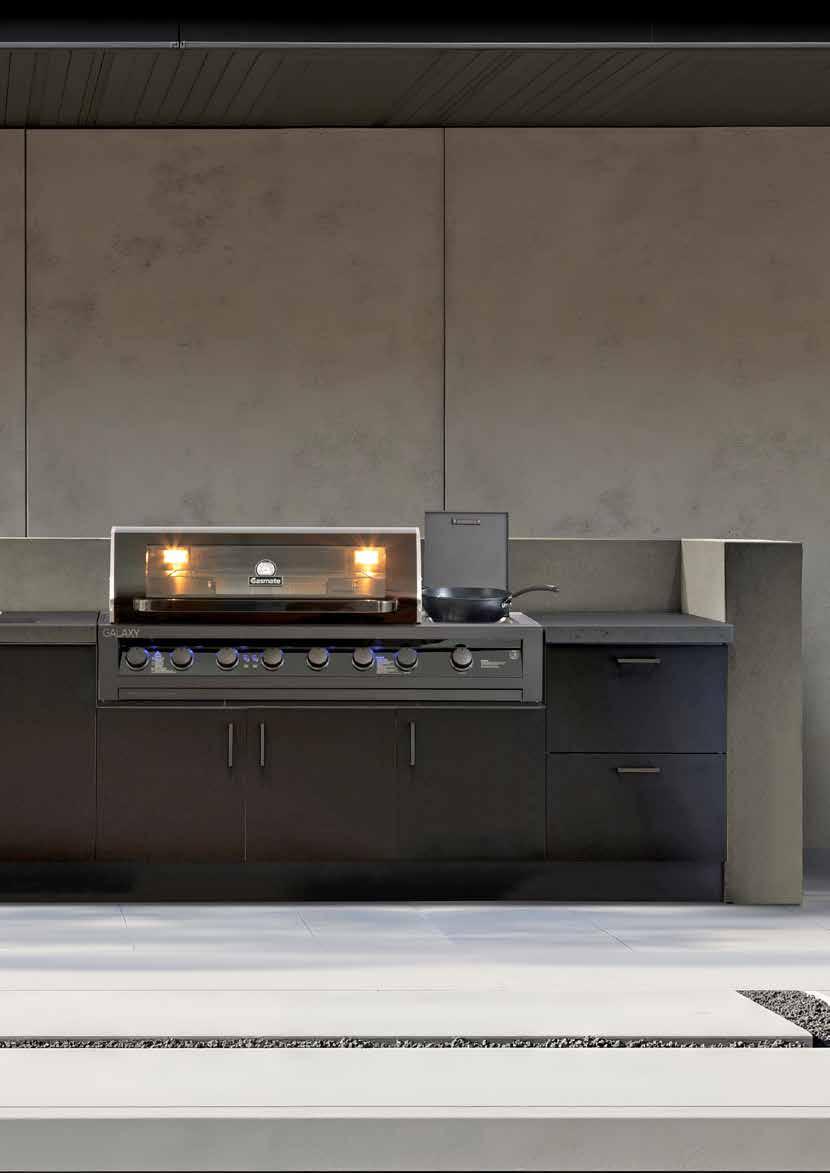

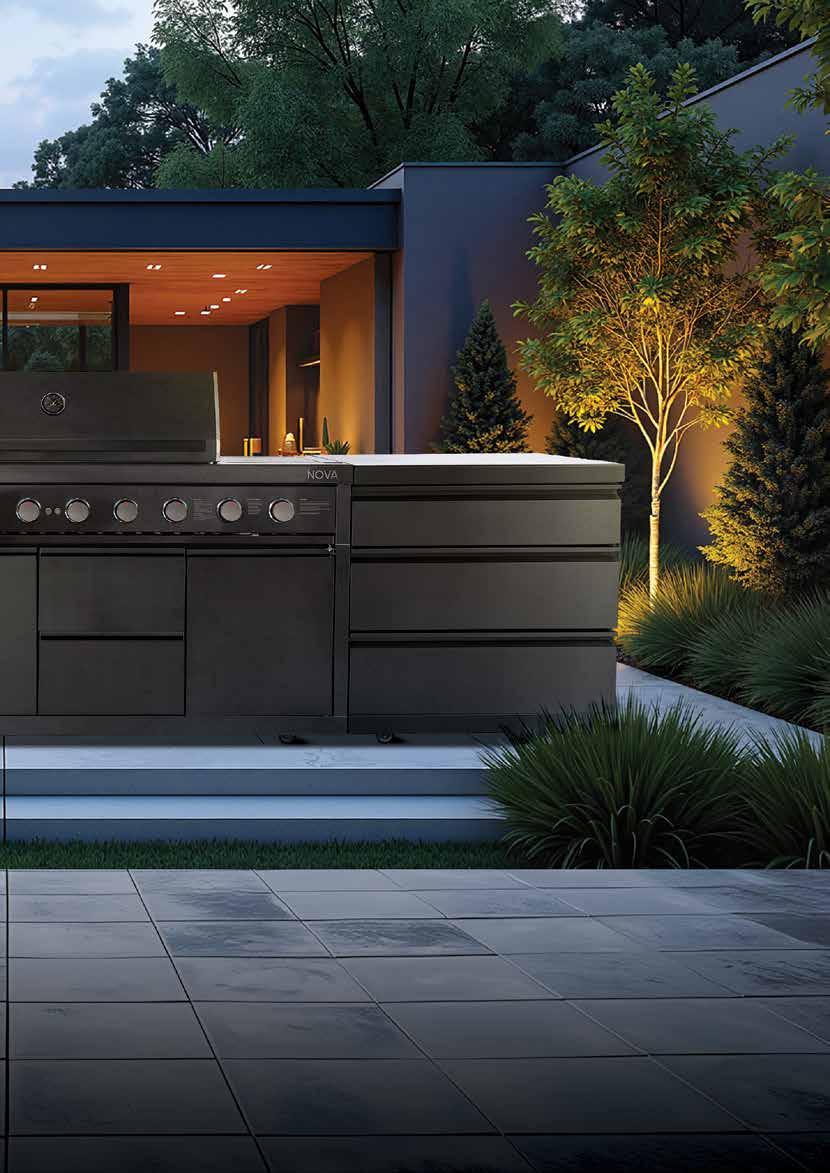

New! NOVA MK2 MODULAR OUTDOOR KITCHEN
Features black sink with removable wooden chopping board and integrated WELS rated hot and cold water tap.
Each module in the NOVA MK2 range comes fully assembled and features locking castors.

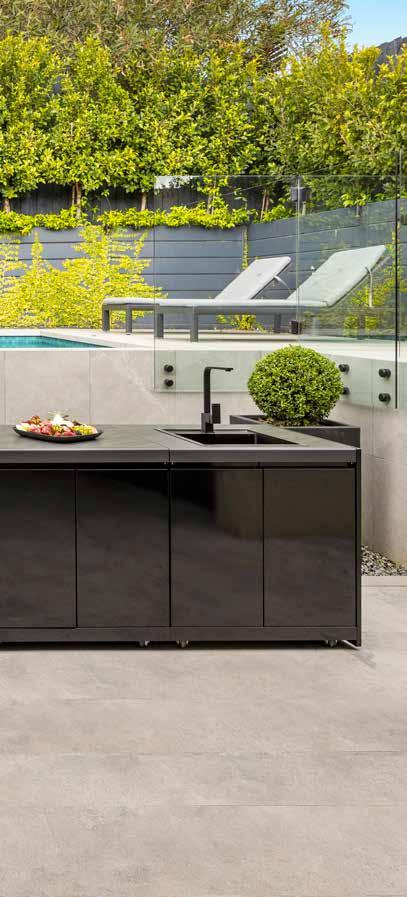

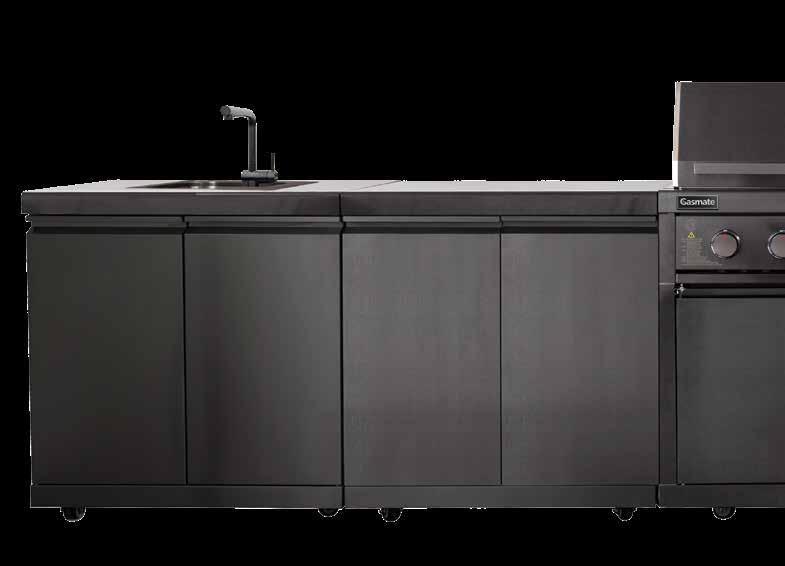

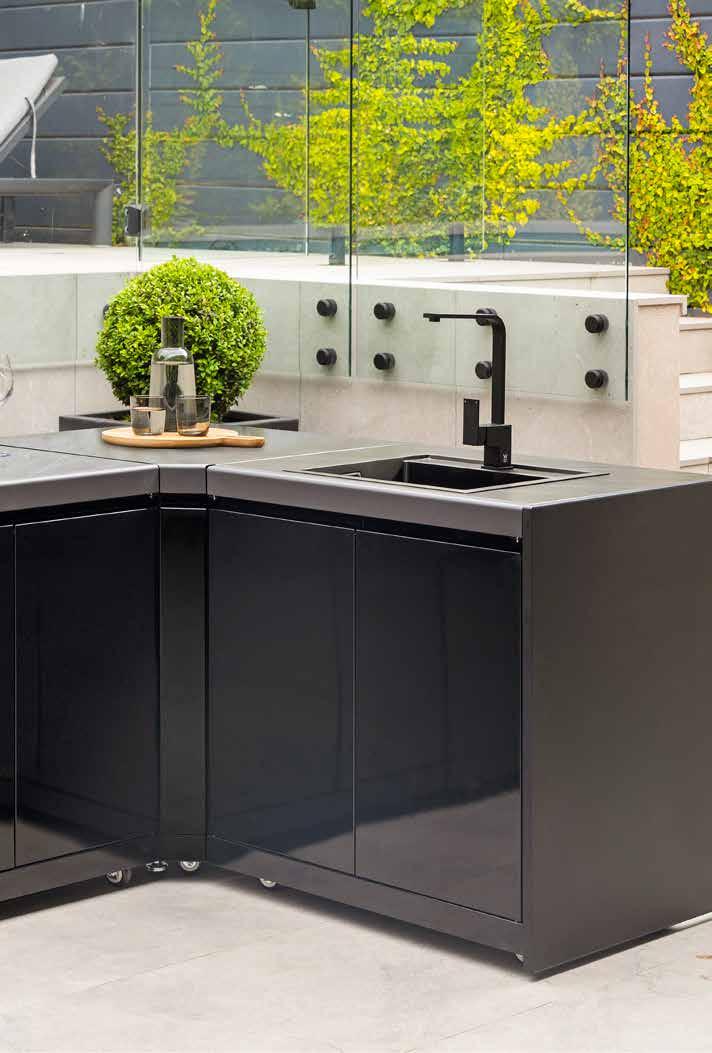

Gasmate NOVA MK2 Sink, Bin & Storage Module.
Gasmate NOVA MK2 Storage Module.
Introducing the updated Gasmate Nova MK2. We’ve continued the sophisticated Graphite stainless steel design, and added flame failure safety throughout the lineup. Explore all the new features of the Gasmate NOVA MK2 Modular Outdoor Kitchen.
Modules feature new upgraded sintered stone benchtops which are incredibly durable, 100% UV stable and resistant to scratching and high temperatures. These benchtops are also designed and built to withstand the variable Aussie climate, from heavy rain to hot sunny days.

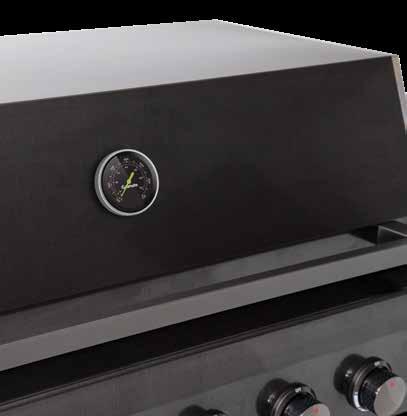

Refreshed temperature gauge with darker accent details
Gasmate NOVA MK2 Drawer Module.
New ignition and lighting switch design

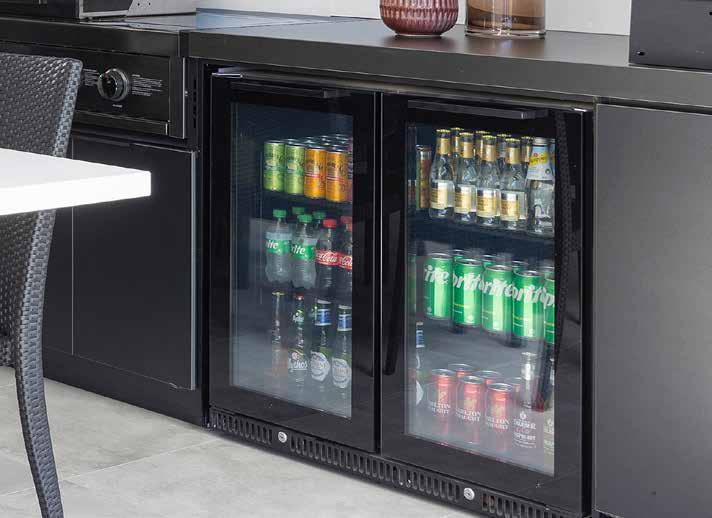

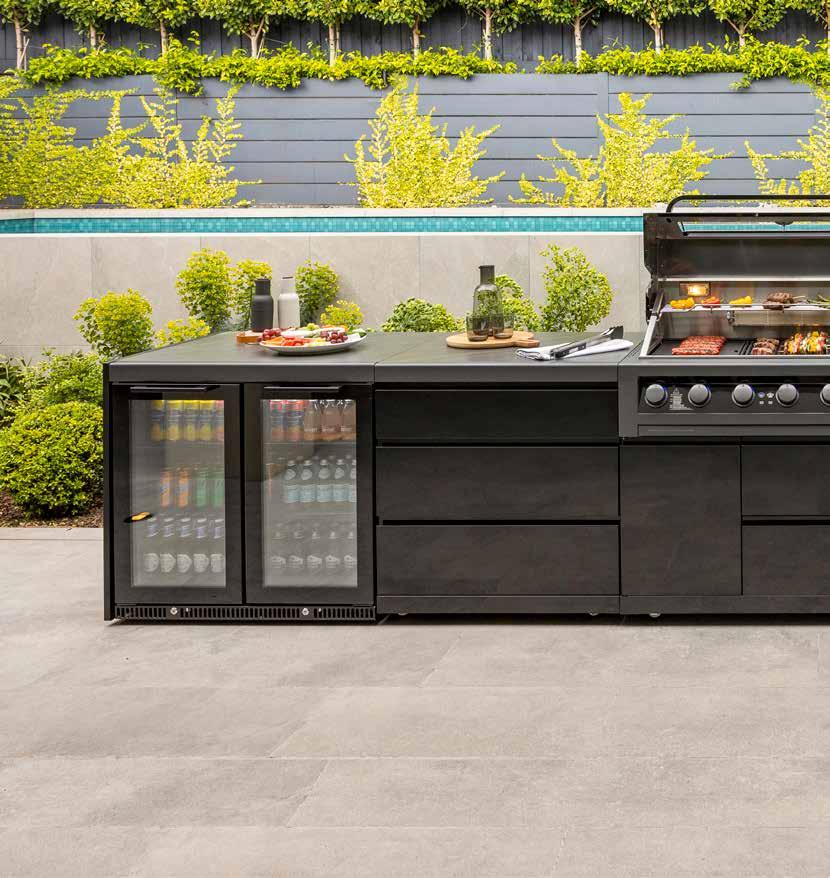

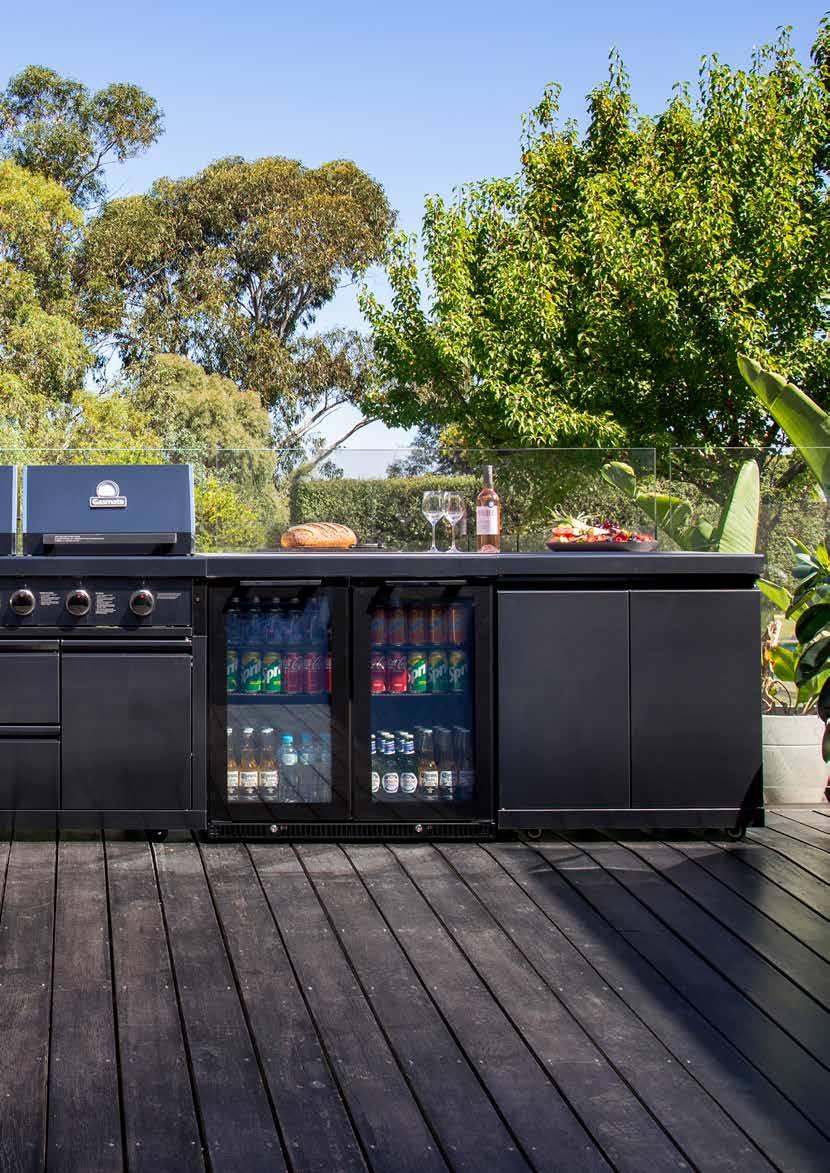

Gasmate Double Door Fridge, model BFR2088101-101 with Gasmate Nova premium bar fridge top.

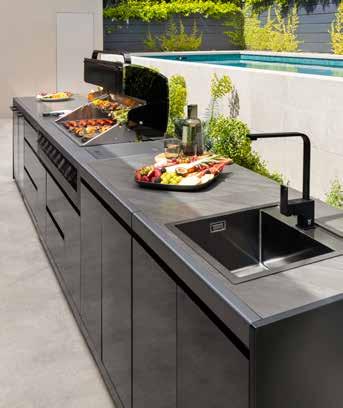

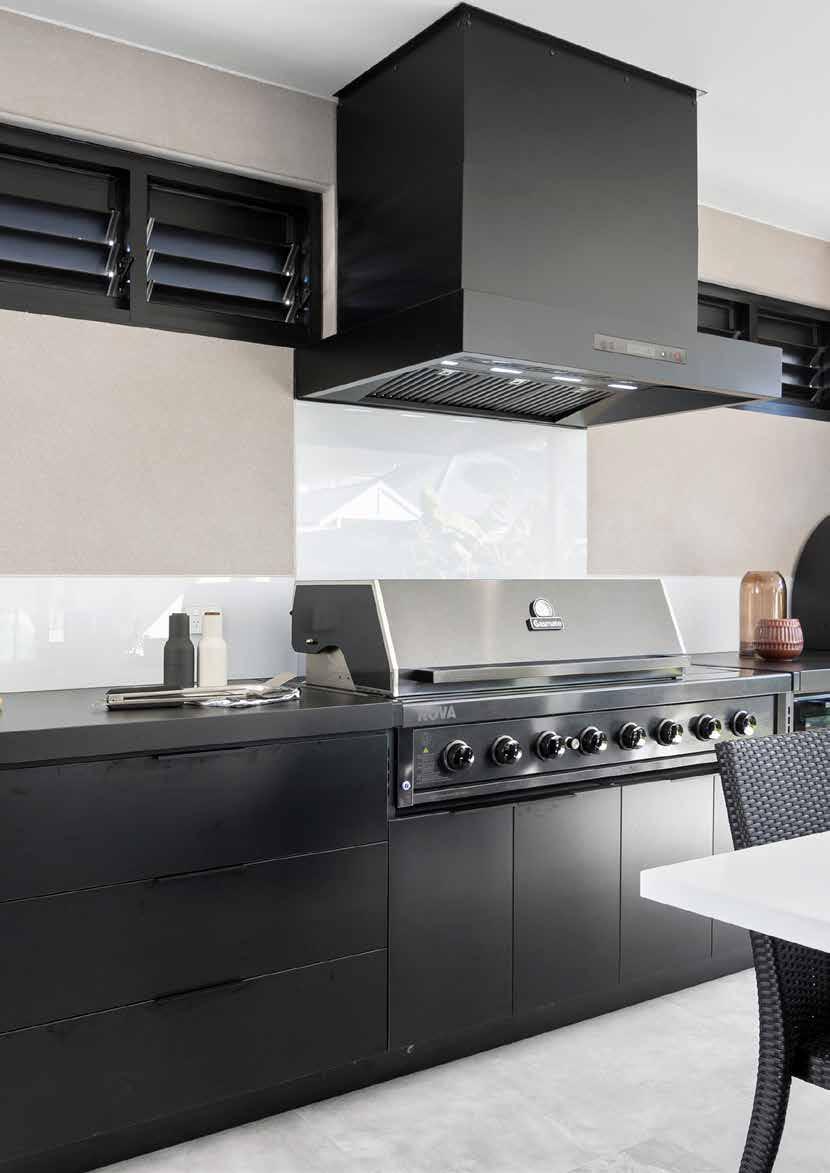

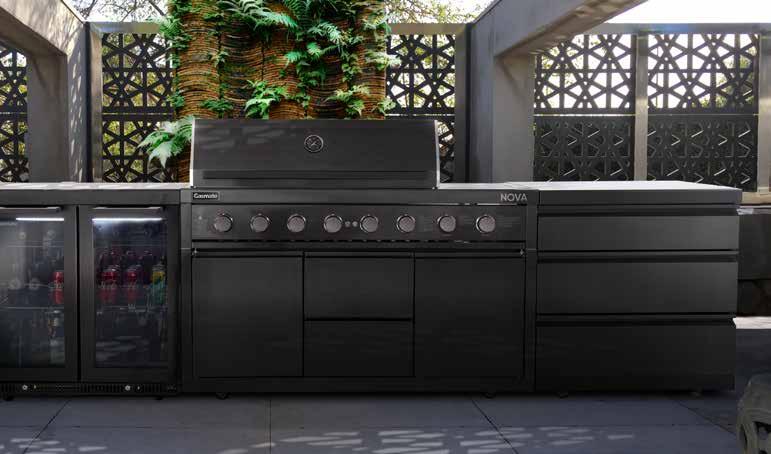

The Gasmate NOVA MK2 Outdoor Kitchen brings a new level of style, versatility, and performance to your alfresco area. With a modern matte Graphite stainless steel finish, it blends effortlessly into contemporary outdoor spaces - pairing beautifully with timber decking or lighter tones for striking contrast.
The new NOVA MK2 BBQ now features flame failure safety technology, which automatically cuts off the gas if the flame goes out, offering added peace of mind. Plus, the internal module dimensions have also been reworked to make rear service connections simpler and more efficient.
The upgraded sintered stone benchtops are incredibly durable and built to withstand outdoor conditions, while adding a sleek, premium feel.
The sink now includes an over-the-sink chopping board - perfect for prepping veggies or meat without losing valuable bench space.

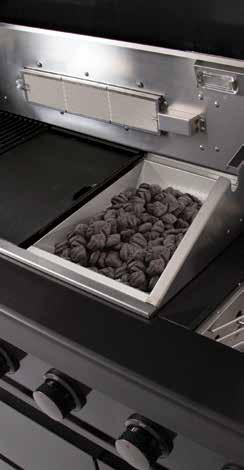

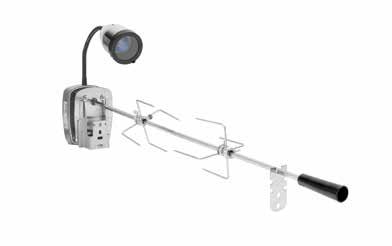

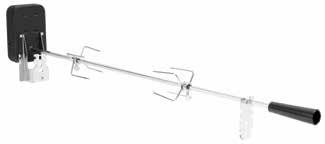

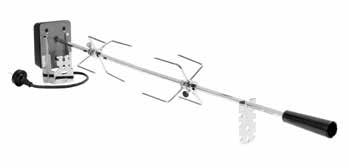

Expand your cooking options with a rotisserie kit and charcoal traynow included with BBQ modules .
With its modern design and cleverly refined features, the NOVA MK2 Modular Outdoor Kitchen delivers everything you need to cook, entertain, and enjoy your outdoor space in style.
NOVA MK2 BBQs New!
• Now featuring flame failure safety technology, which automatically cuts off the gas if the flame goes out, offering added peace of mind.
• 6 Stainless Steel Burners – 12MJ/h each with individual controls
• High grade #304 stainless steel hood and exterior cabinet panels with Graphite stainless steel finish
• Double skin hood for solid structure and better heat insulation, features temperature gauge and stylish slim cool touch handle

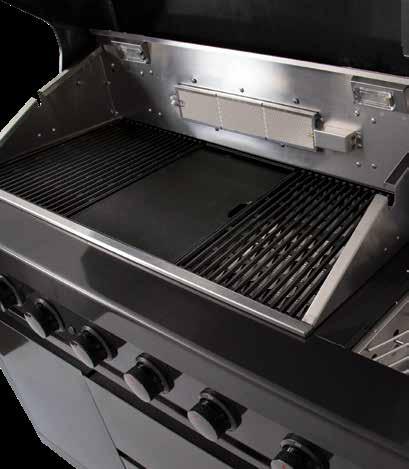

• 13MJ/h Ceramic rear burner for healthy rotisserie cooking with integrated high output 15MJ/h side burner (not available on Twin Hood or Classic Built-In BBQs)
• Easy to clean, heavy duty enamel coated cast iron plate and grill
• Stainless steel flame tamers for controlled heat distribution and to minimise cooking fats flaring up
• Electronic ignition for effortless lighting

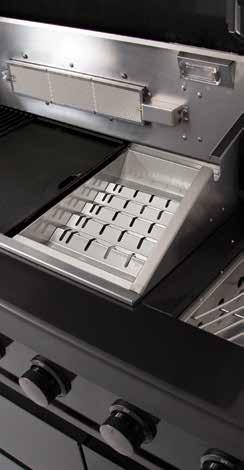

• BBQ modules include a rotisserie kit and charcoal tray
• Convenient internal lights and LEDs above control knobs
• Elevated high grade #304 stainless steel cooking and warming rack
• NOVA BBQs on trolley feature a cabinet with ample storage with convenient slide-out cylinder storage and locking castors
• Supplied with charcoal tray for duel fuel cooking options & rotisserie kit
• Supplied with LCC27 Safe Lok® regulator and hose (Propane model only)

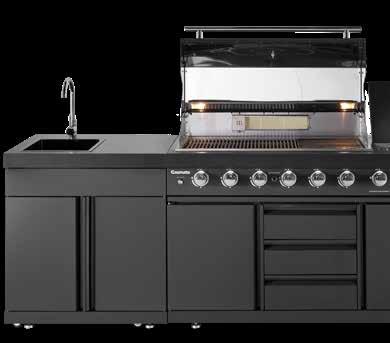

NOVA MK2 6 BURNER BBQ
NOVA MK2 MODULES
Design a space that reflects your styleNOVA MK2’s modular system makes it easy.

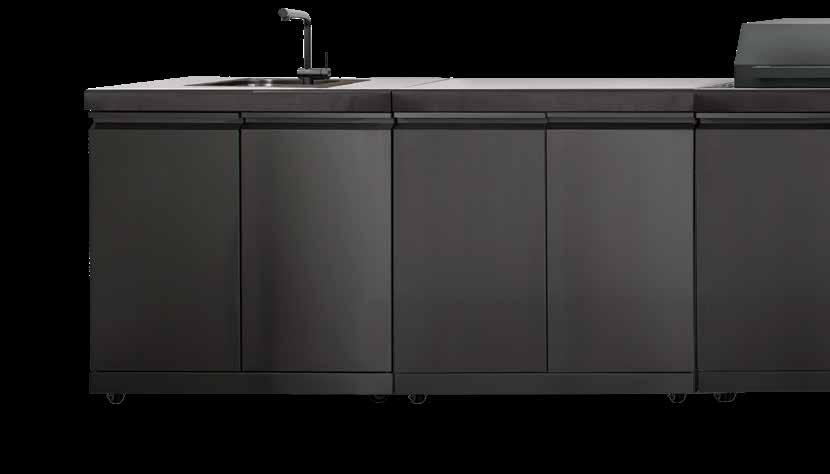

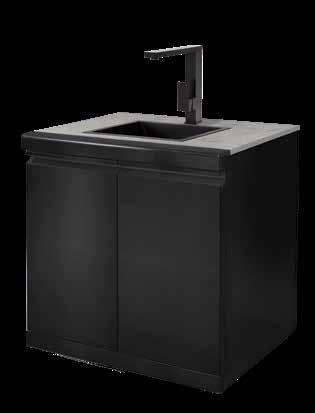

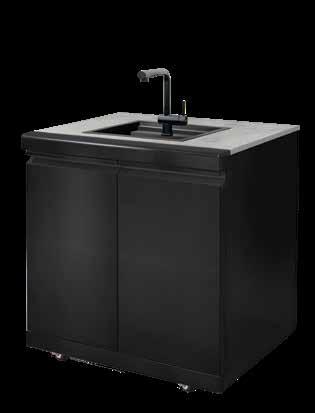

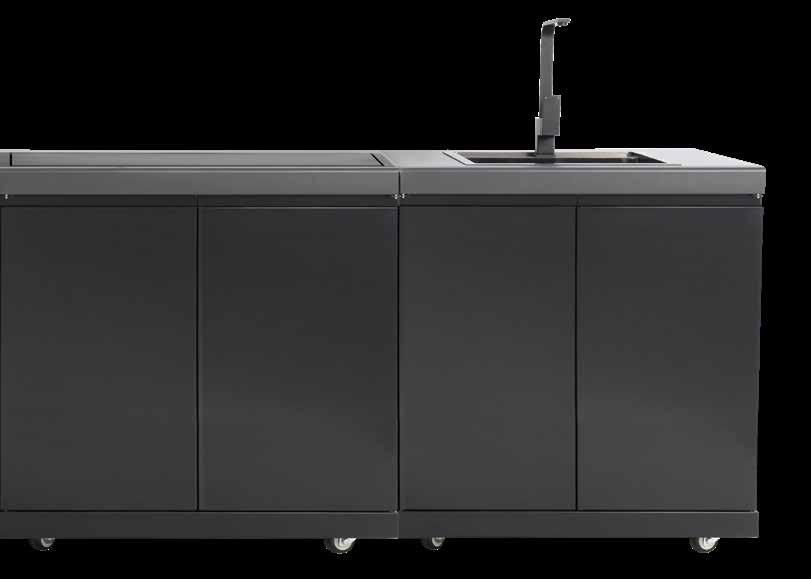

NOVA MK2 SINK, BIN AND STORAGE MODULE
BQ4191

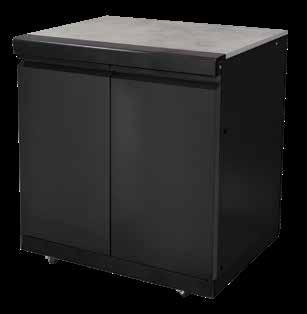

NOVA MK2 STORAGE MODULE
BQ4192
New sintered stone benchtops across the MK2 range. They’re incredibly durable and built to withstand outdoor conditions. Over sink chopping board
• The new NOVA MK2 Sink, Bin & Storage Module features #304 Graphite stainless steel fascia, doors, and kick plate, a sintered stone top, and black powder-coated internal cabinet - now with an over-sink chopping board to save bench space while prepping.
• Reworked internal dimensions to make rear service connections simpler and more efficient.
• Durable stylish black sink with WELS approved hot and cold tap
• Stylish integrated handles
• Locking castors
NOVA MK2 SINK, BIN AND STORAGE MODULE
Model Number: BQ4191
Sink: Nano black stainless steel
Tap: WELS approved hot & cold black tap
Bin: Included under sink
Dimensions (mm): 830 W x 685 D x 905 H
Refer to page 54 for installation and dimensions.
• NOVA MK2 Storage Module features #304 grade Graphite stainless steel fascia, doors & kick plate with new sintered stone top and black powder coated internal cabinet.
• Reworked internal dimensions to make rear service connections simpler and more efficient.
• 3 convenient shelves
• Stylish integrated handles
• Locking castors

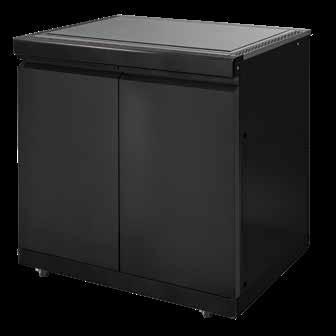

NOVA MK2 STORAGE MODULE
Model Number: BQ4192
Doors: 2
Shelves: 3 Convenient shelves
Dimensions (mm): 830 W x 685 D x 905 H
NOVA MK2
3 DRAWER MODULE BQ4193

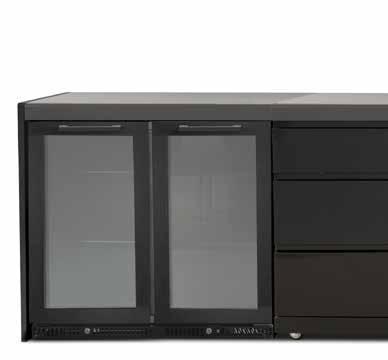

NOVA MK2 PREMIUM BAR FRIDGE TOPS
1 Door: BQ4197
2 Door: BQ4198

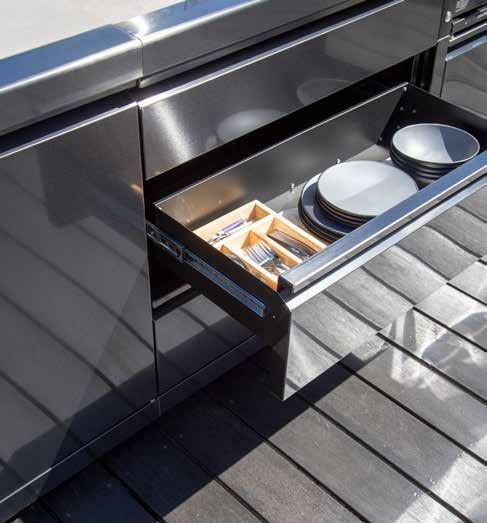

• NOVA MK2 3 Drawer Module features #304 grade Graphite stainless steel fascia, drawers & kick plate with new sintered stone and black powder coated internal cabinet.
• Reworked internal dimensions to make rear service connections simpler and more efficient.
• 3 large capacity drawers
• Stylish integrated handles
• Locking castors

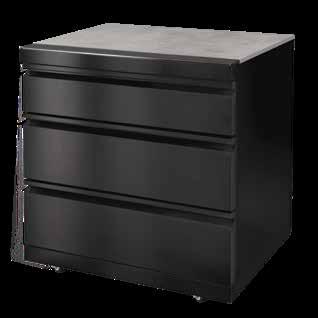

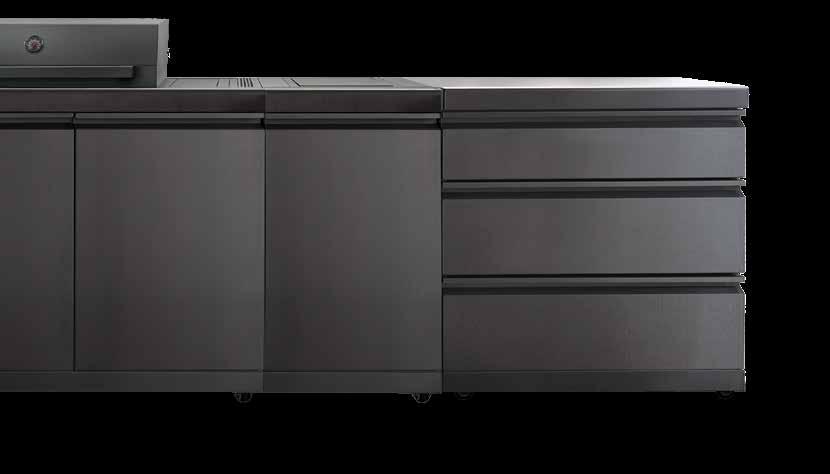

NOVA MK2 DRAWER MODULE
Model Number: BQ4193
Drawers: 3 Large capacity
Dimensions (mm): 830 W x 685 D x 905 H

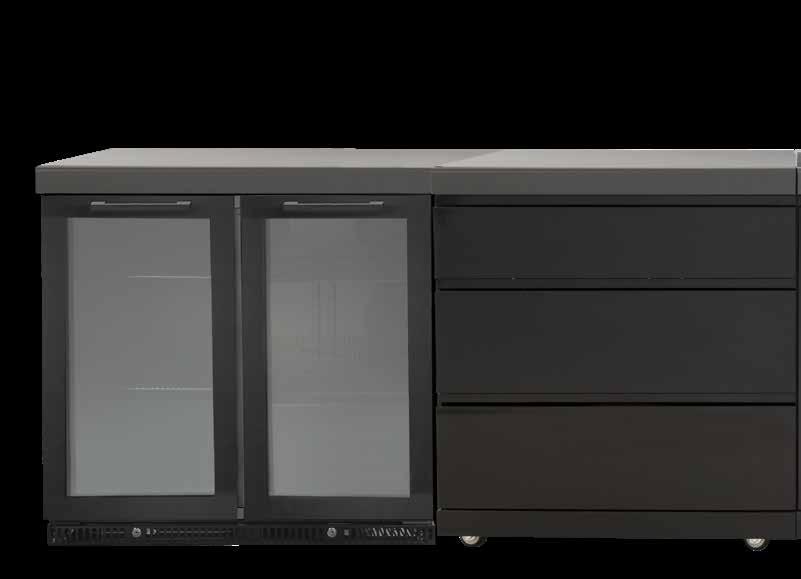

• If you want to add a Gasmate Premium bar fridge to your NOVA MK2 Outdoor Kitchen, it’s super easy, you just use the fridge top to integrate it perfectly
• Graphite stainless steel fascia with new sintered stone top to match the NOVA MK2 modules
• Supplied fully assembled
• Available to suit the Gasmate 1 Door Premium Fridge or 2 Door Premium Fridge as featured on page 48
NOVA MK2 PREMIUM
1 DOOR BAR FRIDGE TOP
Model Number: BQ4197
NOVA MK2 PREMIUM 2 DOOR BAR FRIDGE TOP
Model Number: BQ4198
NOVA MK2 CORNER MODULE
NOVA MK2 MODULES
Customise your new NOVA MK2 with the all new corner module and finish off the ends with our compact laminate end panels.

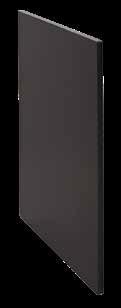

NOVA MK2 COMPACT LAMINATE END PANELS - Set of 2 BA3514

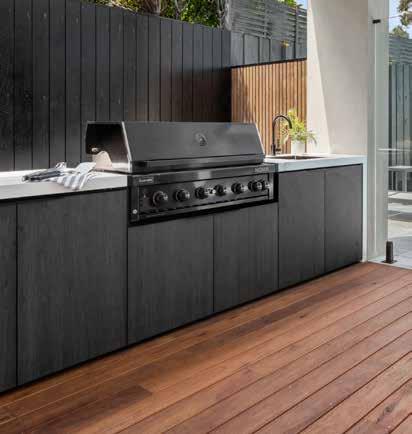

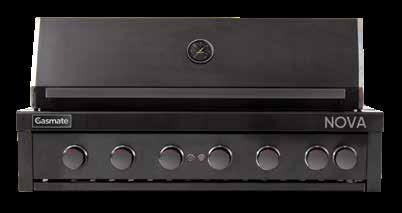

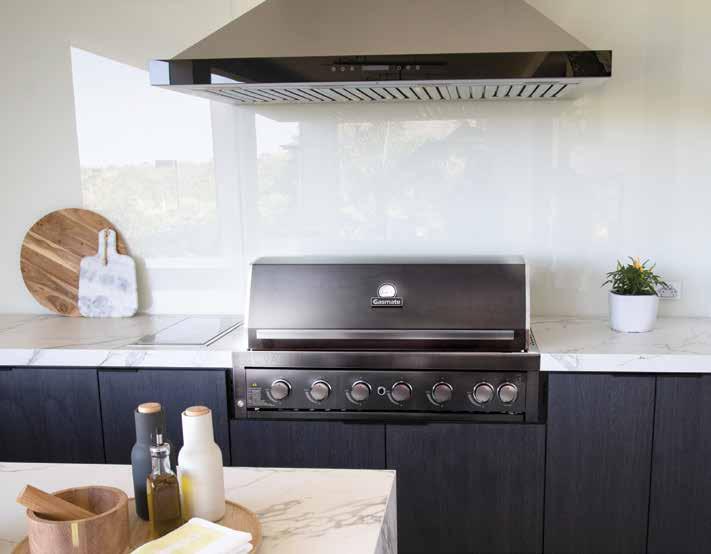

NOVA MK2 BUILT-IN BBQs
Refer to page 79 for installation and dimensions

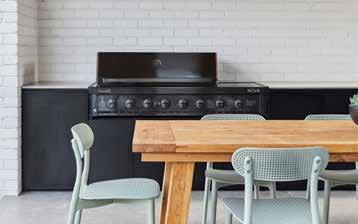

For those that are wanting to build their own custom outdoor kitchen, with custom made cabinets, then the Gasmate NOVA MK2 Built-In BBQs are for you.
To take your outdoor kitchen design to the next level, featuring the NOVA Graphite stainless steel finish, the NOVA MK2 Built-In BBQs will help you create the ultimate, stylish and modern outdoor kitchen of your dreams.

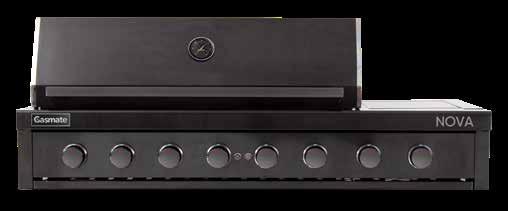

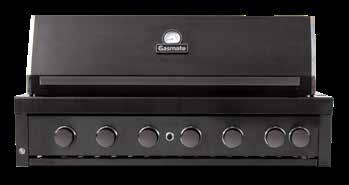

NOVA MK2 6 BURNER BUILT-IN BBQ
Model Number:
Main burner output: 6 x 14MJ/h 6 x 13.7MJ/h
Side burner output: 17MJ/h 14MJ/h
Rear
NOVA MK2 6 BURNER BUILT-IN BBQ BQ29BF / BQ29BNGF
NOVA MK2 6 BURNER CLASSIC BUILT-IN BBQ BQ293BF / BQ293BNGF
NOVA MK2 6 BURNER CLASSIC BUILT-IN BBQ
Model Number: BQ293BF (Propane) BQ293BNGF (Natural Gas)
Main burner output: 6 x 14MJ/h 6 x 13.7MJ/h
Side burner output: N/A
Rear burner output: 1 x 13MJ/h 1 x 14MJ/h
New!

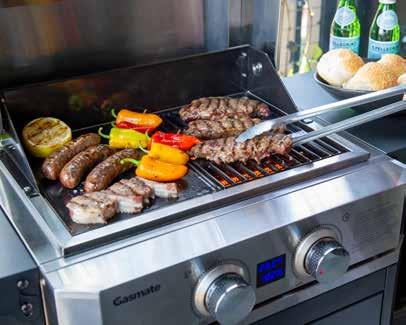

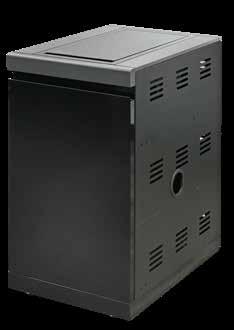

PHOENIX BBQ & SIDE BURNER MODULES DESIGNED FOR NOVA MK2 RANGE
Unlock premium performance and modular freedom. With specially designed Nova MK2 modules for the Phoenix BBQ and Side Burner, you can now build a fully integrated outdoor kitchen - with matching finishes and flexible layout options.
• Dual Functionality: Use the BBQ and Side Burner as standalone units or pair them seamlessly with NOVA MK2 modules and premium fridges.
• Limitless Customisation: Create your ideal outdoor kitchen setup by combining different modules to suit your needs.
Please note, the Phoenix BBQ and side burner appliances are not included with the modules. For more technical information on the Phoenix BBQ and side burner appliances, please see pages 84 and 85.

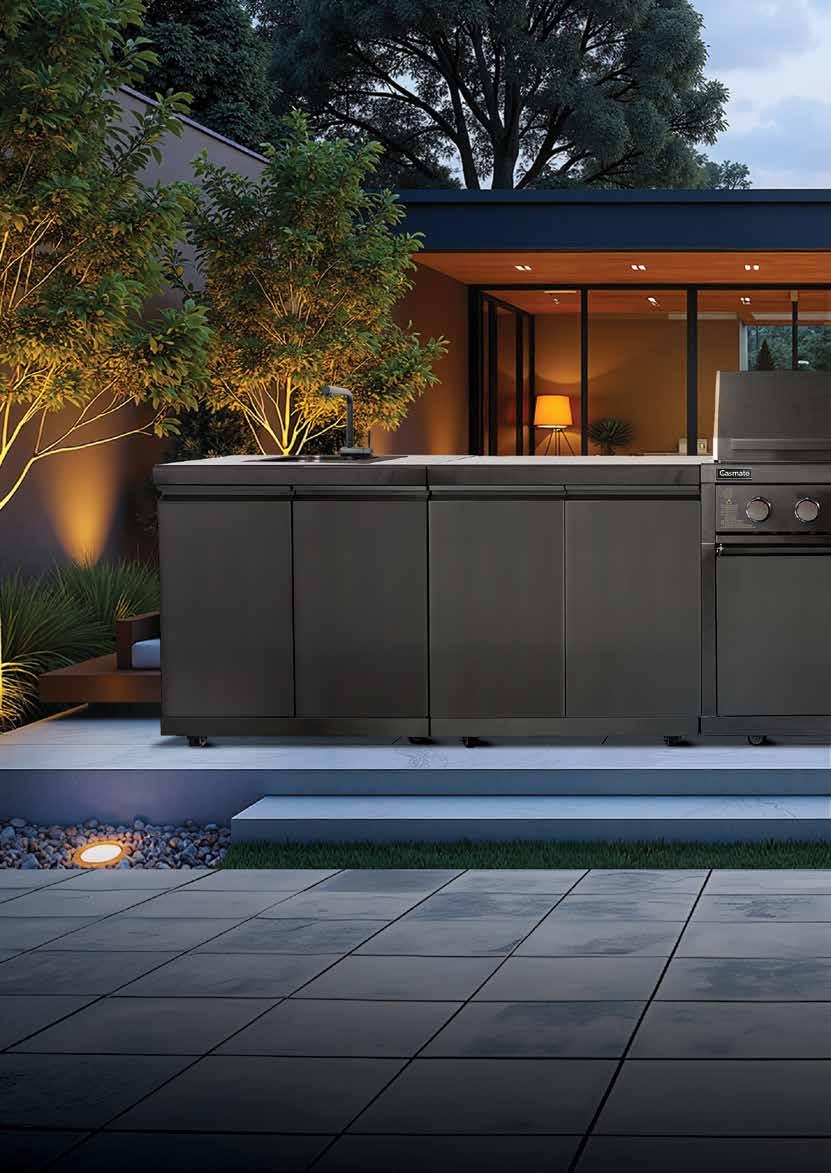

Gasmate NOVA MK2 Sink, Bin & Storage Module
Gasmate NOVA MK2 Storage Module
Phoenix BBQ Module Model no. BQ3058NV Dimensions (mm): 1,074 W x 685 D x 905 H
Model no. BQ3059NV
Dimensions (mm)
480 W x 685 D x 905 H

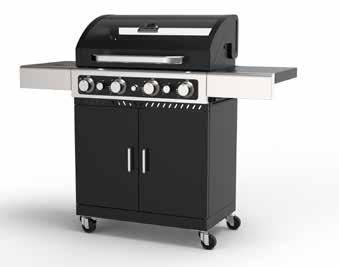

Phoenix 4 Burner BBQ module

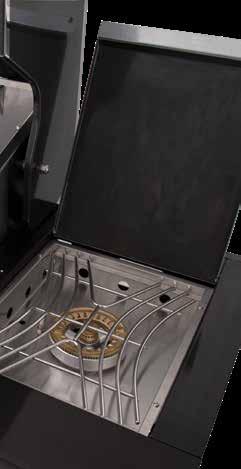

Phoenix Side Burner module
Phoenix Side Burner Module

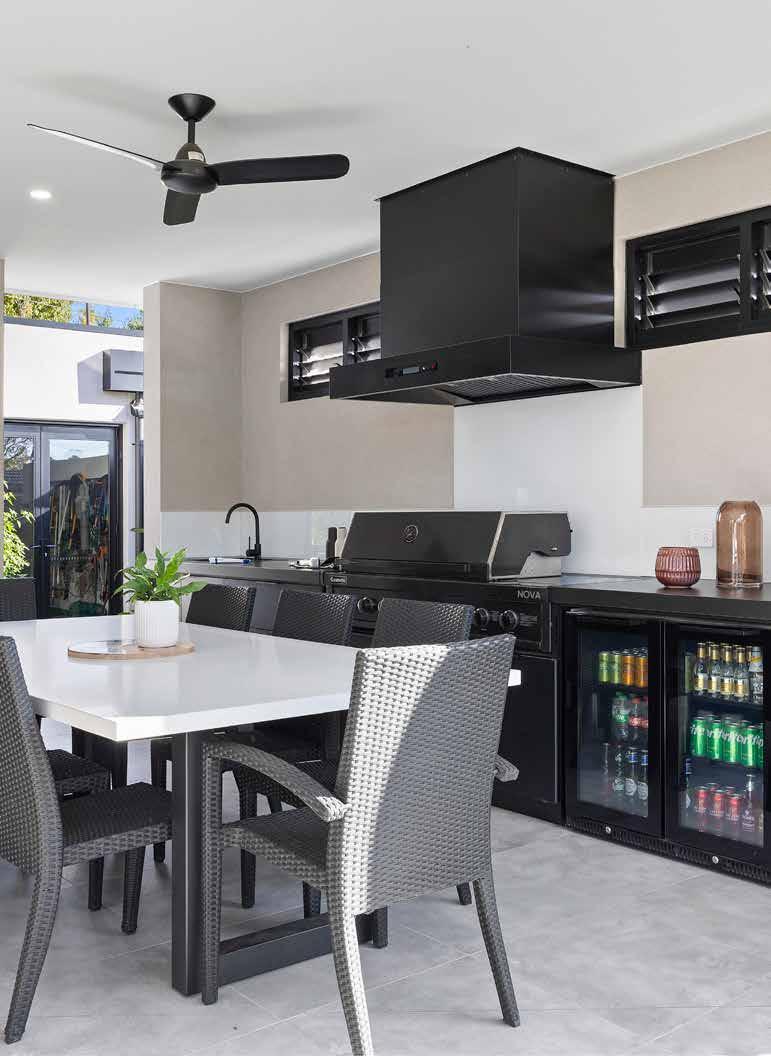

Gasmate Double Door Fridge, model BFR2088101 with Gasmate Nova premium bar fridge top.

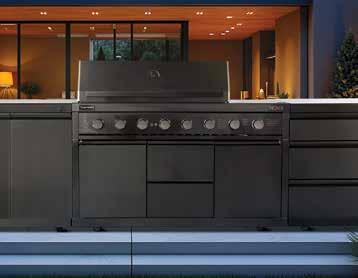

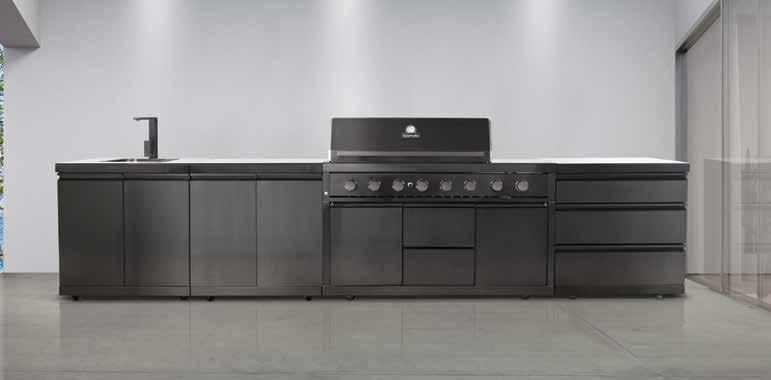

GRAPHITE MODULAR OUTDOOR
GRAPHITE OUTDOOR KITCHEN
NOVA GRAPHITE BBQs (existing models)
• Supplied fully assembled
• 6 Stainless Steel Burners – 12MJ/h each with individual controls
• High grade #304 stainless steel hood and exterior cabinet panels with Graphite stainless steel finish
• Double skin hood for solid structure and better heat insulation, features temperature gauge and stylish slim cool touch handle
• 13MJ/h Ceramic rear burner for healthy rotisserie cooking with integrated high output 15MJ/h side burner (not available on Twin Hood or Classic Built-In BBQs)
• Easy to clean, heavy duty enamel coated cast iron plate and grill
• Stainless steel flame tamers for controlled heat distribution and to minimise cooking fats flaring up
• Electronic ignition for effortless lighting
• Convenient internal lights and LEDs above control knobs
• Elevated high grade #304 stainless steel cooking and warming rack
• NOVA BBQs on trolley feature a cabinet with ample storage with convenient slide-out cylinder storage and locking castors
• AGA certified to Australian Standards
• Approved for natural gas conversion
• Supplied with LCC27 Safe Lok® regulator and hose

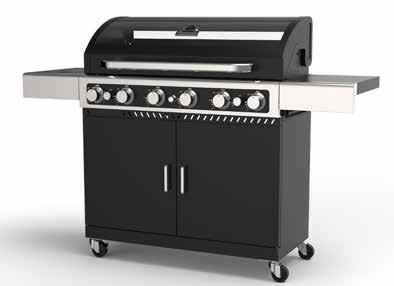

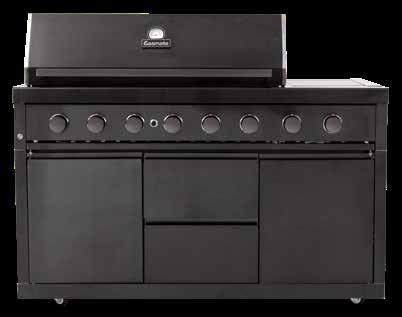

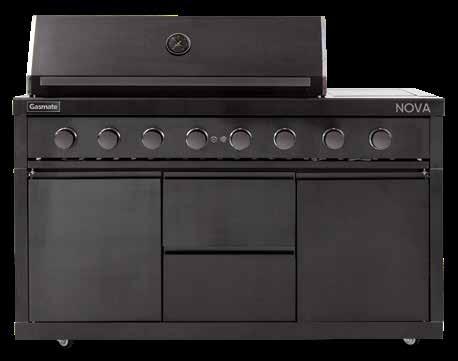

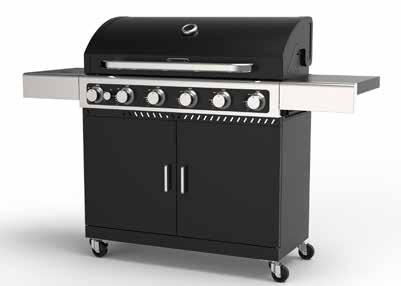

NOVA GRAPHITE 6 BURNER BBQ
Model Number: BQ2090
Main burner output: 6 x 12MJ/h
Side burner output: 15MJ/h
Rear burner output: 1 x 13MJ/h
Combined output: 100MJ/h
Cooking surface finish: Enamel

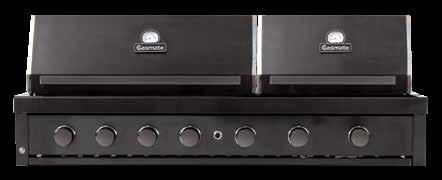

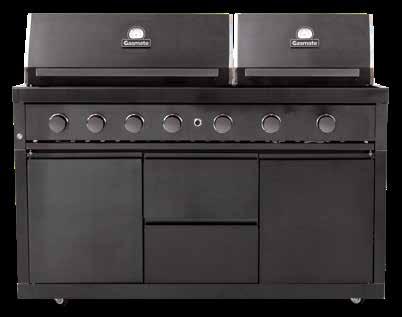

NOVA GRAPHITE 6 BURNER TWIN HOOD BBQ
Model Number: BQ2092
Main burner output: 6 x 12MJ/h
Side burner output: N/A
Rear burner output: 1 x 13MJ/h
Combined output: 85MJ/h
Cooking surface finish: Enamel coated
Hotplate & Grill - Large Hood (mm):
Hotplate & Grill - Small Hood (mm):
NOVA GRAPHITE MODULES
Get creative with the NOVA modules to create your own outdoor design.
NOVA GRAPHITE SINK, BIN AND STORAGE MODULE
BQ2191
• NOVA Graphite Sink, Bin and Storage Module features #304 grade Graphite stainless steel fascia, doors & kick plate, with premium porcelain top and black powder coated cabinet
• Durable stylish black sink
• WELS approved hot and cold tap
• Bin included under sink
• Stylish integrated handles
• Locking castors
• Full depth cabinets
NOVA GRAPHITE SINK, BIN AND STORAGE MODULE
Model Number: BQ2191
Sink: Nano black stainless steel
Tap: WELS approved hot & cold black tap
Bin: Included under sink
Dimensions (mm): 830 W x 685 D x 905 H
Refer to page 79 for installation and dimensions.
NOVA GRAPHITE STORAGE MODULE
BQ2192
• NOVA Graphite Storage Module features #304 grade Graphite stainless steel fascia, doors & kick plate with premium porcelain top and black powder coated cabinet
• 3 convenient shelves
• Stylish integrated handles
• Locking castors
• Full depth cabinets
NOVA GRAPHITE STORAGE MODULE
Model Number: BQ2192
Doors: 2
Shelves: 3 Convenient shelves
Dimensions (mm): 830 W x 685 D x 905 H

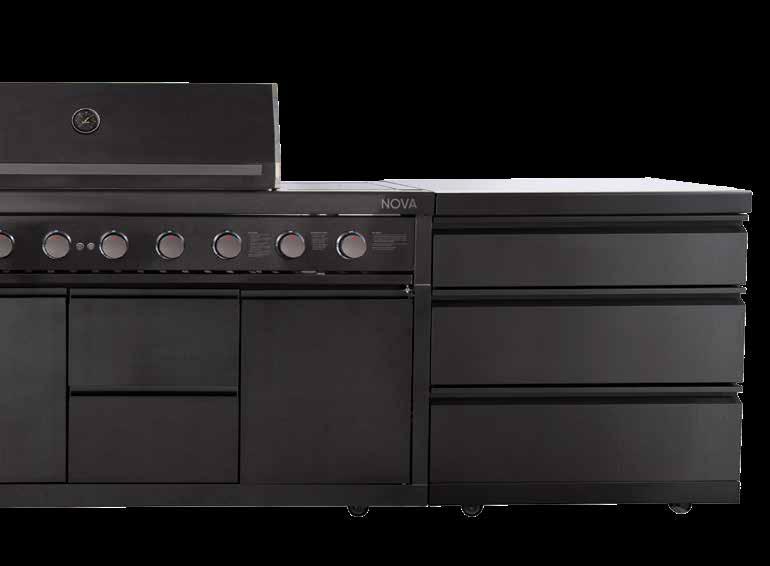

NOVA GRAPHITE 3 DRAWER MODULE
BQ2193
NOVA GRAPHITE PREMIUM BAR FRIDGE TOPS
BQ2197 & BQ2198
• NOVA Graphite 3 Drawer Module features #304 grade Graphite stainless steel fascia, drawers & kick plate with premium porcelain top and black powder coated cabinet
• 3 large capacity drawers
• Stylish integrated handles
• Locking castors
• Full depth cabinets
NOVA GRAPHITE 3 DRAWER MODULE
Model Number: BQ2193
Drawers: 3 Large capacity
Dimensions (mm): 830 W x 685 D x 905 H
• If you want to add a Gasmate Premium bar fridge to your NOVA Graphite Outdoor Kitchen, it’s super easy, you just use the fridge top to integrate it perfectly
• Graphite stainless steel fascia with premium porcelain top to match the NOVA Graphite modules
• Supplied fully assembled
• Available to suit the Gasmate 1 Door Premium Fridge or 2 Door Premium Fridge
NOVA GRAPHITE PREMIUM
1 DOOR BAR FRIDGE TOP
Model Number: BQ2197
NOVA GRAPHITE PREMIUM 2 DOOR BAR FRIDGE TOP
Model Number: BQ2198

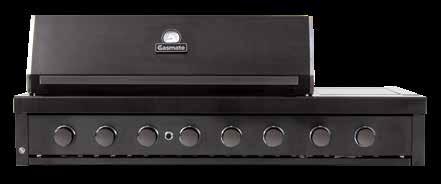

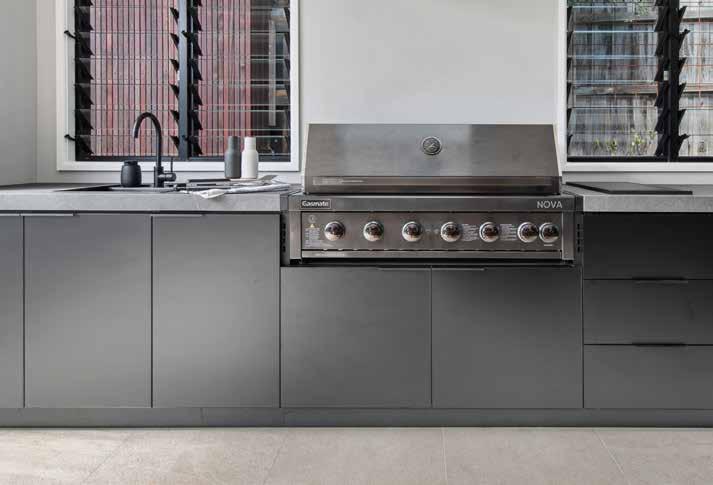

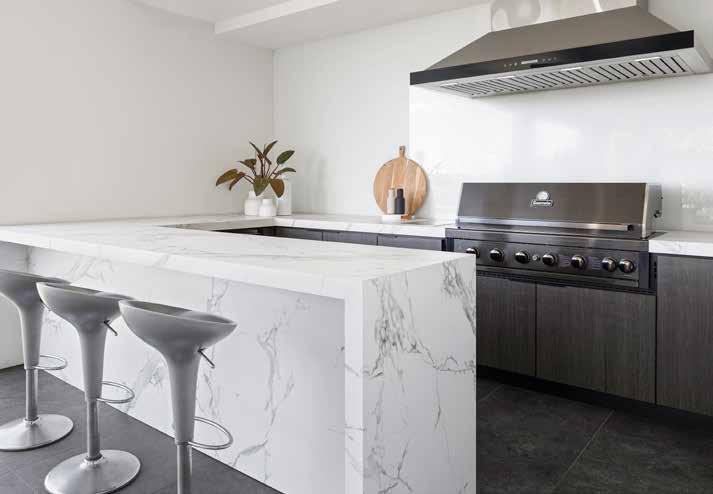

NOVA GRAPHITE BUILT-IN BBQs
NOVA GRAPHITE BUILT-IN BBQs
For those that are wanting to build their own custom outdoor kitchen, with custom made cabinets, then the Gasmate NOVA Built-In BBQs are for you.
For those that are wanting to build their own custom outdoor kitchen, with custom made cabinets, then the Gasmate NOVA Built-In BBQs are for you.
NOVA GRAPHITE 6 BURNER CLASSIC BUILT-IN BBQ
Model Number:
Main
Side burner output: N/A
Rear burner output: 1 x 13MJ/h
To take your outdoor kitchen design to the next level, featuring the NOVA Graphite stainless steel finish, the NOVA Graphite Built-In BBQs will help you create the ultimate, stylish and modern outdoor kitchen of your dreams.
To take your outdoor kitchen design to the next level, featuring the NOVA Graphite stainless steel finish, the NOVA Graphite Built-In BBQs will help you create the ultimate, stylish and modern outdoor kitchen of your dreams.
Cooking
Total
Refer to page 36 for installation and dimensions
79 for installation and dimensions
NOVA GRAPHITE 6 BURNER BUILT-IN BBQ
Model Number: BQ2090B
Model Number: BQ2090B
Main burner output: 6 x 12MJ/h
Main burner output: 6 x 12MJ/h
Side burner output: 15MJ/h
Side burner output: 15MJ/h
Rear burner output: 1 x 13MJ/h
Rear burner output: 1 x 13MJ/h
Combined output: 100MJ/h
Combined output: 100MJ/h
Cooking surface finish: Enamel coated cast iron
Cooking surface (mm):
Total
Dimensions
(mm):
NOVA GRAPHITE 6 BURNER BUILT-IN BBQ BQ2090B
NOVA GRAPHITE 6 BURNER BUILT-IN BBQ BQ2090B
NOVA GRAPHITE 6 BURNER TWIN HOOD BUILT-IN BBQ BQ2092B
NOVA GRAPHITE 6 BURNER TWIN HOOD BUILT-IN BBQ BQ2092B
NOVA GRAPHITE 6 BURNER CLASSIC BUILT-IN BBQ BQ2093B
NOVA GRAPHITE 6 BURNER CLASSIC BUILT-IN BBQ BQ2093B
NOVA GRAPHITE 6 BURNER TWIN HOOD BUILT-IN BBQ
NOVA GRAPHITE 6 BURNER TWIN HOOD BUILT-IN BBQ
Model Number: BQ2092B
Model Number: BQ2092B
Main burner output: 6 x 12MJ/h
Main burner output: 6 x 12MJ/h
Side burner output: N/A
Side burner output: N/A
Rear burner output: 1 x 13MJ/h
Rear burner output: 1 x 13MJ/h
Combined output: 85MJ/h
Cooking surface finish: Enamel
Combined output: 85MJ/h Cooking surface finish: Enamel coated cast iron Hotplate & Grill - Large Hood (mm):
Cooking surface: (Large
(Small
& Grill - Small Hood (mm):

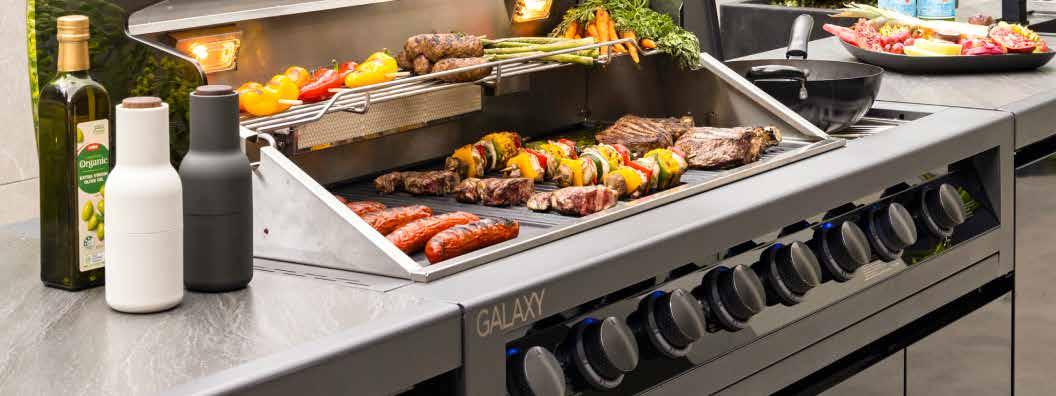

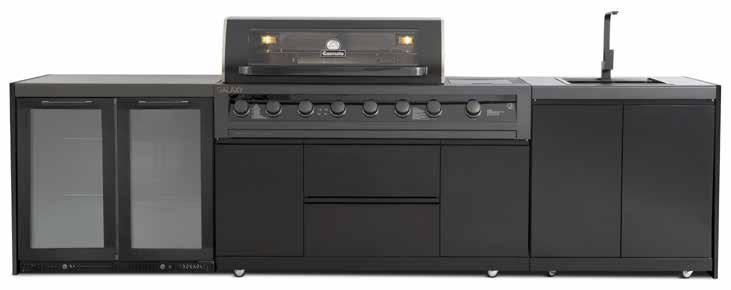

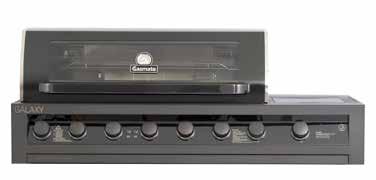

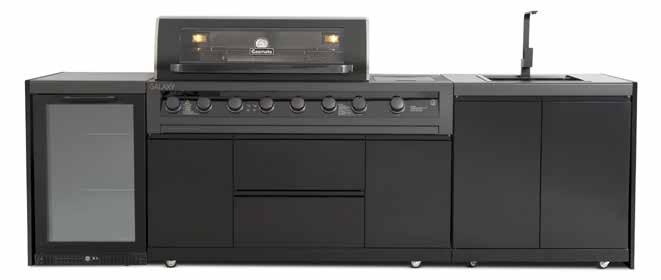

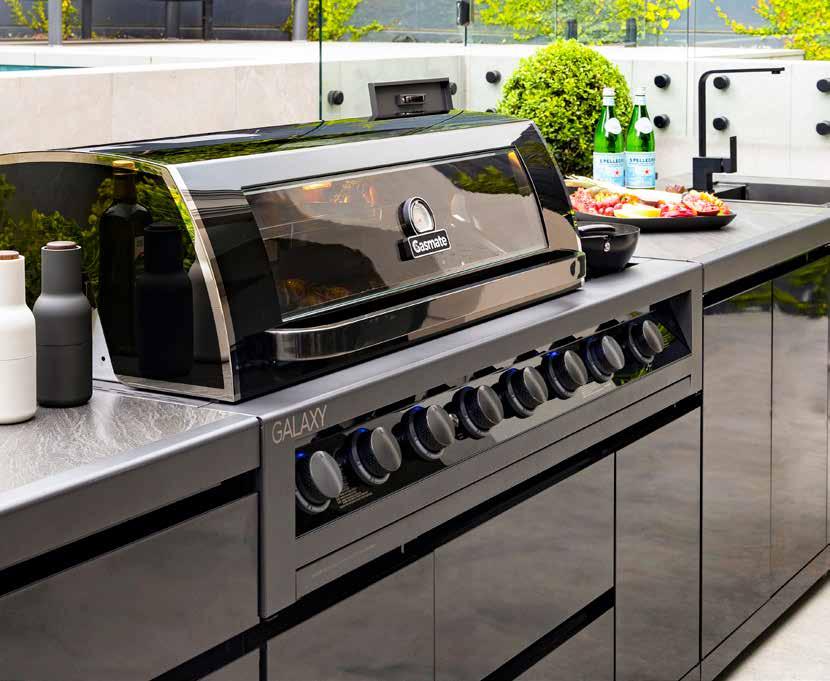

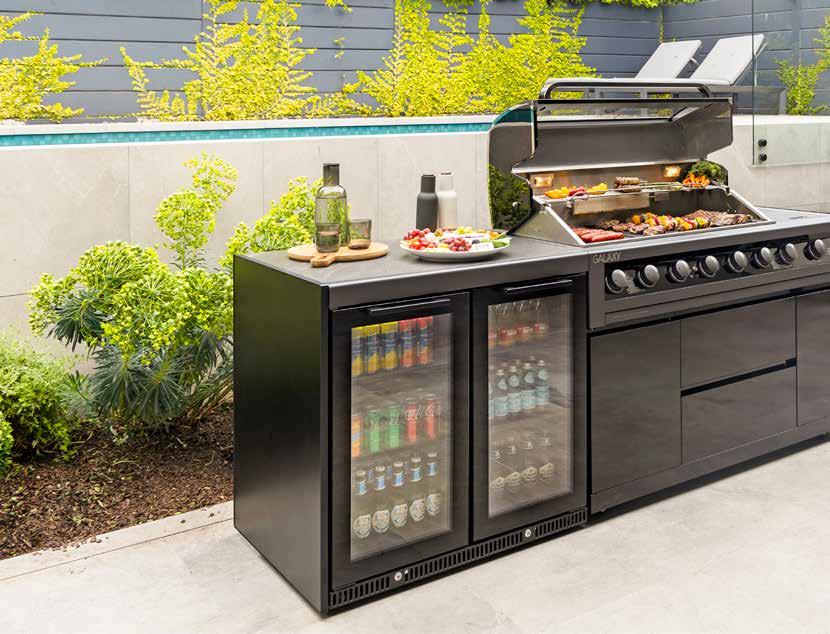

GALAXY GEN2 OUTDOOR KITCHEN RANGE

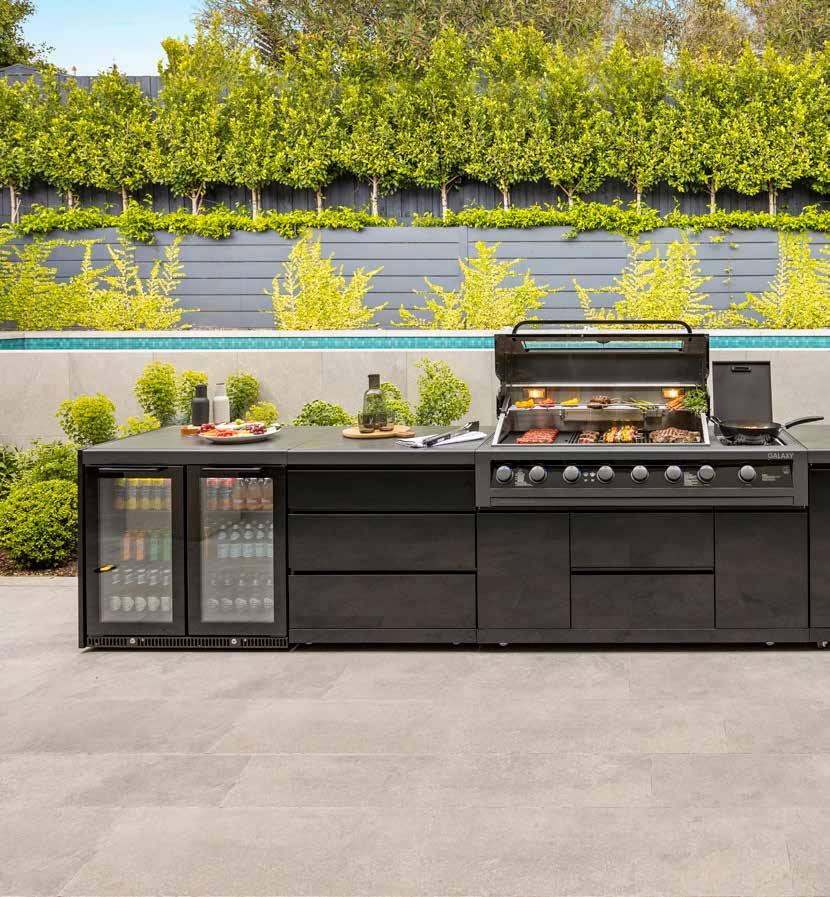

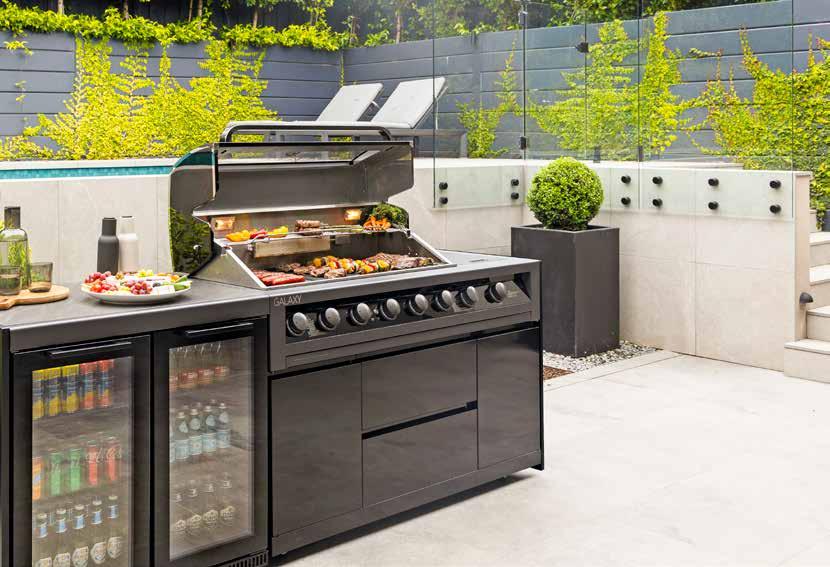

The image features the Gasmate Galaxy Gen2 Outdoor Kitchen, showcasing (from left to right): the Gen2 Double Sintered Stone Bar Fridge Top (BQ3198) atop the Gasmate 2 Door 187L Premium Glass Door Bar Fridge (BFR2088-101), the Gen2 Drawer Module (BQ3093), the Gen2 6 Burner BBQ (BQ19F/BQ19NGF), the Gen2 Storage Module (BQ3092) and the Gen2 Sink, Bin & Storage Module (BQ3091)
The Gasmate Galaxy Gen2 Outdoor Kitchen range continues to impress with its sleek dark accents and flame failure safety technology that ensures an automatic gas cut-off if the flame goes outbringing style and confidence to your alfresco space.
Create your perfect outdoor cooking and entertaining area with the Galaxy Gen2 6 Burner BBQ, enhanced by the versatile Galaxy Gen2 Modules. The Galaxy range also includes built-in BBQ models that can seamlessly integrate into any custom outdoor kitchen design.
For added style and durability, choose the Galaxy Gen2 Modules with stylish integrated handles and durable sintered stone benchtops. These BBQ and module combinations offer flexible configurations, allowing you to design an outdoor kitchen that suits your space and budget.
The Gasmate Galaxy Gen2 Modules are easy to install, requiring minimal assembly. A range of professional rangehoods and bar fridges are also available to complement your design.
Create your own stunning outdoor cooking and entertaining area using the Galaxy Gen2 BBQ and Modules.
GALAXY GEN2 6 BURNER BBQ
• Darker accents throughout including darker stainless steel hood handle, darker control knobs and durable powder coated front fascias
• Flame failure safety technology - ensuring automatic gas cut-off if flame goes out
• Provides up to an impressive 114 MJ/h high heat output, with a total of six burners, a side burner, and a rear rotisserie burner
• Engineered for durability with a powder-coated finish and robust stainless steel construction
• Big cooking space - 960mm x 420mm
• Offers versatile cooking with its enamel coated cast iron hotplate and grill plates for ultimate flexibility
• Electronic ignition for effortless lighting
• The roasting hood is crafted from #304 grade stainless steel, showcasing a sleek black finish, glass viewing window, a temperature gauge, and a cool touch handle for added style and convenience
• Convenient internal hood lights and blue LEDs on the control knobs keep everything clearly visible as you cook
• Cast iron burners with individual controls give a consistent flame from front to back, providing even and efficient heat distribution
• Stainless steel flame tamers for controlled heat distribution
• Stainless steel warming rack to heat food or keep warm
• Powder coated steel cabinet with 2 doors, 2 drawers and loads of storage space to keep your BBQ neat and tidy with all your BBQ supplies within easy reach
• Gas certified to Australian Standards
• Supplied with LCC27 Safe Lok® Regulator and Hose (Propane only)
• Available in Propane and Natural Gas models
GALAXY GEN2 6 BURNER BBQ
Model Number: BQ19F (Propane) BQ19NGF (Natural Gas)
Body finish: Powder coated
Ignition: Electronic
Main burners: 6 x cast iron
Main burner output: 6 x 14 MJ/h 6 x 13.7 MJ/h
Side burner output: 17MJ/h 14MJ/h
Rear burner output: 13MJ/h 14MJ/h
Combined output: 114MJ/h 110.2MJ/h
Cooking surface finish: Enamel coated cast iron
Actual plate size (mm): 317 W x 427 D
Actual grill size (mm): 317 W x 427 D (2 grills)
Total cooking area (mm): 960 W x 420 D
Dimensions (mm): 1470 W x 685 D x 1220 H
GALAXY GEN2 MODULES
Introducing the Gasmate Galaxy Gen2 Modules, now enhanced with sleek, darker accents and new durable sintered stone benchtop. Mix and match any Galaxy Gen2 modules with the BBQ to create a stunning, fully customised outdoor kitchen setup.
● New durable sintered stone benchtops
● Built tough, featuring a durable powder-coated finish with premium sintered stone benchtop
● Storage space to keep all your BBQ supplies neat and tidy and within easy reach
● Convenient locking castors for easy moving
● Sleek integrated handles
Refer to page 80 for installation and dimensions
GALAXY GEN2 SINK, BIN & STORAGE MODULE BQ3091
● Dark stainless steel sink with WELS approved hot and cold tap
● A bin is included under the sink, along with spacious storage and internal shelving
GALAXY GEN2 SINK, BIN & STORAGE MODULE
Model Number: BQ3091
Body finish: Black powder coated
Top: Sintered stone
Sink: Dark stainless Steel
Overall dimensions (mm): 830 W x 685 D x 905 H
GALAXY GEN2 STORAGE MODULE
BQ3092
● Ample storage space with a cabinet featuring 2 doors and 2 internal storage shelves, perfect for keeping all your BBQ supplies organised and within easy reach
Body
GALAXY GEN2 3 DRAWER MODULE
BQ3093
● Ample storage space with 3 full depth drawers to keep all your BBQ supplies neat and tidy and within easy reach
BQ3052
PHOENIX BBQ & SIDE BURNER MODULES
DESIGNED FOR GALAXY GEN2 RANGE
Unlock premium performance and modular freedom. With specially designed Galaxy Gen2 modules for the Phoenix BBQ and Side Burner, you can now build a fully integrated outdoor kitchen - with matching finishes and flexible layout options.
• Dual Functionality: Use the BBQ and Side Burner as standalone units or pair them seamlessly with Galaxy Gen2 modules and Premium fridges.
• Limitless Customisation: Create your ideal outdoor kitchen setup by combining different modules to suit your needs.
Please note, the Phoenix BBQ and side burner appliances are not included with the modules. For more technical information on the Phoenix BBQ and side burner appliances, please go to pages 84 and 85.
Dimensions (mm): 1,074 W x 685 D x 905 H
Phoenix BBQ Module Model no. BQ3058GX
Gasmate Galaxy Gen2 Double Fridge Top + Double Fridge Module
Gasmate Galaxy Gen2 3 Drawer Module
Phoenix Side Burner Module
Model no. BQ3059GX
Dimensions (mm):
480 W x 685 D x 905 H
Gasmate Galaxy Gen2 Sink, Bin & Storage Module
Phoenix BBQ module
MIX & MATCH YOUR MODULES
Design your own outdoor cooking and entertaining area
Create your perfect outdoor cooking and entertaining space with the Galaxy Gen2 Modules , known for their blend of style and durability. Featuring sleek integrated handles and longlasting sintered stone benchtops, these BBQ and module combinations are designed to elevate your outdoor area. With flexible configurations available, you can tailor the design to fit both your space and budget, ensuring a customised and functional outdoor kitchen experience.
Image shows (left to right): the Gen2 Compact Laminate End Panel (BA3514), the Gen2 Double Sintered Stone Bar Fridge Top (BQ3198) on top of the Gasmate 2 Door 187L Premium Glass Door Bar Fridge (BFR2088-101), the Gen2 6 Burner BBQ (BQ19F/BQ19NGF), the Gen2 Sink, Bin & Storage Module (BQ3091) and the Gen2 Compact Laminate End Panel (BA3514)
Image shows (left to right): the Gen2 Compact Laminate End Panel (BA3514), the Gen2 Double Sintered Stone Bar Fridge Top (BQ3198) on top of the Gasmate 2 Door 187L Premium Glass Door Bar Fridge (BFR2088-101), the Gen2 3 Drawer Module (BQ3093), the Gen2 6 Burner BBQ (BQ19F/BQ19NGF), the Gen2 Sink, Bin & Storage Module (BQ3091) and the Gen2 Compact Laminate End Panel (BA3514)
shows (left to right): the Gen2 Compact Laminate End Panel (BA3514), the Gen2 Sintered Stone Bar Fridge Top (BQ3197) on top of the Gasmate 1 Door 97L Premium Glass Door Bar Fridge (BFR1088-101), the Gen2 6 Burner BBQ (BQ19F/BQ19NGF), the Gen2 Sink, Bin & Storage Module (BQ3091) and the Gen2 Compact Laminate End Panel (BA3514)
Pictured: the Gasmate Galaxy Gen2 Corner Module, seamlessly finished with the Compact Laminate End Panel for a clean, polished look.
GALAXY GEN2 6 BURNER BUILT-IN BBQ RANGE
For a bespoke outdoor kitchen featuring custom cabinets, the Gasmate Galaxy Gen2 6 Burner Built-In BBQs are the ideal addition.
The Galaxy Gen2 6 Burner Built-In BBQs will take your outdoor kitchen to the next level, helping you create the stylish and modern space you’ve always envisioned.
GALAXY GEN2 6 BURNER
BUILT-IN BBQ
BQ193BF (Propane), BQ193BNGF (Natural Gas)
Features:
• Darker accents throughout including darker stainless steel hood handle, darker control knobs and durable powder coated front fascias
• Flame failure safety technologyensuring automatic gas cut-off if flame goes out
• Provides up to an impressive 114 MJ/h high heat output, with a total of six burners, a side burner, and a rear rotisserie burner
• Engineered for durability with a powder-coated finish and robust stainless steel construction
• Big cooking space - 960mm x 420mm
• Offers versatile cooking with its enamel coated cast iron hotplate and grill plates for ultimate flexibility
• Electronic ignition for effortless lighting
• The roasting hood is crafted from #304 grade stainless steel, showcasing a sleek black finish, glass viewing window, a temperature gauge, and a cool touch handle for added style and convenience
• Convenient internal hood lights and blue LEDs on the control knobs keep everything clearly visible as you cook
• Cast iron burners with individual controls give a consistent flame from front to back, providing even and efficient heat distribution
• Stainless steel flame tamers for controlled heat distribution
• 17 MJ/h side burner for extended cooking
• 13 MJ/h ceramic rear burner for healthy rotisserie cooking
• Stainless steel warming rack to heat food or keep warm
• Gas certified to Australian Standards
• Supplied with LCC27 Safe Lok® Regulator and Hose (Propane only)
• Available in Propane and Natural Gas models Refer
GALAXY GEN2 6 BURNER
BUILT-IN BBQ WITH SIDE BURNER
BQ19BF (Propane), BQ19BNGF (Natural Gas)
GALAXY GEN2 6 BURNER BUILT-IN BBQ
Model Number: BQ193BF (Propane) BQ193BNGF (Natural Gas)
Main burner output: 6 x 14MJ/h 6 x 13.7MJ/h
Side burner output: 17MJ/h 14MJ/h
Rear burner output: 1 x 13MJ/h 1 x 14MJ/h
Combined output: 114MJ/h 110.2MJ/h
Cooking surface finish: Enamel coated cast iron
Hotplate & Grill (mm): Plate - 317 W x 427 D Grill - 317 W x 427 D x 2
Total cooking area (mm): 960 W x 420 D
Dimensions (mm): 1105 W x 685 D x 565 H
GALAXY GEN2 6 BURNER BUILT-IN BBQ WITH SIDE BURNER
Model Number: BQ19BF (Propane) BQ19BNGF (Natural Gas)
Main burner output: 6 x 14MJ/h 6 x 13.7MJ/h
Rear burner output: 1 x 13MJ/h 1 x 14MJ/h
Combined output: 97MJ/h 96.2MJ/h
Cooking surface finish: Enamel coated cast iron
Hotplate & Grill (mm): Plate - 317 W x 427 D Grill - 317 W x 427 D x 2
Total cooking area (mm): 960 W x 420 D
Dimensions (mm): 1470 W x 685 D x 565 H
PHOENIX BLACK 4 BURNER BBQ RANGE
Elevate your outdoor cooking game with the Gasmate Phoenix Black 4 Burner BBQ and Phoenix Black Side Burner
It features black stainless steel for a sleek and contemporary slimline design that is sure to turn heads and impress your guests. The black lid and surround add a touch of sophistication to the overall look, making it the perfect addition to any modern outdoor area. But it’s not just about the aesthetics - the Phoenix Black BBQ features flame failure safety - stops the gas flow if flame fails. And with its easy-to-install drop-in design, the Gasmate Phoenix Black 4 Burner BBQ is the ultimate blend of style and functionality.
• Available with flat lid or buy the hood kit separately
• Drop-in side burner is also available to complete your outdoor kitchen
Phoenix Black 4 Burner BBQ features:
• 4 x Stainless Steel burners (13.5MJ/h)
• 4 Burner BBQ with Flame Failure Devicestops the gas flow when flame fails
• Slimline design - Flush mounting with benchtop
• #304 Premium grade black powder coated stainless steel lid & surround
• Stainless steel (#304) firebox
• Electronic ignition
• Satin enamel coated cast iron grill & hotplate
• Concealed gas control knobs
• Easy access slide out drip tray
• Cooking area (mm): 634 x 427
• Available in Propane & Natural Gas models
PHOENIX BLACK 4 BURNER BUILT IN BBQ
Model number:
BQ2047BL (Propane)
BQ2047BLNG (Natural Gas)
Main Burner Output 4 x 13.5MJ/h 4 x 13.5MJ/h
Combined output: 54MJ/h 54MJ/h
Hotplate & Grill (mm): Plate - 317 W x 427 D Grill - 317 W x 427 D
Dimensions (mm): 933 W x 609 D x 265 H
634mm
427mm
Phoenix Black Side Burner features:
• 23MJ/h burner with Flame Failure Devicestops the gas flow when flame fails
• Slimline design - Flush mounting with benchtop
• #304 Premium grade black powder coated stainless steel lid & surround
• Stainless steel (#304) firebox
• Concealed gas control knobs
• Electronic ignition
• Available in Propane & Natural Gas models
PHOENIX BLACK SIDE BURNER
Model number: BQ2027BL (Propane)
BQ2027BLNG (Natural Gas)
Output: 23J/h 21MJ/h
Dimensions (mm): 933 W x 609 D x 265 H
Phoenix Black Hood Kit
Model no: BQ2047BLHD
Made from high-quality 304 grade stainless steel, the Phoenix double skinned hood kit has been engineered for easy fixing to your Phoenix Black 4 Burner BBQ.
New!
SATURN 6 BURNER BBQ KITCHEN
Features:
• Black powder coated modules and doors
• Integrated 63L Fridge and WELS rated tap
• Provides up to an impressive 102.5 MJ/h high heat output, with a total of six burners, a side burner, and a rear rotisserie burner
• Big cooking space - 960mm W x 455mm D
• Offers versatile cooking with its enamel coated cast iron hotplate and stainless-steel grill plates for ultimate flexibility
• Double skin powder coated roasting hood with stainless steel inner layer, showcasing a sleek charcoal finish, a temperature gauge, and a cool touch handle
• Convenient internal hood lights and white LEDs on the control knob bezels keep everything clearly visible as you cook
• Stainless steel burners with individual controls give a consistent flame from front to back, providing even and efficient heat distribution
• Stainless steel flame tamers for controlled heat distribution
The all-new Gasmate Saturn 6 Burner BBQ Kitchen is designed to be the centrepiece of your outdoor entertaining area, delivering a versatile and enjoyable cooking experience. Packed with premium features, it includes a double-skinned powder coated hood with stainless steel inner layer, electronic ignition, integrated WELS-rated tap and sink, and a spacious 63 - litre fridge. The Saturn also boasts durable sintered stone benchtops that are 100% UV-stable and completely non-porous 960mm 455mm TOTAL COOKING AREA
• Supplied with LCC27 Safe Lok® Regulator and Hose (Propane only)
• Available in Propane & Natural Gas models
SATURN 6 BURNER BBQ KITCHEN
Model Number:
BQ3500 (Propane)
BQ3500NG (Natural Gas)
Main burner output: 6 x 13MJ/h 6 x 11MJ/h
Side burner output: 12MJ/h 12MJ/h
Rear burner output: 1 x 12.5MJ/h 1 x 13MJ/h
Combined output: 102.5MJ/h 91MJ/h
Ignition: Electronic
Main burners: 6 Burner
Cooking surface finish: Enamelled Cast Iron Hotplate and Stainless Steel Grill Plates
Actual plate size (mm): 1 x 350W x 455D
Actual grill size (mm): 2 x 300 W x 455 D
Total cooking area (mm): 960 W x 455 D
Dimensions (mm): 2830 W x 730 D x 1200 H
PLATINUM IV 6 BURNER BUILT-IN BBQ
Discover the new Gasmate Platinum IV with new black powder coat stainless steel finish and square edged hood handle design. With its built-in design and range of features, the Gasmate Platinum IV 6 Burner Built-In BBQ can serve as the centrepiece of your outdoor kitchen, providing you with a versatile and enjoyable cooking experience. It’s packed with features including a double skinned stainless steel hood, electronic ignition and satin enamel coated cast iron hotplate and stainless steel grills and flame tamers.
Supplied with LCC27 Safe Lok® Regulator and Hose. Certified for natural gas conversion.
• #304 Premium grade powder coated stainless steel built in BBQ
• #304 Stainless steel double skinned hood
• Powerful combined output of 102 MJ/h (including side burner)
• Internal hood lights, with integrated LED lighting on knobs
• Enamel cast iron hotplate, stainless steel grills and flame tamers
• Electronic ignition for easy lighting every time
• Triple glazed glass door to retain cool temperature in the fridge and cuts down UV
• Designed for outdoor undercover use – IP24 rated
• Front vents allow installation in outdoor cabinetry with minimal clearances
• Adjustable digital thermostat for temperature control located inside the fridge
• Heated door to reduce condensation
• Door lock
• Internal LED lights
• Adjustable shelves
• Height adjustable feet
The 1 and 2 Door Premium Glass Door Bar Fridge, can be used on their own or as part of the Gasmate Galaxy Black or NOVA Outdoor Kitchen (with special tops sold separately).
DELUXE BBQ RANGEHOODS
CONVENIENT FRONT MOUNTED LED LIGHTING SO YOU CAN SEE WHAT YOU ARE COOKING WHETHER YOUR BBQ HOOD IS OPEN OR CLOSED.
• Marine grade #316 stainless steel body with black tempered glass fascia creates a bold, on-trend style
• #316 Stainless Steel Body
• #316 Stainless Steel Baffle Filters - Easy to remove and clean
• Black Tempered Glass Fascia
• 3 Speed, Soft-touch controls with 15-minute auto shut-off timer
• Remote Control Included
• Fully Sealed Copper Motors
• 2m Aluminium Ducting Included
• Front Mounted LED Lighting
• Minimum 1200mm from BBQ cooking surface to Rangehood
SOFT-TOUCH CONTROLS, 3 SPEED LEVELS, 15-MINUTE AUTO SHUT-OFF TIMER AND LED LIGHTING.
#316 STAINLESS STEEL BAFFLE FILTERS - EASY TO REMOVE AND CLEAN.
150CM DELUXE BBQ RANGEHOOD
Model Number: GR1500
Extraction capacity: 3000m3/hr
Flexible ducting: 3 x 150mm Ø
Lights: 4 x LED, 12V - 1.8W
Motor capacity: 3 x 1000W
Noise level: <90 Dba
Weight: 68kg
Dimensions (mm): 1500 W x 800 D
120CM DELUXE BBQ RANGEHOOD
Model Number: GR1200
Extraction capacity:
/hr
Flexible ducting: 2 x 150mm Ø
3 x
12V - 1.8W
2 x 1000W Noise
Dimensions (mm): 1200 W x 800 D
STAINLESS STEEL
BLACK GLASS FASCIA
APOLLO 6+ 6 BURNER TROLLEY BBQ RANGE
Designed for serious entertaining, the 6 burner Gasmate Apollo 6+ BBQ is available in a sleek WHITE or BLACK powder coated body with matching hood and black powder coated hood ends. A large glass viewing window, stainless steel fascia, durable side shelves, and a small cabinet under the right side shelf combine smart design with rugged style. The left side burner cabinet features a lift-up door that transforms into a handy shelf, while the right shelf includes a built-in ice or storage tub with a bamboo cutting board. Powered by stainless steel tube burners delivering 90.6MJ/h, it features cast iron hot plates, grill plates, a stainless steel warming rack, and precision digital control with Bluetooth/WiFi smartphone app connectivity. LED lit knobs complete a BBQ built to perform.
Features:
• Powder coat body and hood
• Stainless steel vertical fascia and side shelves
• The left side burner cabinet features a lift-up door that transforms into a handy shelf
• Battery-powered digital control with two plug-in probes on right shelf fascia
• Bluetooth/WiFi smart phone app interface
• Small ice tub with lid and bamboo cutting board fitted in top of right side shelf /cabinet
• White LED in control knob; changes to red when burner is turned on
• Includes BBQ cover
• Certified for natural gas conversion
APOLLO 6+ BBQ RANGE
Body Finish:
powder coat body, hood and black powder coated hood ends
powder coat body, hood and black powder coated hood
Ignition: Main burners: Rotary piezo ignition Rear and side burners: Electronic ignition
Main Burner Output: Stainless steel tube - 6 x 11.5MJ/h
Rear Burner Output: Stainless steel tube with stainless steel
heat shield - 1 x 10.8MJ/h
Side Burner Output: 1 x 10.8MJ/h
Combined Output:
MJ/h
Cooking Surface Finish: 2 x cast iron hotplate / 2 x cast iron grill plate
Total Cooking Area (mm): 900 W x 450 D Dimensions (mm): 1720 W x 1180 H x 600 D Gross Weight:
The Gasmate Apollo 6 Burner BBQ, available in white and black, delivers powerful performance and modern style. Featuring a powder coated body, glass viewing window, stainless steel fascia and shelves, and cast iron cooking plates, it’s built for serious outdoor cooking. Enjoy precise control with a battery-powered digital system, two plug-in temperature probes, and Bluetooth/WiFi app connectivity. With a total output of 90.6MJ/h, an integrated ice or storage tub with bamboo board, and LED-lit knobs, the Apollo is the ultimate BBQ for entertaining.
Features:
• Powder coat body and hood
• Large glass hood viewing window
• Stainless steel vertical fascia and side shelves
• Battery-powered digital control with two plug-in probes on right shelf fascia
• Bluetooth/WiFi smart phone app interface
• Small ice or storage tub with lid and bamboo cutting board fitted in top of right side shelf
• Angled powder coated fascia with contrasting text for clear visibility
• White LED in control knob; changes to red when burner is turned on
• Includes BBQ cover
• Certified for natural gas conversion
Model Number:
Description:
Body Finish:
Ignition:
Main Burner Output:
Rear Burner Output:
powder coat body, hood and black powder coated hood ends
powder coat body, hood and black powder coated hood ends
Main burners: Rotary piezo ignition Rear and side burners: Electronic ignition
Stainless steel tube - 6 x 11.5MJ/h
Stainless steel tube with stainless steel radiant heat shield - 1 x 10.8MJ/h
Side Burner Output: 1 x 10.8MJ/h
Combined Output: 90.6 MJ/h
Cooking Surface Finish: 2 x cast iron hotplate / 2 x cast iron grill plate
Total Cooking Area (mm): 900 W x 450 D
Dimensions (mm): 1670 W x 1180 H x 600 D
Gross Weight: 57kg
Powder coated body, hood ends & accents
Combined output of 90.6 MJ/h
Bluetooth/ WiFi smart phone app interface
Cast iron hotplate and grill plate, with stainless steel tube burners
APOLLO 6 BBQ RANGE
BQ3075WHT
BQ3075BLK
APOLLO 4 4 BURNER TROLLEY BBQ RANGE
The Gasmate Apollo 4 Burner BBQ delivers smart design and performance. Featuring a powder-coated body, and hood with a large glass viewing window, it’s as stylish as it is functional. Includes stainless steel fascia and side shelves, battery-powered digital control, two plug-in temperature probe all easily monitored via Bluetooth/WiFi smartphone app. A built-in ice or storage tub with lid and bamboo cutting board adds convenience, while LED-lit knobs indicate burner status at a glance. With 67.6MJ/h total output across four main burners, a rear burner with heat shield, and a side burner, this BBQ is built for precision and power.
Features:
• Powder coat body and hood
• Large glass hood viewing window
• Stainless steel vertical fascia and side shelves
• Battery-powered digital control with two plug-in probes on right shelf fascia
• Bluetooth/WiFi smart phone app interface
• Small ice or storage tub with lid and bamboo cutting board fitted in top of right side shelf
• Angled powder coated fascia with contrasting text for clear visibility
• White LED in control knob; changes to red when burner is turned on
• Includes BBQ cover
• Certified for natural gas conversion
APOLLO 4 BBQ RANGE
Model Number:
Description:
Body Finish:
Ignition:
powder coat body, hood and black powder coated hood ends
powder coat body, hood and black powder coated hood ends
Main burners: Rotary piezo ignition Rear and side burners: Electronic ignition
Main Burner Output: Stainless steel tube - 4 x 11.5MJ/h
Rear Burner Output: Stainless steel tube with stainless steel radiant heat shield - 1 x 10.8MJ/h
Side Burner Output: 1 x 10.8MJ/h
Combined Output: 67.6 MJ/h
Cooking Surface Finish: 1 x cast iron hotplate / 1 x cast iron grill plate
Total Cooking Area (mm): 710 W x 450 D
Dimensions (mm): 1480 W x 1180 H x 600 D
Gross Weight: 53kg
Powder coated body, hood ends & accents
Combined output of 67.6 MJ/h
Bluetooth/ WiFi smart phone app interface
Cast iron hotplate and grill plate, with stainless steel tube burners
HALO 4 BURNER TROLLEY BBQ
Fire up your outdoor entertaining with the new Gasmate Halo 4 Burner BBQ — where rugged performance meets sleek design. Featuring a stylish coated body Coral Sand, Charcoal, and Olive Green with contrasting black hood ends, this BBQ is built to impress and engineered to perform. With four powerful stainless steel burners delivering 11.5MJ/h each, plus a convenient side burner at 10.8MJ/h, you’ll have a total of 56.8MJ/h at your command. The stainless steel fascia and side shelves offer durability and modern appeal, while the rotary piezo ignition ensures easy starts every time. Cook up a feast with the spacious cooking area, cast iron grill and hot plates, and a stainless steel warming rack to keep everything perfectly timed. Tough, stylish, and built for Aussie backyards — the Halo 4 Burner is your new BBQ hero.
Features:
• Powder coated body available in Coral Sand, Charcoal and Olive Green with black powder coated hood ends and accents
• Rotary piezo ignition
• Hood features an integrated temperature gauge
• Main burners are stainless steel tubes
• Stainless steel #430 warming rack
• Includes BBQ cover
• Certified for natural gas conversion
Model Numbers:
BQ3060CS, BQ3060CA, BQ3060OG
Description: Halo 4 burner BBQ
Body Finish:
Available in Coral Sand, Charcoal and Olive Green powder coated body with black powder coated hood ends and accents
Ignition: Rotary piezo ignition
Main Burner Output: Stainless steel tube - 4 x 11.5MJ/h
Side Burner Output: 1 x 10.8MJ/h
Combined Output: 56.8MJ/h
Cooking Surface Finish: 1 x cast iron hotplate / 1 x cast iron grill plate
Total Cooking Area (mm): 710 W x 450 D
Dimensions (mm): 1380 W x 1180 H x 600 D
Gross Weight: 55kg
Powder coated body, hood ends & accents
Combined output of 56.8
Rotary piezo ignition
Cast iron hotplate and grill plate, with stainless steel tube burners
HALO 4 BURNER BBQ TROLLEY
Coral Sand BQ3060CS
Charcoal BQ3060CA
Olive Green BQ3060OG
QUASAR PRO HOODED TROLLEY BBQ
The Gasmate Quasar PRO Hooded Trolley BBQ is the perfect addition to your outdoor entertainment area. With its sleek black roasting hood with a glass viewing window and healthy rear burner and rotisserie kit, grilling has never been easier. There’s also a convenient cover included.
This impressive BBQ features durable stainless steel burners that ensure better heat conductivity and a side burner to extend your outdoor cooking. The modern touch of LED lighting on the control dials adds a stylish flair. Explore our range, available in 4 burner and 6 burner models, and revolutionise your outdoor cooking game.
Features:
• Black powder coated cabinet
• Black stainless steel fascia with LED knobs
• Stainless steel burners with individual controls give a consistent flame from front to back, providing even and efficient heat distribution
• Convenient side burner for extended cooking
• Rear burner for versatile healthy rotisserie cooking
• Rotisserie Kit included
• Cast iron grills & hotplate
• Black enamel warming rack to heat food or keep food warm
• Convenient castor wheels
• Cover included
• Supplied with the new industry standard LCC27 Safe Lok® Regulator and Hose
• Certified to Australian Standards
QUASAR PRO HOODED TROLLEY
Model Number:
BQ3475
BQ3477
Description: Quasar PRO 4B Hooded Trolley BBQ Quasar
Burner
QUASAR HOODED TROLLEY BBQ
The Gasmate Quasar Hooded Trolley BBQ is a fantastic addition to your outdoor entertainment space. This BBQ effortlessly blends style and functionality, featuring stainless steel burners that offer unmatched cooking versatility. The black powder-coated roasting hood, equipped with a temperature gauge, takes grilling to new heights of ease, making every outdoor cooking moment a delightful breeze.
Available in 4 burner and 6 burner models.
Features:
• Black powder coated hood with temperature gauge
• Black powder coated cabinet
• Black Stainless steel fascia
• Stainless steel burners with individual controls give a consistent flame from front to back, providing even and efficient heat distribution
• Convenient side burner for extended cooking
• Cast iron grills & hotplate
• Black enamel warming rack to heat food or keep food warm
• Convenient castor wheels
• Supplied with the new industry standard LCC27 Safe Lok® Regulator and Hose
The perfect heavy duty catering BBQ for your next social club or large event. The Gasmate Caterer 6B has been designed to last with a solid 5mm thick steel hotplate, stainless steel burners and heavy duty lid that doubles as a windshield. With foldable side shelves, chrome plated warming rack and castors for easy transportation, it’s the ideal BBQ for your local sporting club, social club or your next fund-raising event. The Gasmate Caterer 6B is also supplied with the new industry standard LCC27 Safe Lok® Regulator and Hose.
Features:
• High temperature powder coated barbecue
• “Sure-fire” Rotary piezo ignition for easy lighting
• Sturdy trolley with foldable side shelves
• Removable lid that doubles as windshield
• Large cooking area has been designed to drain fat easily
• Durable and efficient stainless steel burners with individual controls
Introducing the all-new Gasmate Portofino 16" Gas Pizza Oventhe ultimate outdoor cooking companion! With its powerful high heat output, this oven cooks pizza to perfection in just 90 seconds* - delivering mouthwatering, restaurant-quality results every time. Supplied with the new industry standard LCC27 Safe Lok® Regulator and Hose.
Features:
• Powerful 28.8MJ/h cast iron burner
• Electronic ignition
• Durable powder coated body
• Stainless steel inner layer for better heat retention and durability
• Stainless steel folding legs
• Generous cooking space
• Includes LCC27 Safe Lok® regulator and hose
• Gas certified to Australian Standards
PORTOFINO 16" GAS PIZZA OVEN
Model Number: PO3106-16
Description: Portofino 16" Gas Pizza Oven
Ignition: Electronic
Total MJ Rating: 28.8MJ/h
BTU Rate: 27,297
Dimensions (mm): 600 W x 650 D x 370 H Weight: 20.1kg
*Cooks pizza in 90 seconds after approx 5-10 minutes of pre heating.
ELECTRONIC IGNITION
COOKS PIZZA IN 90 SECONDS*
DURABLE POWDER COATED BODY
GENEROUS COOKING SPACE
PARAGON DIGITAL ELECTRIC BBQ
The Gasmate Paragon Digital Electric BBQ looks like a normal gas BBQ but gives you the convenience of plugging into your power point at home….never worry about running out of gas. It boasts a 2400W heat output and is ideal for use on apartment balconies or also suitable for where gas BBQs cannot be used. This BBQ looks and functions similar to a gas BBQ and enables you to grill with the hood up or down.
Includes a cabinet trolley with convenient fold down side shelves and 4 locking castors to secure when in use. Also comes complete with a cover to keep the BBQ clean when not in use.
Features:
• Power Output: 2400W
• Electronic temperature control & timer
• Blue LED Temp/Timer display
• Hinged hood with viewing window
• Stainless steel hood, fascia and firebox
• Convenient fold down side shelves
• Black powder coated Cabinet Trolley with 4 x castors
• Drip Tray
• Cast iron hotplate & grill
• Includes BBQ cover
• Suitable for Outdoor use
Model Number: BQE303
Output: 2400W
Cooking surface finish: Cast iron
Total cooking area (mm): 410 x 300
Weight: 23kg
Overall dimension (mm): 1070 W x 490 D x 1120 H
PARAGON DIGITAL ELECTRIC BBQ
ELECTRIC KETTLE BBQ
The Gasmate Electric Kettle BBQ is compact enough to be used in small areas, like an apartment balcony or small courtyard, giving you the convenience of plugging into a power point and not having to worry about gas bottles. The lid lifts off or use it with the lid closed to seal in the heat. Also features a temperature variable thermostat and a non-stick cooking surface.
Features:
• Power Output: 2200 to 2400W
• Adjustable thermostat
• Convenient utensil rack
• Sturdy stand with convenient shelf
• Excess fat runs off via the drain gutter into a drip tray
• Die-casting aluminium flat and ribbed plate
• Non-stick cooking surface
• Suitable for Outdoor use
CAST IRON
ELECTRIC KETTLE BBQ
Model Number: BQE328
Output: 2200 to 2400W
Cooking surface finish: Die cast aluminium
Total cooking area (mm): 410 x 550
Weight: 11kg
Overall dimension (mm): 660 W x 570 D x 1080 H
PROXIMA ELECTRIC BBQ
The Gasmate Proxima Electric BBQ is ideal for tight spaces, making it perfect for apartment balconies or small courtyards. You can simply plug it into an outlet, so there’s no need to deal with gas bottles. Equipped with a strong 2000W heating element and a non-stick die-cast aluminum cooking surface, the Proxima ensures a hassle-free grilling experience.
Features:
• Power Output: 2000W
• Non stick, die cast aluminium cooking surface
• Cool touch handles
• Thermostatically controlled
• Removable fold back lid
• Integrated feet to allow tabletop use
• Condiments tray and drinks holder
PROXIMA ELECTRIC BBQ
Model Number: BQE364
Output: 2000W
Cooking surface finish: Non-stick die cast aluminium
Weight: 9.65kg
Overall dimension (mm): 570 W x 660 D x 1060 H
Gas Hoses & Fittings
Adaptor Converts 3/8 SAE to 1/4 BSP Female
GM023
Adaptor to convert 3/8 SAE outlet to 1/4 BSP female outlet
Solid brass
3/8 SAE Quick Connect Set
Gas Fitting - Type 2
GMQC0012
• Brass Construction
Easily connects appliance to gas supply, no need for spanners
Designed to suit most LP & Natural Gas appliances designed to operate from a regulated gas supply up to 14kPa
Adaptor - LCC27 to 3/8 BSPP LH
GM40311
Adaptor allows you to convert an LCC27 outlet to 3/8 -19 BSPP-LH requiring a 90 degree bend
Brass and reinforced
nylon construction
Adaptor Converts 1/4" BSP to 3/8" BSP
GM021
Adaptor to convert 1/4 BSP outlet to 3/8" BSP outlet
Solid brass
Adaptor 3/8 BSP LH 2 Way Valve with 1 Inlet & 2 Outlets
GM035
Adaptor allows you to convert a camping (3/8 BSP) cylinder into 2 appliance connections (e.g. Stove and lantern) with individual control valves
• Solid brass
Adaptor
GM093
Brass Construction
Easily connects appliance to gas supply, no need for spanners Designed to suit most LP & Natural Gas appliances designed to operate from a regulated gas supply up to 14kPa
Adaptor - LCC27 to 3/8 BSPP LH
GM4039
Adaptor suits LCC27 gas cylinder and allows you to connect a camping stove hose with a 3/8 -19 BSPP LH female inlet thread
Brass and reinforced nylon construction
Adaptor Converts 1/4" BSP to 3/8 SAE
GM022
Adaptor to convert 1/4 BSP outlet to 3/8" SAE outlet
Solid brass
Bayonet Fitting Female Connection
GMBH0078
Nickel plated
Durable and long lasting
• Quick connect bayonet socket for easy use
Designed to suit most gas appliances
Adaptor - 3/8" BSPP
LH to LCC27
GM40313
• Adaptor allows you to convert an LCC27 outlet to two 3/8"-19 BSPP-LH outlets to create two appliance connections for e.g. a stove and a lantern
Brass and reinforced nylon construction
Adaptor - 3/8 BSPP
LH to LCC27
GM4031
Adaptor allows you to convert a 3/8 -19 BSPP-LH outlet to LCC27
• Brass construction
2.75 kPa Pressure
Regulator - LCC27 to 3/8 BSPT
GM4033
2.75kPa Pressure Regulator suits LCC27 gas cylinders and allows you to select various hose lengths from the Gasmate range with a 3/8 -19 BSPT
male inlet thread
Cast zinc alloy and reinforced nylon construction
Adaptor - 5/8 UNF (3/8" SAE) to 3/8 BSPP
GM40317
• Adaptor allows you to convert from a 5/8"-18 UNF (3/8" SAE) thread to a 3/8"-19 BSPP thread Brass construction
Regulator & Hose
GM4051 - 900mm
GM4053 - 1500mm
2.75kPA outlet pressure
Suits gas appliances with a 5/8 -18 UNF (3/8
male manifold thread
Cast zinc alloy, brass and PVC construction
Quick Connect Bayonet FittingBayonet to 3/8 BSPT
GM4035
Quick connect bayonet fitting allows you to connect to a wall bayonet quick connect fitting and allows you to select various hose lengths from the Gasmate range with a 3/8”-19 BSPT
male inlet thread
Brass construction
Braided Hose1200mm - 3/8" BSPT to 5/8"
UNF (3/8" SAE )
GM4049
1200mm stainless steel braided hose (10mm hole)
Suits gas regulators with a 3/8" -19 BSPT male thread
Regulator & Braided Hose - LCC27 to 5/8"
UNF (3/8" SAE )
GM4055 - 1200mm
GM4057 - 2000mm
GM4059 - 3000mm
2.75kPA outlet pressure
Suits gas appliances with a 5/8"-18 UNF (3/8" SAE) male manifold thread
Cast zinc alloy, stainless steel, reinforced nylon and PVC construction
Natural Gas High Flow Regulator & Hose Kit
GM4025
• Designed to suit most brands of 2 - 6 burner BBQs
This kit is supplied complete with ball valve, hose and regulator
Requires installation by licensed installer and if not natural gas ready, jets to be supplied by manufacturer upon request
Adaptor - Capacity Gauge - LCC27
GM40315
Adaptor connects permanently in between the LCC27 gas cylinder and the LCC27 regulator and hose
Capacity gauge allows you to monitor the fuel level of your gas cylinder quickly and easily
Brass and reinforced nylon construction
Braided Hose
GM40511 - 1200mm
GM40513 - 2000mm
GM40515 - 3000mm
• Bayonet to 5/8"-18 UNF Female (3/8" SAE)
Brass, stainless steel and PVC construction
• For use with caravan and RV sockets
Hose - 1000mm3/8 BSPP LH to High Pressure (Schrader) Valve
GM40419
• 1000mm PVC hose (8mm hole) with a 3/8"-19 BSPP LH Female inlet to high pressure (Schrader) valve
• Features a safety shut off (Schrader) valve that will not allow gas to flow unless properly connected Brass and PVC construction
BBQ Accessories
All Purpose BBQ Light
APL100
• Attach to BBQ with either clamp or magnet
• 6 High intensity LED bulbs
Water resistant
Includes 3 x AAA batteries
ET LED BBQ Light
BA1023
• 10 LED high intensity BBQ light
240V Rotisserie Motor BA1003
Will suit all Gasmate rotisserie kits 8kg load capacity
Pizza Spatula BA1014
Folding handle with locking device Stainless steel lifting surface
Simply attach to BBQ handle
• Includes 3 x AA batteries included One touch operation
Rotisserie Prongs BA1006
Chrome plated 4 Pieces per set
Pizza Stone BA1019
Ceramic food grade stone
Dimensions (mm): 360 W x 380 D x 10 H
Beer Can Chicken Roaster
GM058-030
Roast moist, tender chicken
• Use with favourite beer or beverage in a hooded BBQ or oven
Suitable for all kinds of poultry
Fat drains away for healthier cooking
• Chrome plated finish Dishwasher safe
Pizza Cutter BA1012
Stainless steel pizza cutter
BBQ Spatula
GM058-044
Stainless steel construction with rubber grip handles
Rotisserie Kit Battery Powered GRT2
Cooking Rings
GM058-102
Pack of 2
• Dishwasher safe
Suits barbecues with roasting hoods up to 6 burners
Supplied with all mounting hardware
Uses 2 x D size batteries or transformer (not included)
• 2 x 4 prong forks
4 piece shaft 4kg load capacity
Rotisserie Kit 240V GRT3
Suits barbecues with roasting hoods up to 6 burners
Supplied with all mounting hardware
2 x 4 prong forks
4 piece shaft
8kg load capacity
Wireless BBQ Gauge
BA1042
• Supports up to 2 probes (2 Piece metal probes included) and also includes ambient probe
Programmed with USDA approved preset temperature of 11 types of food
Rotisserie Counter Weight
BA1007
Suits most rotisseries
Pizza Trays
BA1013
Pack of 2 Diameter 410mm
Rotisserie Kit
GRT5
Suits barbecues with roasting hoods up to 6 burners
Convenient light with 20 watt light globe
• Stainless steel 240V motor
4 x heavy duty 2 prong forks
• 3 piece shaft
15kg load capacity
BBQ Hot Plate Liner
BA1022
Washable and reusable
Non-stick
Ideal for use on public BBQ’s
BBQ
Accessories & Maintenance
4 & 6 Burner
Rotisserie Shaft
GM4B6B
Unscrew and rotate handle to fit
4 and 6 burner BBQ rotisseries
• 2 Piece shaft
3 in 1 BBQ Grill Brush
GM058-006
Abrasive pad scrubber
Durable stainless steel wire scrubbing brush
Electronic Ignition -
2 Point Module
GMEPIK-2
Stainless Steel Gyros
Disks 1 Pair
BA1039
Made from durable 304 stainless steel
• Up to 10mm (Note: Rod not included)
Easy to use thumb screws
Double Head BBQ Grill Brush
GM058-007
Durable brass wire scrubbing brush
Handy steel scraper removes burnt on food and fat residue
Dishwasher safe
Designed to suit most brands of BBQs
Includes Electronic igniter and earthing wire for unused ports
Requires 1 x AA battery (not included)
Stainless Steel Rail Burner
2 Pack 405mm
BA1020
• Durable stainless steel construction for longevity
• Each pack contains 2 tube style burners
Replacement Black BBQ Knobs
GMKN-4
2 knobs per pack, designed to suit most brands of BBQs
Universal mounting options Inserts to allow different sized spindles 6mm and 8mm
Satin Enamel Rail Burner
2 Pack 400mm
BA1021
• Hiqh quality cast iron with satin enamel coating
• Designed to suit most brands of BBQs
Replacement Chrome BBQ Knobs
GMKN-5
2 knobs per pack, designed to suit most brands of BBQs
Universal mounting options Inserts to allow different sized spindles 6mm and 8mm
Deluxe BBQ Grill Brush
GM058-066
Removes burnt food and fat residue
Durable stainless steel bristles
• 3 Sided to reach between grills
4 Burner and 6 Burner
Galaxy Kitchen & Builtin BBQ Hood & Fascia Cover
4B: GMBI4B
6B: GMBI6B
Quick and easy to fit with velcro tabs
The UV, weather and rot resistant material is durable and long lasting
Dimension 4B (mm): 850 W
x 580 D x 320 H
• Dimension 6B (mm): 1110 W
x 580 D x 320 H
Replacement Piezo Kit
GMPIK-1
Designed to suit most brands of BBQs
• Includes Piezo button, cable, electrode and collector box
Premium BBQ Cover 2B Hooded
BAC823
• Quick and easy to fit
The UV, weather and rot resistant material is sure to impress
Designed to suit Gasmate 2 burner hooded BBQ Dimension (mm): 1280 W x 620 D x 1170 H
Premium BBQ Cover 4B Hooded
BAC843
Quick and easy to fit
• The UV, weather and rot resistant material is sure to impress
Designed to suit Gasmate 4 burner hooded BBQ Dimension (mm): 1650 W x 640 D x 1170 H
Premium BBQ Cover 6B Hooded
BAC863
Quick and easy to fit
• The UV, weather and rot resistant material is sure to impress
Designed to suit Gasmate 6 burner hooded BBQ
Dimension (mm): 2080 W x 640 D x 1170 H
Plates, Grills & Flame Tamers
Cast Iron Plate 320mm
BPC320
Reversible hotplate
Ribbed and flat sides for cooking versatility
• Easy to clean
Fits most standard BBQ’s on the market
Dimensions (mm): 320 W x 480 D
Satin Enamel Plate 320mm
BPE320
Reversible hotplate
Ribbed and flat sides for cooking versatility
Easy to clean
Fits most standard BBQ’s
Dimensions (mm): 320 W x 480 D
Satin Enamel Plate 317mm
BPE317
Dimensions (mm): 317 x 427
Suits: All Galaxy 6 Burner BBQs
• Nova Series: BQ2090, BQ2090B, BQ2093B
• All Orion & Phoenix BBQs
Satin Enamel Plate 327mm
BPE327V2
Dimensions (mm): 327 x 427
Suits: Nova Twin Hood BBQ (lge hood): BQ2092, BQ2092B
• Galaxy 4 Burner BBQ: BQ3039
Cast Iron Plate 400mm
BPC400
• Reversible hotplate
Ribbed and flat sides for cooking versatility
Easy to clean
Fits most standard BBQ’s on the market
Dimensions (mm): 400 W x 480 D
Satin Enamel Plate 400mm
BPE400
Reversible hotplate
Ribbed and flat sides for cooking versatility
Easy to clean
Fits most standard BBQ’s
Dimensions (mm): 400 W x 480 D
Angled Satin Enamel Plate 315mm
BPE3152
• Dimensions (mm): 315 x 427
Suits: All Galaxy 6 Burner BBQs
• Nova Series: BQ2090, BQ2090B, BQ2093B
Satin Enamel Plate 227mm
BPE227V2
Dimensions (mm): 227 x 427
Suits: Nova Twin Hood BBQ (sml hood): BQ2092, BQ2092B
Cast Iron Grill 320mm
BGC320
Superior grilling performance
Dimensions (mm): 320 W x 48 D
Satin Enamel Grill 400mm
BGE400
Superior grilling performance
Dimensions (mm): 400 W x 480 D
Satin Enamel Grill 327mm
BGE327V2
Dimensions (mm): 327 x 427
Suits: Nova Twin Hood BBQ (lge hood): BQ2092, BQ2092B
• Galaxy 4 Burner BBQ: BQ3039
Cast Iron Plate 400mm BGC400
Superior grilling performance
Dimensions (mm): 400 W x 480 D
Satin Enamel Grill 317mm BGE317
Dimensions 317 x 427mm
Suits: All Galaxy 6 Burner BBQs
• Nova Series: BQ2090, BQ2090B, BQ2093B
• All Orion & Phoenix BBQs
Satin Enamel Grill 227mm
BGE227V2
Dimensions (mm): 227 x 427
Suits: Nova Twin Hood BBQ (sml hood): BQ2092, BQ2092B
Satin Enamel Grill 320mm
BGE320
• Superior grilling performance
Dimensions (mm): 320 W x 480 D
Angled Satin Enamel Grill 315mm
BGE3152
Dimensions (mm): 315 x 427
Suits: All Galaxy 6 Burner BBQs
• Nova Series: BQ2090, BQ2090B, BQ2093B
Satin Enamel Roasting Dish with Lid 320mm BDE320
Dimensions (mm): 320 W x 480 D
Flame Tamer 4B V/E
Pressed Steel
GFTV4
• Dimensions (mm): 385 W x 405 D
Plates, Grills & Flame Tamers
Ceramic Briquette 25pk
GMCR25
Suits ceramic briquette flame tamers
Gives food an enhanced BBQ flavour
Reduces flare-ups
Pack of 25
Adjustable Ceramic Briquette Flame Tamer
GMFT4-6
Comes complete with a full set of briquettes
Adjustable size
Flame Tamer 6B V/E
Pressed Steel
GFTV6
• Dimensions (mm): 320 W x 405 D
Adjustable Flame Tamer x2
GMFT1A
Satin enamel
Fits most BBQ’s
Adjustable size
NOVA GRAPHITE & NOVA MK2 INSTALLATION & DIMENSIONS
NOVA GRAPHITE
6 BURNER BUILT-IN BBQ MODEL NO: BQ2090B
NOVA GRAPHITE
6 BURNER TWIN HOOD BUILT-IN BBQ MODEL NO: BQ2092B
NOVA GRAPHITE
6 BURNER CLASSIC BUILT-IN BBQ MODEL NO: BQ2093B
NOVA MK2
6 BURNER BUILT-IN BBQ MODEL NO: BQ29BF
NOVA MK2
6 BURNER TWIN HOOD BUILT-IN BBQ MODEL NO: BQ292BF
NOVA MK2
6 BURNER CLASSIC BUILT-IN BBQ MODEL NO: BQ293BF
NOVA GRAPHITE
SINK, BIN AND STORAGE MODULE
PLUMBING DIMENSIONS
MODEL NO: BQ2191
BQ2090B: 1475mm
BQ2092B: 1375mm
BQ2093B: 1105mm
BQ29BF / BQ29NGBF: 1475mm
BQ292BF / BQ292NGBF: 1375mm
BQ293BF / BQ293NGBF: 1105mm
GALAXY GEN2 INSTALLATION & DIMENSIONS
Separation Panel (must be
GALAXY GEN2 6 BURNER BUILT-IN BBQ WITH SIDE BURNER
BQ19BF (Propane), BQ19BNGF (Natural Gas)
COMBUSTIBLE MATERIAL CABINETRY
COMBUSTIBLE MATERIAL CABINETRY
1470mm for BQ19BF, BQ19BNGF, 1105mm for BQ193BF, BQ193BNGF
Separation Panel (must be non-combustible material)
Non-combustible material
MATERIAL CABINETRY
1470mm for BQ19BF, BQ19BNGF, 1105mm for BQ193BF, BQ193BNGF
Combustible rear material (e.g. plaster wall)
NON-COMBUSTIBLE MATERIAL CABINETRY
NON-COMBUSTIBLE MATERIAL CABINETRY
for BQ19BF, BQ19BNGF, 1105mm for BQ193BF, BQ193BNGF
Non-combustible material
Non-combustible material
Separation Panel (must be non-combustible material)
Combustible rear material (e.g. plaster wall)
Separation Panel (must be non-combustible material)
Non-combustible rear wall (e.g. brick, concrete)
GALAXY GEN2 SINK, BIN & STORAGE MODULE
PLUMBING
DIMENSIONS
BQ3091
RANGEHOOD CONTENT & DIMENSIONS
1 x Rangehood with 3 x 150mm duct adaptors fitted
2 x Chimney covers each 245mm high
1 x Chimney mounting bracket top
3 x Expanding ducts 150mm x 2m
1 x Rangehood with 2 x 150mm duct adaptors fitted
2 x Chimney covers each 245mm high
1 x Chimney mounting bracket top
2 x Expanding ducts 150mm x 2m
Model Number: GR1500
Model Number: GR1200
150CM DELUXE BBQ RANGEHOOD
120CM DELUXE BBQ RANGEHOOD
RANGEHOOD INSTALLATION
Please consider the following important items before commencing to install the rangehood:
1. The rangehood should be sized to larger than the cooking surface of the BBQ (including any side burners) to ensure adequate extraction of smoke and fumes.
2. When fitted above a BBQ with hood, consideration should be taken to create a bulkhead behind the rangehood to bring it forward from where the open hood is. This will ensure the best extraction of smoke and fumes and minimise impact of hood deflecting smoke away from the rangehood.
3. The rangehood must be ducted to an external exit point to ensure it operates and complies with local and national regulations. Vertical exit through the roof is highly recommended to provide the best performance.
4. Each fan motor must be ducted separately (do not combine to a single outlet).
• GR1200 = 2 x Ø150mm Ducts
• GR1500 = 3 x Ø150mm Ducts
5. Do not reduce the duct size smaller than Ø150mm.
6. Total length to exits is recommended to be less than 4m.
7. Avoid sharp bends in the duct – ideal bend radius should be 2 x duct diameter (R300mm minimum)
8. Do not crush, compress or deform the duct.
VERTICAL DUCT
BULKHEAD
RANGEHOOD DUCTING
NOT IDEAL – Avoid sharp bends and crushed or compressed duct as it will restrict airflow.
Gradual bends with radius at least twice the duct diameter and taut ducting allow for the best airflow.
RANGEHOOD SIZING AND POSITION
NOT IDEAL – Rangehood does not overlap with BBQ cooking area and smoke and fumes can easily escape away from the rangehood.
Rangehood overlaps complete cooking area of the BBQ to help ensure it captures the maximum level of fumes and smoke.
NOT IDEAL - Hood deflects smoke and fumes and away from the rangehood.
THE IDEAL POSITION OF THE RANGEHOOD IS AS FOLLOWS:
1. Height above cooking surface; 1200mm
2. Distance from cooking surface to rangehood mounting bracket bottom screw hole: refer to instruction manual for exact distance.
About 900mm Depending on BBQ Model
Bulkhead to allow rangehood to be positioned directly over the cooking area to catch smoke and fumes effectively.
RANGEHOOD
BULKHEAD
PHOENIX BLACK 4 BURNER BBQ INSTALLATION
& DIMENSIONS
MODEL NO. BQ2047BL / BQ2047BLNG
PRODUCT DIMENSIONS
(FRONT/REAR VIEW) (SIDE VIEW)
BENCH CUT-OUT
The cutout size, when sitting the BBQ flush with the stone bench
Feet Adjustment:
4 adjustable feet are supplied with the BBQ. Please ensure all 4 feet are attached to the BBQ for height adjustment. If you plan to install the drop in BBQ in our Alfresco Plus BBQ cabinet module, please adjust the feet of the BBQ so that overall height is 290mm. Adjust the feet of the BBQ so all edges sit flush. If you choose to build your own cabinet, please adjust the feet height accordingly.
VIEW)
WARNING
This drop-in BBQ is designed to sit flush with the bench. However, if you choose to install the BBQ on top of the stone bench, you need to make sure the legs are supporting the BBQ. The appliance requires venting. When the BBQ is sitting flush with the bench, there is an approximate 2mm gap around the BBQ edge with the bench. This gap plays an important role of venting, therefore, it should not be sealed with silicon. If you choose, however, to seal the gap, a rectangular unimpeded opening of approx 750mm W x 10mm H in either the front or the rear should be incorporated within the cabinet. Please refer to diagram below as an example.
The cutout size, when sitting the BBQ on top of the stone bench
Drip tray access:
Please note that you must allow access under the BBQ for the drip tray to be removed. UNDER BENCH CLEARANCE: 150mm ALL AROUND SIDE WALLS OF BBQ
PHOENIX BLACK SIDE BURNER
INSTALLATION & DIMENSIONS
MODEL NO. BQ2027BL / BQ2027BLNG
PRODUCT DIMENSIONS
(FRONT/REAR VIEW) (SIDE VIEW)
BENCH CUT-OUT DIMENSIONS
Feet Adjustment:
4 adjustable feet are supplied with the BBQ. Please ensure all 4 feet are attached to the BBQ for height adjustment. If you plan to install the drop in BBQ in our Alfresco Plus BBQ cabinet module, please adjust the feet of the BBQ so that overall height is 290mm. Adjust the feet of the BBQ so all edges sit flush. If you choose to build your own cabinet, please adjust the feet height accordingly.
The cutout size, when sitting the Side Burner FLUSH with the bench
The cutout size, when sitting the Side Burner ON TOP of the bench
WARNING
This drop-in BBQ is designed to sit flush with the bench. However, if you choose to install the BBQ on top of the bench, you need to make sure the legs are supporting the BBQ. The appliance requires venting. When the BBQ is sitting flush with the bench, there is an approximate 2mm gap around the BBQ edge with the bench. This gap plays an important role of venting, therefore, it should not be sealed with silicon. If you choose, however, to seal the gap, a rectangular unimpeded opening of approx 375mm W x 10mm H in either the front or the rear should be incorporated within the cabinet. Please refer to diagram below as an example.
Take the heat and smoke out of outdoor cooking with Excelsior rangehoods—designed to keep your alfresco area clean, clear, and comfortable.
Trusted by Australians since 2014, the Excelsior and Excelair range is built for performance, reliability, and ease, so you can focus on enjoying the BBQ without the fuss.
Excelsior Black BBQ Rangehood Wall Mounted 1480mm
CXWB14802BLK
• New Black coated 304 stainless steel finish complements any outdoor entertaining area with its style and functionality
• Sleek and modern design
• Double chamber motors deliver up to 3900m3/hr of powerful, yet quiet extraction of cooking smoke and odours
• Touch screen control panel with digital display, 3 speed settings, light control, 24hr clock, delay shut off timer and remote control
• Super bright LED lighting – energy efficient illumination of your cooking surface
Finish: Black coated #304 Stainless steel body
Control: Touch screen & remote control
Lights: 6 x 1.5W LED
Fan Speed: 3 Speeds - low, medium, high
Motor Input: 3 × 241W
Motor Type: Double chamber
Air Extraction: 3900m3/hr
Noise Level: 25-35 db per motor
Filter: Stainless steel
Flue Covers: 2 × 400mm high
Ducting: 3
Excelsior Black BBQ Rangehood Wall Mounted 1200mm
CXWB12082BLK
• New Black coated 304 stainless steel finish complements any outdoor entertaining area with its style and functionality
• Sleek and modern design
• Double chamber motors deliver up to 2600m3/hr of powerful, yet quiet extraction of cooking smoke and odours
• Touch screen control panel with digital display, 3 speed settings, light control, 24hr clock, delay shut off timer and remote control
• Super bright LED lighting – energy efficient illumination of your cooking surface
Finish: Black coated #304
steel body
Control: Touch screen & remote control
Lights: 4 x 1.5W LED
Fan Speed: 3 Speeds - low, medium, high
Motor Input: 3 × 241W
Motor Type: Double chamber
1.5m
Air Extraction: 2600m3/hr
Noise Level: 25-35 db per motor
Filter: Stainless steel
Flue Covers: 2 × 400mm high
Ducting: 2 x 150mm round semi rigid
Weight: 60kgs
Size (mm): 1200 x 800 x 560 - 900 H
Excelsior BBQ Rangehood Ceiling Mounted 1480mm
CXWB14802IS
• Complements any outdoor entertaining area with it’s style and functionality
• Sleek and modern design – Made from quality 316 marine grade stainless steel for a lustrous finish and to provide protection against the Australian outdoor elements
• Ultra quiet double chamber motors deliver up to 3900m3/ hr of powerful, yet quiet extraction of cooking smoke and odours
• Touch screen control panel with digital display, 3 speed settings, light control, 24hr clock, delay shut off timer and remote control
• Super bright LED lighting – energy efficient illumination of your cooking surface
Finish: 316 Marine grade stainless steel
Control: Touch screen & remote control
Lights: 6 x 1.5W LED
Fan Speed: 3 Speeds - low, medium, high
Motor Input: 3 × 241W
Motor Type: Double chamber
Air Extraction: 3900m3/hr
Style and Functionality with a Sleek and Modern Design
Speed, Touch Screen Control with digital display and auto shut-off timer
Noise Level: 25-35 db per motor
Filter: Stainless steel
Flue Covers: 2 × 400mm high
Ducting: 3 x 150mm round semi rigid
Weight: 85kgs
Size (mm): 1480 x 800
Excelsior Interlock System
EGIS002
The Excelsior Interlock System comes complete with a 24V gas solenoid valve and air switch and allows the Excelsior Rangehood, or other approved rangehoods, to be powered via the interlock controller.
Our Excelsior Interlock System, when used in conjunction with an Excelsior Rangehood, is designed to ensure the supply of gas to a gas appliance, is only possible when the connected rangehood is in operating mode.
Once installed, the unit detects when the rangehood fan is switched on and running. It then activates the air switch, which in turn energises the gas solenoid valve, allowing gas to flow to the appliance.
In the event of the rangehood fan stopping or failing to generate sufficient air flow/pressure, the air switch will trigger the gas solenoid valve to be de-energized, cutting off the gas supply to the appliance. Typically, this interlock system would be fitted to an approved gas barbecue with flame failure device that is installed in a residential alfresco area under a suitable Excelsior Rangehood.
