High Strenght PC Material & Metal Frame
Interated One-Piece
Installation
Automative Metallic Paint
Wireless Zigbee Protocol
PRODUCT PARAMETERS / 产品参数
• Material / 材质:
D8W/D8Y (Aluminium alloy cover & bottom frame)
D8S/D8YS (Aluminium alloy cover & plastic bottom frame)
• Product category / 产品分类: Switch with backlight
• Size / 尺寸: Borderless (86 mm X 86 mm) With Border (90 mm X 90 mm)
• Input Voltage / 输入电压: AC220V/DC12V/DC24V
• Installation / 安装方式: Standard 86 conjoined box
Precision Circuit Module
Support Vertical Layout
Laser Engraving & lettering

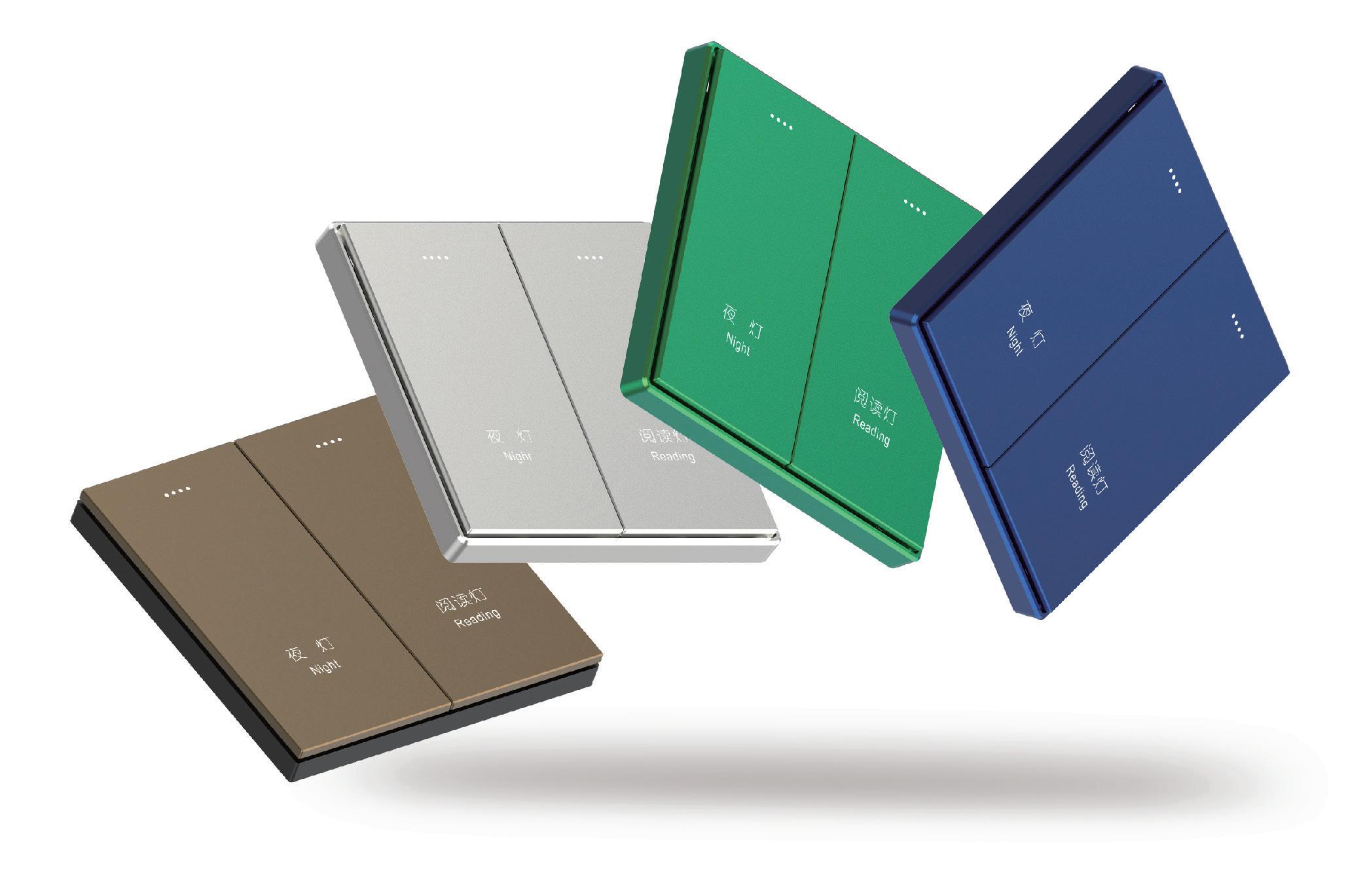

Regular Colour / 常规色 Custom Colour Choice / 颜色选择定制

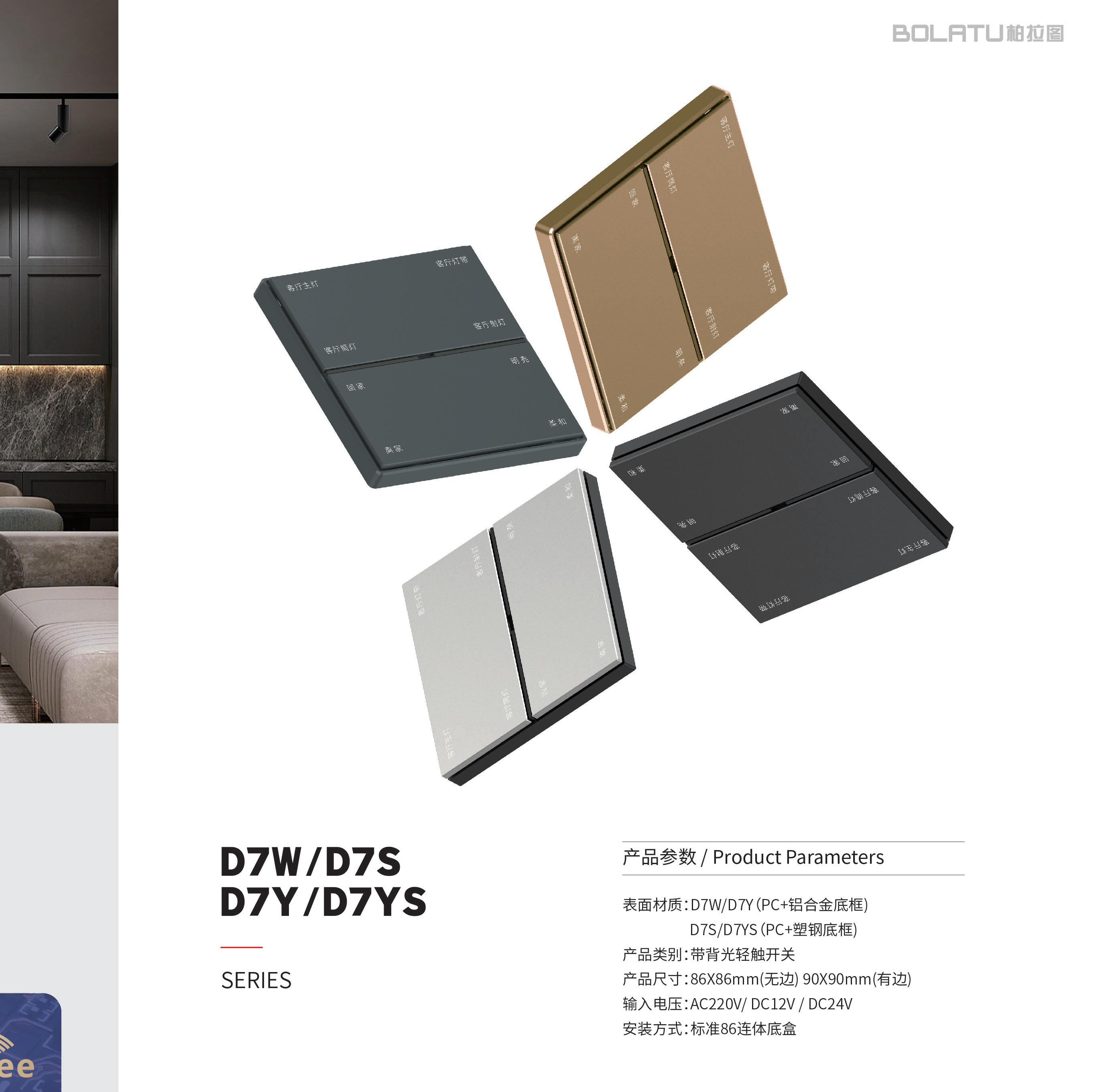

PRODUCT PARAMETERS / 产品参数
• Material / 材质:
D7W/D7Y (PC + aluminium alloy bottom frame)
D7S/D7YS (PC + plastic/steel bottom frame)
• Installation / 安装方式: Standard 86 conjoined box D7(W/S/Y/YS)
High Strenght PC
Material & Metal Frame
Interated One-Piece Installation
Automative Metallic Paint
Wireless Zigbee Protocol
Precision Circuit Module
• Product category / 产品分类: Switches with backlight
• Size / 尺寸: Borderless (86 mm X 86 mm) With Border (90 mm X 90 mm)
• Input Voltage / 输入电压: AC220V/DC12V/DC24V
Support Vertical Layout
Laser Engraving & lettering
Colour / 常规色
Custom Colour Choice /
High Strenght PC
Interated One-Piece
Installation
Automative Metallic
Laser Engraving & lettering
PRODUCT PARAMETERS / 产品参数
• Material / 材质:
D3W/D3Y (PC + aluminium alloy bottom frame)
D3S/D3YS (PC + plastic/steel bottom frame)
• Product category / 产品分类: Switches with backlight
• Size / 尺寸: Borderless (86 mm X 86 mm) With Border (90 mm X 90 mm)
• Input Voltage / 输入电压: AC220V/DC12V/DC24V
• Installation / 安装方式: Standard 86 conjoined box
Colour / 常规色

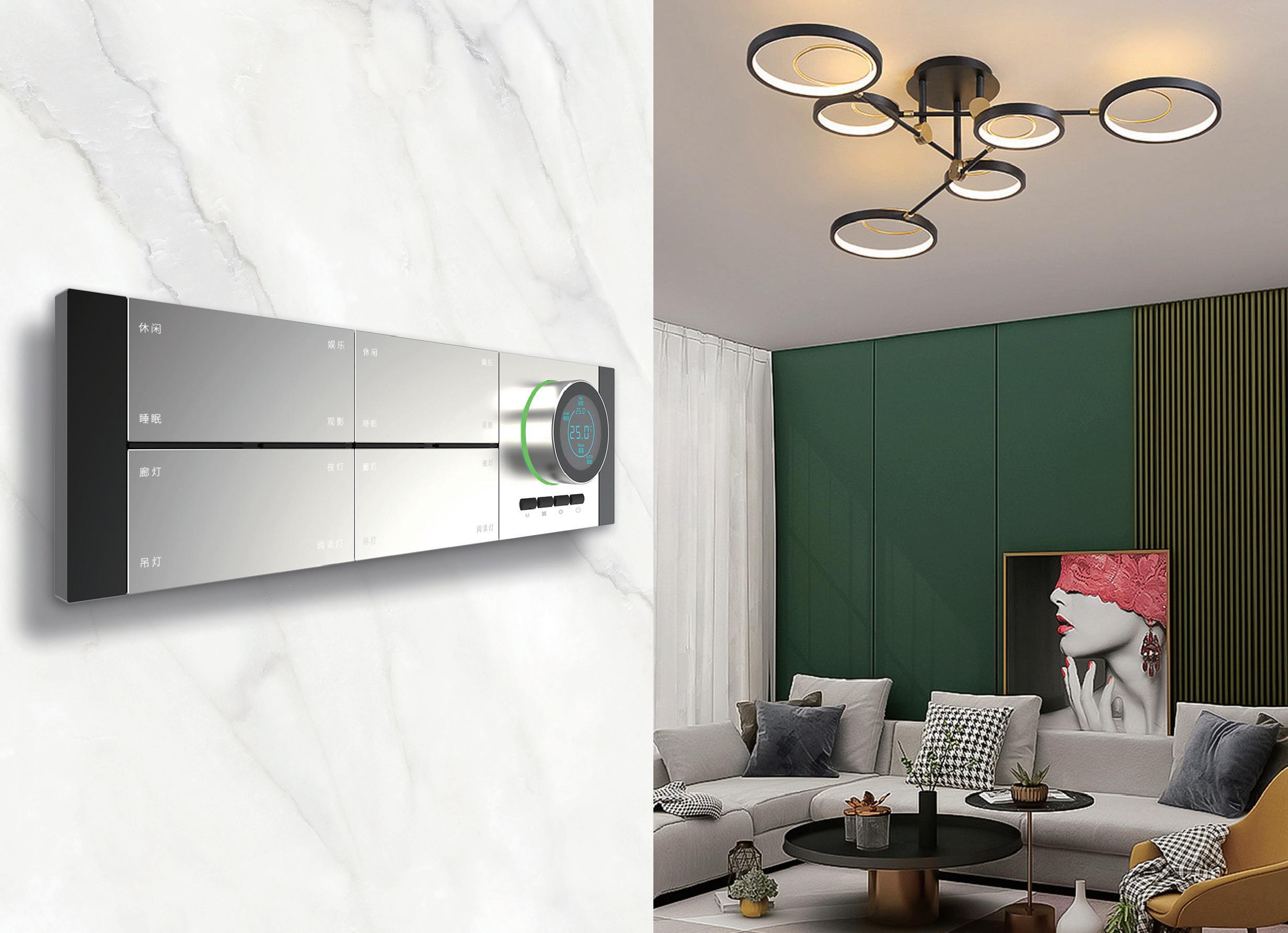

D120 Series.
PRODUCT PARAMETERS / 产品参数
• Material / 材质: PC/metal body + metal frame
• Product category / 产品分类: Switches with backlight
• Size / 尺寸: 86 mm X 120 mm
• Input Voltage / 输入电压: AC220V/DC12V/DC24V
• Installation / 安装方式: Standard 86 conjoined box
High Strenght PC Material & Metal Frame
Interated One-Piece
Installation
Automative Metallic
High Strenght PC
Interated One-Piece
Installation
PRODUCT PARAMETERS / 产品参数
• Material / 材质:
D1W/D1Y (PC + aluminium alloy bottom frame)
D1S/D1YS (PC + plastic/steel bottom frame)
• Product category / 产品分类: Switches with backlight
• Size / 尺寸: Borderless (86 mm X 86 mm) With Border (90 mm X 90 mm)
• Input Voltage / 输入电压: AC220V/DC12V/DC24V
• Installation / 安装方式: Standard 86 conjoined box
PRODUCT PARAMETERS / 产品参数
• Material / 材质:
D1BW/D1BY (PC + aluminium alloy bottom frame)
D1BS/D1BYS (PC + plastic/steel bottom frame)
• Installation / 安装方式: Standard 86 conjoined box D1(BW/BS/BY/BYS)
Interated One-Piece
Installation
• Product category / 产品分类: Switches with backlight
• Size / 尺寸: Borderless (86 mm X 86 mm) With Border (90 mm X 90 mm)
• Input Voltage / 输入电压: DC12V/DC24V
Colour / 常规色
PRODUCT PARAMETERS /
产品参数
• Material / 材质:
D3BW/D3BY (Aluminium alloy cover & bottom frame)
D3BS/D3BYS (Aluminium alloy cover & plastic bottom frame)

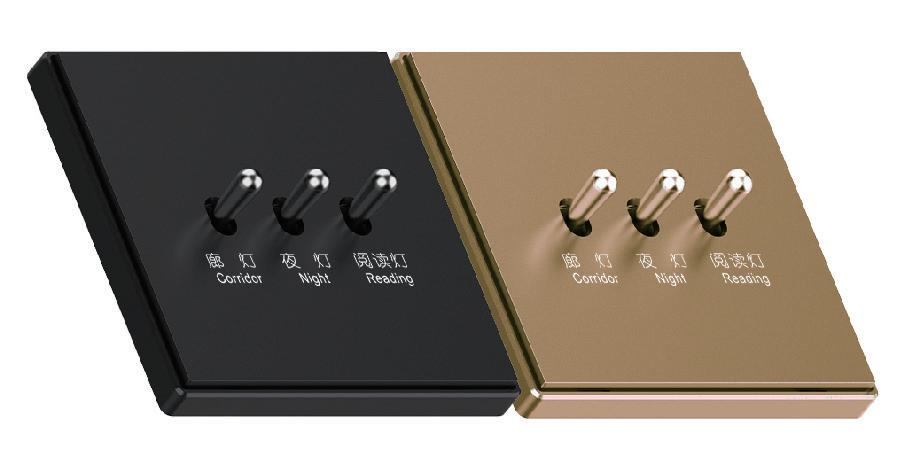

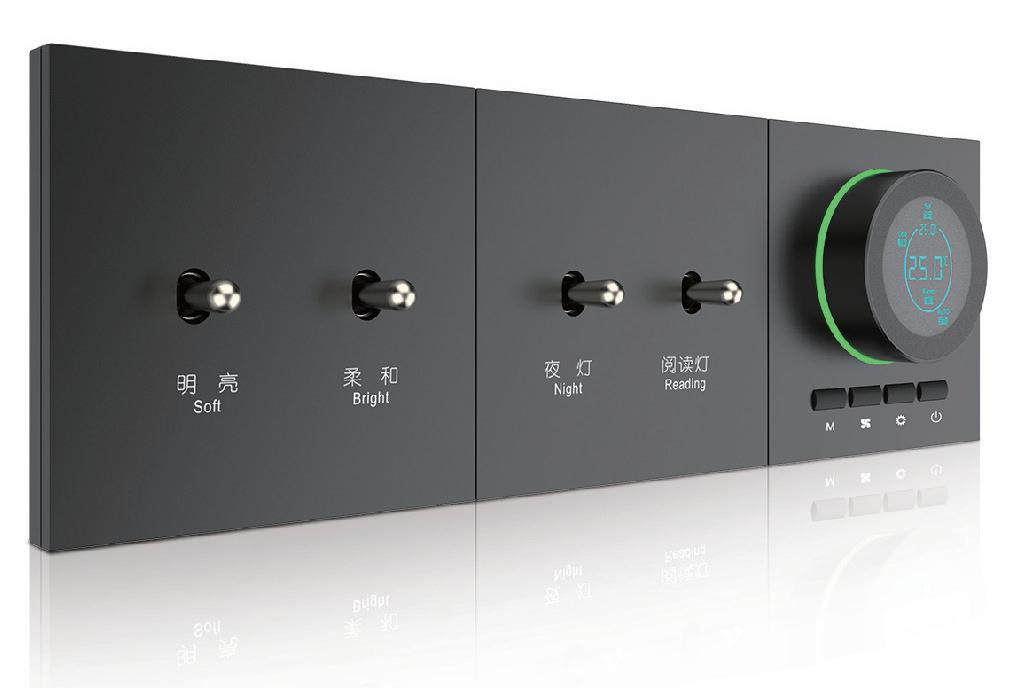

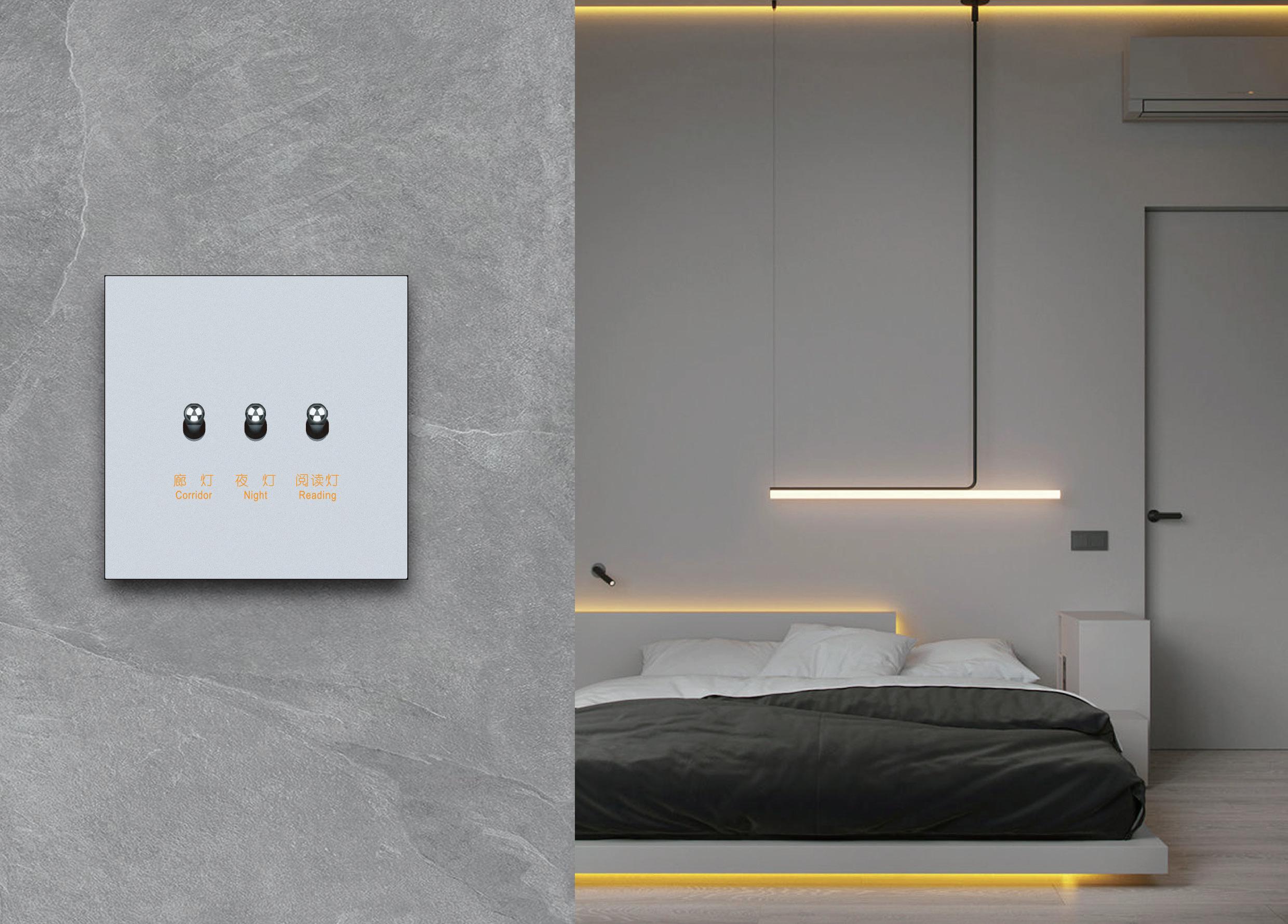

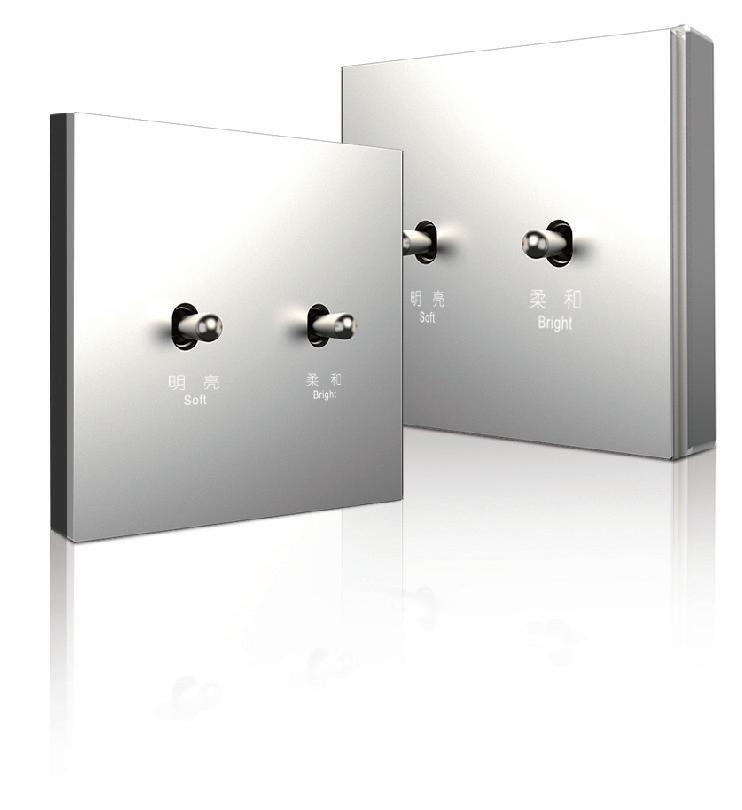

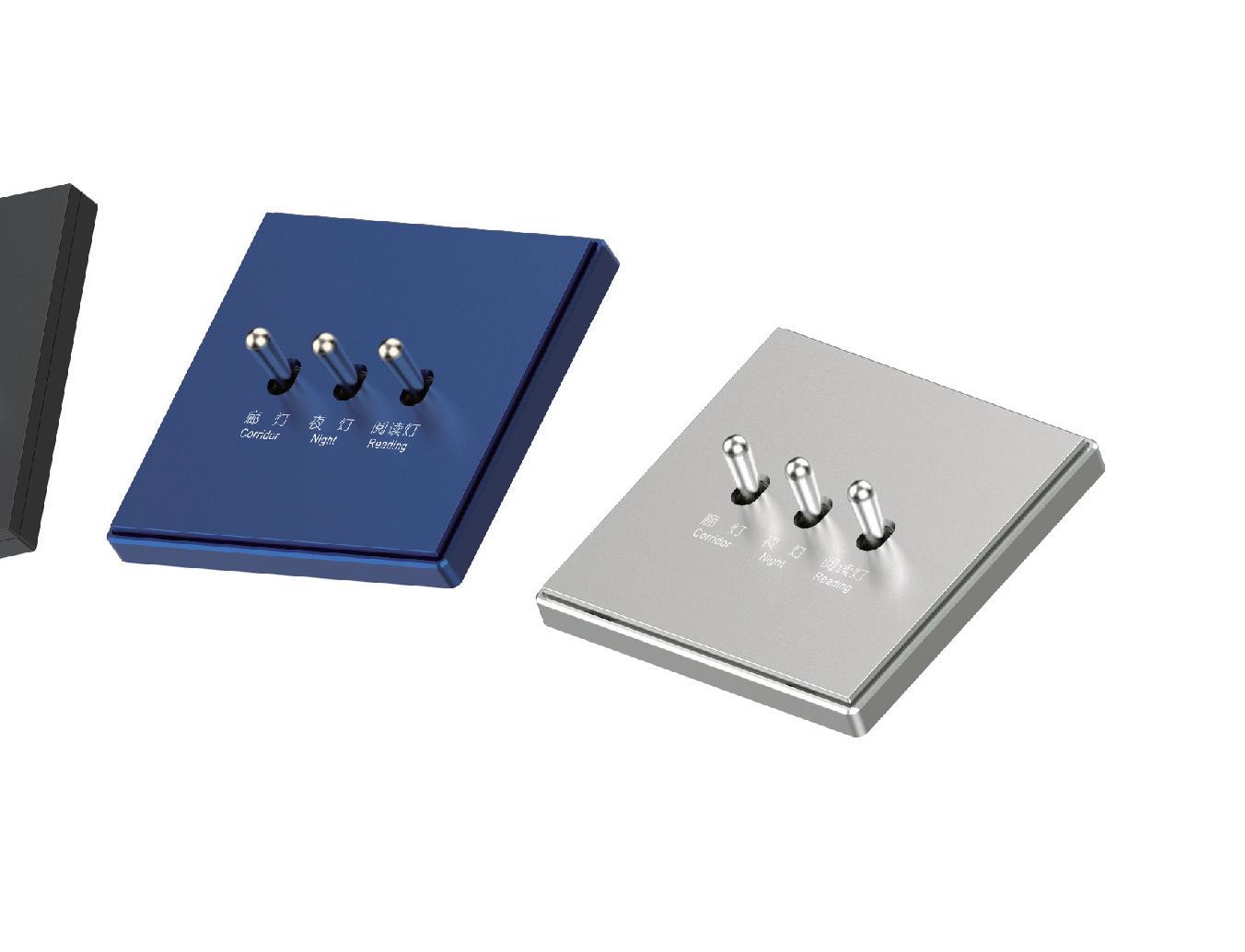

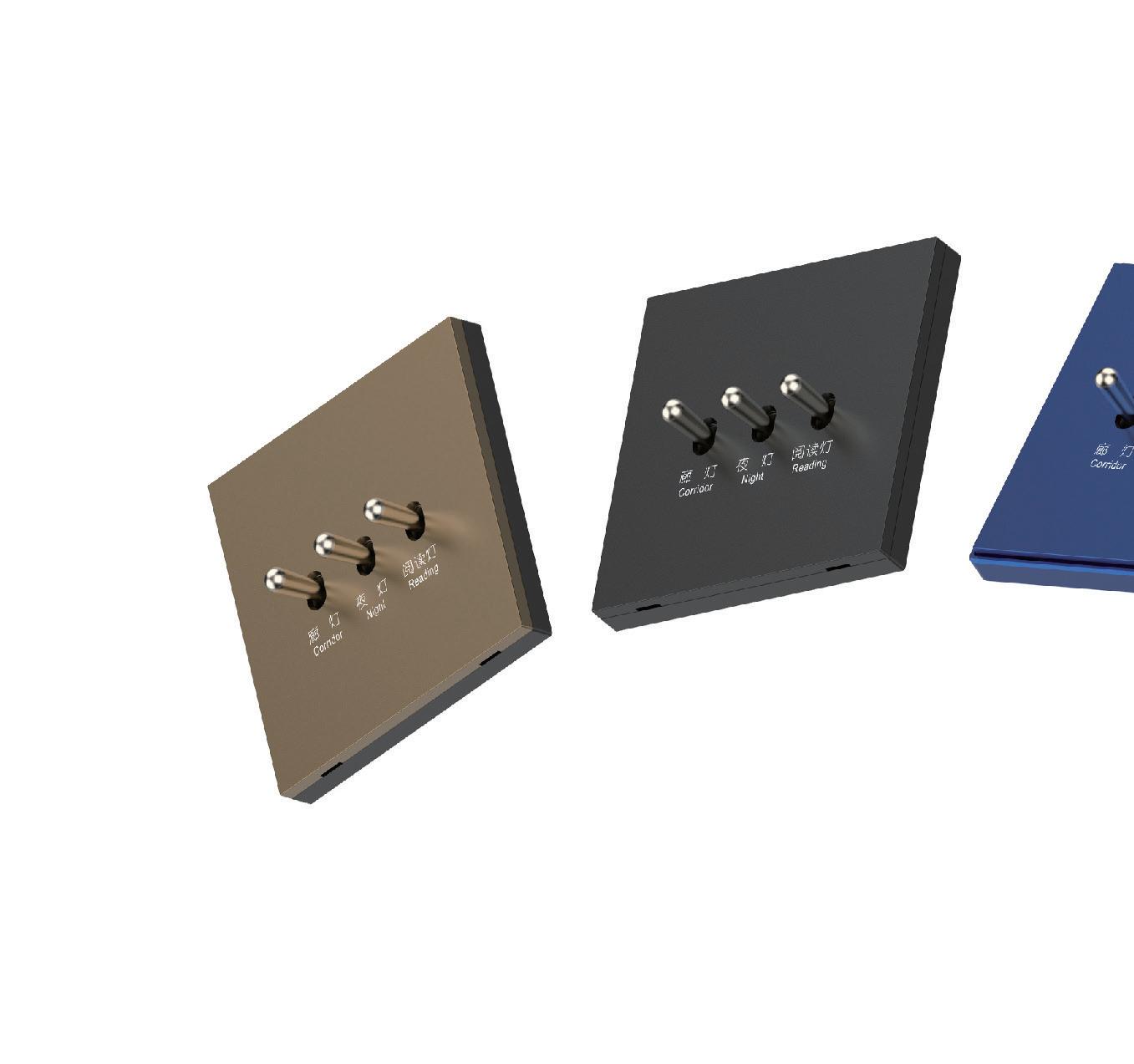

• Product category / 产品分类: Backlit toggle switches
• Size / 尺寸: Borderless (86 mm X 86 mm) With Border (90 mm X 90 mm)
• Input Voltage / 输入电压: DC12V/DC24V
• Installation / 安装方式: Standard 86 conjoined box
High Strenght PC
& Metal Frame
Interated One-Piece
Installation
Automative Metallic Paint
Precision Circuit Module
Support Vertical Layout
Laser Engraving & lettering
Colour / 常规色 Custom Colour Choice / 颜色选择定制
PRODUCT PARAMETERS / 产品参数
• Material / 材质:
D3DW/D3DY (PC + aluminium alloy bottom frame)
D3DS/D3DYS (PC + plastic/steel bottom frame)
• Product category / 产品分类: Tact push-button switches with lights
• Size / 尺寸:
Borderless (86 mm X 86 mm) With Border (90 mm X 90 mm)
• Input Voltage / 输入电压: DC12V/DC24V
• Installation / 安装方式: Standard 86 conjoined box
/ 常规色 Custom Colour

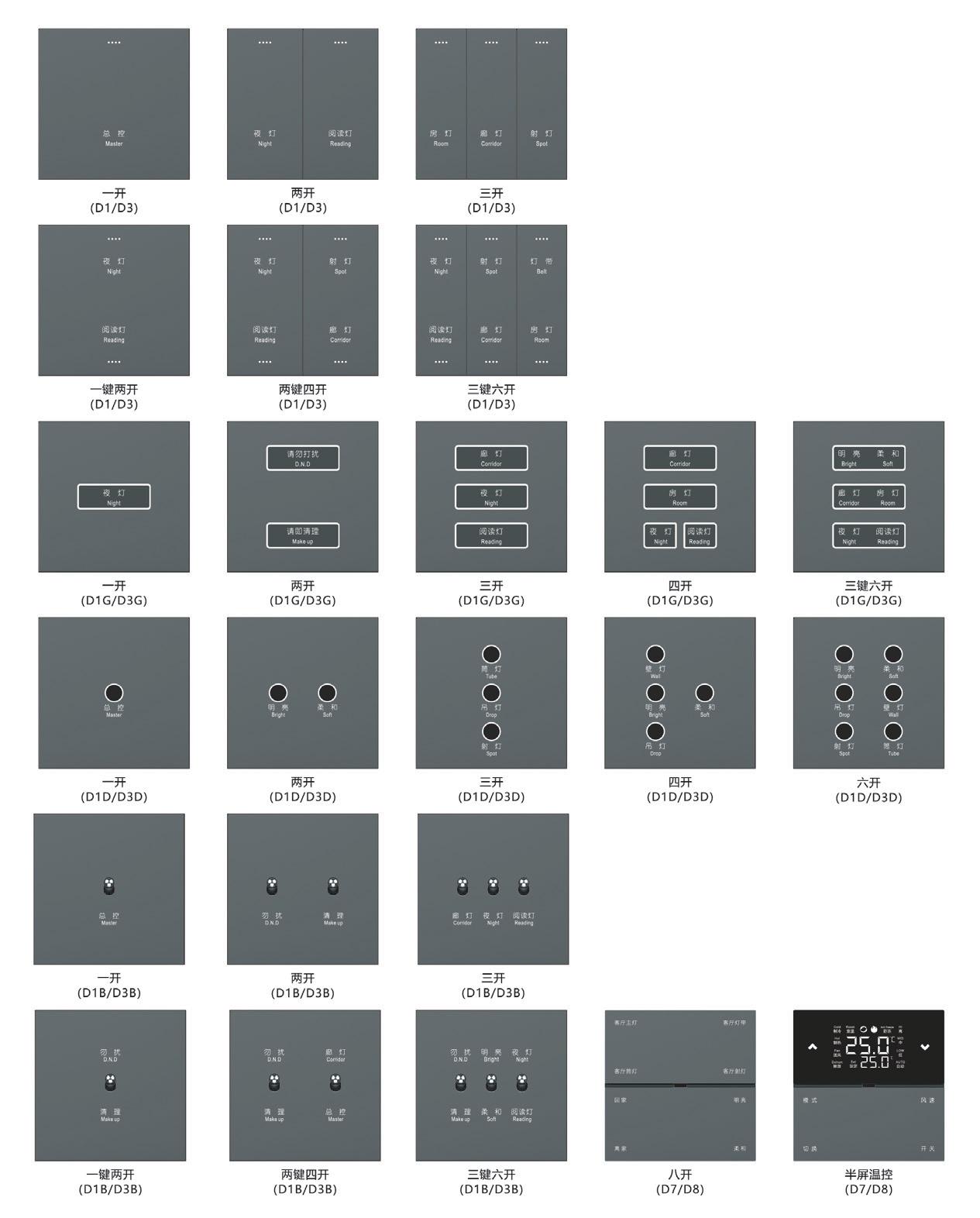

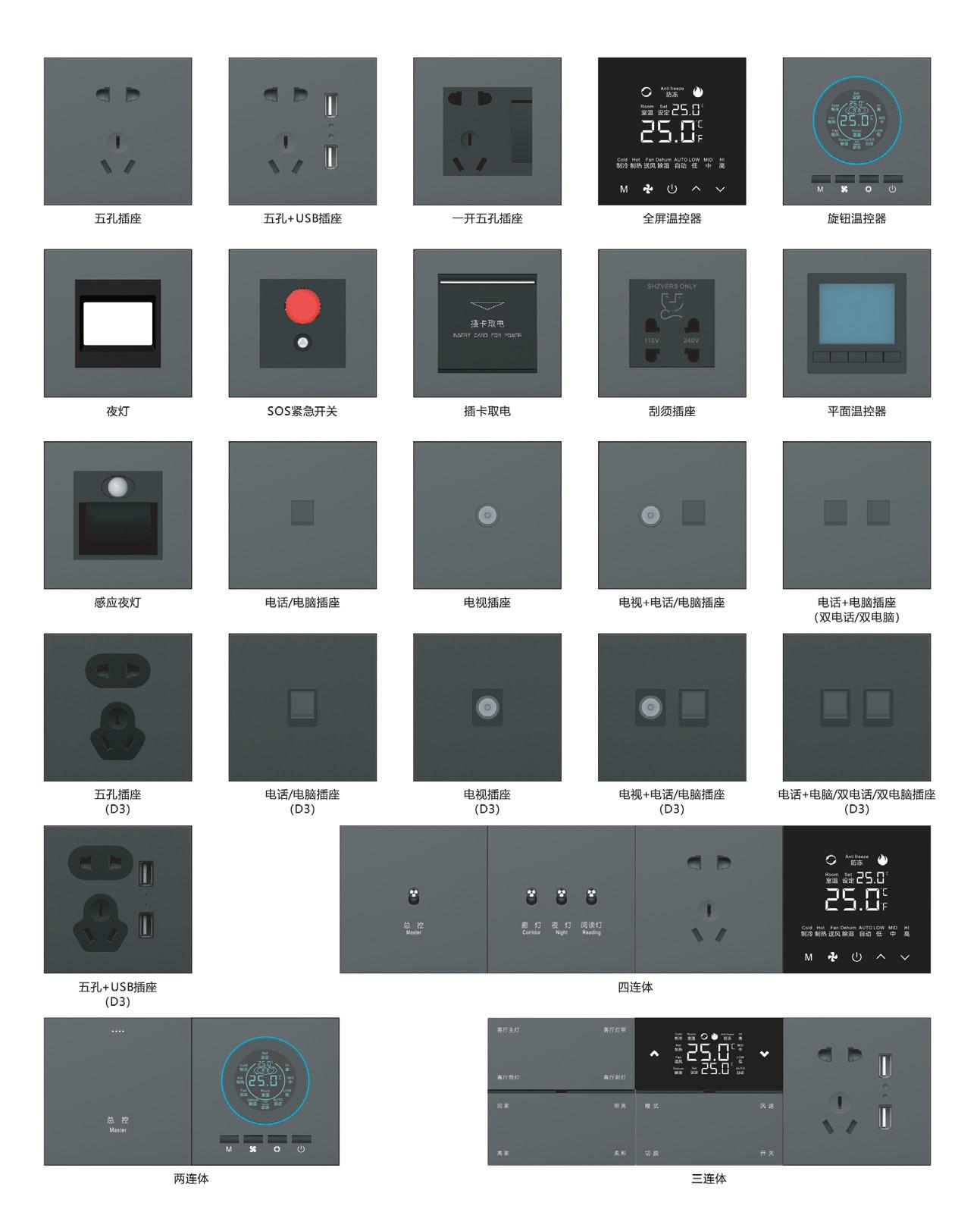

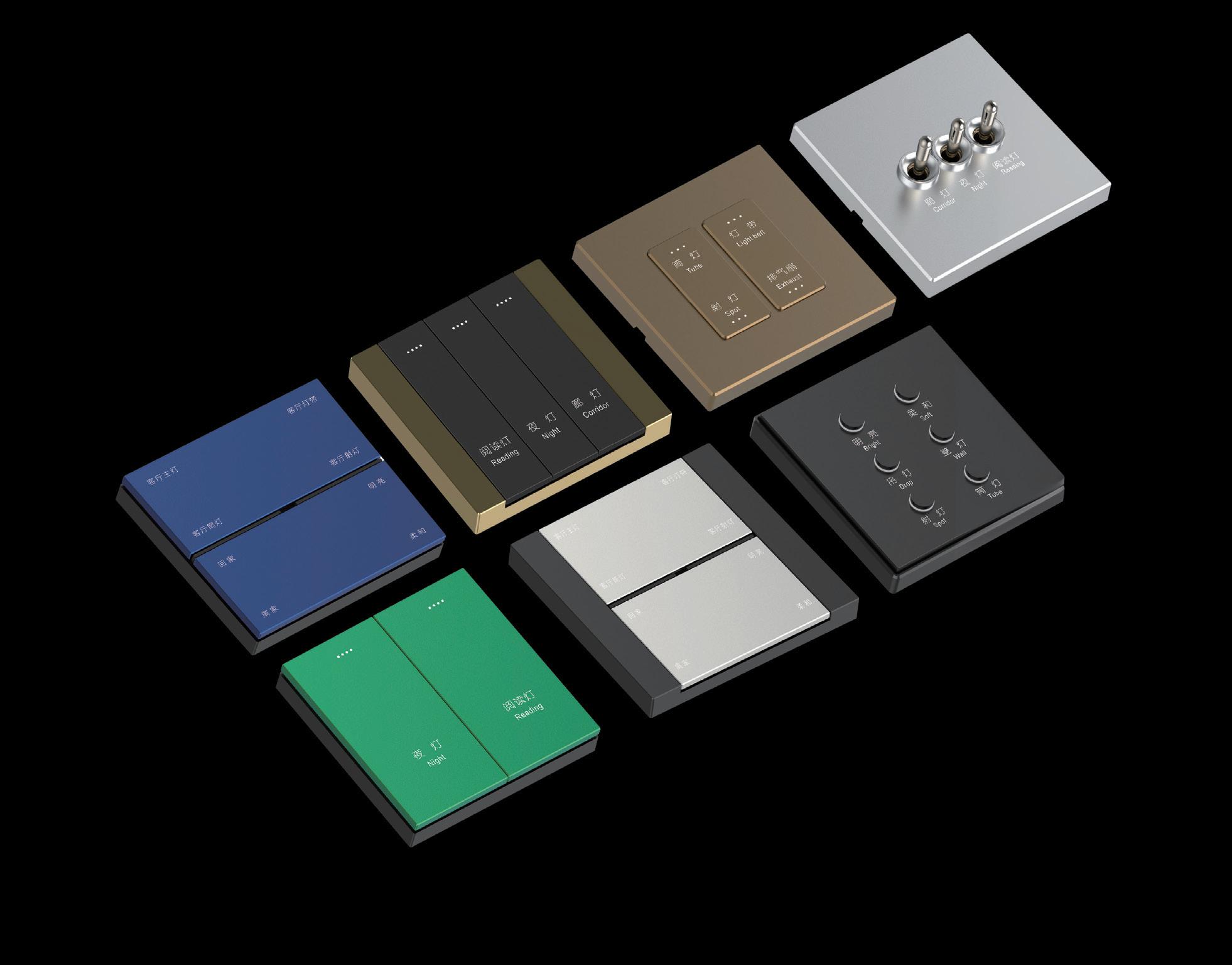

D SERIES VARIETIES /
D系列品种

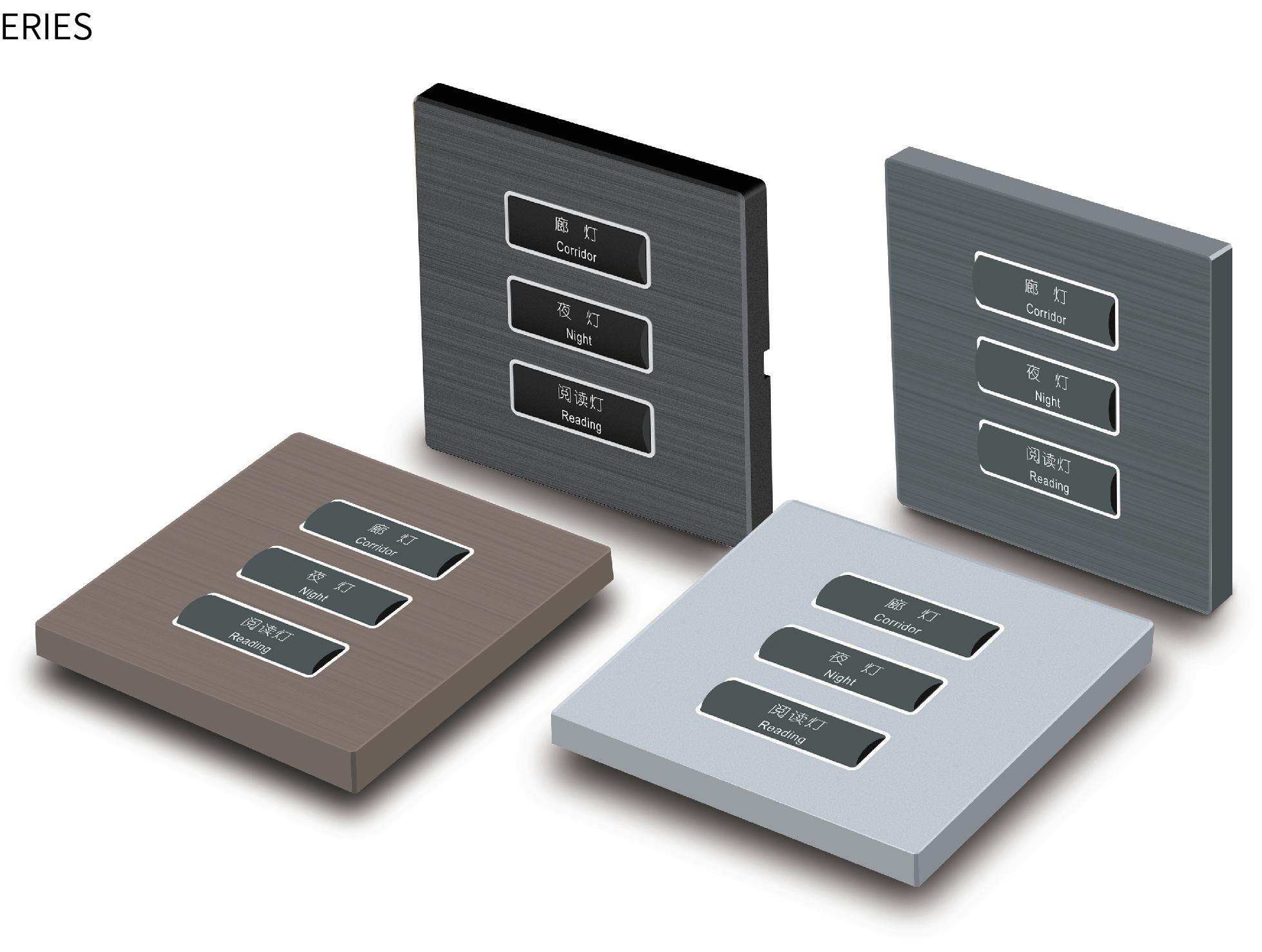

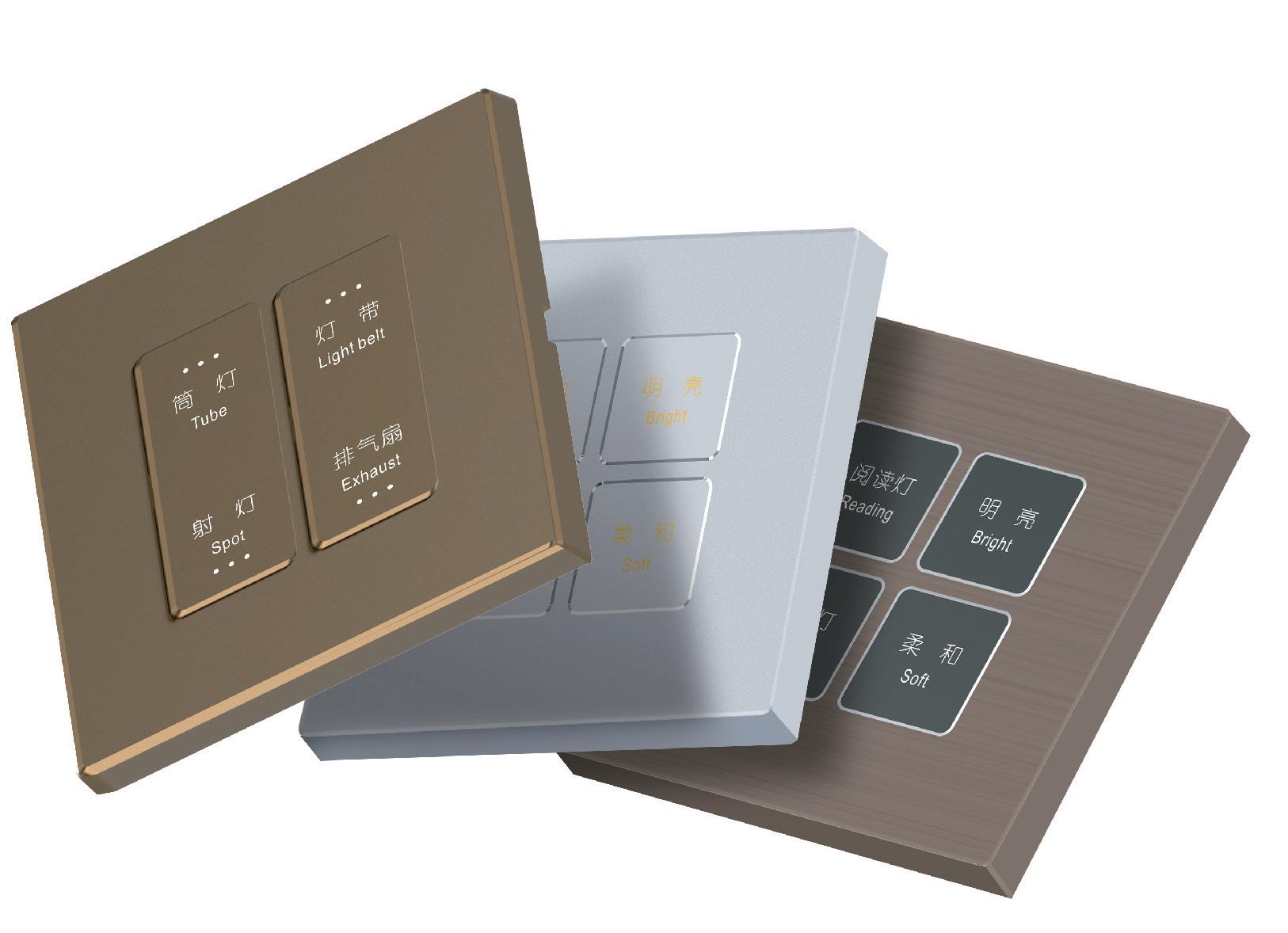

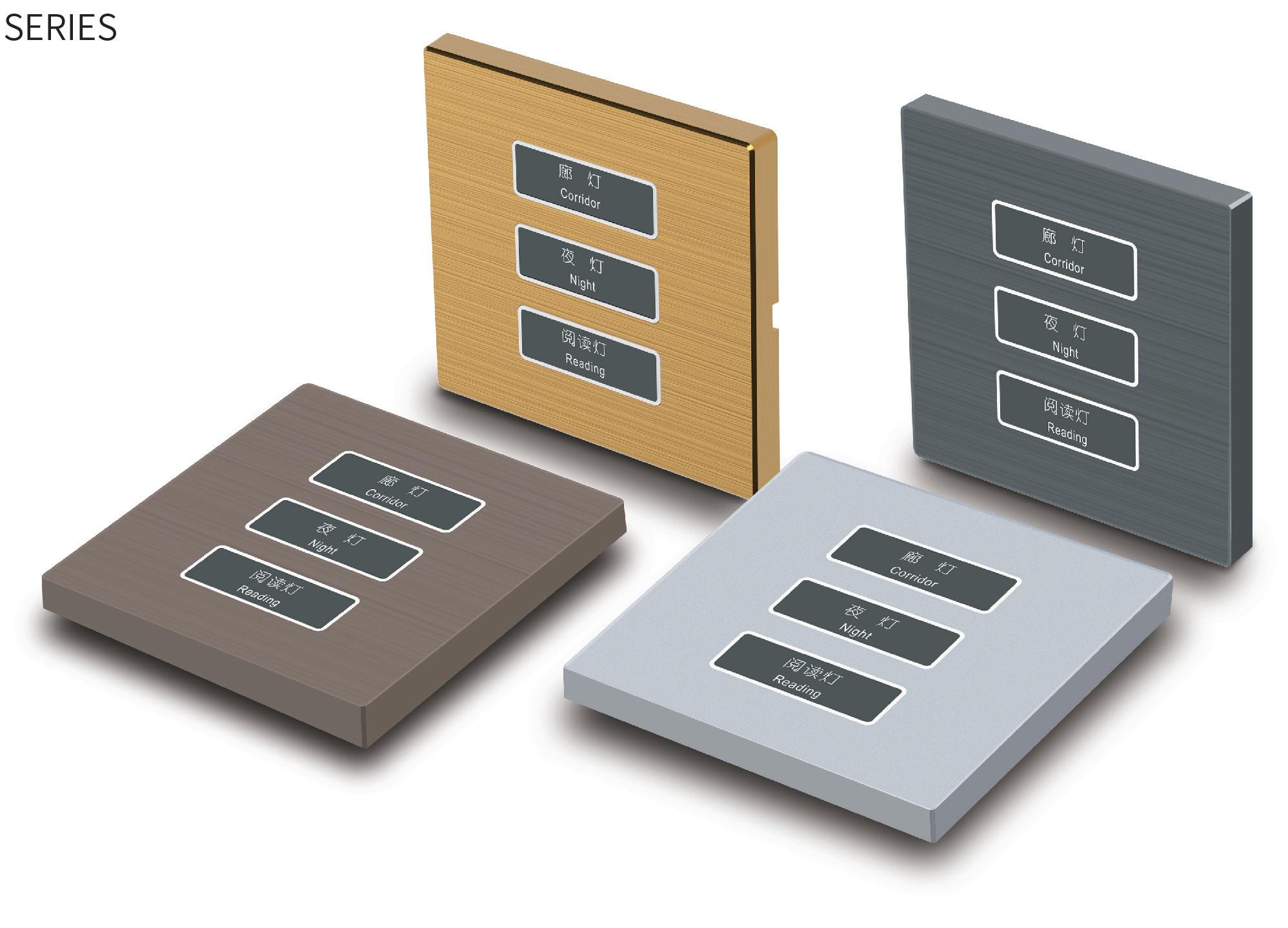

D120 SERIES
PRODUCT PARAMETERS / 产品参数
• Material / 材质: All-inclusive aluminum alloy surface
• Product category / 产品分类: Tact push-button switches with lights
• Size / 尺寸: 93 mm X 95 mm / 88 mm X 88 mm
• Input Voltage / 输入电压: AC220V/DC12V/DC24V
• Installation / 安装方式: Standard 86 conjoined box
PRODUCT PARAMETERS / 产品参数
• Material / 材质: All-inclusive aluminum alloy surface
• Product category / 产品分类: Tact push-button switches with lights
• Size / 尺寸: 93 mm X 95 mm / 88 mm X 88 mm
• Input Voltage / 输入电压: AC220V/DC12V/DC24V
• Installation / 安装方式: Standard 86 conjoined box
Series.
Interated One-Piece Installation
PRODUCT PARAMETERS / 产品参数
• Material / 材质: All-inclusive aluminum alloy surface

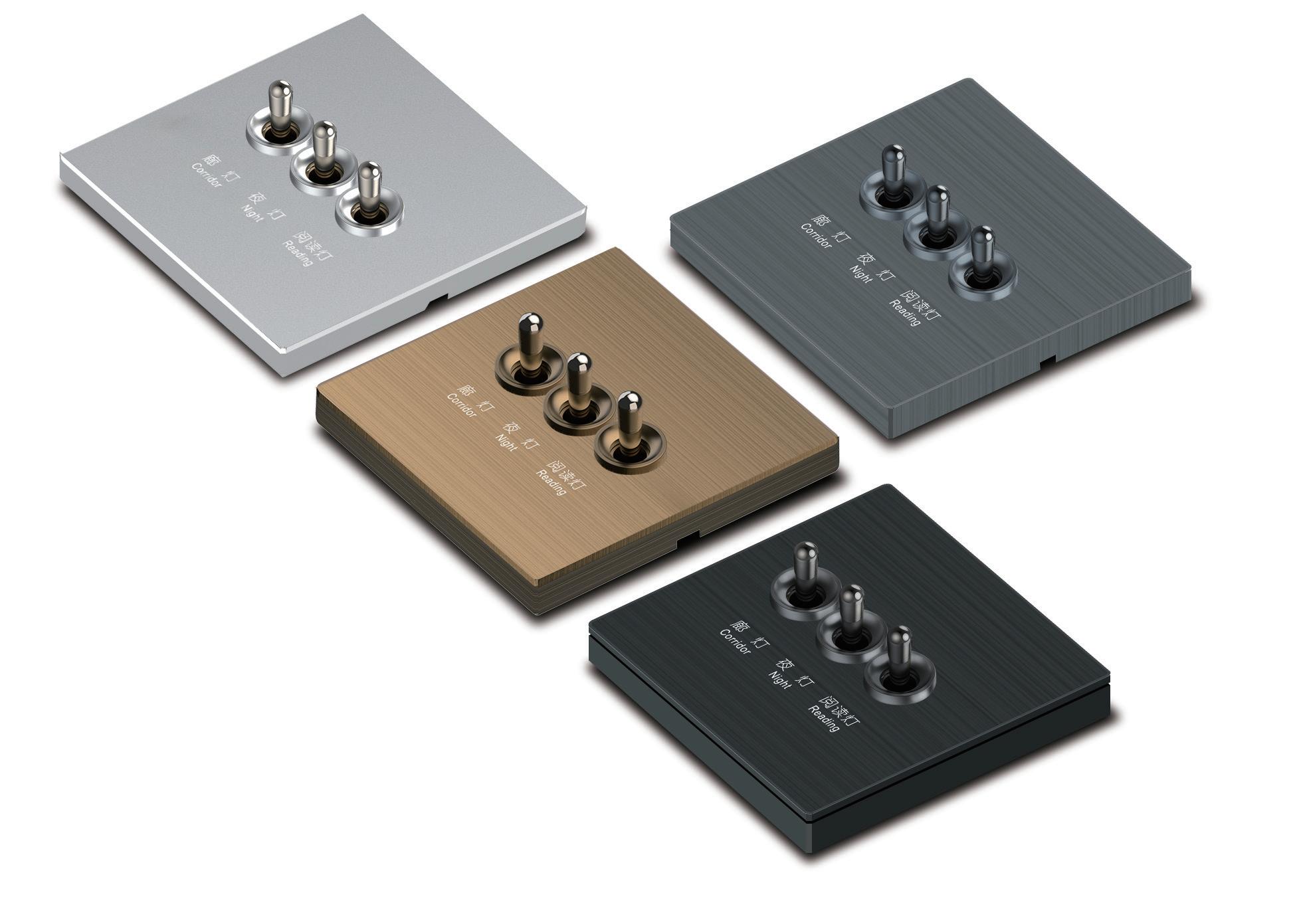

• Product category / 产品分类: Backlit toggle switches
• Size / 尺寸: 93 mm X 95 mm / 88 mm X 88 mm
• Input Voltage / 输入电压: DC12V/DC24V
• Installation / 安装方式: Standard 86 conjoined box
PRODUCT PARAMETERS / 产品参数
• Material / 材质:
All-inclusive aluminum alloy buttons & surface
• Product category / 产品分类: Tact push-button switches with backlight
• Size / 尺寸: 93 mm X 95 mm / 88 mm X 88 mm
• Input Voltage / 输入电压: DC12V/DC24V
• Installation / 安装方式: Standard 86 conjoined box
PRODUCT PARAMETERS / 产品参数
• Material / 材质: All-inclusive aluminum alloy buttons & surface
• Product category / 产品分类: Tact push-button switches with backlight
• Size / 尺寸: 93 mm X 95 mm / 88 mm X 88 mm
• Input Voltage / 输入电压: DC12V/DC24V
• Installation / 安装方式: Standard 86 conjoined box

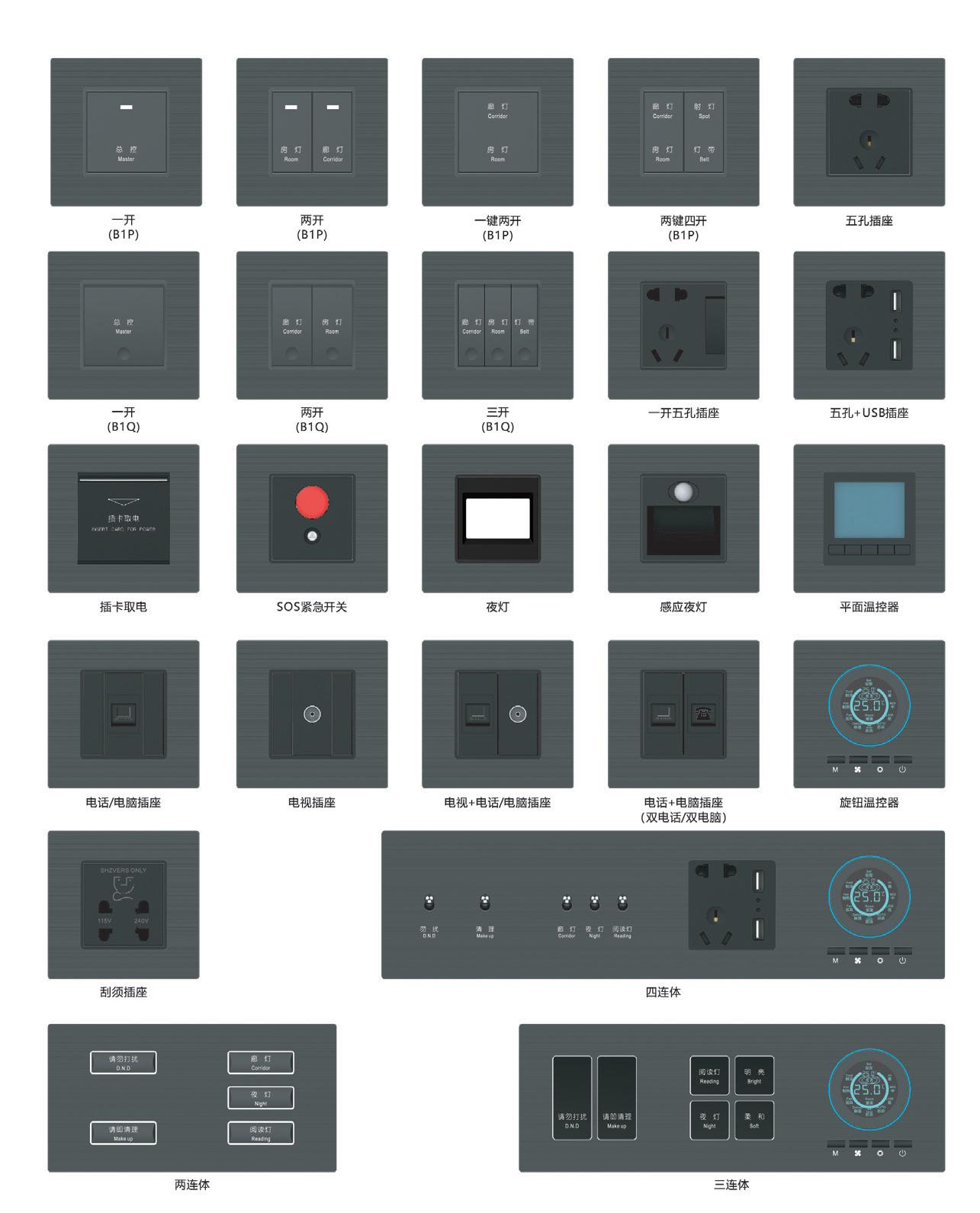

B1(P/Q) Series.
PRODUCT PARAMETERS / 产品参数
• Material / 材质: Half aluminum alloy surface
• Product category / 产品分类: Tact/rocker switches with backlight
尺寸: 93 mm X 90 mm / 88 mm X 88 mm
• Input Voltage / 输入电压: AC220V/DC12V/DC24V
• Installation / 安装方式: Standard 86 conjoined box

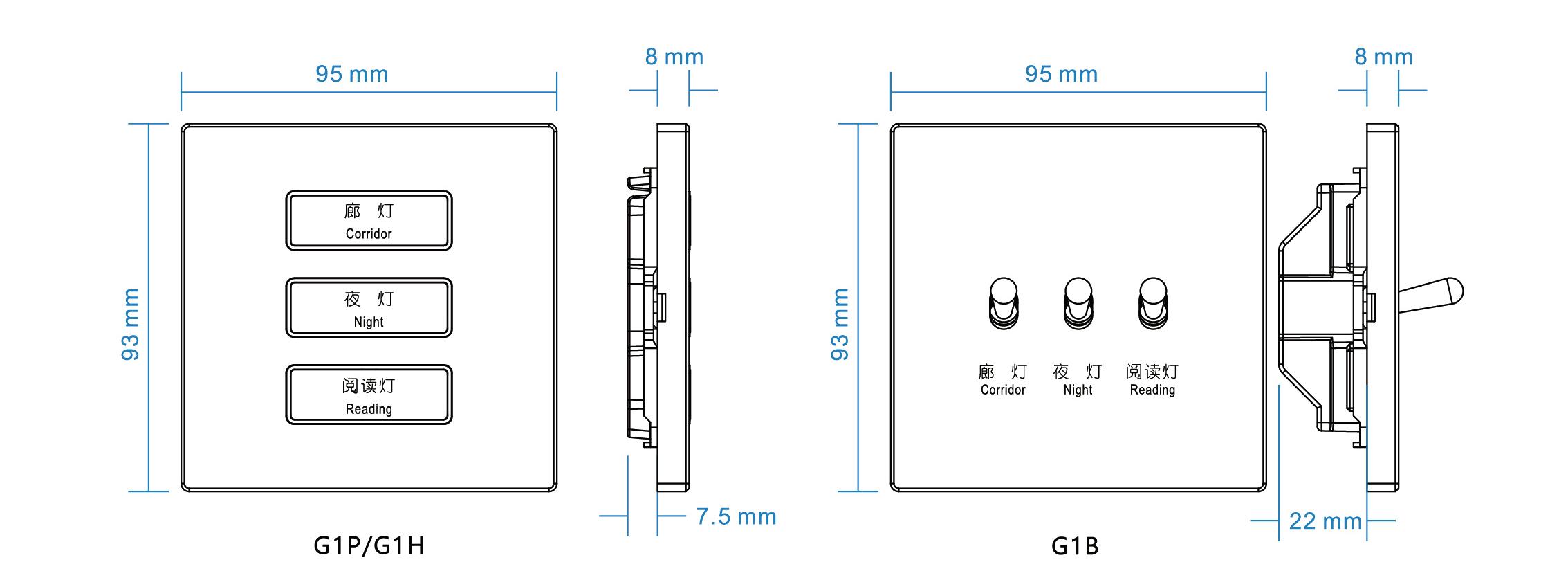

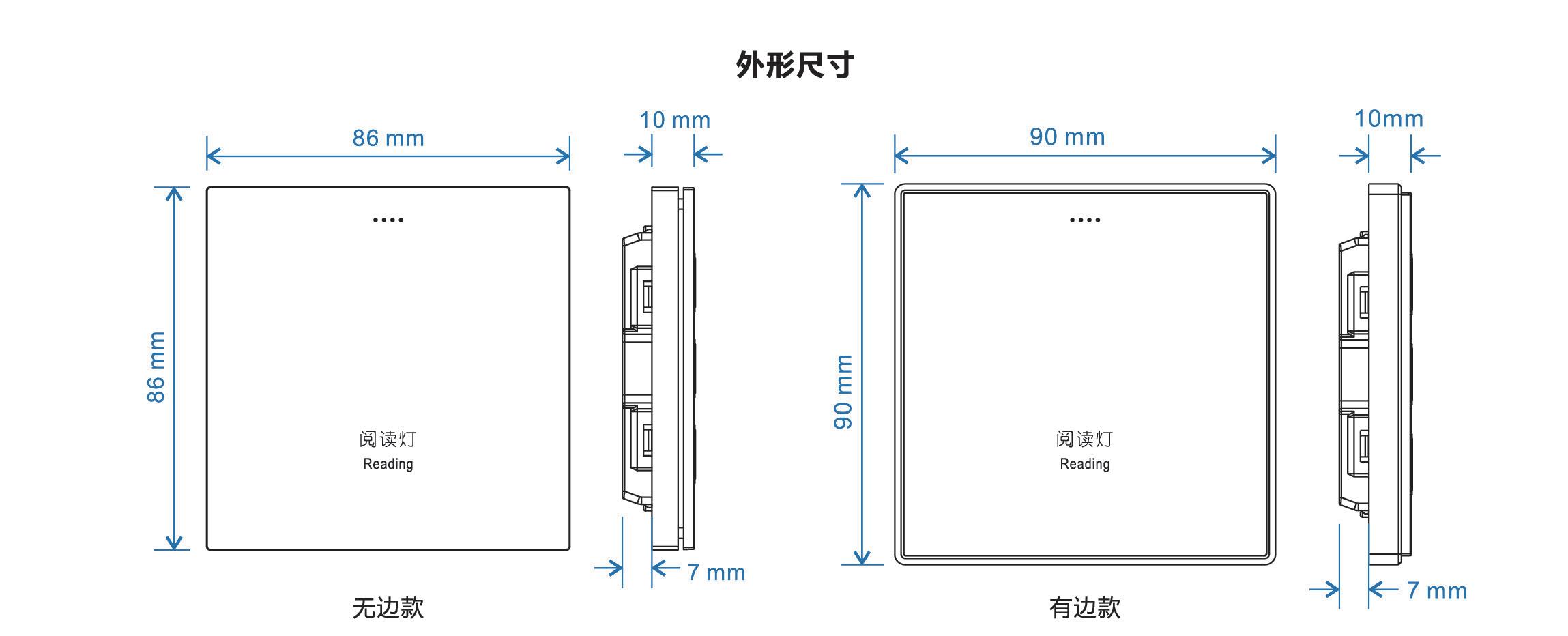

D Structure Specification.

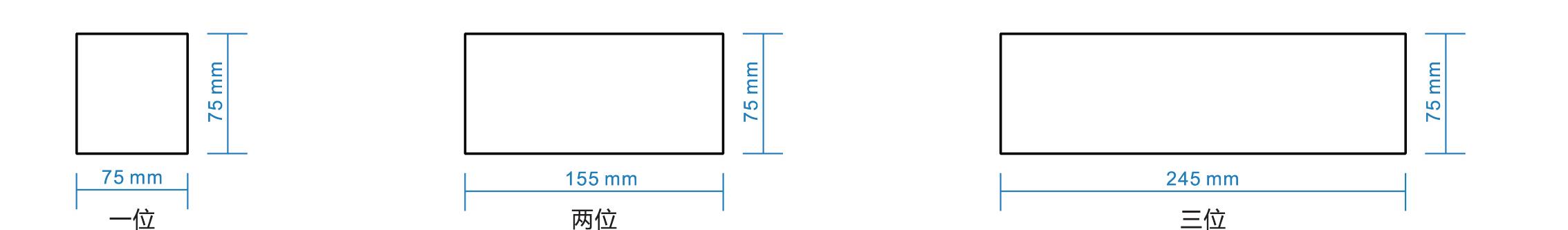

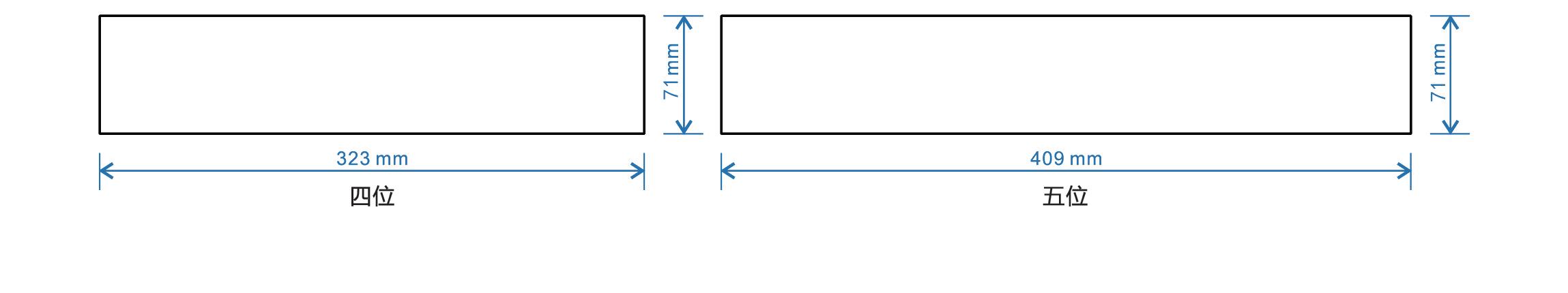

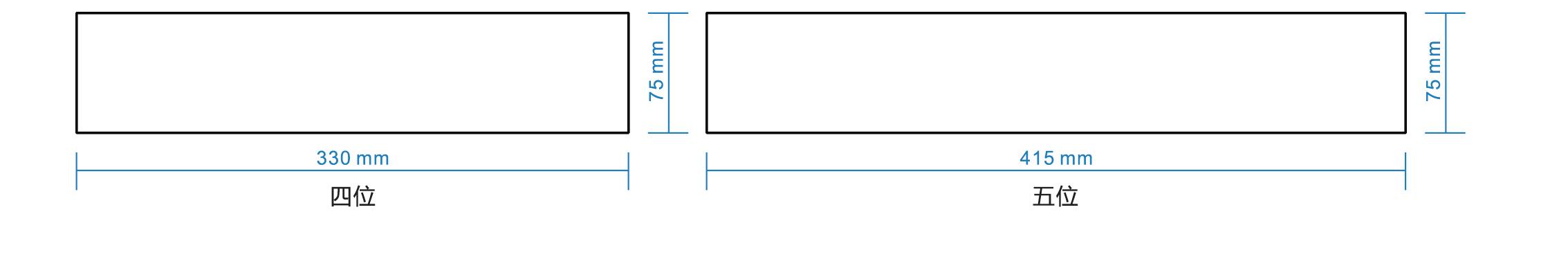

Dimension / 尺寸

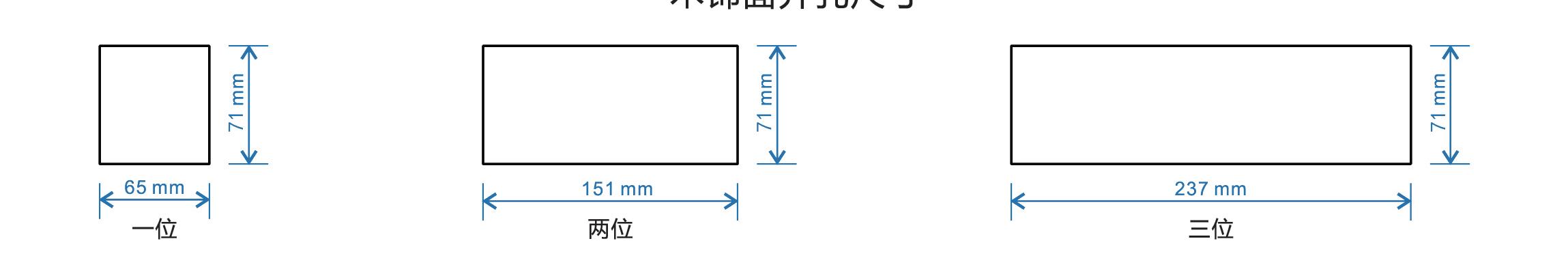

Wood Venner Dimension / 木饰面尺寸
L Structure Specification.
Dimension / 尺寸
Wood Venner Dimension / 木饰面尺寸

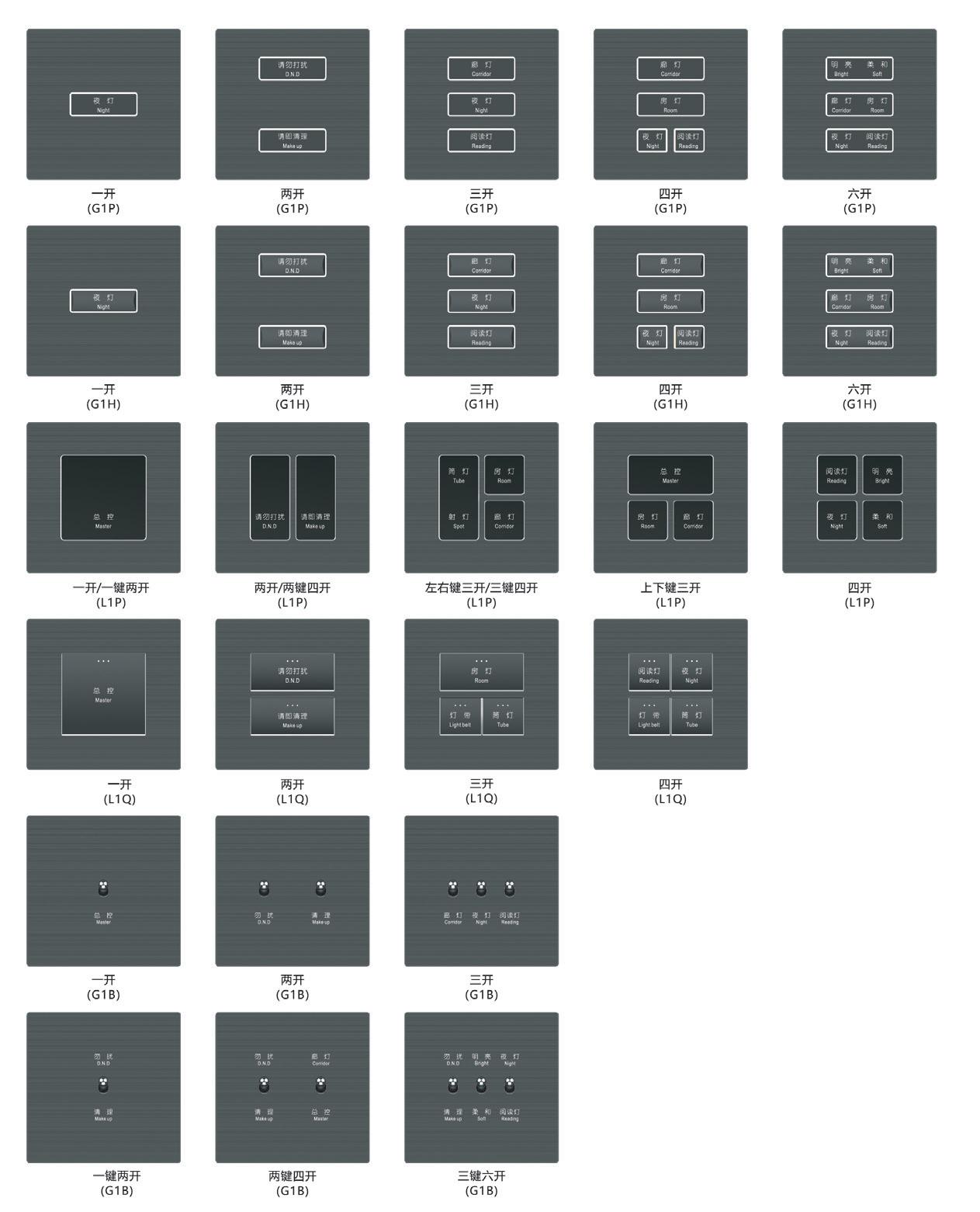

L SERIES VARIETIES / L系列品种
