Co2 pressure reducers

Code: 01011004

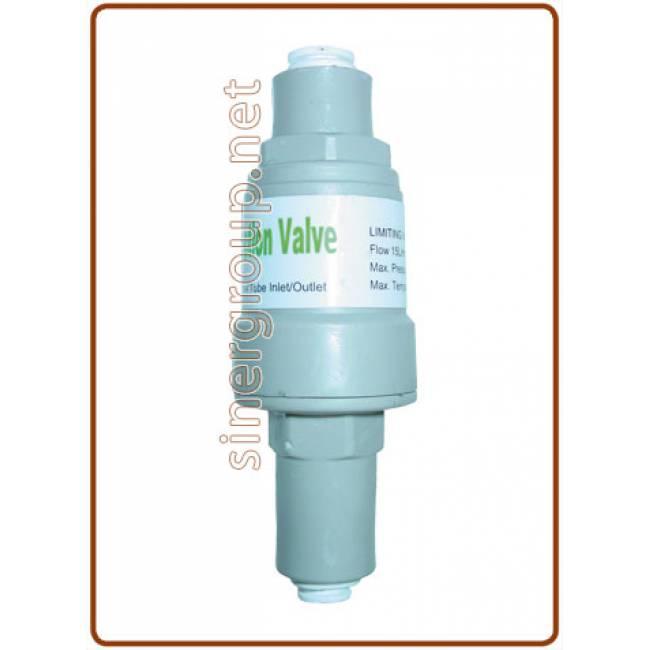

Water valve pressure limiter quick fitting1/4", 3/8" (2,7bar/40psi, 4,8bar/70psi)

Features

Connections (01): 1/4” Quick fitting

Connections (02): 3/8” Quick fitting

Connections (03): 1/4” Quick fitting

Adjustment (01): 2,7bar (40psi)

Adjustment (02): 2,7bar (40psi)

Adjustment (03): 4,8bar (70psi)

Flow rate: 15 L/min at 6,9bar (100psi)

Pressure: 20bar (300psi) max.

Temperature Rating: 40°C max.

Variants

Code Description 01011004-01 Water valve pressure limiter quick fitting 1/4" (2,7bar/40psi) 01011004-02 Water valve pressure limiter quick fitting 3/8" (2,7bar/40psi) 01011004-03 Water valve pressure limiter quick fitting 1/4" (4,8bar/70psi)

Code: 01012001

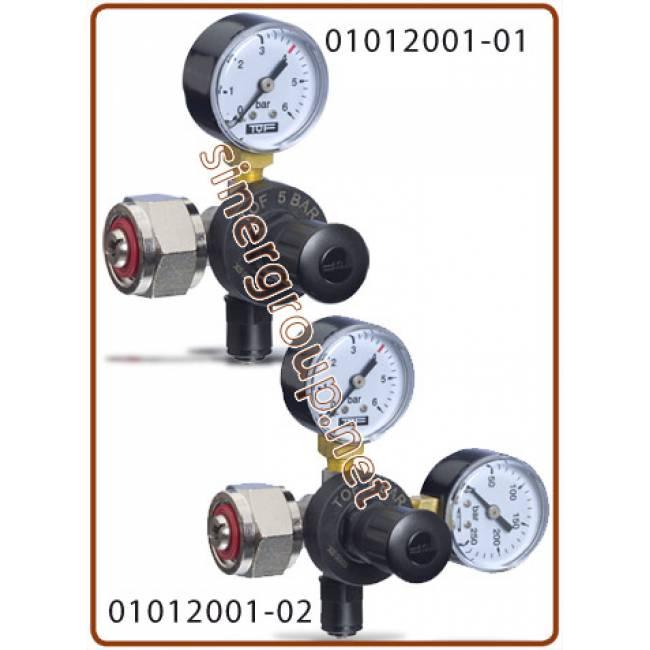

XS Co2 pressure reducer for rechargeable cylinder

Variants

Code 01012001-01 01012001-02 Description XS Co2 pressure reducer rechargeable cylinder 7 BAR IN: W21,8-14FIL.X1" Key-30 Out: 1/8" f. thread XS Co2 pressure reducer rechargeable cylinder 5 BAR IN: W21,8-14FIL.X1" Key 30 Out: 1/8" f. thread

Galvanic NSF61 food coating Standard UNI EN ISO 2503 CO2 and N2 Pressure Regulators are Tested singly Internal high pressure valve in INOX AISI 300 Teflon gasket

Code: 01012002

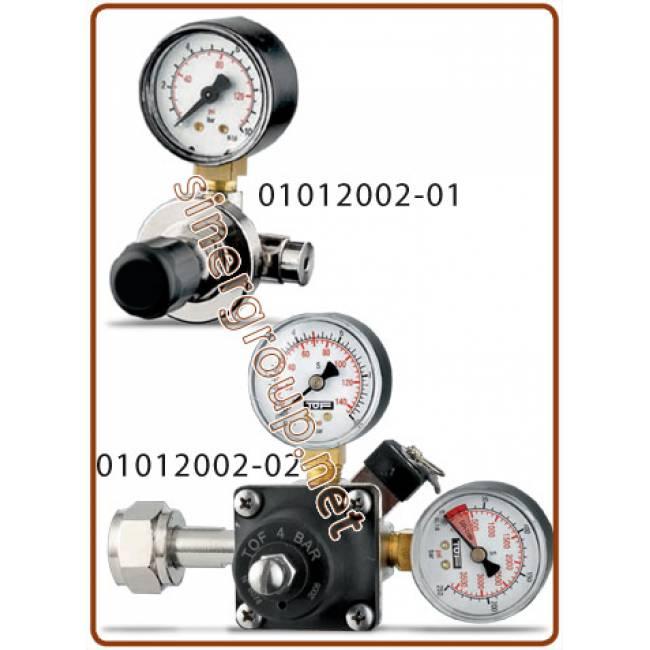

XS Co2 pressure reducer for disposable and rechargeable cylinder

Variants

Code 01012002-01 01012002-02 01012002-03 Description XS Co2 pressure reducer for disposable cylinder 7,0 BAR IN: M11x1-Out: 1/8" f. thread XS Co2 pressure reducer rechargeable cylinder 7 BAR IN: W21,8-14FIL.X1" Key 30 - Out: 1/4" f. thread XS oring replacement IN Co2 for cod. 01012002-01 6,75x1,78x10,31

Galvanic NSF61 food coating Standard UNI EN ISO 2503 CO2 and N2 Pressure Regulators are Tested singly Internal high pressure valve in INOX AISI 300 Teflon gasket. Code: 01012003

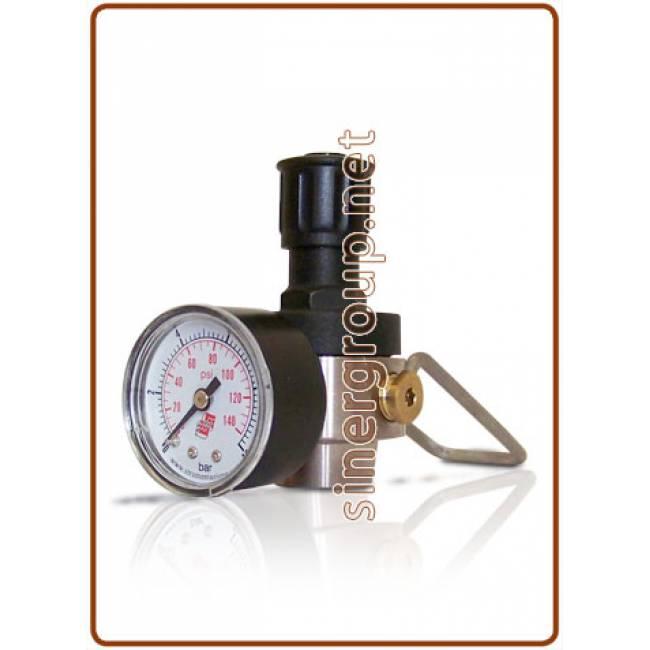

XS Co2 pressure reducer ACME Cylinder connection 4,5bar

* Low pressure gauge 4.5 bar rear connection * Handle for easy disassembly * 304 AISI Stainless Steel * IN: ACME thread * OUT: 1/8" NPTF F. thread

Code: 01012004

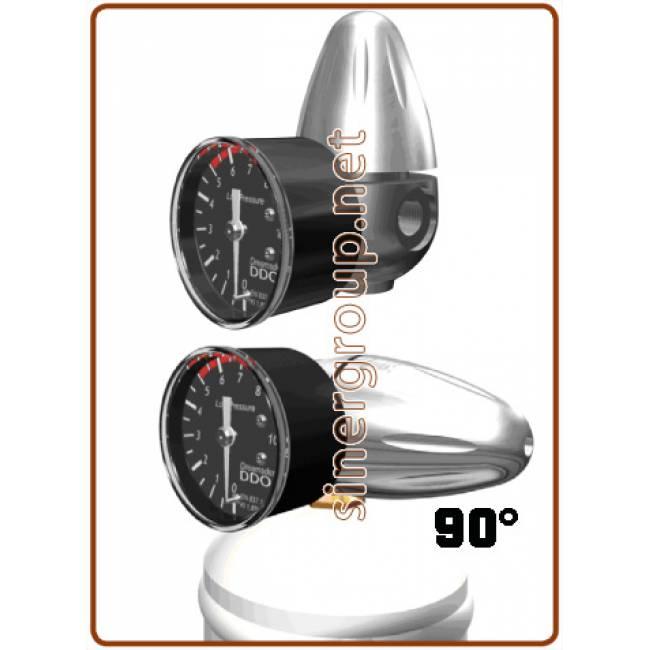

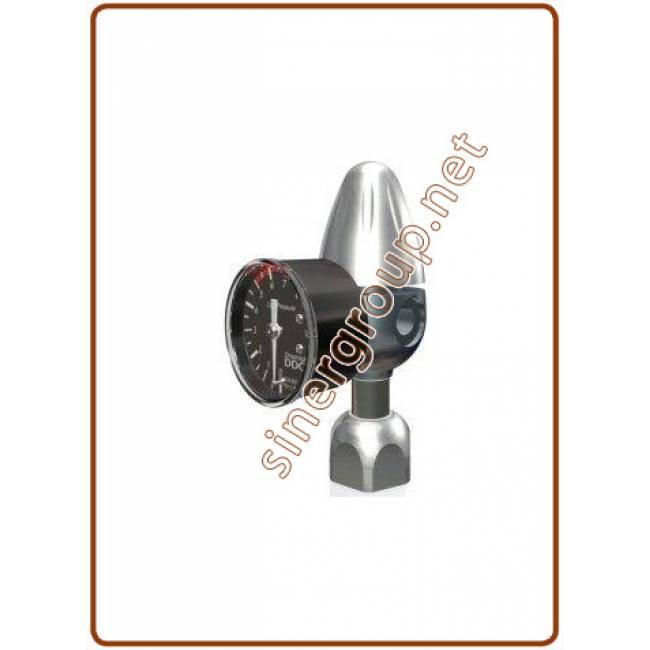

SR-02 Co2 pressure reducer for disposable cylinder

Variants

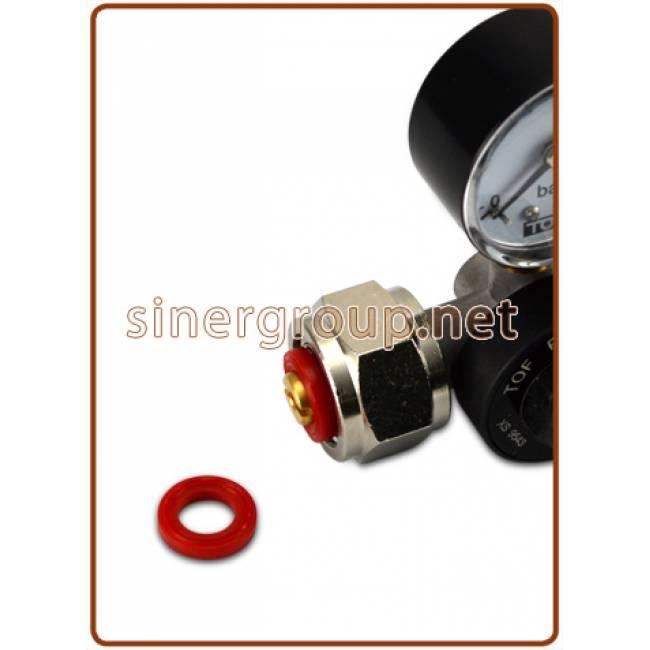

Code 01012004-01 01012004-02 01012004-03 Description SR-02 Co2 pressure reducer for disposable cylinder knob straight 11x1 connection SR-02 90 Co2 pressure reducer for disposable cylinder knob to 90° 11x1 connection SR-02 replacement gasket for cylinder fitting

SR-02 has everything you need for your safety and always to have under control the operating parameters of your installation of CO2 and N2. * Material Aluminum HR * Treatment Anodized * Input Pressure From 1 to 160 bar * Output Pressure Adjustable * Gauges output pressure * Safety Overpressure (Pop-Off) * In Female thread: 11x1 (disposable cylinder) or 21.8X1/14 "(rechargeable cylinder) via adapter extension. * Out female thread: 1/8" * Flow Rate 15 l/min.

Code: 01012005

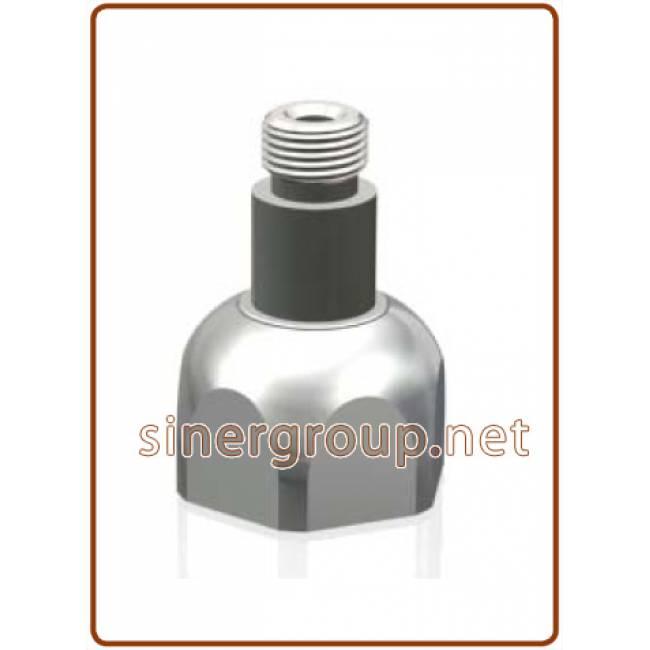

SR adapter extension Co2 pressure regulator for rechargeable cylinders M11x1 a W21.8x1/14"

From M11x1 to W21.8x1/14 " With this adapter, it is possibile to use the pressure reducer with rechargeable cylinders. Code: 01012006

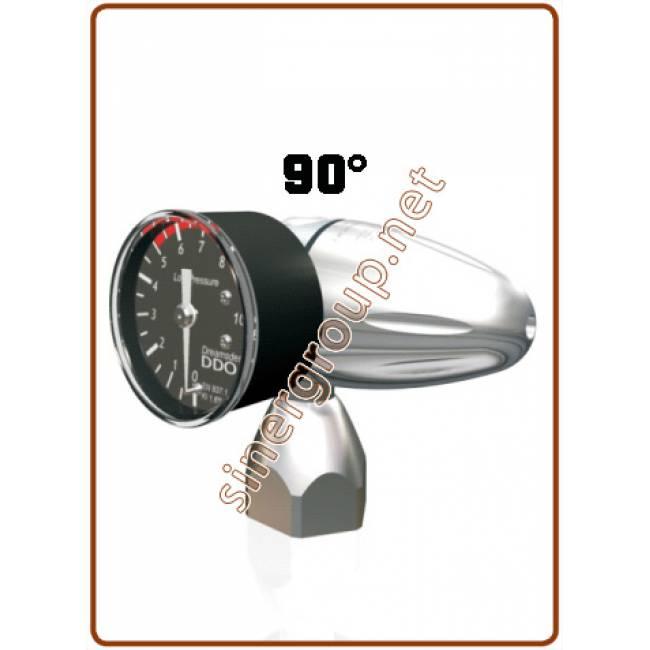

SR-02 Co2 pressure reducer for rechargeable cylinder

Variants

Code 01012006-02 Description SR-02 Co2 pressure reducer for rechargeable cylinder knob to 90°

SR-02 has everything you need for your safety and always to have under control the operating parameters of your installation of CO2 and N2. * Material Aluminum HR * Treatment Anodized * Input Pressure From 1 to 160 bar

* Output Pressure Adjustable * Gauges output pressure * Safety Overpressure (Pop-Off) * In Female thread: 11x1 (disposable cylinder) or 21.8X1/14 "(rechargeable cylinder) via adapter extension. * Out female thread: 1/8" * Flow Rate 15 l/min.

Code: 01012007

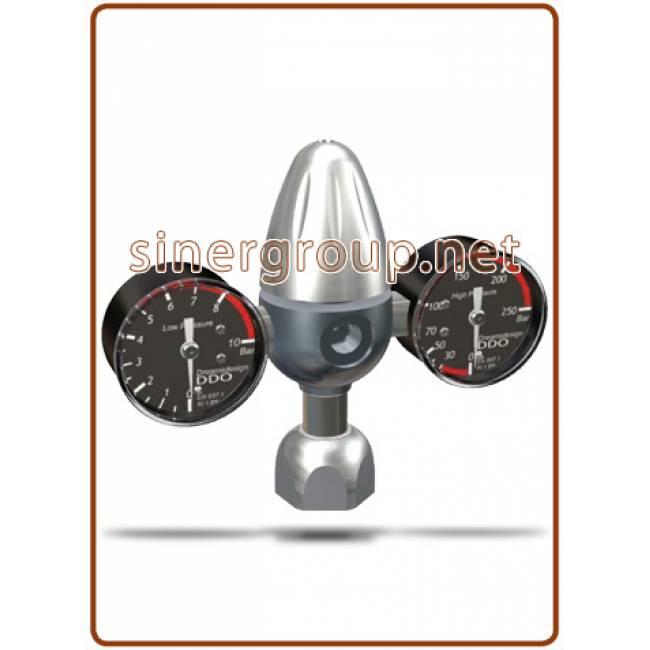

SR-02 ADV Co2 pressure reducer for rechargeable cylinder 21.8x1/14" (2 gauges)

SR-02 ADVanced has everything you need for your safety and always to have under control the operating parameters of your installation of CO2 and N2. It gives you protection against overpressure and pressure fluctuations in output. It makes you check the filling of the cylinder. Lets you precisely adjust the pressure of use. The two pressure gauges indicate the charge of the cylinder and the outlet pressure of CO2. * Material Aluminum HR * Treatment Anodized * Input Pressure From 10 to 160 bar * Output Pressure 0-6 bar (Adjustable) * Gauges DN 40 low pressure [0-10 bar], Hight pressure [0-250 bar] * Safety Overpressure (Pop-Off) * In Female thread: 21.8X1/14"(rechargeable cylinder) * Out female thread: 1/8" * Flow Rate 15 l/min. * Dimensions: 74X130 Ø38mm

Code: 01012019

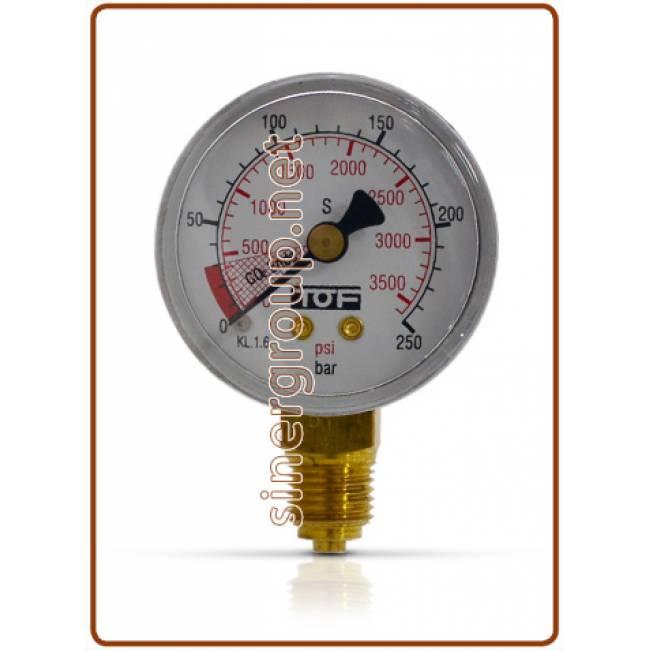

Replacement Co2 pressure gauge OD 0-250 Bar BSP 1/8" (high pressure) for cod. 01012007

The pressure gauges can be mounted in all the pressure reducers with predisposition, following the correct mounting. To assemble the high-pressure pressure gauge in the HP marked port. The opposit port is dedicated at LP low-pressure pressure gauge mounting. Don't assemble the LP low-pressure pressure gauge in the HP high-pressure pressure gauge dedicated port.

Code: 01012020

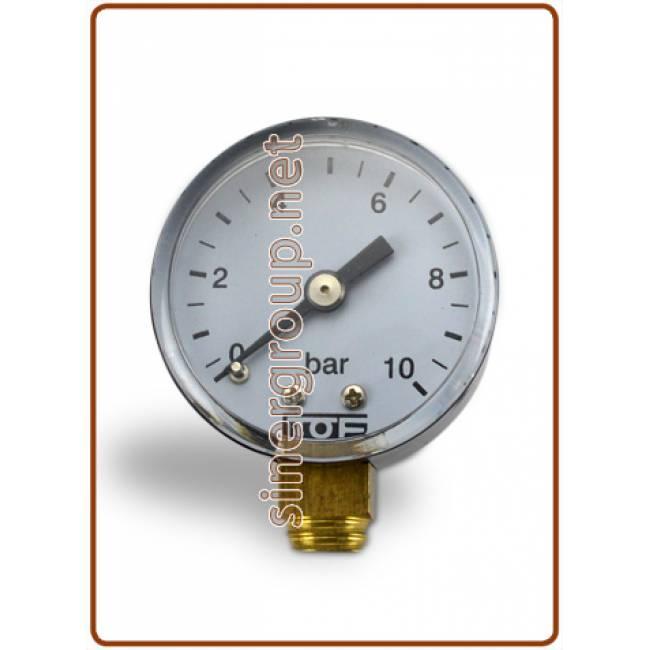

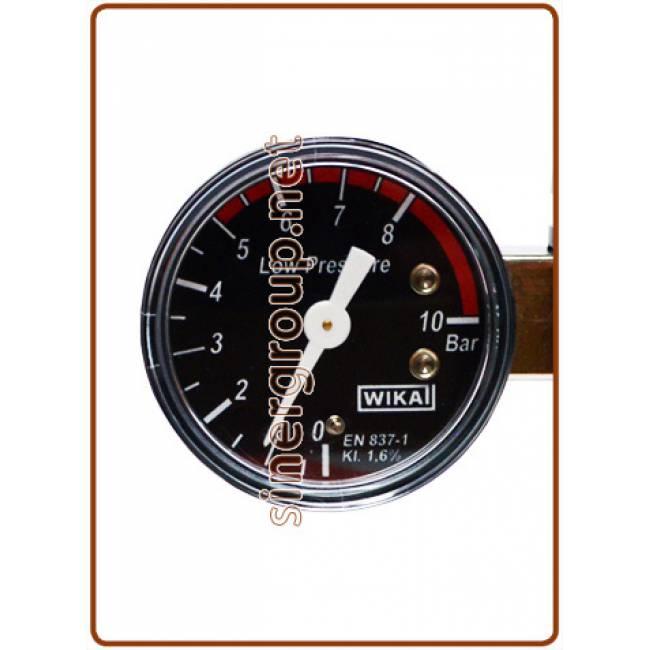

Replacement Co2 pressure gauge OD 40 0-10,0 Bar BSP 1/8" (low pressure) for cod. 01012007

The pressure gauges can be mounted in all the pressure reducers with predisposition, following the correct mounting. To assemble the high-pressure pressure gauge in the HP marked port. The opposit port is dedicated at LP low-pressure pressure gauge mounting. Don't assemble the LP low-pressure pressure gauge in the HP high-pressure pressure gauge dedicated port. Code: 01012008

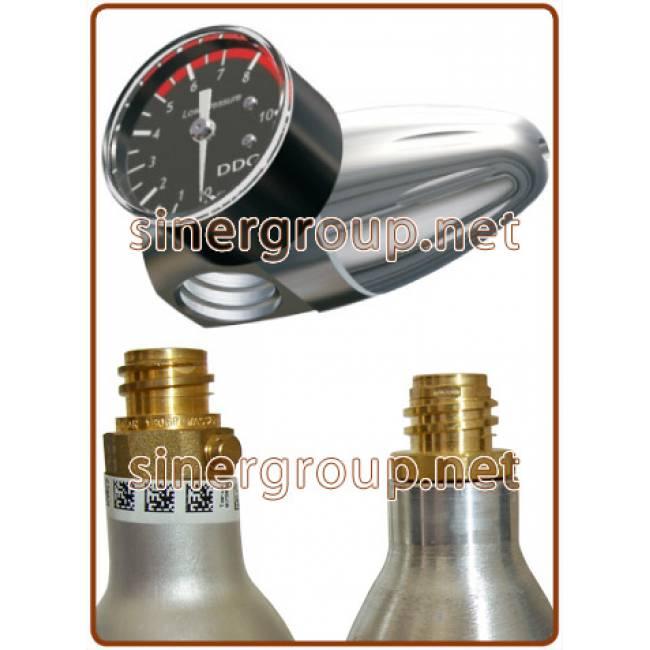

SR-02 90 Co2 pressure reducer ACME Cylinder connection

Pressure reducer low-profile with connection ACME. This regulator requires an height only 2 cm (0.78 inch) allowing the use of ACME cylinders in very small spaces. Mounting and dismounting from the cylinder will not require tools. * Material Aluminum HR * Treatment Anodized * Input Pressure From 1 to 160 bar * Output Pressure Adjustable 0-5,5 bar * Gauges output pressure * Safety Overpressure (Pop-Off) * In Female thread: ACME * Out female thread: 1/8" * Flow Rate 15 l/min.

Code: 01012009

SR adapter extension Co2 pressure regulator from ACME to M11x1

With this adapter, it is possibile to use the pressure reducer from rechargeable cylinders to disposable cylinders. Code: 01012010

SR-02 Co2 pressure reducer for rechargeable cylinder knob straight

Variants

Code 01012010-01 01012010-02 Description SR-02 Co2 pressure reducer for rechargeable cylinder knob straight SR-02 replacement gasket for cylinder fitting

SR-02 has everything you need for your safety and always to have under control the operating parameters of your installation of CO2 and N2. * Material Aluminum HR * Treatment Anodized * Input Pressure From 1 to 160 bar * Output Pressure Adjustable * Gauges output pressure * Safety Overpressure (Pop-Off) * In Female thread: 11x1 (disposable cylinder) or 21.8X1/14 "(rechargeable cylinder) via adapter extension. * Out female thread: 1/8" * Flow Rate 15 l/min.

Code: 01012012

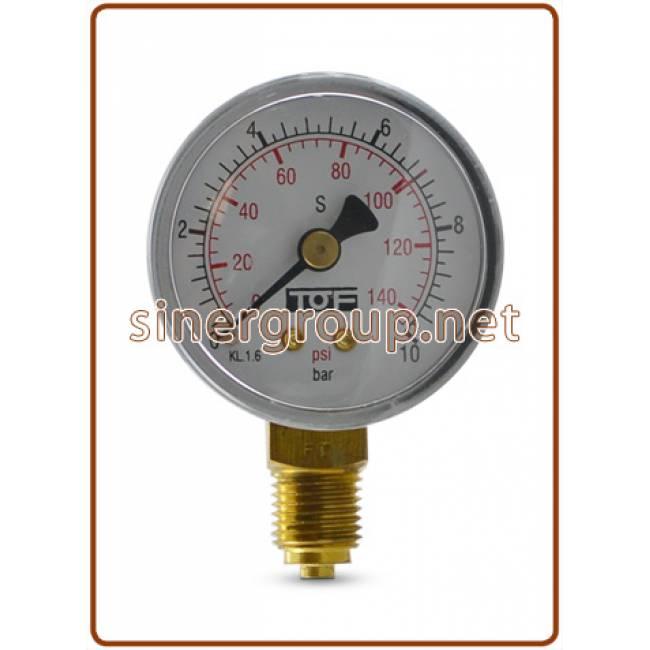

Replacement Co2 pressure gauge Ø40-G1/8 0-6 BAR for cod. 01012001-01/-02, 01012002-01

Code: 01012016

Replacement Co2 pressure gauge Ø50-Scale BAR and PSI-Full scale 250 BAR for cod. 01012002-02

Code: 01012017

Replacement Co2 pressure gauge Ø50-Scale BAR and PSI-Full scale 10 BAR-Notch 7 BAR for cod. 01012002-02

Variants

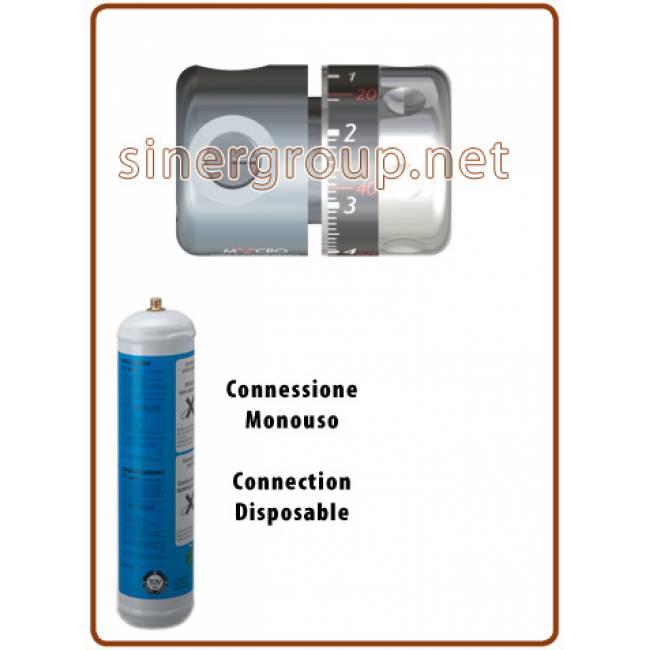

Code 01012013-01 Description SR-Micro Co2 pressure reducer for disposable cylinder 11x1 disposable connection

The SR-Micro, thanks to a new system presetting "Adaptive comparison" you can forget the classical gauge. Indeed, the pressure (controlled) is indicated with precision (2.5% KI) on the reducer. This has enabled a compact reducer and incredible reliability, SR-Micro is all made of anodized aluminum alloy, stainless steel and, on request, holes forwall bracket (M5).

Material: Aluminum HR Input Pressure From 10 to 120 bar Output Pressure: Adjustable (0 - 5,5bar) Safety: Overpressure (Pop-Off) Connection Cartr. M11x1 / DIN / ACME Output: 1/8" F Flow Rate: 12 L/min

Code: 01012014

SR-Micro Co2 pressure reducer ACME connection

Variants

Code 01012014-01 Description SR-Micro Co2 pressure reducer ACME connection

The SR-Micro, thanks to a new system presetting "Adaptive comparison" you can forget the classical gauge. Indeed, the pressure (controlled) is indicated with precision (2.5% KI) on the reducer. This has enabled a compact reducer and incredible reliability, SR-Micro is all made of anodized aluminum alloy, stainless steel and, on request, holes forwall bracket (M5).

Material: Aluminum HR Input Pressure From 10 to 120 bar Output Pressure: Adjustable (0 - 5,5bar) Safety: Overpressure (Pop-Off)
