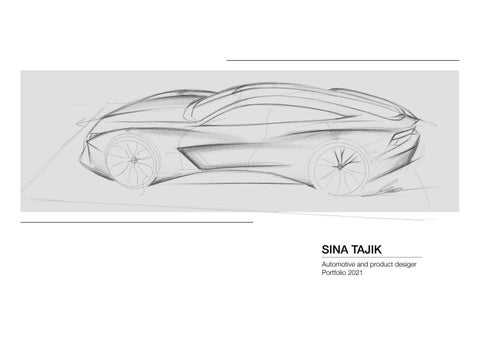

SINA TAJIK Automotive and product desiger Portfolio 2021
RESUME About me I’m a car enthusiast since I remember I was collecting car catalogs and dreaming about them. I’m immersed in the world of cars so I dedicated my academic career to my passion. I always aim for simplicity and minimalism which is challenging because it requires more complexity and attention to express the same feelings. I’m always challenging myself by learning new things and methods because today’s world is constantly changing so do I.
Education •
Shariati School_ Tehran, Iran Mathematical Scienc 2013
•
Azad Central Branch_ Tehran, Iran Industrial Design Bachelor 2014-2018
Contacts
Skills
Languages
+39 3756565647
Free Hand: Sketching, Prototyping
Via Pastrengo, 19_ Torino, Italy
Digital: Sketching, Rendering, 3D modeling
• • •
sina.tajik92@gmail.com
Programs: Alias, Rhino, Photoshop, Keyshot
Company Name – Brand style guide
Persian native speaker Italian (C1) English (B1)
Page 2
CONTENTS
01
02
03
04
SCORPION
Company Name – Brand style guide
Page 3
SCORPION
A vehicle mixed of a go-kart structure and buggy’s car suspension, with the difference, that this vehicle has three wheels instead of four wheels. with the principles of openness, accessibility, and harmony with nature, inspired by scorpion and origami structures.
Company Name – Brand style guide
Page 4
MOODBOARD
Toughness
perspective
Sand
Company Name – Brand style guide
Transparency
Page 5
Form Development
Company Name – Brand style guide
Page 6
Key Sketches
Company Name – Brand style guide
Page 7
Prototyping this project has been built in 6 months, by 4 students with minimum equipment and a budget of around 500 Euro. the base structure has been made from aluminum and metal profile and sheet. we were facing so many challenges during this project such as the lack of materials and auto parts in Iran due to heavy sanctions but as they said limits increase creativity. one of our biggest challenges was inventing a new clutch from a lawnmower and matching it with our vehicle because we couldn’t find one.
Company Name – Brand style guide
Page 8
Driving Test
Company Name – Brand style guide
Page 9
Technical info Length: 6’ Width: 2’6” Base Wheel: 3’ 6” Rear Wheel: 7.25X 6.0 Front Wheels: 50 X 60 Rear Tires: 12.0X 800-6 Front Tires: 10.5X 450-6 Ground Clearance: 3” to frame Weight: 114 Pounds (52Kg) Motor: 6.0 hp Brakes: Cable breakes Transmission Centrifugal Clutch: Steering Tie Rods
Company Name – Brand style guide
Page 10
Final Result
Company Name – Brand style guide
Page 11
Open Dimension: 1210x950x460 mm Closed Dimension: 540x959x460 mm Peso: 14,1 kg Battery: 36 V Material: alluminio e PLA Time for Recharge: 5H Compaction movements: 3 Interface: smartphone
The name E-WAY refers to both the type of electric motor and the concept of eco-sustainability, represented by the letter E, while the word WAY (road) stands as an exhortation to the use of this type of vehicle. The medium is made up of two extrusions of the same aluminum section which constitute the self-supporting body that supports its weight. The LMV closes only with three movements and its small size allows it to be positioned inside a standard boot. In the front, there is a LED strip, the direction indicators, and a helmet holder, in the rear, however, there is the clearly visible vehicle plate and another LED strip.
Company Name – Brand style guide
Page 1
MOODBOARD Velocity
Flexability
Lightweight
Foldable
Company Name – Brand style guide
Page 2
Three views
Company Name – Brand style guide
Page 3
Three views
Company Name – Brand style guide
Page 4
Storyboard
Company Name – Brand style guide
Page 5
Technical Info
Company Name – Brand style guide
Page 6
Company Name – Brand style guide
Page 7
Nowadays every auto company is considering an electronic solution for their vehicles, especially for family sedans. Volkswagen group is working on this manner, they designed a new chassis and applied it on Porsche Taycan and Audi E-Tron. these sketches are designed based on Volkswagen's new chassis and inspired by Lamborghini's genetic design.
Company Name – Brand style guide
Page 9
Sketches
Company Name – Brand style guide
Page 10
HOOK TWING IN BACK CAR HAVE TWO HOOK FOR TWING OTHER VEHICLE UPPER HOOK HAVE MORE POWER THAN DOWN HOOK AND USE FOR BIGGER VEHICLE BUT DOWN HOOK CAN TWING MORE VEHICLE FROM ALL DIRECTIONS .THE MAIN USE THIS CAR IS TWING AND HAVE POWER FULL HOOK FOR TWING ALL VEHICLE.
FORM DESIGN THIS VEHICHLE HAVE MINIM ROUGH FORM FOR USAGE THIS. BECAUSE THI NEED TO SHOW THE POWE BILITY . AFTER MANY SKET CHOOS 3 FINAL CONCEPT WAS FINAL SELECTION THA POWER AND STABILITY.
AIR COOL SYSTEM THIS HOOD CAN COOLING ENGIN SYSTEM AND CAN HELP AIR CONDITIONAL SYSTEM IN ANOTHER SENES THIS HOOD IS RADIOTOR FOR CAR SYSTEM.
Company Name – Brand style guide
Page 11
MAL AND
IS USAGE ER AND STATCHES AND THIS FORM AT SHOW THE
SUSPANSION PENOMATIC SUSPANSION HAVE CHANGE HEIGHT CAPABILITY.THIS SYSTEM HELP CAR FOR BAD CONDITIONS IN THIS PHOTO CAN SEE CHANGS.
Company Name – Brand style guide
Page 12
THANK FOR YOUR TIME.
