Data Logger & Sensor
Water Level Monitoring
This rugged, autonomous system provides precise data to support informed decisions about water usage and conservation.
Reliable Water Level Monitoring
Our system combines a durable submersible pressure sensor with a cellular-connected data logger, designed to operate independently outdoors, even in harsh conditions.
Measurement data is sent automatically to the cloud via secure mobile technology, accessible anytime from your phone, tablet, or computer.
Whether on-site or in the office, you’ll always have the insights you need, saving time, reducing costs, and improving efficiency.
Simple to install, reliable to operate, and built to last.

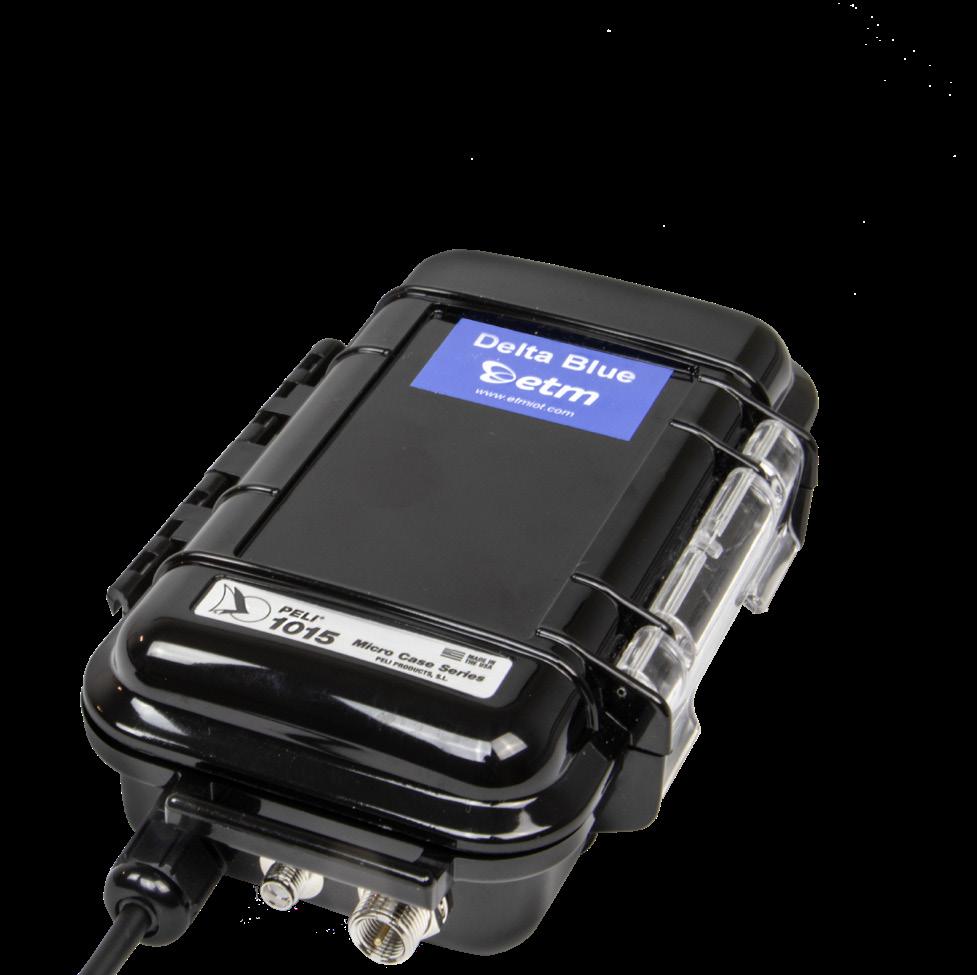

Delta Blue Data Logger
Delta Blue is an LTE-connected, battery-powered data logger for precision monitoring in remote locations, no external power or cabling required. With its integrated positioning system and robust design, Delta Blue delivers reliable measurements anywhere your work takes you.
Built for endurance, it offers up to 1.5 years of battery life for long-lasting, maintenance-free operation and consistent performance.

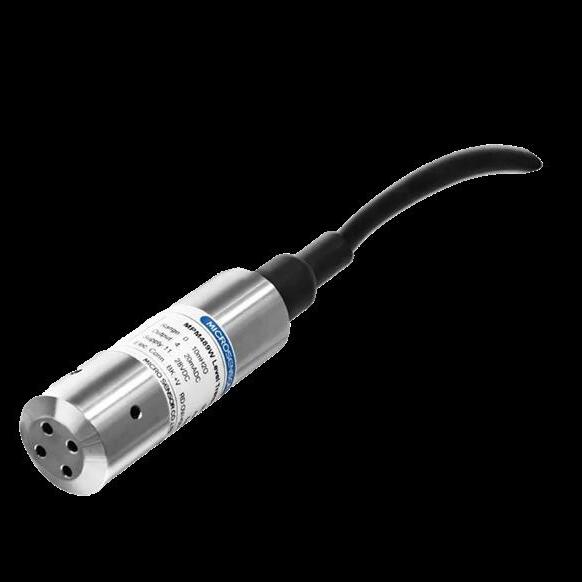

Submersible pressure sensor
Our level sensor ensures precise, long-term performance in all conditions. It features a highstability piezoresistive element and a robust stainless steel housing with a tightly sealed cable connection for durability.
Its slim 1” (22 mm) design fits easily into narrow pipes, while a vent tube in the cable automatically balances air pressure, allowing self-compensation for atmospheric changes, no barometric sensor needed. Accessories for Delta Blue:
Batteri 3,6V 13Ah
090-01893-0
Wall/post bracket
090-01880-0

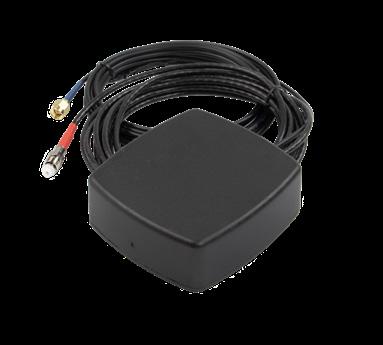

Antenna 4G/GNSS
090-01263-0

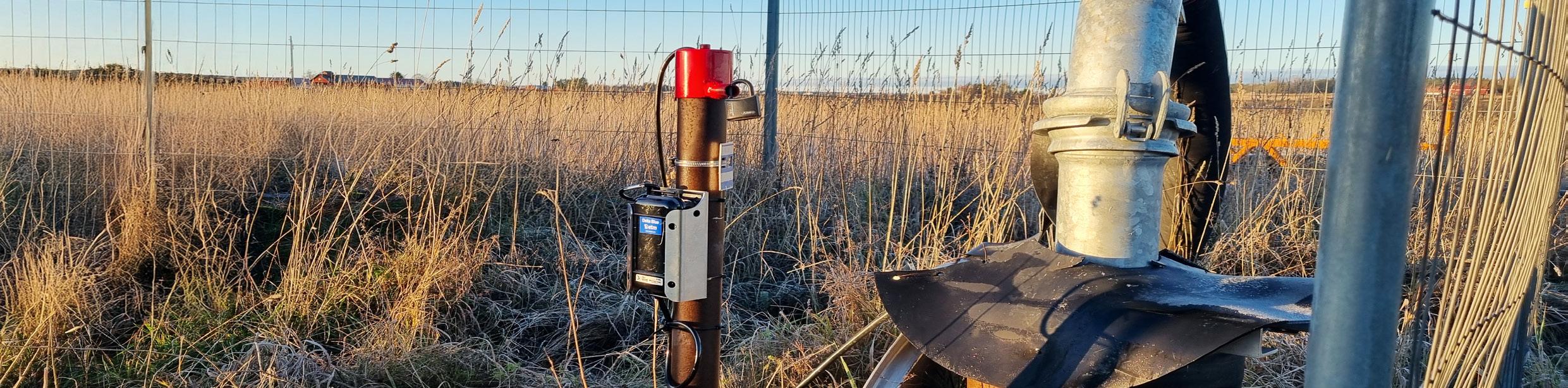

Automated well monitoring
Track groundwater levels with precision and ease. Delta Blue, paired with a submersible pressure sensor, provides accurate, wireless measurements in observation wells.
Smart Tank Monitoring
Measure liquid levels accurately and effortlessly. Delta Blue, combined with a submersible pressure sensor, delivers reliable, wireless tank monitoring with long battery life and real-time cloud access, anytime, anywhere.
Accurate Surface Water Monitoring
Monitor rivers, lakes, and basins with confidence. Delta Blue, together with a submersible pressure sensor, delivers precise water level data via wireless LTE connection.

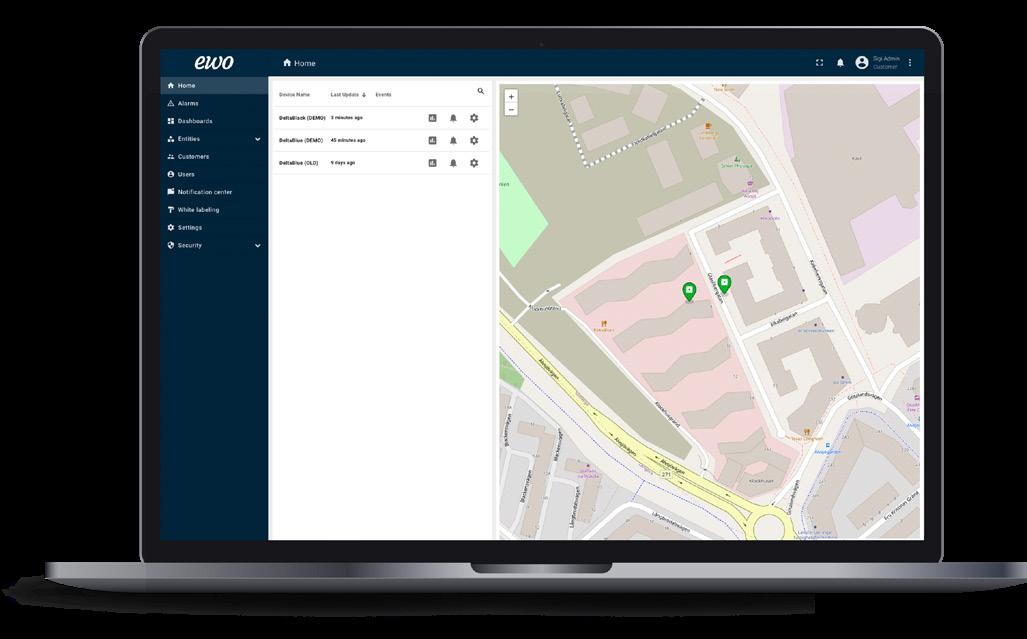

IoT Platform

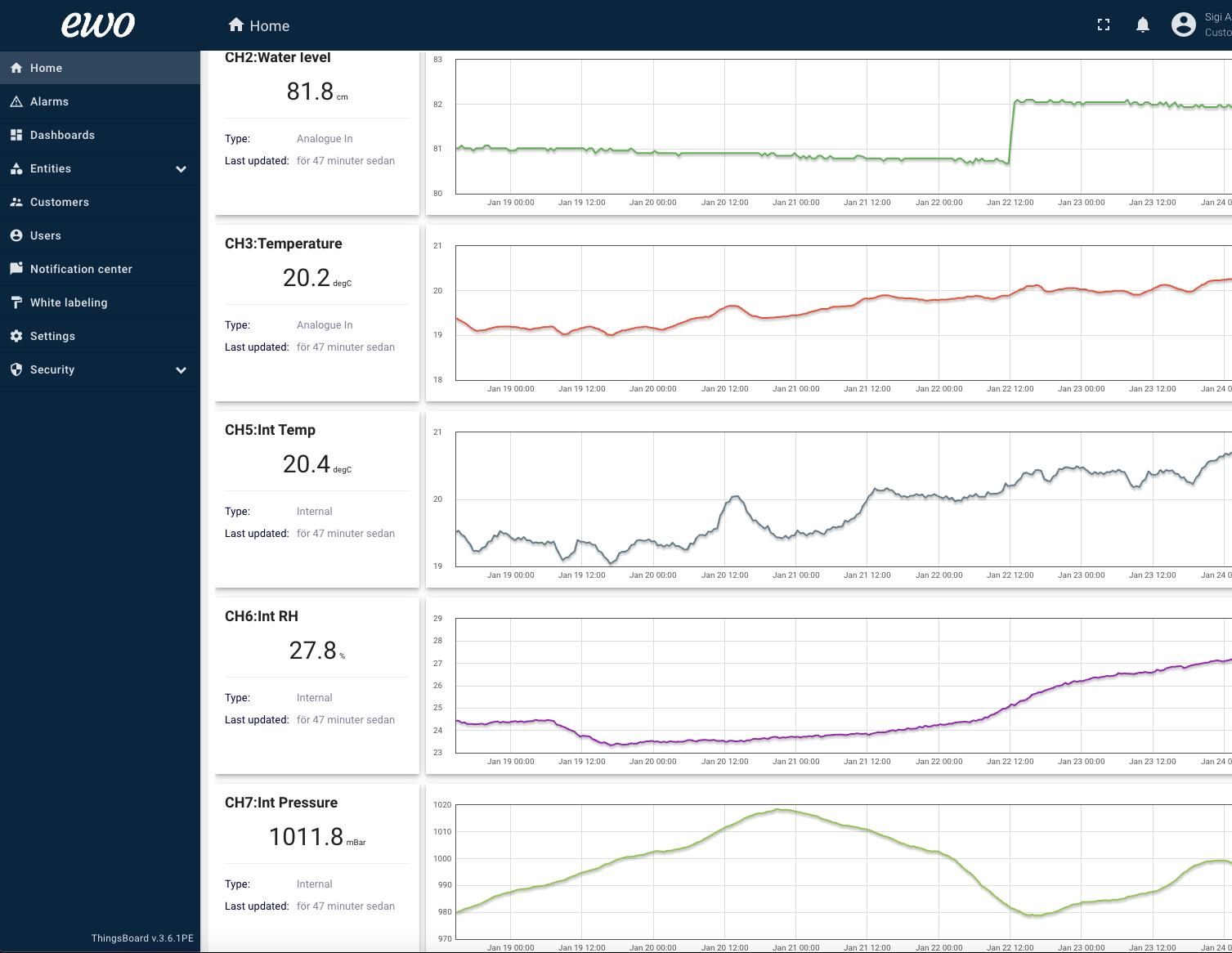

EWO is an IoT cloud-based dashboard and a platform for seamless management and monitoring of your hardware. Collect, store, and display visualization of data and connectivity parameters. EWO can be configured to send SMS and email alerts to selected users when thresholds or watchdog conditions are triggered by connected units and sensors.
Hosted within a secure AWS environment, the platform supports robust data security and boasts an intuitive user interface. It has the ability to integrate with third-party SCADA platforms, expanding its versatility and compatibility
The IoT platform has several advantages such as quick response times when issues occur, preventing possible future problems, documentation of the quality of communication, and better possibility of performing fault tracing.
The platform serves as the central hub for visualizing measurement data, offering a comprehensive solution for IoT management and data utilization.
Technical Data
Delta Blue Data Logger
Dimensions:
Delta Blue Water Level Monitoring
Model: Delta Blue Data Logger
Connectivity: 4G LTE Cat 1
GNSS: GPS/BeiDou/GLONASS/Galileo
Antenna: Cellular: Integrated and external GNSS: External
Internal sensors: Temperature: accuracy ± 0.2°C
Humidity: accuracy ± 3%
Accelerometer: 3-axis motion detector
Barometric pressure: 300-1100 mBar
Battery life: Up to 1.5 years
Battery type: ER34615M 3,6V 13 Ah
Power supply: 3-5V
Operating temp: -30°C to +70°C
Size: 177 x 99 x 47 mm
Weight: 340 g
Casing: Ventilated IP67 casing
Model: Water Level Transmitter (MPM489WZ3)
Range: selectable to 500 kPA
Accuracy* ±0.5%FS
Overpressure: 1.5 times FS
Pressure type: gauge, absolute
Application temp**: -20°C ~ 80°C
cable material: PUR
Storage temp: -20°C ~ 85°C
Shock: 100g, 11ms
Class: IP68
Size: 77 mm, 22Ø mm
Weight: ≤220 g
*Repeatability is generally better than the specified accuracy
**The transmitter can not withstand being frozen in water
