KAOS WARDROBE LINE

DESIGN SIGE SPA

TELAI FRAMES

RIPIANI SHELVES

CONTENITORI TRAYS

RIPIANI MULTIFUNZIONALI MULTIPURPOSE SHELVES

KIT MODULARI MODULAR ELEMENTS

STRUTTURE LATERALI ESTRAIBILI PULL-OUT LATERAL STRUCTURES

ACCESSORI ACCESSORIES

APPENDIABITI CLOTHES RACK

1
P_06 P_14 P_08 P_20 P_10 P_24 P_26 P_12

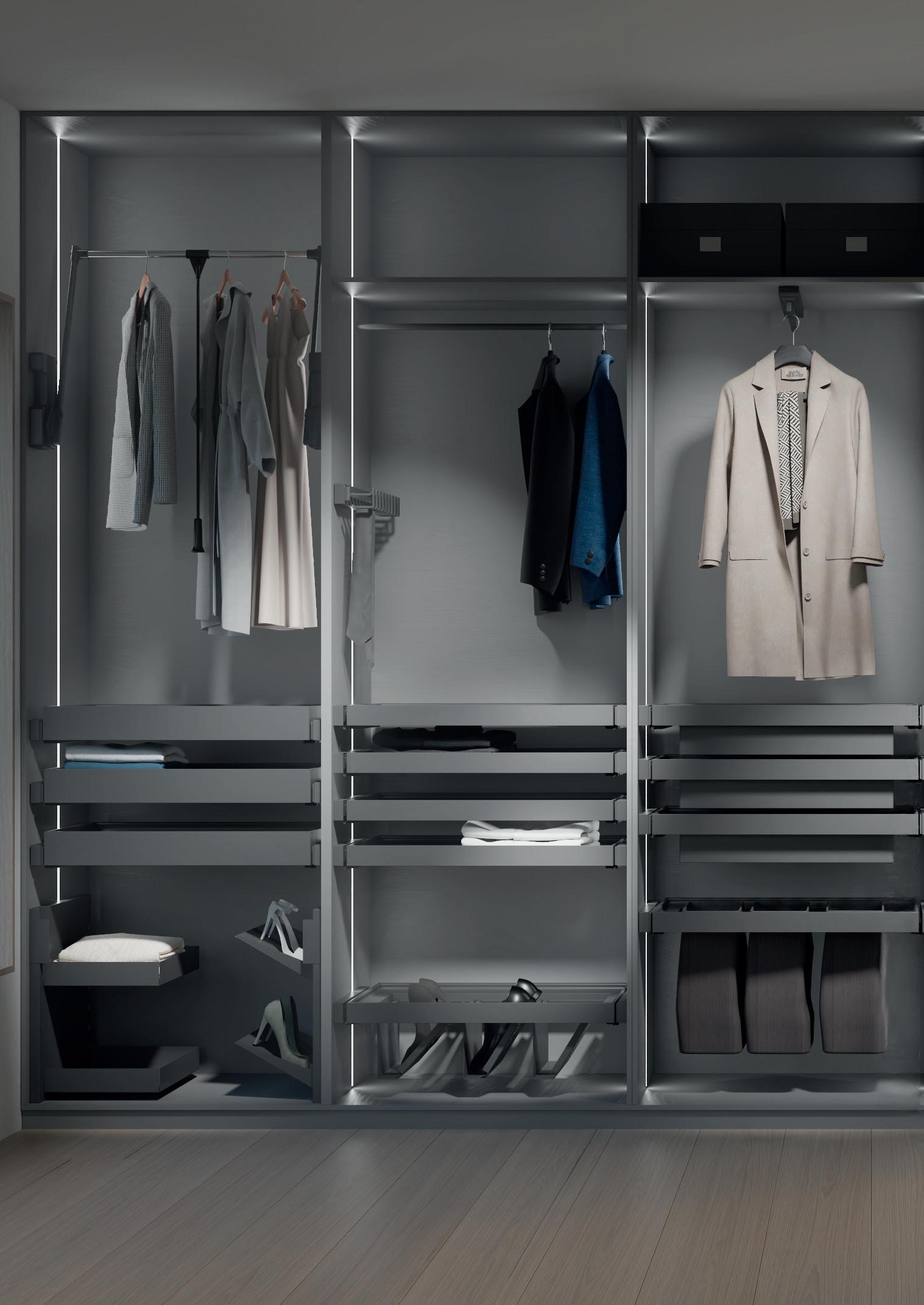

SCEGLI COME VIVERE IL TUO ABITARE CHOOSE THE WAY YOU LIVE YOUR HOME

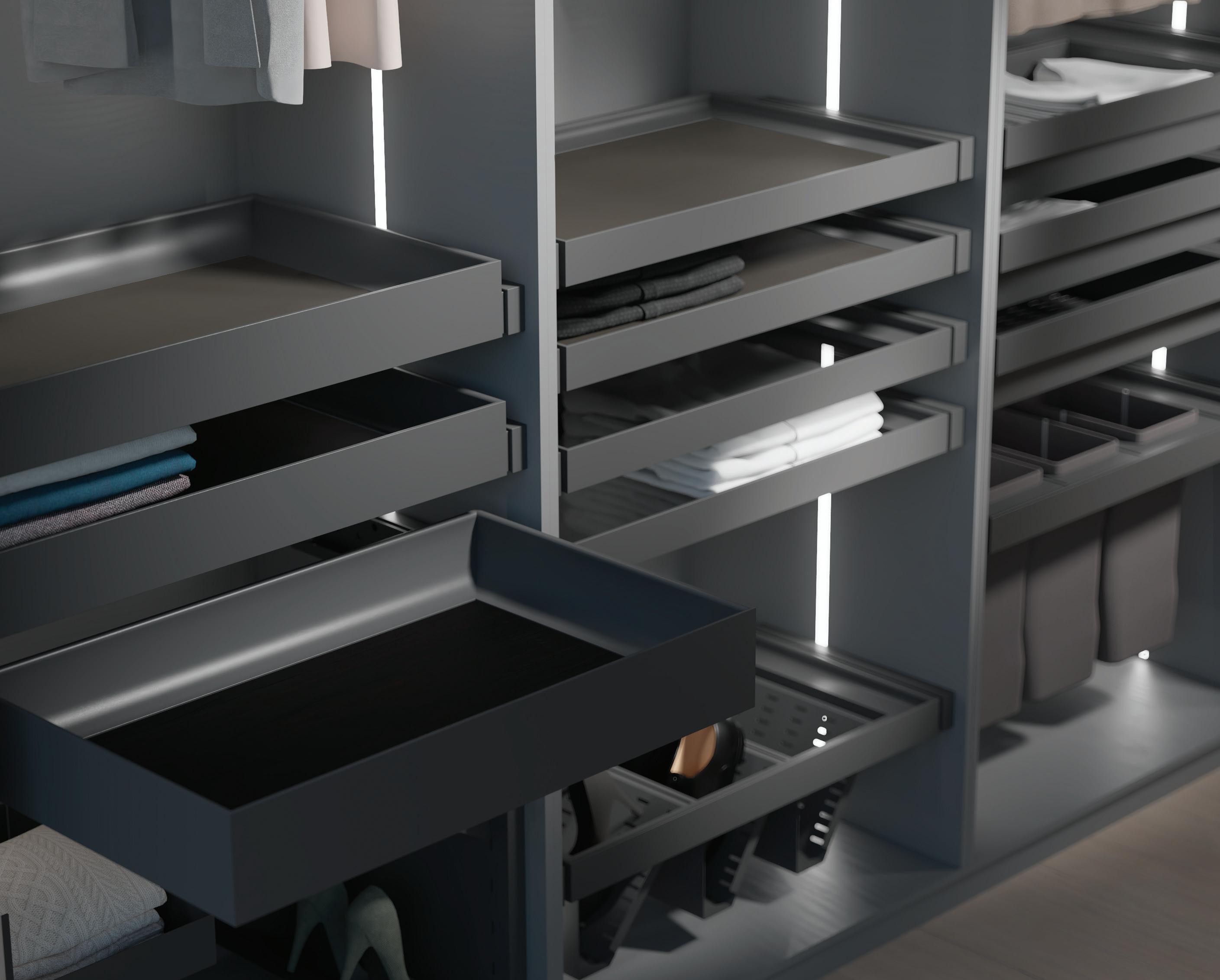

KAOS

tutto lo spazio a disposizione in camera da letto

Per la prima volta in oltre 50 anni di storia Sige mette il suo ingegno al servizio della camera da letto e il risultato è Kaos, un’esplosione di creatività che offre infinite soluzioni per organizzare il guardaroba. Un concept dal design pulito e lineare, che comprende una serie di prodotti d’alta gamma realizzati in acciaio verniciati in tinta antracite. L’anima di un guardaroba elegante, ordinato e facilmente adattabile ad ogni esigenza, si compone di telai estraibili e contenitori in due misure, elementi ad aggancio, kit portascarpe, portabiancheria e portapantaloni, ripiani estraibili che si trasformano in postazioni smart capaci di sfruttare tutto lo spazio a disposizione.

Kaos è il risultato di anni di ricerca nel campo dell’ergonomia applicata al design, il punto di incontro tra stile e versatilità. Forme che regalano armonia e nuovi spazi a disposizione in camera da letto. Il guardaroba perfetto ha origine dal Kaos.

KAOS all the space you need in the bedroom

For the first time in over 50 years Sige puts its creativity at the service of bedrooms. The result is Kaos, an explosion of creativity that offers endless solutions for organising your wardrobe. A neat and linear design concept, which includes a range of high-quality products made of anthracite painted steel. The core of an elegant, tidy and easily adaptable wardrobe is made up of pull-out frames and storage units in two sizes, hook-on elements, shoe, laundry and trouser racks, and pull-out shelves that turn into smart workstations capable of using all available space.

Kaos is the result of years of research in the field of ergonomics applied to design, the meeting point between style and versatility. Shapes that give harmony and new spaces in the bedroom. The perfect wardrobe is born from Kaos.

6
LINEA KAOS/ TELAI KAOS RANGE/ FRAMES

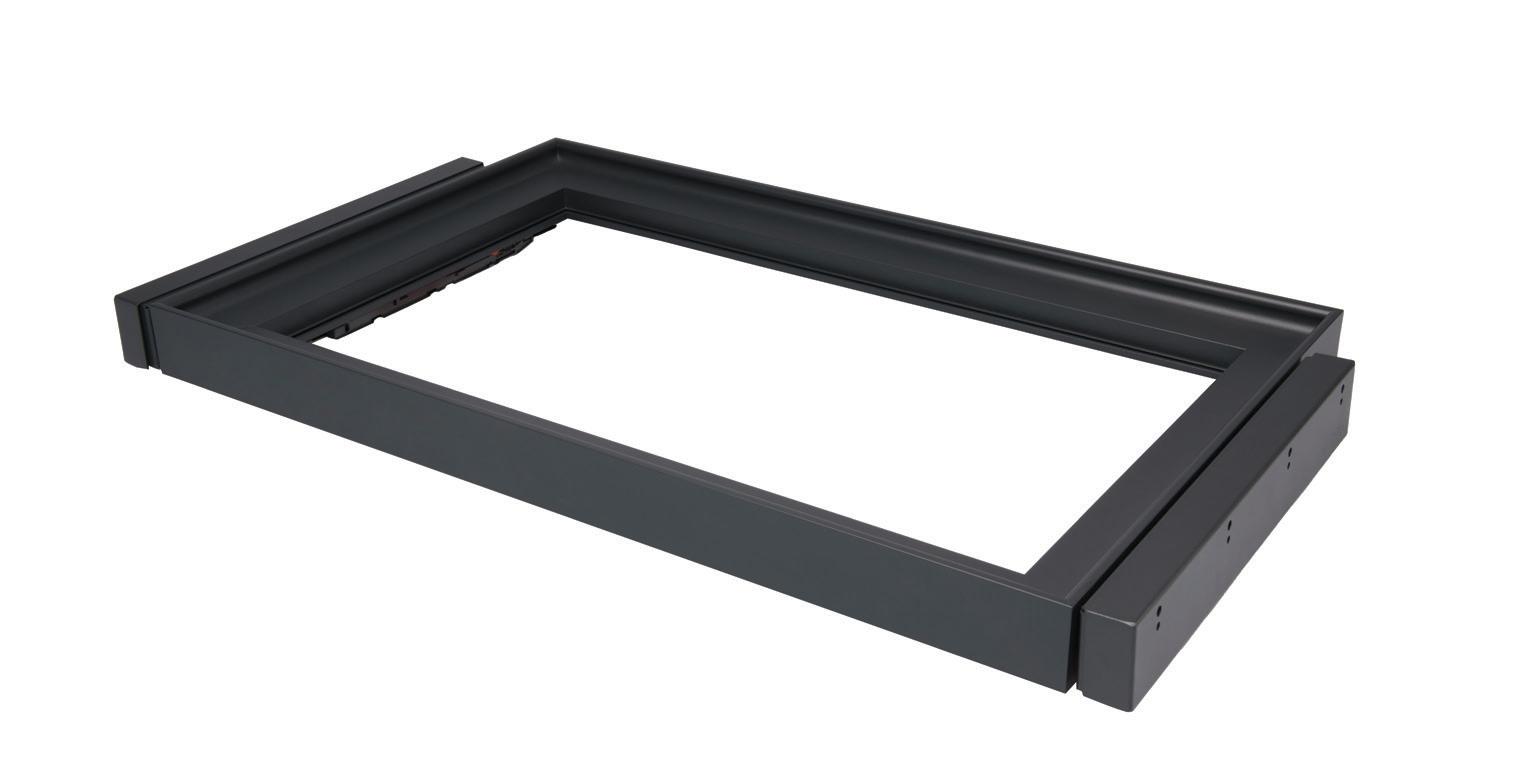

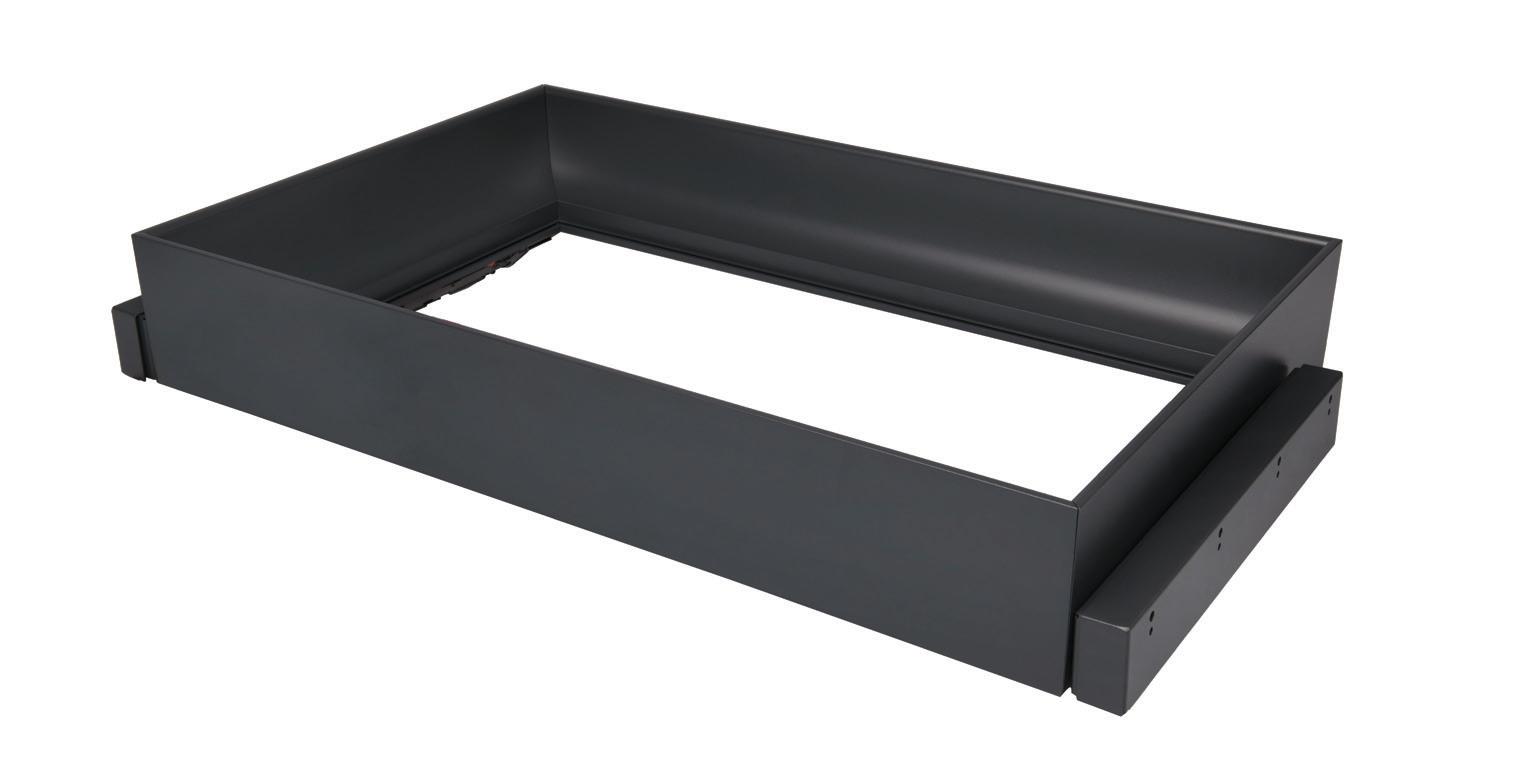

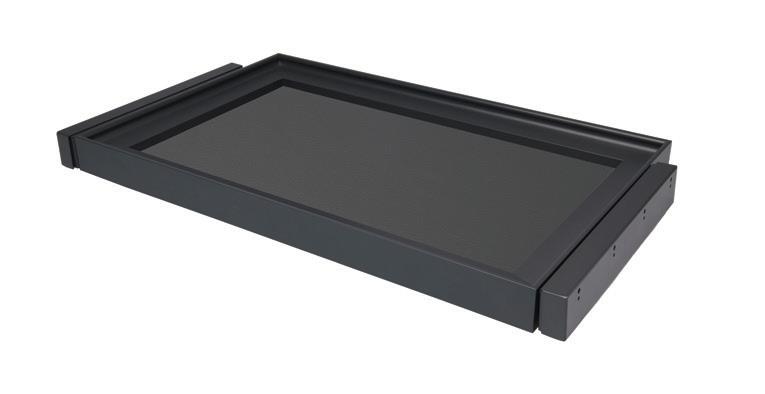

ART K100

TELAIO ESTRAIBILE “ALPHA”, COMPLETO DI GUIDE E DISTANZIALI REGOLABILI

· Adatto per mobili a giorno, con ante scorrevoli o a battente

· Disponibile in due altezze

· Articolo realizzato in metallo verniciato a polvere tinta antracite

· Guide Sige ad estrazione totale ammortizzate

PULL-OUT

· Suitable for wall cabinets, with sliding or hinged doors

· Available in two heights

· Item made of powder-coated metal in anthracite finish

· Full-extension SIGE slides with soft opening and closing

7 Y X Z X Y Z X Y Z Y Z X
“ALPHA” FRAME
SPACERS:
WITH SLIDES AND ADJUSTABLE
TELAIO H128 FRAME H128 TELAIO H58 FRAME H58 Info 400-418 X 450-468 550-568 750-768 850-868 950-968 1150-1168 520 72 Y Z 520 72 520 72 520 72 520 72 520 72 520 72 450 500 600 800 900 1000 1200 Info 400-418 X 450-468 550-568 750-768 850-868 950-968 1150-1168 520 140 Y Z 520 140 520 140 520 140 520 140 520 140 520 140 450 500 600 800 900 1000 1200
Larghezza esterno mobile/Cabinet external width X: Larghezza interno mobile/Cabinet interior width Y: Profondità minima interno mobile/Minimum internal cabinet depth Z: Altezza/Height
8
LINEA KAOS/ RIPIANI KAOS RANGE/ SHELVES

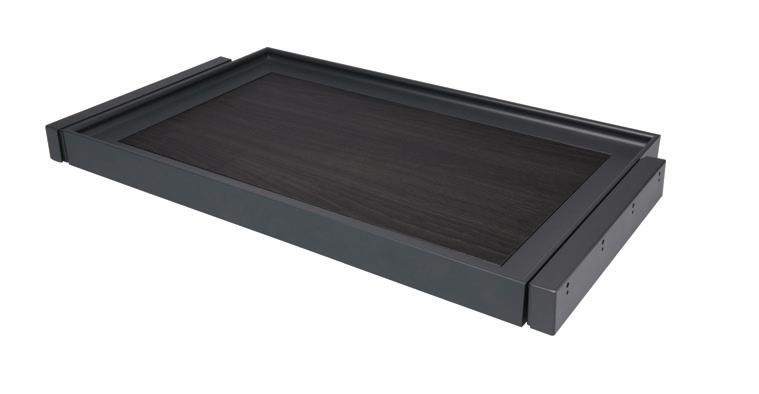

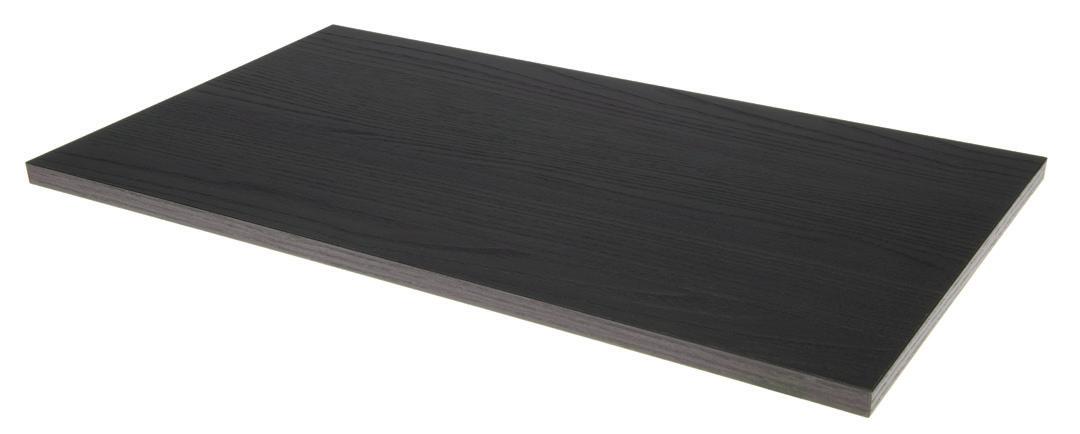

ART K200

RIPIANO IN LEGNO PER TELAIO “ALPHA”

· Spessore 18mm. tinta “Carpinese”, finitura Corteccia

WOODEN SHELF FOR “ALPHA” FRAME

· 18mm thick, dark chestnut wooden finish

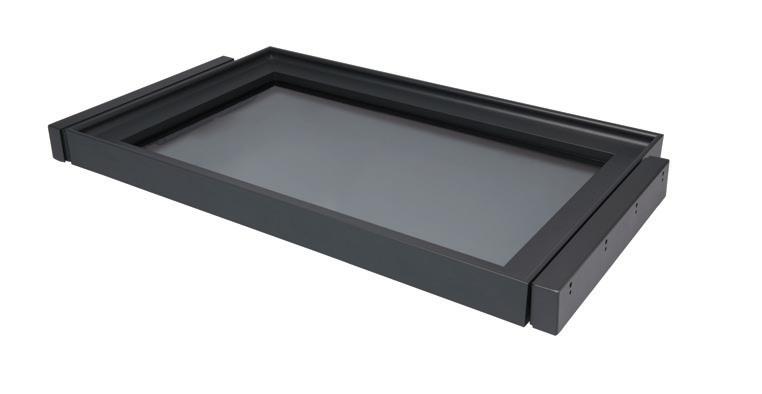

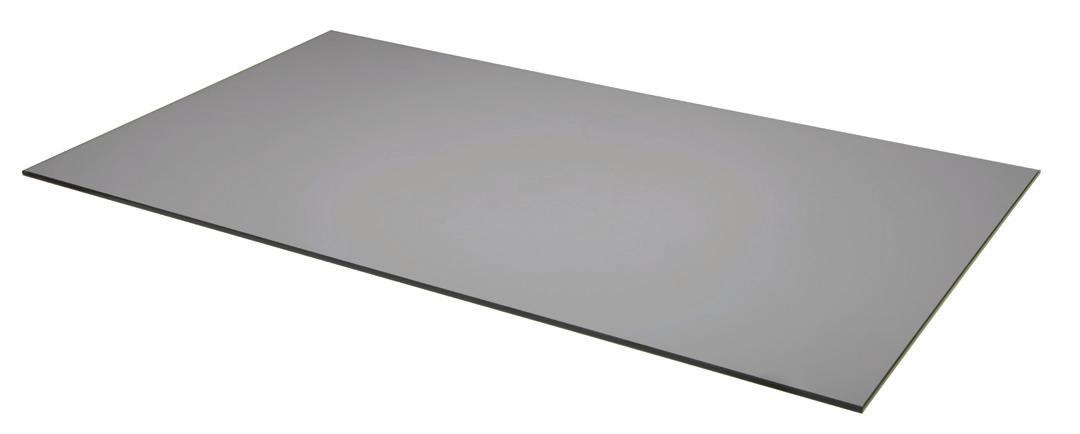

ART K201

RIPIANO IN VETRO PER TELAIO “ALPHA”

· Vetro temperato spessore 5mm, tinta “Fumè”

GLASS SHELF FOR “ALPHA” FRAME

· Tempered glass 5mm thick, smoky grey finish

ART K202

RIPIANO IN LEGNO RIVESTITO IN ECOPELLE PER TELAIO “ALPHA”

· Spessore 18mm, tinta antracite

WOODEN SHELF WRAPPED WITH FAUX LEATHER FOR “ALPHA” FRAME

· 18mm thick, anthracite finish

9
Tinta/Shade Tinta/Shade Tinta/Shade

LINEA KAOS/ CONTENITORI KAOS RANGE/ TRAYS

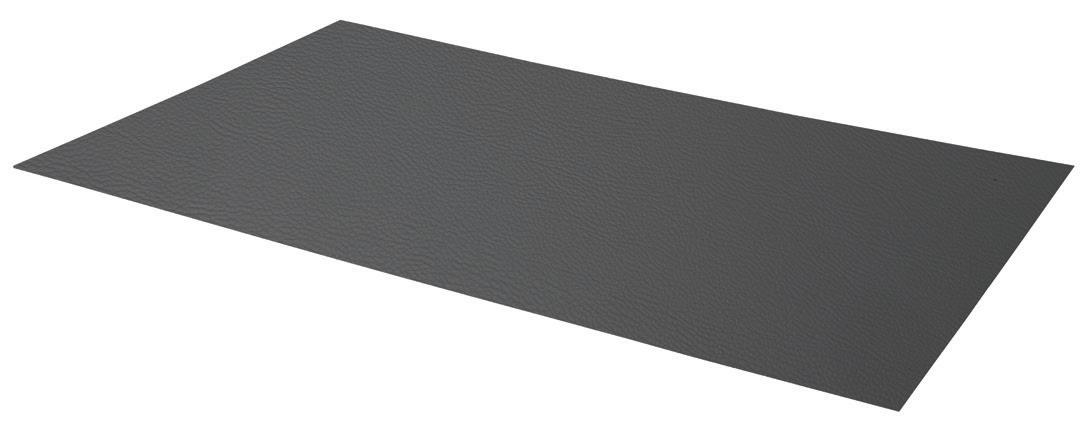

Optional ART K8220

10
Tappetino in ecopelle grigio antracite per contenitore K220 Anthracite faux leather mat for tray K220

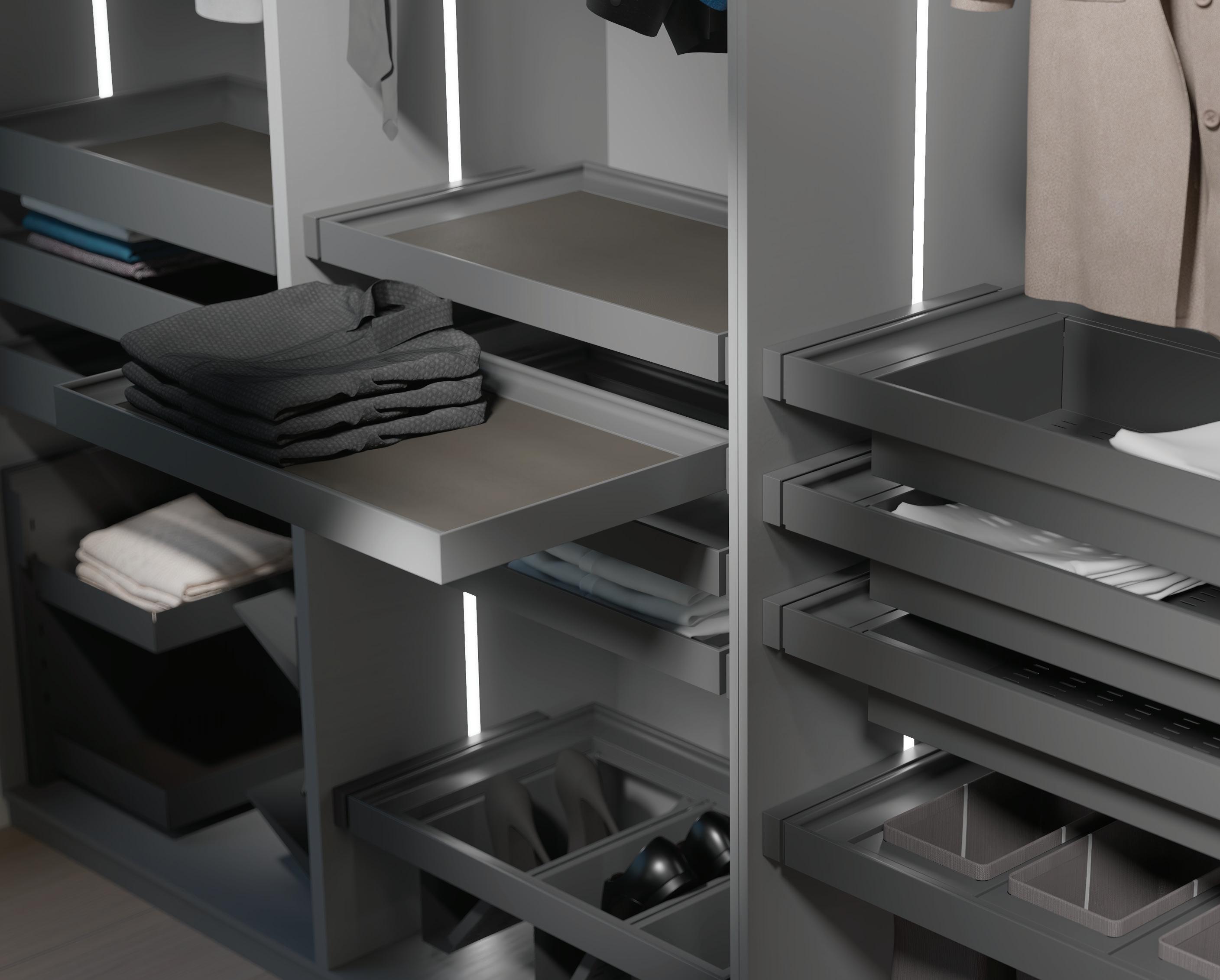

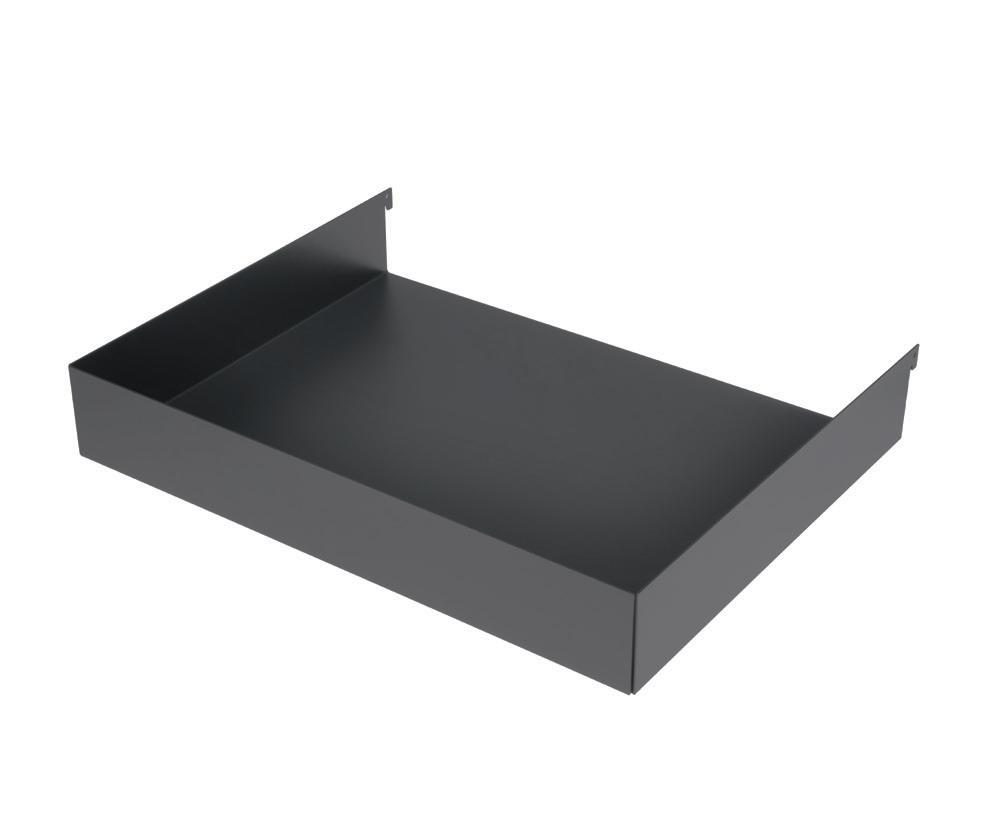

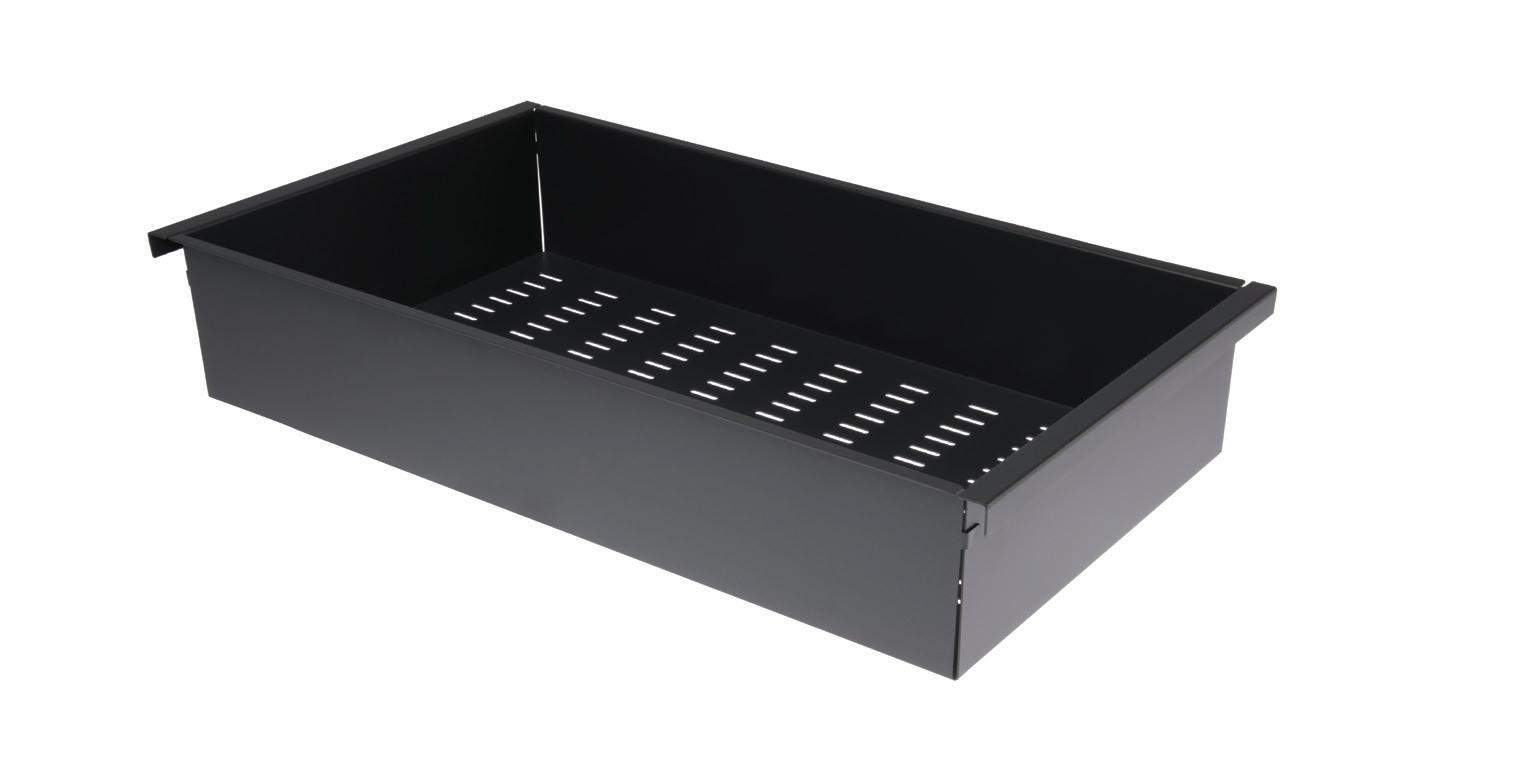

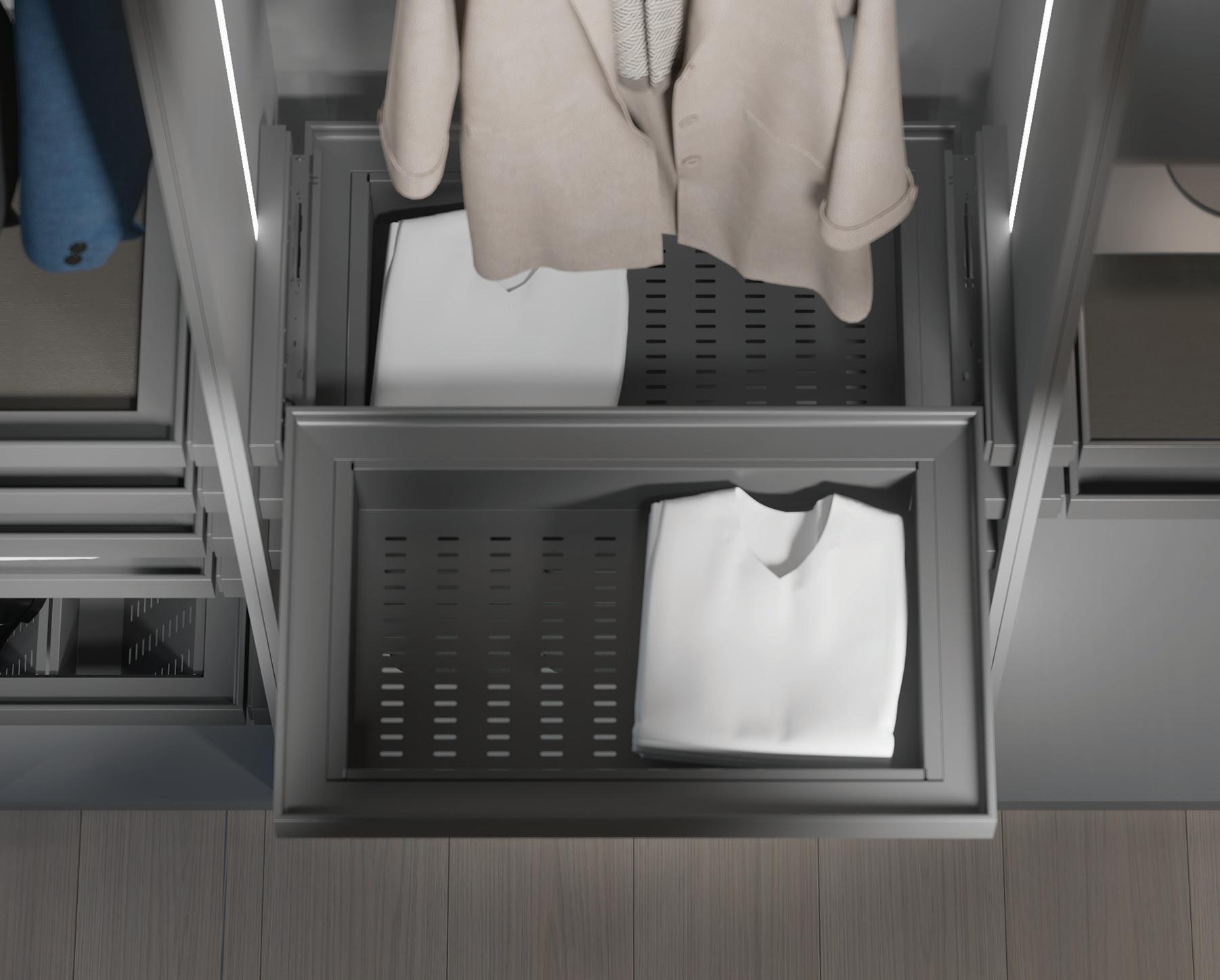

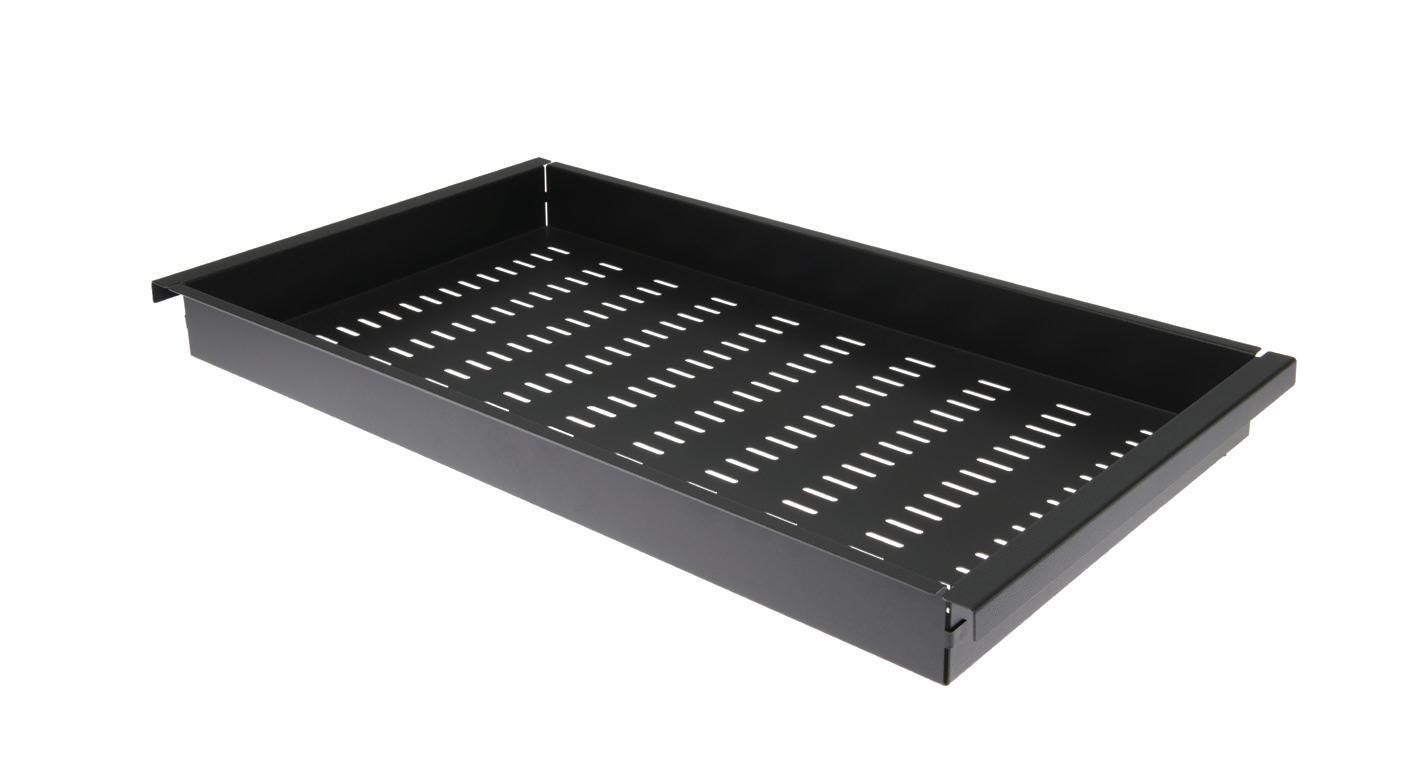

ART K220

CONTENITORE IN ACCIAIO PER TELAIO “ALPHA”

· Disponibile in due altezze

· Articolo realizzato in acciaio verniciato a polvere tinta antracite

· Fondo traforato per una migliore areazione

· Optional tappetino in ecopelle grigio antracite

STEEL TRAY FOR “ALPHA” FRAME

· Available in two heights

· Item made of powder-coated metal in anthracite finish

· Perforated bottom for better ventilation

· Optional faux leather mat in anthracite finish

CONTENITORE H60

H60

CONTENITORE H120

11 Y X Z X Y Z X Y Z Y X Z
Info X 550-568 750-768 850-868 950-968 1150-1168 Y Z 520 90 520 90 520 90 520 90 520 90 600 800 900 1000 1200 Info X 550-568 750-768 850-868 950-968 1150-1168 Y Z 520 150 520 150 520 150 520 150 520 150 600 800 900 1000 1200
TRAY
TRAY
Larghezza esterno mobile/Cabinet external width X: Larghezza interno mobile/Cabinet interior width Y: Profondità minima interno mobile/Minimum internal cabinet depth Z: Altezza/Height
H120
12
LINEA KAOS/ RIPIANI MULTIFUNZIONALI KAOS RANGE/ MULTIPURPOSE SHELVES

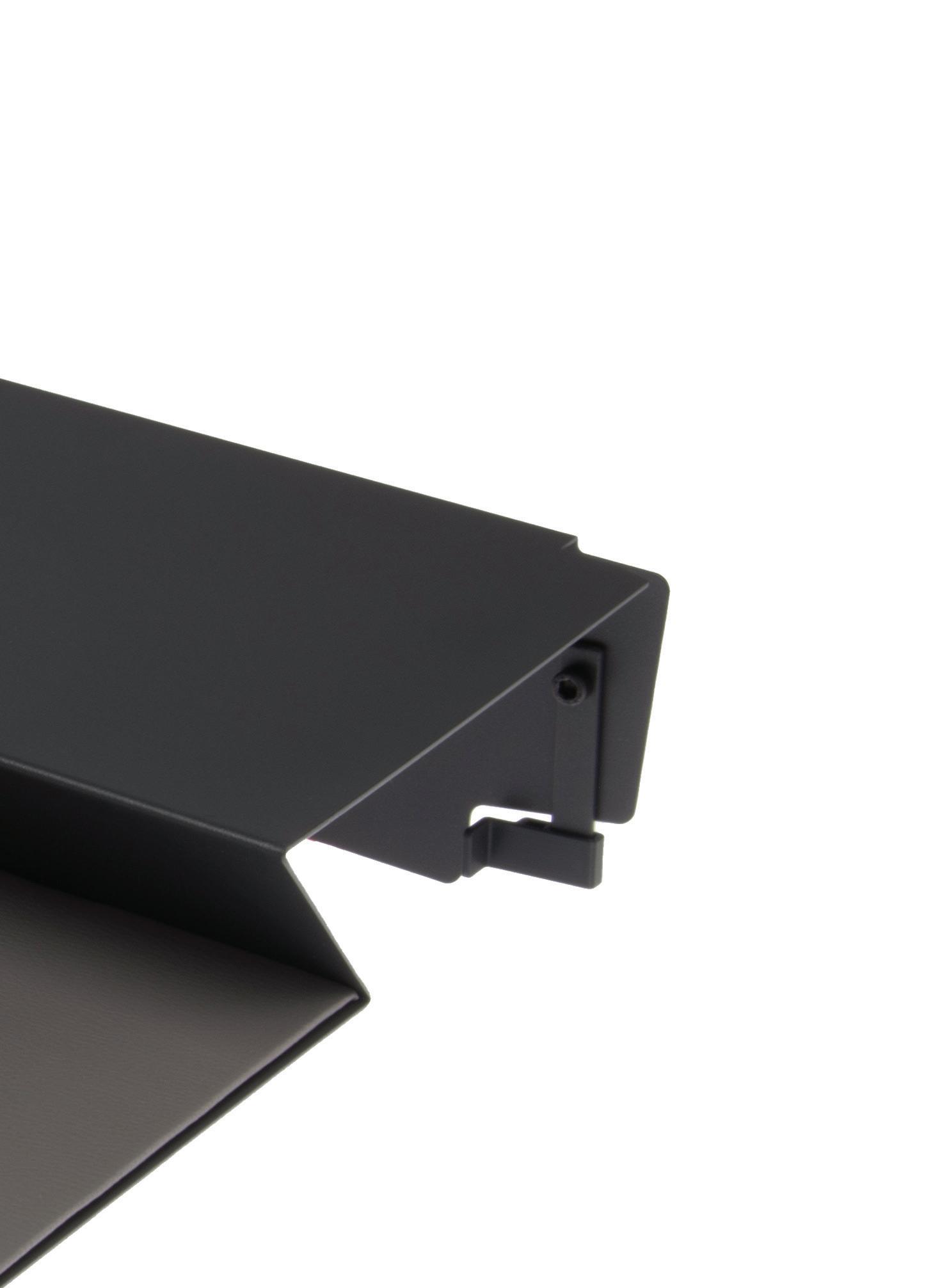

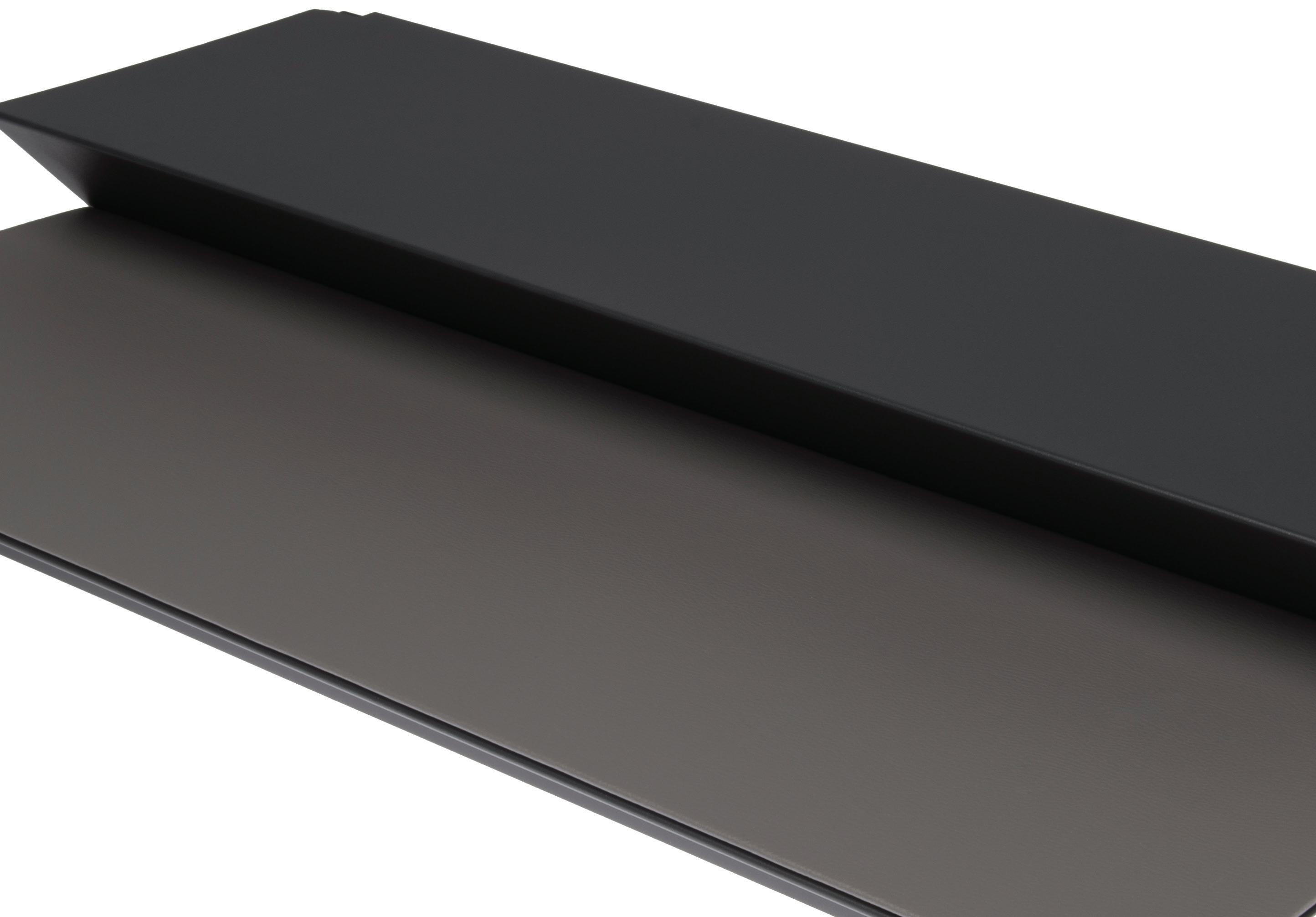

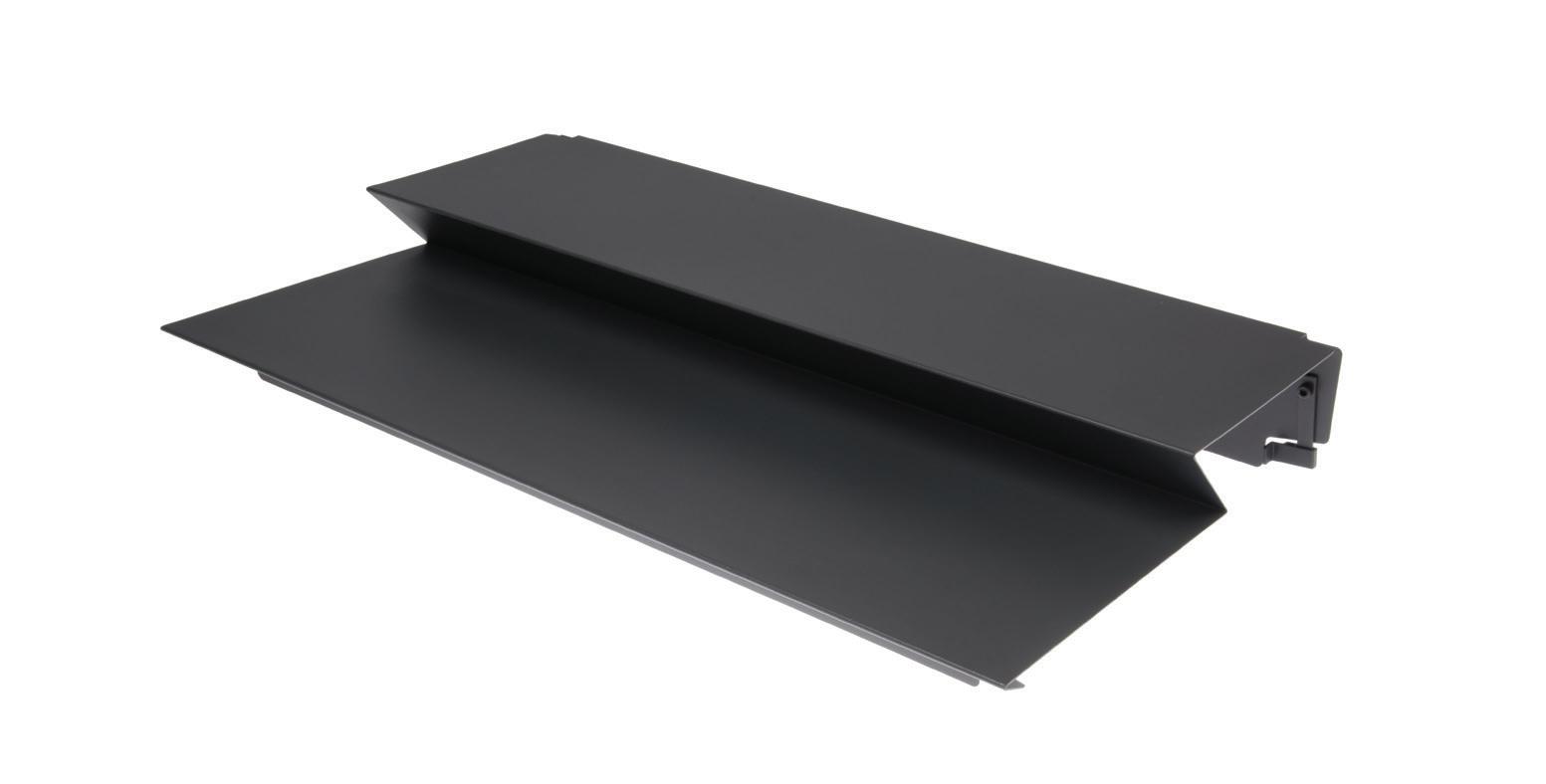

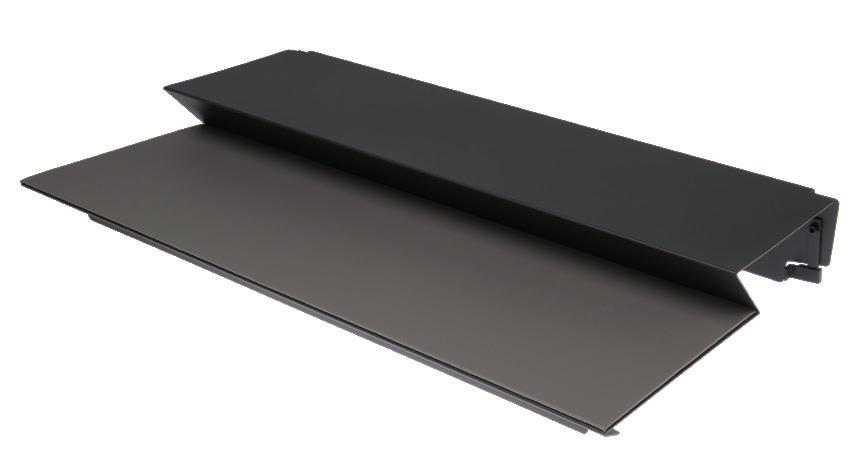

ART K230

RIPIANO MULTIFUNZIONE IN ACCIAIO PER TELAIO “ALPHA” H58

· Ideale sia per mobili zona giorno sia per armadiature zona notte

· Articolo realizzato in acciaio verniciato a polvere tinta antracite

· Optional tappetino in ecopelle per il piano inferiore color grigio antracite

· Possibilità di bloccare il ripiano in posizione aperta

· Suitable for both living area furniture and night area wardrobes

· Item made of powder-coated metal in anthracite finish

· Optional faux leather mat for lower shelf in anthracite finish

· Possibility of locking the shelf in the open position

Optional ART K8230

Tappetino in ecopelle grigio antracite per ripiano K230

Anthracite faux leather mat for shelf K230

13
MULTIPURPOSE STEEL SHELF FOR “ALPHA” FRAME
H58
Z X Y Z X 850-868 950-968 1150-1168 Y Z 520 158 520 158 520 158 900 1000 1200 Info Larghezza esterno mobile/Cabinet external width X: Larghezza interno mobile/Cabinet interior width Y: Profondità minima interno mobile/Minimum internal cabinet depth Z: Altezza/Height
14 450 1000 500 600 800 900 1200
LINEA KAOS/ KIT MODULARI KAOS RANGE/ MODULAR ELEMENTS Composizione dei kit ART K240/Composition of ART K240

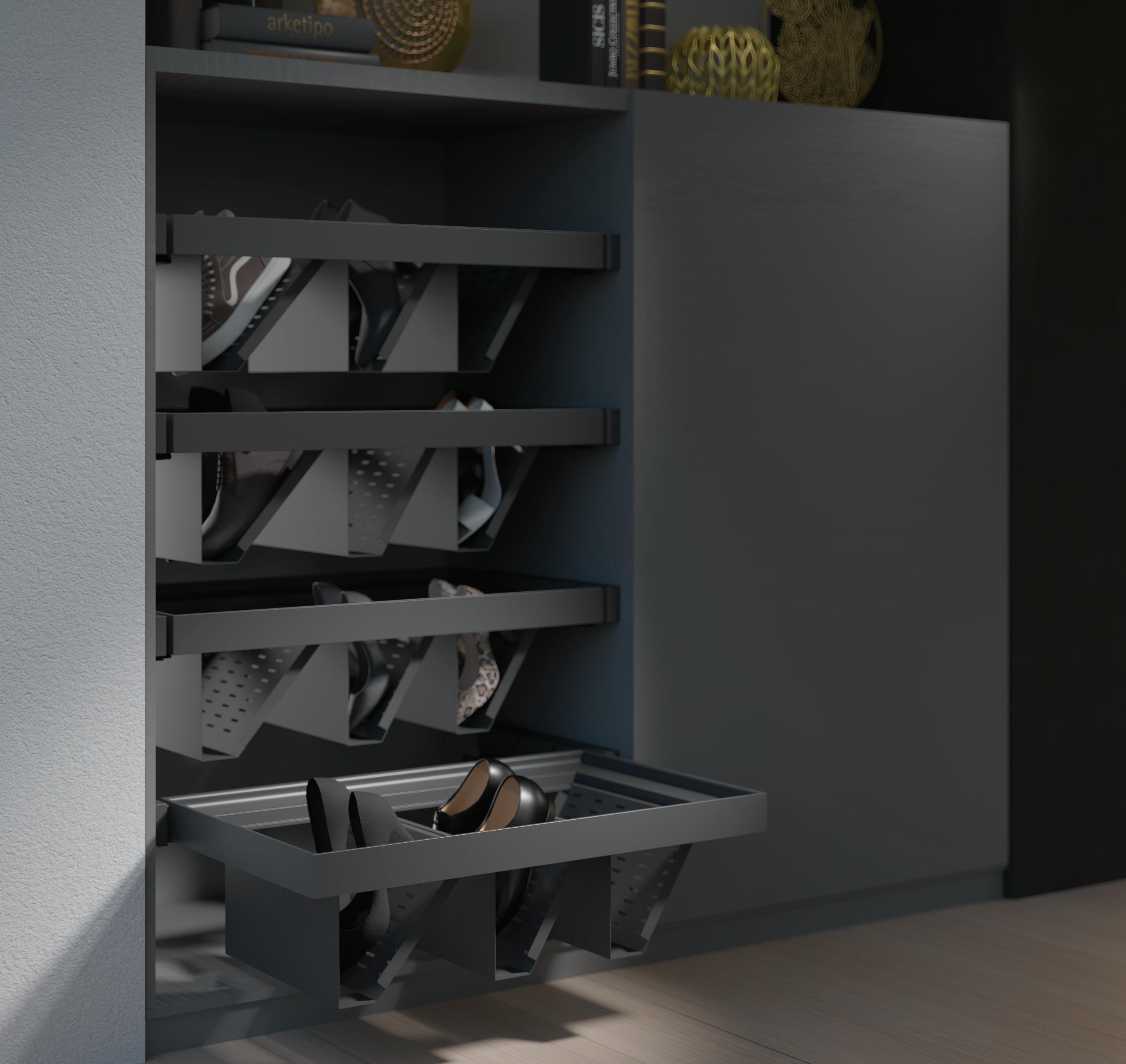

ART K240

KIT PORTASCARPE IN ACCIAIO PER TELAIO “ALPHA”

· Articolo realizzato in acciaio verniciato a polvere tinta antracite

· Lato traforato per una migliore areazione

· Realizzato in diversi modelli per una maggiore adattabilità alle varie larghezze

MODULAR STEEL SHOE HOLDER FOR “ALPHA” FRAME

· Item made of powder-coated metal in anthracite finish

· Perforated side for better ventilation

· Available in different models for greater adaptability to different widths

Y:

15
Info 400-418 X 450-468 550-568 750-768 850-868 950-968 1150-1168 520 237 Y Z 520 237 520 237 520 237 520 237 520 237 520 237 450 500 600 800 900 1000 1200 X Y Z Z Larghezza esterno mobile/Cabinet external width
Larghezza interno mobile/Cabinet interior width
X:
Profondità minima interno mobile/Minimum internal cabinet depth
Altezza/Height
Z:
16
KAOS/ KIT MODULARI KAOS RANGE/ MODULAR ELEMENTS 450 1000 1200 500 600 800 900
LINEA
Composizione dei kit ART K250/Composition of ART K250

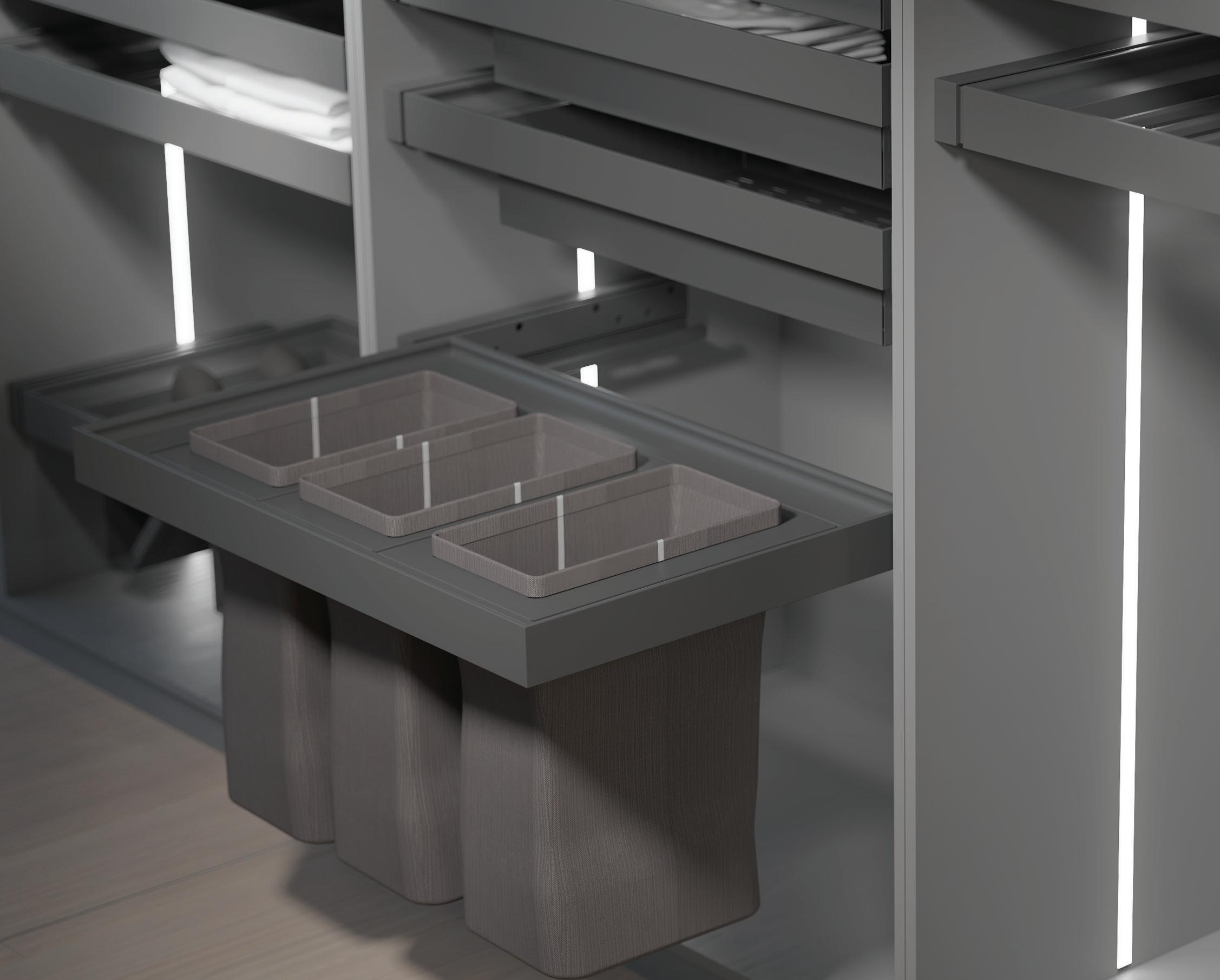

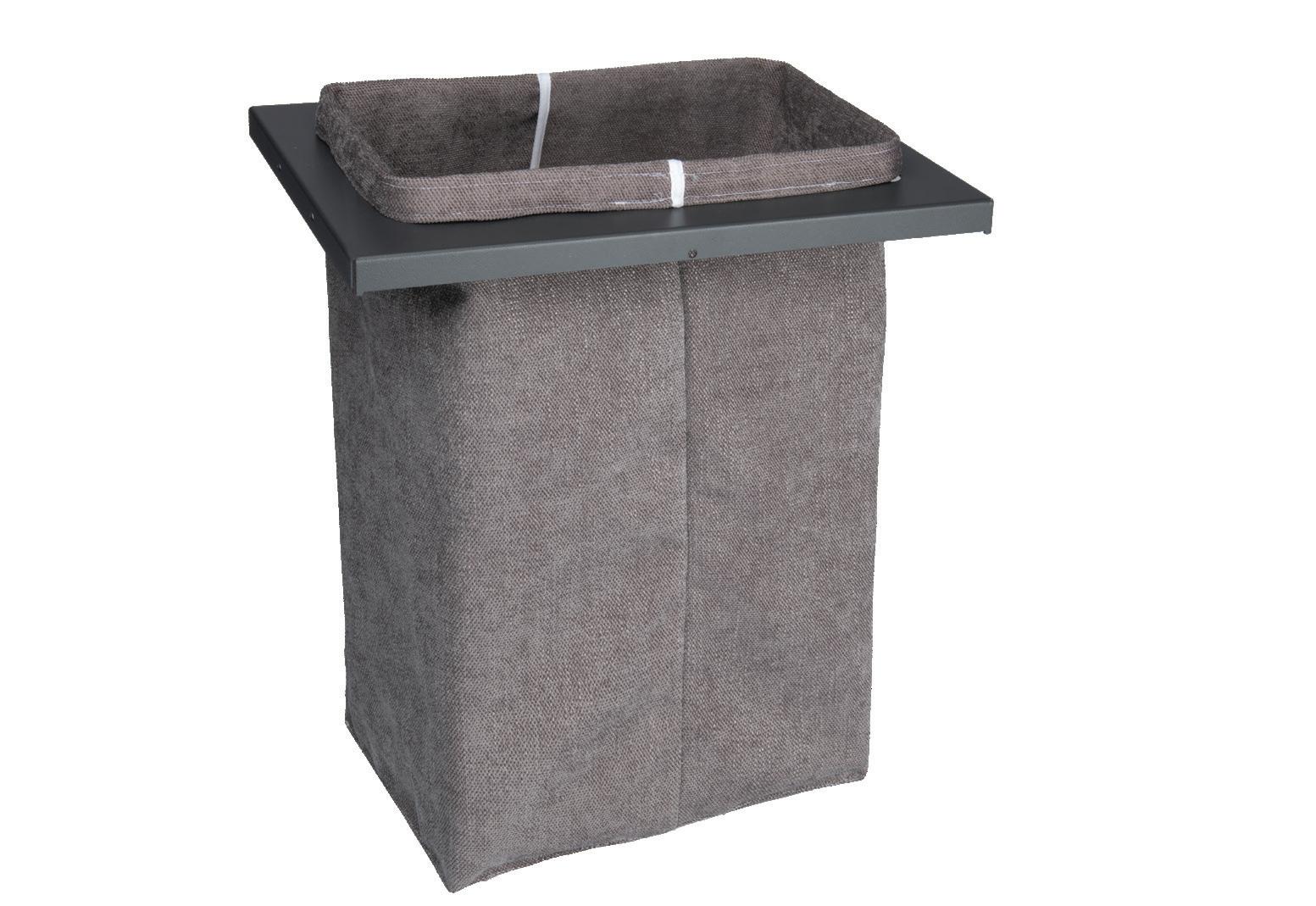

ART K250

KIT PORTABIANCHERIA PER TELAIO “ALPHA”

· Struttura realizzata in acciaio verniciato a polvere tinta antracite

· Sacco finitura antracite, idrorepellente, antimacchia, traspirante e lavabile in lavatrice

· Realizzato in diversi modelli per una maggiore adattabilità alle varie larghezze

MODULAR LAUNDRY BAG FOR “ALPHA” FRAME

· Structure made of powder-coated metal in anthracite finish

· Waterproof, stain-resistant, breathable and machine-washable bag in anthracite fabric

· Available in different models for greater adaptability to different widths

17
Info 400-418 X 450-468 550-568 750-768 850-868 950-968 1150-1168 520 438 Y Z 520 438 520 438 520 438 520 438 520 438 520 438 450 500 600 800 900 1000 1200 Z Y X Z Larghezza esterno mobile/Cabinet external width X: Larghezza interno mobile/Cabinet interior width Y: Profondità minima interno mobile/Minimum internal cabinet depth Z: Altezza/Height
18
KAOS RANGE/ MODULAR ELEMENTS 450 1000 1200 500 600 800 900
LINEA KAOS/ KIT MODULARI
Composizione dei kit ART K260/Composition of ART K260

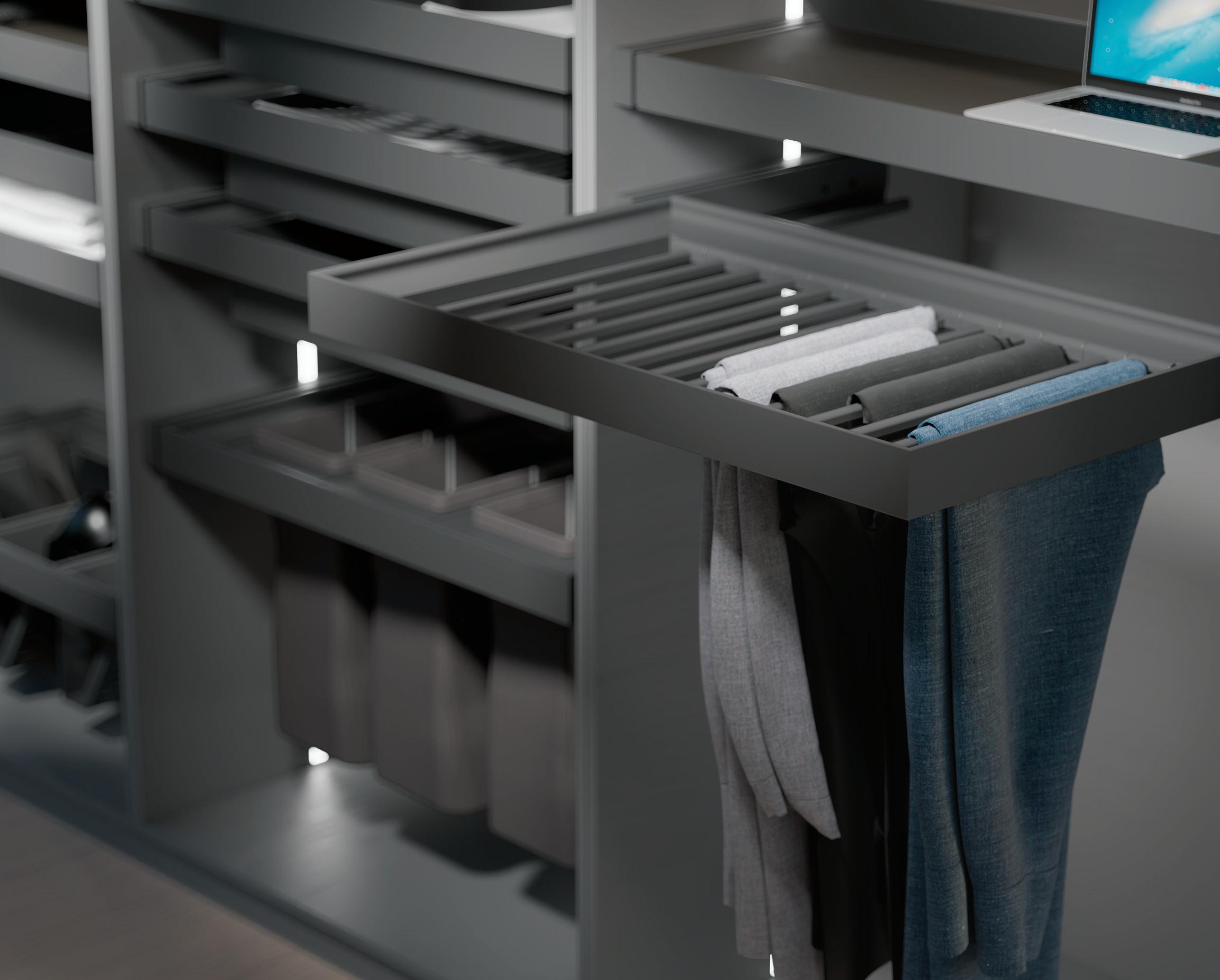

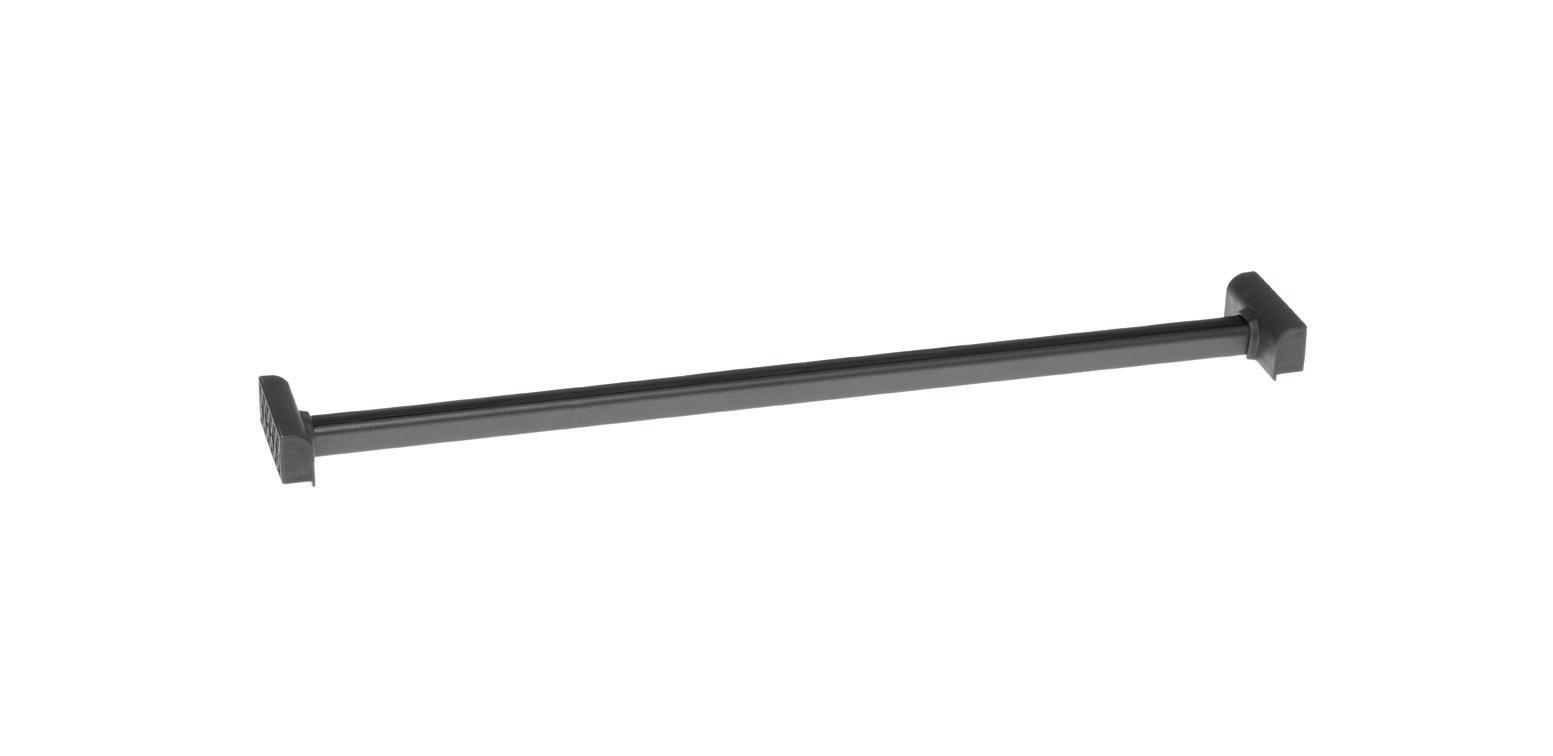

ART K260

KIT PORTAPANTALONI PER TELAIO “ALPHA”

· Articolo realizzato in alluminio verniciato a polvere tinta antracite

· Completo di inserto in gomma antiscivolo

MODULAR TROUSER RACK FOR “ALPHA” FRAME

· Item made of powder-coated metal in anthracite finish

· Supplied with anti-slip rubber insert

19
Z Z Y X Info 400-418 X 450-468 550-568 750-768 850-868 950-968 1150-1168 520 72 Y Z 520 72 520 72 520 72 520 72 520 72 520 72 450 500 600 800 900 1000 1200 Larghezza esterno mobile/Cabinet external width X: Larghezza interno mobile/Cabinet interior width Y: Profondità minima interno mobile/Minimum internal cabinet depth Z: Altezza/Height

LINEA KAOS/ ART K310: STRUTTURA LATERALE ESTRAIBILE KAOS RANGE/ ART K310: PULL OUT LATERAL STRUCTURE

Optional ART K8311

Kit 2 tappetini in ecopelle grigio antracite per kit ripiani K311

Set of two anthracite faux leather mats for set of shelves K311

20

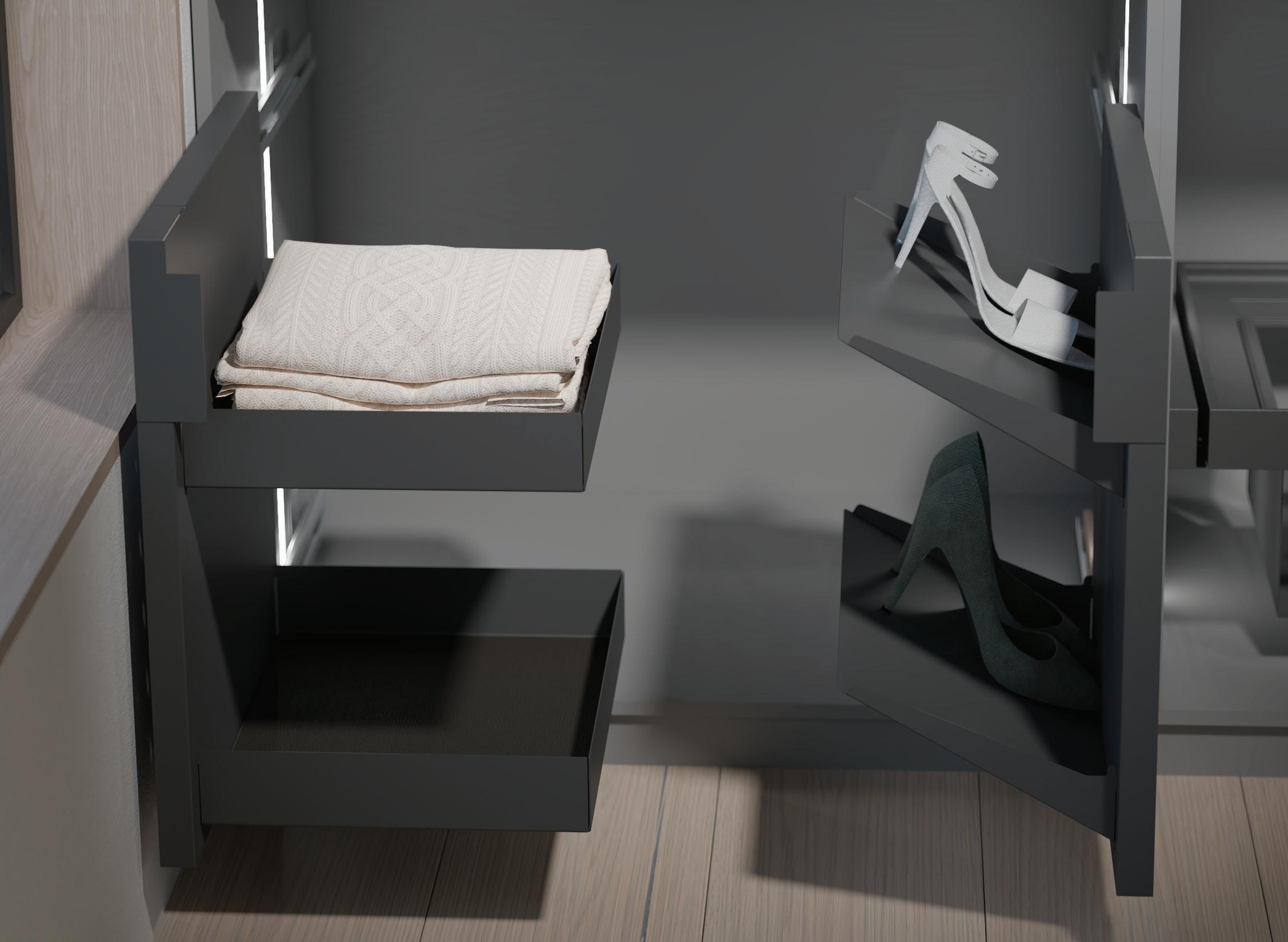

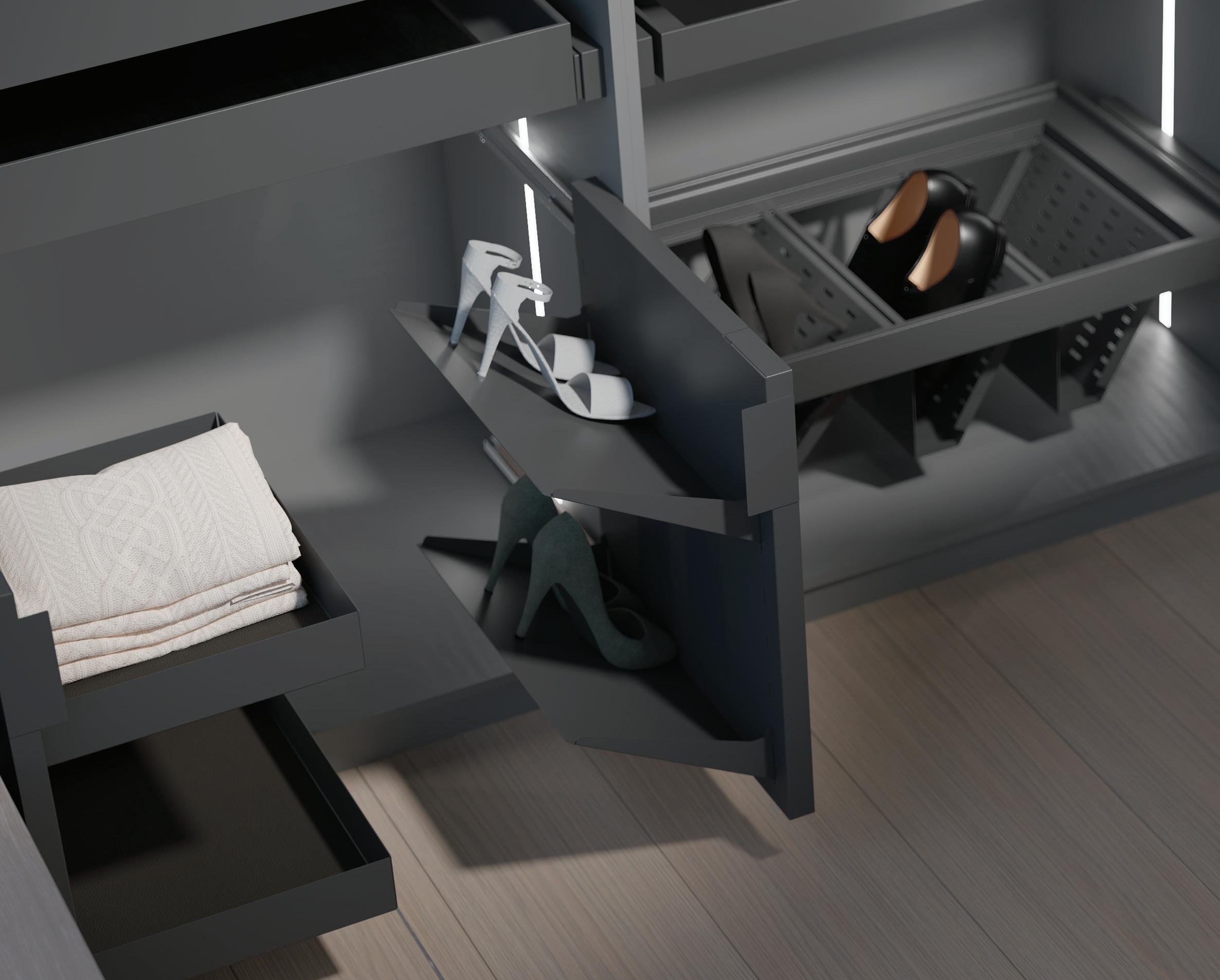

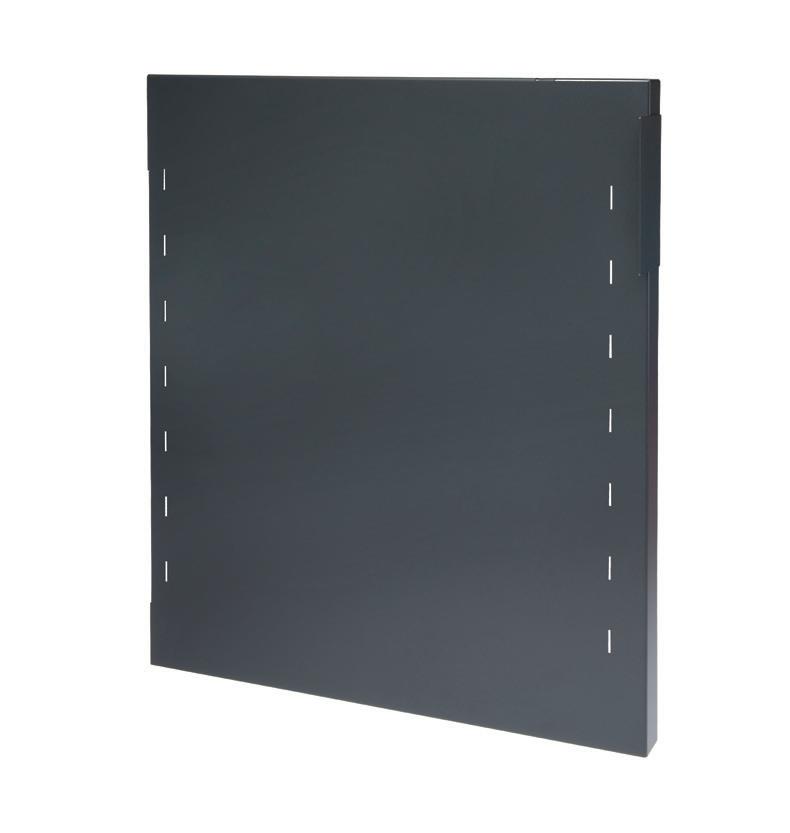

ART K300

STRUTTURA LATERALE ESTRAIBILE COMPLETA DI GUIDE E DISTANZIALI

· Versione destra o sinistra

· Articolo realizzato in acciaio verniciato a polvere tinta antracite

· Guide Sige ad estrazione totale ammortizzate

PULL-OUT LATERAL STRUCTURE WITH SLIDES AND SPACERS

· Left or right version

· Item made of powder-coated metal in anthracite finish

· Full-extension SIGE slides with soft opening and closing

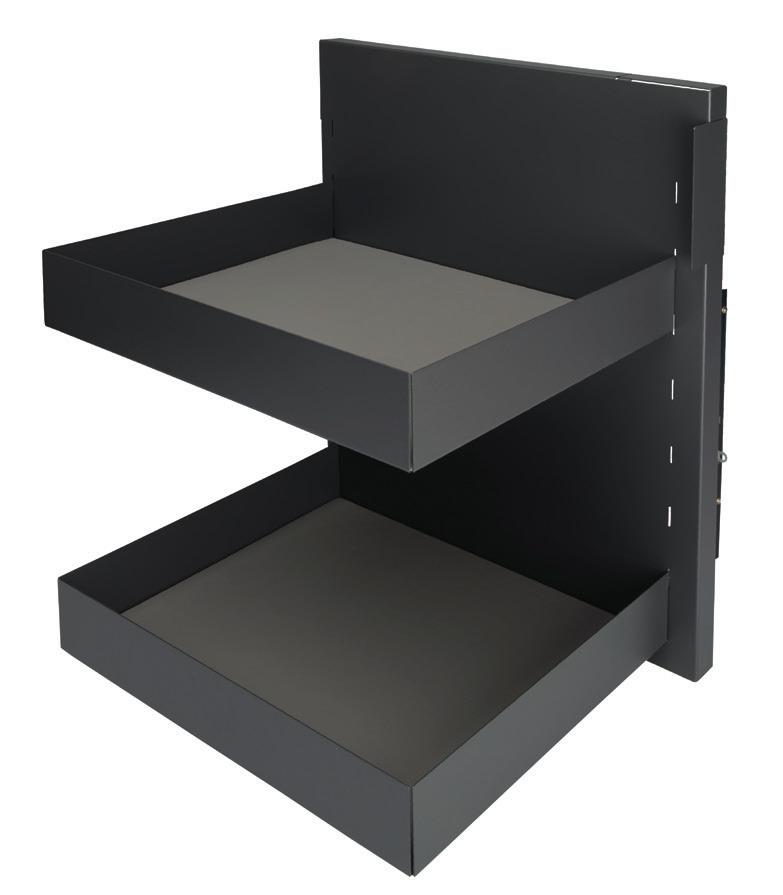

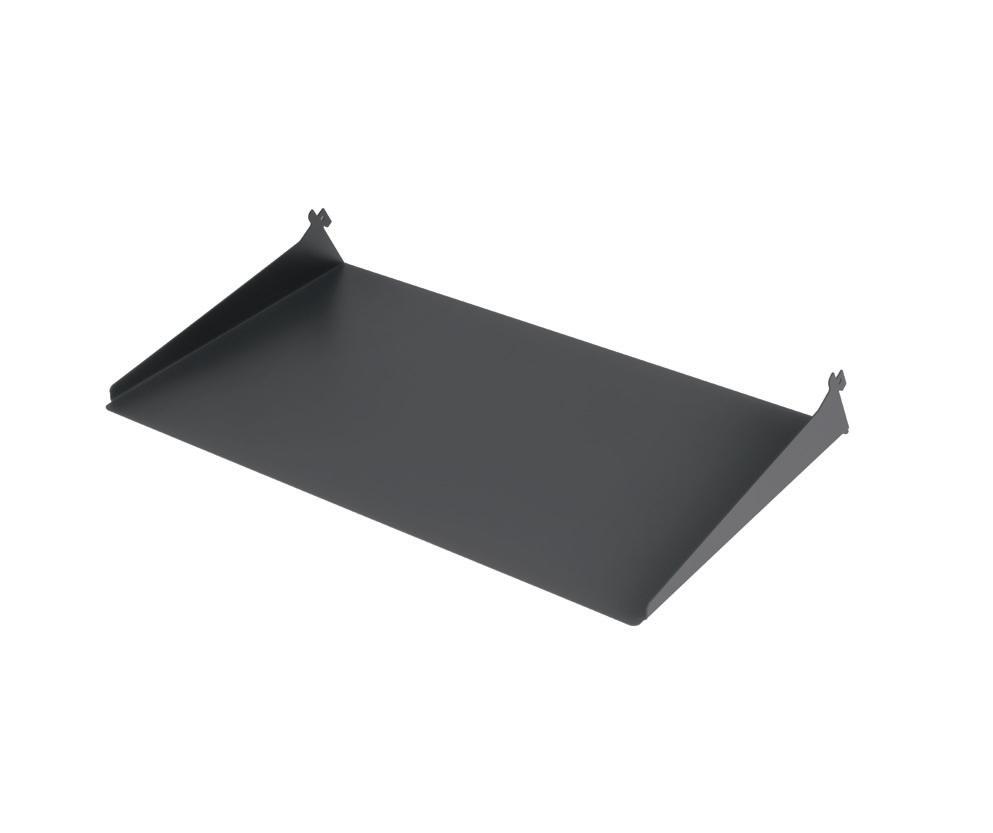

ART K311

KIT DUE RIPIANI AD AGGANCIO PER ART K300

· Articolo realizzato in acciaio verniciato a polvere tinta antracite

· Optional tappetino in ecopelle color grigio antracite

SET OF TWO HANGING SHELVES FOR ART K300

· Item made of powder-coated metal in anthracite finish

· Optional faux leather mat in anthracite finish

21
Y Z X Info X 400 Y Z 505 580 450 Larghezza esterno mobile/Cabinet external width X: Larghezza interno mobile/Cabinet interior width Y: Profondità minima interno mobile/Minimum internal cabinet depth Z: Altezza/Height

LINEA KAOS/ ART K320: STRUTTURA LATERALE ESTRAIBILE KAOS RANGE/ ART K320: PULL OUT LATERAL STRUCTURE

22

ART K300

STRUTTURA LATERALE ESTRAIBILE COMPLETA DI GUIDE E DISTANZIALI

· Versione destra o sinistra

· Articolo realizzato in acciaio verniciato a polvere tinta antracite

· Guide Sige ad estrazione totale ammortizzate

PULL-OUT LATERAL STRUCTURE WITH SLIDES AND SPACERS

· Left or right version

· Item made of powder-coated metal in anthracite finish

· Full-extension SIGE slides with soft opening and closing

ART K321

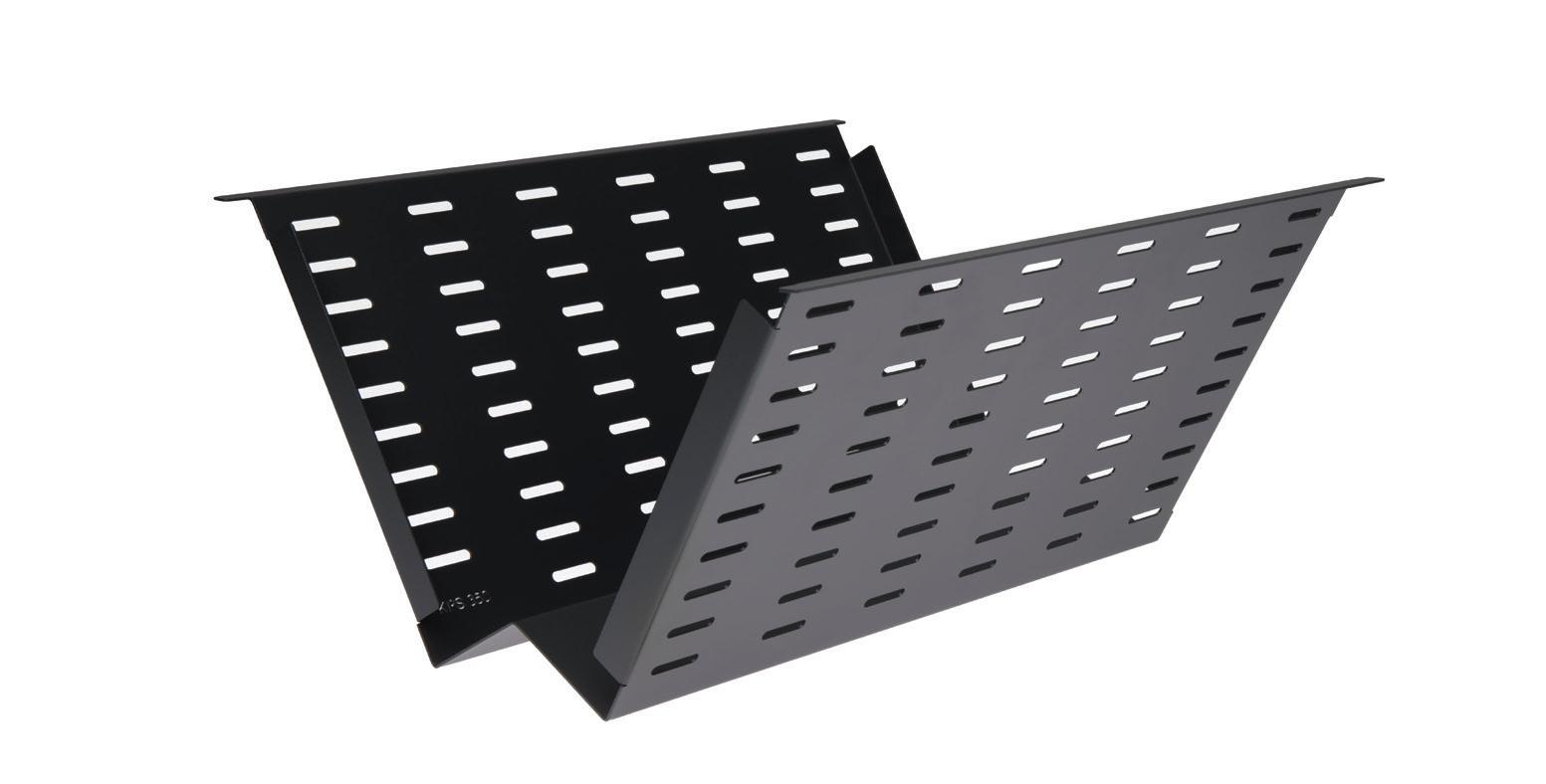

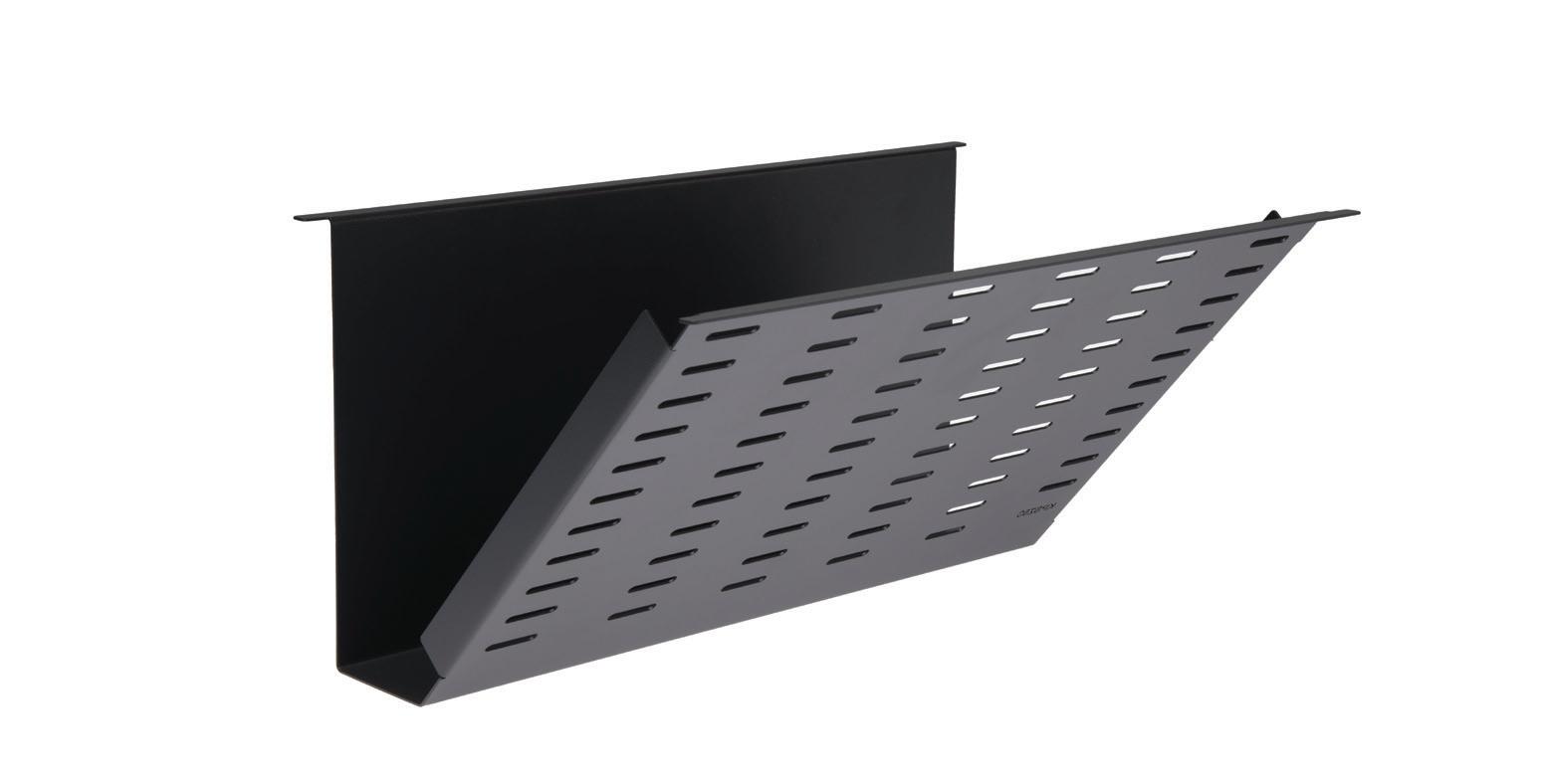

KIT DUE PORTASCARPE AD AGGANCIO PER ART K300

· Articolo realizzato in acciaio verniciato a polvere tinta antracite

SET OF TWO HANGING SHOE HOLDERS FOR ART K300

· Item made of powder-coated metal in anthracite finish

23
Y Z X Info X 300 Y Z 505 580 450 Larghezza esterno mobile/Cabinet external width X: Larghezza interno mobile/Cabinet interior width Y: Profondità minima interno mobile/Minimum internal cabinet depth Z: Altezza/Height
24
KAOS
LINEA KAOS/ ACCESSORI
RANGE/ ACCESSORIES

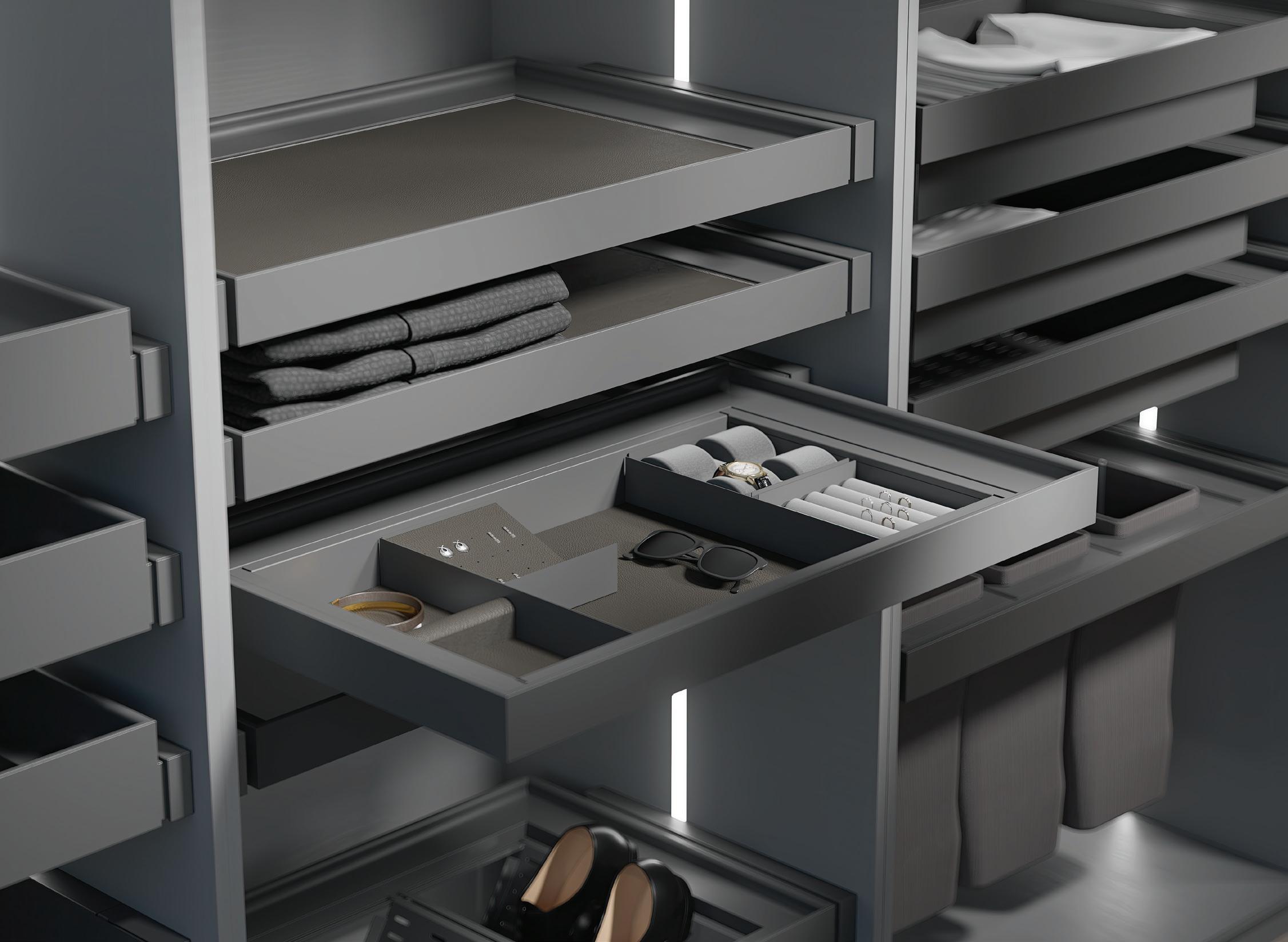

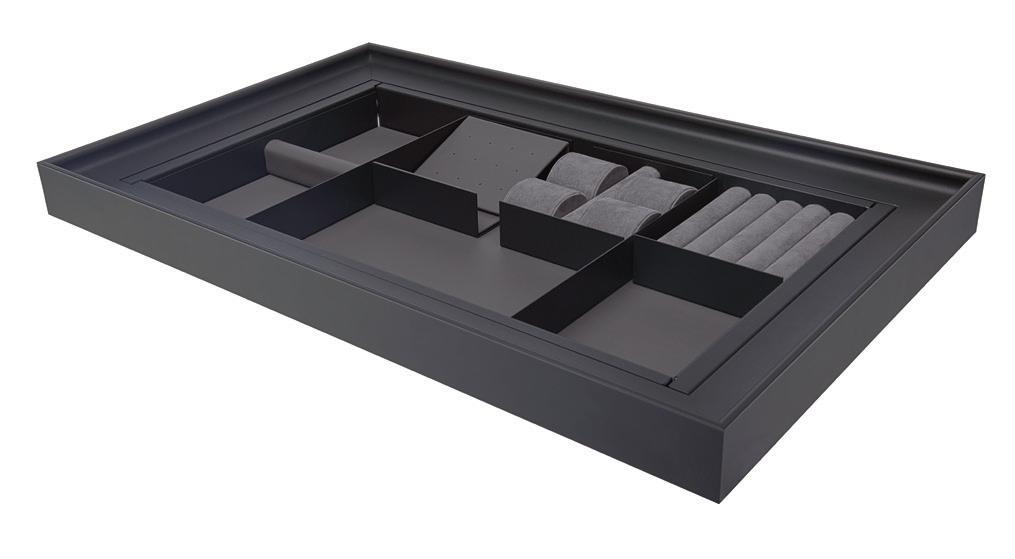

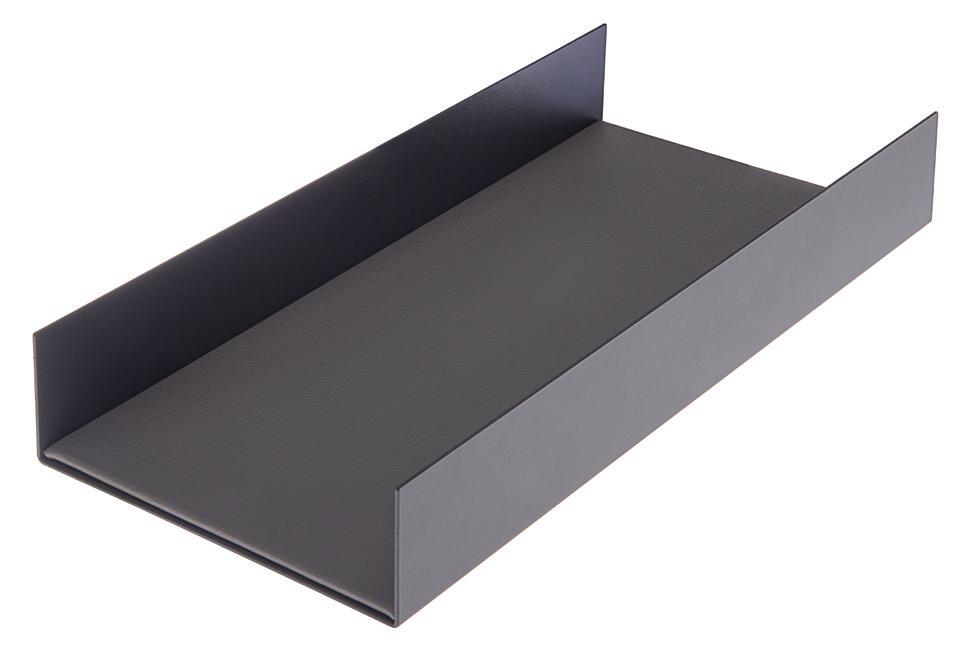

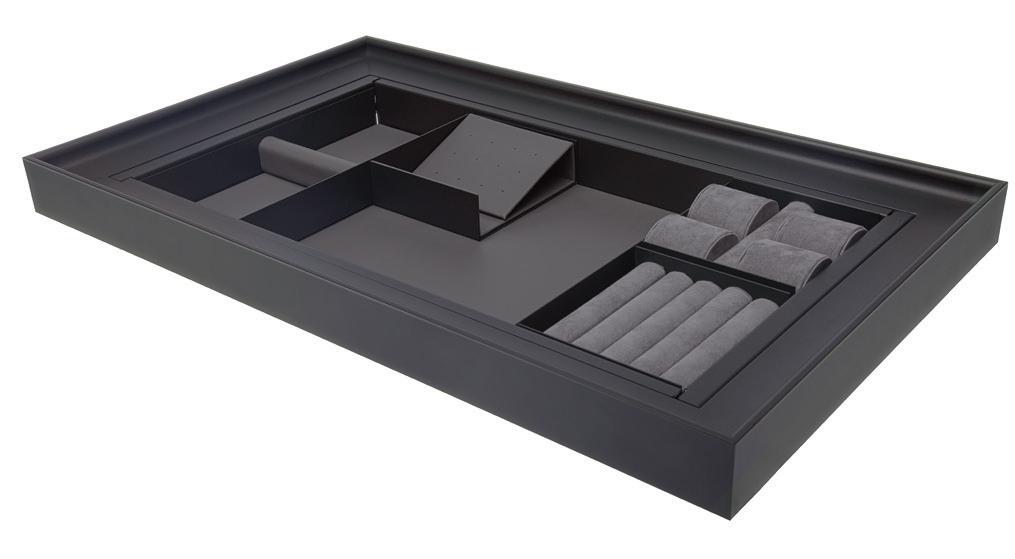

ART K501

· Divisorio ad 1 spazio per Art K220 H60

· 1 space organizer for Art K220 H60

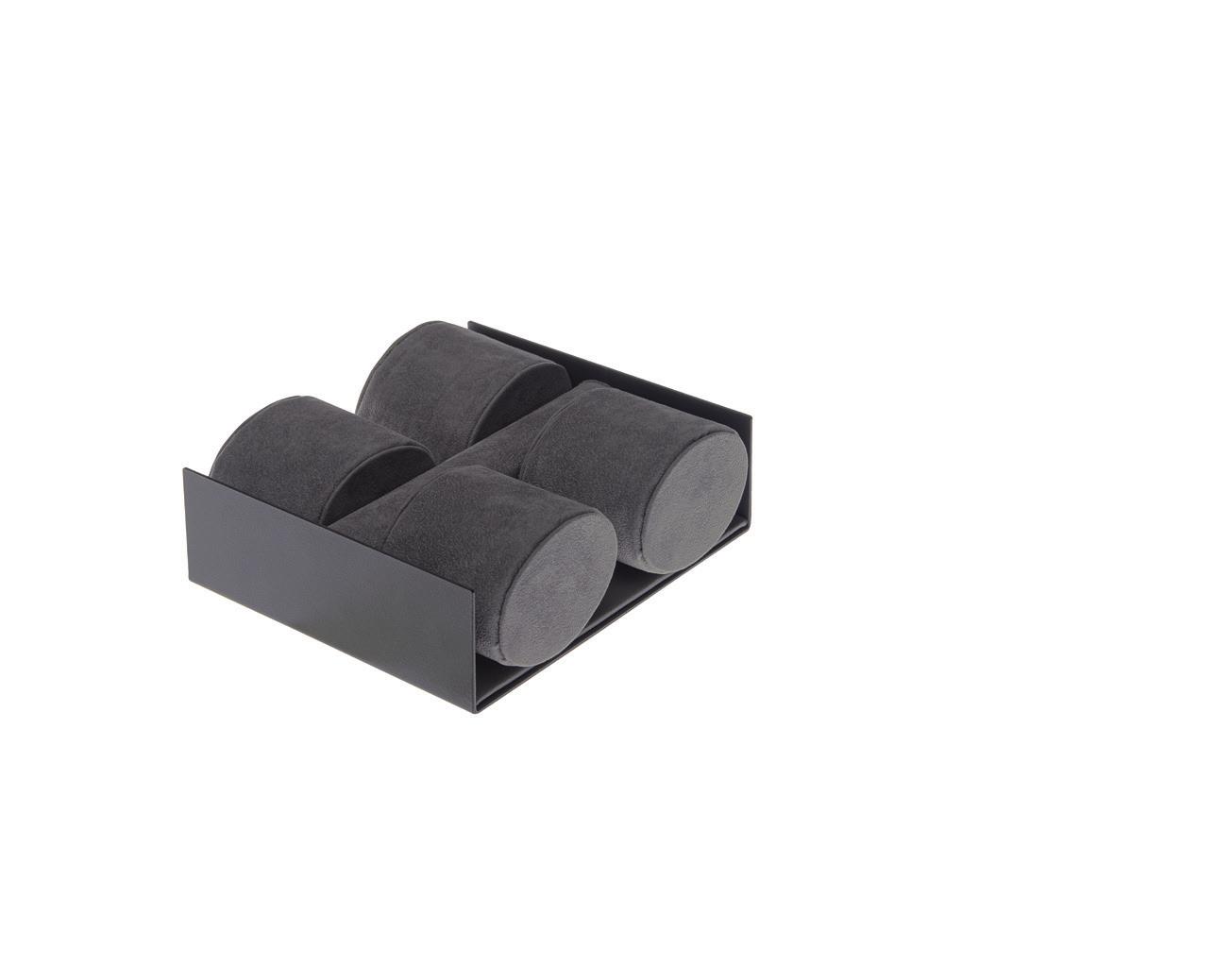

ART K510

· Porta orologi per Art K220 H60

· Watches holder for Art K220 H60

ART K502

· Divisorio a 2 spazi per Art K220 H60

· 2 spaces organizer for Art K220 H60

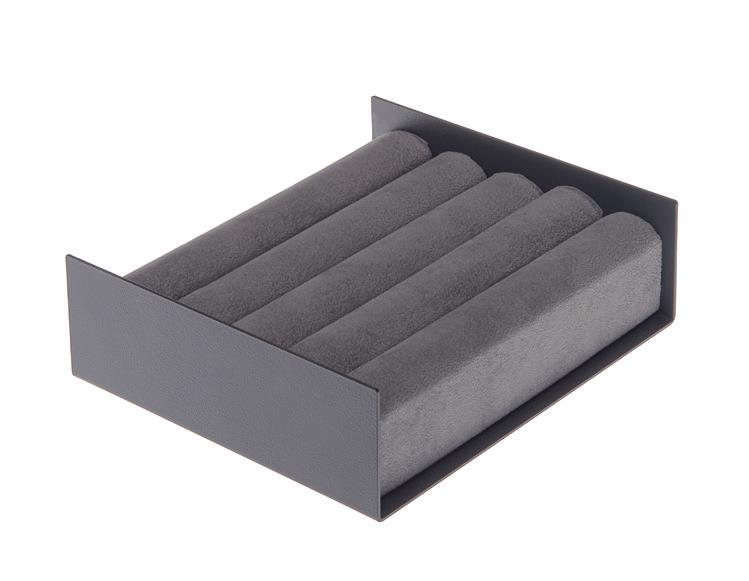

ART K511

· Porta anelli per Art K220 H60

· Rings holder for Art K220 H60

25

LINEA KAOS/ APPENDIABITI KAOS RANGE/ WARDROBE RAIL

26

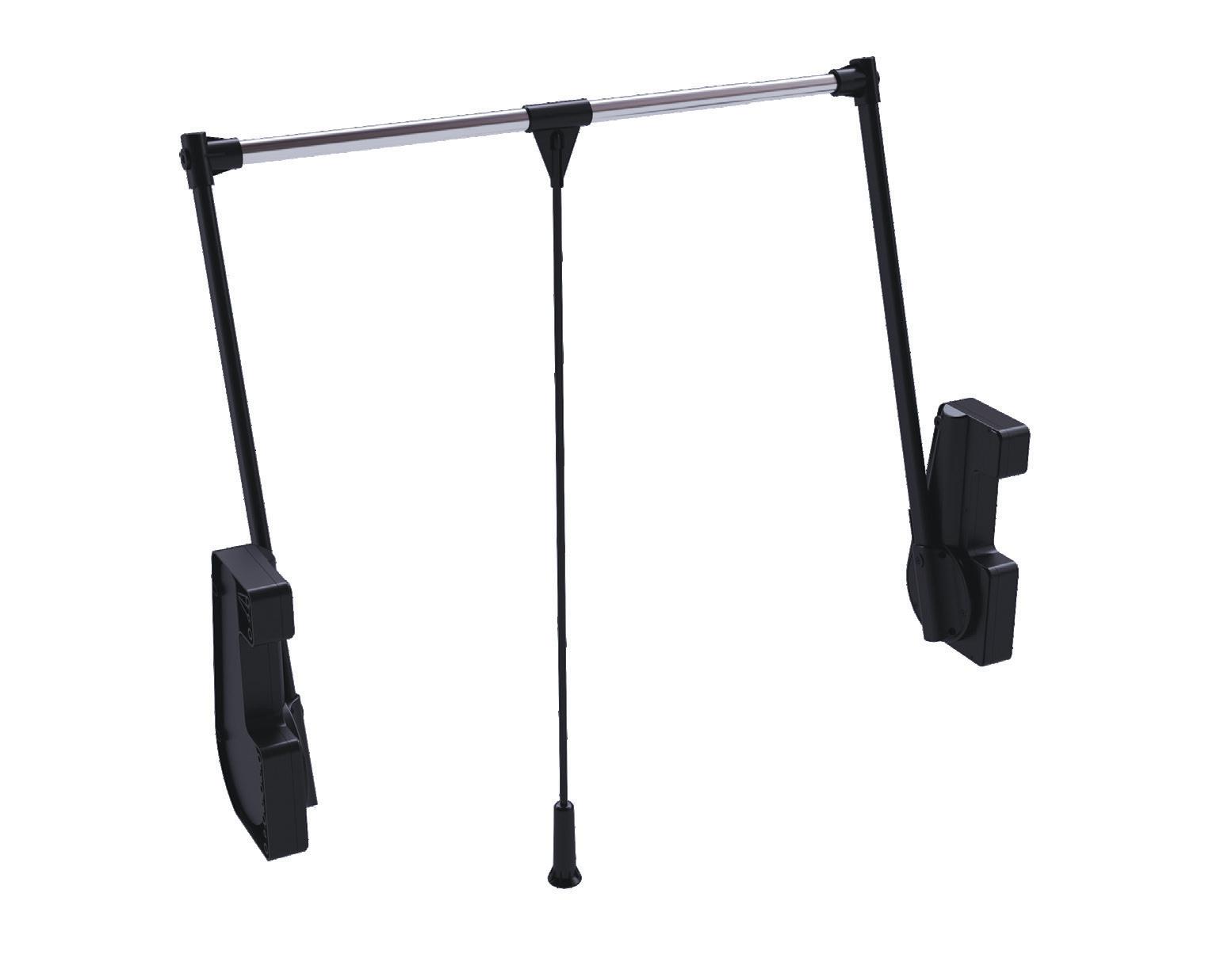

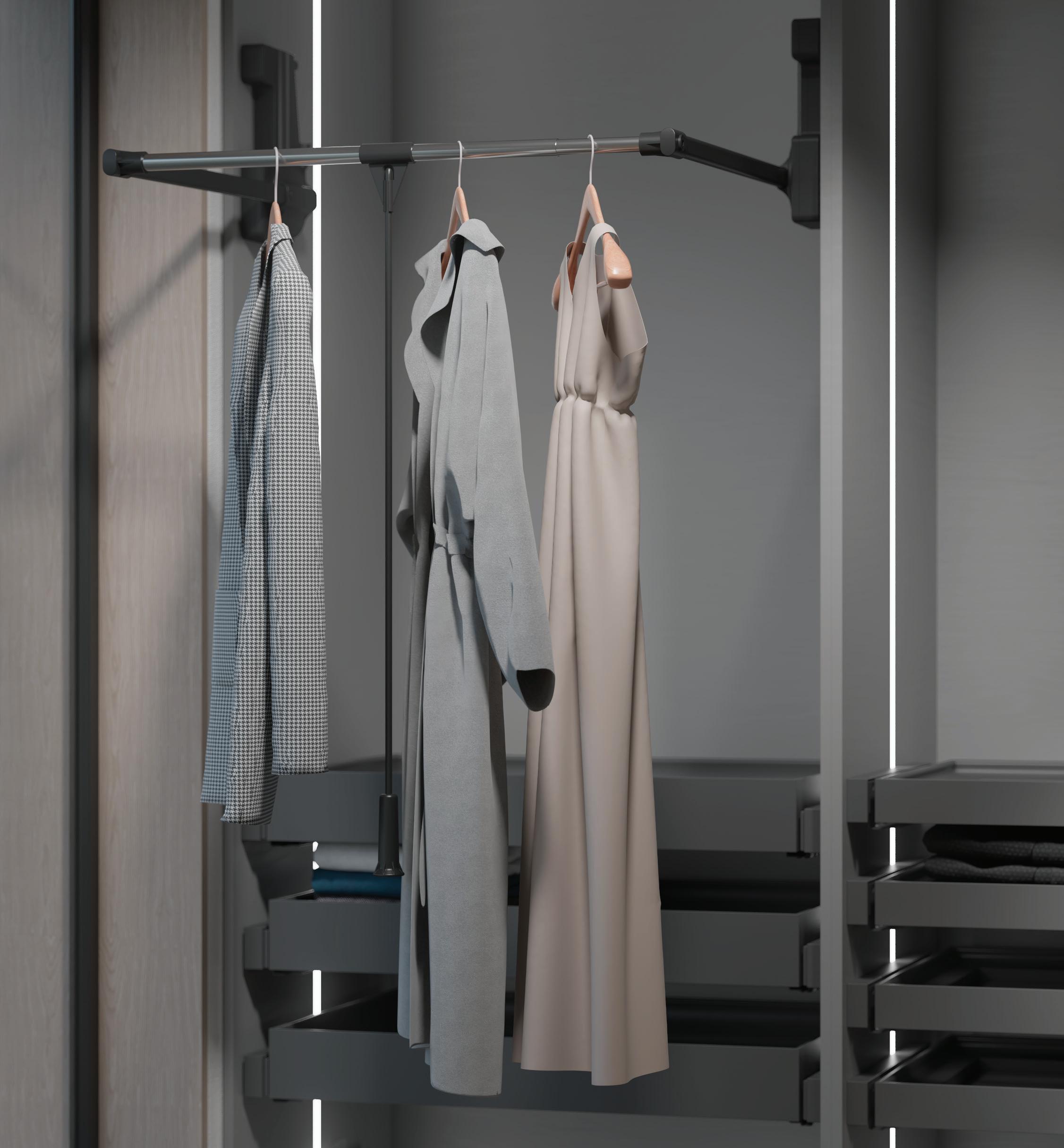

ART K600

APPENDIABITI SALISCENDI

· Struttura realizzata in acciaio lucido e acciaio verniciato nero

· Posizione inclinata del braccio per un’estrazione maggiore

· Portata 15 Kg

· Design studiato per evitare l’ingombro delle cerniere

PULL DOWN WARDROBE RAIL

· Structure made of polished steel and black painted steel

· Inclined arm position for greater extraction

· 15 Kg load capacity

· Designed to avoid hinge obstruction

27
Info 750-1150 X 280 910 Y Z 800-1200 X Y Z Larghezza esterno mobile/Cabinet external width
Larghezza interno mobile/Cabinet interior width
Profondità/Depth
Altezza/Height
X:
Y:
Z:

Progetto Grafico: VDesign.it ®

Green attitude

Questo catalogo è stato stampato con tecnologia ® presso Tipografia Luce s.r.l., nel rispetto della natura. This catalog was printed with ® technology by Tipografia Luce s.r.l. in respect of nature.

• I colori, le tonalità e le finiture dei prodotti contenuti in questo catalogo, possono presentare sensibili variazioni dall’originale a causa dei limiti grafici e di stampa.

• I dati contenuti nel presente catalogo sono inseriti a titolo meramente informativo e pertanto sono soggetti a modifica. Tutti i diritti sono riservati ed il contenuto del presente catalogo è di proprietà di SIGE S.p.A. Ogni riproduzione, trasferimento e/o distribuzione di tutto il, o parte del, contenuto del presente catalogo in qualsiasi forma sono vietati.

REV. 01/2022

• The colours, shades and finishes of the products contained in this catalogue may vary considerably from the original due to graphic and printing specifications.

• The information contained in this catalogue is included for information purposes only and is therefore subject to change. All rights are reserved and the contents of this catalogue are property of SIGE S.p.A. Any reproduction, transfer and/or distribution of all or part of the contents of this catalogue in any form whatsoever is prohibited.
