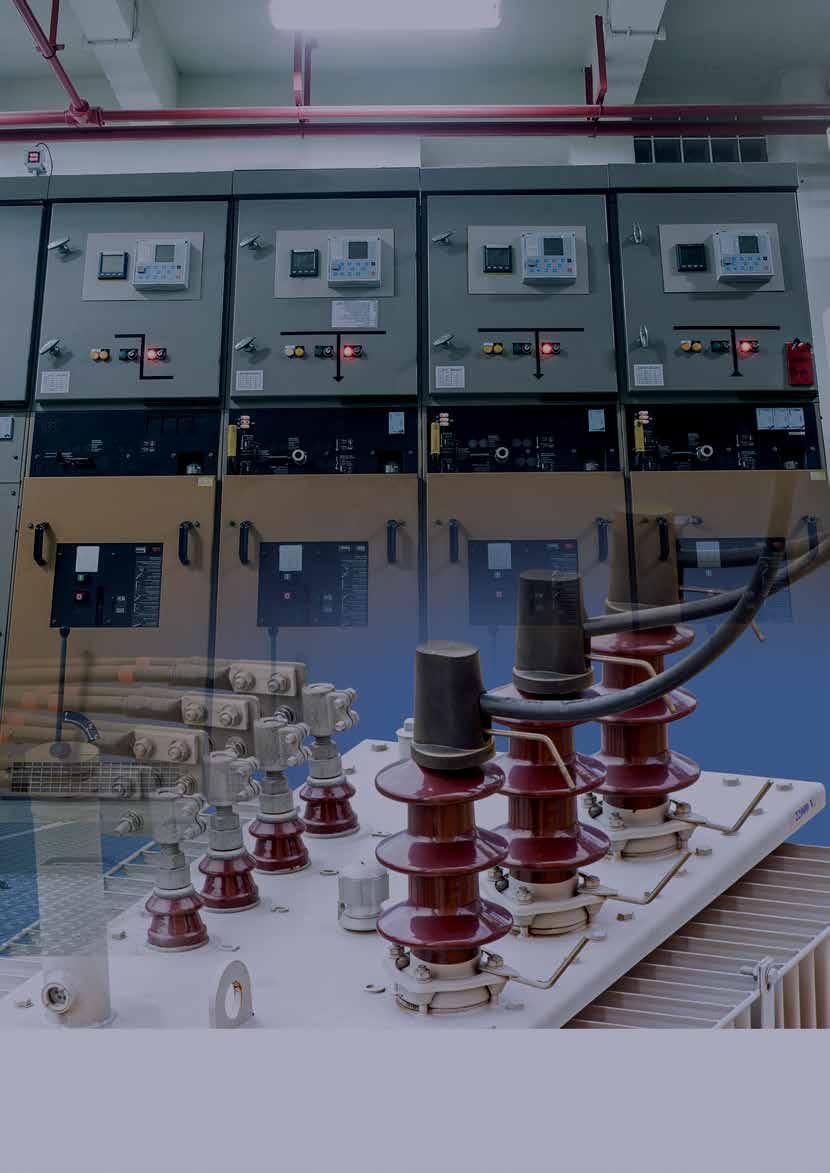

MV Distribution substation
Electrical safety and operating solutions
Ensure your substation equipment is compliant

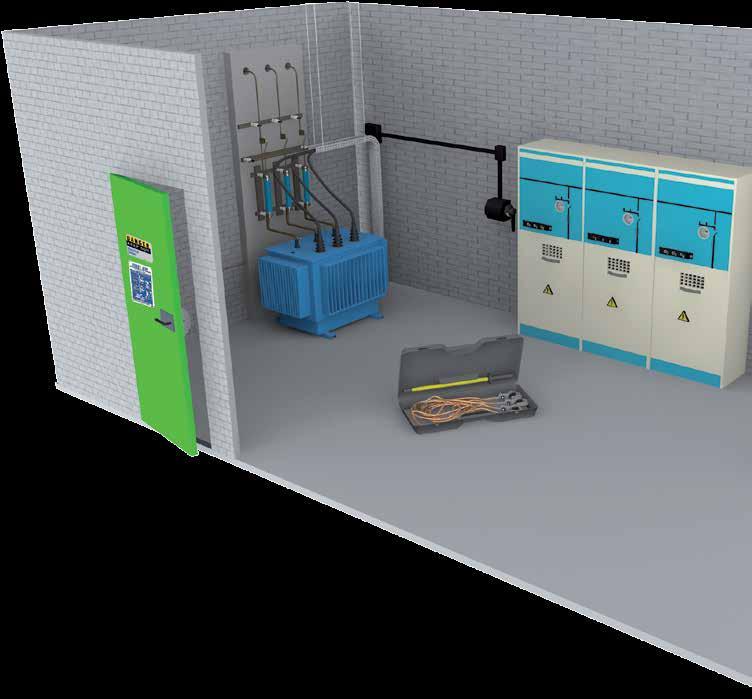

Operating and safety equipment for distribution substations
4 Categories of risk‑prevention equipment (Recommended)
• Operating and safety equipment (A);
• Fire extinguishing equipment (B);
• Signage (C);
• Emergency lighting (D);
D - SAFETY LAMP
SIGNAGE
CATU recommended solutions
A - Operating and safety equipment
The conditions for implementation, the selection and use of personal protective equipment as well as their maintenance are defined by the employer, based on risk assessment. To enable maintenance and rescue operations, the following must be present and maintained:
• Safety stick
• Insulating mat for maximum voltage up to 36 kV or insulating platform for maximum voltage up to 63 kV.
• Insulating gloves for maximum voltage up to 36 kV.
• Voltage detector to verify the absence of voltage
The equipment must be chosen according to the maximum voltage of the installation. This equipment must be inspected in accordance with the manufacturer’s instructions or, failing that, annually.
B - Fire extinguishing equipment
Fire extinguishers for electrical fires of type B, with a capacity appropriate to the premises, must bear the label: “Do not use on voltages higher than … volts.”
C - Display and signage
In every electrical room, it is recommended to have at least the following interior and exterior signage:

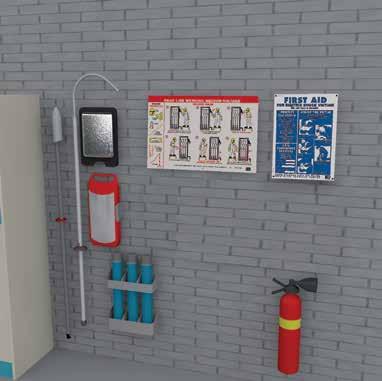

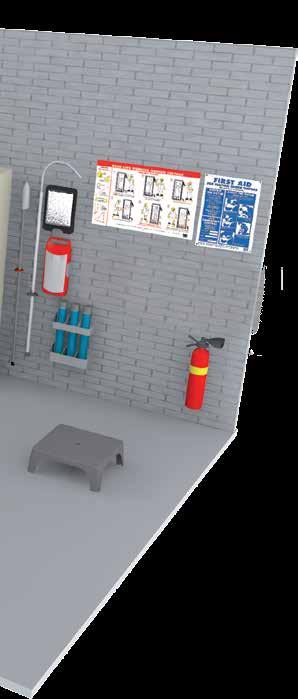

Interior signage:
• A single line diagram
• An interlocking diagram
• A poster with “first aid instructions for victims of electrical accidents”
• A poster indicating who to notify in case of an incident or accident
• A triangular warning sign must be displayed:
‑ For open substations, on the external faces of walls and partitions separating them from general use areas.
On any removable panel (requiring a tool) that provides access to live parts.
When the installation includes one or more internal power sources or looped/parallel circuits, warning signs must be placed.

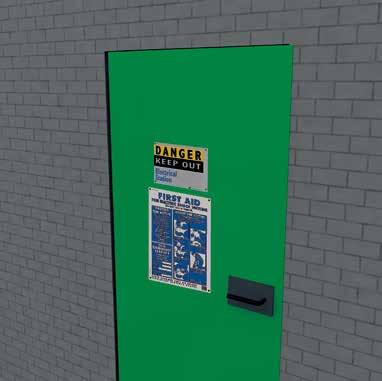

Exterior signage:
• On each access door, at a minimum, the following must be posted: A warning sign including the identification of the room or substation. Other signs that may be used to display important information and are strongly recommended for operation and maintenance purposes (e.g., No posting, lockout/tagout instructions, etc.).
D - Emergency lightning
In addition to the mandatory fixed emergency lighting made up of self contained units, the room must include at least one portable self contained intervention light.
Substation
Outdoor signage
AM-61-GB
Aluminium warning sign “Danger – Electrical station”
Substation equipment
CI-23 Wall-mounted fuse holder (sold without fuse)
IEC 60903
CT-7-25/1
Intervention equipment kits
CG-3-10-NR Class 3 Insulating gloves IEC 60903
CG-35-2 Glove box with window
Fuse holder (sold without fuse)
CS-45 Rescue stick
MP-42/16 IEC 61111
Included with the CS-45
CI-06-D wall mounted supports Supplied with the CS 45 CT-7-25/1
Insulating mat IEC 61111
Mat storage container
Check the condition of your Insulating Gloves! In substations, we recommend that you check your insulating gloves every 6 months. Any appearance defect may result in non-conformity and require replacement.
CG-3-10-NR
CG-35-2
CI-06-D
CS-45
MP-20

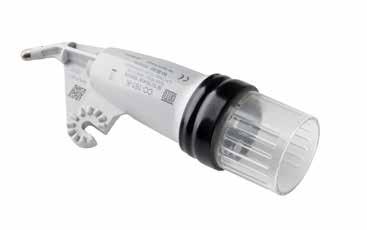

Medium voltage detectors
Voltage detectors suitable for use during work or interventions on medium voltage (MV) distribution substations with bare conductors or plug in terminals.
Specify end fitting: C or K ** To be ordered separately

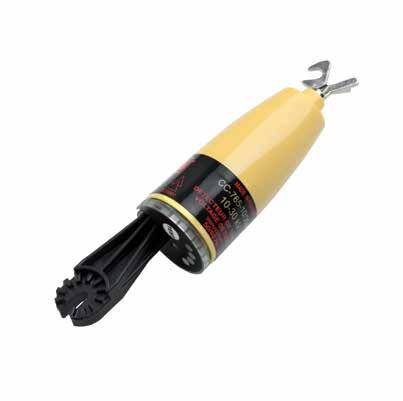

CC-765-10/30*
CE-4-21-*
CC-161-K
CC-45-K

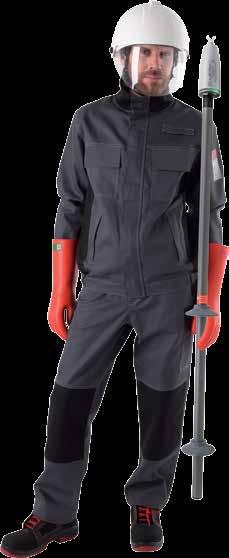

Personal Protective Equipment for substations
IEC 397
IEC 50365
IEC 166
integrated face shield

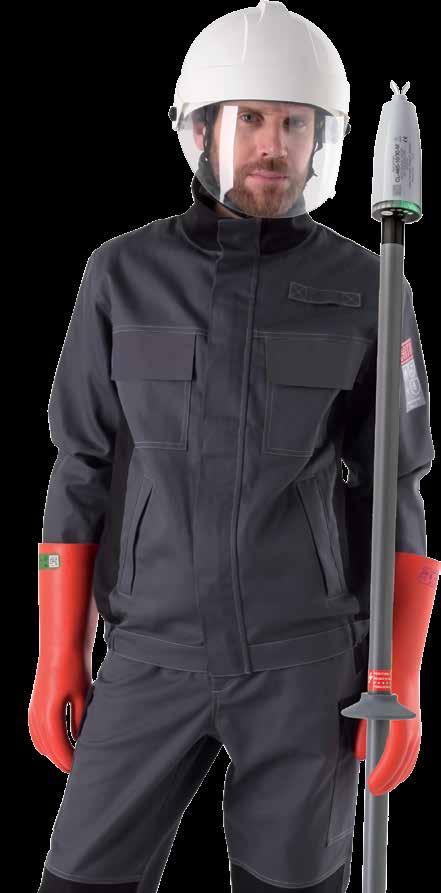

Helmet with integrated face shield (anti scratch and anti fog) for arc flash protection.
IEC 61482 1 2 APC 1 Chin strap (clip closure).
Adjustable headband with thumbwheel.
AFG-2000* et AFG-2001*
Multi-risk protective garments
Jacket and trousers
IEC 61482 2 APC 1 ATPV 12 cal/cm2
Protection against the thermal hazards of electric arc, heat and flame, welding and antistatic.
Reference
AFG-2000-*
AFG-2001-*
Insulating gloves
Latex insulating gloves, specially treated to obtain high dielectric properties. Supplied in UV resistant plastic bag.
Safety shoes
Safety shoes, low, with class 0 (1000 V AC) insulating sole.
EN ISO 20345:2022
Pr EN50321 2 :2023 (03/2024)
§ 5, 5.2.1 => 5.2.3
The use of these safety shoes is supplementary to the mandatory use of a mat or platform.
Lockout-Tagout (LOTO)
AL-240-S-Z
The purpose of a lockout is to prevent an isolating device (e.g. a circuit breaker) from being operated. It involves immobilizing the device by mechanically blocking it and signalling.
ALM-6/25 or ALM-6/38
Device for simultaneous locking of the same equip ment by several people (up to 6).
JACKET: High collar / 1 breast loop / 2 breast pockets closure by flap and scratch / 2 lower pockets opening under flap / Tightenable cuffs by scratch / Central closure under scratch flap with zipper anti panic red / Elasticated waistband on the sides / Standard pictograms present on the left sleeve.
PANT: Elasticated waistband with belt loops / Central fastening with button and red zip / 2 Italian pockets flap opening / 2 mesh pockets flap and Velcro fastening / Reinforcements at knees and crotch
To be completed with size.
Earthing and short-circuiting equipment
For direct installation on bare conductors.
MT-8407/3-P
MT-8407/3-P 14 kA / 1 s
Kit with adjustable clamps Ø 5 to 34 mm
Compliant with standard IEC 61230
MT-830-P *
Reference
MT-8407/3-P
MT-5805-P
MT-5805-P

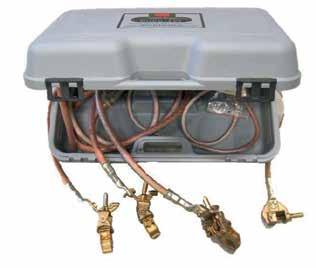

MT-5805-P 20 kA / 1 s
Kit with round/flat clamps. Round Ø 5 to 35 mm. Flat 5 to 16 mm, width 40 mm. Compliant with standard IEC 62193
3 x earthing clamps / 1 x MT 840 earthing clamp / 1 connection set consisting of 3 extra flexible short circuit cables with a 50 mm2 cross section, PVC sheathed, each 1.2 m in length, and 1 extra flexible copper earth cable with a 25 mm2 cross section, PVC sheathed, and 2.5 m in length / 1 x MT 830 P pole with female hexagonal tip
x 300 x 720 11
3 x MT 815 C earthing clamps / 1 x MT 840 earthing clamp / 1 connection set consisting of: 3 extra flexible copper short circuit cables with a 70 mm2 cross section, PVC sheathed, each 1.5 m in length / 1 extra flexible copper earthing cable with a 35 mm2 cross section, PVC sheathed, and 2.5 m in length / Transport case and instruction manual included. MT 830 P stick to be ordered separately 650 x 480 x 210 13
* Folded length:0.64 m / fully extended: 1.5 m.
Additional equipment
Stick pass through window
CI-70
Molded plastic material. Installed from the outside by tightening three screws onto a steel mounting flange. Ø 60 mm opening.
Wall mounted storage cabinet
CZ-58
To store and protect PPE and equipment from dust in the substation. 2 fixed shelves, transparent door for easy identification. Double locking with two keys ensures the safety of the contents. Delivered with 1 set of stickers (LoTo / PPE / Voltage detector / Emobility).
Dimensions: 785 x 595 x 310 mm. Weight: 17 kg
Safety lamp
CD-128
2 operating modes: BAPI (factory configuration) or BAES (automatic start when the supply is disconnected).
Autonomy from 1 hour to 3 hours depending on the switch position:
• 45 lm / 3 hours: 1st press,
• 100 lm / 1 hour: 2nd press.
Operating temperature: 0°C to +40°C. Protection ratings: IP42 and IK10 | Class II.
Fire kit
Fire fighting equipment. For use in fire stations. Supplied with accessories.
absorbent bags are needed to fill a sand container.
CI-70
Red metal bucket with mounting hook
Red metal sand container with lid and handle, 100L capacity
Absorbent bag*
Red metal shovel with wooden handle and mounting hook
CD-128
CZ-58
