Post Graduate Degree in BIM and Integrated Practice
Fanshawe College, London, Ontario.
Grade - 3.9/4.0 (Dean’s Honours)
Post Graduate Degree in Construction Project Management
Fanshawe College, London, Ontario.
Grade - 3.9/4.0 (Dean’s Honours)
Bachelor in Architecture
Gujarat Technological University, Ahmedabad, India.
Grade - 3.2/4.0
EXPERIENCE
Junior Architect - Full time
Singhai TechnoArch Consultancy | Ahmedabad, India
I am an accomplished Architectural Designer with over three years of expertise in architectural design and project management. Proficient in AutoCAD, Revit, and BIM, I excel in producing precise architectural drawings and comprehensive construction documentation. With postgraduate degrees in Construction Project Management and BIM, I exhibit strong technical and managerial acumen. Renowned for my exceptional communication, time management, and problem-solving skills, I consistently deliver superior results. My proactive approach and keen attention to detail ensure the successful execution of projects from concept to completion.
Sep 2023 - Apr 2024
Jan 2023 - Aug 2023
Jul 2016 - Aug 2021
Aug 2021 - Nov 2022
• Utilized Autodesk Revit and AutoCAD for detailed architectural drawings and construction documentation, ensuring compliance with specifications and standards. Maintained precise documentation practices for clear communication and organization.
• Proficient in Microsoft Office and Bluebeam software to enhance project workflows. Collaborated with senior architects and cross-functional teams to address design and client-related issues.
• Demonstrated excellent time management skills, consistently meeting project deadlines and delivering precise results.
Urban Designer - Part time
ICID | Ahmedabad, India
Oct 2019 - Dec 2019
• Led the innovative conceptualization, strategic planning, and creative design of a transformative lake development project. Envisioned a vibrant, sustainable community space, balancing ecological preservation with recreational opportunities.
• Designed aesthetically pleasing and functional elements to enhance the lake’s natural beauty and provide engaging amenities for visitors. Delivered a project that exceeded environmental and community expectations through visionary thinking, technical expertise, and a keen eye for design.
Junior Architect - Internship
HM ARCHITECTS | Ahmedabad, India
Jun 2019 - Nov 2019

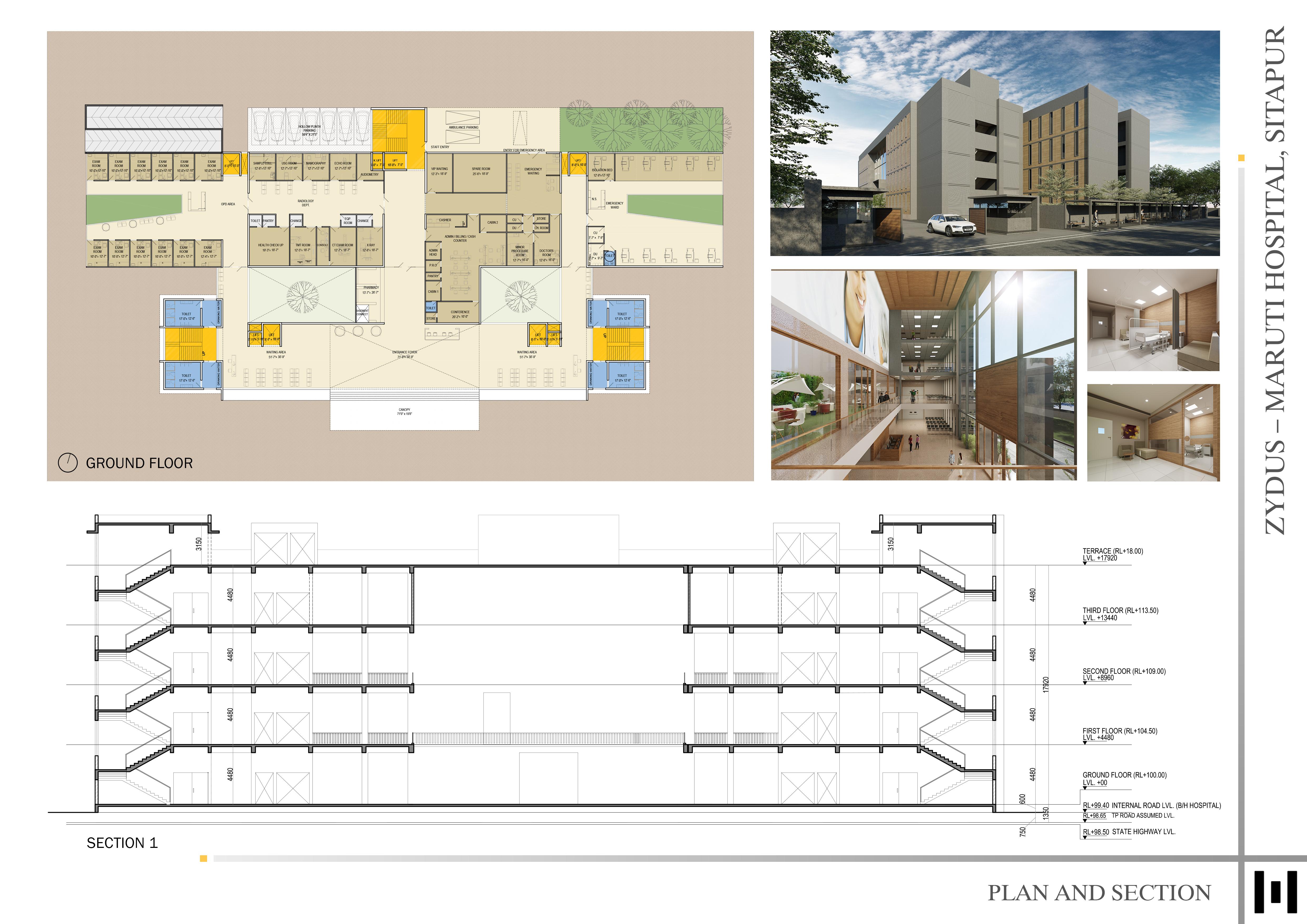

• Successfully developed comprehensive plans, sections, elevations, and working drawings for hospitals, commercial buildings, and housing projects. Demonstrated expertise in architectural design and construction techniques, ensuring functional and aesthetically pleasing spaces.
• Collaborated effectively with multidisciplinary teams to meet client requirements and project goals. Ensure all designs complied with relevant regulations and standards, facilitating smooth project execution.
Architectural Documentation - Part-time
ICID | Ahmedabad, India
Jun 2018 - May 2019
• Conducted precise measurements, captured detailed photographs, and created accurate sketches of historical temples in Gujarat.Meticulously documented architectural features and preserved intricate details of these cultural landmarks.
• Contributed significantly to the conservation and study of Gujarat’s rich heritage.Demonstrated a blend of technical skill, artistic ability, and deep appreciation for historical architecture.
SKILLS CERTIFICATIONS
• Autodesk Revit
(3D modelling, construction drawings)
• AutoCAD & SketchUp
(for 2D drafting or conceptual modelling)
• Bluebeam
• Adobe Photoshop, InDesign
• Enscape, Twinmotion, Lumion
• MS Project (Scheduling)
• Autodesk Revit Certification
• Revit 2021: Essential Training for Architecture
• Revit 2021: Essential Training for Structure
• Revit 2021: Essential Training for MEP
• Construction Management: Safety & Health
• BCIN CERTIFIED (SMALL BUILDINGS 2012)
AHMEDABAD,
AHMEDABAD,

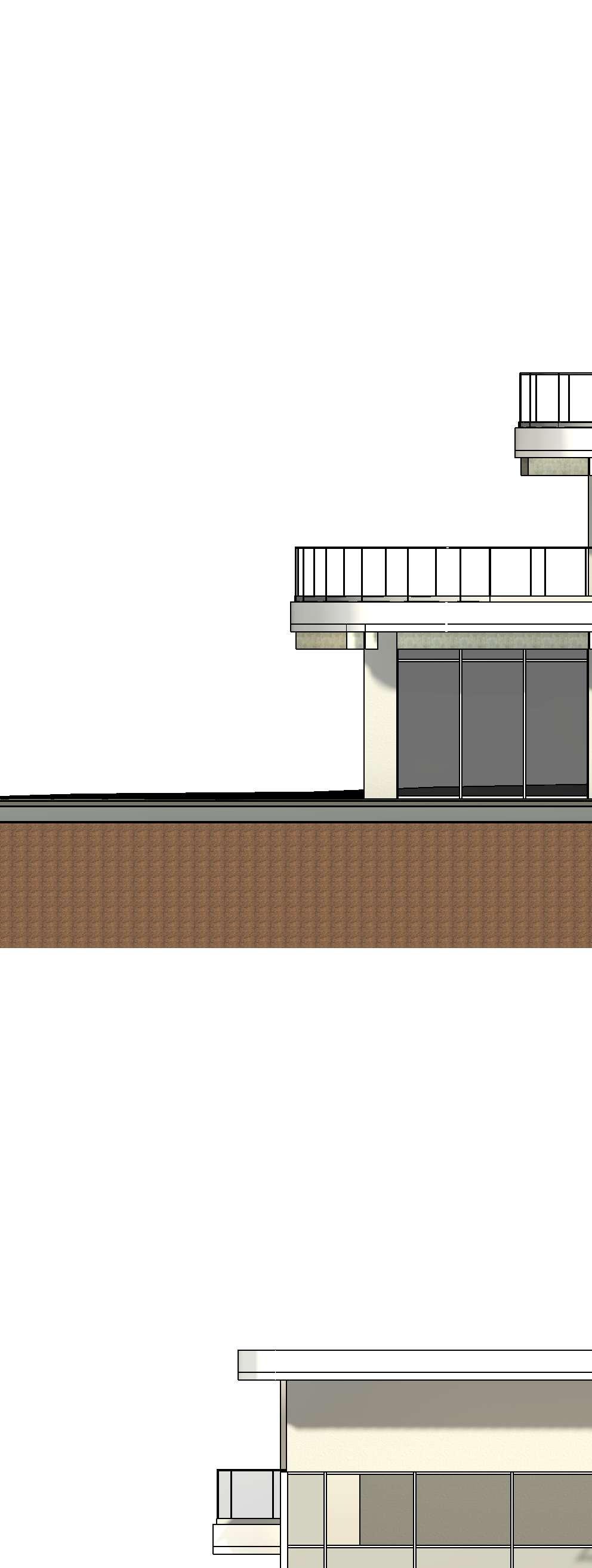

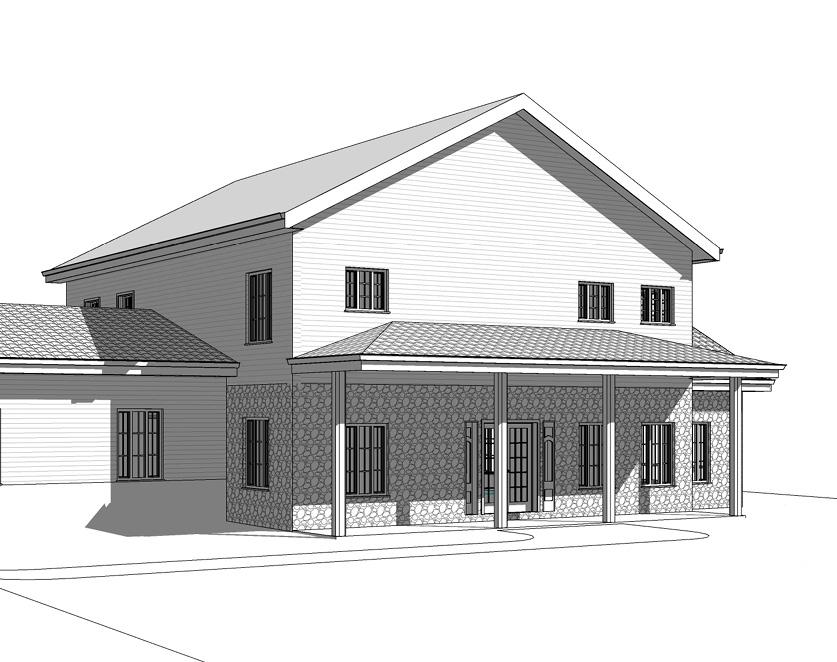

Proposed Two-Story Detached House
LONDON, ONTARIO
DESCRIPTION:
This project involves the design and construction of a contemporary two-story detached house located in London, Ontario. The house is designed to provide functional and aesthetic living spaces, while meeting all applicable codes and regulations.
Key Features:
Total Area: Approximately 4,385 sq. ft.
Layout: Includes 3 bedrooms, 3 bathrooms, an open-concept kitchen and living area, a dedicated home office, and a double-car garage.
Exterior Design: Modern facade with a combination of stone cladding and vinyl siding, complemented by large energy-efficient windows.
Interior Design: Spacious interiors with high ceilings, hardwood flooring, and contemporary finishes.
Design Compliance:
The design aligns with the Ontario Building Code (OBC) - 2012 Edition, City of London zoning by-laws, and incorporates features to ensure durability, safety, and occupant comfort.
MY ROLE:
Design and draft according to OBC and city by-laws using revit.
Proposed Two-Story Detached House
1. DRAWINGS ARE INTENDED FOR INFORMATIONAL PURPOSES ONLY AND ARE INTENDED TO PRESENT A TYPICAL DRAWINGS SET SUCH AS REQUIRED BY THE CITY COMPLETE APPLICATION REQUIREMENT LISTS. THIS SET MAY OR MAY NOT FULFILL ALL ASPECTS AND/OR REQUIREMENTS OF ANY APPLICABLE REQUIREMENT LIST AND SHOULD ONLY BE USED TO DEMONSTRATE A PROFESSIONAL LEVEL OF DRAFTING STANDARDS AS REQUIRED FOR THE SUBMISSION OF AN APPLICATION TO THE CITY OF CALGARY. USE OF THESE DRAWINGS FOR DUPLICATION AND OR SUBMISSION IN WHOLE OR IN PART IS PROHIBITED.
2. UNLESS OTHERWISE NOTED, ALL DETAILS, SECTIONS AND NOTES SHOWN ON THE CONTRACT DRAWINGS ARE INTENDED TO BE TYPICAL AND SHALL APPLY TO SIMILAR CONDITIONS ELSEWHERE.
3. ALL OMISSIONS OR CONFLICTS BETWEEN THE VARIOUS ELEMENTS OF THE CONTRACT DRAWINGS AND OR SPECIFICATIONS SHALL BE BROUGHT TO THE ATTENTION OF THE ENGINEER AND OR DESIGNER BEFORE PROCEEDING WITH ANY WORK INVOLVED.
4. THE CONTRACTOR SHALL VERIFY ALL JOB SITE CONDITIONS AND RELATED DIMENSIONS.
5. ALL CONSTRUCTION SHALL BE IN ACCORDANCE TO THE LATEST EDITION OF THE ALBERTA BUILDING CODE.
6. THE CONTRACTOR SHALL BE RESPONSIBLE FOR THE PROTECTION OF AND THE SAFETY IN AND AROUND THE JOB SITE AND OF ADJACENT PROPERTIES.
7. CONTRACTOR AND OR OWNER SHALL KEEP LOADS ON THE STRUCTURE WITHIN THE LIMITS OF THE DESIGN BOTH DURING AND AFTER CONSTRUCTION.
8. COMPLIANCE WITH APPLICABLE CODES, ORDINANCES AND BYLAWS GOVERNMING THE WORK SHALL BE MADE AND ENFORCED BY THE GENERAL CONTRACTOR.
9. GENERAL CONTRACTOR SHALL VERIFY ALL EXISTING CONDITIONS AND DIMENSIONS PRIOR TO CONSTRUCTION.
10. NOTE THAT ALL WRITTEN DIMENSIONS TAKE PRECEDENCE OVER SCALE.
11. MANUFACTURER'S SPECIFICATIONS FOR INSTALLATION OF MATERIALS SHALL BE FOLLOWED.
12. WORKMANSHIP THROUGHOUT SHALL BE OF THE BEST QUALITY OF THE TRADE INVOLVED AND THE GENERAL CONTRACTOR SHALL COORDINATE THE WORK OF THE VARIOUS TRADES TO EXPEDITE THE JOB IN A SMOOTH AND CONTINUOUS PROCESS.
EXTERIOR WALL 1 ASSEMBLY
• VINYL SIDING
• TYVEK HOUSE WRAP
• 1/2" OSB EXTERIOR SHEATHING
• 2X6 STUDS @ 16" O.C.
• R-25 BATT INSULATION
• 6 MIL POLY VAPOUR BARRIER
• 1/2" GYPSUM DRYWALL
EXTERIOR WALL 2 ASSEMBLY
• STONE CLADDING
• TYVEK HOUSE WRAP
• 1/2" OSB EXTERIOR SHEATHING
• 2X6 STUDS @ 16" O.C.
• R-25 BATT INSULATION
• 6 MIL POLY VAPOUR BARRIER
• 1/2" GYPSUM DRYWALL
BASEMENT WALL
• DRAINAGE MAT
• DAMPPROOFING
• 9" CONCRETE WALL
• 2" XPS SLOTTED INSULATION
• 1/2" GYPSUM DRYWALL
INTERIOR WALL 1 ASSEMBLY
• 1/2" GYPSUM DRYWALL
• 2X6 STUDS @ 16" O.C.
• R-25 BATT INSULATION
• 6 MIL POLY VAPOUR BARRIER
• 1/2" GYPSUM DRYWALL
INTERIOR WALL 1 ASSEMBLY
• 1/2" GYPSUM DRYWALL
• 2X4 STUDS @ 16" O.C.
• R-25 BATT INSULATION
• 6 MIL POLY VAPOUR BARRIER
• 1/2" GYPSUM DRYWALL
ANNOTATION SYMBOLS
TYPICAL FLOOR ASSEMBLY:
• 3/4" PLYWOOD SUBFLOOR
• 9" ENGINEERED JOISTS @ 16 O.C.
• 1/2" GYPSUM DRYWALL
ROOF ASSEMBLY
• ASPHALT SHINGLES
• WEATHER SHIELD
• 1/2" PLYWOOD C/W H CLIPS AT JOINS
• ENGINEERED TRUSSES @ 24 O.C.
• BATT INSULATION R-21 BETWEEN TRUSSES
• 6 MIL POLY VAPOUR BARRIER
• 1/2" GYPSUM DRYWALL

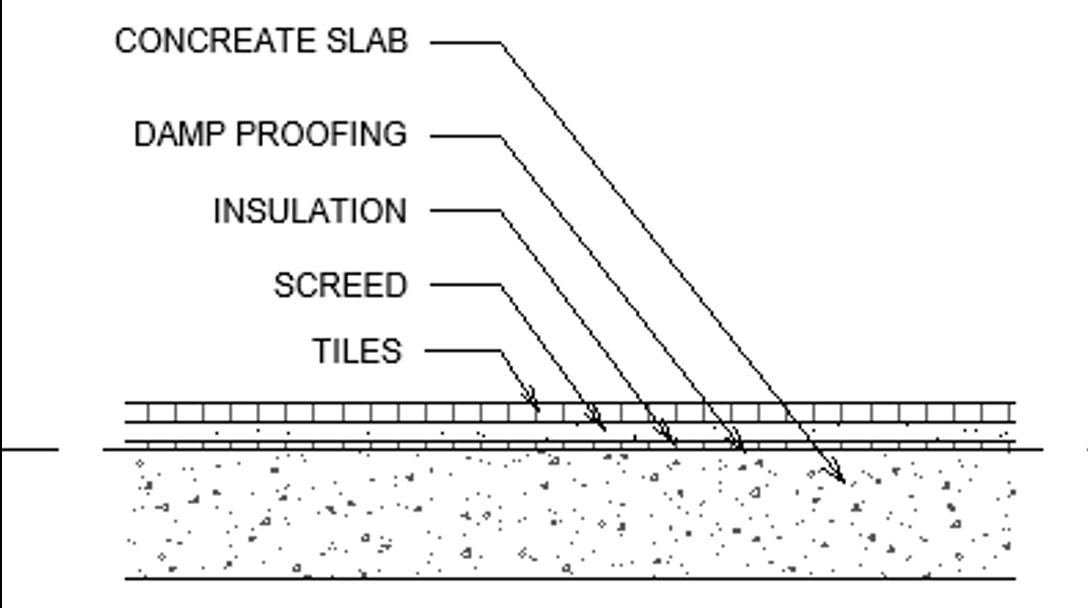

BASEMENT FLOOR ASSEMBLY:
• 4" CONCRETE SLAB
• 6 MIL POLYETHYLENE VAPOR BARRIER
• 2" XPS RIGID INSULATION
• 4" STONE PAD
• FILTER FABRIC
• UNDISTURBED / NATIVE SOIL
RevDescriptionDate
ROOM SCHEDULE
ft² FIRST FLOOR
GARAGE FIRST FLOOR569 ft²WOODEN FLOORINGGYPSUM WALLBOARD GYPSUM CEILING BOARD
BATH 1 FIRST FLOOR73 ft²TILES GYPSUM WALLBOARD,TILESGYPSUM CEILING BOARD
LAUNDRY AREA FIRST FLOOR14 ft²TILES GYPSUM WALLBOARD GYPSUM CEILING BOARD
LIVING ROOM FIRST FLOOR347 ft²WOODEN FLOORINGGYPSUM WALLBOARD GYPSUM CEILING BOARD
KITCHEN FIRST FLOOR312 ft²TILES TILES GYPSUM CEILING BOARD
DINING ROOM FIRST FLOOR231 ft²WOODEN FLOORINGGYPSUM WALLBOARD GYPSUM CEILING BOARD
PORCH AREA FIRST FLOOR171 ft²FINISHED CONCRETEGYPSUM WALLBOARD GYPSUM CEILING BOARD 1942 ft²
SECOND FLOOR
MASTER BATH SECOND FLOOR112 ft²TILES GYPSUM WALLBOARD,TILESGYPSUM CEILING BOARD
WALK IN CLOSET SECOND FLOOR29 ft²WOODEN FLOORINGGYPSUM WALLBOARD GYPSUM CEILING BOARD
MASTER BEDROOM SECOND FLOOR271 ft²WOODEN FLOORINGGYPSUM WALLBOARD GYPSUM CEILING BOARD
BATH 2 SECOND FLOOR85 ft²TILES GYPSUM WALLBOARD,TILESGYPSUM CEILING BOARD
BEDROOM 1 SECOND FLOOR228 ft²WOODEN FLOORINGGYPSUM WALLBOARD GYPSUM CEILING BOARD
BEDROOM 2 SECOND FLOOR226 ft²WOODEN FLOORINGGYPSUM WALLBOARD GYPSUM CEILING BOARD
PASSAGE SECOND FLOOR82 ft²WOODEN FLOORINGGYPSUM WALLBOARD GYPSUM CEILING BOARD
Grand total: 17

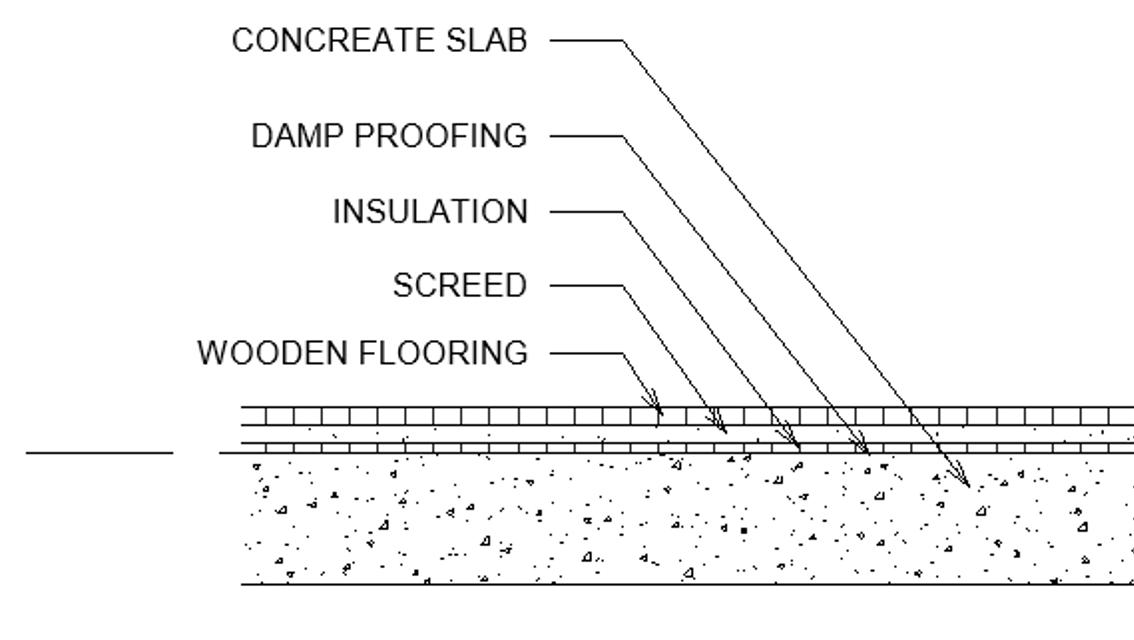

FLOOR & ROOF ASSEMBLY
This project is not intended for actual construction. It has been created solely for educational and learning purposes to demonstrate design and drafting skills in compliance with applicable codes and standards. Any resemblance to real-life projects is purely coincidental.
RevDescriptionDate
02

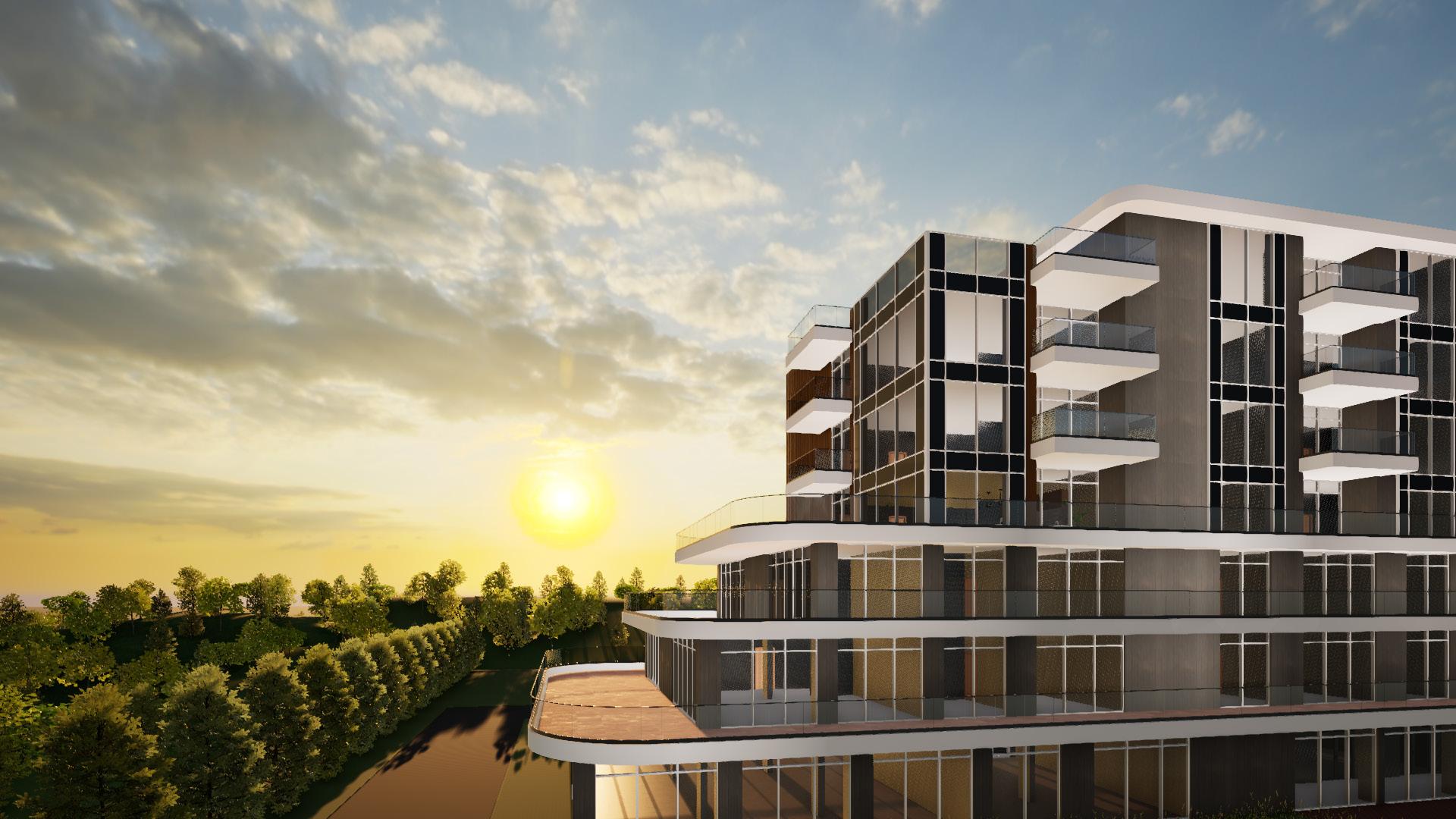

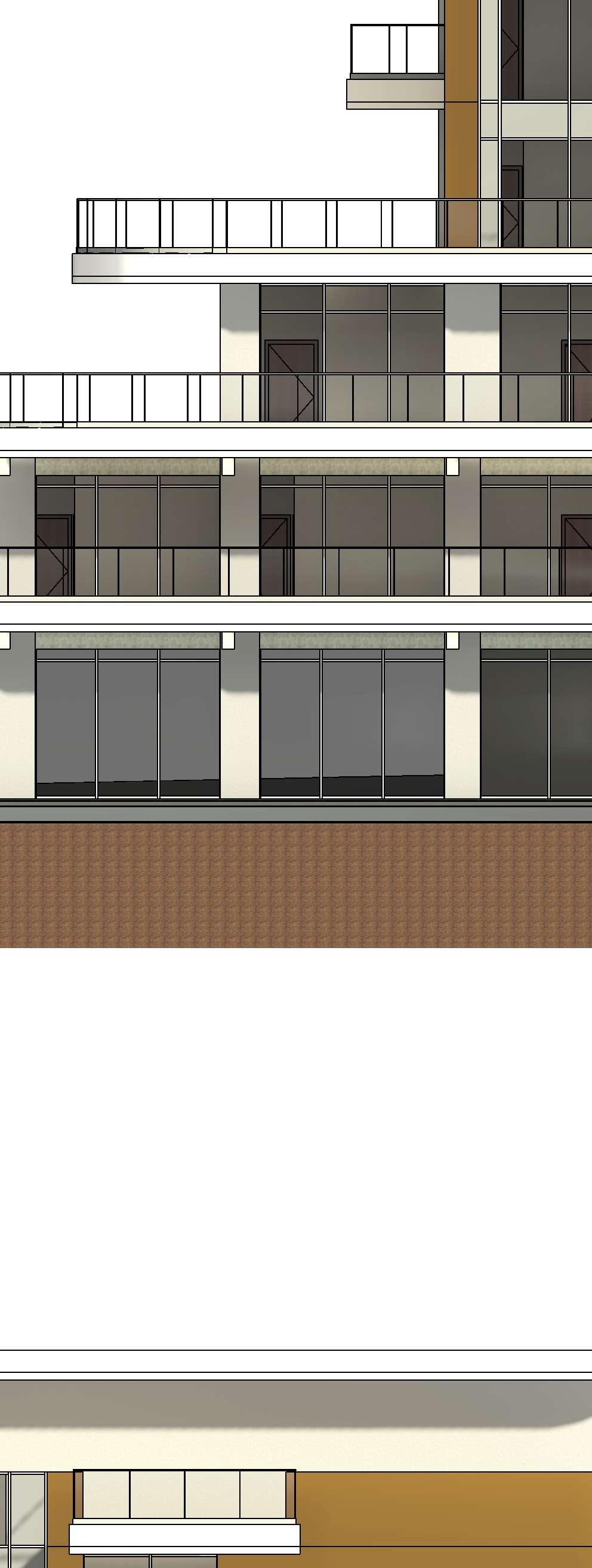

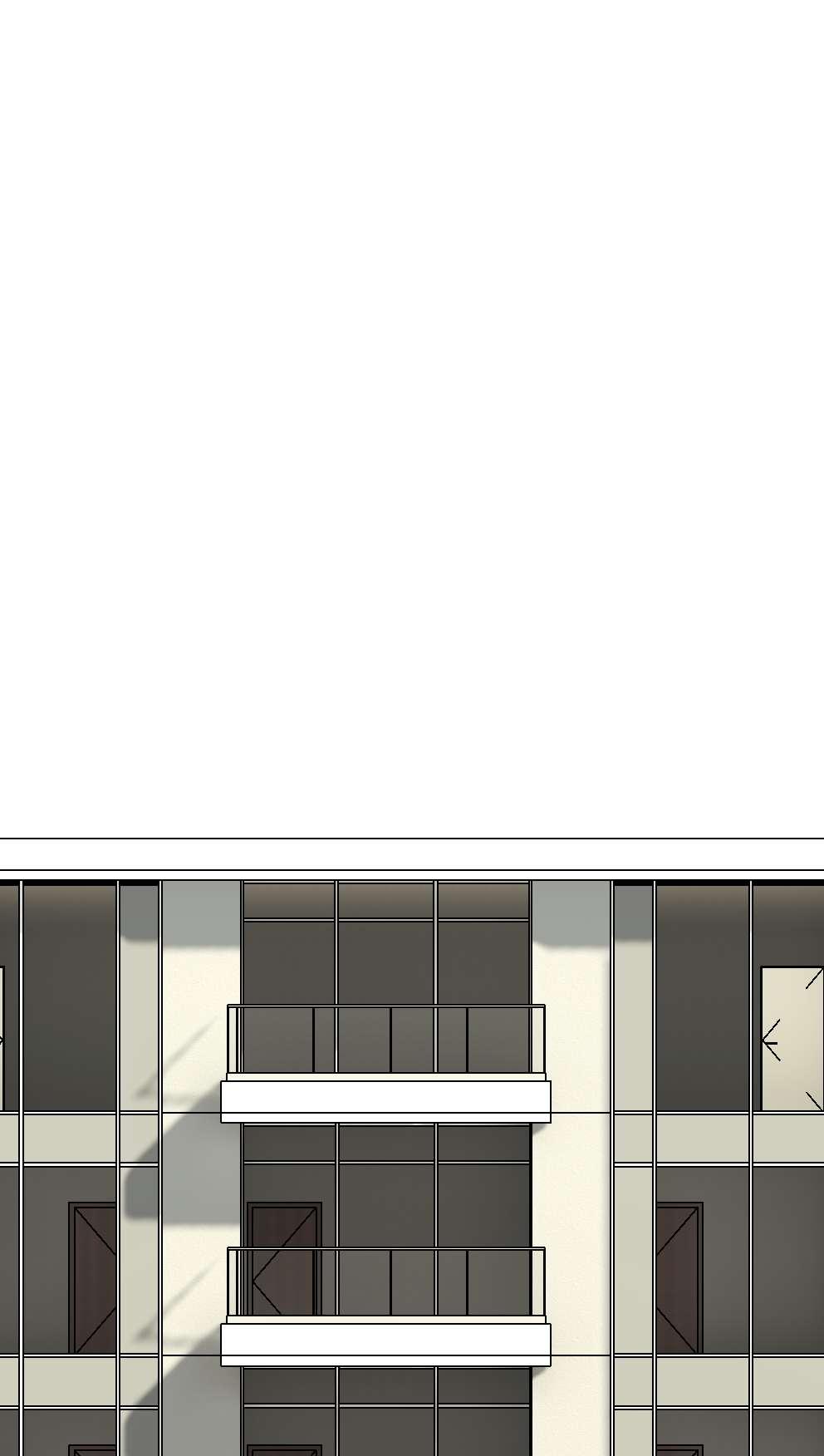

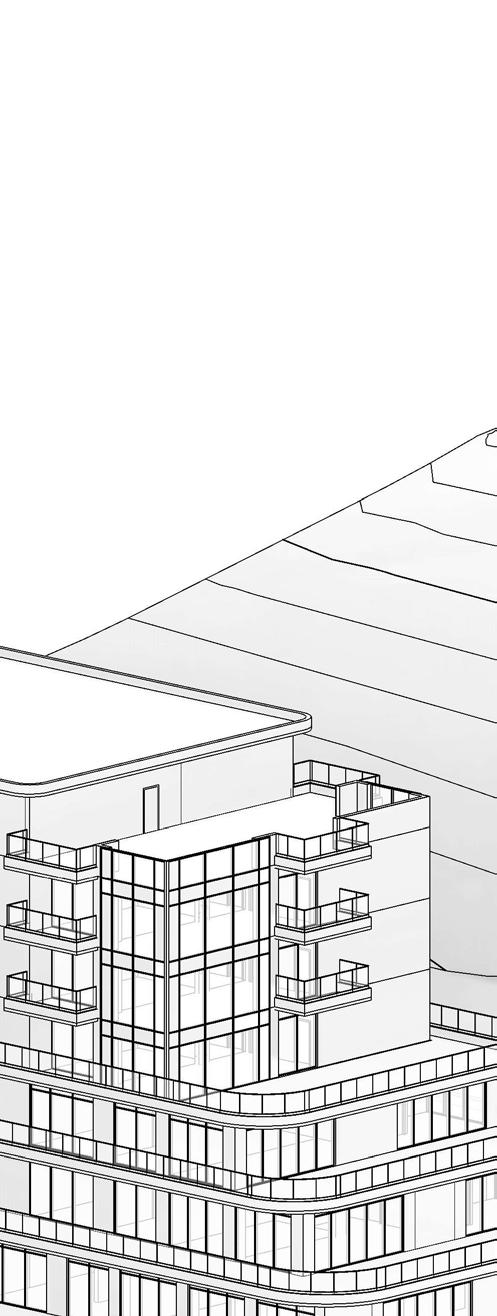

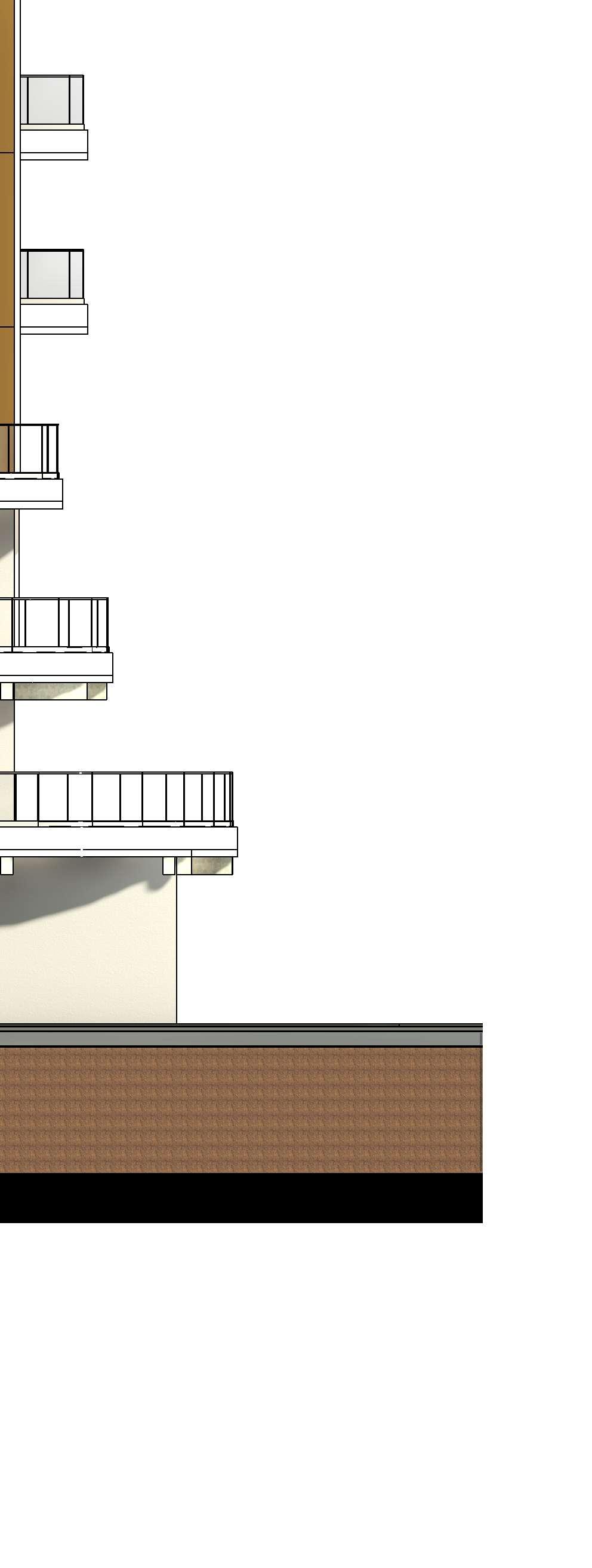

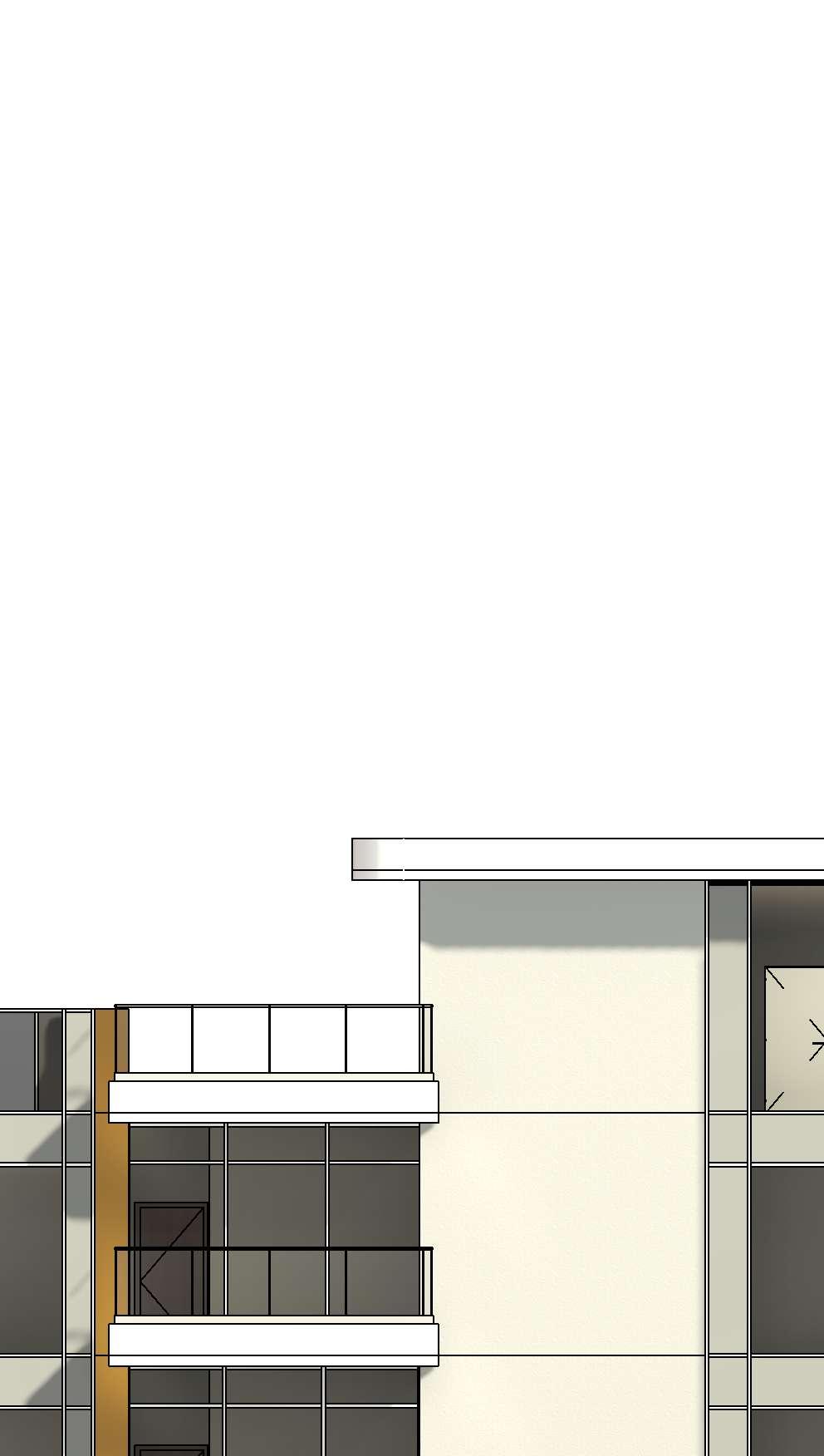

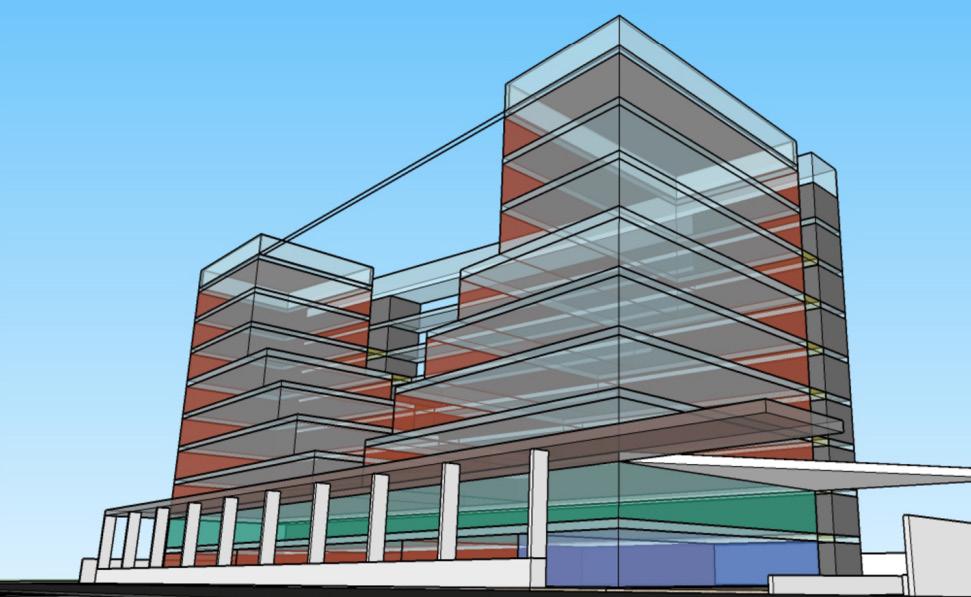

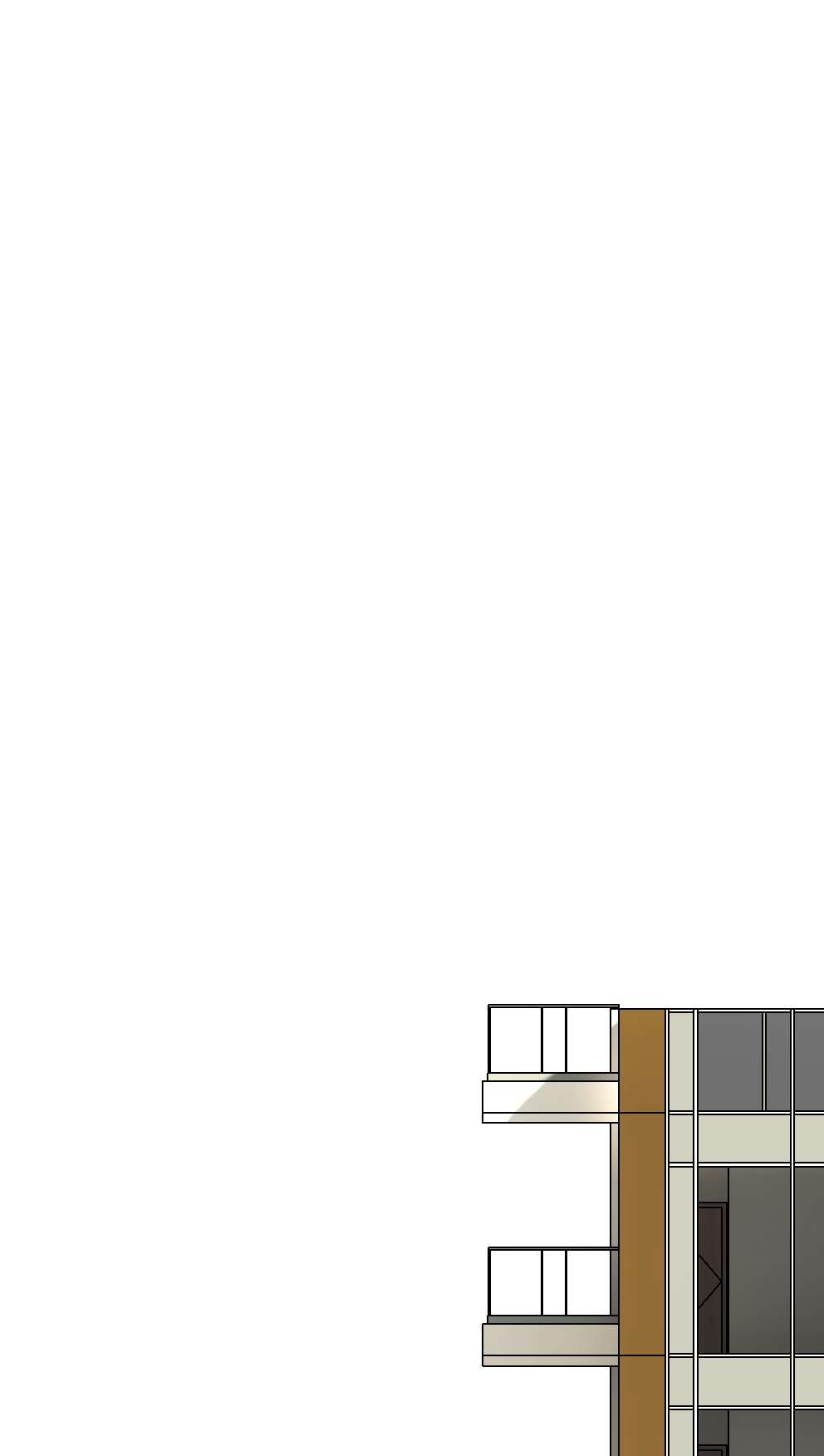

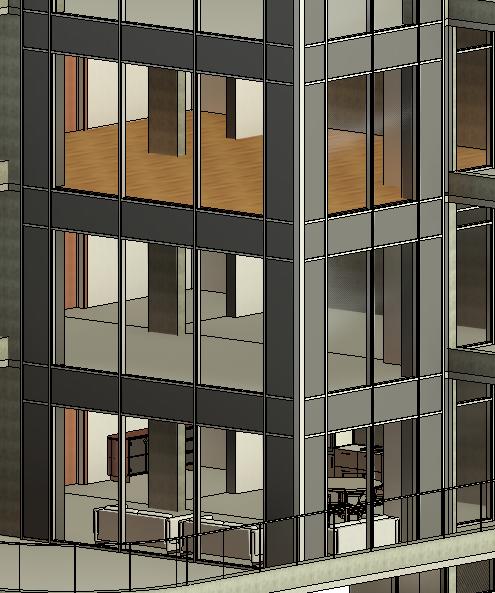

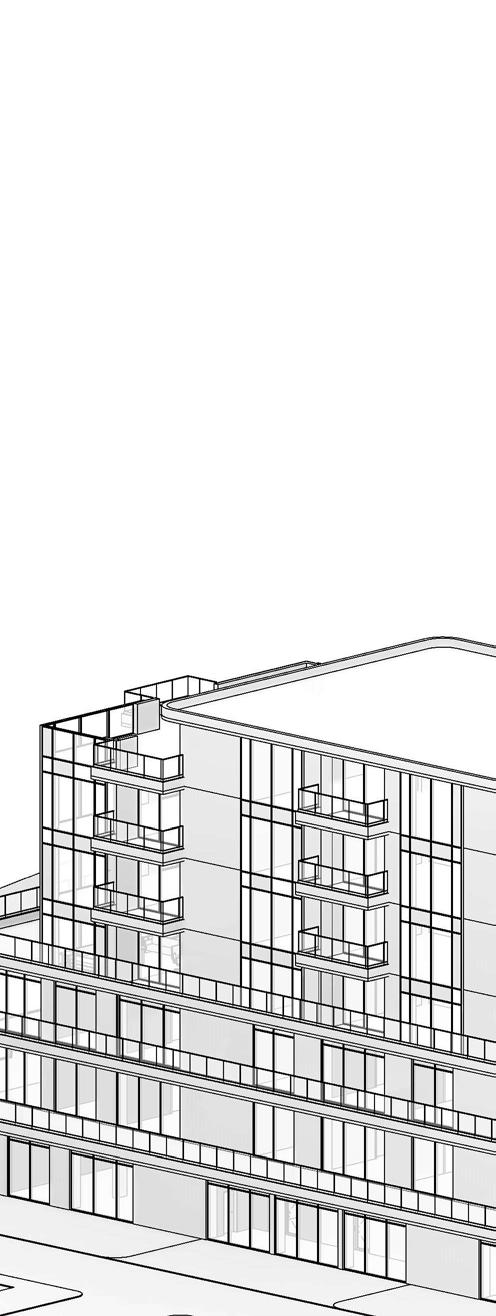

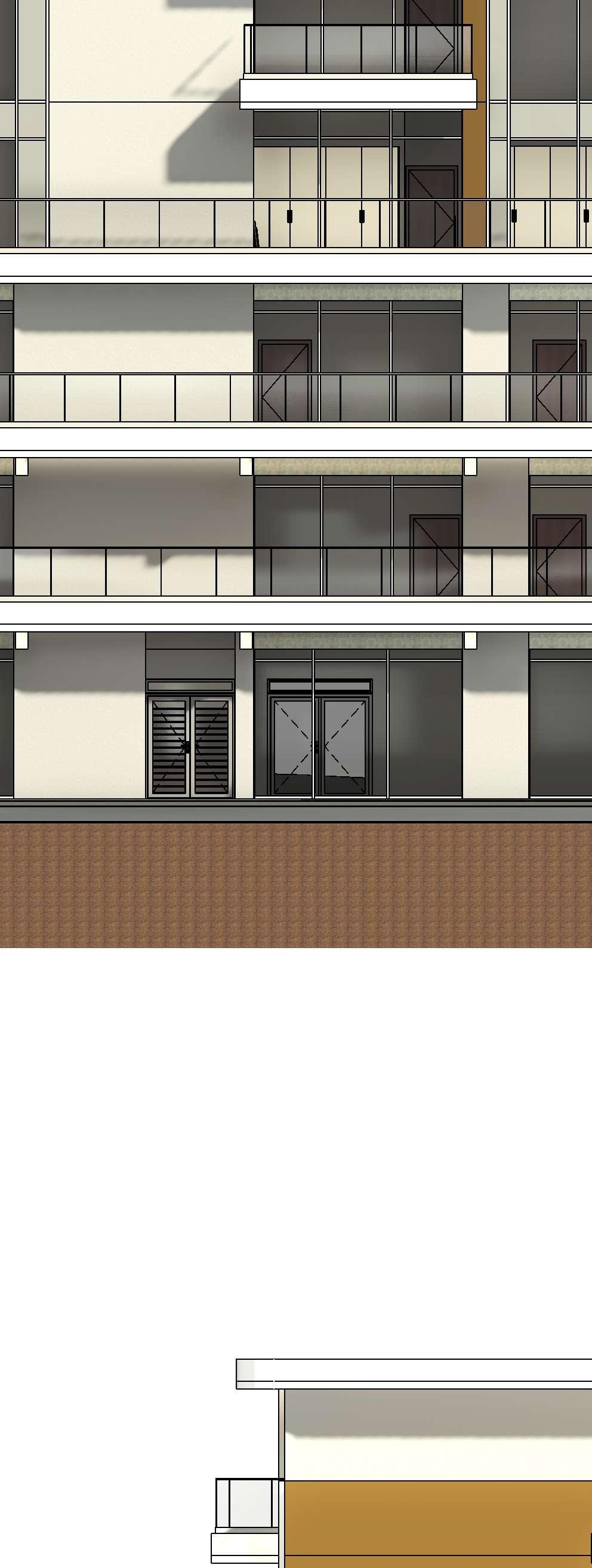

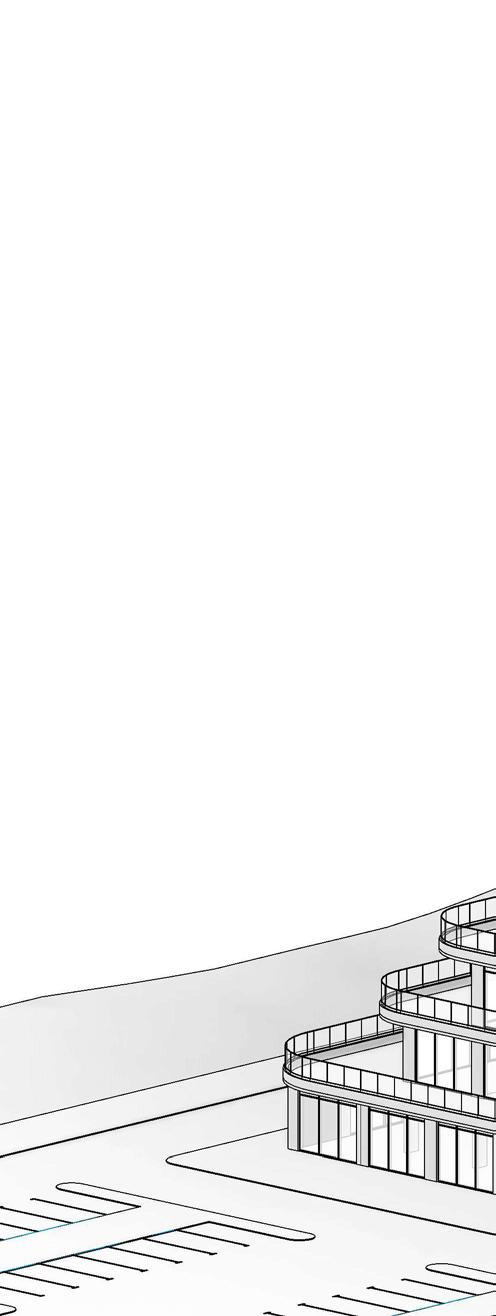

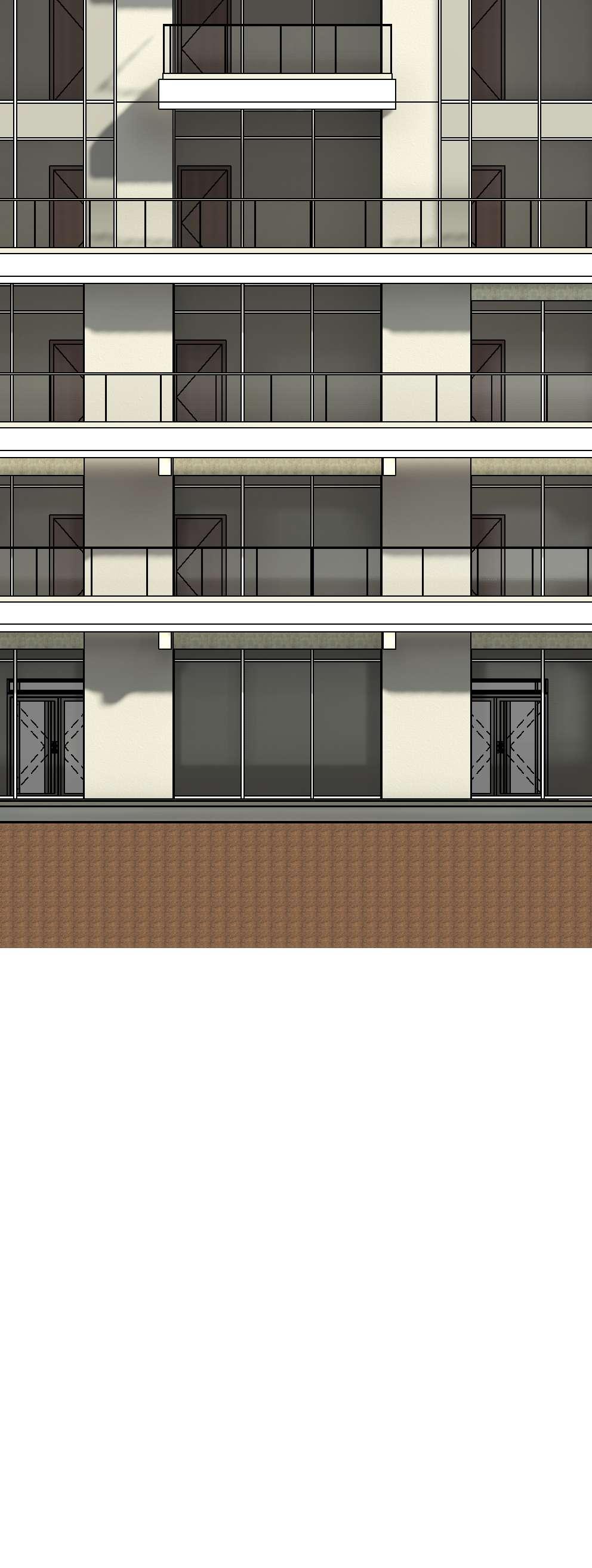

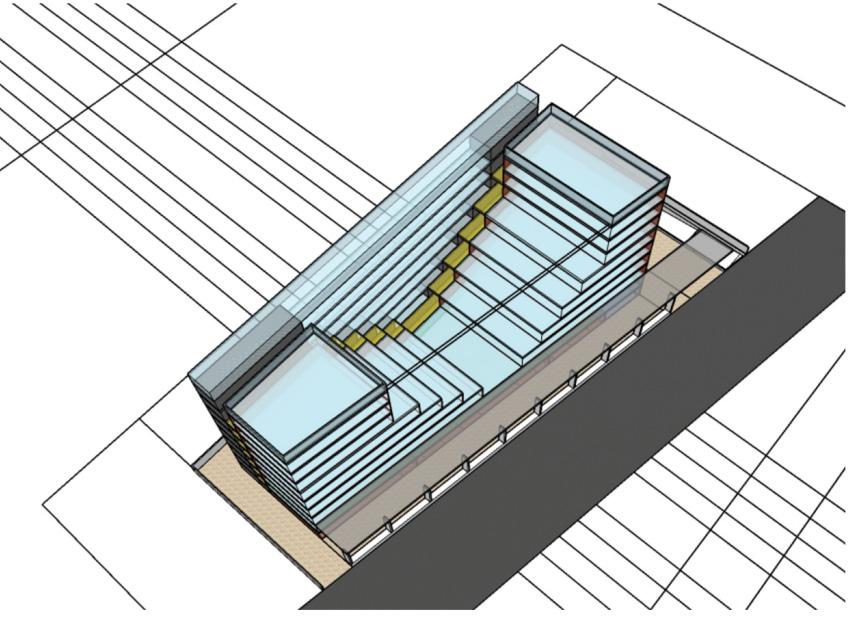

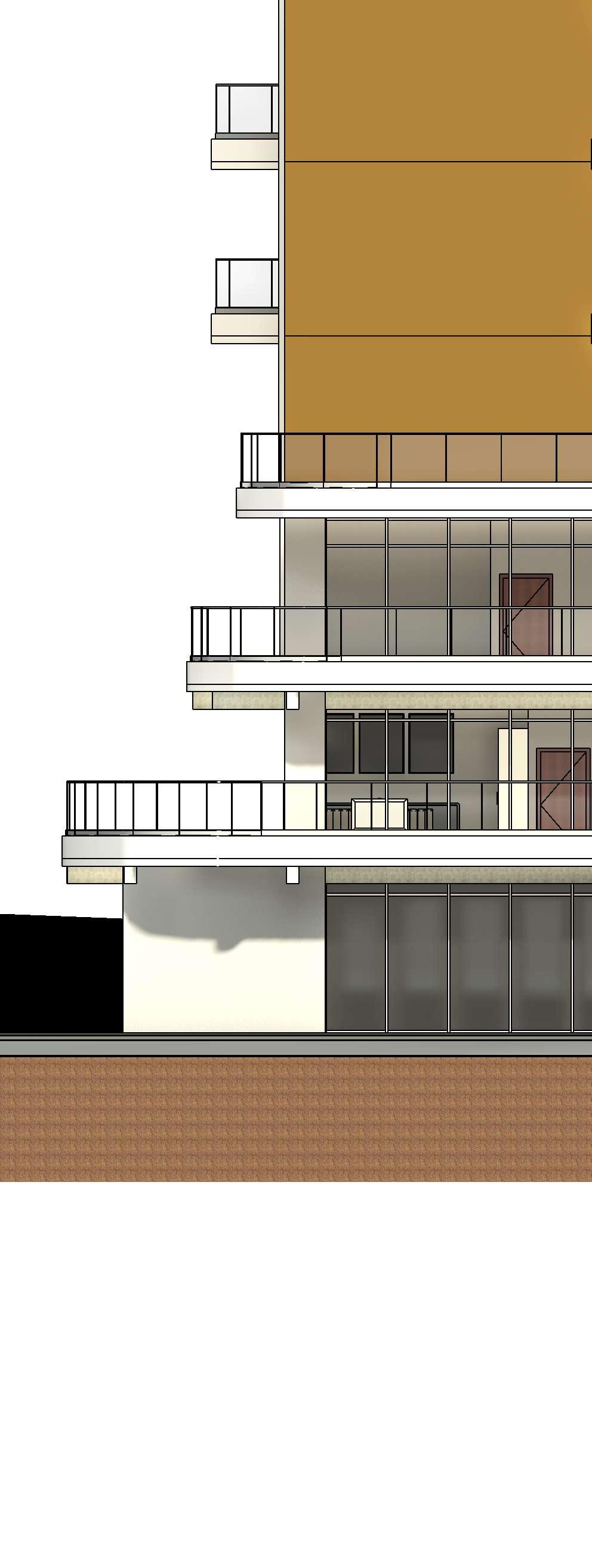

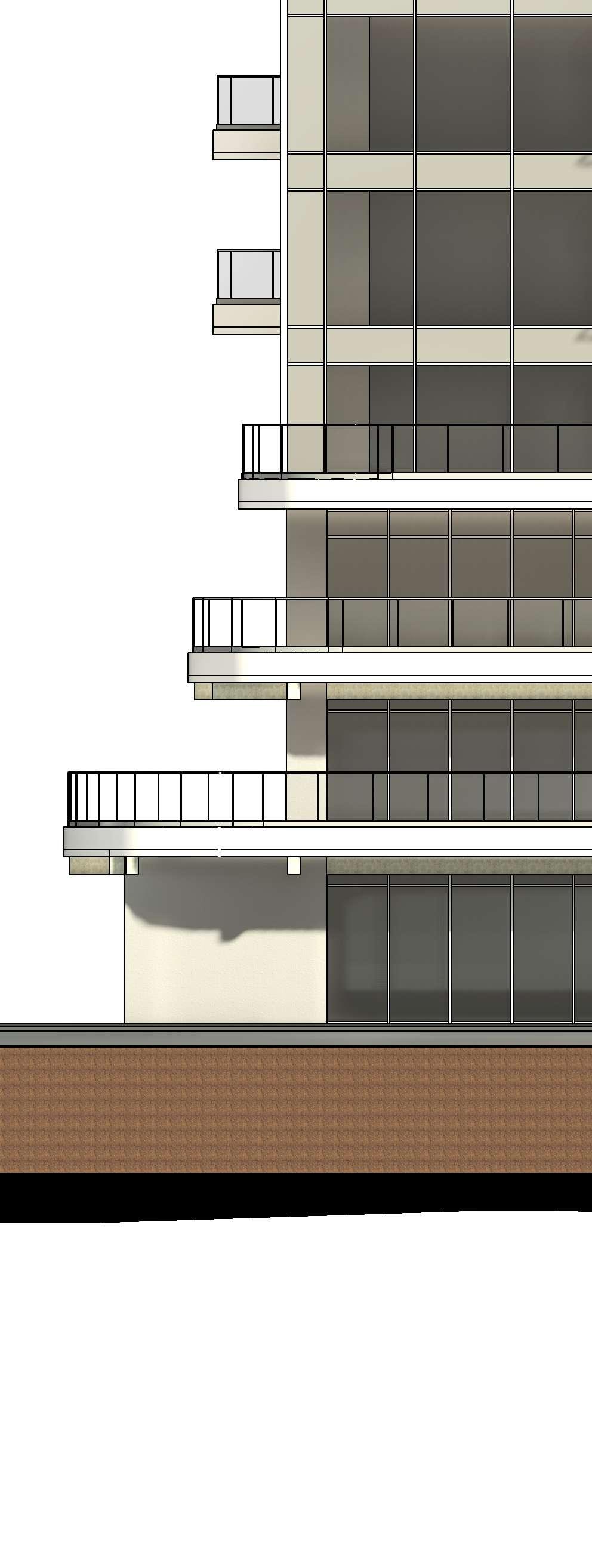

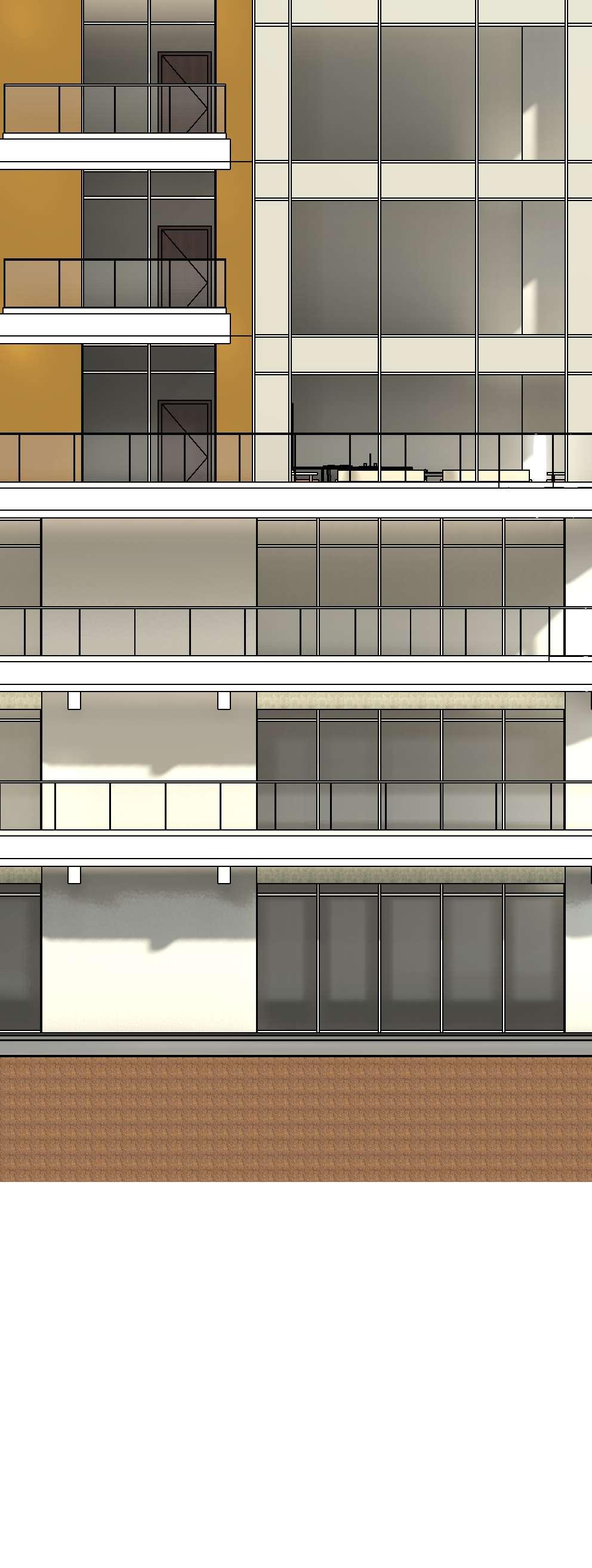

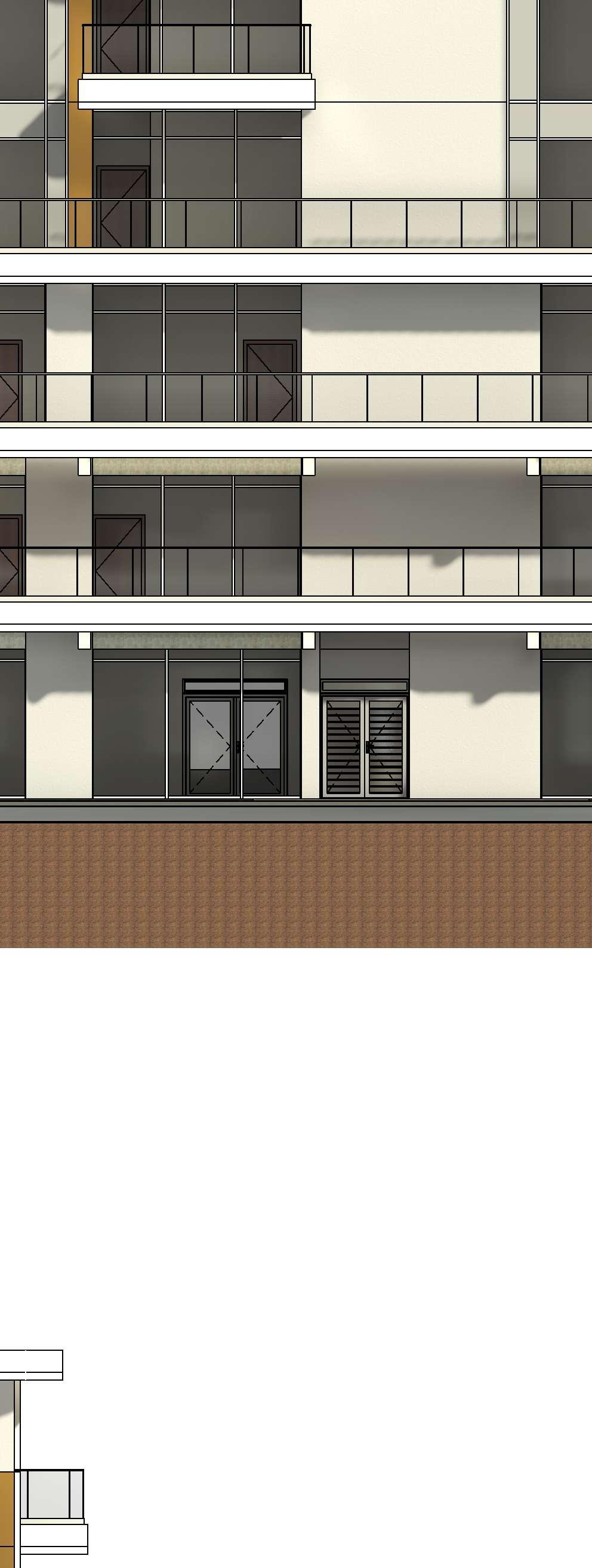

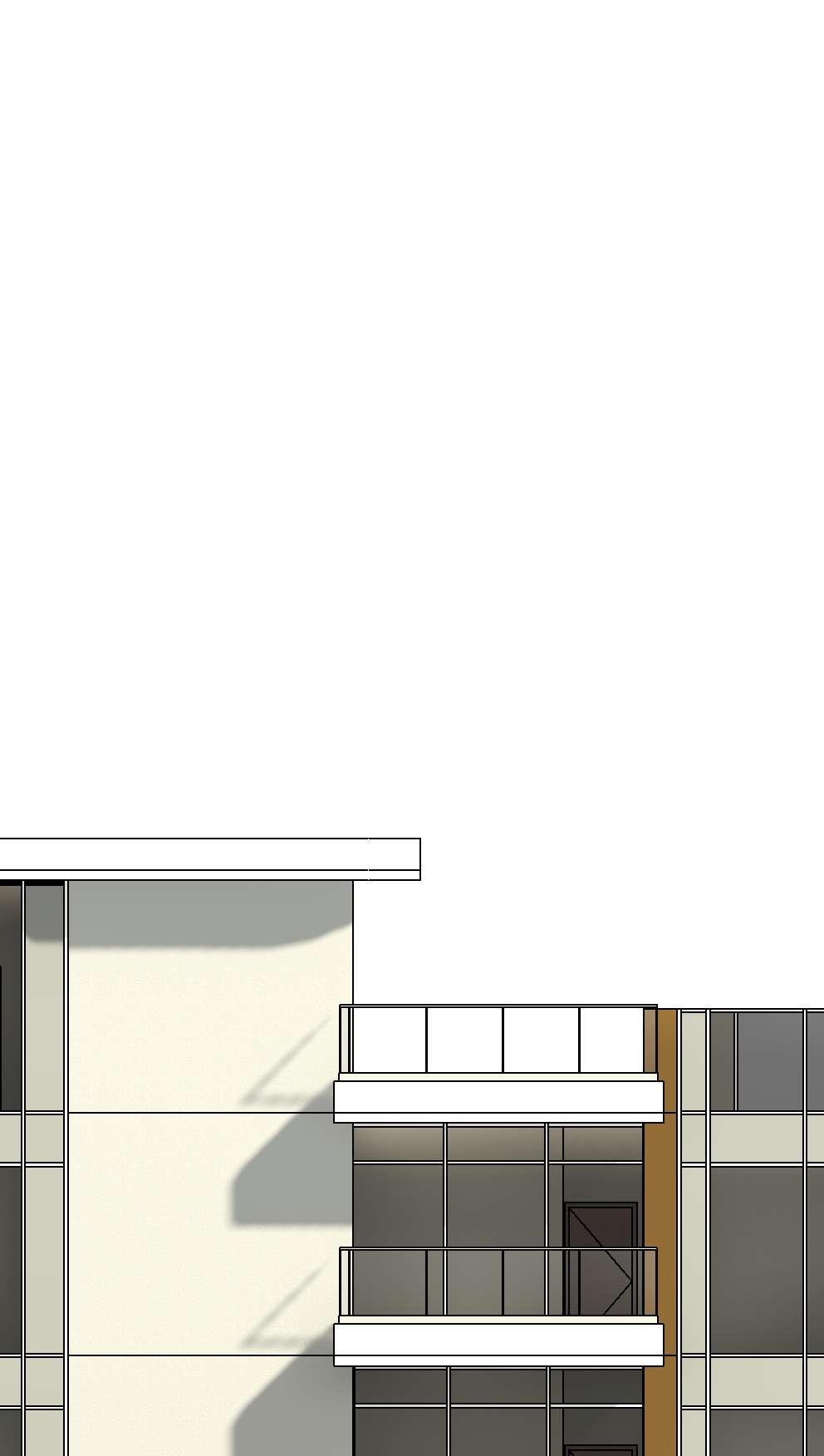

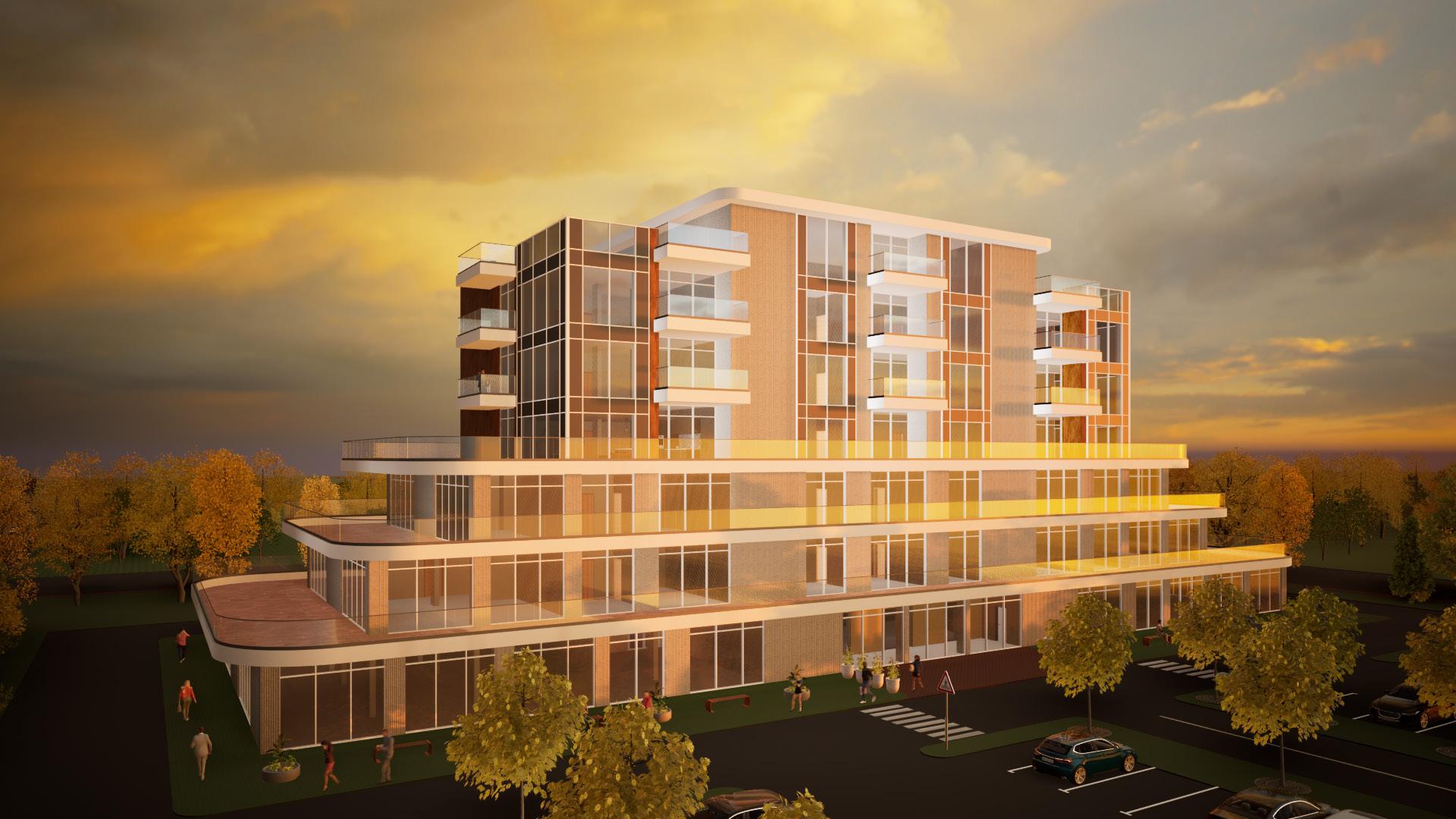

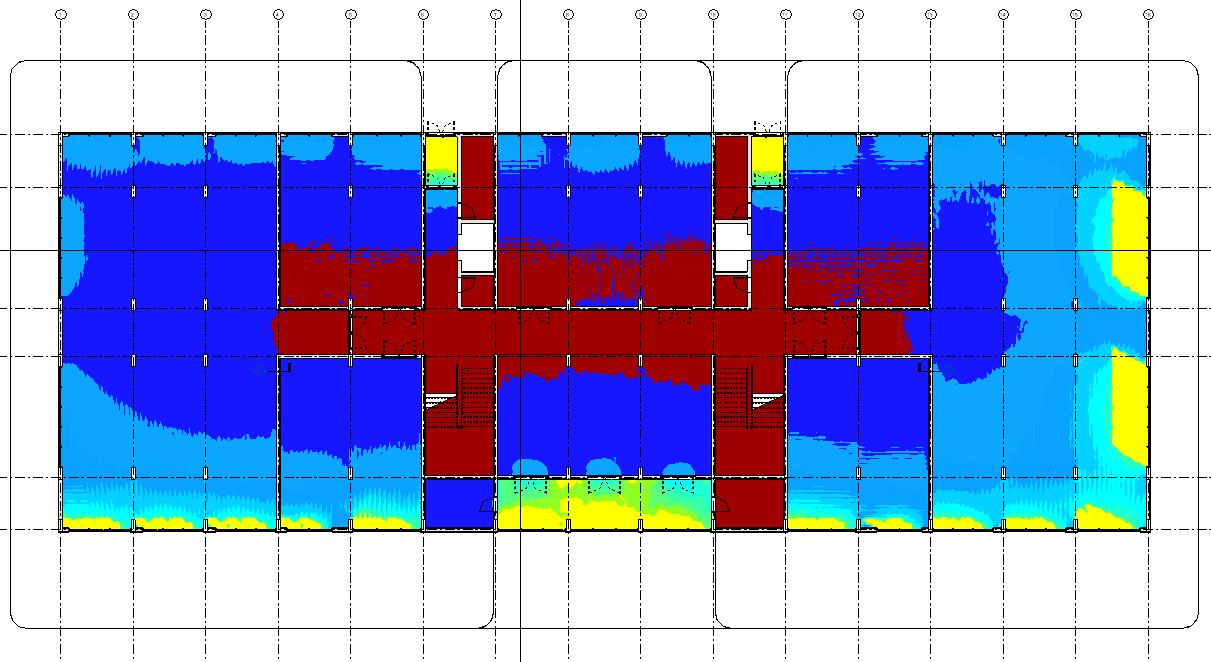

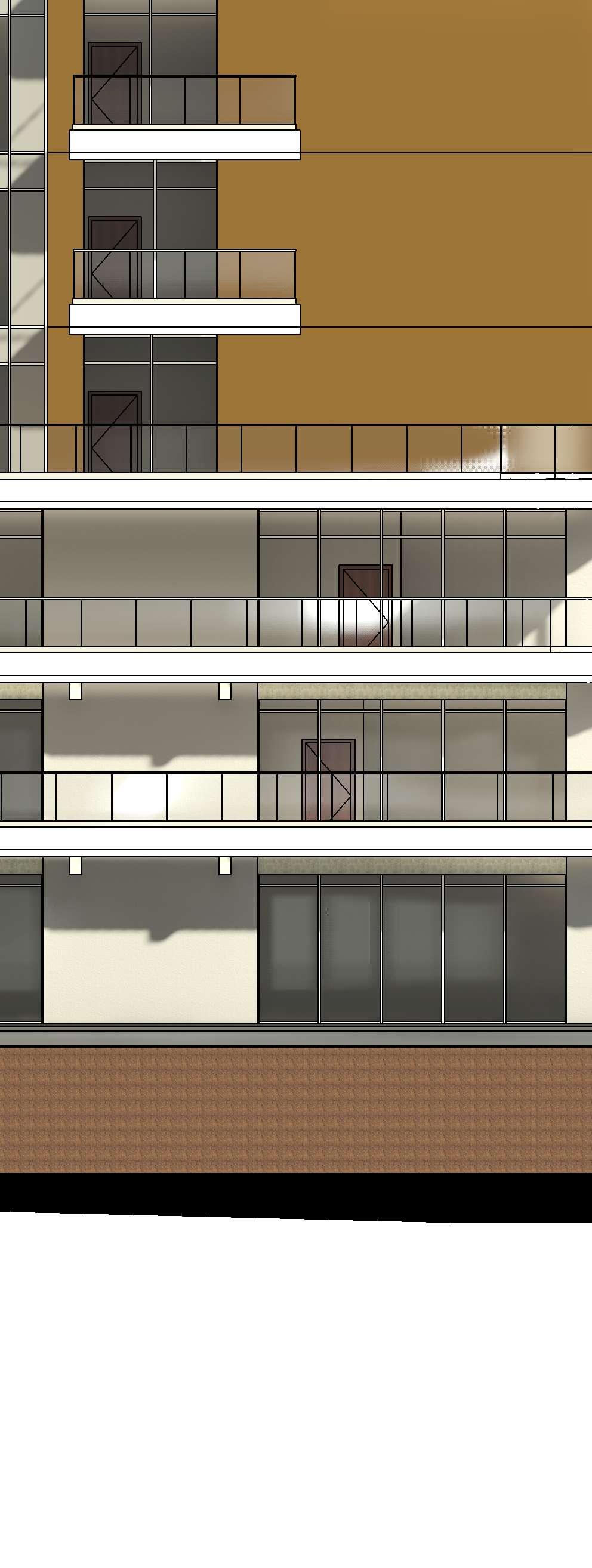

Mid-Rise Apartments
KITCHENER, ONTARIO
JAN - APR 2024
DESCRIPTION:
Proposed Project : Mid-Rise Apratments
Proposed Floors: 7
Total Site Area : 29,163 sq.m
Minimum Lot Width: 30.0 meters
Minimum Front Yard And Minimum Side Yard Abutting a Street : 3 meters
Minimum Side Yard: 4.5 meters
Minimum Rear Yard: 7.5 meters
Maximum Building Height: 25 meters
Minimum Landscaped Area 20 percent of the lot area
MY ROLE:
My role was BIM Architect. Design the building accoding to OBC and city by laws.

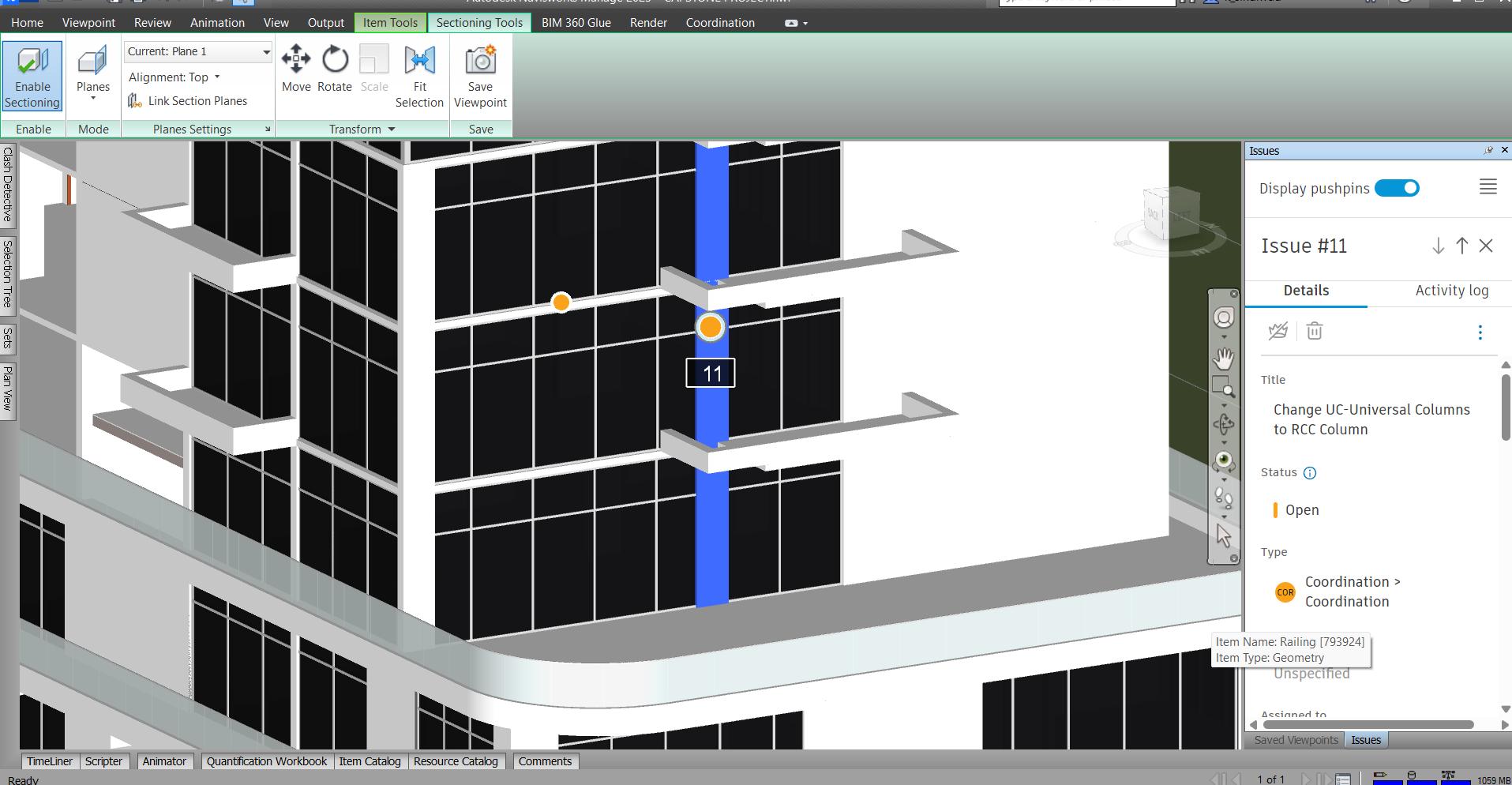

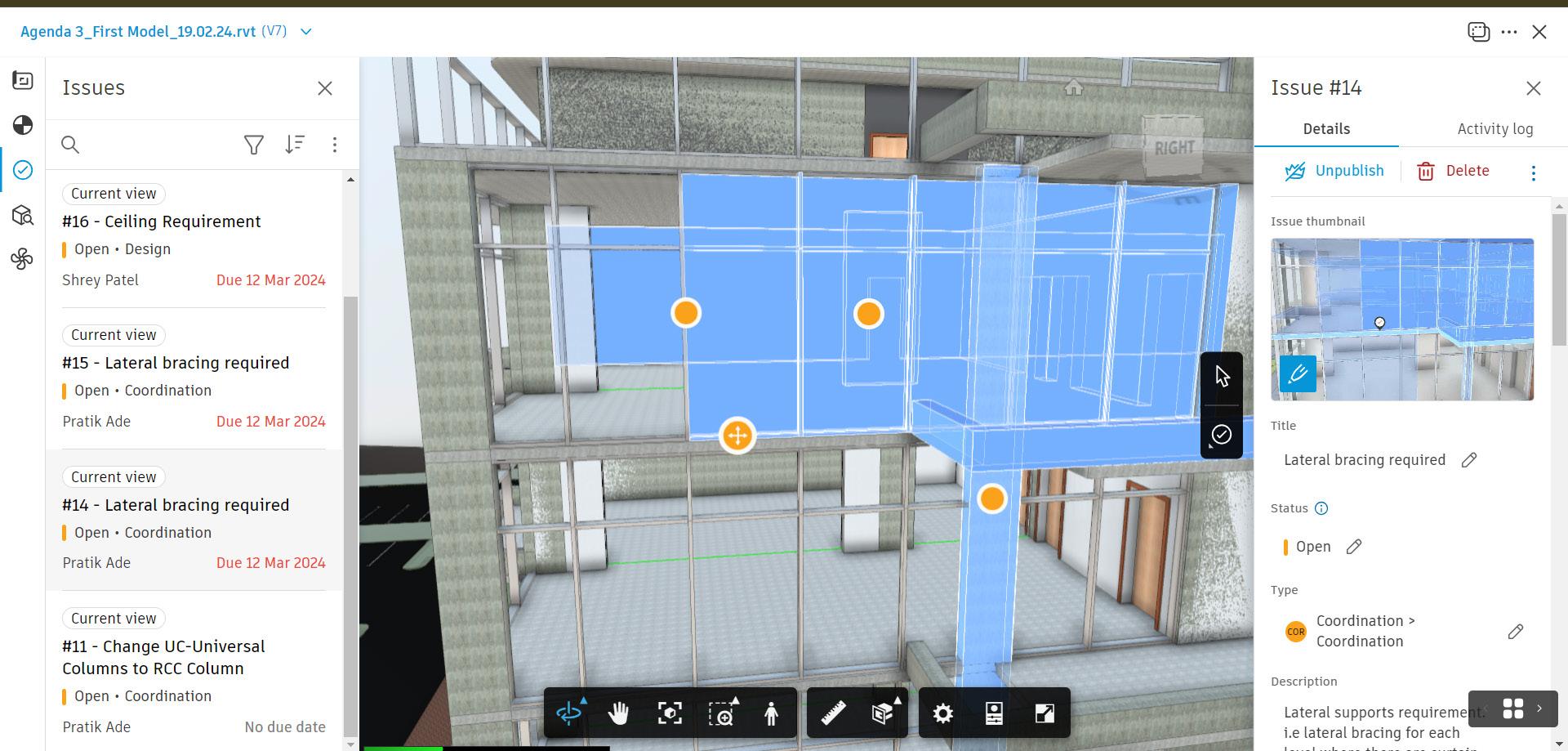

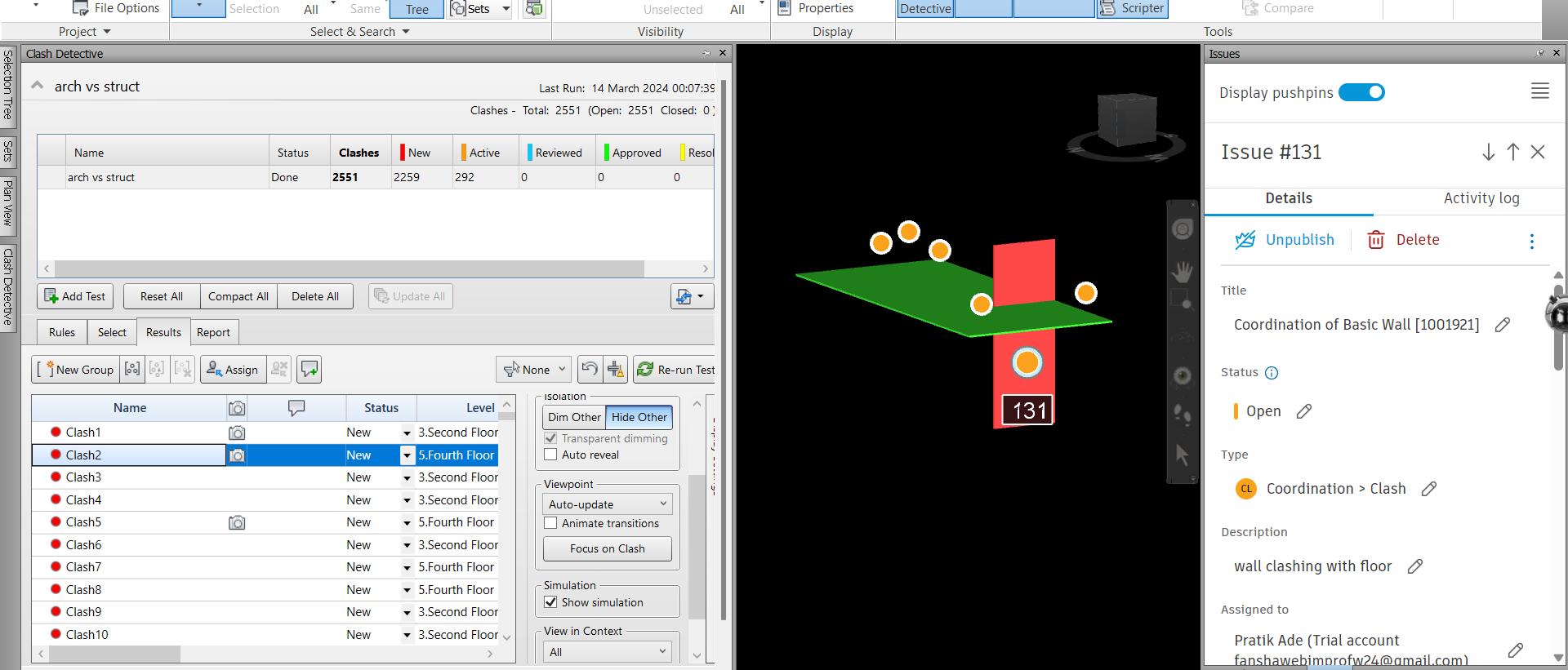

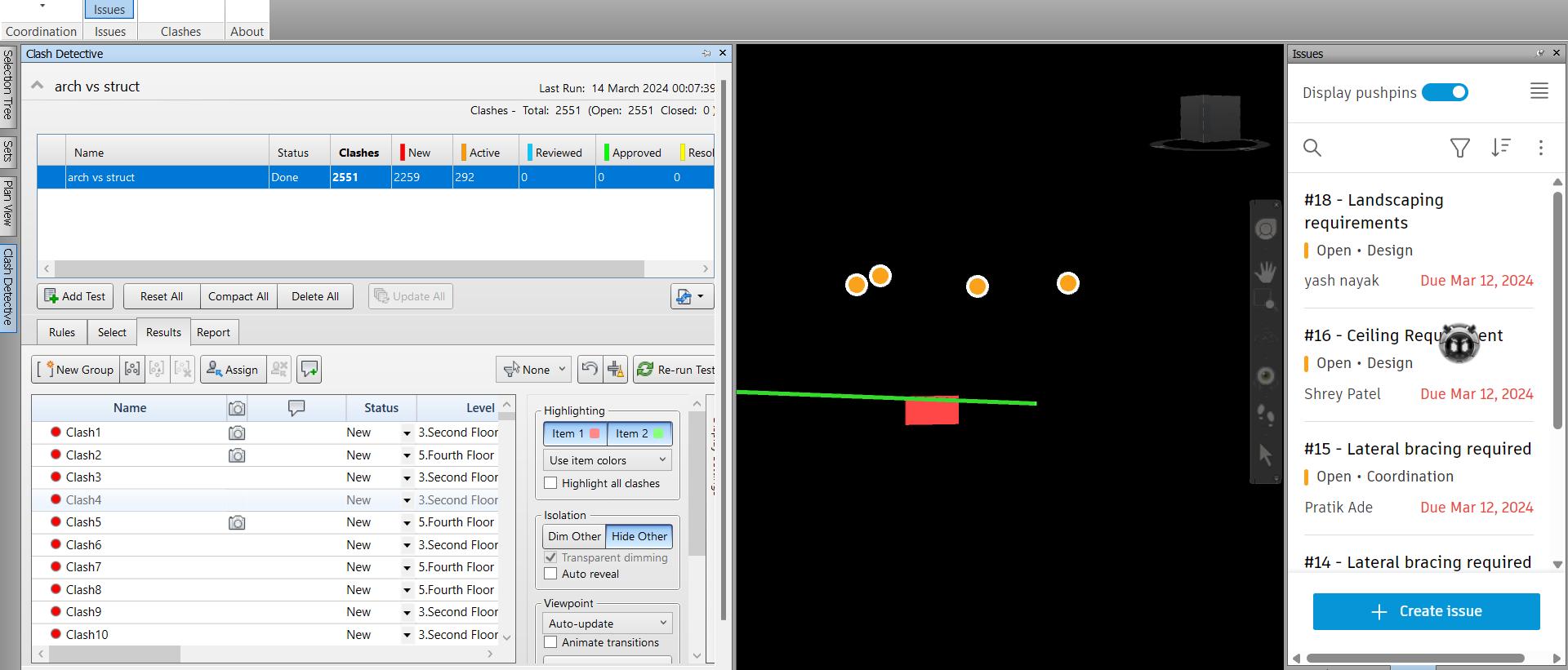

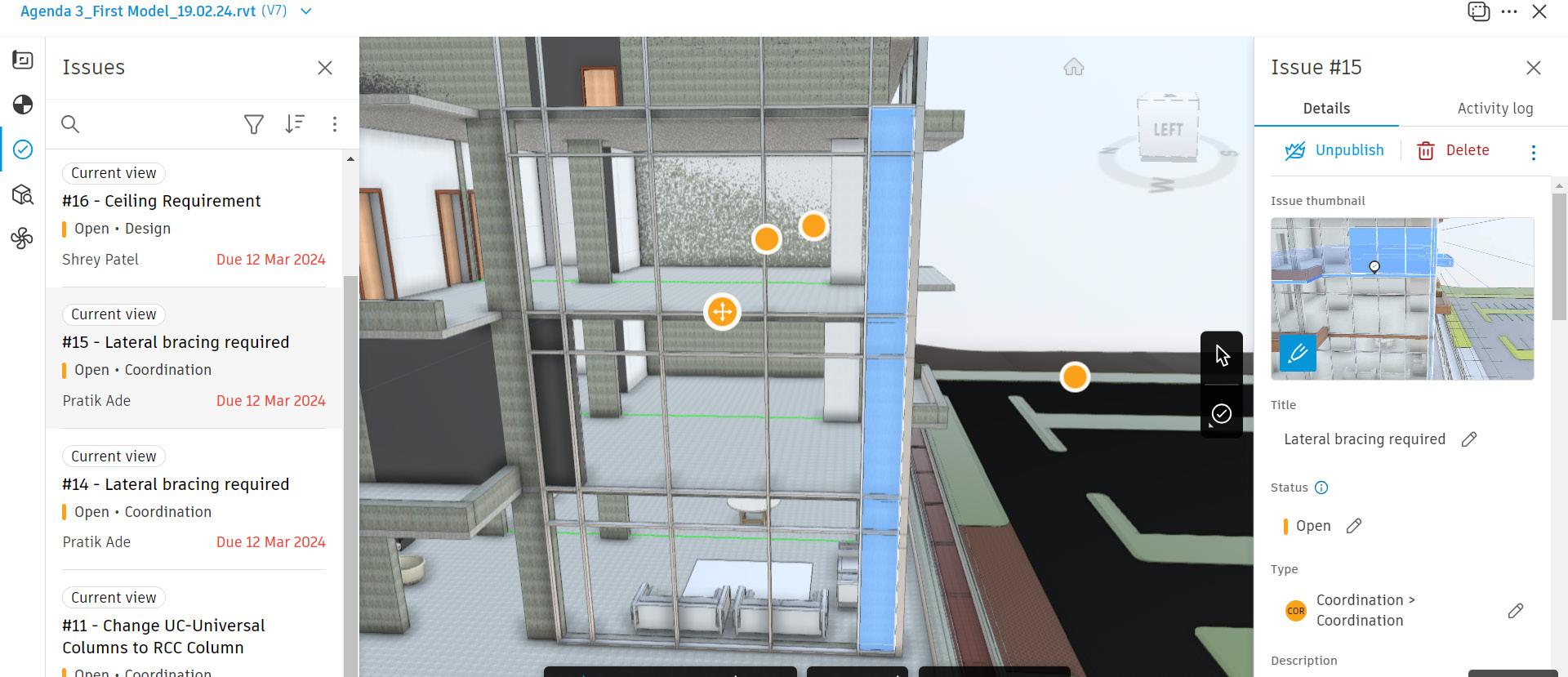

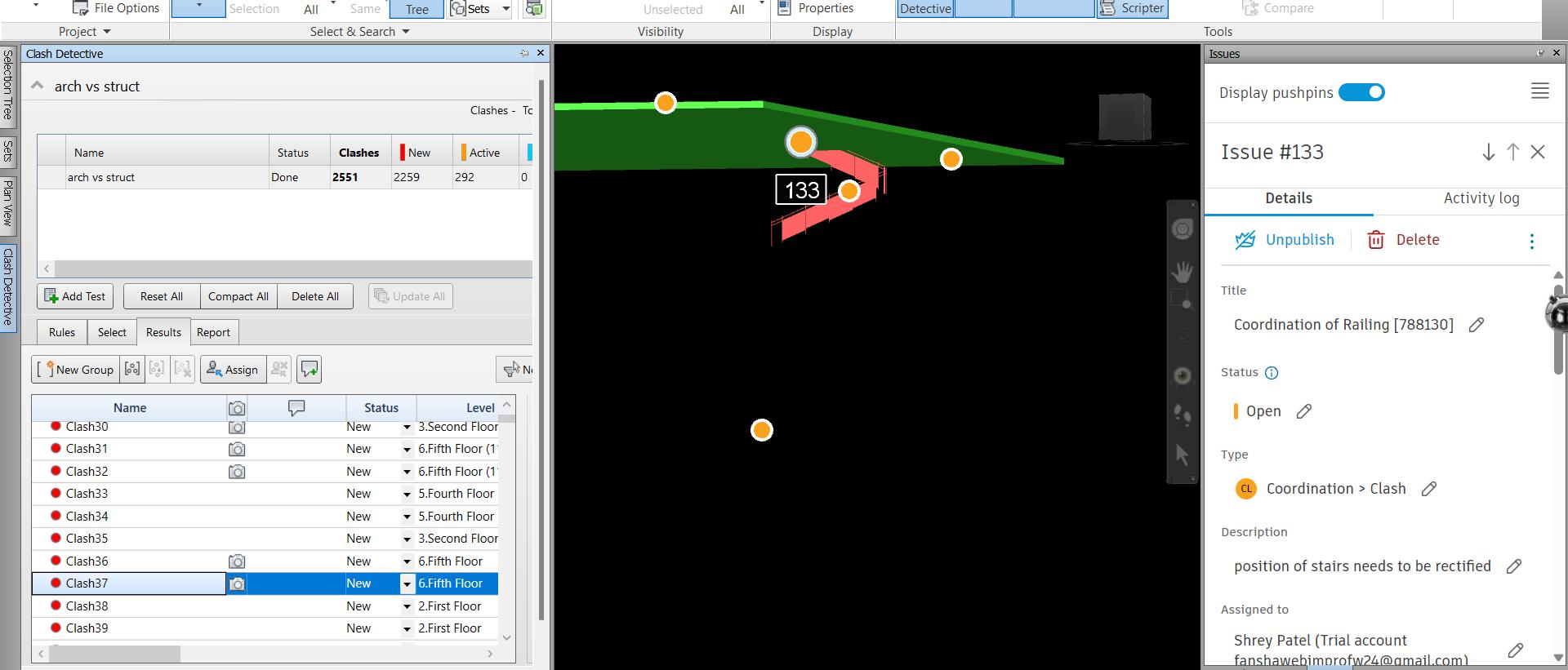

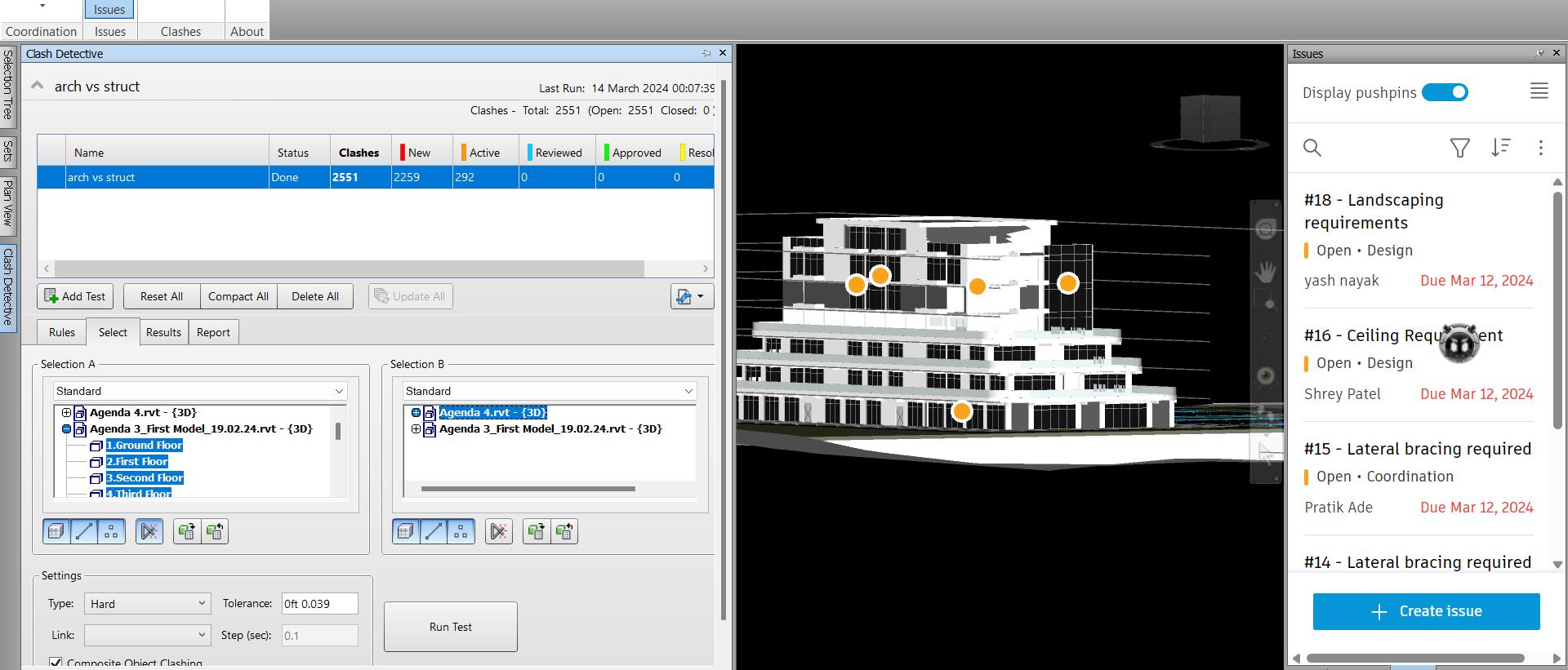

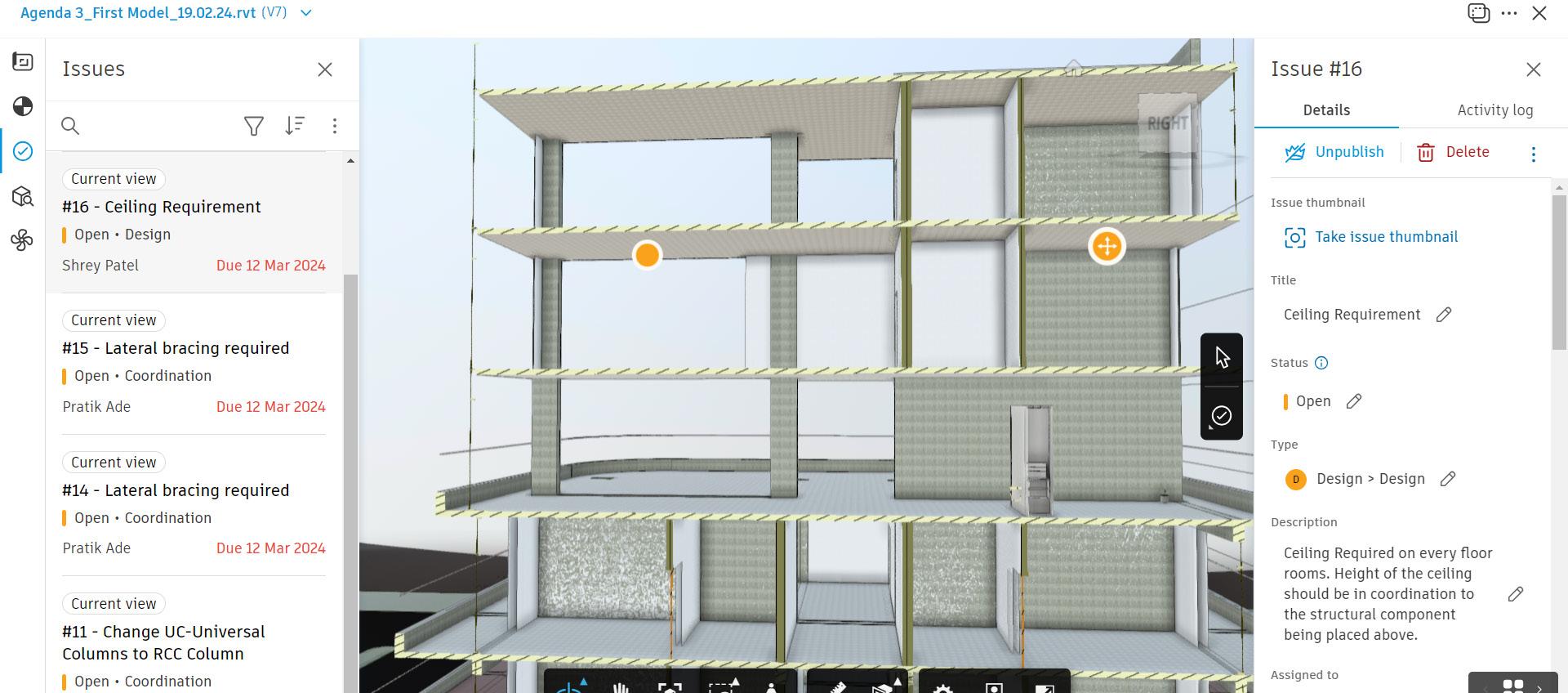

Clash Detection, Coordination, 3D modeling, Rendering and prepare drwaing set.
