NET ZERO/LOW CARBON BUILDING An international building workshop for women students under WoW gender initiative

GROUP 4 SITE 3

Site Photographs

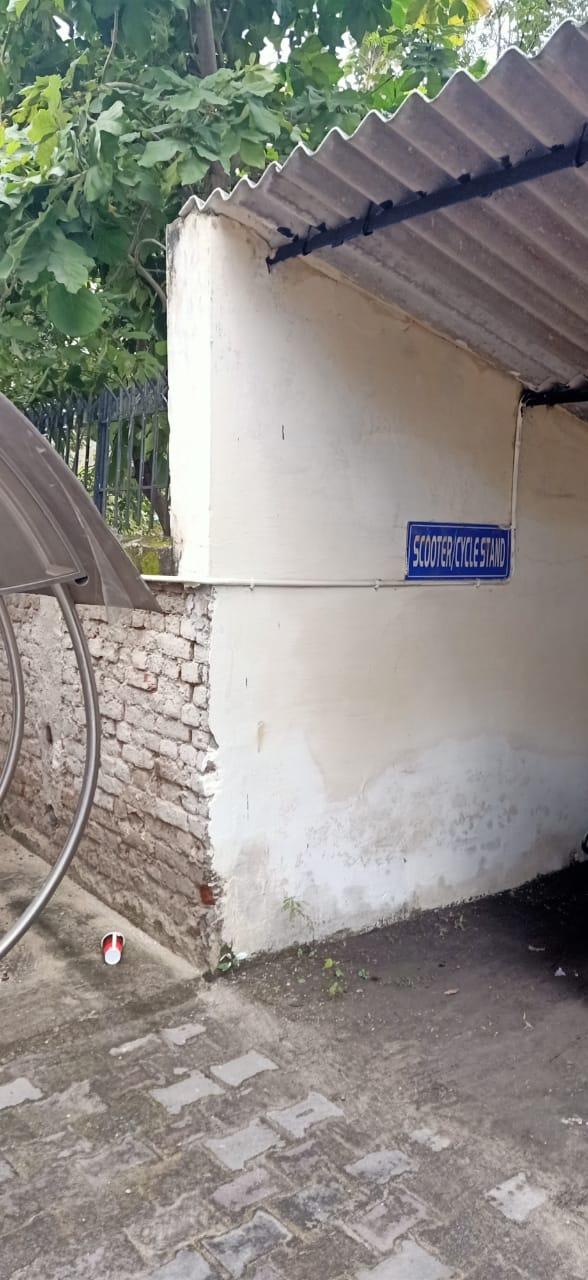

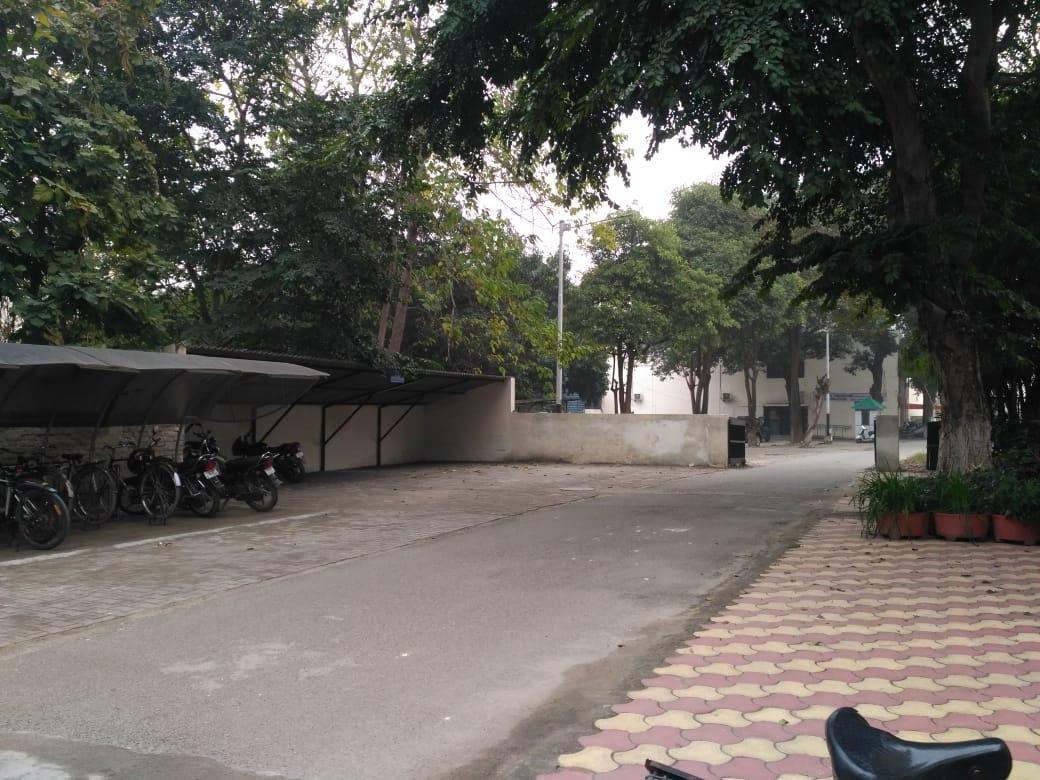

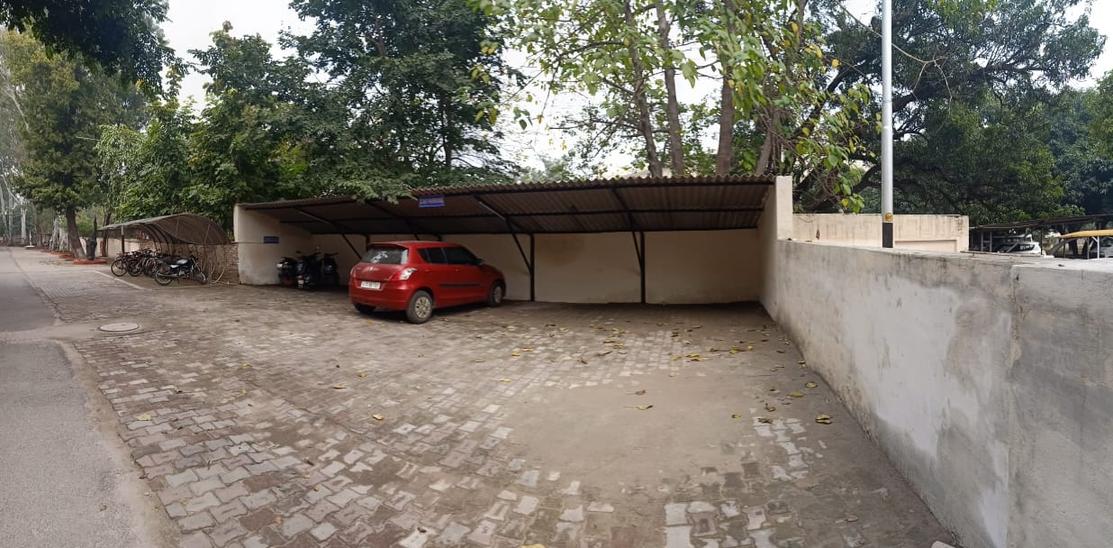

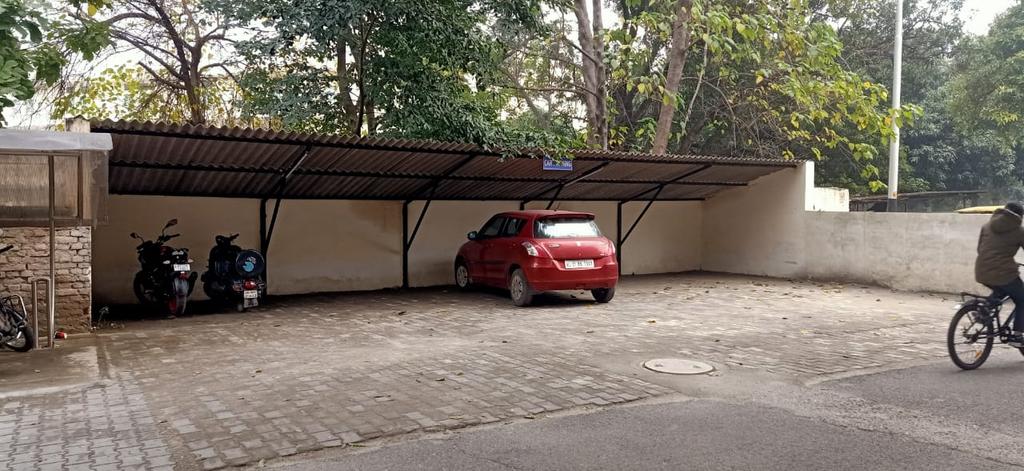

The Road way and views of the present parking space

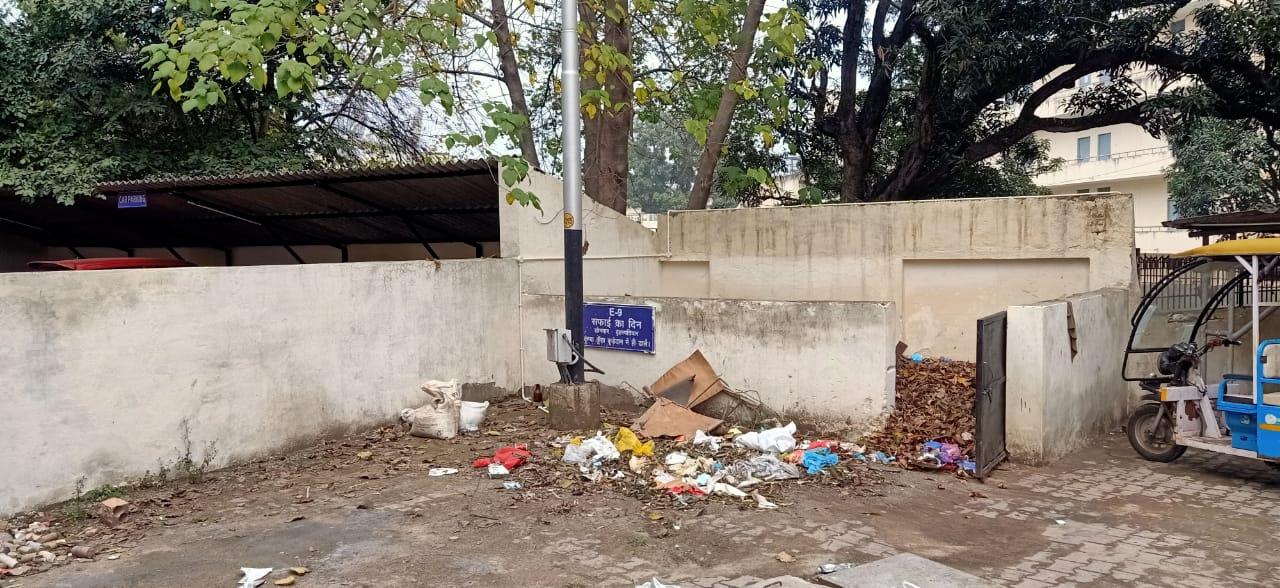

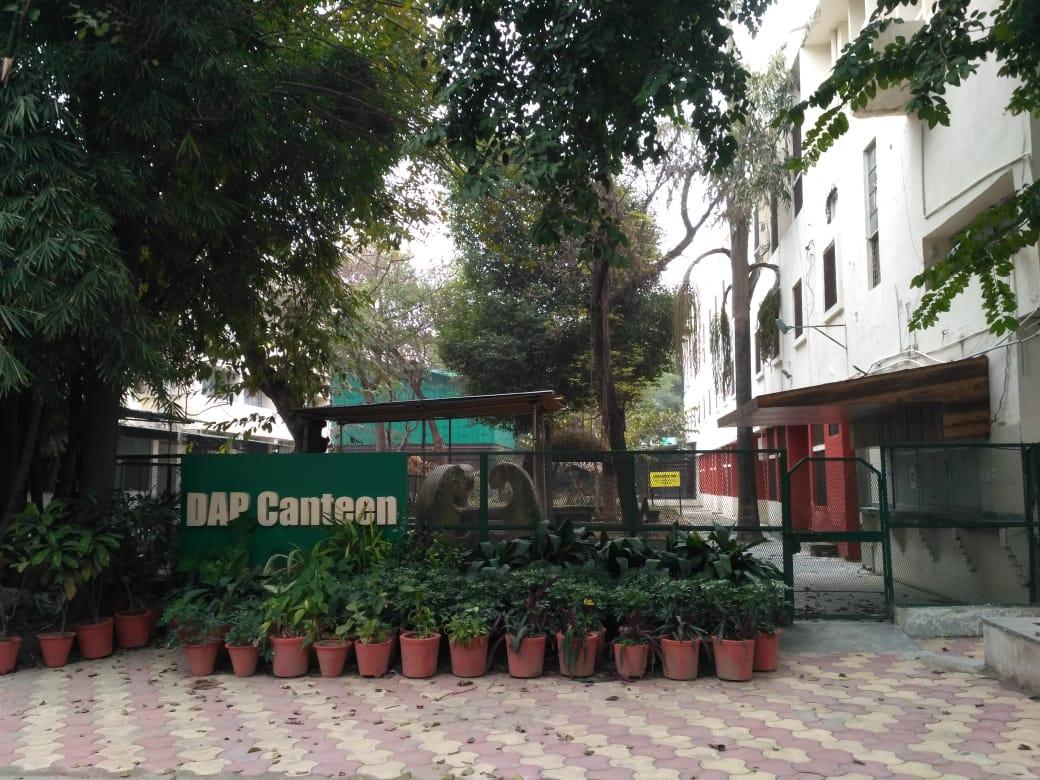

Electricity connection, View towards DAP canteen and dustbin nearby (potential threat)

Site's features ProsCentre attraction Good location with connectivity from 3 sites Easy accessibility to other departments as well Viewable from canteen

ConsLack of frontage close proximity to vehicular movement causing noise distraction Visual privacy required Smell from dustbin

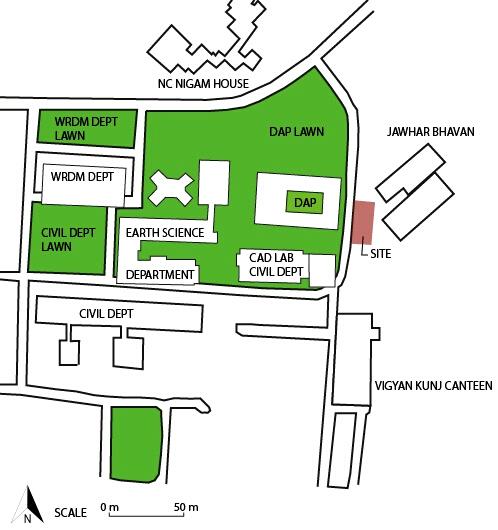

Site Plan

SITE ANALYSIS AVERAGE TEMPERATURE & PRECIPITATION

WIND ROSE DIAGRAM

Roorkee has the NNE (North-North East) as its windward side which means, for the maximum time duration round the year, the buildings are hit on the NNE side by winds.

WIND SPEED

The average wind speeds vary around 12kmph.

With an average of 30.9 °C, June is the warmest month.

January is the coldest month, with temperatures averaging to a value of 12.7 °C .

The precipitation varies 288 mm or 11 inch between the driest month Novmber and the wettest month August. The average annual temperature in Roorkee is 23.0 °C. In a year, the rainfall is 998 mm or 39.3 inch.

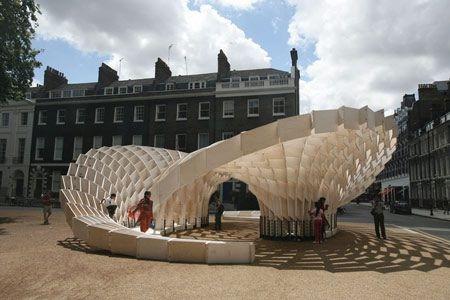

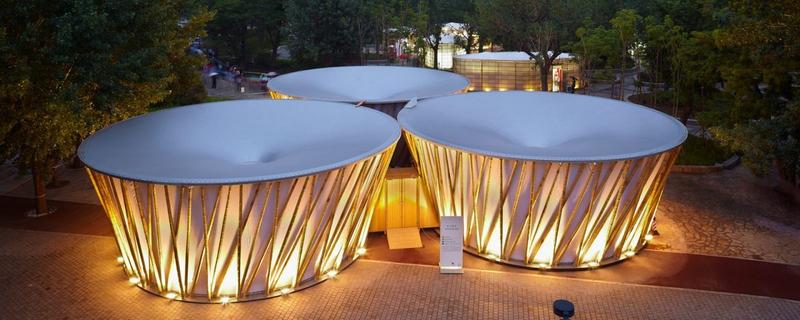

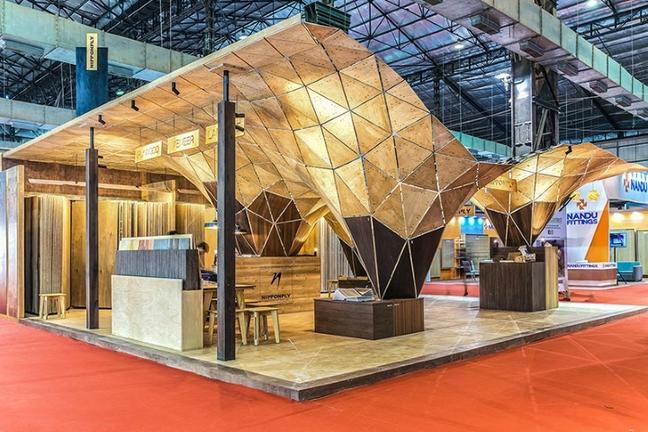

Case Studies 1 . 'The Flow' - A Multipurpose Pavilion Modularity in terms of an entire unit as well as components Different tiers allows multiple activities in one place without having requirement to modify

2. Women’s Opportunity Center / Sharon Davis Design Architects: Sharon Davis Design Area: 2200 m² Year: 2013 Place: Africa

The site of the new Women’s Opportunity Center, located at a crossroads above a fertile valley.

Vernacular Rwandan Village as an organizing principle.

A series of human-scaled pavilions clustered to create security and community for up to 300 women.

This mini-village transforms urban agglomeration and subsistence farming with an architectural agenda to create economic opportunity, rebuild social infrastructure, and restore African heritage.

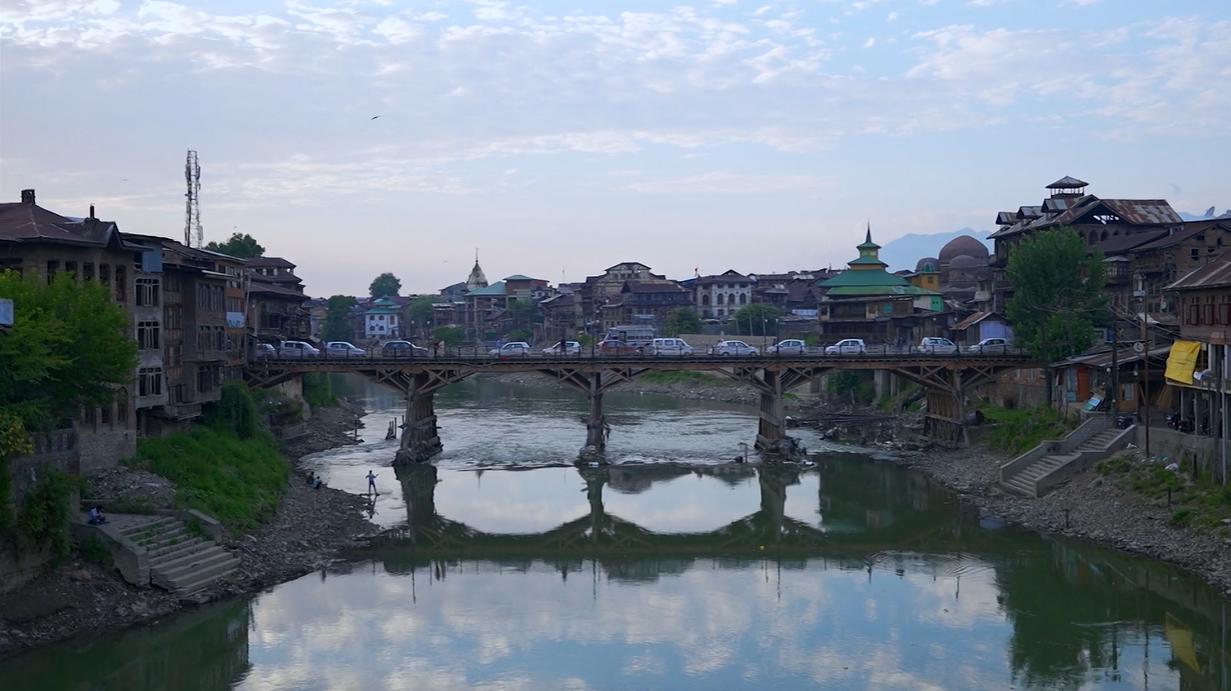

UNDERSTANDING HILL ARCHITECTURE Once there was a time when wooden bridges were used. This wood was the same which was used to make houses in the rugged topography.

Be it the Heritage home or ancient building, they all are based on this ancient technique of construction.

Known as TAQ construction, where the structural members are made of Timber ( timber lacing). A unit of timber window is also known as TAQ, which makes this technique a primitive pre-fabrication construction.

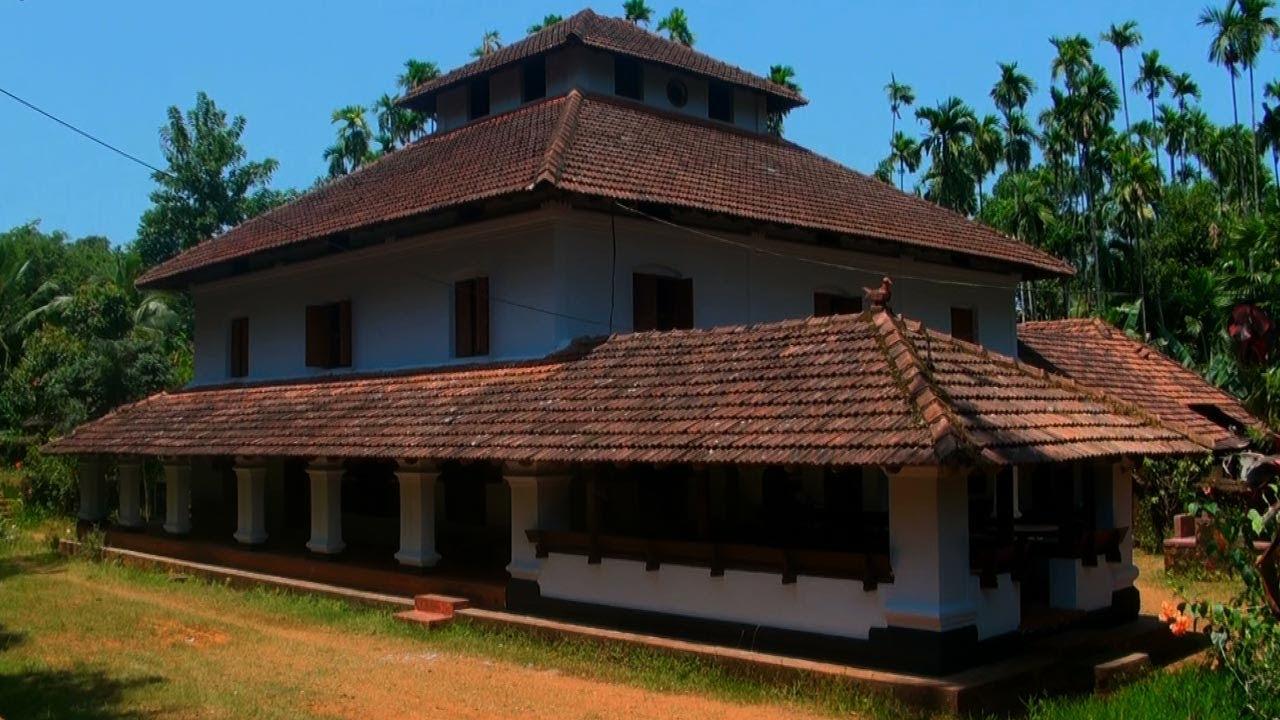

Inspirations from other parts of India Traditional houses in Kerala have a roofing system that has a steep sloping design.The angle of the roof is 30-40 degrees. The roof overhang is suspended very low to protect the mud or timber walls from rain, and other elements of weather and to withstand the heavy monsoon. This sloping design enables rainwater, and snow to drain away easily.

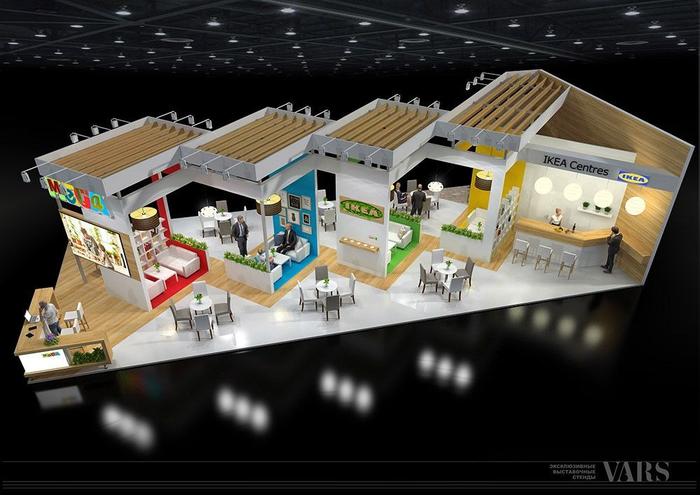

Initial Inspirations & Explorations

Product exhibits Form follows function approach Material considerations with form explorations Minimal design Local materials

N

O

E

S

Green Ending

Flexible Entrance

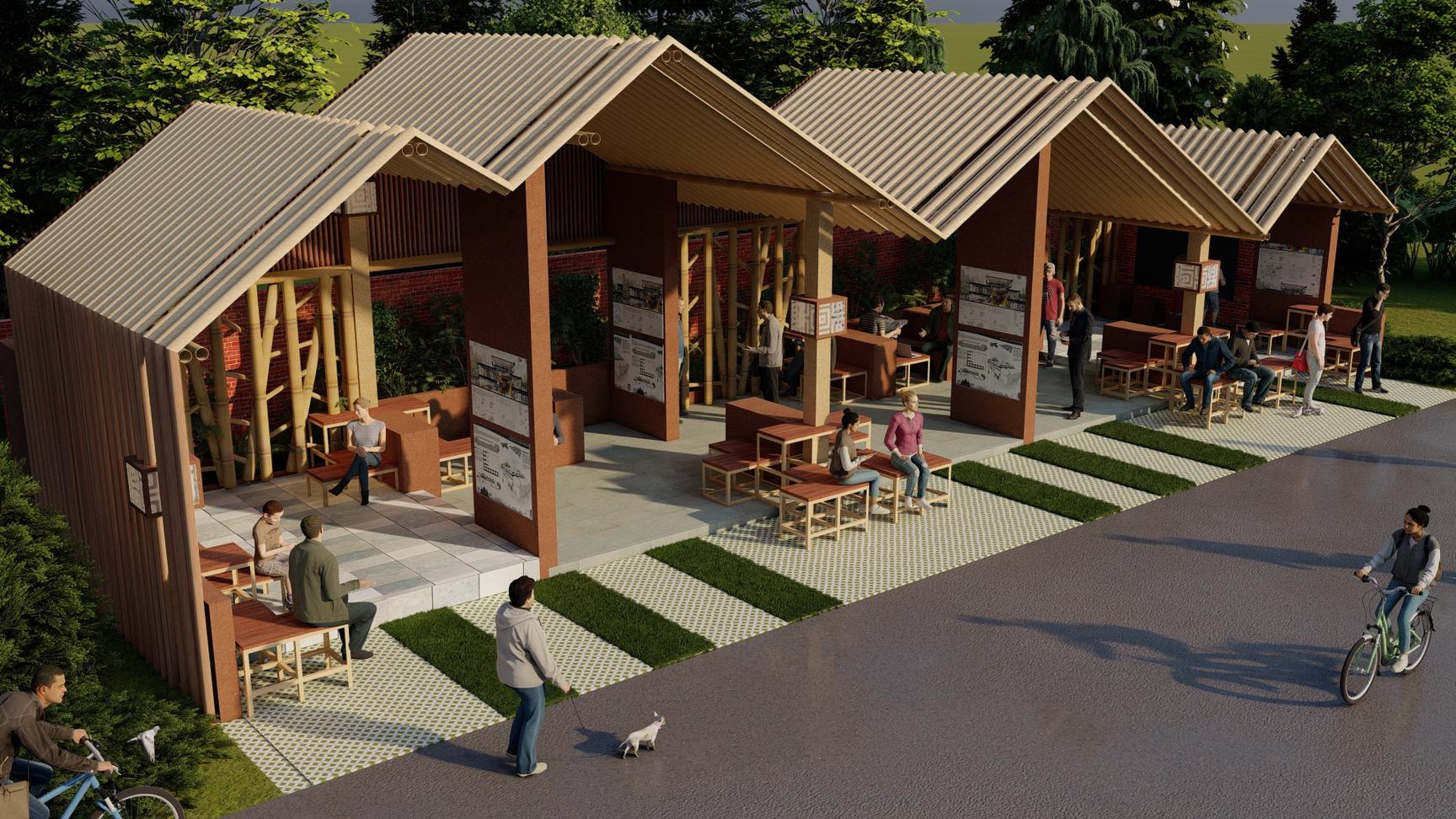

We wanted to create a sustainable interactive learning environment for everyone which is self-sufficient. The space must also be flexible for different purpose such as exhibition, jury panel for architecture students, student hang out space, small party venue and flexible workspace.

Exhibition area

Concept

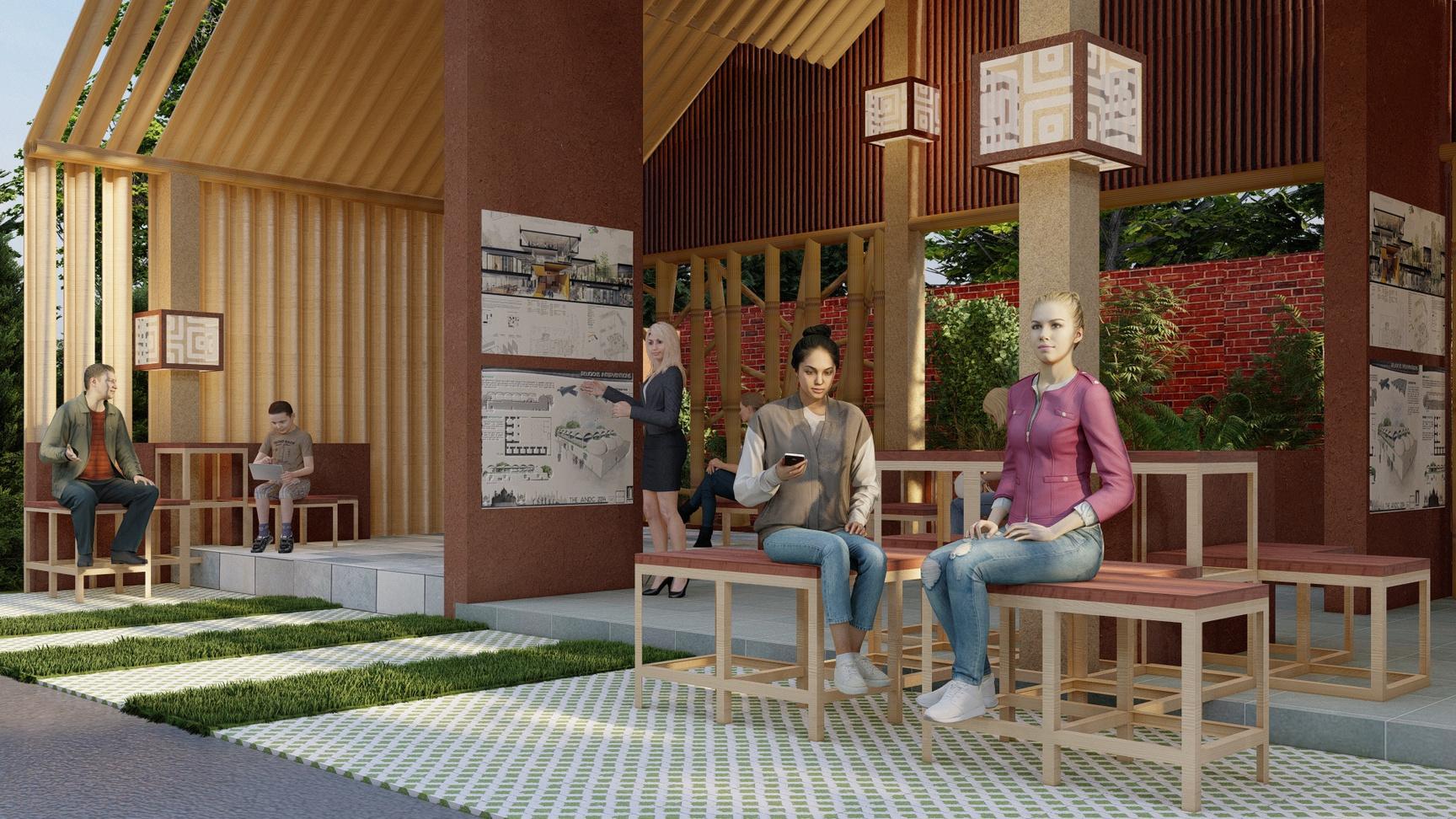

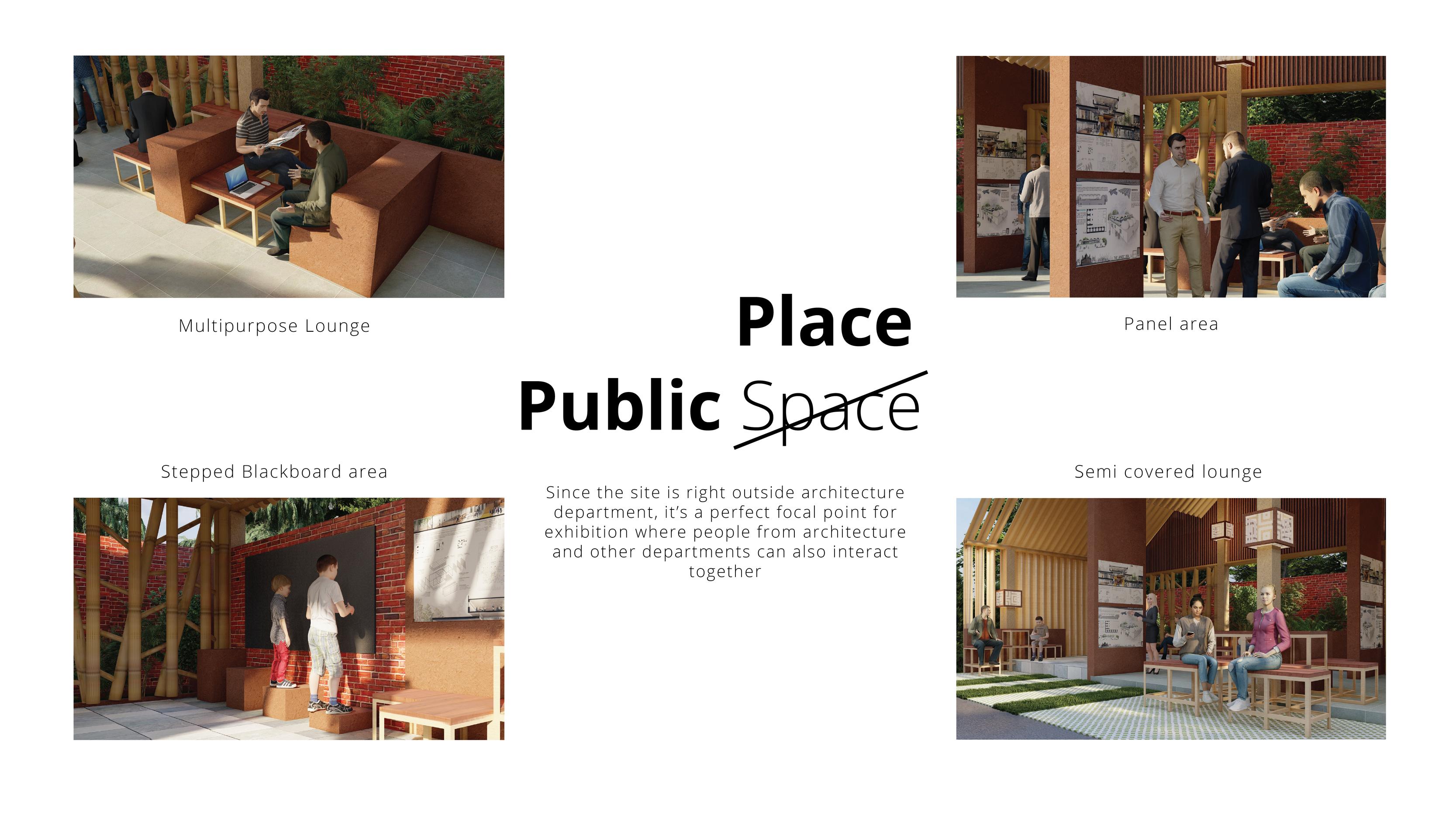

People can gather, sit, talk and interact. This way the pavilion can be designed as an open, semiopen or closed space to provide different spacial experiences.

The audience can interact with the art on display inside the pavilion and see, touch, click photographs etc. Audience can view and experience the pavilion itself as a work of art.

Gutter for water collection

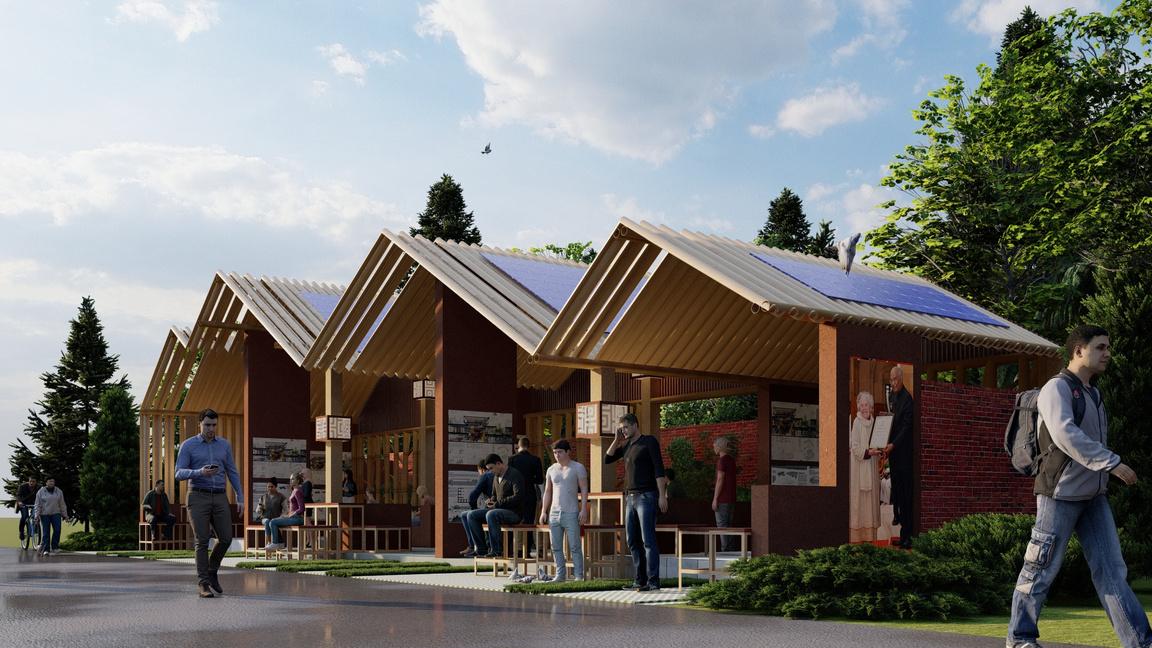

The roof profile is kept sloping similar to the mountains.

Solar Panel

Bamboo Roof

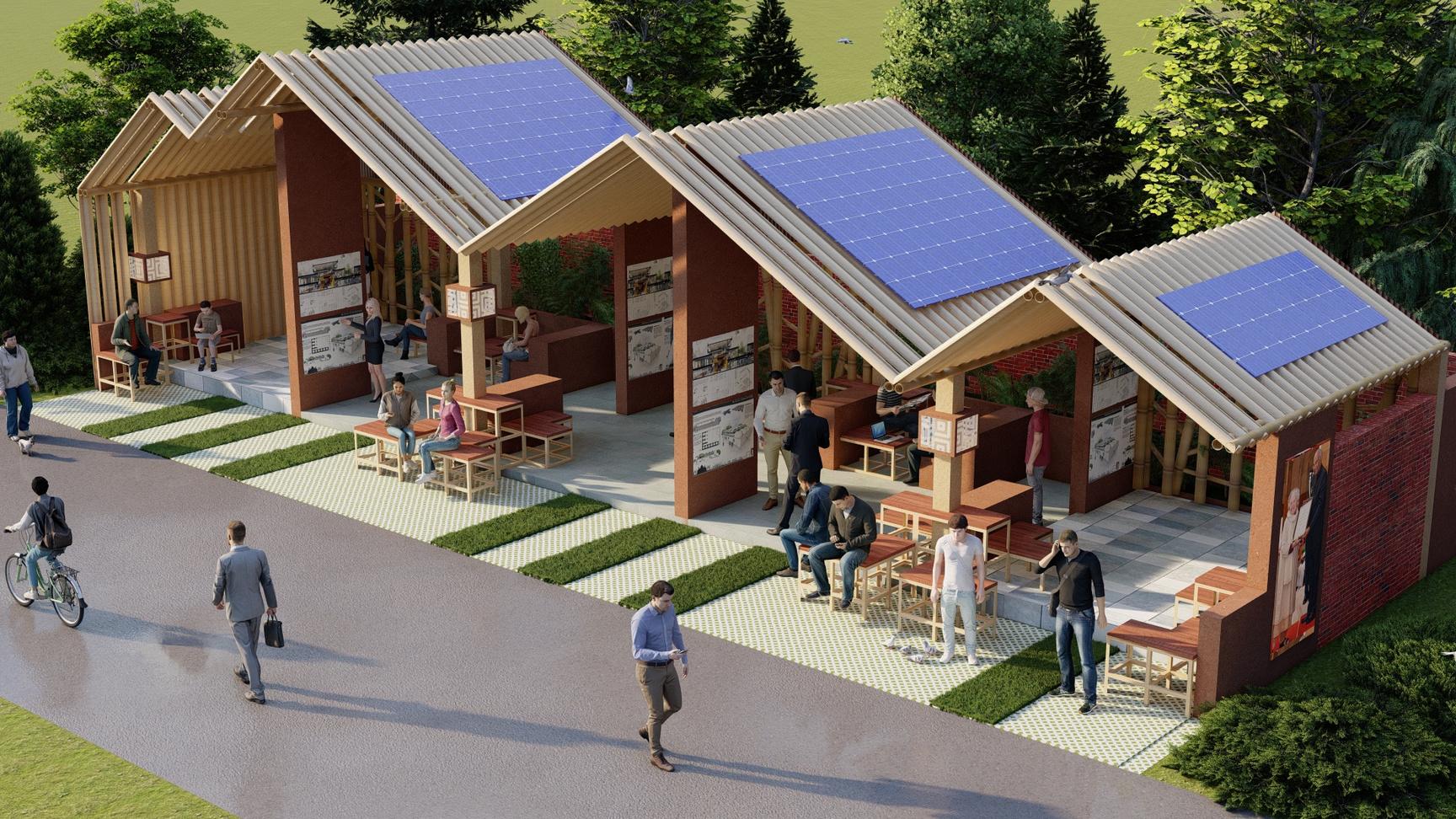

Provision for solar panels and rainwater harvesting has been provided. Roof is sloped at 29 degrees to maximise sun gain and the generated eletricity will be used to charge laptops or equipment through plug points on the columns

Semicovered Bamboo Roof

PLAN Green Space

A

A

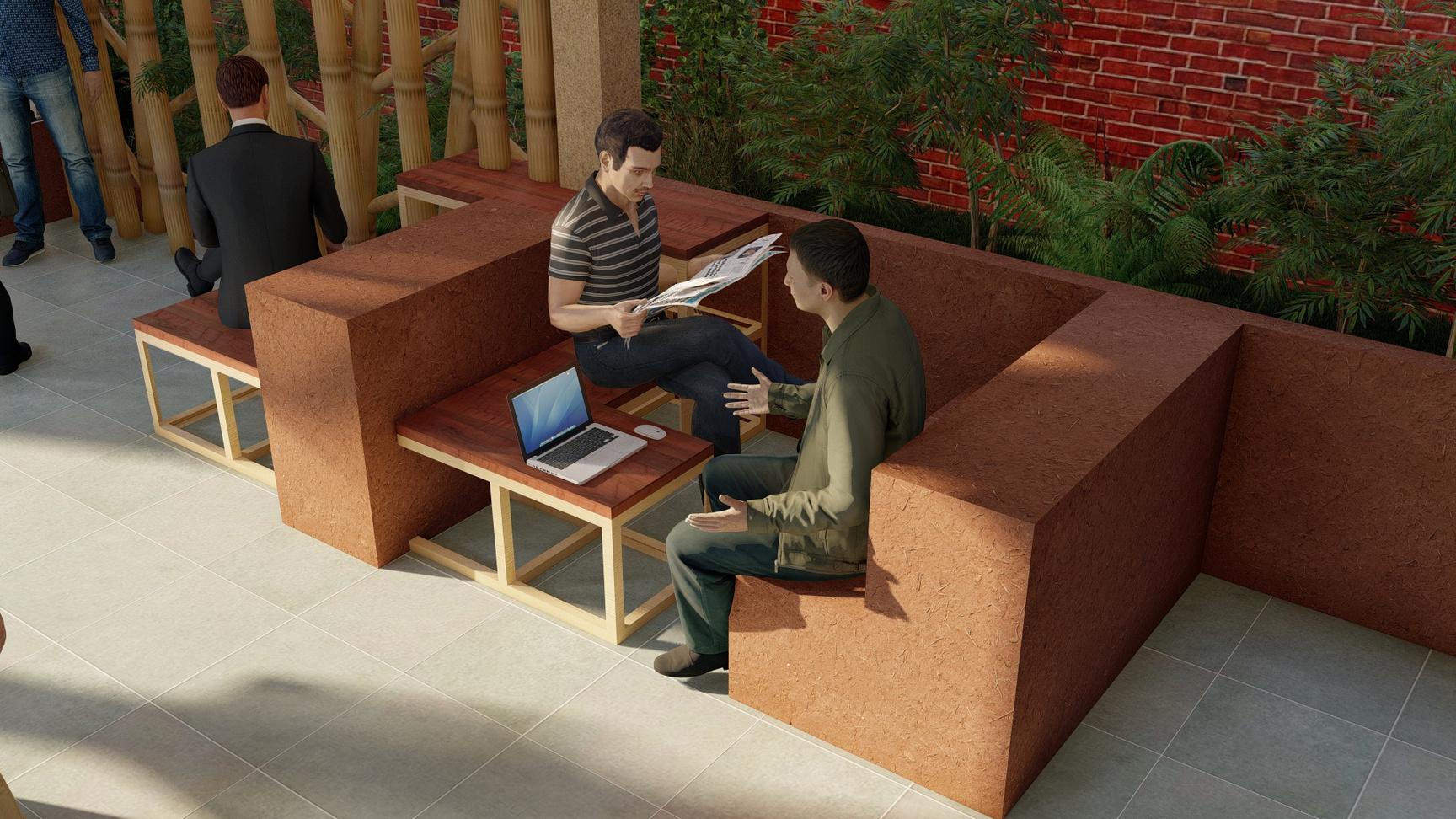

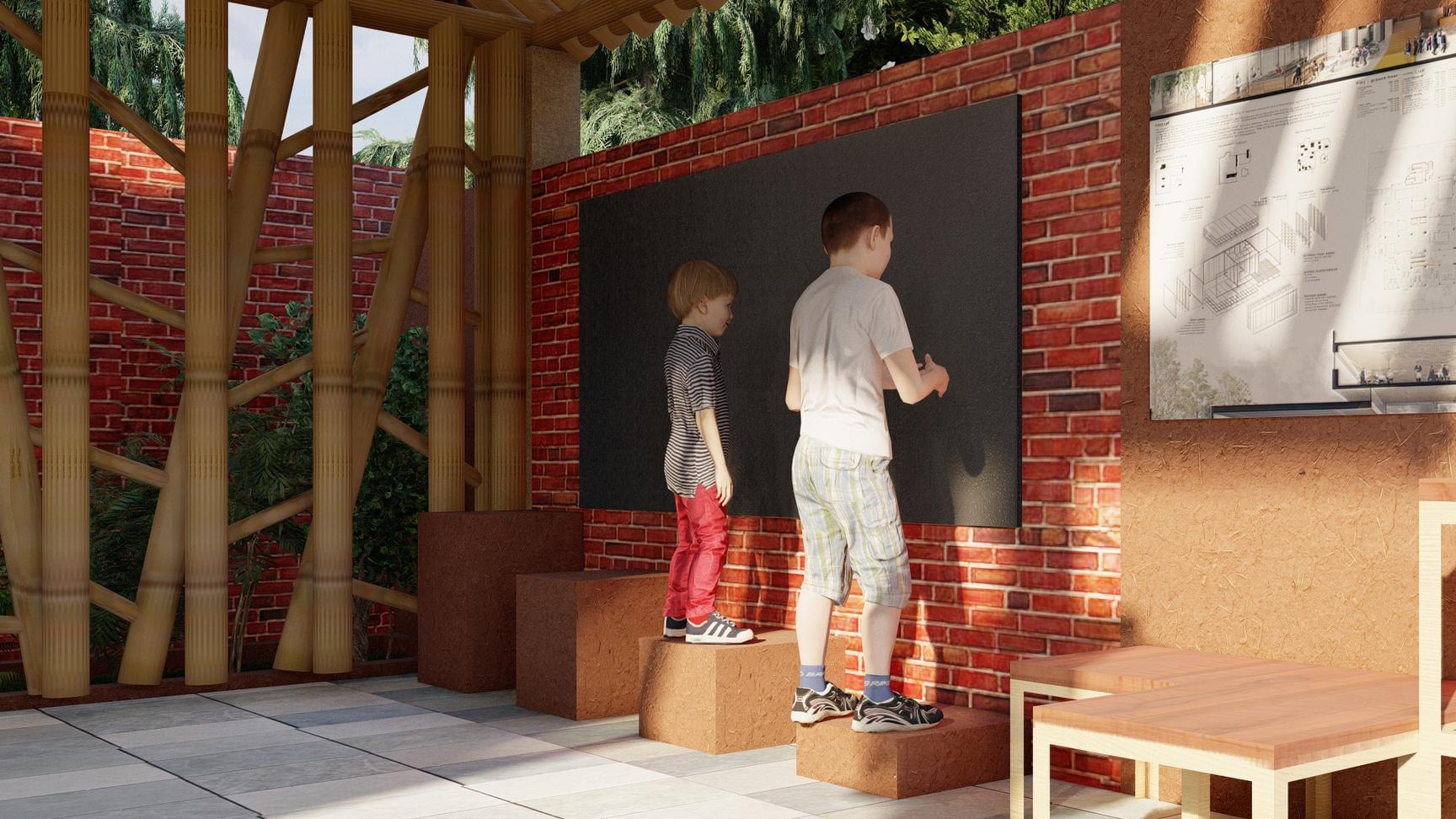

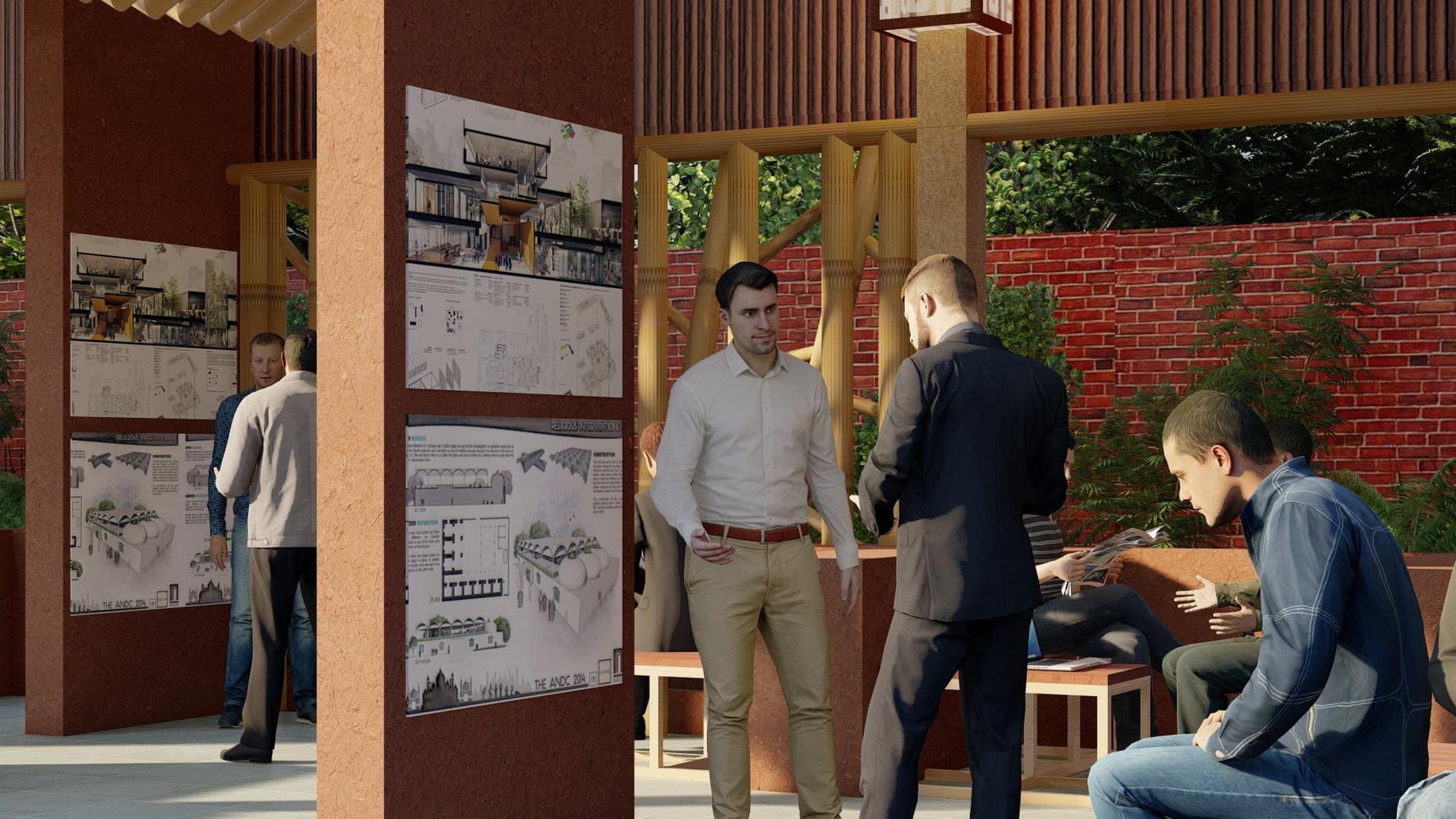

Multipurpose Lounge Blackboard Heighted steps Flyer space Panel Space Semicovered Lounge Semi Permeable Pavement Road

ELEVATIONS

Side Elevation

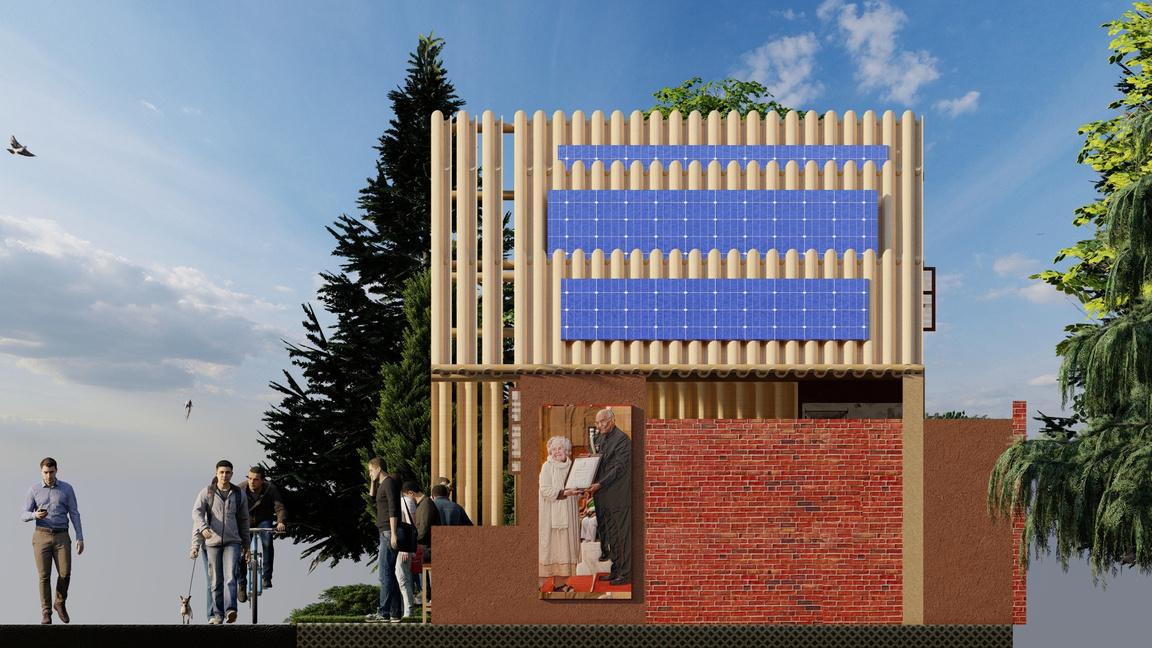

Front Elevation

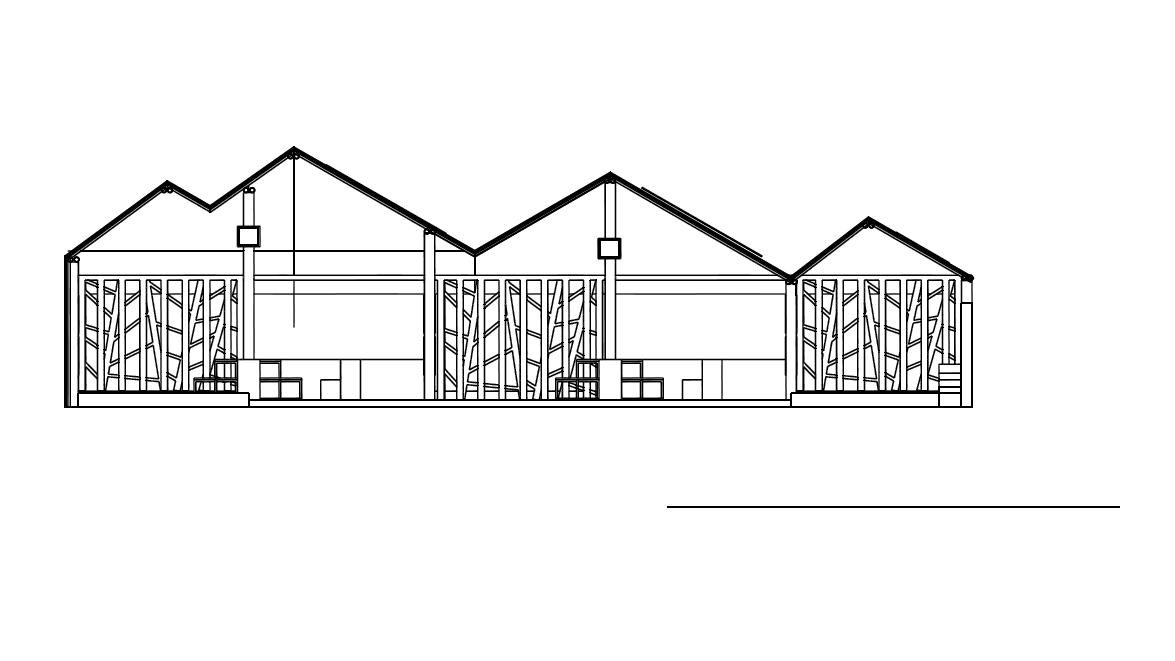

SECTIONS Lvl +5600

Lvl+2500

Lvl +0

Section AA

MATERIALS

Bamboo

Brickwall

Adobe Mud wall

Timber

Stone

Estimation of Materials S.no

Item Description

Unit

Rate

Quantity

Cost

1

Bamboo

sqft

150

1507

2,26,050

2

Brickwall

sqft

145

70

10,150

3

Adobe Mudwall

sqft

125

370

46,250

4

Timber

cuft

375

550

1,95,00

5

Stone

ton

600

105

63,000 5,40,450

7 6 5

4 3 1

2

1. Turf paving 2. Flyer space 3. Model display zone 4. Luminaire 5. Semi-open seating 6. Panel display zone 7. Lounge

CONTRIBUTION Delia Narayan "Didi" Contractor She was the 2017 winner of the Women Artists, Architects and Designers (WADe) Asia Life Time Achievement Award.

In 2019 the president of India gave her the Nari Shakti Puraskar, India's highest civilian award for recognising the achievements and contributions of women She specialised in buildings that fit into, rather than contrast with, the landscape, and are made of natural local materials: mainly mud, bamboo, and stone, with small amounts of deodar wood.

Since our beloved Didi contractor has left us few months back, and we had based our prototype based on her principles and pallete. We would like to conduct the first exhibition about her.

Recieving Nari Shakti Award

PHD 1. SAFIYA M D 2. SOHA M.ARCH 1. ABHINAV KUMAWAT 2. ARCHITA SAHA 3. NIKITA SINGH 4. RAHUL C GUPATHAN

B.ARCHFourth year 1. AASTHA SINHA Third year 1. JANANI RG 2. SHREYES GUPTA 3. SHAIK AMAN 4. KATTA SHEETAL 5. OMESH KUMAVAT 6. PRANJAL NAITHANI First year 1.ANSHIKA ARORA
