SHREYA KATTIMANI
C O N T E N T S
WORKS 01 02 03
04
INTERIOR DESIGN
WORKING DRAWING
01 THESIS

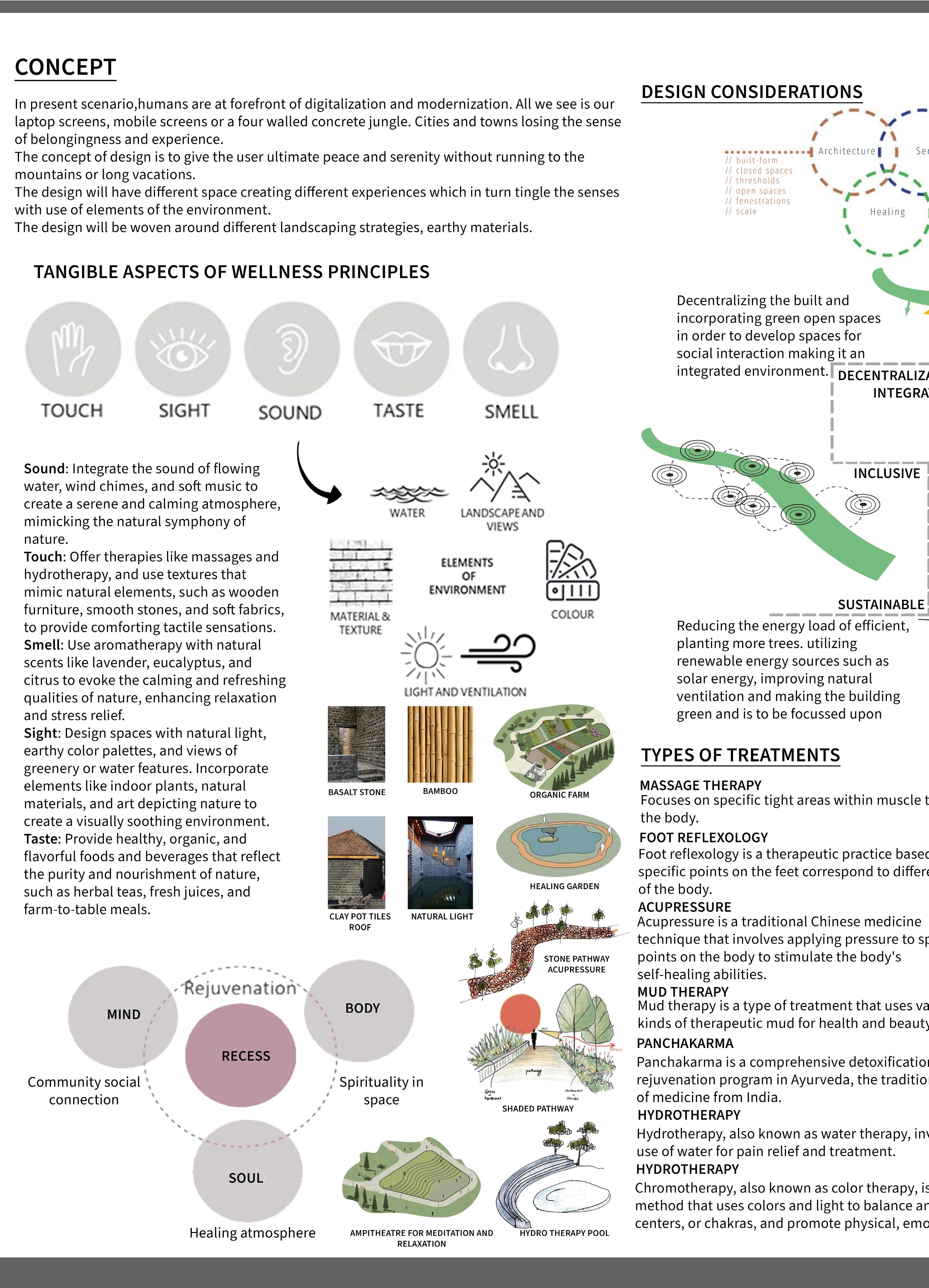

‘RASAYANA’ - THE WELLNESS AND REJUVENATION

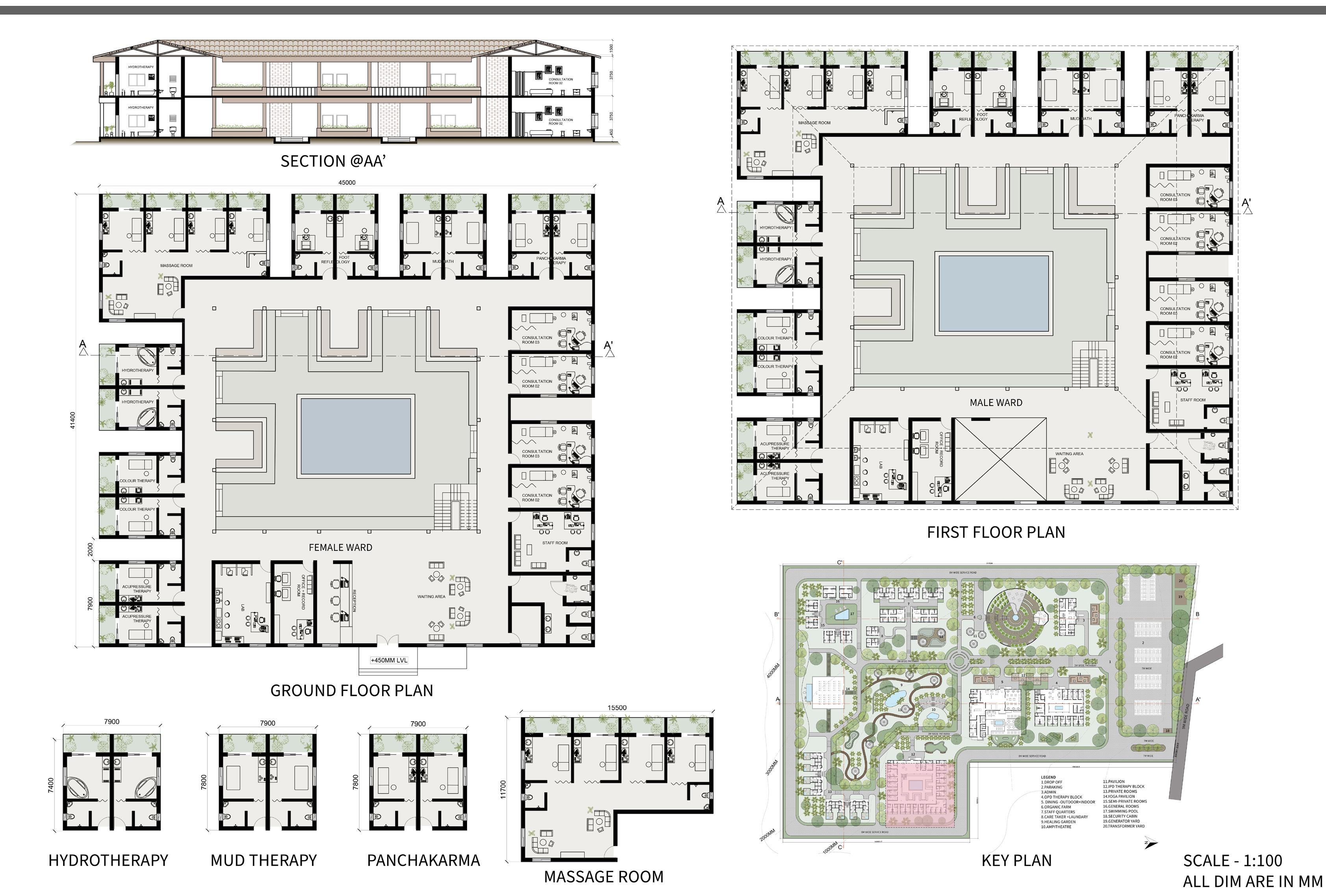

REJUVENATION CENTRE

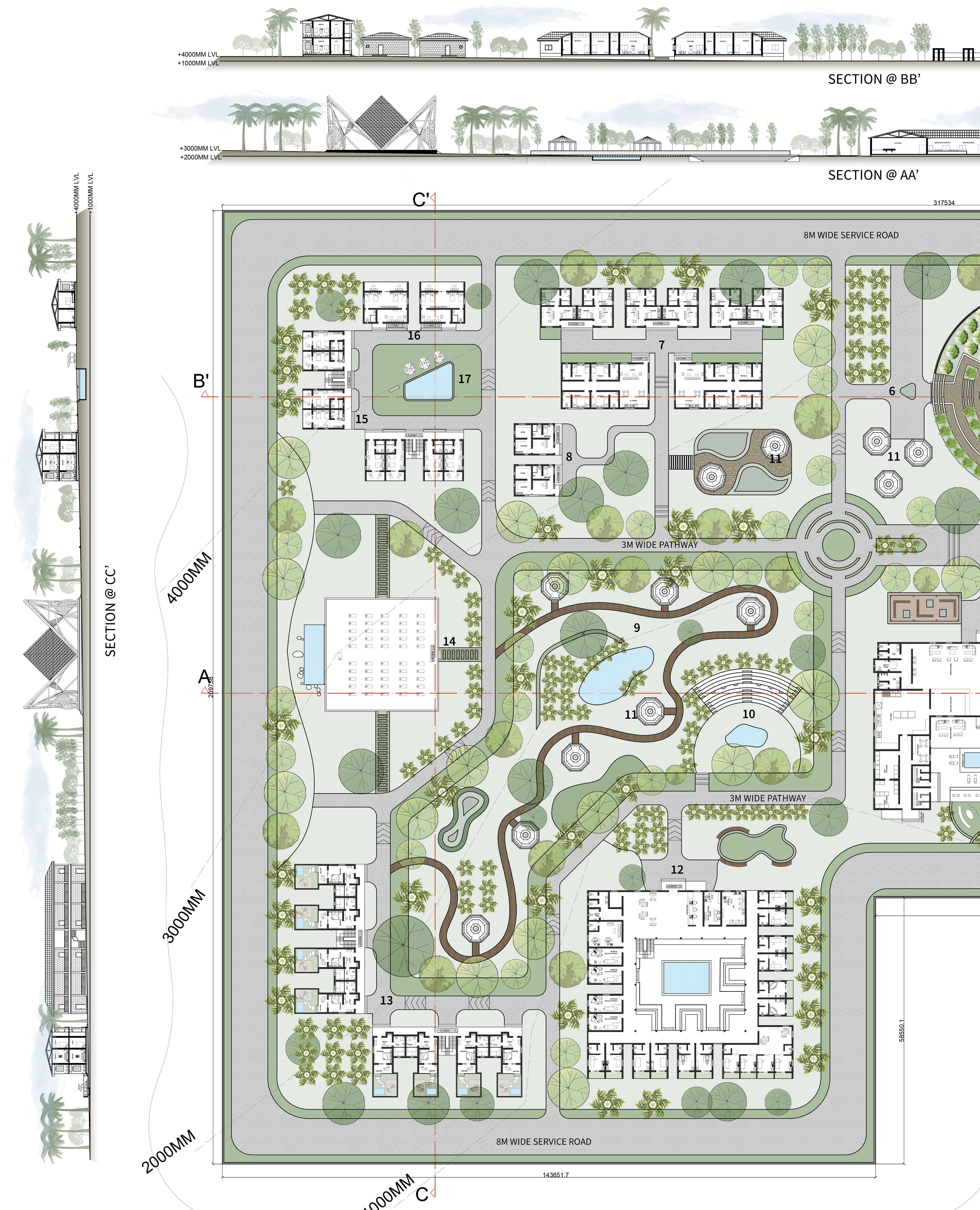

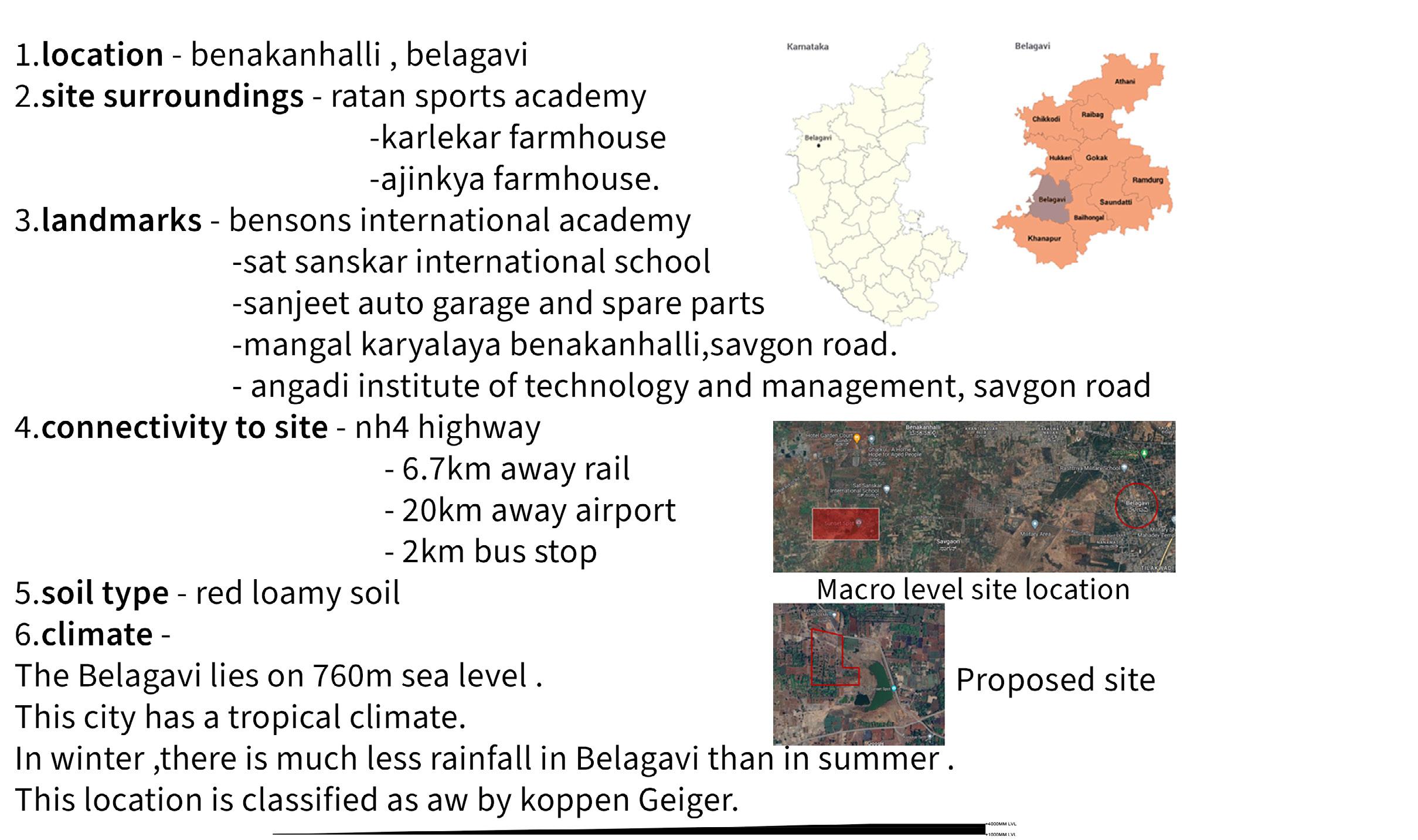

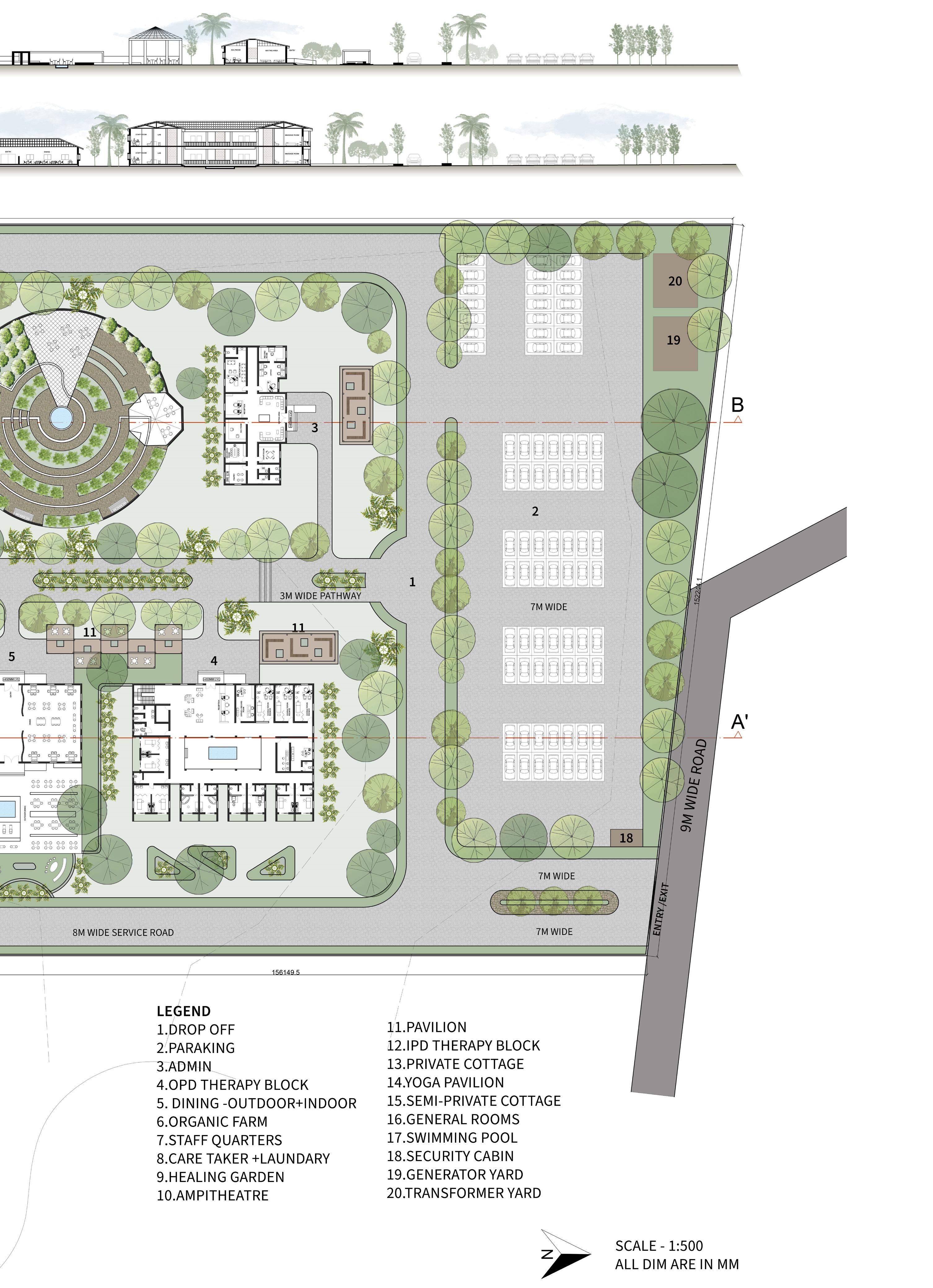

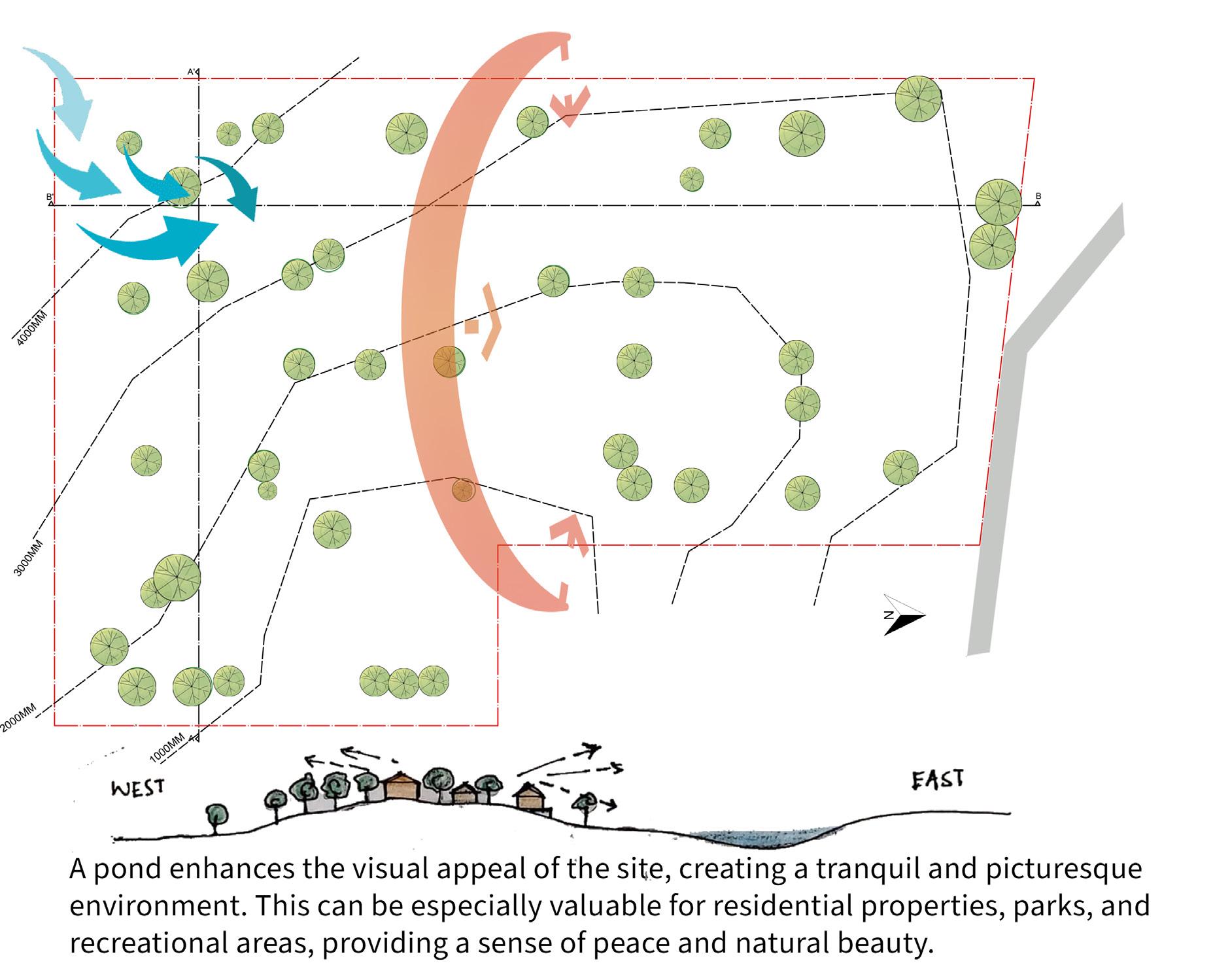

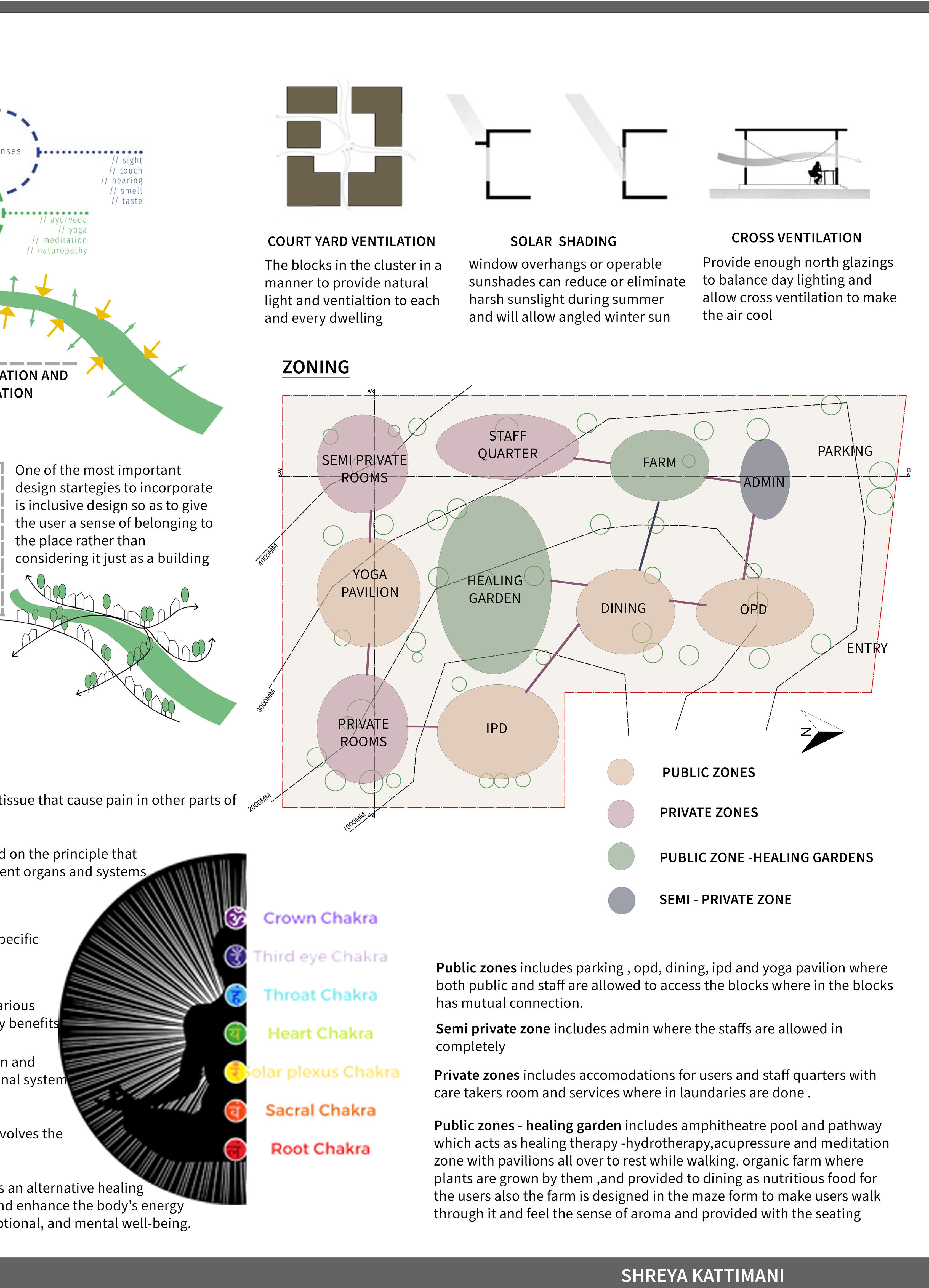

SITE ANALYSIS

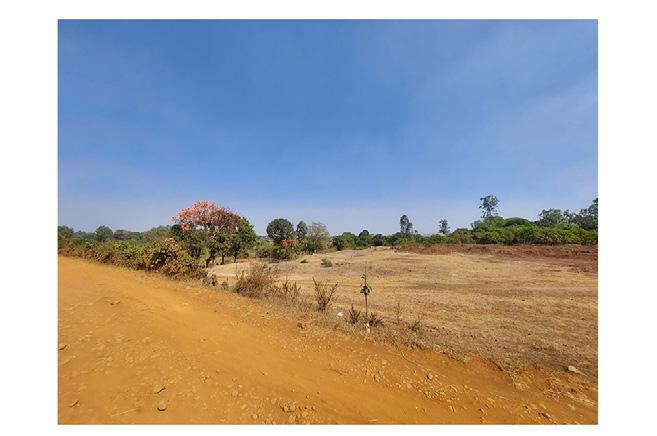

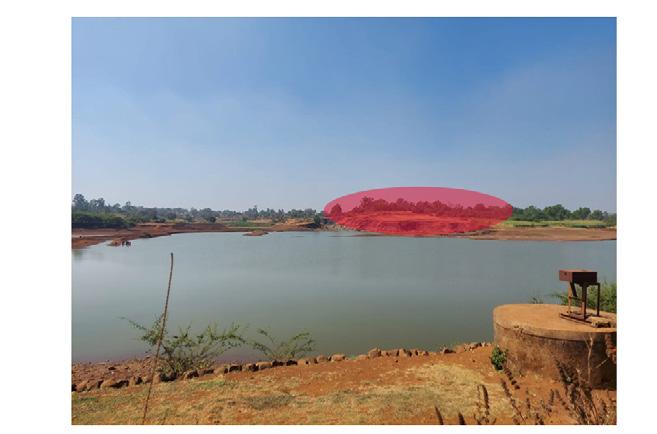

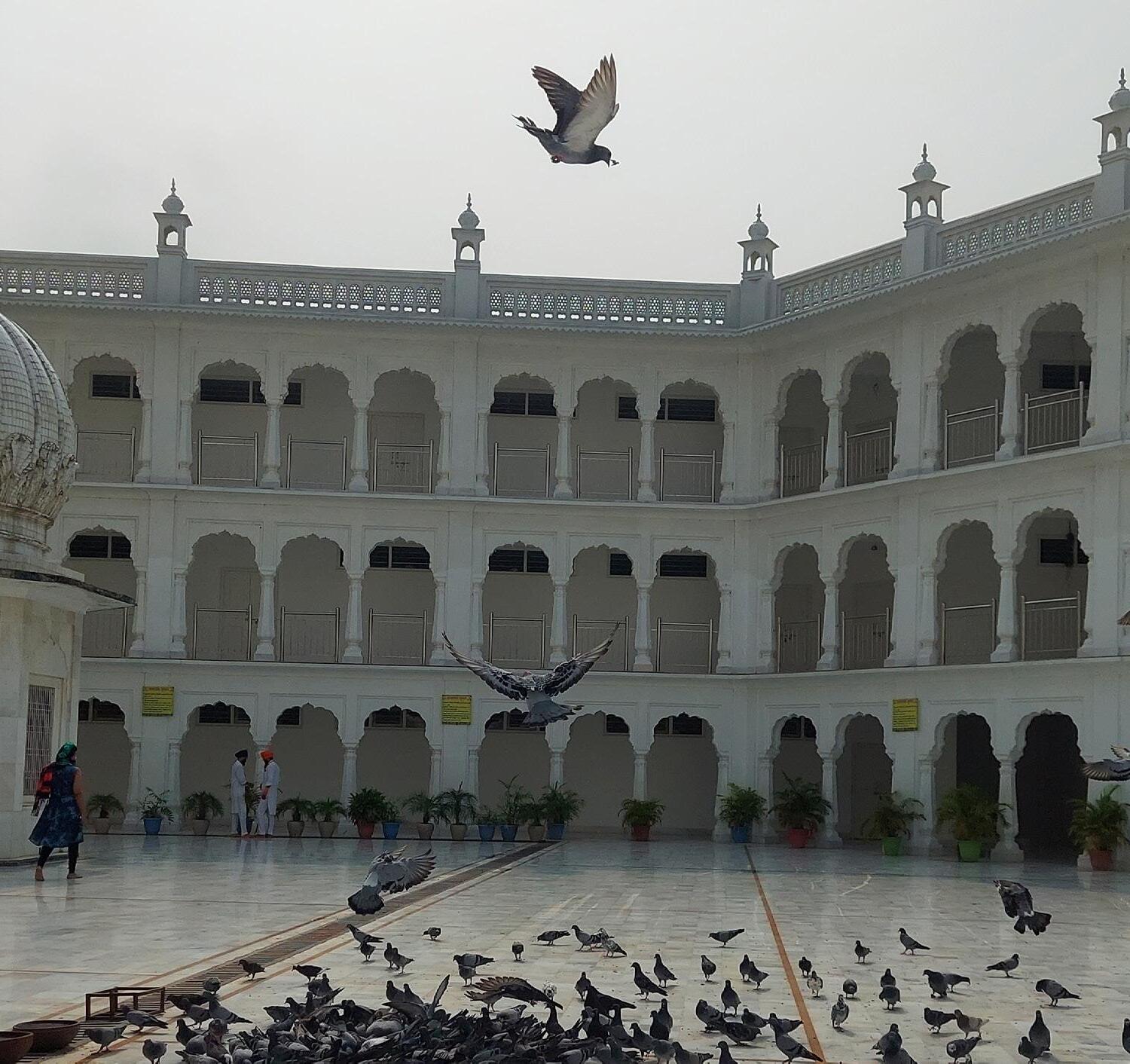

SITE PICTURES

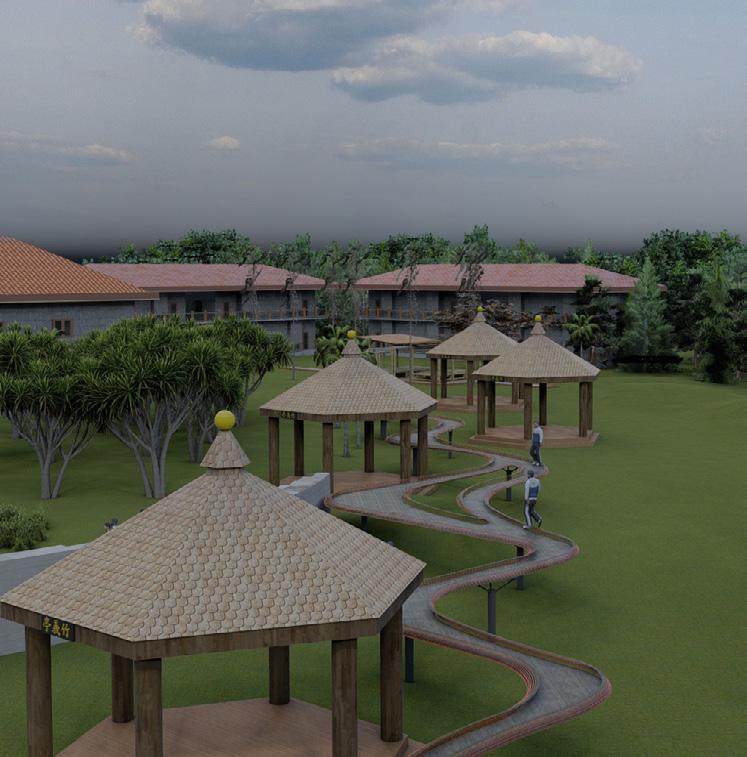

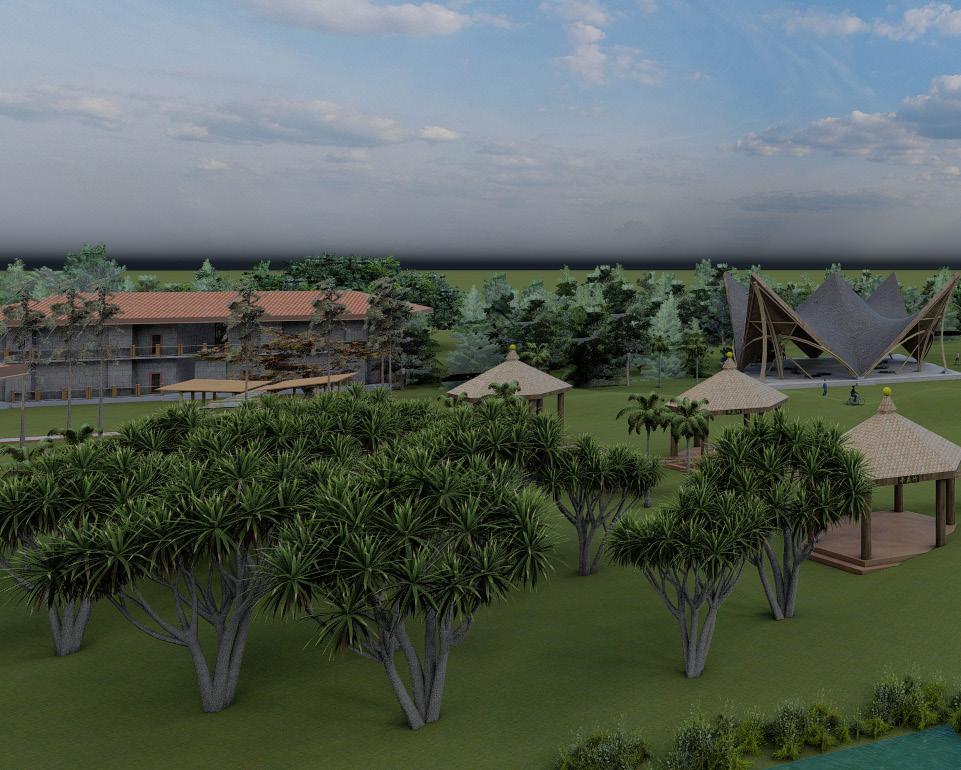

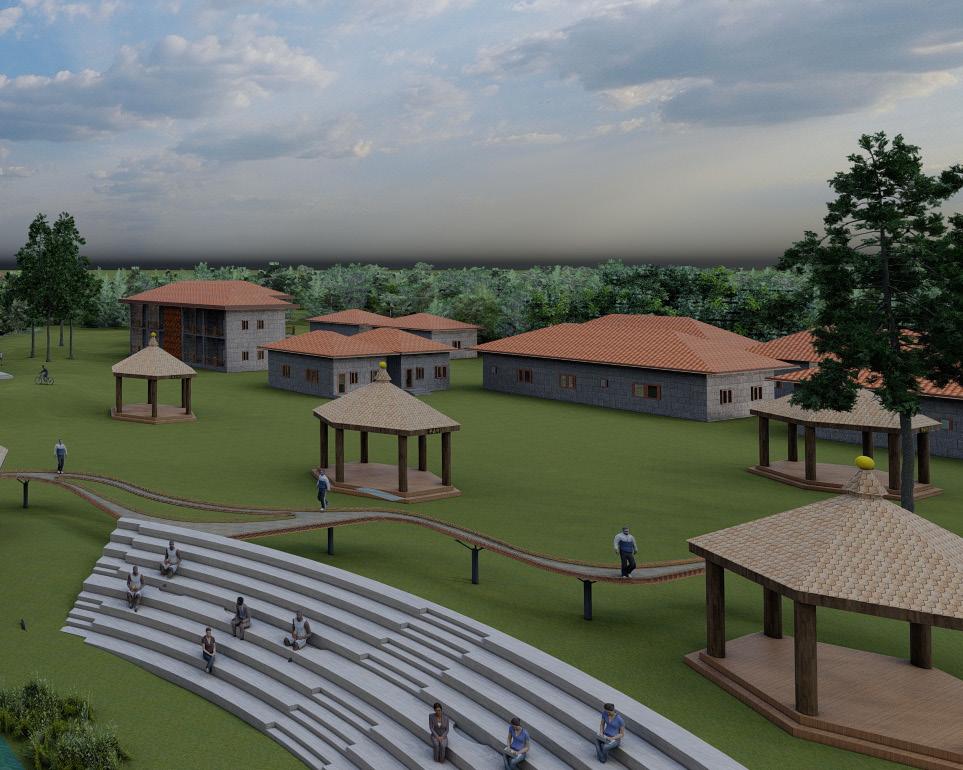

Healing garden

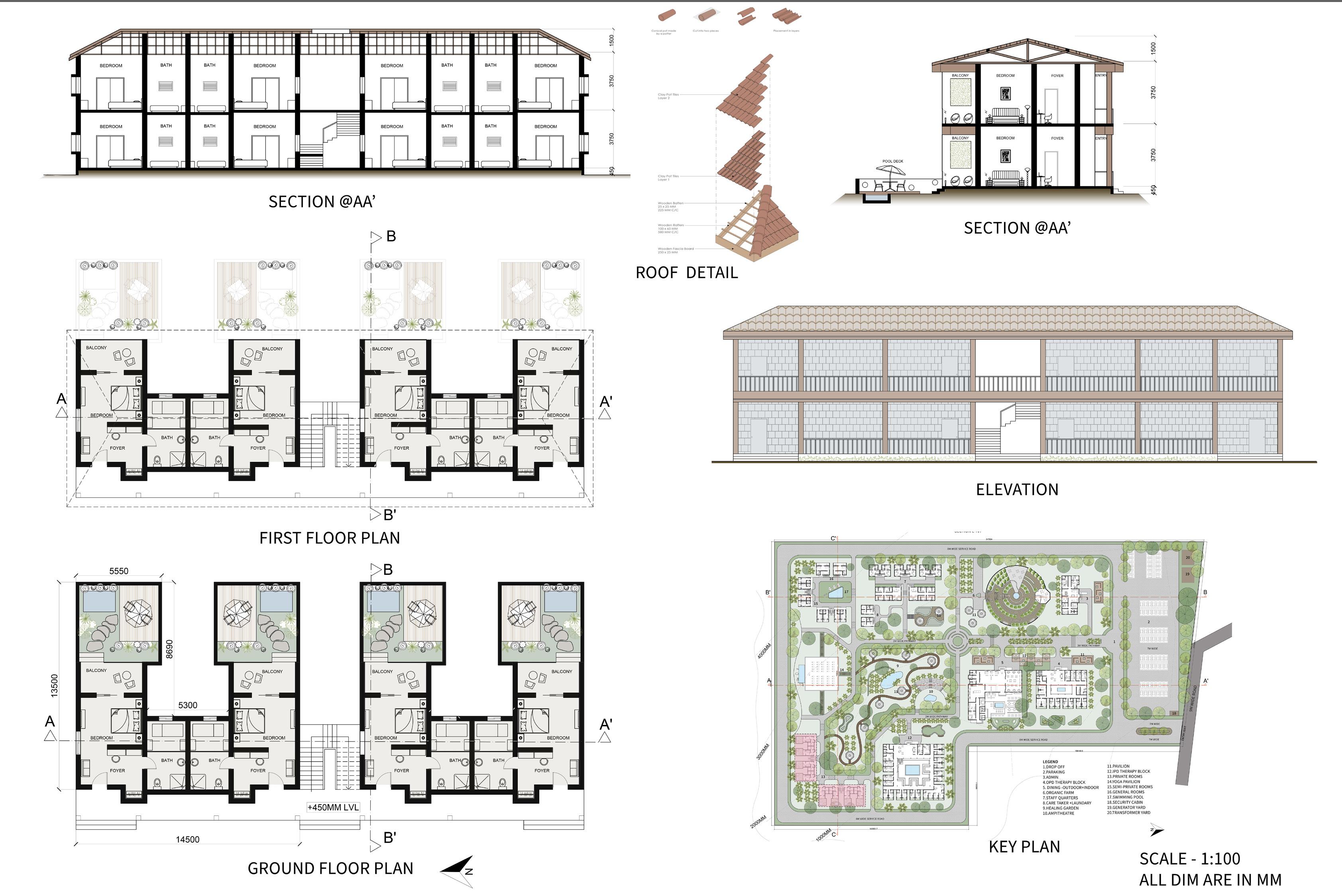

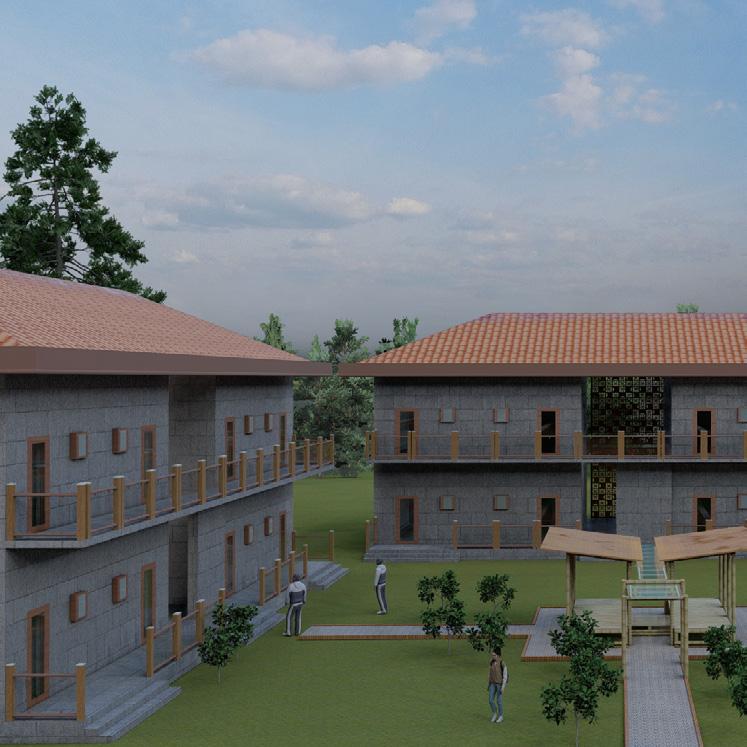

Private rooms

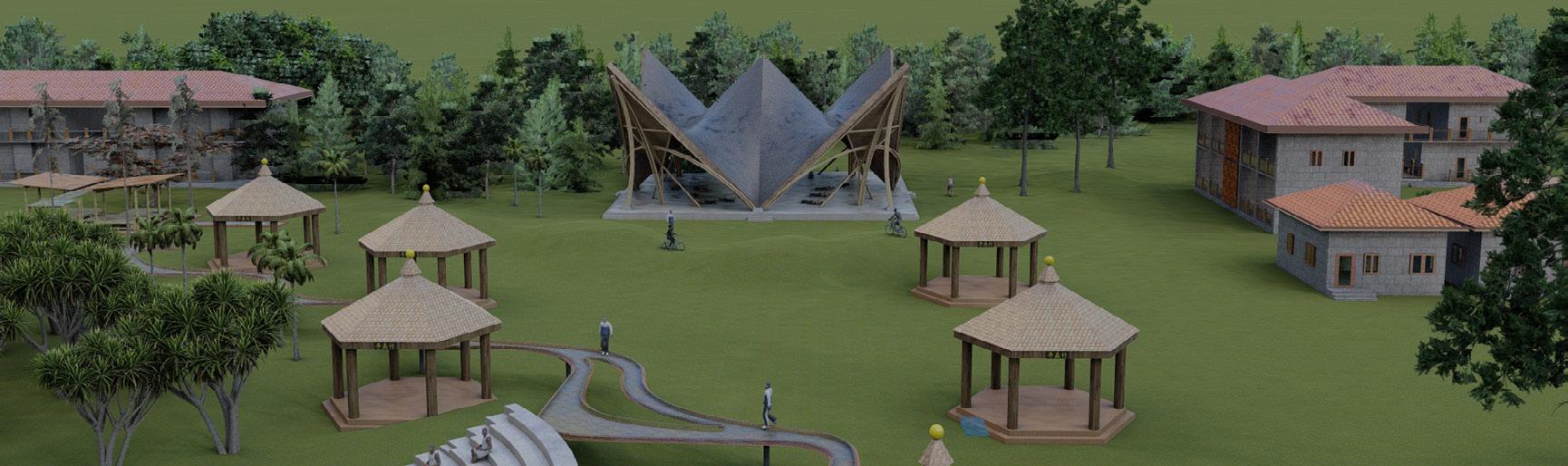

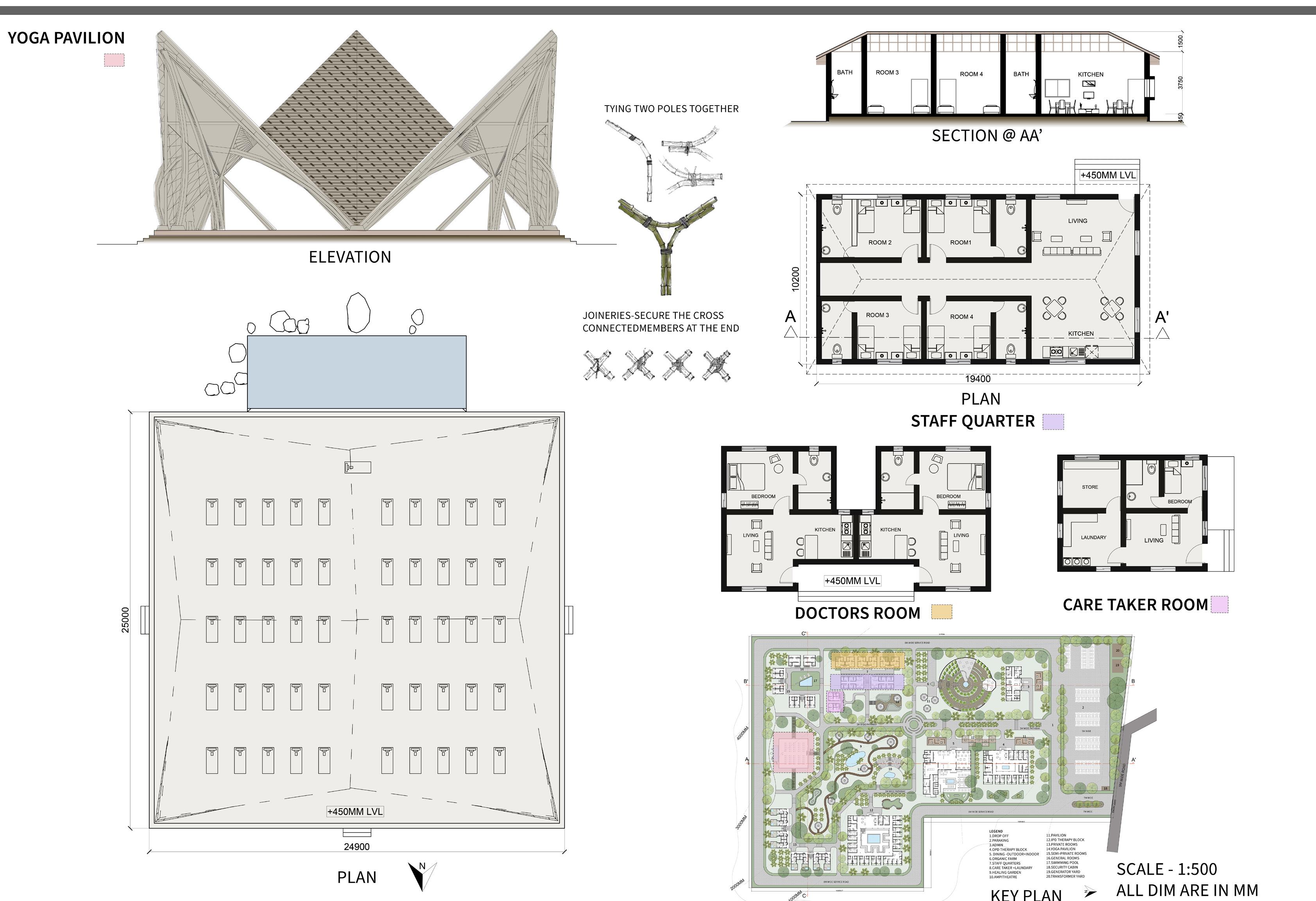

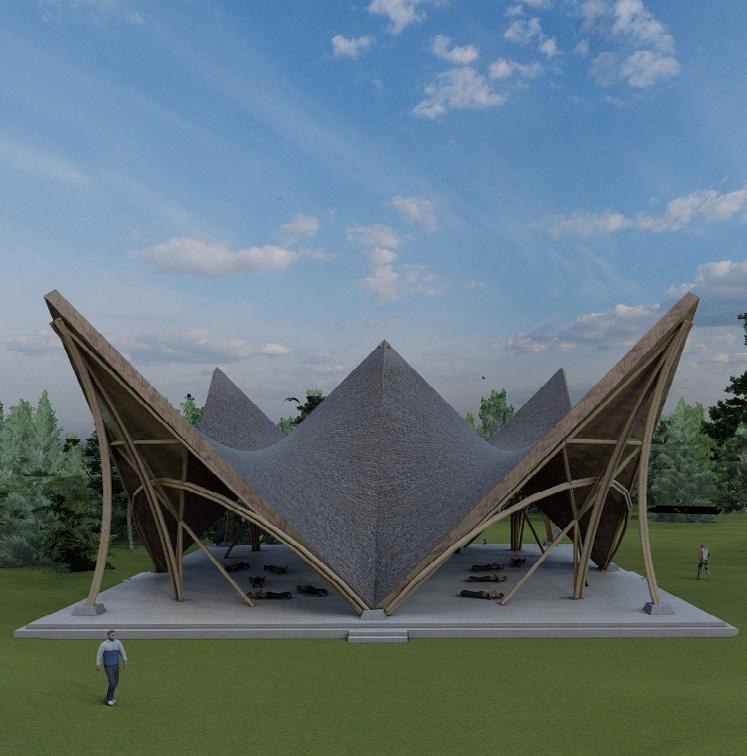

Yoga pavilion

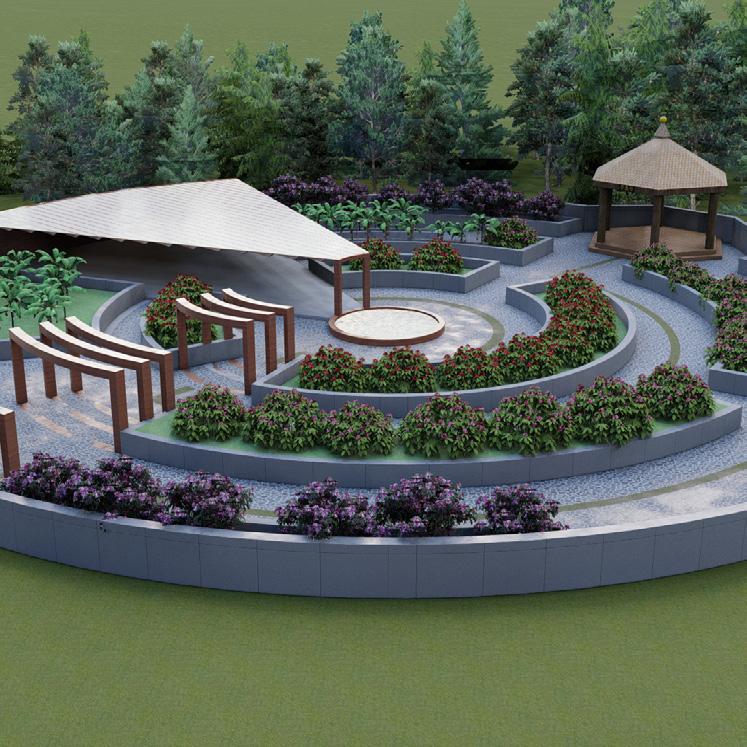

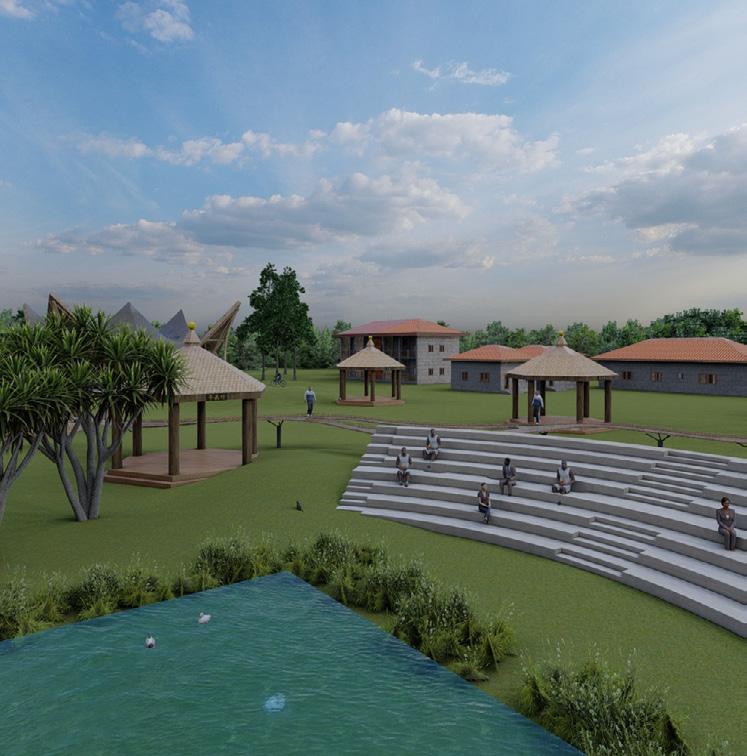

OAT in healing garden

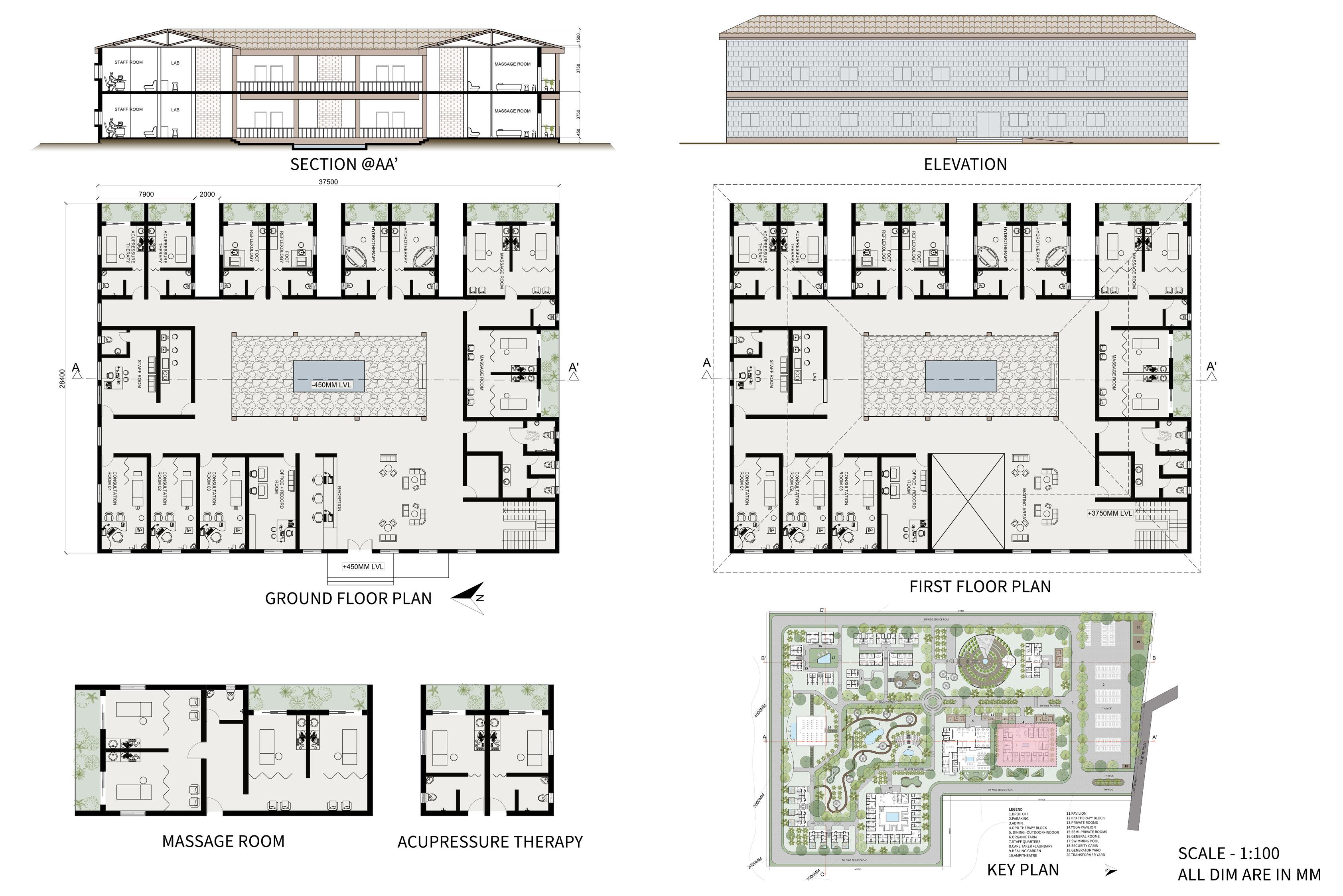

PRIVATE ROOMS
BUILDING CONSTRUCTION MATERIALS 05 INTERNSIP WORKS

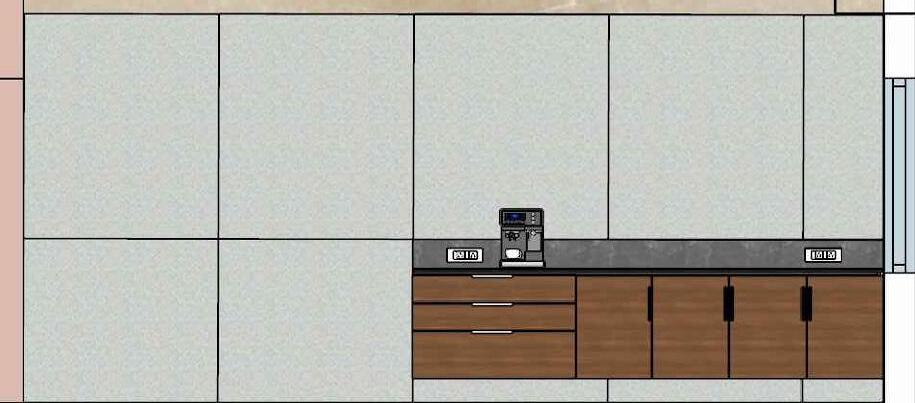

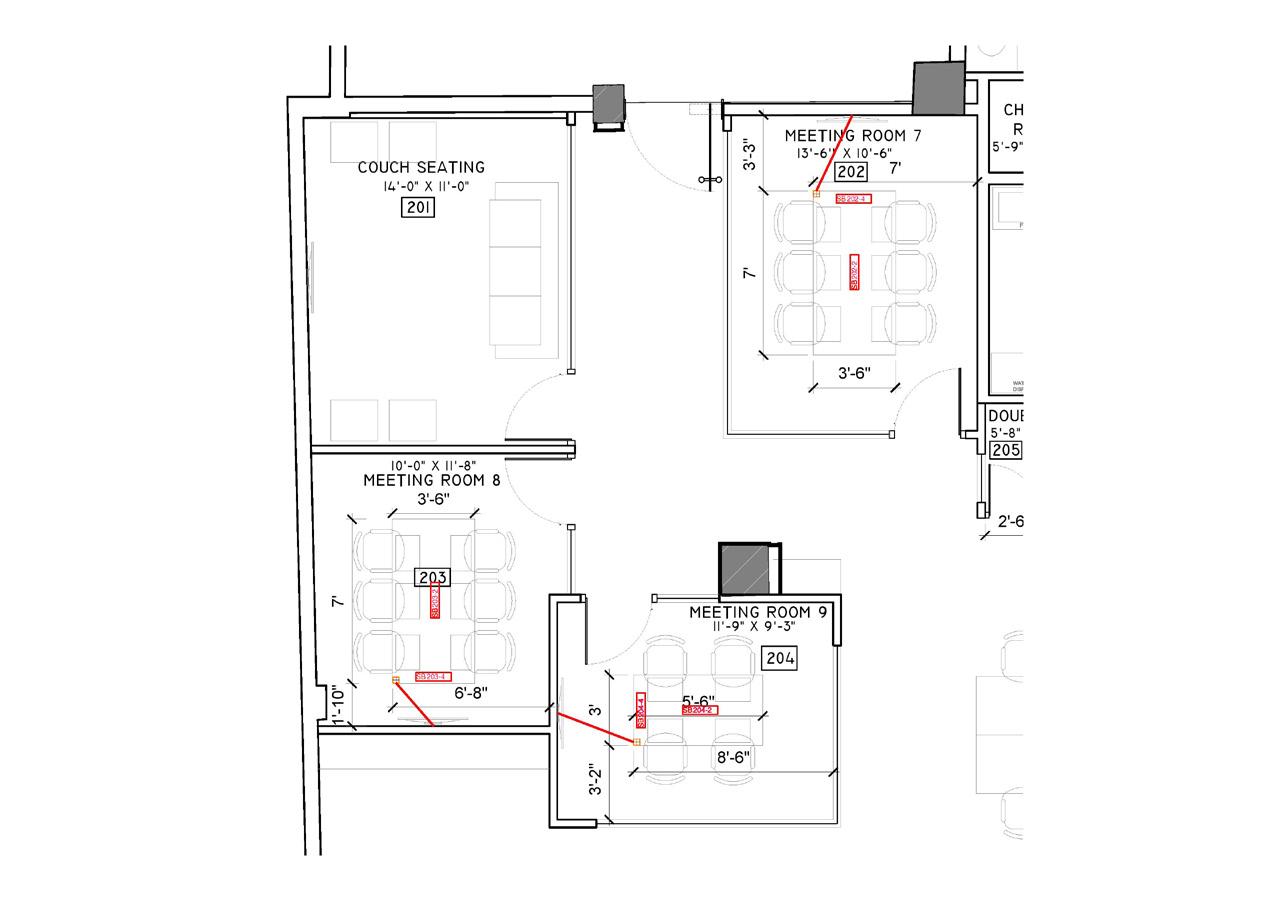

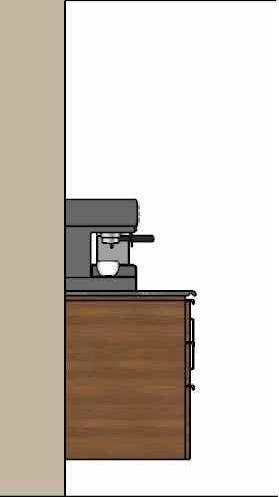

PROJECT TYPE- CORPORATIVE OFFICE

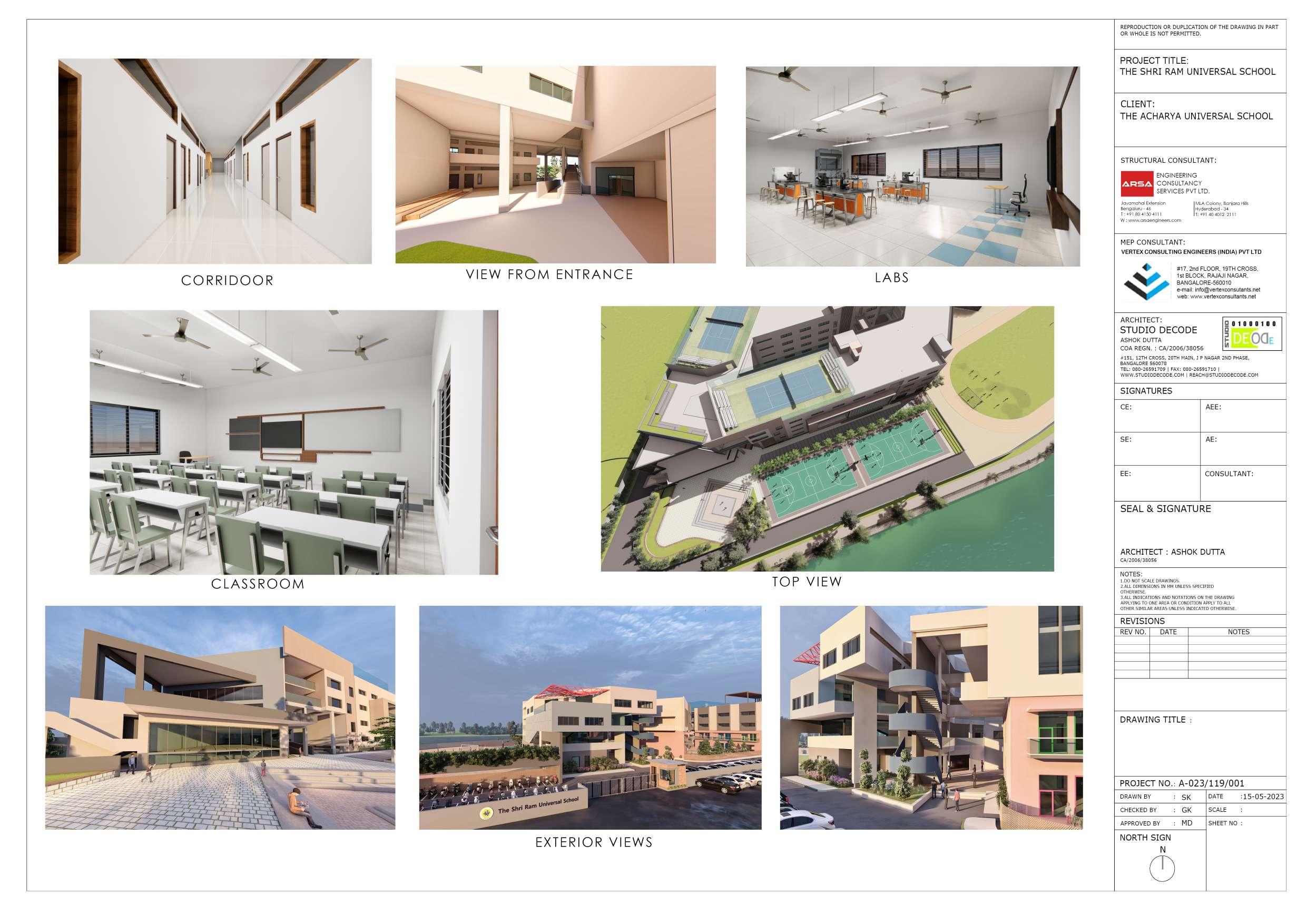

PROJECT TYPE- SCHOOL

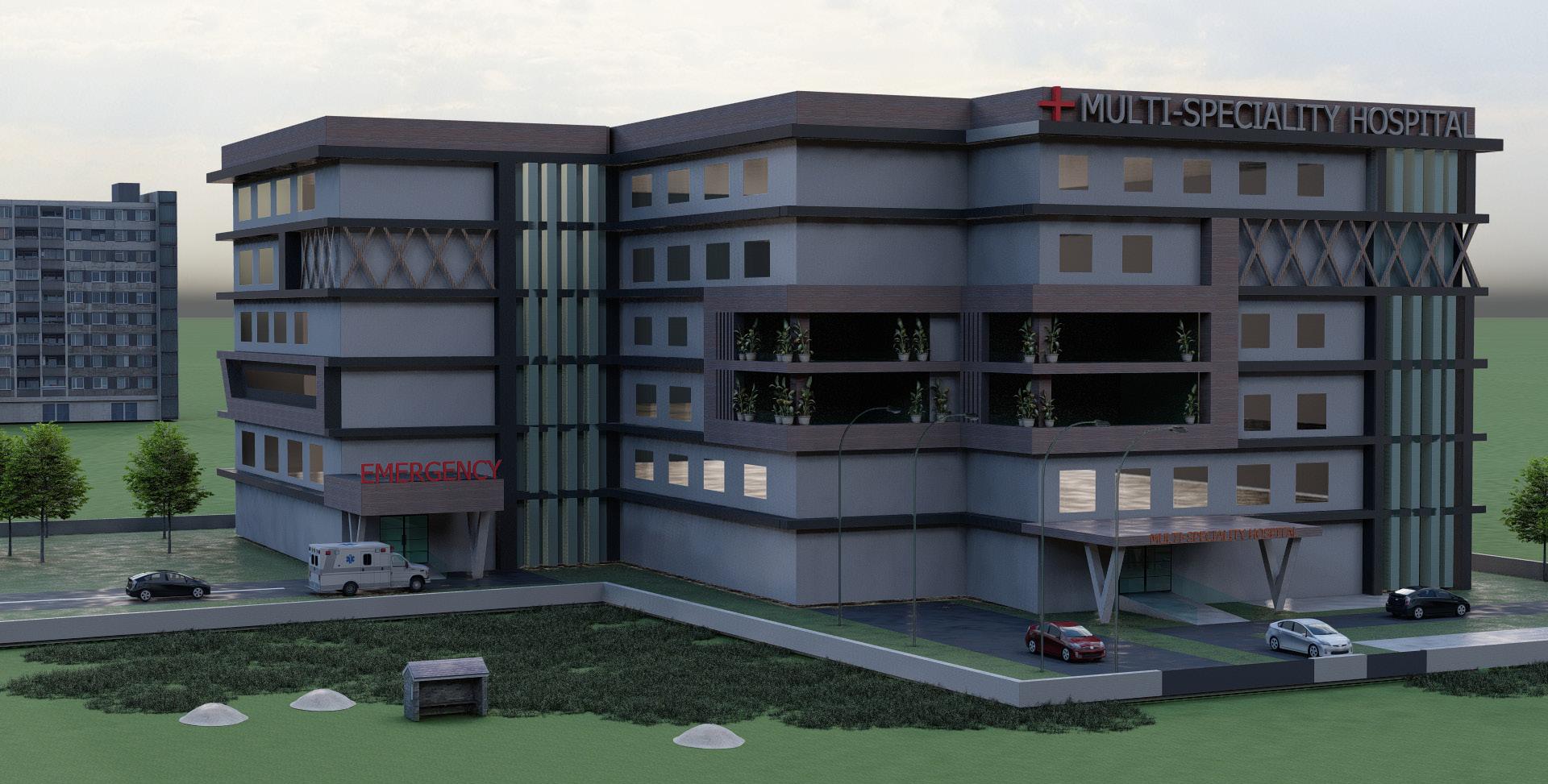

03 MULTI-SPECIALITY HOSPITAL
DESIGN BRIEF
LOCATION : HUBLI,KARNATAKA,INDIA
CLIMATE : TOPICAL WET AND DRY CLIMATE AREA : 1.6 ACRES
DESIGN BRIEF
THE BRIEF IS TO DESIGN A MULTISPECIALITY HOSPITAL AT HUBLI CONSIDERING ALL THE DEPARTMENTS AND SERVICES
THE DESIGN MUST INCLUDE:
1.EMERGENCY AS WELL AS SECONDARY SPECIALITIES WITH,OUT PATIENT DEPARTMENT(OPD),IN PATIENT DEPARTMENT(IPD),OPERATION THEATERS AND LABOUR COMPLEXES.
2.THE DESIGN IS ON A LAND FACING TWO EMINENT 18M WIDE AND 9M WIDE ROAD ON ITS SOUTH AND WEST.
3.THE SITE IS ALSO SHARED WITH A RESTAURANT BESIDE AND IS CONTOURED T HEIGHT OF 4.00M IN THE NORTH AND 0.00M IN THE SOUTH
4.THE CHALLENGE IS TO DESIGN A FLEXIBLE HOSPITAL TO SUIT ITS NEED CONSIDERING SERVICES AND THE SPATIAL REQUIREMENTS RIGIDITY.
5.THE PROJECT GIVEN WAS TO DESIGN A 150 BEDDED MULTISPECIALITY HOSPITAL.

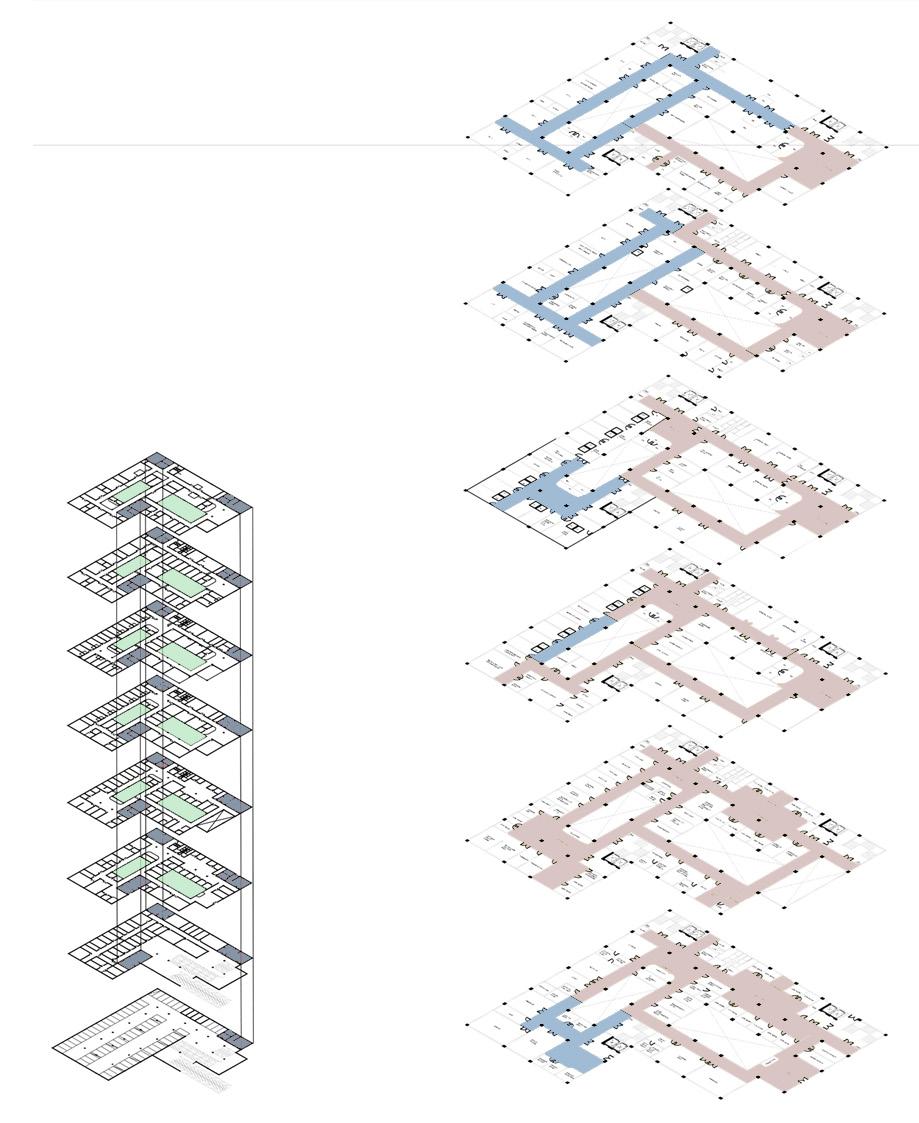

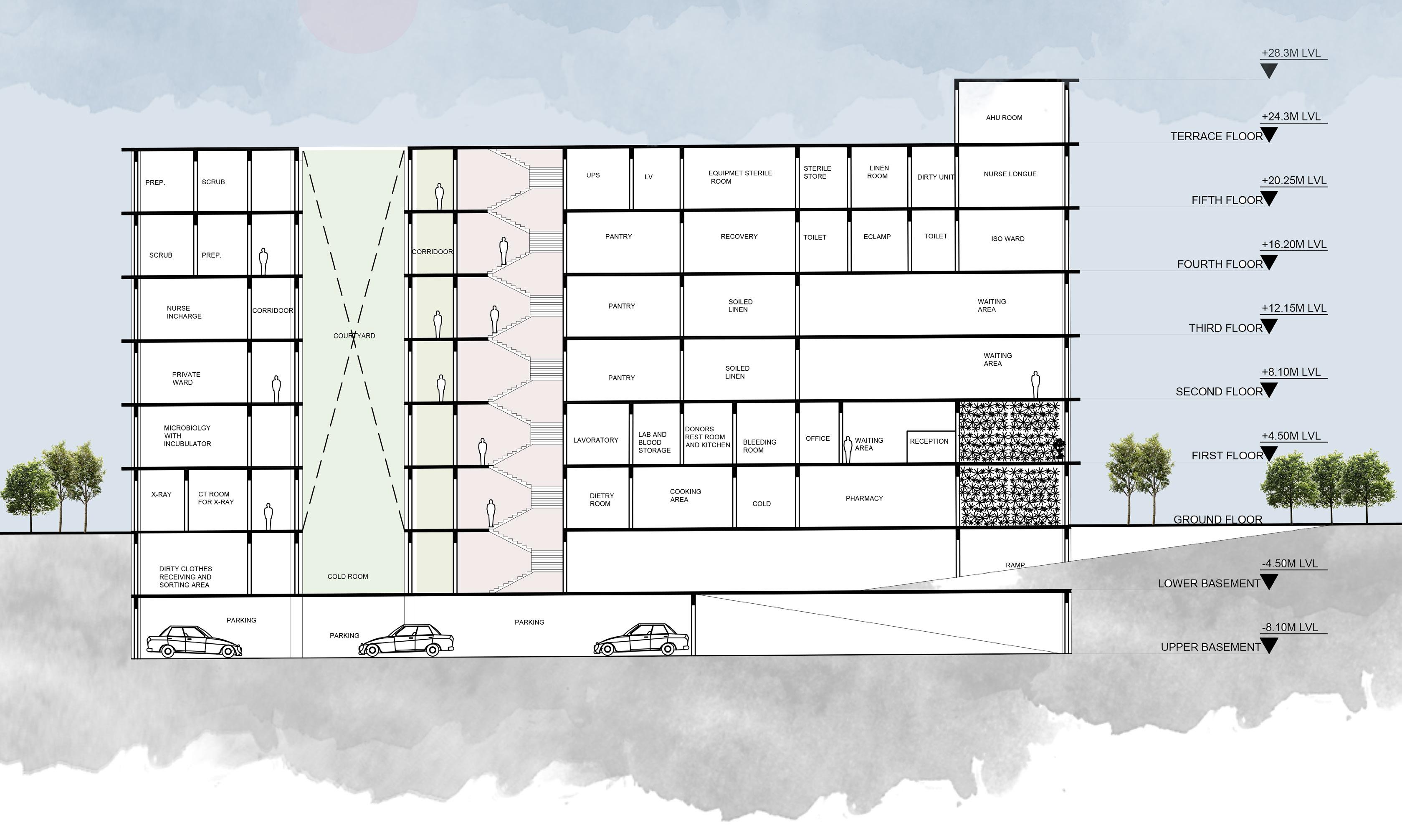

VERTICAL CIRCULATION
VERTICAL CORE
1.VISITORS CORE
2.STAFF CORE
3.EMERGENCY ,SERVICE CORE
HORIZONTAL CIRCULATION
-MINIMUM OF CORRIDOORS TO BE PROVIDED IS 2400MM WHERE THE MOVEMENT OF STRETCHER OCCURS -WIDTH OF THE CORRIDOORS WHERE -THERE IS NO MOVEMENT OF STRETCHERS SHOULD NOT BE LESS THAN 1800MM.
1.TWO CORTYARD SPACE VERTICALLY CONNECTED TO ALL THE FLOORS
2.TWO FIRE TOWER CORES
3.GF- OPD,RADIOLOGY,EMERGENCY

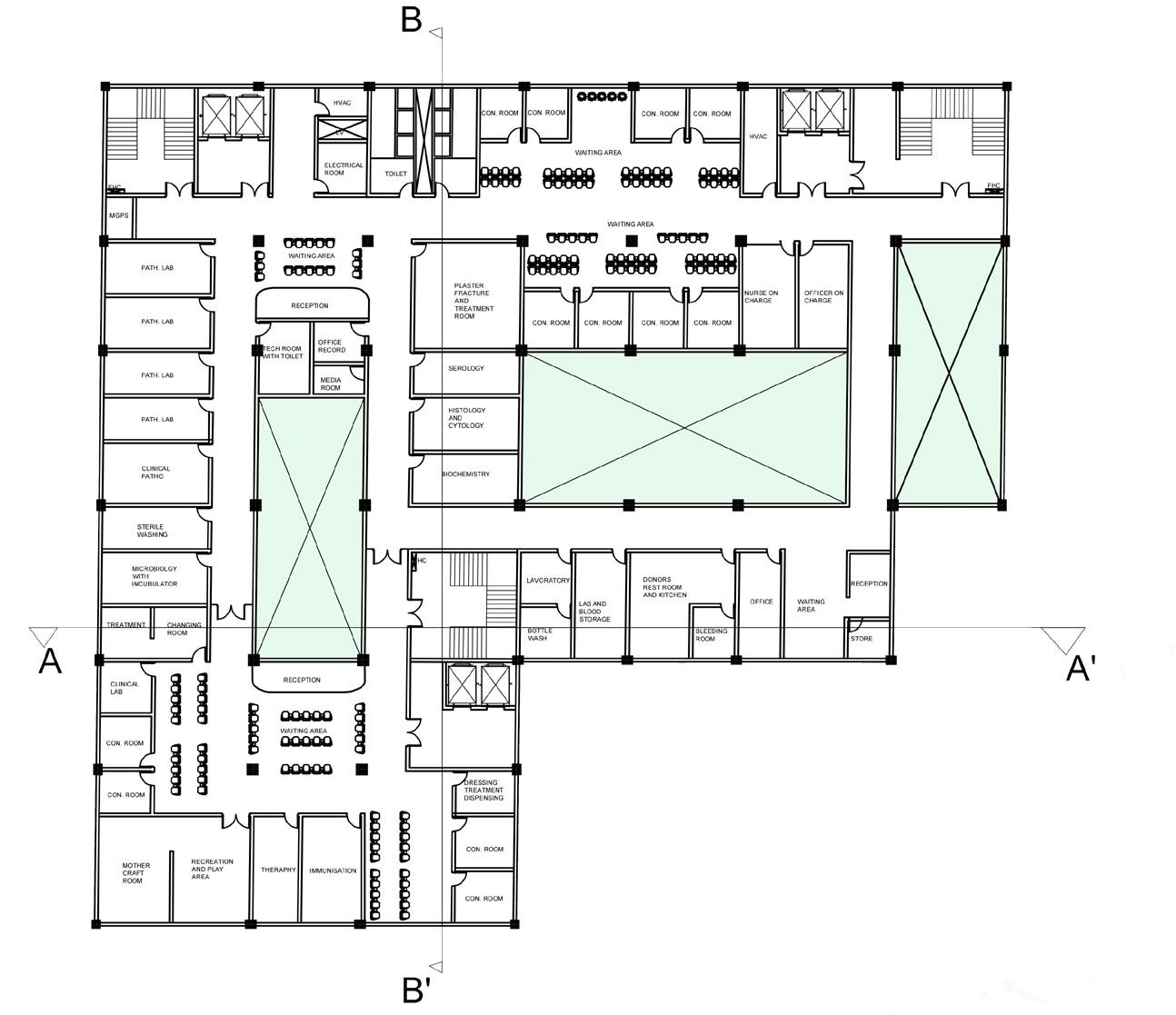

4.FF- OPD,PATHOLOGY,BLOOD BANK
5.SF- GENERAL WARD , PRIVATE WARD, SEMI PRIVATE WARDS, ADMIN
6.TF- GENERAL WARD, PRIVATE WARD, SEMI PRIVATE WARDS

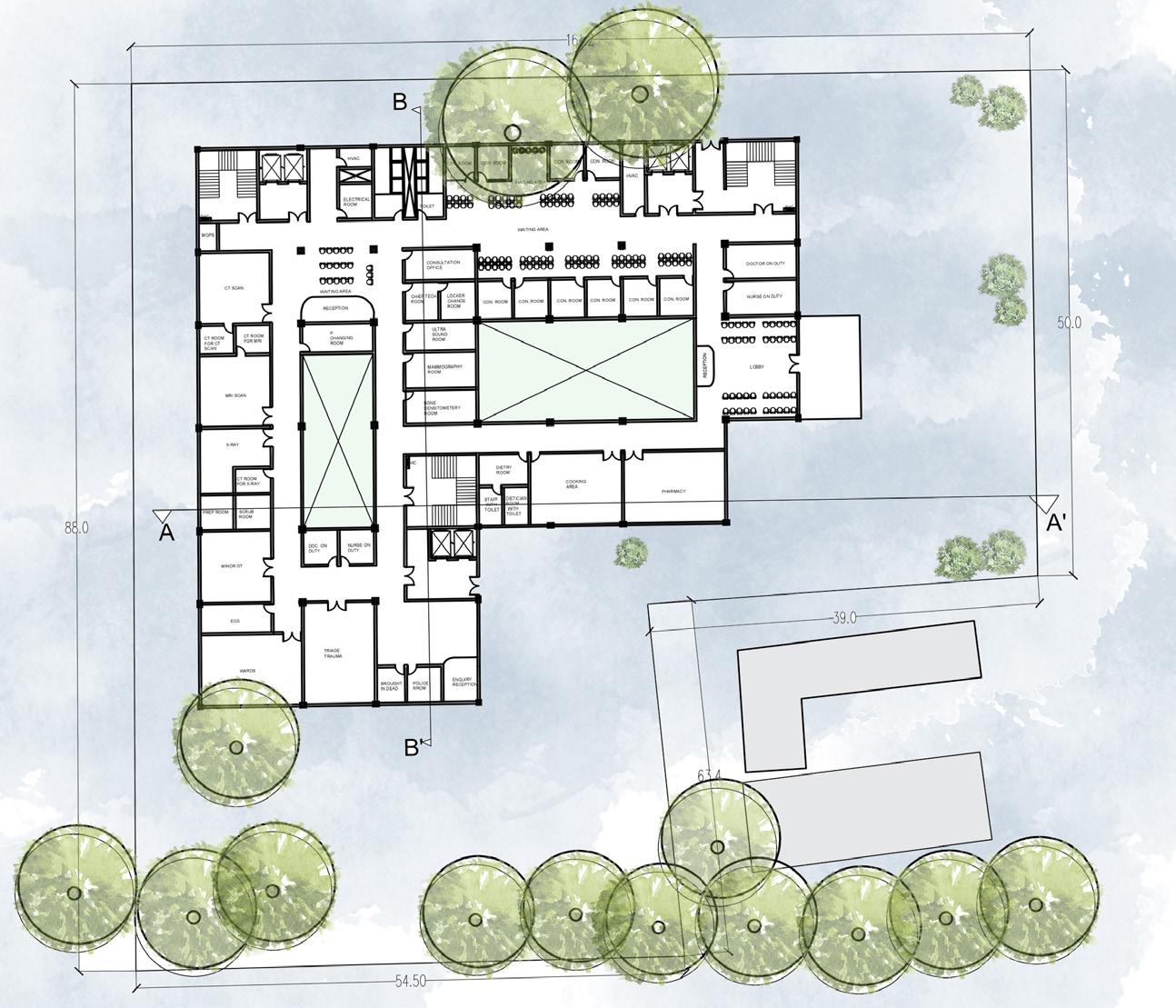

7.FF- LABOUR SUITE SITE PLAN

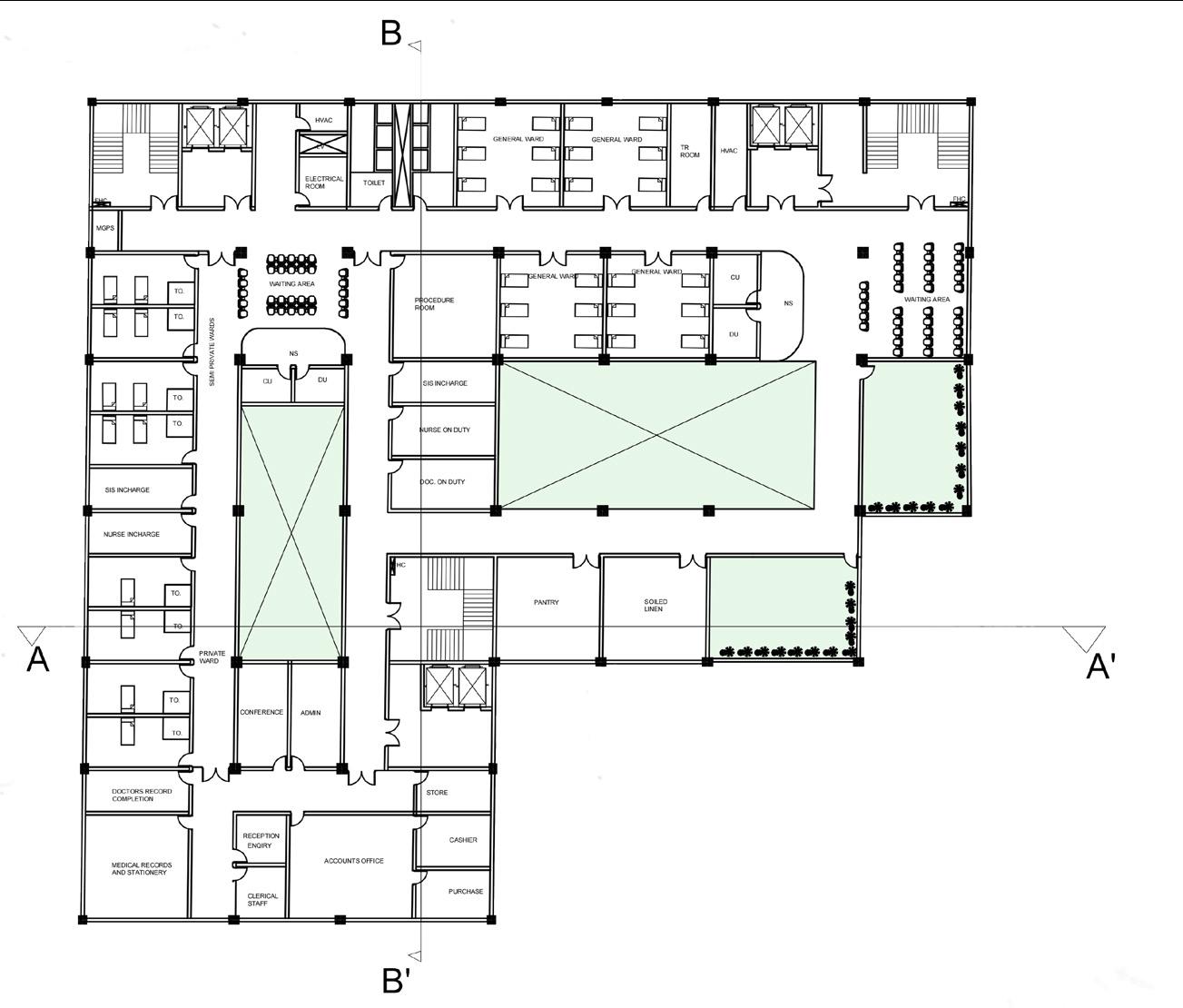

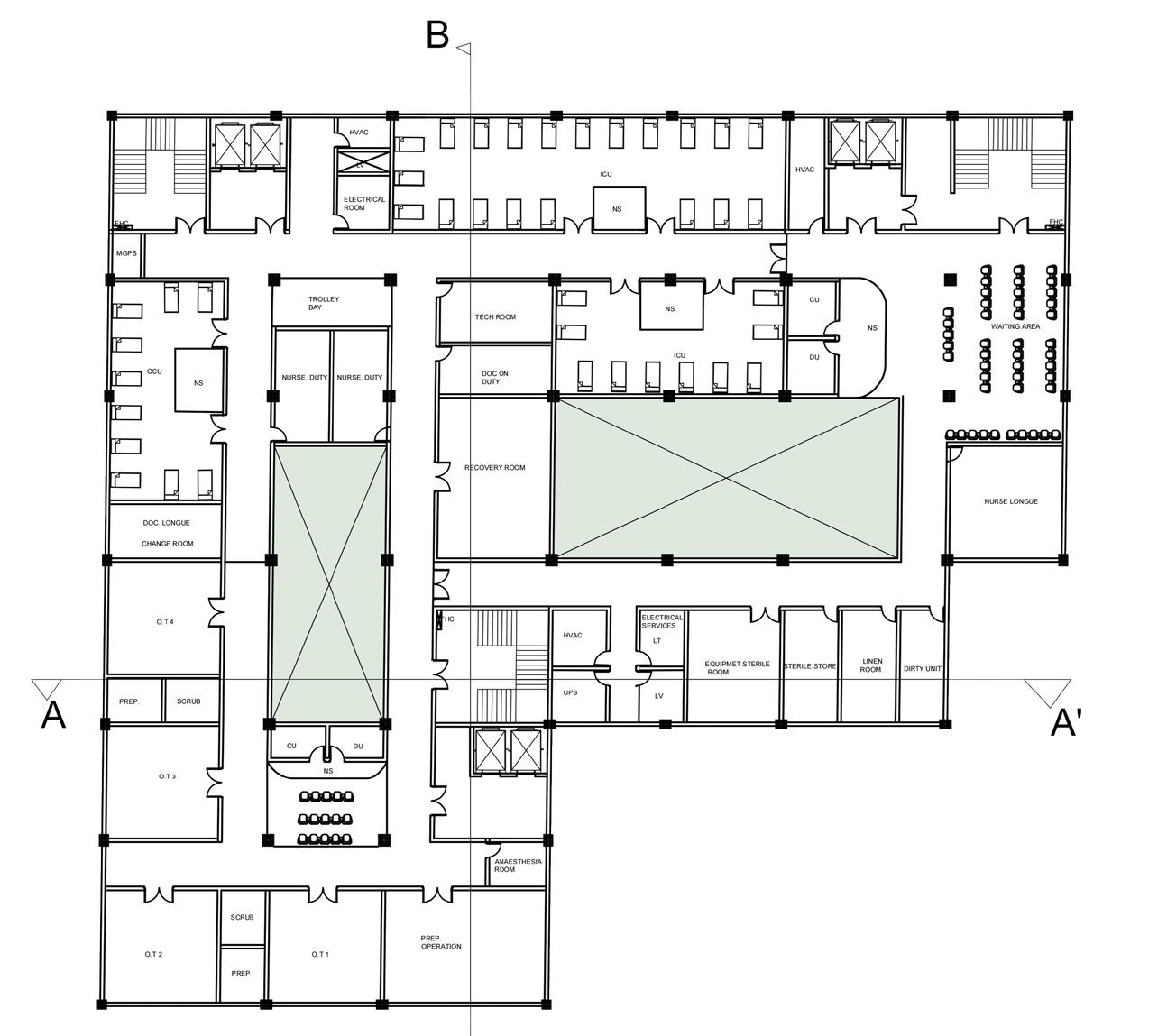

FOURTH FLOOR PLAN
FIFTH FLOOR PLAN

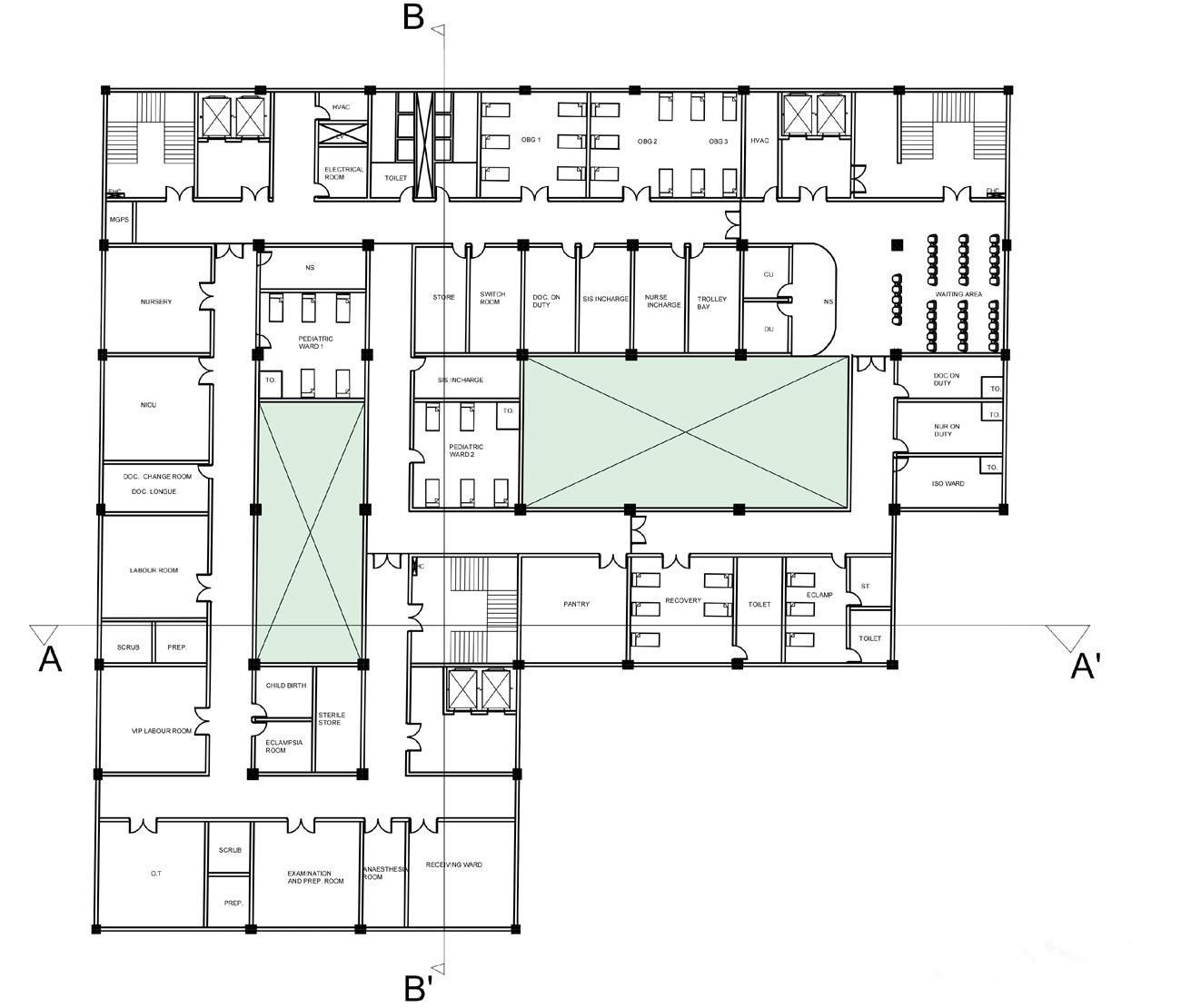

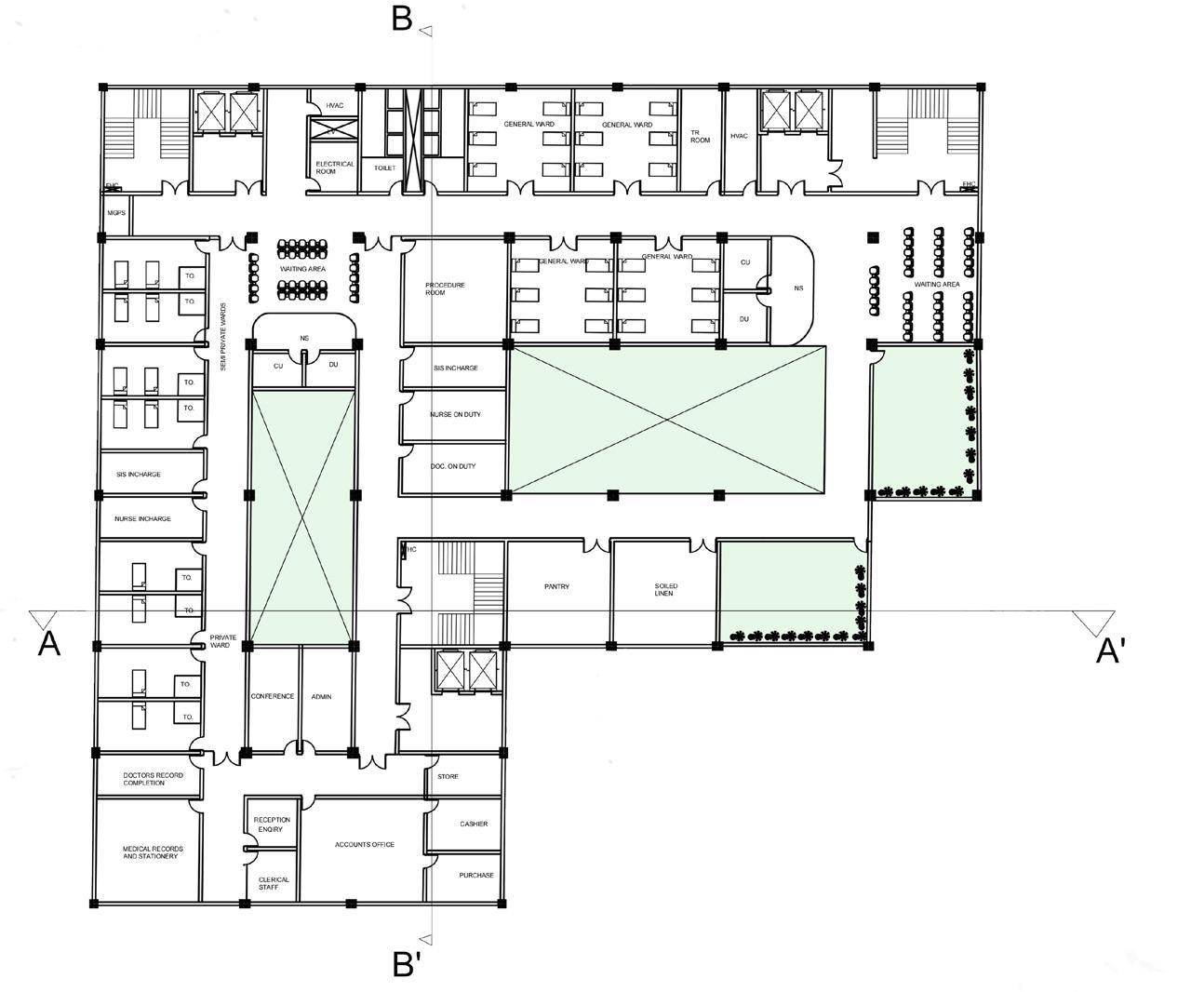

SECOND FLOOR PLAN
UPPER BASEMENT FLOOR PLAN
THIRD FLOOR PLAN

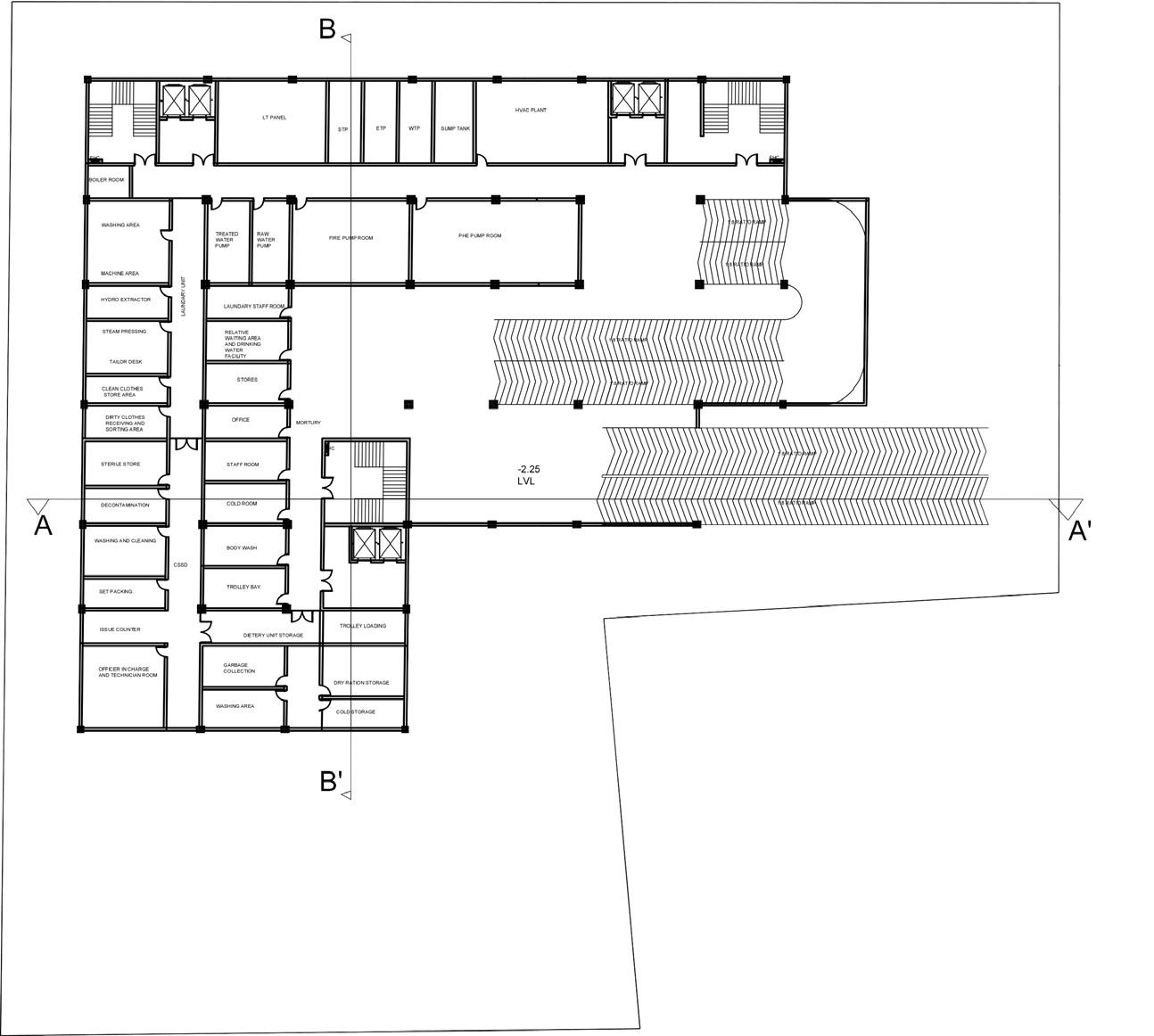

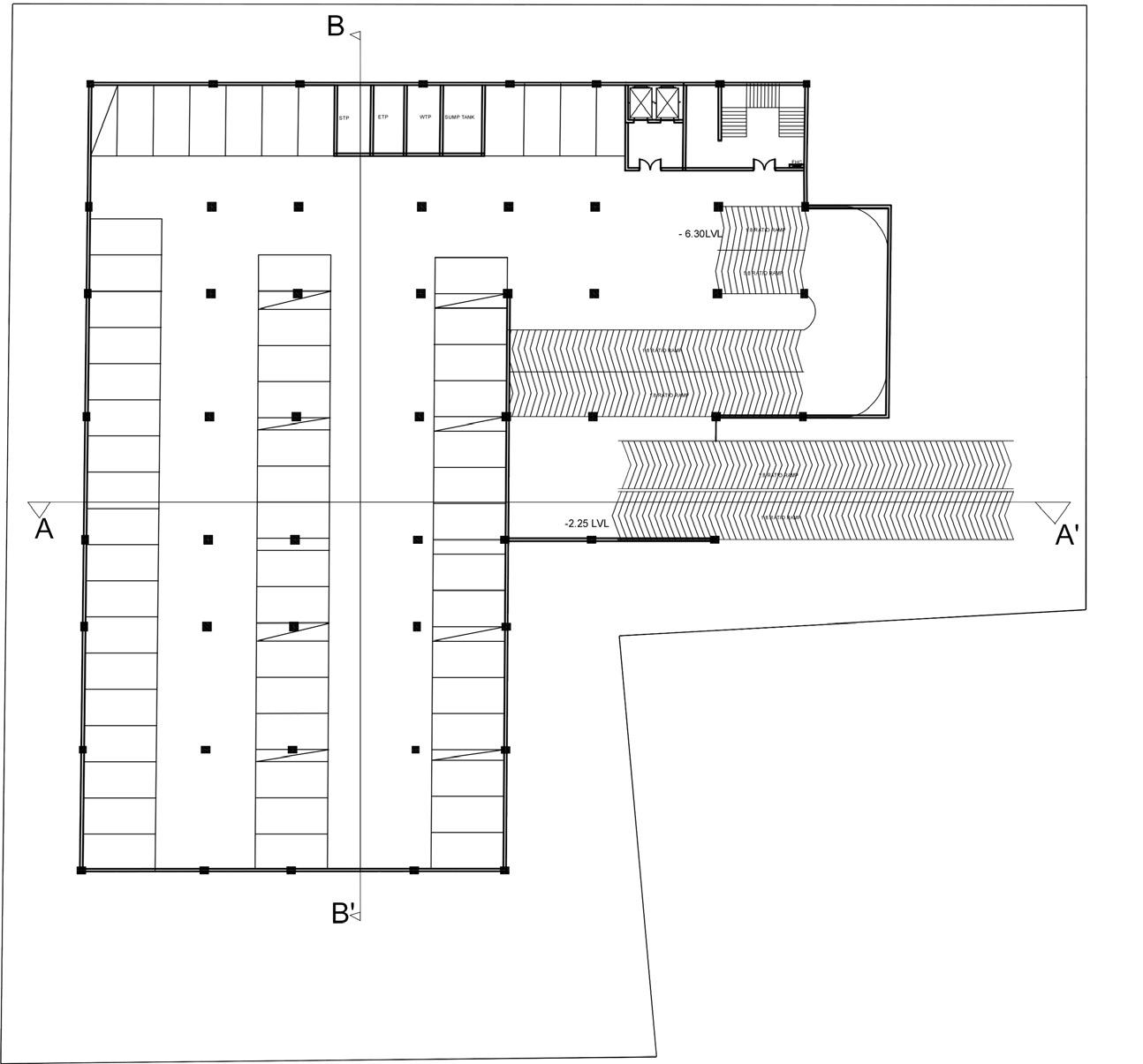

LOWER BASEMENT FLOOR PLAN

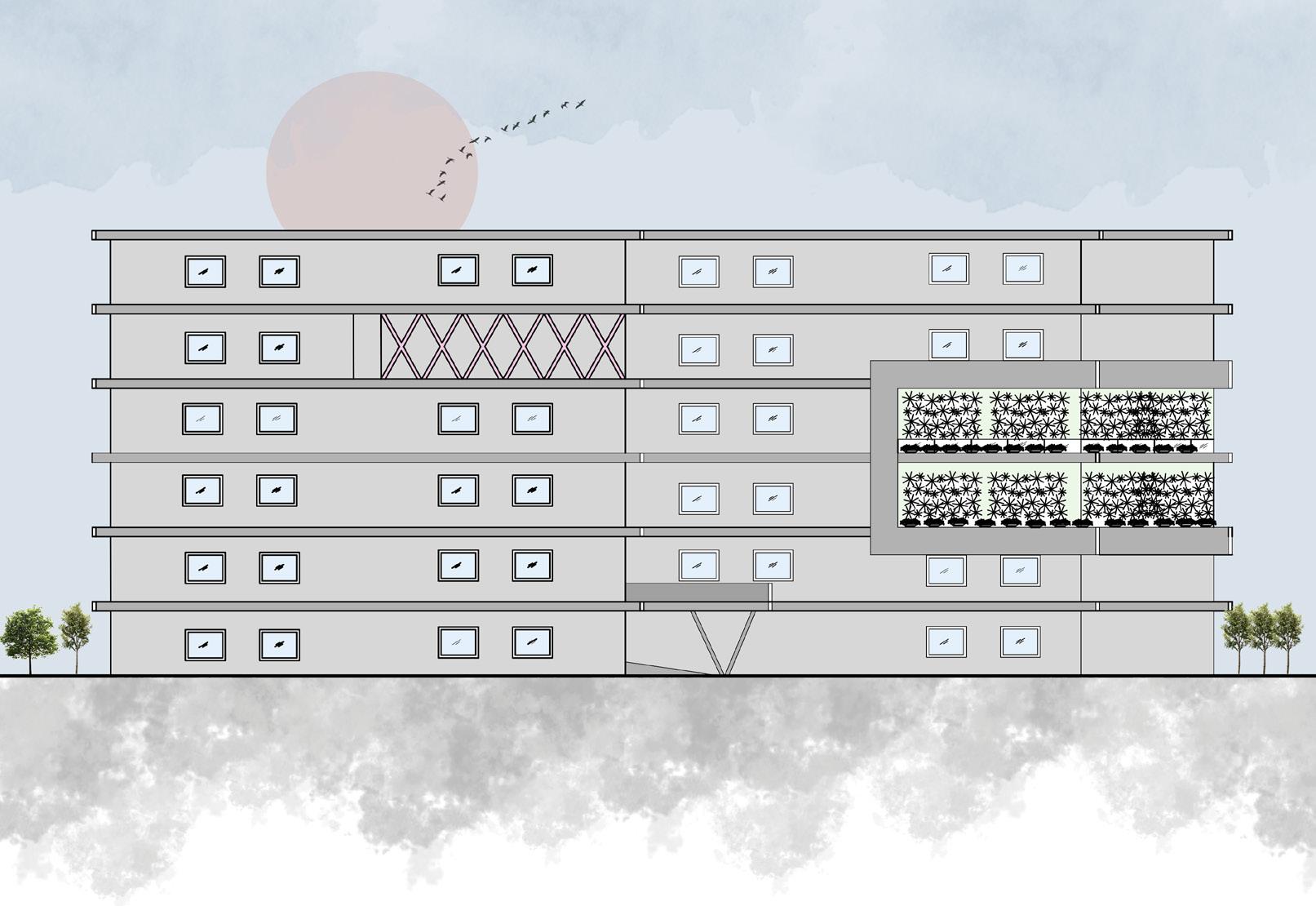

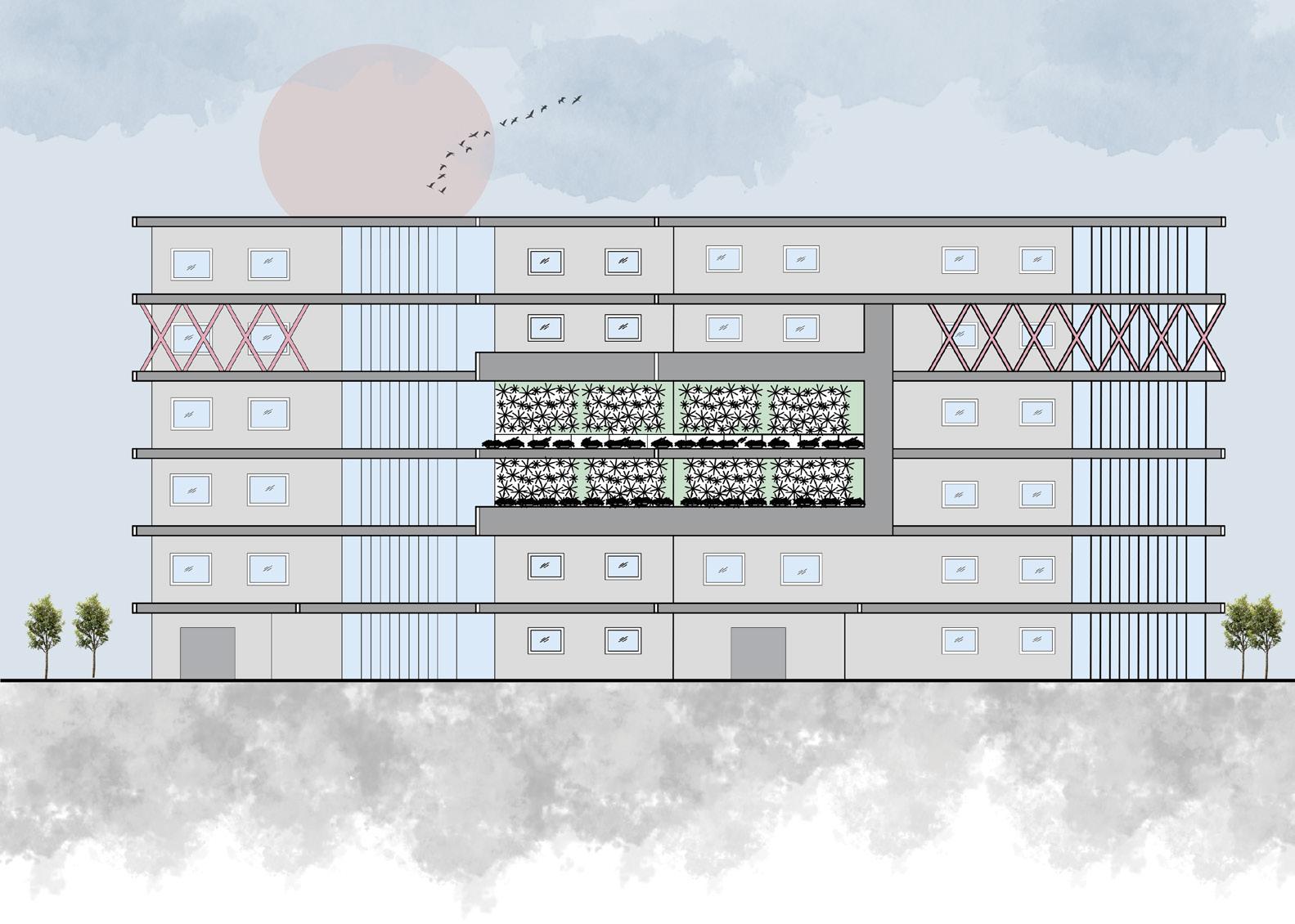

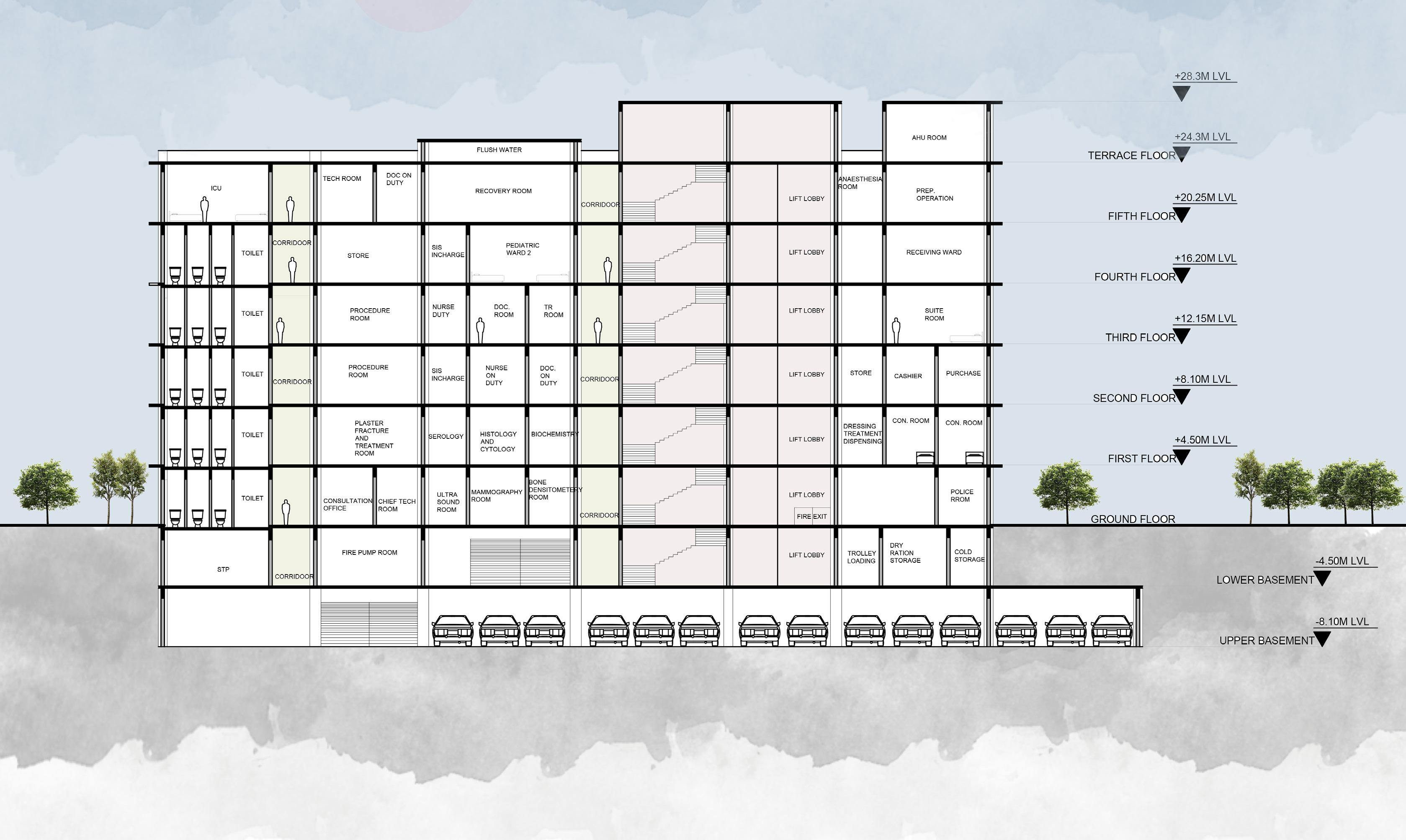

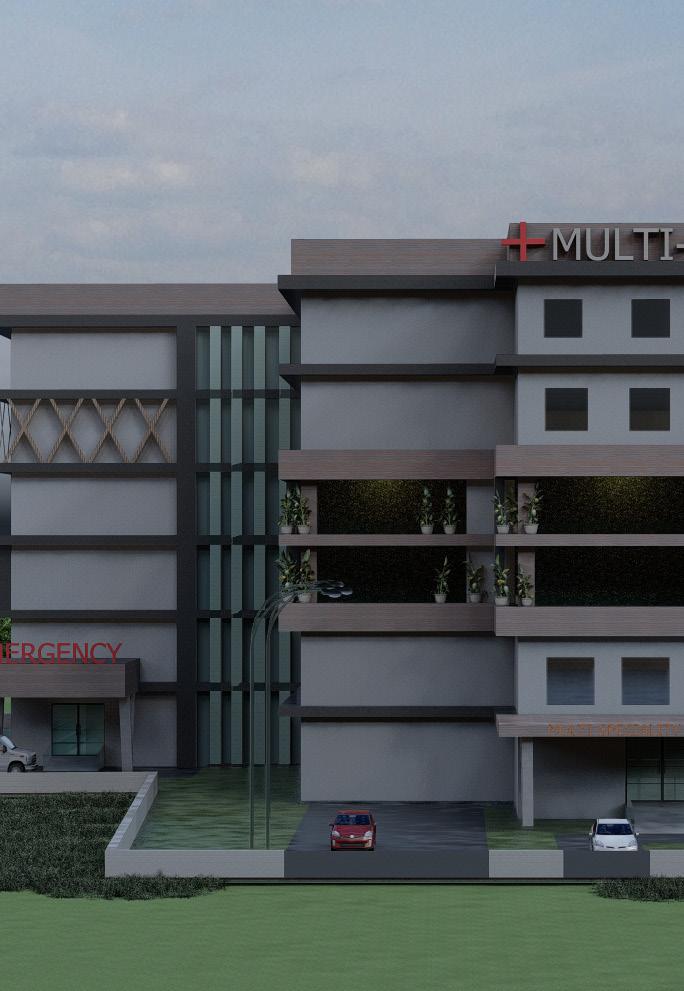

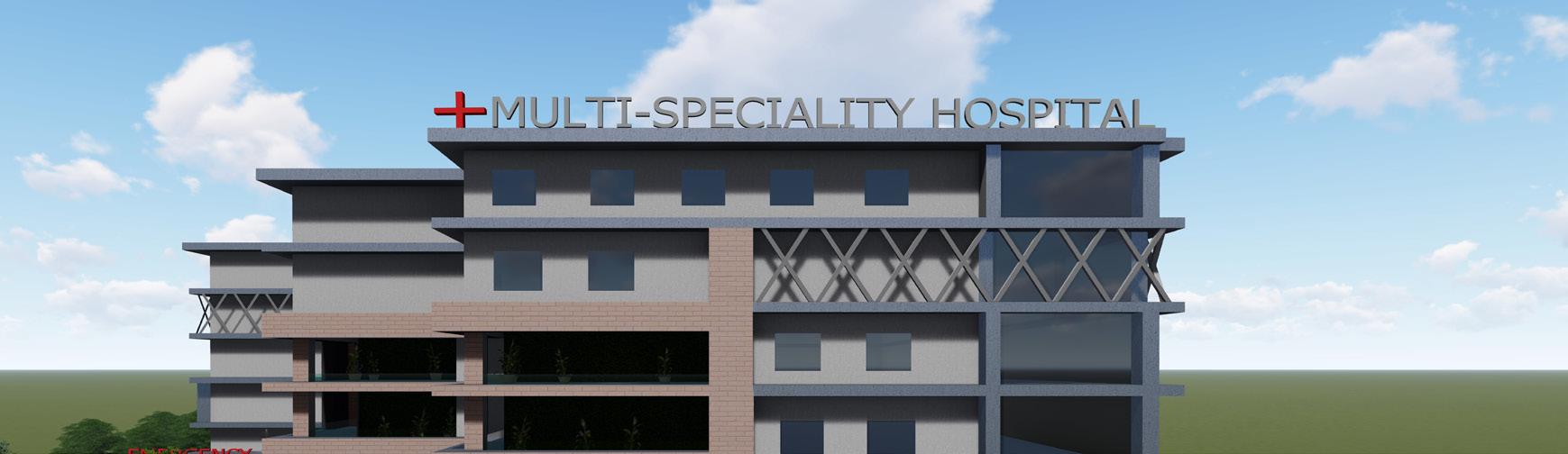

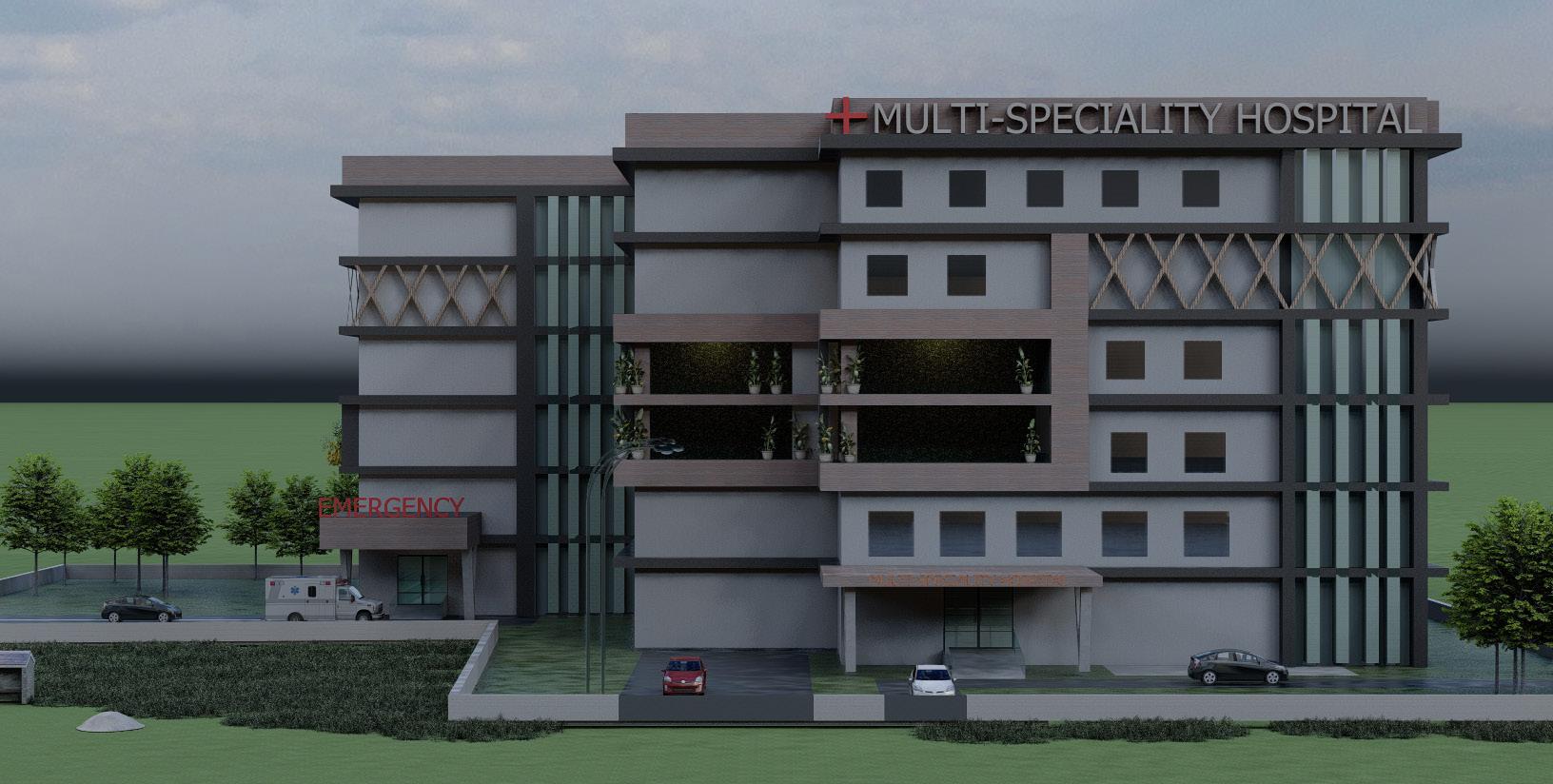

FRONT ELEVATION SOUTH ELEVATIION

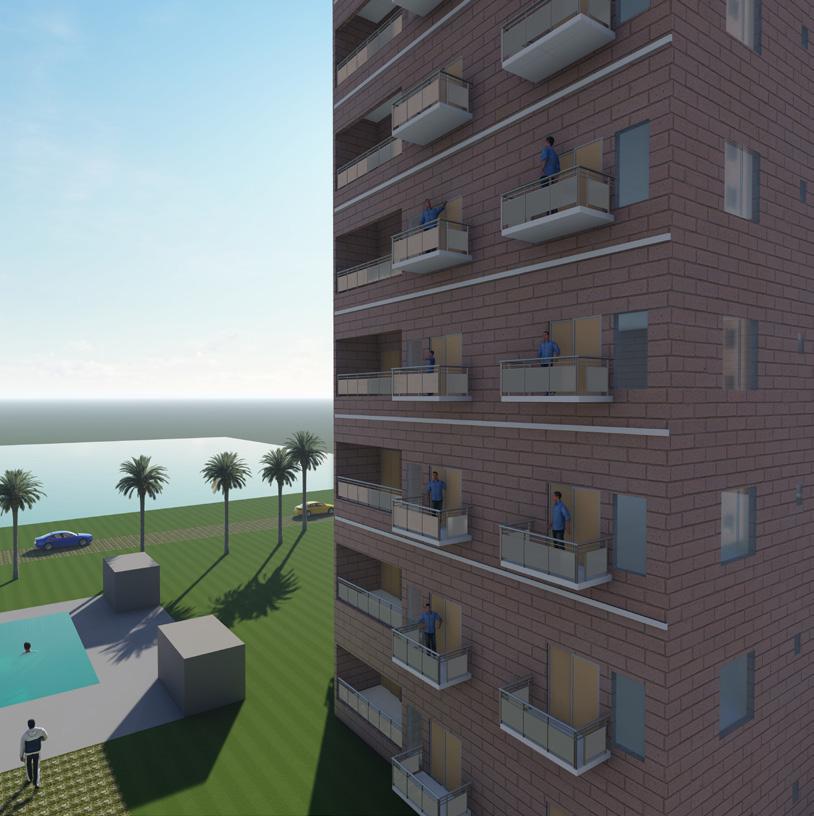

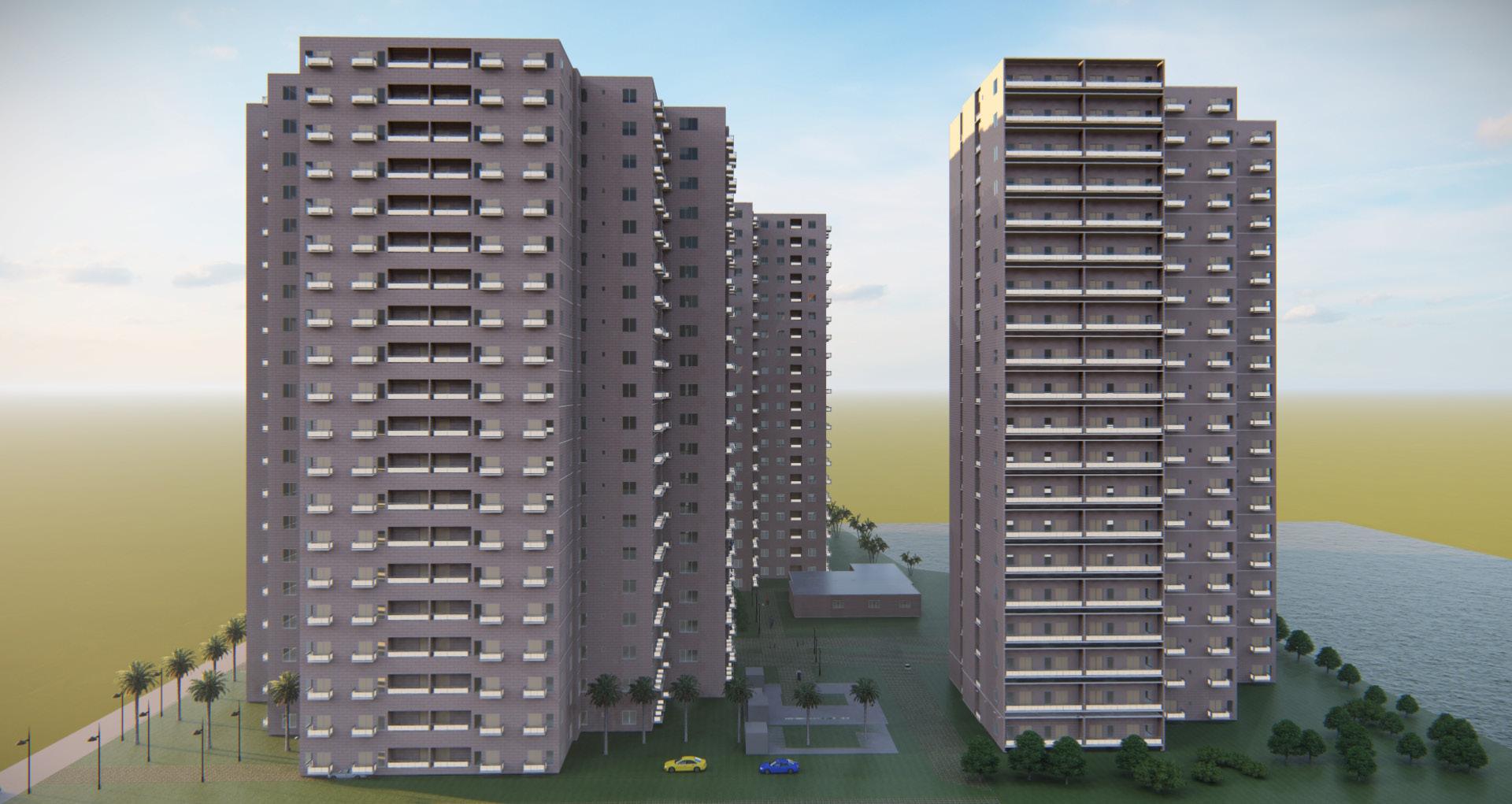

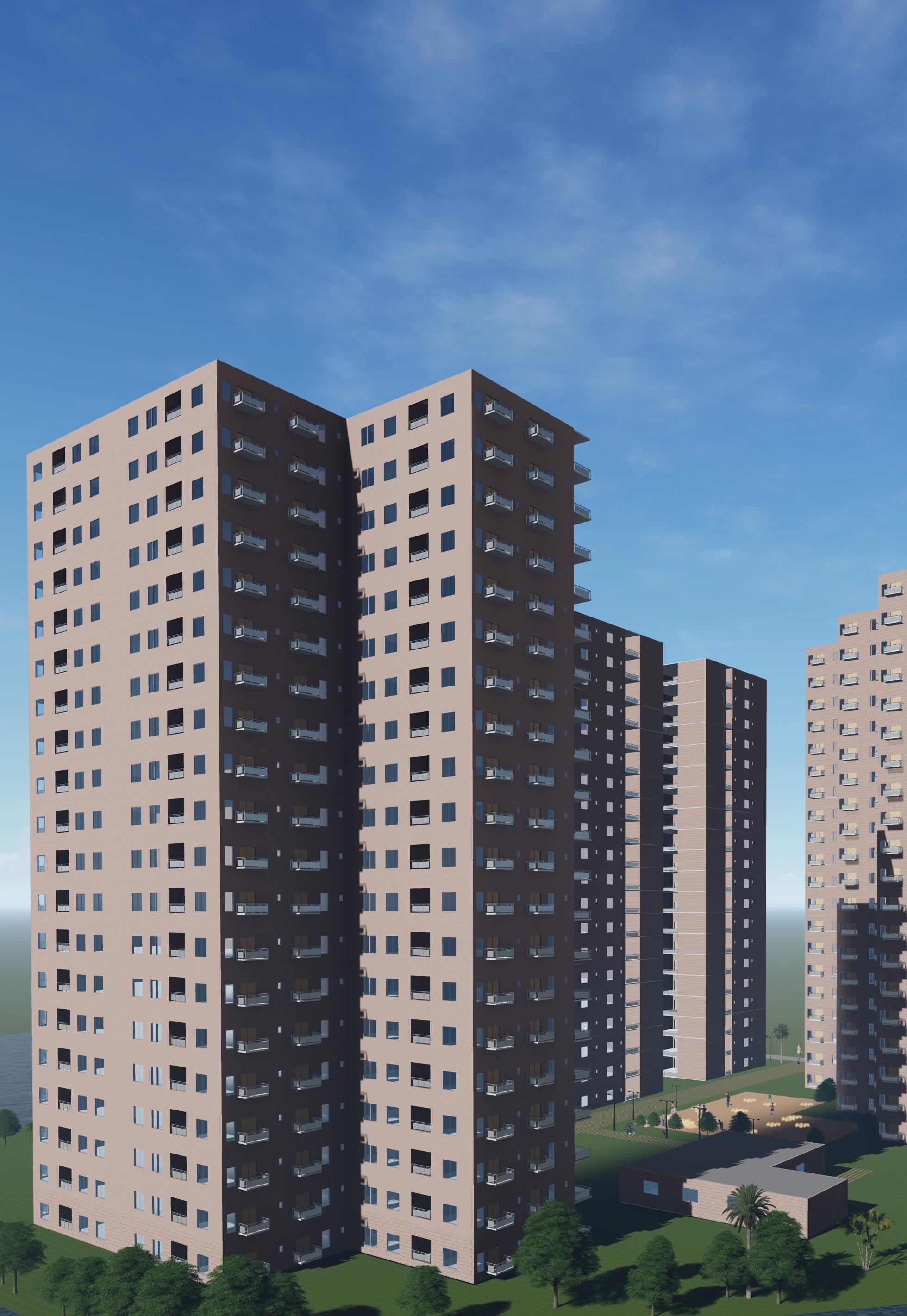

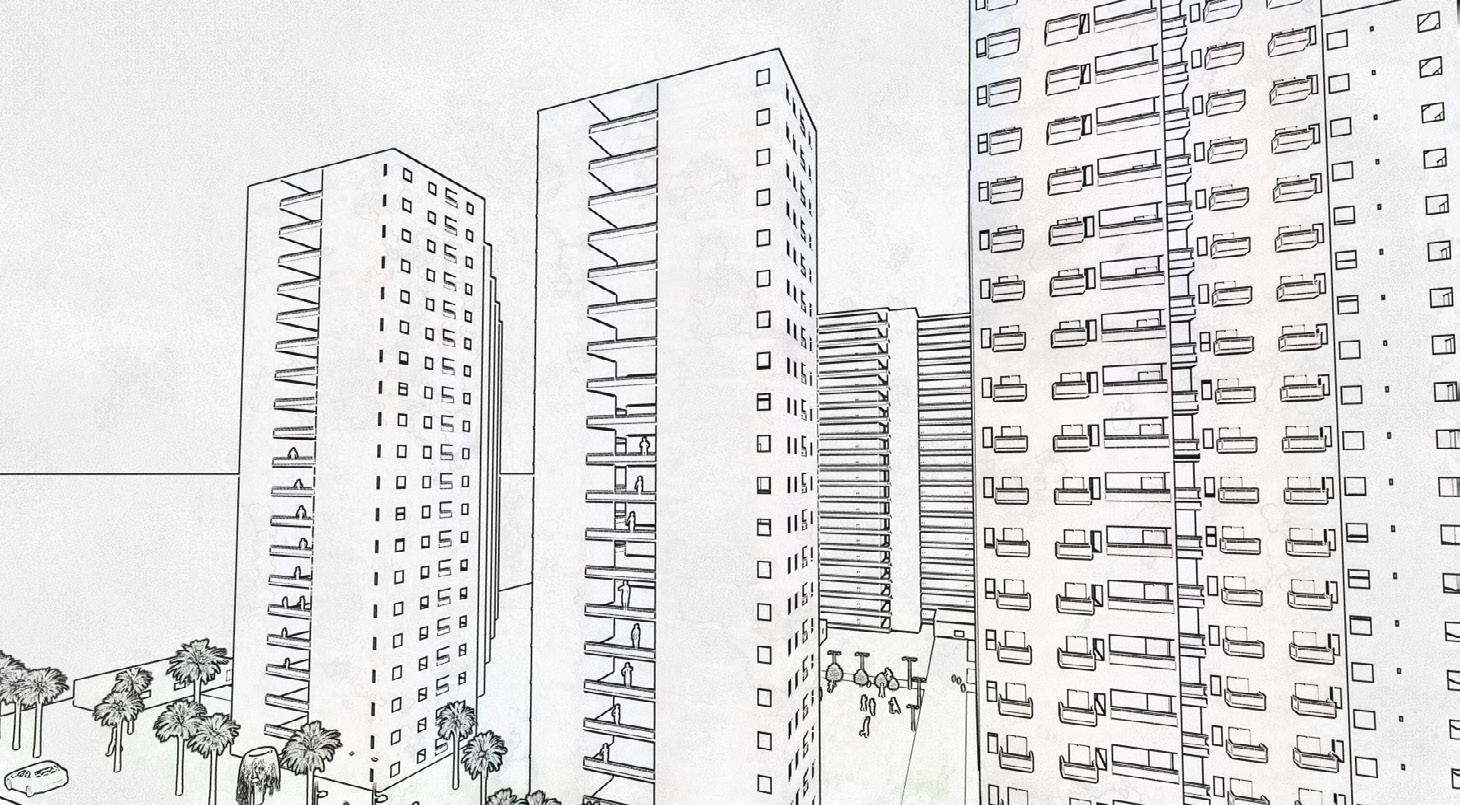

04 LUXURY APARTMENT
DESIGN BRIEF
SITE LOCATION : KEDIYOOR, UDUPI,KARNATAKA
THE SITE IS LOCATED ON THE COAST OF RIVER OF UDYAVARA AND ARABIAN SEA.
SITE AREA : 10.41 ACRES
DESIGN AIMS TO PROVIDE LUXURY CONDOS FOR NEARLY 400 FAMILIES ALONG WITH OTHER AMMENITIES. THE PROPOSED SCHEME CONSISTS OF THREE TYPES OF UNITS RANGING IN THE AREA OF 200SQM - 300SQM CATERING TO 750-800 MEMBERS OF THE COMMUNITY.
THE DESIGN MUST INCLUDE:
1.HOUSING UNITS- 4BHKs, 3BHKs,AND STUDIOS.
2.900 CAR PARKING
3.A COMMERCIAL AND A RECREATIONAL COMPLEX.
4.SOCIAL INTERACTIONAL ARENA.
5.SERVICES AAND FIRST AID.
AREA ANALYSIS
STUDIO 25 75-100 SQM
3BHK 125 200-275 SQM
4BHK 120 250-350 SQM

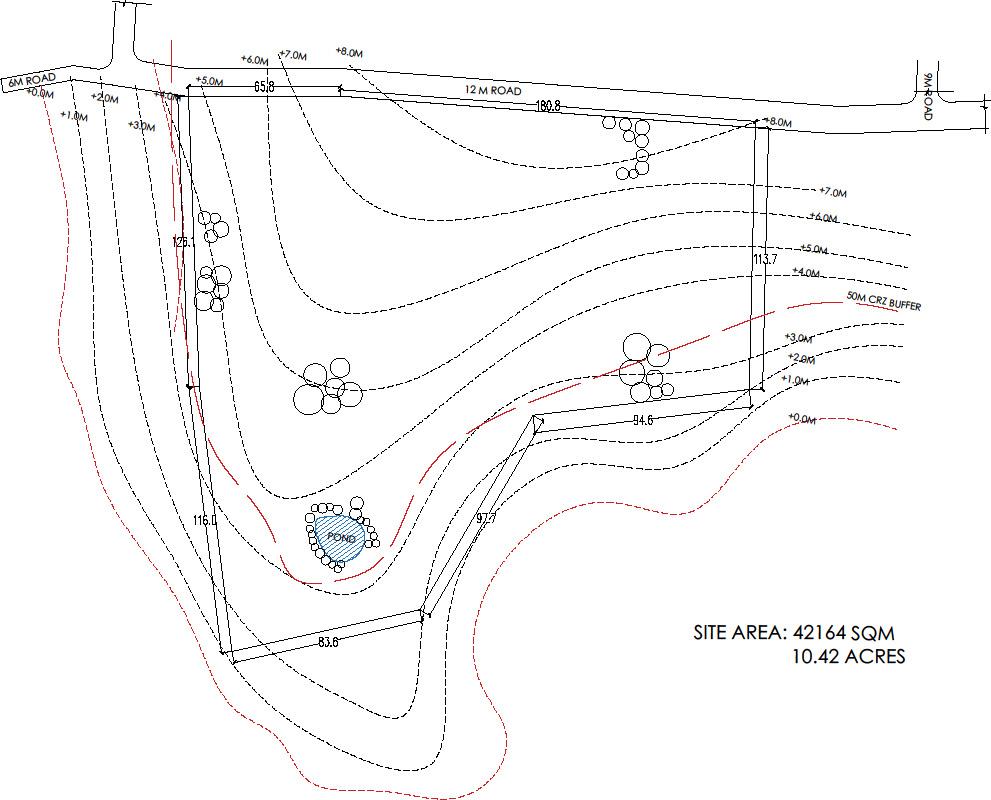

TOTAL SITE AREA : 42164 SQM
GROUND COVERAGE : MIN 25% MAX 45%
GROUND COVERAGE :45/100X42164 =18974 SQM
ACHIEVED GROUND COVERAGE: MIN 26% = 27/100X42164 = 10962 SQM

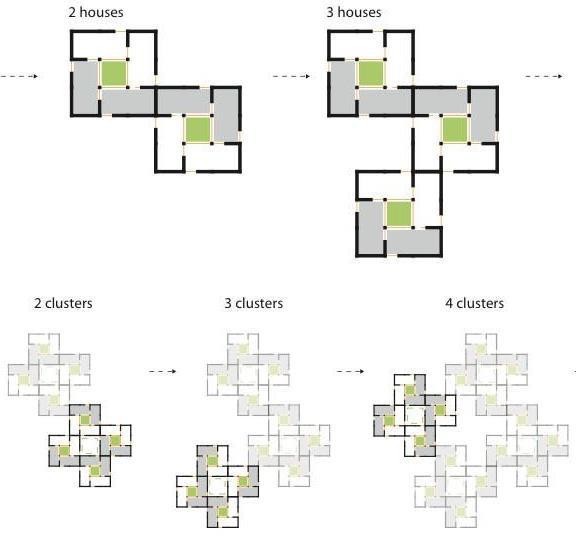

CONCEPT:
THE HOSES ARE ARRANGED IN RELATIVELY CLOSE GROUPS, WHILE THE LARGE OPEN SPACES IN THE DEVELOPMENT FROM BUFFER ZONE WITH ADJACENT LAND USES.
PLOTS OR DWELLING UNITS OR HOUSING GROUPED AROUND AN OPEN SPACE.
ZONING:
BLOCK 1 : 3BHK HOSING - 6 FLATS ON GROUND FLOOR
NO. OF FLOORS - 18
18 X6 = 108
TOTAL 108 3BHK IN BLOCK 1
BLOCK 2 : STUDIO AND 4BHK - 2 STUDIO AND 4 4BHK ON GROUND FLOOR
NO.OF FLOORS -18
4X18= 72 4BHKs
2X13= 26 STUDIOS
BLOCK 3 AND 4 : 4BHK - 10 FLATS ON GROUND FLOOR
NO.OF FLOORS =18
10 X 18 =252 4BHKs
THE SITE HAS RIVER AJACENT TO IT ,SO THE CHALLENGE IS TO GIVE THE VIEW FOR ALL THE FLATS , ACCORDINGLY THE BLOCKS ARE PLACED WHICH HAS A GOOD RIVER VIEW AND NATURAL VENTIALTION IS PROVIDED TO ALL THE BLOCKS .
BLO CK 1
BLO CK 2 BLOCK 3 BLOCK 4

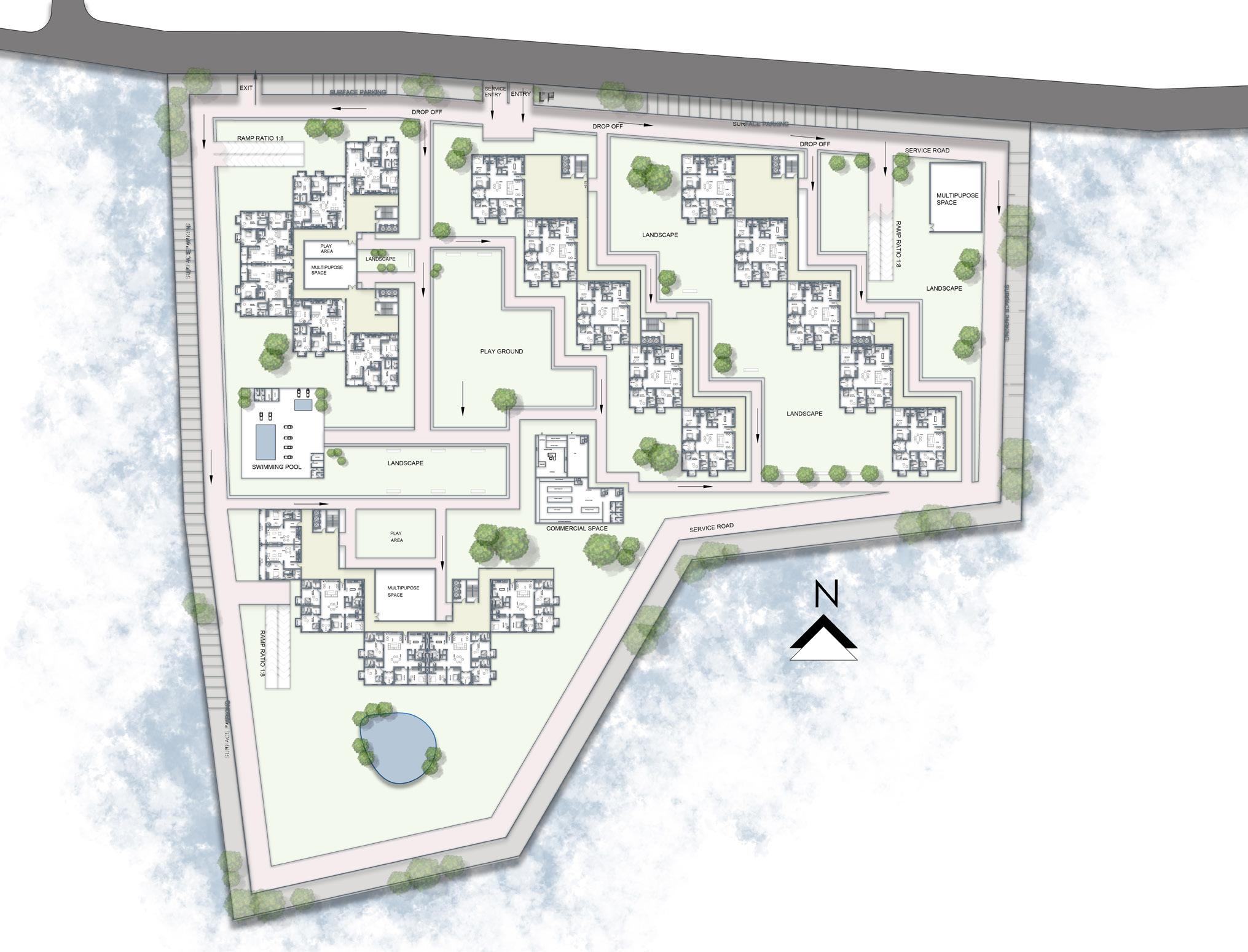

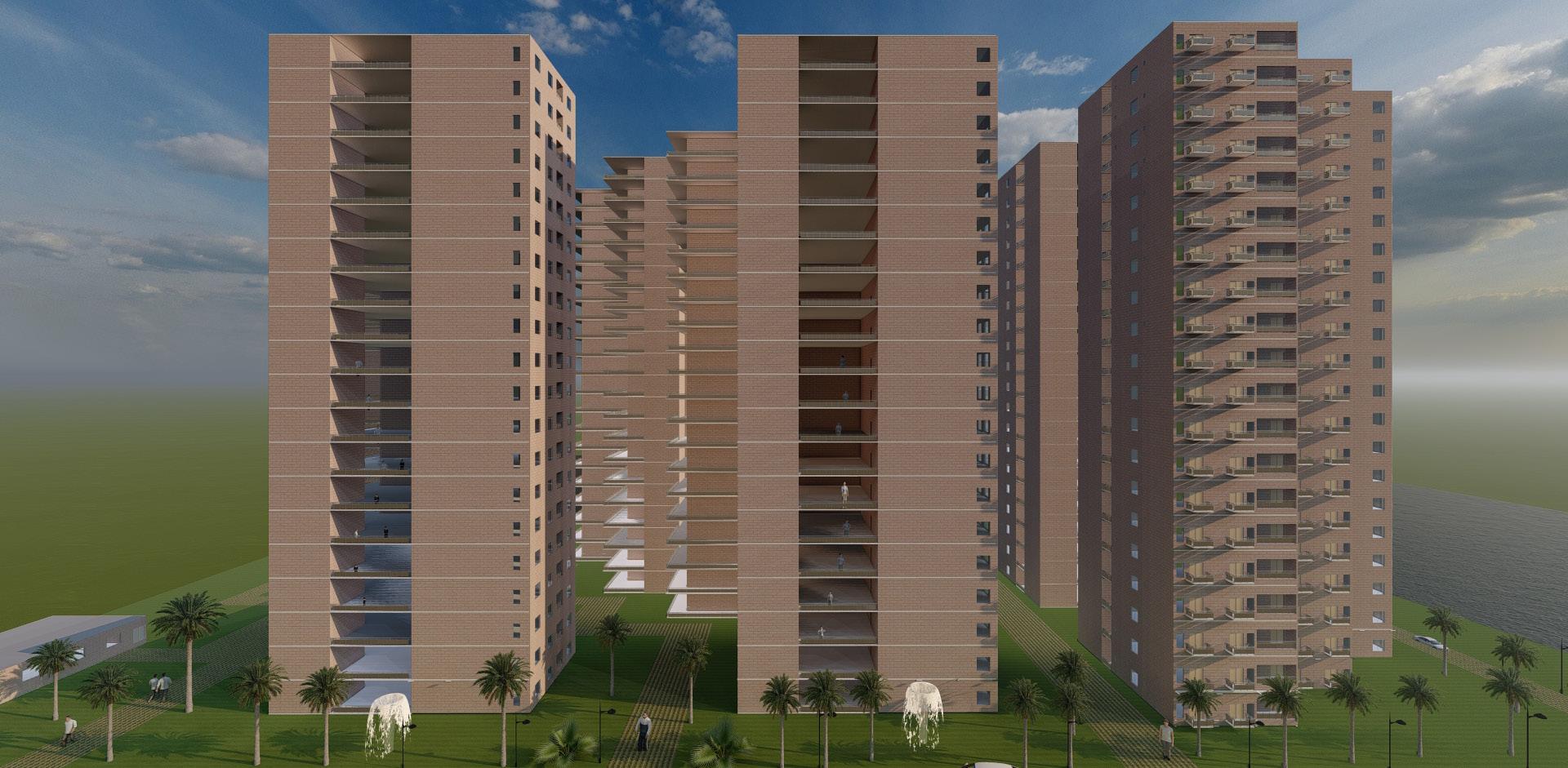

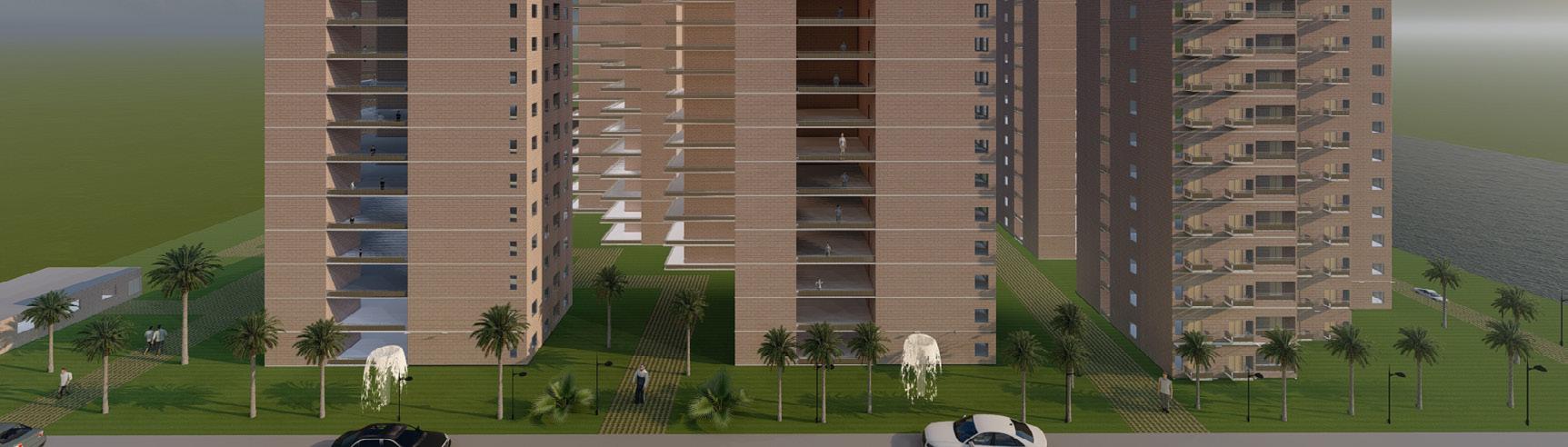

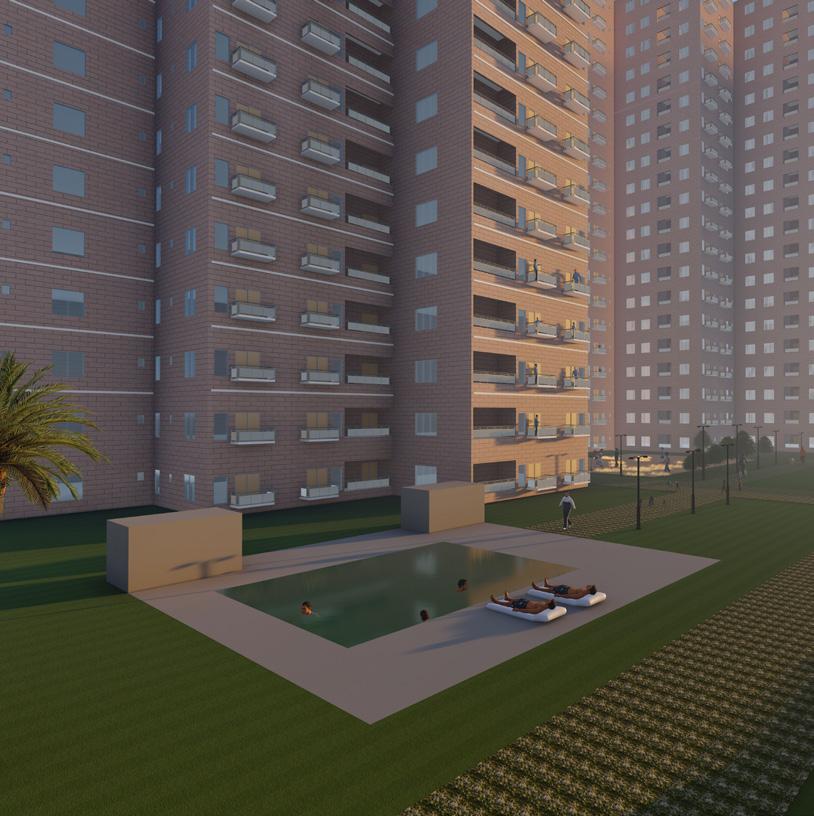

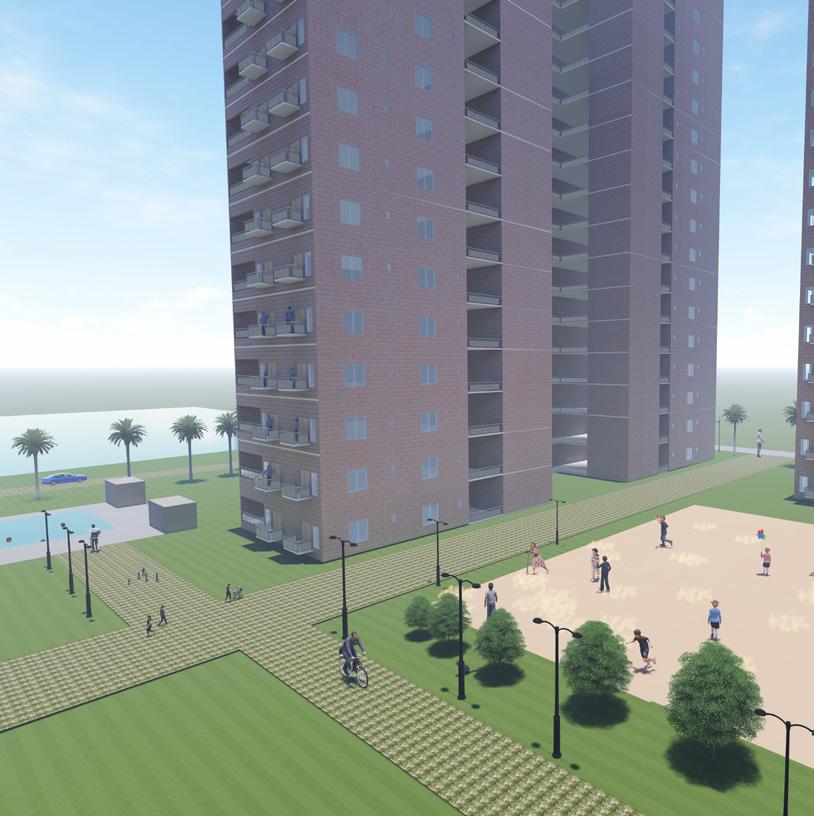

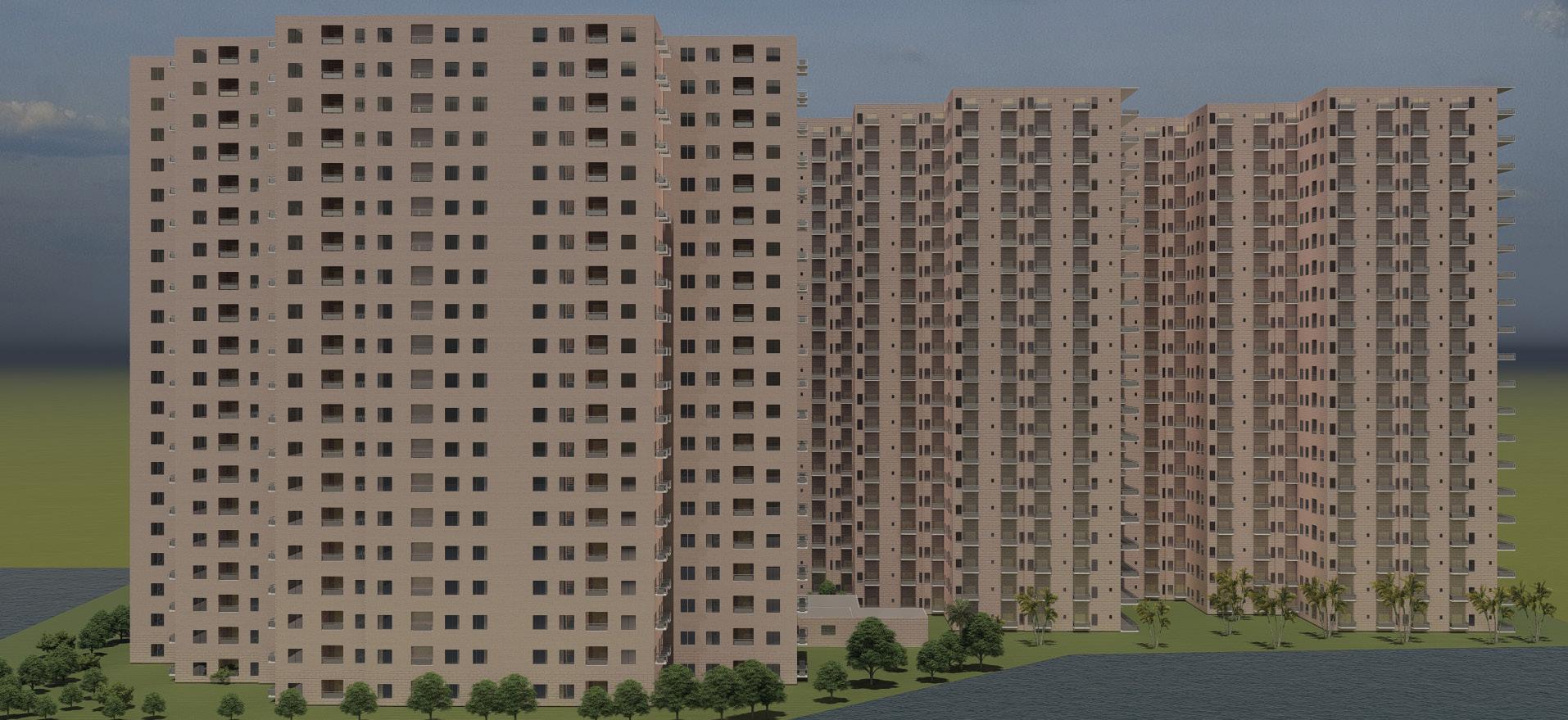

MASTER PLAN

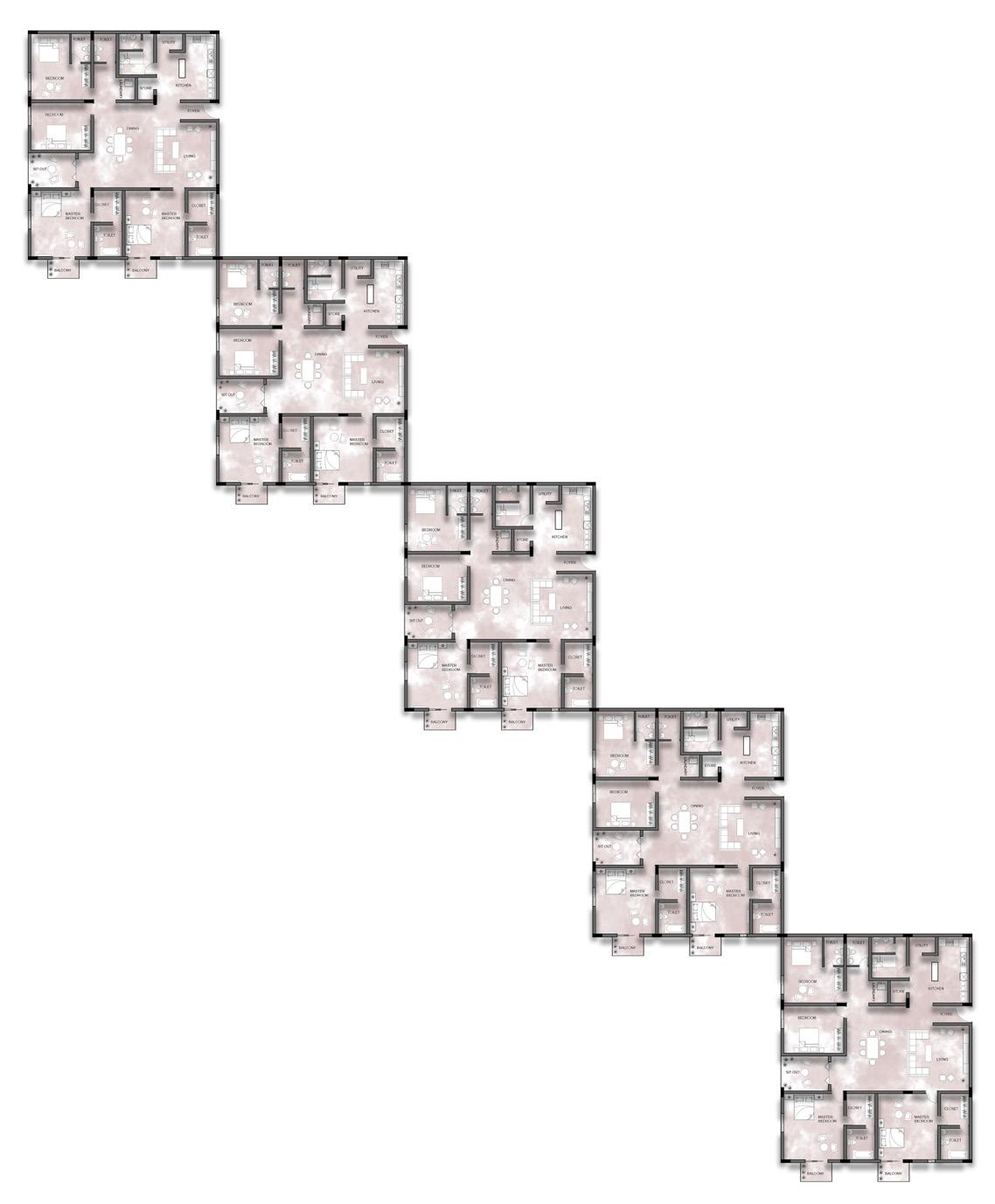

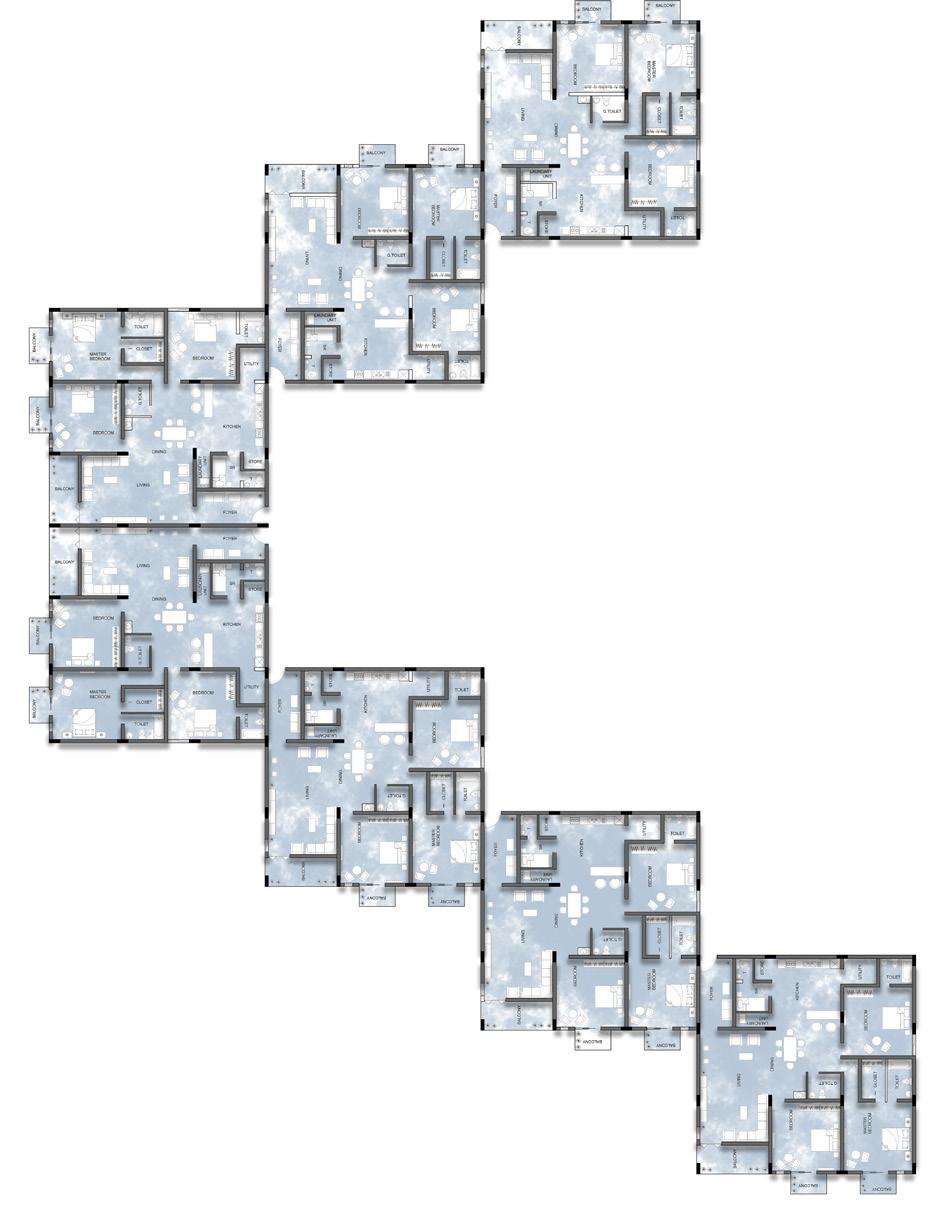

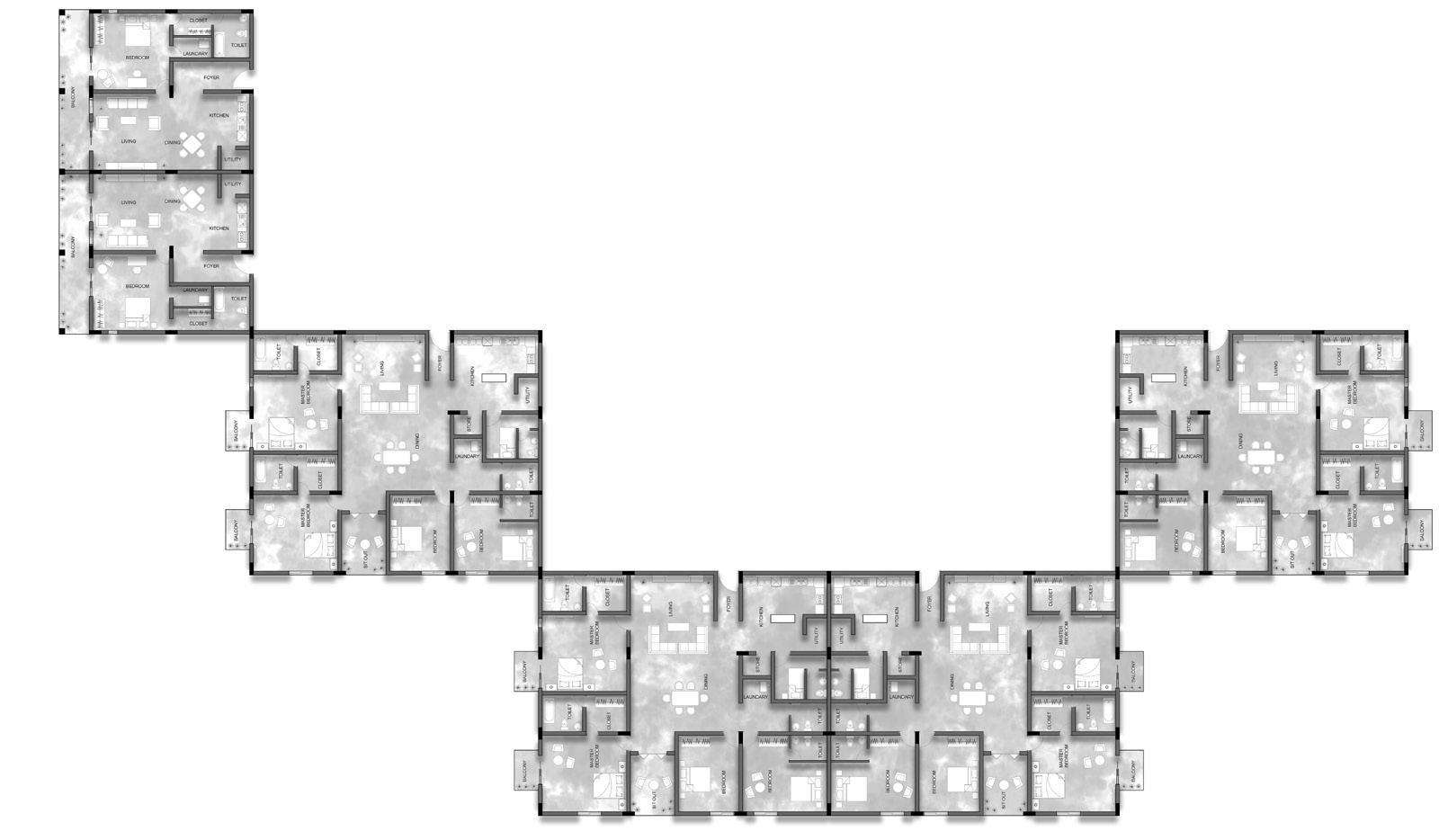

TYPICAL FLOOR PLAN OF 3BHK-BLOCK1
EXISTING ROAD
SURFACE PARKING
SERVICE ROAD
LANDSCAPE
CORRIDOOR
BLOCKS AND AMMENITIES
TYPICAL FLOOR PLAN OF 4BHK AND 1BHK-BLOCK3
TYPICAL FLOOR PLAN OF 4BHK-BLOCK3

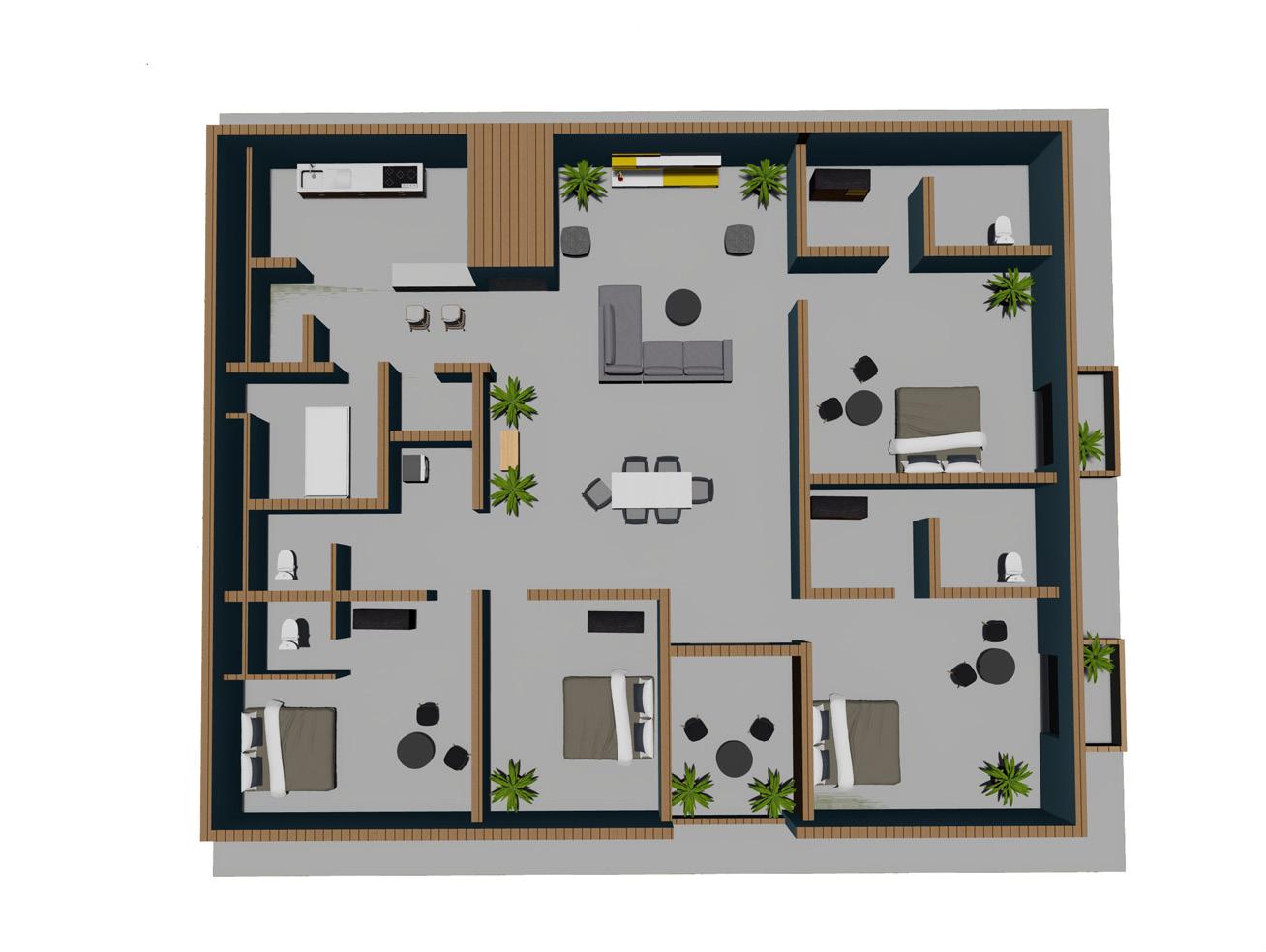

4BHK UNIT PLAN

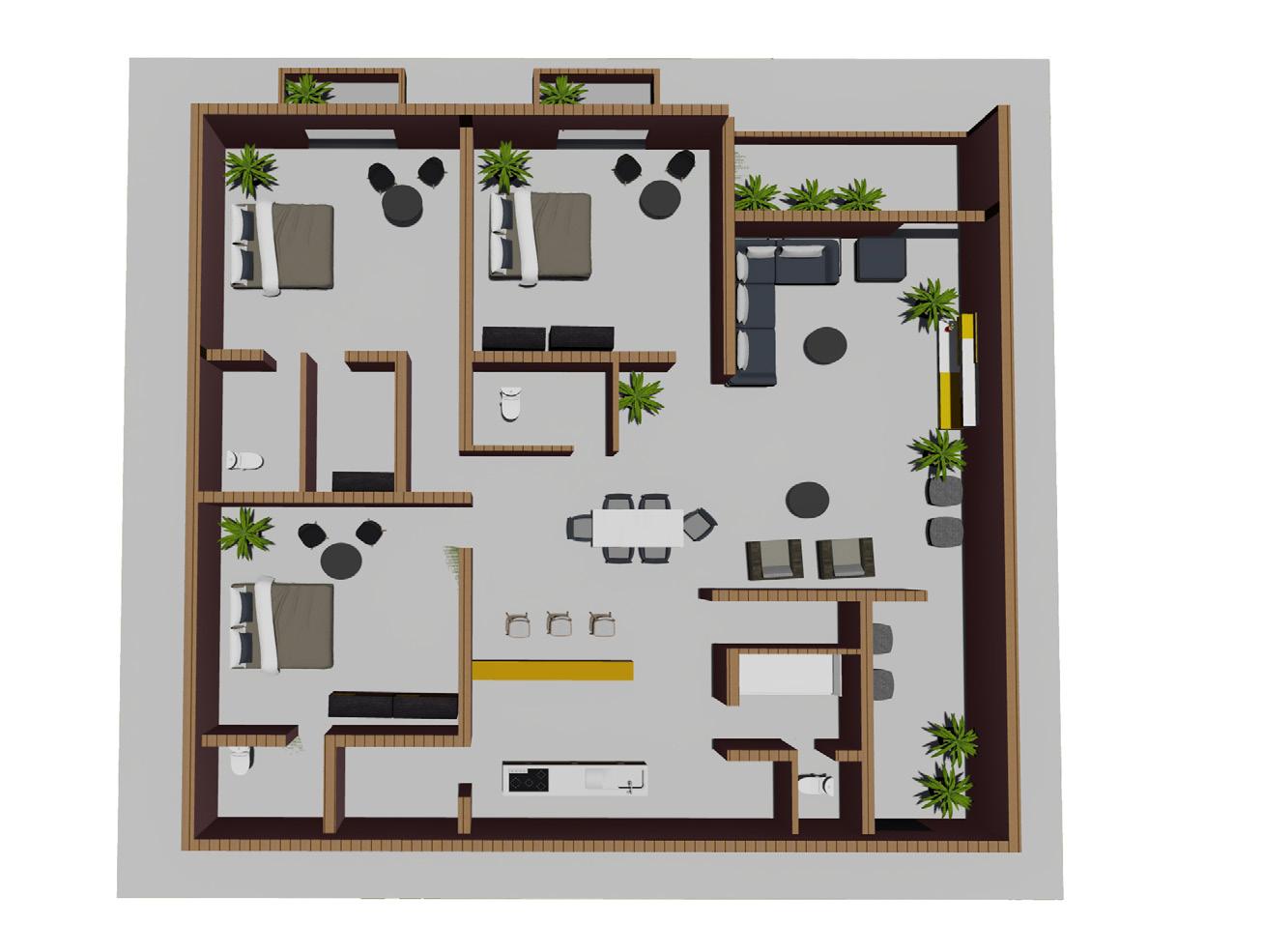

3BHK UNIT PLAN

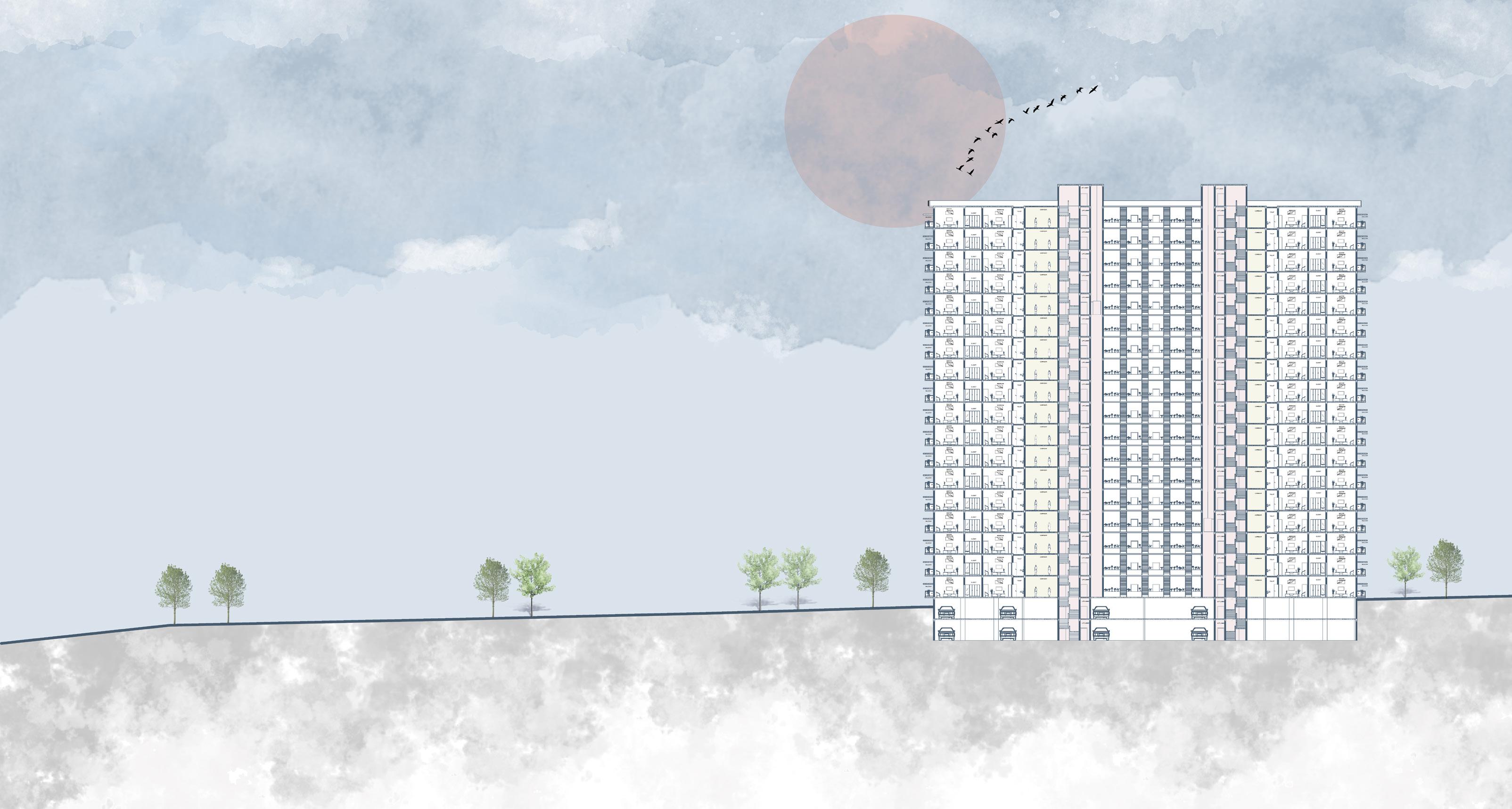

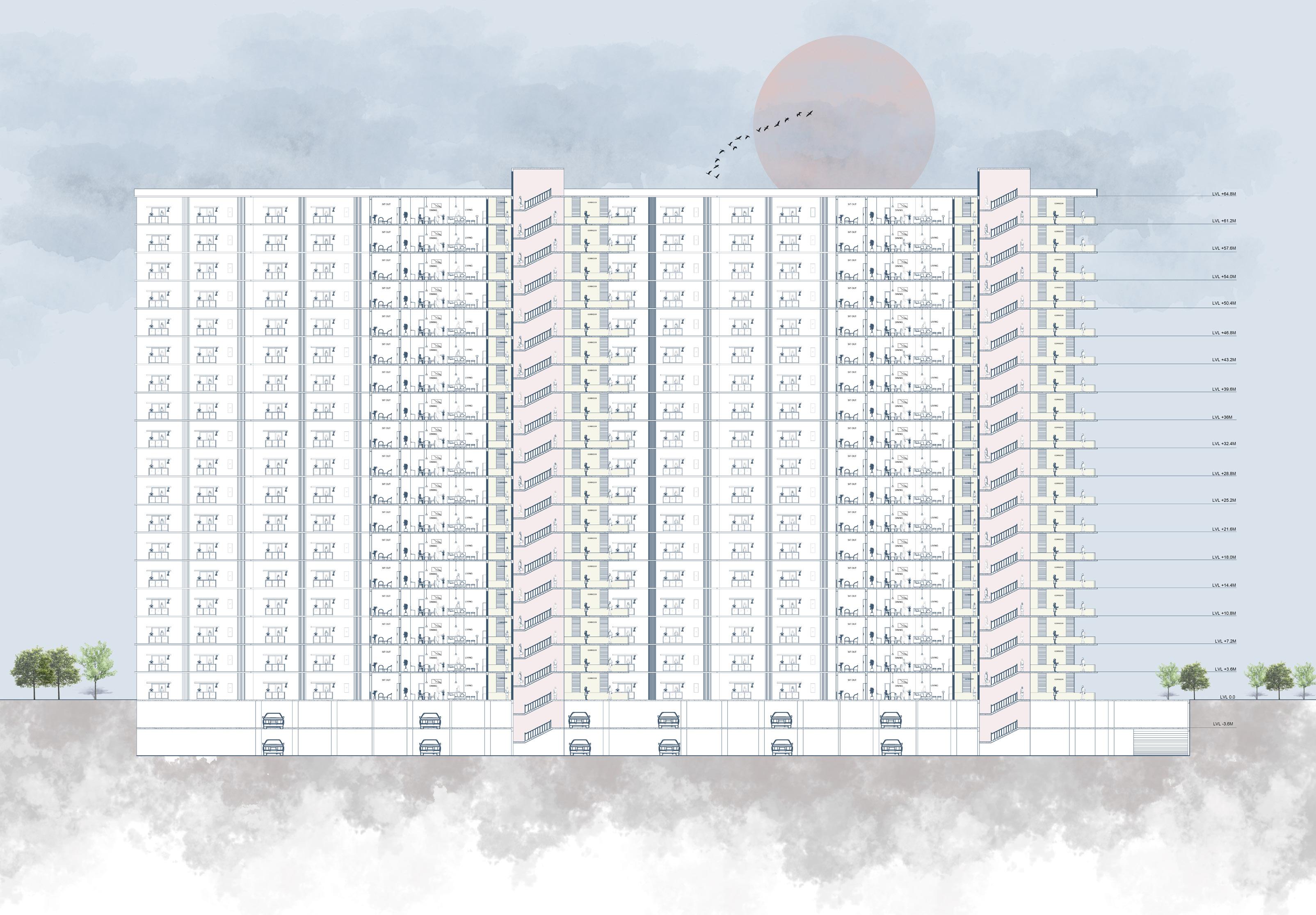

SITE SECTION
SITE SECTION

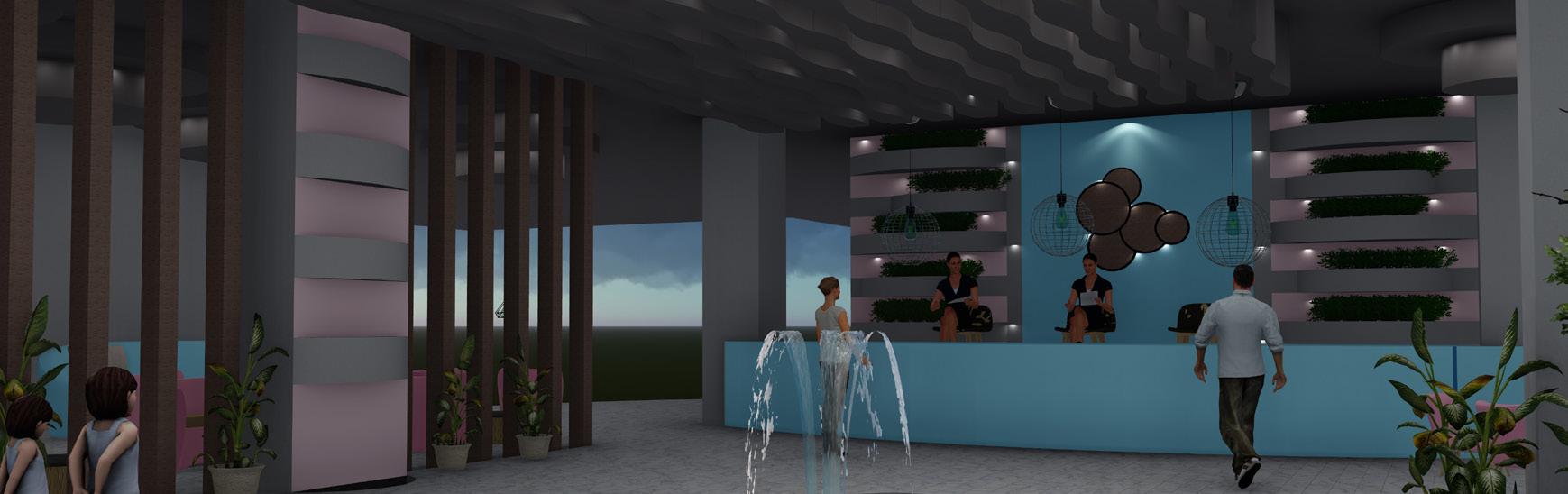

05 INTERIOR DESIGN

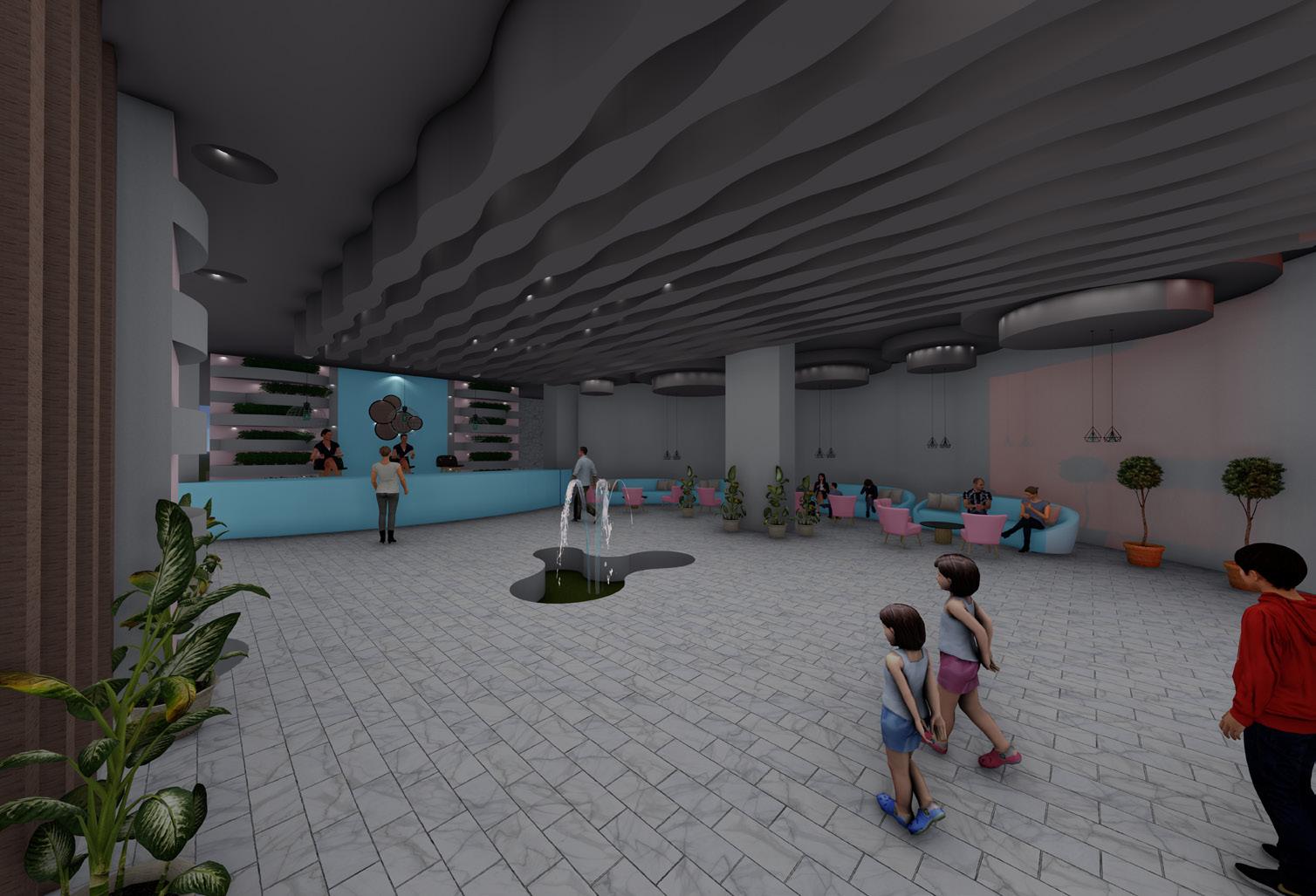

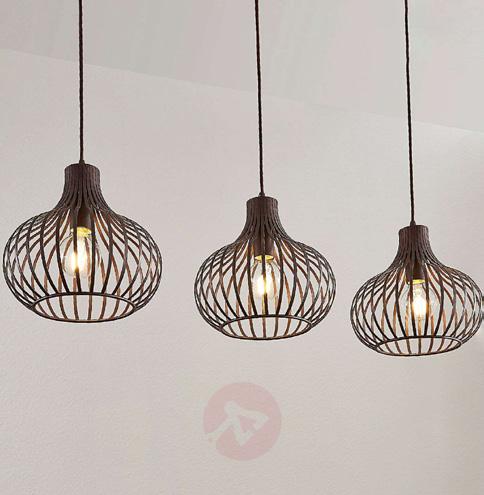

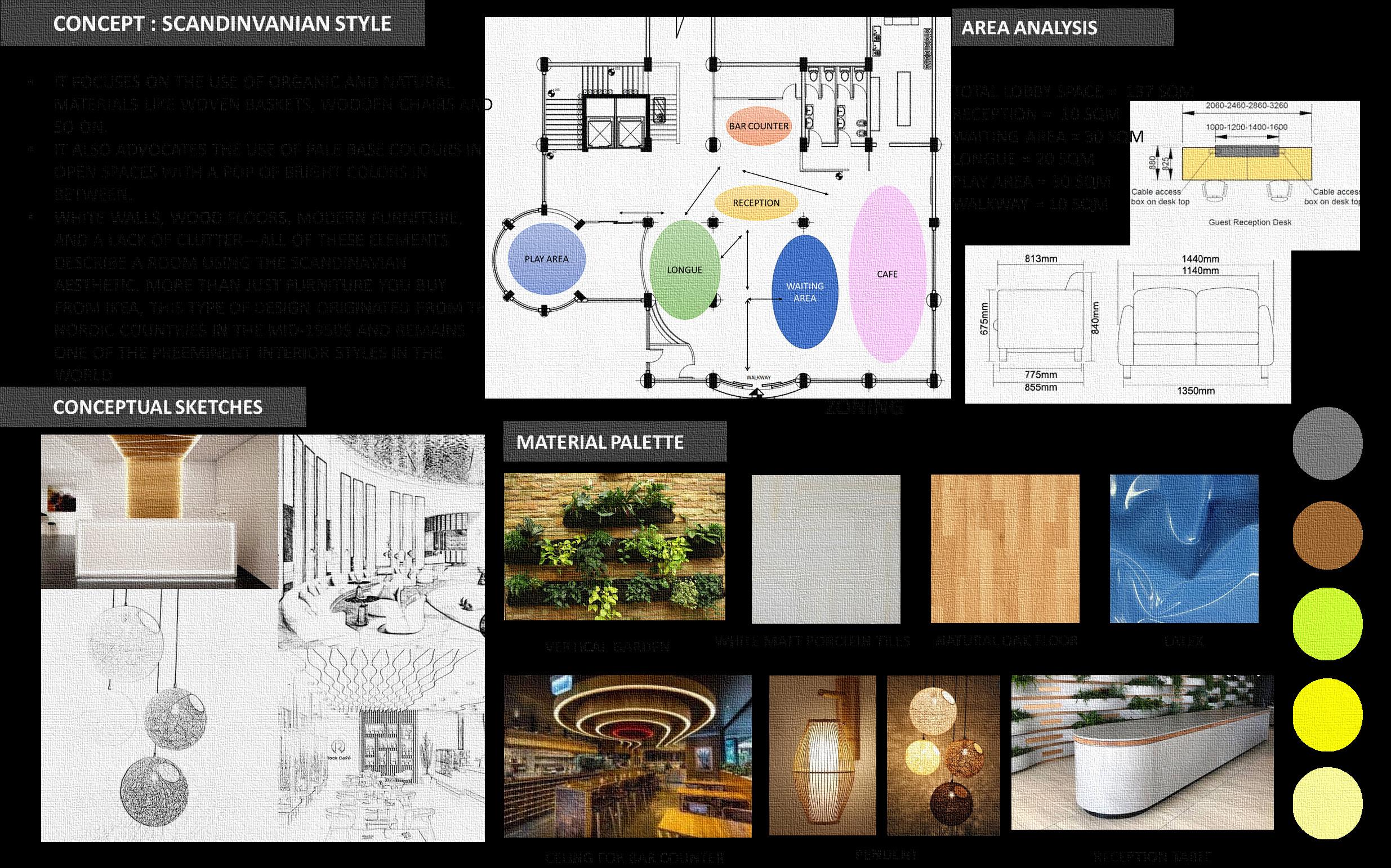

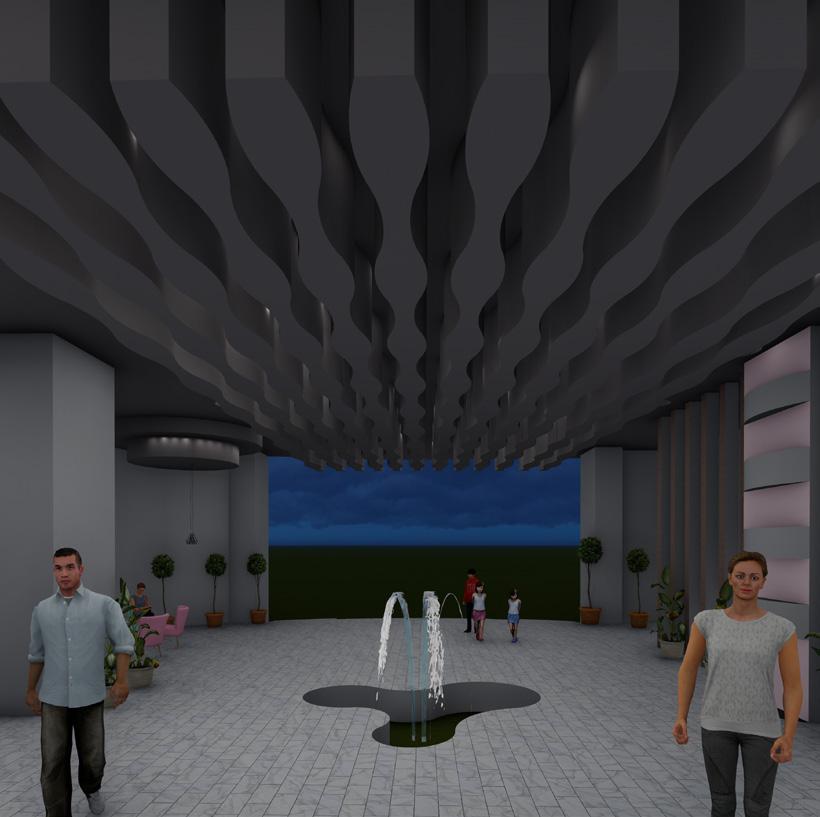

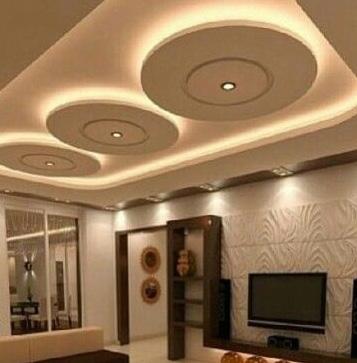

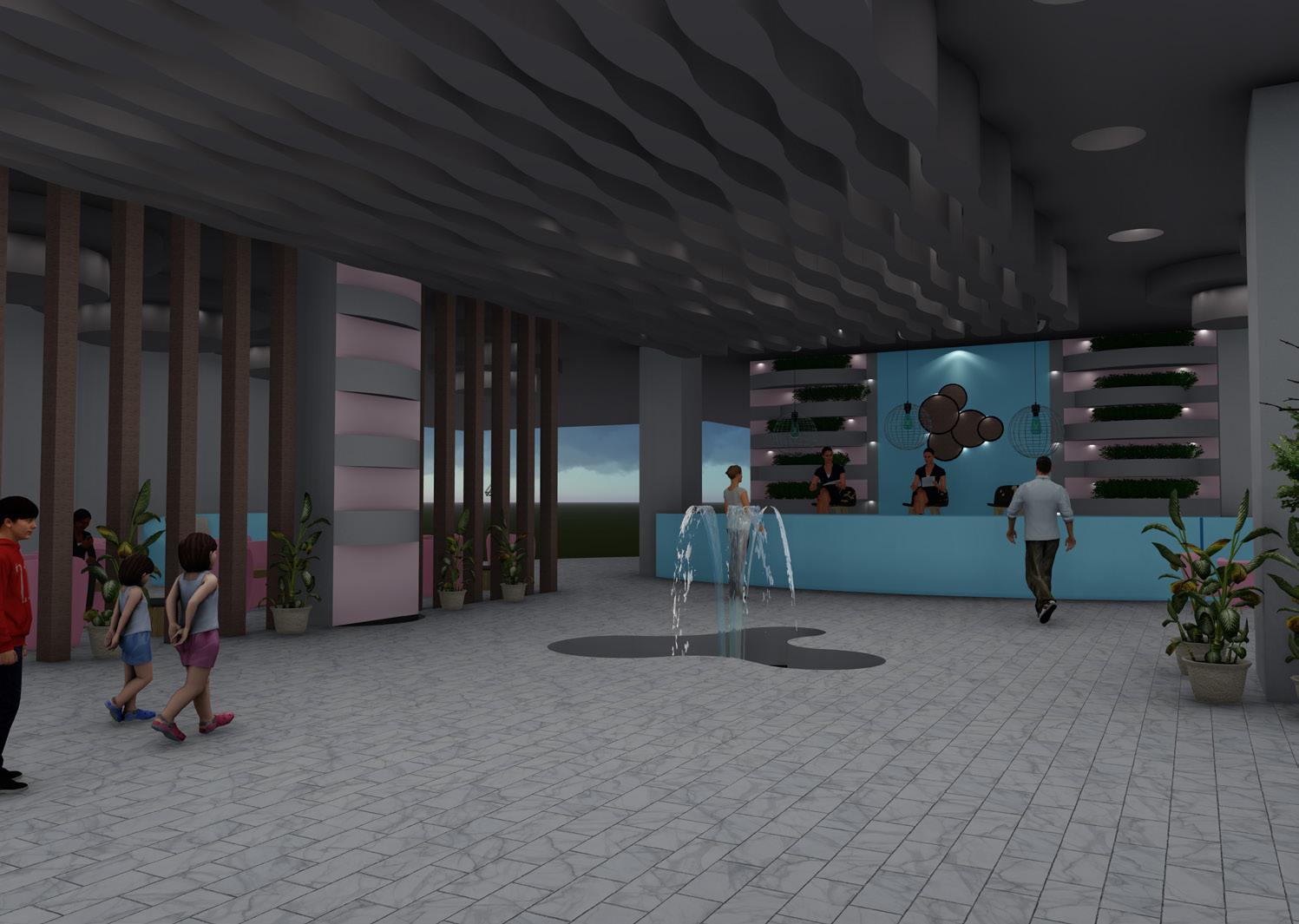

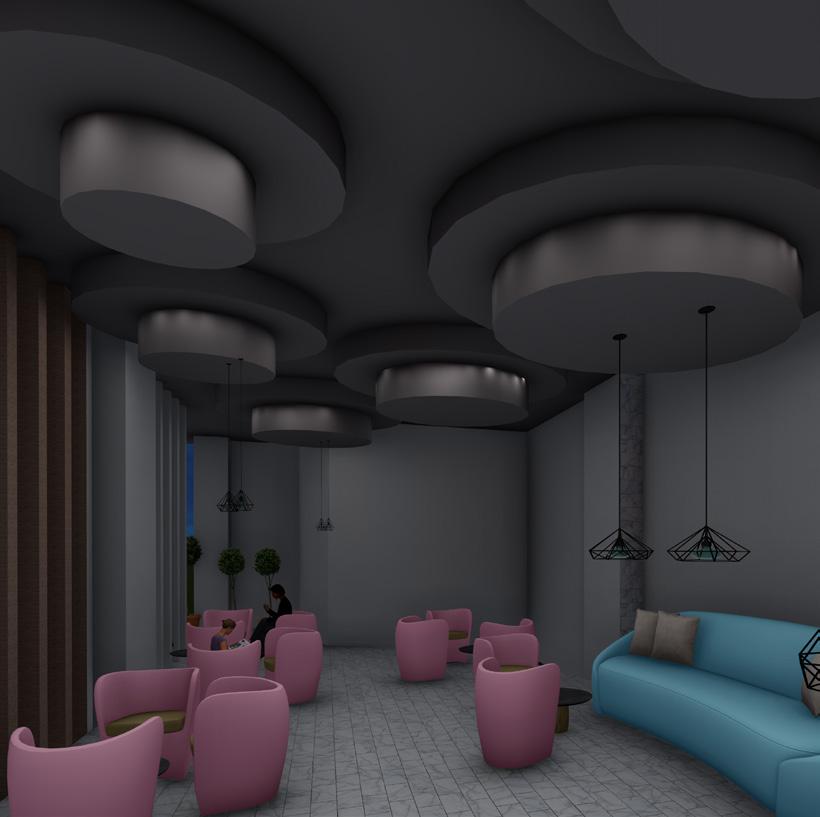

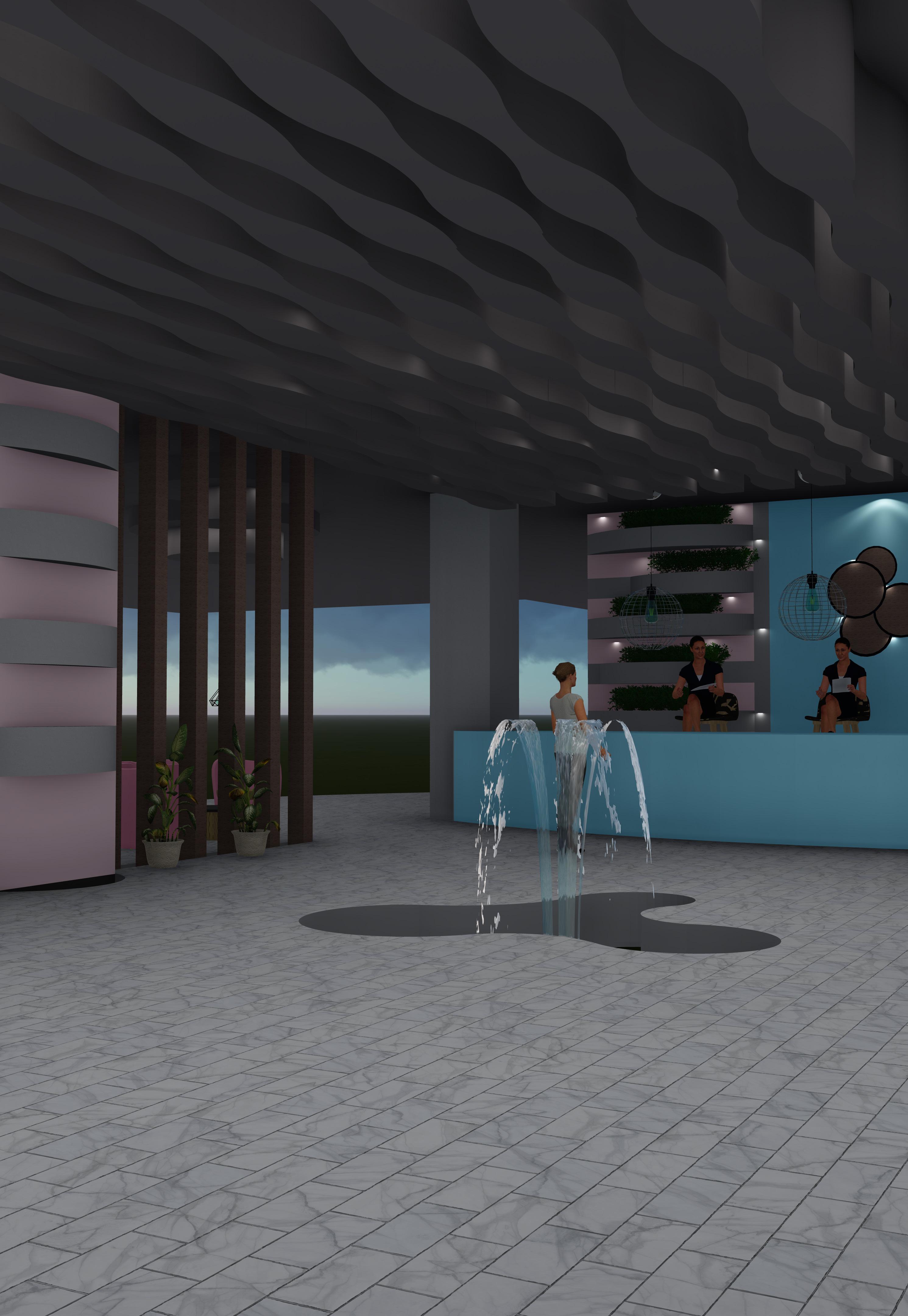

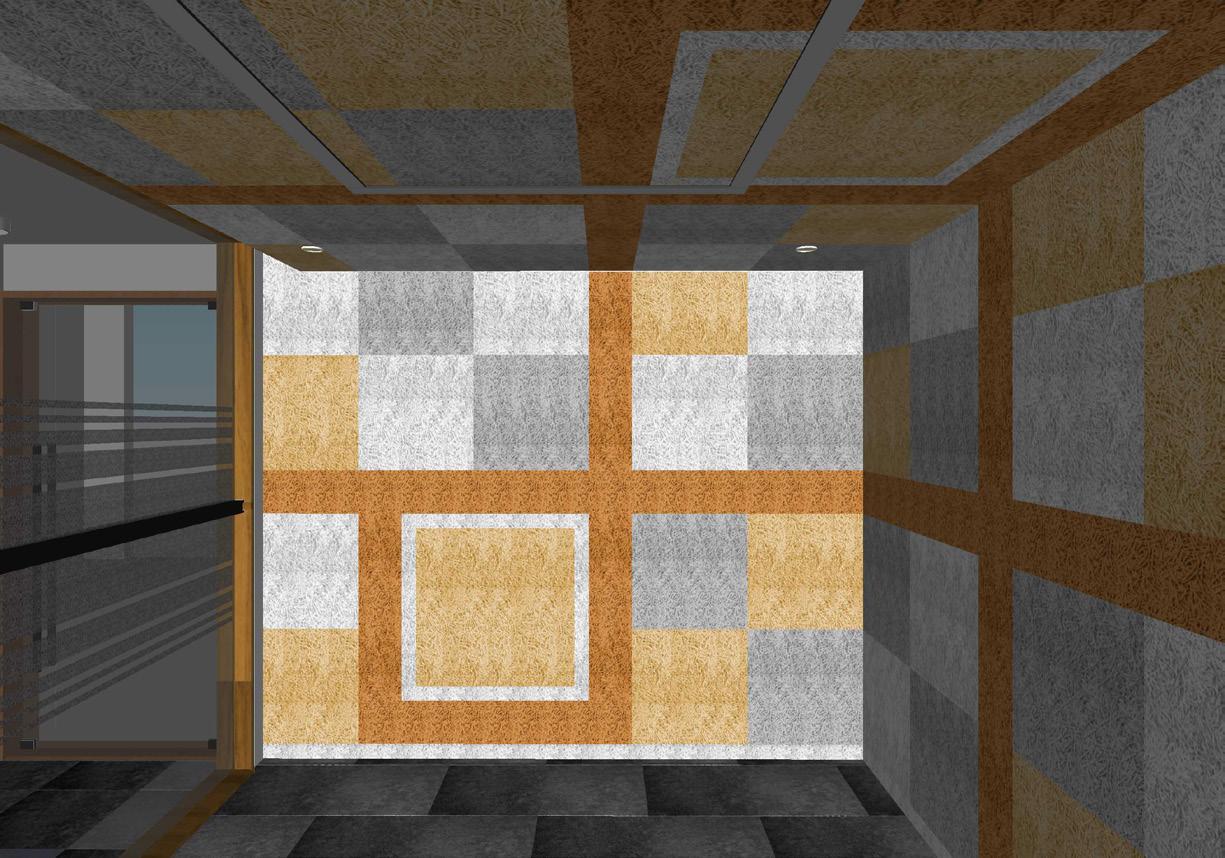

CEILING FOR ENTRANCE LOBBY

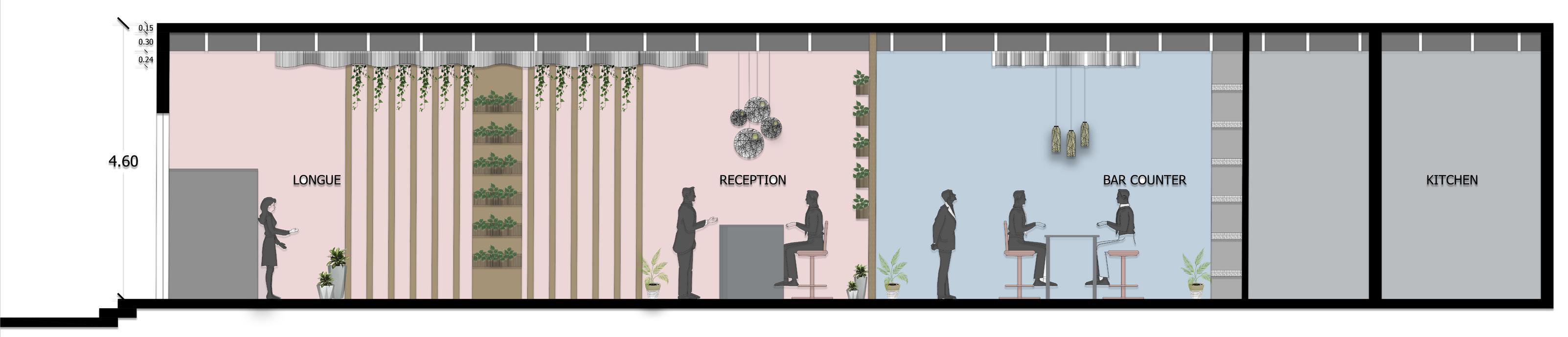

CEILING FOR BAR COUNTER

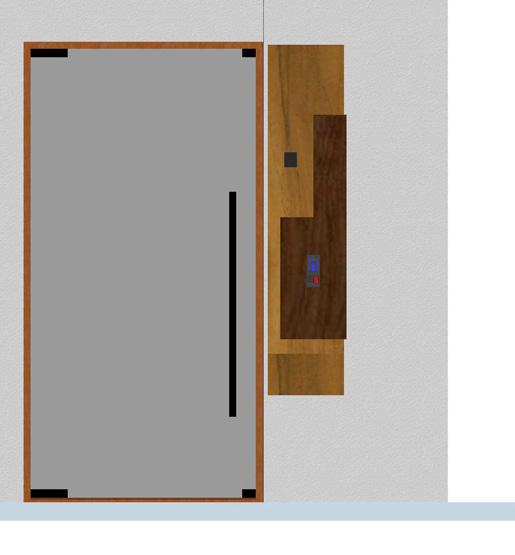

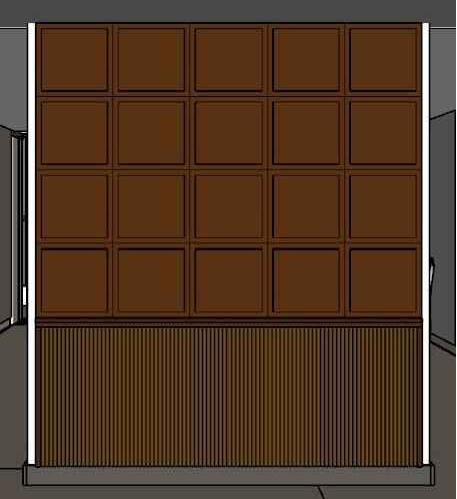

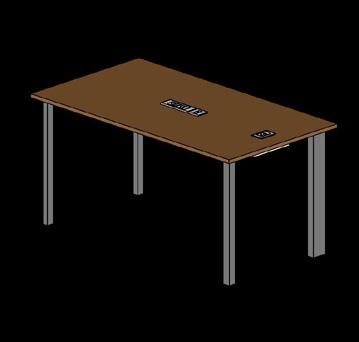

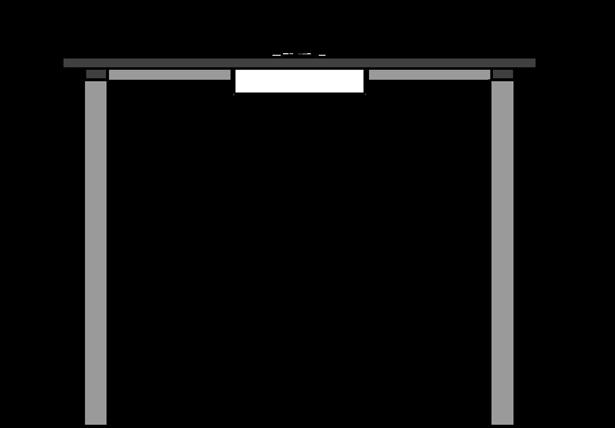

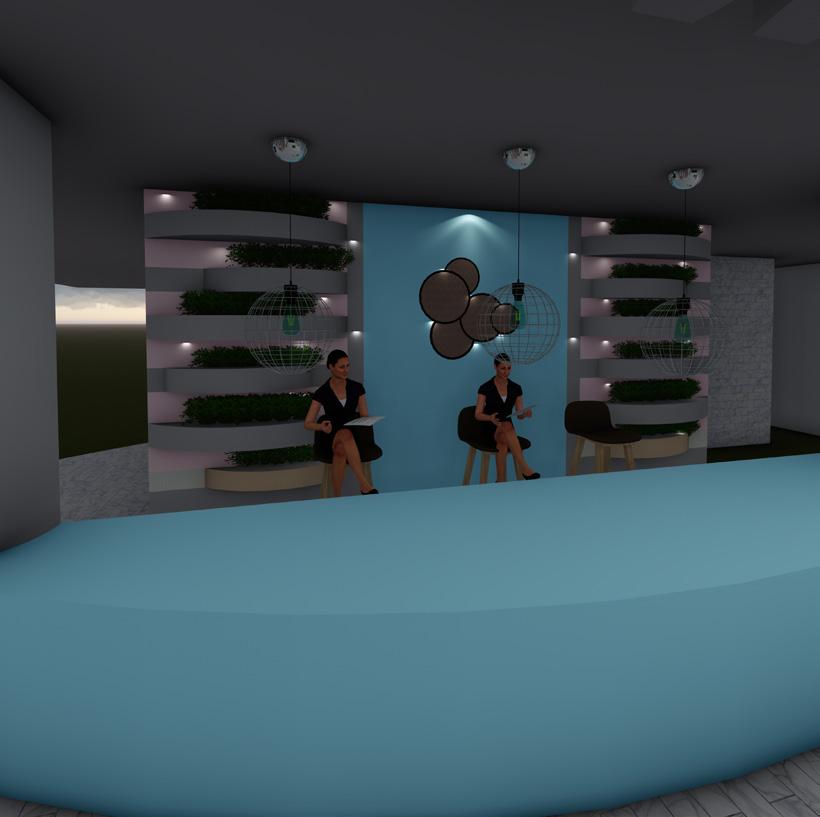

RECEPTION TABLE
MATERIAL PALETTE

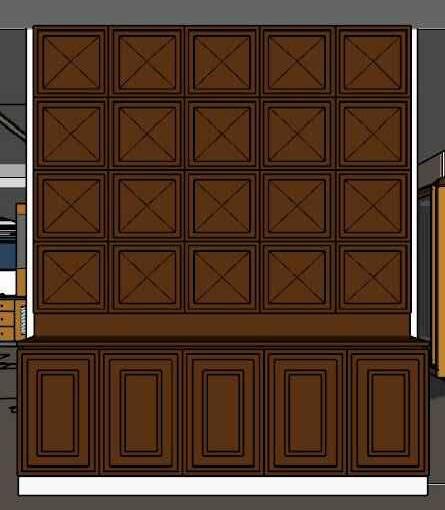

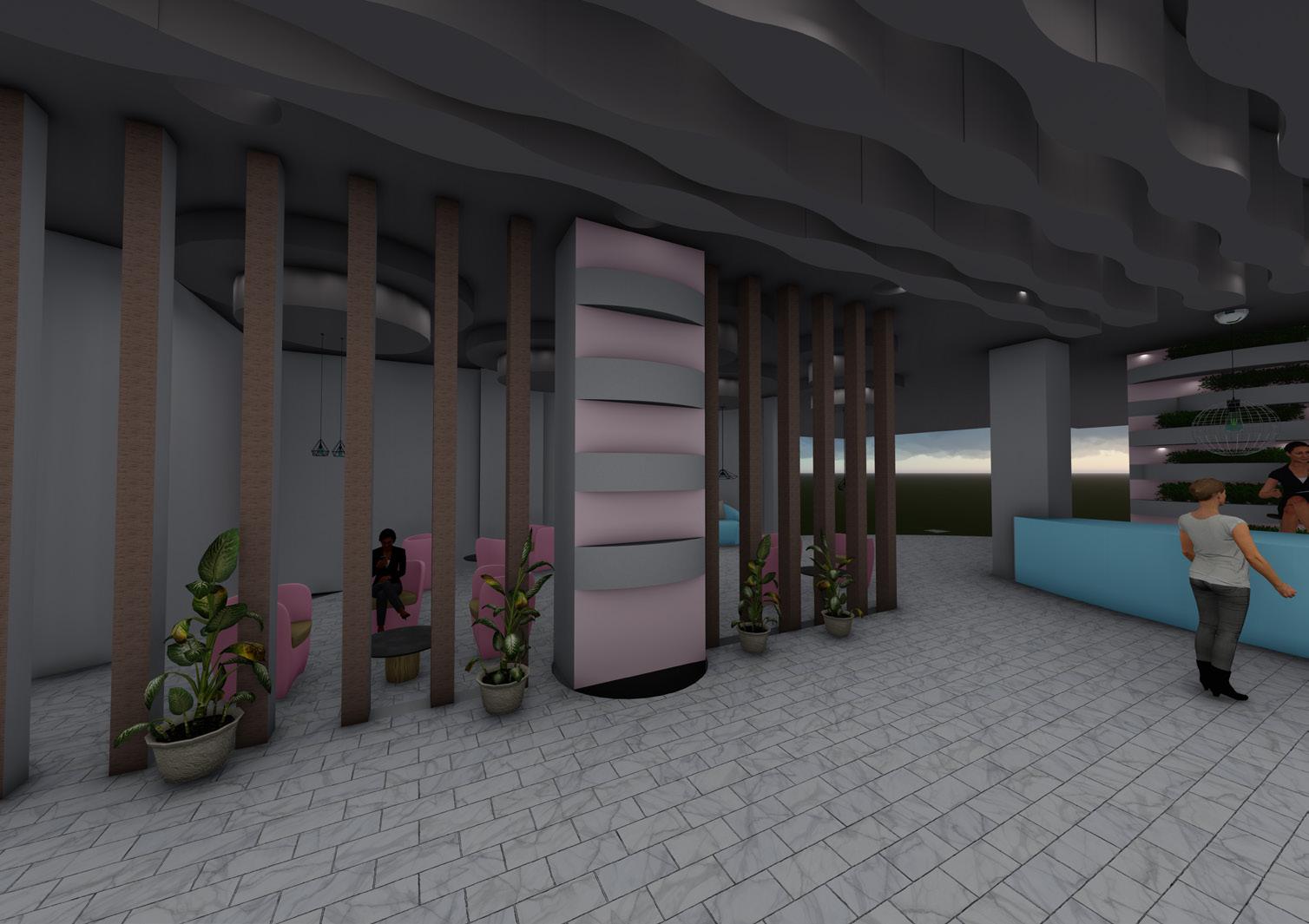

VERTICAL GARDEN PENDENTS

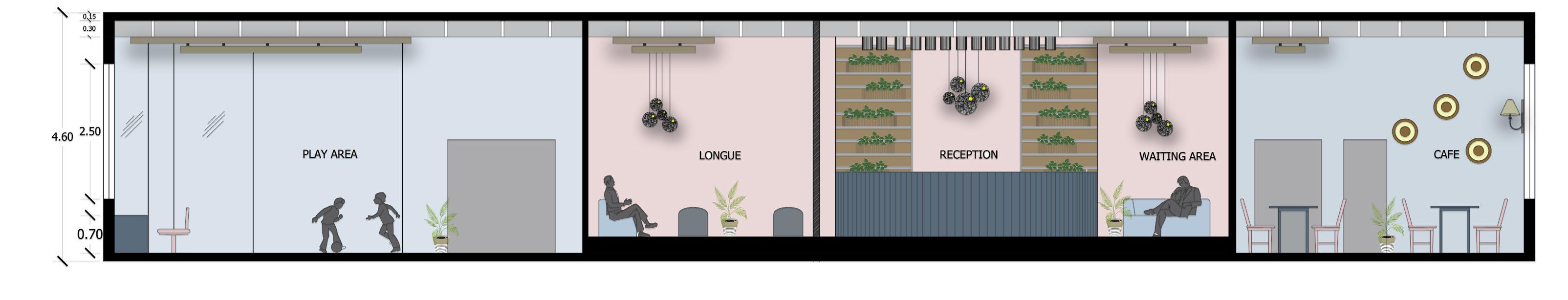

ZONING :
• TOTAL LOBBY SPACE = 137 SQM
• RECEPTION =10 SQM
• WAITING AREA = 30 SQM
• LONGUE = 20 SQM
• PLAY AREA = 30 SQM
• WALKWAY = 10 SQM

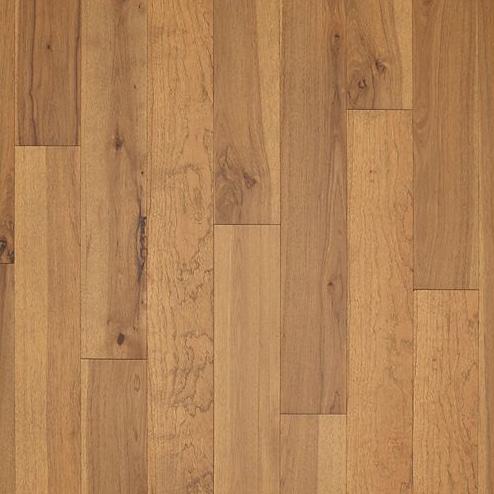

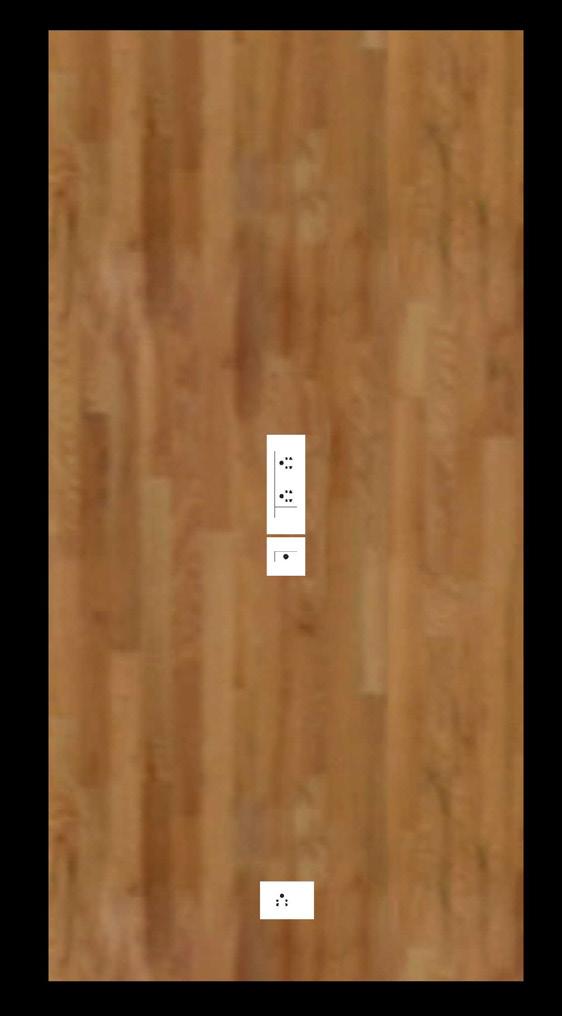

WOODEN FLOOR

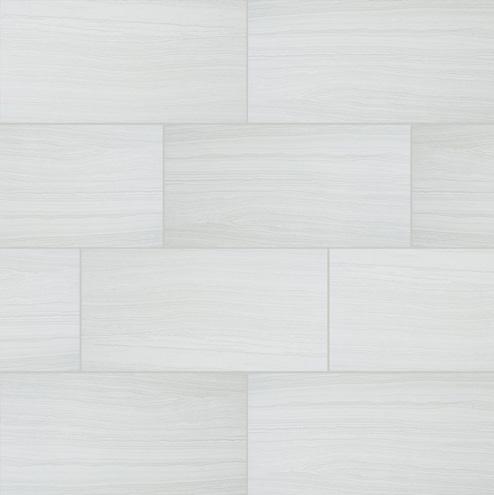

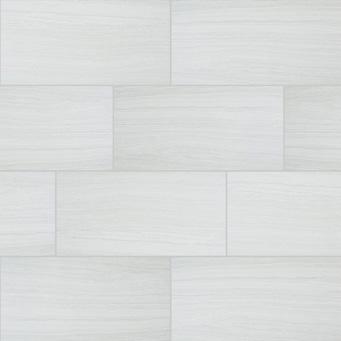

MATT PROCLEIN TILES

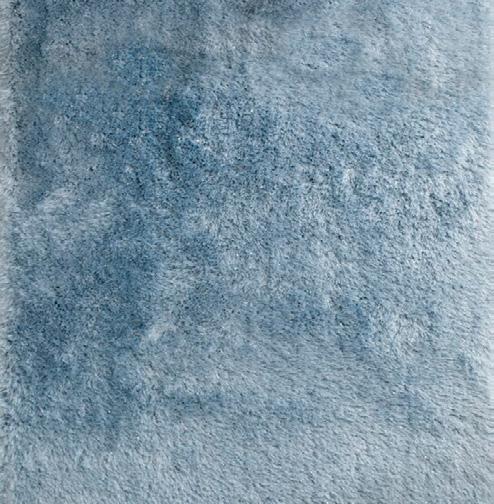

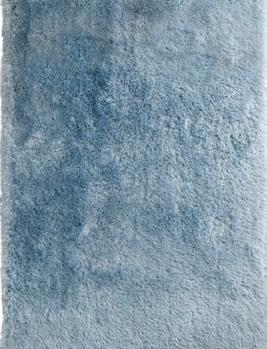

VELVET CARPET

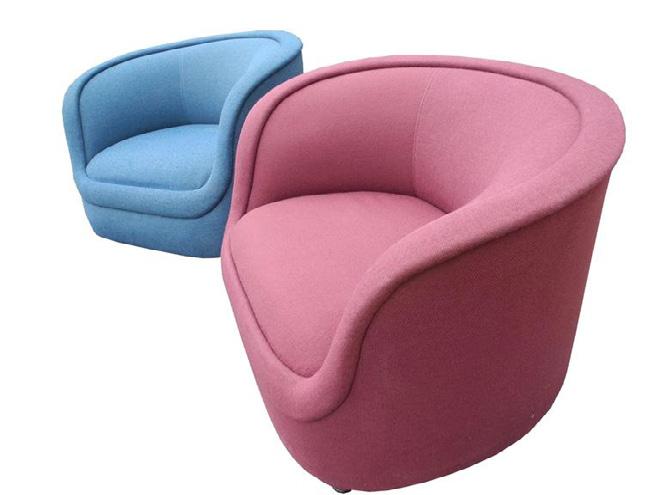

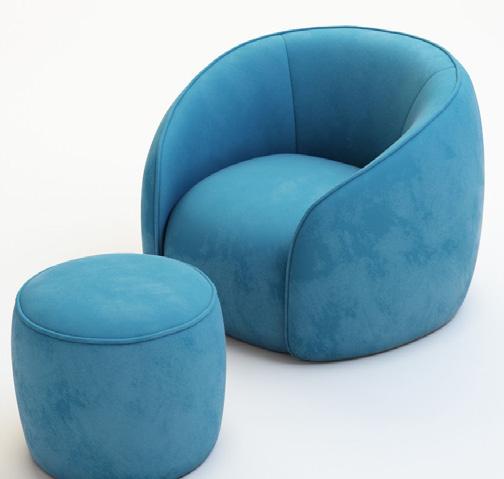

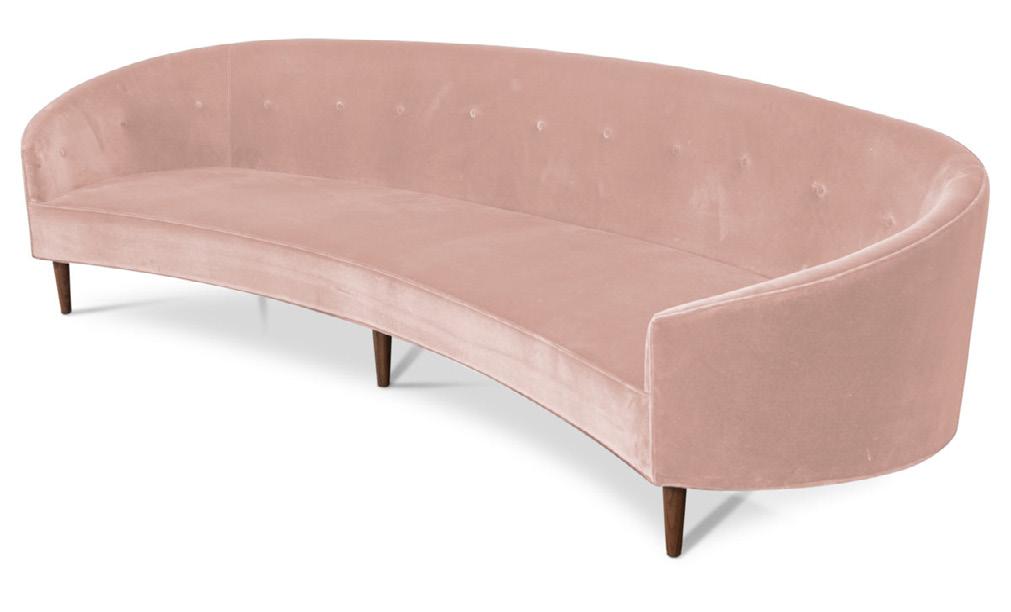

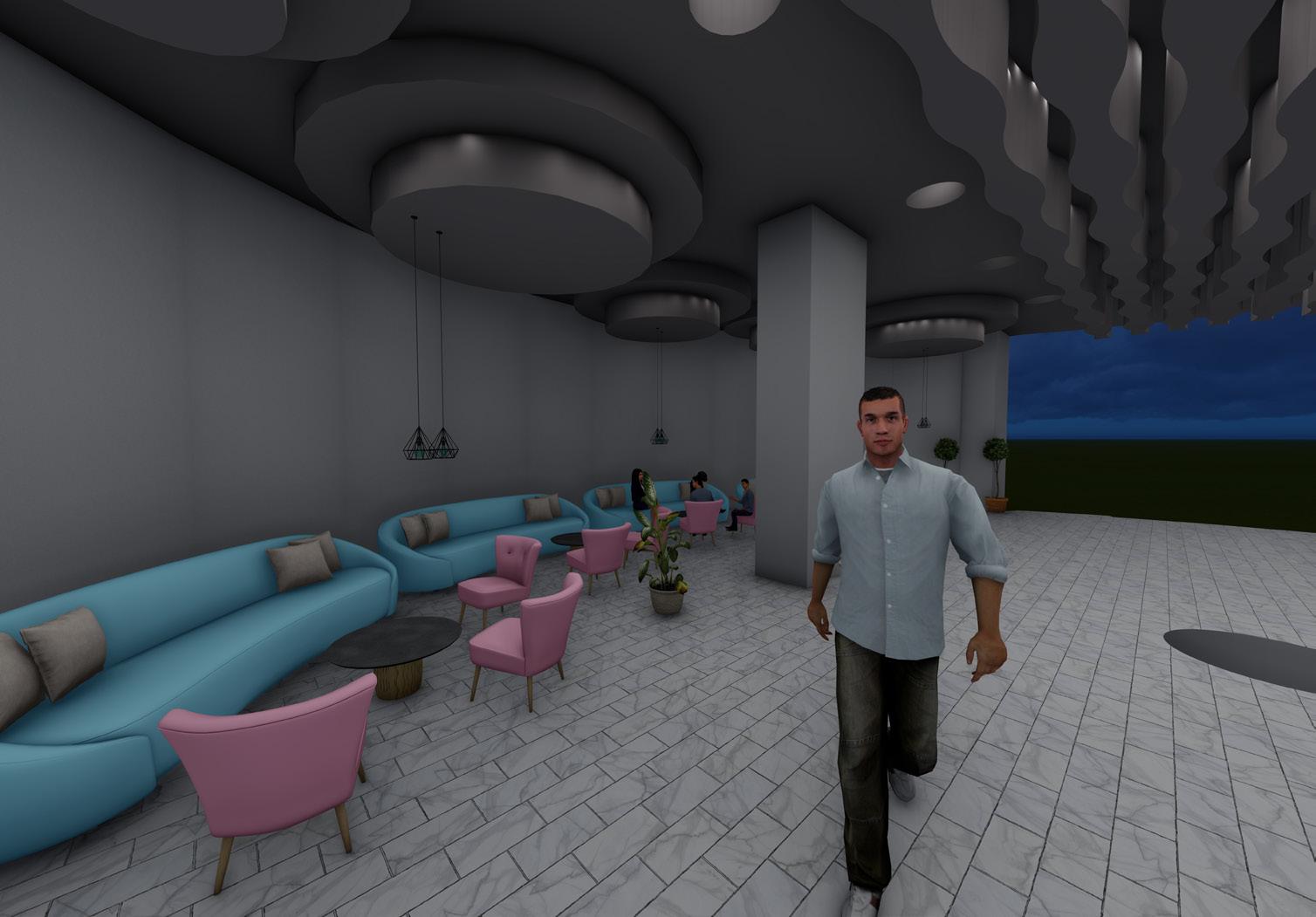

LATEX PINK CURVED SOFA
LATEX BLUE CURVED SOFA
LATEX BLUE AND PINK SINGLE SOFA

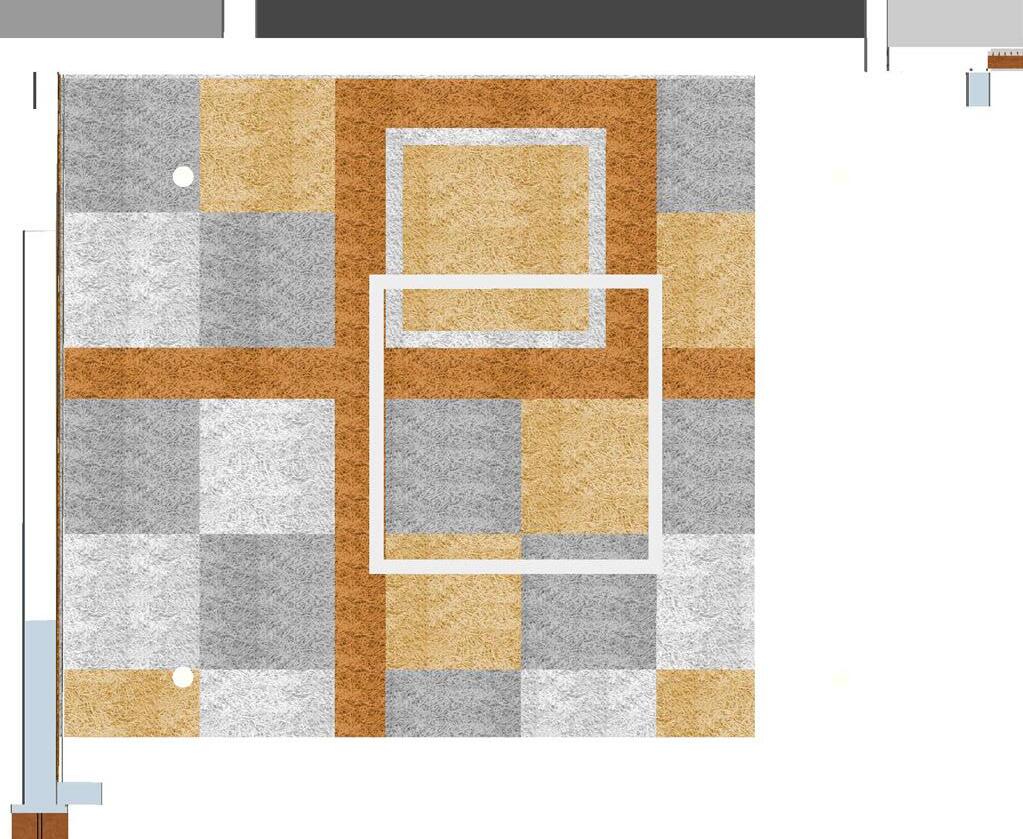

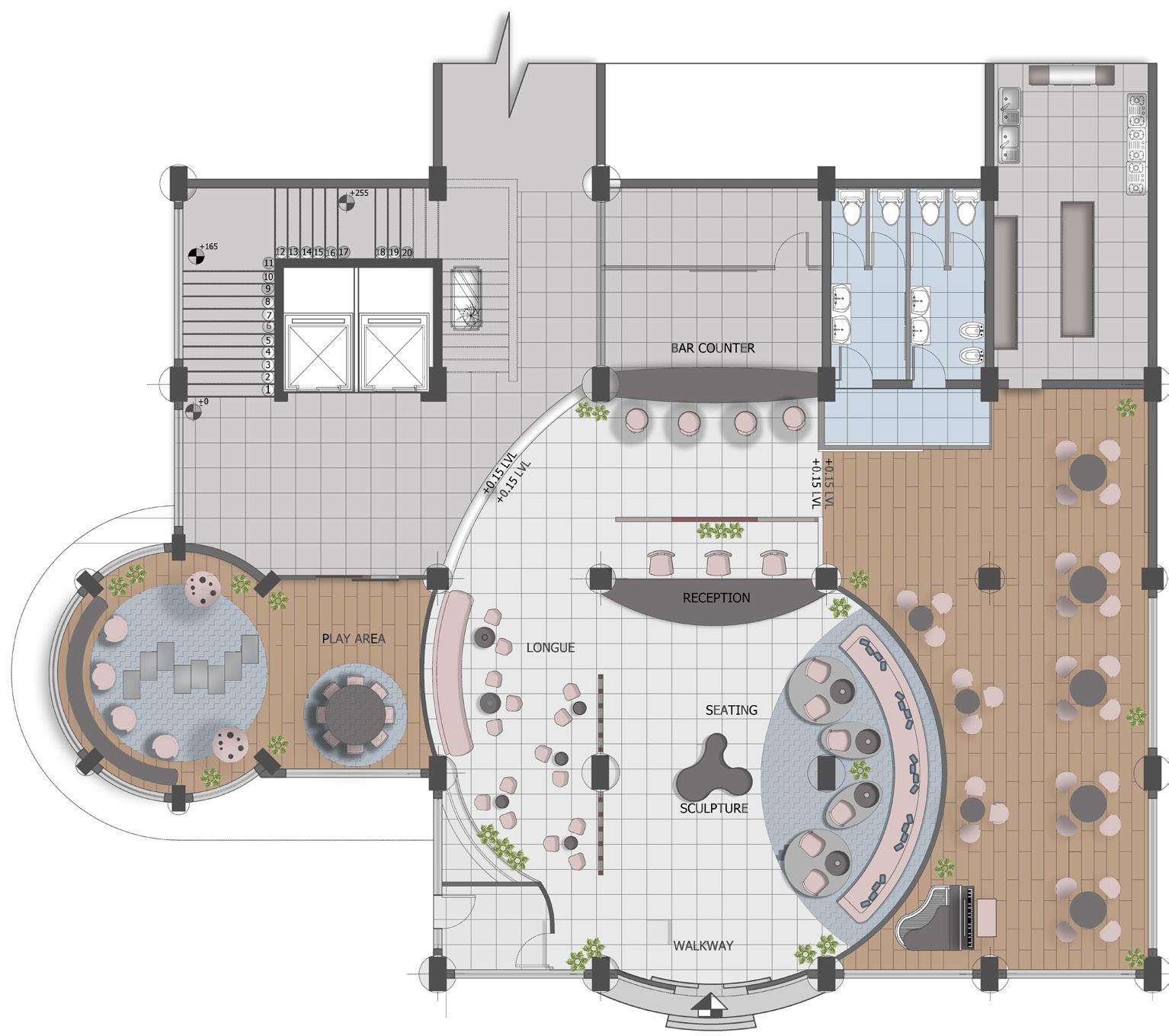

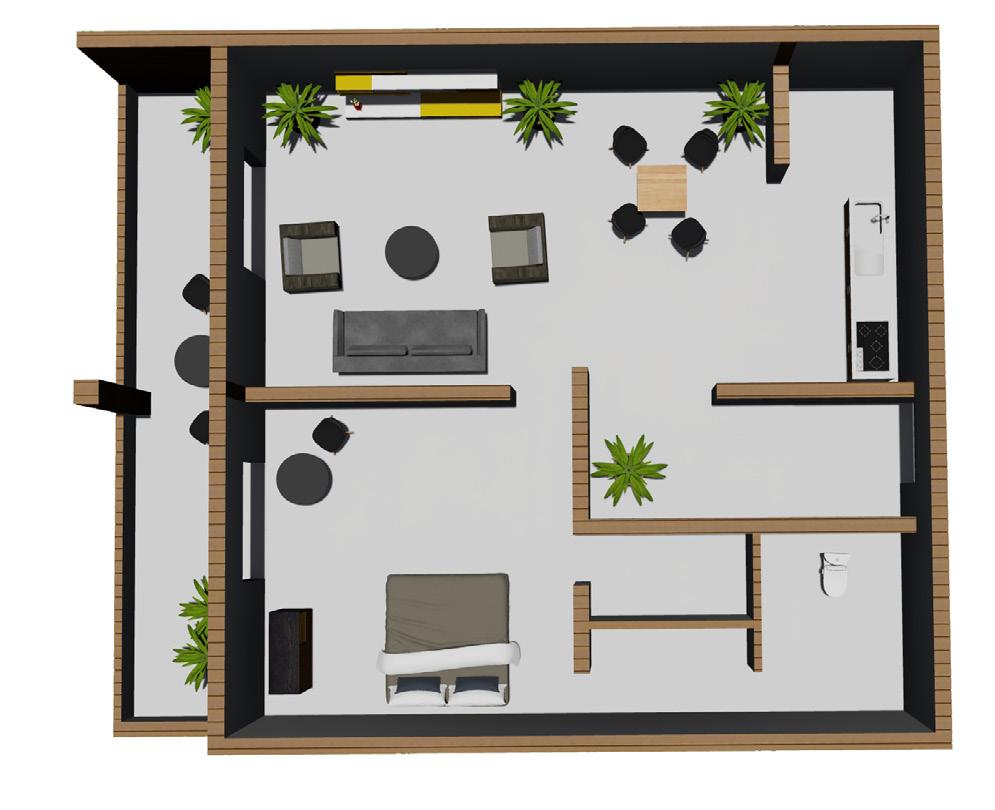

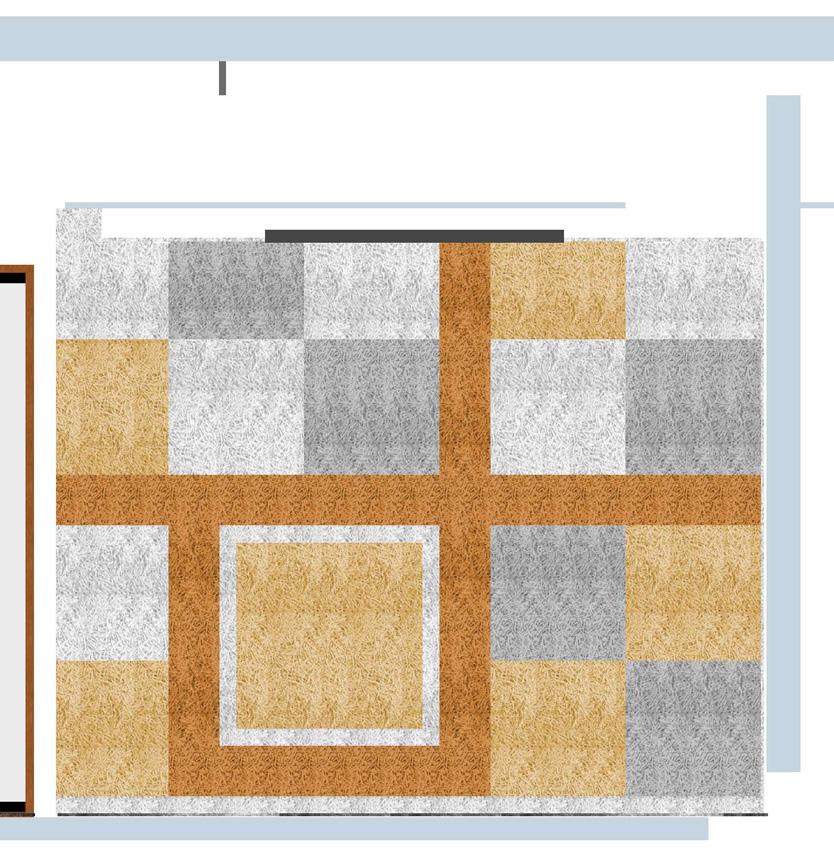

FLOOR PLAN

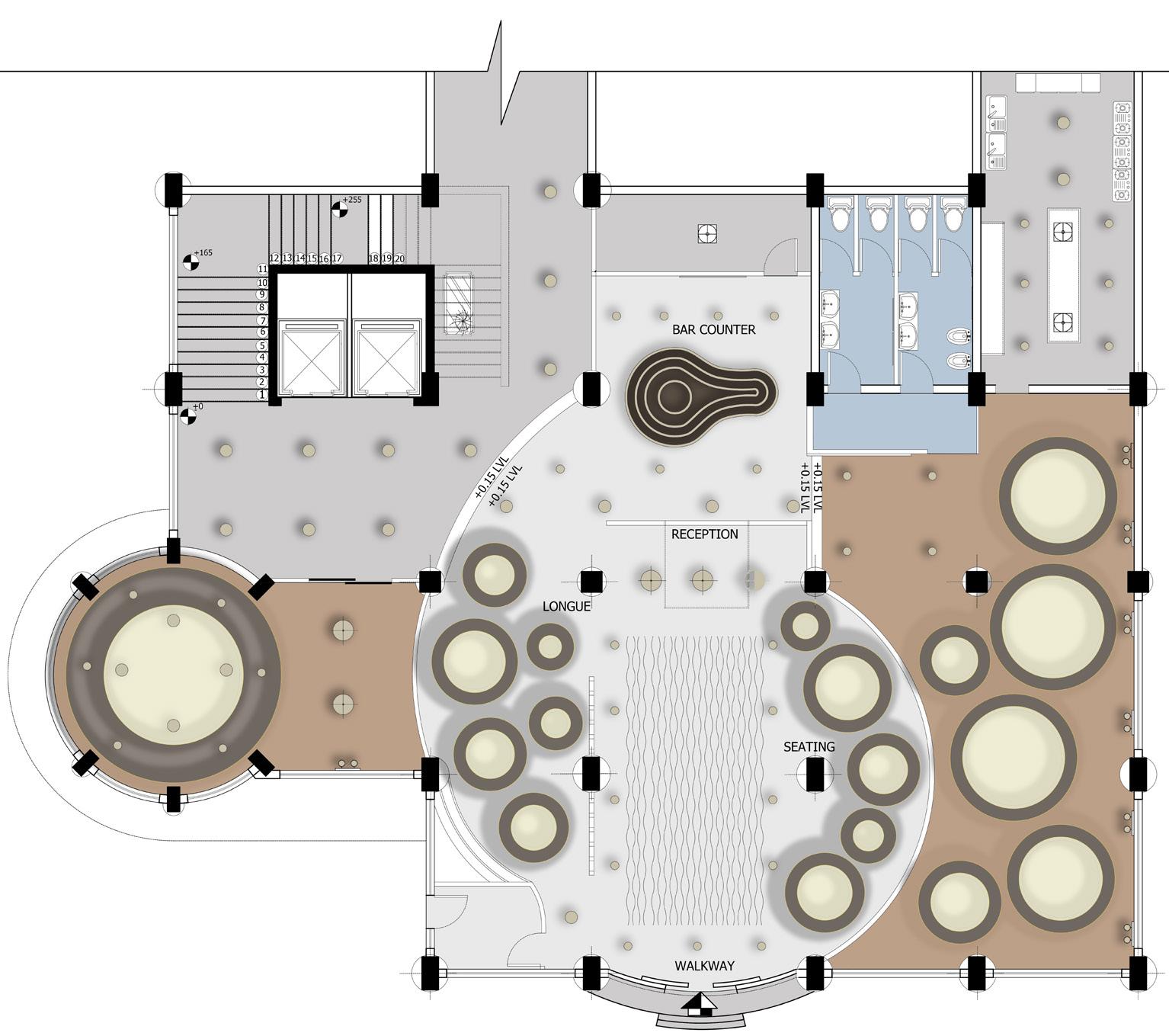

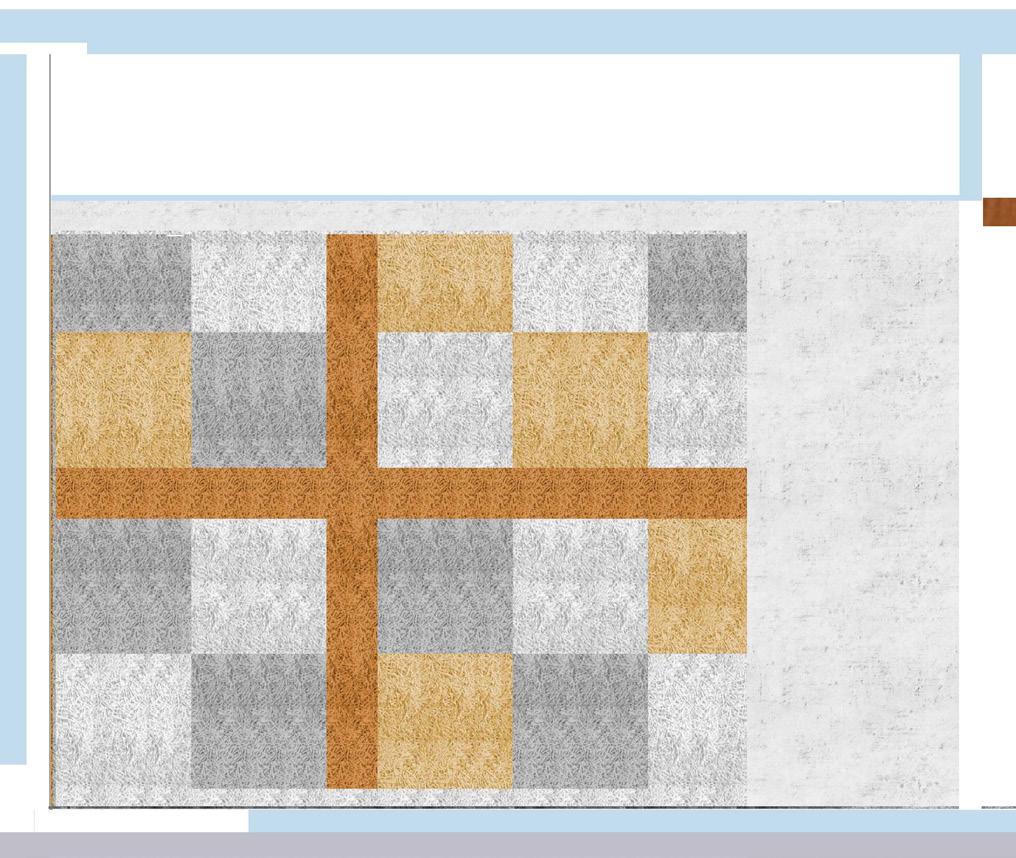

REFLECTED CEILING PLAN

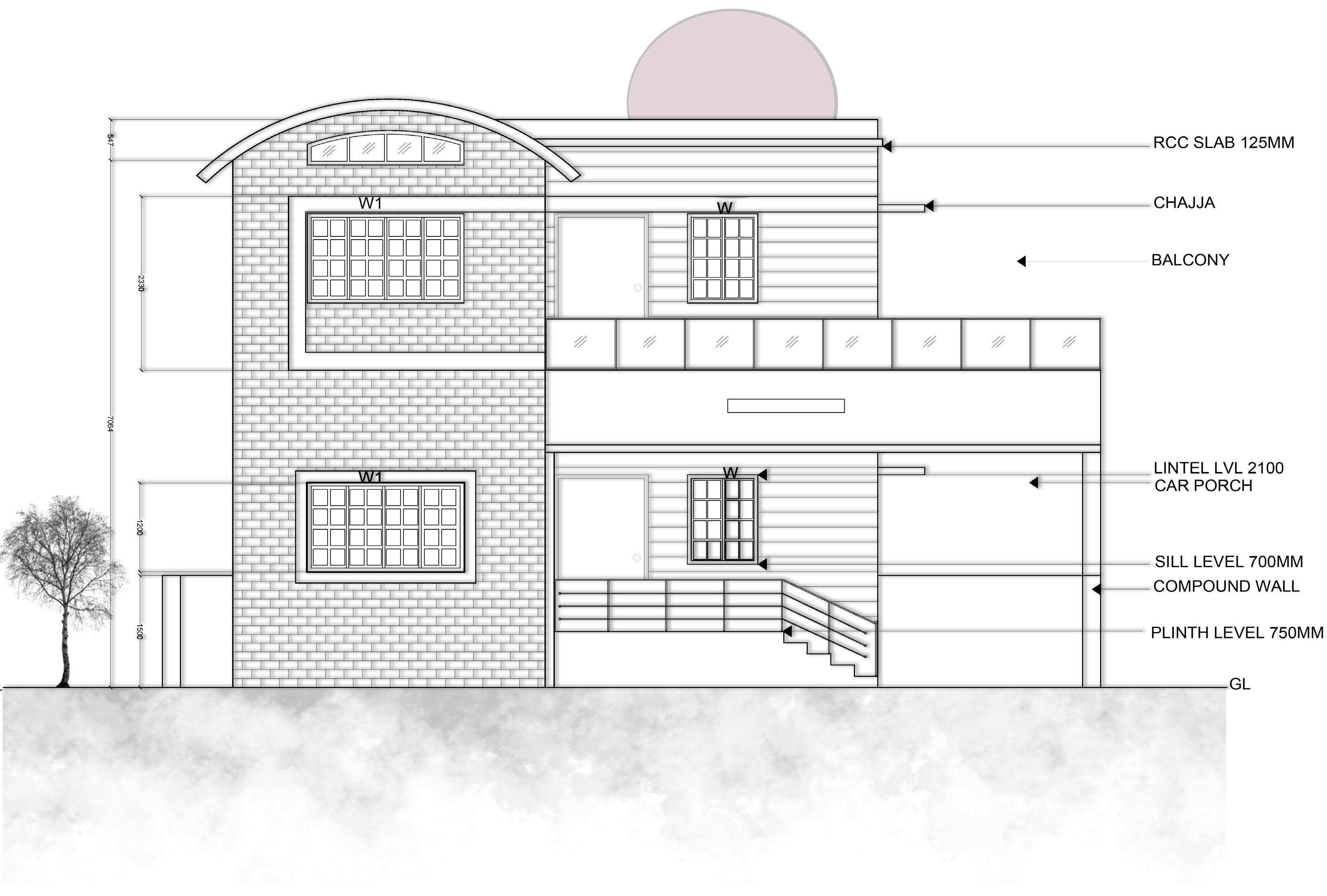

06 WORKING DRAWING

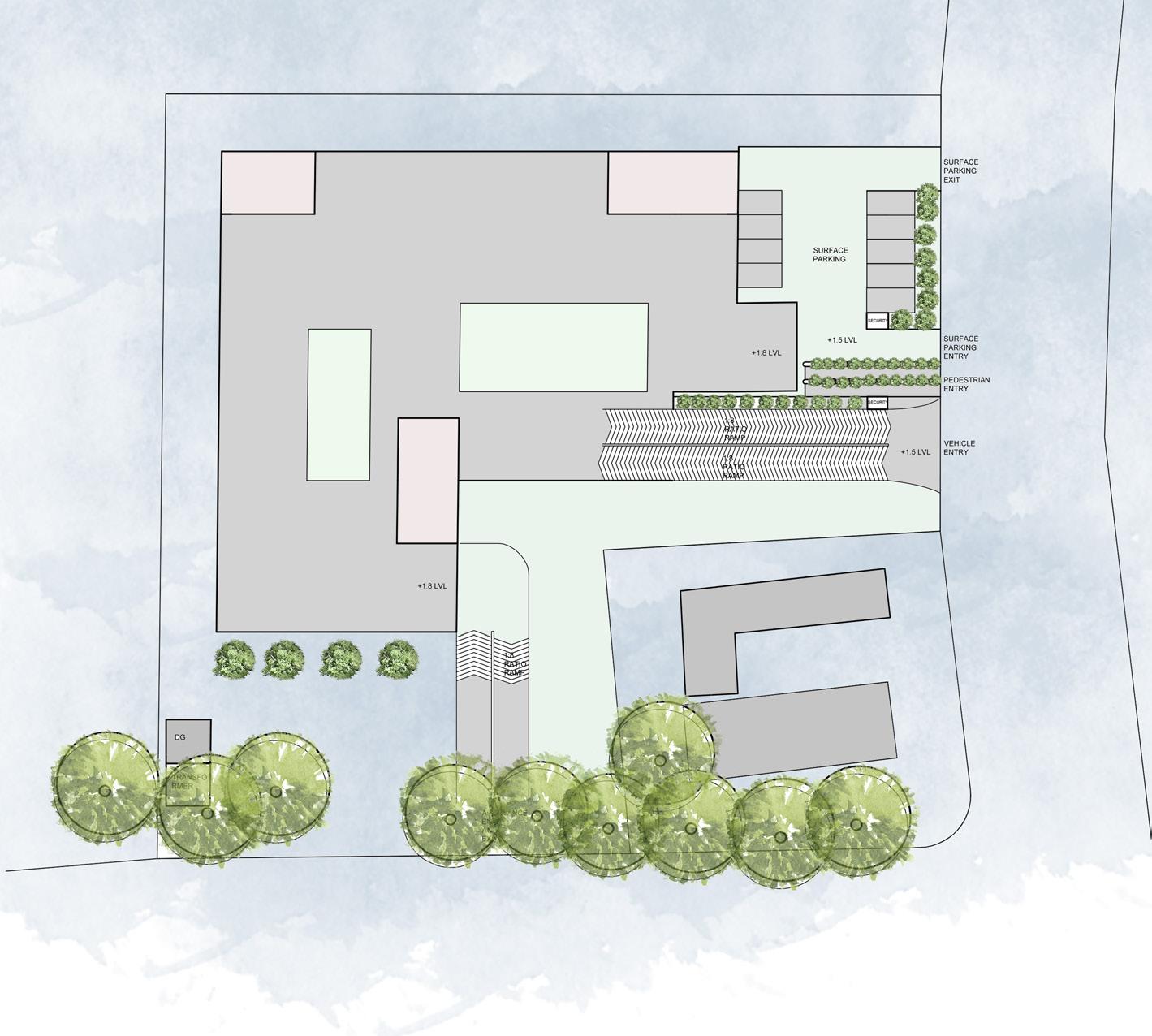

SITE PLAN
BUILDING CONSTRUCTION MATERIALS 07

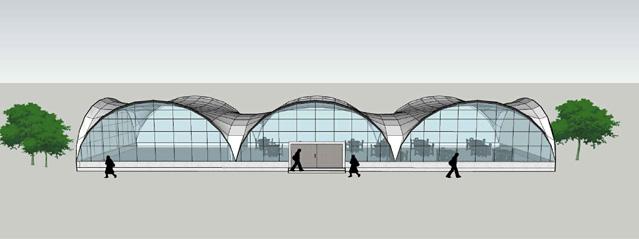

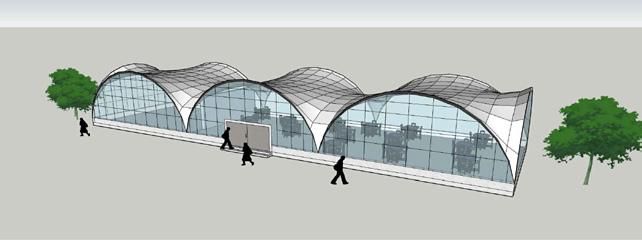

TRUSSES

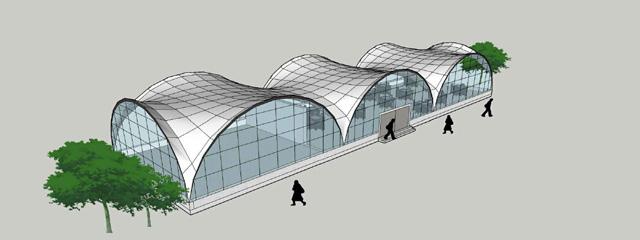

Trusses
COMES FROM FORM, NOT MASS.
CHARACTERISTICS
· THE SHELL STRUCTURE IS DOUBLY RULED WITH VERTICAL RIBS/RULES ARE PARABOLIC AND THE HORIZONTAL RIBS
FORM THE HYPERBOLIC CURVATURE. THIS UNIQUE SHELL STRUCTURE CAN BE AS THIN AS 50MM AND IS STRUCTURALLY STABLE TO COVER SPANS AS LARGE AS 55M. H/P SHELLS ARE CHARACTERIZED AS ANTICLASTIC SURFACES, i.e., IT HAS NEGATIVE GUASSIAN CURVATURE.
· THE CABLES AND ARCH MECHANISMS INTERACT INTO OPPOSITE DIRECTIONS.
DOUBLY CURVED SHELLS (NON - DEVELOPABLE)
· SYNCLASTIC : SAME SIDED CURVATURE HOOP STRESSES AND ARCH LINES TO TRANSFER FORCES
UNDER COMPRESSION. THEY HAVE A SIMILAR CURVATURE AT EACH SIDE.
EXAMPLE - A DOME · ANTICLASTIC : OPPOSITE SIDED CURVATURE HAVE SIMULTANEOUS TENSION AND COMPRESSION. EACH OF THE TWO CURVES HAVE OPPOSITE DIRECTION TO OTHER · EXAMPLE -
