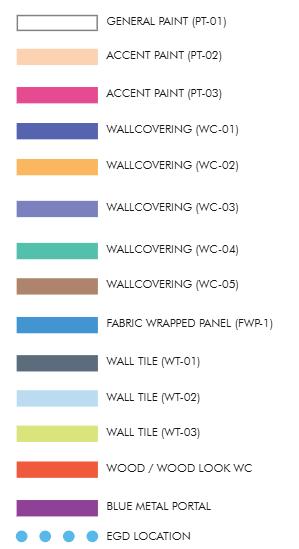

WALL FINISHES PLANNING

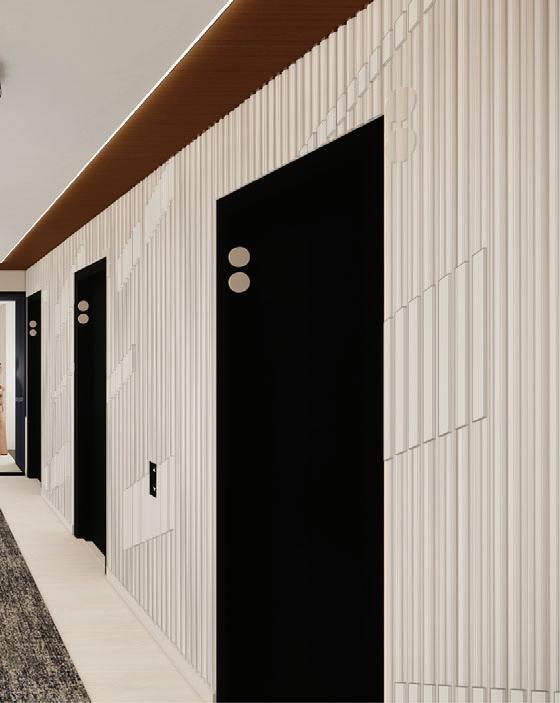

LIFT LOBBY
CONFERENCE
CAFERERIA
SYMPHONIC
School and Museum of Music
Harmony through layered light
A linked hybrid unites a School of Music, Performance Complex, and Museum of Sound into one continuous spatial composition. Each program retains its identity yet flows seamlessly into the next classrooms transition into rehearsal halls, corridors expand into atria, and galleries extend learning beyond the academic realm. The design celebrates sound as a spatial medium, where acoustics and light converge to create a unified experience that blurs the boundaries.
core of collective rhythm
ATRIUM

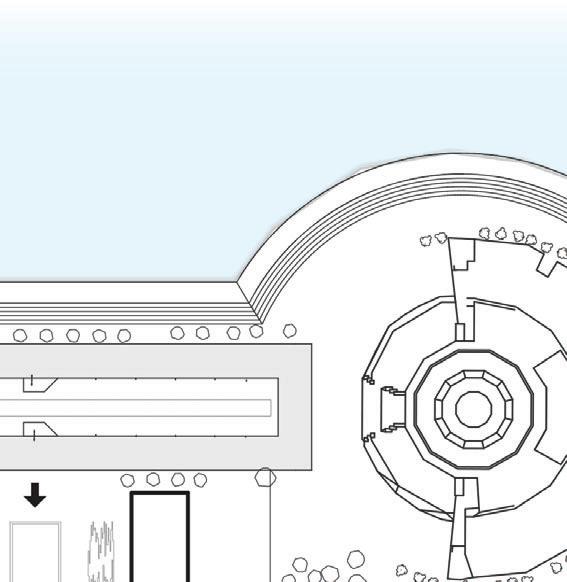

VEHICULAR ACCESS
PEDESTRIAN ACCESS

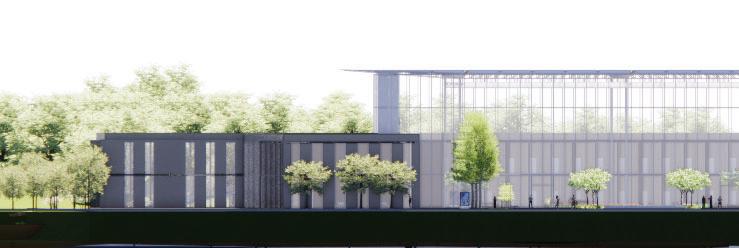

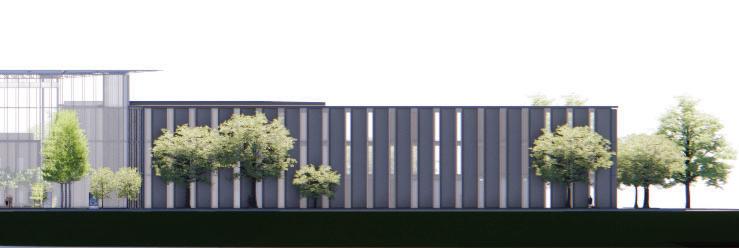

NORTH BUILDING ELEVATION

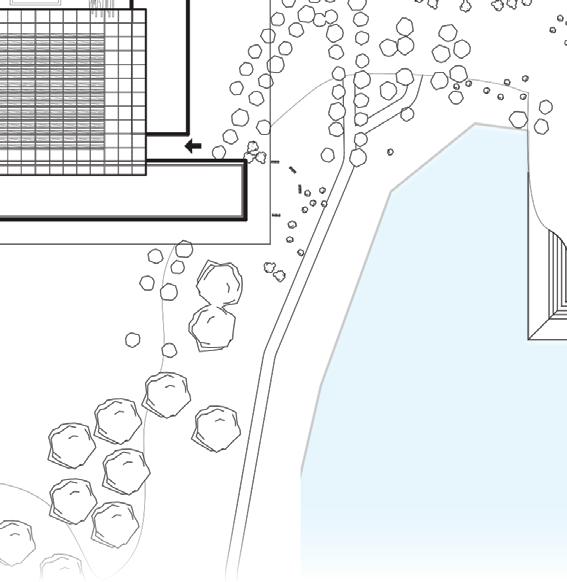

GREENSCAPE
WATER BODY
GLASS FACADE
SHADING DEVICE
STEEL FRAME

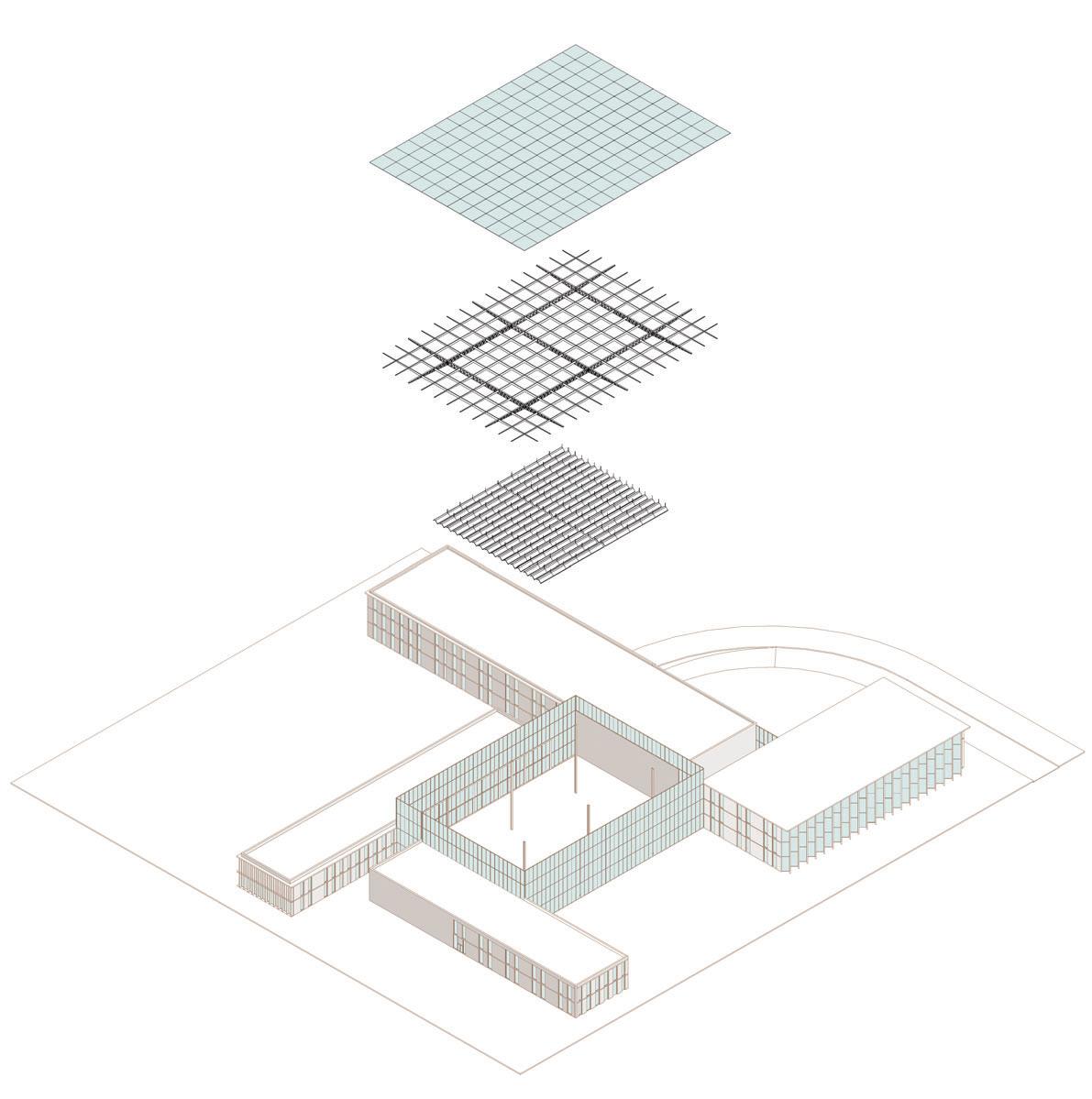

GLASS ROOF

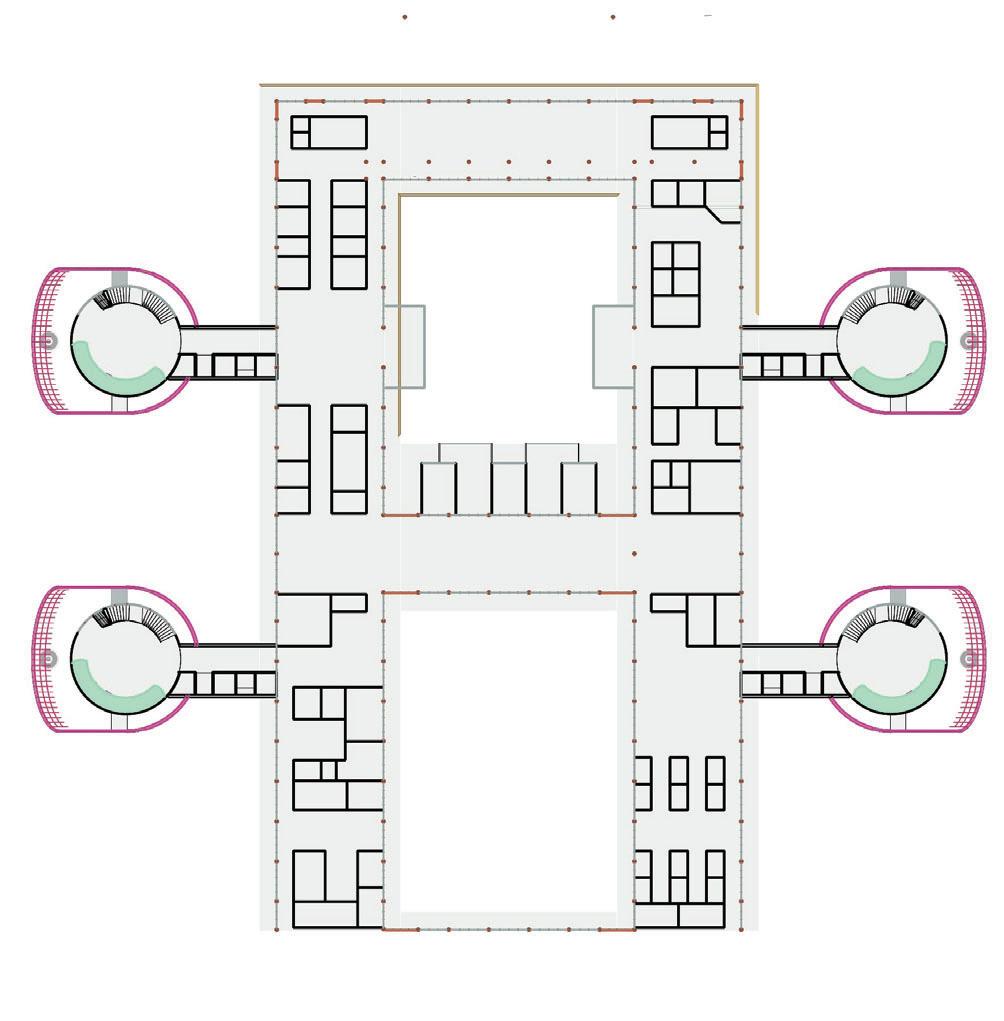

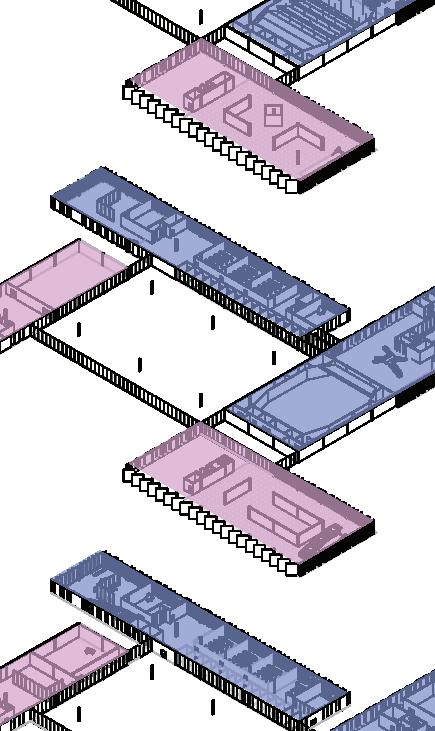

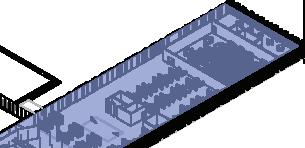

BUILDING SPACE ANALYSIS
ROOF FLOOR
THIRD FLOOR
SECOND FLOOR
FIRST FLOOR
FACADE DESIGN - HORIZONTAL LOUVERS
BASEMENT FLOOR
SCHOOL
MUSEUM
PARKING
GYPSUM FINISH
FLOOR FINISH
LOUVER
GLAZING PANEL
CONCRETE SLAB

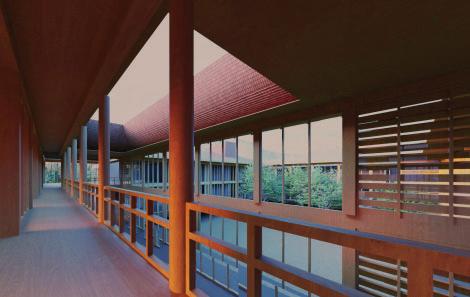

LINKING BRIDGE connecting the performance and classrooms
GALLERY SPACE a dynamic zone for exploration and learning.
GALLERY 3
GALLERY 2
GALLERY 1
PARKING

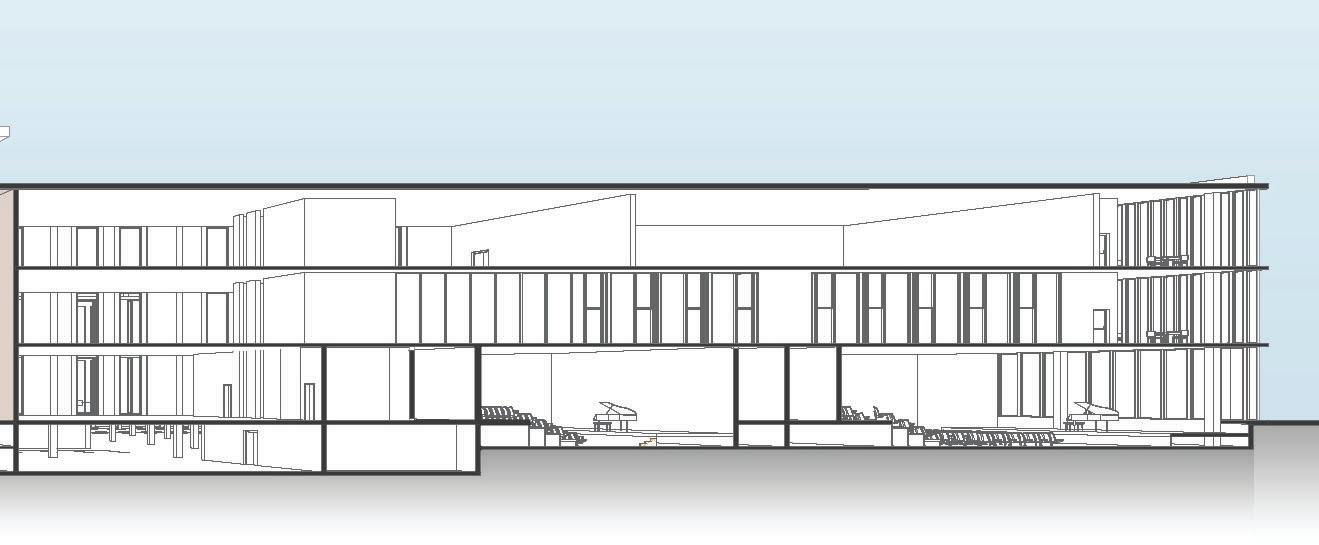

BUILDING SECTION
AUDITORIUM
AUDITORIUM SPACE
FACULTY OFFICES a performance core designed for emmersive experience
TRANSFORM
PIXELS Mixed - Use Housing Development
Hybrid vertical community
Migrant welcome center Pod Hotel
CONCEPT DEVELOPMENT
Circulation Core Apartment Complex

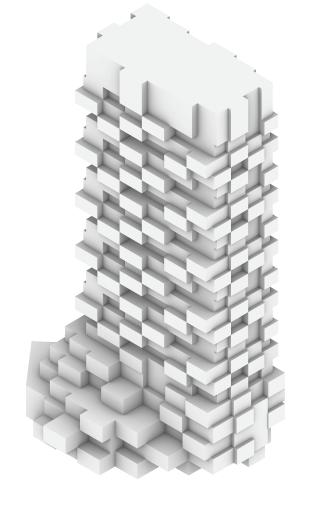

North / South Articulation
East / West Articulation

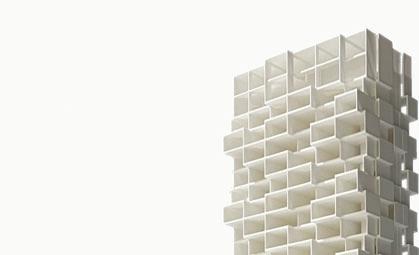

This project envisions a vertical mixed-use community that responds to Chicago’s evolving urban and social needs. It integrates a Migrant Welcome Center offering legal aid, education, and healthcare; a Pod Hotel providing short-term accommodation; and an Apartment Complex fostering longterm stability. Together, these programs form an inclusive and sustainable framework that blends housing, hospitality, and community infrastructure serving for resilient and connected urban living.

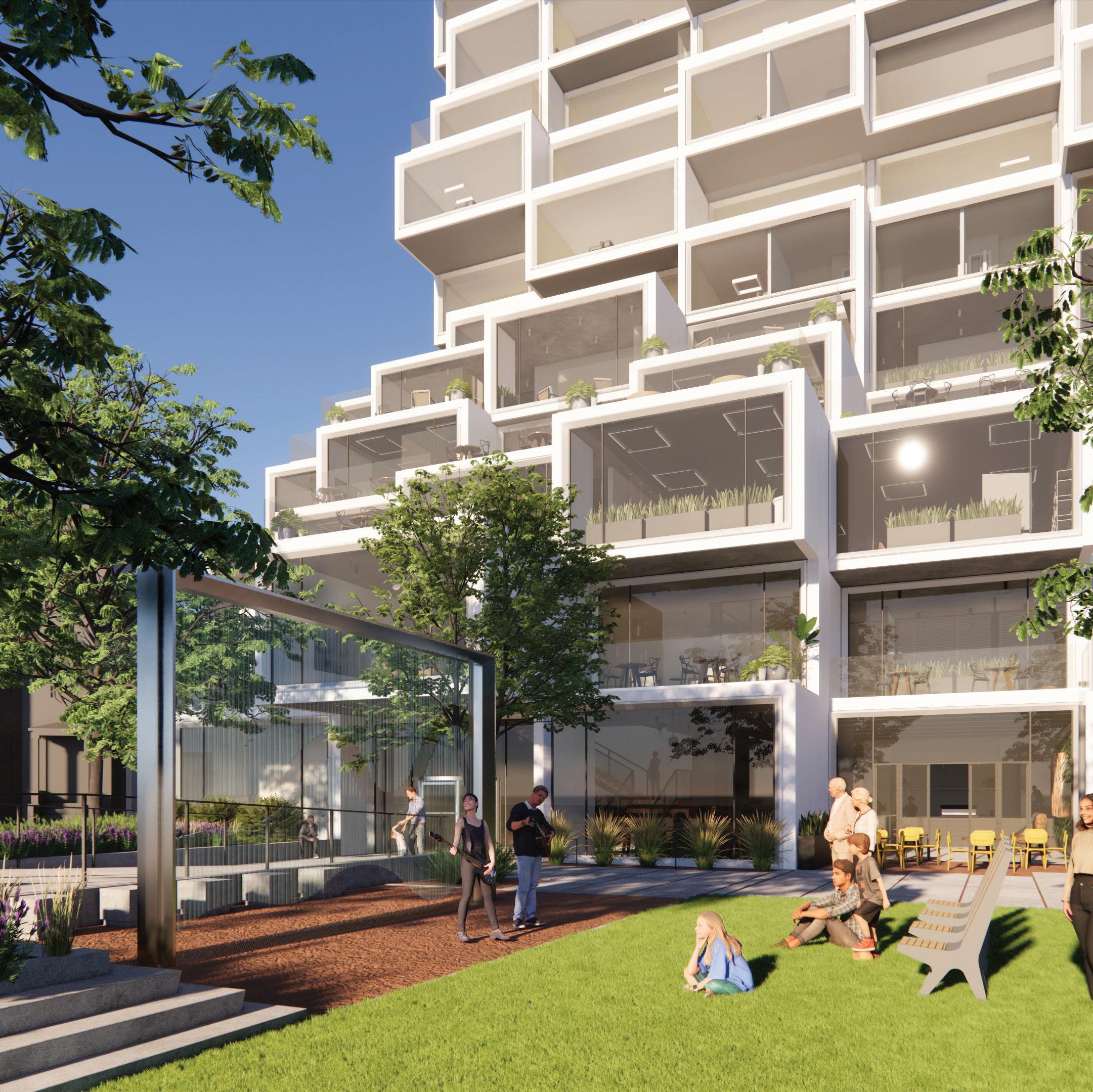

PLAZA
Migrant welcome center
Pod Hotel
Apartment Complex

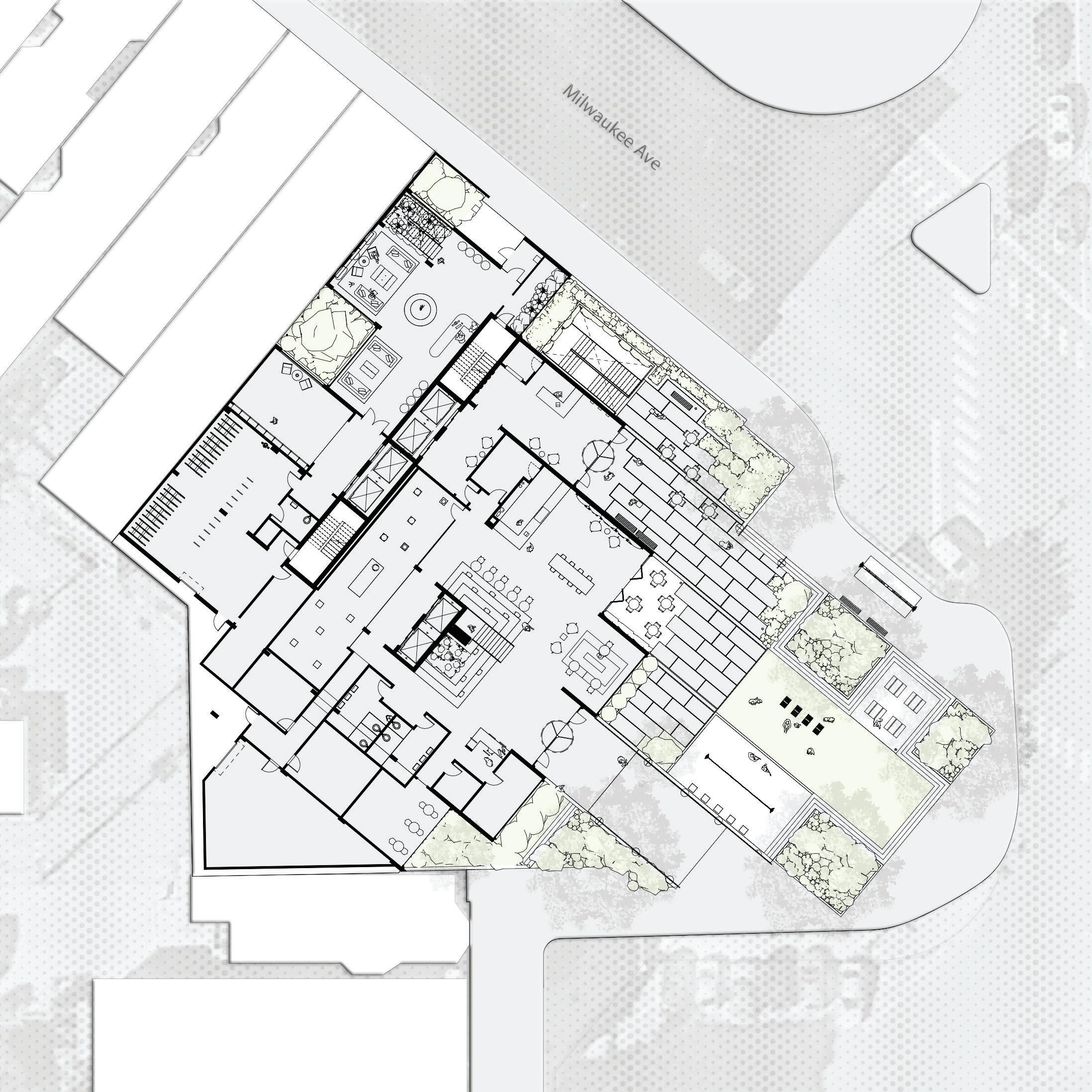

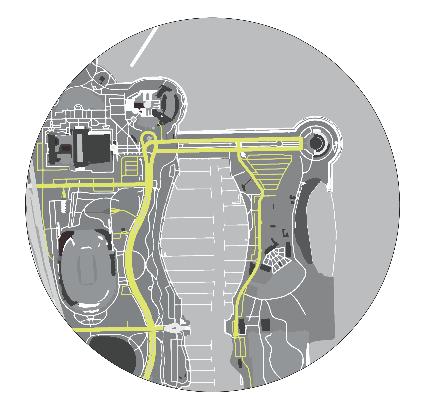

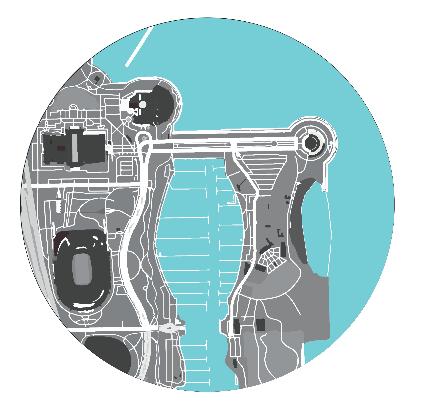

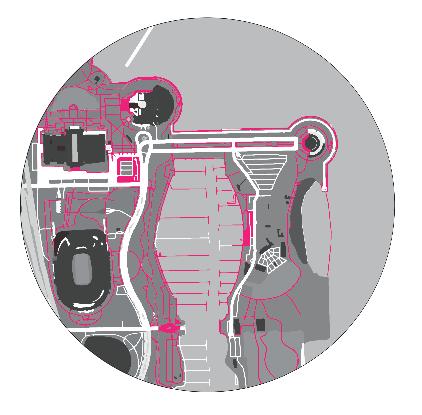

BUILDING SITE PLAN
WELCOMING

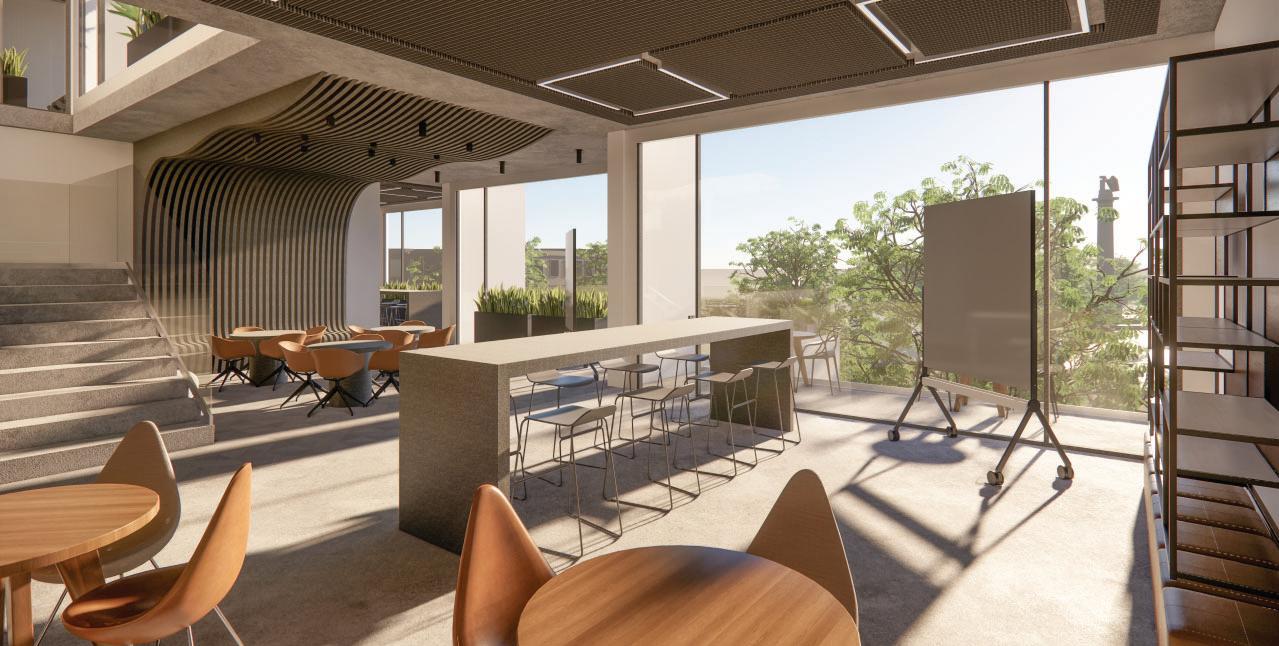

LEARNING
2 BED UNIT 1 BED UNIT
STUDIO UNIT 2 BED POD 1 BED POD
LIVING ROOM
BEDROOM
AMENITIES
LAYERED

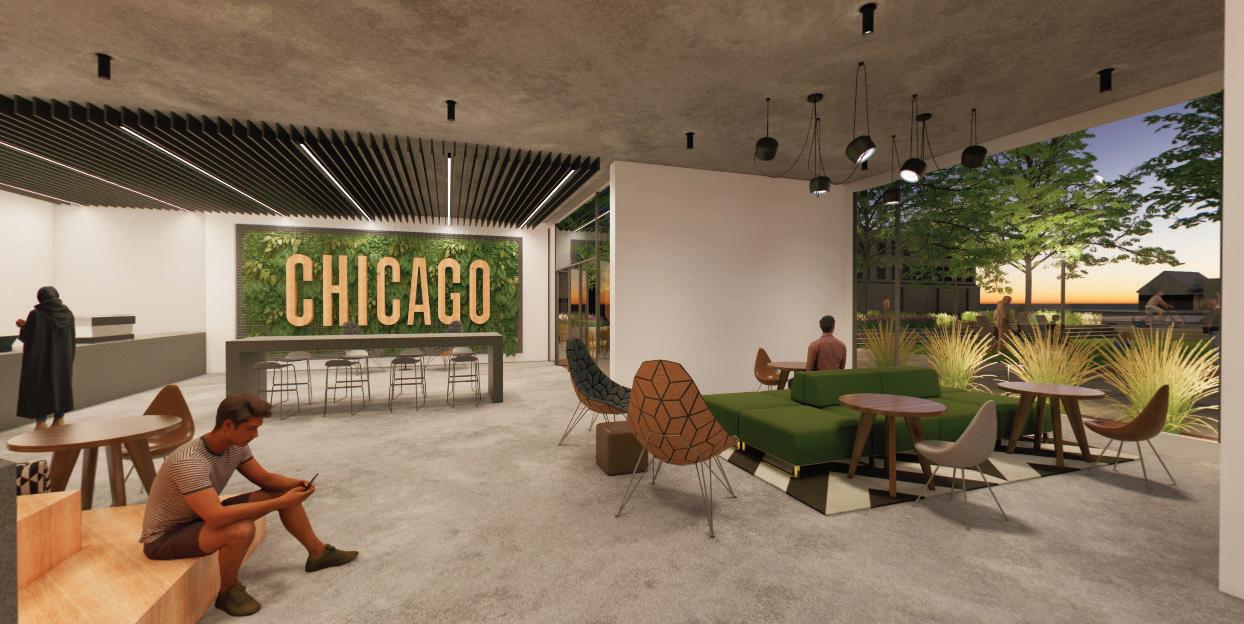

WELCOME CENTER

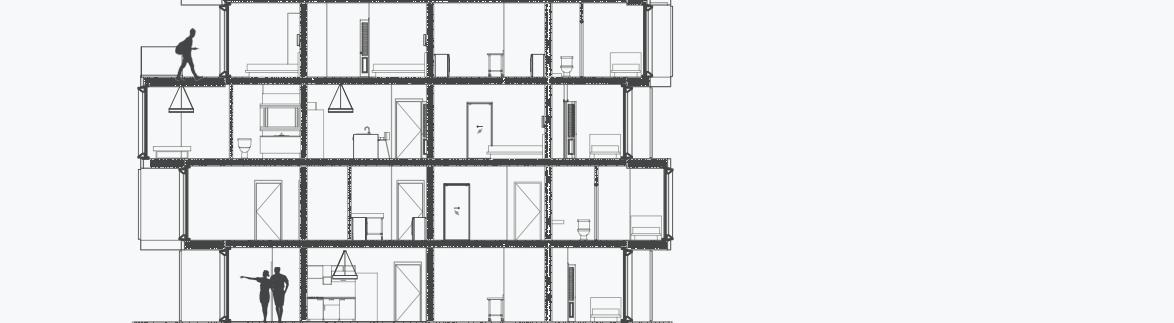

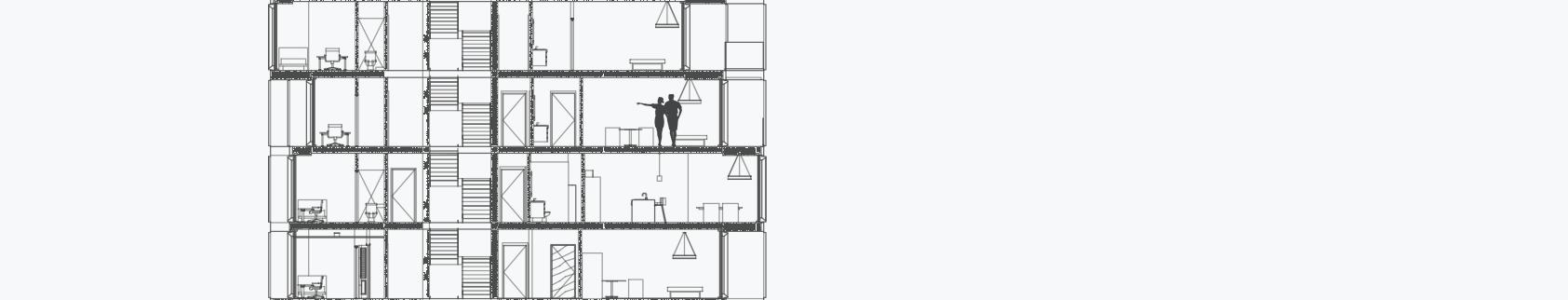

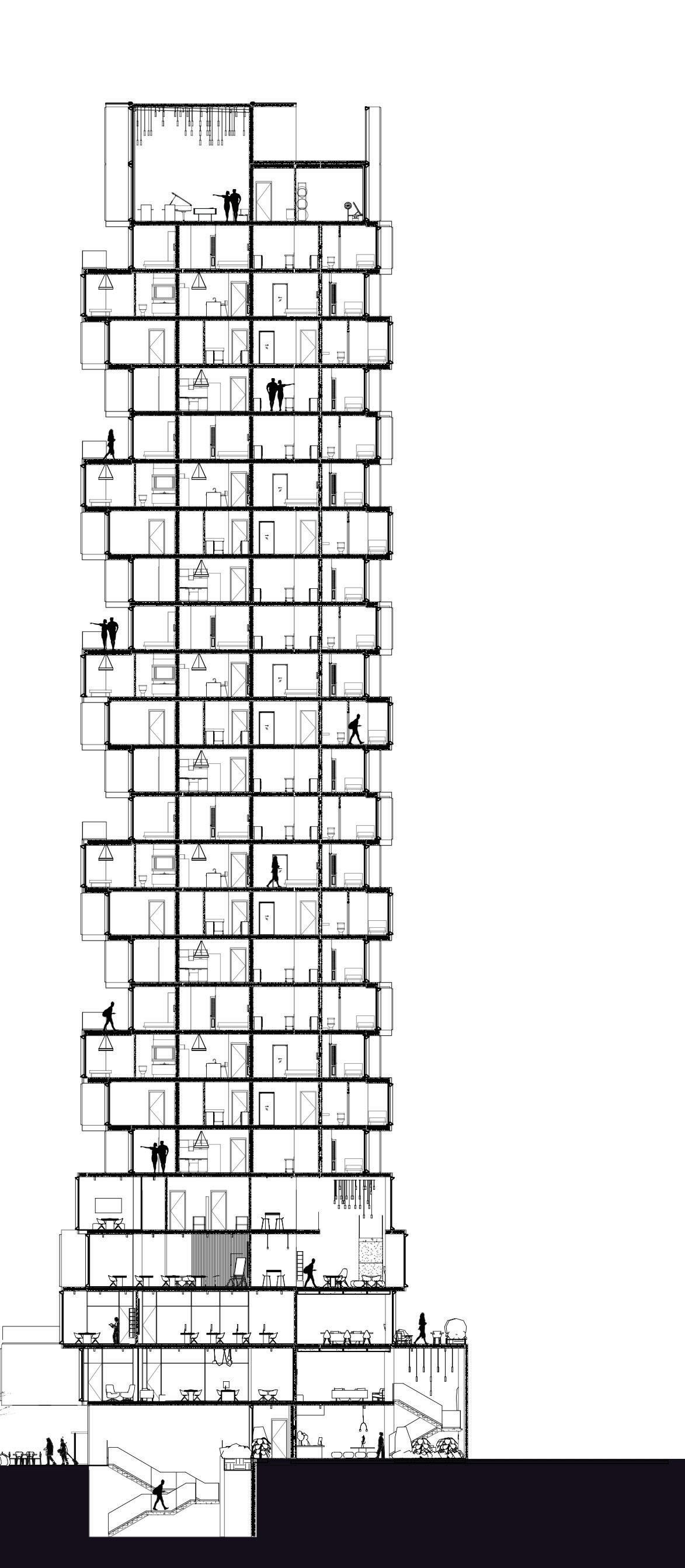

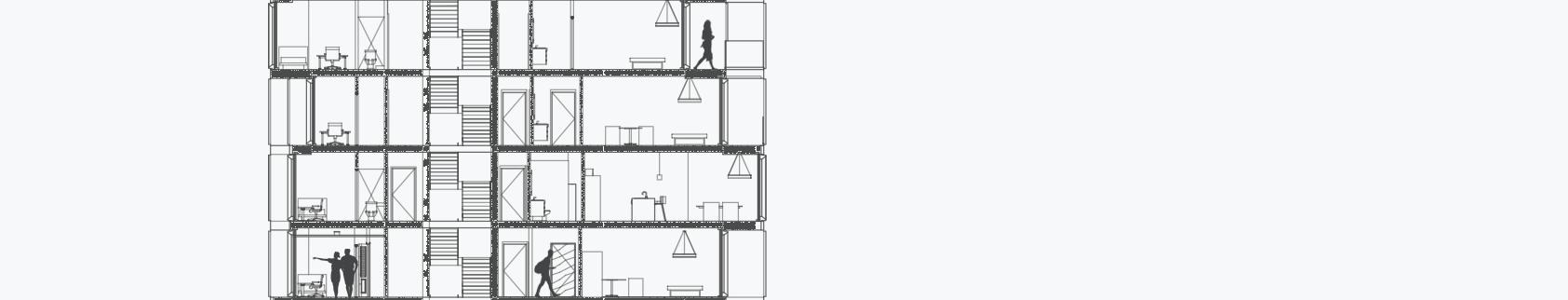

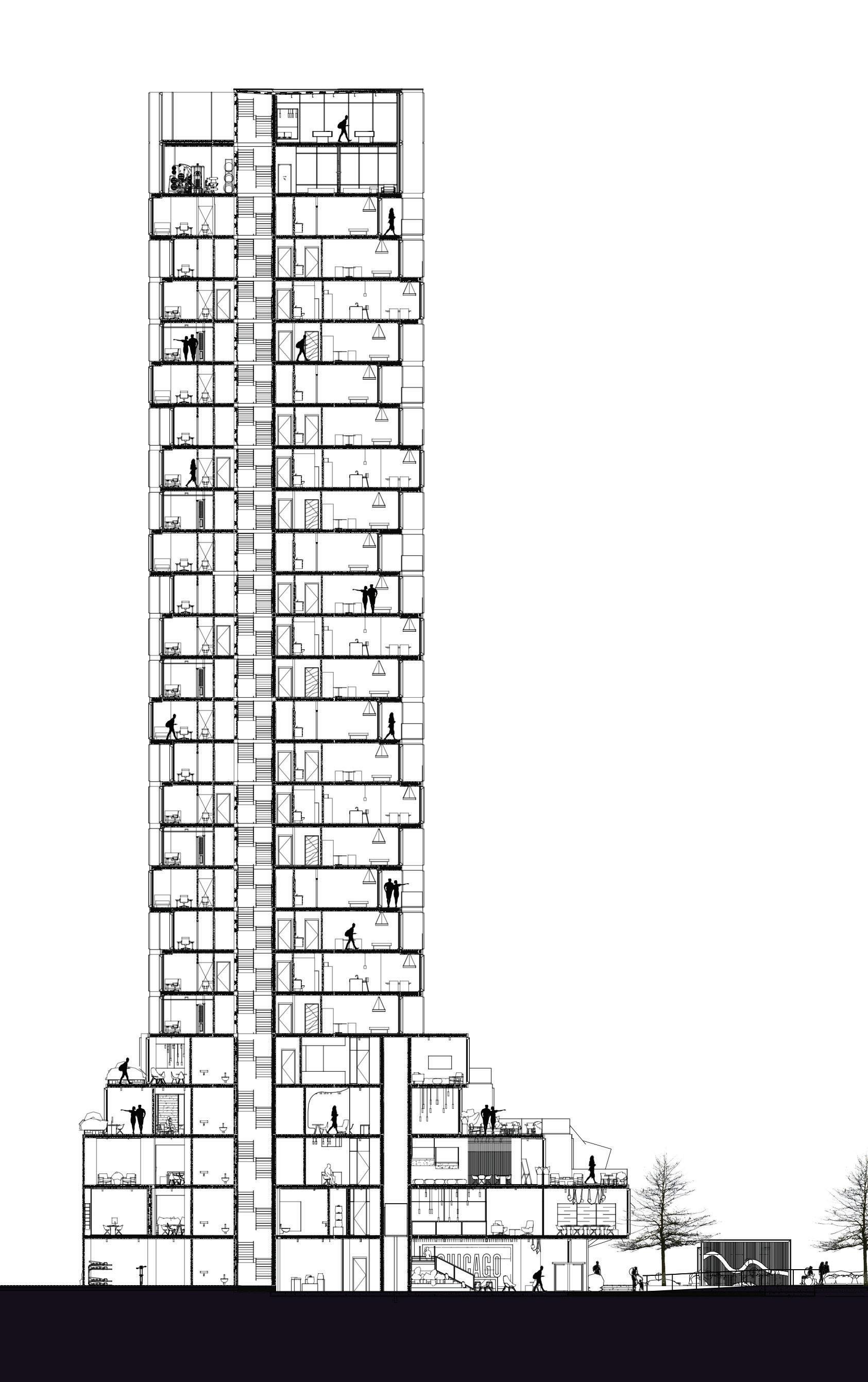

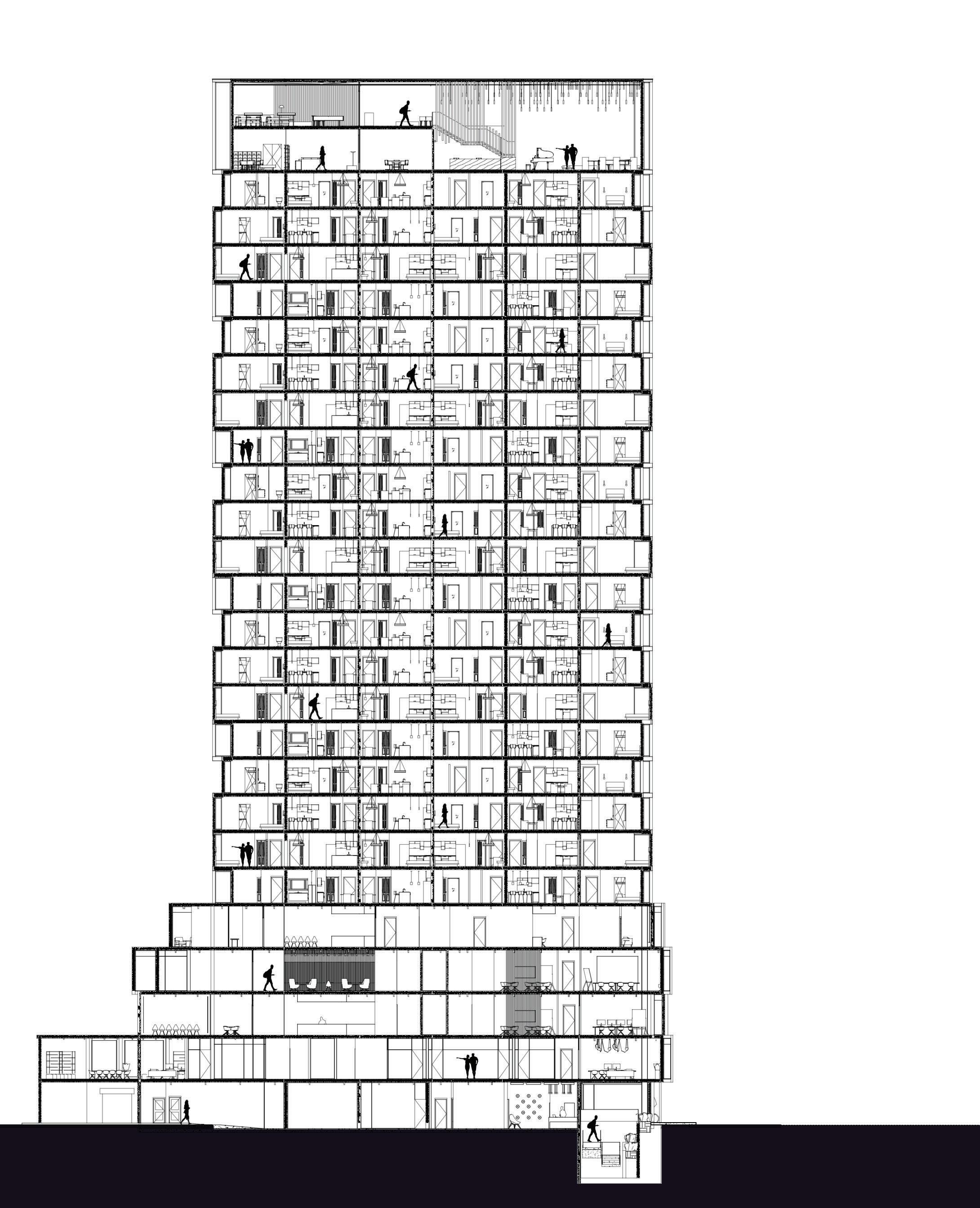

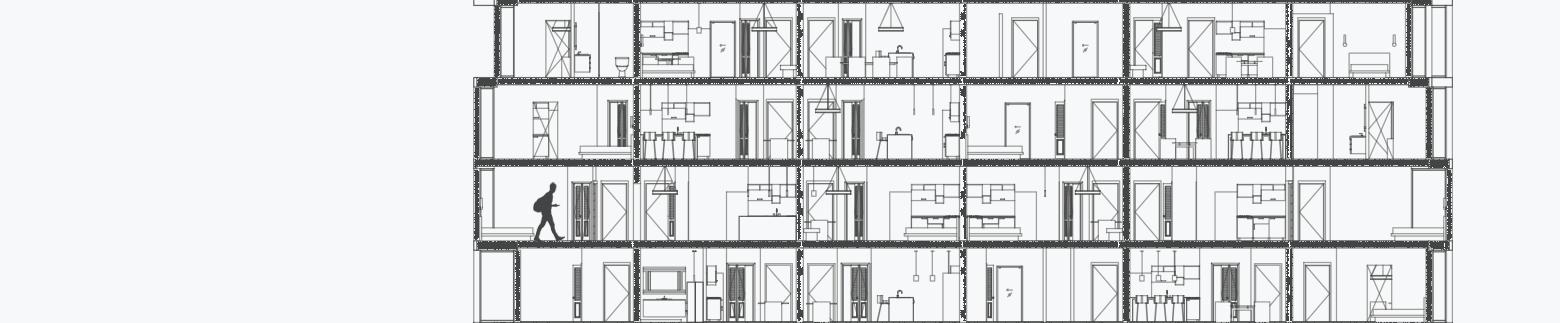

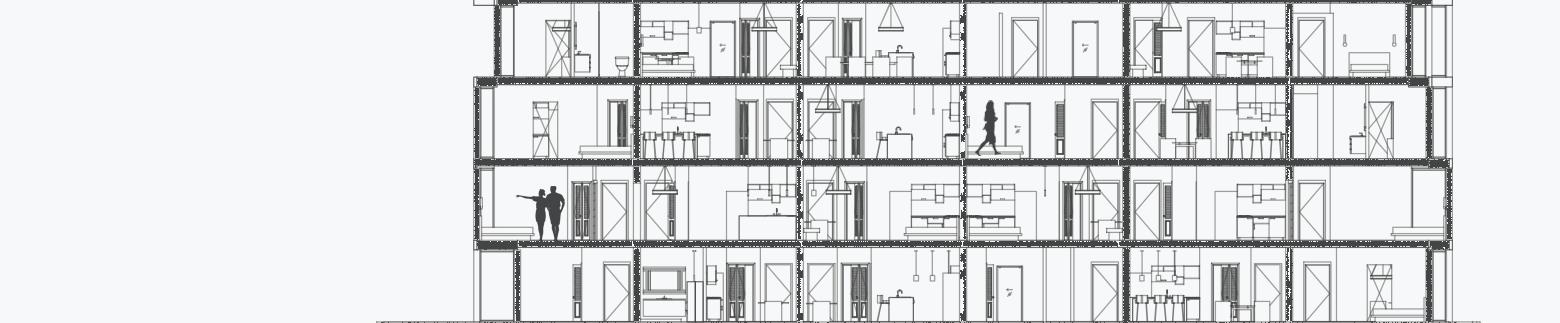

BUILDING SECTIONS
APARTMENT PODS PODS ENTAPARTM

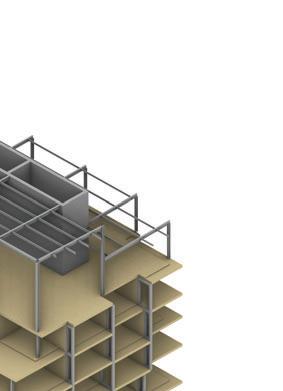

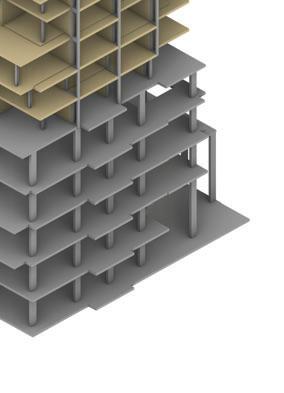

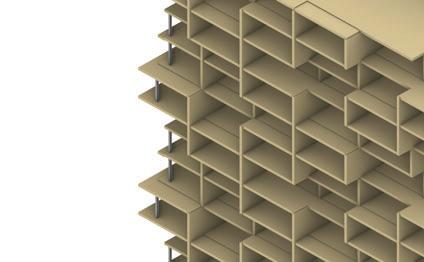

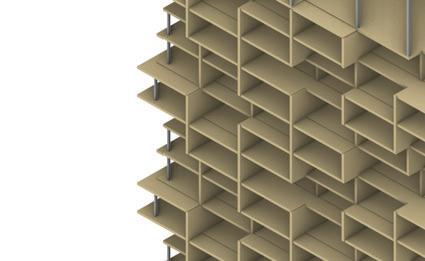

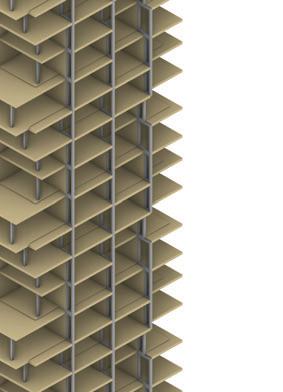

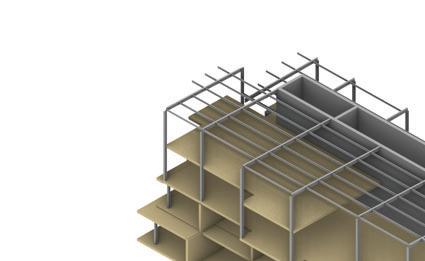

MASS TIMBER - CONCRETE STRUCTURE

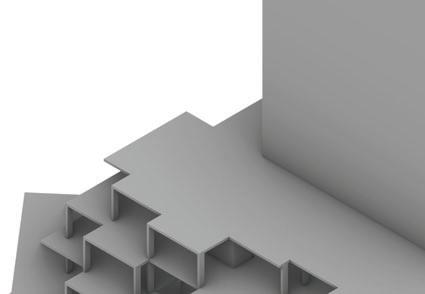

CONCRETE PODIUM AND CORE

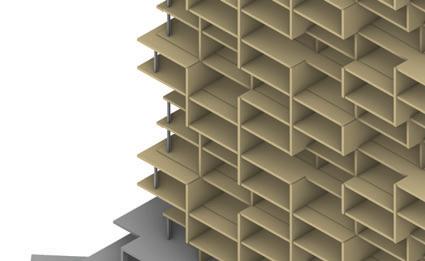

CLT SHEAR WALLS FOR UNITS
STEEL BRACING FOR ROOF
ALUMINUM IGU STOREFRONT
THERMAL BREAK

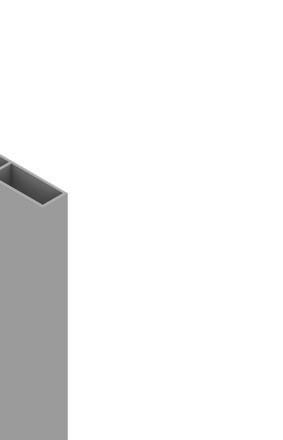

ALUMINUM FRAME
3" RIGID XPS AND 3-LAYER EIFS

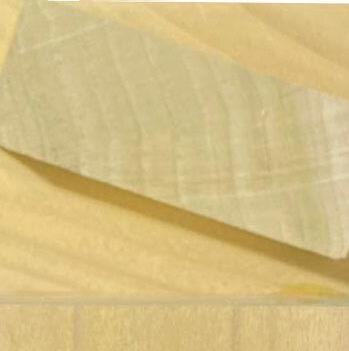

10 1 2" CLT
GYPSUM PLASTER

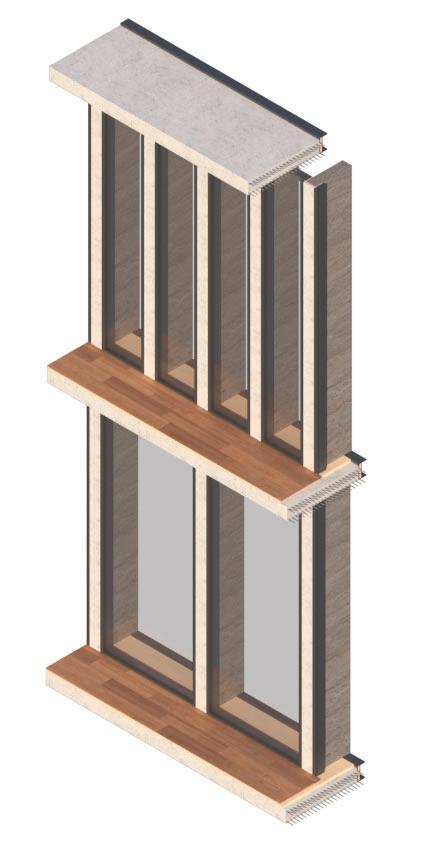

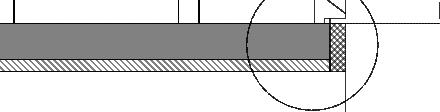

DETAIL A - WINDOW FRAME
LEVEL 08
- 0" LEVEL 07
70' - 0"

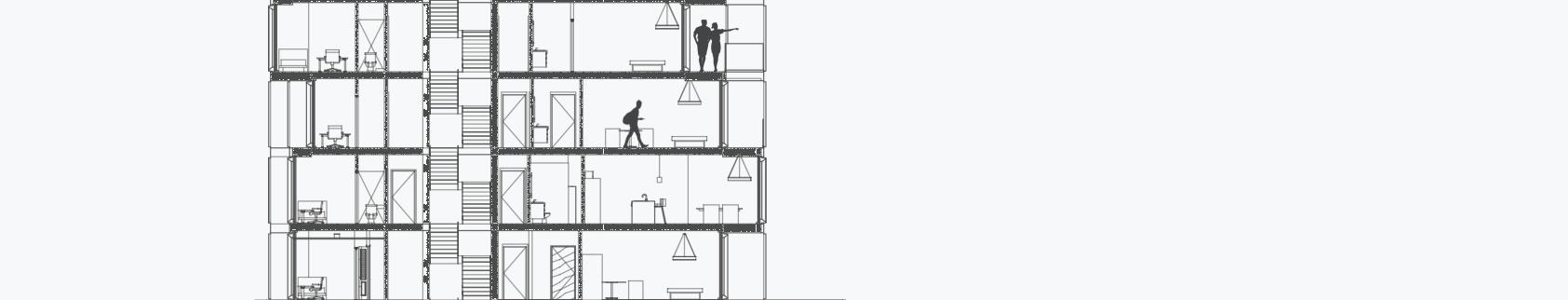

SECTION - APARTMENT UNIT BALCONY
ALUMINUM FRAME
ALUMINUMIGUSTOREFRONT
ALUMINUM IGU STOREFRONT
ALUMINUM BOTTOM STILE THERMAL BREAK
TEAK DECKING P CKINGONLAYFLATPEDES
NG ON LAY FLAT PEDESTALS
GLASS RAILING EPDMMEMBRANE
EPDM MEMBRANE CANT STRIP
RIGID XPS R-30 CI MIN SLOPED 1 4" PER FEET
BALCONY DRAINAGE SYSTEM
5"PIPE PE 5 PIPE 10 1 2 CLT "CLT "
6" METAL STUD WALL
DETAIL B - DRAINAGE
GLASS RAILING
ALUMINUM BOTTOM STILE
OVERFLOW HOLE IN RAILING
TEAK DECKING ON LAY FLAT PEDESTALS EPDM MEMBRANE
RIGID XPS R-30 CI MIN SLOPED 1 4" PER 1'
GYPSUM PLASTER 10 1/2'" CLT
THERMAL BREAK
ALUMINUM FRAME
3-LAYER EIFS 1" IGU GLAZING

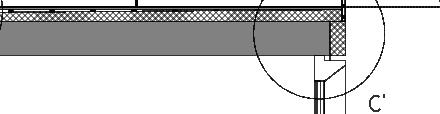

DETAIL C - BALCONY
EXPERIENCE
Arena Consultants - Laboratory Architecture
Junior Intern Architect

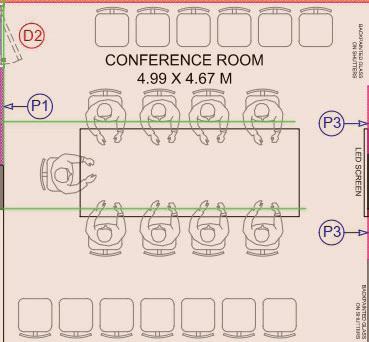

CONFERENCE ROOM
I contributed by developing detailed 3D conceptual massing models and interior layouts that clarified spatial organization and enhanced design interpretation. I meticulously designed workplace interiors, balancing functionality with aesthetics, and assisted in preparing accurate 2D technical drawings to support precise documentation. Collaborating closely with the client, I participated in project planning and design coordination, aligning outcomes with their needs and preferences.

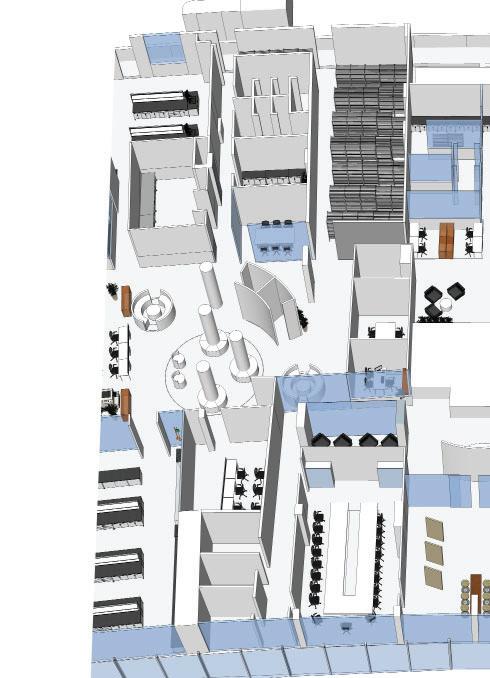

INTERIOR LAYOUT
OFFICE SPACE

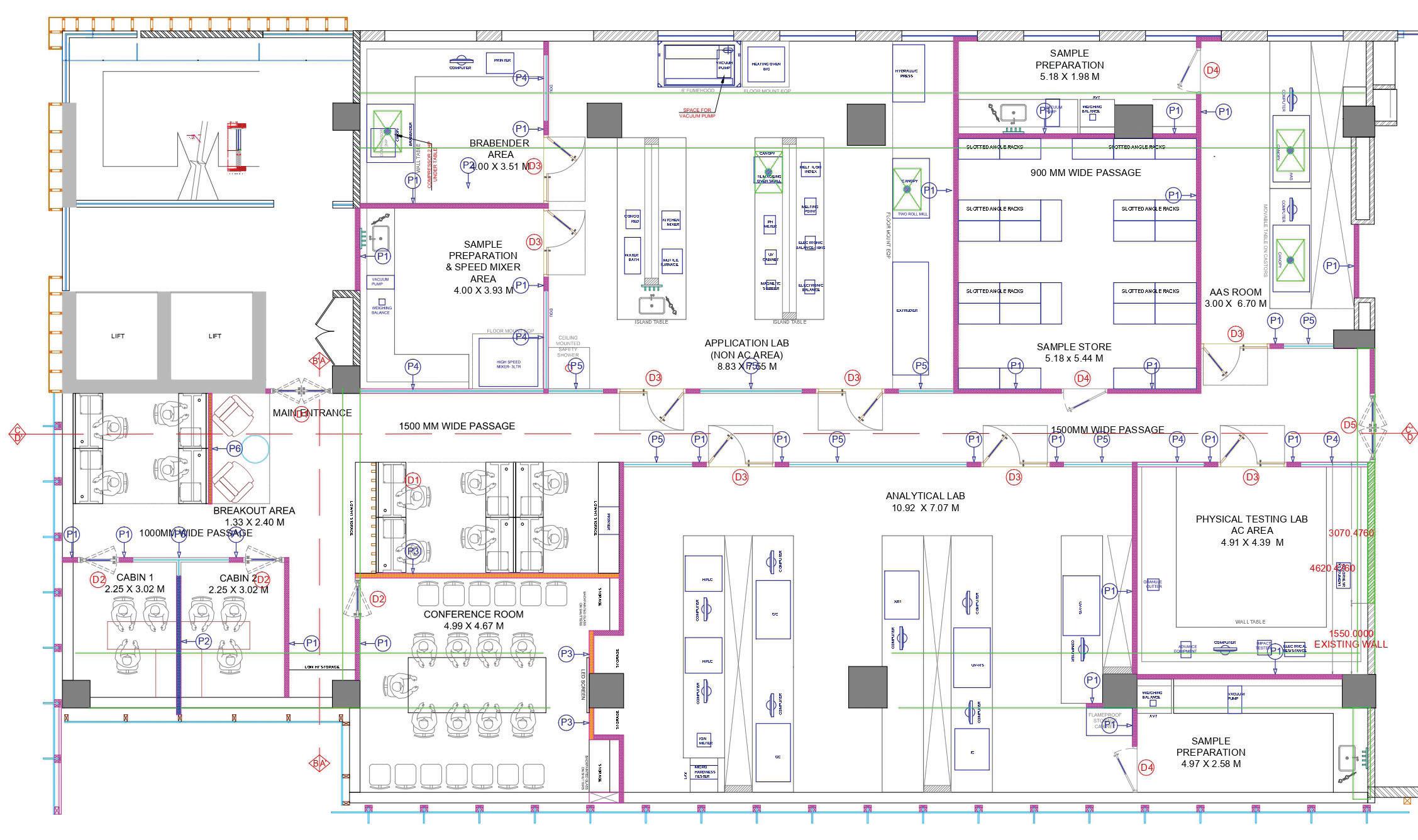

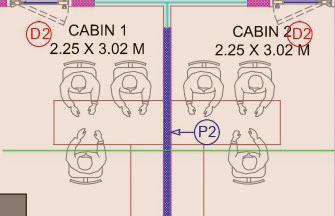

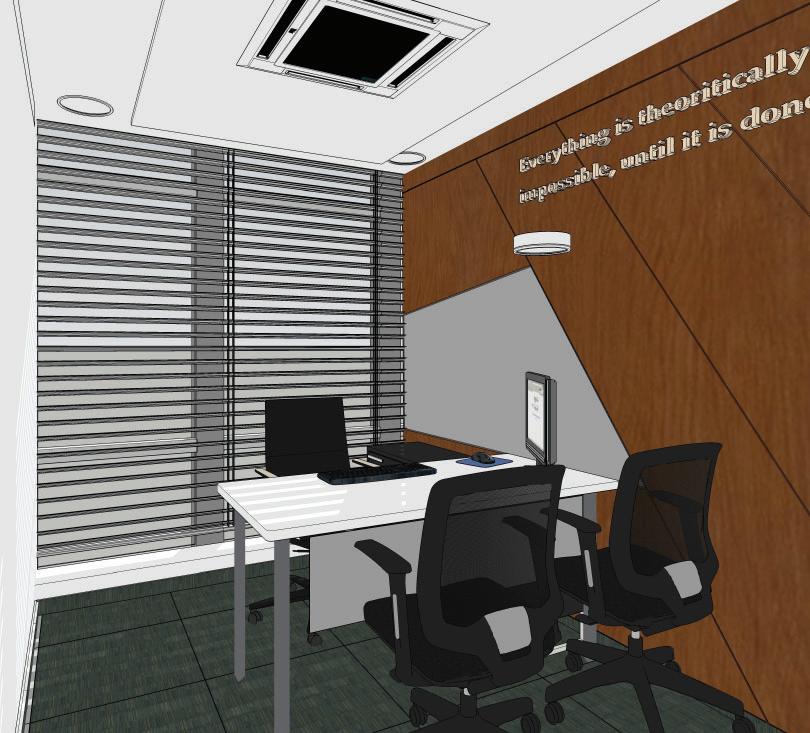

TYPICAL CABIN OFFICE
INTERIOR LAYOUT

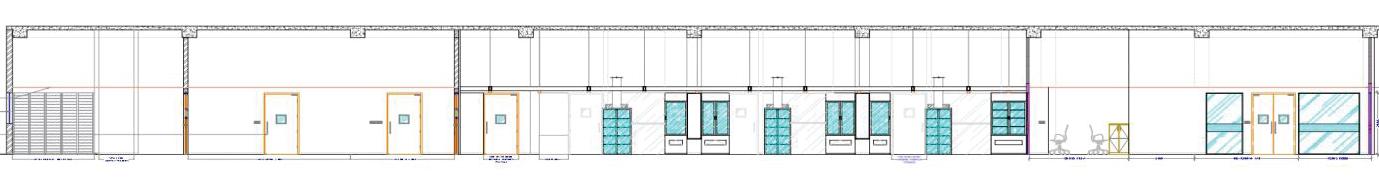

LONGITUDINAL SECTIONS
INTERIOR VIEW - CORRIDOR

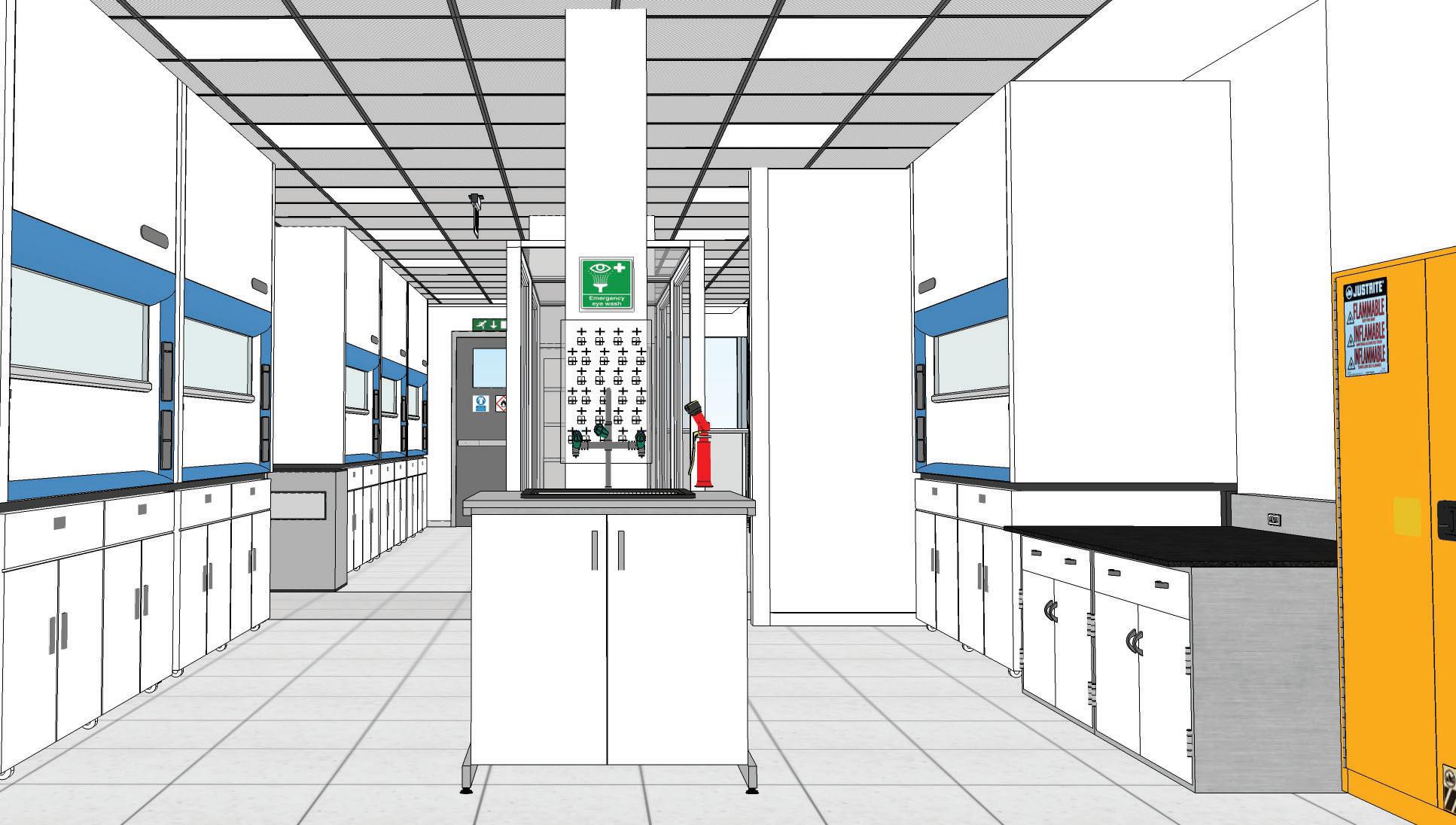

INTERIOR VIEW - WORKING LAB
GRID FALSE CEILING
SERVICE DROPPER
FUMEHOOD
ENCLOSURES
ISLAND TABLE
CHEMICAL RESISTANT TILES
GRID FALSE CEILING
SERVICE DROPPER
FUMEHOOD
STORAGE
EYE WASH SINK UNIT FLAMMABLE
CHEMICAL RESISTANT TILES

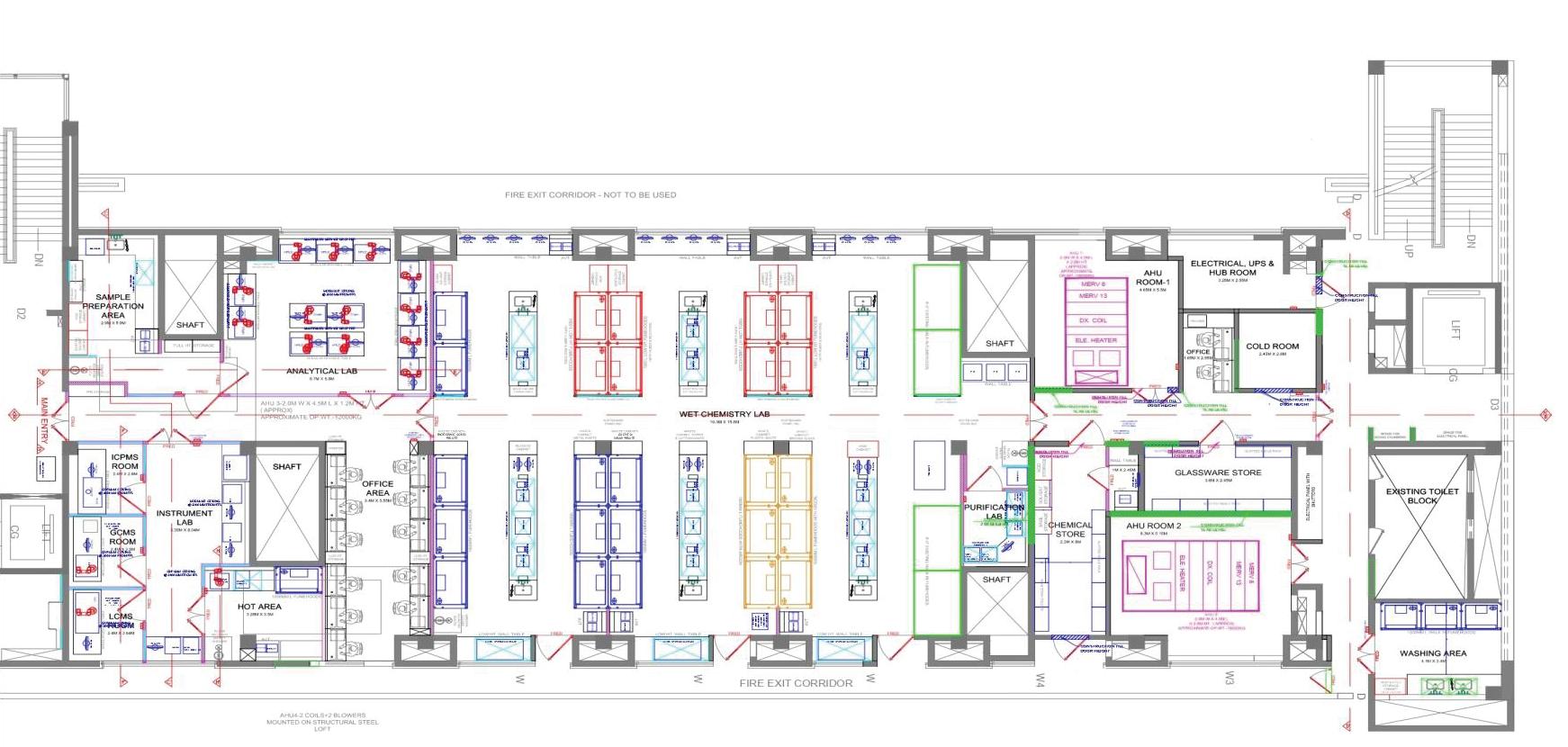

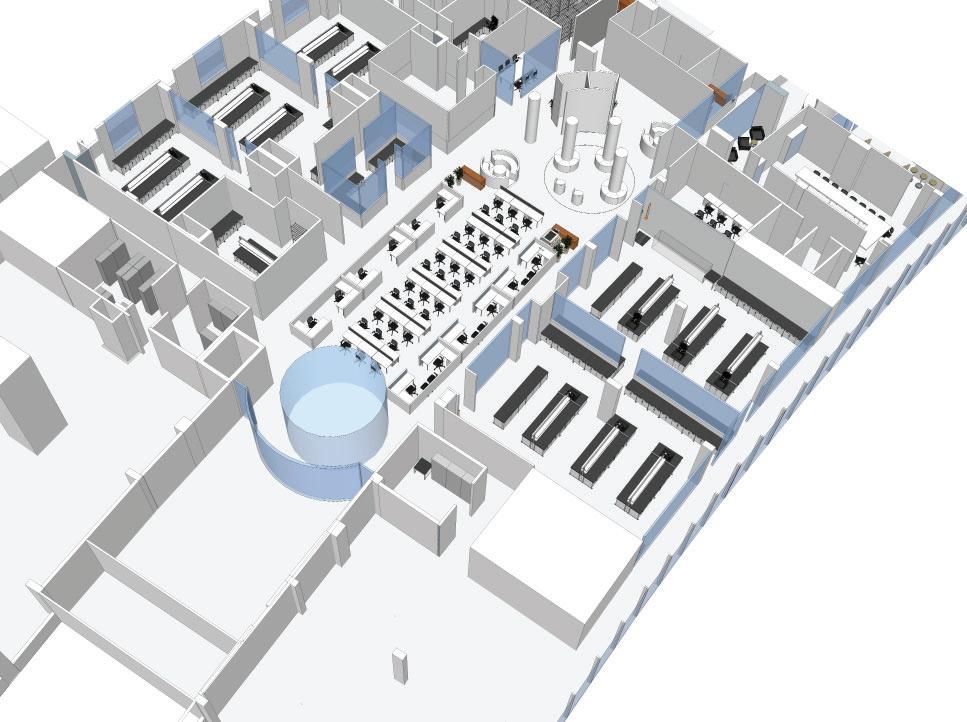

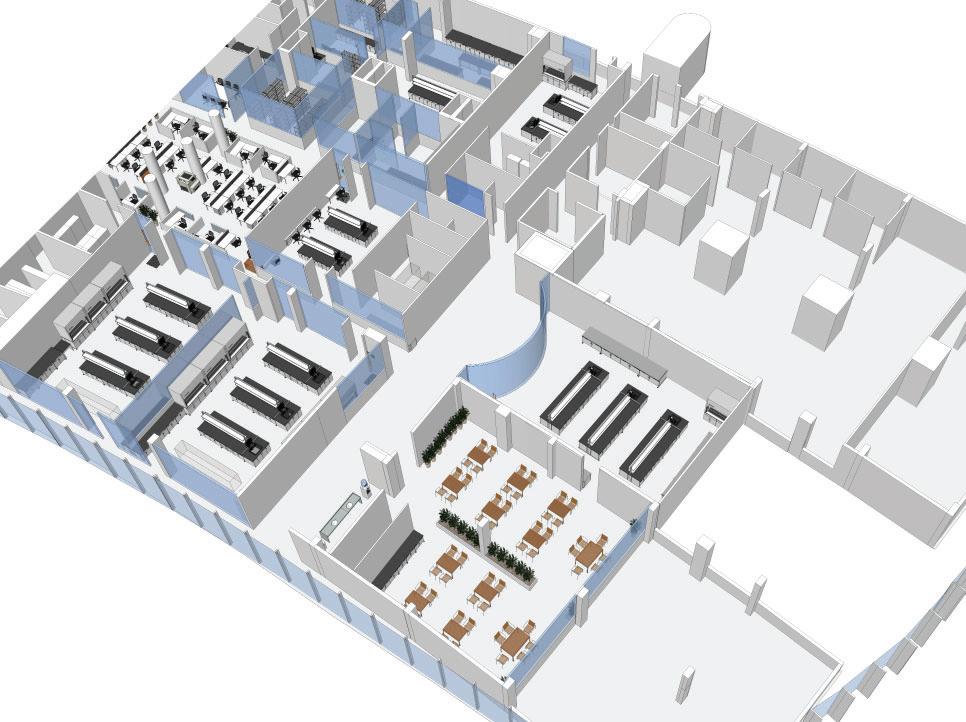

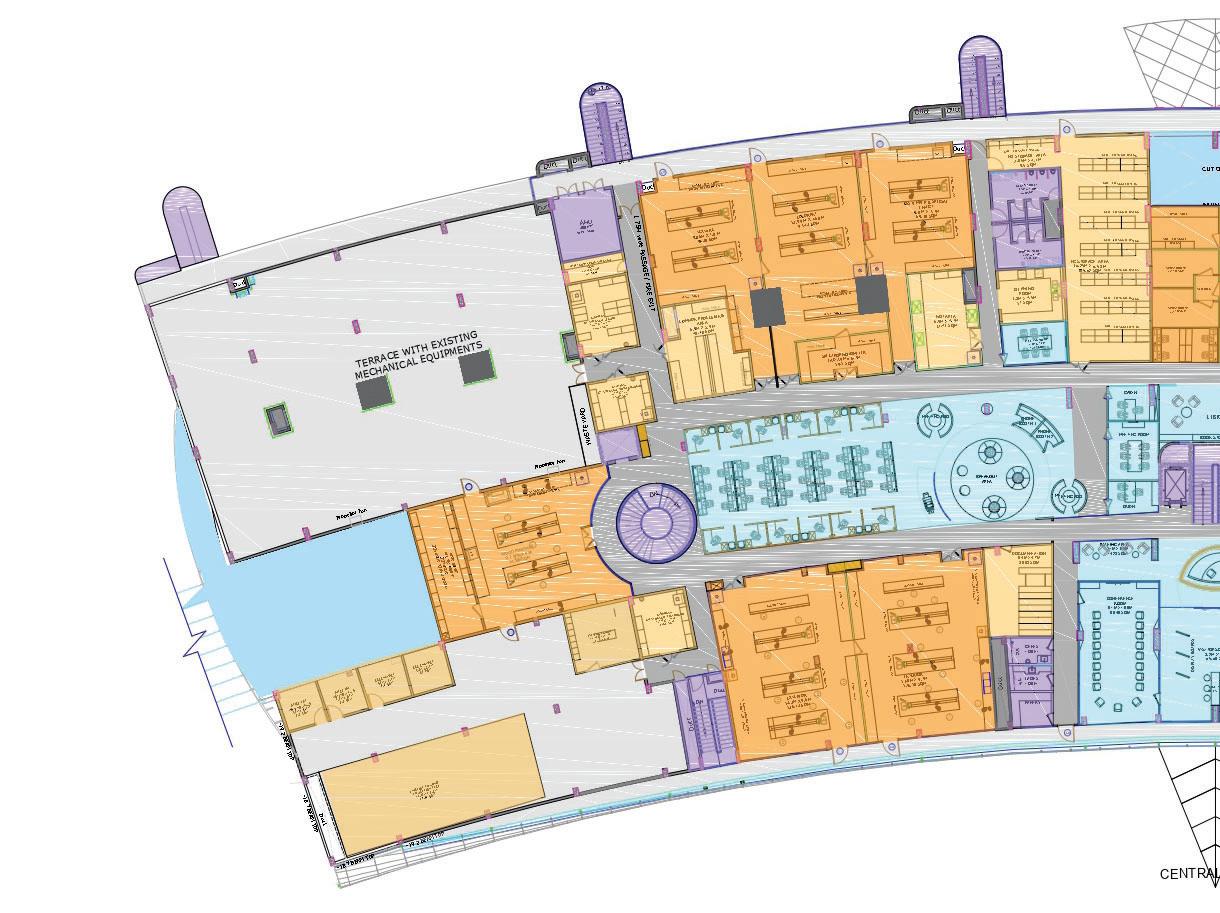

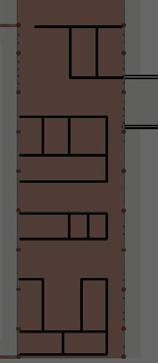

INTERIOR SPACE PLANNING
NORTH WING
NORTH WING
DISTEMPER / SPECIAL LAB
TEXTURE / COLORANT LAB
WORKSTATIONS
PAINT DEVELOPMENT
INTERIOR LAB - PAINT
FLEXIBLE LAB
CENTRA
CENTRAL WING
SOUTH WING
MICROBIOLOGY LAB
WOOD FINISH LAB
ANALYTICAL LAB
EMULSION LAB
RESIN LAB
CANTEEN AREA
ENAMEL LAB
SOUTH WING
EXTERNSHIP
Alt Architecture and Research Associates
Architectural Intern
A comprehensive Prosthetic & Physical Therapy Center integrating medical care, restorative therapy, and communal spaces to nurture physical and emotional well-being. The design emphasizes trauma informed and adaptive environments, guided by VA healthcare planning guidelines. Developed feasibility and programming studies, explored facade articulation and spatial flexibility and crafted a human-centered, healing atmosphere through light, materiality, and landscape integration.
Software Used - Rhino | Enscape | Adobe Photoshop | Adobe Indesign Chicago, IL
Part- time Internship Fall 2025
RESTROOMS / LOCKERS
ROOMS THERAPY ROOMS / STATIONS
CIRCULATION

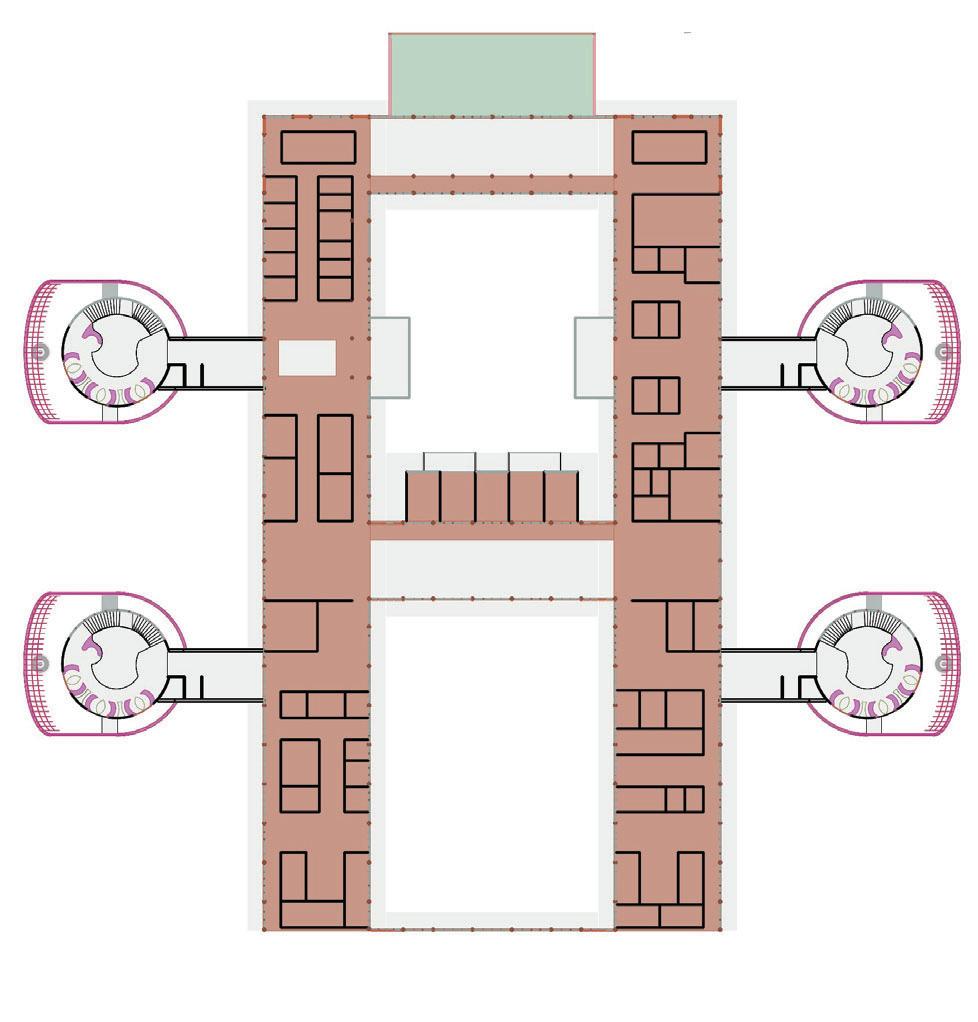

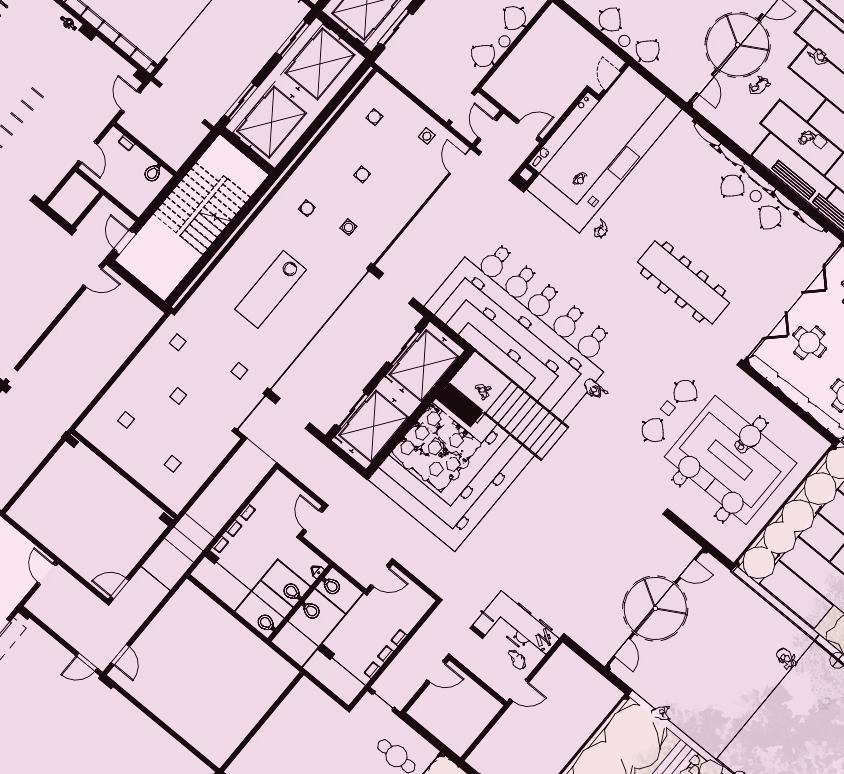

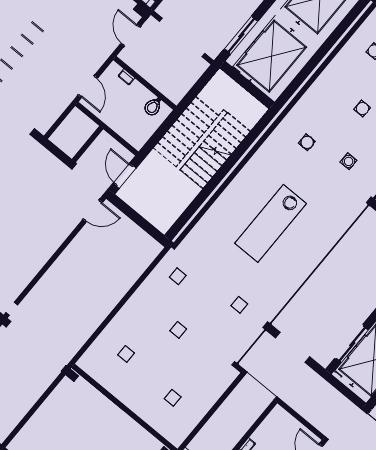

GROUND FLOOR PLAN
TRAINING ROOMS
THERAPY ROOMS / STATIONS VERTICAL CIRCULATION
FIRST FLOOR PLAN
/ EQUIPTMENT ROOMS
/ MODIFICATION
VIEW - PHYSICAL THERAPY
VIEW - ATRIUM
AUXILIARY
Extended Learning

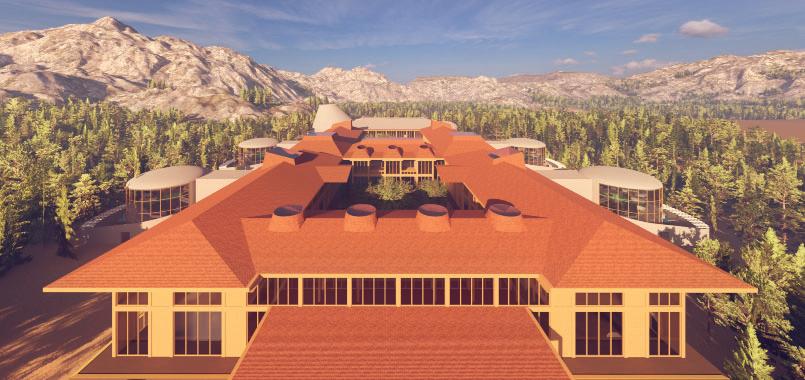

artwork, models, software skills and supplementary skills

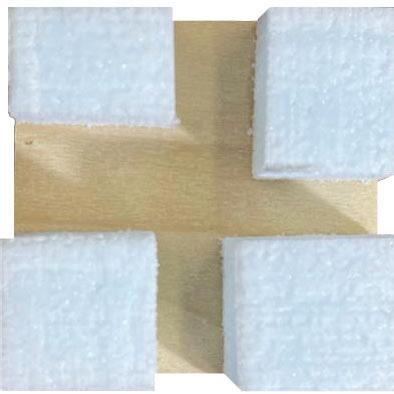

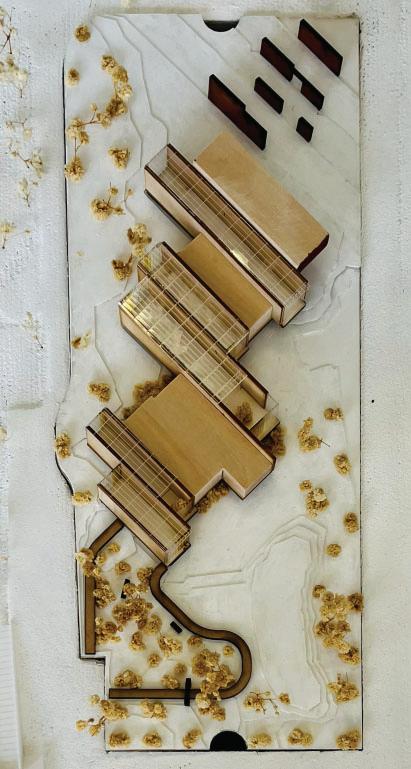

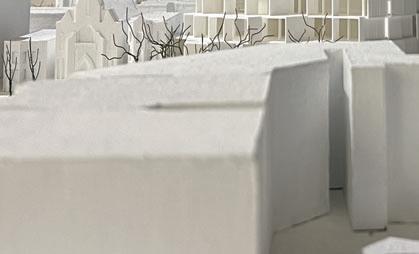

MODEL MAKING
SKETCHING
