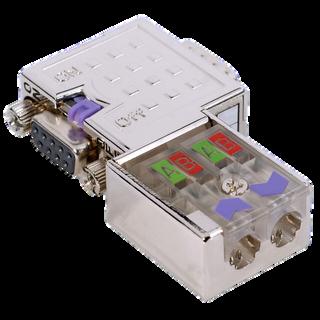

VIPA Profibus Connector AboutUs
VIPA EasyConn plugs are for PROFIBUS users. The diagnostic LEDs, integrated as standard, are clearly visible from all sides making this plug a standard for all your PROFIBUS installations. The full metal housing additionally improves the interference immunity of your system. Of course we support transmission rates of up to 12MBit/s. www.asteamtechno.com
972-0DP01
This PROFIBUS connector is oriented at a 90 degree angle to the PROFIBUS line in order to provide easier cable access and management.

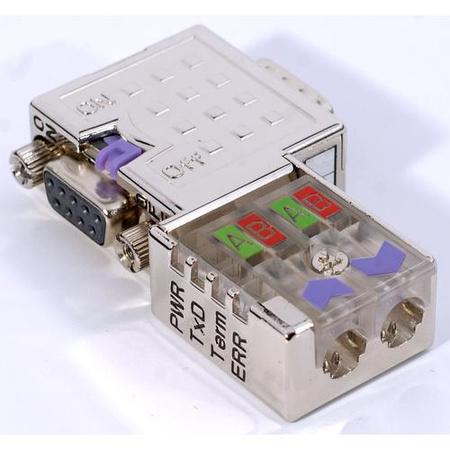

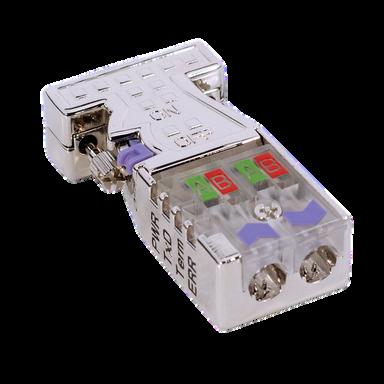

972-0DP10

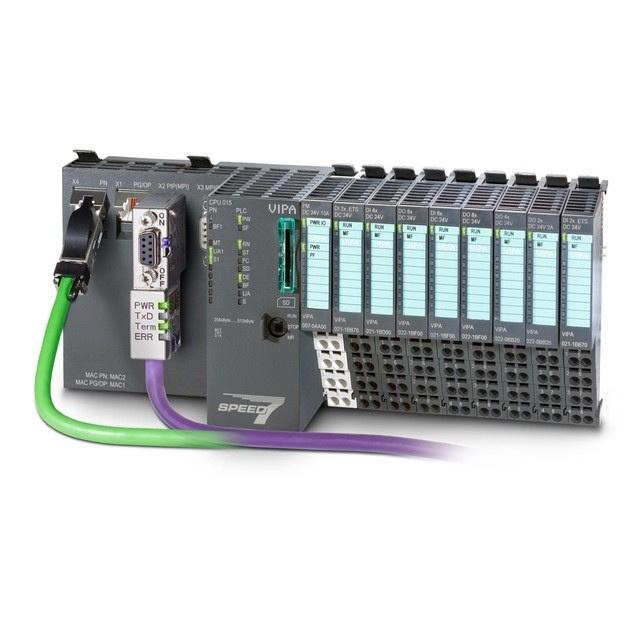

VIPA Profibus Connector with Diagnostic LEDs feature an all-metal-housing and diagnostic LEDs for quick evaluation of Profibus system faults. An integrated PG port is also available to allow convenient connection to a PC or diagnostic tool.

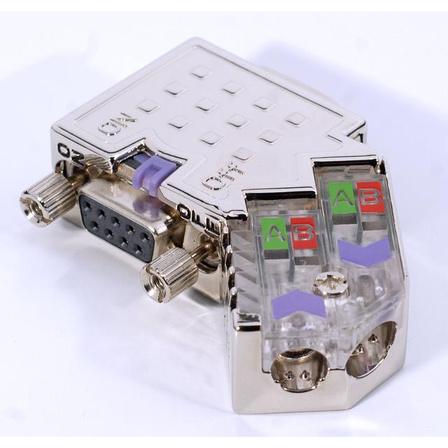

972-0DP20
This PROFIBUS connector is oriented at a 45 degree angle to the PROFIBUS line in order to provide easier cable access and management.

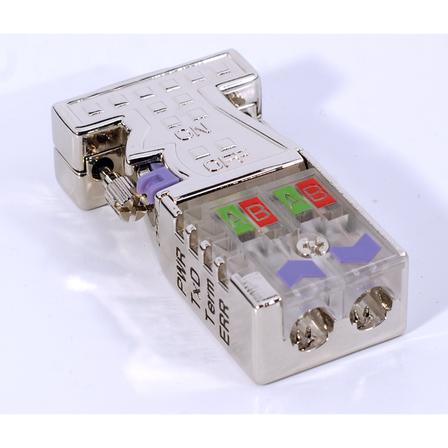

972-0DP30
This PROFIBUS connector is oriented at 0 degrees to the PROFIBUS line (straight line) in order to provide easier cable access and management.
www.asteamtechno.com
Short Description VIPA Profibus Connector
VIPA Profibus Connector Model Introduction
972-0DP01 | VIPA | Profibus Connector 90 Degrees
90 degree connector orientation to the line
Rugged, All Metal Casing for Low Noise Interference
Integrated PG Port Switchable Terminating Resistor
EasyConn fast connection via integrated cutting clamps

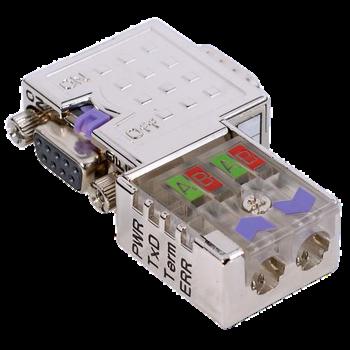

972-0DP10 | VIPA | Profibus Connector with LEDs – 90 Degrees
Four Diagnostic LEDs
Rugged, All Metal Casing for Low Noise Interference
Integrated PG Port Switchable Terminating Resistor
EasyConn fast connection via integrated cutting clamps 90 Orientation
VIPA Profibus Connector Model Introduction

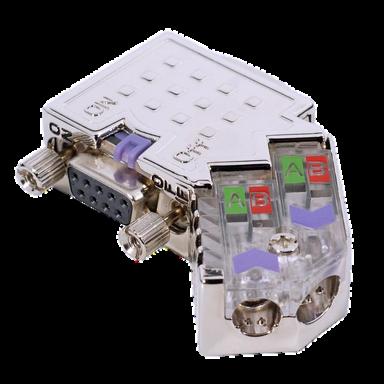

972-0DP20 | VIPA | Profibus Connector with LEDs – 45 Degrees
45 degree connector orientation to line
Four Diagnostic LEDs
Rugged, All Metal Casing for Low Noise Interference
Integrated PG Port
Switchable Terminating Resistor
EasyConn fast connection via integrated cutting clamps

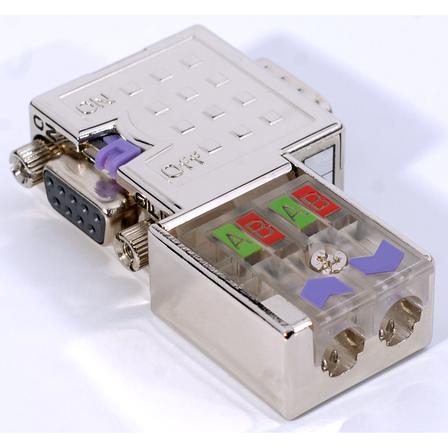

972-0DP30 | VIPA | Profibus Connector With LEDs - 0/180 Degrees
0 degree (straight line) connector
Four Diagnostic LEDs
Rugged, All Metal Casing for Low Noise Interference
Integrated PG Port
Switchable Terminating Resistor
EasyConn fast connection via integrated cutting clamps
Features
Visual terminal control (polarity inversion, positioning of screen and cable)
The highest interference immunity due to the robust full metal construction
Integrated diagnostic LEDs for bus diagnostics
Easy IDC technology for fast and reliable wire connection
Lossless single-screw-mounting system - no loose parts
Integrated terminating resistors which can be switched on and off

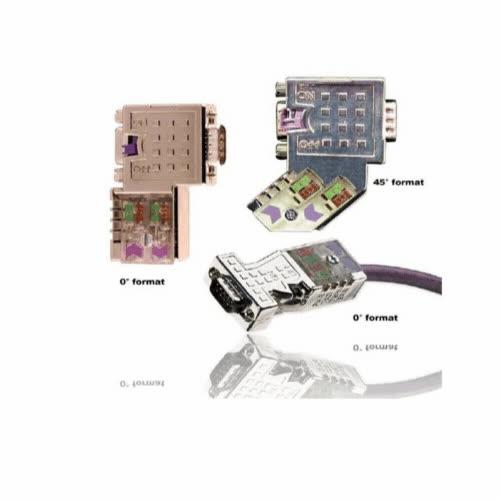

Versions: 0°, 45° and 90° cable outlet
We also offer an integrated PG diagnostic port in the 45° and 90° versions
www.asteamtechno.com
www.asteamtechno.com
Application
Remote Monitoring and Data Logging

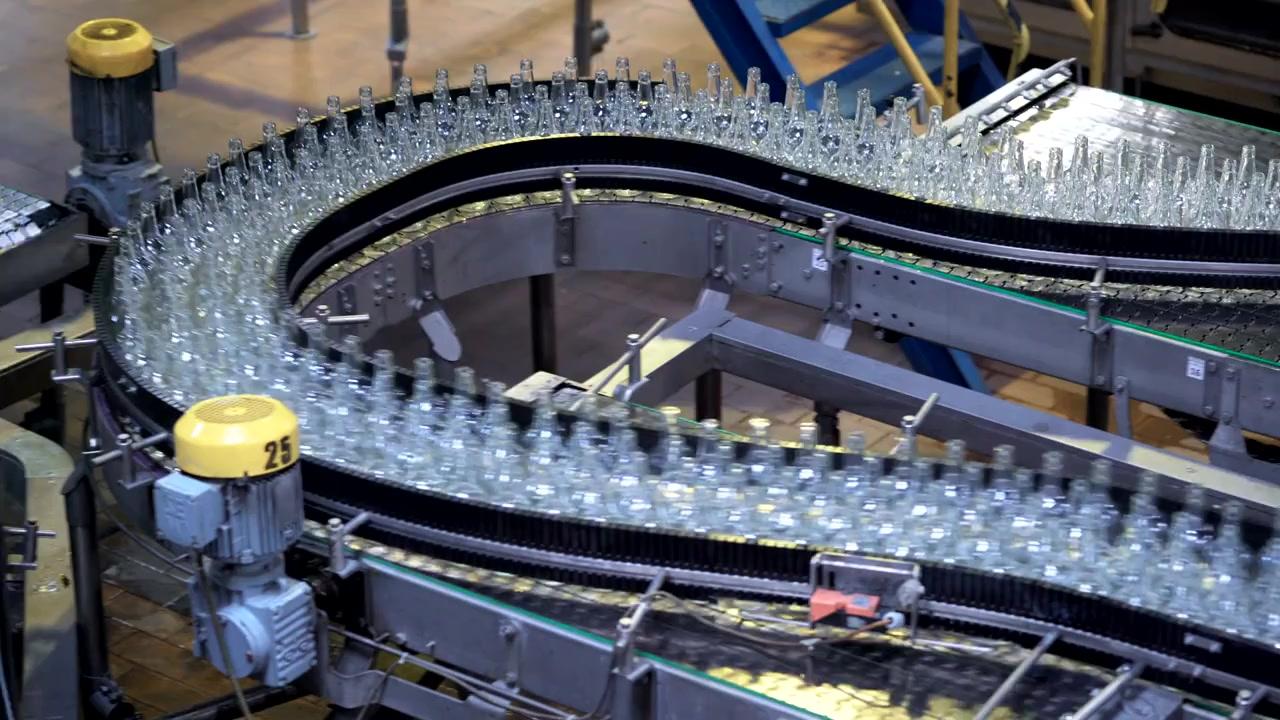

Machine Control Material Handling

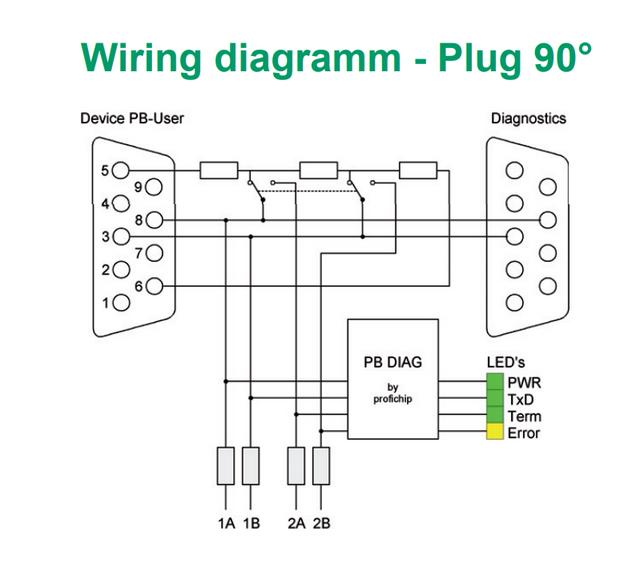

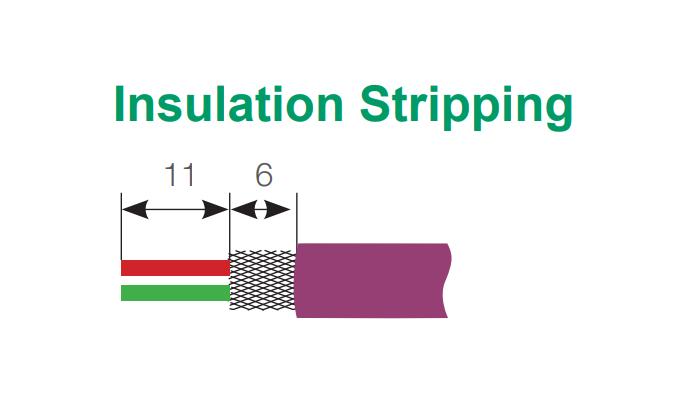

VIPA PROFIBUS Connector Wiring and Installation
