Proposed Mall at Vashi, Navi Mumbai Architectural Design (Sem - IX)

Plot Area: 15,500 SQ.M. | BUILT-UP AREA: 65,000 SQ.M.

The plot consists of two individual rectangular sites that has a pleasant view of the Palm Beach Road. The main idea is to break the typical introverted planning of a mall into iterations that result in different circulation in an attempt to give the visitors a sense of openness in a conventionally indoor space.

FIRST FLOOR PLAN

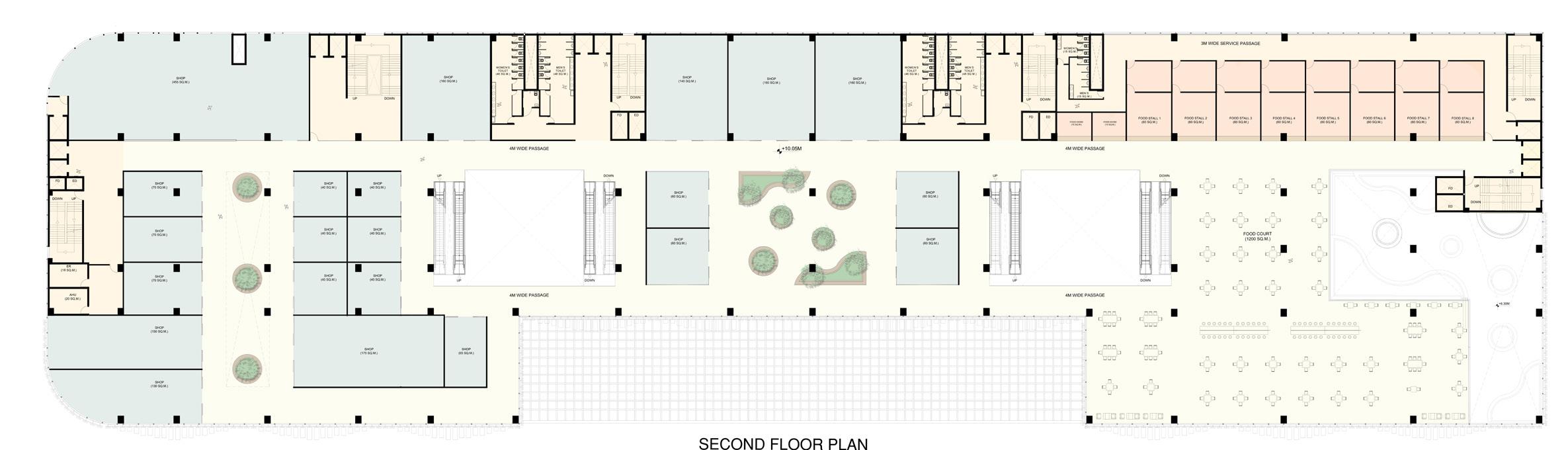

SECOND FLOOR PLAN

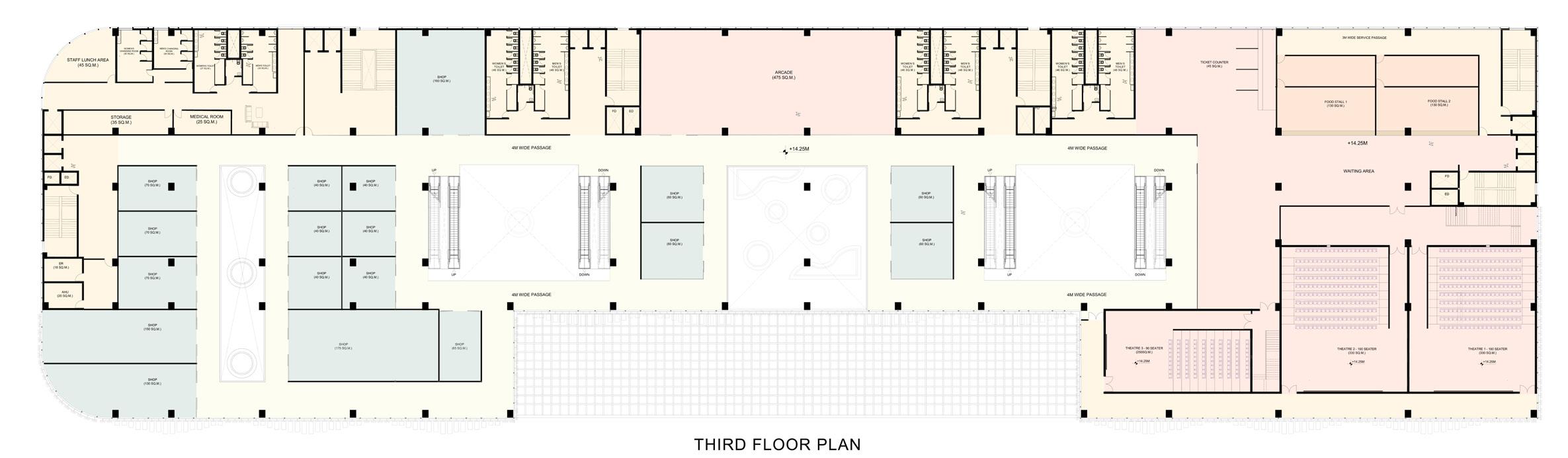

THIRD FLOOR PLAN

FOURTH FLOOR PLAN

NORTH EASTERN ELEVATION

Internship Professional Practice (Sem - VIII)

Legend

Affordable Housing at ONGC Colony, Belapur

Architectural Design (Sem - VII)

Plot Area: 12,000 SQ.M. | NO. OF UNITS: 150 | BUILT-UP AREA: 11,730 SQ.M.

Understanding the need and concept of affordable housing to desige a more holistic living experience for the users at the existing ONGC Colony at Belapur was the main aim of the design studio. Creating a staggered arrangement of the built mass leads to various niches and edges provides many small pockets of open spaces for the people. With the homes staggered at the periphery, the central open space allows for a panoramic view of the site, giving a sense of visibility and coomunal living to the users.

SOUTH ELEVATION
