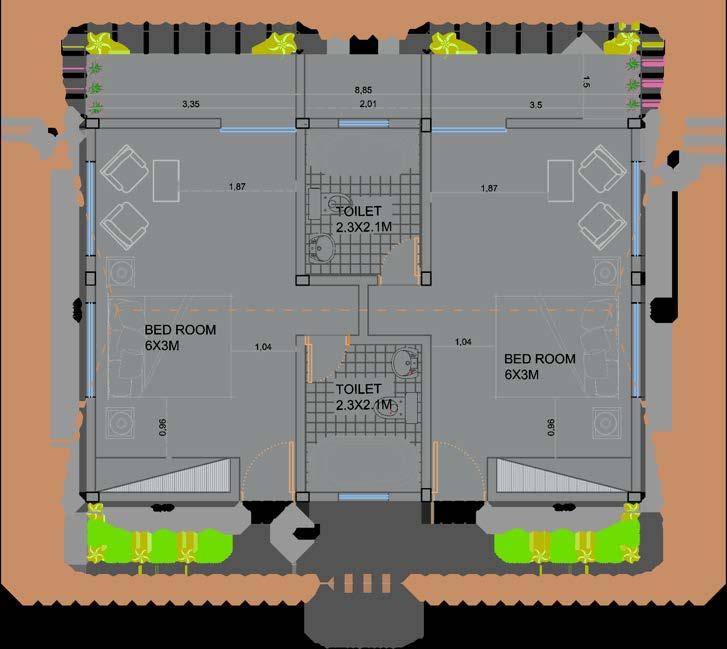

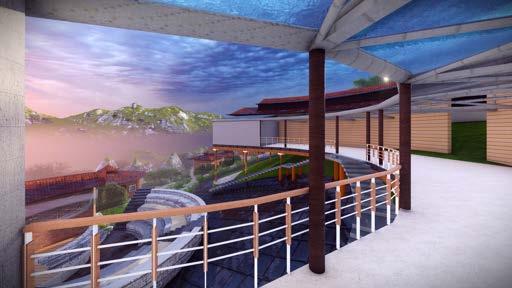

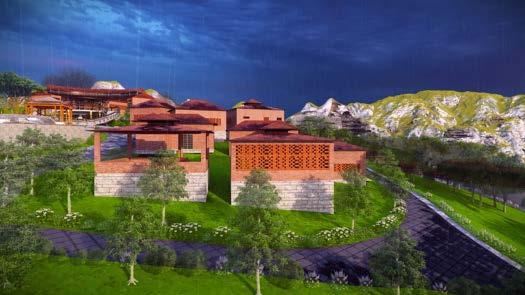

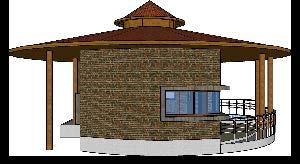

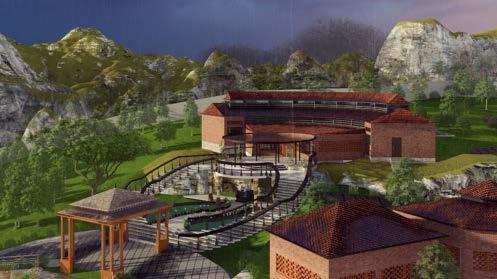

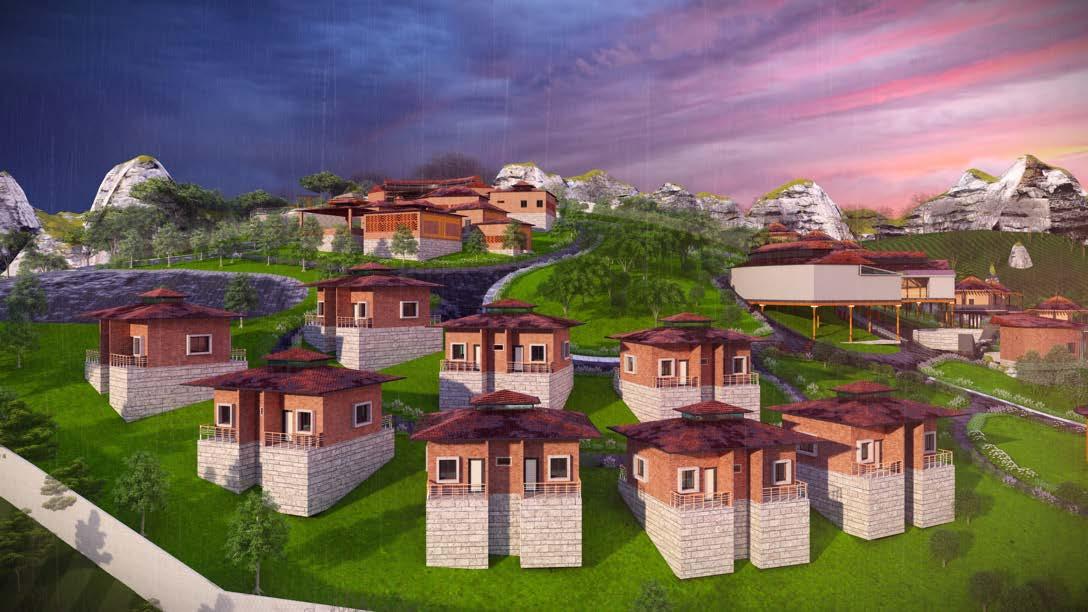

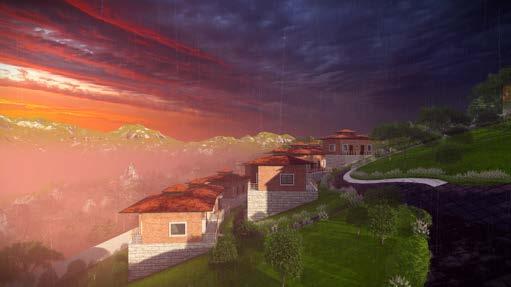

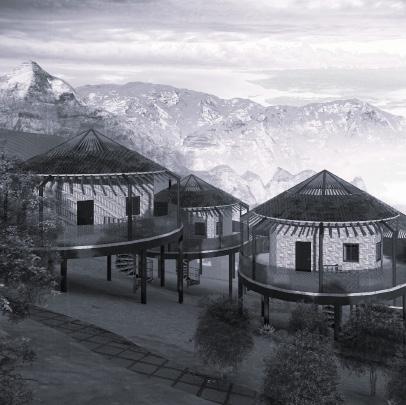

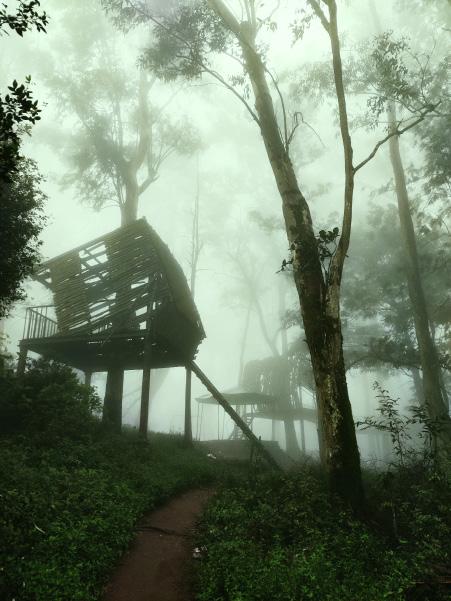

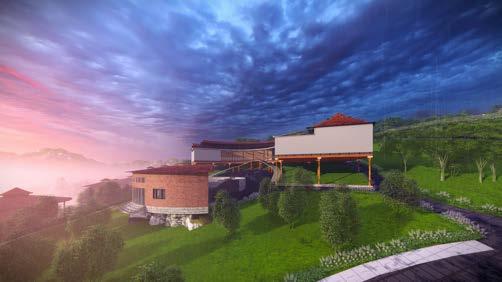

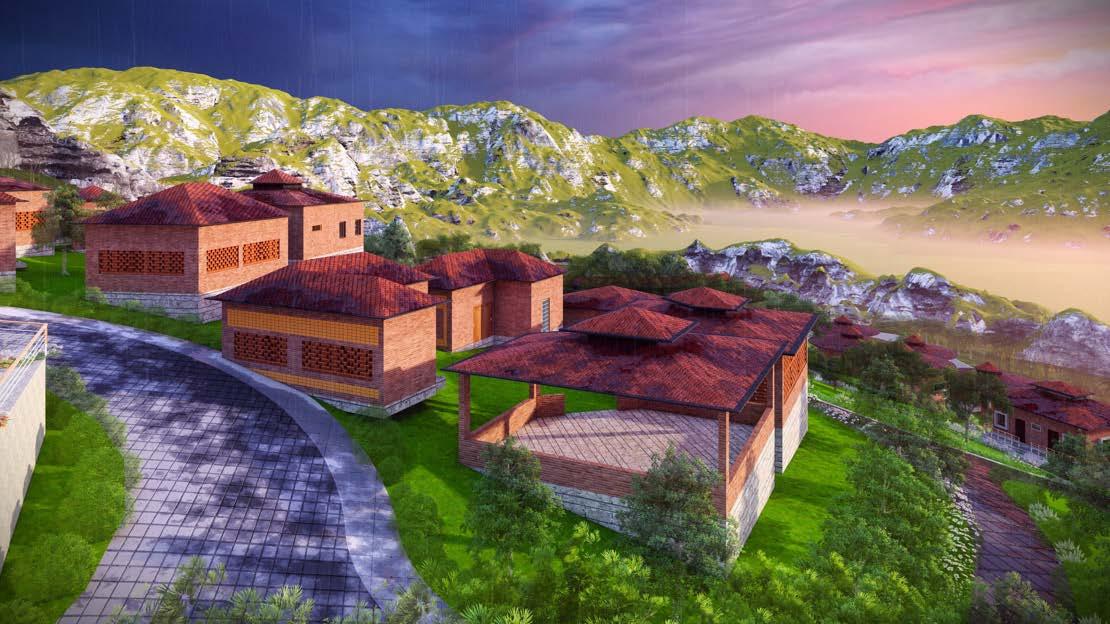

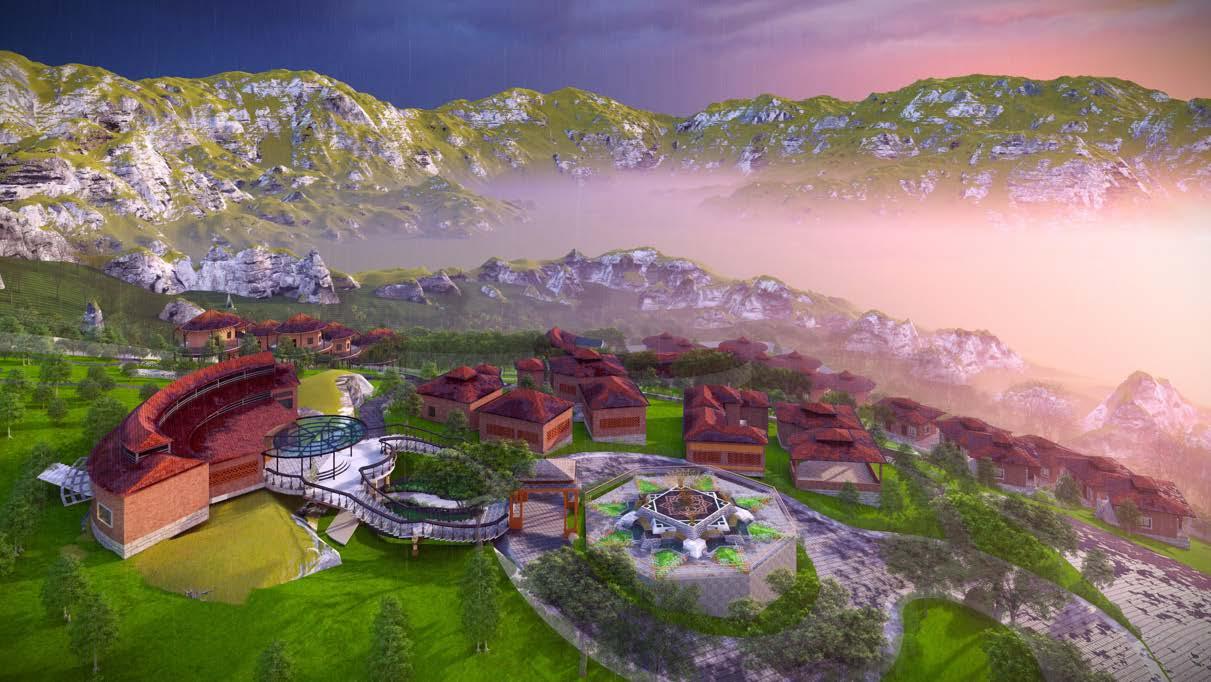

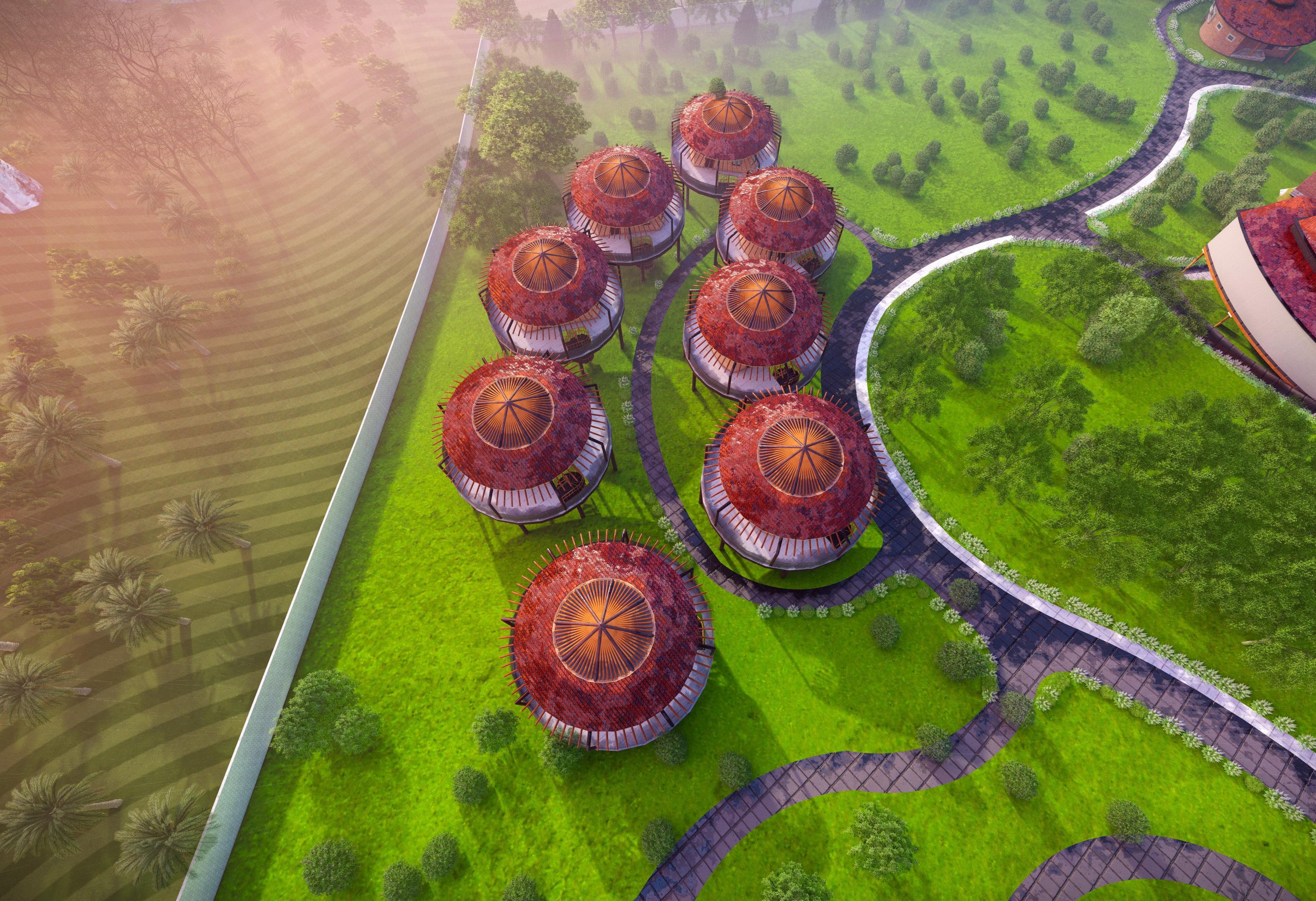

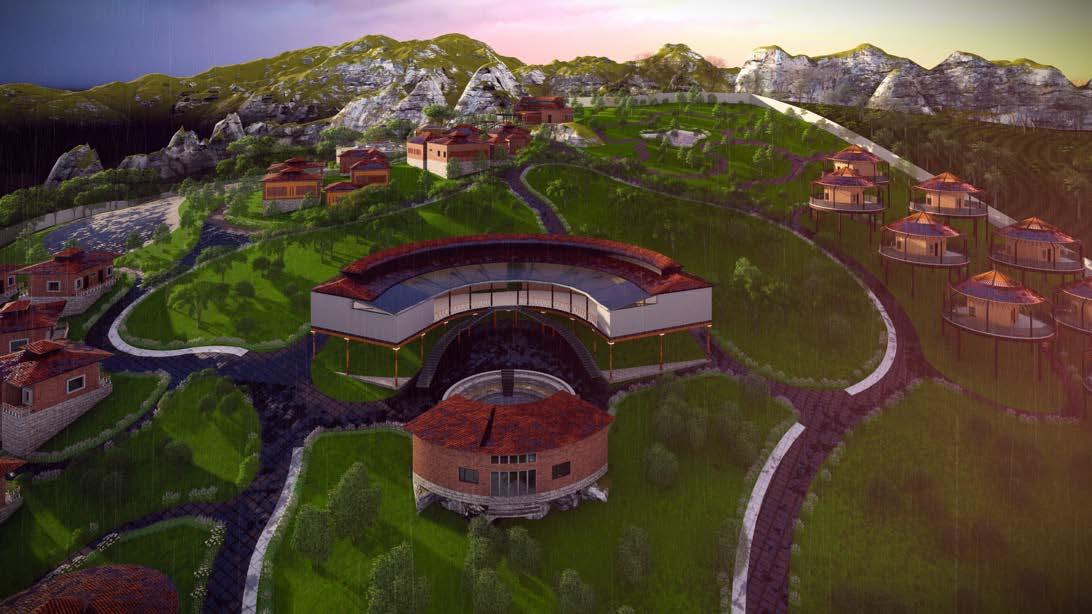

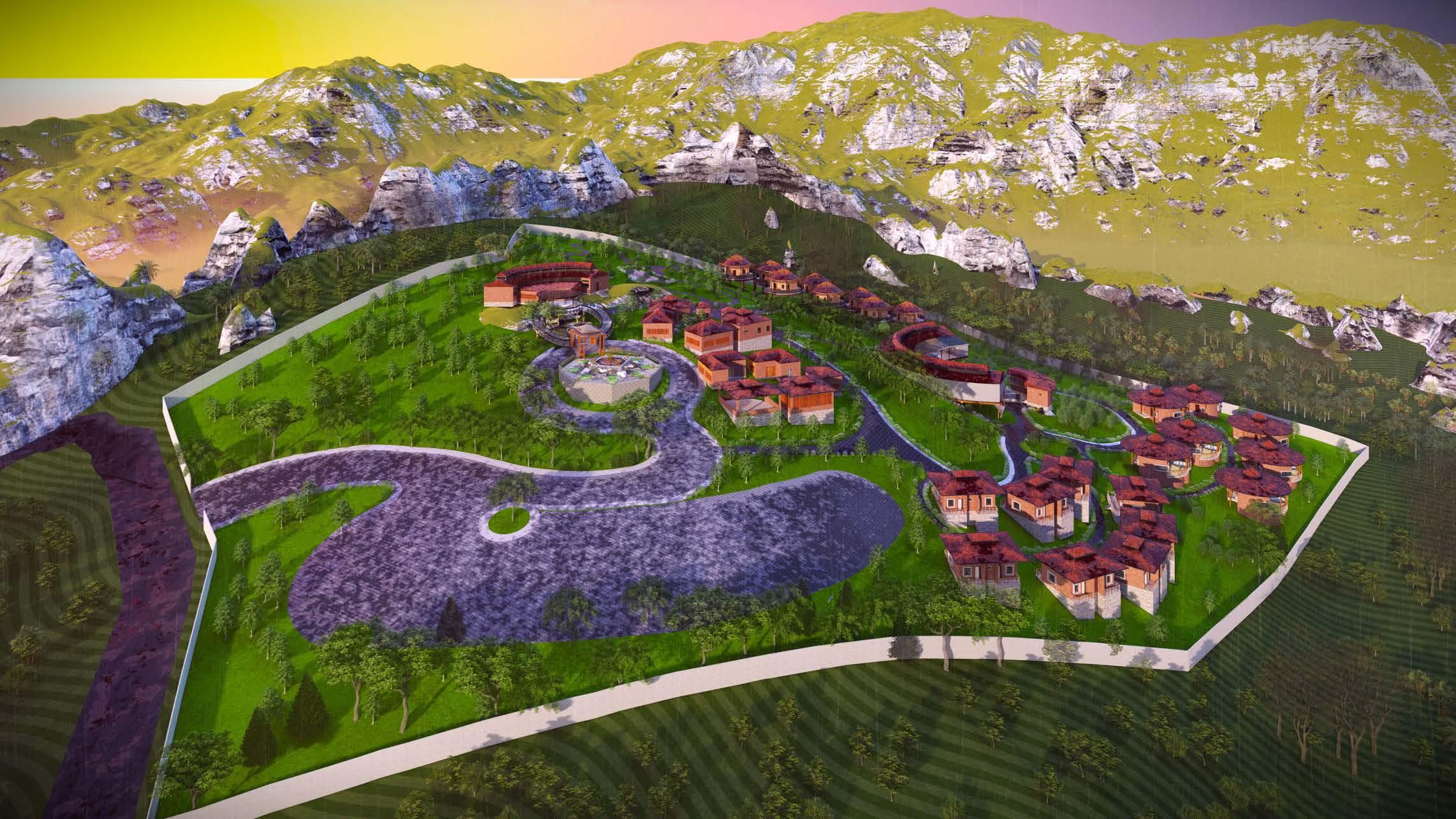

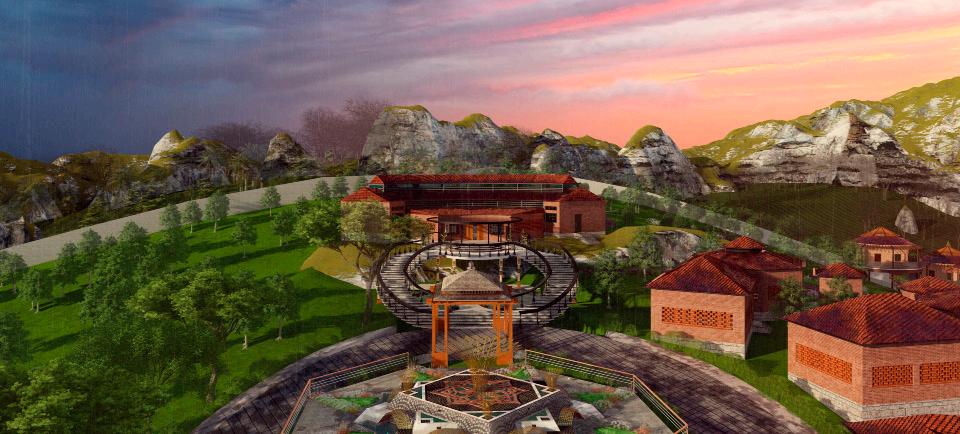

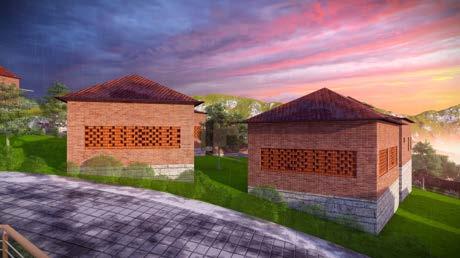

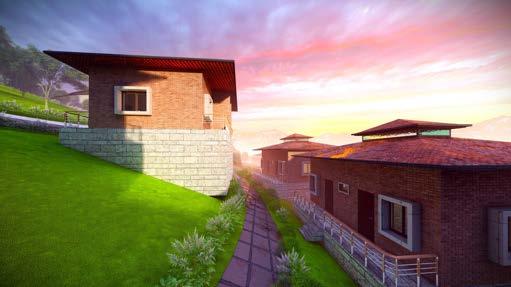

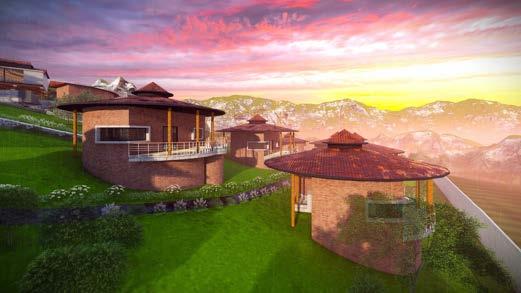

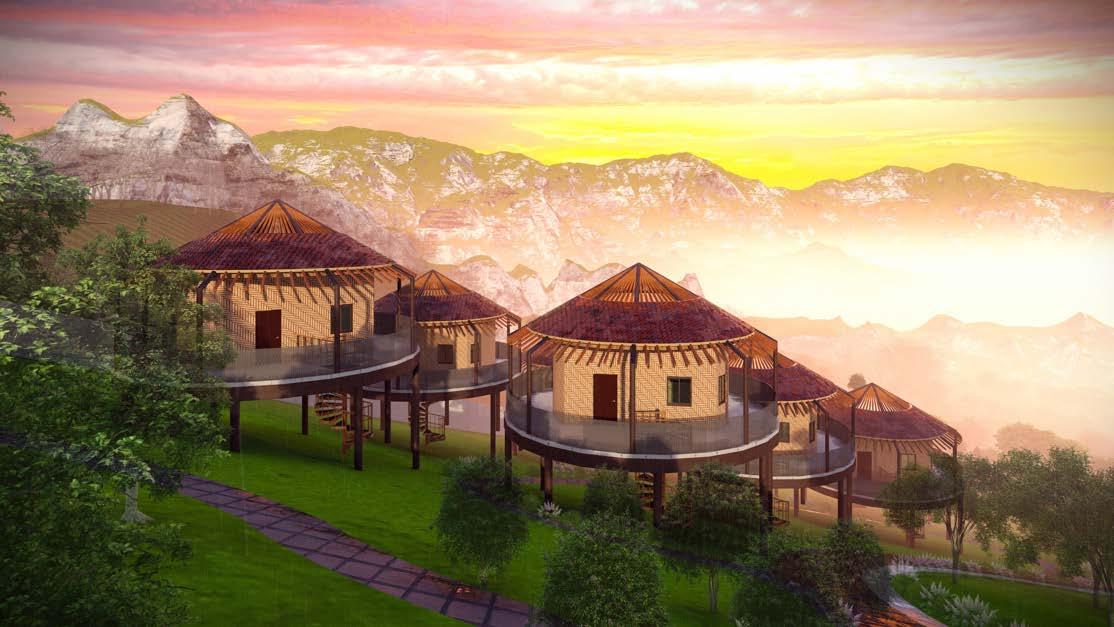

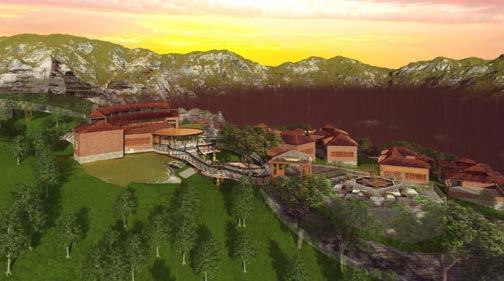

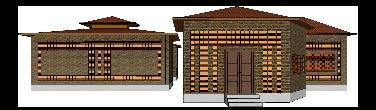

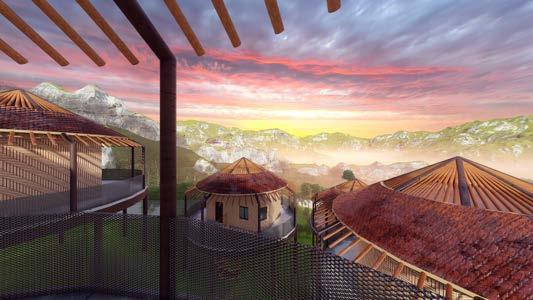

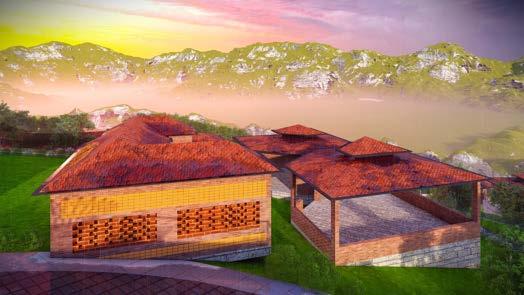

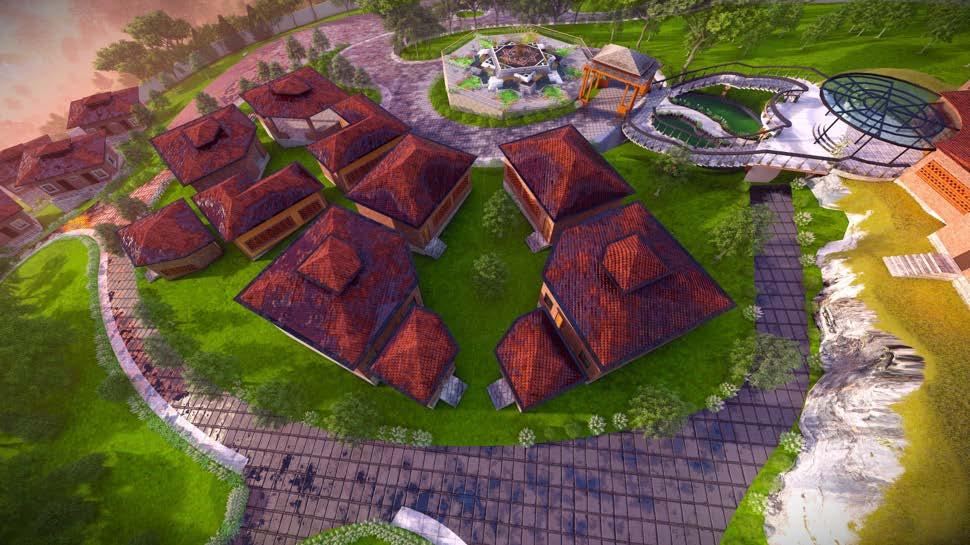

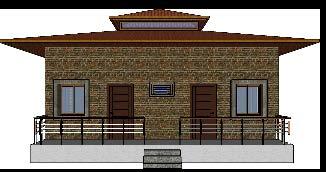

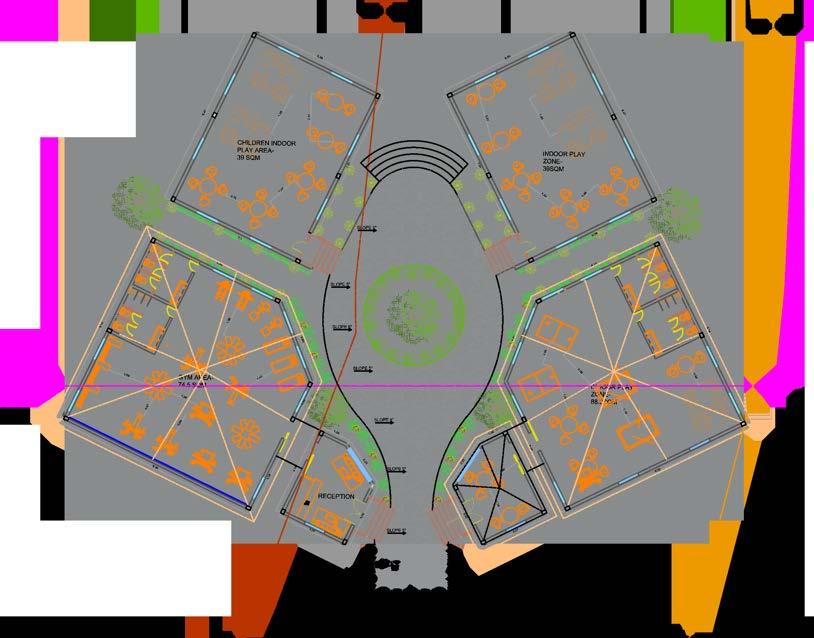

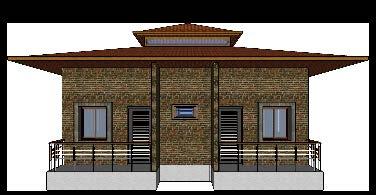

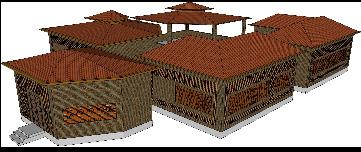

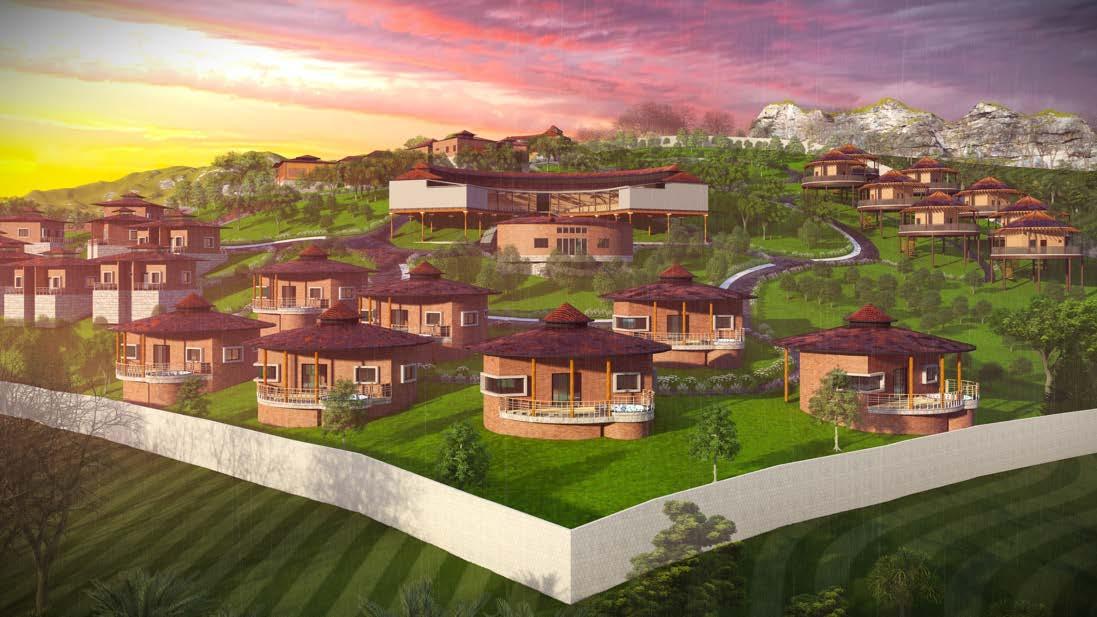

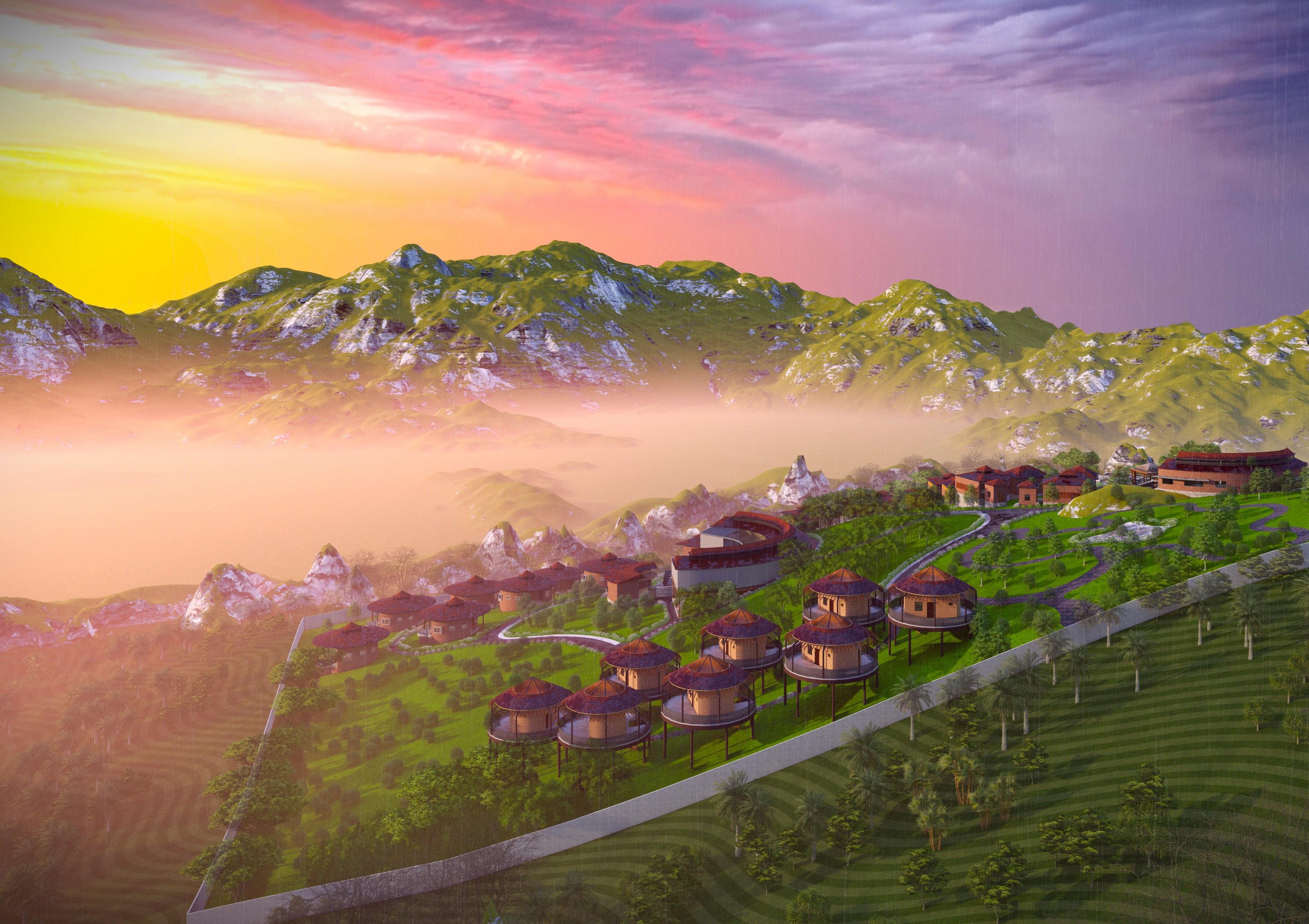

NEST CHALLETES

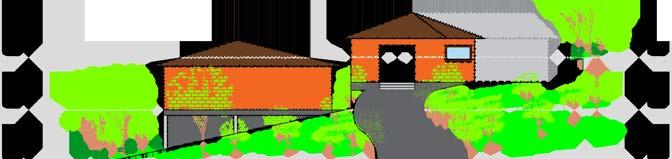

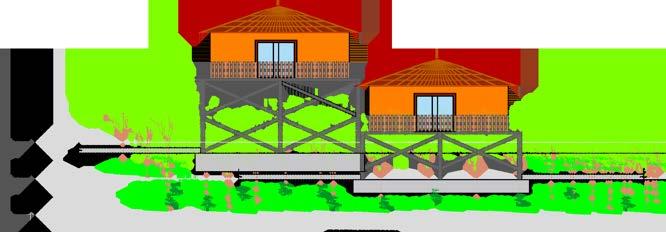

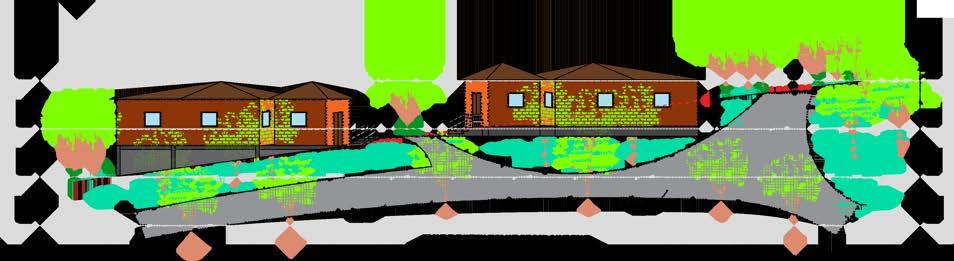

FLOOR PLAN 2D ELEVATION SECTION FRONT VIEW SIDE VIEW TERRACE PLAN REAR VIEW VIEW 2 ISOMETRIC VIEW VIEW 3 VIEW 1
FLOOR PLAN 2D ELEVATION SECTION FRONT VIEW SIDE VIEW TERRACE PLAN REAR VIEW VIEW 2 VIEW 3 VIEW 1 ISOMETRIC PLAN

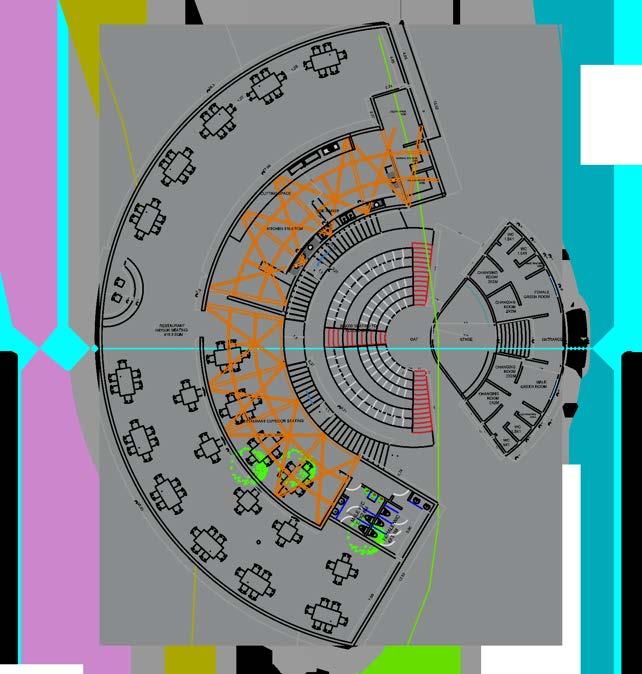

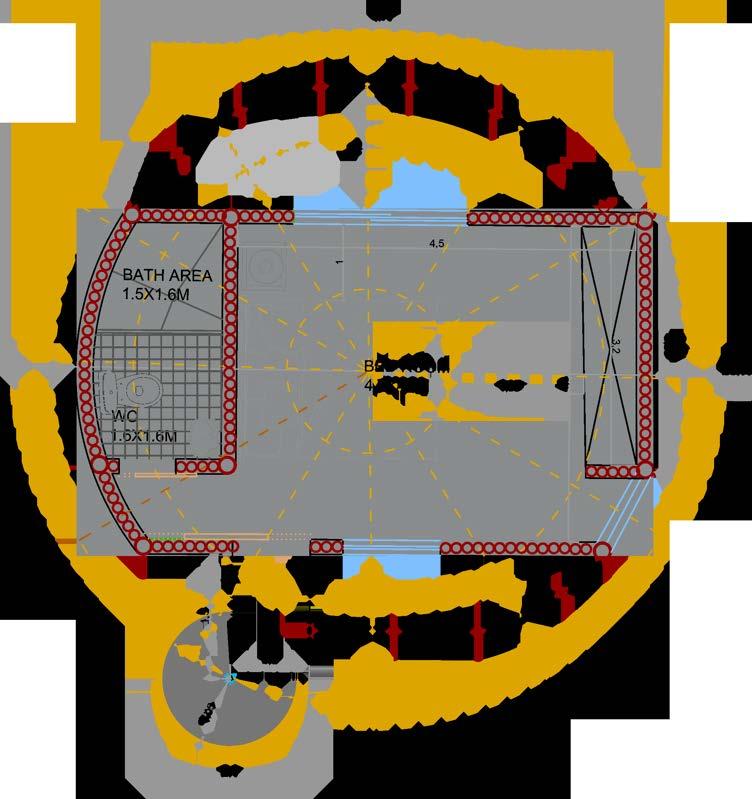

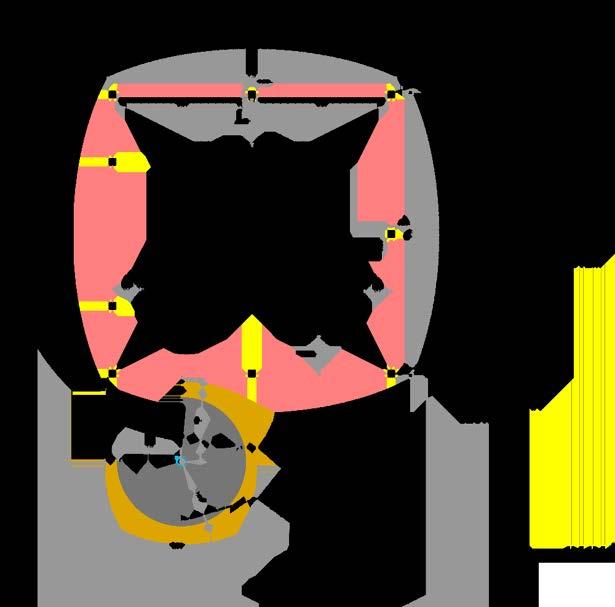

FLOOR PLAN

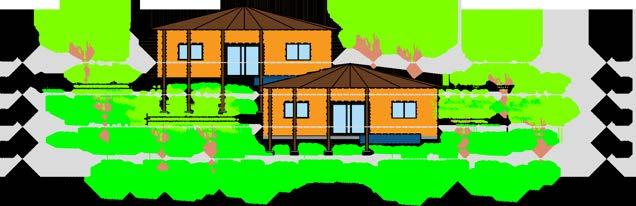

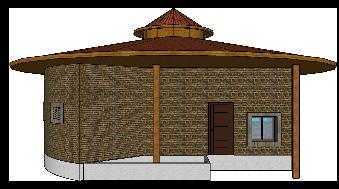

FRONT VIEW SIDE VIEW TERRACE PLAN REAR VIEW VIEW 2 ISOMETRIC VIEW VIEW 3 VIEW 1

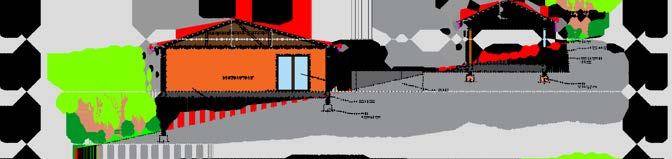

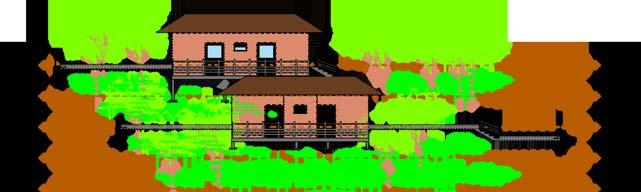

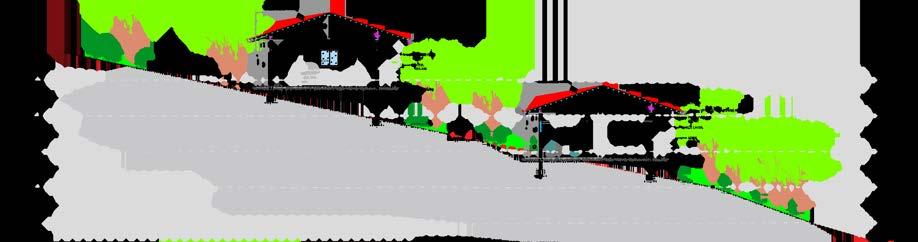

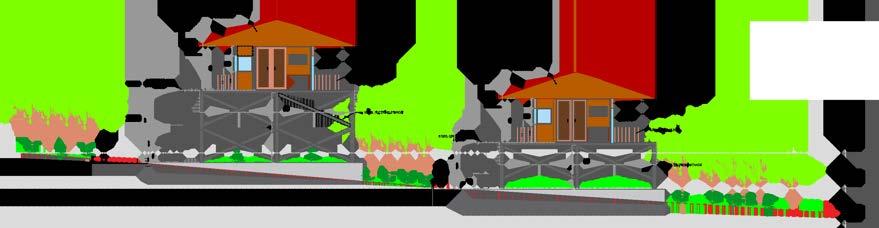

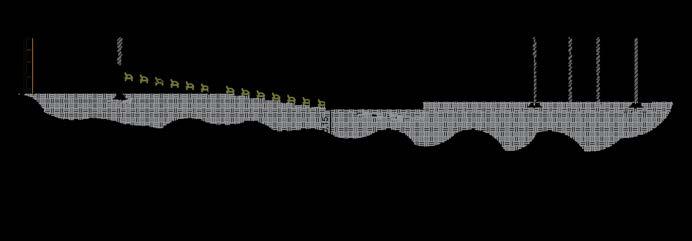

2D ELEVATION SECTION

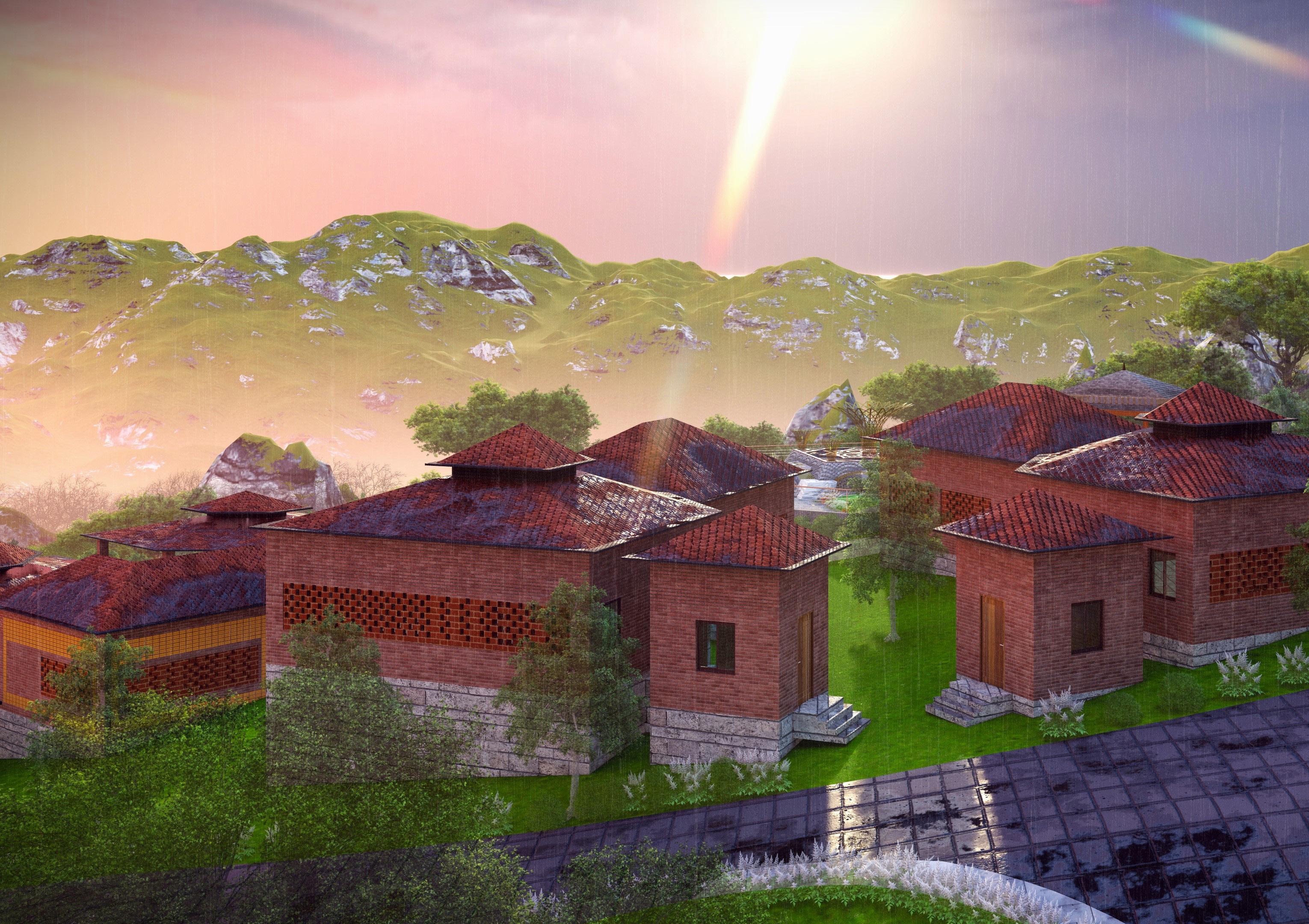

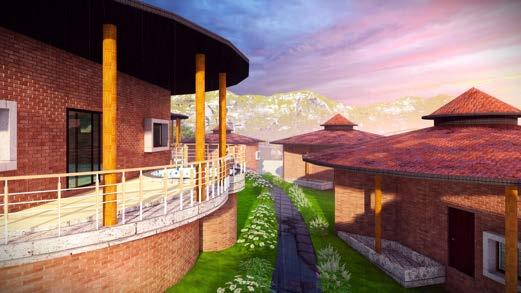

VIEW 1 VIEW 2 VIEW 3

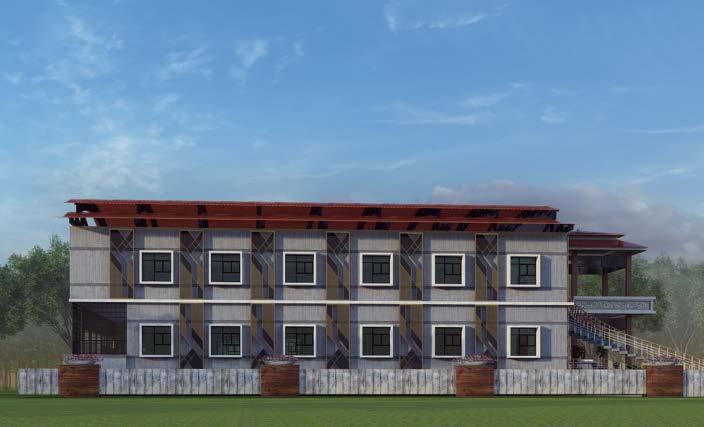

•THE ACADEMIC PROJECT IS DESIGNED IN ACCORDANCE TO THE REQUIREMENTS OF THE AICTE NORMS . •THE SITE IS OF 7.5 ACR •THE SITE IS LOCATED IN THE OUTS CUTS OF SURPUR NEAR ENGINEERING COLLEGE ENGGINERING COLLEGE, SURPUR (ACADEMIC PROJECT)
PROFF.PARAM
GUIDE:
JYOTHI
SIDE

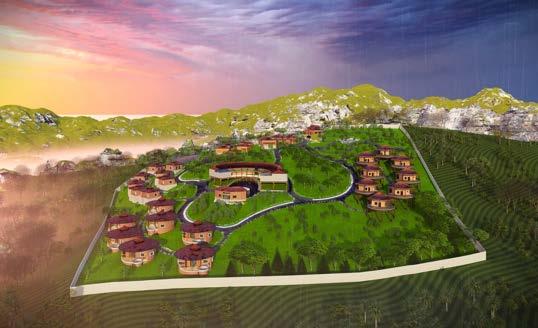

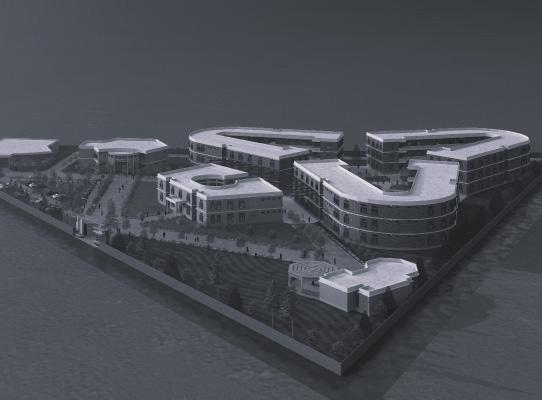

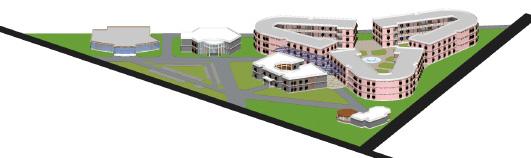

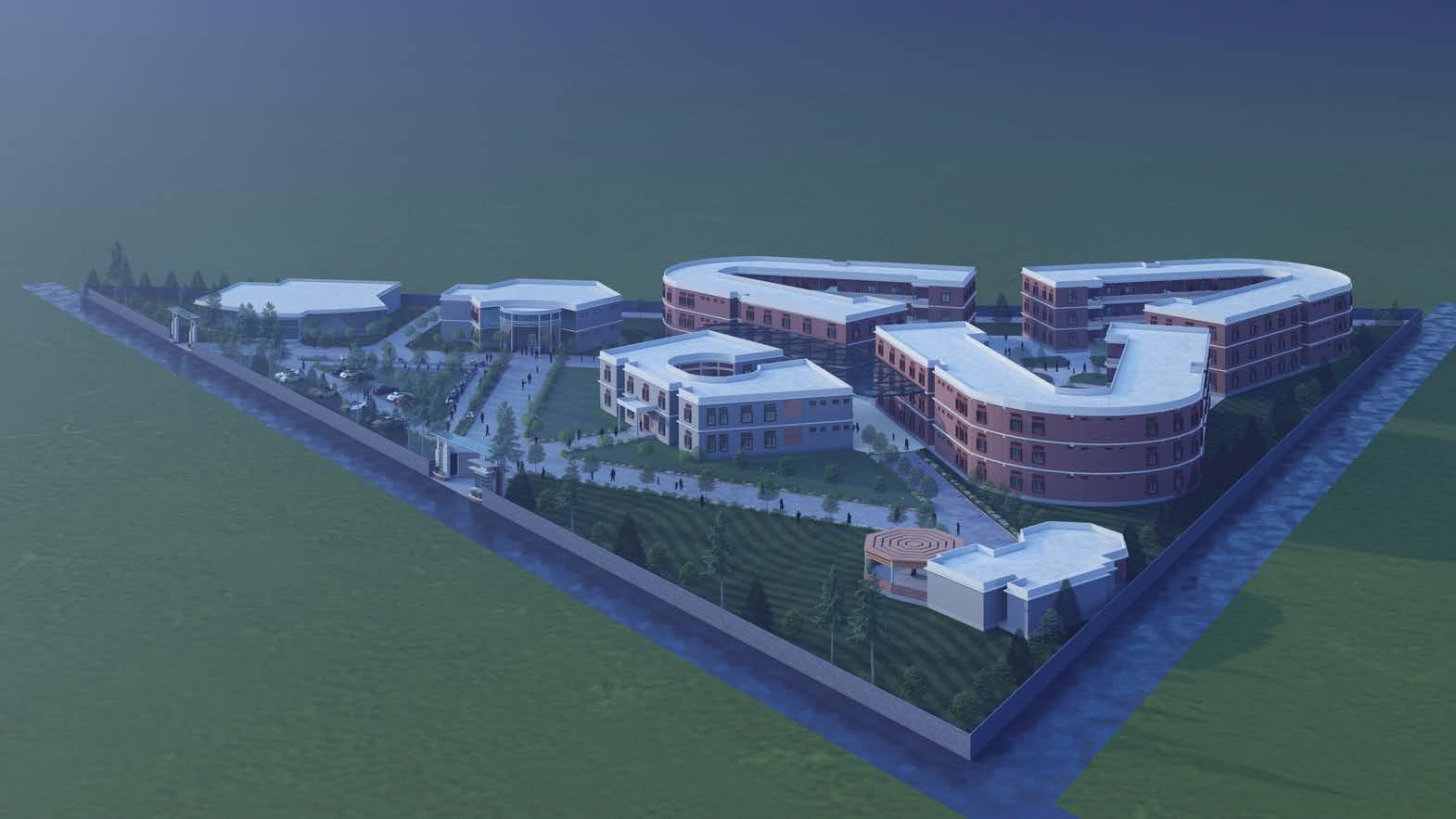

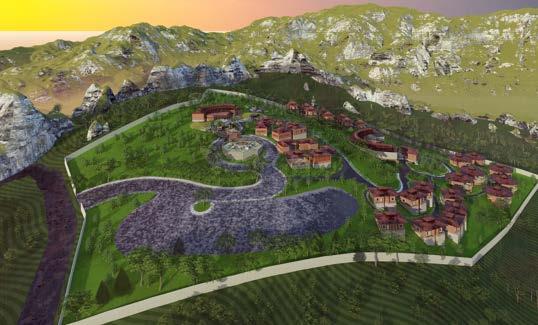

3D VIEW OF ENGGINERING COLLEGE SITE PLAN MODEL

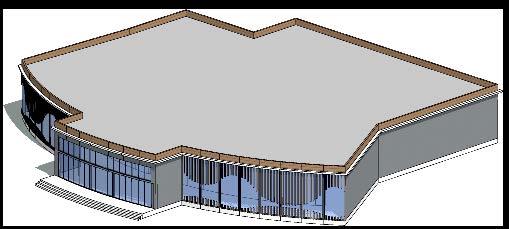

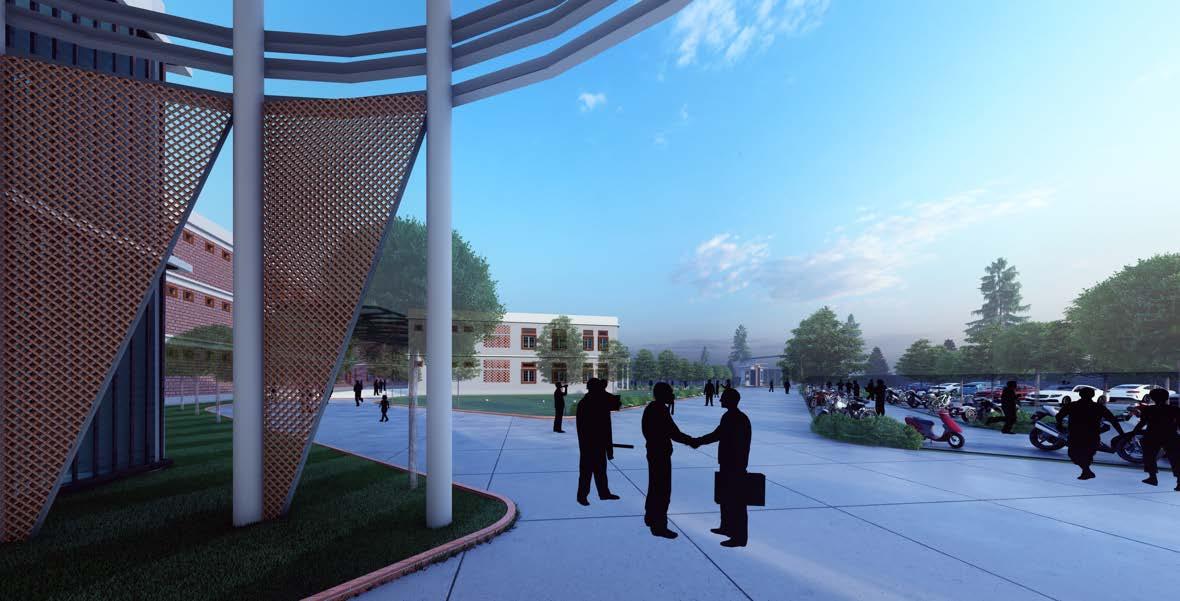

VIEW FRONT VIEW ISOMETRIC VIEW

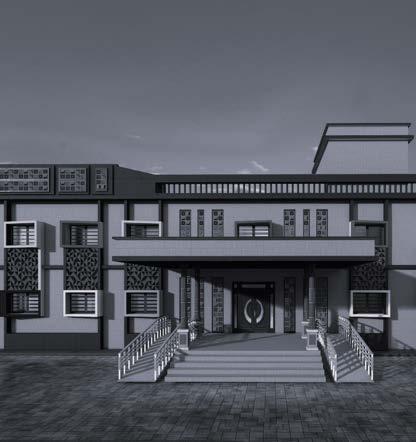

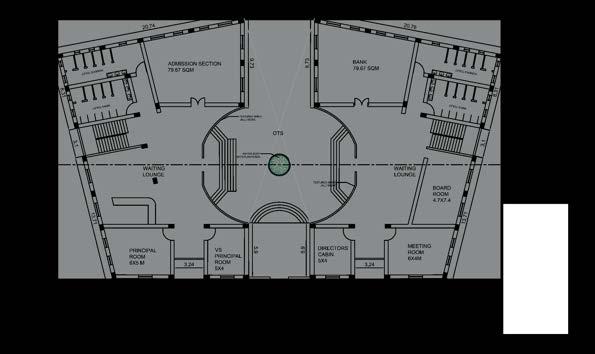

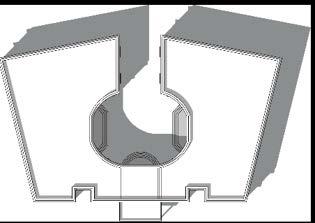

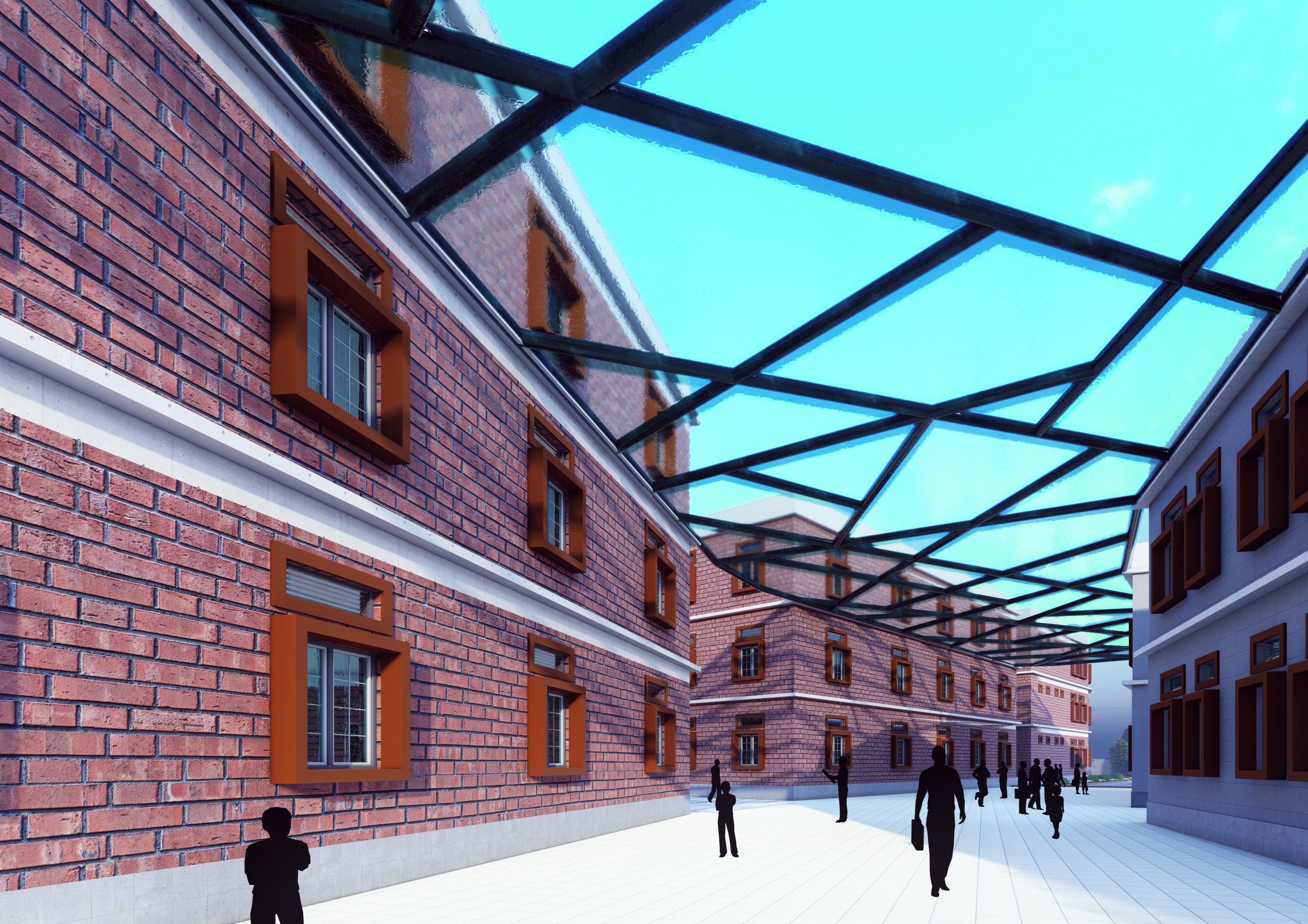

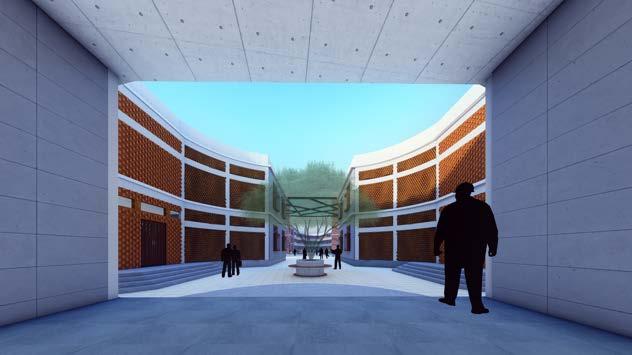

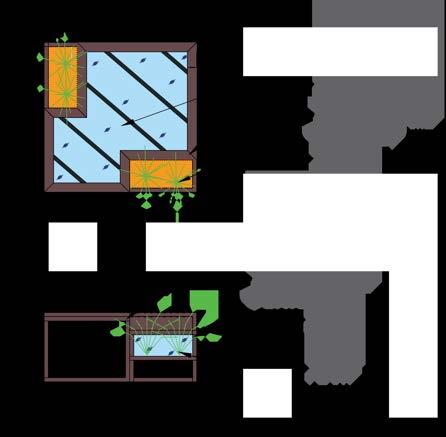

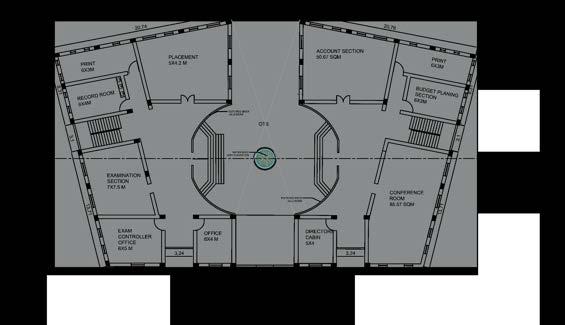

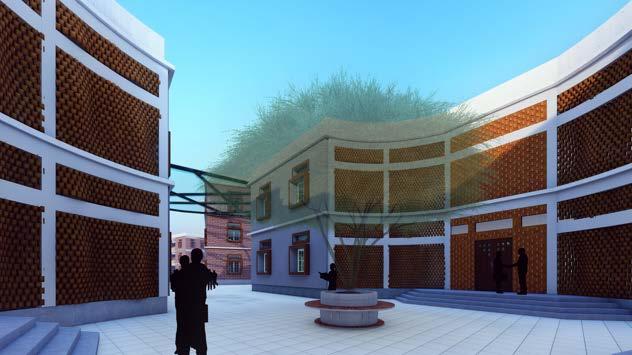

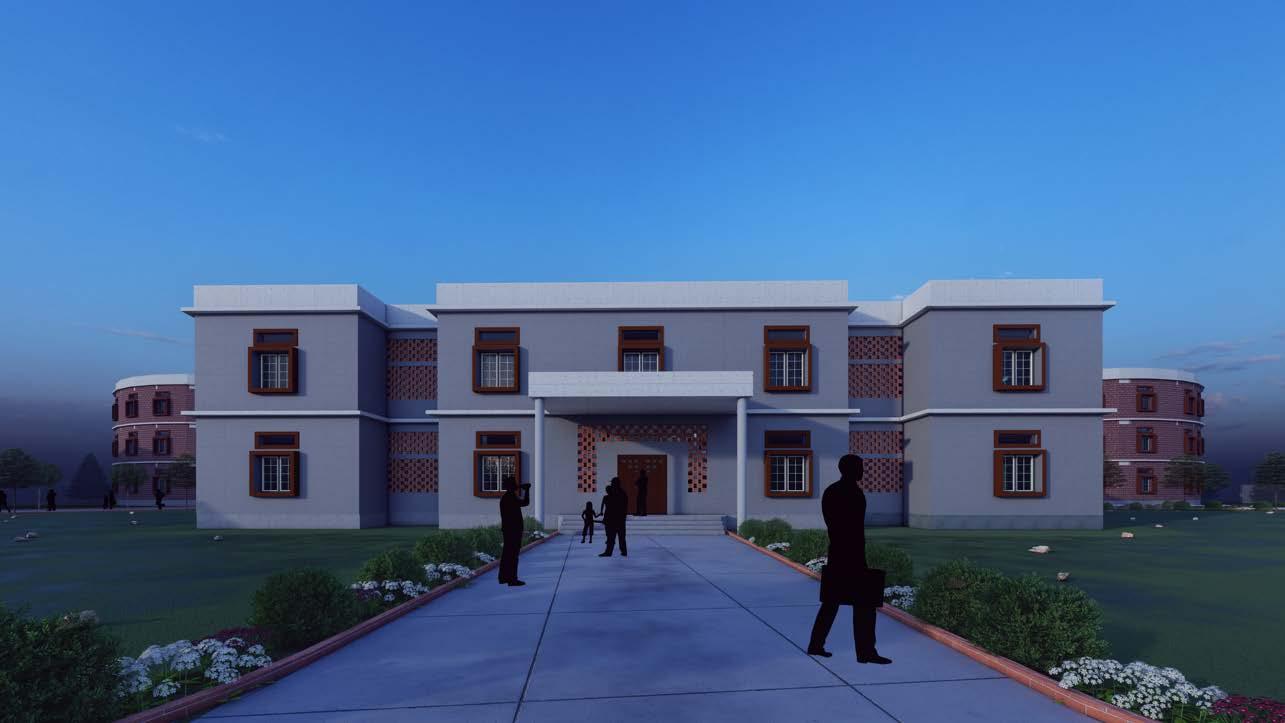

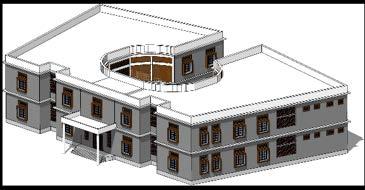

THE CONCEPT OF ADMIN BLOCK TRAPEZOIDAL SHAPE FORMING A COURT YARD IN BETWEEN WHICH COERS WITH THE PARMETRIC BRICK WALL.
THE ADMIN BLOCK CONSIST OF SPACES REQIRED FOR ALL THE OFFICIAL WORKS OF THE RUNNING OF THE COLLEGE

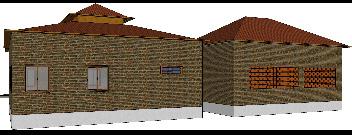

VIEW 1 VIEW 2 SIDE VIEW
FLOOR PLANS SECTION 2D ELEVATION ISOMETRIC VIEW TERRACE VIEW
FRONT VIEW VIEW 3

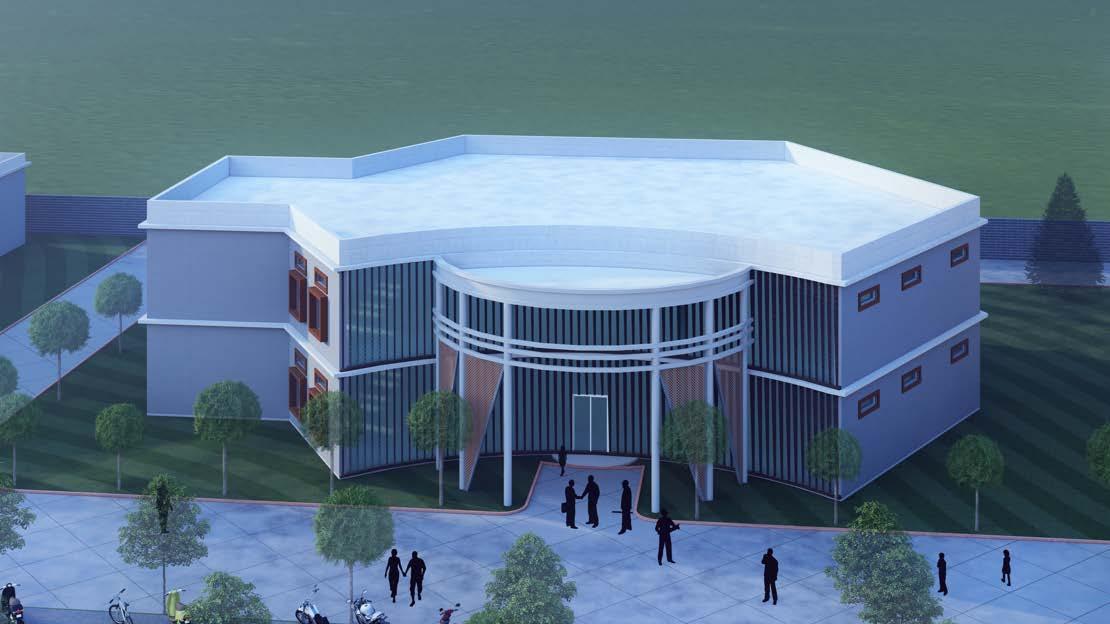

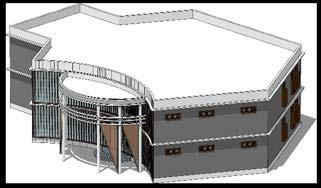

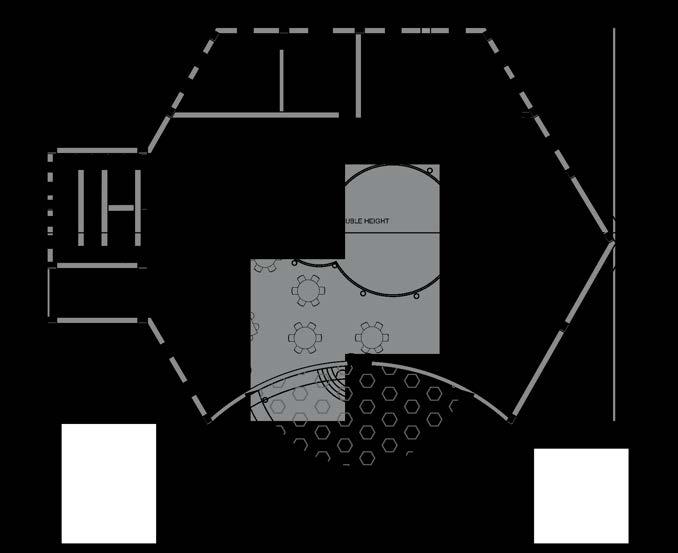

LIBRARY BLOCK CONCEPT WAS IN THE SHAPE OF HEXAGON AND THEN TRANSFROMED ACCORDINGLY TO ACCUMULATE THE SPACES . IT HAS SPACES FOR READING AND THE SPACES FOR BOOKS TO GAIN KNOWLEDGE AT DIFFERENT SUBJECTS TERRACE VIEW ISOMETRIC VIEW FRONT VIEW

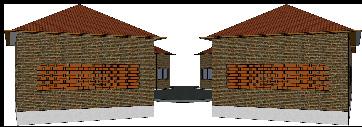

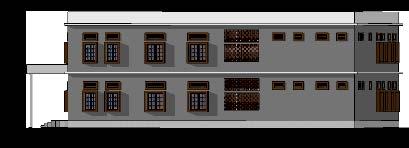

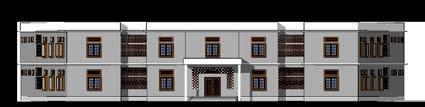

FRONT VIEW SIDE VIEW

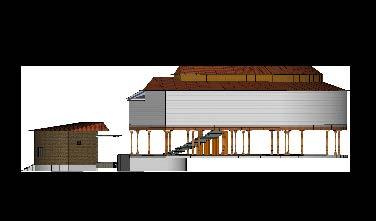

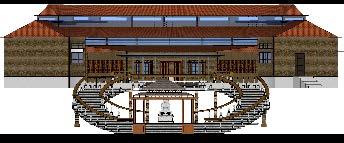

SECTION 2D ELEVATION VIEW FROM STAIRCASE

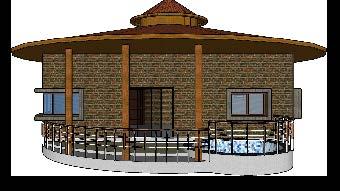

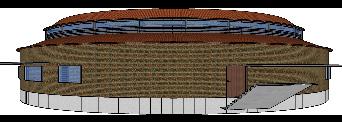

VIEW OF CANTEEN
FRONT VIEW TERRACE VIEW ISOMETRIC VIEW SIDE VIEW TERRACE VIEW ISOMETRIC VIEW SIDE VIEW FRONT VIEW

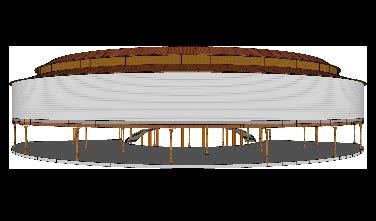

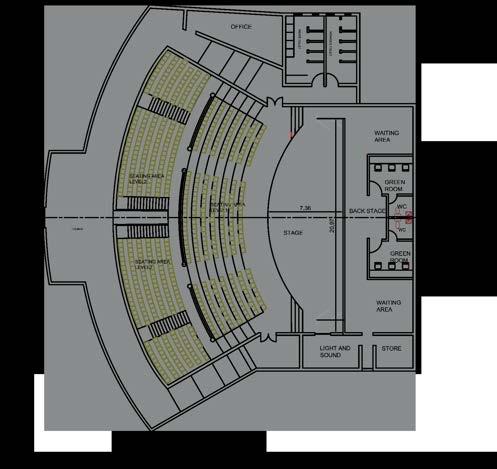

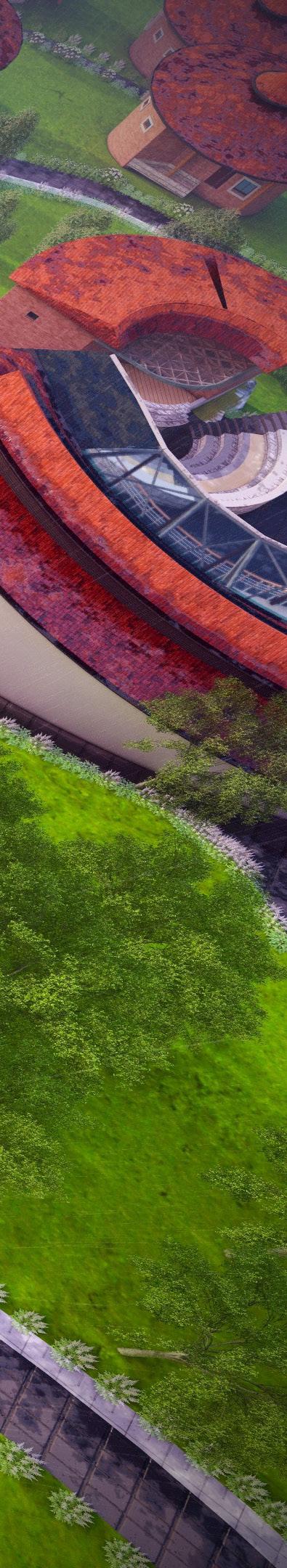

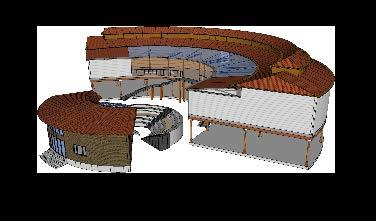

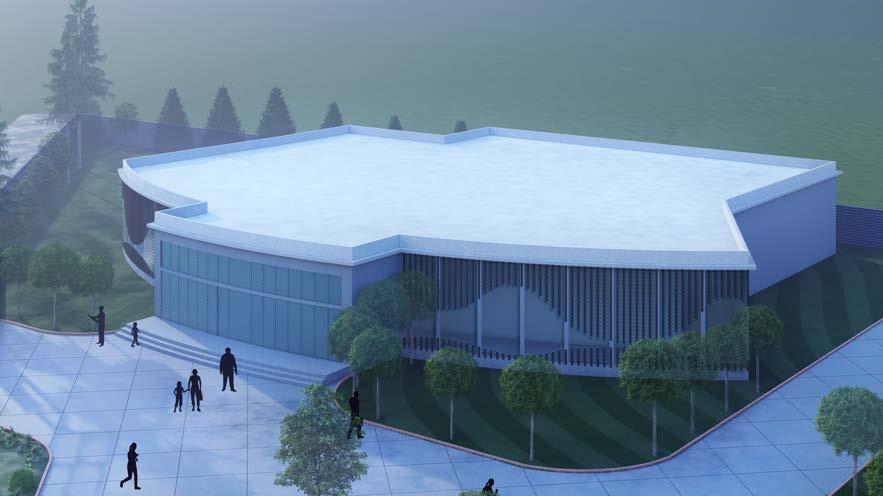

VIEW OF AUDITORIUM

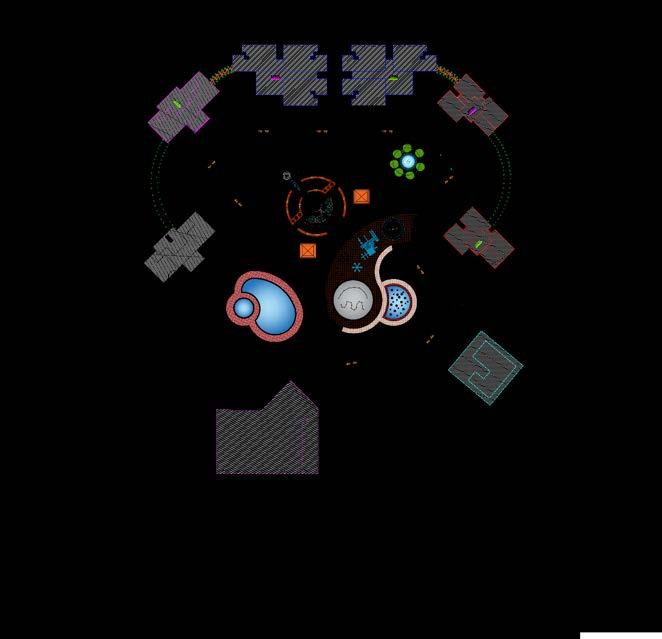

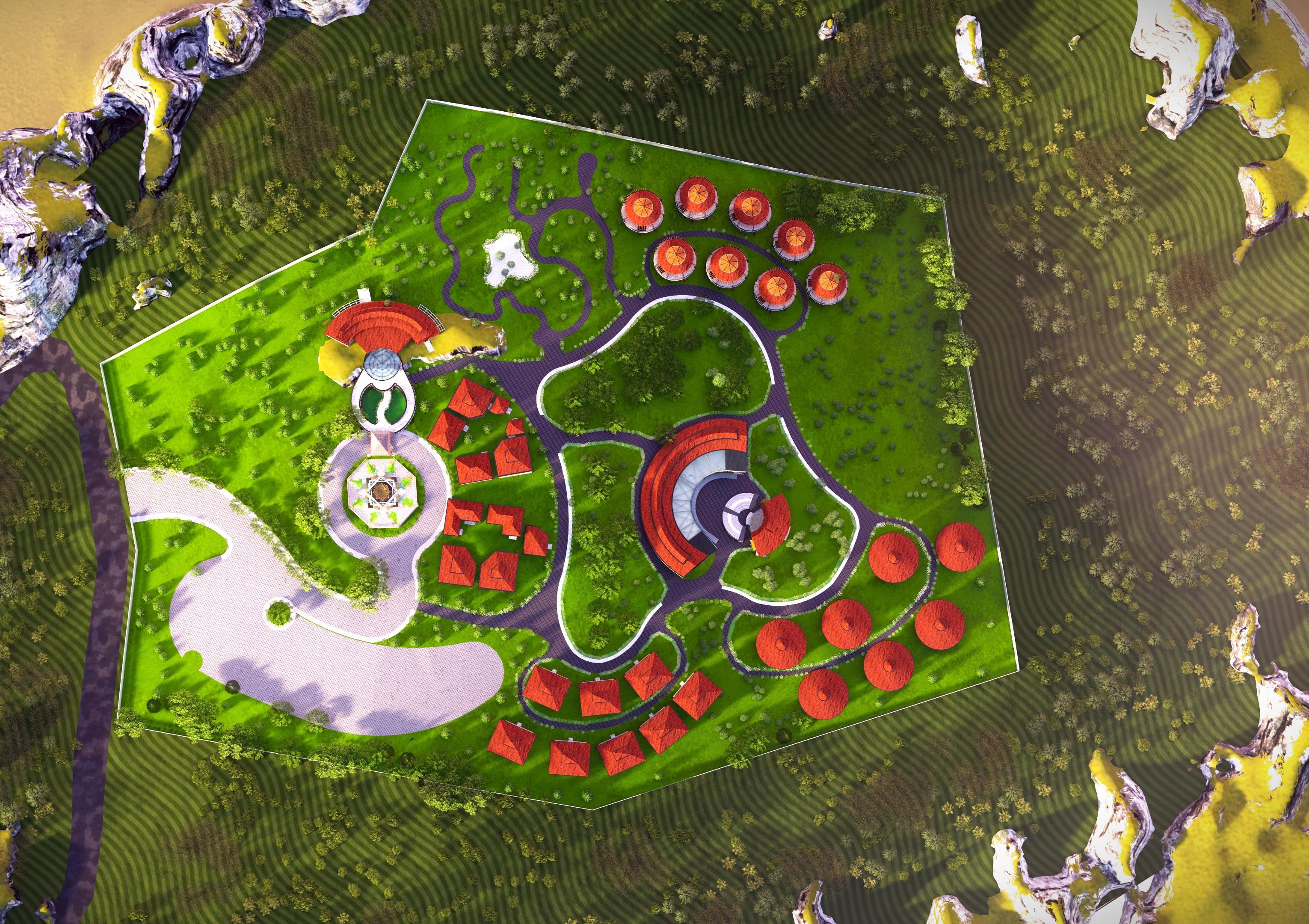

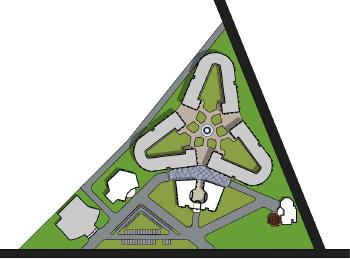

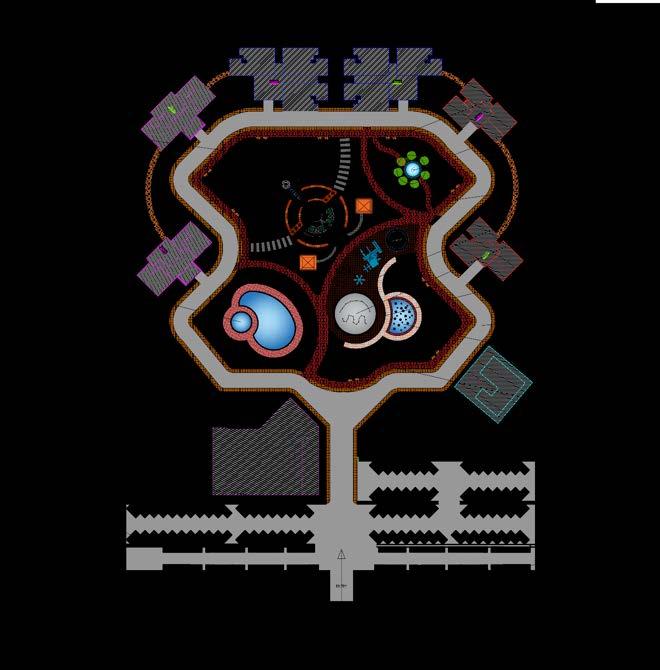

SITE PLAN OF ENGGINERING COLLEGE

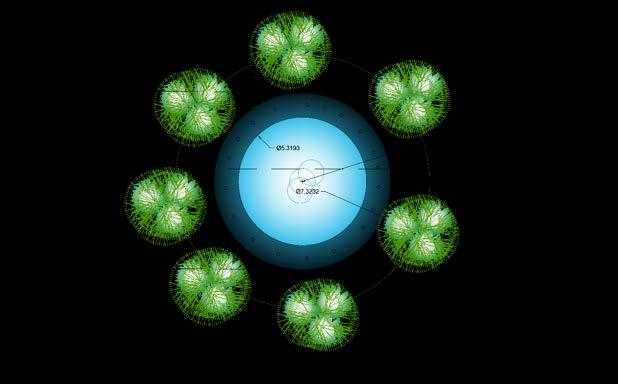

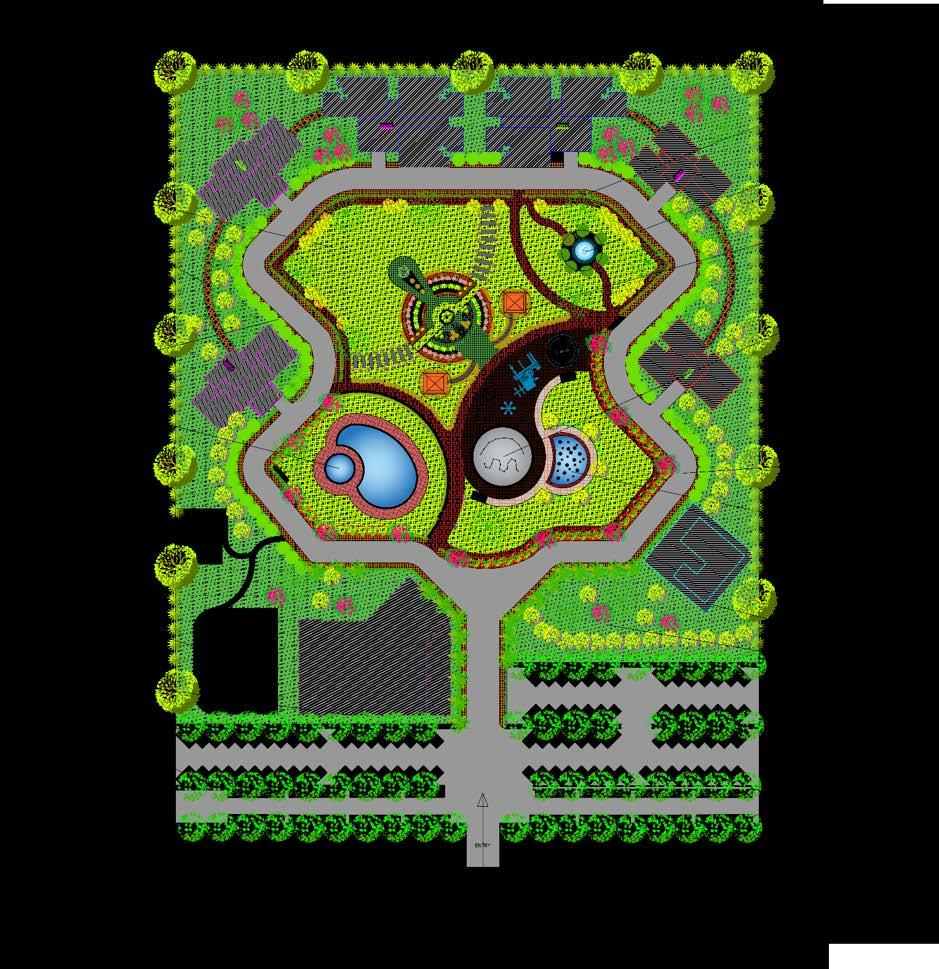

LANDSCAPE DESIGN, BANKING COMUNITY, GULBARGA (ACADEMIC PROJECT)
• THE PROJECT OF LANDSCAPE DESIGN , IS DESIGNED FOR THE HOUSING COMMUNITY OF 9.7 ACRES ( 39,375 SQ.MTRS )

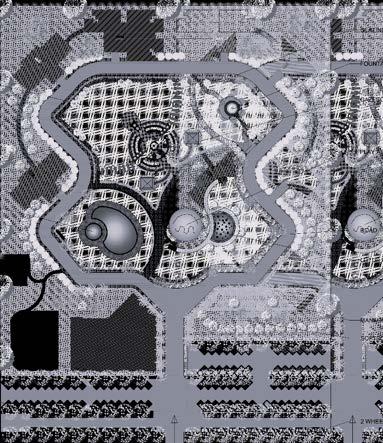

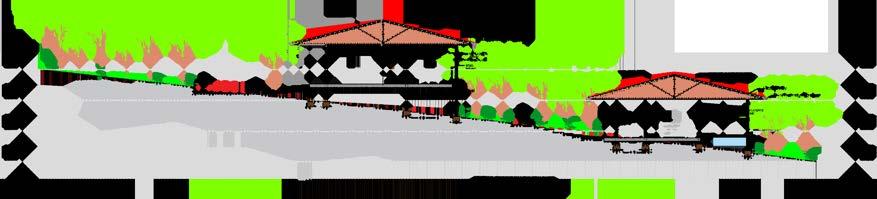

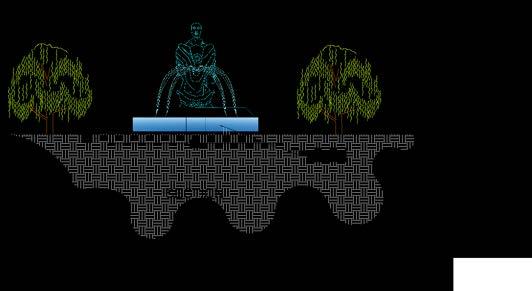

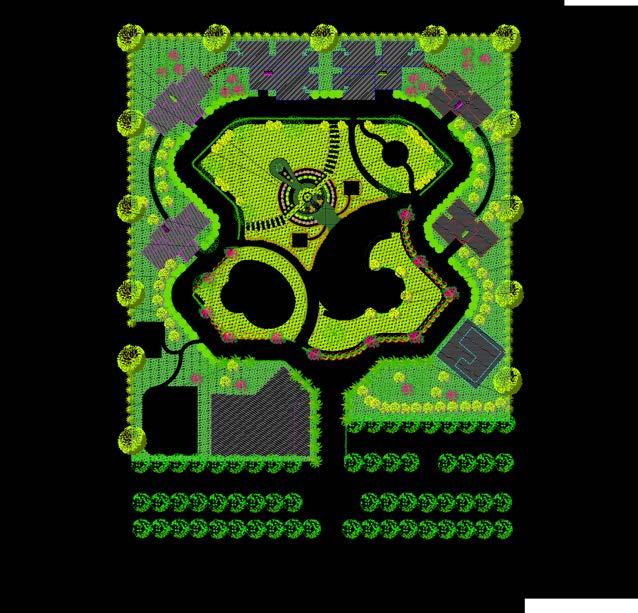

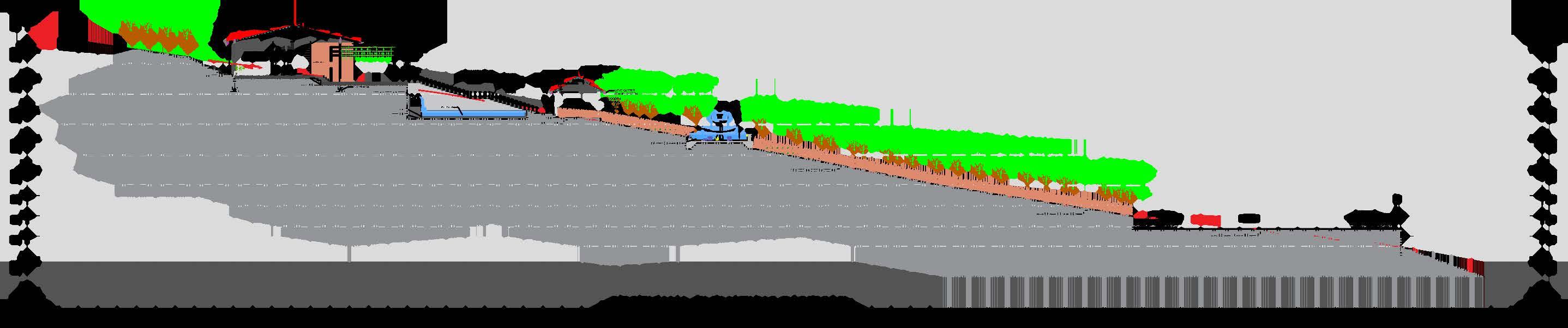

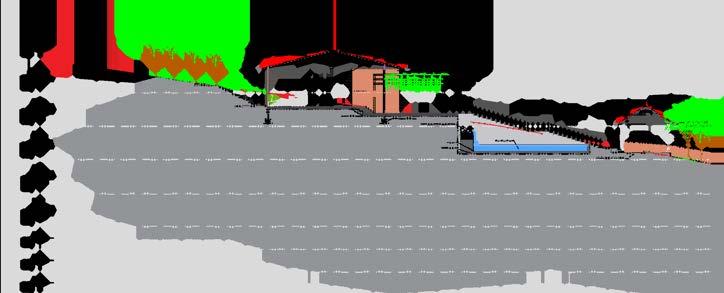

• THE DRAWINGS CONSISTS OF SITE PLAN , SOFTSCAPE PLAN , HARDSCAPE PLAN & PLANTATION PLAN , SITE SECTIONS
GUIDE: PROFF.RADHIKA
• THE MAIN FACTOR CONSIDERED IS THE CLIMATE OF THE AREA ( HOT – DRY ) , WHILE RESPONDING TO IT
.
• MOST OF THE PLANT & TREE SPECIES ARE SELECTED , WHICH BEST SUITS THE HOT-DRY CLIMATE OF KALABURAGI .
• THERE ARE AROUND 25 SPECIES USED IN THE DESIGN , AT DIFFERENT ZONES OF THE LAYOUT .
• THERE ARE DIFFERENT OUTDOOR SPACES DESIGNED , WHICH BLEND WELL WITH THE LANDSCAPE & SURROUNDINGS .

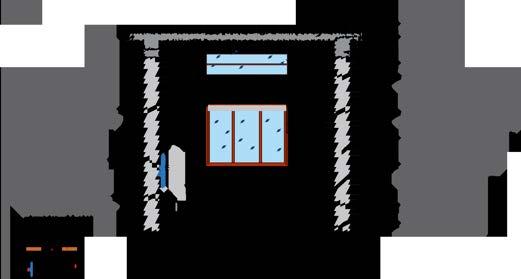

INTERIOR DESIGN, OWN RESIDENCE RENOVATION PROJECT (ACADEMIC PROJECT)
GUIDE: PROFF.SHOBHA DASTAPUR

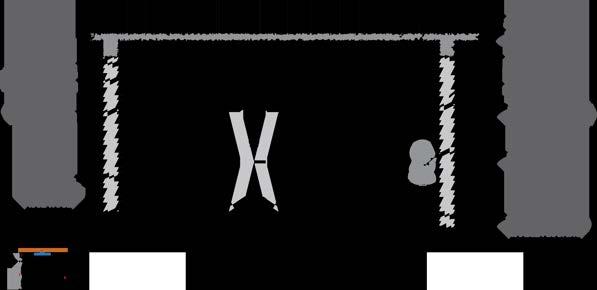

• THE PROJECT OF INTERIOR , IS DESIGN OF OWN HOUSE RENOVATION WITH PROPER FURNITURE. • THE DRAWINGS CONSISTS OF PLANS, SECTIONAL ELEVATION, FALSE CEILING DETAILS,FURNITURE DETAILS
INTERNSHIP PROJECTS,RESIDENCE
& RESIDENTIAL SCHOOL (INTERNSHIP PROJECT)
GUIDE:
AR. MAHESH HATTI ER. MANJU ER.SRINIVAS
• THE PROJECT CONSIST OF DWGS ACOORDING TO WHICH WORK WAS DONE BY ME IN (SAMA ARCHITECTS,BANGLORE)
WORK CONSISTS OF PROJECTS
•JANMAN HAWA RESIDENCE RAICHUR (3D ELEVATION)
•BS HATTI RESIDENCE GULBARGA(2D ELEVATION & WORKING DRAWING)
•RESIDENTIAL SCHOOL, BADADAL (2D ELEVATION, WORKING DRAWING, PLAN CORECTION, SECTION, TOILET DETAILS & DADOING
RAICHUR

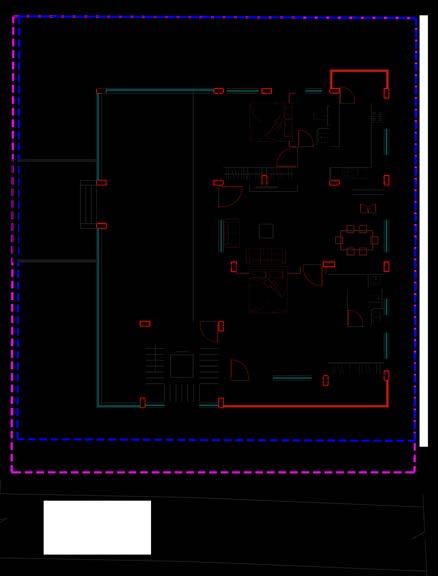

•SITE :4092 SQ.FT (62x66) •SITE IS LOCATED IN RAICHUR KARNATKA •THE DWG CONSIST OF GROUND FLOOR PLAN, FIRST FLOOR PLAN, 3D VIEWS & CONCEPTUAL DWGS
JANMAN HAWA RESIDENCE,
(INTERNSHIP WORK) GUIDE: AR. MAHESH HATTI CLIENT : JANMAN HAWA
TERRACE VIEW
ISOMETRIC CONCEPT DWG

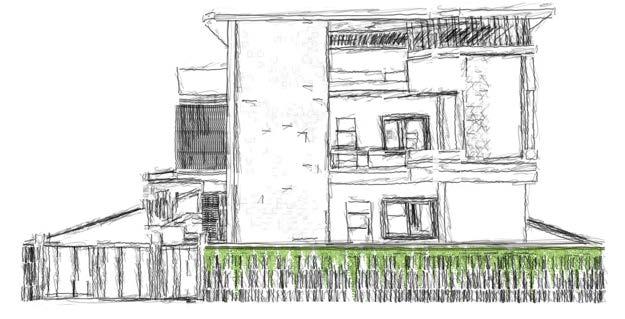

FRONT CONCEPT DWG

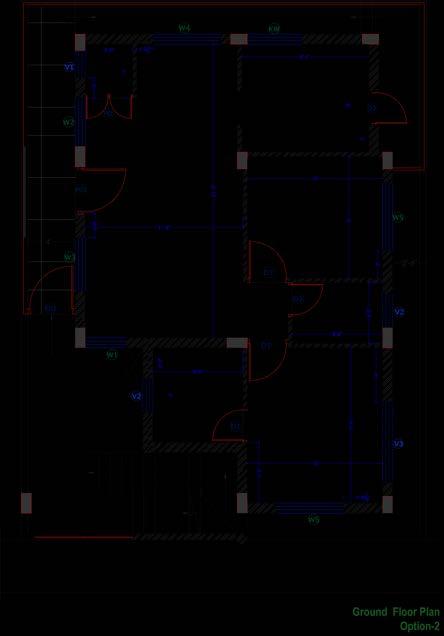

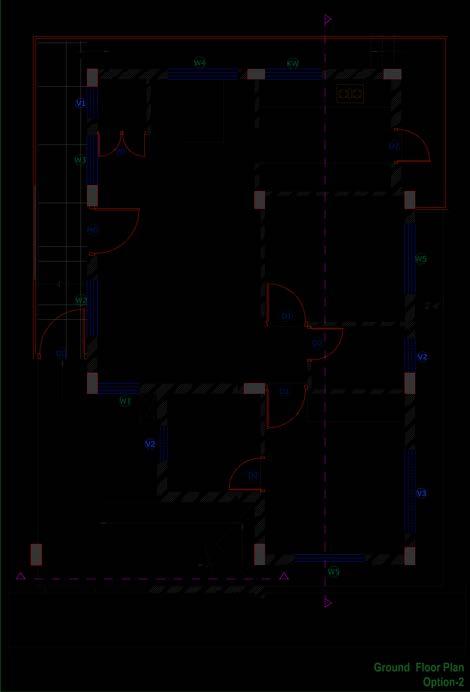

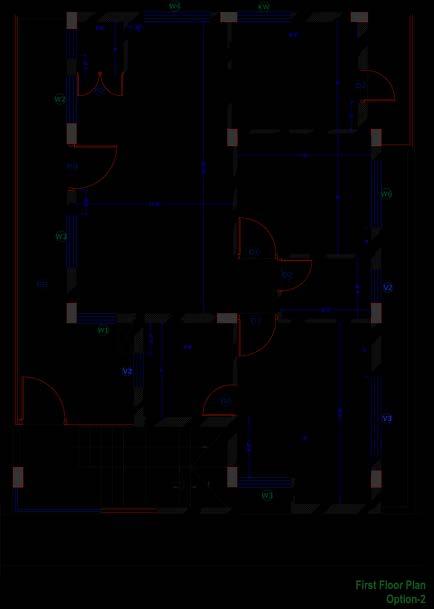

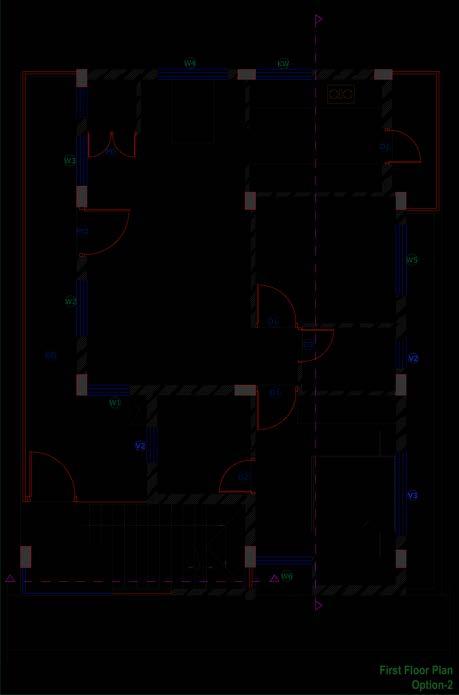

GROUND FLOOR PLAN FIRST FLOOR PLAN
ISOMETRIC VIEW

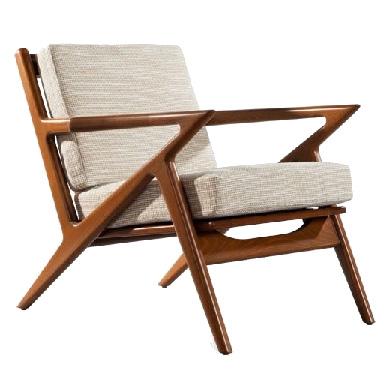

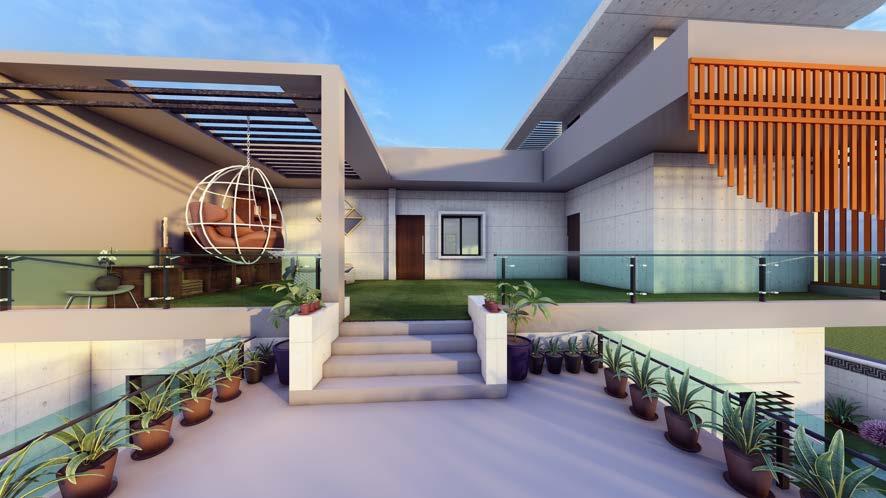

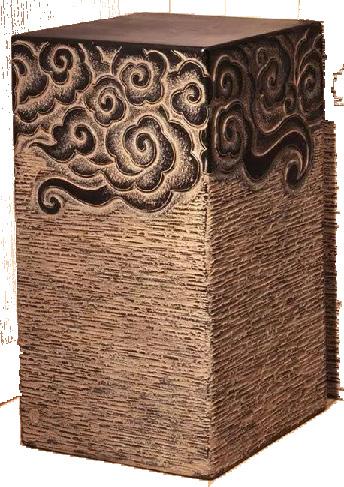

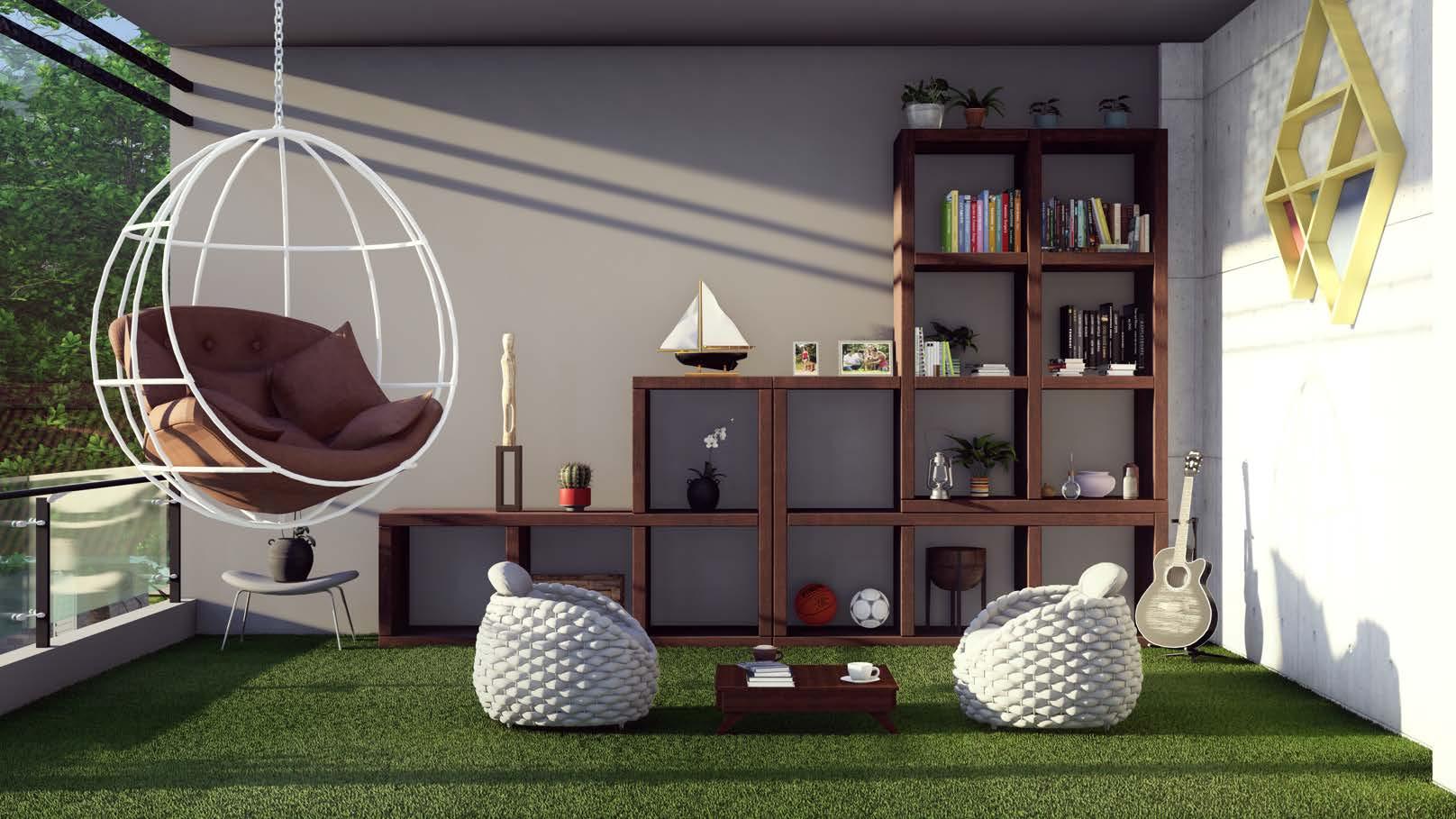

TERRACE GARDEN FURNITURES

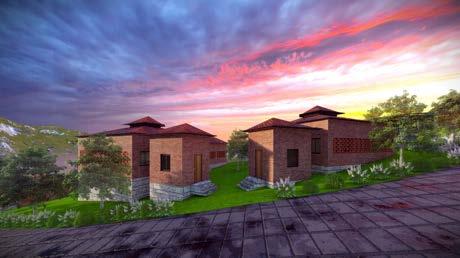

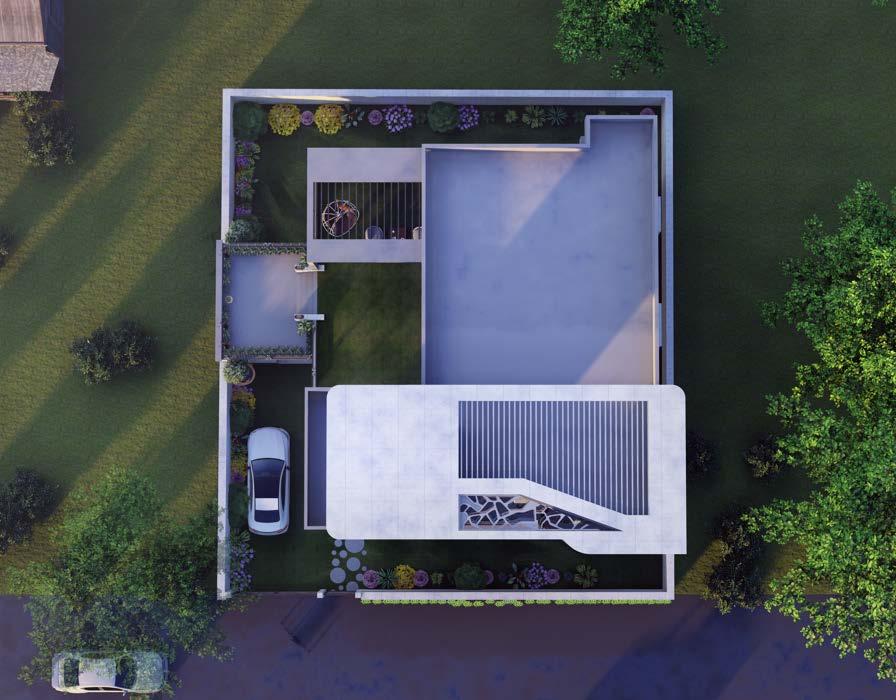

VIEW FROM ABOVE THE POTTED PORTICO

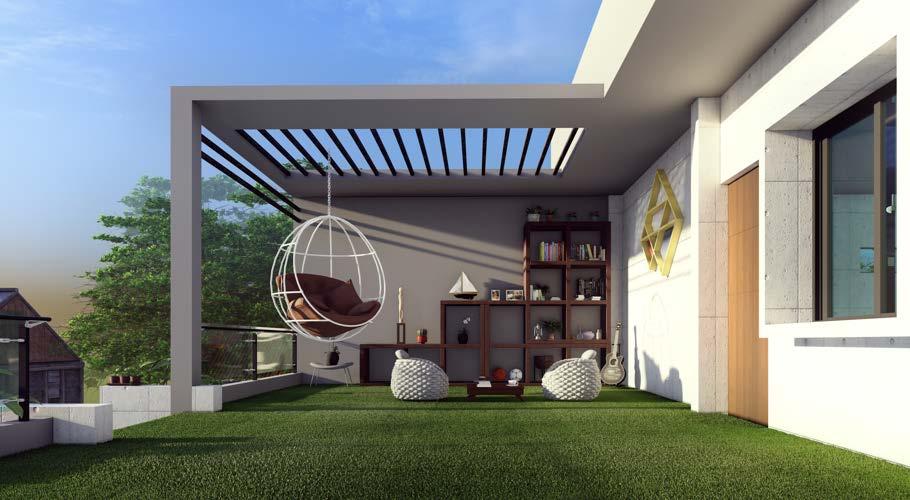

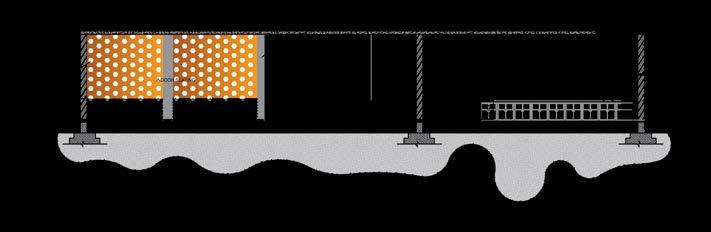

VIEW OF COVERED PERGOLA WITHIN TERRACE GARDEN

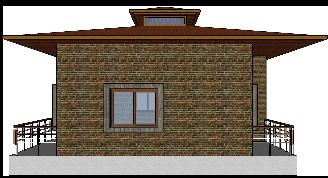

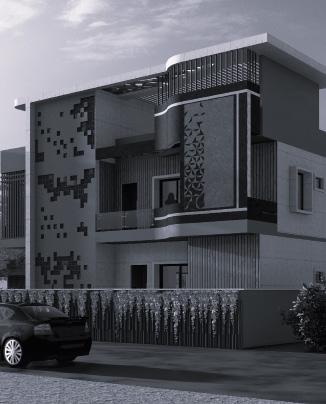

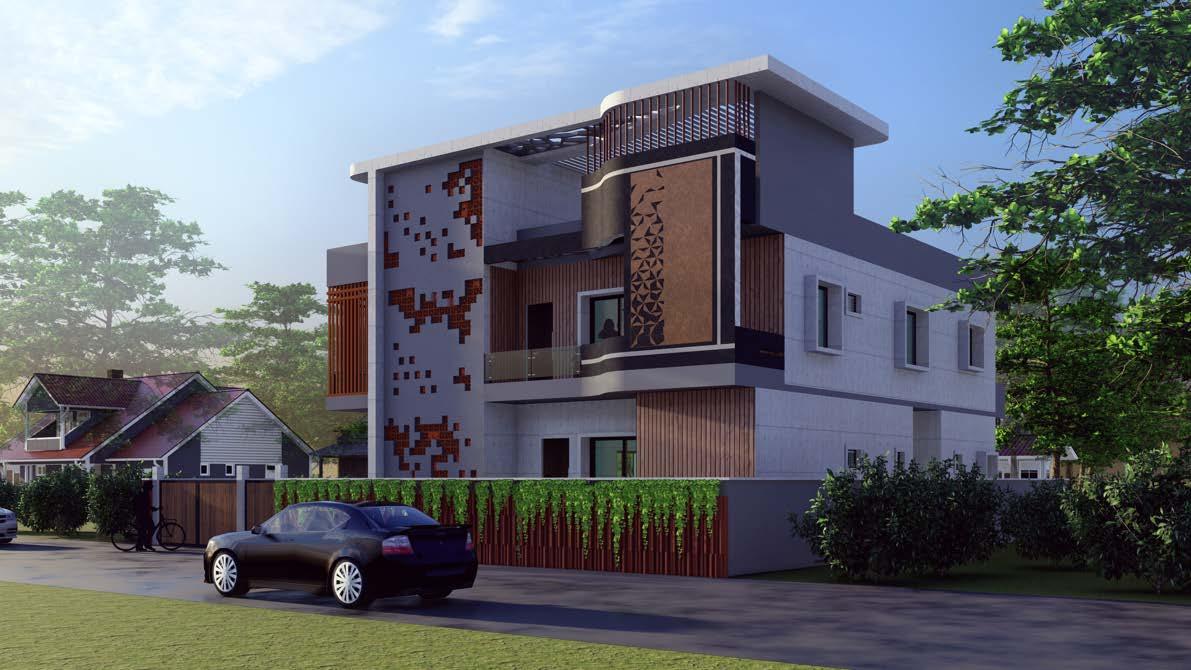

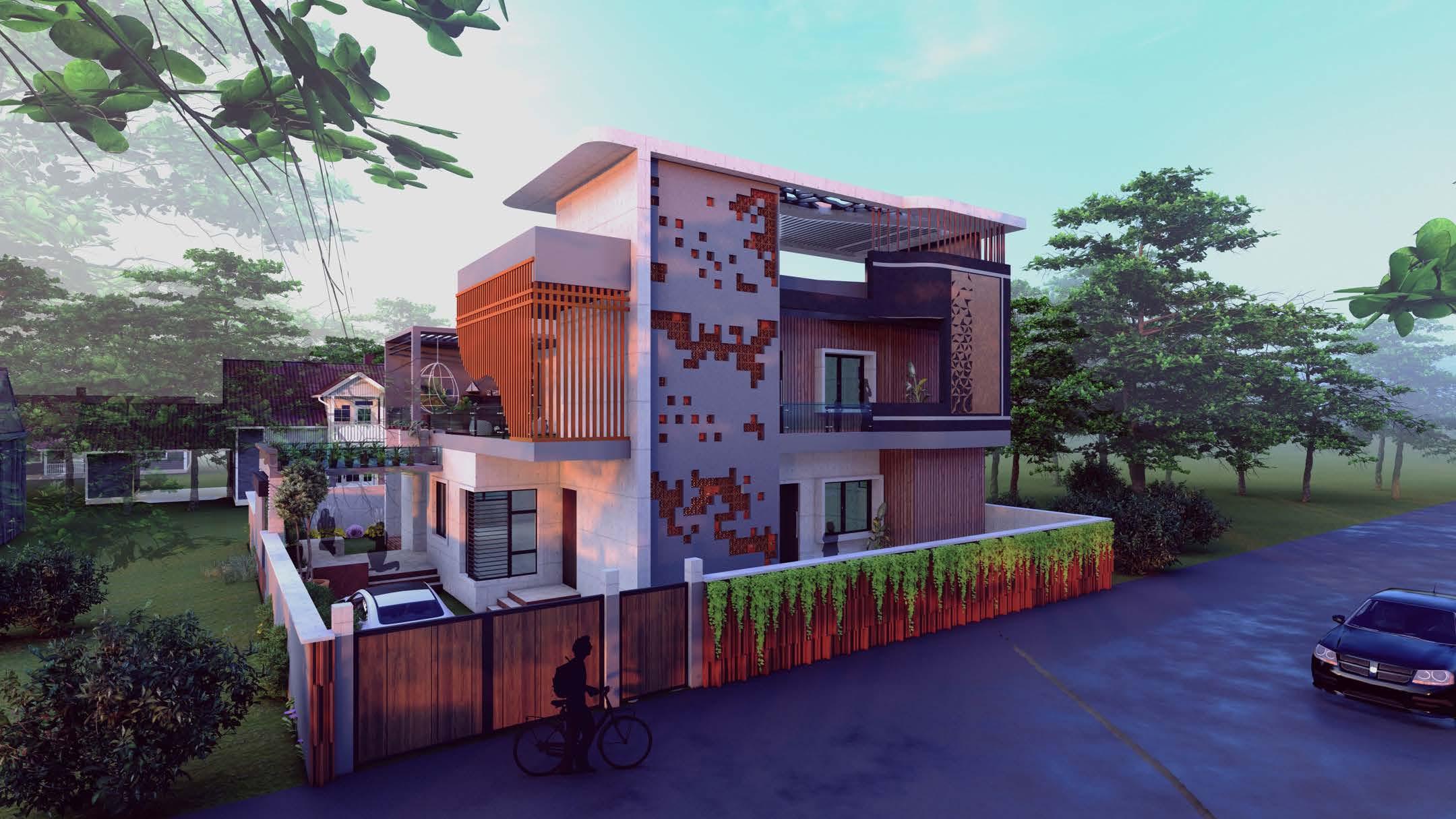

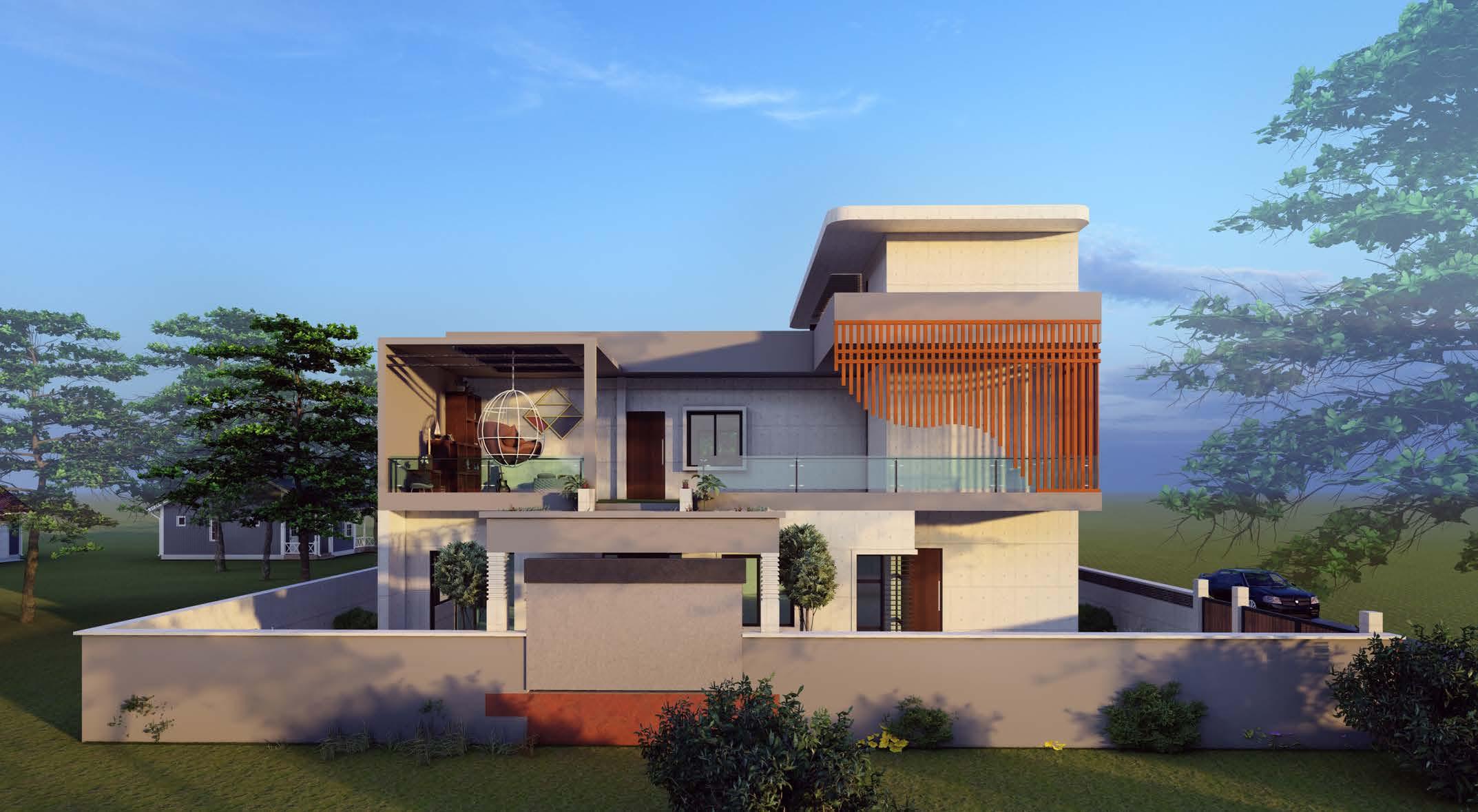

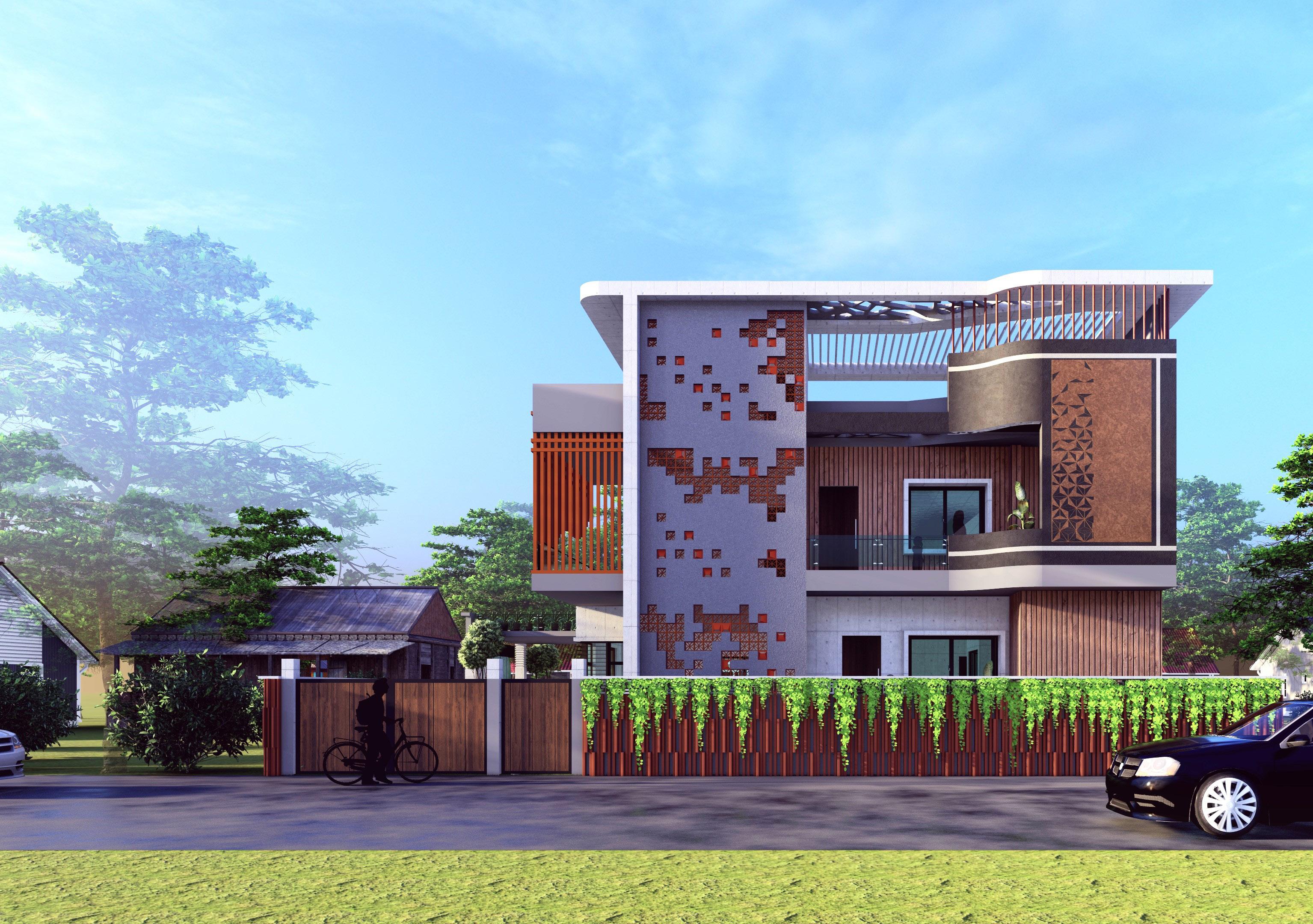

SIDE VIEW OF THE RESIDENCE HAVING TERRACE GARDEN AND VERTICAL LOUVERS

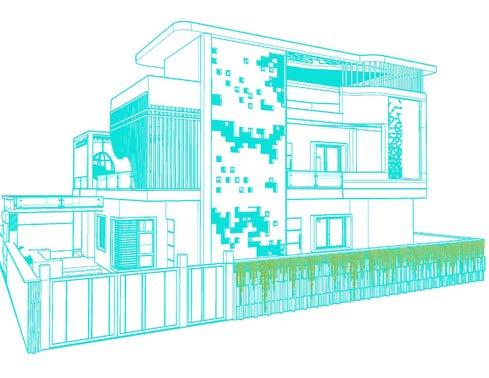

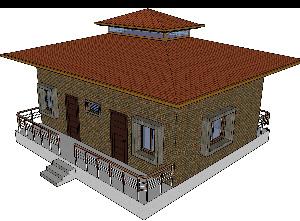

ISOMETRIC VIEW SHOWING THE ASETHETIC OF EXTERIORS OF RESIDENCE
Block - Ground Floor Plan
DINING
Dining Area Main Entrance GL SSM 3.60m
3.60m

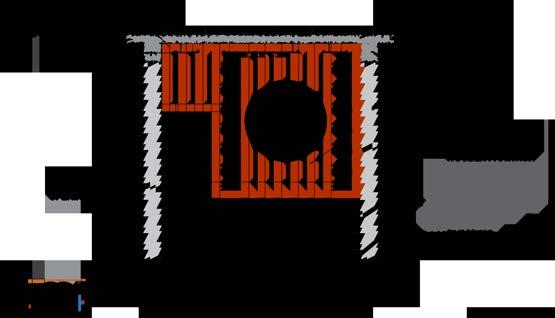

0.30m Solid Concrete Masonry Work Parapet Wall 0.3m RCC Slab Projection Coping Bed 0.30m

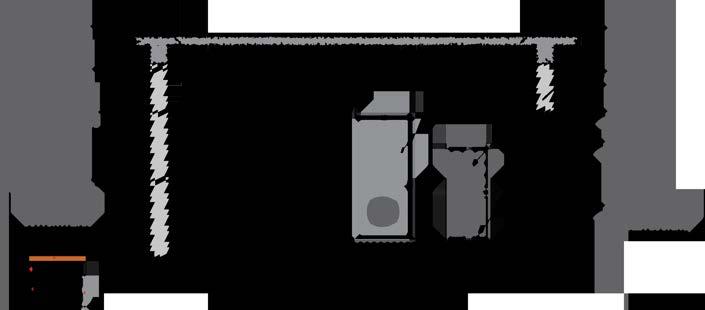

Pantry SECTION RR' Kitchen Room Drying area RCC Lintel RCC Beam
0.20m 0.20m
GL
Dry Store
Vessel Store
4.00 x
Pantry
x
Dining Area
Drying Area
Kitchen Utensils Wash Care
2.70
RO Wash Preparation area 3.00
Preparation area Hand Wash Entrance
Lobby
2.10
W1 W2 W2 W2 W2 W2 W2 W2 W2 W2 W2 W2 W2 MD W3 W2 V1 V1 V2 V2 V3 D2 D1 D1 D3 D2 D3 D2 D4 Ramp UP DRAWING DESCRIPTION Ground Floor Plan ARCHITECTS: SHOBHA & MAHESH ASSOCIATES SAMA Building communities Board Housing Implementing Agency: KARNATAKA HOUSING BOARD Client: NO.1153, 26TH MAIN,
BLOCK,
E-mail:
CAUVERY BHAVAN, K.G. ROAD BENGALURU- 560 009,INDIA Minority Welfare Dept. Govt. Of Karnataka Bengaluru SCALE: NTS
TITLE:
UP UP VITRIFIED TILES VITRIFIED TILES VITRIFIED TILES VITRIFIED TILES VITRIFIED TILES VITRIFIED TILES
BLOCK (SOUTH-WEST) ELEVATION
3.75m
3.75m 4.30m
1.00m
4.15m 1.00m 0.15m
0.15m
0.40m 0.60m
2.70 x 4.40M
3.00 2.25M
3.20M
6.05
2.40M
1.95m
2.50 x 9.25M
Taker Rm. 2.70 2.50M
x 2.40M
x 1.95M
5.25x1.70M
5.65x1.50M
1.30M
'T'
JAYANAGAR, BENGALURU-560041
sama.architects@gmail.com
Dining
Proposed Morarji Desai Residential School at Badadal Village, Afzalpur Taluka, Kalaburagi District.
Bath W.C W.C W.C Bath Bath Bath W.C W.C W.C Toilet Room OTS Below 2.0M Wide Corridor UP Room Room Room Room Room Room 10 Reading Room Computer Room FUTURE EXPANSION Boys Hostel Block -First Floor Plan 4.20m 4.20m 4.10m 1.80m 2.20m 2.20m 2.55m 1.85m 3.00m 1.40m 4.40m 2.20m 5.90m 0.64m 1.60m 2.80m 4.40m 2.20m 6.13m A B C E F G H 1 2 3 5 6 7 8 10 11 12 D W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W3 W3 W4 W5 W5 V3 V3 V1 V1 V3 DRAWING DESCRIPTION W.D-BOYS HOSTEL BLOCK (FF) ARCHITECTS: SAMA Housing Implementing Agency: KARNATAKA HOUSING BOARD E-mail: sama.architects@gmail.com Minority Welfare Dept. Govt. Of Karnataka Bengaluru SCALE: NTS TITLE: Proposed Morarji Desai Residential School at Badadal Village, Afzalpur Taluka, Kalaburagi District. FUTURE EXPANSION 4.10m 1.80m 2.20m 2.20m 2.55m 1.85m 3.00m 1.40m 4.40m 2.20m 5.90m 0.64m 1.60m 2.80m 4.40m 2.20m 3.84m 6.13m A B C E F G H 4 5 6 7 8 9 10 11 12 D W.C W.C Bath Bath Bath Bath W.C W.C Toilet Room Room OTS 2.0M Wide Corridor 2.0M Wide Corridor Room Room 10 Room Lobby Toilet Warden Rm. Room Sick Rm. Ramp UP Boys Hostel Block -Ground Floor Plan 0.48m 0.48m 0.48m 2.00m 0.60m 0.60m W1 W1 W1 W1 W1 W1 W1 W3 W3 W3 W5 V3 V3 V5 W1 W.D-BOYS HOSTEL BLOCK (GF) ARCHITECTS: SHOBHA MAHESH ASSOCIATES Board Housing Implementing Agency: KARNATAKA HOUSING BOARD Client: NO.1153, 26TH MAIN, BLOCK, JAYANAGAR, BENGALURU-560041 CAUVERY BHAVAN, K.G. ROAD BENGALURU- 560 009,INDIA Minority Welfare Dept. Govt. Of Karnataka Bengaluru SCALE: NTS TITLE: Proposed Morarji Desai Residential School at Badadal Village, Afzalpur Taluka, Kalaburagi District. FUTURE EXPANSION Bath W.C W.C W.C Bath Bath Bath W.C W.C W.C Toilet Room Room OTS Below 2.0M Wide Corridor UP Room Room Room Room Room Room 10 Reading Room Computer Room Change Room FUTURE EXPANSION Girls Hostel Block -First Floor Plan 4.20m 1 3 4 5 6 7 8 9 10 11 12 13 14 15 A C D E F G H J K L 4.10m 1.80m 2.20m 0.70m 1.50m 2.55m 1.85m 3.00m 1.14m 2.46m 2.20m 2.20m 4.40m 1.50m
SHOBHA MAHESH ASSOCIATES Board Housing Implementing Agency:
BOARD Client:
ROAD BENGALURU- 560 009,INDIA Minority Welfare Dept. Govt. Of Karnataka Bengaluru SCALE: NTS TITLE: Proposed Morarji Desai Residential School at Badadal Village, Afzalpur Taluka, Kalaburagi District. FUTURE EXPANSION Bath W.C W.C Bath Bath Bath Bath W.C W.C Toilet Room OTS 2.0M Wide Corridor 2.0M Wide Corridor Room Room Room Room 10 Room Room Lobby Toilet Warden Rm. Room Sick Rm. Ramp UP Entrance Change Room Girls Hostel Block -Ground Floor Plan 1.30m 4.50m 1.45m 1 2 3 4 7 8 9 10 11 12 13 14 15 A C D E F G H J K L 4.10m 1.80m 2.20m 0.70m 1.50m 2.55m 1.85m 3.00m 1.14m 2.46m 2.20m 2.20m 4.40m 1.50m 4.30m
0.60m DRAWING DESCRIPTION W.D-GIRLS HOSTEL BLOCK (GF) ARCHITECTS: SHOBHA MAHESH ASSOCIATES SAMA Housing Implementing Agency: KARNATAKA HOUSING BOARD E-mail: sama.architects@gmail.com Minority Welfare Dept. Govt. Of Karnataka Bengaluru SCALE: NTS TITLE: Proposed Morarji Desai Residential School at Badadal Village, Afzalpur Taluka, Kalaburagi District. FUTURE EXPANSION Ante G.Toilet L.Toilet Lobby Entrance Lobby Academic Block Ground Floor Plan OTS Toilet DN. Notice Board Seater Class Room-2 60 Seater Class Room-3 Ramp UP Lobby 2 3 5 6 9 10 11 12 13 14 15 16 C D G H W2 W2 W2 W2 W2 W2 W2 W2 W2 W2 W3 W3 W3 W3 W3 W3 W3 W3 W3 W3 W3 W3 W3 W3 W3 W3 W3 W3 W3 W3 W3 W6 V2 V2 V2 V4 V6 W.D-ACADEMIC BLOCK (GF) ARCHITECTS: SHOBHA MAHESH ASSOCIATES Housing JAYANAGAR, BENGALURU-560041 Minority Welfare Dept. Bengaluru SCALE: NTS TITLE: Proposed Morarji Desai Residential School at Badadal Village, Afzalpur Taluka, Kalaburagi District. FUTURE EXPANSION Seater Class Room-4 Entrance Lobby Academic Block - First Floor Plan OTS Toilet Laboratory Computer Lab Multi Purpose Hall Sports Room FUTURE EXPANSION Open Terrace 1 6 8 10 11 12 13 14 15 16 A C D E F G H J L B K W2 W2 W3 W3 W3 W3 W3 W3 W3 W6 V2 V2 V4 W.D -ACADEMIC BLOCK (FF) SHOBHA MAHESH ASSOCIATES Board Implementing Agency: KARNATAKA HOUSING BOARD Client: JAYANAGAR, BENGALURU-560041 Minority Welfare Dept. Bengaluru SCALE: NTS TITLE: Proposed Morarji Desai Residential School at Badadal Village, Afzalpur Taluka, Kalaburagi District. FUTURE EXPANSION
4.30m 1.60m 2.24m 0.60m 2.20m 2.20m 2.20m 2.20m 5.20m 1.00m W.D-GIRLS HOSTEL BLOCK (FF) ARCHITECTS:
KARNATAKA HOUSING
NO.1153, 26TH MAIN, BLOCK, JAYANAGAR, BENGALURU-560041 CAUVERY BHAVAN, K.G.
1.60m 2.24m 2.20m 2.20m 2.20m 2.20m 5.20m 1.00m
Principal Room L.Toilet Lobby Entrance Lobby Laboratory Laboratory UP Academic Block - Ground Floor Plan OTS Admi. Room B. Toilet ABLED TOILET Toilet DN. Notice Board 10.00 7.00M 10.00 7.00M DRAWING DESCRIPTION Ground Floor Plan SHOBHA MAHESH ASSOCIATES SAMA Board Housing Implementing Agency: KARNATAKA HOUSING BOARD Client: CAUVERY BHAVAN, K.G. ROAD Minority Welfare Dept. Bengaluru SCALE: NTS TITLE: Proposed Morarji Desai Residential School at Badadal Village, Afzalpur Taluka, Kalaburagi District. FUTURE EXPANSION Ramp UP Lobby 2.4M Wide Corridor VITRIFIED TILES VITRIFIED TILES VITRIFIED TILES SADARHALLI TILES VITRIFIED TILES VITRIFIED TILES VITRIFIED TILES VITRIFIED TILES VITRIFIED TILES Ceramic Flooring Ceramic Flooring Ceramic Flooring Ceramic Flooring Ceramic Flooring SADARHALLI TILES SADARHALLI TILES 60 Seater Class Room-4 Entrance Lobby Academic Block First Floor Plan OTS Toilet ABLED TOILET 5.55 3.40M DN. Laboratory Computer Lab Multi Purpose Hall Sports Room FUTURE EXPANSION DN. DRAWING DESCRIPTION First Floor Plan SHOBHA MAHESH ASSOCIATES SAMA Board Housing Implementing Agency: KARNATAKA HOUSING BOARD Client: CAUVERY BHAVAN, K.G. ROAD Minority Welfare Dept. Bengaluru SCALE: NTS TITLE: Proposed Morarji Desai Residential School at Badadal Village, Afzalpur Taluka, Kalaburagi District. FUTURE EXPANSION Open Terrace VITRIFIED TILES VITRIFIED TILES VITRIFIED TILES SADARHALLI TILES SADARHALLI TILES W.C W.C W.C Bath Bath Bath Bath W.C W.C W.C Toilet Room 5.70 4.20M Room OTS Below 2.0M Wide Corridor 2.0M Wide Corridor 2.0M Wide Corridor UP Room 5.70 4.20M Room Room Room Room Room Room Room 10 4.56 5.00M Reading Room 8.60 6.00M Computer Room 3.85 5.00M Change Room FUTURE EXPANSION DRAWING DESCRIPTION First Floor Plan ARCHITECTS: SHOBHA MAHESH ASSOCIATES SAMA Board Housing Implementing Agency: KARNATAKA HOUSING BOARD Client: CAUVERY BHAVAN, K.G. ROAD BENGALURU- 560 009,INDIA Minority Welfare Dept. Govt. Of Karnataka Bengaluru SCALE: NTS Girls Hostel Block -First Floor Plan TITLE: Proposed Morarji Desai Residential School at Badadal Village, Afzalpur Taluka, Kalaburagi District. FUTURE EXPANSION VITRIFIED TILES VITRIFIED TILES VITRIFIED TILES VITRIFIED TILES VITRIFIED TILES VITRIFIED TILES VITRIFIED TILES Ceramic Flooring SADARHALLI TILES SADARHALLI TILES SADARHALLI TILES SADARHALLI TILES Bath W.C W.C W.C Bath Bath Bath Bath Bath W.C W.C W.C Toilet 8.60 6.00M Room Room 2.0M Wide Corridor 2.0M Wide Corridor Room Room Room Room Room Room Lobby Warden Rm. Room Sick Rm. UP Ramp UP Entrance Change Room DRAWING DESCRIPTION Ground Floor Plan ARCHITECTS: SHOBHA & MAHESH ASSOCIATES SAMA Board Housing Implementing Agency: KARNATAKA HOUSING BOARD Client: CAUVERY BHAVAN, K.G. ROAD BENGALURU- 560 009,INDIA Minority Welfare Dept. Govt. Of Karnataka Bengaluru SCALE: NTS Girls Hostel Block -Ground Floor Plan TITLE: Proposed Morarji Desai Residential School at Badadal Village, Afzalpur Taluka, Kalaburagi District. FUTURE EXPANSION VITRIFIED TILES VITRIFIED TILES VITRIFIED TILES VITRIFIED TILES VITRIFIED TILES VITRIFIED TILES VITRIFIED TILES VITRIFIED TILES VITRIFIED TILES VITRIFIED TILES VITRIFIED TILES VITRIFIED TILES VITRIFIED TILES Ceramic Flooring Ceramic Flooring SADARHALLI TILES SADARHALLI TILES SADARHALLI TILES SADARHALLI TILES SADARHALLI TILES W.C W.C W.C Bath Bath Bath Bath Bath W.C W.C W.C Toilet 8.60 6.00M Room 5.70 4.20M Room OTS Below 2.0M Wide Corridor 2.0M Wide Corridor UP Room 5.70 4.20M Room Room Room Room Room Room Room 10 4.56 5.00M Reading Room 8.60 6.00M Computer Room 3.85 5.00M FUTURE EXPANSION DRAWING DESCRIPTION First Floor Plan ARCHITECTS: SHOBHA MAHESH ASSOCIATES SAMA Housing Implementing Agency: KARNATAKA HOUSING BOARD Client: NO.1153, 26TH MAIN, BLOCK, JAYANAGAR, BENGALURU-560041 E-mail: sama.architects@gmail.com Minority Welfare Dept. Govt. Of Karnataka Bengaluru SCALE: NTS Boys Hostel Block -First Floor Plan TITLE: Proposed Morarji Desai Residential School at Badadal Village, Afzalpur Taluka, Kalaburagi District. FUTURE EXPANSION VITRIFIED TILES VITRIFIED TILES VITRIFIED TILES VITRIFIED TILES VITRIFIED TILES VITRIFIED TILES VITRIFIED TILES Ceramic Flooring SADARHALLI TILES SADARHALLI TILES SADARHALLI TILES SADARHALLI TILES SADARHALLI TILES OTS W.C W.C W.C Bath Bath Bath Bath Bath W.C W.C W.C Toilet 8.60 6.00M Room Room OTS 2.0M Wide Corridor UP Room Room 10 Room Lobby Room UP Ramp UP Entrance 3.90 3.00M DRAWING DESCRIPTION Ground Floor Plan ARCHITECTS: SHOBHA & MAHESH ASSOCIATES SAMA Housing Implementing Agency: KARNATAKA HOUSING BOARD Client: NO.1153, 26TH MAIN, BLOCK, JAYANAGAR, BENGALURU-560041 E-mail: sama.architects@gmail.com Minority Welfare Dept. Govt. Of Karnataka Bengaluru SCALE: NTS Boys Hostel Block -Ground Floor Plan TITLE: Proposed Morarji Desai Residential School at Badadal Village, Afzalpur Taluka, Kalaburagi District. FUTURE EXPANSION VITRIFIED TILES VITRIFIED TILES VITRIFIED TILES VITRIFIED TILES VITRIFIED TILES VITRIFIED TILES VITRIFIED TILES VITRIFIED TILES VITRIFIED TILES VITRIFIED TILES VITRIFIED TILES VITRIFIED TILES VITRIFIED TILES Ceramic Flooring Ceramic Flooring SADARHALLI TILES SADARHALLI TILES SADARHALLI TILES SADARHALLI TILES SADARHALLI TILES

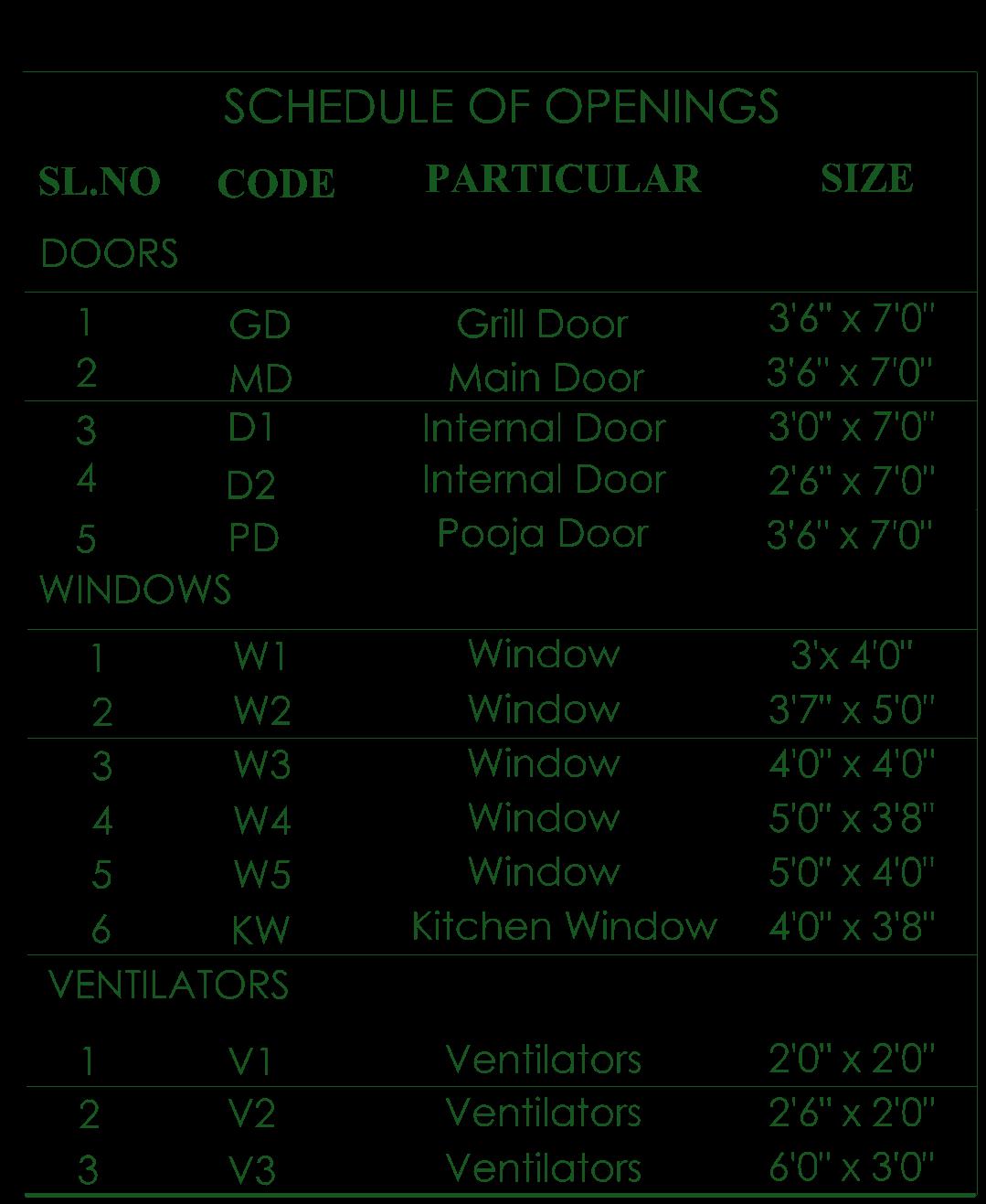

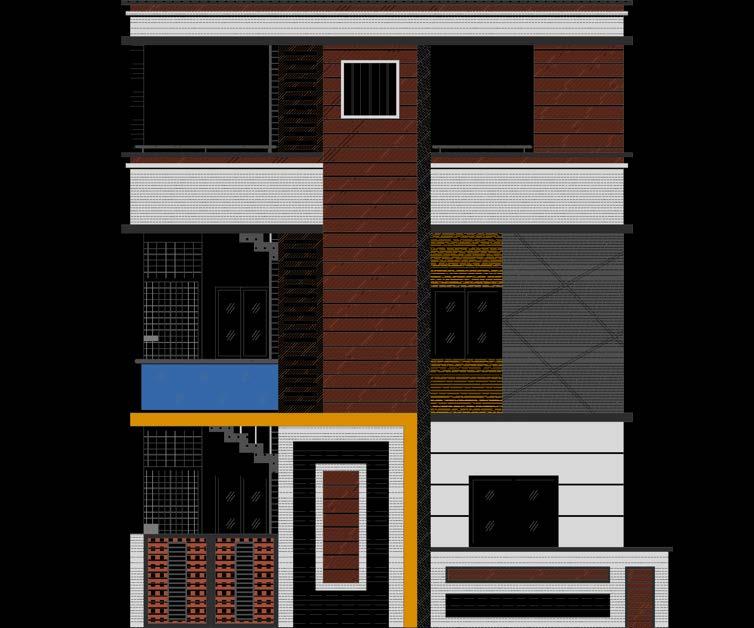

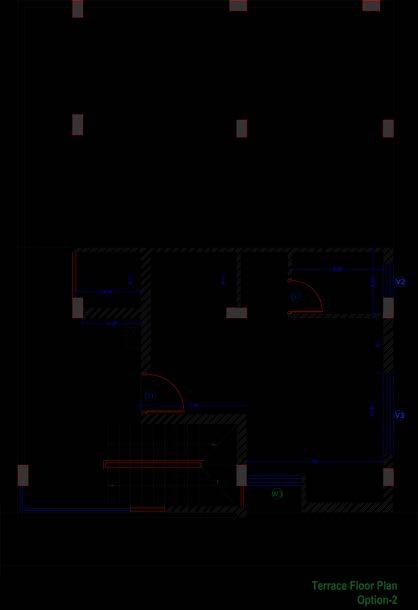

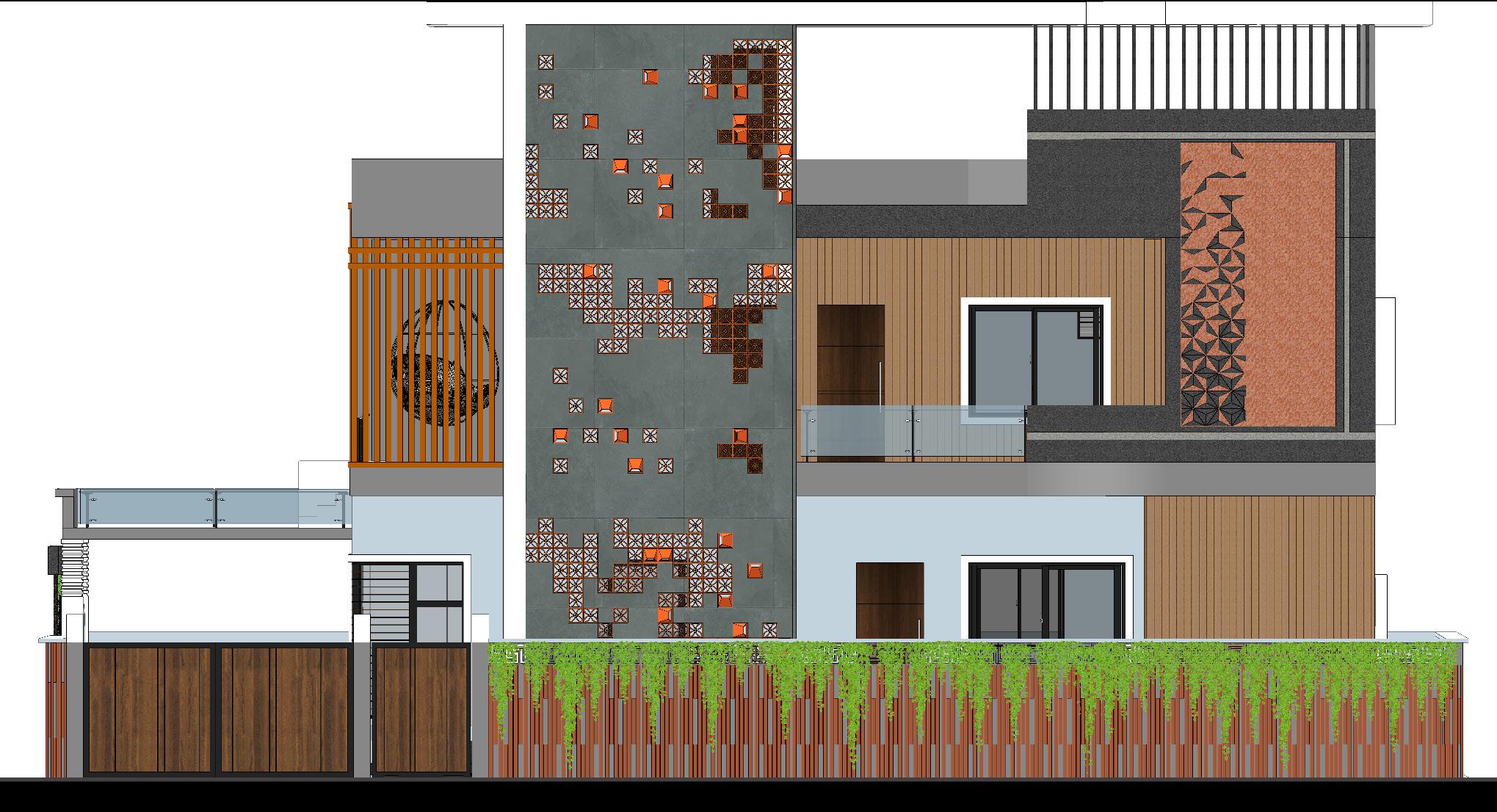

BS HATTI
RESIDENCE, GULBARGA

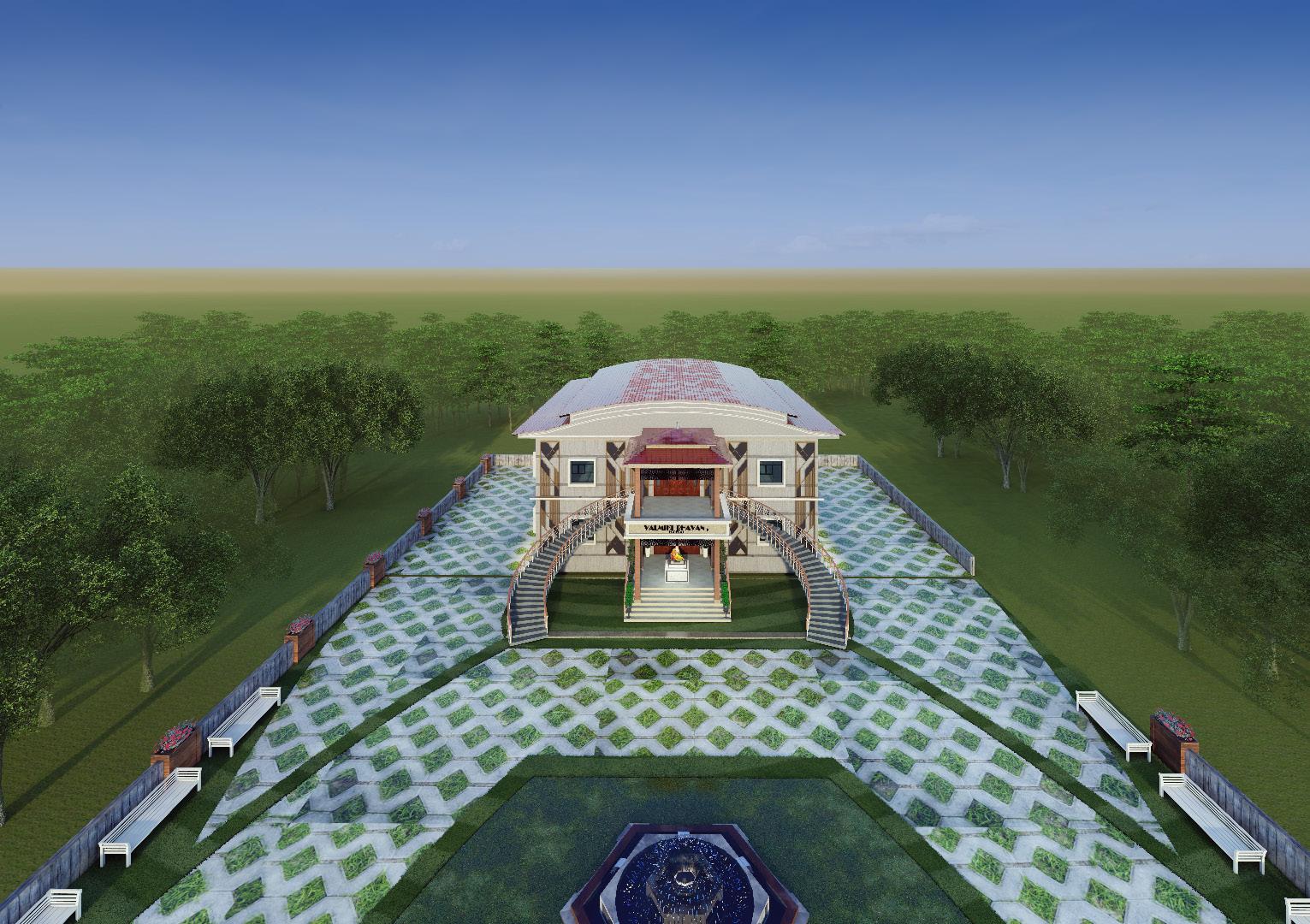

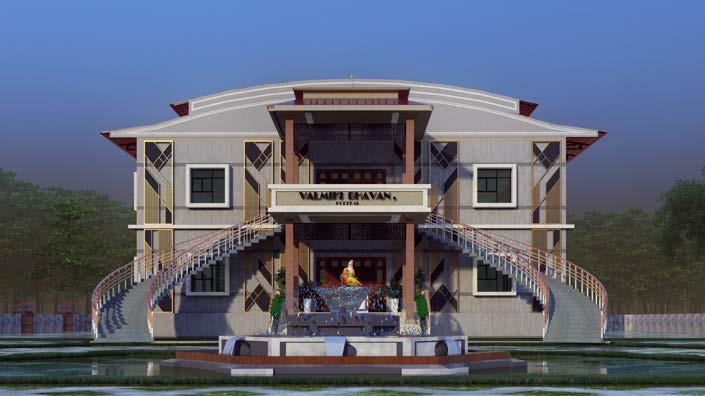

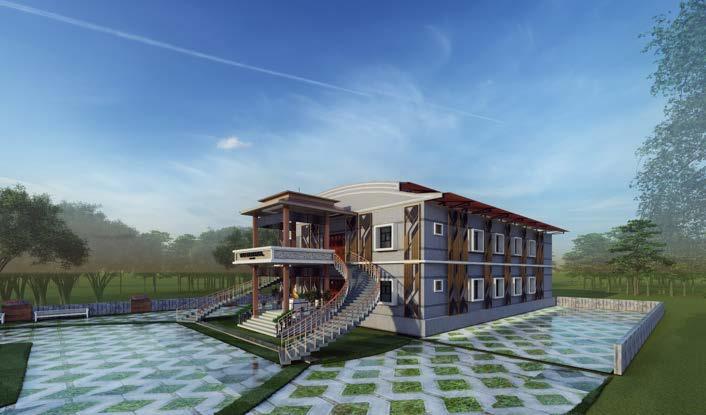

VALMIKI BHAVAN /COMMUNITY HALL, KODEKAL (PROFESSIONAL PRACTICE) GUIDE AND CLIENT : ENGG.NAGESH KULKARNI •SITE :7000 SQ.FT •SITE IS LOCATED IN KODEKAL KARNATKA •THE DWG CONSIST OF GROUND FLOOR PLAN, FIRST FLOOR PLAN,SECTION AND 2D ELEVATION
FIRST FLOOR

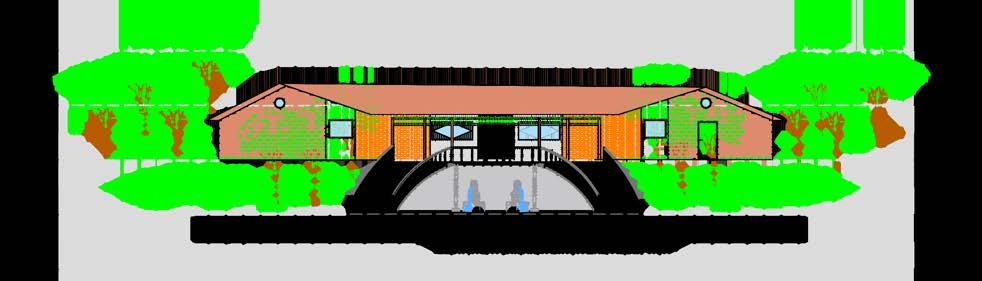

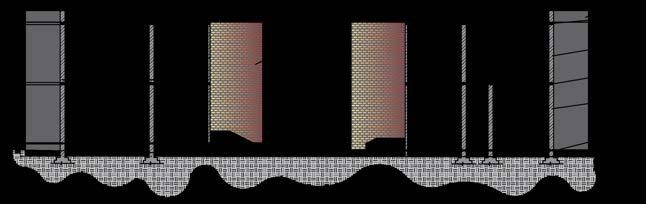

GROUND FLOOR 2D ELEVATION TYPICAL CROSS-SECTION

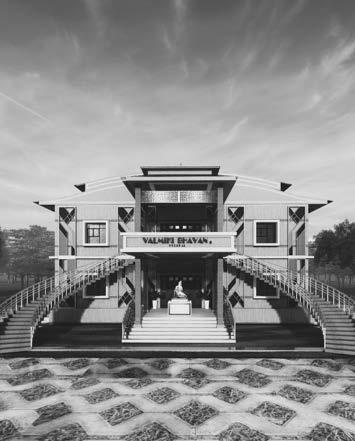

FRONT VIEW SIDE VIEW ISOMETRIC VIEW
PRIMARY SCHOOL, HUNASAGI (PROFESSIONAL PRACTICE) GUIDE AND CLIENT : ENGG.NAGESH KULKARNI •SITE :5000 SQ.FT •SITE IS LOCATED IN HUNSAGAI KARNATKA •THE DWG CONSIST OF GROUND FLOOR PLAN, FIRST FLOOR PLAN
TOTAL SITE VIEW SHOWING SITE SURROUNDING
