UNDERSTANDING SHEET BENDING PRODUCTS
Introduction
In manufacturing, the precision and quality of metal bending are vital for ensuring the structural integrity and performance of the final product. Sheet bending machines are indispensable tools in various industries, providing the capability to shape metal sheets into desired forms. This article explores the fascinating world of sheet bending products, their types, and their applications across different industries.
What is Sheet Bending?
Sheet bending is a metalworking process where a metal sheet is deformed along a straight axis, creating a desired angle and shape without altering the sheet's overall thickness. This technique is crucial in manufacturing, allowing the creation of components for applications ranging from automotive parts to household appliances.
Applications of Sheet Bending
Sheet bending is employed across multiple industries, including automotive, aerospace, construction, and electronics. It is used to produce parts like brackets, enclosures, structural components, and decorative items. The precision of sheet bending ensures that parts fit perfectly within assemblies, maintaining structural integrity and aesthetic appeal.
Types of Sheet Bending Machines
There are several types of sheet bending machines, each designed for specific tasks. Press brakes are used for bending large sheets into simple or complex shapes. Bending rollers are ideal for creating cylindrical shapes or large radius bends. Folding machines are specialized for bending thin sheets into various angles.

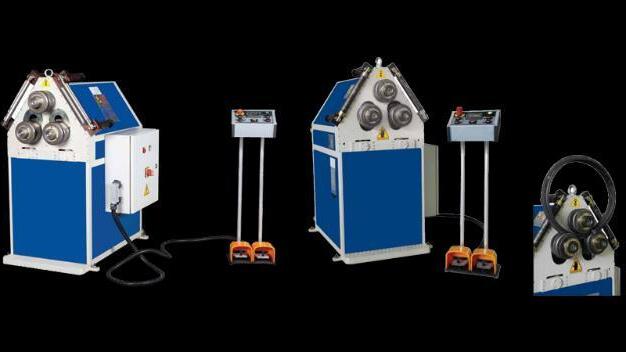

Profile & Pipe Bending Machines
Profile and pipe bending machines are designed to bend metal profiles and pipes into desired shapes without compromising their structural integrity. These machines are essential for industries that require curved or circular metal components.
Benefits of Profile & Pipe Bending Machines
Profile and pipe bending machines offer several advantages. They provide accurate bends, ensuring consistency in production. They are versatile, suitable for various materials including steel, aluminum, and copper. They also increase production speed and reduce manual labor. Industries such as construction, automotive, shipbuilding, and furniture manufacturing extensively use profile and pipe bending machines to create components like frames, supports, and railings.

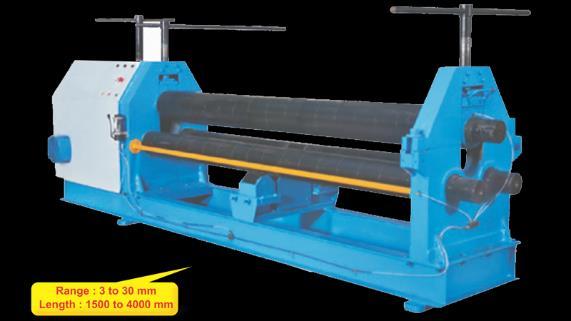

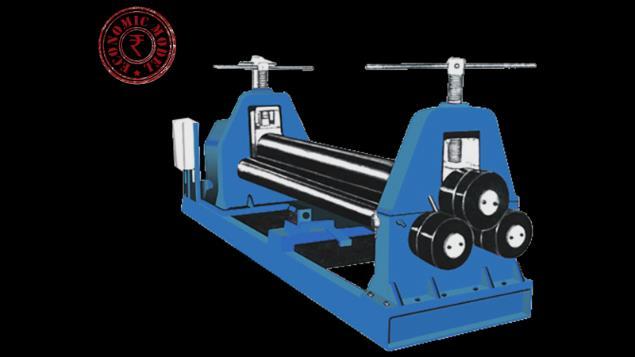

3 Roll Pyramid Type Mechanical Plate Bending Machine
The 3 Roll Pyramid Type Mechanical Plate Bending Machine is used for shaping metal plates into cylindrical and conical shapes. It uses three rollers arranged in a pyramid configuration to apply force to the metal sheet.
Operation of 3 Roll Pyramid Type Mechanical Plate Bending Machine
The machine operates by positioning the metal sheet between the rollers, which are adjusted to apply the necessary pressure to bend the sheet into the desired shape. The top roller moves vertically, while the bottom rollers move horizontally to create the bending force. These machines ensure consistent and accurate bends, have robust construction for long-term use, and are suitable for various materials and thicknesses.
Bending Roller Machines
Bending roller machines are used to roll metal sheets into cylindrical or conical shapes. They are essential in creating components like tanks, drums, and pipes.
Functionality of Bending Roller Machines
These machines operate by passing the metal sheet through a series of rollers that apply pressure, gradually bending the sheet into the desired shape. The rollers can be adjusted to achieve different diameters and shapes. Bending rollers ensure uniform bends, can handle various thicknesses and materials, and reduce waste while increasing production efficiency.

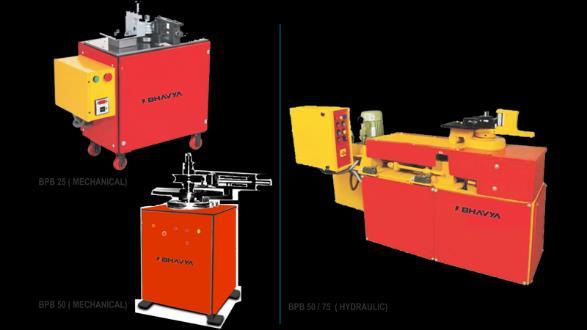

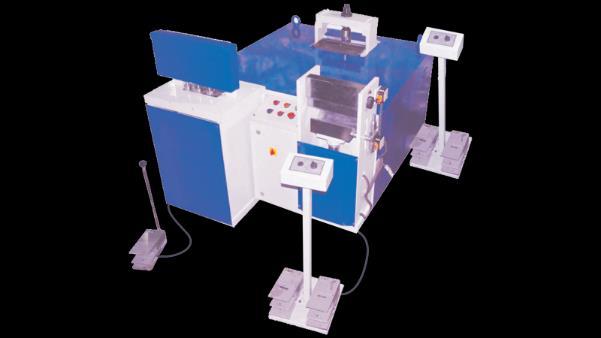

Bus Bar Machines
Bus bar machines are specialized tools designed for the bending, cutting, and punching of bus bars, which are crucial components in electrical systems.
Use of Bus Bar Machines
These machines can perform multiple tasks such as bending bus bars into required forms, trimming them to precise lengths, and creating holes or slots for mounting and connection. Bus bar machines are vital in the production of electrical panels, switchgear, and power distribution units, ensuring reliable and efficient electrical connections.
Metal Sheet Bending Machines
There are various metal sheet bending machines catering to different bending needs. Hydraulic press brakes offer high force for thick sheets. Mechanical press brakes provide quick and precise bends. CNC press brakes allow for automated, repeatable bending processes.
Features of Metal Sheet Bending Machines
These machines are known for their precision, accurate angle control, robust construction for longterm use, and user-friendly interfaces and controls. Metal sheet bending machines are used in automotive, aerospace, and appliance manufacturing, producing parts like body panels, brackets, and enclosures.

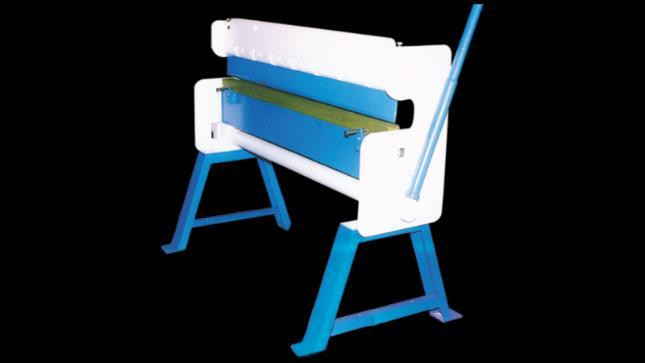

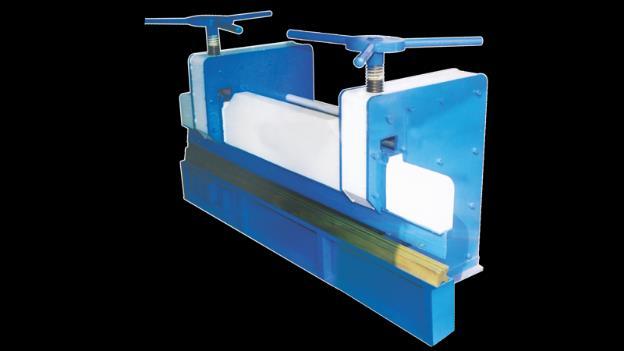

Folding Machines
Folding machines are used to bend thin metal sheets into various angles, typically for creating precise folds and creases.
Advantages of Folding Machines
These machines offer several advantages including accurate and consistent folds, faster operation than manual bending, and the capability of handling complex folds and multiple angles. Folding machines are used in HVAC ductwork, cabinet making, and metal furniture production, where precise bends and folds are essential.

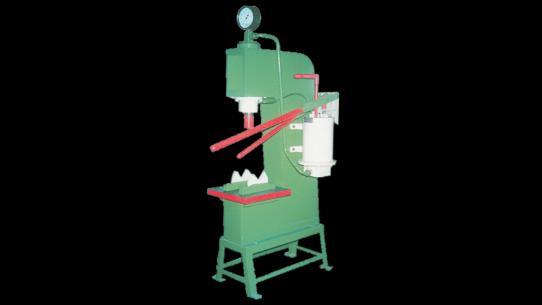

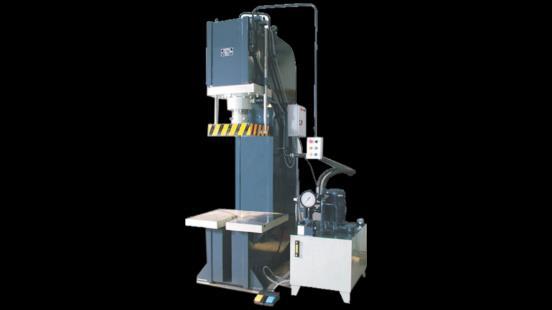

Hydraulic Press Machines
Hydraulic press machines use hydraulic cylinders to generate compressive force, allowing for precise and powerful metal forming.
Working of Hydraulic Press Machines
These machines operate by applying pressure through a hydraulic system, which moves a ram to shape the metal. The pressure can be finely controlled, providing consistent results. Hydraulic press machines can handle thick and tough materials, offer adjustable pressure for accurate forming, and are equipped with safety features to protect operators.
Hydraulic

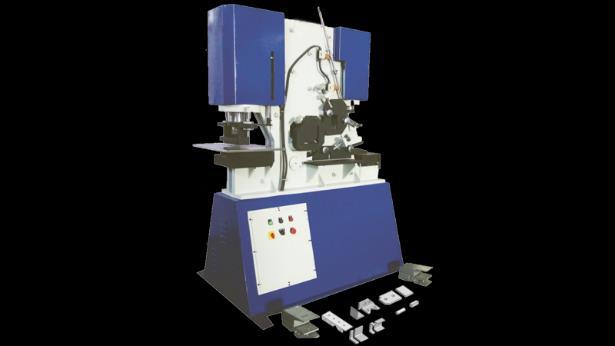

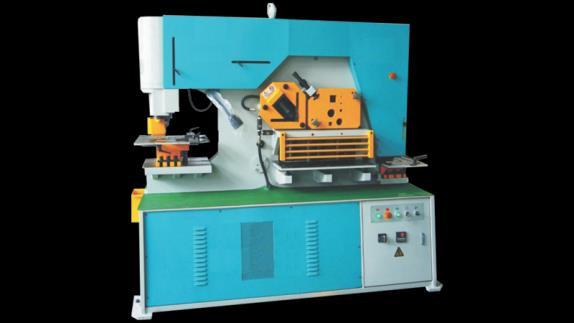

Iron Worker Machines
Hydraulic iron worker machines are multifunctional tools used for cutting, punching, and bending metal sheets and profiles.
Utility of Hydraulic Iron Worker Machines
These machines can perform several tasks, making them highly versatile, including shearing metal sheets and profiles, creating holes and slots, and forming metal into desired shapes. Industries such as construction, shipbuilding, and metal fabrication benefit from the versatility and efficiency of hydraulic iron worker machines.

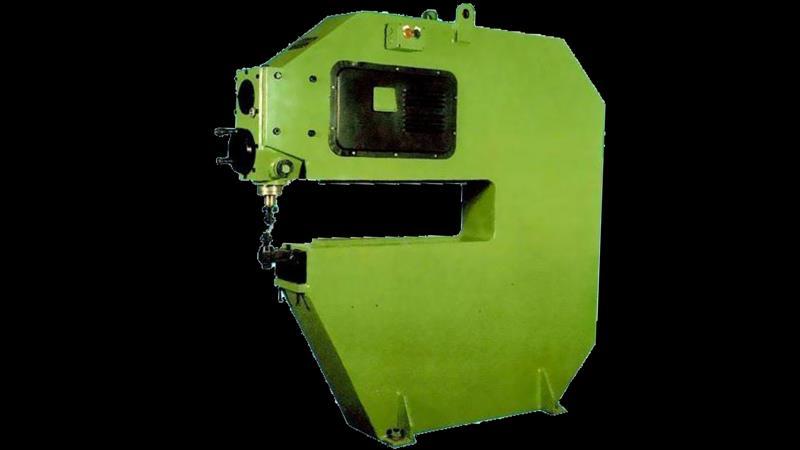

Nibbling Machines
Nibbling machines use a punch and die to create intricate shapes and patterns in metal sheets by removing small pieces of material. These machines provide high precision and efficiency, making them ideal for detailed and complex metalwork.
Applications of Nibbling Machines
Nibbling machines are used in the aerospace, automotive, and electronics industries to create detailed components and parts that require precise cutting.

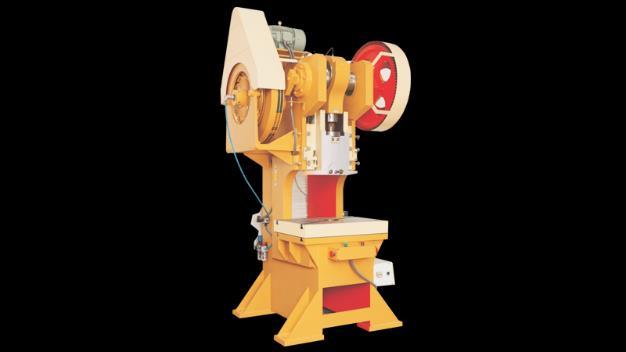

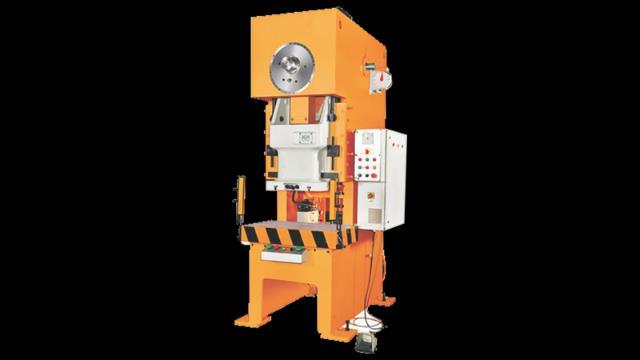

Power Press Machines
Power press machines use mechanical force to shape metal sheets, typically for stamping, punching, and forming operations. There are several types of power presses, including mechanical power presses that use mechanical energy for high-speed operations, hydraulic power presses that offer controlled force for precision tasks, and pneumatic power presses that use air pressure for fast and efficient operations.
Industries Utilizing Power Press Machines
Power press machines are widely used in the automotive, appliance, and hardware industries to produce parts like brackets, enclosures, and connectors.

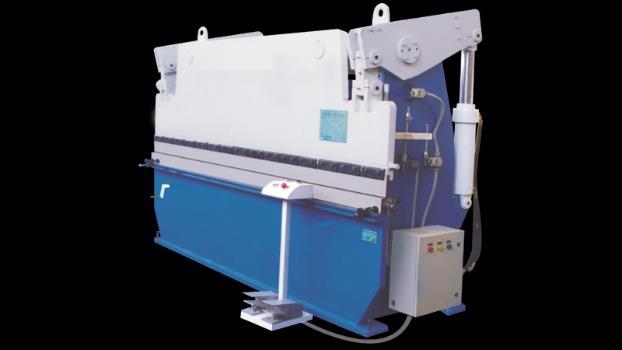

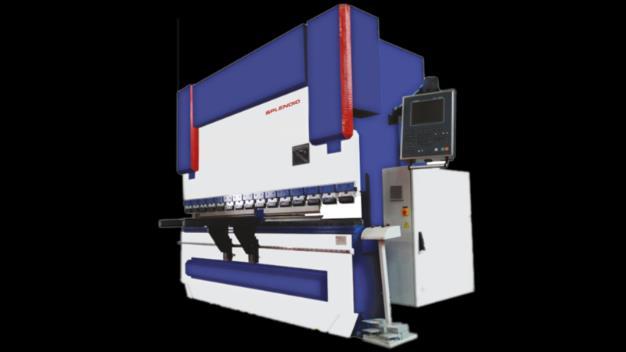

Press Brake Machines
A press brake machine is used to bend metal sheets and plates into specific angles and shapes, offering high precision and control.
Types of Press Brake Machines
There are several types of press brake machines, including hydraulic press brakes that offer consistent force for precise bends, mechanical press brakes that provide fast and repeatable bends, and CNC press brakes that are automated for complex and repeatable bending tasks. Press brake machines are crucial for producing precise bends in metal sheets, ensuring that parts fit perfectly in assemblies and maintaining structural integrity.

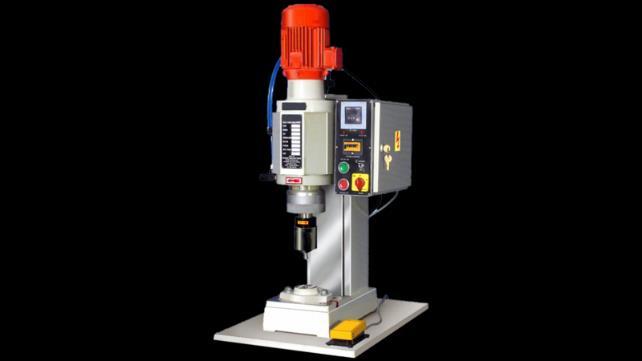

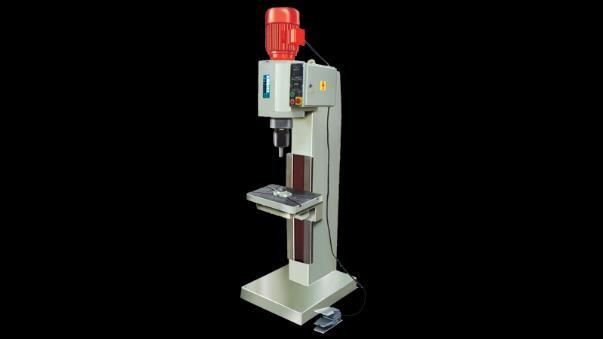

Riveting Tools
GP-G-Series riveting tools are designed for fastening components together using rivets, providing strong and reliable joints.
Usage of Riveting Tools
Riveting tools are used in various assembly processes, including automotive, aerospace, and construction, where strong and permanent joints are required. Riveting tools create durable and strong joints, offer a fast and efficient fastening process, and are suitable for various materials and applications.

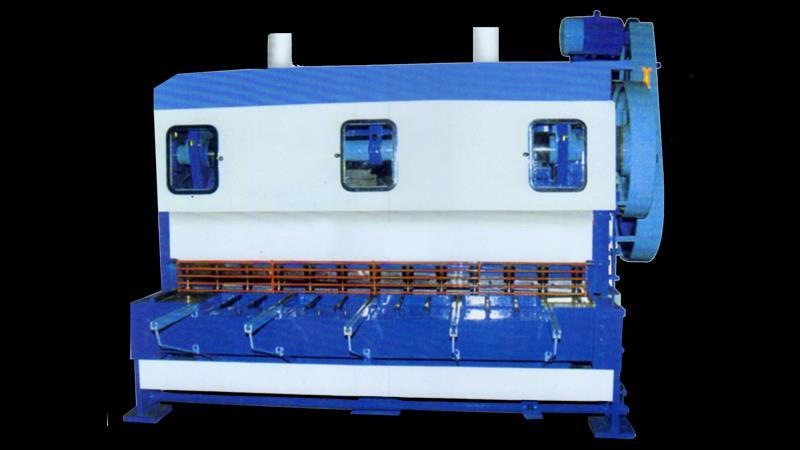

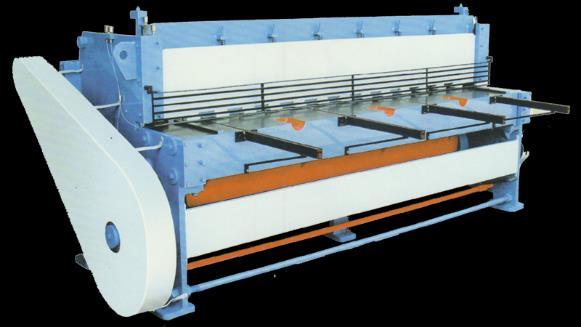

Shearing Machines
Mechanical under crank shearing machines are used to cut metal sheets with precision and efficiency, typically for preparing materials for further processing.
Operation of Shearing Machines
These machines operate by moving a blade in a straight line to shear the metal sheet, providing clean and precise cuts. Shearing machines are used in metal fabrication industries to cut sheets into desired sizes and shapes, preparing them for bending, forming, or welding operations.
Conclusion
Sheet bending products are essential tools in modern manufacturing, enabling the precise and efficient shaping of metal sheets into various forms. They ensure high quality and advanced technology to meet the diverse needs of industries worldwide. Whether you require bending rollers, hydraulic presses, or nibbling machines, sheet bending products provide the perfect solution to enhance your productivity and efficiency.
