PORT FOLIO SHARUATH MOHAMED | S076180 SEMESTER 05

PROFILE HI! I AM A SELF-MOTIVATED STUDENT SEEKING OPPORTUNITIES TO EXPOSE MYSELF TO ARCHITECTURE PRACTICE.

HOBBIES

SKETCHING

PAINTING

ART AND CARFT

PHOTOGRAPHY

TECHNICAL SKILLS

+960 7498008

SHARUATH.M@GMAIL.COM

HTTPS://SHARUATHM.WIXSITE.COM/MY-SITE-3

MALE, MALDIVES

02

CONTENT PROJECT INTO -----------------------------------02 MASTERPLAN -------------------------------------04 CONCEPT - THE CURL --------------------------06 TOURISM ZONE ----------------------------------08 UNIT ------------------------------------------------09 EXPLODED VIEW --------------------------------10 RENDERS ------------------------------------------12

01

PROJECT INTRO THE ISLAND COUNCIL OF DHANGETHI IS PLANNING AN INTERVENTION TO

Map of Maldives

TACKLE SUSTAINABLE TOURISM DEVELOPMENT AND URBAN MANAGEMENT CHALLENGES. THEIR GOAL IS TO ESTABLISH A DEDICATED TOURISM ZONE THAT IMPROVES THE TOURISM EXPERIENCE AND ADDRESSES URBAN ISSUES.

THE INTERVENTION AIMS TO ENHANCE THE DESTINATION'S IMAGE, STIMULATE ECONOMIC ACTIVITY, AND CREATE LIVABLE COMMUNITIES FOR THE FUTURE.

BY REVITALIZING THE TOURISM ZONE AND SUPPORTING LOCAL BUSINESSES, IT SEEKS TO ATTRACT MORE TOURISTS, PROMOTE SUSTAINABILITY, AND ENSURE THE LONG-TERM VIABILITY OF THE ISLAND'S TOURISM INDUSTRY.

ZONE 2

ZONE 3 (SITE)

02

Adh. Atoll

THE PROJECT IS SPLIT INTO MAJOR THREE LEVELS OF INTERVENTION IN DHANGETHI.

1.REVITALIZATION OF SURROUNDING AREA (MASTER PLAN) : A 4 HECTARE AREA OF IMMEDIATE PROXIMITY TO THE SELECTED TOURISM ZONE (FROM 3 ZONES) IS CHOSEN.

2. A TOURISM SUPPORT FACILITY/ TOURISM ZONE: THE TOURISM SUPPORT FACILITY IS TO BE EXCLUSIVELY SITUATED WITHIN ONE OF THE DESIGNATED TOURISM ZONES ON THE ISLAND.

3. TOURISM CLUSTER WITH DETAILED UNITS: AN IN DEPTH DESIGN FOR A TOURISM CLUSTER ADJACENT TO THE ZONE IS TO BE CREATED IN DETAIL CONSISTING OF 10 T0 20 UNITS.

ZONE 1

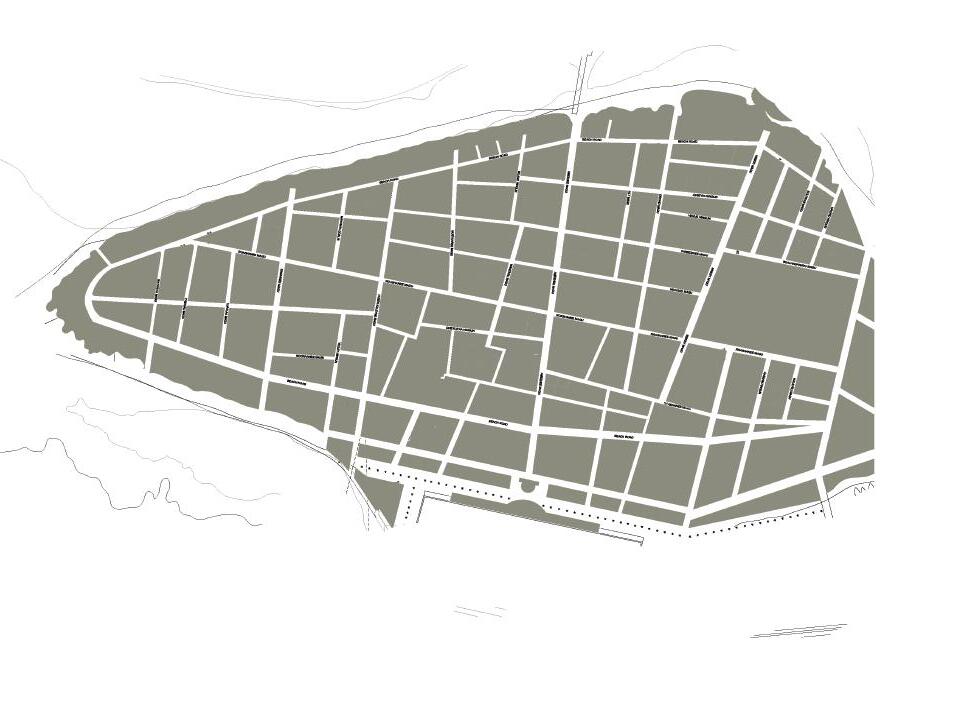

ADh. Dhangethi

03

RESIDENTIAL GUEST HOUSE ABANDONED

04

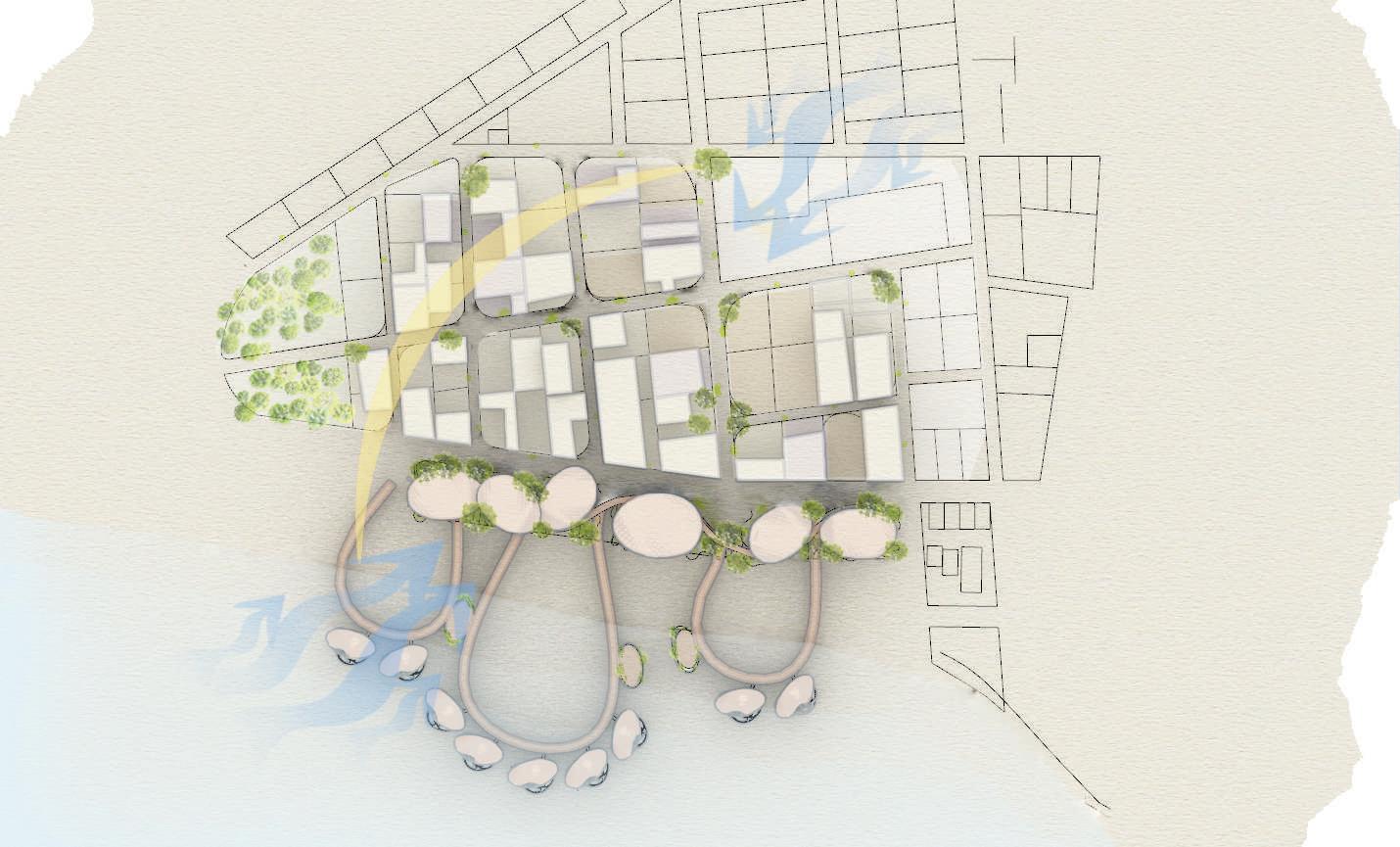

MASTER PLAN

THE MASTER PLAN ENCOMPASSES BOTH RECREATIONAL AND COMMERCIAL AREAS WITHIN THE DESIGNATED 4-HECTARE SPACE. ADDI-

GARDEN PARK WITH SEATINGS

TIONALLY, IT INCLUDES THE INTEGRATION OF TREE PLANTING ALONG ROADSIDES, ACCOMPANIED BY SEATING ARRANGEMENTS.

ESSENTIAL ITEM SHOPPING

RESTAURANT WITH OUTDOOR AREA NEAR THE PEDESTRIAN ROAD

NETWORK OF STREETS CONNECTING DIFFERENT NEIGHBORHOODS IN THE AREA TO THE SURROUNDING AREA.

PEDESTRIAN STREET WITH POP-UP SHOPS MAKING THE ENVIRONMENT ACTIVE

CHILDRENS PARKS NEAR THE TOURISM ZONE.

05

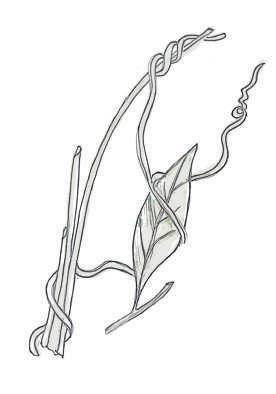

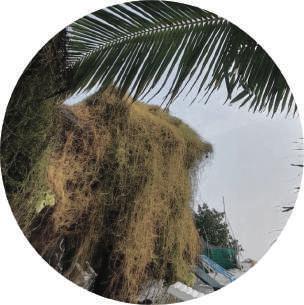

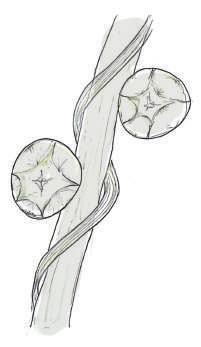

CONCEPT THE CURL THE CONCEPT BEHIND THE PROJECT DRAWS INSPIRATION FROM THE PRESENCE OF THE CASSYTHA PLANT, WHICH WAS OBSERVED AT THE SITE. THE UNIQUE CHARACTERISTICS AND VISUAL APPEAL OF THE CASSYTHA PLANT SERVED AS A DRIVING FORCE FOR THE DEVELOPMENT OF THE CONCEPT.

PARASITIC ON PLANTS

TWINNING

ENLARGEMENT SMOOTH

VELANBULI USED IN MANY TREATEMNT TREAD-LIKE ENVELOPED

06

TAKING OVER

CONCEPT DIAGRAMS

FOLLIAGE: SPIRALLY ARRANGED

INFLORESCENCE- A CLUSTER OF

LEAVES ARE REDUCED TO TINY SCALES.

FLOWERS ON A BRANCH.

ORAL SHAPED

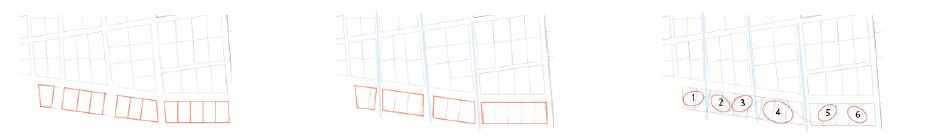

DEVELOPMENT DIAGRAMS SEAMLESSLY INTERGRATED AS A SINGLE SPACE

OVAL SHAPE MIMICKING

CURVED ELEMENTS, CREATING

FRUIT OF THE PLANT

A SENCE OF FLOW & CONTINUITY.

MANGROVES PROVIDING PRIVACY & AIR CIRCULATION

UNEVEN

ROOF

WITH

EXPOSED STRUCTURE

INTERCONNECTIVITY A CURLY ARRANGEMENT

07

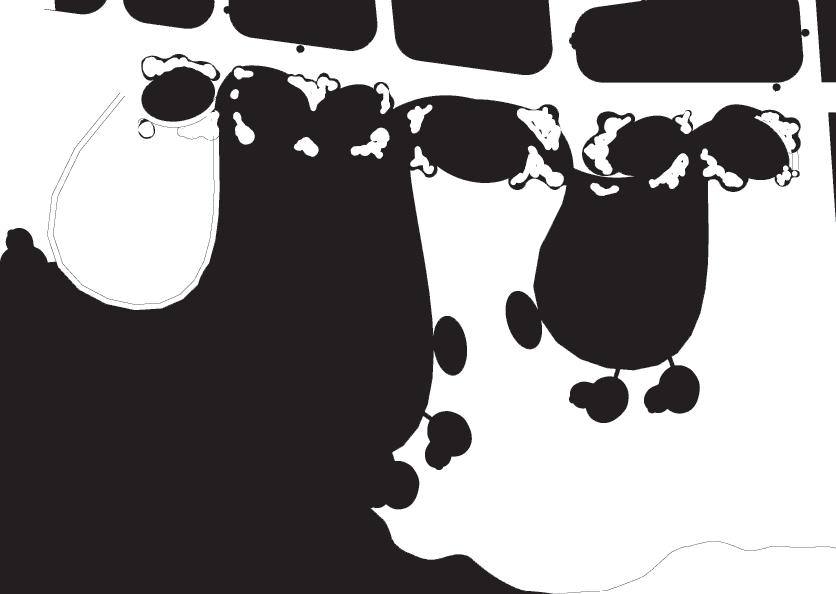

TOURISM ZONE TOURISM ZONE

ROADS EXTENDED: FOR VENTILATION, AND AIRFLOW IN TO ISLAND

ORGANIC

SHAPE

WITH

PATHWAYS

LEADING ; ACTS AS A WHOLE

3.

5.

1.

2.

4.

6.

1. RECEPTION 2. LIBRARY 3. ART STUDIO 4. RESTAYRANT 5. GYM 6. YOGA

THE DESIGN OF THE TOURISM ZONE TAKES INTO ACCOUNT THE SURROUNDING ENVIRONMENT AND HARMONIOUSLY INTEGRATES WITH BOTH THE TOURISM CLUSTER AND THE OVERALL ISLAND PROFILE. THIS AIMS TO CATER TO THE NEEDS OF BOTH LOCAL RESIDENTS AND TOURISTS, CREATING A WELCOMING AND INCLUSIVE SPACE FOR ALL.

08

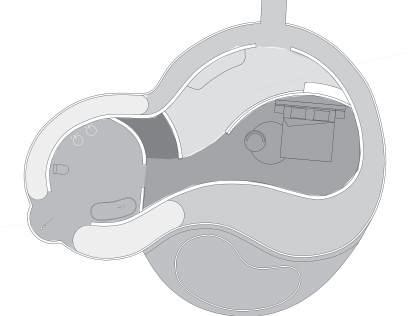

UNIT

THE CLUSTER COMPRISES A TOTAL OF TEN UNITS, INTERCONNECTED BY PATHWAYS THAT LEAD AND INTERTWINE WITH THE TOURISM ZONE. TWINNING EFFORTLESSLY WITH THE TOURISM ZONE, THE PATHWAYS OFFER A SEAMLESS TRANSITION BETWEEN THE

1

CLUSTER AND ITS VIBRANT SURROUNDINGS. 2

5

4

3 6

7

1. ENTRANCE 2. LIVING ROOM 3. BEDROOM 4. WALKING CLOSET 5. BATHROOM 6. VERANDA 7. SWIMMING POOL AREA

09

EXPLODED VIEW HDPE PANELS OFFERS FLEXIBILITY, DURABILITY, ENVIRONMENTAL STRESS CRACKING RESISTANCE AND EASE OF INSTALLATION

WAFFLE STRUCTURE GLULAM HDPE PANELS

TIMBER STRUCTURE

exploded diagram of the waffle WALLS

FINISHED FLOOR. WOODEN PANELS..

THERMAL FLOOR INSULATION. EXTRUDED POLYSTYRENE INSULATION.

POLYESTER VAPOUR BARRIER. PREVENTS THE MOVEMENT OF MOISTURE THROUGH THE FLOOR.

TIMBER DECK PRE-ASSEMBLED PANELS, INTERLOCKING TILES.

PREFABRICATED POOL FIBERGLASS - I A PREFORMED FIBERGLASS SHELL THAT IS BUILT IN A FACTORY AND THEN TRANSPORTED TO THE INSTALLATION SITE

SUBFLOOR GLULAM

REINFORCED CONCRETE PILE. A TYPE OF DEEP FOUNDATION ELEMENT USED IN CONSTRUCTION TO TRANSFER STRUCTURAL LOADS FROM A BUILDING OR STRUCTURE TO DEEPER, LOAD-BEARING SOIL OR ROCK LAYERS.

10

ROOF BLOWUP DETAIL

DECK BLOWUP DETAIL

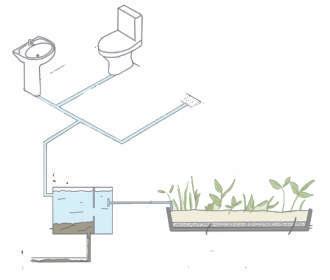

SUSTAINABLE FEATURES WASTE WATER FILTRATION Toilet

Grey water

Black water

Wetland on the communal space

Sludge Treated and released

Gravel bed

Sand

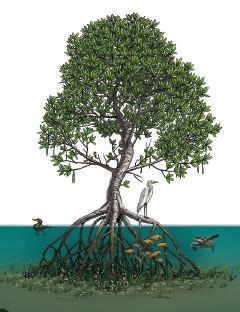

MANGROVES PROVIDES HABITAT FOR VARIOUS SPECIES, CONTRIBUTE TO SHORELINE STABILIZATION AND PROTECT AGAINST EROSION.

11

SECTIONAL PERSPECTIVE

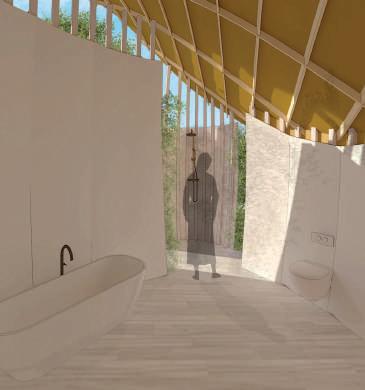

BATHROOM

PERFORATED WALLS UTILIZING AIR MOVEMENT TO COOL THE INTERIORS AND CREATE INTRICATE PATTERNS OF LIGHT AND SHADOW

12

BEDROOM LIVING ROOM

UNEVEN ROOF WITH EXPOSED STRUCTURE FACILITATING NATURAL VENTILATION AND LIGHT.

13

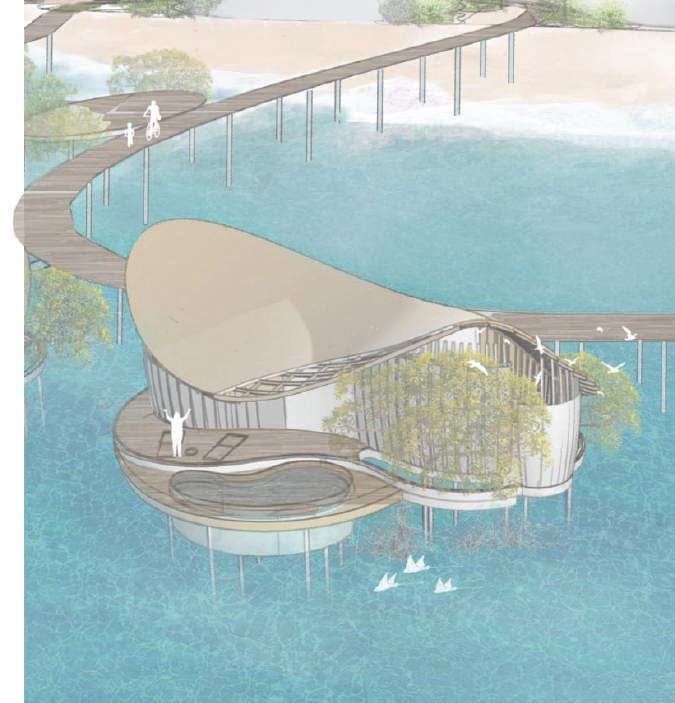

THE CLUSTER

14
