Manufactory Wholesale SKD83 IPTV Android Box for Hotels -
Multi-Language Advertising, 4K@60fps, H.264/H.265
Decoding
Are you struggling to provide a seamless and personalized entertainment experience for your hotel guests? The SKD83 IPTV Android Box by SOUKA is here to revolutionize your in-room TV systems. Designed specifically for the hospitality industry, this Android 7.1 powered set-top box offers customizable multi-language advertising backgrounds, LOGO integration, and subtitle push capabilities, ensuring a tailored experience for every guest. With 4K@60fps HDMI 2.0a output and advanced H.264/H.265 video decoding, it delivers stunning visual clarity and smooth playback. The RK3328 Quad-core ARM Cortex-A53 CPU ensures robust performance, while 1GB RAM and 8GB storage provide ample space for apps and media. Whether it's for hotels, resorts, or other hospitality venues, the SKD83 is your go-to solution for enhancing guest satisfaction and operational efficiency.
• Customizable Advertising & Subtitles
• 4K@60fps HDMI 2.0a Output
• H.264/H.265 Video Decoding
• Android 7.1 OS with Google Play Support
• Multi-Language & WIFI Hotspot Capabilities
This SKD83 IP Set Top Box is a network TV set-top box designed by SOUKA for hotels' TVs, which can customize the multi-language advertising background and LOGO, Advertising and subtitles push, and the WIFI hotspots.
Contact:Tomleequan
SPECIFICATION:
Contact:Tomleequan Email：
Hardware Specification
Operation System Android 7.1
CPU (RK3328) Quad-core ARM Cortex-A53 up to 1.5GHZ
GPU Mali-450MP2, OpenGL ES1.1/2.0
RAM 1GB
Memory 8GB
Language Chinese, English…Multi-Language support
WIFI
IEEE 802.11 b/g/n 2.4GHz
Ethernet 100M
The extended storage
Micro SD Card, up to 32GB
Power Supply DC 5V/2A 5.5mm DC-in

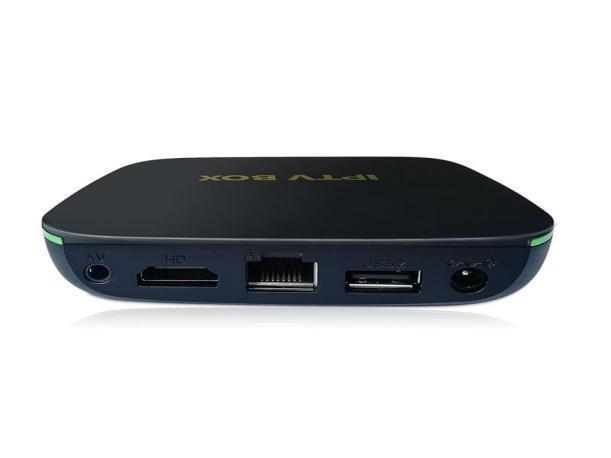

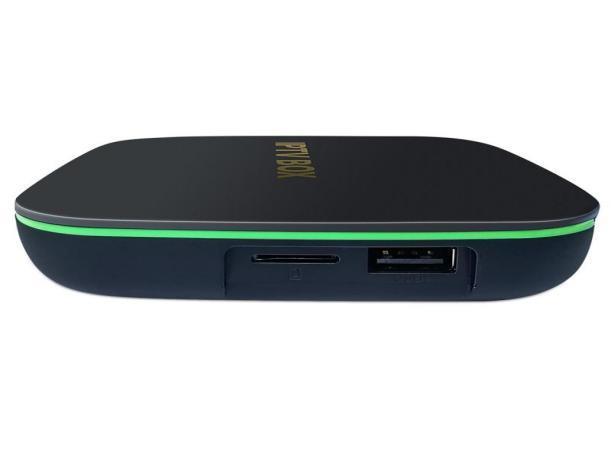

Interface
HDMI Output
USB Port
Data Output
AV Out
Network
Power Supply
Size
Media Parameter
HDMI 2.0a to support maximum 4K@60fps
Output (HDCP 1.4/2.2)
1*USB 2.0 + 1*USB 3.0 + 1*TF
1*SPDIF
Support (Optional)
1*RJ45 100M
1*DC Jack
9cm*9cm*1.8cm
Audio Container MP3,AAC,WMA,RM,FLAC,OGG
Supports MPS, AAC, WMA, RM, FLAC, Ogg and programmable with7.1/5.1 down-mixing
I2S andio interface supporting 2-channel input and 8-channel (7.1) output
Audio Out
Video CODEC
Built-in serial digital audio SPEIF/IEC958 output and PCM input/output
Built-in stereo audio DAC
Sterro digital microphone PDM input
Supports concurrent dual audio stereo channel output with combination of analog+PCM or PCM
nMMU embedded
nReal-time decoding of MPEG-1/2/4, H.264, VC-1
nH.264/AVC Base/Main/High/High10 profile @ level 5.1; up to 4Kx2K @ 30fps
Contact:Tomleequan Email：sales@fmuser.com whatsapp: +8613922702227
Contact:Tomleequan Email：
nH.26 Main/Main10 profile @ level 5.1 High-tier; up to 4Kx2K @ 60fps
nVP9 profile 0; up to 4Kx2K @ 60fps
nMPEG-1, ISO/IEC 11172-2, up to 1080P @ 60fps
nMPEG-2, ISO/IEC 13818-2, SP@ML, MP@HL, up to 1080P @ 60fps
nMPEG-4, ISO/IEC 14496-2, SP@L0-3, ASP@L0-5, up to 1080P @ 60fps
nVC-1, SP@ML, MP@HL, AP@L0-3, up to 1080P @ 60fps
nMVC is supported based on H.264 or H.265, up to 1080P @ 60fps
nSupport frame timeout interrupt, frame finish interrupt and bit stream error interrupt
nError detection and concealment support for all video formats
nOutput data format YUV420 semi-planar, YUV400(monochrome), YUV422 is supported by H.264
nFor VC-1, upscaling and range mapping are supported in image post-processorn for MPEG-4 SP/H.263, using a modified H.264 in-loop filter to implement deblocking filter in post-processor unit
Software Extension Support Google Play & APK install DLNA, Miracast
Protocol
Remote Control
Support DLNA, Miracast Protocol
Remote controller
IM Software Support Skype/QQ/MSN/GTALK (Depends on APK ）
Office Software WORD/EXCEL/PDF(Depends on APK install)
Middleware Functions
Function Support or not
Language YES
Time zone YES
WIFI YES
Booting Image YES
Theme YES
Video AD YES
Weather YES
Welcome Message YES
Subtitle YES
Auto Posting AD YES
Contact:Tomleequan Email：sales@fmuser.com whatsapp: +8613922702227
