Manufactory Wholesale Outdoor Waterproof RF Amplifier with 30dB Gain for CATV and DVB-T Systems
Are you struggling with signal degradation in outdoor CATV or DVB-T installations?
The ET-30 Outdoor RF Amplifier is your ultimate solution, designed to deliver 30dB gain for optimal carrier-to-noise ratio and superior picture quality. Built with a diecast waterproof case, this amplifier ensures durability and reliability in harsh weather conditions. Its push-pull amplifier circuit design minimizes distortion, while the input frequency range of 50~860MHz makes it versatile for various applications. Whether you're enhancing signals in broadcast, cable TV, or satellite systems, the ET-30 offers ±
0.75dB flatness and ≥16dB return loss for consistent performance. Certified for wall mounting and operating in temperatures from 0~50℃, this amplifier is a trusted choice for engineers and system integrators worldwide. • 30dB Gain | • Waterproof Diecast Case |
Push-Pull Circuit Design | • Wall Mounting
50~860MHz Frequency Range |

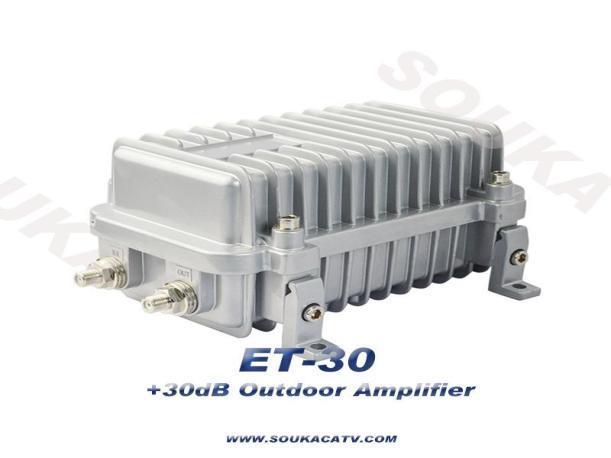

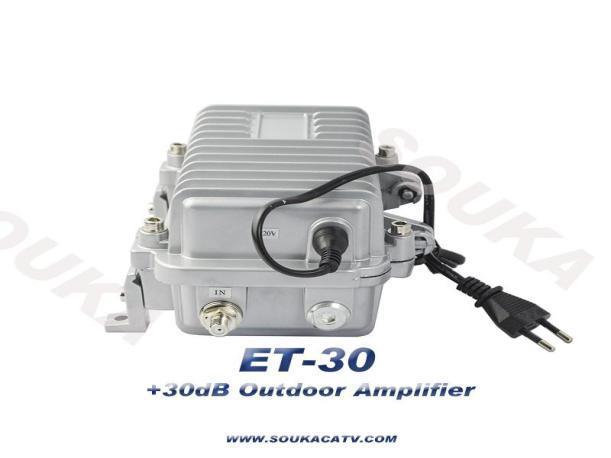

The ET-30 Outdoor RF Amplifier is a diecast waterproof case with 30dB unbalance dual outputs. It also can be used as a line amplifier with 60V power input.
ET-30
OUTDOOR RF AMPLIFIER WITH WATERPROOF CASE
FEATURES:
1. 30dB gain for optimal carrier to noise ratio and superior picture quality
2. Push-pull amplifier circuit design
Contact:Tomleequan Email：sales@fmuser.com whatsapp: +8613922702227
3. Input frequency range of 50 ~ 860 MHz
4. Input power 60V (35~90V) or 220V (100~265V)
5. -20dB test port
SPECIFICATION:
Input
Output Connector
INPUT
