ProductOverview

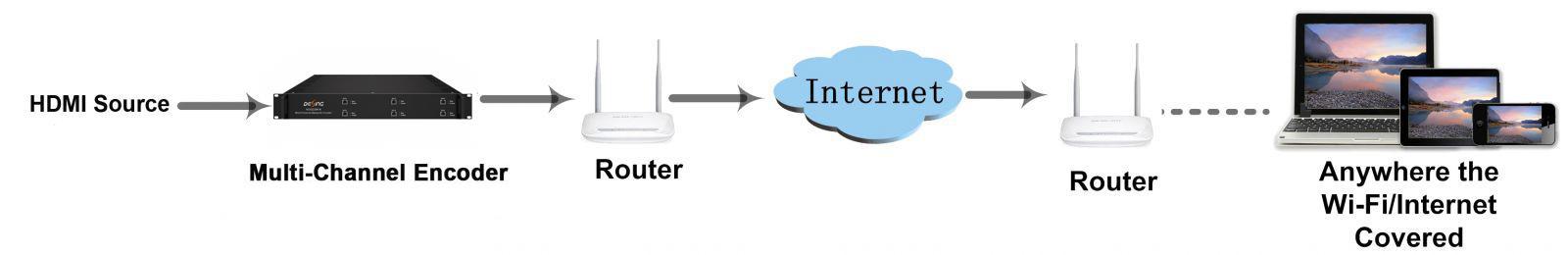

DEXINNDS3228M-N48-ChannelNetworkEncoderisa2-UencodingdeviceforIPbroadcastingItis equippedwith48HDMI-inputchannelswithHEVC/H265andMPEG-4AVC/H264videoencodingand MPEG-1Layer2,LC-AAC,HE-AACaudioencodingandAC3Passthrough.Itcantransfertheliveprogram throughtheinternet/LANandoutputIPstreamsoverUDP(Unicast/Multicast),SRT,RTSP, RTMP,HTTPandHLS,andtheoutputsignalscanbereceivedbyPC,phoneandothermobile terminalsNDS3228M-NenablesyoutowatchtheprogramsviayourIPSTB,PCorTVanywhere
KeyFeatures
lSupport48HDMIinputs,with48SPTSoutput(eachencodermodulewith8HDMIinputsand1DATAport, onlysupportingSPTSwithout“NullPackets”,NotMPTS),max48HDMIinputsfrom6encodermodules lHEVC/H.265,MPEG4AVC/H.264videoencodingformat
lMPEG1LayerII,LC-AAC，HE-AACaudioencodingformatandAC3PassThrough,andaudiogainadjustment
Contact:TomleequanEmail：sales@fmuser.comwhatsapp:+8613922702227
Contact:TomleequanEmail：sales@fmusercomwhatsapp:+8613922702227
lSupportIPOutputoverUDP(Unicast/Multicast),SRT,RTSP,RTP,RTMP,HTTPandHLS
lSupportQRcode,LOGO,captioninsertion(LanguageSupported:中文,English,ةيبرعلا,ไทย,,руская,ودراfor morelanguagespleaseconsultus)
InnerPrincipleChart(Per8-HDMIModule)
Specifications
Input 48HDMIinputs
input
Resolution
Video
1920×108060P,1920×108060i, 1920×108050P,1920×108050i, 1280×72060P,1280×72050P, 720x57650i,720x48060i
Output 1920×108030P,1920×108025P, 1280×72030P,1280×72025P, 720x57625P,720x48030P
Encoding HEVC/H.265HD/SD;MPEG-4AVC/H.264HD/SD
Bit-rate 1~13Mbpseachchannel
RateControl CBR/VBR
GOPStructure IPP(PFrameadjustment,withoutBFrame)
Encoding MPEG-1Layer2,LC-AAC,HE-AACandAC3Passthrough
Samplingrate 32KHz,48KHz,44.1KHz
Resolution 24-bit
Audio
AudioGain 0-255Adjustable
MPEG-1Layer2Bit-rate48/56/64/80/96/112/128/160/192/224/256/320/384kbps
LC-AACBit-rate 48/56/64/80/96/112/128/160/192/224/256/320/384kbps
Contact:TomleequanEmail：sales@fmuser.comwhatsapp:+8613922702227
Stream output
System function
Contact:TomleequanEmail：sales@fmusercomwhatsapp:+8613922702227
HE-AACBit-rate 48/56/64/80/96/112/128kbps
IPoutoverUDP(Unicast/Multicast),SRT,RTP,RTSP,RTMP,HTTP,HLS(RJ45, 1000M)(8HDMIinputswith8SPTSforeachencoderboard)
Networkmanagement(WEB)
ChineseandEnglishlanguage
Ethernetsoftwareupgrade
Dimension(W×L×H)482mm×328mm×88mm
Environment 0~45℃(work)；-20~80℃（Storage）
Miscellaneous
Power requirements AC110V±10%,50/60Hz,AC220±10%,50/60Hz
Majorspeccomparison
NDS3228S-N
HDMIChannel 8/16/24 2/4/8/16/24
