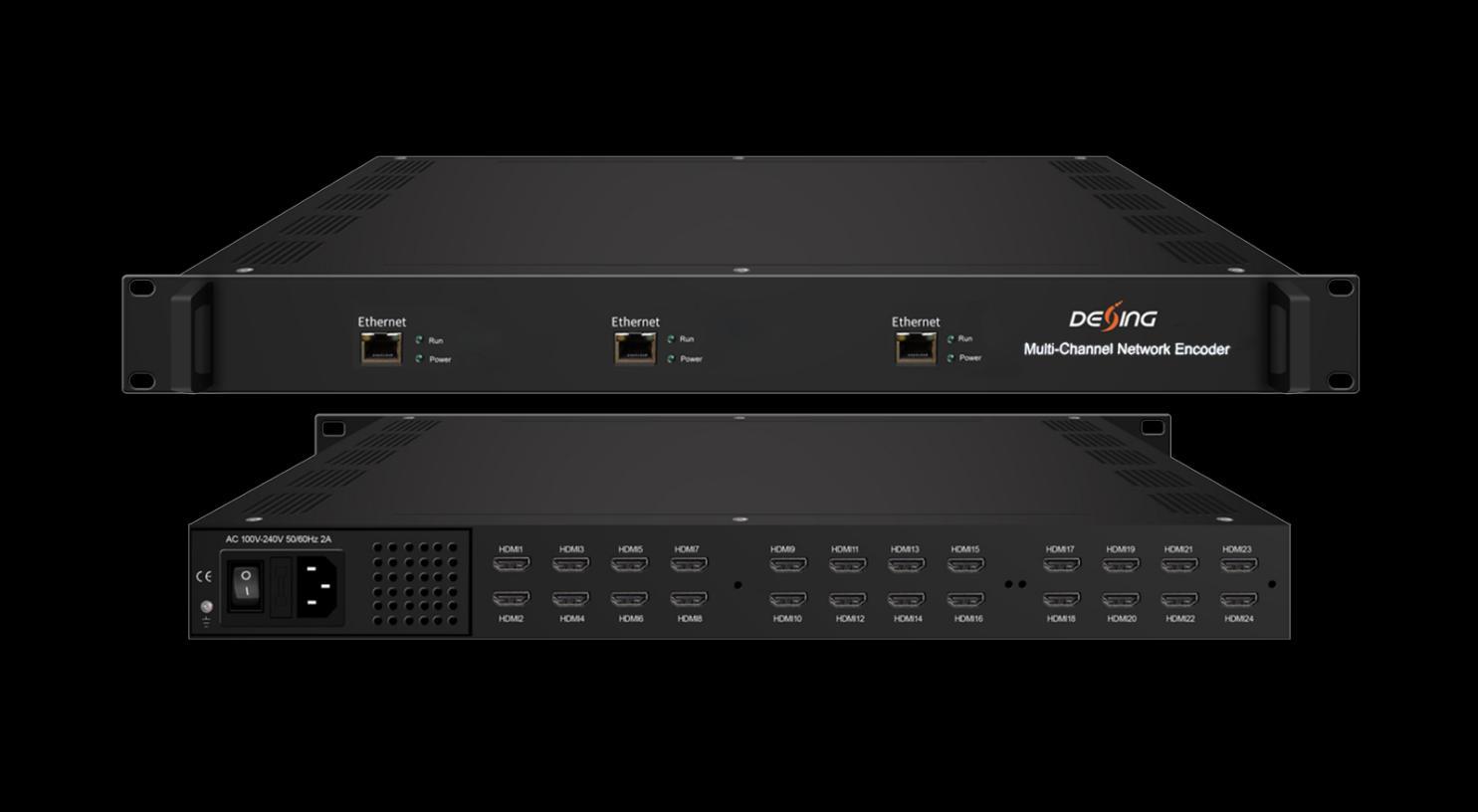

NDS3228M-NMulti-ChannelNetworkEncoder(24HDMI,H.265/MPEG4
GeneralDescription

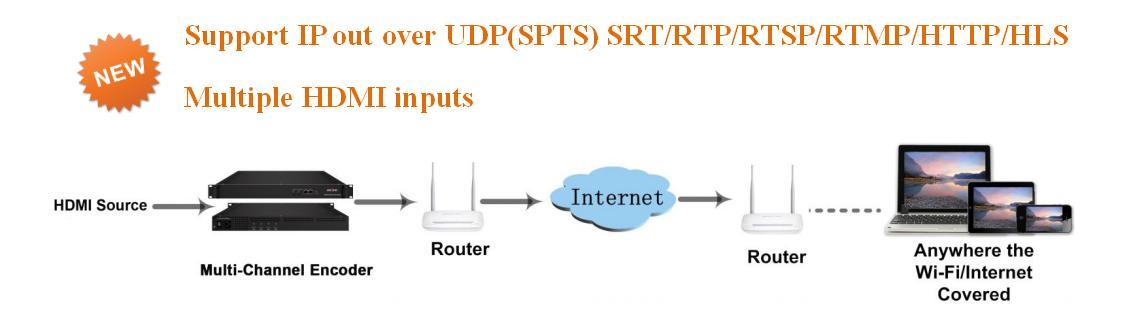

DEXINNDS3228M-Nnetworkencoder(NetworkEncoderProcessor)isanencodingdeviceforIP broadcastingItisequippedwith2/4/8/16/24HDMIchannelsinputwithH264/H265videoencodingand LC-AACorHE-AACaudioencoding.ThesignalssourcecouldbefromSTB,PC,TVandetc.Itcantransferthe liveprogramthroughtheinternet/LAN,andgivesIPoutoverUDP(Unicast/Multicast),SRT,RTSP, RTMP,HTTPandHLS,andtheoutputsignalsaretobereceivedbyPC,phoneandothermobile terminalsNDS3228M-NletsyouaccessyourIPSTB,PCorTVanywheretowatchyourprograms
KeyFeatures
Contact:TomleequanEmail：sales@fmuser.comwhatsapp:+8613922702227
Contact:TomleequanEmail：sales@fmusercomwhatsapp:+8613922702227
*2/4/8/16/24HDMIinputwith2/4/8/16/24SPTSoutput(eachencodermodule,onlysupportSPTS,NO MPTS),max24HDMIinputs
*HEVC/H265,MPEG4AVC/H264videoencodingformat
*IPOutputoverUDP(Unicast/Multicast),SRT,RTSP,RTP,RTMP,HTTPandHLS
*SupportAC3Pass-through（developing）
*SupportOSD(logo/QRCode/Caption)insertion(developing)
InnerPrincipleChart(PerModule)
Specifications
Input 2/4/8/16/24HDMIinputs
Resolution
Video
1920*108060P,1920*108050P;1920*108059.94P,1280*720 60p, 1280*7205994,1280*72050P
Encoding H264/H265
Bit-rate 1~7Mbpseachchannel
RateControlCBR/VBR
GOPStructureIP
Audio Encoding MPEG-1Layer2,LC-AAC,HE-AACandAC3Passthrough
Samplingrate32KHz,441KHz,48KHz
Chroma 4:2:0
AudioGain 0-255Adjustable
MPEG-1Layer
2Bit-rate
48/56/64/80/96/112/128/160/192/224/256/320/384kbps
LC-AACBit-rate48/56/64/80/96/112/128/160/192/224/256/320/384kbps
Contact:TomleequanEmail：sales@fmuser.comwhatsapp:+8613922702227
Stream output
System function
Contact:TomleequanEmail：sales@fmusercomwhatsapp:+8613922702227
HE-AACBit-rate48/56/64/80/96/112/128kbps
IPoutoverUDP(Unicast/Multicast),SRT,RTP,RTSP,RTMP,HTTP,HLS(RJ45, 1000M)(8HDMIinputswith8SPTSforeachencoderboard)
Networkmanagement(WEB)
ChineseandEnglishlanguage
Ethernetsoftwareupgrade
Dimension(W×L× H) 482mm×328mm×44mm
Miscellaneou s
Environment0~45℃(work)；-20~80℃（Storage）
Power requirementsAC110V±10%,50/60Hz,AC220±10%,50/60Hz
