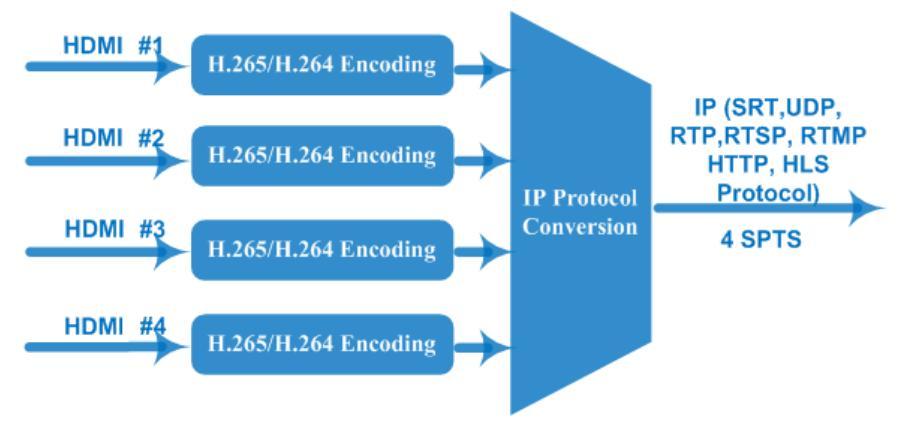

PrincipleChartofPerModule
(Thenumberofencodingchannelsdependsonencodingformatandresolution)
TechnicalSpecification
Input 4/8/12HDMIinputsforoption,HDCP14
EncodingFormatHEVC/H265,MPEG4AVC/H264
Video Encoding
Audio Encoding
4*1080P-504*1080P-50 2*1080P-50
4*1080P-604*1080P-60,2*1080P-60
4*1080I-504*1080P-50 4*1080I-50 2*1080P-50
4*1080I-604*1080P-60 4*1080I-60 2*1080P-60
4*720P-50 4*720P-50 4*720P-50
4*720P-60 4*720P-60 4*720P-60 Chroma 4:2:0
Bitrate
0.5Mbps~20Mbps(eachchannel)
RateControl CBR/VBR
GOPStructure IBBP,IPPP
Advanced Pretreatment De-interlacing,NoiseReduction,Sharpening
EncodingFormat
MPEG-1Layer2,LC-AAC,HE-AAC,HE-AACV2,AC3 Pass-through
Contact:TomleequanEmail：sales@fmuser.comwhatsapp:+8613922702227
Contact:TomleequanEmail：sales@fmusercomwhatsapp:+8613922702227
Samplingrate 48KHz
Bit-rate(each channel)
48Kbps~384Kbps(MPEG-1Layer2&LC-AAC)
24Kbps~128Kbps(HE-AAC)
18Kbps~56Kbps(HE-AACV2)
AudioGain 0~255
Streamoutput

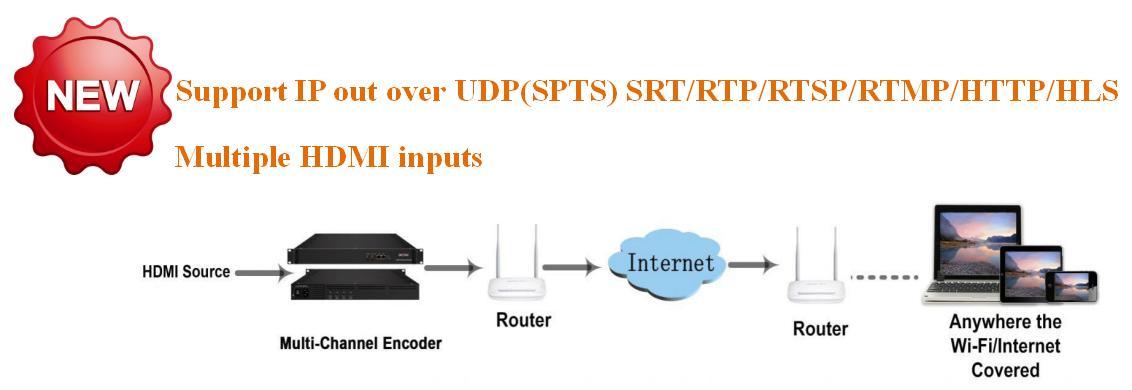

IP(4SPTS)outputoverSRT,RTP,RTSP,RTMP,HTTP,HLSpermodule,1000M/100M Base-TEthernetinterface(unicast/multicast);IPv4,IPv6output
IPnullpacketfilter
Webbasedmanagement
System
Chinese-Englishcontrolinterface
Ethernetsoftwareupgrade
Dimension(W×L×H) 482mm×328mm×44mm
Approxweight 5kg
Miscellaneous
Temperature 0~45℃(work),-20~80℃（Storage） Power AC100V-220V±10%,50/60Hz
DexinHEVC/H.265encoder’sadvantages
1.ProvidingsmoothTSformodulators
DexinHEVC/H.265encoderadoptsFujitsuchipwhichoffersstablebitratewithlowerfluctuationcompared withotherencodingchips,soitprovidessmoothTSformodulatorsItiswidelyusedinvarietyofdigital distributionsystemssuchasCATVdigitalhead-end,satelliteandterrestrialdigitalTV,etc
2.EncodingwithhighestcompressionformatBframe(IBBP) WhatisBFrame?
Thereare3majorpicturetypesusedinthedifferentvideoalgorithms,theyareI,PandB Theyaredifferentinthefollowingcharacteristics:
I-framesaretheleastcompressiblebutdon'trequireothervideoframestodecode. P-framescanusedatafrompreviousframestodecompressandaremorecompressiblethanI-frames. B-framescanusebothpreviousandforwardframesfordatareferencetogetthehighestamountofdata compression
Inoneword,BframeisthehighestcompressionformatwhichmakesitpossibletoprocessHDvideoatlow bitrate.HEVC/H.265encoderisnotabletosavebandwidthunlessitiswithBframe.Inencoderparameters, BframeisoftendescribedinGOP(GroupofPictures)structure,like“IBBP”.
