Manufactory Wholesale Passive Optical Receiver With WDM SR100-WD for Digital Television and FTTH Applications
Looking for a cost-effective and energy-efficient solution for digital television and fiber-to-the-home (FTTH) networks? The Passive Optical Receiver With WDM SR100-WD delivers high sensitivity without requiring a power supply, ensuring zero power consumption. Designed for seamless integration into three-network convergence, it features a wide work bandwidth of 45~1050MHz and an output level of 68dBμV at
Pin=-1dBm. Ideal for CATV and FTTH applications, this device guarantees reliable performance with a channel isolation of ≥40dB and an optical return loss of ≥55dB.
• No power required | • Work bandwidth: 45~1050MHz | • Output level: 68dBμV
(Pin=-1dBm) | • High channel isolation: ≥40dB | • Ideal for CATV and FTTH networks
SR100-WD adopts the high sensitivity optical receiving tube, without power supply, no power consumption.
Passive optical receiver with WDM
SR100-WD(Passive optical receiver with WDM) for digital television, fiber to the home.
When the input optical power output level Pin=-1dBm, Vo=6 8dB V, can be economically and flexibly apply the integration of three networks, fiber to the home network application.

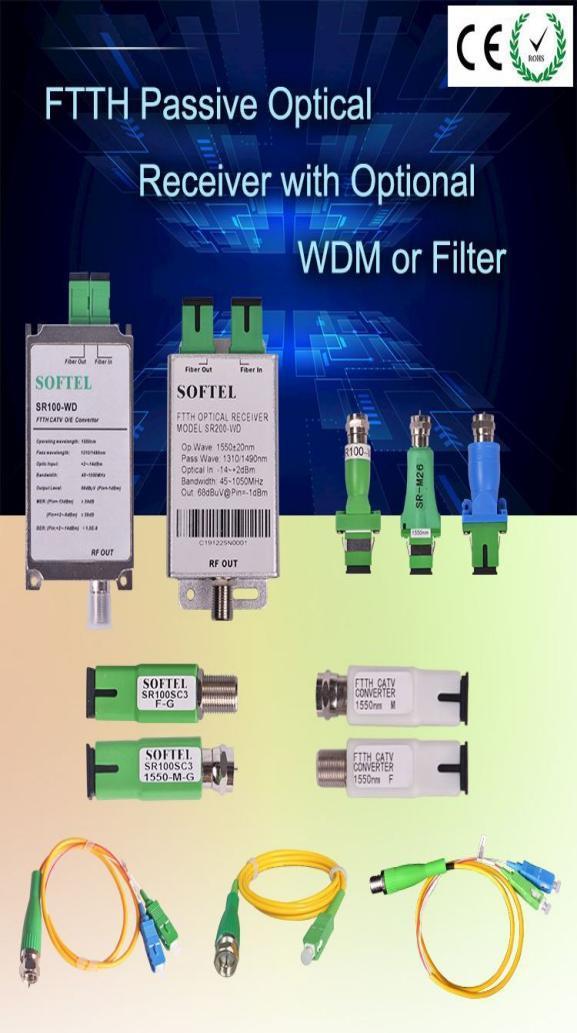

Product Display
Images
Key Features
1.No Power required
2.Work bandwidth 45~1050MHz
3.Output Level=68dBμV (Pin=-1dBm)
Optic feature Unit Index Supplement
Optical
1540~1563 SR100-WF,SR100F-WF,S R100-WD
Channel
