Manufactory Wholesale Outdoor Modular Optical Node
SR812S for CATV Networks with High Gain and Low Distortion
Looking for a reliable solution to optimize your CATV network? The Outdoor Modular Optical Node SR812S combines advanced microprocessor control and digital parameter display for seamless engineering debugging. Designed for outdoor use, it features a high-response PIN photoelectric conversion tube, GaAs amplifier, and specialized RF attenuation chip, ensuring smooth signal transmission and high accuracy. With an optical power range of -8 to +2dBm and a frequency range of 45-862MHz, this modular node is perfect for building robust CATV networks.
• Microprocessor control & digital display |
• High-response PIN photoelectric conversion
|
• GaAs amplifier for high gain & low distortion |
• Frequency range: 45-862MHz
• Optical power range: -8 to +2dBm |
Microprocessor control, digital display the parameters that make the engineering debug very convenience. It is the main products to build CATV network.
Contact:Tomleequan Email：
Outdoor Modular Optical Node SR812S is our new CATV network optical receiver with great quality and competitive prices.
Performance Characteristics
High response PIN photoelectric conversion tube.
Optimized circuit design, SMT process production, optimized signal path, make the photoelectric signal transmission more smooth.
Specialized RF attenuation chip, good RF attenuation and equilibrium linear, high accuracy.
GaAs amplifier device, power double output, high gain and low distortion.
Microprocessor control working status, digital display the parameters, convenience and intuitive operation, and stable performance.
Contact:Tomleequan Email：sales@fmuser.com whatsapp: +8613922702227
Excellent AGC performance, when the input optical power range is 8～＋2dBm, the output level keep unchanged, CTB and CSO basically unchanged.
Technique Parameters
Optical Parameters
Optical Receiving Wavelength
Optical Connector Type FC/APC, SC/APC or specified by the user
Fiber Type Single Mode
Link Performance C/N
Parameters
General Performance

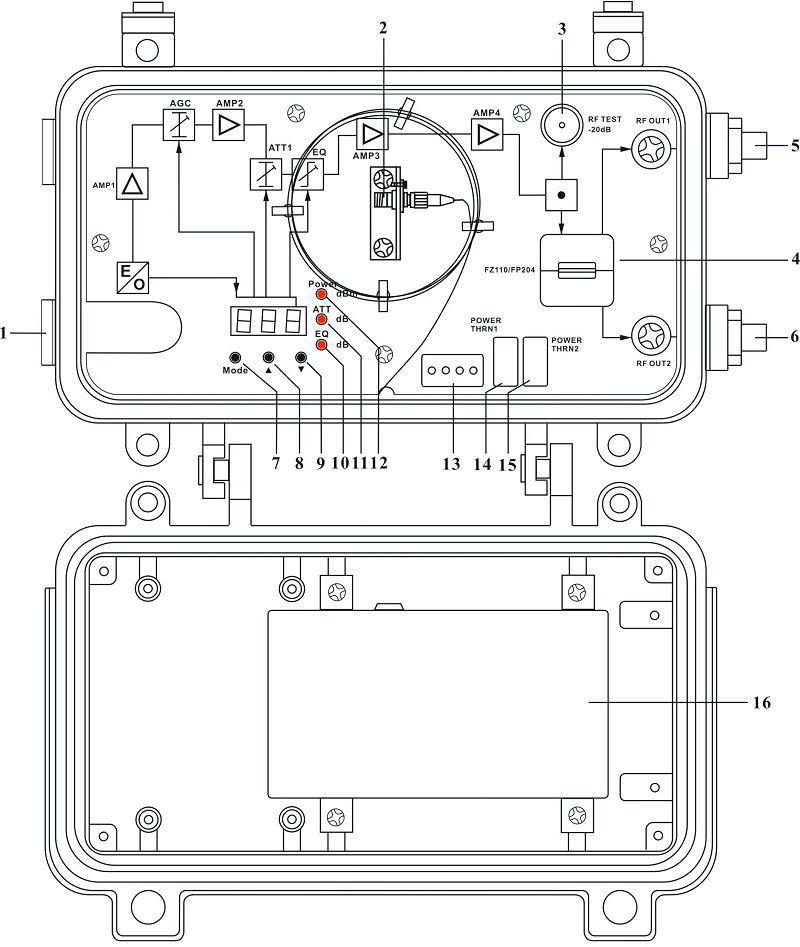

Structure Diagram of Outdoor Modular Optical Node
1. Optical fiber input
2. Optical fiber adapter
3. -20dB RF test port
4. Output tap or splitter
RF output 2
DOWN button
