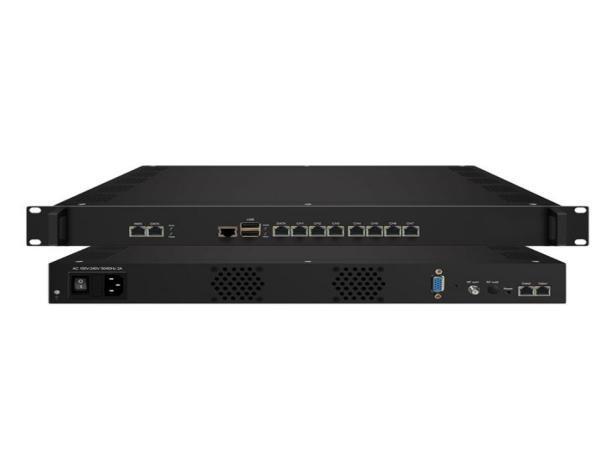

iMOD60 IPTV Gateway and RF Modulator
<Manufactory Wholesale IPTV Gateway and RF Modulator iMOD60 for CATV Digital Head-End with DVB-C/DVB-T/ISDBT/ATSC Support>(Struggling with seamless IP to RF conversion in your CATV setup? The offers a robust solution with its dual-module design, combining an IPTV gateway module and a modulator module for versatile protocol conversion. This rack-mount device supports DVB-C, DVB-T, ISDBT, and ATSC RF outputs, ensuring compatibility across global standards. With low power consumption and 24/7 operation, it’s ideal for CATV digital head-end, hotel IPTV systems, and streaming media distribution. Key features include IP in (HTTP, UDP, RTP, RTSP, RTMP, SRT, HLS) to RF out, 16x DVB-C, 8x DVB-T, 6x ISDBT, and 8x ATSC RF outputs, and EU CE & RoHS certification.
Perfect for engineers and system integrators seeking reliable, scalable solutions. •
Dual-module design • Global RF standards support • Low power consumption •
Web-based NMS management • EU CE & RoHS certified)
Overview
iMOD60 is a powerful, yet low power consumption, rack-mount IPTV Modulator Controller& Control Interface for 24/7 operation. Two independent modules design, one IPTV gateway module enables integrators and operators to select from various protocol to customise operation and on-going service, and the other modulator module which supports IP in and IP out and DVB-C/ DVB-T/ISDBT/ATSC RF out, and it can receive gateway source directly. The platform can achieve the integration by receiving a variety of commercial streaming media services, and can provide streaming media services directly. Designed for the centralised control of protocol conversion function acts, used for the protocol conversion scenarios, streaming media distribution scenarios and CATV digital head-end.
Features
low power consumption, rack-mount design
Two independent modules, IPTV gateway module and IP modulator module
IP in (HTTP, UDP, RTP, RTSP, RTMP, SRT and HLS) to RF out in one device
Gateway Module
10 Data ports:
First Data port: IP out over HTTP, UDP (SPTS), HLS and RTMP, SRT
Data CH1~CH9 ports: IP in over HTTP, UDP (SPTS), RTP(SPTS), RTSP, RTMP and HLS, SRT; IP out over HTTP, SRT, HLS and RTMP (Unicast)
SRT input mode support Caller and Rendezvous; SRT output mode support Listener, Caller and Rendezvous
Transmitting IP to modulator module through Data port
adding scrolling caption, welcome words, boot image and boot video (only applicable to IP out application)
Support downloading Dibsys IPTV APK directly from this device
Modulator Module
IP input over UDP/RTP through Data/Data 1/2 port
Contact:Tomleequan Email：sales@fmuser.com whatsapp: +8613922702227
Contact:Tomleequan Email：
IP output over UDP/RTP/RTSP through Data 1/2 port
Support 16*DVB-C/8*DVB-T/6*ISDBT/8*ATSC RF out
Receiving IP from gateway module directly through Data port
TS files uploading through Web management
IP anti- jitter function
Control the 2 modules separately via web-based NMS management passed the EU CE&RoHS certification
Protocol conversion Application
IPTV Gateway Controller& Control
Distribute IP source to All TVs Over Existing TV Coax Contribution and Distribution
Protocol conversion scenarios
Contact:Tomleequan Email：
About Us
FMUSER is a company specializing in broadcasting and television transmission systems and integrating hotel IPTV systems. The company was established in 2009 and has served over 180 countries worldwide. More than 20,000 television stations, radio stations, and hotel clients from different. Contact:Tomleequan Email:sales@fmuser.com
