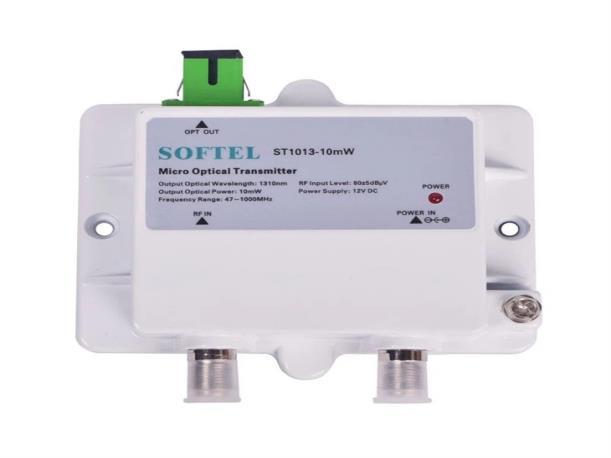

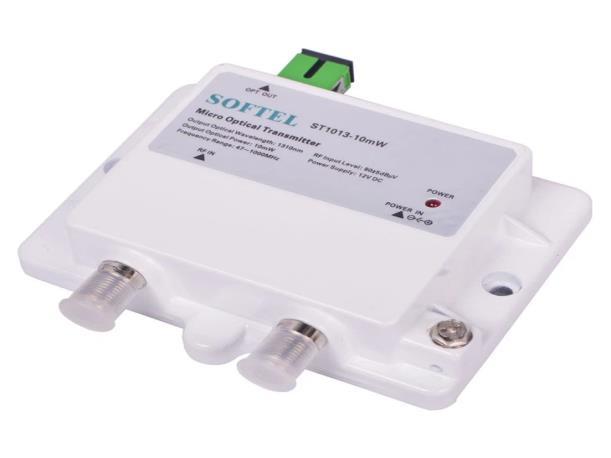

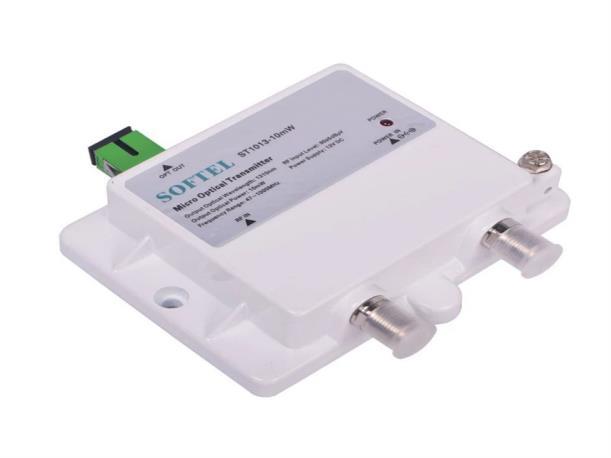

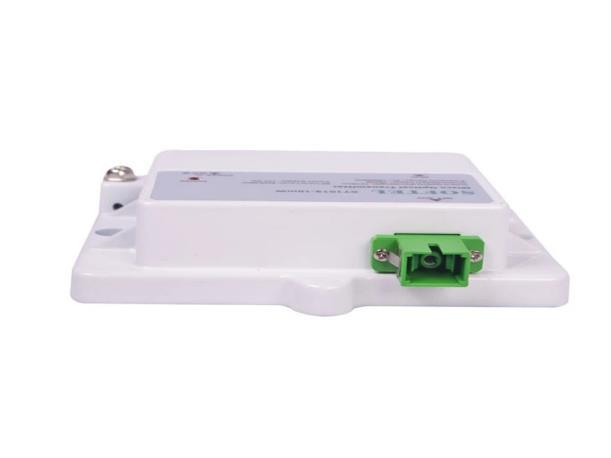

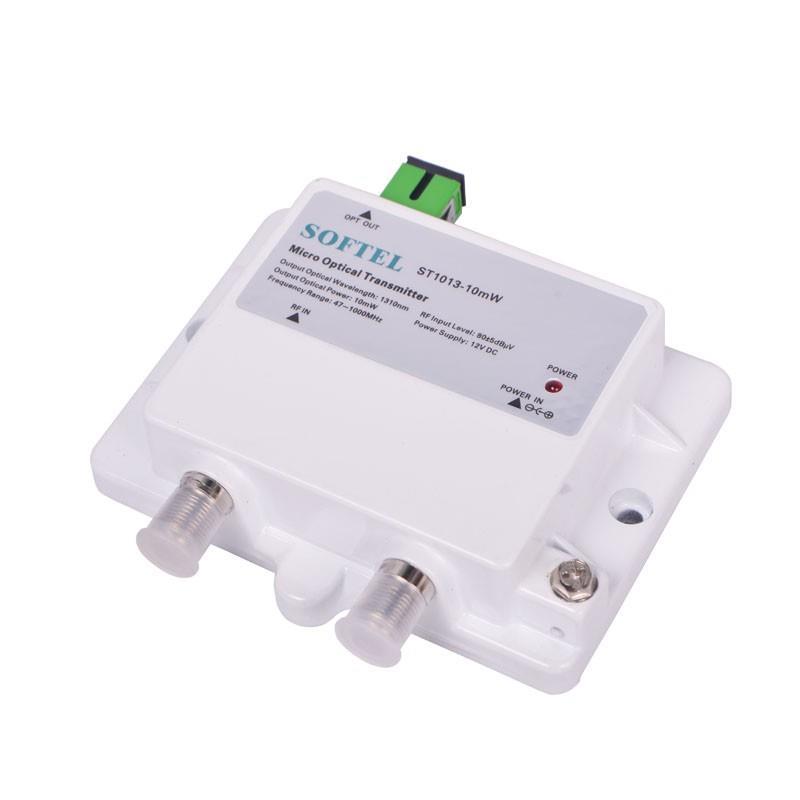

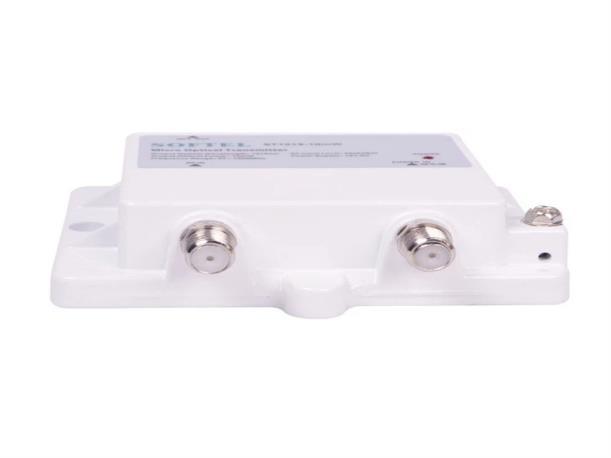

Manufactory Wholesale Micro Optical Transmitter
ST1013-10mW for FTTH Networks with Ultra Low Noise Technology
Looking for a reliable solution for FTTH networks? The Micro Optical Transmitter
ST1013-10mW delivers exceptional performance with ultra-low noise technology, GaAs amplifier active devices, and single-mode fiber high return loss. Designed for seamless integration, it features a compact design, DFB coaxial laser, and Red-LED power indication. With an output power of 10mW and a wavelength of 1310nm, this transmitter ensures high linearity, flatness, and minimal signal distortion, making it ideal for high-demand applications in telecommunications and broadband networks.
• Ultra-low noise technology | • GaAs amplifier active devices | • Single-mode fiber high return loss | • Compact design with DFB coaxial laser | • Red-LED power indication
1. Excellent Linearity and flatness
2. Single-mode fiber high return loss
3. Using GaAs amplifier active devices
4. Ultra low noise technology Micro Optical Transmitter
ST1013-10mW
Characteristics
Designed for FTTH(Fiber To The Home)Networks
Excellent Linearity and flatness
Single-mode fiber high return loss
Using GaAs amplifier active devices
Ultra low noise technology
Using DFB coaxial small package laser
Smaller size and easier install
Red-LED for power indication
Parameters of Mini Fiber Optic Transmitter
Customer Interface
RF Connector F-female
Optical Connector SC/APC
Power Supply F-female
Optical Parameter
Optical Return Loss
dB ≥45
Output Optical Wavelength nm 1310
Output Optical Power mW 10
Optical Fiber Type Single Mode
RF Parameter
Frequency Range
Flatness
RF Input Level
Input Impedance
Return Loss
C/N
CSO
CTB
Other Parameter
Power Supply
Power Consumption
MHz 47-1000
dB ±0.75
dBµV 80±5
Ω 75
dB ≥16
dB ≥52
dB ≥60
dB ≥63
VDC 12
W <2
Dimensions mm 100*98*28
