Manufactory Wholesale KL-23F Optic Fiber Cleaver Cutter
with Dual-Fixture Configuration and 48,000 Cleaves Blade Life
Looking for a reliable and precise fiber cleaving solution? The KL-23F Optic Fiber Cleaver Cutter combines a traditional bench-top design with advanced features like dual-fixture configuration and a blade life of 48,000 cleaves. Designed for silica glass fibers, it ensures a typical cleave angle of less than 0.5°, making it ideal for telecom, data centers, and industrial applications. With its patent-protected design and compatibility with 250μm, 900μm, and 3.0mm fiber cables, this cleaver delivers unmatched precision and durability.
• Dual-fixture configuration | • Blade life: 48,000 cleaves | • Cleave angle: <0.5° | •
Compatible with 250μm, 900μm, 3.0mm cables | • Pre-fitted off-cut collector

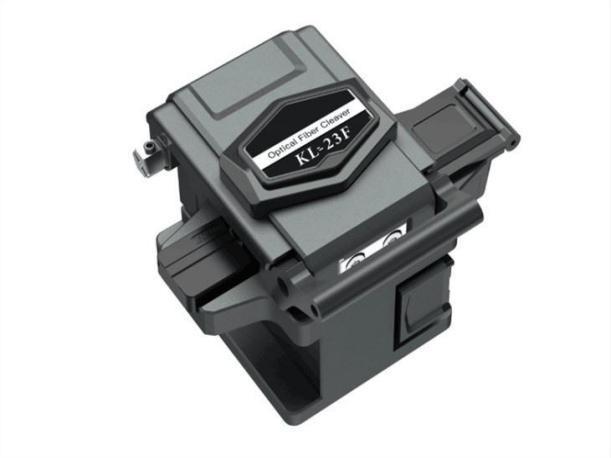

KL-23F Optic fiber cleaver cutter

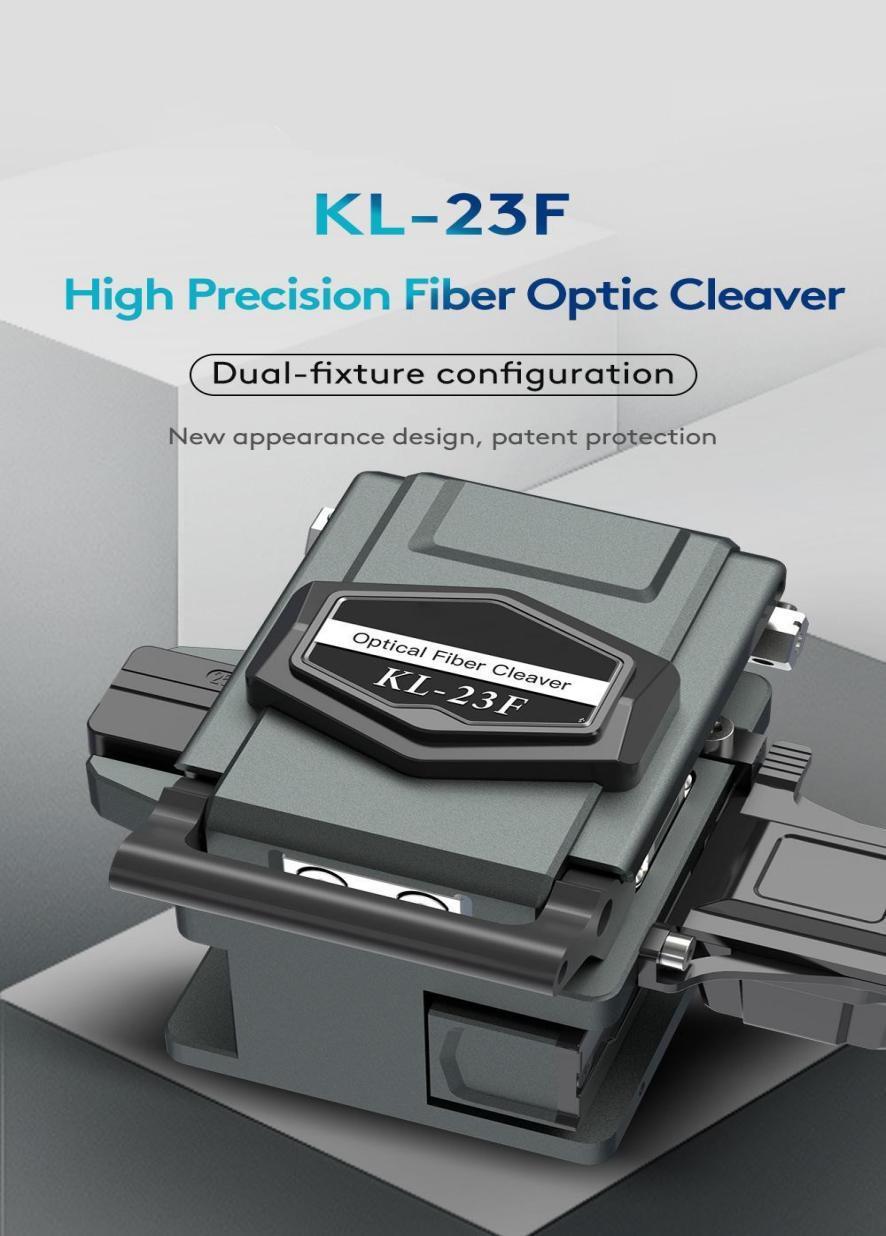

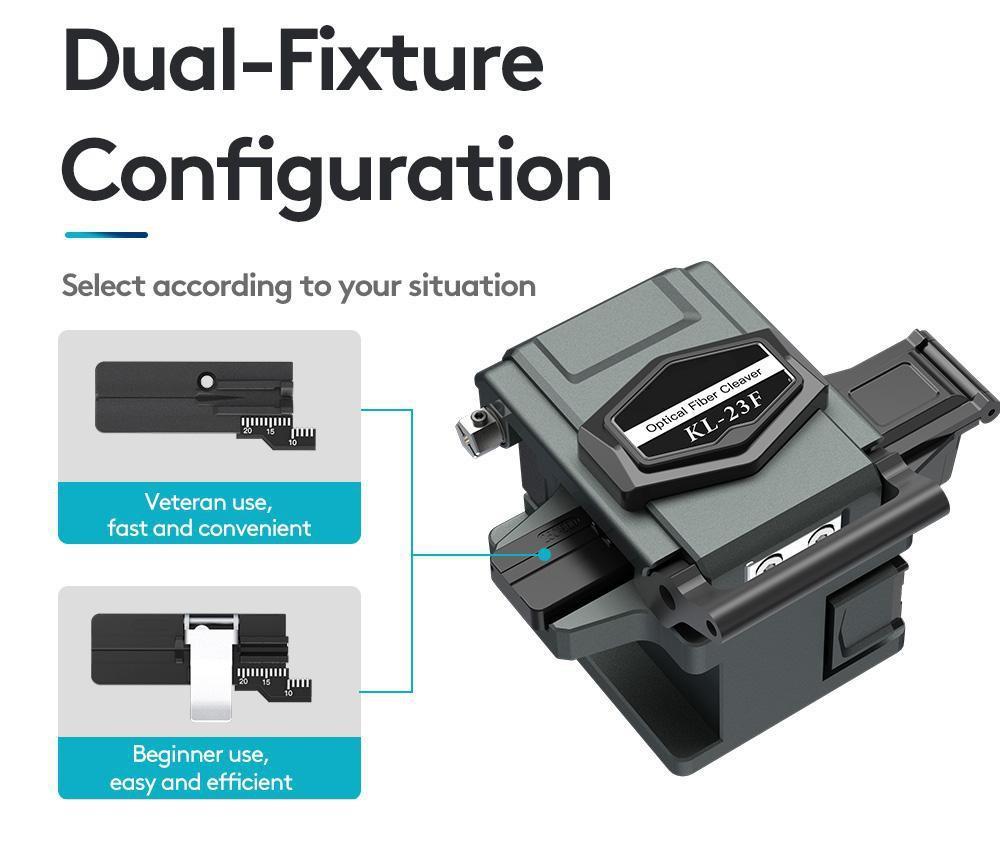

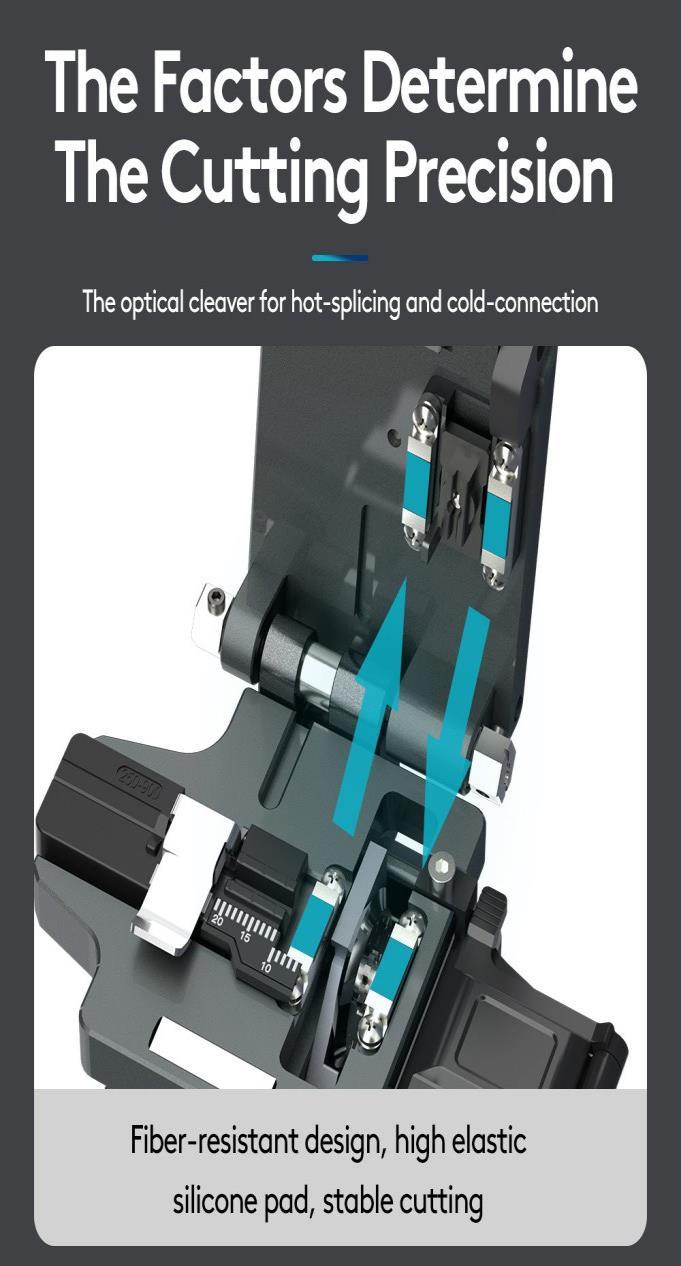

Dual-fixture configuration
New appearance design, patent protection

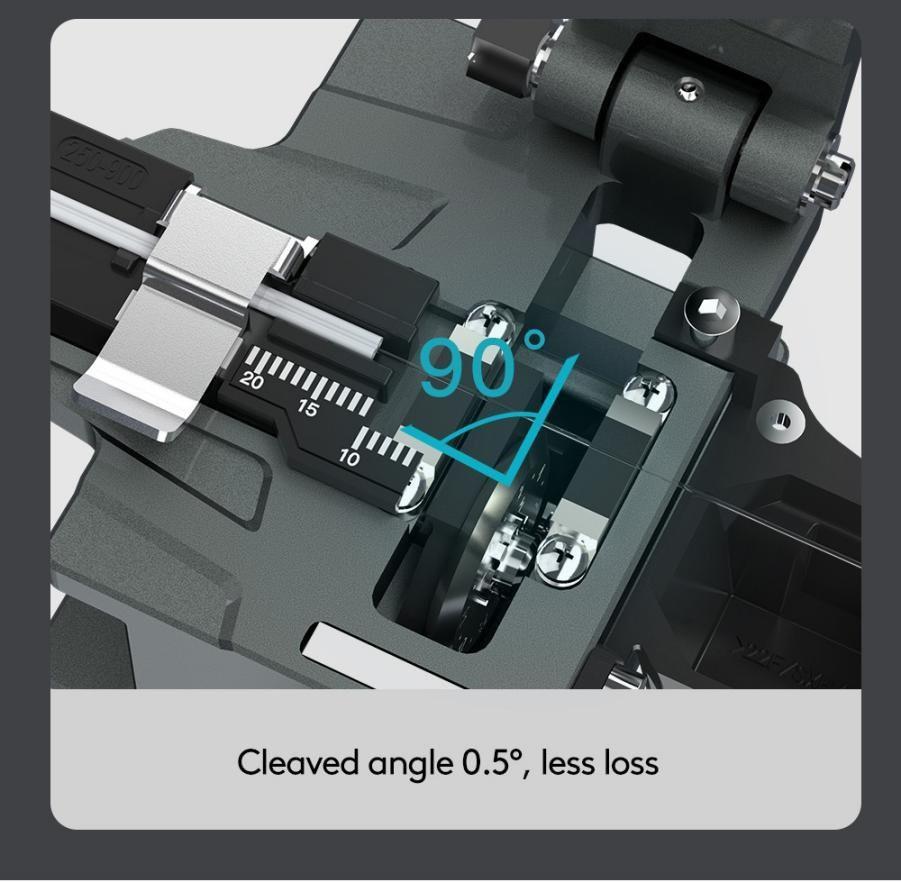

Cleave Angel 0.5°
Double Fiber Holders
Specification
Fiber Material Silica glass Cladding Diameter 125μm
Cleaved Length Single fiber: 8~20mm / Ribbon fiber: 10mm

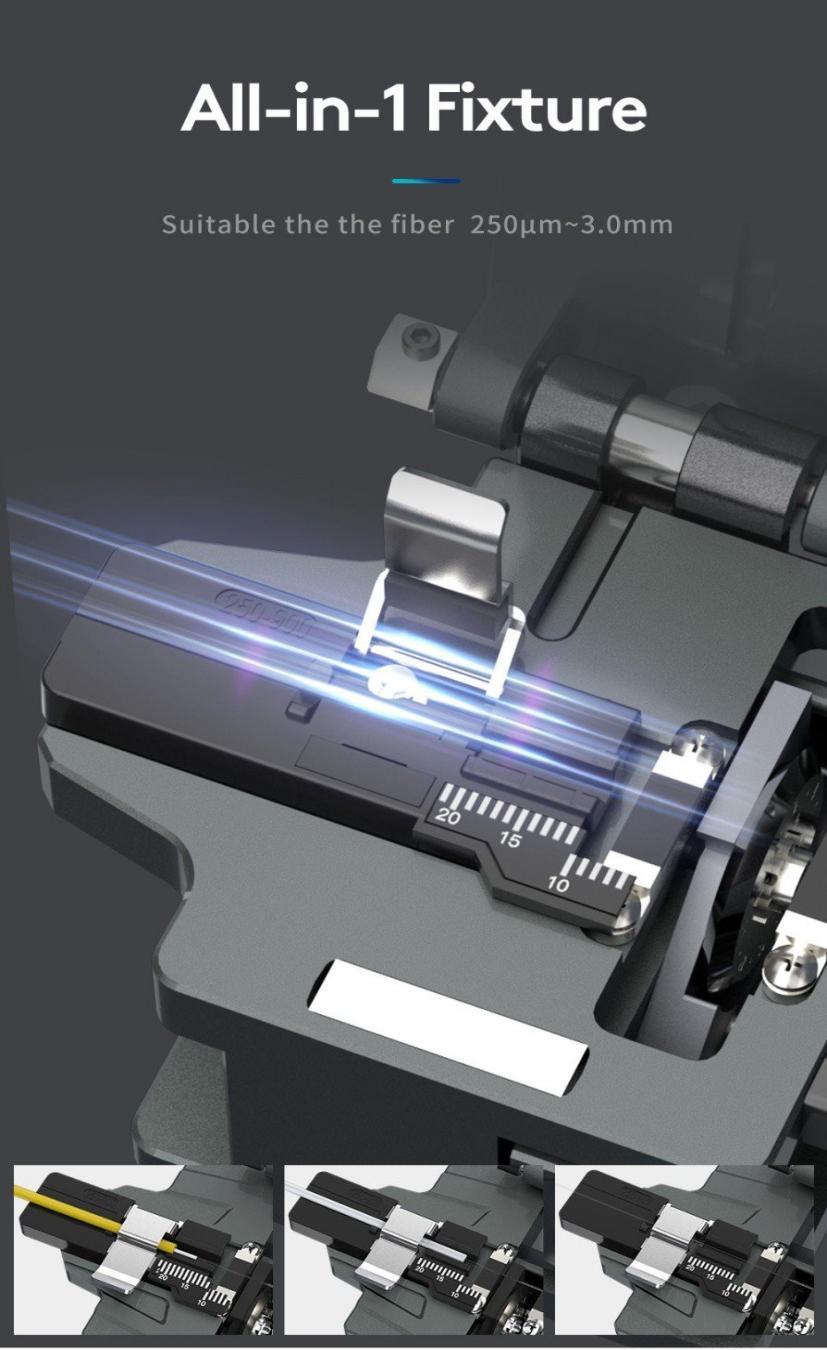

Applicable Fiber Cable Single fiber: 250μm, 900μm, 3.0mm fiber cable and flat cable Ribbon fiber: 2 to 12 ribbon fiber cable
Typical Cleaved Angle Less than 0.5°

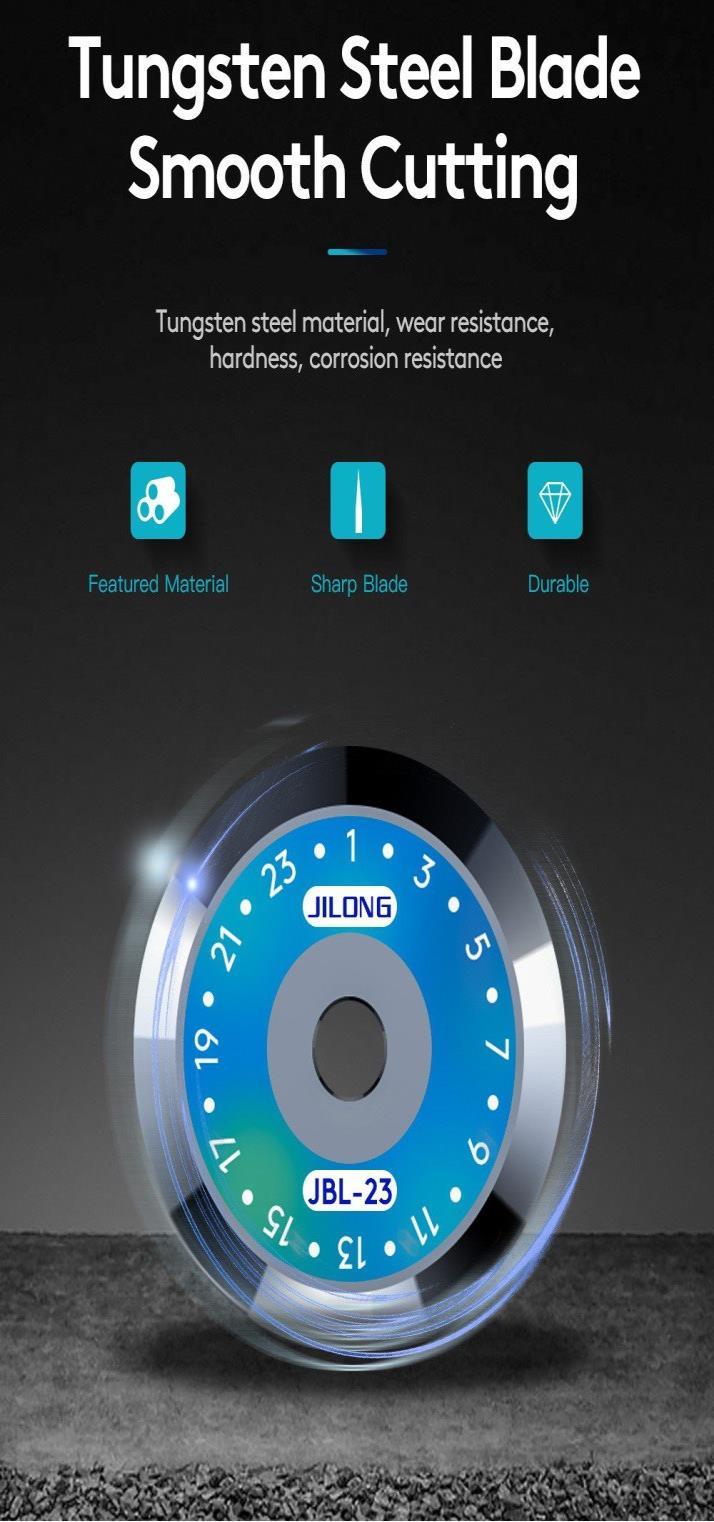

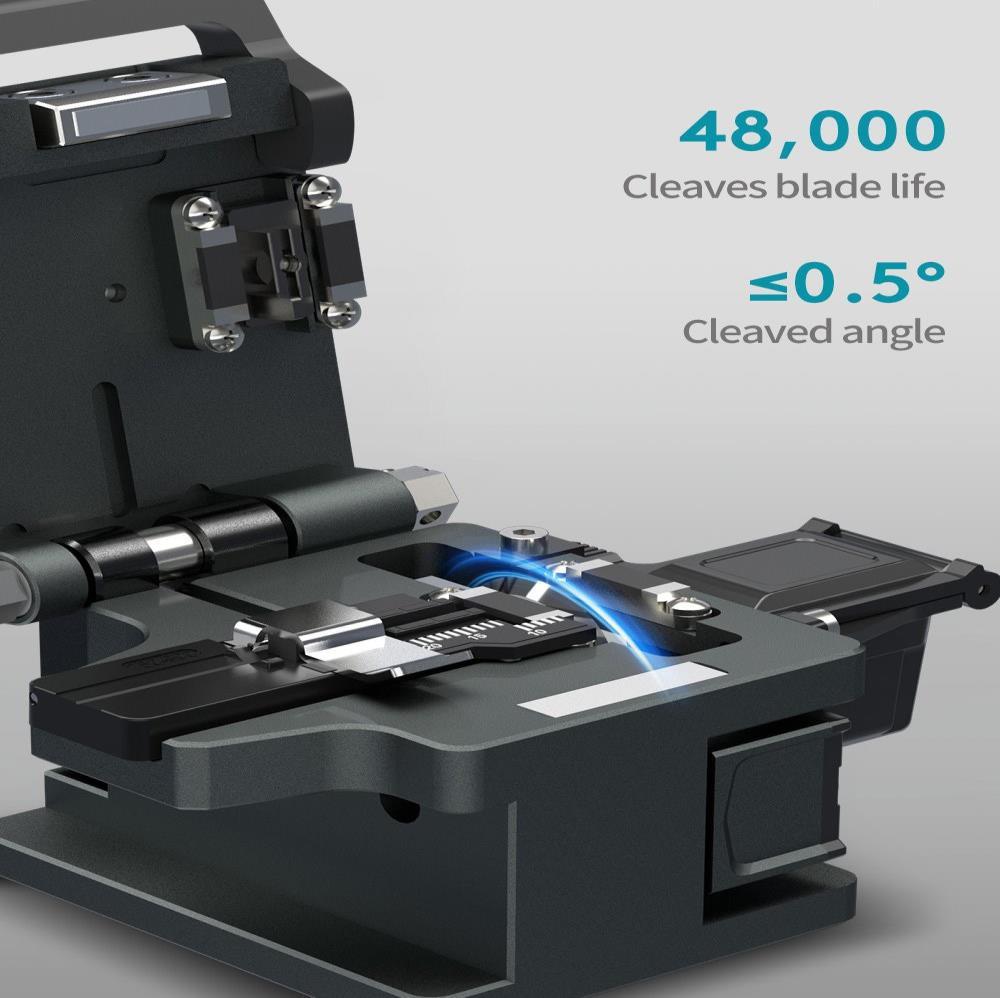

Typical Blade Life Total 48,000 fiber cleaves (replaceable)
Off-cut CollectorPre-fitted
Type of Offcut Bin Manual

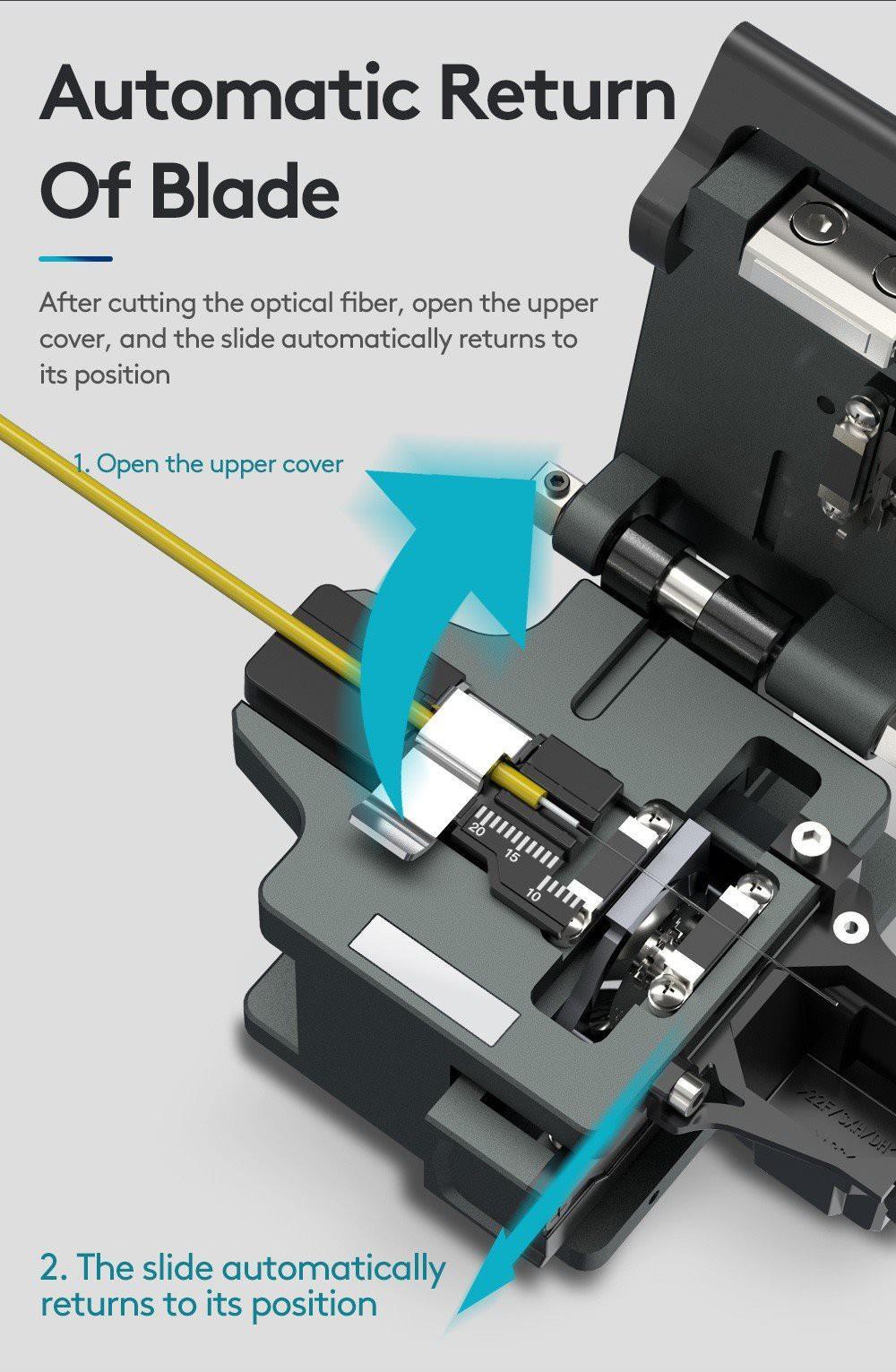

Auto Return Pre-fitted
Dimension 63W *77D*63H(mm)
