Manufactory Wholesale Horizontal Optic Splice Joint Closure
FOH-M2 for FTTH Fiber Distribution with 1:16 PLC Splitter
Need a reliable solution for fiber splicing and distribution? The Horizontal Optic Splice Joint Closure FOH-M2 features a patented sealing structure for excellent re-entry performance and horizontal mechanical sealing for easy operation. With capacity for two 1:8 or one 1:16 PLC splitter and 16 pcs of 23mm drop cable, it’s ideal for FTTH applications, aerial, and wall-mounting installations. Designed for 24-48 cores, this closure ensures efficient fiber management and protection.
• Patented sealing structure | • Supports 1:16 PLC splitter | • 16 pcs 23mm drop cable | • 24-48 cores capacity | • Ideal for FTTH, aerial, and wall-mounting
It can be installed two 1:8 or one 1:16 PLC splitter. 16 pcs 2*3mm drop cable both ends in and out. The patented sealing structure keep good sealing performance after re-entry and re-using.

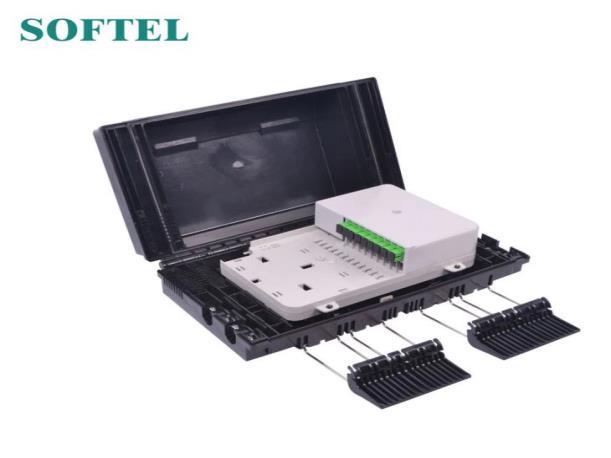

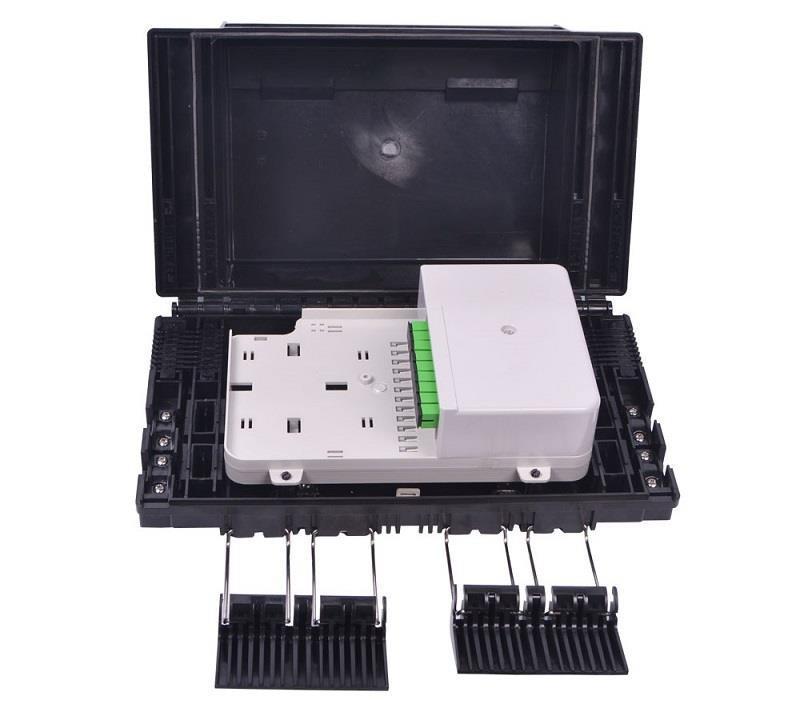

Horizontal Optic Splice Joint Closure FOH-M2 adopts horizontal mechanical sealing and advanced internal structure design. This closure is spacious enough for winding and storing fibers.
Features
It can be installed two 1:8 or one 1:16 PLC splitter.
16 pcs of 2*3mm drop cable for both ends in and out.
The patented sealing structure keeps good sealing performance after re-entry and re-using.
Easy to open or close with little tools
24 cores Fusing Splice available (Max. 48cores)
Applications
Suitable for bunchy fibers
Aerial and wall-mounting
Especially applicable to FTTH optical fiber distribution
