Manufactory Wholesale High-Performance FTTH Fiber Optical Node for
CATV Operators with Low Receiver Optical Power
Looking for a cost-effective and high-quality FTTH network solution? The FTTH Fiber Optical Node delivers exceptional performance with lower receiver optical power, making it an ideal choice for CATV operators. Designed to optimize bandwidth (47-1003 MHz) and ensure temperature stability (±1.0 dB), this node supports SC/FC/APC connectors and features AGC functionality for precise signal adjustment. Perfect for FTTH deployments, it guarantees reliable operation in environments ranging from -25°C to +65°C.
• High-performance FTTH solution | • Lower receiver optical power | • AGC functionality for signal adjustment | • SC/FC/APC connector options | • Wide operating temperature range
Ftth Fiber Optical Node has high performance, lower receiver optical power and lower cost for CATV operators providing high quality and excellent FTTH network solution.
Ftth Fiber Optical Node
Brief introduction of Ftth Fiber Optical Node

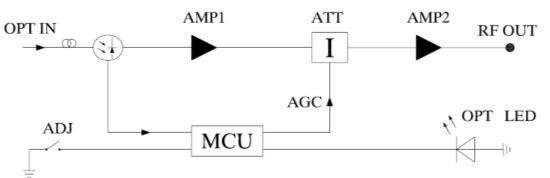

Ftth Fiber Optical Node has high performance, lower receiver optical power and lower cost for CATV operators providing high quality and excellent FTTH network solution. Product schematic diagramas below:

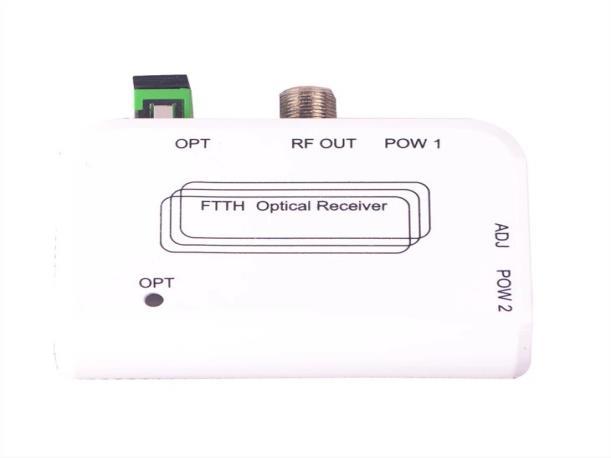

AGC Button, press ADJ to get different AGC arrange , The four different AGC range will be change circularly, and the OPT indicator will shine
LED Indicator, the different color shows different work status, it will shine when press ADJ button, the shine time will show the AGC arrange when you turn on ,see detail as AGC function No3 Specification
AGC Function Description
AGC arrange -12~-2 dBm Save when disconnect power
Indicator OPT Three color light N/A
ü Optical power <-18dBm, Red indicator;
ü Optical power: -18~0dBm, Green indicator;
ü Optical power >0dBm, Orange indicator;
