Manufactory Wholesale HDMI to DVB-T Encoder Modulator
with 4/8/12 HD Input and 4 Adjacent Carriers for Professional Broadcasting
Looking for a reliable solution to convert HDMI signals to DVB-T? The HDMI to DVB-T Encoder Modulator is a professional-grade device that integrates encoding, multiplexing, scrambling, and modulation in one compact unit. With support for 4/8/12 HD inputs, 4 adjacent carriers, and 4 MPTS outputs, it ensures seamless signal transmission for broadcasting, cable TV, and IPTV applications. Key features include MPEG-4 AVC/H.264 encoding, DVB-C/T RF output, and web-based management for easy control and updates. Ideal for hotels, hospitals, and broadcasting studios, this modulator delivers high MER (≥ 42 dB) and precise PCR adjustment for superior performance.
• 4/8/12 HD inputs | • 4 adjacent carriers | • MPEG-4 AVC/H.264 encoding | • Web-based management | • High MER (≥42 dB)
It supports 4/8/12 HD input, DVB-C/T RF out with 4 adjacent carries, and supports Data1 (GE) output port to support 4 MPTS out.

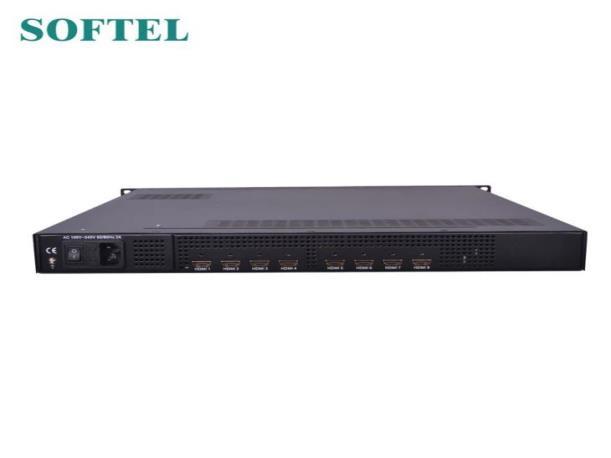

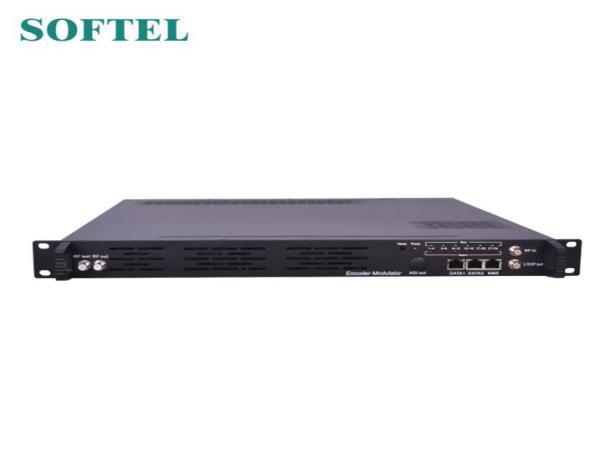

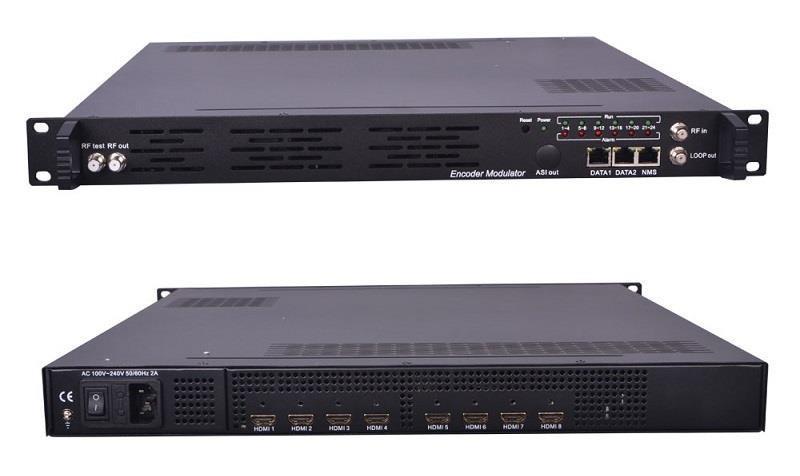

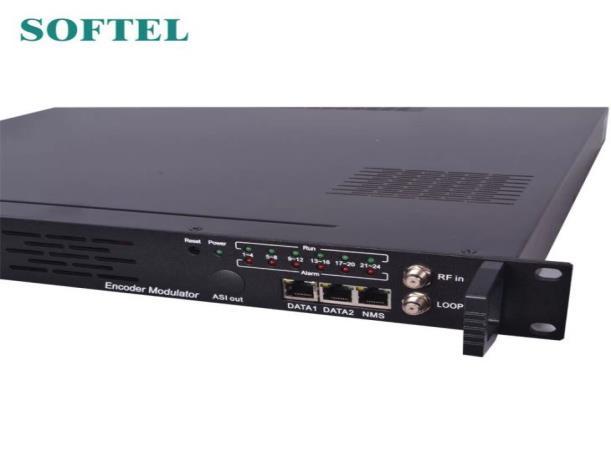

HDMI to DVB T Encoder Modulator
This is a professional Hdmi to DVB T encoder modulator which includes encoding, multiplexing,scrambling and modulation.It has 1 DVB-C tuner input for re-mux (only for DVB-C RF out). It can be controled via web management, and easy updates via web.
Technial Parameter of Hdmi to DVB T encoder modulator
4/8/12 HD inputs for option
Input
1 DVB-C Tuner input for remux, F type interface (only for DVB-C RF out)
128 IP input over UDP and RTP
Contact:Tomleequan
In-put
Video Resolution
Out-put
1920×1080_60P, 1920×1080_60i, 1920×1080_50P, 1920×1080_50i, 1280×720_60P, 1280×720_50P, 720×576_50i,720×480_60i,
1920×1080_30P, 1920×1080_25P, 1280×720_30P, 1280×720_25P, 720×576_25P,720×480_30P,
Encoding MPEG-4 AVC/H.264
Bit Rate 1Mbps~13Mbps each channel
Rate Control CBR/VBR
GOP Structure
IP…P (P Frame adjustment, without B Frame )
Encoding MPEG1 Layer 2;
Audio
Multiplexin g
Audio Gain 0-255 Adjustable
Bit-rate
64kbps, 96kbps, 112kbps, 128kbps, 160kbps, 192kbps, 224kbps, 256kbps, 320kbps,384kbps
Maximum PID Remapping 180 input per channel
Function PID remapping ( automatically or manually)
Accurate PCR adjusting
Generate PSI/ SI table automatically
Contact:Tomleequan Email：sales@fmuser.com whatsapp: +8613922702227
Contact:Tomleequan Email：
Standard
Modulation DVB-T
EN300744
FFT mode 2K,
Bandwidth 6M, 7M, 8M
Constellation QPSK, 16QAM, 64QAM
Guard Interval 1/4, 1/8, 1/16, 1/32
FEC 1/2, 2/3, 3/4, 5/6, 7/8
MER ≥42 dB
RF frequency 50~960MHz, 1KHz step
RF out 4*RF COFDM DVB-T out (4 carriers combined output)
RF output level
-28~ -3 dBm (77~97 dbµV), 0.1db step
Packing List
SFT3542I Encoder Modulator 1pc
HDMI Cables 12pcs
Power Cord 1pc
