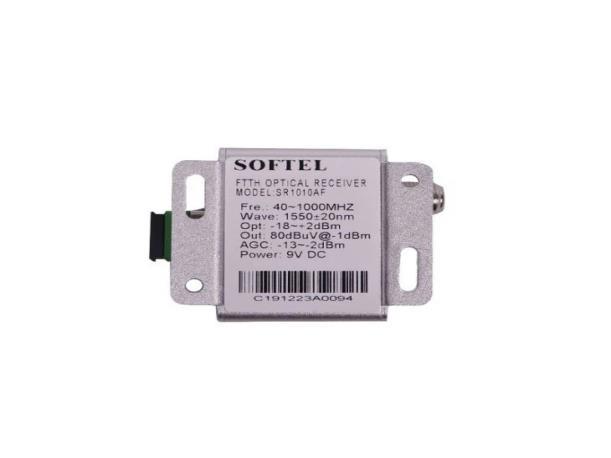

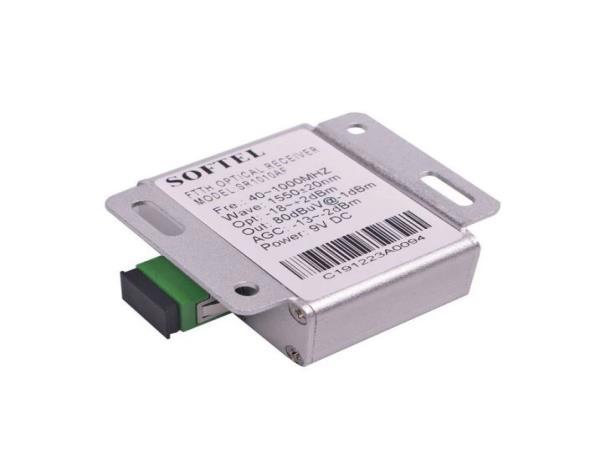

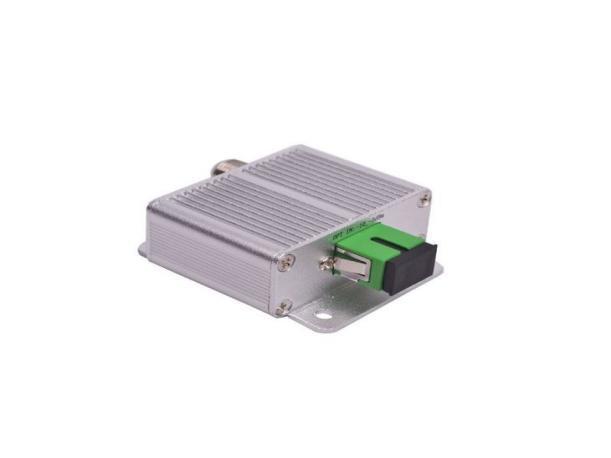

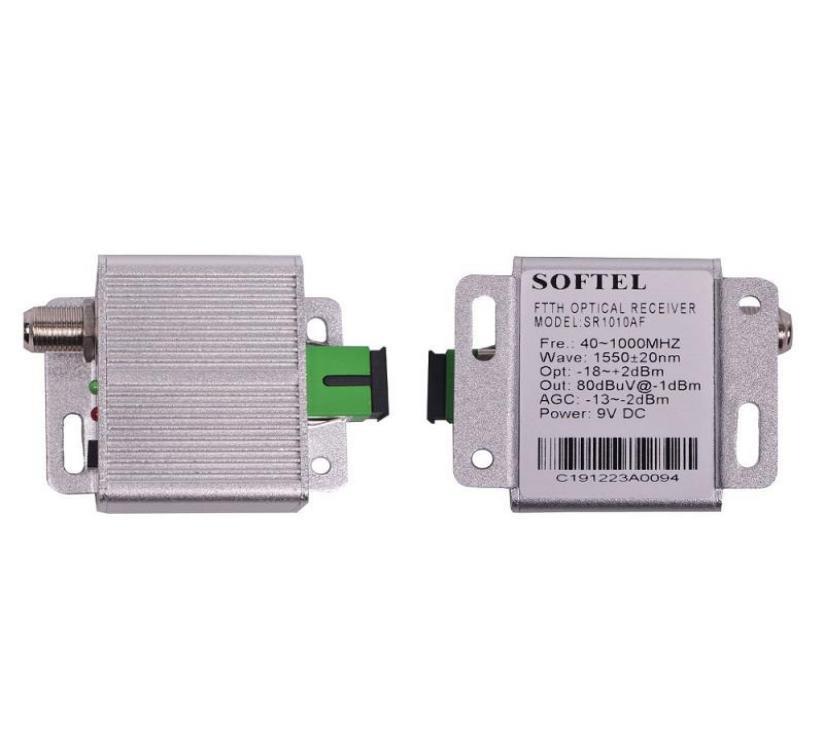

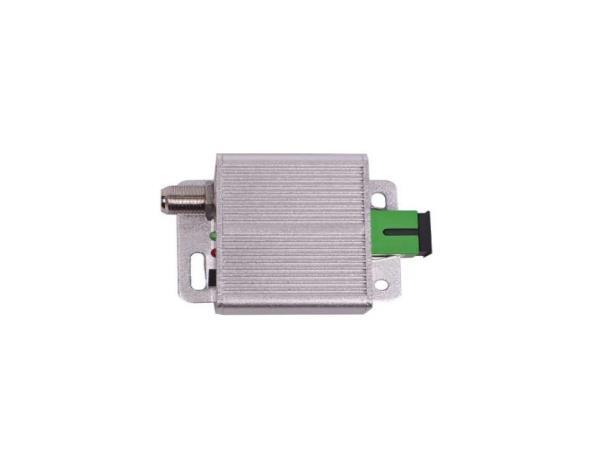

Manufactory Wholesale Ftth Mini Optical Node SR1010AF
with 40-1002MHz Bandwidth for CATV and FTTX Applications
Looking for a compact and high-performance optical node for your CATV or FTTX network? The Ftth Mini Optical Node SR1010AF delivers exceptional signal quality with a 40-1002MHz bandwidth, low distortion, and a wide optical AGC range (-13dBm to -2dBm). Designed for both analog and digital TV applications, it features a 1550nm operating wavelength, +80dBuV RF output, and a flexible installation design. Ideal for terminal customers, this device ensures reliable performance with its industrial 8-bit control unit and convenient interface.
• 40-1002MHz bandwidth | • Wide optical AGC range (-13dBm to -2dBm) | • 1550nm operating wavelength | • Compact and flexible installation | • Ideal for CATV and FTTX networks
SOFTEL New Model SR1010AF provides 40-1002MHz bandwidth, Excellent low-light amplifier and gain adjustment unit.
With industrial 8-bit control unit and convenient interface, Ftth Mini Optical Node SR1010AF is a good choice for terminal customers.
Characteristics:
Analog TV & Digital TV FTTX O-E converter applications.
High linearity, low distortion and wide optic power AGC range(-13dBm to -2dBm).
Wide operating optical input range of 2 to -20dBm at 1550nm.
Optical power input -2 to 1dBm for RF output performance.
Optical Input: -13 to -2dBm; RF output: +80dBuV per channel at 3.5% OMI (22dBmV modulation input).
Full frequency range is 40-1002MHz with CATV
Small flexible installation and Power supply on the line.
Specifications of Ftth Mini Optical Node:
Number Item Unit
Customer Interface
RF Connector
Optical Input
75Ω"F" connector United standard
Connector SC/APC
DC Supply DC Adapter
Optical
Optical Return Loss
Respnsivity
Insertion
Isolation
