Struggling with high splicing loss and unreliable field performance? The FSP-05 Optical Fusion Splicer delivers super low splicing loss (SM: 0.02dB) and robust functionality, making it ideal for trunk line and FTTX construction. With a compact design, 5200mAh Li-ion battery, and 360° rubber armor, it thrives in harsh environments. Features include 6s splicing time, 250X fiber core magnification, and over 4000 electrode discharges. Perfect for telecom and network engineers seeking precision and durability.
• 6s splicing, 26s heating | • 250X fiber core magnification | • 4000+ electrode discharges | • 5200mAh Li-ion battery | • 360° rubber armor
It is a new designed Fusion Splicing Machine. Electrodes discharging can be more than 4000 times.

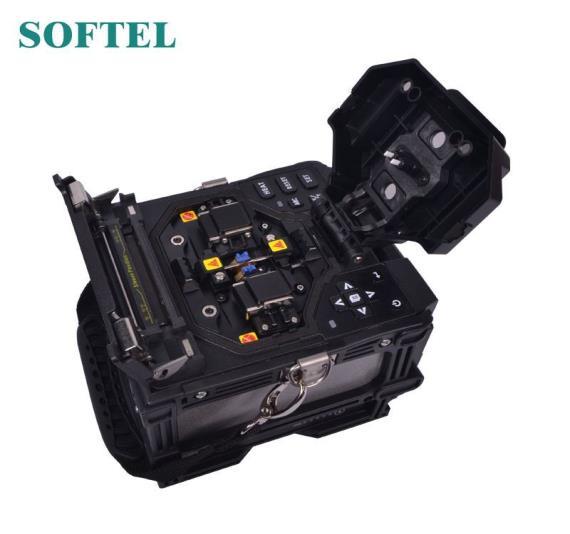

FSP-05 Optical Fusion splicer is a new designed Fusion Splicing Machine. The powerful function and super low splicing loss make it competent for construction of trunk line and FTTX .
Because of the compact configuration and precise mechanism, it can adapt to execrable enviroment. The bulitin large capacity LiIon battery can support long-time fieldwork. The instrument can adopt all kinds atrocious circumstance and the consistency of splicing loss was improved.
Features
6s for splicing and 26s for heating
Fiber core maximun magnifications is up to 250X.
Electrodes discharging can be more than 4000 times.
Integrated heater is easy and convenient to operate.
It has USB port for software updating and data records exporting.
PAS image digital processing system, core to core alignment
ARC calibrated by temperature and air pressure automatically
360° rubber armor protects the machine from shock, water and dust
5200mAh and pluggable Li-battery, typical 200 cycles splicing and heating

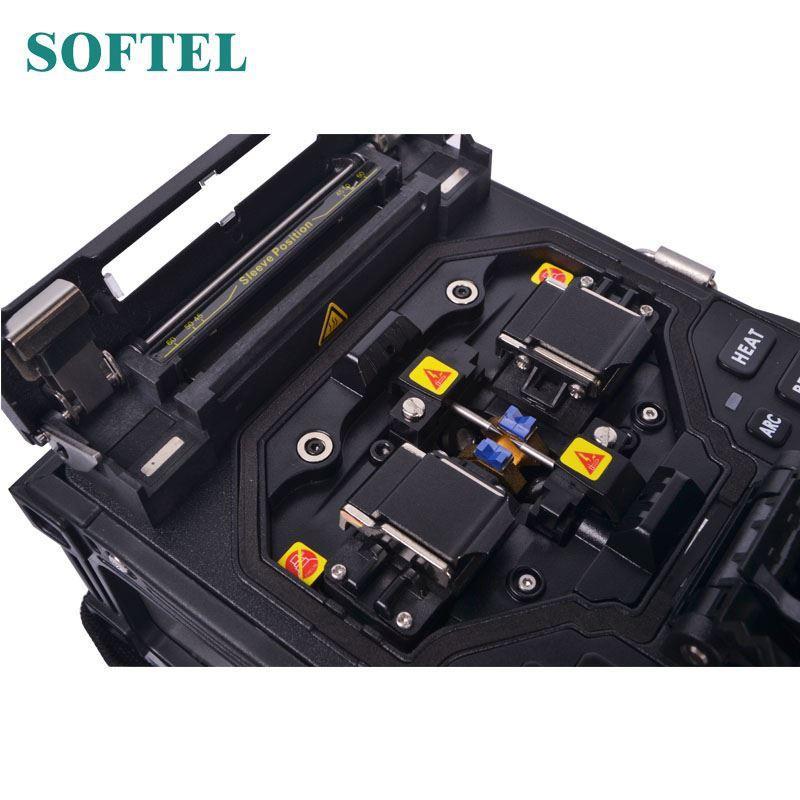

Multi-function holder clamps are suitable for bare fibers, skin line cables, jumper cables etc.
Contact:Tomleequan Email：
Specifications of Fusion Splicing Machine
Applicable fiber
Fiber count
Applicable fiber diamensions
Typical splice loss
Return loss
Fiber cleaved length
Splicing program
SM(G.652), MM(G.651), DS(G.653), NZDS(G.655), others(including G.657)
Single
Cladding diameter:80 -150μm; coating diameter:160 – 900μm
SM:0.02dB, MM:0.01dB, DS:0.04dB, NZDS:0.04dB
>60db
10-16mm (coating diameter< 250μm ), 16mm (coating diameter: 250-1000μm )
40 groups
Operate mode Manual, Automatic
Auto-heating Available
Typical splicing time
Tube heating time
Fiber view magnification
Viewing method and display
Storage of splice result
6 seconds
26 seconds for 60mm and 40mm shrinkable sleeves
250X(X or Y view), 125X(X and Y view)

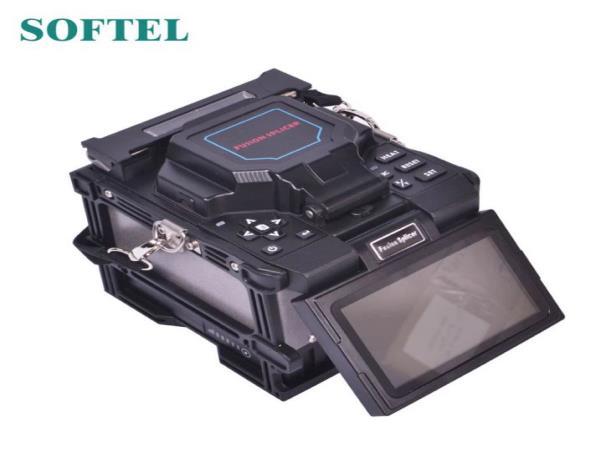

2 CMOS cameras, 4.3 inch color LCD monitor
4000 results
Loss evaluation Available
Tension test
1.8-2.2N
Interface GUI menu interface, easier operation
Battery capacity
Power supply
Electrode life
5200mAh Li-battery, typical 220 cycles(splice and tube heat)
Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V
More than 4000 ARC discharges, can be replaced conveniently
Terminals USB 2.0 port, for uploading splice results and upgrading software
Operating condition
Altitude: 0-5000m, Humidity: 0 95%, Temperature: -10℃~+50℃;Wind speed:max 15m/s
Contact:Tomleequan Email：sales@fmuser.com whatsapp: +8613922702227
Dimension 149mm(L)x120mm(W)x127mm(H)
Weight 1.9kg including battery

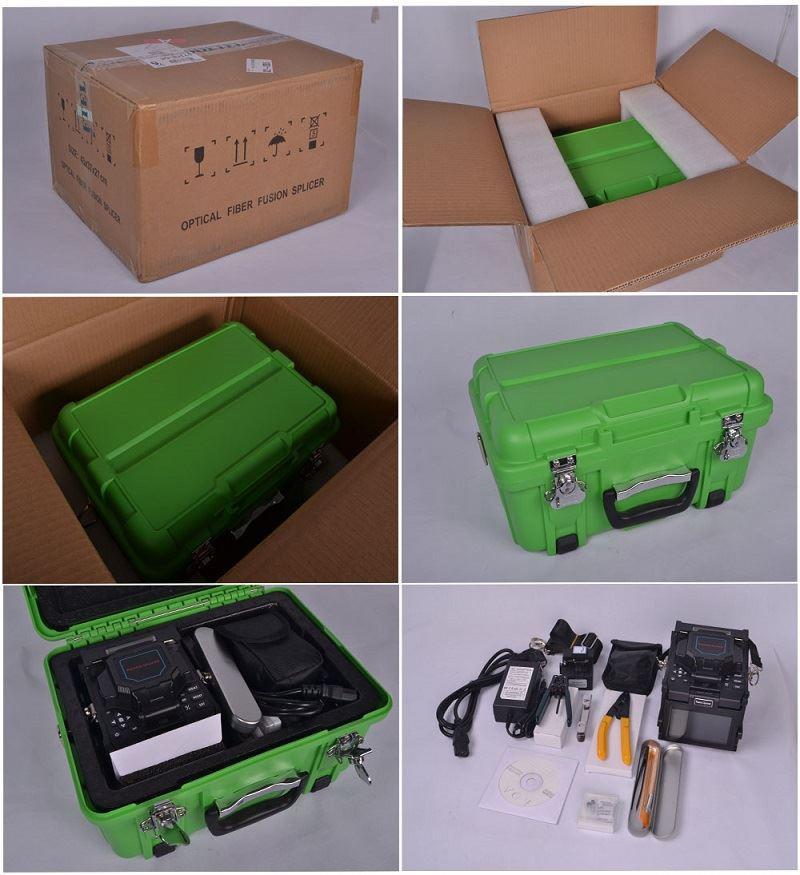

Standard Package
Main machine *1
Fiber Cleaver *1
Electrodes *1 pair
Fiber Stripper *1
Skin Line Stripper *1
Cooling Tray *1
Adaptor *1
Power Cord *1
Carrying Case *1
Manual(CD) *1
