Manufactory Wholesale Flat Cable Wire for FTTH Drop-Type
Installations with G652D Fiber and FRP Strengthen Member
Looking for a reliable and versatile solution for self-supporting drop-type installations? The Flat Cable Wire is a flat, all-dielectric cable designed for seamless conduit builds and FTTH applications. Featuring G652D fiber and FRP strengthen member, it ensures superior tensile strength (800N) and crush resistance (2200N/100mm). With low attenuation (≤0.4dB/km at 1310nm, ≤0.3dB/km at 1550nm) and a wide operating temperature range (-20℃ to +70℃), this cable is perfect for demanding environments.
• Flat, all-dielectric design | • G652D fiber with FRP strengthen member | • Low attenuation & high crush resistance | • Wide operating temperature range | • Ideal for FTTH drop-type installations

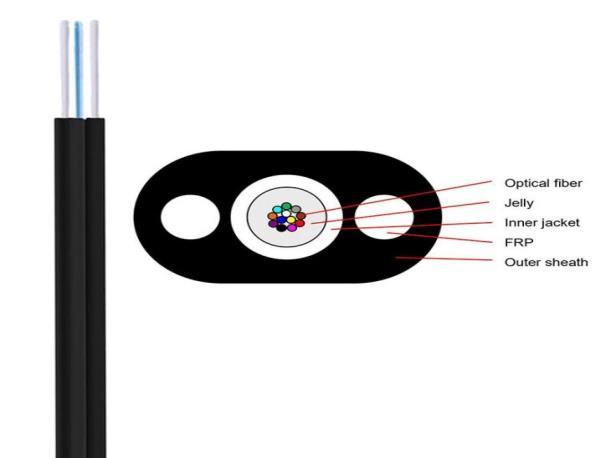

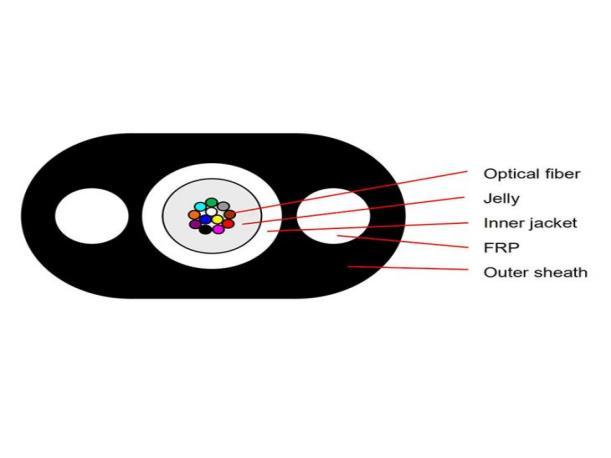

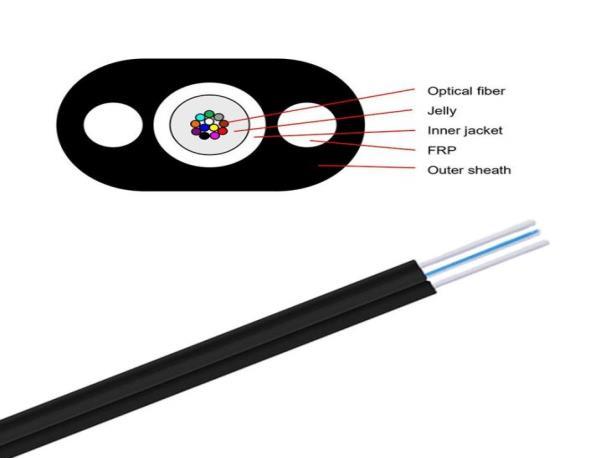

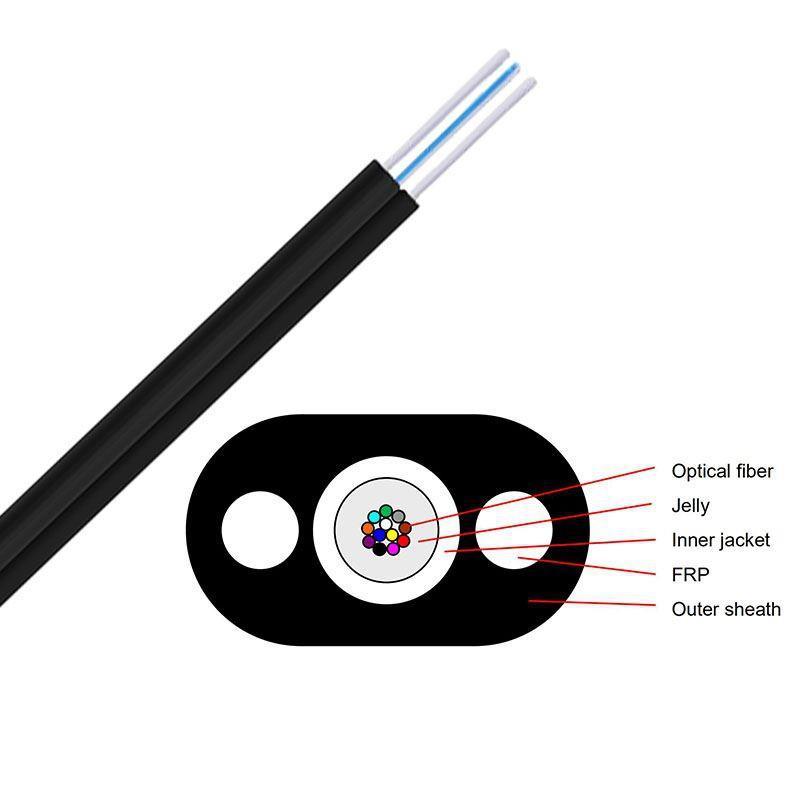

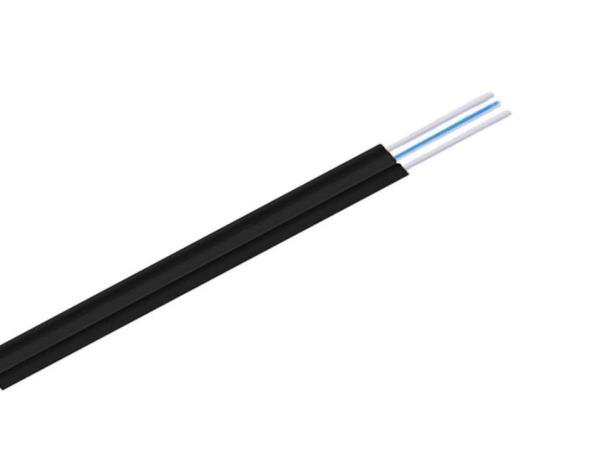

Flat Cable Wire is a flat, all dielectric cable which is ideally suited for self-supporting drop-type installations as well as conduit builds.
Technology specification
Item
Flat Cable Wire parameter
Cable type GYFXBY-12B1
Fiber type 9/125 (G652D)
Fiber color Blue, orange, green, brown, gray, white, red, black, yellow, violet, pink, aqua
Filler Jelly
Inner jacket color Natural
Inner jacket material PBT
Inner jacket diameter mm 3.0±0.1
Strength member FRP(*2)
Outer sheath color
Outer sheath material
Cable weight Kg/km
Min. bending radius mm
Approx. 34.9
20H (Static)
40H (Dynamic)
Attenuation dB/km ≦ 0.4 at 1310nm, ≦ 0.3 at 1550nm
Short tensile strength N
