Applications with Low-Bend-Sensitivity and Flame Retardant
Features
Looking for a reliable and durable solution for FTTH and FTTX applications? The Fiber Optic Drop Cable combines exceptional mechanical and environmental characteristics with flame retardant properties, meeting stringent industry standards. Featuring low-bend-sensitivity fiber, it ensures high bandwidth and excellent transmission performance. With a lightweight, flexible design and easy splicing capabilities, this cable is ideal for high-capacity data transmission in demanding environments. Operating temperature ranges from -20°C to +60°C, making it suitable for diverse installations.
• Low-bend-sensitivity fiber | • Flame retardant LSZH sheath | • Easy to strip and splice |
• High tensile and crush resistance | • Ideal for FTTH and FTTX applications
Fiber Optic Drop Cable could be used in FTTH, Fttx application.

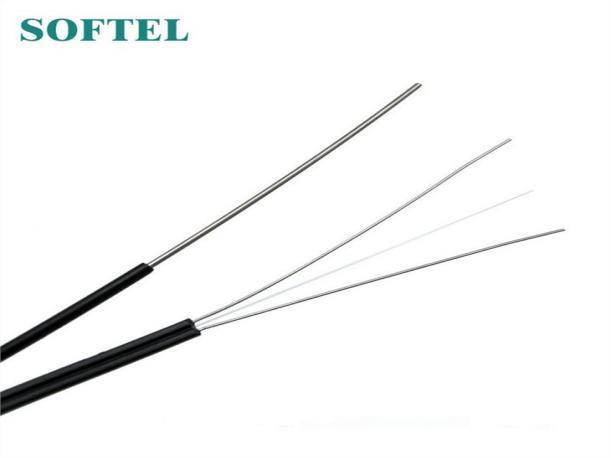

Fiber Optic Drop Cable
Product overview of Fiber Optic Drop Cable
Good mechanical and environmental characteristics; Flame retardant characteristics meets the requirements of relevant standards; The mechanical characteristics meets the requirements of relevant standards; Soft, flexible, easy to splice, and with big capacity data transmission;
Meet various requirements of market and clients.
Characteristics
1 Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.

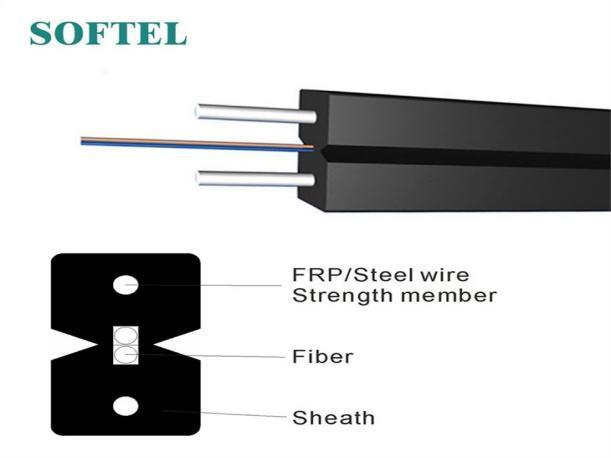

2 Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber.

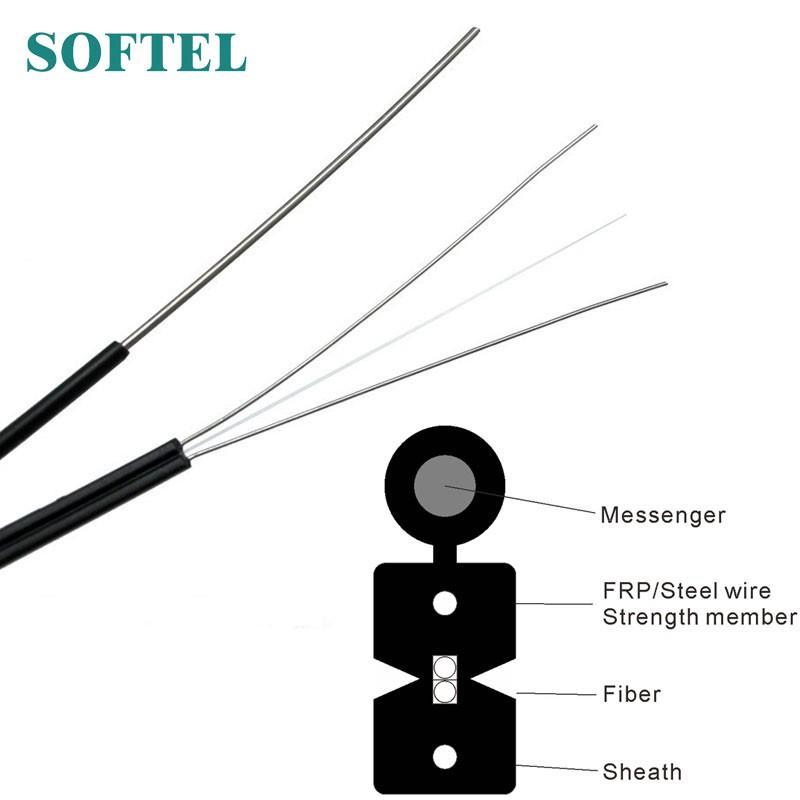

3 Single steel wire as the additional strength member ensure good performance of tensile strength.
4 Simple structure, light weight and high practicability.
5 Novel flute design, easily strip and splice, simplify the installation and maintenance.
6 Low smoke, zero halogen and flame retardant sheath.
7 Storage / Operating Temperature: -20°C~+60°C.
Technical specification
Item Technology parameter
Cable type
GJYXCH-1B6
GJYXCH-2B6
Cable specification 5.2×2.0
GJYXCH-4B6
Fiber type 9/125 (G.657A2)
counts
Fiber color Red Blue, orange Blue, orange, gree n, brown
Sheath color Black
Sheath material LSZH
Cable dimension mm 5.2(±0.2)*2.0(±0.2)
Cable weight Kg/km Approx. 19.5
Min. bending radius mm
Min. bending radius mm
(Excluding messenger wire) 10 (Static) 25 (Dynamic)
Attenuation dB/km ≦ 0.4 at 1310nm, ≦ 0.3 at 1550nm
Short term tensile N
Long term tensile N
Short term crush N/100mm
Long term crush N/100mm
Operation temperature ℃ -20~+60

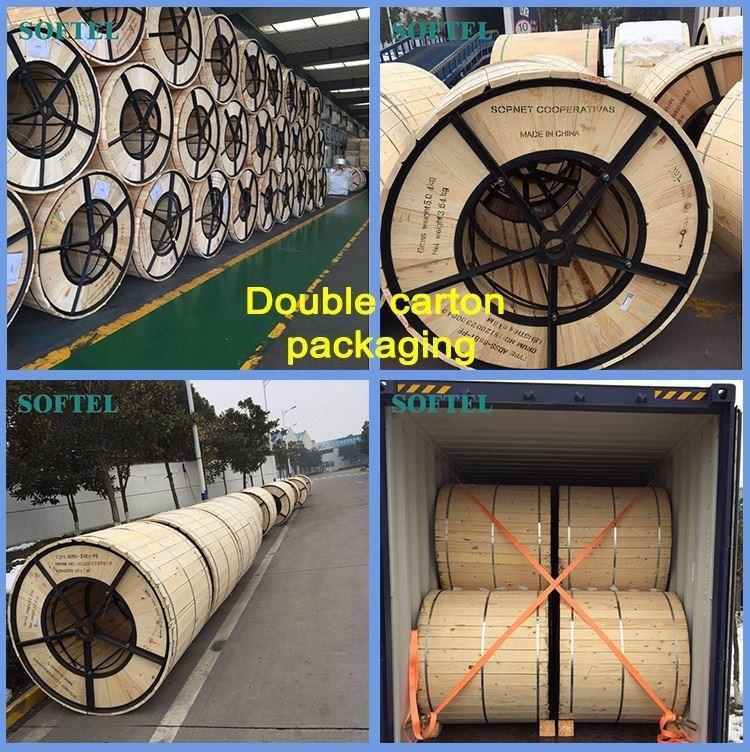

Package of Fiber Optic Drop Cable
