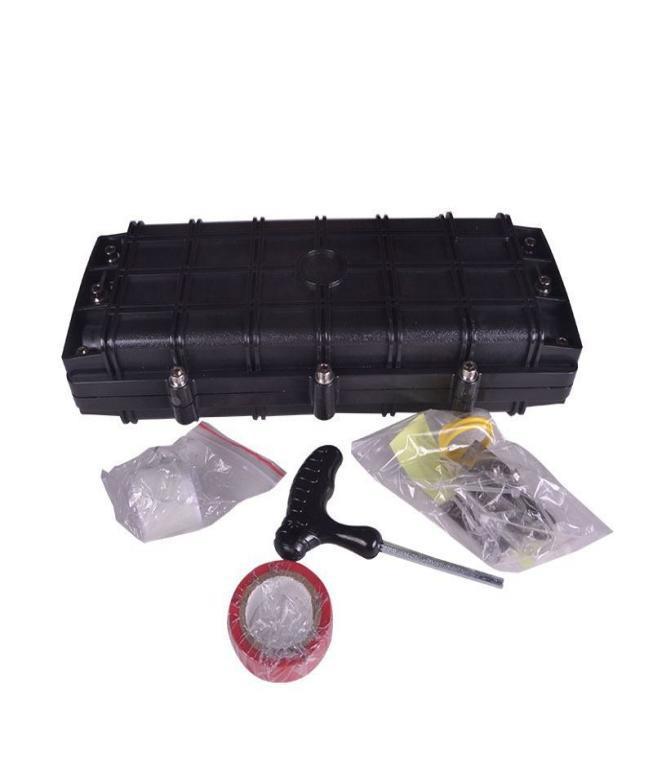

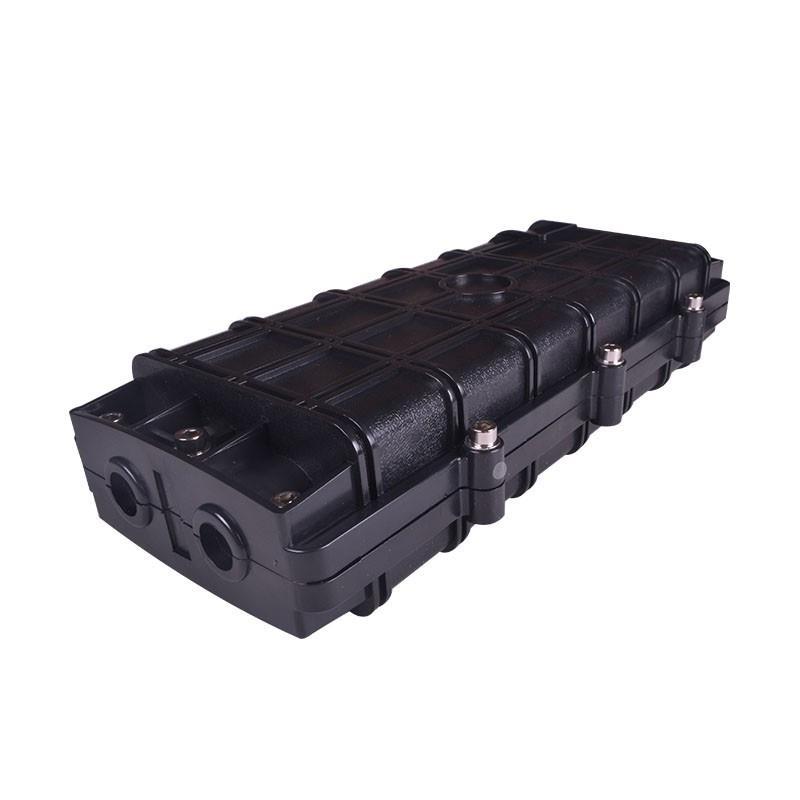

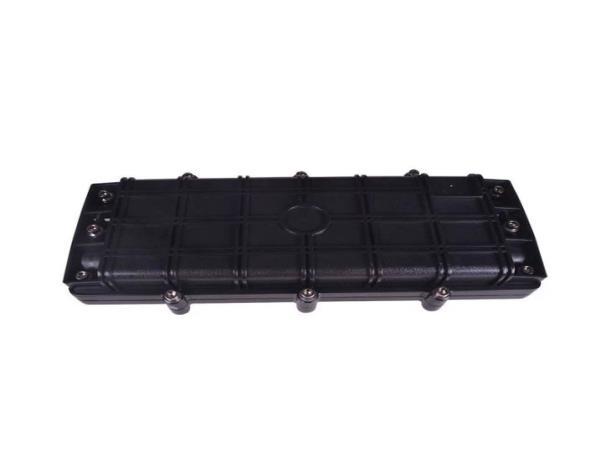

Manufactory Wholesale Fiber Joint Enclosure for Aerial, Underground, and Direct Burial Applications with 96-Core Capacity
Looking for a reliable solution to protect and manage fiber optic splices? The Fiber Joint Enclosure is designed for durability and versatility, featuring an airtight, waterproof design with integrated seals and pressure testing valves. With a maximum capacity of 96 cores and 6 inlet/outlet ports, it’s ideal for aerial, underground, and direct burial applications. Perfect for cable repair and mid-span splicing, this enclosure ensures secure fiber management and easy re-entry.
• Holds up to 96 fibers | • Airtight and waterproof design | • Suitable for aerial, underground, and direct burial | • Easy re-entry and cable management | • Includes pressure testing valve and earthing device
Fiber Optic Splice Closure
Cable Ports：4 Ports
Max.Capacity: 48 Core
Capacity Per Tray: 12 or 24
Fiber Joint Enclosure
Features
Holds up to 96 fibers.
Easy to re-enter
Cable entry/exit ports
Pressure testing valve and earth deriving device
Intergrated seal, air tight and water proof
Ideal for cable repair
Can be used in through, branch or mid span splice locations
Suitable for aerial, underground duct or direct burial applications
Dimension and capacity of Fiber Joint Enclosure
Outside dimension (LxWxH)
Weight (excluding outside box)
390×210×120
1900g-2100g
Number of inlet/outlet ports 6 ports
Diameter of fiber cable
Capacity of FOSC
Φ7 Φ16(mm)
Bunchy: 6 96(Cores)
Ribbon: max. 144 (Cores)

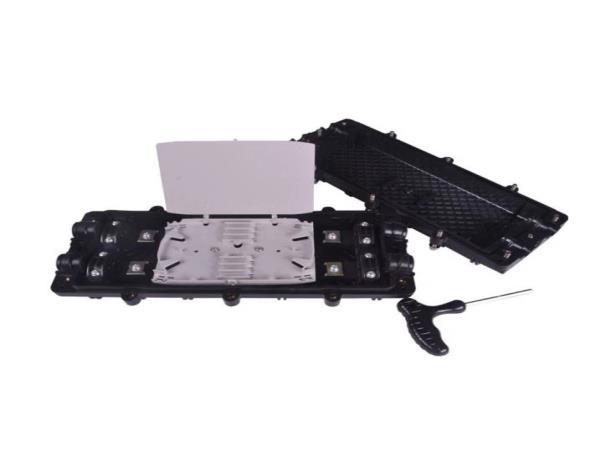

Main components
Name of component s Quantit y Usage Remarks
1 Housing 1 set
Protecting fiber cable splices in whole
Internal diameter: 285x110 (mm)
2 Insert plate 2 pairs Fixing the housing 175x56x30(mm)

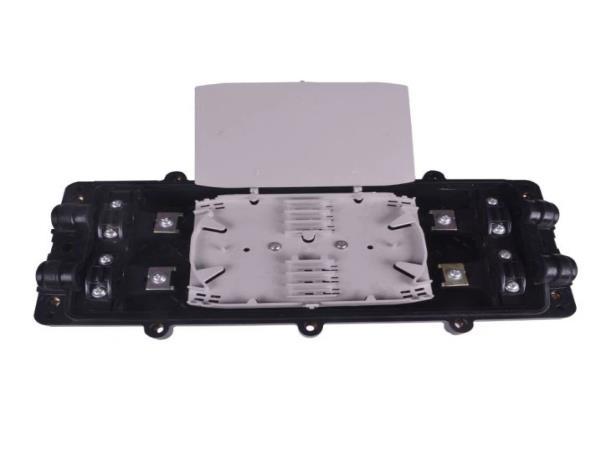

3 Fiber optic splice tray (FOST)
Max. 4 trays (bunchy ) Max. 4 trays (ribbon)
Fixing heat shrinkable protective sleeve and holding fibers
4 Foundation 1 set Fixing fiber cable, reinforced core and FOST
5 Seal fitting 1 set
Sealing between FOSC cover and FOSC bottom
6 Port plug 6 pieces Sealing empty ports
7 Earthing deriving device 1 set
Deriving metallic parts of fiber cables in FOSC for earthing connection
Suitable for: Bunchy: 6,8,12,16,24(cores) Ribbon: 3 (pieces)
Configuration as per requirement
Installation flow chart
1. Open the closure
2. Determine length of fiber cable to be fixed and stripped inside
3. Strip off protective coats of fiber cable and fiber
4. Separate fiber cores and prepare work prior to fixing fiber cable
5. Fix reinforced core and fiber cable
6. Splice fibers
7. Install heat shrinkable protective sleeve and house fibers
8. Check up comprehensively
9. Assemble FOSC housing
10. Fix FOSC
