Manufactory Wholesale ENC3111 Single MPEG2 AVC SD
Encoder for ISDB-T, HDMI, H.264 Broadcasting
Struggling with bandwidth limitations while delivering high-quality video content? The ENC3111 Single MPEG2 AVC SD Encoder combines MPEG-2 and H.264 encoding with ISDB-T ONE-SEG support, ensuring efficient bitrate utilization and superior compression. Ideal for IPTV, Satellite, Cable, and Terrestrial applications, it delivers SD 4:2:0 video at 60FPS with ASI and IP outputs. Certified for DVB/ISDB-Tb compliance, it’s the ultimate solution for broadcasters seeking reliability and performance.
• ISDB-T ONE-SEG support | • MPEG-2 & H.264 encoding | • ASI & IP outputs | • 60FPS frame rate | • DVB/ISDB-Tb certified
◆ ISDB-T ONE-SEG supported
◆ SD MPEG2 and h.264 encoding
◆ Chroma sample: 4:2:0, 60FPS frame rate supported
◆ closed caption and PSI/SI edition supported
◆ Filter Null Packet
Overview
ENC3111 simultaneously encodes video/audio feeds as MPEG-2 and MPEG-4 AVC (H.264) SD 4:2:0, using MPEG-1 Layer-II, LC_AAC, HE-AAC V2 audio compression. Designed to address this ever increasing demand for more video and audio services, and combining compression efficiency features with the latest preprocessing techniques. With efficient bitrate utilization, high reliability and
Contact:Tomleequan Email：sales@fmuser.com whatsapp: +8613922702227
advanced compress arithmetic, it possible to transmit high quality video content at the lowest possible bandwidth. And produce ASI and IP output data streams.

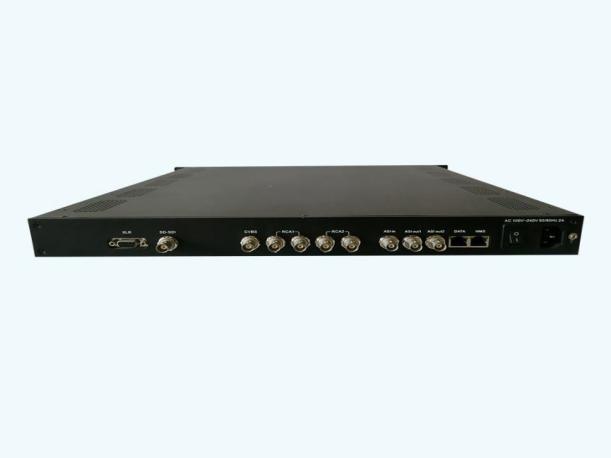

ENC3111 encoders are compatible up to two quality stereo audio channels as either embedded XLR or analog RCA channels inputs. It is a multichannel, multi-service encoder in rack mount, energy-efficient 1-RU chassis. Part of a complete video headend solution, the encoder supports SD channels of constant bitrate (CBR) or variable bitrate (VBR) video using either MPEG-2 or MPEG-4 AVC encoding.
ENC3111 is the most advanced MPEG-2/H.264 SD encoding platform for IPTV, Satellite, Cable, Terrestrial, ISDB-Tb One Seg Applications, allowing customers to enjoy a premium viewing experience.
Features
1 channel Composite, SD-SDI and 2 pairs R/L analog audio and XLR per chassis
Advanced MPEG-2 MP@ML4:2:0 and MPEG-4 AVC 4:2:0 (H.264)
Up to 2 audio stereo channels or 4 mono channels
ASIC technologies which offer broadcast video quality, generally for SD about 2.5mbps (MPEG -2) , 800kbps (H.264) for ultra-low bitrates
MPEG-1 Layer, LC_AAC, HE_AAC V2 audio, encoding
Simultaneous outputs via IP, DVB-ASI
DVB/ISDB-Tb compliance with Low resolution for One-Seg In 300kbps@Video, 32kbps@Audio, 320*240@Res, HE_AAC, Range of encoding of video: 0.25~7Mbps (H.264); 0.5~7Mbps (MPEG-2)
Advanced multiplexing capabilities for cascading and multi-services via ASI input
Simultaneous outputs via SPTS/MPTS over IP
Audio sample rate: 32/44.1/48KHz
Screen ratio: 16:9; 4:3
Management via Web or SNMP and local front panel
VBR/CBR video bitrate Mode
Easy to operate a cost-efficient standalone

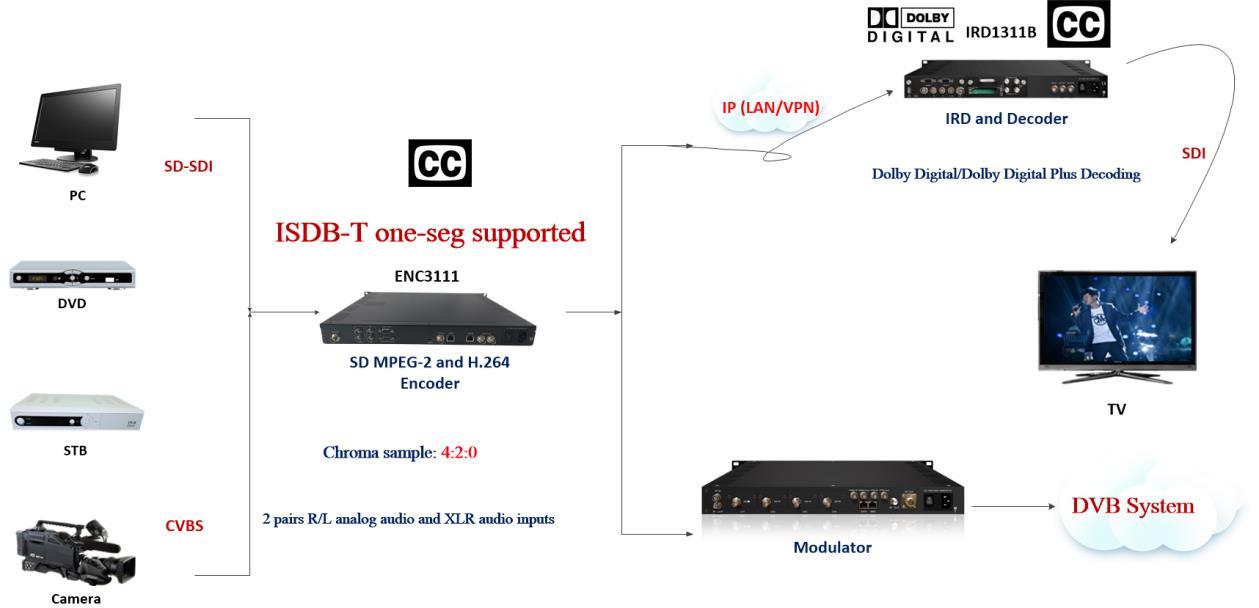

Application
