Manufactory Wholesale DM-06H Digital Modulator HDMI with
AVC/H.264 Encoding for DVB-T ISDB-T DVB-C
Need a reliable solution for signal conversion and modulation? The DM-06H Digital Modulator HDMI integrates MPEG-4 AVC/H.264 encoding and modulation, supporting DVB-T, DVB-C, ISDB-T HD, and CVBS formats. This compact, wall-mountable device efficiently converts analog A/V or HD sources to digital channels, making it ideal for broadcasting, security monitoring, and more. With a 2.4-inch color LCD display, HDMI loop-through, and USB update capability, it ensures stable performance and compatibility across multiple industries.
• MPEG-4 AVC/H.264 encoding | • DVB-T, DVB-C, ISDB-T HD support | • HDMI loop-through | • Compact & wall-mountable | • USB update capability

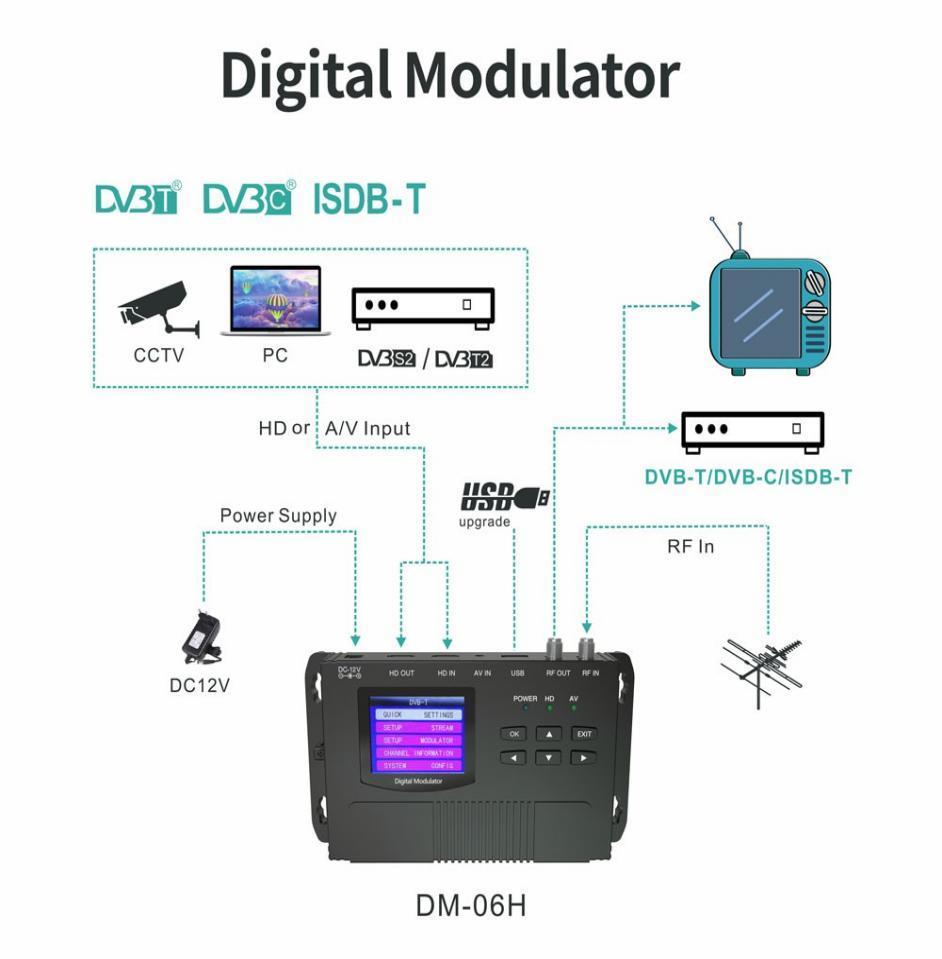

DM-06H digital modulator integrates MPEG-4 AVC/H.264 encoding and modulation, is compatible with a wide range of video formats, and converts analog audio/video sources or HD sources to digital channels.

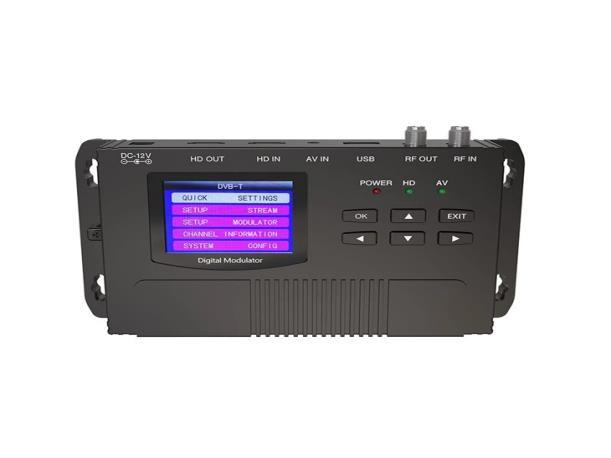

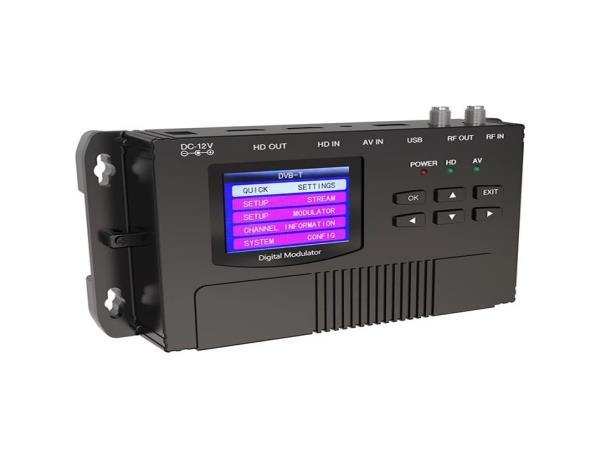

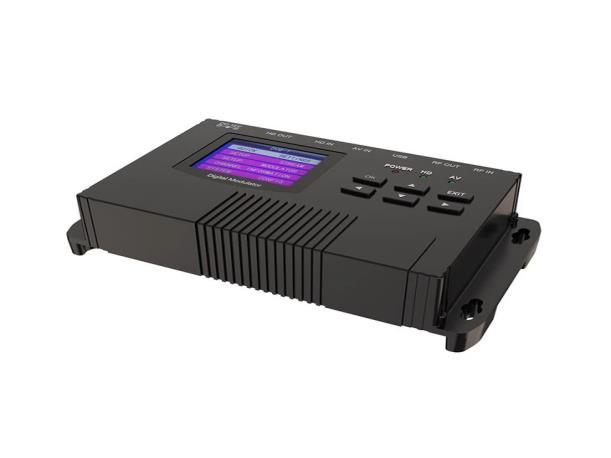

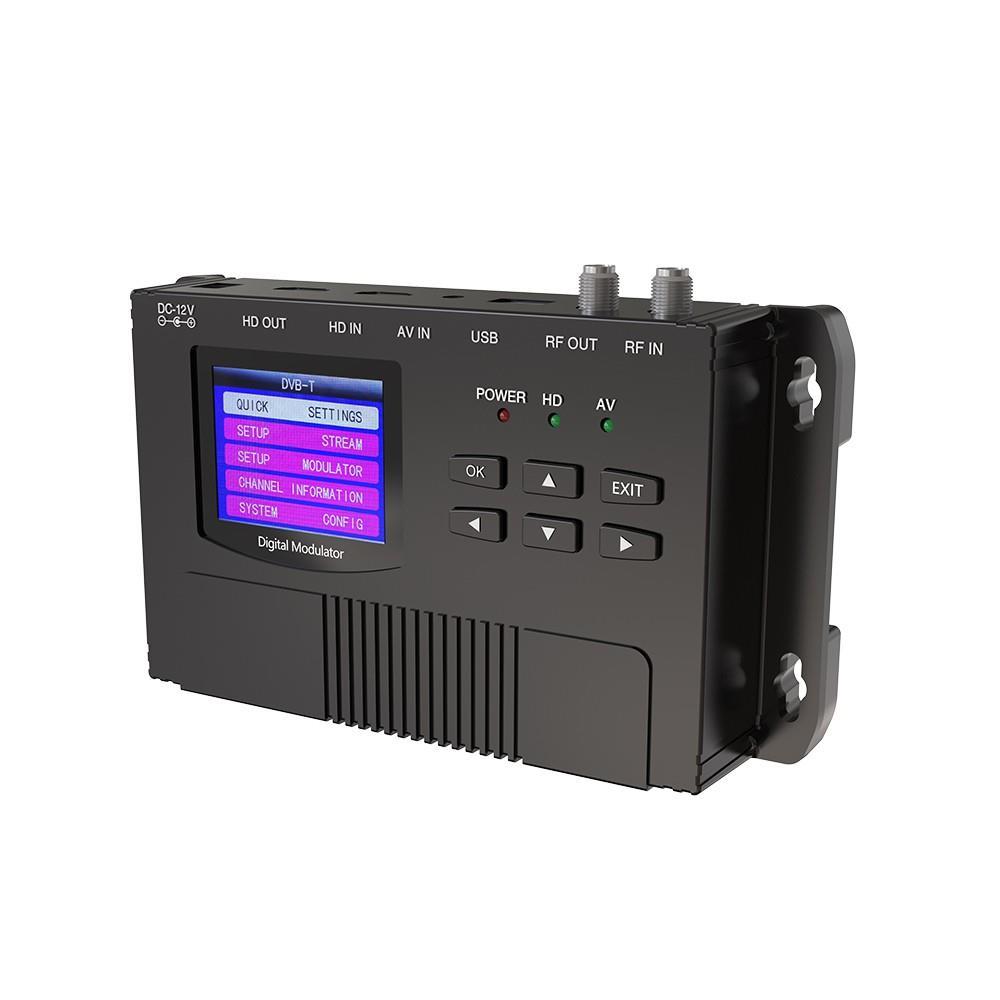

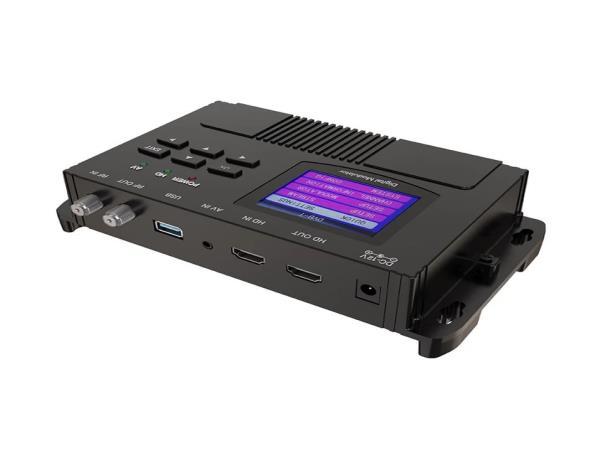

DM-06H DIGITAL MODULATOR HDMI
INTRODUCTION
DM-06H digital modulator with all-in-one functionality. Supports DVB-T, DVB-C, ISDB-T HD and CVBS formats for precise conversion and modulation of various signals. Whether it is radio and television transmission, or security monitoring and other fields, it can efficiently process signals with its excellent compatibility and stable performance, and provide reliable signal solutions for multiple industries.
FEATURES
* Integrating MPEG-4AVC/H.264 encoding and modulating function
* Compatible with multiple video formats
* Single input modulator that converts analogue A/V source or HD source to a digital channel
* 2.4-inch color LCD display
* HDMI Loop Through

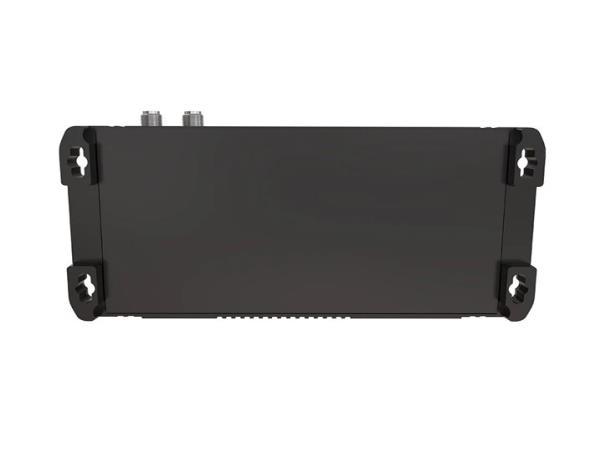

* Compact and wall mountable
HD Encoding
Contact:Tomleequan Email：
Video Encoding MPEG-4AVC/H.264
Resolution
1920*1080p@60,1920*1080p@50,1920*1080i@6 0
1920*10801@50,1280*720p@60,1280*720p@50
Aspect ratio 16:9,4.3
Bit rate 1.000~18.000 Mbps
Audio Encoding MPEG1 Layer Ⅱ
Sample rale 48KHz
Bit rate 64,96,128,192,256,320kbps
CVBS Encoding
Input PAL,NTSC
Modulation
DVB-T
S0A.
DVB-C
Standard DVB-T COFDM
Bandwidth 6M,7M,8M
Constellation QPSK,16QAM,64QAM
Coderate /2,2/3,3/4,5/6,7/8
Guard interva 1/32,/16,1/8,1/4
TransmissionMode 2K,8K
Standard ARIB STD-B31
Bandwidth 6M,7M,8M
Constellation QPSK,16QAM,64QAM
Transmission Mode 2K,4K,8K
Standard EN 300429
Constellation 16/32/64/128/256 QAM
Symbol Rate 2~7Msps
Contact:Tomleequan Email：sales@fmuser.com whatsapp: +8613922702227
