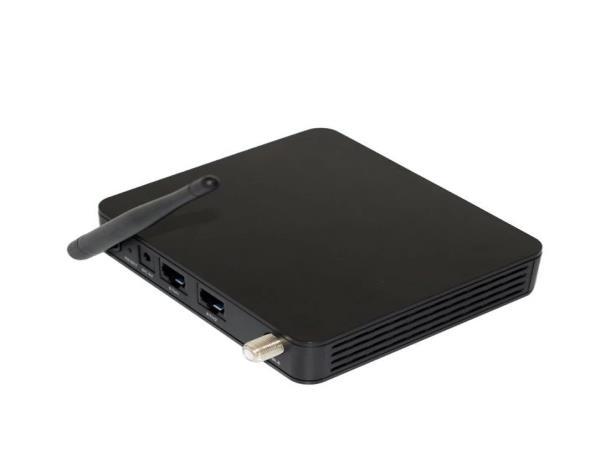

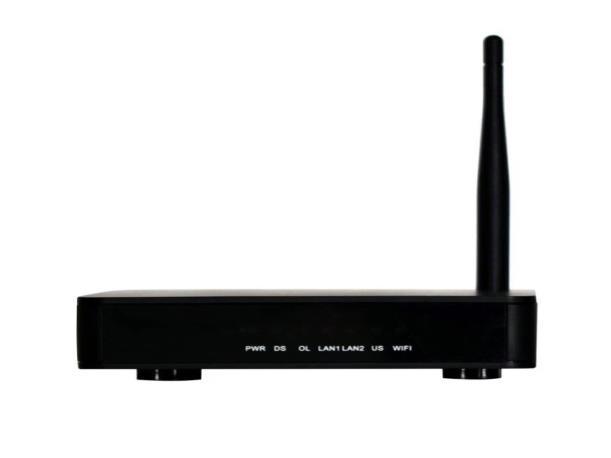

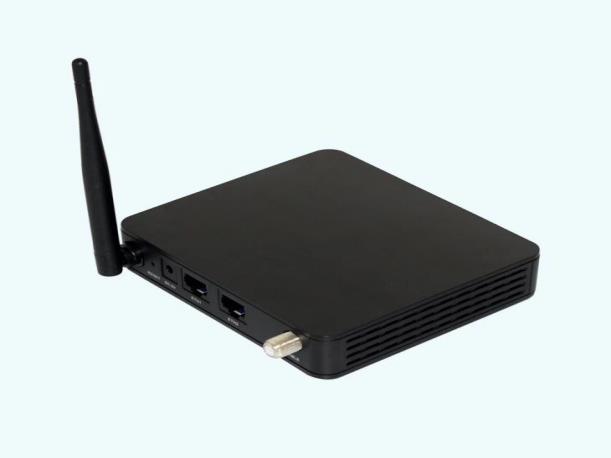

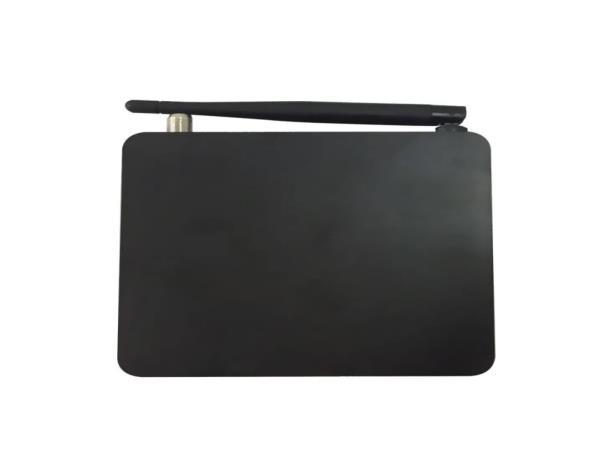

DB-CM212 DOCSIS 2.0 Cable Modem
<Manufactory Wholesale for High-Speed Internet & IP Transmission>(Struggling with slow internet speeds and unreliable connections? The DB-CM212 DOCSIS 2.0 Cable Modem is your solution, designed to meet C-DOCSIS and European DOCSIS 2.0 standards. This compact yet powerful modem ensures seamless IP packet transmission between the front end and user end, making it ideal for broadband internet and cable network applications. With a downstream frequency range of 108MHz to 860MHz and upstream frequency of 5 to 65MHz, it supports advanced modulation schemes like 64QAM, 256QAM, and 1024QAM. Its 10/100BASE-T RJ45 Ethernet port ensures adaptive connectivity, while its 132x132x36mm design fits seamlessly into any setup. Trusted by system integrators and engineers, the DB-CM212 delivers reliability and performance, backed by DOCSIS 2.0 certification. | Compact Design | High-Speed Transmission | DOCSIS 2.0 Compliant | Adaptive Ethernet Port |)
The definition is according to CDOCSIS standard, meet europe DOCSIS
2.0/DOCSIS 2.0 ● 1x10/100BASE-T RJ45 ethernet adaptive port,1 RF input ●
Compact design:132x132x36mm
Overview
DOCSIS system include CMTS(Headend cable network ) and CM(user end). The main function of DOCSIS Cable Modem system is transparently transmitting IP packets between the front end and the user end.
After the Modem Cable power, the downlink frequency of the front end is automatically searched, and the downstream frequency is found, the uplink channel is determined from the downlink data.CMTS is connected with the front-end device, and exchange information, including the upstream level, the Dynamic Host Configuration Protocol (DHCP) and the IP address of the small file transfer protocol (TFTP) server, etc.Modem Cable has online features, even if the user does not use, as long as the power is not cut off, and the front end always to maintain the exchange of information, the user can always on-line.Cable moderm has memory function, when the power is powered up, the data before the power storage are exchanged with the front data , and can quickly complete the search process.
Features
◆The definition is according to C-DOCSIS standard, meet europe DOCSIS
2.0/DOCSIS 2.0
◆1x10/100BASE-T RJ45 ethernet adaptive port,1 RF input
◆Compact design:132x132x36mm
◆Downstream frequency is 108MHz to860MHz,64QAM,256QAM and 1024QAM
◆Upstream frequency is 5 to 65MHz, QPSK,8/16/32/64/128/256QAM
