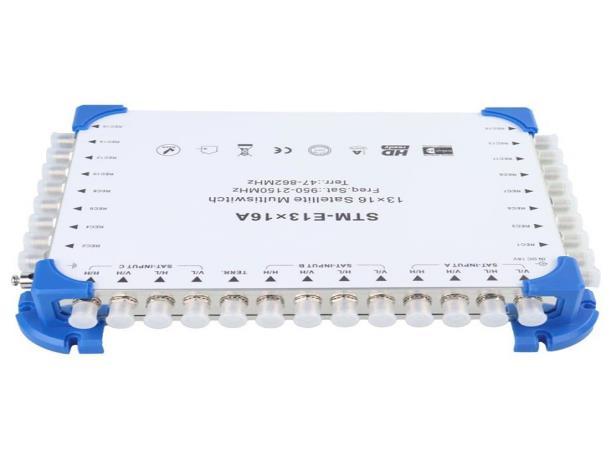

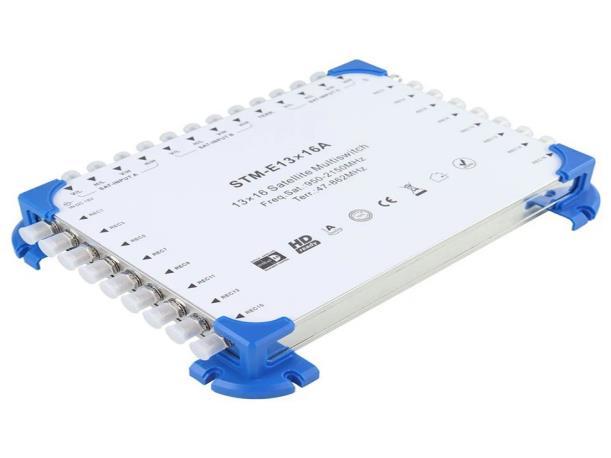

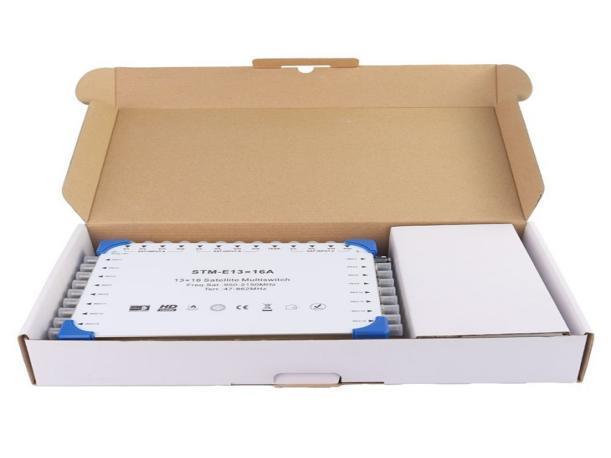

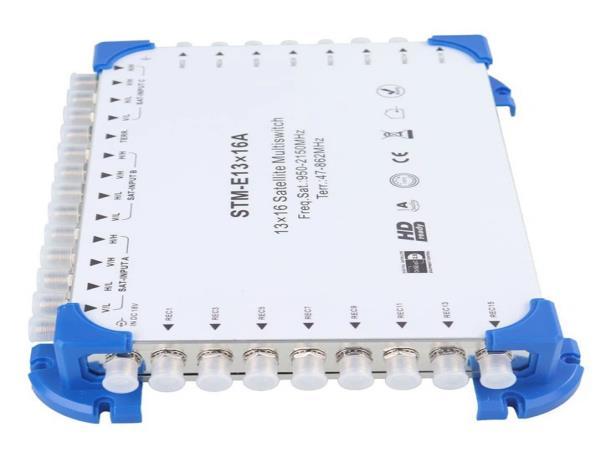

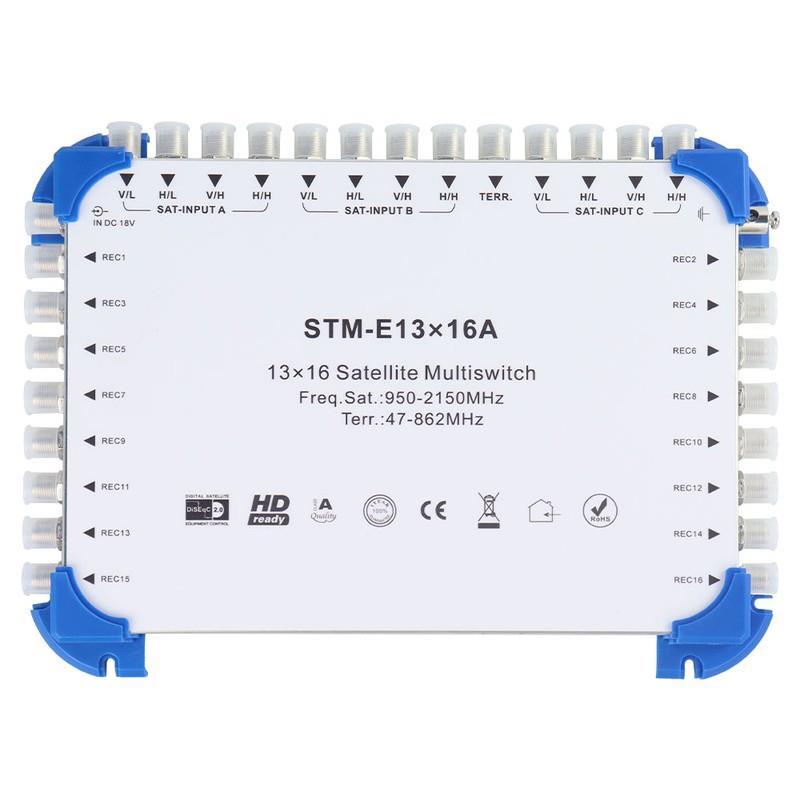

Manufactory Wholesale CM1316E 13×16 Multiswitch for
Satellite TV with 12 SAT IF Inputs and Built-in Amplifier
Looking for a reliable solution to manage multiple satellite and terrestrial TV signals? The CM1316E 13×16 Multiswitch offers 12 satellite IF inputs and 1 terrestrial TV input, supporting up to 16 satellite receivers. With built-in amplifiers, low insertion loss (0dB SAT, 5dB Terr.), and high isolation (35dB LNB-LNB), this device ensures optimal signal quality. Ideal for indoor installations, it features a robust sheet metal housing and supports DisEqC 2.0 signals. Perfect for residential and commercial satellite TV systems.
• 12 SAT IF + 1 Terr. TV inputs | • Supports 16 satellite receivers | • Built-in amplifier |
• Low insertion loss & high isolation | • DisEqC 2.0 signal support
CM1316E indoor 13×16 satellite multi-switchgear has 12 satellite IF inputs and 1 terrestrial TV input, supports 16 satellite receivers, built-in amplifiers, low insertion loss, high isolation and return loss. 13 in 16 out Multiswitch for Satellite TV
Features
■ 12 satellite IF and 1 terrestrial TV inputs for 16 satellite receiver
■ 12 satellite IF inputs selected by 13V ,18V 22KHz and DisEqC 2.0 signal
■ Built-in amplifier
■ Low insertion loss, high isolation and return loss
Contact:Tomleequan Email：
■ SAT-IF-PATHs to the subscribers are active and supplied by the receiver
■ Sheet metal housing with plastic holder
■ Design good for indoor usage
Parameters
Item Specifications Remark
Frequency Range
Inputs
Stop band attenuation
Terr.:47~862MHz SAT:950~2150MHz
SAT Output level
100dBμV @35dB IMA3,EN50083-3
Terr. Output level 85dBμV @60dB IMA3,EN50083-5
Switching Voltage
V:10~14.5V H:15~20V

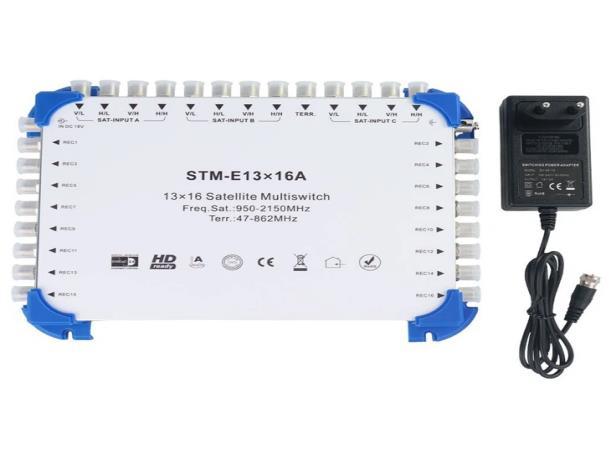

Power supply IN:90~264V OUT:18V 2500mA
Dimensions (w,d,h) 298×208×42 mm
