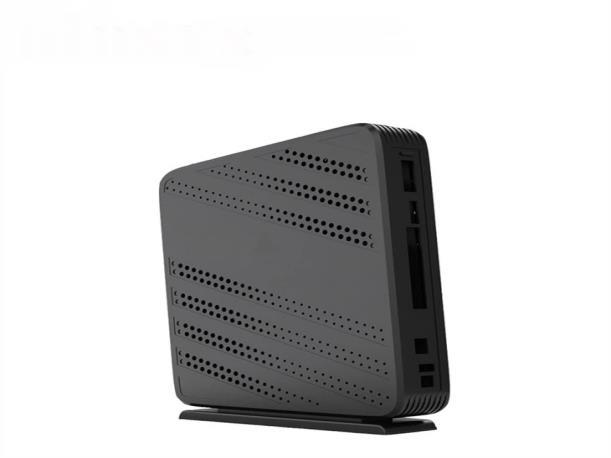

CG445 DOCSIS 3.1 Cable Modem
<Manufactory Wholesale DOCSIS 3.1 Cable Modem CG445 with OFDM & SC-QAM for High-Speed Data Services>(Struggling with slow internet speeds and outdated cable modem technology? The offers a cutting-edge solution with OFDM and SC-QAM channel bonding, ensuring seamless high-speed data transmission. Backward compatible with DOCSIS/EuroDOCSIS 3.0/2.0/1.1/1.0, this modem is ideal for Multiple Service Operator networks, delivering up to 2x192 MHz OFDM downstream and 32x8 SC-QAM channel bonding. Certified for DOCSIS 3.1 compliance, it’s a reliable choice for both residential and small office environments. • 2x192 MHz OFDM Downstream | 32x8 SC-QAM Channel
Bonding | DOCSIS 3.1 Compliant)
The model CG445 product is designed with state-of-the-art DOCSIS/EuroDOCSIS 3.1, as well as backward compatible to all existing DOCSIS 3.0/2.0/1.1/1.0 head-end equipment under Multiple Service Operator networks. DOCSIS system include CMTS (Headend cable network ) and CM (user end). The main function of DOCSIS Cable Modem system is transparently transmitting IP packets between the front end and the user end.
The model CG445 product is designed with state-of-the-art DOCSIS/EuroDOCSIS 3.1, as well as backward compatible to all existing DOCSIS 3.0/2.0/1.1/1.0 head-end equipment under Multiple Service Operator networks. In OFDM mode, it support 2*2 channel bonding technology, and in SC-QAM mode, it support 32*8 channel bonding technology. DIBSYS cable modem provides a cost-effective solution which delivers high-speed and bi-directional data services.
The model CG445 product cover from low-end Four Giga Ethernet port model to high-end with integrated optional Wi-Fi feature, DIBSYS offer a one-stop solution to satisfy customers all kinds of demands. It not only play as cable modem feature, some models with built in Wi-Fi Router function are even capable to work as
Residential Gateway in your home or small office and offer excellent bandwidth to all your Internet-capable devices.
Features
l DOCSIS 3.1 Compliant; Backward compatible with DOCSIS/EuroDOCSIS 3.0
l Switchable Diplexer for upstream and downstream
l 2x 192 MHz OFDM Downstream reception capability
Ø 4096 QAM support
l 32x SC-QAM (Single-Carries QAM) Channel Downstream reception capability
Ø 1024 QAM support
l 2x 96 MHz OFDMA Upstream transmission capability
Ø 4096 QAM support
l 8x SC-QAM Channel upstream transmission capability
Ø 256 QAM support
Ø S-CDMA and A/TDMA support
l FBC (Full-Band Capture) Front End
Ø 1.2 GHz Bandwidth
l 4x Gigabit Ethernet Ports
l 1x USB3.0 Host, 1.5A limitation (Typ.) (Optional)
l Wireless networking on-board:
- IEEE 802.11n 2.4GHz (3x3)
- IEEE 802.11ac Wave2 5GHz (4x4)
l 2x FXS Ports for Phone (Optional)
l SNMP and TR-069 remote management
l Dual stack IPv4 and IPv6
