Manufactory Wholesale Centralization Barostat Power
Supply for Outdoor Applications with Field Optional Output
Voltages
Dealing with voltage fluctuations and heavy load networks? The Centralization Barostat Power Supply offers robust performance with features like current-limited output, short-circuit protection, and field-selectable output voltages. Designed for outdoor use, its powder-coated enclosure ensures durability in harsh environments. Ideal for pole and wall mount installations, it supports input voltages from 100VAC to 240VAC and operates efficiently in temperatures ranging from -40°C to 55°C.
• Current-limited output & short-circuit protection | • Field-selectable output voltages | • Powder-coated enclosure for outdoor use | • Pole & wall mount installations | • Operates in -40°C to 55°C
Current limited output and short-circuit protection
Field optional output voltages
Powder coated enclosure for outdoor applications
Pole & wall mount installations

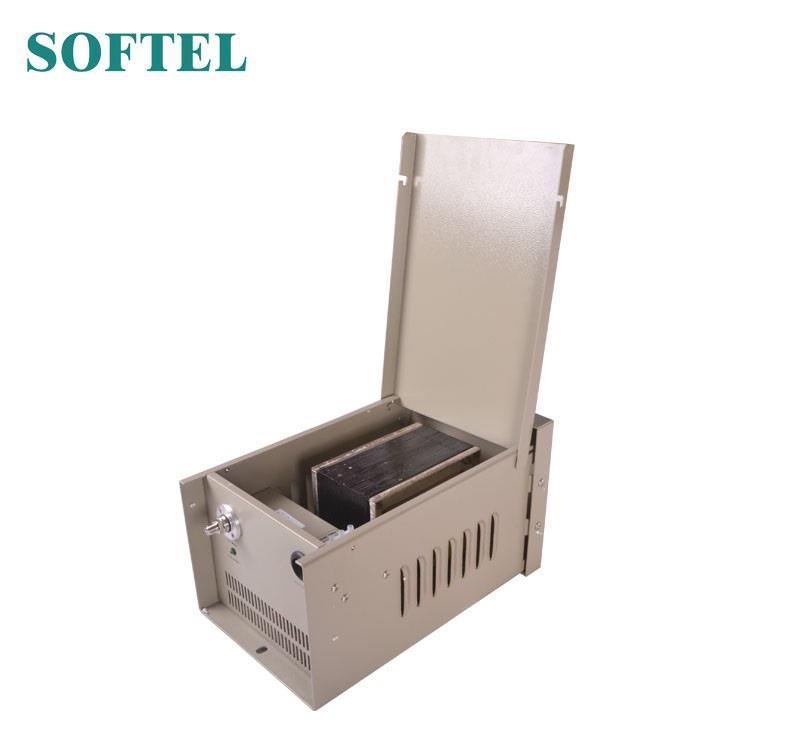

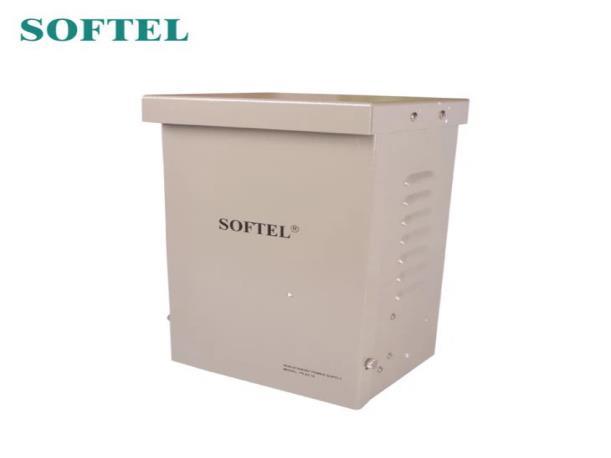

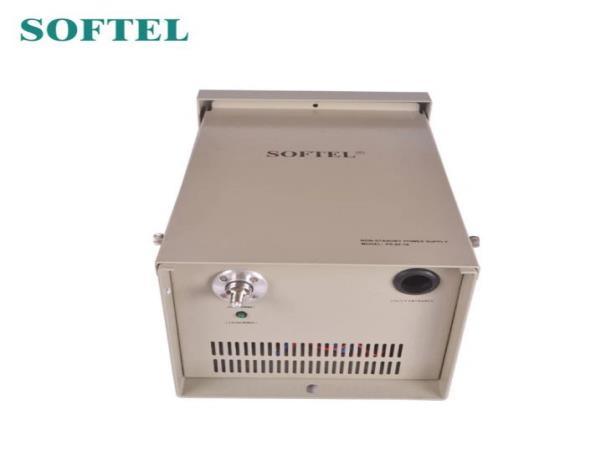

SOFTEL centralization barostat power supply adapts pressed cold rolled plate, anti-corrosion, anti-static, waterproof processing and anti-thunder. Moreover, it with cost-performance and especially used for large voltage fluctuation and heavy load network.
Features
High performance linear transformer (lamination)
Input and output protection, lightning surge protection
Current limited output and short-circuit protection
Field optional output voltages
Powder coated enclosure for outdoor applications
Pole & wall mount installations
5/8” female output connection
Easy reading ammeter
Durable LED indicator
* This feature is only available on certain models.
Specifications of Centralization Barostat Power Supply
1.Input voltages of 100VAC 60Hz, 110VAC 60Hz, 115VAC 60Hz, 120VAC 60Hz, 220VAC 60Hz,
2.230VAC 50Hz and 240VAC 50Hz are available also. Please contact us directly for details.
3.Output voltage of the model is field selectable. 4. Both input voltage and output voltage can be customized. Please contact us for details.
Input
Output
Mechanical
Power factor
>0.90 at full load
Waveform Sine wave
Protection
Current limited , 150% of max. current rating
Efficiency ≥80%
Input connection Terminal block
Output connections 5/8” female and/or terminal block
Finish
Material
Power coated
Cold rolled steel plate
Dimensions 335x217x190mm, 13.2”x8.5”x7.5”
-40°C to 55°C / -40°F to 131°F Operating
0 to 95% non-condensing
