16-Channel SAW Filtered Frequency Agile Modulator for 860MHz CATV Systems
Looking for a reliable solution to streamline your CATV headend operations? The Agile Modulator CATV 16 is a 4RU rack-mounted chassis designed to house up to 16 high-quality SAW filtered frequency agile modulators, covering a broad frequency range of 45-860MHz. Its built-in active combiner eliminates unnecessary cabling, ensuring high output levels and reducing connection issues. With low out-of-band noise, it’s perfect for adjacent channel headends. Ideal for broadcast, hospitality, and educational institutions, this modulator offers flexible channel configuration, non-volatile memory, and a two-digit LED display for quick channel identification.
• 16-channel capacity | • Full frequency agility | • Built-in active combiner | • Low out-of-band noise | • Non-volatile memory | • Two-digit LED display

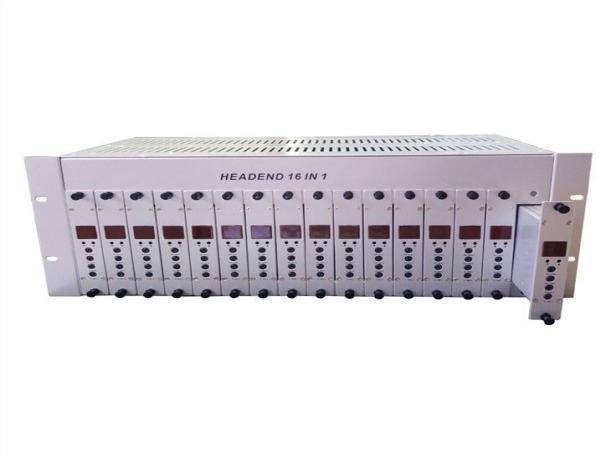

Agile modulator catv 16 is a 4RU rack mounted chassis that allows for installation of up to 16 pieces high quality SAW filtered frequency agile modulators covering 860MHz.
Agile modulator catv 16
Agile modulator catv 16 is a 4RU rack mounted chassis that allows for installation of up to 16 pieces high quality SAW filtered frequency agile modulators covering 860MHz. Built-in active combiner eliminates unnecessary cabling and potential connection problem and ensures high output level. Low out-of-band noise makes it ideal in adjacent channel headend.
Contact:Tomleequan
FEATURES of Agile modulator catv 16
1. Full frequency agility allows the rapid creation of channel lineups
2. Each channel is completely independent. Channel configuration is flexible
3. Two cooling fans for heat-sinking prolong service life
4. None-volatile memory ensures channel programming remains after power loss
5. Two-digit LED display provides quick channel identification
6. Available in NTSC or PAL configurations
Specification of Agile modulator catv 16 Chassis
(Fully Loaded) Dimension
* 17 *20 cm Net Weight
KG (Fully Loaded)
Shipping Weight 3.7 KG (Chassis Only)
KG ( Fully Loaded)
Carton Size
Modulator Card RF Output Frequency
* 30 * 24 cm
~ 860 MHz Output Level
dBµV (Adj.) Output Connector F Connector A / V Ratio -11 ~ -18 dB (Adj.)
Frequency Stability ±5KHz
Video Input Level 0.6-1.5Vp-p (87.5% Modulation)
Video Input Connector Yellow RCA
Audio Input Level 1Vp-p (25KHz Dev.)
Audio Input Connector White RCA
GENERAL Voltage DC 5V

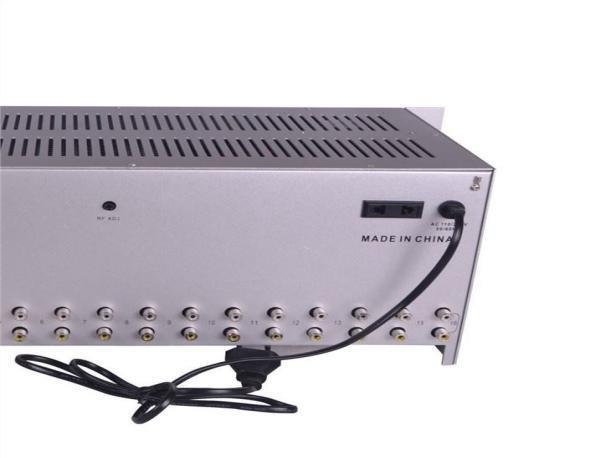

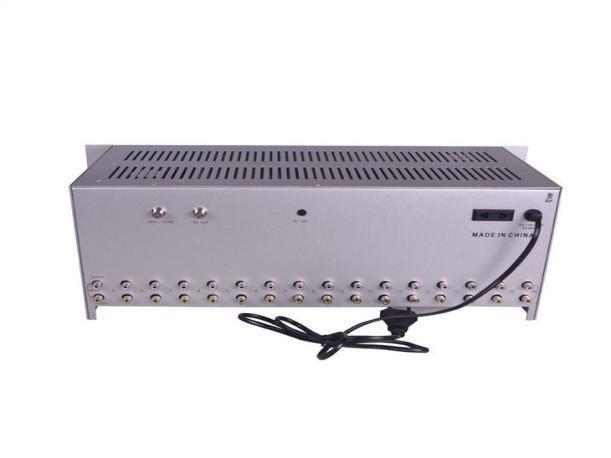

1. VIDEO & AUDIO INPUT
Feed the video and audio signal into each modulator card
2. TEST POINT
Output level read at this point will be down 20dB from the actual output
3. RF OUTPUT
16 modulated CATV signals at 105 dBµV maximum output is provided at this port
4. RF OUTPUT ADJ.
Adjustment for the combiner output level at the RF OUTPUT. The control is adjustable over an 8dB range. Turn clockwise to increase output level
Contact:Tomleequan
