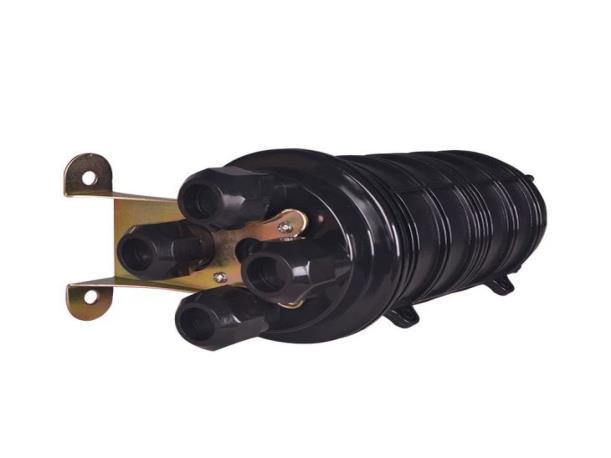

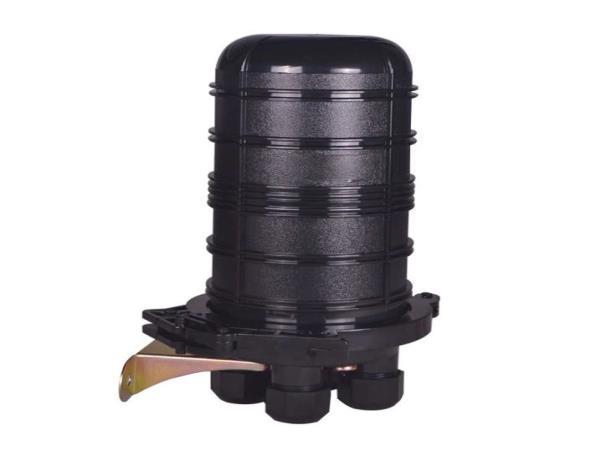

Manufactory Wholesale 6 Cores Fiber Optic Splice Closure
Dome with 4 Outlet Ports for Aerial and Underground Applications
Need a reliable solution for fiber optic splice protection in harsh environments? The Joint Closure Box is designed for durability and versatility, featuring 4 outlet ports and compatibility with fiber cables ranging from Φ8mm to Φ16mm. Ideal for aerial, underground, pipeline, and hand-hole installations, it operates seamlessly in temperatures from -40℃ to 65℃. With a robust design and a capacity of 4-48 cores, this closure box ensures secure and efficient fiber management.
• 4 outlet ports for flexible cable routing | • Compatible with Φ8mm~Φ16mm fiber cables | • Suitable for aerial, underground, and pipeline installations | • Temperature range: -40℃ to 65℃ | • Supports 4-48 fiber cores
JointClosureBox suits for theFiber OpticSpliceClosure(Hereafter abbreviatedas FOSC), as the guidance of proper installation. The scope of application is: aerial, underground, pipeline, hand-holes. The ambient temperature ranges from -40℃ to 65℃.
Specifications
Outside dimension (Height x Diameter)
288mm×178mm
Weight (excluding outside box) 1800g 1910g
Number of inlet/outlet ports
4 pieces
Diameter of fiber cable Φ8mm~Φ16 mm
Capacity of FOSC Bunchy: 4-48 (cores)

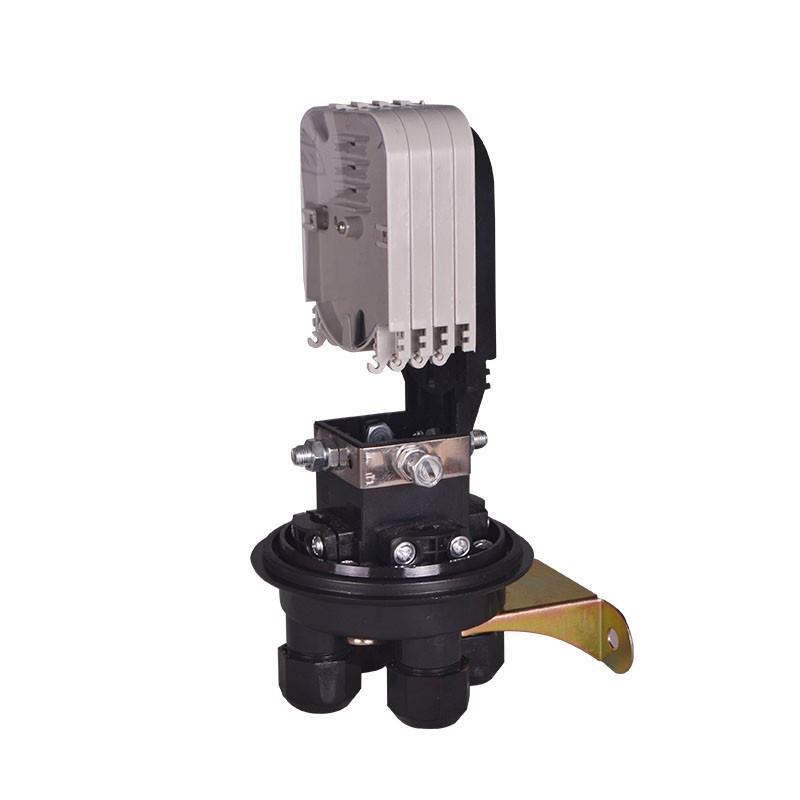

Main components of Joint Closure Box
No. Name of components
1 FOSC cover 1 piece
2
Fiber optic splice tray (FOST)
Max. 4 trays (bunchy)
Protecting fiber cable splices in whole
Fixing heat shrinkable protective sleeve and holding fibers
3 Fiber holding tray 1 pcs Holding fibers with protective coat
4 Base 1set Fixing internal and external structure
5 Plastic hoop 1 set Fixing between FOSC cover and base
6 Seal fitting 1 piece Sealing between FOSC cover and base
7 Pressure testing valve 1 set
8 Earthing deriving device 1 set
Main accessories and special tools
After inject air, it is used for pressure testing and sealing testing
Deriving metal parts of fiber cables in FOSC for earthing connection
Remarks
Height x Diameter
208mm x 132mm
Suitable for: Bunchy:4,6,8,12,(cores)
Configuration as requirement
Configuration as requirement
9 Insulation tape 1 ring
Buffer tube decided by customer s
Hitched to fibers and fixed with FOST, managing buffer.
Configuration as per requirement 12 Desiccant 1 bag
Put into FOSC before sealing for desiccating air
