Manufactory Wholesale 40Channel H.264 IPTV Transcoder
for DVB-T ISDB-T HDMI H264 Multi-Format Streaming
Struggling with seamless video streaming across diverse devices and networks? The 40Channel H.264 IPTV Transcoder delivers exceptional picture quality with dynamic, frame-accurate transitions, ensuring flawless playback in any network condition. This high-density 1-RU platform supports 40SD, 20720p, or 12Full HD streams simultaneously, converting HD/SD streams to H.264 or MPEG-2 formats with flexible bitrate and resolution options. Ideal for Terrestrial, Satellite, Cable, and IPTV networks, it features advanced stream adaptation tools like deinterlacing, video scaling, and frame rate conversion. Certified for secure 24365 operation, it’s the ultimate solution for broadcasters, system integrators, and service providers.

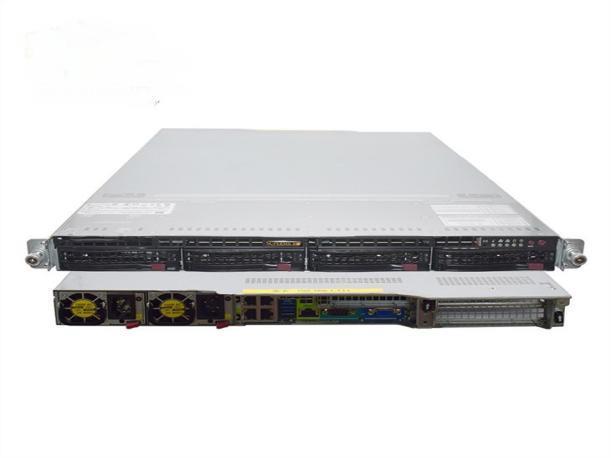

• High-density 1-RU platform | • Multi-format transcoding | • Support for RTMP, HLS, UDP, RTP/RTSP | • Real-time preview and configuration |
• Secure 24365 operation
This transcoding system flexible enough to adapt content to any common device's network or streaming protocol. Each video stream is fully synchronized, to deliver exceptional picture quality in any network condition with dynamic, frame accurate and seamless transition between profiles on the viewer's screen.

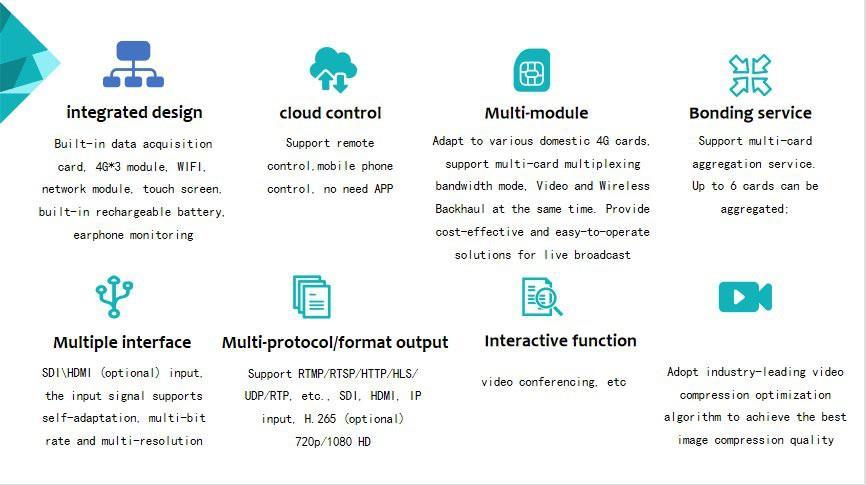

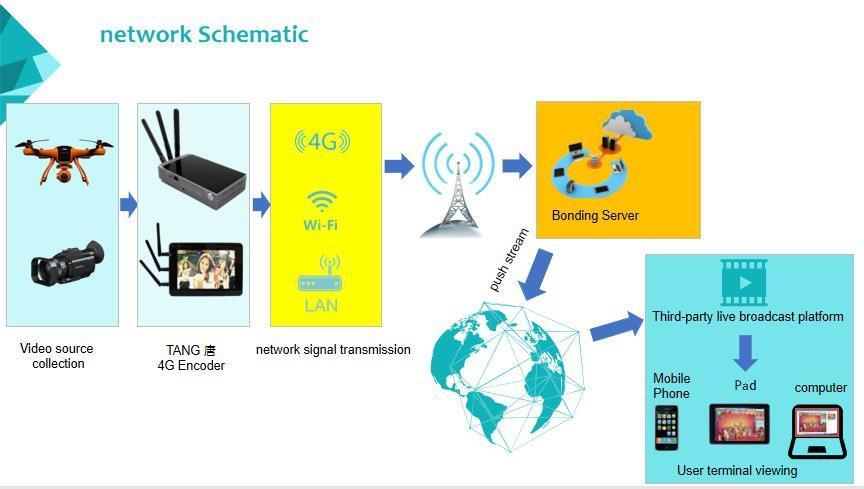

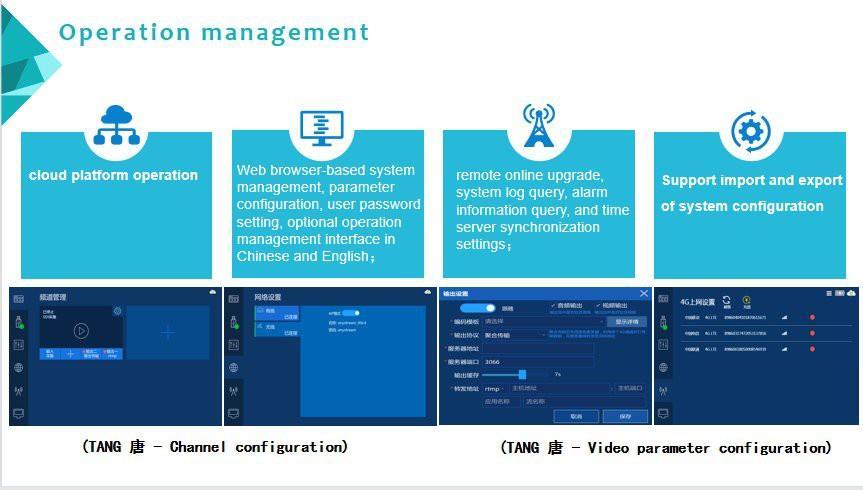

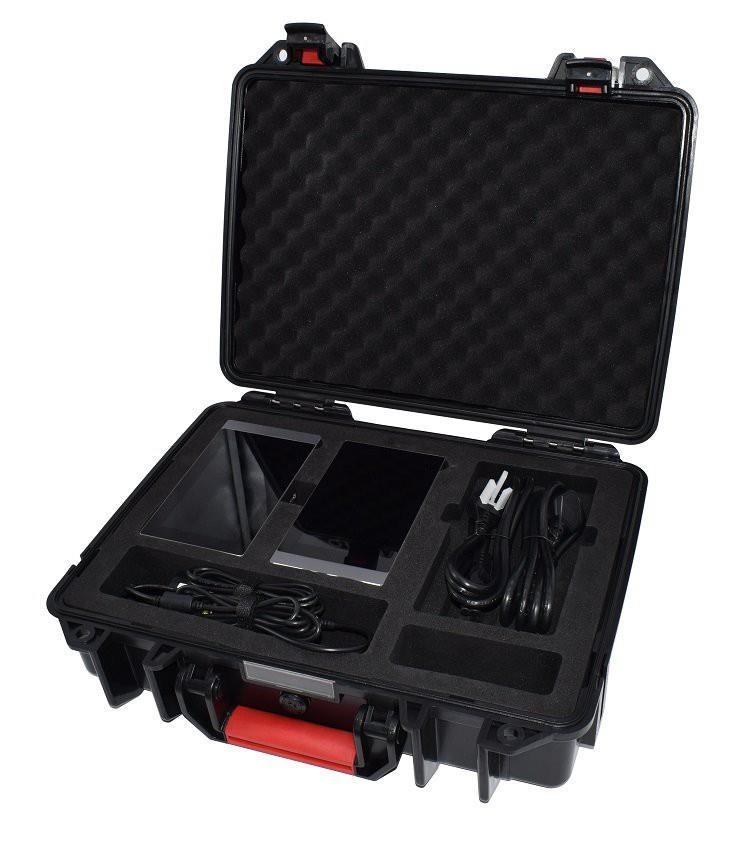

TANG 唐, 4G Encoder adopts advanced video processing technology (CPU + GPU), has complete cloud control function. It supports interactive applications (connected microphone, video conferencing, etc.). With H.264/H.265 encoding and 5.5-inch capacitive screen, TANG 唐, 4G Encoder comes with local operation and video preview, mobile phone operation, and truly provide broadcast quality.
Configuration and Features
input
HDSDI/HDMI/ audio supports analog, digital SDI, HDMI embedded audio mode
Network stream, local video, the user can flexibly choose the input interface method according to the actual application scenario
output
IP output;
multi-screen output function, support a variety of terminals (iPhone, iPad, Android, etc.)
multiple streaming media protocols: UDP, RTP, RTSP, RTMP, HTTP, HLS
CBR, VBR, ABR
adaptive multi-bit rate and other multi-format output
For the same input program source, different resolutions, bit rates and package formats can be output separately
GOP alignment
Video
H264,H.265
Aspect ratio: 4:3, 16:9, 1:1, auto mode
Contact:Tomleequan Email：sales@fmuser.com whatsapp: +8613922702227
Contact:Tomleequan Email：
Resolution: QCIF~HD multi-resolution
Support automatic detection of scene switching
video bit rate is adjustable from 100k to 20M
B frame is adjustable
Adjustable GOP interval
Support image scaling
CBR, VBR, ABR
Frame rate adjustable
Support for de-interleaving
Audio
Encoding format: AAC
Support mono, dual channel, stereo
audio bit rate is adjustable from 8kbps to 448kbps
sampling rate is adjustable from 8KHZ to 48KHZ
volume adjustable
Support audio self-gain processing
