Manufactory Wholesale 3 Out Dome Fiber Optic Splice
Closures for Cable Repair, 48 Fibers, Air Tight & Waterproof
Need a reliable solution for fiber optic cable repair and protection? The 3 Out Dome Fiber Optic Splice Closures offer an integrated seal design, ensuring airtight and waterproof performance, ideal for harsh environments. With a capacity of up to 48 fibers, it supports both ordinary and ribbon fibers, enabling direct and bifurcated jointing. Perfect for telecom and network infrastructure, it operates seamlessly in temperatures ranging from -40°C to +60°C and withstands extreme conditions like 1000N axis pull and 16N steel ball strikes.
• Holds up to 48 fibers | • Integrated seal, airtight & waterproof | • Ideal for cable repair
| • Full accessories for convenient operations | • Mechanical sealing structure
1.Holds up to 48 fibers.
2.Intergrated seal, air tight and water proof
3.Ideal for cable repair
4.Full accessories for convenient operations.

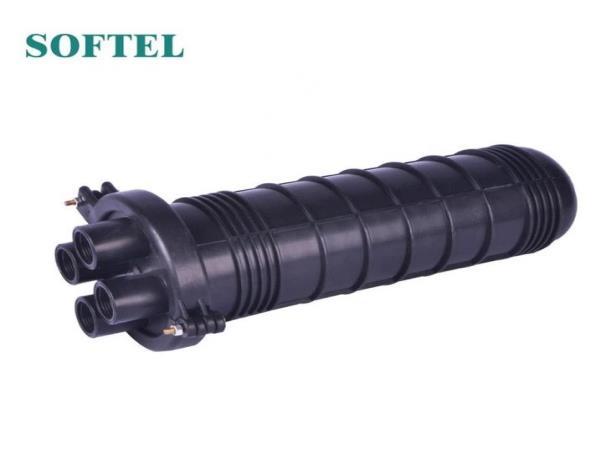

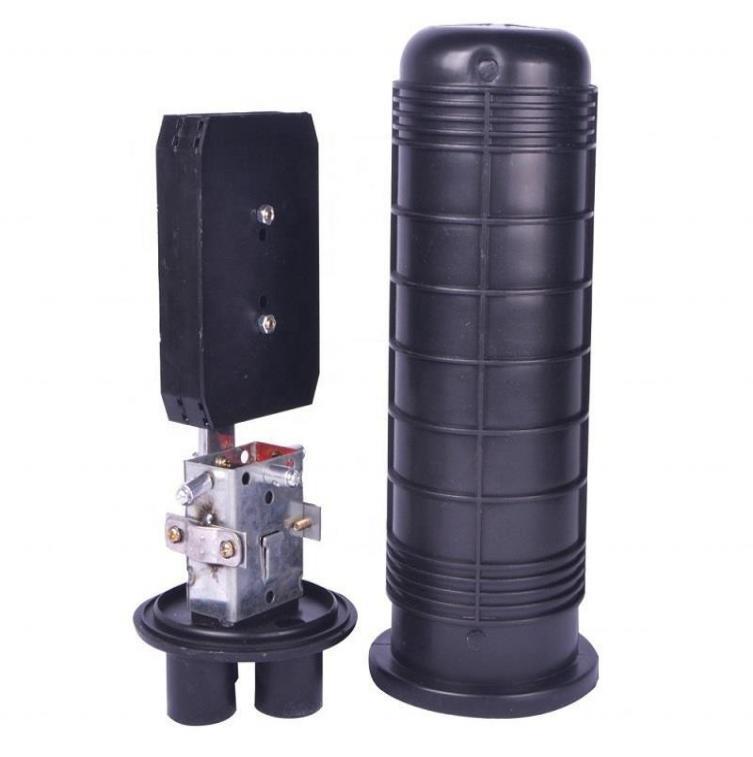

3 out Dome Fiber Optic Splice Closures FOM-G is suitable for ordinary fiber and ribbon fiber. It allows for direct jointing and bifurcated jointing.
Features
1.Holds up to 48 fibers.
2.Intergrated seal, air tight and water proof
3.Ideal for cable repair
4.Full accessories for convenient operations.
Parameters of 3 out Dome Fiber Optic Splice Closures
D×H: φ190×305MM

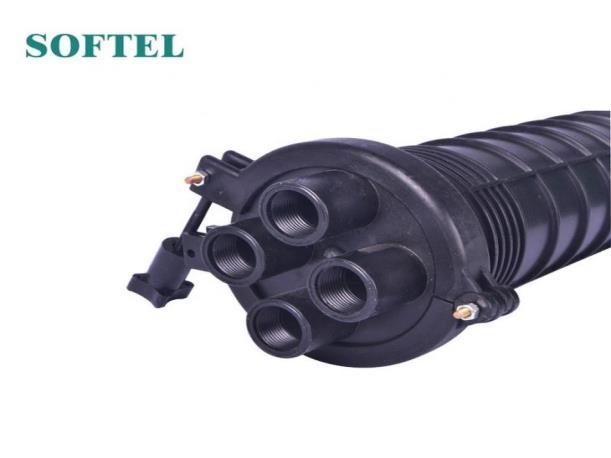

Cable ports: 4 ports
Cable Diameter: Max φ17
Max.Capacity (bunchy fiber): 48
Core capacity per tray: 6 12
Sealing structure: Mechanical Sealing
Anti-draught
Anti-strike
Contact:Tomleequan Email：
After enclosure sealing, internal pressure 0.1Mpa is to endure 1000N axis pull. No air leaking and anti-damage.
16N steel ball falls from 1m high onto the enclosure three times,not being broken down and has no flying arc.
Airproof Air pressure of connector box after sealing up to 0.1Mpa, dipped in normal temperature water for 15min,no bubble appears.
Insulated resistance
2*104MΩ insulated resistance between metal components and ground linked parts.
