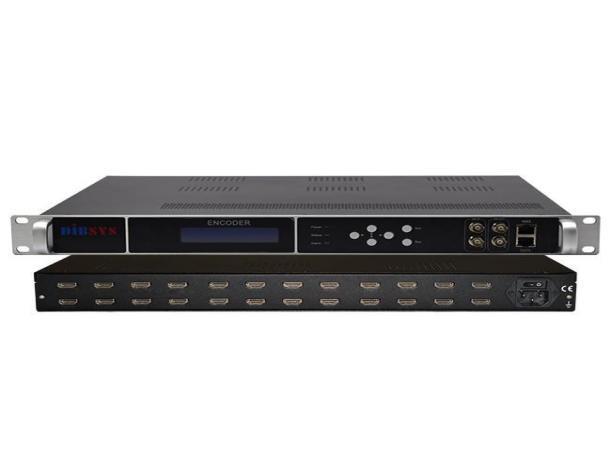

Manufactory Wholesale 24 HD Encoder for CATV & IPTV
Projects with H.264 Encoding & Multi-Modulation
(DVB-T/ISDB-T/ATSC)
Struggling to distribute HD content efficiently across multiple devices? The 24 HD Encoder integrates H.264 encoding and multi-modulation (DVB-T/ISDB-T/ATSC) to deliver seamless video/audio signals over existing coax cables. With support for up to 24 HD channels, PSI/SI editing, and OSD/Logo/QR code insertion, this device is ideal for TV channels, hotels, campuses, and government applications. Certified for CATV, IPTV, and OTT projects, it ensures high compatibility and performance.
• H.264 Encoding | • Multi-Modulation (DVB-T/ISDB-T/ATSC) | • 24 HD Channels | •
PSI/SI Editing | • OSD/Logo/QR Code Insertion
Overview Q3 H.264 encoder modulator up to 24 HD sources from Satellite Receiver, PC, Blue ray, Local Playout, the latest new device which integrate encoding (MPEG-4 AVC/H.264) and option modulation (DVB-C/ DVB-T/ISDB-T/ATSC/DTMB) to convert Video/Audio signals into RF over exist Coax Cable...
Q320 This platform, with H.264 video encoding mode by default, supports MPTS/SPTS/ASI independent multiplexing output and IP out channel switch. 20 Channels H.264 HD Encoder, With PSI/SI technology to modify the audio and video PID information of the output program, Q320 also supports to insert a NIT information table into the WEB to achieve better compatibility with the backend device.
Q320 supports to edit program number and name of the output video stream, and the logical channel number setting is also added to the encoder.
Key Features
Distribute Up to 20 channels of HD content over RF
Contact:Tomleequan Email：
(DVB-T/DVB-C/DTMB/ISDB-T/ATSC) to an unlimited number of TVs
Optional DVB-C (QAM), DVB-T (COFDM), ATSC-T, ISDB-T, DTMB Modulation (can selectable in WEB management) 4*Carrier RF Out, (8*Carrier RF Out optional)
In modulation Mode, support 128*IP input
Two separate ASI input for External TS Multiplexing
Simulaneously MPTS and SPTS over UDP/RTP IP out
Audio encoding: MPEG-1 Layer 2, Optional: AAC-LC, AAC-HE v1, AAC-HE v2
Audio gain adjustment supported
4 separate multiplexing and Up-converter modulating adjacent carrier out
Selectable the Value of PCR PID same as Video PID CBR mode supported
Selectable LOGO,QR code,OSD insertion for every, All or Each module of local channel
Support TTL editing
LCN (Logical Channel Number) support
PSI/SI editing & inserting PID Remapping & Filtering
Support PCR correct and PCR interval adjusting Easy-to-Use System Management via Web
About Us
FMUSER is a company specializing in broadcasting and television transmission systems and integrating hotel IPTV systems. The company was established in 2009 and has served over 180 countries worldwide. More than 20,000 television stations, radio stations, and hotel clients from different.
