Manufactory Wholesale 16 In 1 Fixed CATV Modulator with SAW Filtering for Superior
C/N and 47-860MHz Frequency
Range
Need a reliable and scalable solution for CATV signal distribution? The 16 In 1 Fixed CATV Modulator combines 16 microprocessor-controlled mini-modulators in a compact 4RU rack-mounted chassis, offering superior in-band C/N with SAW filtering and precise voltage regulation via a switching power supply. Ideal for hotels, hospitals, and broadcast systems, it delivers a frequency range of 47-860MHz, output levels up to 113dBµV, and factory-set channels for seamless integration.
• 16-channel fixed mini-modulators | • SAW filtering for superior C/N | • 47-860MHz frequency range | • Front panel access for easy setup | • Ideal for hotels, hospitals, and broadcast systems

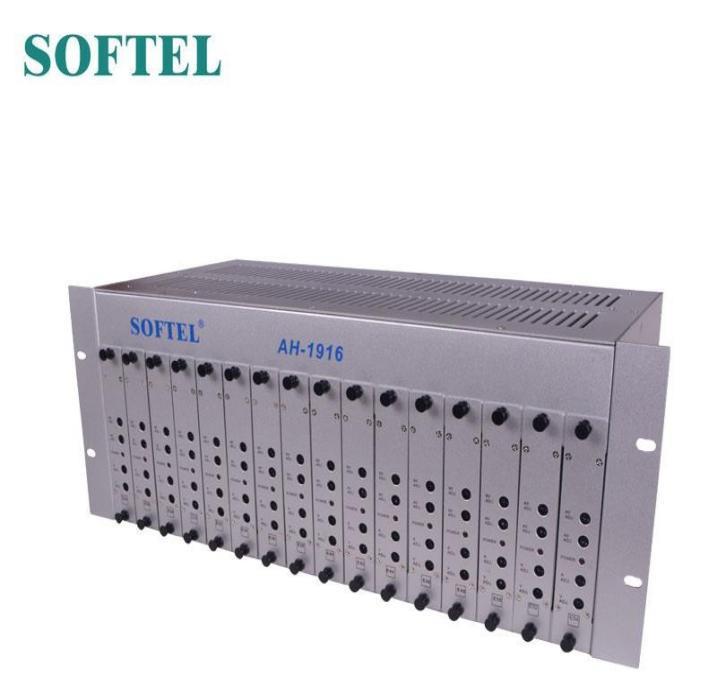

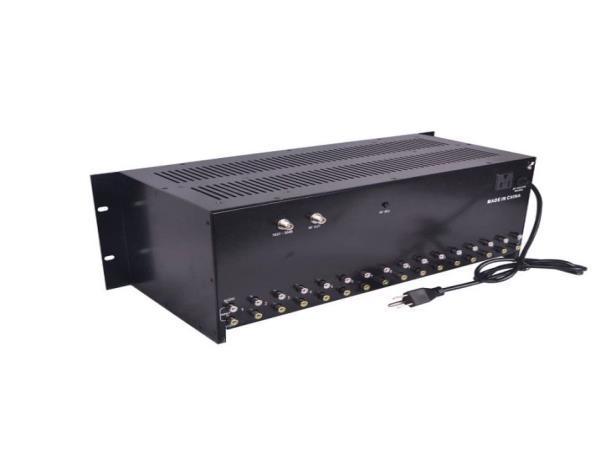

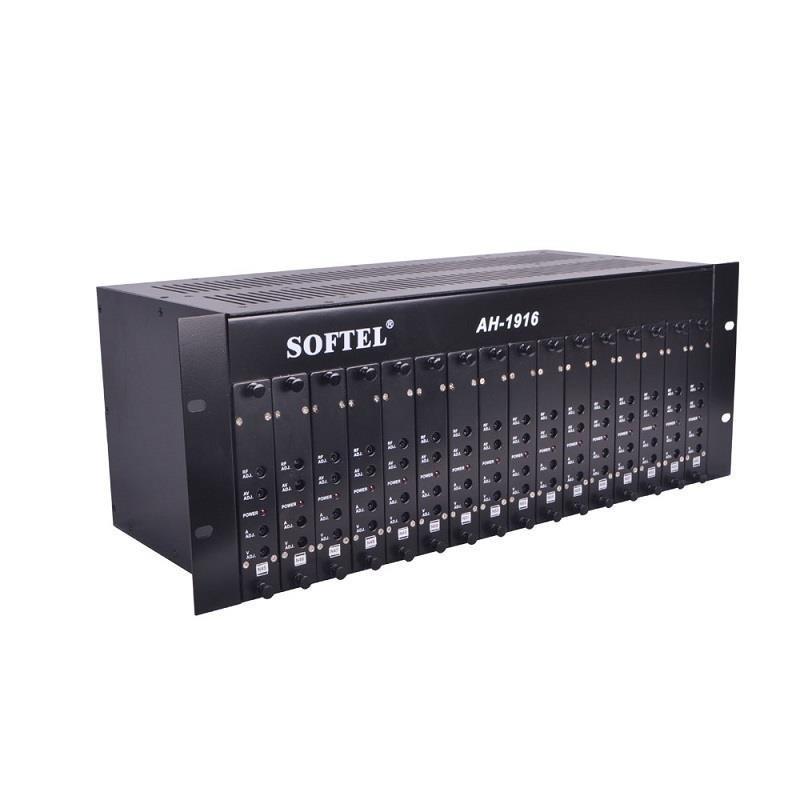

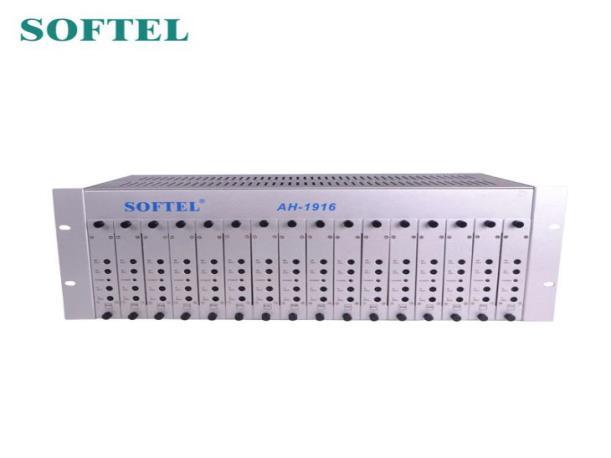

AH1916M is a 4RU rack mounted chassis that allows for installation of up to 16 pieces microprocessor-controlled fixed mini-modulators.
AH1916M is a 4RU rack mounted chassis that allows for installation of up to 16 pieces microprocessor-controlled fixed mini-modulators. All modulators of this 16 in 1 fixed CATV modulator are perfect factory set to desired channel and proper offset.
Main Features
1.Switching power supply for installation flexibility and precise voltage regulation
2.SAW(surface acoustic wave) filtering on IF for superior in band C/N
3.Front panel access controls enables easy setup
Specifications Frequency range
(Yellow)
(White) C/N in-band
C/N out-band
16 in 1 Fixed CATV Modulator
F-Female
DC 5V for mini modulator
AC 240V input chassis
Output Frequency 47-860MHz
Output Level 113dBµV(Adj.)
A/V Ratio -11 to -18dB(Adj.)
Frequency Stability ±5KHz
Video 75ΩF-female
Input Level
0.6-1.5Vp-p(87.5% Modulation)
Video C/N 50dB
Hum/Noise -50dB
Modulation Range 0~90%
Audio 75ΩF-female
Input Level 1Vp-p(25KHz Dev.)
Distortion
WARNING
For the protection of your equipment and its proper working, it is necessary to connect this 16 in 1 fixed CATV modulator to a ground connection.
